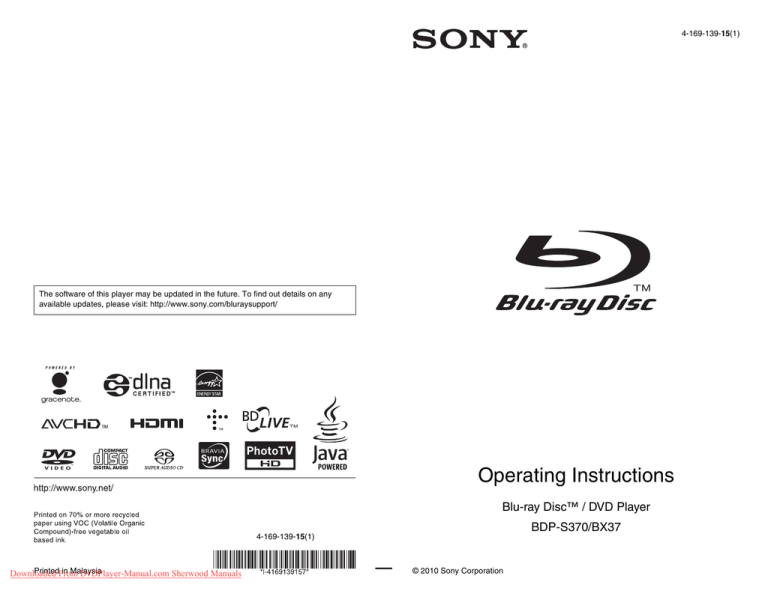

The software of this player may be updated in the future. To find out details on any available updates, please visit: http://www.sony.com/bluraysupport/

4-169-139-15(1)

Operating Instructions

Blu-ray Disc™ / DVD Player

BDP-S370/BX37

© 2010 Sony Corporation

4-169-139-15(1)

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

The AC power cord must be changed only at a qualified service shop.

Batteries or batteries installed apparatus shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this Blu-ray Disc/DVD player is harmful to eyes, do not attempt to disassemble the cabinet.

Refer servicing to qualified personnel only.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Precautions

• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

• Install this unit so that the AC power cord can be unplugged from the wall socket immediately in the event of trouble.

FCC WARNING

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

The shielded Interface cable

(LAN cable) must be used with the equipment in order to comply with the limits for a digital device pursuant to

Subpart B of Part 15 of FCC

Rules.

This label is located on the laser protective housing inside the enclosure.

b

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

This symbol is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

2

Owner’s Record

The model and serial numbers are located at the rear of the unit.

Record the serial number in the space provided below. Refer to them whenever you call upon your

Sony dealer regarding this product.

Model No.______________

Serial No.______________

For customers in the USA

If this product is not working properly, please call 1-866-909-

7669.

For Customers in Canada

If this product is not working properly, please contact our

Customer Information

Service Center at 1-877-899-

7669 or write to us at: Customer

Information Service 115 Gordon

Baker Road, Toronto, Ontario,

M2H 3R6

Notes About the Discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

Dust, fingerprints, or scratches on the disc may cause it to malfunction.

• Do not use the following discs.

– A lens cleaning disc.

– A disc that has a nonstandard shape (e.g., card, heart).

– A disc with a label or sticker on it.

– A disc that has cellophane tape or sticker adhesive on it.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

• Clean the disc with a cleaning cloth. Wipe the disc from the center out.

• Do not resurface the playing side of a disc to remove surface scratches.

• Do not use solvents such as benzine, thinner, commercially available disc/ lens cleaners, or anti-static spray intended for vinyl LPs.

• If you have printed the disc’s label, dry the label before playing.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

3

Precautions

The power requirements and power consumption of this player are indicated on the back of the player. Check that the player’s operating voltage is identical with your local power supply.

Power requirements and power consumption

m

On placement

• Place the player in a location with adequate ventilation to prevent heat build-up in the player.

• Do not place the player on a soft surface such as a rug that might block the ventilation holes.

• Do not install this player in a confined space, such as a bookshelf or similar unit.

• Do not place the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.

• Do not place the player outdoors, in vehicles, on ships, or on other vessels.

• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player.

Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.

• Do not install the player in an inclined position. It is designed to be operated in a horizontal position only.

• Do not place heavy or unstable objects on the player.

• Do not place any objects other than discs on the disc tray.

Doing so may cause damage to

• Take out any discs when you move the player. If you don’t, the disc may be damaged.

• Disconnect the AC power cord and all other cables from the player when you move the player.

On power sources

• The player is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the player itself has been turned off.

• Disconnect the player from the wall outlet if you are not going to use the player for a long time. To disconnect the AC power cord, grasp the plug itself; never pull the cord.

• Observe following points to prevent the AC power cord being damaged. Do not use the

AC power cord if it is damaged, as doing so may result in an electric shock or fire.

– Do not pinch the AC power cord between the player and wall, shelf, etc.

– Do not put anything heavy on the AC power cord or pull on the AC power cord itself.

For the model supplied with the AC plug adaptor

If the AC plug of your unit does not fit into the wall outlet, attach the supplied AC plug adaptor.

the player or the object.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

4

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, your ears and the speakers may be damaged when a peak level section is played.

On cleaning

Clean the cabinet, panel, and controls with a soft cloth. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

On cleaning discs, disc/ lens cleaners

Do not use cleaning discs or disc/lens cleaners (including wet or spray types). These may cause the apparatus to malfunction.

On replacement of parts

In the events that this player is repaired, repaired parts may be collected for reuse or recycling purposes.

On connecting to the HDMI

OUT jack

Observe the following as improper handling may damage the HDMI OUT jack and the connector.

• Carefully align the HDMI

OUT jack on the rear of the player and the HDMI connector by checking their shapes. Make sure the connector is not upside down or tilted.

IMPORTANT NOTICE

Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or onscreen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen.

Plasma display panel televisions and projection televisions are susceptible to this.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

• Be sure to disconnect the

HDMI cable when moving the player.

• Hold the HDMI connector straight when connecting or disconnecting the HDMI cable. Do not twist or force the

HDMI connector into the

HDMI OUT jack.

Important Safety

Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.

A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11)Only use attachments/ accessories specified by the manufacturer.

12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13)Unplug this apparatus during lightning storms or when unused for long periods of time.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

,continued

5

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

6

Table of Contents

WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Guide to Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Hookups and Settings

Step 1: Preparing the Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Step 2: Connecting the Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Step 3: Easy Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Connecting to the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Playback

Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Playing from a USB Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Playing via a Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Available Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Settings and Adjustments

Using the Settings Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Network Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Screen Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

BD/DVD Viewing Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Parental Control Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Music Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Easy Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Resetting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Additional Information

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

7

Guide to Parts and Controls

Front panel

z

The N button has a tactile dot. Use the tactile dot as a reference when operating the player.

A Disc tray

B Power indicator

Lights up in white when the player is turned on.

C Remote sensor

D Front panel display

N, X: Lights up during playback or pause.

: Lights up when enabling the repeat setting.

: Lights up when outputting 720p/

1080i/1080p video signals.

E

(USB) jack

Connect a USB device to this jack.

F x (stop)

G N (play)

H Z (open/close)

I [/1 (on/standby)

Turns on the player, or sets to standby mode.

To lock the disc tray (Child Lock)

You can lock the disc tray to prevent it being opened by mistake.

When the player is turned on, hold down N on the player for more than 10 seconds. The disc tray is locked or unlocked.

Rear panel

A LINE OUT (R-AUDIO-L) jacks

B LINE OUT (VIDEO) jack

C DIGITAL OUT (COAXIAL) jack

D DIGITAL OUT (OPTICAL) jack

E Ventilation holes

F

(USB) jack

G HDMI OUT jack

H COMPONENT VIDEO OUT

(Y, P

B

, P

R

) jacks

I LAN (100) terminal

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

8

Remote

The available functions of the remote differ depending on the disc or the situation.

A Z OPEN/CLOSE

Opens or closes the disc tray.

-TV- INPUT

Switches between TV and other input sources.

-TV- [/1 (on/standby)

Turns on the TV, or sets to standby mode.

[/1 (on/standby)

Turns on the player, or sets to standby mode.

B Number buttons (0 - 9)

Enters the title/chapter numbers, etc.

VOL +/–

Adjusts the TV volume.

THEATER (page 33)

Switches to the optimum video mode for watching movies automatically.

The THEATER button functions only when connected to a Sony Theater

Mode-compatible AV amplifier

(receiver) or Sony Theater Modecompatible TV.

AUDIO (page 24)

Selects the language track when multilingual tracks are recorded on BD-

ROMs/DVD VIDEOs.

Selects the sound track on CDs.

SUBTITLE (page 24)

Selects the subtitle language when multilingual subtitles are recorded on BD-

ROMs/DVD VIDEOs.

z

Number 5, AUDIO, VOL +, and N PLAY buttons have a tactile dot. Use the tactile dot as a reference when operating the player.

The player automatically returns to standby mode

If any button on the player or remote is not pressed for more than 30 minutes, the player automatically returns to standby mode.

FAVORITES (page 19)

Displays the Internet content added to the

Favorites List. You can save up to 18 of your favorite Internet content programs.

C Color buttons (YELLOW/BLUE/

RED/GREEN)

Short cut keys for interactive functions.

D TOP MENU

Opens or closes the BD’s or DVD’s Top

Menu.

POP UP/MENU

Opens or closes the BD-ROM’s Pop-up

Menu, or the DVD’s menu.

OPTIONS (page 18)

The options menu that can be selected appears on the screen.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

,continued

9

HOME

Enters the player’s home menu.

Displays the wall paper when pressed on the category icon of the home menu.

RETURN

Returns to the previous display.

</M/m/,

Moves the highlight to select a displayed item.

Center button (ENTER)

Enters the selected item.

E . PREV/NEXT >

Skips to the previous/next chapter, track, or file.

REPLAY/ADVANCE

Briefly replays the current scenes for

10 seconds/briefly fast forwards the current scenes for 15 seconds.

m/M (fast reverse/fast

forward)

• Fast reverses/fast forwards the disc when pressed during playback. Each time you press the button during playback of videos, the search speed changes.

• Plays in slow motion, when pressed for more than one second in pause mode.

• Plays one frame at a time, when pressed briefly in pause mode.

N PLAY

Starts or re-starts playback.

DISPLAY (page 17)

Displays the playback information on the screen.

X PAUSE

Pauses or re-starts playback.

x STOP

Stops playback and remembers the stop point (resume point).

The resume point for a title/track is the last point you played or the last photo for a photo folder.

F LIGHT (BDP-BX37 for Canada

models only)

Lights up the 4 and 5 buttons (except

</M/m/, and ENTER) and is useful for operation in the dark.

Home menu display

The home menu appears when you press

HOME. Select a category using

</,.

Select an item using

M/m, and press ENTER.

Item Category

(Setup): Adjusts the player settings.

(Photo): Displays photos.

(Music): Plays music.

(Video): Plays videos.

(Network): Displays network items.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

10

Hookups and

Settings

Step 1: Preparing the

Player

Checking the supplied accessories

Check that you have the following items:

• Audio/video cable (phono plug ×3) (1)

• HDMI cable (1) (BDP-BX37 for U.S. models only)

• Remote commander (remote) (1)

• Size AA (R6) batteries (2)

Preparing the remote

Insert two Size AA (R6) batteries by matching the 3 and # ends on the batteries to the markings inside the battery compartment.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

11

Step 2: Connecting the Player

Do not connect the AC power cord until you have made all the connections.

Connecting to your TV

Select one of the following connection methods according to the input jacks on your TV.

Match the color of the plug to that of the jack when connecting.

HDMI cable*

Audio/video cable (supplied)

High quality

Component video cable

(not supplied)

Audio/video cable (supplied)

Standard quality

* See “Checking the supplied accessories” (page 11).

b

Do not connect the player through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the television.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

12

Connecting to your AV amplifier (receiver)

Select one of the following connection methods according to the input jacks on your AV amplifier (receiver). When you select A or B, make the appropriate settings in the “Audio

Settings” setup (page 23).

HDMI cable

*1

HDMI cable

(not supplied)

t Set “BD Audio MIX Setting” (page 23).

Coaxial digital cable (not supplied) or

Optical digital cable (not supplied) t Set “Dolby Digital (Coaxial / Optical)

*2

and “DTS (Coaxial / Optical)

*3

” (page 23)

” (page 23).

Audio/video cable (supplied)

*1

See “Checking the supplied accessories”

(page 11).

*2

*3

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

13

Step 3: Easy Setup

When turned on for the first time

Wait for a short while before the player turns on and starts “Easy Setup.”

1

Plug the player into the AC outlet.

Connecting to the

Network

Wired Setup

Use a LAN cable to connect to the LAN (100) terminal on the player.

to AC outlet

2

Press [/1 to turn on the player.

LAN cable

(not supplied)

Broadband router

ADSL modem/

Cable modem

Internet

3

Turn on the TV, then switch the input selector on your TV so that the signal from the player appears on your TV screen.

To set the network settings

Select “Network Settings,” “Internet

Settings,” then “Wired Setup” (page 26), and

follow the on-screen instructions to complete the setup.

USB Wireless Setup

Turn off the player, then connect the USB

Wireless LAN Adapter (UWA-BR100 only available as of January 2010) to the USB jack on the front or rear of the player.

b

The USB Wireless LAN Adapter may not be available in some regions/countries.

USB Wireless

LAN Adapter

4

Perform “Easy Setup.”

Follow the on-screen instructions to make the basic settings using

</M/m/

, and ENTER on the remote.

LAN cable

(not supplied)

Wireless LAN router

ADSL modem/

Cable modem

Internet

</M/m/,

ENTER

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

14

To set the network settings

Select “Network Settings,” “Internet

Settings,” then “USB Wireless Setup”

(page 26), and follow the on-screen

instructions to complete the setup.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

15

Playing a Disc

For playable discs, see “Playable discs”

(page 31).

1

Switch the input selector on your TV so that the signal from the player appears on your TV screen.

2

Press Z OPEN/CLOSE, and place a

disc on the disc tray.

Playback

Playing side facing down

3

Press Z OPEN/CLOSE to close the

disc tray.

appears on the home menu and playback starts.

If playback does not start automatically, select in the (Video), (Music), or (Photo) category, and press

ENTER.

Enjoying BONUSVIEW/BD-LIVE

Some BD-ROMs with the “BD-LIVE” logo* have bonus content and other data that can be downloaded for enjoyment.

*

1

Connect a USB memory to the USB

jack on the rear of the player (page 8).

As your local storage, use a 1 GB or larger USB memory.

2

Prepare for BONUSVIEW/BD-LIVE.

• Connect the player to a network

(page 14).

• Set “BD Internet Connection” to

“Allow” (page 24).

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

16

3

Insert a BD-ROM with BONUSVIEW/

BD-LIVE.

The operation method differs depending on the disc. Refer to the instruction manual supplied with the disc.

Playing from a USB

Device

z

To delete data in the USB memory, select “Erase

BD Data” in the (Video), and press ENTER.

All data stored in the buda/budb folder will be erased.

You can play video/music/photo files on the connected USB device.

For playable USB devices, see “Playable types of files” (page 32).

1

Connect the USB device to the USB jack on the player.

Refer to the instruction manual supplied with the USB device before connecting.

Displaying the play information

You can check the playback information, etc., by pressing DISPLAY.

The displayed information differs depending on the disc type and player status.

Example: when playing a BD-ROM

USB device

2

Select (Video), (Music),

(Photo) on the home menu using

</,.

3

Select (USB and press ENTER.

A The currently selected angle

B Title number or name

C The currently selected audio setting

D Available functions ( audio, subtitle) angle,

E Playback information

Displays the Play mode, Playing status bar, Disc type, Video codec, Bitrate, and Repeat type.

F Chapter number

G Output resolution/Video frequency

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

17

Playing via a Network

Streaming BRAVIA Internet

Video

Serves as a gateway delivering the selected

Internet content and a variety of on-demand entertainment straight to your player.

1

Prepare for BRAVIA Internet Video.

Connect the player to a network

(page 14).

2

Select (Video), (Music),

(Photo) on the home menu using

</,.

3

Select an Internet content provider

icon using M/m, and press ENTER.

When an Internet content list has not been acquired, an unacquired icon or a new icon is displayed.

Playing files on a DLNA server

Plays video/music/photo files on your home server, such as a DLNA certified PC by connecting the player to the home network.

1

Prepare for playing files on a DLNA server.

• Connect the player to a network

(page 14).

• Set “Connection Server Settings”

(page 26).

2

Select (Video), (Music),

(Photo) on the home menu using

</,.

3

Select a DLNA server using M/m, and

press ENTER.

The file list or folder list appears.

Available Options

To use the control panel

The control panel appears when the video file starts playing. The displayed items may differ depending on Internet content providers.

To display again, press DISPLAY.

A Control display

Press </M/m/, or ENTER for playback operations.

B Playing status bar

Status bar, Cursor indicating the current position, Playing time,

Duration of the video file

C The next video file name

D The currently selected video file name and rating

Various settings and playback operations are available by pressing OPTIONS. The available items differ depending on the situation.

Common options

Items Details

Playback

History List

Displays a title in playback history of BD-ROM/DVD-

ROM/CD-DA based on

Gracenote technology.

Repeat

Setting

Favorites

List

Sets the repeat mode.

Displays the Favorites List.

Play/Stop

Play from beginning

Information

Display

Search

History

Starts or stops the playback.

Plays the item from the beginning.

Displays information on the

BD-ROM/DVD-ROM/CD-

DA based on Gracenote technology.

Searches for related information based on keywords acquired from

Gracenote on the “Information

Display.”

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

18

Items

Search

Contents

Add to

Favorites

Remove from

Favorites

Details

Searches for BRAVIA

Internet Video content based on keywords acquired from

Gracenote on the “Information

Display.”

Adds Internet content to the

Favorites List.

Removes Internet content from the Favorites List.

(Video) only

Items

AV SYNC

Video

Settings

Details

Adjusts the gap between picture and sound, by delaying the sound output in relation to the picture output (0 to 120 milliseconds).

• Picture Quality Mode:

Selects the picture settings for different lighting environments.

• FNR: Reduces the random noise appearing in the picture.

• BNR: Reduces the mosaiclike block noise in the picture.

• MNR: Reduces minor noise around the picture outlines

(mosquito noise).

Play/Pause Starts or pauses the playback.

Top Menu Displays the BD’s or DVD’s

Top Menu.

Menu/Popup

Menu

Displays the BD-ROM’s Popup Menu or DVD’s menu.

Title Search Searches for a title on BD-

ROMs/DVD VIDEOs and starts playback from the beginning.

Chapter

Search

Searches for a chapter and starts playback from the beginning.

Angle Switches to other viewing angles when multi-angles are recorded on BD-ROMs/DVD

VIDEOs.

(Music) only

Items

Add

Slideshow

BGM

Details

Registers music files in the

USB memory as slideshow

BGM.

(Photo) only

Items

Slideshow

Speed

Details

Changes the slideshow speed.

Slideshow

Effect

Slideshow

BGM

Sets the effect for slideshows.

• Off: Turns off the function.

• My Music from USB: Sets the music files registered in

“Add Slideshow BGM.” If no music file is registered,

“(Not registered)” is displayed.

• Play from disc: Sets the tracks in CD-DAs.

Slideshow Plays a slideshow.

Rotate Left

Rotates the photo counterclockwise by 90 degrees.

Rotate Right Rotates the photo clockwise by 90 degrees.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

19

Settings and

Adjustments

Using the Settings

Displays

Select (Setup) on the home menu when you need to change the settings of the player.

The default settings are underlined.

1

Select (Setup) on the home menu

using </,.

2

Select the setup category icon using

M/m, and press ENTER.

Icon Explanation

Network Update (page 21)

Updates the software of the player.

Screen Settings (page 21)

Makes the video settings according to the type of connecting jacks.

Audio Settings (page 23)

Makes the audio settings according to the type of connecting jacks.

BD/DVD Viewing Settings

(page 24)

Makes detailed settings for BD/

DVD playback.

Parental Control Settings

(page 24)

Makes detailed settings for the

Parental Control function.

Music Settings (page 25)

Makes detailed settings for

Super Audio CD playback.

System Settings (page 25)

Makes the player-related settings.

Network Settings (page 26)

Makes detailed settings for the

Internet and network.

Easy Setup (page 26)

Re-runs the Easy Setup to make the basic settings.

Resetting (page 26)

Resets the player to the factory settings.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

20

Network Update

Select “OK” to update the player’s software via the network.

z

• We recommend the network update every 2 months or so.

• For information about update functions, visit the following website: http://www.sony.com/bluraysupport/

Screen Settings

TV Type

16:9

4:3

Select this when connecting to a wide-screen TV or a TV with a wide mode function.

Select this when connecting to a 4:3 screen TV without a wide mode function.

Screen Format

Original

Fixed Aspect

Ratio

Select this when connecting to a TV with a wide mode function. Displays a 4:3 screen picture in 16:9 aspect ratio even on a wide-screen

TV.

Changes the picture size to fit the screen size with the original picture aspect ratio.

DVD Aspect Ratio

Letter Box

Displays a wide picture with black bands on the top and bottom.

Pan & Scan Displays a full-height picture on the entire screen, with trimmed sides.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

,continued

21

Cinema Conversion Mode

Auto

Video

Normally select this. The player automatically detects whether the material is video-based or film-based, and switches to the appropriate conversion method.

The conversion method suited for video-based material will always be selected regardless of the material.

Output Video Format

HDMI Normally select “Auto.”

Select “Original Resolution” to output the resolution recorded on the disc. When the resolution is lower than the SD resolution, it is scaled up to the SD resolution.

Component

Video

Video

Select the resolution that suits your TV.

Automatically sets the lowest resolution.

z

• When connecting the HDMI OUT jack and other video output jacks at the same time, select

“Component Video.”

• If no picture appears when setting “HDMI” or

“Component Video” resolution, try another resolution setting.

BD/DVD-ROM 1080/24p Output

Auto

Outputs 1920 × 1080p/

24 Hz video signals only when connecting a 1080/

24p-compatible TV using the HDMI OUT jack.

Off Select this when your TV is not compatible with 1080/

24p video signals.

YCbCr/RGB (HDMI)

Auto Automatically detects the connected TV type, and switches to the matching color setting.

YCbCr (4:2:2)

Outputs YCbCr 4:2:2 video signals.

YCbCr (4:4:4) Outputs YCbCr 4:4:4 video signals.

RGB Outputs RGB video signals.

HDMI Deep Color Output

Auto

12bit

10bit

Off

Normally select this.

Outputs 12bit/10bit video signals when the connected

TV is compatible with Deep

Color.

Select this when the picture is unstable or colors appear unnatural.

Pause Mode

Auto

Frame

Normally select this.

Dynamic moving pictures appear without blurring.

Displays static pictures at high resolution.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

22

Audio Settings

Audio (HDMI)

Auto

PCM

Normally select this.

Outputs audio signals according to the status of the connected HDMI device.

Outputs PCM signals from the HDMI OUT jack.

DSD Output Mode

On

Off

Outputs DSD signals from the HDMI OUT jack when playing a Super Audio CD.

When “On” is selected, no signal is output from other jacks.

Outputs PCM signals from the HDMI OUT jack when playing a Super Audio CD.

BD Audio MIX Setting

On

Outputs the audio obtained by mixing the interactive and secondary audio to the primary audio.

Off

Outputs the primary audio only. Select this to output

HD audio signals to an AV amplifier (receiver).

Dolby Digital (Coaxial / Optical)

Downmix

PCM

Converts to output Linear

PCM signals. Select this when connecting an audio device without a built-in

Dolby Digital decoder.

Dolby Digital Select this when connecting an audio device with a builtin Dolby Digital decoder.

DTS (Coaxial / Optical)

Downmix

PCM

Converts to output Linear

PCM signals. Select this when connecting to an audio device without a built-in

DTS decoder.

DTS Select this when connecting to an audio device with a built-in DTS decoder.

DTS Neo:6

Cinema

Music

Off

Performs “DTS Neo:6

Cinema” mode decoding. A source recorded in 2-channel format is decoded into 7 channels.

Performs “DTS Neo:6

Music” mode decoding. A source recorded in 2-channel format is decoded into 7 channels. This setting is ideal for normal stereo sources such as CDs.

Turns off “DTS Neo:6” decoding.

Audio DRC

Auto

Standard

Performs playback at the dynamic range specified by the disc (BD-ROM only).

Other discs are played back at the “Standard” level.

Performs playback at a standard compression level.

Wide Range

No compression works. A more dynamic sound is produced.

Downmix

Surround

Stereo

Outputs audio signals with surround effects. Select this when connecting an audio device that supports Dolby

Surround (Pro Logic) or

DTS Neo 6.

Outputs audio signals without surround effects.

Select this when connecting an audio device that does not support Dolby Surround

(Pro Logic) or DTS Neo 6.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

23

BD/DVD Viewing

Settings

BD/DVD Menu

Selects the default menu language for BD-

ROMs or DVD VIDEOs.

When you select “Select Language Code,” the display for entering the language code appears. Enter the code for your language by

referring to “Language code list” (page 37).

Audio

Selects the default track language for BD-

ROMs or DVD VIDEOs.

When you select “Original,” the language given priority in the disc is selected.

When you select “Select Language Code,” the display for entering the language code appears. Enter the code for your language by

referring to “Language code list” (page 37).

Subtitle

Selects the default subtitle language for BD-

ROMs or DVD VIDEOs.

When you select “Select Language Code,” the display for entering the language code appears. Enter the code for your language by

referring to “Language code list” (page 37).

BD Hybrid Disc Playback Layer

BD

DVD/CD

Plays BD layer.

Plays DVD or CD layer.

BD Internet Connection

Allow Normally select this.

Do not allow Prohibits Internet connection.

Parental Control

Settings

Password

Sets or changes the password for the Parental

Control function. A password allows you to set a restriction on BD-ROM or DVD

VIDEO, and Internet video playback. If necessary, you can differentiate the restriction levels for BD-ROMs, DVD

VIDEOs, and Internet videos.

Parental Control Area Code

Playback of some BD-ROMs, DVD

VIDEOs, or Internet videos can be limited according to the geographic area. Scenes may be blocked or replaced with different scenes.

Follow the on-screen instructions and enter your four-digit password.

BD Parental Control

Playback of some BD-ROMs can be limited according to the age of the users. Scenes may be blocked or replaced with different scenes.

Follow the on-screen instructions and enter your four-digit password.

DVD Parental Control

Playback of some DVD VIDEOs can be limited according to the age of the users.

Scenes may be blocked or replaced with different scenes. Follow the on-screen instructions and enter your four-digit password.

Internet Video Parental Control

Playback of some Internet videos can be limited according to the age of the users.

Scenes may be blocked or replaced with different scenes. Follow the on-screen instructions and enter your four-digit password.

Internet Video Unrated

Allow

Allows the playback of unrated Internet videos.

Block

Blocks the playback of unrated Internet videos.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

24

Music Settings

Super Audio CD Playback Layer

Super Audio

CD

CD

Plays the Super Audio CD layer.

Plays the CD layer.

Super Audio CD Playback Channel

DSD 2ch

Plays the 2ch area.

DSD Multi Plays the multi-channel area.

System Settings

OSD

Selects your language for the player onscreen displays.

Dimmer

Bright

Dark

Off

Bright lighting.

Low lighting.

Turns off the lighting during playback. Low lighting other than during playback.

Control for HDMI

On

Off

Allows you to use the

“Control for HDMI”

function (page 33).

Turns off the function.

Quick Start Mode

On Shortens the startup time when turning on the player.

Off

Reduces standby power consumption.

Auto Display

On

Off

Automatically displays information on the screen when changing the viewing titles, picture modes, audio signals, etc.

Displays information only when you press DISPLAY.

Screen Saver

On

Off

Turns on the screen saver function. The screen saver image appears when you do not use the player for more than 10 minutes while an onscreen display is displayed.

Turns off the function.

Software Update Notification

On

Off

Sets the player to inform you of newer software version

information (page 21).

Turns off the function.

Gracenote Settings

Auto

Manual

Automatically downloads disc information when disc playback stops. Connect to the network for downloading.

Downloads the disc information when “Playback

History List” or

“Information Display” is selected in the options menu.

DivX(R) VOD (Canada models only)

For details, visit the following website: vod.divx.com

System Information

Displays the player’s software version information and the MAC address.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

25

Network Settings

Internet Settings

Connect the player to the network

beforehand. For details, see “Connecting to the Network” (page 14).

View Network

Status

Wired Setup

Displays the current network status.

Select this when you connect to a broadband router directly.

USB Wireless

Setup

Select this when you use a

USB Wireless LAN

Adapter.

For further details, visit the following website and check the FAQ contents: http://www.sony.com/ bluraysupport/

Network Connection Diagnostics

You can run the network diagnostic to check if the network connection has been made properly.

Connection Server Settings

Sets whether or not to display the connected server.

BD Remote Device Registration

Registers your “BD Remote” device.

Registered BD Remote Devices

Displays a list of the registered your “BD

Remote” devices.

Easy Setup

Re-runs the “Easy Setup” to make the basic settings. Follow the on-screen instructions.

Resetting

Reset to Factory Default Settings

You can reset the player settings to the factory default by selecting the group of settings. All the settings within the group will be reset.

Initialize Personal Information

You can erase your personal information stored in the player.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

26

Additional

Information

Troubleshooting

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest

Sony dealer.


There is no picture or the picture is not output correctly.

, Check that all the connecting cables are

securely connected (page 12).

, Switch the input selector on your TV to display the signal from the player.

, Reset the video output resolution to the lowest resolution by pressing x on the player for more than 10 seconds.

, For HDMI connections, try the following:

1

Turn the player off and on again. 2Turn the connected equipment off and on again.

3

Disconnect and then reconnect the HDMI cable.

, The HDMI OUT jack is connected to a DVI device that does not support copyright protection technology.

, For HDMI connections, check the “Output

Video Format” settings in the “Screen

Settings” setup (page 22).

, When the analog signals are also output, set

“BD/DVD-ROM 1080/24p Output” to

“Off” in the “Screen Settings” setup

(page 22).

, For BD-ROMs, check the “BD/DVD-ROM

1080/24p Output” setting in the “Screen

Settings” setup (page 22).

The display language on the screen switches automatically when connected to the HDMI OUT jack.

, When “Control for HDMI” is set to “On”

(page 25), the display language on the

screen automatically switches according to the language setting of the connected TV (if you change the setting on your TV, etc.).

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

,continued

27

Sound

There is no sound or the sound is not output correctly.

, Check that all the connecting cables are

securely connected (page 12).

, Switch the input selector on your AV amplifier (receiver) so that the audio signals of the player are output from your AV amplifier (receiver).

, If the audio signal does not come through the DIGITAL OUT (OPTICAL/

COAXIAL)/HDMI OUT jack, check the

audio settings (page 23).

, For HDMI connections, try the following:

1

Turn the player off and on again. 2Turn the connected equipment off and on again.

3

Disconnect and then reconnect the HDMI cable.

, For HDMI connections, if the player is connected to a TV through an AV amplifier

(receiver), try connecting the HDMI cable directly to the TV. Refer also to the instruction manual supplied with the AV amplifier (receiver).

, The HDMI OUT jack is connected to a DVI device (DVI jacks do not accept audio signals).

, The device connected to the HDMI OUT jack does not support the audio format of the player. Check the audio settings

(page 23).

Disc

The disc does not play.

, The disc is dirty or skewed.

, The disc is upside down. Insert the disc with the playback side facing down.

, The disc has a format that cannot be played

back by this player (page 31).

, The player cannot play a recorded disc that is not correctly finalized.

, The region code on the BD or DVD does not match the player.

USB device

The player does not detect a USB device connected to the player.

, Make sure that the USB device is securely connected to the USB jack.

, Check if the USB device or a cable is damaged.

, Check if the USB device is on.

, If the USB device is connected via a USB hub, connect the USB device directly to the player.

The HD Audio (Dolby Digital Plus, Dolby

TrueHD, DTS-HD High Resolution Audio, and DTS-HD Master Audio) is not output by bitstream.

, Set “BD Audio MIX Setting” to “Off” in

the “Audio Settings” setup (page 23).

, Check that the connected AV amplifier

(receiver) is compatible with each HD

Audio format.

The interactive audio is not output.

, Set “BD Audio MIX Setting” to “On” in the

“Audio Settings” setup (page 23).

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

28

BRAVIA Internet Video

The picture/sound is poor/certain programs display a loss of detail, especially during fast-motion or dark scenes.

, Picture/sound quality may be poor depending on Internet content providers.

, Picture/sound quality may be improved by changing the connection speed. We recommend the connection speed of at least

2.5 Mbps for standard definition video

(10 Mbps for high definition video).

, Not all videos will contain sound.

The picture is small.

, Press M to zoom in.

Network connection

The player cannot connect to the network.

, Check the network connection (page 14)

and the network settings (page 26).

The message “A new software version has been found on the network. Perform update under "Network Update."” appears on the screen when turning the player on.

, See “Network Update” (page 21) to update

the player to a newer software version.

BRAVIA Sync (“Control for

HDMI”)

The “Control for HDMI” function does not work (BRAVIA Sync).

, Check that “Control for HDMI” is set to

“On” (page 25).

, If you change the HDMI connection, turn the player off and on again.

, If power failure occurs, set “Control for

HDMI” to “Off,” then set “Control for

HDMI” to “On” (page 25).

, Check the following and refer to the instruction manual supplied with the component.

– the connected component is compatible with the “Control for HDMI” function.

– the connected component’s setting for the “Control for HDMI” function is correct.

, When you connect the player to a TV through an AV amplifier (receiver),

– if the AV amplifier (receiver) is not compatible with the “Control for HDMI” function, you may be unable to control the TV from the player.

– if you change the HDMI connection, disconnect and reconnect the AC power cord, or a power failure occurs, try the following: 1Switch the input selector of the AV amplifier (receiver) so that the picture from the player appears on the

TV screen. 2Set “Control for HDMI” to

“Off,” then set “Control for HDMI” to

“On” (page 25). Refer to the instruction

manual supplied with the AV amplifier

(receiver).

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

,continued

29

Others

Playback does not start from the beginning of content.

, Press OPTIONS, and select “Play from beginning.”

Playback does not start from the resume point where you last stopped playing.

, The resume point may be cleared from memory depending on the disc when

– you open the disc tray.

– you disconnect the USB device.

– you play other content.

– you turn off the player.

The disc tray does not open and

“LOCKED” or “TLK ON” appears on the front panel display.

, When “LOCKED” appears, the player is locked. To cancel the Child Lock, hold down N on the player until “UNLOCK”

appears on the front panel display (page 8).

, When “TLK ON” appears, contact your

Sony dealer or local authorized Sony service facility.

, When “FAN ERR” appears, try the following: 1Check that the ventilation holes on the rear of the player are not blocked. 2Place the player in a location with adequate ventilation to prevent heat build-up in the player.

The player does not respond to any button.

, Moisture has condensed inside the player

(page 4).

, Hold down [/1 on the player for more than

10 seconds until the indicators on the front panel display turn off.

If the player still does not respond to any button, disconnect then reconnect the AC power cord.

The disc tray does not open and you cannot remove the disc even after you

press Z.

, Try the following: 1Turn the player off, and disconnect the AC power cord.

2

Reconnect the AC power cord while pressing down Z on the player. 3Keep pressing down Z on the player until the tray opens. 4Remove the disc. 5When

“OPEN” appears on the front panel display, hold down [/1 on the player for more than

10 seconds until the player turns off.

“Exxxxx” or “FAN ERR” appears on the front panel display.

, When “Exxxxx” appears, contact your nearest Sony dealer or local authorized

Sony service facility and give the error code.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

30

Specifications

System

Laser: Semiconductor laser

Inputs and outputs

(Jack name:

Jack type/Output level/Load impedance)

LINE OUT R-AUDIO-L:

Phono jack/2 Vrms/10 kilohms

DIGITAL OUT (OPTICAL):

Optical output jack/–18 dBm

(wave length 660 nm)

DIGITAL OUT (COAXIAL):

Phono jack/0.5 Vp-p/75 ohms

HDMI OUT:

HDMI 19-pin standard connector

COMPONENT VIDEO OUT (Y, P

B

, P

R

):

Phono jack/Y: 1.0 Vp-p/

P

B

, P

R

: 0.7 Vp-p/75 ohms

LINE OUT VIDEO:

Phono jack/1.0 Vp-p/75 ohms

LAN (100):

100BASE-TX Terminal

USB:

USB jack Type A (For connecting a USB memory, memory card reader, digital still camera, and digital video camera)

General

Power requirements:

U.S. and Canada models:

120 V AC, 60 Hz

Models for other areas:

110-240 V AC, 50/60 Hz

See page 4 for further information.

Power consumption:

22 W

Dimensions (approx.):

430 mm × 219 mm × 36 mm

(17 in. × 8 5 /

8

in. × 1 7 /

16

in.)

(width/depth/height) incl. projecting parts

Mass (approx.):

2.0 kg (4 lb 6

1

/

2

oz)

Operating temperature:

5 ºC to 35 ºC (41 °F to 95 °F)

Operating humidity:

25 % to 80 %

Supplied accessories

See page 11.

Specifications and design are subject to change without notice.

Playable discs

Blu-ray

Disc

DVD

CD

*3

*1

*3

BD-ROM

BD-R

*2

/BD-RE

*2

DVD-ROM

DVD-R/DVD-RW

DVD+R/DVD+RW

CD-DA (Music CD)

CD-ROM

CD-R/CD-RW

Super Audio CD

*1

Since the Blu-ray Disc specifications are new and evolving, some discs may not be playable depending on the disc type and the version.

The audio output differs depending on the source, connected output jack, and selected

*2 audio settings.

BD-RE: Ver.2.1

BD-R: Ver.1.1, 1.2, 1.3 including organic pigment type BD-R (LTH type)

The BD-Rs recorded on a PC cannot be played if postscripts are recordable.

*3

A CD or DVD disc will not play if it has not been correctly finalized. For more information, refer to the instruction manual supplied with the recording device.

Discs that cannot be played

• BDs with cartridge

• DVD-RAMs

• HD DVDs

• DVD Audio discs

• PHOTO CDs

• Data part of CD-Extras

• VCDs/Super VCDs

• Audio material side on DualDiscs

• A disc recorded in a color system other than

NTSC, such as PAL (this player conforms to the NTSC color system).

Note on Discs

This product is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact

Disc (CD) standard, therefore, these discs may not be playable by this product.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

,continued

31

Note on playback operations of BDs/DVDs

Some playback operations of BDs/DVDs may be intentionally set by software producers. Since this player plays BDs/

DVDs according to the disc contents the software producers designed, some playback features may not be available.

Note about double-layer BDs/DVDs

The playback pictures and sound may be momentarily interrupted when the layers switch.

Region code (BD-ROM/DVD VIDEO only)

Your player has a region code printed on the rear of the unit and will only play BD-ROMs/

DVD-ROMs labeled with identical region codes or

ALL

.

Region code

Playable types of files

Video

File format

MPEG-1 Video/PS

*1*5

MPEG-2 Video/PS,

TS

*1*6

DivX

*2

MPEG-4 AVC

*1*5

Extensions

“.mpg,” “.mpeg,”

“.m2ts,” “.mts”

“.avi,” “.divx”

“.mkv,” “.mp4,”

“.m4v,” “.m2ts,”

“.mts”

WMV9

*1*5

AVCHD

*5

“.wmv,” “.asf”

*3

Music

File format

MP3 (MPEG-1 Audio

Layer III)

AAC

*1*4*5

WMA9 Standard

*1*4*5

LPCM

Extensions

“.mp3”

“.m4a”

“.wma”

“.wav”


File format Extensions

JPEG

“.jpg,” “.jpeg”

*1

The player does not play coded files such as

*2

DRM.

Canada models only

ABOUT DIVX VIDEO: DivX

®

is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This

DivX Certified

®

device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu.

Go to vod.divx.com with this code to complete

*3 the registration process and learn more about

DivX VOD.

The player plays AVCHD format files that are recorded on a digital video camera, etc. The

*4

AVCHD format disc will not play if it has not been correctly finalized.

The player does not play coded files such as

Lossless.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

32

*5

The player does not play this file format on a

DLNA server.

*6

The player can only play standard definition video on a DLNA server.

b

• Some files may not play depending on the file format, file encoding, recording condition, or

DLNA server condition.

• Some files edited on a PC may not play.

• The player can recognize the following files or folders in BDs, DVDs, CDs and USB devices:

– up to folders in the 5th tree

– up to 500 files in a single tree

• The player can recognize the following files or folders stored in the DLNA server:

– up to folders in the 20th tree

– up to 999 files in a single tree

• Some USB devices may not work with this player.

• The player can recognize Mass Storage Class

(MSC) devices (such as flash memory or an

HDD) that are FAT-compatible and nonpartitioned, Still Image Capture Device (SICD) class devices and 101 keyboard (front USB jack only).

• To avoid data corruption or damage to the USB memory or devices, turn the player off when connecting or removing the USB memory or devices.

• The player may not play high bit rate video files on DATA CDs smoothly. You are recommended to play such files using DATA DVDs.

About the BRAVIA Sync features (for HDMI connections only)

By connecting Sony components that are compatible with the “Control for HDMI” function with an HDMI cable (supplied with

BDP-BX37 only), operation is simplified as below:

• One-Touch Play

With one touch of the following buttons, the connected TV turns on and the input selector on the TV is switched to the player automatically.

– [/1

– HOME: The home menu appears

automatically (page 10, 16, 20).

– N PLAY: Playback starts automatically.

• System Power-Off

When you turn off the TV using -TV- [/1 or the power button on the TV’s remote, the player and HDMI-compatible components turn off automatically.

• Theater

When you press THEATER, the player automatically switches to the optimum video mode for watching movies. When connected with a Sony AV amplifier

(receiver) using the HDMI cable, the speaker output also switches automatically.

When connected with a Theater Modecompatible TV using the HDMI cable, the

TV’s video mode switches to Theater

Mode. Press the button again to return to the original setting.

• Language Follow

When you change the language for the onscreen display on your TV, the player’s language for the on-screen display is also changed after turning the player off and on.

To prepare for the BRAVIA Sync features

Set “Control for HDMI” to “On” in the

“System Settings” setup (page 25).

For details on settings of your TV or other connected components, refer to the instruction manual supplied with the TV or components.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

,continued

33

z

• When connecting the Sony TV that is compatible with the “Control for HDMI” Easy Setting function using the HDMI cable, the “Control for

HDMI” setting of the player automatically switches to “On” if the “Control for HDMI” setting on the connected TV is set to “On.” Refer to the instruction manual supplied with the TV.

• When connecting the Sony TV that is compatible with the BRAVIA Sync features using the HDMI cable, you can control the basic functions of the player with the TV’s remote if the “Control for

HDMI” setting on the connected TV is set to

“On.” Refer to the instruction manual supplied with the TV.

b

Depending on the connected component, the

“Control for HDMI” function may not work. Refer to the instruction manual supplied with the component.

About wireless LAN security

Since communication via the wireless LAN function is established by radio waves, the wireless signal may be susceptible to interception. To protect wireless communication, this player supports various security functions. Be sure to correctly configure the security settings in accordance with your network environment.

No Security

Although you can easily make settings, anyone can intercept wireless communication or intrude into your wireless network, even without any sophisticated tools. Keep in mind that there is a risk of unauthorized access or interception of data.

WEP

WEP applies security to communications to prevent outsiders from intercepting communications or intruding into your wireless network. WEP is a legacy security technology that enables older devices, which do not support TKIP/AES, to be connected.

WPA-PSK (TKIP), WPA2-PSK (TKIP)

TKIP is a security technology developed to correct for the deficiencies of WEP. TKIP assures a higher security level than WEP.

WPA-PSK (AES), WPA2-PSK (AES)

AES is a security technology that uses an advanced security method that is distinct from WEP and TKIP.

AES assures a higher security level than

WEP or TKIP.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

34

Copyrights and Trademarks

• “AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony

Corporation.

• Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun

Microsystems, Inc. in the U.S. and other countries.

• , “XMB,” and “xross media bar” are trademarks of Sony Corporation and Sony

Computer Entertainment Inc.

• This product incorporates High-Definition

Multimedia Interface (HDMI™) technology.

HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• “Blu-ray Disc” is a trademark.

• “Blu-ray Disc,” “DVD+RW,” “DVD-RW,”

“DVD+R,” “DVD-R,” “DVD VIDEO,” and

“CD” logos are trademarks.

• “BD-LIVE,” “BD-LIVE” logo, and

“BONUSVIEW” are trademarks of Blu-ray Disc

Association.

• “x.v.Color” and “x.v.Color” logo are trademarks of Sony Corporation.

• “BRAVIA” is a trademark of Sony Corporation.

• “PhotoTV HD” and the “PhotoTV HD” logo are trademarks of Sony Corporation.

• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and

Thomson.

• DivX

®

, DivX Certified

®

and associated logos are registered trademarks of DivX, Inc. and are used under license (Canada models only).

• Windows Media is either a registered trademark or trademark of Microsoft Corporation in the

United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from

Microsoft or an authorized Microsoft subsidiary.

• This product meets ENERGY STAR

®

guidelines for energy efficiency.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. ENERGY STAR is a registered mark owned by the U.S. government.

• Music and video recognition technology and related data are provided by Gracenote

®

.

Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.

CD, DVD, Blu-ray Disc, and music and videorelated data from Gracenote, Inc., copyright ©

2000-present Gracenote. Gracenote Software, copyright © 2000-present Gracenote. One or more patents owned by Gracenote apply to this product and service. See the Gracenote website for a nonexhaustive list of applicable Gracenote patents. Gracenote, CDDB, MusicID,

MediaVOCS, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

• DLNA

®

, the DLNA Logo and DLNA

CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network

Alliance.

• Other system and product names are generally trademarks or registered trademarks of the manufacturers. ™ and ® marks are not indicated in this document.

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

,continued

35

Code numbers of controllable

TVs

While holding down -TV- [/1, enter the

TV’s manufacturer code using the number buttons.

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

Manufacturer

Sony

Daewoo

*1

Emerson

*1

Funai

*1

General Electric

*1

Goldstar

*2

Hitachi

JVC

*1

LG

Mitsubishi/MGA

NEC

Panasonic

Philips

*3

Pioneer

Radio Shack

*1

Code number

01 (default)

22

14

23

06

03, 04, 17

02

09

04

13

04

19

08, 21

16

05

RCA

Samsung

*4

Sanyo

*1

Sharp

*5

10

12, 20

11

05, 18

Toshiba

Zenith

*1

07

15

*1

BDP-BX37 for Canada models only

*2

Only 04 can be selected for BDP-S370/BX37

(U.S. models) and BDP-S370 (Canada models).

*3

Only 21 can be selected for BDP-S370/BX37

(U.S. models) and BDP-S370 (Canada models).

*4

Only 20 can be selected for BDP-S370/BX37

(U.S. models) and BDP-S370 (Canada models).

*5

Only 18 can be selected for BDP-S370/BX37

(U.S. models) and BDP-S370 (Canada models).

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

36

Language code list

For details, see “BD/DVD Viewing Settings” (page 24).

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language

not specified

Parental control/area code

For details, see “Parental Control Area Code” (page 24).

Number, Area (Code)

2044, Argentina (ar)

2047, Australia (au)

2046, Austria (at)

2057, Belgium (be)

2070, Brazil (br)

2090, Chile (cl)

2092, China (cn)

2093, Colombia (co)

2115, Denmark (dk)

2165, Finland (fi)

2174, France (fr)

2109, Germany (de)

2200, Greece (gr)

2219, Hong Kong (hk)

2248, India (in)

2238, Indonesia (id)

2239, Ireland (ie)

2254, Italy (it)

2276, Japan (jp)

2304, Korea (kr)

2333, Luxembourg (lu)

2363, Malaysia (my)

2362, Mexico (mx)

2376, Netherlands (nl)

2390, New Zealand (nz)

2379, Norway (no)

2427, Pakistan (pk)

2424, Philippines (ph)

2428, Poland (pl)

2436, Portugal (pt)

2489, Russia (ru)

2501, Singapore (sg)

2149, Spain (es)

2499, Sweden (se)

2086, Switzerland (ch)

2543, Taiwan (tw)

2528, Thailand (th)

2184, United Kingdom (gb)

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

37

Index

Words in quotations appear in the on-screen displays.

A

AUDIO

9

“Audio Settings”

23

B

Batteries

11

“BD/DVD Viewing

Settings”

24

BD-LIVE

16

BD-R

31

BD-RE

31

Bitstream

28

Blu-ray Disc

31

BONUSVIEW

16

BRAVIA Internet Video

18

BRAVIA Sync

29

,

33

C

CD

31

Child Lock

8

,

30

Color buttons

9

Connecting

AV amplifier

(Receiver)

13

Network

14

TV

12

“Control for HDMI”

25

,

29

,

33

D

Deep Color

22

“Dimmer”

25

DISPLAY

10

DLNA

18

,

26

Dolby Digital

23

“DSD Output Mode”

23

DTS

23

DVD

31

E

“Easy Setup”

14

,

26

F

FAVORITES

9

G

“Gracenote Settings”

25

H

HDMI

22

,

23

HOME

10

,

20

Home menu

20

I

Internet content

9

,

18

L

Language Follow

33

M

MAC address

25

“Music Settings”

25

N

“Network Settings”

26

“Network Update”

21

O

One-Touch Play

33

OPTIONS

9

“OSD”

25

P

Parental Control

24

“Parental Control Settings”

24

Play information

17

Playable discs

31

POP UP/MENU

9

Q

“Quick Start Mode”

25

R

Region code

32

Remote

9

,

11

“Resetting”

26

Resetting the player

26

Resume

10

,

30

S

“Screen Settings”

21

“Setup”

20

Software update

21

,

25

SUBTITLE

9

System Power-Off

33

“System Settings”

25

T

THEATER

9

,

33

TOP MENU

9

Troubleshooting

27

“TV Type”

21

U

Update

21

USB

17

W

WEP

34

WPA2-PSK (AES)

34

WPA2-PSK (TKIP)

34

WPA-PSK (AES)

34

WPA-PSK (TKIP)

34

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

38

Downloaded From DvDPlayer-Manual.com Sherwood Manuals

39

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
