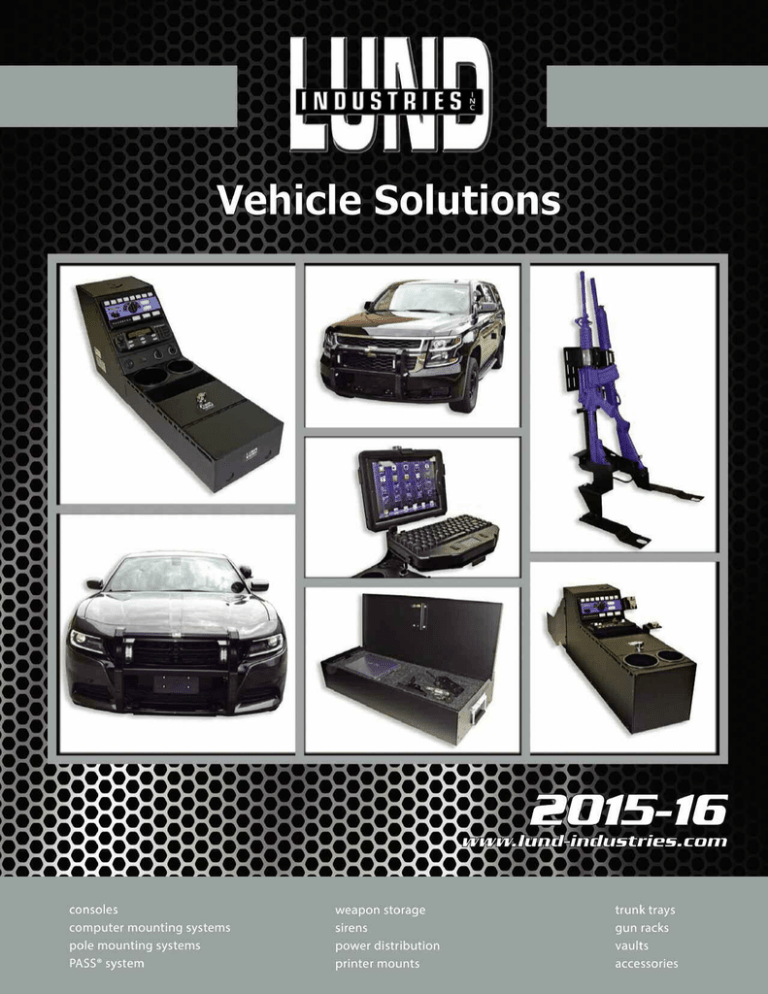

LUND 2015-16 Catalog 150DPI

LUND 2015-16 Catalog 150DPI

2

Product Index

Computer Mounts:

Motorola

Data911

Datalux

Fujitsu, Kontron, RoboVu

Panasonic, Xplore

Consoles:

Horizontal Consoles

Vertical Consoles

VH Tactical Consoles

Console Accessories

Charger Tail Light Arrow Kit

Docking Stations

& Laptop Mounts

Equipment Vaults

& Weapon Storage

Pages 23-24

Page 25

Page 26

Page 27

Page 28

Page 20

Pages 18-19

Pages 15-17

Pages 21-22

Page 38

Pages 29-30

Pages 12, 36-37

Flashers

Gun Racks

Installation Accessories

Keyboard Mounts

Motion Attachments

& Adapter Plates

New & Featured Products

P.A.S.S. Bumper System

Poles & Base Plates

Printer Mounts

SFGH-100SC Siren

Trunk Mounting Systems

Lund Industries, Inc. is located in Northbrook

Illinois, a northwest suburb of Chicago and has specialized in understanding vehicle equipment requirements and solutions for over 30 years.

Lund provides you with informed, tested and proven solutions saving you time and money, while providing efficient, trouble free service from your vehicle equipment.

Our Commitment to You is Service,

Price and Customer Satisfaction.

Page 37

Page 35

Page 39

Pages 28, 30

Pages 30, 32

Pages 3-14

Page 11

Page 31

Page 33

Page 38

Page 34

Custom Fabrication Services Are Also Available

New Products

2013 + Ford Police Interceptor Sedan Solutions

VH-FPI-S24

VH-FPI-S24, S60 & S75

Tactical

Interceptor Sedan Consoles

The VH-FPI S series consoles are designed for the FPI Sedan.

The

VH-FPI-S24 is the largest (10”h x 26.5”l x 7.625”w) and features equipment mounting space of 8” vertically and 10.5” horizontally. The vertical section maximum mounting depth is 11”.

VH-FPI-S60

Tactical console (9”h x 18”l or 26”l x 7.625”w) features equipment mounting space of 5” vertically and

9” or 16” horizontally. Maximum mounting depth is 9”.

VH-FPI-S60

VH-FPI-S75 Tactical console (10” h x 18”l or 26”l) features equipment mounting space of 6” vertically and

9” or 16” horizontally. Maximum mounting depth is 9.5”.

The VH-FPI-S series mount to the OEM or Lund baseplate and include equipment mounting brackets and fill plates.

VH-FPI-S75

FDRS-FPI-SA

Fold-Down Slide-Out Trunk Tray

The FDRS-FPI-SA is an innovative equipment mounting solution for the Interceptor sedan trunk trunk is a 36” x 17.375”aluminum fold down tray that creates a false wall behind the rear seat and features a 32” x 14” slide out tray. It provides a convenient and protected mounting area for trunk mounted electronics. The fold down design allows easy access for service in the lowered position while protecting electronic equipment in the upright position. The slide-out tray allows equipment tray removal for easy bench top work.

FDRS-FPI-SA

PASS ®

Police Audio-visual Safety S ystem

Our

patented

system encloses the siren speakers in the

PASS-2-FPI-S upright of our bumper system greatly improving ground plane sound in front of your vehicle. PASS

®

solves vehicle speaker mounting issues because the speaker is no longer mounted behind the bumper or fascia. With dual speakers, multiple siren tones can be used independently.

Optional front-facing LED’s replace conventional high beam wig-wags or grill lights. Optional side-facing LED’s replace conventional corner LED’s, significantly reducing installation time and labor costs. Multiple lighting options for front and side LED’s are available. A wiring harness is included for easy installation.

FP-FPI

Passenger Side Base

Lund’s FP-FPI passenger side base mounts to the factory seat bolts and requires no drilling into the vehicle floor.

The mount includes an FP-STEP offset riser allowing placement closer to the transmission hump.

Multi-vehicle base fits: Ford Police Interceptor Sedan & Utility ( 2012

& newer), Ford Explorer (2011 & newer), Ford Taurus (2010 & newer).

Requires pole assembly.

SecureStor

Gun Rack

SS-GM2-FPI-S

S

ecureStor

dual gun rack mounts behind the front seat on the hump, secured to the front seat bolts and the rear seat support. The SS-GM2 will hold a variety of shotguns and assault rifles. A charging handle guard prevents charging the weapon while secured. Sl ots allow flashlight, radio speakers and other equipment to be mounted out of the way.

3

New Products

2013 + Ford Police Interceptor Utility Solutions

VH-FPI-U24

VH-FPI-U24, VH-FPI-UM9 & UM16

Interceptor Utility Consoles

The VH-FPI-U Series Consoles are designed for the FPI Utility.

The VH-FPI-U24 is the largest (10”h x 22.5”l x 7.625”w) and features equipment mounting space of 8” vertically and 10.5” horizontally. The vertical section maximum mounting depth is 11”.

VH-FPI-UM9

(10”h x 18.5”l x 7.625”w) features equipment mounting space of 8” vertically and 9” horizontally.

The vertical section maximum mounting depth is 8”.

VH-FPI-UM16

VH-FPI-UM16

(10”h x 25.5”l x 7.625”w) features equipment mounting space of 8” vertically and 16” horizontally. The vertical section maximum mounting depth is 8”. The VH-FPI-U Consoles mount to the OEM or Lund baseplate and include equipment mounting brackets and fill plates

SSTB-2042RM

Raised Mount SecureStor Vault

Lund’s raised mount steel SecureStor storage vault

(20”l x 42”w x 12”h) with high security Simplex combination lock allows easy access to the spare tire and recovers equipment space under the vault by raising it 12”. SecureStor heavy duty steel SUV vaults are fully carpeted to protect your equipment and feature an 8.5” high drawer on heavy duty full extension slides rated to 250 lbs.

Far right w/ optional FPI-UEC Electronics Cabinet.

At right w/ optional FPI-UGD Gear Drawer.

SSTB-2042 (42” x 20” x 9”)

SSTB-2042RM (w/ raised mount 42” x 20” x 9”)

FPI-UEC (w/ raised 32” x 14” tray)

FPI-UGD (w/ 35” x 16” x 16” drawer)

SSTB-2042RM

FPI-UGD

SSTB-2042RM

SSTB-2042RM

FPI-UEC

SecureStor

Gun Rack

SS-GM2-FPI-U

SecureStor dual gun rack mounts behind the front seat on the hump, secured to the front seat bolts and the rear seat support. The SS-GM2 will hold a variety of shotguns and assault rifles. A charging handle guard prevents charging the weapon while secured. Sl ots allow flashlight, radio speakers and other equipment to be mounted out of the way.

4

PASS ®

Police Audio-visual Safety S ystem

Our

patented

system encloses the siren speakers in the

PASS-2XL-FPI-U upright of our bumper system greatly improving ground plane sound in front of your vehicle. PASS

®

solves vehicle speaker mounting issues because the speaker is no longer mounted behind the bumper or fascia. With dual speakers, multiple siren tones can be used independently. Optional front-facing

LED’s replace conventional high beam wig-wags or grill lights. Optional side-facing LED’s replace conventional corner

LED’s, significantly reducing installation time and labor costs.

Multiple lighting options for front and side LED’s areavailable.

A wiring harness is included for easy installation.

New Products

2015 + Dodge Charger Solutions

Vehicle Specific Consoles

VH-CGR15

2015-newer Charger Tactical Console (10.5”h x 26.5”l x 7.625”w) with 60 degree slope features equipment mounting space of 4” vertically and 16.5” horizontally. Maximum mounting depth is 7.5”. Mounts to OEM vehicle brackets and has computer attachment point.

Allows for relocation of factory USB and audio jacks.

VH-CGR2415

2015-newer Charger Tactical Console (10”h x 24”l x 7.625”w) with 60 degree slope features equipment mounting space of 7” vertically and 10” horizontally. Maximum mounting depth is 10.5”. Allows for 2 to 3 pieces of equipment to be mounted in the vertical section for those with more than one 1 piece radio/siren.

Mounts to OEM vehicle location and has motion attachment point.

Allows for relocation of factory USB and audio jacks.

Trunk Trays

FDRS-CGR11-SA

Fold-Down Slide-Out Trunk Tray

The FDRS-CGR11-SA is an innovative equipment mounting solution for the Charger trunk is a 37” x 18”aluminum fold down tray that creates a false wall behind the rear seat and features a 32” x 14” slide out tray.. It provides a convenient and protected mounting area for trunk mounted electronics. The fold down design allows easy access for service in the lowered position while protecting electronic equipment in the upright position. Access to the spare tire is not blocked by the installation.

VH-CGR15

VH-CGR2415

FDRS-CGR11-SA

ST-CGR11

ST-CGR11

2011-15 Charger trunk side equipment tray.

CGR11-SHELF

2011-15 Charger full width slide out trunk tray.

CGR11-TRAY-21

CGR11-TRAY21

2011-15 21" Charger slide-out trunk tray.

FP-CGR11

2011-15 Charger Passenger side

Passenger Side Computer Mounting

computer mount.

Requires pole assembly and motion attachment.

PASS ®

Police Audio-visual Safety S ystem

Our patented system encloses the siren speakers

SecureStor

Gun Rack

SS-GM2-CGR11

FP-CGR11 in the upright of

2011-15 SecureStor dual gun rack mounts behind the front our bumper system seat on the hump, secured to greatly improving

PASS-2-CHGR15 ground plane the front seat bolts and the rear seat support. The SS-GM2 sound in front of your vehicle. PASS

®

solves vehicle speaker mounting issues because the speaker is no longer mounted will hold a variety of shotguns and assault rifles. A charging behind the bumper or fascia. With dual speakers, multiple handle guard prevents charging siren tones can be used independently. Optional frontfacing LED’s replace conventional high beam wig-wags or grill lights. Optional side-facing LED’s replace conventional the weapon while secured.

Sl ots allow flashlight, radio speakers and other equipment to be mounted out of the way.

corner LED’s, significantly reducing installation time and labor. Multiple lighting options for front and side LED’s are available. A wiring harness is included for easy installation.

5

New Products

2011 + Chevrolet Caprice Solutions

Vehicle Specific Consoles

VH-CAP14- **

(please specify horizontal length when ordering)

available with 4”, 9”, 13” or 16” horizontal section

The VH-CAP14 console (7.75”h x 7.625”w) is designed specifically for the 2014 Caprice with column mounted shifter. This console features equipment mounting space of 4” vertically and a vertical section maximum mounting depth of 9”.

Mounts to OEM base plate.

VH-CAP14

VH-CAP14 w/ 13” horizontal section

VH-CAP9 or VH-CAP16 available with 9” or 16” horizontal section

The VH-CAP9 and VH-CAP16 consoles are designed to fit the 2011-13 Caprice with floor mounted shifter ** or the 2014 + Caprice with Column mounted shifter.

VH-CAP9 (10”h x 21.5”l x 7.625”w) features equipment mounting space of 8” vertically and 9” horizontally. The vertical section maximum mounting depth is 10”.

VH-CAP16

(10”h x 28.5”l x 7.625”w) features equipment mounting space of 8” vertically and 16” horizontally. The vertical section maximum mounting depth is 10”.

** -B Includes CAP-BASE 2011-13 Caprice base plate.

Passenger Side Computer Mounting

FP-CAP14

(2014 +) and FP-CAP11

(2011-13)

The FP-CAP14 and FP-CAP11 passenger side bases mount to the factory seat bolts and require no drilling into the vehicle floor. The mounts allow placement of a pole and upper assembly (sold separately) close to the console for greater driver comfort and accessibility.

VC-CAP requires P5B and a Medium Upper.

VH-CAP requires P12B and a Medium Upper

.

VH-CAP9-B w/ HD-ARM heavy-duty armrest

6

VH-CAP9-B w/ 9” horizontal section

FP-CAP14 shown with

P5-ADJ-M and

ULTP5 universal laptop mount

New Products

2011 + Chevrolet Caprice Solutions

Trunk Boxes & Trays

LGV-T40

Under Rear Deck Weapon Vault

The LGV-T40 is a Weapon Storage Vault designed for installation under the package shelf of the Caprice. It provides lockable storage of an M-4 or shotgun within easy reach. The LGV-T40 comes with a high security electronic combination lock (LGV-T40E) or a RPT key lock (LGV-T40KX). 40”l x 6”h x 16”d

SGB-644

Single Shotgun Box

The SGB-644 is a single shotgun box designed for installation on the floor or under the package shelf. It provides lockable shotgun storage within easy reach and is available with a user friendly 3 digit turn to open combination lock (SGB-644C) or a RPT key lock (SGB-644K). 44”l x 6”h x 9”d

The SGB-644 & LGV-T40 are typically installed off the floor, saving space for equipment and leaving full access to the spare.

Both the SGB-644 & LGV-T40 can be mounted horizontally or vertically depending on vehicle.

LGV-T40

CAP-TRAY-21

FDRS-CAP14-SA

Fold-Down Slide-Out Trunk Tray

The FDRS-CAP14-SA is an innovative equipment mounting solution for the Caprice trunk is a 43.5” x 17.5”aluminum fold down tray that creates a false wall behind the rear seat and features a 37.5” x 14” slide out tray. It provides a convenient and protected mounting area for trunk mounted electronics. The fold down design allows easy access for service in the lowered position while protecting electronic equipment in the upright position. Access to the spare tire is not blocked by the installation of the tray.

FDRS-CAP14-SA

SGB-644

CAP-TRAY-21

21” Caprice slide-out trunk tray

PASS ®

Police Audio-visual Safety S ystem

Our patented system encloses the siren speakers

PASS-2-CAP14 in the upright of our bumper system greatly improving ground plane sound in front of your vehicle. PASS

®

solves vehicle speaker mounting issues because the speaker is no longer mounted behind the bumper or fascia. With dual speakers, multiple siren tones can be used independently.

Optional front-facing LED’s replace conventional high beam wig-wags or grill lights. Optional side-facing LED’s replace conventional corner LED’s, significantly reducing installation time and labor costs. Multiple lighting options for front and side LED’s are available. A wiring harness is included for easy installation.

SecureStor

Gun Rack

SS-GM2-CAP

SecureStor dual gun rack mounts behind the front seat on the hump, secured to the front seat bolts and the rear seat support. The SS-GM2 will hold a variety of shotguns and assault rifles. A charging handle guard prevents charging the weapon while secured. Sl ots allow flashlight, radio speakers and other equipment to be mounted out of the way.

7

New Products

2015 + Chevrolet Tahoe Solutions

VH-TAH15

New

2015 + Chevy Tahoe Tactical console (11.5”h x 26”l x

7.625”w) features equipment mounting space of 4.5” vertically and 18.25” horizontally. The vertical section maximum mounting depth is 9.5” , the horizontal maximum mounting depth is 7”. Includes equipment mounting brackets and fill plates.

Requires base plate kit.

PASS ®

Police Audio-visual Safety S ystem

Our patented system encloses the siren speakers in the upright of our bumper system

PASS-2-TAH15 greatly improving ground plane sound in front of your vehicle.

PASS ®

solves vehicle speaker mounting issues because the speaker is no longer mounted behind the bumper or fascia.

With dual speakers, multiple siren tones can be used independently. Front-facing LED’s replace conventional high beam wig-wags or grill lights. Side-facing LED’s replace conventional corner LED’s, significantly reducing installation time and labor costs. Multiple lighting options for front and side LED’s are available. A wiring harness is included for easy installation.

8

VH-TAH15-SC

New

2015+ Chevy Tahoe Tactical “side-car” console system combines a primary console the 7.5”wide VH-TAH15 and the 4.5 inch wide “side-car”. The system has 11.5” front height, 4.5” vertical and 18” horizontal equipment space.

The “side-car” includes 2 power plugs and a relocation cutout for the Chevy media center. The horizontal section of the “side-car” has multiple uses. It includes a dual XL cup holder module and a flat mounting surface which can be used for mic or note pad clips. The plate can also be removed completely to provide an open top ticket book holder or storage box. The cup holder module and plate unit are location interchangeable.

Requires TAH15W-BASE base plate.

VH-TAH15-24

New

2015 + Chevy Tahoe Tactical console

(10”h x 26.5”l x

7.625”w) features equipment mounting space of 8” vertically and 10.5” horizontally. The vertical section maximum mounting depth is 11”, the horizontal maximum mounting depth is 4”.

Includes equipment mounting brackets and fill plates.

Requires base plate kit.

Featured Products

VH-FPI-UM **

Interceptor Utility Modular Consoles

VH-FPI-UM4 (10”h x 13.8”l x 7.625”w) features equipment mounting space of 8” vertically and 4” horizontally.

The vertical section maximum mounting depth is 8”.

VH-FPI-UM9 (10”h x 18.5”l x 7.625”w) features equipment mounting space of 8” vertically and 9” horizontally.

The vertical section maximum mounting depth is 8”.

VH-FPI-UM13

(10”h x 22.8”l x 7.625”w) features equipment mounting space of 8” vertically and 13” horizontally.

The vertical section maximum mounting depth is 8”.

VH-FPI-UM16 (10”h x 25.5”l x 7.625”w) features equipment mounting space of 8” vertically and 16” horizontally.

The vertical section maximum mounting depth is 8”.

The VH-FPI-UM ** Modular Consoles mount to the OEM or

Lund baseplate and include equipment mounting brackets and fill plates.

VH-FPI-UM4

VH-FPI-UM13

VH-FPI-UM9

VH-FPI-UM16

HC-M29

HC-CGR11

2011-14 Charger Horizontal Console

The HC-CGR11 Horizontal Console (9.5”h x 25”l x 7.625”w) features 25" of equipment mounting space with a mounting depth of 8". The HC-CGR11 can accommodate most of the popular options for the HC Series line of consoles including

Power Strips, Pen Boxes, Cup Holders, Fuse Panels, Locking

Storage Boxes and more. Mounts to OEM location.

Allows for relocation of factory USB and audio jacks.

HC-CGR11

HC-M **

Horizontal Modular Console System

The HC-M 10" high Modular Console System is available from 4" to 32" long to accommodate all your console equipment needs. The HC-M comes in four base lengths of 4”, 9” and 16”.

The modular sections can be combined and configured with different lengths to create 4”, 9”, 13”, 16”, 18”, 20” 25”, 29” and 32” consoles to accommodate any vehicle and to allow for future vehicle needs.

Please specify length when ordering.

Requires mounting kit.

*Consoles may be shown with optional extra cost equipment

HC-M4 HC-M9 HC-M16

9

10

Featured Products

ARM-TELS on UPR-S w/

TS-60EX and LMS-CF30 laptop mounting platform

ARM-TELS on UPR-C

ARM-TELS

9”- 13” Telescoping slide arm with swivel.

The entire arm rotates 360 degrees and can lock every 15 degrees. Easy access pull knobs control telescoping and swivel.

Requires TS-1 or TS-60EX.

TS-60EX

ISWA-HD8-TS1

New

HD arm assembly with 15

⁰ indexing for automatic locking of the arm. Includes TS-1 motion attachment and accepts any keyboard tray.

CGR-PJ6-GB

New

Designed to securely mount the Brother PocketJet mobile printer in the 2011-13 Charger glove box. The slides allow the printer to pull out for easy access and to be stored within the closed glove box when not in use.

LSB-1025

New

Locking storage box

(10”l x 7.375”w x 2.5”d) features a locking push button latch with handle for easy opening, foam lined bottom and a clip board on the top. General storage, but will hold most hand guns for temporary storage.

UNV-SASM-IPD

New

Universal latching, swing-away Apple iPAD2 or iPAD3

mount for horizontal or vertical series consoles.

Display swings open to allow access to OEM radio or other dashboard controls behind.

Requires Otter Box hard case.

UNV-SASK3-IPD

Same as above with articulating TG3 keyboard attached.

Featured Products

PASS

®

P olice Audio-visual S afety S ystem

PASS-2-CGR15

PASS

® Police Audio-visual S afety S ystem

Our specially designed and patented system encloses the siren speaker(s) in the upright of our bumper system greatly improving sound on the ground plane in front of your vehicle. PASS

®

solves speaker mounting issues on new vehicles because the speaker is no longer mounted behind the bumper or fascia. With dual speakers, multiple sirens and/or tones can be used independently. Optional front-facing LED’s replace conventional high beam wig-wags or grill lights.

Optional side-facing LED’s replace conventional corner LED’s, significantly reducing installation time and labor costs.

Multiple lighting options for front and side LED’s are available. A wiring harness is included for easy installation.

Available for Sedans: Interceptor Sedan, Impala & Charger. SUV’s: Interceptor Utility, Explorer, Expedition & Tahoe.

PASS-2-FPI-S PASS-2-CGR15

PASS-2-FPI-U

PASS-2-TAH15

11

Featured Products

SecureStor Locking Gun Vaults

Lund LGV weapons storage vaults provide a quick and fleet-friendly way to secure firearms, radios and computers in your vehicles. LGV’s attach directly to the floor or are secured in the trunk with the included tamper resistant torx hardware.

This allows the LGV to be removed if access to spare tire is required. The unique vault design includes a proprietary full length tongue and groove rear hinge assembly which reduces the chance of prying the vault open at the rear, while allowing the cover to be completely removed in confined areas. LGV’s also incorporate a cam capture bracket to increase lock strength. Our electronic combination lock offers multiple security code levels and key override enabling the fleet manager to have access to every LGV and feature a low battery warning LED with a battery failure override. The Lund LGV comes standard with a closed cell foam lining to protect the firearms and ventilation holes minimize condensation on the contents. LGV units are made of powder coated aluminum for combination of strength and reduced weight.

All standard models include 1/4” foam liner on top, bottom and sides.

Upgraded models come with “user-cuttable” solid foam block.

LGV-1540

Aluminum weapon storage box features a lift-off lid, ventilation holes, electronic combination lock, easy grip handles and 1/4” foam liner.

Optional: User-cuttable solid foam block (call for details).

40”W x 15”D x 7”H

LGV-1636

shown with optional custom cut insert.

also available:

LGV-1636

36”W x 16”D x 7”H

LGV-1540

shown with standard 1/4” foam liner

LGV-1636-12

36”W x 16”D x 12”H

Optional: radial pin tumbler key lock.

Both feature an electronic combination lock with key override and lift-off lid.

LGV-1636-12E

shown with optional electronic lock. Also available with a 3 digit combination lock or a key lock.

LGV-T40

LGV-T40

Under Rear Deck Weapon Vault

The LGV-T40 is a Weapon Storage Vault designed for installation under the package shelf of many vehicles.

It provides lockable storage of an M-4 or shotgun within easy reach. The LGV-T40 comes with a high security electronic combination lock (LGV-T40E) or a RPT key lock (LGV-T40KX). 40”l x 6”h x 16”d

12

Both the SGB-644 & LGV-T40 can be mounted horizontally or vertically depending on vehicle.

SGB-644

Single Shotgun

Box

The SGB-644 is a single shotgun box designed for

SGB-644 installation on the floor or under the package shelf.

It provides lockable shotgun storage within easy reach and is available with a user friendly 3 digit turn to open combination lock (SGB-644C) or a RPT key lock (SGB-644K).

44”l x 6”h x 9”d

The SGB-644 & LGV-T40 are typically installed off the floor, saving space for equipment and leaving full access to the spare.

Featured Products

FDRS-SUV-SA

New

The FDRS-SUV-SA is an innovative lockable equipment mounting solution for most SUV’s with a cargo area mounted partition. The fold down rear tray is 40” x 15” with a 37” x 14” slide-out tray. It creates a false wall behind the rear seat and provides a convenient and protected mounting area for trunk mounted electronics. The fold down design allows easy access for service in the down position while protecting electronic equipment in the upright position. Vehicle must have a rear cargo area partition to mount tray to

VH-RAMSSV-B

2012-newer RAM SSV Tactical Console

The VH-RAMSSV Tactical Console (10”h x 26”l x 7.625”w) with 50 degree slope features equipment mounting space of 8” vertically with a vertical section maximum mounting depth of 12” and equipment mounting space of 10” horizontally with a mounting depth of 3.75”. This Tactical console features a motion attachment mounting point and includes equipment mounting brackets and fill plates

Mounts to Lund’s RAMSSV-BASE included

RAMSSV-BASE

RAMSSV-BASE

2012-13 Ram SSV 1500-5500 Base Plate

The RAMSSV-BASE console base plate mount is designed specifically for the 2012-13 year model

Dodge Ram SSV

Base plate and leg mounts are included

UNVTAB *-MT

(please specify keyboard style when ordering)

Universal Tablet clamshell mounting system allows small form factor tablets to be mounted with a keyboard. A key lock thumb turn latch allows the tablet to be easily removed. The mount incorporates locking adjustable screen tilt for operator convenience, a quick-release spring loaded keyboard tray, available in various configurations, allows for easy insertion and removal of the keyboard.

Mounts to any motion attachment or assembly.

OHPM-RW4

OHPM-PJ6

VH-RAMSSV

OHPM-RW4, OHPM-RJ4 and OHPM-PJ6

The OHPM-RW4 for the Zebra RW-430, OHPM-RJ4 for the Brother 4030 printer and

OHPM-PJ6 for the Brother Pock etJet overhead printer mounts are a great solution for vehicles that have a limited amount of space for additional equipment such as a printer. The printer mounts overhead to the prisoner partition and offers a 180 degree swivel accommodating both the driver and the passenger.

PS2-MEDIA and PS3-MEDIA

Power Strip

Designed for the Dodge Charger, Ford Interceptor Utility or any newer vehicle with USB and Aux Media connectors that need extending. The PS2-MEDIA and PS3-MEDIA come with a 2” fill plate with two or three Power Plugs, a 6’ USB cable and a 1/8” Audio extension cable.

13

Featured Products

Computer mounting not included.

VH-LTK-T

Universal Truck Console

The VH-LTK-T and VH-LTK-S Tactical Series Universal Truck Consoles offer up to 24” of equipment mounting space, are built with 12ga steel and are designed to fit any flat floor large truck. They can be customized to accommodate many of your vehicles equipment needs. The VH-LTK

Universal Truck Consoles include left and right radio speaker mounting and can include dual cup holders, large glove box storage space and clipboard mount. These rugged consoles offer several custom configuration options.

Please call for more details and pricing.

VH-LTK-S: 24” L x 12” W x 14” H

VH-LTK-T: 24” L x 12” W x 22” H

Computer mounting not included.

VH-LTK-S

Universal Truck Console

AR-EXPL11

2011 Civilian Explorer Vehicle Console

The Lund AR-EXPL11 console installs by removing the factory armrest and bucket and dropping it in. The console fits right over the factory opening and mounts using factory holes. No moving, modifying or cutting is required. There is space for up to 10” of equipment and accessory mounting. The user friendly design of the AR-EXPL11 eliminates the need to mount equipment in various locations. A padded armrest is an available accessory as well as power plus and fuse panels.

Constructed of powdercoated aluminum for structural rigidity, light weight and years of trouble free service, the innovative design of the

AR-EXPL11 console provides a clean, functional installation and a finished appearance in 2011 and newer civilian Explorers.

14

FP-FPI shown with

P9-ADJM and

Panasonic Toughbook docking station

FP-FPI

Passenger Side Base

Lund’s FP-FPI passenger side base mounts to the factory seat bolts and requires no drilling into the vehicle floor. The mount includes an

FP-STEP offset riser which allows placement of the pole and upper assembly closer to the transmission hump for greater driver comfort and accessibility.

Multi-vehicle base fits:

Ford Police InterceptorSedan & Utility ( 2012 & newer),

Ford Explorer (2011 & newer) and

Ford Taurus (2010 & newer).

Requires pole assembly.

Control-Com Consoles

Organize your equipment

VH-FPI-S24 in Ford Police Interceptor Sedan

• Control-Com Consoles are made of powder coated aluminum for long life, easy cleaning, light weight, and structural rigidity. They are designed to fit between the bucket seats without forcing the seats apart.

• Installation of your equipment is quick and easy with our drop-in mounting system.

• Control-Com face plates utilize unique edge returns and side-mounting screws, eliminating the extra width of faceplates with traditional top-down screws. The result is a narrower, space saving console only 7.625” wide, conserving valuable vehicle space.

• Knock-outs are provided in several locations for power plug or USB installation.

• Control-Com Consoles allow integral mounting of most laptops and many other computers in your vehicles.

VH-CGR15 in Dodge Charger

VH-FPI-UM16 in Ford Police Interceptor Utility

15

VH Tactical Consoles

VH-6005- **

(please specify horizontal length when ordering)

available with 4”, 9”, 13” or 16” horizontal section

Tactical Console (9”h x 7.625”w) with 60 degree slope features equipment mounting space of 5.5” vertically and

4”, 9”, 13” or 16” horizontally. The maximum mounting depth is 9”.

Includes equipment mounting brackets and fill plates.

May require base plate or additional mounting kit.

VH-6005-16 console in Chevy Impala with Panasonic CF-30

VH-6005-16 with Datalux tablet mount and articulating keyboard

VH-6005-16 console with 16” articulating TG3 keyboard tray

VH-7506-16 console with computer docking station on

SWA-HD-8 and PPJ-HDARM-WF

VH-7506- **

(please specify horizontal length when ordering)

available with 4”, 9”, 13” or 16” horizontal section

Tactical Console (10”h x 26”l x 7.625”w) with 75 degree slope features equipment mounting space of 6” vertically and 4”, 9”,

13” or 16”horizontally. The maximum mounting depth is 9.5”.

Includes equipment mounting brackets and fill plates.

May require base plate or additional mounting kit.

16

*Consoles may be shown with optional extra cost equipment

VH-7506-16 console

VH Tactical Consoles

VH-CGR15

2011-newer Dodge Charger Tactical Console

(10.5”h x 26.5”l x 7.625”w) with 60 degree slope features equipment mounting space of 4” vertically and

16.5” horizontally. The maximum mounting depth is 7.5”.

Mounts to OEM vehicle brackets and has computer attachment point. Includes equipment mounting brackets and fill plates.

Allows for relocation of factory USB and audio jacks.

VH-CGR2415

2011-newer Dodge Charger Tactical Console

(10”h x 24”l x 7.625”w) with 60 degree slope and features equipment mounting space of 8” vertically and 10” horizontally.

The maximum mounting depth is 10.5”and has a motion attachment point. This design allows for 2 to 3 pieces of equipment to be mounted in the vertical section for those with more than one 1 piece radio/siren. Mounts to OEM vehicle location. Includes equipment mounting brackets and fill plates.

Allows for relocation of factory USB and audio jacks.

VH-CGR2410 Dodge Charger vehicle specific console

VH-6005-9 console

VH-6005-9

Tactical Console (9”h x 17”l x 7.625”w) with 60 degree slope features equipment mounting space of 5.5” vertically and

9” horizontally. The maximum mounting depth is 9”.

Includes equipment mounting brackets and fill plates.

May require base plate or additional mounting kit.

*Consoles may be shown with optional extra cost equipment

17

Vertical Consoles

The VC-2600, 4500 and 6000 series vertical consoles are designed to place equipment closer to your vehicle’s dash and slope down within easy reach of the operator compared to traditional consoles that fit horizontally between the front seats.

Constructed of 11-gauge powder coated aluminum for easy cleaning, light weight, structural rigidity and years of trouble free service. The VC series consoles can be mounted on any vehicle specific base plate to eliminate or reduce drilling during installation.

VC-2613

(shown with D911-SM-KBD display & keyboard )

Vertical Console has a 26° front slope and 12” of equipment mounting with a maximum equipment depth of 7.5” allowing equipment to be mounted conveniently beneath a vehicle’s dash.

Includes equipment mounting brackets and fill plates.

16

3

/

4

” L x 7

5

/

8

” W x 9” H

VC-2613DC11

VC-2613NT

Vertical Console for Dodge Charger, has

(shown with Fujitsu T732 computer mount)

a 26 degree front slope and top mount

Vertical Console has a 26 degree platform with12” of equipment mounting front slope and top mount platform and a maximum equipment depth of 6”.

with 12” of equipment mounting and

Includes equipment mounting brackets a maximum equipment depth of 9”.

Includes equipment mounting brackets and fill plates.

16

1

/

2

” L x 7

5

/

8

” W x 10” H

value

and fill plates.

16

3

/

4

” L x 7

5

/

8

” W x 7

3

/

8

” H

VC-2615

Vertical Console has a 26° front slope and 15” of equipment mounting with a maximum equipment depth of 6.5

and is 1” lower for better access with a keyboard attached.

19

1

/

2

” L x 7

5

/

8

” W x 8” H

18

*Consoles may be shown with optional extra cost equipment

VC-2618

Vertical Console has a 26° front slope, 17” of equipment mounting with a maximum equipment depth of 7.5”. Allowing equipment to be mounted conveniently up to a vehicle’s dash.

21

3

/

4

” L x 7

5

/

8

” W x 9” H

VC-4508

Vertical Console has a 45° front slope and 8” of equipment mounting with a maximum equipment depth of 9.5”.

The 4508 is computer mount ready and is designed to be directly mounted to the vehicle’s hump or front seat bolts.

12

3

/

4

” L x 7

5

/

8

” W x 9” H

4500 Series Consoles Require Mounting Kit.

Vertical Consoles

The 6000 series provides an even more aggressive 60° front slope allowing equipment to be mounted conveniently beneath a vehicle’s dash. These consoles provide easy access to equipment while keeping it out of the way and maintaining an uncluttered look.

Many computer mounts, keyboard trays and accessories can be directly mounted to the top panel of any VC series Console.

Optional Side panels conform to the vehicle and hide wiring.

Custom Consoles and configurations are available.

Please contact Lund for information.

VC-6010

(shown with DL-TX204-MTU)

VC-U250 truck console

VC-6010

Vertical Console has a 60° front slope and 8” of equipment mounting with a maximum equipment depth of 7.5”. Includes equipment mounting brackets and fill plates..

11” L x 7

5

/

8

” W x 9” H

VC-U250

Universal Vertical truck console with 75 degree slope and 10” of equipment mounting with a maximum equipment depth of 8.5”.

Mounting kit available to fit 2008 -10 Ford F-250-550 and other vehicles.

10

1

/

4

” L x 7

5

/

8

” W x 10

1

/

2

” H

VC-IMPL

2006 - newer Chevy Impala vehicle specific console with 7.5” of equipment mounting with a maximum equipment depth of 11”. Includes equipment mounting brackets and fill plates..

I ncludes a seat bolt mounting bracket.

13

3

/

4

” L x 7

5

/

8

” W x 9” H

VC-6005

Vertical Console has a

60° front slope, 5.5” of

VC-7506

Vertical Console has a equipment mounting with a maximum equipment depth

75° front slope, 6” of equipment of 9”.

May require base plate mounting with a maximum equipment depth of 9”.

May require base plate or additional mounting kit.

10

3

/

4

” L x 7

5

/

8

” W x 10” H or additional mounting kit.

10

3

/

4

” L x 7

5

/

8

” W x 9” H

*Consoles may be shown with optional extra cost equipment

19

Horizontal Consoles

HC-900

Horizontal Console with 13” of equipment mounting and a maximum equipment depth of 7.5” with computer mount platform. Includes equipment mounting brackets and fill plates.

(computer mount optional)

.

25

3

/

4

” L x 7

5

/

8

” W x 8” H

May require base plate or additional mounting kit.

HC-970

Horizontal Console with 17” of equipment mounting and a maximum equipment depth of 7.5” with computer mount platform.

iIncludes equipment mounting brackets and fill plates.

(computer mount optional)

29

3

/

4

” L x 7

5

/

8

” W x 8” H

May require base plate or additional mounting kit.

HC-400

Horizontal Console with 19” of equipment mounting and a maximum equipment depth of 7.5”

(no computer mount platform)

.

24” L x 7

5

/

8

” W x 8” H

May require base plate or additional mounting kit.

HC-200

Horizontal Console designed to fit in smaller areas such as in front of bench seats or in front of factory consoles.

Has 9” of equipment mounting and a maximum equipment depth of 7.5”

Includes equipment mounting brackets and fill plates.

14” L x 7

5

/

8

” W x 8” H

May require base plate or additional mounting kit.

20

*Consoles may be shown with optional extra cost equipment

LP-1600

LP-900, LP-1300, LP-1600

Low Profile horizontal console with a maximum

16” of equipment mounting and an equipment depth of 3.5” Includes equipment mounting brackets and fill plates.

9”, 13” or 16” L x 7

5

/

8

” W x 4” H

Available in 9”, 13” and 16” lengths.

May require base plate or additional mounting kit.

HC-900S

Horizontal Console with 13” of equipment mounting and a maximum equipment depth of 7.5”

(no computer mount platform)

.

Includes equipment mounting brackets and fill plates.

17

1

/

4

” L x 7

5

/

8

” W x 8” H

May require base plate or additional mounting kit.

Console Accessories

ARMP

MK2-CL

CHB2

K-30

Optional equipment including cupholders, padded armrests, power plugs, Osram, Littlelite LF12-TRB and LF12-TS-LED reading lamps, multi-position microphone holder and

12-position fuse panel available with or without quick-release cover.

LF12-TRB

CC12-FP

TRI-LITER CHB-2

CHB-1

SPM-1

CHB-2EN

CHB-2EN

CHB-2

CHB-1

SPM-1 Cupholders

Single, double and adjustable cupholders mount to a variety of surfaces and the rear or inside of

Control-Com consoles. Open design allows for easy cleaning and mounting.

SPM-1 adjusts from a small 8 oz. coffee cup to fit most big gulps.

ARMP Armrest and ARM-CL

Fully Padded Armrest or

1

/

2

Padded Armrest with microphone clip with 2” to 5” adjustable bracket permits setting the desired armrest height on console.

SCN-SPT

value

SCN-SPT2

CC12-CFP

CC12-FP

12 position ATO fuse panel. The panel comes with nine

20 amp and three

30 amp capacity fuse holders.

Available with or without cover.

CC12-CFP

CC12-FP

HD-ARM-5

HD-ARM-9

Heavy duty armrest with molded poly pad, and multi-position 5” or 9” adjustable pole. Armrest flips up for access to equipment and slides forward or back for correct pad positioning.

Requires base plate.

SCN-SPT

Side mount adjustable screen support for laptops.

SCN-SPT2

Bottom mount adjustable screen support for laptops.

SCN-SPT5

Side mount adjustable screen support for ULTP5.

All provide ideal screen support for rugged driving conditions.

FB-6

6-position fuse block with single power feed has 150 amp capacity (25 amps per circuit), using ATO type fuses.

Can be positioned in any convenient protected location with integral mounting bracket.

ARMP-AL

New Part

5”-10” height adjustable,small heavy-duty padded armrest .

Side or rear mount.

HAT-24M

(2” – 4”)

HAT-35

(3” – 5”)

HAT-47

(4” – 7”)

Adjustable base mount for tilt / swivel which can be used to mount computers, keyboards, etc. instead of pole assemblies on consoles and base plates.

21

Accessories

PS2-4 PS2-3

3 or 4 position power strips feature 15 amp heavy duty receptacles with caps that prevent contamination when not in use.

Osram K-30

LittleLite LF12-TRB •

LF12-TS-LED

LED and halogen gooseneck lamps provide interior lighting for reading and report writing. Available with dimmer or switch.

LF12-TS-LED

LF12-TRB

K-30

CLPBD

Clipboard Holder

9.5” W x 2.5” D

NTEPD

Notepad Holder

7.5” W x 2.5” D

LF-BKT

LittleLite Side

Mounting Bracket.

SP2-2 FP-3S2P

2 or 3 position 15 amp rocker switches with or without 2 position 15 amp power plugs on a 2 inch Control-Com console fill plate.

PB-250

Pen Box 2.5" L x 2” D

LSB-400

Locking Storage Box 4” L x 3.5” D

LSB-600

Locking Storage Box 6” L x 5” D

SWA-HD-TS1

Heavy duty swing arm with

1.25” tilt/swivel for mounting keyboards and computers allows controlled motion at both ends of the arm. Available in 6, 8 and 12” lengths.

Accepts all motion attachments.

versatile

LL-BKT2

LittleLite bottom mounting bracket for consoles and docks.

BCR-CLP

Spring Steel Bar Code Scanner

Clip with poly sleeves.

EXT-BASE

Inset: LI-900-00 Console on EXT-BASE

Hinged console riser allows 900 Series 13” Consoles to be raised 5” accommodating higher seats in larger vehicles. Rear hinge and latch design allows easy access to wiring and equipment when the console is raised. Fits any base plate, flat floor or hump.

Works with all Control-Com accessories.

22

A-BASE

Adjustable console riser allows 900 series

13” Consoles to be raised in several increments up to 3” accommodating higher vehicle seats or longer equipment. Console can be installed level or on an angle and used with standard mounting kits.

Works with all

Control-Com accessories.

Computer Mounts

Motorola

Lund’s clamshell computer mounting systems allow the display to be raised or lowered for easy access to the vehicle dashboard controls.

The screen-clamping lever allows a wide range of display adjustment insuring operator comfort in many viewing conditions. A quick-release spring clip enables the keyboard to be removed for typing.

The mount system has adjustable tilt and swivel to accommodate many vehicle and operator situations.

Lund clamshell style mounts are made of 9 and 11 gauge steel and have a durable powder coating for long life and ease of cleaning. These mounts are available in many variations and configurations to fit your existing console or application.

MW-810-MT

Clamshell mounting system for the Motorola

MW-800 & 810 computer keyboard and display.

The mount features locking adjustable screen and keyboard tilt plus a quick-release spring clip for easy keyboard insertion and removal.

Rugged

MW-810-FMT2S

MW-800 & 810 display mount with locking tilt and swivel for mounting on horizontal and some vertical surfaces.

MW-810-LMT2

Designed to mount up to 3” lower than standard mount on engine covers and dashboards.

The MW-810-LMT features articulating arms which put the display behind the keyboard with keyboard tray on ZB-56 swivel base.

23

Computer Mounts

Motorola

MW-BASE-800

Enables mounting the CPU or other equipment under the keyboard and display of the MW-800 / 810 computer system. This unit replaces HAT or Pole brackets, adjusts from 4.5” to 7.5” in height, integrates onto Control-Com

Consoles and can be used with any standard computer mount.

MW-ZPAB

Adaptor bracket for mounting the

Zebra PRBKT-RW420 mobile printer on the back of the MW-800 & 810 display.

MW-810-RM

New Part

MW-800 & 810 display moun t for overhead mounting with locking tilt/swivel.

MW-800-TB

Trunion bracket for mounting the MW-800 CPU to poles, PM-CPU or bases.

MW-810-KBD

MW-800 & 810 stand alone keyboard tray with quick-release spring clip.

Requires TS-1 or TS-60

MW-KBX and TG3-KBX

Foam padded keyboard box with strap.

Available for

TG3 or Motorola MW-800 / 810 Keyboards.

24

Computer Mounts

Data911

D911-MT

Mount system for Data911 computers feature adjustable locking screen and keyboard tilt.

Spring loaded TG3 keyboard tray allows for easy insertion, removal, use and operator convenience.

Mounts to any motion attachment or assembly.

Please specify M6 or M7 display.

D911-MKB

Data911 display mount with spring loaded TG3 keyboard tray mounted behind the screen. Unit features locking tilt and swivel and is designed for horizontal surface mounting.

D911-SM-KBD and D911-SM

Mount system for Data911 display with locking display tilt and swivel. 16” articulating arm with

TS-1 tilt / swivel for keyboard attachment.

For VC Series consoles and horizontal surfaces.

D911-SM available as a display mount only.

D911-MT15

Mount system for Data911 15” display features adjustable locking screen and keyboard tilt. Spring loaded TG3 keyboard tray allows for easy insertion, removal, use and operator convenience.

Mounts to any motion attachment or assembly.

D911-MT2S

Data911 display mount with locking tilt and swivel for mounting on horizontal and some vertical surfaces.

Please specify M6 or M7 display.

25

Computer Mounts

Datalux

DL-TX204-MTU

Clamshell mounting system for the

Datalux TX-204 Tracer tablet features locking adjustable screen tilt, keyboard tilt, swivel and display latch for quick release. Spring loaded keyboard snaps into clip for easy insertion, removal, use and operator convenience.

Mounts to any motion attachment or assembly.

UNV-SASM-DLTX

Universal latching, swing-away for the Datalux TX-204

Tracer tablet mounts on horizontal or vertical series consoles. Display swings open to allow access to AM/FM radio or other dashboard controls behind.

UNV-SASK-DLTX

Same as above with articulating Datalux Clip-on keyboard.

DL-KBD-CLP

Quick release Datalux keyboard clip attaches to any motion attachment or keyboard base.

26

DL-TX200-MT2S

Datalux TX-204 display mount with locking tilt and swivel for horizontal and some vertical surfaces.

DL-TX-SM-KBD and DL-TX-SM

Shown installed on page 14.

Mount system for Datalux TX-204 Tracer tablet with locking display tilt and swivel.

16” articulating arm with Datalux keyboard clip mounted on a TS-1 tilt / swivel. For VC

Series consoles and horizontal surfaces.

DL-TX-SM available as a display mount only.

VC-DL-KBDA

16” articulating keyboard tray for Datalux Clip-on keyboard.

Computer Mounts

Fujitsu, Kontron & RoboVu

FUJT902-MT

Clamshell mounting system for the Fujitsu 902 Series computers features wing turn latch with key lock. The mount incorporates locking adjustable screen tilt for operator convenience, and a quick-release spring loaded

TG3 keyboard tray which allows for easy insertion and removal of the keyboard.

Mounts to any motion attachment or assembly.

FUJT732-MT

Clamshell mounting system for the Fujitsu 732 Series computers features wing turn latch with key lock. The mount incorporates locking adjustable screen tilt for operator convenience, and a quickrelease spring loaded TG3 keyboard tray which allows for easy insertion and removal of the keyboard.

Mounts to any motion attachment or assembly.

UNV-SASM-T732

Universal latching, swing-away for T732 laptop mounts on horizontal or vertical series consoles. Display swings open to allow access to AM/FM radio or other dashboard controls behind.

UNV-SASK3-T732

Same as above with articulating TG3 keyboard attached.

ROBV-MT

Clamshell computer mount for Robovu and other displays or computers with 75 mm Vesa bolt pattern. The mount incorporates locking adjustable screen tilt for operator convenience, and a quick-release spring loaded TG3 keyboard tray.

Mounts to any motion attachment or assembly.

UNV-SASM-Q702

Universal latching, swing-away for Q702 tablet mounts on horizontal or vertical series consoles. Display swings open to allow access to AM/FM radio or other dashboard controls behind.

UNV-SASK3-Q702

Same as above with articulating TG3 keyboard attached.

KONT-MT

Pull-pin adjustable, four position mount for

Kontron display with side spring loaded quickrelease TG3 keyboard tray.

Mounts to any motion attachment or assembly.

27

Computer Mounts

Panasonic, & Xplore

PDRC-MKB

PDRC 12.1” display mount with spring loaded keyboard tray mounted behind the screen. Unit features locking tilt and swivel.

PDRC-MT

Mounting system for the 12.1”

Panasonic PDRC features adjustable screen and keyboard tilt. Spring loaded keyboard tray allows for easy keyboard insertion, removal, ease of use and operator convenience.

Mounts to any motion attachment or assembly.

UNV-SASM-**

Universal latching, swing-away tablet, convertible or display mount for horizontal or vertical series consoles.

Display swings open to allow access to AM/FM radio or other dashboard controls behind.

UNV-SASK3-**

Same as above with articulating TG3 keyboard attached.

**Specify display bracket when ordering.

UNV-SASK3I-**

New

Optional ISWA-HD arm assembly with 15

⁰ indexing for automatic locking of the arm. Includes TS-1 motion attachment and accepts any keyboard tray.

ISWA-HD8-TS1 iX-SM-KBD and iX-SM

Mount system for Xplore iX-104 tablet with locking display tilt and swivel, 16” articulating arm with TG3 keyboard tray on a TS-1 tilt / swivel. For VC

Series consoles and horizontal surfaces.

IX-SM available as a display mount only.

iX-104 Docking Cradle not included.

XP-DDM-iX

Desk and Wall mount for the

Xplore iX-104 and GII Docking stations allows 90° locking tilt and a work area under the tablet. Holes in the base enable vertical surface mounting applications.

i

X-104 Docking Cradle not included.

iX-104-MT

Clamshell Mount for Xplore iX-104 tablet with locking adjustable screen tilt for operator convenience, and a quick release spring loaded TG3 keyboard tray which allows for easy insertion, removal, use and operator convenience.

Mounts to any motion attachment or assembly. iX-104 Docking Cradle not included.

28

Computer Mounts & Docking Stations

CF30/31 TuffDock

The new docking station for the

Panasonic Toughbook 30 and

Toughbook 31 is the lightest, strongest Panasonic compatible dock on the market providing the safest, most reliable solution for mobile computing applications.

Compatible with Panasonic

Toughbook 30 as well as every level of the new Toughbook 31.

CF-53DS

Docking Station

The CF-53 docking station from Gamber-Johnson uses a push button latch with keyed lock Front retainer clips and brass locator pins provide precise computer alignment and docking connectivity.

Insert computer and close the latch to dock. Features rear facing I/O ports, an integrated cable strain relief and cable management systems. Small footprint design maximizes vehicle space. Designed to MIL-STD 810G test procedures.

Complies with FCC Class A standards. Toughbook certified.

LMS Laptop Mounting Stations

LMS laptop mounting stations are constructed of 18 and 10 ga. steel and are black powder coated. Optional shock isolators dampen vibration and reduce the possibility of damage to the computer’s hard drive.

A key lock provides security against unauthorized removal.

Mounting stations do not typically block any computer ports or bays. Optional power supply attaches to the bottom and screen support to the side.

Available for Panasonic CF-18, 19,

28, 29, 30, 52, & 74 Itronix GoBook II, III & Tablet / DuoTouch and

Dell Latitude D410, D510, D610 and D620.

MAG-CF30 & 31

The new magnesium

CF-30 and CF-31 docking stations from Gamber-

Johnson use a unique push-pull docking handle and floating connector that reduce docking alignment problems. Once the docking connector slides into position, the unit can be used locked or unlocked. They utilize front retainer clips for more security and all computer ports are replicated.

The CF-30/31 requires an external power supply.

CF19DS

Docking Station

The new CF-19 docking station from Gamber-

Johnson use s a unique push button latching mechanism and floating connector that reduce docking alignment problems. Front retainer clips and brass locator pins provide precise computer guidance and placement and a side LED indicates when the dock has power The docking station can be positioned both vertically (tablet) or horizontally (notebook) and can be used with any motion attachment. Side cut outs allow access to motion attachment adjustment.

DC-ATG

The DC-ATG Docking

Cradle for Dell E6400,

E6410, E6420 and ATG attaches to the D/Port Advanced Port Replicator (sold separately) to make a complete mobile docking station. Push button latch allows for easy computer insertion and removal. Adjustable side hold-down clips along with the front and rear support brackets secure computer and port replicator in the cradle keeping equipment safe. Built-in key lock helps deter laptop theft.

Rugged aluminum construction for light weight and durability.

Black powder coat finish for maximum corrosion resistance.

Does not work with E6400XFR computer.

29

Computer Mounts & Docking Stations

ULTP5

Universal Laptop mount can be used in place of a dedicated docking station. The ULTP5 is designed to hold laptop computers up to 16.5” wide, 12.38” deep and 1.5” thick with screen open. The units feature a wing turn side latch with built-in key lock for easy insertion and removal of the computer and “one size fits all” hold down clips allow easy adjustment and fit.

Multiple mounting holes allow the computer mount to be offset to avoid other equipment, if necessary The ULTP5 comes with adjustable tilt / swivel and fits any pole, HAT adapter or mount assembly.

ULTP5-LT

The ULTP5-LT is designed to hold small computers such as netbooks and tablets.

The universal mount can be used in place of a dedicated docking station and accepts computers up to 11.8” wide, 9.33” deep and 1.5” thick with screen open. The units feature a wing turn side latch with built-in key lock for easy insertion and removal of the computer. “One size fits all” hold down clips allow easy adjustment and fit while reversible front and rear supports adjust to varying computer depths. Multiple mounting holes allow the mount to be offset to avoid other equipment, if necessary The ULTP5-LT comes with adjustable tilt / swivel and fits any pole, HAT adapter or mount assembly.

ZB-56

VESA-AP

APM-KBAD

Adjustable pole mount keyboard adapter attaches to a pole bottom using a height adjustable collar that interfaces with keyboards and printer mounts allowing independent and articulated motion seperate from the pole upper .

Shown with Data911 display mount and TG3 keyboard.

LKP-FKB3

Universal 9” to 13” adjustable floor mount keyboard pole with articulating arm, tilt / swivel and TG3 keyboard tray.

Also available with universal keyboard tray.

LKP-FAR

Same as above without keyboard tray.

Accepts all motion attachments

.

LKP-SKB

Vertical surface 9” to 13” adjustable keyboard pole with articulating arm, TS-1 tilt/swivel and universal keyboard tray.

Also available with TG3 keyboard tray.

LKP-SAR

Same as above without keyboard tray.

Accepts all motion attachments.

30

ML900-LAP LEDAP

ZB-56

Low Profile Base

1” high top mount swivel base assembly.

Accepts all computer mounts.

VESA-AP

VESA 75 mm to 4” x 2” bolt pattern adapter aluminum plate.

ML900-LAP

Motorola ML-900 Dock to 4” x 2” bolt pattern adapter plate.

LEDAP

LEDCO to 4” x 2” bolt pattern adapter plate.

LEDAP2

2 piece universal adapter. Fits many devices.

LEDAP3

Adapts Lund hole pattern to Havis mounts.

ZO-BASE

5” x 5” Flat base allows low profile mounting with TS-60 or 90 tilt / swivel.

Inset: ZO-BASE with TS-60.

Mounting Systems

Poles and Base Plates

Vehicle Bases:

Base plate kits are available for many other vehicles, see price pages or website for current listing.

Tunnel Base Plates BASE-S,M,L

7 ga. steel tunnel plate with universal slots and

CGR-BASE, CGR11-BASE IMP06-BASE pre-drilled side holes allows front to rear placement flexibility. Available in 16” (S), 22” (M),

2006-+ Charger 7 ga. steel tunnel base plate with mounting feet.

2006-14 Impala 7 ga. steel tunnel base plate with mounting feet.

28.5” (L) lengths and with different vehicle leg kits.

Please see price guide for vehicle applications.

Poles

P5

5” to 8” adjustable pole with standard upper mounts to vehicle base plates

P9

9” to 14” adjustable pole with standard upper mounts to vehicle base plates

P12

12” to 16” adjustable pole with standard upper mounts to vehicle base plates

P5WF & P9WF

5” to 8” and 9” to 14” poles with a wide 5” x 5” universal flange for

P-12B

P9-WFB

P9-B mounting to most manufacturers base plates including Lund, Gamber-Johnson, Troy and Jotto-Desk.

Pole Mount Assemblies

FP-53

Vertical surface mount with adjustable standard upper

(9” to 14”).

FP-52-ADJL FP-57-ADJM

P5-B

P5-WFB

UPR-C

5” (S)

8” (M)

12” (L)

UPR-

Uppers available in 5” (S), 8”

(M),

1

2” (L) with or without quick adjust handle.

Center Upper offers closer mounting to the dash with no offset

Specify 5” or 9”

VMP-8-S

Small flange 8” vertical surface pole mount with standard upper.

FP-57-ADJ-M

Flat floor base 14.5” to 19.5” high available with multiposition quick adjust 8” upper allows mounting in vans or trucks with high seats. Operator can select left / right rotation while the collar sets height.

FP-FPI-ADJM

FP-52-ADJ-L

Heavy duty flat floor base with welded gussets

18.5” to 24” high. Available with multi-position quick adjust upper allows mounting in vans or trucks with high seats. Operator can select left / right rotation while the collar sets height.

FP-FPI-ADJM for Ford Interceptor

Passenger side mounts attache to seat bolts and does not interfere with factory consoles or passenger leg room. Quick adjust upper allows the operator to select left / right rotation while the collar sets height.

See price pages or website for current listing of available passenger side mounts for many other vehicles.

31

Mounting Systems

Motion Attachments and Keyboard Trays

FP-55

Offset Hump Mount for any vehicle with a transmission hump.

Accepts any Pole or HAT bracket.

FP-STEP

3

1

/

2

” x 4” Universal offset mounting step for poles.

Moves poles closer to center of vehicle.

PM-KBAD2 • PM-KBAD3

Pole Mount KBAD2 6” or KBAD3 9” heavy duty adapter platform for keyboards, printers or equipment mounting brackets.

Secured to pole with 2 clamps.

IKEY-KBD

Specify model

and

TG3-KBD

Fits model: SL-86-911-TP

Spring loaded tray designed to hold I-KEY or TG3 keyboards with glide point. Pulls forward for easy insertion and removal. Attaches to any motion device, articulating slide arm, Pole or HAT bracket.

TS-60

TS-90

TS-1

QTS-0

Motion Attachments

Tilt and swivel adapters fit any Pole,

HAT adapter or mount assembly and all swivel 60° left / 60° right.

TS-60 tilts 30° down, 30° up and is 2.5” high. TS-90 has adjustable tilt in three ranges between 90° down, 120° up and is 3.25” high. TS-1 tilts 25° down and is only 1.25” high. QTS-0 Quad motion tilts / swivels, slides 3.5” and moves at both ends.

UKBD

Universal Keyboard tray fits virtually any keyboard and attaches to any motion device, articulating slide arm, Pole or HAT bracket. Tilt and swivel allows the operator to pos ition the keyboard for easy access and viewing.

Adjustable from 10.5” to 16” wide and 6.5” to 9” deep the

UKBD accepts keyboards up to 2” thick. Spring-loaded tray allows easy insertion and removal of the keyboard.

FP-212

Short Stack radio mount fits under dash or on any flat surface. The angled base plate allows equipment to be placed for optimal access.

Equipment brackets are adjustable.

PM-CPU • PM-CPU2

Pole Mount CPU platform for use with the MW-520, 800

(with trunion bracket) or other equipment allows horizontal or vertical positioning of the CPU anywhere on the pole. The unit attaches to any pole with 2 clamps.

ARM-TELS

9”- 13” Telescoping slide arm with swivel. The entire arm rotates 360 degrees and can lock every 15 degrees. Easy access pull knob controls telescoping and swivel.

Requires TS-1 or TS-60EX.

32

BRACE2

Adjustable 10” - 16” support brace reduces mounting system vibration.

Attaches to pole with clamp assembly and console, floor or dash on opposite end.

BRACE3

Same as above, with 3 section adjustable from 16” - 34”.

Printer Mounts

PRBKT-RW420

Printer bracket securely mounts the Zebra RW-420 mobile printer in your vehicle. Locking quick-release spring mechanism mounts to any Lund motion attachment or assembly. Vinyl bumpers protect printer. Compact design provides access to charging port and weighs only 1.5 lbs.

Made of black powder coated 14 ga. steel.

Dimensions: 7.0” L x 6.0” W x 2.375” H

PPJ-CASE

Designed for

Brother

PocketJet mobile printers,

PPJ-CASE it utilizes roll or cut-sheet paper depending on user preference. Roll paper is protected from prolonged exposure to direct sunlight. The “Fast

Release” design allows rapid docking and un-docking of the printer for use outside the vehicle. This compact case may be mounted inside the glove box of many vehicles or used in pedestal or console configurations.

PPJ-CASE-AP

Same as above with armrest pad.

PPJ-CASE-AP

PRBKT-E250

PRBKT-M260

E-SEEK 250 and M260 bar code scanner bracket

PRBKT-HP460

PRBKT-HP450

HP printer mounts for model

HP460 / HP450. Printer mount can mounted to any Lund motion attachment with PRIF-BRKT interface bracket.

Light weight powder coated steel construction only 2.0 lbs.

Dimensions: 14.75” L x 7.25” W x 3.62” H

PPJ-HDARM-WF

PPJ-HDARM-WF

PPJ-HDARM-VP

Armrest mount for Brother PocketJet printer on a 5”- 8” adjustable wide flange pole mounts directly to base plate. Pull-pin latching cover lifts for easy printer and paper access plus paper roller allows simple lift out paper changing. Molded poly armrest pad flips up for easy access to equipment. Constructed of 14 ga.

powder coated steel. Dimensions: 10.5” L x 6.0” W x 4.25” H

PPJ-HDARM-VP

Same as above with a 5”- 8” adjustable vertical pole which mounts directly to rear of console or vertical surface.

PRBKT-RJ4

New

Printer bracket securely mounts the Brother Rugged Jet mobile printer in your vehicle.

Vinyl bumpers protect printer.

Locking quick-release spring mechanism mounts to any motion attachment or assembly.

OHPM-RW4, OHPM-RJ4 and OHPM-PJ6

New

Printer mounts attach overhead to the prisoner partition and offer a 180 degree swivel to accommodate both the driver and passenger. A great solution for vehicles with a limited amount of space.

CGR-PJ6-GB

New

Designed to securely mount the Brother PocketJet mobile printer in the 2011-newer Dodge Charger glove box. The slide arms allow the printer to pull out for easy access and to be stored within the closed glove box when not in use.

33

Trunk Mounting Systems

CAP-TRAY-21, 25

21” or 25” x 16” powder coated 14 gauge steel equipment tray for 2011 & newer

Chevy Caprice attaches to the underside of the rear deck

. Tray glides on wear-resistant

UHMW polyethylene and features a snap pin with lanyard to lock the tray in place.

Trays are available in 21” and 25”lengths, and are interchangeable. Heavy duty frame construction assures long life and a stable equipment platform.

CAP-TRAY-21

UNI-TRAY-21, 25

Universal 21” or 25” x 16” slide out trunk tray for 2006 and newer Impala and many other vehicles with rear deck mounting space available. Trays are available in 21 and 25”lengths, and are interchangeable.

Heavy duty frame construction assures long life and a stable equipment platform.

CGR11-TRAY-21

Adjustable 21” x 16” powder coated steel equipment tray for

2011 & newer Dodge Charger attaches to the underside of the rear deck. Tray glides on wear-resistant UHMW polyethylene and features snap pin with lanyard to lock the tray in place

.

Heavy duty frame construction assures long life and a stable equipment platform.

UNI-TRAY-21

CGR11-TRAY-21

CAP-SHELF

CGR11-SHELF

FPI-SHELF

Powder coated, full width steel shelf for the Chevy

CGR11-SHELF

Caprice, Dodge Charger or Ford Interceptor Sedan. Attaches to pre–drilled holes in the trunk. Tray glides on extendible ball bearing slides.

RHT-3420

34” x 23” hinged equipment mounting tray for the Chevrolet

Impala is constructed of

14 gauge steel with welded corner seams for strength, and powder coated for long life and easy cleaning. The bale bracket mount system permits easy installation and adjustment of the tray height from 6” to 11”.

Loosen a wing nut on each side and the tray drops down for easy access to your equipment.

ST-CGR11

ST-CGR11 for 2011 and newer Charger

ST-1516-DC for 2006 - 10 Charger

ST-1516-IM6 for 2006 and newer Impala

The solution for small equipment mounting is Lund’s side mounting tray which allows complete access to the trunk. The tray is made from 1/8” aluminum for strength and mounts in either the right or left quarter panel area in front of the taillight assembly. The unit is designed for quick and easy installation with a special no hole top bracket. When the tray is secured, it fits in an area not normally “equipment friendly”.

34

Gun Racks

SecureStor Gun Racks

SS-CGM

Lund’s SS-CGM Cage mounted gun rack features single or dual weapon mounting and locking for long guns. The unit is designed to quickly and securely attach to most standard public safety vehicle partitions. The SS-CGM features fully adjustable lock and butt cup locations, allowing for specific weapon and vehicle fit. The SS-CGM is constructed of powder coated steel for years of trouble free service and ease of maintenance, providing a clean and functional installation.

Available with or without lock heads.

SS-FSGM2

SS-GM2 &

SS-FSGM2

SS-GM2

SecureStor SS-GM2 rear seat dual gun rack mounts behind the front seat on the hump and is secured to the front seat bolts and the rear seat support member.

The SS-FSGM2 mounts to a flat vehicle floor. Both will hold a variety of shotguns and assault rifles with their adjustability and ease of installation. A charging handle guard prevents charging the weapon while secured. Slots on the bracket allow flashlight, radio speakers and other equipment to be mounted out of the way.

Available with or without gun locks.

SS-GM2-CAP ‘11+ Chevy Caprice behind the seat dual gunrack

SS-GM2-CGR ‘06-10 Dodge Charger behind the seat dual gunrack

SS-GM2-CGR11 ‘11+ Dodge Charger behind the seat dual gunrack

SS-GM2-DUR ‘12+ Dodge Durango behind the seat dual gunrack

SS-GM2-EXPD Ford Expedition behind the seat dual gunrack

SS-GM2-F150 Ford F-150 behind the seat dual gunrack please specify Super Cab or Super Crew

SS-GM2-FPIS ‘12+ Interceptor Sedan behind the seat dual gunrack

SS-GM2-FPIU ‘12+ Interceptor Utility behind the seat dual gunrack

SS-GM2-IMP ‘06+ Chevy Police Impala behind the seat dual gunrack

SS-GM2-RAM ‘12+ Dodge Ram SSV behind the seat dual gunrack

SS-GM2-SIL Chevy 1500 Quad Cab behind the seat dual gunrack please specify Extended or Crew Cab

SS-GM2-TAH ‘06-14 Chevy Tahoe behind the seat dual gunrack

SS-GM2-TAH15 ‘15+ Chevy Tahoe behind the seat dual gunrack

35

Equipment Vaults

SecureStor Vaults

SSTB-FPI-U

SSTB-EXPL installed in Ford Explorer

SecureStor heavy duty steel SUV vaults are fully carpeted to protect your equipment and feature a 8.5” high drawer on heavy duty full extension slides rated to 250 lbs. Dual handles make sliding the drawer easy, and side perforations allow air to circulate keeping out condensation. The units are available with a high security Simplex combination lock or dual

“T” handle locks. SecureStor vaults are powder coated for long life and easy clean-up and are available to fit Ford Explorer,

Expedition and Chevy Suburban/Tahoe, Trailblazer and many other vehicles

SSTB-SUB-3R: 22” D x 44” W x 23” H (w/ 3”Lip) SSTB-FPI-U 31” D x 40” W x 12” H SSTB-EXPD-EL: 52” D x 47” W x 12” H

SSTB-FPI-U Ford Interceptor Utility SecurStor vault mounting kit 31” D x 40” W

SSTB-EXPD Ford Expedition SecurStor vault mounting kit 35” D x 44” W

SSTB-EXPD-EL Ford Expedition EL SecurStor vault mounting kit 52” D x 47” W

SSTB-EXPL Ford Explorer SecurStor vault mounting kit (2006-10) 35” D x 44” W

rugged

SSTB-SUB Chevy Suburban SecurStor vault mounting kit 35” D x 44” W

SSTB-SUB-3R Chevy Suburban 3rd row SecurStor vault mounting kit 24” D x 44” W x 25” H

(special order only)

SSTB-TAH Chevy Tahoe SecurStor vault mounting kit 35” D x 44” W

SSTB-UL Flat Floor SecurStor vault mounting kit 35” D x 44” W

36

Weapon Storage

SecureStor Locking Gun Vaults

LGV-1540

shown with standard 1/4” foam liner.

LGV-1636

LGV-1540

shown with optional custom cut insert.

Aluminum weapon storage box features a lift-off lid, ventilation holes, electronic combination lock, easy grip handles and 1/4”foam liner.

Optional: User-cuttable solid foam block (call for details).

40”W x 15”D x 7”H

also available:

LGV-1636

36”W x 16”D x 7”H

Optional: radial pin tumbler key lock.

LGV-1636-12

36”W x 16”D x 12”H

Flashers

Both feature a lift-off lid.

Both feature an electronic combination lock with key override.

AT-300 & 400 Flashers

Lund’s AT-300* Alternating Headlight Flasher is designed to flash lamp loads up to

15 amps. per side at 120 flashes per minute. It’s 2-wire headlight hook-up allows easy and fast installation in most vehicles.

The AT-400* Flashback is designed to alternately flash a vehicle’s brake and back-up lights. Normal operation of the brake and back-up lights is automatic and overrides the flasher. All electronic transmission diodes are incorporated into the flasher.

AT-500, 600, 700, 1000, 1100 & 1200 Flashers

AT-500* Ground Side Alternating Headlight Flasher is designed to flash lamp loads up to 15 amps per side at 120 flashes per minute. This flasher is used on most foreign vehicles and some domestic vehicles with ground side switching of the headlights. It’s

2-wire headlight hook-up allows easy installation in most applications.

AT-600* Alternating Headlight Flasher is completely solid state. This flasher is designed to flash lamp loads up to 15 amps per side at 120 Flashes per minute and features low current switching.

AT-700* Flashback is completely solid state and designed to alternately flash a vehicles brake, back-up and auxiliary deck lights. This flasher has override of flash functions with normal brake and back-up operation. It meets all current requirements for Shift lock interface, electronic transmissions and non flashing third brake light.

AT-1000* Solid state ground side switched alternating headlight flasher that is DRL compatible

AT-1100* Solid state alternating headlight flasher that is DRL compatible

AT-1200* Solid state isolation headlight flasher

*Flashers are potted for water resistance, and allow placement under the hood.

37

SFGH-100SC Siren System

SFGH-100SC

functionality

Full function 100 watt siren incorporating an electronic alternating headlight flasher and a brake back-up light flasher in the same package. The SFGH-100SC is designed for undercover use where a full function siren with public address is needed.

The control head is only 3.5” L x 1.5” W x

1” H and very easy to conceal. The small electronics module is easily located in the trunk and cables are then routed to the front of the vehicle. The

SFGH-100 siren draws no battery current unless a siren function is activated.

The unit turns on and off with the vehicle’s ignition switch. The user simply activates the desired function from the control head. Which include flashing headlights, flashing brake/back-up lights, radio rebroadcast, wail, yelp, public address and air horn.

An indicator shows when either flasher is on.

The volume knob provides control of both Public

Address and Radio Rebroadcast volume. Public

Address and air horn override siren functions at all times. Switch outputs can be used to control external strobe power packs and lights, (500ma max per output). The siren system is equipped with connectors that make installation quick, easy and very reliable, all with a minimum of technical knowledge. The electronics module has quick connect plugs for the control and power cable assemblies.

2011-14 Charger Tail Light Arrow Kit

CGR-TLA

Complete 2011 + Newer Charger Tail Light

Arrow Kit Includes:

Factory tail light module, 6 LED units installed and wired with Arrow Control Head.

Assembled and ready to install on trunk lid.

CGR-TLA-BU

Complete 2011 + Newer Charger Tail Light

Arrow Kit with Back-Up Light LED Modules includes:

Complete kit listed above and 2 back-up LED modules furnished, installed and wired.

Flash Patterns

Left, Center-Out, Right:

Building, Sequencing, Bouncing Ball

Flash:

Flash, Flatflash, Sweepflash

38

Installation Accessories

AOI Airbag Switch

The AOI Airbag control switch allows the driver or passenger to turn the airbag on and off.

The use of AOI’s PulseFire

Fuse technology eliminates any question of switch position at the time of impact. A false claim is virtually im possible.

The new US-2/FLM and US-2/GM Dual igniter switches plug directly into the harness of most Ford, Dodge or General Motors vehicles. Installation is easy, non-invasive and the manufacturers’ warranty is unaffected.

S

ee price guide for application information.

Side Curtain Airbag Switches

Control deployment of side curtain airbags which are becoming standard equipment on more vehicles. They are an important consideration for prisoner cages and side window mounted equipment.

See price guide for application information.

CG-X ChargeGuard

Formerly CG-MP

The ChargeGuard

® automatic timer switch extends vehicle battery life by preventing excessive discharge. The unit adds the convenience of turning your equipment or computer on and off.

The switch's built-in sensors automatically turn equipment on when the engine is started, and equipment will stay on for a pre-programmed amount of time when the engine is turned off. The

ChargeGuard

® switch installs quickly and easily with a variety of sensing options including under / over voltage and comes complete, ready to install.

Secure Idle

Ignition override

With the vehicle in “Park”, push the button on the dashboard activating the Secure-Idle system.

Turn the ignition off and remove the key. Secure-Idle allows the vehicle's engine to continue running providing power for vehicle and emergency equipment. Unit is deactivated by stepping on the brake or moving the gear selector.

CEPT-30 PowerTamer

Time Out Timer. Offers 15 minute to 16 hour, programmable battery saver. 3 Milliamp standby current, solid state 30 amp service.

Automatic over and under voltage sensing protection. 16.5 Volt over voltage protection.

Compact, self-contained.

Water Resistant construction mounts anywhere.

ve rsa til ity

AZ-12 Anti-Zap

Anti-Zap is a specialized version of the surge suppressor used in homes and offices to protect electronic equipment and other electrical appliances. When the Anti-Zap is connected to your vehicles battery, it becomes part of the electrical system. As voltage spikes pass through the AZ-12 they are immediately

“clipped” to a level safe for the vehicle’s electronics, thus preventing damage to Computers, Docking

Stations, Modems and other mobile electronics in your vehicle.

39

847-459-1460

800-504-1460

toll free

847-714-9443

fax

40

Lund Industries, Inc.

3175 MacArthur Blvd

Northbrook, IL 60062

Product or “will it fit” questions email:

[email protected]

To order or for order status email:

[email protected]

web site :

www.lund-industries.com

40

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
