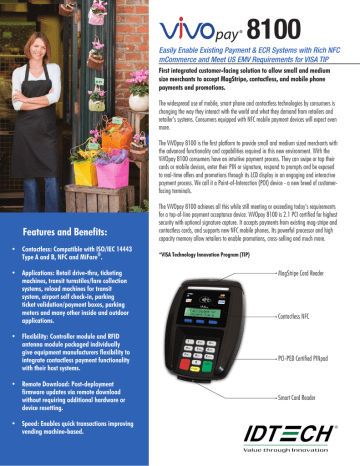

8100
8100
Easily Enable Existing Payment & ECR Systems with Rich NFC
mCommerce and Meet US EMV Requirements for VISA TIP
First integrated customer-facing solution to allow small and medium
size merchants to accept MagStripe, contactless, and mobile phone
payments and promotions.
The widespread use of mobile, smart phone and contactless technologies by consumers is
changing the way they interact with the world and what they demand from retailers and
retailer’s systems. Consumers equipped with NFC mobile payment devices will expect even
more.
The ViVOpay 8100 is the first platform to provide small and medium sized merchants with
the advanced functionality and capabilities required in this new environment. With the
ViVOpay 8100 consumers have an intuitive payment process. They can swipe or tap their
cards or mobile devices, enter their PIN or signature, respond to prompts and be exposed
to real-time offers and promotions through its LCD display in an engaging and interactive
payment process. We call it a Point-of-Interaction (POI) device - a new breed of customerfacing terminals.
Features and Benefits:
• Contactless: Compatible with ISO/IEC 14443
Type A and B, NFC and MiFare®.
• Applications: Retail drive-thru, ticketing
machines, transit turnstiles/fare collection
systems, reload machines for transit
system, airport self check-in, parking
ticket validation/payment boxes, parking
meters and many other inside and outdoor
applications.
• Flexibility: Controller module and RFID
antenna module packaged individually
give equipment manufacturers flexibility to
integrate contactless payment functionality
with their host systems.
• Remote Download: Post-deployment
firmware updates via remote download
without requiring additional hardware or
device resetting.
• Speed: Enables quick transactions improving
vending machine-based.
The ViVOpay 8100 achieves all this while still meeting or exceeding today’s requirements
for a top-of-line payment acceptance device. ViVOpay 8100 is 2.1 PCI certified for highest
security with optional signature capture. It accepts payments from existing mag-stripe and
contactless cards, and supports new NFC mobile phones. Its powerful processor and high
capacity memory allow retailers to enable promotions, cross-selling and much more.
*VISA Technology Innovation Program (TIP)
MagStripe Card Reader
Contactless NFC
PCI-PED Certified PINpad
Smart Card Reader
ViVOpay 8100 ™
Hardware
Contactless:
Security:
Processor:
Memory:
Display:
Audio:
Power Supply:
PIN Pad:
Magnetic Stripe:
United States Sales Office
ISO14443 A and B, MiFare, NFC
Master Session, DUKPT, 3DES
Secure ARM9 - 32 bit
16MB flash, 32MB SDRAM, 2MB Data flash
2x16 Characters, LCD, backlit
Multi-tone buzzer
9 to 12VDC or USB 5Volts
Recessed for privacy 13 tactile keys, ADA compliant
3 tracks, bi-directional
Corporate Headquarters
10721 Walker Street
Cypress, CA 90630
Phone: (714) 761-6368
Toll Free:(800) 984-1010
Fax: (714) 761-8880
[email protected]
International Sales Offices
Asia
+866-3-496-6988 (Taiwan)
[email protected]
Contactless Transactions
Certification:
SAM:
Connectivity
Interface:
PCI PED 2.1 (online), MasterCard M/Stripe, Visa MSD
American Express ExpressPay, Discover Zip, EMV L1 and L2 certification
1 (factory option)
Canada
+450-465-5261
[email protected]
South America
+55-11-3079-2255
[email protected]
RS-232 (powered), USB (powered)
Physical Dimensions
Height:
7.5 inches
Width:
5.1 inches
Depth: 1.875 inches
Weight:
0.9 lbs / 0.4Kg
Environmental
Operating Temp:
Storage Temp:
Relative Humidity:
Europe
Germany & United Kingdom
[email protected]
ISO 9001 Certified
32 F to 104 F / 0 C to 40 C
14 F to 158 F / -10 to +70 C
10% to 85% non-condensing
* Application specifications depend on hardware & software configuration.
©2013 International Technologies & Systems Corporation. ID TECH & ViVOpay is a registered trademark of International Technologies & Systems Corporation.
ViVOpay 8100 and Value through Innovation are trademarks of International Technologies & Systems Corporation. All specifications subject to change without notice.
www.idtechproducts.com
80134503-001 R04/13
