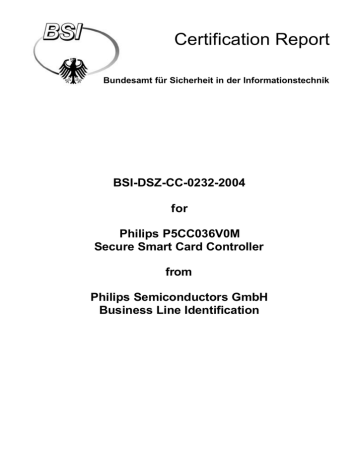

Certification Report

Bundesamt für Sicherheit in der Informationstechnik

BSI-DSZ-CC-0232-2004 for

Philips P5CC036V0M

Secure Smart Card Controller from

Philips Semiconductors GmbH

Business Line Identification

- Bundesamt für Sicherheit in der Informationstechnik, Postfach 20 03 63, D-53133 Bonn

Phone +49 228 9582-0, Fax +49 228 9582-455, Infoline +49 228 9582-111

BSI-DSZ-CC-0232-2004

Philips P5CC036V0M

Secure Smart Card Controller

from

Philips Semiconductors GmbH

Business Line Identification

SOGIS-MRA

The IT product identified in this certificate has been evaluated at an accredited and licensed/ approved evaluation facility using the Common Methodology for IT Security Evaluation, Part 1

Version 0.6, Part 2 Version 1.0 extended by advice of the Certification Body for components beyond EAL4 and smart card specific guidance for conformance to the Common Criteria for IT

Security Evaluation, Version 2.1 (ISO/IEC 15408:1999) and including final interpretations for compliance with Common Criteria Version 2.2 and Common Methodology Part 2, Version 2.2.

Evaluation Results:

PP Conformance:

Protection Profile BSI-PP-0002-2001

Functionality:

BSI-PP-0002-2001 conformant plus product specific extensions

Common Criteria Part 2 extended

Assurance Package:

Common Criteria Part 3 conformant

EAL5 / augmented by:

ALC_DVS.2 (Life cycle support - Sufficiency of security measures),

AVA_MSU.3 (Vulnerability assessment - Analysis and testing for insecure states),

AVA_VLA.4 (Vulnerability assessment - Highly resistant)

This certificate applies only to the specific version and release of the product in its evaluated configuration and in conjunction with the complete Certification Report.

The evaluation has been conducted in accordance with the provisions of the certification scheme of the German Federal Office for Information Security (BSI) and the conclusions of the evaluation facility in the evaluation technical report are consistent with the evidence adduced.

The notes mentioned on the reverse side are part of this certificate.

Bonn, 8 September 2004

The Vice President of the Federal Office for Information Security

Hange L.S.

Bundesamt für Sicherheit in der Informationstechnik

Godesberger Allee 185-189 - D-53175 Bonn - Postfach 20 03 63 - D-53133 Bonn

Phone +49 228 9582-0 - Fax +49 228 9582-455 - Infoline +49 228 9582-111

The rating of the strength of functions does not include the cryptoalgorithms suitable for encryption and decryption (see BSIG Section 4, Para. 3, Clause 2)

This certificate is not an endorsement of the IT product by the Federal Office for Information

Security or any other organisation that recognises or gives effect to this certificate, and no warranty of the IT product by the Federal Office for Information Security or any other organisation that recognises or gives effect to this certificate, is either expressed or implied.

BSI-DSZ-CC-0232-2004 Certification Report

Preliminary Remarks

Under the BSIG

1

Act, the Federal Office for Information Security (BSI) has the task of issuing certificates for information technology products.

Certification of a product is carried out on the instigation of the vendor or a distributor, hereinafter called the sponsor.

A part of the procedure is the technical examination (evaluation) of the product according to the security criteria published by the BSI or generally recognised security criteria.

The evaluation is normally carried out by an evaluation facility recognised by the

BSI or by BSI itself.

The result of the certification procedure is the present Certification Report. This report contains among others the certificate (summarised assessment) and the detailed Certification Results.

The Certification Results contain the technical description of the security functionality of the certified product, the details of the evaluation (strength and weaknesses) and instructions for the user.

1

Act setting up the Federal Office for Information Security (BSI-Errichtungsgesetz, BSIG) of

17 December 1990, Bundesgesetzblatt I p. 2834

V

Certification Report

Contents

Part A: Certification

Part B: Certification Results

Part C: Excerpts from the Criteria

Part D: Annexes

BSI-DSZ-CC-0232-2004

VI

BSI-DSZ-CC-0232-2004 Certification Report

A Certification

1 Specifications of the Certification Procedure

The certification body conducts the procedure according to the criteria laid down in the following:

BSIG

2

BSI Certification Ordinance

3

BSI Schedule of Costs

Special decrees issued by the Bundesministerium des Innern (Federal

Ministry of the Interior)

4

DIN EN 45011 standard

BSI certification: Procedural Description (BSI 7125)

Common Criteria for IT Security Evaluation (CC), Version 2.1

Common Methodology for IT Security Evaluation (CEM)

5

-

-

Part 1, Version 0.6

Part 2, Version 1.0

BSI certification: Application Notes and Interpretation of the Scheme

(AIS)

Advice from the Certification Body on methodology for assurance components above EAL4

The use of Common Criteria Version 2.1, Common Methodology, part 2,

Version 1.0 and final interpretations as part of AIS 32 results in compliance of the certification results with Common Criteria Version 2.2 and Common

Methodology Part 2, Version 2.2 as endorsed by the Common Criteria recognition arrangement committees.

5

4

3

2

Act setting up the Federal Office for Information Security (BSI-Errichtungsgesetz, BSIG) of

17 December 1990, Bundesgesetzblatt I p. 2834

Ordinance on the Procedure for Issuance of a Certificate by the Federal Office for

Information Security (BSI-Zertifizierungsverordnung, BSIZertV) of 7 July 1992,

Bundesgesetzblatt I p. 1230

Schedule of Cost for Official Procedures of the Federal Office for Information Security (BSI-

Kostenverordnung, BSI-KostV) of 29th October 1992, Bundesgesetzblatt I p. 1838

Proclamation of the Bundesministerium des Innern of 22nd September 2000 in the

Bundesanzeiger p. 19445

A-1

Certification Report BSI-DSZ-CC-0232-2004

2 Recognition Agreements

In order to avoid multiple certification of the same product in different countries a mutual recognition of IT security certificates - as far as such certificates are based on ITSEC or CC - under certain conditions was agreed.

2.1

ITSEC/CC - Certificates

The SOGIS-Agreement on the mutual recognition of certificates based on

ITSEC became effective on 3 March 1998. This agreement was signed by the national bodies of Finland, France, Germany, Greece, Italy, The Netherlands,

Norway, Portugal, Spain, Sweden, Switzerland and the United Kingdom. This agreement on the mutual recognition of IT security certificates was extended to include certificates based on the CC for all evaluation levels (EAL 1 – EAL 7).

2.2

CC - Certificates

An arrangement (Common Criteria Arrangement) on the mutual recognition of certificates based on the CC evaluation assurance levels up to and including

EAL 4 was signed in May 2000. It includes also the recognition of Protection

Profiles based on the CC. The arrangement was signed by the national bodies of Australia, Canada, Finland France, Germany, Greece, Italy, The Netherlands,

New Zealand, Norway, Spain, United Kingdom and the United States. Israel joined the arrangement in November 2000, Sweden in February 2002, Austria in November 2002, Hungary and Turkey in September 2003, Japan in

November 2003.

A-2

BSI-DSZ-CC-0232-2004 Certification Report

3 Performance of Evaluation and Certification

The certification body monitors each individual evaluation to ensure a uniform procedure, a uniform interpretation of the criteria and uniform ratings.

The product Philips P5CC036V0M Secure Smart Card Controller has undergone the certification procedure at BSI.

The evaluation of the product Philips P5CC036V0M Secure Smart Card

Controller was conducted by T-Systems GEI GmbH, Prüfstelle für IT-Sicherheit.

The T-Systems GEI GmbH, Prüfstelle für IT-Sicherheit is an evaluation facility

(ITSEF)

6

recognised by BSI.

The sponsor, and vendor and distributor is:

Philips Semiconductors GmbH

Business Line Identification

P.O. Box 54 02 40

D-22502 Hamburg, Germany

The certification is concluded with

• the comparability check and

• the production of this Certification Report.

This work was completed by the BSI on 8 September 2004.

The confirmed assurance package is only valid on the condition that

• all stipulations regarding generation, configuration and operation, as given in the following report, are observed,

• the product is operated in the environment described, where specified in the following report.

This Certification Report only applies to the version of the product indicated here. The validity can be extended to new versions and releases of the product, provided the sponsor applies for re-certification of the modified product, in accordance with the procedural requirements, and the evaluation does not reveal any security deficiencies.

For the meaning of the assurance levels and the confirmed strength of functions, please refer to the excerpts from the criteria at the end of the

Certification Report.

6

Information Technology Security Evaluation Facility

A-3

Certification Report BSI-DSZ-CC-0232-2004

4 Publication

The following Certification Results contain pages B-1 to B-26 and D1 to D4.

The product Philips P5CC036V0M Secure Smart Card Controller has been included in the BSI list of the certified products, which is published regularly

(see also Internet: http:// www.bsi.bund.de). Further information can be obtained from BSI-Infoline +49 228 9582-111.

Further copies of this Certification Report can be requested from the vendor

7

of the product. The Certification Report can also be downloaded from the abovementioned website.

7

Philips Semiconductors GmbH, Business Line Identification, P.O. Box 54 02 40, D-22502

Hamburg, Germany

A-4

BSI-DSZ-CC-0232-2004 Certification Report

B Certification Results

The following results represent a summary of

• the security target of the sponsor for the target of evaluation, the relevant evaluation results from the evaluation facility, and complementary notes and stipulations of the certification body.

B-1

Certification Report

Contents of the certification results

1 Executive Summary

2 Identification of the TOE

3 Security Policy

4 Assumptions and Clarification of Scope

5 Architectural Information

6 Documentation

7 IT Product Testing

8 Evaluated Configuration

9 Results of the Evaluation

10 Evaluator Comments/Recommendations

11 Annexes

12 Security Target

13 Definitions

14 Bibliography

BSI-DSZ-CC-0232-2004

15

15

16

17

20

21

21

22

24

3

11

13

13

14

B-2

BSI-DSZ-CC-0232-2004 Certification Report

1 Executive Summary

The Target of Evaluation (TOE) is the Philips P5CC036V0M Secure Smart Card

Controller. It provides a hardware platform for a smart card to run smart card applications executed by a smart card operating system.

The TOE is manufactured in the IC fabrication SSMC in Singapore (see part D,

Annex A) indicated by the nameplate (on-chip identifier) T023M.

The TOE is based on the chip Philips P5CT072 composed of a processing unit, security components, I/O ports, volatile and non-volatile memories (4608 Bytes

RAM, 128 KBytes Application-ROM, 36 KBytes EEPROM activated), a Triple-

DES and FameXE co-processor and a Random number generator. Also two 16bit Timers, an Interrupt Module, a Memory Management Unit and an UART for

ISO 7816 Interface. The USB interface and the ISO 14443 contactless interface are not available.

The TOE also includes Philips proprietary IC Dedicated Software stored on the chip and used for testing purposes during production only. It does not provide additional services in the operational phase of the TOE. The smart card operating system and the application stored in the Application-ROM and in the

EEPROM are not part of the TOE.

The IC Dedicated Support Software consists of two parts: the Boot ROM

Software being executed after each reset of the TOE and the Mifare Operating

System: This software is disabled in all configurations of the TOE and can not be used in any way.

The EEPROM part of the TOE provides a platform for applications requiring non-volatile data storage, including smart cards and portable data banks.

Several security features independently implemented in hardware or controlled by software will be provided to ensure proper operations and integrity and confidentiality of stored data. This includes for example measures for memory protection and sensors to allow operations only under specified conditions.

The Security Target is written using the Protection Profile BSI-PP-0002-2001

[9]. With reference to this Protection Profile, the smart card product life cycle is described in seven phases and the development, production and operational user environment are described and referenced to these phases. The assumptions, threats and objectives defined in this Protection Profile are used.

The IT product Philips P5CC036V0M Secure Smart Card Controller was evaluated against the claims of the Security Target [6] by T-Systems GEI

GmbH, Prüfstelle für IT-Sicherheit. The evaluation was completed on 23. July

2004. The T-Systems GEI GmbH, Prüfstelle für IT-Sicherheit is an evaluation facility (ITSEF)

8

recognised by BSI.

8

Information Technology Security Evaluation Facility

B-3

Certification Report BSI-DSZ-CC-0232-2004

The sponsor, vendor and distributor is Philips Semiconductors GmbH

Business Line Identification.

1.1 Assurance package

The TOE security assurance requirements are based entirely on the assurance components defined in part 3 of the Common Criteria (see Part C or [1], part 3 for details). The TOE meets the assurance requirements of assurance level

EAL5+ (Evaluation Assurance Level 5 augmented). The following table shows the augmented assurance components.

Requirement

EAL5

+: ALC_DVS.2

+: AVA_MSU.3

+: AVA_VLA.4

Identifier

TOE evaluation: Semiformally designed and tested

Life cycle support - Sufficiency of security measures

Vulnerability assessment - Analysis and testing of insecure states

Vulnerability assessment - Highly resistant

Table 1: Assurance components and EAL-augmentation

The level of assurance is chosen in order to allow the confirmation that the TOE is suitable for use within devices compliant with the German Digital Signature

Law [14].

1.2 Functionality

The TOE Security Functional Requirements (SFR) selected in the Security

Target are Common Criteria Part 2 extended as shown in the following tables.

The following SFRs are taken from CC Part 2:

Security

Functional

Requirement

FCS

FCS_COP.1

[DES]

FDP

FDP_ACC.1

[MEM]

FDP_ACC.1

9

[SFR]

FDP_ACF.1

[MEM]

Identifier

Cryptographic support

Cryptographic operation

User data protection

Subset access control

Subset access control

Security Attribute based access control

FDP_ACF.1

[SFR]

Security Attribute based access control

9

[SFR] here means Special Function Register

Source from

PP or added in ST

ST

ST

ST

ST

ST

B-4

BSI-DSZ-CC-0232-2004 Certification Report

FDP_IFC.1

FDP_ITT.1

FMT

FMT_MSA.1

[MEM]

FMT_MSA.1

[SFR]

FMT_MSA.3

[MEM]

FMT_MSA.3

[SFR]

FMT_SMF.1

FPT

FPT_FLS.1

FPT_ITT.1

FPT_PHP.3

FPT_SEP.1

FRU

FRU_FLT.2

Subset information flow control

Basic internal transfer protection

Security Management

Management of security attributes

Management of security attributes

Static attribute initialisation

PP

PP

Static attribute initialisation ST

Specification of management functions (see also [4, AIS

32, Int065])

ST

Protection of the TOE Security Functions

Failure with preservation of secure state

Basic internal TSF data transfer protection

Resistance to physical attack

TSF domain separation

Resource utilisation

PP

PP

PP

PP

Limited fault tolerance PP

Table 2: SFRs taken from CC Part 2

ST

ST

ST

The following CC part 2 extended SFRs are defined.

Security

Functional

Requirement

FAU

FAU_SAS.1

FCS

FCS_RND.1

FMT

FMT_LIM.1

FMT_LIM.2

Identifier

Security audit

Audit storage

Cryptographic support

Quality metric for random numbers

Security management

Limited capabilities

Limited availability

Source from

PP or added in

ST

PP

PP

PP

PP

Table 3: SFRs CC part 2 extended.

Note: Only the titles of the Security Functional Requirements are provided. For more details please refer to the Security Target [7], chapter 5.1.1.

These Security Functional Requirements are implemented by the following TOE

Security Functions:

B-5

Certification Report BSI-DSZ-CC-0232-2004

TOE Security

Functions

F.RNG

F.HW_DES

F.OPC

F.PHY

F.LOG

F.COMP

F.MEM_ACC

F.SFR_ACC

Description

Random Number Generator

Triple-DES Co-Processor

Control of Operating Conditions

Protection against Physical Manipulation

Logical Protection

Protection of Mode Control

Memory Access Control

Special Function Register Access Control

Table 4: TOE Security Functions

F.RNG: Random Number Generator

The random number generator continuously produces random numbers with a length of one byte. The TOE implements the F.RNG by means of a physical hardware random number generator working stable within the limits guaranteed by F.OPC (operational conditions). The TSF provides a hardware test functionality that can be used by the Smart Card

Embedded Software to detect faults in the hardware implementing the random number generator.

F.HW_DES: Triple-DES Co-Processor

The TOE provides the Triple Data Encryption Algorithm (TDEA) of the

Data Encryption Standard (DES). F.HW_DES is a modular basic cryptographic function which provides the TDEA algorithm as defined by

FIPS PUB 46-3 [13] by means of a hardware co-processor and supports the 2-key Triple DEA algorithm according to keying option 2 in FIPS PUB

46-3.

F.OPC: Control of Operating Conditions

The function F.OPC ensures the correct operation of the TOE (functions offered by the micro controller including the standard CPU as well as the

Triple-DES co-processor, the arithmetic coprocessor, the memories, registers, I/O interface and the other system peripherals) during the execution of the IC Dedicated Support Software and Smart Card

Embedded Software. This includes all specific security features of the

TOE which are able to provide an active response.

F.OPC filters the power supply and the clock input. It also monitors the power supply, the frequency of the clock, the temperature of the chip and the high voltage for the write process to the EEPROM by means of sensors. In addition, light sensors are provided to detect specific attacks and the specific range of the stack pointer is controlled.

Before TOE delivery the Test Mode is disabled. In all other modes except the Test Mode the TOE enables the sensors automatically when

B-6

BSI-DSZ-CC-0232-2004 Certification Report

operated. Furthermore the TOE prevents that the Smart Card Embedded

Software disables the sensors.

F.PHY: Protection against Physical Manipulation

The function F.PHY protects the TOE against manipulation of (i) the hardware, (ii) the IC Dedicated Software in the ROM, (iii) the Smart Card

Embedded Software in the ROM and the EEPROM, (iv) the application data in the EEPROM and RAM including the configuration data in the security row. It also protects User Data or TSF data against disclosure by physical probing when stored or while being processed by the TOE.

F.LOG: Logical Protection

The function F.LOG implements measures to limit or eliminate the information that might be contained in the shape and amplitude of signals or in the time between events found by measuring such signals. This comprises the power consumption and signals on the other pads that are not intended by the terminal or the Smart Card Embedded Software.

Thereby this security function prevents the disclosure of User Data or

TSF data stored and/or processed in the smart card IC through the measurement of the power consumption and subsequent complex signal processing. The protection of the TOE comprises different features within the design that support the other security functions.

The Triple-DES co-processor includes special features to prevent

SPA/DPA analysis of shape and amplitude of the power consumption and ensures that the calculation time is independent from any key and plain/cipher text.

The FameXE co-processor provides measures to prevent timing attacks on basic modular function. In addition special features are included to provide limitations of the capability for the analysis of shape and amplitude of the power consumption. Of course the FameXE does not realise an algorithm on its own and algorithm-specific leakage countermeasures have to be added for the FameXE.

Additional features that can be configured by the Smartcard Embedded

Software comprise (i) the FameXE HIGHSEC mode and (ii) several clock configurations to support resistance against leakage attacks.

The behaviour of F.LOG is supported by different features realised in the functions F.OPC and F.PHY.

F.COMP: Protection of Mode Control

The function F.COMP provides a control of the CPU mode for (i) Boot

Mode, (ii) Test Mode and (iii) Mifare Mode. This includes the protection of electronic fuses stored in a protected memory area, the so-called

“Security Row”, and the possibility to store initialisation or prepersonalisation data in the so-called “FabKey Area”.

B-7

Certification Report BSI-DSZ-CC-0232-2004

The control of the CPU mode according to Boot Mode, Test Mode and

Mifare Mode prevents the abuse of test functions after TOE delivery.

Additionally it also ensures that features used at boot time to configure the TOE can not be abused.

F.COMP limits the capabilities of the test functions and provides test personnel during phase 3 with the capability to store the identification and/or pre-personalisation data and/or supplements of the Smart Card

Embedded Software in the EEPROM. The security function F.COMP

maintains the security domain for its own execution that protects it from interference and tampering by untrusted subjects both in the Test Mode and in the other modes. It also enforces the separation between the security domains of subjects regarding the IC Dedicated Software and the Smart Card Embedded Software.

F.MEM_ACC: Access control for code and data memory

F.MEM_ACC controls access of any subject (program code comprising processor instructions) to the memories of the TOE through the Memory

Management Unit (MMU). Memory access is based on virtual addresses that are mapped to physical addresses. The CPU always uses virtual addresses. The Memory Management Unit performs the translation from virtual to physical addresses and the physical addresses are provided from the MMU to the memory interfaces to access the memories. The access control is performed in two ways (i) Partition of the memories and

(ii) Segmentation of the memory in the User Mode.

In addition F.MEM_ACC permanently checks whether the selected addresses are within the boundary of the physical implemented memory range. Access violations (i.e. access to forbidden memory addresses in

User Mode) and accesses outside the boundary of the physical implemented memory range are notified by raising an exception.

F.SFR_ACC: Access control for Special Function Registers (SFRs)

The function F.SFR_ACC controls access to the Special Function

Registers and the switch between the CPU modes.

The TSF implements the access control to the Special Function

Registers as specified in the Access Control Policy and the Security

Functional Requirements FDP_ACC.1[SFR] and FDP_ACF.1[SFR].

F.SFR_ACC used information provided by F.MEM_ACC in order to determine access to the Special Function Registers related to hardware components. Access to all other Special Function Registers is predefined and cannot be changed.

Only two modes are available to the Smart Card Embedded Software, the System Mode and the User Mode. The combination of F.SFR_ACC

and F.COMP ensures that the other CPU modes are not available for the

Smart Card Embedded Software, but reserved for specific purposes

B-8

BSI-DSZ-CC-0232-2004 Certification Report

fulfilled by the IC Dedicated Software. In addition F.MEM_ACC provides separation of the memories and access control information.

As the Test Mode is disabled before TOE delivery, all TOE Security Functions are applicable from TOE delivery at the end of phase 3 or 4 (depending on when TOE delivery takes place in a specific case) to phase 7.

1.3 Strength of Function

The TOE‘s strength of functions is rated ‘high’ (SOF-high) for those functions, identified in the Security Target, chapter 6.1, SOF Claim. The rating of the strength of functions does not include the cryptoalgorithms suitable for encryption and decryption (see BSIG Section 4, Para. 3, Clause 2) (see

Chapter 9 of this report).

1.4 Summary of threats and Organisational Security Policies (OSPs) addressed by the evaluated IT product

The threats which were assumed for the evaluation and averted by the TOE are specified in the BSI-PP-0002-2001 [9] and mentioned in the Security Target.

Considering the Application Notes 10 and 11 of [9] there are no additional highlevel security concerns or additional new threats defined in the Security Target.

Phase 1 and the phases from TOE Delivery up to the end of phase 6 are covered by assumptions (see below).

The development and production environment starting with phase 2 up to TOE

Delivery are covered by an organisational security policy outlining that the IC developer / manufacturer must apply the policy “Protection during TOE

Development and Production (P.Process-TOE)” so that no information is unintentionally made available for the operational phase of the TOE. The Policy ensures confidentiality and integrity of the TOE and its related design information and data. Access to samples, tools and material must be restricted.

Because there is a specific security component which is not derived from threats the developer must apply the Policy P.Add-Components (Additional

Specific Security Components) for Triple DES encryption and decryption, Area based Memory Access Control, Memory separation for different software parts

(including IC Dedicated Software and Smart Card Embedded Software) and

Special Function Register Access Control.

Objectives are taken from the Protection Profile plus additional ones related to the additional policy.

1.5 Special configuration requirements

The Philips P5CC036V0M Secure Smart Card Controller distinguishes between five different CPU modes: Boot Mode, Test Mode, Mifare Mode, System Mode and User Mode.

B-9

Certification Report BSI-DSZ-CC-0232-2004

As the TOE comprises the Mifare Operating System belonging to the Mifare

Mode, this mode is disabled and is not accessible. Nevertheless the Mifare

Mode is existent and security functionality with regard to the Mifare Mode is present in the TOE, but the TOE prevents that the Mifare Mode is activated and the related software is executed. Available for the developer of the Smart Card

Embedded Software are the System Mode and the User Mode.

The application software being executed on the TOE can not use the test mode.

The TOE is delivered as a hardware unit at the end of the chip manufacturing process. At this point in time the operating system software is already stored in the non-volatile memories of the chip and the test mode is disabled.

Thus, there are no special procedures for generation or installation that are important for a secure use of the TOE. The further production and delivery processes, like the integration into a smart card, personalization and the delivery of the smart card to an end user, have to be organised in a way that excludes all possibilities of physical manipulation of the TOE. There are no special security measures for the start-up of the TOE besides the requirement that the controller has to be used under the well-defined operating conditions and that the requirements on the software have to be applied as described in the user documentation [11] and chapter 10 of this report.

1.6 Assumptions about the operating environment

Since the Security Target claims conformance to the Protection Profile BSI-PP-

0002-2001 [9], the assumptions defined in section 3.2 of the Protection Profile are valid for the Security Target of this TOE. With respect to the life cycle defined in the Security Target, phase 1 and the phases from TOE Delivery up to the end of phase 6 are covered by these assumptions from the PP:

The developer of the smart card Embedded Software (phase 1) must ensure:

• the appropriate “Usage of Hardware Platform (A.Plat-Appl)” while developing this software in phase 1. Therefore, it has to be ensured, that the software fulfils the assumptions for a secure use of the TOE. In particular the assumptions imply that developers are trusted to develop software that fulfils the assumptions.

• the appropriate “Treatment of User Data (A.Resp-Appl)” while developing this software in phase 1. The smart card operating system and the smart card application software have to use security relevant user data of the

TOE (especially keys and plain text data) in a secure way. It is assumed that the Security Policy as defined for the specific application context of the environment does not contradict the Security Objectives of the TOE.

Only appropriate secret keys as input for the cryptographic function of the

TOE have to be used to ensure the strength of cryptographic operation.

Protection during packaging, finishing and personalisation (A.Process-Card) is assumed after TOE Delivery up to the end of phase 6, as well as during the delivery to phase 7.

B-10

BSI-DSZ-CC-0232-2004 Certification Report

The following additional assumption is assumed in the Security Target:

Key-dependent functions shall be implemented (if applicable) in the smart card Embedded Software in a way that they are not susceptible to leakage attacks (A.Key-Function).

The Smart Card Embedded Software must provide a function to check initialisation data. The data is defined by the customer and injected by the TOE Manufacturer into the non-volatile memory to provide the possibility for TOE identification and for traceability (A.Check-Init)

1.7 Disclaimers

The Certification Results only apply to the version of the product indicated in the

Certificate and on the condition that all the stipulations are kept as detailed in this Certification Report. This certificate is not an endorsement of the IT product by the Bundesamt für Sicherheit in der Informationstechnik (BSI) or any other organisation that recognises or gives effect to this certificate, and no warranty of the IT product by BSI or any other organisation that recognises or gives effect to this certificate, is either expressed or implied.

2 Identification of the TOE

The following TOE deliverables are provided for a customer who purchases the

TOE version Philips P5CC036V0M Secure Smart Card Controller:

No Type Identifier Release Date

1 HW Philips P5CC036V0M

Secure Smart Card

Controller

(dice include reference

T023M and specific

EEPROM coding, see below)

2 SW Test ROM Software (the

IC dedicated test software)

3 SW Boot ROM Software (part of the IC Dedicated

Support Software)

4 SW Mifare Operating System

(part of the IC Dedicated

Support Software)

5 DOC Data Sheet, P5CC036,

SmartMX, Secure Smart

Card Controller

V0M

46

1.9

1.16

2.3

T023M_plus.g

ds2_2004051

4 (GDS2 File)

Form of

Delivery

Sawn Wafer or embedded in a chip card module

30 Jan. 2004 Included in Test

ROM on the chip

(tmfos_46.lst)

28 Jan. 2004 Included in Test

ROM on the chip

(tmfos_46.lst)

30 Jan. 2004 Included in Test

ROM on the chip

(tmfos_46.lst)

10

7 April 2004 Electronic document [12]

10

Although the software is implemented on the chip, it is deactivated and cannot be executed

B-11

Certification Report BSI-DSZ-CC-0232-2004

No Type Identifier

6 DOC Instruction Set SmartMX-

Family

7 DOC Guidance, Delivery and

Operation Manual for the

P5CC036

8 DOC Anomaly Sheet for

P5CT072 V0M Product

Behaviour

Release

1.0

1.2

1.2

Date

July 2004

Form of

Delivery

9 May 2003 Electronic document [16]

8 April 2004 Electronic document [11]

Electronic document [17]

Table 5: Deliverables of the TOE Philips P5CC036V0M Secure Smart Card Controller

The hardware part of the TOE is identified by Philips P5CC036V0M Secure

Smart Card Controller and their specific GDS-file. A so-called nameplate (onchip identifier) is coded in a metal mask onto the chip during production and can be checked by the customer, too. The nameplate T023M is specific for the

SSMC (Singapore) production site as outlined in the guidance documentation

[11]. As the TOE is a configured derivate of the chip P5CT072V0M, this nameplate identifies Version V0M of the hardware, but does not identify specifically the TOE Philips P5CC036V0M. For identification of a specific Philips

P5CC036V0M chip, the Device Coding Bytes stored in the EEPROM can be used (see [12, chapter 6.9.8]):

The value 0E hex in Device Coding Byte DC2 identifies the chip

P5CC036

Items 2, 3 and 4 in table 5 are not delivered as single pieces, but included in the

Test ROM part of the chip. They are identified by their unique version numbers.

The delivery process from Philips to their customers (to phase 4 or phase 5 of the life cycle) guarantees, that the customer is aware of the exact versions of the different parts of the TOE as outlined above.

To ensure that the customer receives the evaluated version of the chip, either

• the customer collects the TOE himself at the Philips site Philips

Semiconductors GmbH, Business Line Identification, Stresemannallee

101, 22529 Hamburg – Germany (see part D, annex A of this report) as a wafer or

• the customer collects the TOE himself at the Philips site, Philips

Semiconductors (Thailand), 303 Chaengwattana Rd., Laksi Bangkok

10210, Thailand (see part D, annex A of this report) as a module or

• the TOE is sent by Philips to the customer protected by special ordering, secured transport and tracking measures. Additionally, a FabKey according to the defined FabKey-procedures has to be used to support the secure delivery and the identification of the TOE as described [11].

TOE documentation is delivered either as hardcopy or as softcopy (encrypted) according to defined mailing procedures.

B-12

BSI-DSZ-CC-0232-2004 Certification Report

To ensure that the customer receives this evaluated version, the delivery procedures described in [11] have to be followed.

Defined procedures at the development and production sites guarantee that the right versions of the Test ROM Software, Boot ROM Software and Mifare

Operating System are implemented into a specific ROM mask for a TOE IC.

3 Security Policy

The security policy of the TOE is to provide basic security functions to be used by the smart card operating system and the smart card application thus providing an overall smart card system security. Therefore, the TOE will implement a symmetric cryptographic block cipher algorithm (DES, Triple-DES) to ensure the confidentiality of plain text data by encryption and to support secure authentication protocols and it will provide a random number generation of appropriate quality.

As the TOE is a hardware security platform, the security policy of the TOE is also to provide protection against leakage of information (e.g. to ensure the confidentiality of cryptographic keys during cryptographic functions performed by the TOE), protection against physical probing, malfunctions, physical manipulations, against access for code and data memory and against abuse of functionality. Hence the TOE shall:

• maintain the integrity and the confidentiality of data stored in the memory of the TOE and

• maintain the integrity, the correct operation and the confidentiality of security functions (security mechanisms and associated functions) provided by the TOE.

4 Assumptions and Clarification of Scope

The smart card operating system and the application software stored in the

User ROM and in the EEPROM are not part of the TOE. The code in the Test

ROM of the TOE (IC dedicated software) is used by the manufacturer of the smart card to check the functionality of the chips before TOE Delivery. This was considered as part of the evaluation under the CC assurance aspects ALC for relevant procedures and under ATE for testing.

The TOE is delivered as a hardware unit at the end of the chip manufacturing process (phase 3 of the life cycle defined) or at the end of the IC packaging into modules (phase 4 of the life cycle defined). At these specific points in time the

ROM part of the operating system software is already stored in the ROM of the chip and the test mode is completely disabled.

The smart card applications need the security functions of the smart card operating system based on the security features of the TOE. With respect to security the composition of this TOE, the operating system and the smart card

B-13

Certification Report BSI-DSZ-CC-0232-2004

application is important. Within this composition, the security functionality is only partly provided by the TOE and causes dependencies between the TOE security functions and the functions provided by the operating system or the smart card application on top. These dependencies are expressed by environmental and secure usage assumptions as outlined in the user documentation.

Within this evaluation of the TOE, several aspects were specifically considered to support a composite evaluation of the TOE together with an embedded smart card application software (i.e. smart card operating system and application).

This was necessary as Philips Semiconductors GmbH

Business Line Identification is the TOE developer and manufacturer and responsible for specific aspects of handling the embedded smart card application software in its development and production environment. For those aspects refer to chapter 9.2 of this report.

The full evaluation results are applicable for chips from the IC fabrication SSMC in Singapore indicated by the nameplate (on-chip identifier) T023M.

5 Architectural Information

The Philips P5CC036V0M Secure Smart Card Controller is an integrated circuit

(IC) providing a hardware platform to a smart card operating system and Smart

Card Embedded Software. A top level block diagram including an overview of subsystems can be found within the TOE description of the Security Target. The complete hardware description and the complete instruction set of the Philips

P5CC036V0M Secure Smart Card Controller can be found in the Data Sheet,

P5CC036, SmartMX, Secure Smart Card Controller [12] and Instruction Set

SmartMX-Family [16].

For the implementation of the TOE Security Functions basically the components

8-bit CPU, Special Function Registers, Triple-DES Co-Processor, FameXE Co-

Processor, Random Number Generator (RNG), Power Module with Security

Sensors and Filters are used. The CPU is equipped with a Memory

Management Unit and provides different CPU Modes in order to separate different applications running on the TOE. Security measures for Physical

Protection are realised within the layout of the whole circuitry.

The Special Function Registers provide the interface to the security functions of the TOE.

The Philips P5CC036V0M Secure Smart Card Controller provides different levels of access control to the SFR with the different CPU Modes and additional

– configurable – access control to Special Function Registers in the leastprivileged CPU Mode, the User Mode.

The FameXE does not provide a cryptographic algorithm itself. The modular arithmetic functions are suitable to implement different asymmetric cryptographic algorithms.

B-14

BSI-DSZ-CC-0232-2004 Certification Report

The TOE executes the IC Dedicated Support Software (Boot Software) during the start up to configure and initialise the hardware. This software is executed in the Boot Mode that is not accessible after the start up is finished.

6 Documentation

The following is provided with the product by the developer to the customer for secure usage of the TOE in accordance with the Security Target:

The Guidance, Delivery and Operation Manual [11],

Instruction set [16]

The Data Sheet [12] and

The ETR-lite [10]

Anomaly Sheet [17]

Additional guidance as outlined in chapter 10 of this report has to be followed.

Note that the customer who buys the TOE is normally the developer of the operating system and/or application software which will use the TOE as hardware computing platform to implement the software (operating system / application software) which will use the TOE.

The ETR-lite is intended to provide the results of the platform evaluation for the

TOE in a way that meets the requirements for a composite evaluation as defined in AIS 36 [4].

7 IT Product Testing

The tests performed by the developer can be divided into the following categories:

1. technology development tests as the earliest tests to check the technology against the specification and to get the technology parameters used in simulations of the circuitry;

2. tests which are performed in a simulation environment with different tools for the analogue parts and for the digital parts of the TOE;

3. regression tests which are performed for the IC Dedicated Test Software and for the IC Dedicated Support Software on emulator versions of the

TOE and within a software simulation of chip in special hardware;

4. characterisation and verification tests to release the TOE to production:

- used to determine the behaviour of the chip with respect to different operating conditions and varied process parameters

- special verification tests for Security Functions which were done with samples of the TOE and which include also layout tests by automatic

B-15

Certification Report BSI-DSZ-CC-0232-2004

means and optical control, in order to verify statements concerning the layout;

5. functional production tests, which are done for every chip to check its correct functionality as a last step of the production process (phase 3 or phase 4 depending on the TOE delivery form).

The developer tests cover all Security Functions and all security mechanisms as identified in the functional specification and in the high and low level designs.

Chips from IC fabrication SSMC in Singapore were used for tests.

The evaluators were able to repeat the tests of the developer either using the library of programs, tools and prepared chip samples delivered to the evaluator or at the developers site. They performed independent tests to supplement, augment and to verify the tests performed by the developer. Security features of the TOE realised by specific design and layout measures were checked by the evaluators during layout inspections both in design data and on the final product.

The evaluation provides evidence that the actual version of the TOE provides the Security Functions as specified by the developer. The test results confirm the correct implementation of the TOE Security Functions.

For penetration testing the evaluators took all Security Functions into consideration. Intensive penetration testing was planned based on the analysis results and performed for the underlying mechanisms of Security Functions using bespoke equipment and expert know-how. The penetration tests considered both the physical tampering of the TOE and attacks which do not modify the TOE physically (i.e. side channel testing).

8 Evaluated Configuration

The TOE is identified by Philips P5CC036V0M with the nameplates T023M and specific EEPROM coding as outlined above. The TOE can be configured as outlined in the Security Target [6] chapter 2.2. All TSF are active and usable.

Information on how to use the TOE and its security functions by the software is provided within the user documentation.

The Philips P5CC036V0M Secure Smart Card Controller distinguishes between five different CPU modes: Boot Mode, Test Mode, Mifare Mode, System Mode and User Mode.

As the TOE comprises the Mifare Operating System belonging to the Mifare

Mode, this mode is disabled and is not accessible. It was not part of this evaluation.

As the TOE operates after delivery in System Mode or User Mode and the application software being executed on the TOE can not use the Test Mode, the evaluation was mainly performed in the System Mode and User Mode. For all evaluation activities performed in Test Mode, there was a rationale why the results are valid for the System Mode and User Mode, too.

B-16

BSI-DSZ-CC-0232-2004 Certification Report

9 Results of the Evaluation

9.1 Evaluation of the TOE

The Evaluation Technical Report (ETR) [8], was provided by the ITSEF

T-Systems GEI GmbH, Prüfstelle für IT-Sicherheit, according to the Common

Criteria [1], the Methodology [2], the requirements of the Scheme [3] and all interpretations and guidelines of the Scheme (AIS) [4] as relevant for the TOE.

The evaluation methodology CEM [2] was used for those components identical with EAL4. For components beyond EAL4 the methodology was defined in coordination with the Certification Body [4, AIS 34]). For smart card IC specific methodology the CC supporting documents

(i) The Application of CC to Integrated Circuits

(ii) Application of Attack Potential to Smartcards and

(iii) ETR-lite – for Composition and

ETR-lite – for Composition: Annex A Composite smartcard evaluation:

Recommended best practice

(see [4, AIS 25, AIS 26 and AIS 36]) and [4, AIS 31] (Functionality classes and

evaluation methodology for physical random number generators) were used.

The assurance refinements outlined in the Security Target were followed in the course of the evaluation of the TOE.

The verdicts for the CC, Part 3 assurance components (according to EAL5 augmented and the class ASE for the Security Target evaluation) are summarised in the following table.

Assurance classes and components

Security Target evaluation

TOE description

Security environment

ST introduction

Security objectives

PP claims

IT security requirements

Explicitly stated IT security requirements

TOE summary specification

Configuration management

Partial CM automation

Generation support and acceptance procedures

Development tools CM coverage

CC Class ASE

ASE_DES.1

ASE_ENV.1

ASE_INT.1

ASE_OBJ.1

ASE_PPC.1

ASE_REQ.1

ASE_SRE.1

ASE_TSS.1

CC Class ACM

ACM_AUT.1

ACM_CAP.4

ACM_SCP.3

Verdict

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

B-17

Certification Report BSI-DSZ-CC-0232-2004

Assurance classes and components

Delivery and operation

Detection of modification

Installation, generation, and start-up procedures

Development

Semiformal functional specification

Semiformal high-level design

Implementation of the TSF

Modularity

Descriptive low-level design

Semiformal correspondence demonstration

Formal TOE security policy model

Guidance documents

Administrator guidance

User guidance

Life cycle support

Sufficiency of security measures

Standardised life-cycle model

Compliance with implementation standards

Tests

Analysis of coverage

Testing: low-level design

Functional testing

Independent testing - sample

Vulnerability assessment

Covert channel analysis

Analysis and testing for insecure states

Strength of TOE security function evaluation

Highly resistant

CC Class ADO

ADO_DEL.2

ADO_IGS.1

CC Class ADV

ADV_FSP.3

ADV_HLD.3

ADV_IMP.2

ADV_INT.1

ADV_LLD.1

ADV_RCR.2

ADV_SPM.3

CC Class AGD

AGD_ADM.1

AGD_USR.1

CC Class ALC

ALC_DVS.2

ALC_LCD.2

ALC_TAT.2

CC Class ATE

ATE_COV.2

ATE_DPT.2

ATE_FUN.1

ATE_IND.2

CC Class AVA

AVA_CCA.1

AVA_MSU.3

AVA_SOF.1

AVA_VLA.4

Table 6: Verdicts for the assurance components

The evaluation has shown that:

the TOE is conform to the Smartcard IC Platform Protection Profile, BSI-

PP-0002-2001 [9]

Security Functional Requirements specified for the TOE are Common

Criteria Part 2 extended

Verdict

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

B-18

BSI-DSZ-CC-0232-2004 Certification Report

the assurance of the TOE is Common Criteria Part 3 conformant, EAL5 augmented by ALC_DVS.2, AVA_MSU.3 and AVA_VLA.4

The following TOE Security Functions fulfil the claimed Strength of

Function:

- F.RNG (random number generator), according to AIS 31 Functionality class P2 High,

- F.LOG (Logical Protection) contributing to the leakage attacks especially for F.HW_DES (Triple-DES Co-processor) by SPA/DPA countermeasures.

The scheme interpretations AIS 26 and AIS 31 (see [4]) were used.

The rating of the strength of functions does not include the cryptoalgorithms suitable for encryption and decryption (see BSIG Section 4, Para. 3, Clause 2).

This holds for the TOE Security Function F.HW_DES (Triple-DES Coprocessor) used for DES and Triple-DES encryption and decryption.

For specific evaluation results regarding the development and production environment see annex A in part D of this report.

The code in the Test ROM of the TOE (IC Dedicated Test Software) is used by the TOE manufacturer to check the chip function before TOE delivery. This was considered as part of the evaluation under the CC assurance aspects ALC for relevant procedures and under ATE for testing.

The full evaluation results are applicable for chips from the IC fabrication SSMC in Singapore (see part D, Annex A) indicated by the nameplate (on-chip identifier) T023M and the firmware and software versions as indicated in table

5.

The validity can be extended to new versions and releases of the product or to chips from other production and manufacturing sites, provided the sponsor applies for re-certification of the modified product, in accordance with the procedural requirements, and the evaluation of the modified product does not reveal any security deficiencies.

9.2 Additional Evaluation Results

To support a composite evaluation of the TOE together with a specific smart card embedded software additional evaluator actions were performed during the TOE evaluation. The results are documented in the

ETR-lite [10] according to [4, AIS 36]. Therefore, the interface between the smart card embedded software developer and the developer of the

TOE was examined in detail. These composition related actions comprised the following tasks:

- Examination of the integration of the embedded software in the configuration management system of the IC manufacturer for the TOE.

This comprises the handling of the ROM code, the related acceptance and verification procedures with the customer and the assignment to a

B-19

Certification Report BSI-DSZ-CC-0232-2004

unique commercial type identifier as well as the handling of different

ROM-code masks for the same smart card IC.

- Examination of consistency of delivery and pre-personalisation procedures.

This comprises the handling of the FabKey and pre-personalisation data with respect to the physical, technical and organisational measures to protect these data as well as the procedures to ensure the correct configuration of the TOE. In addition, the production test related to customer specific items including the integrity check of the customer ROM-code and the personalisation process were checked.

- Examination of the separation based on the unique commercial type identifier and the related test and delivery procedures.

- Examination that Philips Semiconductors GmbH

Business Line Identification has implemented procedures to provide a customer product related configuration list based on the configuration list [15] provided for the evaluation of the TOE supplemented by the customer specific items including ROM-mask labelling, specific development tools for embedded software development and related customer specific deliveries and the corresponding verification data generated by Philips to be sent to customer. In the course of the TOE evaluation a specific customer product related configuration list was checked.

- Examination of aspects relevant for the user guidance documentation of the TOE to use the TOE for a product composition.

10 Evaluator Comments/Recommendations

1. The operational documentation guidance [11], Data sheet [12],

Instruction set [16] and Anomaly Sheet [17] contain necessary information about the usage of the TOE. Additionally, for secure usage of the TOE the fulfilment of the assumptions about the environment in the

Security Target has to be taken into account.

2. For evaluations of products or systems including the TOE as a part or using the TOE as a platform (for example smart card operating systems or complete smart cards), the ETR-lite for composition [10] resulting from this evaluation is of importance and shall be given to the succeeding evaluation according to AIS 36.

3. For the fulfilment of the Strength of Function "high" for the Random

Number Generator according to [4, AIS31] the following guidance is to be followed in addition:

The defined online tests of the random number generator must detect all possible defects of the random number generator that lead to a

B-20

BSI-DSZ-CC-0232-2004 Certification Report

significantly reduced quality of the random numbers. Due to physical defects within the random number generator the quality of the random numbers can be reduced. The requirements are not associated with any attack since the components of the random number generator are sufficiently protected and controlled by the design. The attack potential for the manipulation of the random number generator is assessed with

“High”.

In case that the physical defect exists before the start-up of the chip it is always detected by the two test procedures described in the User

Guidance (refer to section 4.1.3 in [11]).

If the physical defect occurs during the operation of the chip a defect can detected by the FIPS PUB 140-2 tests (refer to section 4.1.3 in [11]) if this test method is implemented for the statistical tests by the Smart Card

Embedded Software. This is independent from the considered failure and the internal status of the random number generator.

If the physical defect occurs during the operation, there are circumstances where it is not detected by a "chi-squared test of goodness" (refer to section 4.1.3 in [11]) if this test method is implemented for the statistical tests by the Smart Card Embedded

Software. This is based on the asynchronous operation of the random number generator and depends on the kind of failure and the internal status of the random number generator.

The "chi-squared test of goodness" can be extended to detect all considered defects. In addition to the result of the "chi-squared test of goodness" it must be checked whether two or more of the possible sixteen 4 bit tuples do not occur in the tested sequence. In other words, if at least two of the f[i] values in the formula given in section 4.1.3 of [11] are zero, the test fails. If this check detects at least two missing 4 bit tuples the test must be considered as fail and a repetition is required.

The repetition of the tests is described in section 4.1.4 of [11].

11 Annexes

Annex A: Evaluation results regarding the development and production environment (see part D of this report).

12 Security Target

For the purpose of publishing, the Security Target [7] of the Target of Evaluation

(TOE) is provided within a separate document. It is a sanitised version of the complete Security Target [6] used for the evaluation performed.

B-21

Certification Report BSI-DSZ-CC-0232-2004

13 Definitions

13.1 Acronyms

ITSEF

MMU

OTP

PP

RAM

RNG

ROM

SF

SFP

SFR

SOF

BSI

CC

CPU

DES

DPA

Bundesamt für Sicherheit in der Informationstechnik / Federal

Office for Information Security

Common Criteria for IT Security Evaluation (see [1])

Central Processing Unit

Data Encryption Standard; symmetric block cipher algorithm

Differential Power Analysis

EAL

Evaluation Assurance Level

EEPROM

Electrically Erasable Programmable Read Only Memory

ETR

Evaluation Technical Report

IC

IT

Integrated Circuit

Information Technology

Information Technology Security Evaluation Facility

Memory Management Unit

One Time Programmable (a certain part of the EEPROM)

Protection Profile

Random Access Memory

Random Number Generator

Read Only Memory

Security Function

Security Function Policy

Security Functional Requirement

Strength of Function

ST

TOE

Security Target

Target of Evaluation

Triple-DES Symmetric block cipher algorithm based on the DES

TSC

TSF

TSP

TSS

UART

TSF Scope of Control

TOE Security Functions

TOE Security Policy

TOE Summary Specification

Universal Asynchronous Receiver and Transmitter

B-22

BSI-DSZ-CC-0232-2004 Certification Report

13.2 Glossary

Augmentation - The addition of one or more assurance component(s) from CC

Part 3 to an EAL or assurance package.

Extension - The addition to an ST or PP of functional requirements not contained in part 2 and/or assurance requirements not contained in part 3 of the

CC.

Formal - Expressed in a restricted syntax language with defined semantics based on well-established mathematical concepts.

Informal - Expressed in natural language.

Object - An entity within the TSC that contains or receives information and upon which subjects perform operations.

Protection Profile - An implementation-independent set of security requirements for a category of TOEs that meet specific consumer needs.

Security Function - A part or parts of the TOE that have to be relied upon for enforcing a closely related subset of the rules from the TSP.

Security Target - A set of security requirements and specifications to be used as the basis for evaluation of an identified TOE.

Semiformal - Expressed in a restricted syntax language with defined semantics.

Strength of Function - A qualification of a TOE security function expressing the minimum efforts assumed necessary to defeat its expected security behaviour by directly attacking its underlying security mechanisms.

SOF-basic - A level of the TOE strength of function where analysis shows that the function provides adequate protection against casual breach of TOE security by attackers possessing a low attack potential.

SOF-medium - A level of the TOE strength of function where analysis shows that the function provides adequate protection against straightforward or intentional breach of TOE security by attackers possessing a moderate attack potential.

SOF-high - A level of the TOE strength of function where analysis shows that the function provides adequate protection against deliberately planned or organised breach of TOE security by attackers possessing a high attack potential.

Subject - An entity within the TSC that causes operations to be performed.

Target of Evaluation - An IT product or system and its associated administrator and user guidance documentation that is the subject of an evaluation.

B-23

Certification Report BSI-DSZ-CC-0232-2004

TOE Security Functions - A set consisting of all hardware, software, and firmware of the TOE that must be relied upon for the correct enforcement of the

TSP.

TOE Security Policy - A set of rules that regulate how assets are managed, protected and distributed within a TOE.

TSF Scope of Control - The set of interactions that can occur with or within a

TOE and are subject to the rules of the TSP.

14 Bibliography

[1] Common Criteria for Information Technology Security Evaluation,

Version 2.1, August 1999

[2] Common Methodology for Information Technology Security Evaluation

(CEM), Part 1, Version 0.6; Part 2: Evaluation Methodology, Version 1.0,

August 1999

[3] BSI certification: Procedural Description (BSI 7125)

[4] Application Notes and Interpretations of the Scheme (AIS), Bundesamt für Sicherheit in der Informationstechnik, Bonn, as relevant for the TOE, specifically

- AIS 25, Version 2, 29 July 2002 for: CC Supporting Document, -

The Application of CC to Integrated Circuits, Version 1.2, July

2002

- AIS 26, Version 2, 6 August 2002 for: CC Supporting Document, -

Application of Attack Potential to Smartcards, Version 1.1, July

2002

-

-

-

AIS 31, Version 1, 25 Sept. 2001 for: Functionality classes and evaluation methodology of physical random number generators

AIS 32, Version 1, 02 July 2001, Übernahme international abgestimmter CC-Interpretationen ins deutsche Zertifizierungsschema.

AIS 34, Version 1.00, 1 June 2004, Evaluation Methodology for

CC Assurance Classes for EAL5+

- AIS 36, Version 1, 29 July 2002 for: CC Supporting Document,

ETR-lite for Composition, Version 1.1, July 2002 and

CC Supporting Document, ETR-lite for Composition: Annex A

Composite smartcard evaluation, Version 1.2 March 2002

[5] German IT Security Certificates (BSI 7148, BSI 7149), periodically updated list published also on the BSI Web site

[6] Security Target BSI-DSZ-CC-0232, Version 1.2, 28 April 2004,

Evaluation of Philips P5CC036V0M Secure Smart Card Controller,

Philips Semiconductors (confidential document)

B-24

BSI-DSZ-CC-0232-2004 Certification Report

[7] Security Target Lite BSI-DSZ-CC-0232, Version 1.0, 18 May 2004,

Evaluation of Philips P5CC036V0M Secure Smart Card Controller,

Philips Semiconductors (sanitised public document)

[8] Evaluation Technical Report, Philips P5CC036V0M Secure Smart Card

Controller, Version 1.0, 23 July 2004 (confidential document)

[9] Smart Card IC Platform Protection Profile, Version 1.0, July 2001, registered at the German Certification Body under number BSI-PP-0002-

2001

[10] ETR-lite for Composition, according to AIS 36, Version 1.0, 20 July 2004 for Philips P5CC036V0M Secure Smart Card Controller (confidential document)

[11] Guidance, Delivery and Operation Manual for the P5CC036, BSI-DSZ-

CC-0232, Version 1.2, Philips Semiconductors, 8 April 2004 (confidential document)

[12] Data Sheet, P5CC036, SmartMX, Secure Smart Card Controller,

Preliminary Specification, Philips Semiconductors, Revision 2.3, 7 April

2004 (confidential document)

[13] FIPS PUB 46-3 FEDERAL INFORMATION PROCESSING STANDARDS

PUBLICATION DATA ENCRYPTION STANDARD (DES) Reaffirmed 25

Oct. 1999

[14] Gesetz über Rahmenbedingungen für elektronische Signaturen und zur

Änderung weiterer Vorschriften vom 16. Mai 2001, BGBl. I, S. 876); veröffentlicht am 21. Mai 2001

[15] Configuration List, BSI-DSZ-CC-0227, Version 1.2, 24 June 2004,

Evaluation of the Philips P5CT072V0M Secure Smart Card Controller,

Philips Semiconductors, Business Line Identification (confidential document) (including relevant information for Philips P5CC036V0M, too)

[16] Instruction Set SmartMX-Family, Secure Smart Card Controller,

Objective Specification, Philips Semiconductors, Revision 1.0, 9 May

2003

[17] Anomaly Sheet for P5CT072 V0M Product Behaviour, Philips

Semiconductors, Revision 1.2, Date July 2004

B-25

Certification Report BSI-DSZ-CC-0232-2004

This page is intentionally left blank.

B-26

BSI-DSZ-CC-0232-2004 Certification Report

C Excerpts from the Criteria

CC Part 1:

Caveats on evaluation results (chapter 5.4) / Final Interpretation 008

The conformance result indicates the source of the collection of requirements that is met by a TOE or PP that passes its evaluation. This conformance result is presented with respect to Part 2 (functional requirements), Part 3 (assurance requirements) and, if applicable, to a pre-defined set of requirements (e.g., EAL, Protection Profile).

The conformance result consists of one of the following:

Part 2 conformant - A PP or TOE is Part 2 conformant if the functional requirements are based only upon functional components in Part 2

Part 2 extended - A PP or TOE is Part 2 extended if the functional requirements include functional components not in Part 2 plus one of the following:

Part 3 conformant - A PP or TOE is Part 3 conformant if the assurance requirements are based only upon assurance components in Part 3

Part 3 extended - A PP or TOE is Part 3 extended if the assurance requirements include assurance requirements not in Part 3.

Additionally, the conformance result may include a statement made with respect to sets of defined requirements, in which case it consists of one of the following:

Package name Conformant - A PP or TOE is conformant to a pre-defined named functional and/or assurance package (e.g. EAL) if the requirements (functions or assurance) include all components in the packages listed as part of the conformance result.

Package name Augmented - A PP or TOE is an augmentation of a pre-defined named functional and/or assurance package (e.g. EAL) if the requirements (functions or assurance) are a proper superset of all components in the packages listed as part of the conformance result.

Finally, the conformance result may also include a statement made with respect to

Protection Profiles, in which case it includes the following:

PP Conformant - A TOE meets specific PP(s), which are listed as part of the conformance result.

C-1

Certification Report BSI-DSZ-CC-0232-2004

CC Part 3:

Assurance categorisation (chapter 2.5)

„The assurance classes, families, and the abbreviation for each family are shown in

Table 2.1.

Assurance Class

Class ACM:

Configuration management

Assurance Family

CM automation

Class ADO: Delivery and operation

Class ADV:

Development

Class ALC: Life cycle support

Installation, generation and start-up

Functional specification

Class AGD: Guidance documents

High-level design

Implementation representation

TSF internals

Low-level design

Representation correspondence

Security policy modeling

Administrator guidance

User guidance

Development security

Class ATE: Tests

Flaw remediation

Life cycle definition

Tools and techniques

Coverage

Depth

Functional tests

Independent testing

Covert channel analysis Class AVA:

Vulnerability assessment

CM capabilities

CM scope

Delivery

Misuse

Strength of TOE security functions

Vulnerability analysis

Abbreviated Name

ACM_AUT

AVA_MSU

AVA_SOF

AVA_VLA

Table 2.1 -Assurance family breakdown and mapping“

ACM_CAP

ACM_SCP

ADO_DEL

ADO_IGS

ADV_FSP

ADV_HLD

ADV_IMP

ADV_INT

ADV_LLD

ADV_RCR

ADV_SPM

AGD_ADM

AGD_USR

ALC_DVS

ALC_FLR

ALC_LCD

ALC_TAT

ATE_COV

ATE_DPT

ATE_FUN

ATE_IND

AVA_CCA

C-2

BSI-DSZ-CC-0232-2004 Certification Report

Evaluation assurance levels (chapter 6)

„The Evaluation Assurance Levels (EALs) provide an increasing scale that balances the level of assurance obtained with the cost and feasibility of acquiring that degree of assurance. The CC approach identifies the separate concepts of assurance in a TOE at the end of the evaluation, and of maintenance of that assurance during the operational use of the TOE.

It is important to note that not all families and components from Part 3 are included in the EALs. This is not to say that these do not provide meaningful and desirable assurances. Instead, it is expected that these families and components will be considered for augmentation of an EAL in those PPs and STs for which they provide utility.

Evaluation assurance level (EAL) overview (chapter 6.1)

Table 6.1 represents a summary of the EALs. The columns represent a hierarchically ordered set of EALs, while the rows represent assurance families. Each number in the resulting matrix identifies a specific assurance component where applicable.

As outlined in the next section, seven hierarchically ordered evaluation assurance levels are defined in the CC for the rating of a TOE's assurance. They are hierarchically ordered inasmuch as each EAL represents more assurance than all lower EALs. The increase in assurance from EAL to EAL is accomplished by substitution of a hierarchically higher assurance component from the same assurance family (i.e.

increasing rigour, scope, and/or depth) and from the addition of assurance components from other assurance families (i.e. adding new requirements).

These EALs consist of an appropriate combination of assurance components as described in chapter 2 of this Part 3. More precisely, each EAL includes no more than one component of each assurance family and all assurance dependencies of every component are addressed.

While the EALs are defined in the CC, it is possible to represent other combinations of assurance. Specifically, the notion of “augmentation“ allows the addition of assurance components (from assurance families not already included in the EAL) or the substitution of assurance components (with another hierarchically higher assurance component in the same assurance family) to an EAL. Of the assurance constructs defined in the CC, only EALs may be augmented. The notion of an “EAL minus a constituent assurance component“ is not recognised by the CC as a valid claim.

Augmentation carries with it the obligation on the part of the claimant to justify the utility and added value of the added assurance component to the EAL. An EAL may also be extended with explicitly stated assurance requirements.

C-3

Certification Report BSI-DSZ-CC-0232-2004

Assurance

Class

Assurance

Family

Assurance Components by

Evaluation Assurance Level

EAL1 EAL2 EAL3 EAL4 EAL5 EAL6 EAL7

1 1 2 2 Configuration management

ACM_AUT

ACM_CAP

ACM_SCP

ADO_DEL

1 2 3

1

1

4

2

2

4

3

2 Delivery and operation

1

Development

ADO_IGS

ADV_FSP

ADV_HLD

ADV_IMP

ADV_INT

ADV_LLD

ADV_RCR

ADV_SPM

AGD_ADM

1

1

1

1

1

1

1

1

1

1

1

2

1

1

2

1

1

2

1

1

1

1

2

3

1

3

2

1

1

1

3

Guidance documents

Life cycle support

AGD_USR

ALC_DVS

1 1 1

1

1

1

1

1

Tests

ALC_FLR

ALC_LCD

ALC_TAT

ATE_COV

ATE_DPT

ATE_FUN

ATE_IND

AVA_CCA

1

1

1

2

1

2

2

1

2

1

1

1

1

2

2

2

2

2

1

2

1 Vulnerability assessment

AVA_MSU

AVA_SOF

AVA_VLA

1

1

1

1

1

2

1

2

2

1

3

Table 6.1 - Evaluation assurance level summary“

2

3

1

4

3

2

2

1

3

3

2

2

3

2

2

2

3

1

4

5

3

2

1

2

3

3

3

3

2

3

2

3

1

4

5

3

3

1

2

3

3

1

5

3

3

2

1

4

C-4

BSI-DSZ-CC-0232-2004 Certification Report

Evaluation assurance level 1 (EAL1) - functionally tested (chapter 6.2.1)

„Objectives

EAL1 is applicable where some confidence in correct operation is required, but the threats to security are not viewed as serious. It will be of value where independent assurance is required to support the contention that due care has been exercised with respect to the protection of personal or similar information.

EAL1 provides an evaluation of the TOE as made available to the customer, including independent testing against a specification, and an examination of the guidance documentation provided. It is intended that an EAL1 evaluation could be successfully conducted without assistance from the developer of the TOE, and for minimal outlay.

An evaluation at this level should provide evidence that the TOE functions in a manner consistent with its documentation, and that it provides useful protection against identified threats.“

Evaluation assurance level 2 (EAL2) - structurally tested (chapter 6.2.2)

„Objectives

EAL2 requires the co-operation of the developer in terms of the delivery of design information and test results, but should not demand more effort on the part of the developer than is consistent with good commercial practice. As such it should not require a substantially increased investment of cost or time.

EAL2 is therefore applicable in those circumstances where developers or users require a low to moderate level of independently assured security in the absence of ready availability of the complete development record. Such a situation may arise when securing legacy systems, or where access to the developer may be limited.“

Evaluation assurance level 3 (EAL3) - methodically tested and checked

(chapter 6.2.3)

„Objectives

EAL3 permits a conscientious developer to gain maximum assurance from positive security engineering at the design stage without substantial alteration of existing sound development practices.

EAL3 is applicable in those circumstances where developers or users require a moderate level of independently assured security, and require a thorough investigation of the TOE and its development without substantial re-engineering.“

Evaluation assurance level 4 (EAL4) - methodically designed, tested, and

reviewed (chapter 6.2.4)

„Objectives

EAL4 permits a developer to gain maximum assurance from positive security engineering based on good commercial development practices which, though rigorous,

C-5

Certification Report BSI-DSZ-CC-0232-2004

do not require substantial specialist knowledge, skills, and other resources. EAL4 is the highest level at which it is likely to be economically feasible to retrofit to an existing product line.

EAL4 is therefore applicable in those circumstances where developers or users require a moderate to high level of independently assured security in conventional commodity

TOEs and are prepared to incur additional security-specific engineering costs.“

Evaluation assurance level 5 (EAL5) - semiformally designed and tested

(chapter 6.2.5)

„Objectives

EAL5 permits a developer to gain maximum assurance from security engineering based upon rigorous commercial development practices supported by moderate application of specialist security engineering techniques. Such a TOE will probably be designed and developed with the intent of achieving EAL5 assurance. It is likely that the additional costs attributable to the EAL5 requirements, relative to rigorous development without the application of specialised techniques, will not be large.

EAL5 is therefore applicable in those circumstances where developers or users require a high level of independently assured security in a planned development and require a rigorous development approach without incurring unreasonable costs attributable to specialist security engineering techniques.“

Evaluation assurance level 6 (EAL6) - semiformally verified design and

tested (chapter 6.2.6)

„Objectives

EAL6 permits developers to gain high assurance from application of security engineering techniques to a rigorous development environment in order to produce a premium TOE for protecting high value assets against significant risks.

EAL6 is therefore applicable to the development of security TOEs for application in high risk situations where the value of the protected assets justifies the additional costs.“

Evaluation assurance level 7 (EAL7) - formally verified design and tested

(chapter 6.2.7)

„Objectives

EAL7 is applicable to the development of security TOEs for application in extremely high risk situations and/or where the high value of the assets justifies the higher costs.

Practical application of EAL7 is currently limited to TOEs with tightly focused security functionality that is amenable to extensive formal analysis.“

C-6

BSI-DSZ-CC-0232-2004 Certification Report

Strength of TOE security functions (AVA_SOF) (chapter 14.3)

AVA_SOF

Strength of TOE security functions

„Objectives

Even if a TOE security function cannot be bypassed, deactivated, or corrupted, it may still be possible to defeat it because there is a vulnerability in the concept of its underlying security mechanisms. For those functions a qualification of their security behaviour can be made using the results of a quantitative or statistical analysis of the security behaviour of these mechanisms and the effort required to overcome them. The qualification is made in the form of a strength of TOE security function claim.“

Vulnerability analysis (AVA_VLA) (chapter 14.4)

AVA_VLA

Vulnerability analysis

„Objectives

Vulnerability analysis is an assessment to determine whether vulnerabilities identified, during the evaluation of the construction and anticipated operation of the TOE or by other methods (e.g. by flaw hypotheses), could allow users to violate the TSP.

Vulnerability analysis deals with the threats that a user will be able to discover flaws that will allow unauthorised access to resources (e.g. data), allow the ability to interfere with or alter the TSF, or interfere with the authorised capabilities of other users.“

„Application notes

A vulnerability analysis is performed by the developer in order to ascertain the presence of security vulnerabilities, and should consider at least the contents of all the

TOE deliverables including the ST for the targeted evaluation assurance level. The developer is required to document the disposition of identified vulnerabilities to allow the evaluator to make use of that information if it is found useful as a support for the evaluator's independent vulnerability analysis.“

„Independent vulnerability analysis goes beyond the vulnerabilities identified by the developer. The main intent of the evaluator analysis is to determine that the TOE is resistant to penetration attacks performed by an attacker possessing a low (for

AVA_VLA.2), moderate (for AVA_VLA.3) or high (for AVA_VLA.4) attack potential.“

C-7

Certification Report BSI-DSZ-CC-0232-2004

This page is intentionally left blank.

C-8

BSI-DSZ-CC-0232-2004

D Annexes

List of annexes of this certification report

Annex A: Evaluation results regarding development and production environment

Certification Report

D-3

D-1

Certification Report BSI-DSZ-CC-0232-2004

This page is intentionally left blank.

D-2

BSI-DSZ-CC-0232-2004 Certification Report

Annex A of Certification Report BSI-DSZ-CC-0232-2004

Evaluation results regarding development and production environment

The IT product, Philips P5CC036V0M Secure Smart Card Controller (Target of

Evaluation, TOE) has been evaluated at an accredited and licensed/ approved evaluation facility using the Common Methodology for IT Security Evaluation, Part 1

Version 0.6, Part 2 Version 1.0, extended by advice of the Certification Body for components beyond EAL4 and smart card specific guidance, for conformance to the

Common Criteria for IT Security Evaluation, Version 2.1 (ISO/IEC15408: 1999) and including final interpretations for compliance with Common Criteria Version 2.2 and

Common Methodology Part 2, Version 2.2.

As a result of the TOE certification, dated 8 September 2004, the following results regarding the development and production environment apply. The Common Criteria assurance requirements

ACM – Configuration management (i.e. ACM_AUT.1, ACM_CAP.4, ACM_SCP.3),

ADO – Delivery and operation (i.e. ADO_DEL.2, ADO_IGS.1),

ALC – Life cycle support (i.e. ALC_DVS.2, ALC_LCD.2, ALC_TAT.2),

fulfilled for the development and production sites of the TOE listed below ((a) – (g)):

(a) Philips Semiconductors GmbH, Business Line Identification

(BU ID), Georg-Heyken-Strasse 1, 21147 Hamburg, Germany, (development center)

(b) Philips Semiconductors GmbH, Assembly and Test Organisation Hamburg

Stresemannallee 101, 22529 Hamburg, Germany

(c) Philips Semiconductors (Thailand), 303 Chaengwattana Rd., Laksi Bangkok

10210, Thailand (assembly)

(d) Philips Semiconductors GmbH, Business Line Identification, Document Control

Office, Mikron-Weg 1, 8101 Gratkorn, Austria

(e) Systems on Silicon Manufacturing Co. Pte. Ltd. 8 (SSMC), 70 Pasir Ris Drive 1,

Singapore 519527, Singapore (semiconductor factory)

(f)

Photronics Singapore Pte. Ltd., 6 Loyang Way 2, Loyang Industrial Park,

Singapore 507099, Singapore (mask shop)

(g) Photronics Semiconductors Mask Corp. (PSMC), 1F, No.2, Li-Hsin Rd., Science-

Based Industrial Park, Hsin-Chu City Taiwan R.O.C. (mask shop)

The TOE is manufactured in the IC fabrication SSMC in Singapore (see part D, Annex A) indicated by the nameplate (on-chip identifier) T023M.

For all sites listed above, the requirements have been specifically applied for each site and in accordance with the Security Target BSI-DSZ-CC-0232, Version 1.2, 28 April

2004, Evaluation of Philips P5CC036V0M Secure Smart Card Controller [6]. The evaluators verified, that the threats are countered and the security objectives for the life cycle phases 2, 3 and 4 up to delivery at the end of phase 3 or 4 as stated in the TOE

Security Target are fulfilled by the procedures of these sites.

D-3

Certification Report BSI-DSZ-CC-0232-2004

This page is intentionally left blank.

D-4

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
