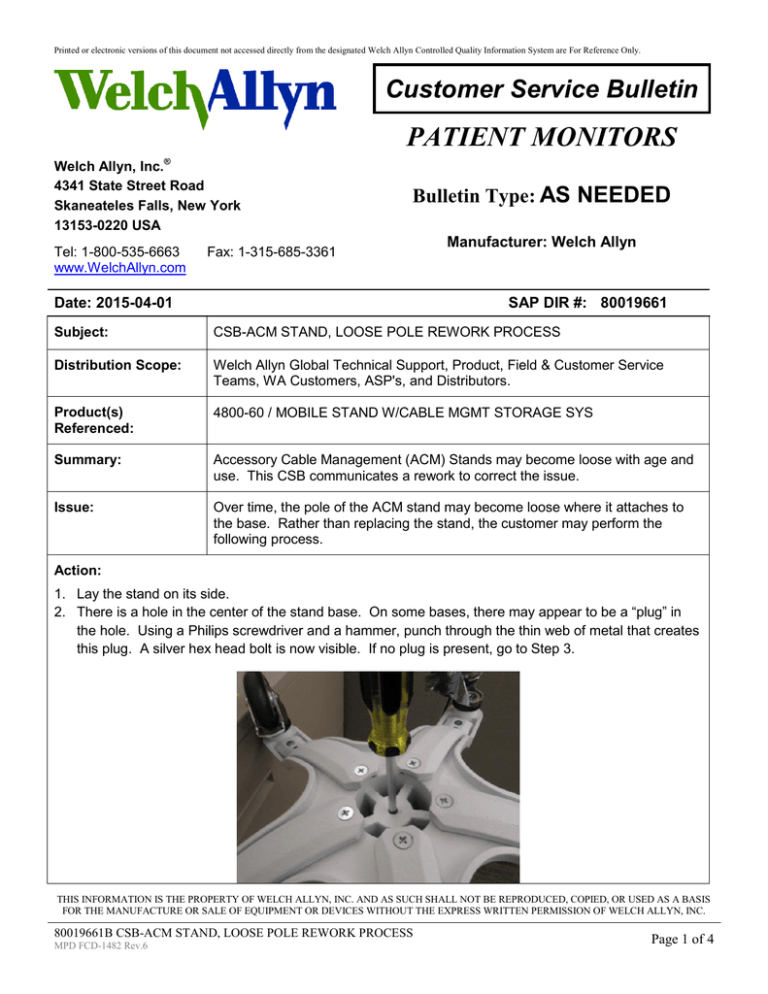

Customer Service Bulletin
PATIENT MONITORS
®
Welch Allyn, Inc.
4341 State Street Road
Skaneateles Falls, New York
13153-0220 USA
Tel: 1-800-535-6663
www.WelchAllyn.com
Bulletin Type: AS NEEDED
Fax: 1-315-685-3361
Date: 2015-04-01
Manufacturer: Welch Allyn
SAP DIR #: 80019661
Subject:
CSB-ACM STAND, LOOSE POLE REWORK PROCESS
Distribution Scope:
Welch Allyn Global Technical Support, Product, Field & Customer Service
Teams, WA Customers, ASP's, and Distributors.
Product(s)
Referenced:
4800-60 / MOBILE STAND W/CABLE MGMT STORAGE SYS
Summary:
Accessory Cable Management (ACM) Stands may become loose with age and
use. This CSB communicates a rework to correct the issue.
Issue:
Over time, the pole of the ACM stand may become loose where it attaches to
the base. Rather than replacing the stand, the customer may perform the
following process.
Action:
1. Lay the stand on its side.
2. There is a hole in the center of the stand base. On some bases, there may appear to be a “plug” in
the hole. Using a Philips screwdriver and a hammer, punch through the thin web of metal that creates
this plug. A silver hex head bolt is now visible. If no plug is present, go to Step 3.
THIS INFORMATION IS THE PROPERTY OF WELCH ALLYN, INC. AND AS SUCH SHALL NOT BE REPRODUCED, COPIED, OR USED AS A BASIS
FOR THE MANUFACTURE OR SALE OF EQUIPMENT OR DEVICES WITHOUT THE EXPRESS WRITTEN PERMISSION OF WELCH ALLYN, INC.
80019661B CSB-ACM STAND, LOOSE POLE REWORK PROCESS
MPD FCD-1482 Rev.6
Page 1 of 4
Printed or electronic versions of this document not accessed directly from the designated Welch Allyn Controlled Quality Information System are For Reference Only.
3. Using a 5mm Allen key and pliers (or similar tool set), loosen the bolt by turning in a counter-clockwise
direction, as shown below. This may be difficult because of the thread-lock used in production of the
stand. Loosening the bolt will push the base and pole apart.
4. Once the base and pole are apart, place the base right-side up (wheels down) on the floor. Looking
into the hole where the pole was inserted and using a flat-blade screwdriver, pry the star washer away
from the wall of the base. Eventually the washer will become loose and it, along with the bolt, can be
removed. The star washer will be permanently damaged by this process. Discard the star washer and
bolt.
THIS INFORMATION IS THE PROPERTY OF WELCH ALLYN, INC. AND AS SUCH SHALL NOT BE REPRODUCED, COPIED, OR USED AS A BASIS
FOR THE MANUFACTURE OR SALE OF EQUIPMENT OR DEVICES WITHOUT THE EXPRESS WRITTEN PERMISSION OF WELCH ALLYN, INC.
80019661B CSB-ACM STAND, LOOSE POLE REWORK PROCESS
MPD FCD-1482 Rev.6
Page 2 of 4
Printed or electronic versions of this document not accessed directly from the designated Welch Allyn Controlled Quality Information System are For Reference Only.
5. Replace the pole into the base and push it in until it stops. Insert a new, 1/4-20 x 1.5" (Allen or hex
head) bolt and washer through the bottom of the base to reattach the base to the pole and tighten the
bolt.
Note 1: The required bolt and washer shall be obtained from a hardware store or similar supplier.
Welch Allyn will not supply bolts or washers for the purpose of repairing the stand per this process.
Note 2: The previously used 5mm Allen key may not fit your new bolt. Use an appropriately sized tool
for your choice of bolt head. Recommended Torque: 80+/-10 in-lb. (9.04+/-1.13 Nm)
Note 3: Periodic retightening may be required depending upon use. Alternately, application of 3M
#2353 THREAD LOCKING ADHESIVE to the bolt threads can help minimize loosening. The picture
below shows the finished repair when done with a hex-head bolt.
For stands that experience this issue while under warranty: The customer has the choice of having the
stand replaced under warranty, or reworking the stand per this procedure.
This rework is an acceptable alternative to replacing the stand but does not renew or extend the original
warranty period of the stand.
5mm Allen Key, Pliers, Philips Screwdriver, Flat-head Screwdriver,
Hammer, 1/4-20 x 1.5" bolt (Allen or hex head), and washer
Required Tools:
Notes:
1. Contact Welch Allyn regarding any questions or concerns from this or other issues.
2. Drawings, illustrations, and part numbers in this document are for reference purposes only and subject to
change.
End of Bulletin
Revision History
Version
Description
Change #
Init
Release Date
Appr
A
Initial Release
D*
SMB
D*
D*
B
Added new “Note 1” to end of Step 5 detailing
customers’ expectations
D*
SMB
D*
D*
D* SEE SAP DIR FOR CHANGE NUMBER, APPROVER NAME AND DATE OF APPROVAL
