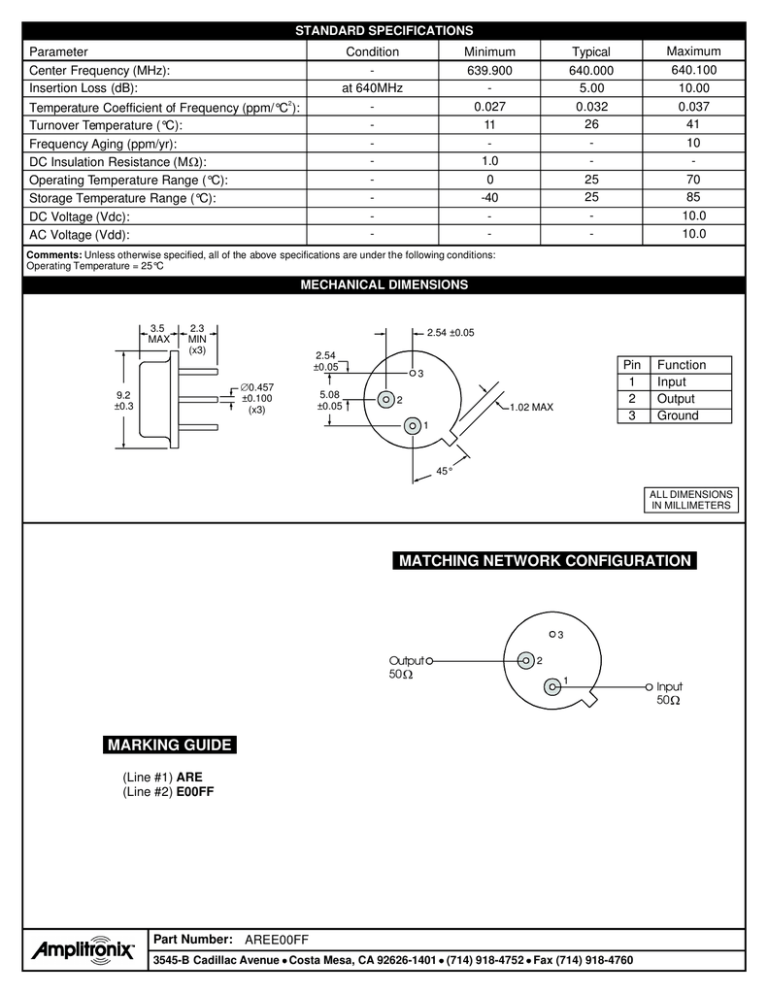

STANDARD SPECIFICATIONS
Parameter
Center Frequency (MHz):
Insertion Loss (dB):
Condition
at 640MHz
-
2
Temperature Coefficient of Frequency (ppm/°C ):
Turnover Temperature (°C):
Frequency Aging (ppm/yr):
DC Insulation Resistance (M ):
Operating Temperature Range (°C):
Storage Temperature Range (°C):
DC Voltage (Vdc):
AC Voltage (Vdd):
Maximum
640.100
10.00
0.037
41
10
70
85
10.0
10.0
Typical
640.000
5.00
0.032
26
25
25
-
Minimum
639.900
0.027
11
1.0
0
-40
-
Comments: Unless otherwise specified, all of the above specifications are under the following conditions:
Operating Temperature = 25°C
MECHANICAL DIMENSIONS
3.5
MAX
2.3
MIN
(x3)
2.54 ±0.05
2.54
±0.05
∅0.457
±0.100
(x3)
9.2
±0.3
5.08
±0.05
Pin
1
2
3
3
2
1.02 MAX
1
Function
Input
Output
Ground
45°
ALL DIMENSIONS
IN MILLIMETERS
MATCHING NETWORK CONFIGURATION
3
Output
50
2
1
MARKING GUIDE
(Line #1) ARE
(Line #2) E00FF
Part Number: AREE00FF
3545-B Cadillac Avenue Costa Mesa, CA 92626-1401 (714) 918-4752 Fax (714) 918-4760
Input
50
