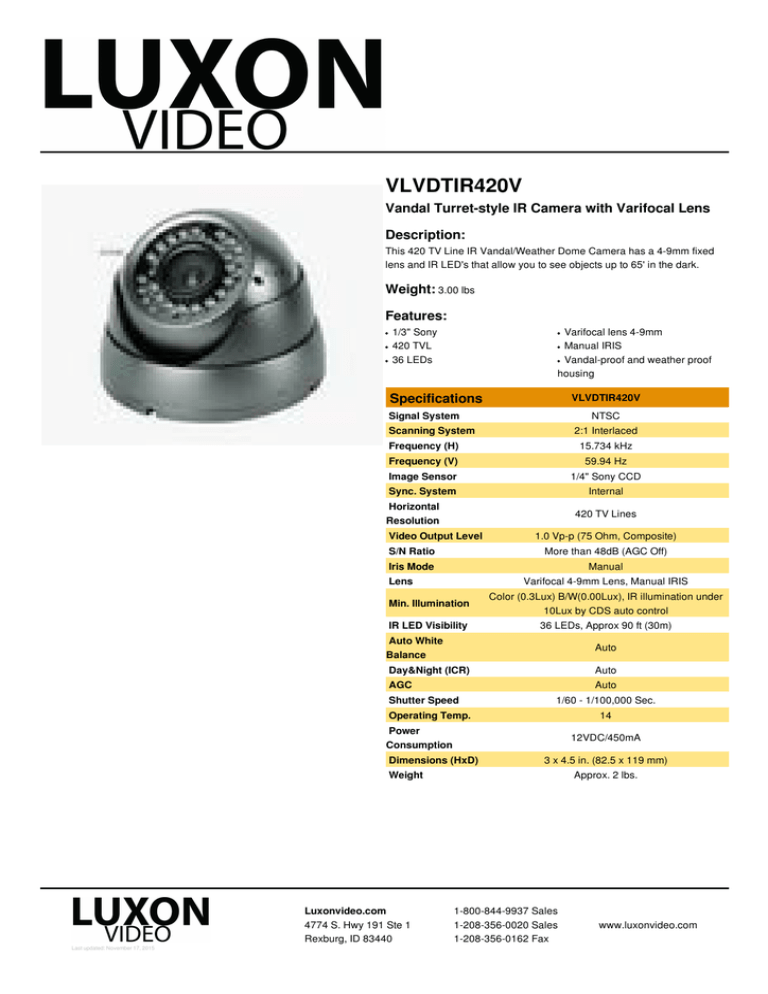

VLVDTIR420V
VLVDTIR420V
Vandal Turret-style IR Camera with Varifocal Lens
Description:
This 420 TV Line IR Vandal/Weather Dome Camera has a 4-9mm fixed
lens and IR LED's that allow you to see objects up to 65' in the dark.
Weight: 3.00 lbs
Features:
1/3" Sony
420 TVL
36 LEDs
Varifocal lens 4-9mm
Manual IRIS
Vandal-proof and weather proof
housing
Specifications
VLVDTIR420V
Signal System
NTSC
Scanning System
2:1 Interlaced
Frequency (H)
15.734 kHz
Frequency (V)
59.94 Hz
Image Sensor
1/4" Sony CCD
Sync. System
Internal
Horizontal
Resolution
420 TV Lines
Video Output Level
S/N Ratio
1.0 Vp-p (75 Ohm, Composite)
More than 48dB (AGC Off)
Iris Mode
Manual
Lens
Varifocal 4-9mm Lens, Manual IRIS
Min. Illumination
Color (0.3Lux) B/W(0.00Lux), IR illumination under
10Lux by CDS auto control
IR LED Visibility
36 LEDs, Approx 90 ft (30m)
Auto White
Balance
Auto
Day&Night (ICR)
Auto
AGC
Auto
Shutter Speed
1/60 - 1/100,000 Sec.
Operating Temp.
14
Power
Consumption
12VDC/450mA
Dimensions (HxD)
3 x 4.5 in. (82.5 x 119 mm)
Weight
Last updated: November 17, 2015
Luxonvideo.com
4774 S. Hwy 191 Ste 1
Rexburg, ID 83440
Approx. 2 lbs.
1-800-844-9937 Sales
1-208-356-0020 Sales
1-208-356-0162 Fax
www.luxonvideo.com
