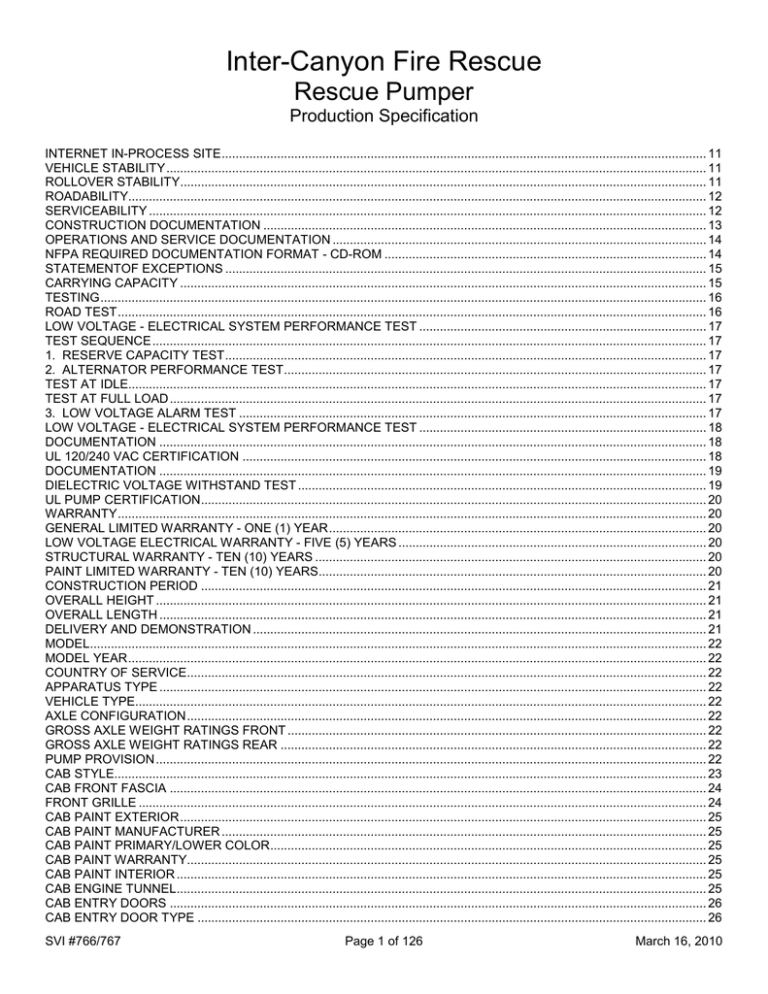

Inter-Canyon Fire Rescue Rescue Pumper Production Specification

Inter-Canyon Fire Rescue Rescue Pumper Production Specification
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
INTERNET IN-PROCESS SITE ............................................................................................................................................ 11
VEHICLE STABILITY ............................................................................................................................................................ 11
ROLLOVER STABILITY........................................................................................................................................................ 11
ROADABILITY....................................................................................................................................................................... 12
SERVICEABILITY ................................................................................................................................................................. 12
CONSTRUCTION DOCUMENTATION ................................................................................................................................ 13
OPERATIONS AND SERVICE DOCUMENTATION ............................................................................................................ 14
NFPA REQUIRED DOCUMENTATION FORMAT - CD-ROM ............................................................................................. 14
STATEMENTOF EXCEPTIONS ........................................................................................................................................... 15
CARRYING CAPACITY ........................................................................................................................................................ 15
TESTING ............................................................................................................................................................................... 16
ROAD TEST .......................................................................................................................................................................... 16
LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST ................................................................................... 17
TEST SEQUENCE ................................................................................................................................................................ 17
1. RESERVE CAPACITY TEST ........................................................................................................................................... 17
2. ALTERNATOR PERFORMANCE TEST .......................................................................................................................... 17
TEST AT IDLE....................................................................................................................................................................... 17
TEST AT FULL LOAD ........................................................................................................................................................... 17
3. LOW VOLTAGE ALARM TEST ....................................................................................................................................... 17
LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST ................................................................................... 18
DOCUMENTATION .............................................................................................................................................................. 18
UL 120/240 VAC CERTIFICATION ...................................................................................................................................... 18
DOCUMENTATION .............................................................................................................................................................. 19
DIELECTRIC VOLTAGE WITHSTAND TEST ...................................................................................................................... 19
UL PUMP CERTIFICATION.................................................................................................................................................. 20
WARRANTY .......................................................................................................................................................................... 20
GENERAL LIMITED WARRANTY - ONE (1) YEAR ............................................................................................................. 20
LOW VOLTAGE ELECTRICAL WARRANTY - FIVE (5) YEARS ......................................................................................... 20
STRUCTURAL WARRANTY - TEN (10) YEARS ................................................................................................................. 20
PAINT LIMITED WARRANTY - TEN (10) YEARS................................................................................................................ 20
CONSTRUCTION PERIOD .................................................................................................................................................. 21
OVERALL HEIGHT ............................................................................................................................................................... 21
OVERALL LENGTH .............................................................................................................................................................. 21
DELIVERY AND DEMONSTRATION ................................................................................................................................... 21
MODEL .................................................................................................................................................................................. 22
MODEL YEAR ....................................................................................................................................................................... 22
COUNTRY OF SERVICE ...................................................................................................................................................... 22
APPARATUS TYPE .............................................................................................................................................................. 22
VEHICLE TYPE..................................................................................................................................................................... 22
AXLE CONFIGURATION ...................................................................................................................................................... 22
GROSS AXLE WEIGHT RATINGS FRONT ......................................................................................................................... 22
GROSS AXLE WEIGHT RATINGS REAR ........................................................................................................................... 22
PUMP PROVISION ............................................................................................................................................................... 22
CAB STYLE........................................................................................................................................................................... 23
CAB FRONT FASCIA ........................................................................................................................................................... 24
FRONT GRILLE .................................................................................................................................................................... 24
CAB PAINT EXTERIOR ........................................................................................................................................................ 25
CAB PAINT MANUFACTURER ............................................................................................................................................ 25
CAB PAINT PRIMARY/LOWER COLOR .............................................................................................................................. 25
CAB PAINT WARRANTY...................................................................................................................................................... 25
CAB PAINT INTERIOR ......................................................................................................................................................... 25
CAB ENGINE TUNNEL ......................................................................................................................................................... 25
CAB ENTRY DOORS ........................................................................................................................................................... 26
CAB ENTRY DOOR TYPE ................................................................................................................................................... 26
SVI #766/767
Page 1 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CAB STRUCTURAL WARRANTY ........................................................................................................................................ 26
CAB TEST INFORMATION .................................................................................................................................................. 26
ELECTRICAL SYSTEM ........................................................................................................................................................ 26
APPARATUS WIRING PROVISION ..................................................................................................................................... 27
LOAD MANAGEMENT SYSTEM .......................................................................................................................................... 27
DATA RECORDING SYSTEM .............................................................................................................................................. 27
POWER & GROUND STUD ................................................................................................................................................. 27
AUXILIARY POWER & GROUND STUD ............................................................................................................................. 27
EXTERIOR ELECTRICAL TERMINAL COATING ................................................................................................................ 27
ENGINE................................................................................................................................................................................. 28
DIESEL PARTICULATE FILTER CONTROLS ..................................................................................................................... 28
ENGINE PROGRAMMING HIGH IDLE SPEED ................................................................................................................... 28
ENGINE HIGH IDLE CONTROL ........................................................................................................................................... 28
ENGINE PROGRAMMING ROAD SPEED GOVERNOR .................................................................................................... 28
AUXILIARY ENGINE BRAKE ............................................................................................................................................... 28
AUXILIARY ENGINE BRAKE CONTROL............................................................................................................................. 29
FLUID FILLS ......................................................................................................................................................................... 29
ELECTRONIC ENGINE OIL LEVEL INDICATOR ................................................................................................................ 29
ENGINE WARRANTY ........................................................................................................................................................... 29
REMOTE THROTTLE HARNESS ........................................................................................................................................ 29
ENGINE PROGRAMMING REMOTE THROTTLE ............................................................................................................... 29
ENGINE PROGRAMMING IDLE SPEED ............................................................................................................................. 29
ENGINE FAN DRIVE ............................................................................................................................................................ 29
ENGINE COOLING SYSTEM ............................................................................................................................................... 30
ENGINE COOLANT .............................................................................................................................................................. 30
ELECTRONIC COOLANT LEVEL INDICATOR ................................................................................................................... 31
ENGINE PUMP HEAT EXCHANGER .................................................................................................................................. 31
COOLANT HOSES ............................................................................................................................................................... 31
ENGINE AIR INTAKE ........................................................................................................................................................... 31
ENGINE EXHAUST SYSTEM............................................................................................................................................... 31
ENGINE EXHAUST ACCESSORIES ................................................................................................................................... 31
TRANSMISSION ................................................................................................................................................................... 32
TRANSMISSION MODE PROGRAMMING .......................................................................................................................... 32
TRANSMISSION FEATURE PROGRAMMING .................................................................................................................... 32
ELECTRONIC TRANSMISSION OIL LEVEL INDICATOR .................................................................................................. 33
TRANSMISSION SHIFT SELECTOR ................................................................................................................................... 33
TRANSMISSION PRE-SELECT WITH AUXILIARY BRAKE ................................................................................................ 33
TRANSMISSION COOLING SYSTEM ................................................................................................................................. 33
TRANSMISSION WARRANTY ............................................................................................................................................. 33
TRANSFER CASE ................................................................................................................................................................ 33
TRANSFER CASE DRIVEN PTO ......................................................................................................................................... 33
TRANSFER CASE DRIVEN PTO CONTROL ...................................................................................................................... 34
LH PTO ................................................................................................................................................................................. 34
LH PTO MODEL ................................................................................................................................................................... 34
PTO LOCATION.................................................................................................................................................................... 34
PTO CONTROL .................................................................................................................................................................... 34
DRIVELINE ........................................................................................................................................................................... 34
MIDSHIP PUMP / GEARBOX ............................................................................................................................................... 34
PUMP SHIFT CONTROLS ................................................................................................................................................... 35
PUMP SHIFT CONTROL PLUMBING .................................................................................................................................. 35
FUEL FILTER/WATER SEPARATOR .................................................................................................................................. 35
FUEL LINES .......................................................................................................................................................................... 35
FUEL SHUTOFF VALVE ...................................................................................................................................................... 35
FUEL TANK........................................................................................................................................................................... 36
SVI #766/767
Page 2 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
FUEL TANK FILL PORT ....................................................................................................................................................... 36
FRONT AXLE ........................................................................................................................................................................ 36
FRONT AXLE WARRANTY .................................................................................................................................................. 36
FRONT AXLE DIFFERENTIAL LUBRICATION.................................................................................................................... 36
FRONT WHEEL BEARING LUBRICATION ......................................................................................................................... 36
FRONT SHOCK ABSORBERS............................................................................................................................................. 37
FRONT SUSPENSION ......................................................................................................................................................... 37
STEERING COLUMN/ WHEEL ............................................................................................................................................ 37
POWER STEERING PUMP .................................................................................................................................................. 37
ELECTRONIC POWER STEERING FLUID LEVEL INDICATOR ........................................................................................ 37
FRONT AXLE CRAMP ANGLE ............................................................................................................................................ 37
POWER STEERING GEAR .................................................................................................................................................. 37
CHASSIS ALIGNMENT ........................................................................................................................................................ 38
REAR AXLE .......................................................................................................................................................................... 38
REAR AXLE WARRANTY .................................................................................................................................................... 38
REAR AXLE DIFFERENTIAL LUBRICATION ...................................................................................................................... 38
REAR WHEEL BEARING LUBRICATION ............................................................................................................................ 38
VEHICLE TOP SPEED ......................................................................................................................................................... 38
REAR SUSPENSION ............................................................................................................................................................ 38
FRONT TIRE ......................................................................................................................................................................... 38
REAR TIRE ........................................................................................................................................................................... 39
TIRE PRESSURE INDICATOR ............................................................................................................................................ 39
FRONT WHEEL .................................................................................................................................................................... 39
REAR WHEEL....................................................................................................................................................................... 39
WHEEL PAINT ...................................................................................................................................................................... 39
WHEEL TRIM ........................................................................................................................................................................ 39
WHEEL GUARDS ................................................................................................................................................................. 39
BRAKE SYSTEM .................................................................................................................................................................. 40
FRONT BRAKES .................................................................................................................................................................. 40
REAR BRAKES ..................................................................................................................................................................... 40
PARK BRAKE ....................................................................................................................................................................... 40
PARK BRAKE CONTROL..................................................................................................................................................... 40
FRONT BRAKE SLACK ADJUSTERS ................................................................................................................................. 40
REAR BRAKE SLACK ADJUSTERS .................................................................................................................................... 40
FRONT BRAKE DUST SHIELDS ......................................................................................................................................... 41
AIR DRYER ........................................................................................................................................................................... 41
FRONT BRAKE CHAMBERS ............................................................................................................................................... 41
REAR BRAKE CHAMBERS.................................................................................................................................................. 41
AIR COMPRESSOR ............................................................................................................................................................. 41
AIR GOVERNOR .................................................................................................................................................................. 41
MOISTURE EJECTORS ....................................................................................................................................................... 41
AIR SUPPLY LINES .............................................................................................................................................................. 41
WHEELBASE ........................................................................................................................................................................ 42
REAR OVERHANG ............................................................................................................................................................... 42
FRAME .................................................................................................................................................................................. 42
FRAME WARRANTY ............................................................................................................................................................ 42
FRAME CLEAR AREA .......................................................................................................................................................... 42
FRAME PAINT ...................................................................................................................................................................... 43
FRONT BUMPER ................................................................................................................................................................. 43
FRONT BUMPER EXTENSION LENGTH ............................................................................................................................ 43
FRONT BUMPER EXTENSION WIDTH ............................................................................................................................... 43
FRONT BUMPER APRON .................................................................................................................................................... 43
AIR HORN ............................................................................................................................................................................. 43
AIR HORN LOCATION ......................................................................................................................................................... 43
SVI #766/767
Page 3 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
AIR HORN RESERVOIR ...................................................................................................................................................... 43
ELECTRONIC SIREN SPEAKER ......................................................................................................................................... 44
ELECTRONIC SIREN SPEAKER LOCATION ..................................................................................................................... 44
FRONT BUMPER TOW HOOKS .......................................................................................................................................... 44
CAB TILT SYSTEM ............................................................................................................................................................... 44
CAB TILT AUXILIARY PUMP ............................................................................................................................................... 44
CAB TILT LIMIT SWITCH ..................................................................................................................................................... 44
CAB TILT CONTROL RECEPTACLE ................................................................................................................................... 44
CAB WINDSHIELD ............................................................................................................................................................... 45
GLASS FRONT DOOR ......................................................................................................................................................... 45
GLASS TINT FRONT DOOR ................................................................................................................................................ 45
GLASS REAR DOOR RH ..................................................................................................................................................... 45
GLASS TINT REAR DOOR RH ............................................................................................................................................ 45
GLASS REAR DOOR LH ...................................................................................................................................................... 45
GLASS TINT REAR DOOR LH ............................................................................................................................................. 45
GLASS SIDE MID RH ........................................................................................................................................................... 46
GLASS TINT SIDE MID RH .................................................................................................................................................. 46
GLASS SIDE MID LH ............................................................................................................................................................ 46
GLASS TINT SIDE MID LH................................................................................................................................................... 46
CLIMATE CONTROL ............................................................................................................................................................ 46
CLIMATE CONTROL ACTIVATION ..................................................................................................................................... 46
A/C CONDENSER LOCATION ............................................................................................................................................. 46
A/C COMPRESSOR ............................................................................................................................................................. 46
CAB INSULATION ................................................................................................................................................................ 47
UNDER CAB INSULATION .................................................................................................................................................. 47
INTERIOR TRIM FLOOR ...................................................................................................................................................... 47
INTERIOR FLOOR MAT COLOR ......................................................................................................................................... 47
INTERIOR TRIM VINYL ........................................................................................................................................................ 47
INTERIOR TRIM VINYL COLOR .......................................................................................................................................... 47
REAR WALL INTERIOR ....................................................................................................................................................... 47
INTERIOR ABS TRIM COLOR ............................................................................................................................................. 47
HEADER TRIM...................................................................................................................................................................... 48
INTERIOR TRIM SUNVISOR ............................................................................................................................................... 48
TRIM CENTER DASH ........................................................................................................................................................... 48
TRIM LH DASH ..................................................................................................................................................................... 48
TRIM RH DASH .................................................................................................................................................................... 48
ENGINE TUNNEL TRIM ....................................................................................................................................................... 48
STEP TRIM ........................................................................................................................................................................... 48
INTERIOR DOOR TRIM ....................................................................................................................................................... 48
CAB PAINT INTERIOR DOOR TRIM ................................................................................................................................... 48
DOOR TRIM CUSTOMER NAMEPLATE ............................................................................................................................. 48
CAB DOOR TRIM REFLECTIVE .......................................................................................................................................... 49
INTERIOR GRAB HANDLE "A" PILLAR ............................................................................................................................... 49
INTERIOR GRAB HANDLE FRONT DOOR ......................................................................................................................... 49
INTERIOR GRAB HANDLE REAR DOOR ........................................................................................................................... 49
DASH PANEL GROUP ......................................................................................................................................................... 49
SWITCHES CENTER PANEL............................................................................................................................................... 49
SWITCHES LEFT PANEL ..................................................................................................................................................... 49
SWITCHES RIGHT PANEL .................................................................................................................................................. 49
SEAT BELT WARNING ........................................................................................................................................................ 50
SEAT MATERIAL .................................................................................................................................................................. 50
SEAT COLOR ....................................................................................................................................................................... 50
SEAT BACK LOGO ............................................................................................................................................................... 50
SEAT DRIVER ...................................................................................................................................................................... 50
SVI #766/767
Page 4 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
SEAT BACK DRIVER ........................................................................................................................................................... 51
SEAT OFFICER .................................................................................................................................................................... 51
SEAT BACK OFFICER ......................................................................................................................................................... 51
SEAT REAR FACING OUTER LOCATION .......................................................................................................................... 51
SEAT CREW REAR FACING OUTER ................................................................................................................................. 52
SEAT BACK REAR FACING OUTER ................................................................................................................................... 52
SEAT MOUNTING REAR FACING OUTER ......................................................................................................................... 52
SEAT BELT ORIENTATION CREW ..................................................................................................................................... 52
SEAT FORWARD FACING CENTER LOCATION ............................................................................................................... 52
SEAT CREW FORWARD FACING CENTER ....................................................................................................................... 53
SEAT BACK FORWARD FACING CENTER ........................................................................................................................ 53
SEAT MOUNTING FORWARD FACING CENTER .............................................................................................................. 53
SEAT FRAME FORWARD FACING ..................................................................................................................................... 53
SEAT FRAME FORWARD FACING STORAGE ACCESS .................................................................................................. 53
CAB FRONT UNDERSEAT STORAGE ACCESS................................................................................................................ 53
SEAT COMPARTMENT DOOR FINISH ............................................................................................................................... 54
WINDSHIELD WIPER SYSTEM ........................................................................................................................................... 54
ELECTRONIC WINDSHIELD FLUID LEVEL INDICATOR ................................................................................................... 54
CAB DOOR HARDWARE ..................................................................................................................................................... 54
DOOR LOCKS ...................................................................................................................................................................... 54
GRAB HANDLES .................................................................................................................................................................. 54
REARVIEW MIRRORS ......................................................................................................................................................... 54
REARVIEW MIRROR HEAT SWITCH ................................................................................................................................. 55
EXTERIOR TRIM REAR CORNER ...................................................................................................................................... 55
TRIM REAR WALL EXTERIOR ............................................................................................................................................ 55
CAB FENDER ....................................................................................................................................................................... 55
MUD FLAPS FRONT ............................................................................................................................................................ 55
CAB EXTERIOR MODEL NAMEPLATE ............................................................................................................................... 55
CAB EXTERIOR FRONT & SIDE EMBLEMS ...................................................................................................................... 55
IGNITION .............................................................................................................................................................................. 55
BATTERY .............................................................................................................................................................................. 55
BATTERY TRAY ................................................................................................................................................................... 56
BATTERY BOX COVER ....................................................................................................................................................... 56
BATTERY CABLE ................................................................................................................................................................. 56
BATTERY JUMPER STUD ................................................................................................................................................... 56
ALTERNATOR ...................................................................................................................................................................... 56
BATTERY CONDITIONER ................................................................................................................................................... 56
BATTERY CONDITIONER DISPLAY ................................................................................................................................... 56
AUXILIARY AIR COMPRESSOR ......................................................................................................................................... 56
ELECTRICAL INLET ............................................................................................................................................................. 57
ELECTRICAL INLET LOCATION ......................................................................................................................................... 57
ELECTRICAL INLET CONNECTION ................................................................................................................................... 57
ELECTRICAL INLET COLOR ............................................................................................................................................... 57
HEADLIGHTS ....................................................................................................................................................................... 57
FRONT TURN SIGNALS ...................................................................................................................................................... 57
HEADLIGHT LOCATION ...................................................................................................................................................... 57
SIDE TURN/MARKER LIGHTS ............................................................................................................................................ 57
MARKER AND ICC LIGHTS ................................................................................................................................................. 57
HEADLIGHT AND MARKER LIGHT ACTIVATION .............................................................................................................. 58
GROUND LIGHTS ................................................................................................................................................................ 58
STEP LIGHTS ....................................................................................................................................................................... 58
ENGINE COMPARTMENT LIGHT........................................................................................................................................ 58
FRONT SCENE LIGHTS ...................................................................................................................................................... 58
FRONT SCENE LIGHT LOCATION ..................................................................................................................................... 58
SVI #766/767
Page 5 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
FRONT SCENE LIGHTS ACTIVATION ................................................................................................................................ 58
INTERIOR OVERHEAD LIGHTING ...................................................................................................................................... 58
CAB SPOTLIGHTS ............................................................................................................................................................... 59
DO NOT MOVE APPARATUS LIGHT .................................................................................................................................. 59
MASTER WARNING SWITCH.............................................................................................................................................. 59
HEADLIGHT FLASHER ........................................................................................................................................................ 59
ALTERNATING HEADLIGHT SWITCH ................................................................................................................................ 59
INBOARD FRONT WARNING LIGHTS ................................................................................................................................ 59
INBOARD FRONT WARNING LIGHTS COLOR .................................................................................................................. 59
FRONT WARNING SWITCH ................................................................................................................................................ 59
INTERSECTION WARNING LIGHTS ................................................................................................................................... 59
INTERSECTION WARNING LIGHTS COLOR ..................................................................................................................... 60
INTERSECTION WARNING LIGHTS LOCATION ............................................................................................................... 60
SIDE AND INTERSECTOR WARNING SWITCH................................................................................................................. 60
SIREN CONTROL HEAD ...................................................................................................................................................... 60
HORN RING SELECTOR SWITCH ...................................................................................................................................... 60
AIR HORN ACTIVATION ...................................................................................................................................................... 60
BACK-UP ALARM ................................................................................................................................................................. 60
INSTRUMENTATION ............................................................................................................................................................ 61
CAB EXTERIOR PROTECTION ........................................................................................................................................... 63
FIRE EXTINGUISHER .......................................................................................................................................................... 63
ROAD SAFETY KIT .............................................................................................................................................................. 63
DOOR KEYS ......................................................................................................................................................................... 63
AS BUILT WIRING DIAGRAMS............................................................................................................................................ 64
WARRANTY - CAB AND CHASSIS ..................................................................................................................................... 64
OPERATORS AND PARTS LIST MANUAL ......................................................................................................................... 64
ENGINE AND TRANSMISSION OPERATION MANUALS .................................................................................................. 64
CAB/CHASSIS PREPAYMENT ............................................................................................................................................ 64
CHASSIS MODIFICATIONS ................................................................................................................................................. 65
LUBRICATION AND TIRE DATA PLATE ............................................................................................................................. 65
VEHICLE DATA PLATE ........................................................................................................................................................ 65
OVERALL HEIGHT, LENGTH DATA PLATE (US) ............................................................................................................... 65
ACCIDENT PREVENTION ................................................................................................................................................... 66
PERSONNEL CAPACITY ..................................................................................................................................................... 66
ACCIDENT PREVENTION ................................................................................................................................................... 66
WEARING HELMET WARNING ........................................................................................................................................... 66
FRONT BUMPER ................................................................................................................................................................. 66
BUMPER GRAVELSHIELD .................................................................................................................................................. 66
BUMPER COMPARTMENTS ............................................................................................................................................... 66
AIR HORN(S) ........................................................................................................................................................................ 66
FRONT TOW PROVISIONS ................................................................................................................................................. 66
EXHAUST ............................................................................................................................................................................. 67
CELLULAR PHONE ANTENNA INSTALLATION ................................................................................................................. 67
RADIO/ANTENNA INSTALLATION ...................................................................................................................................... 67
12 VDC ACCESSORY PLUG ............................................................................................................................................... 67
SEAT BELT COLOR ............................................................................................................................................................. 67
SEAT BELT WEB LENGTH - CUSTOM CAB ....................................................................................................................... 67
SEAT BELT / VDR SYSTEM - CUSTOM CAB ..................................................................................................................... 67
HELMET STORAGE ............................................................................................................................................................. 68
CAB CRASH TEST CERTIFICATION .................................................................................................................................. 68
CAB MIRRORS, DRIVER ADJUSTABLE ............................................................................................................................. 68
MUDFLAPS ........................................................................................................................................................................... 68
AIR BRAKE SYSTEM QUICK BUILD-UP ............................................................................................................................. 68
REAR CAB AREA LAYOUT.................................................................................................................................................. 69
SVI #766/767
Page 6 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
INTERIOR CABINET - COUNTER HEIGHT ......................................................................................................................... 69
FUEL FILL ............................................................................................................................................................................. 69
BODY DESIGN ..................................................................................................................................................................... 69
EXTERIOR ALUMINUM BODY ............................................................................................................................................ 70
BODY SUBFRAME ............................................................................................................................................................... 70
BODY MOUNTING ............................................................................................................................................................... 71
14" REAR STEP BUMPER ................................................................................................................................................... 71
REAR TOW EYES ................................................................................................................................................................ 71
GROUND LIGHTS ................................................................................................................................................................ 71
WHEEL WELL EXTERIOR PANEL ...................................................................................................................................... 71
DIEFORMED BEADED EDGE BODY FENDERS ................................................................................................................ 71
WHEEL WELL LINERS ......................................................................................................................................................... 71
SCBA BOTTLE COMPARTMENTS ...................................................................................................................................... 71
ALUMINUM BODY PAINT SPECIFICATIONS ..................................................................................................................... 72
BODY PAINT PREPARATION.............................................................................................................................................. 72
PAINT PROCESS ................................................................................................................................................................. 72
MACHINE POLISHED .......................................................................................................................................................... 72
PAINT - ENVIRONMENTAL IMPACT ................................................................................................................................... 72
PAINT FINISH - SINGLE COLOR......................................................................................................................................... 73
BODY UNDERCOATING ...................................................................................................................................................... 73
UNDERCOAT WARRANTY .................................................................................................................................................. 73
PAINT WARRANTY .............................................................................................................................................................. 73
COMPARTMENT INTERIOR FINISH ................................................................................................................................... 73
ROOF COMPARTMENT INTERIOR FINISH ....................................................................................................................... 73
REFLECTIVE STRIPE .......................................................................................................................................................... 74
REFLECTIVE STRIPE - CAB SIDE ...................................................................................................................................... 74
REFLECTIVE STRIPE - CAB FRONT .................................................................................................................................. 74
REFLECTIVE STRIPE - BODY SIDES ................................................................................................................................. 75
CHEVRON REFLECTIVE STRIPE - REAR SIDES PANELS .............................................................................................. 75
LETTERING .......................................................................................................................................................................... 76
UPPER BODY SIDE LETTERING ........................................................................................................................................ 76
REAR BODY LETTERING .................................................................................................................................................... 76
FRONT OF CAB LETTERING .............................................................................................................................................. 76
CAB ROOF LETTERING ...................................................................................................................................................... 77
SUPPLIED DECALS ............................................................................................................................................................. 77
EXTERIOR COMPARTMENT DOORS ................................................................................................................................ 77
HINGED DOOR CONSTRUCTION ...................................................................................................................................... 77
ROLL-UP DOOR CONSTRUCTION - ROBINSON (ROM) .................................................................................................. 78
EXTERIOR ROLL-UP DOOR FINISH - SATIN..................................................................................................................... 78
BODY HEIGHT MEASUREMENTS ...................................................................................................................................... 79
TWO (2) UPPER BODY COMPARTMENTS ........................................................................................................................ 79
ROOF ACCESS LADDER .................................................................................................................................................... 80
ROOF ACCESS HANDRAIL(S) ............................................................................................................................................ 80
BODY WIDTH DIMENSIONS ............................................................................................................................................... 80
STREETSIDE COMPARTMENT - FRONT (S1) ................................................................................................................... 81
STREETSIDE COMPARTMENT - ABOVE REAR WHEELS (S2) ....................................................................................... 82
STREETSIDE COMPARTMENT - REAR (S3) ..................................................................................................................... 83
CURBSIDE COMPARTMENT - FRONT (C1)....................................................................................................................... 84
CURBSIDE COMPARTMENT - ABOVE REAR WHEEL (C2) .............................................................................................. 85
CURBSIDE COMPARTMENT - REAR (C3) ......................................................................................................................... 86
REAR COMPARTMENT - CENTER (RC1) .......................................................................................................................... 87
HARD SUCTION COMPARTMENT...................................................................................................................................... 88
LADDER LIFT SYSTEM, CURBSIDE ................................................................................................................................... 88
SIDE BODY PROTECTION - RUB RAIL .............................................................................................................................. 88
SVI #766/767
Page 7 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
APPARATUS LABELS .......................................................................................................................................................... 88
COMPARTMENT COMPONENTS DESCRIPTIONS ........................................................................................................... 89
ADJUSTABLE SHELVING HARDWARE.............................................................................................................................. 89
ADJUSTABLE SHELF/SHELVES ......................................................................................................................................... 89
COMPARTMENT LIGHTING ................................................................................................................................................ 89
ELECTRIC CORD REEL ...................................................................................................................................................... 90
UNDERBODY SLIDE-OUT STEP......................................................................................................................................... 91
STEP / GROUND LIGHTS .................................................................................................................................................... 91
LOW VOLTAGE ELECTRICAL SYSTEM- 12 VDC .............................................................................................................. 91
12 VOLT DIAGNOSTIC RELAY CONTROL CENTER ......................................................................................................... 94
ROCKER SWITCH PANEL ................................................................................................................................................... 94
ELECTRICAL SYSTEM MANAGER ..................................................................................................................................... 94
BATTERY SYSTEM .............................................................................................................................................................. 95
BATTERY SWITCH .............................................................................................................................................................. 95
BATTERY SOLENOID .......................................................................................................................................................... 95
BATTERY CONDITIONER ................................................................................................................................................... 95
ENGINE COMPARTMENT LIGHT........................................................................................................................................ 95
CAB HAZARD WARNING LIGHT ......................................................................................................................................... 96
BACK-UP ALARM ................................................................................................................................................................. 96
TAIL LIGHT MODULES ........................................................................................................................................................ 96
MIDSHIP MARKER/TURN SIGNAL ..................................................................................................................................... 96
MARKER LIGHTS ................................................................................................................................................................. 96
LICENSE PLATE LIGHT ....................................................................................................................................................... 96
ELECTRONIC SIREN ........................................................................................................................................................... 96
SIREN SPEAKER ................................................................................................................................................................. 96
SIDE SCENE LIGHTS .......................................................................................................................................................... 97
REAR SCENE LIGHTS ......................................................................................................................................................... 97
TRAFFIC DIRECTIONAL LIGHT .......................................................................................................................................... 97
DAVID CLARK INTERCOM SYSTEM .................................................................................................................................. 97
WARNING LIGHT PACKAGE ............................................................................................................................................... 98
UPPER LEVEL OPTICAL WARNING DEVICES .................................................................................................................. 98
LOWER LEVEL OPTICAL WARNING DEVICES ............................................................................................................... 100
LINE VOLTAGE ELECTRICAL SYSTEM ........................................................................................................................... 101
ONAN HYDRAULIC GENERATOR .................................................................................................................................... 101
GENERATOR MONITORING PANEL ................................................................................................................................ 101
WARRANTY PERIOD ......................................................................................................................................................... 101
HYDRAULIC COMPONENTS............................................................................................................................................. 101
GENERATOR MOUNTING ................................................................................................................................................. 102
MANUALS AND SCHEMATICS.......................................................................................................................................... 102
POWER-TAKE-OFF GENERATOR DRIVE ........................................................................................................................ 102
LOADCENTER .................................................................................................................................................................... 102
OUTLETS AND CIRCUITS ................................................................................................................................................. 102
GENERAL REQUIREMENTS ............................................................................................................................................. 103
120/240 VAC SCENE LIGHTING ....................................................................................................................................... 109
FRONT CAB-MOUNTED SCENE LIGHT(S) ...................................................................................................................... 109
SIDE UPPER RECESSED SCENE LIGHTS ...................................................................................................................... 109
COMMAND LIGHT - SHADOW RT TOWER ...................................................................................................................... 110
HALE FIRE PUMP SYSTEM (PUMP MODULE ASSEMBLY) ........................................................................................... 111
PUMP ASSEMBLY ............................................................................................................................................................. 111
GEARBOX........................................................................................................................................................................... 112
CERTIFICATION ................................................................................................................................................................. 112
PRIMING PUMP.................................................................................................................................................................. 112
BALL VALVES..................................................................................................................................................................... 113
INTRUMENT PANEL .......................................................................................................................................................... 113
SVI #766/767
Page 8 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
PIPING AND MANIFOLDS ................................................................................................................................................. 113
TANK FILL........................................................................................................................................................................... 113
PUMP COOLER AND ENGINE COOLER VALVE ............................................................................................................. 113
SUCTIONS .......................................................................................................................................................................... 114
6" STEAMER INLETS ......................................................................................................................................................... 114
2-½" LEFT SIDE SUCTION ................................................................................................................................................ 114
2-½" RIGHT SIDE SUCTION .............................................................................................................................................. 114
4" RIGHT REAR MIV .......................................................................................................................................................... 114
TANK TO PUMP ................................................................................................................................................................. 115
RELIEF VALVE ................................................................................................................................................................... 115
DISCHARGES..................................................................................................................................................................... 116
2-½" STREETSIDE DISCHARGES ................................................................................................................................... 116
3" CURBSIDE DISCHARGE ............................................................................................................................................... 116
2-½" CURBSIDE DISCHARGE ........................................................................................................................................... 116
3" DECK GUN DISCHARGE .............................................................................................................................................. 116
2-1/2" CURBSIDE REAR DISCHARGE.............................................................................................................................. 116
CROSSLAY ......................................................................................................................................................................... 117
2" FRONT BUMPER JUMP LINE DISCHARGE ................................................................................................................. 117
2" REAR BUMPER JUMP LINE DISCHARGE ................................................................................................................... 117
VALVE CONTROLS SIDE .................................................................................................................................................. 117
WIRING HARNESS ............................................................................................................................................................ 117
PRESSURE GOVENOR ..................................................................................................................................................... 117
ENFO III .............................................................................................................................................................................. 117
MASTER GAUGES ............................................................................................................................................................. 118
INDIVIDUAL DRAINS ......................................................................................................................................................... 118
MASTER PUMP DRAIN ...................................................................................................................................................... 118
U.L. TEST POINTS ............................................................................................................................................................. 118
TANK LEVEL GAUGE ........................................................................................................................................................ 118
DISCHARGE GAUGES ...................................................................................................................................................... 118
CLASS A FOAM SYSTEM .................................................................................................................................................. 118
WARRANTY ........................................................................................................................................................................ 119
BODY BUILDER FIRE PUMP SYSTEM ADDITIONS/MODIFICATIONS .......................................................................... 119
DECK GUN/GENERATOR AREA MODIFICATION ........................................................................................................... 119
FOAM SYSTEM .................................................................................................................................................................. 119
FOAM DISCHARGES ......................................................................................................................................................... 120
INTAKE(S)........................................................................................................................................................................... 120
DISCHARGE(S) .................................................................................................................................................................. 120
REAR DISCHARGE(S) ....................................................................................................................................................... 120
FRONT DISCHARGE(S) ..................................................................................................................................................... 120
MISCELLANEOUS DISCHARGE(S) .................................................................................................................................. 121
REAR BUMPER & PRE-CONNECT HOSE LAY ................................................................................................................ 121
CROSS LAY(S) ................................................................................................................................................................... 121
DECK GUN ......................................................................................................................................................................... 121
DELUGE MONITOR ........................................................................................................................................................... 121
PUMP PANEL ..................................................................................................................................................................... 121
COLOR CODED LABELS ................................................................................................................................................... 121
PUMP PANEL LIGHTING ................................................................................................................................................... 121
UPF POLY WATER TANK .................................................................................................................................................. 122
TANK FILL / VENT .............................................................................................................................................................. 123
UPF TANK OVERFLOW ..................................................................................................................................................... 123
CLASS A POLYPROPYLENE FOAM CELL ....................................................................................................................... 123
HOSE BED STORAGE AREA ............................................................................................................................................ 123
HOSEBED PARTITION(S).................................................................................................................................................. 123
HOSEBED CAPACITY........................................................................................................................................................ 123
SVI #766/767
Page 9 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
VINYL HOSE BED COVER ................................................................................................................................................ 123
ALUMINUM HOSE BED COVER........................................................................................................................................ 124
EQUIPMENT PAYLOAD WEIGHT ALLOWANCE.............................................................................................................. 124
EQUIPMENT ....................................................................................................................................................................... 124
REMAINING NFPA MINOR EQUIPMENT BY PURCHASER ............................................................................................ 126
SVI #766/767
Page 10 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
INTERNET IN-PROCESS SITE
The Bidder shall post and maintain a website where the Inter-Canyon Fire Department will be able to view digital images
of their apparatus as its being manufactured. The digital images shall be posted once a week starting when the body
begins production or when the cab/chassis arrives and shall continue until the final completion of the apparatus.
VEHICLE STABILITY
ROLLOVER STABILITY
The apparatus shall meet the criteria defined below, or it shall be equipped with a stability control system defined below.
The apparatus shall meet the criteria defined in either of the following:
(1) The apparatus shall remain stable to 26.5 degrees in both directions when tested on a tilt table in accordance with
SAE J2180, A Tilt Table Procedure for Measuring the Static Rollover Threshold for Heavy Trucks.
(2) The calculated or measured center of gravity (CG) shall be no higher than 80 percent of the rear axle track width.
Compliance shall be certified by testing, calculating, or measuring the apparatus or by comparing the apparatus to a
compliant, substantially similar example apparatus, and the certification shall be delivered with the fire apparatus.
The example apparatus shall be considered substantially similar if it includes a chassis with the same or higher CG
height, the same or narrower rear axle track width, the same or greater water tank size and CG height, the same type of
front and rear suspension, and the same type and size of aerial device.
The apparatus shall be loaded with fuel, fire-fighting agents, hose, ladders, a weight of 250 lb in each seating position,
and weight equivalent to the Miscellaneous Equipment Allowance as defined in NFPA 1901, 2009 Edition, Table 12.1.2.
If the apparatus is designed to meet a specified higher equipment loading or larger hose bed capacity or to carry
additional ground ladders, these greater loads shall be included in the testing, calculating, or measuring.
The weight added to the fire apparatus for the purpose of test, calculation, or measurement shall be distributed to
approximate typical in-service use of the fire apparatus while not exceeding the manufacturer’s published individual
compartment weight ratings.
If the apparatus is equipped with a stability control system, the system shall have, at a minimum, a steering wheel position
sensor, a vehicle yaw sensor, a lateral accelerometer, and individual wheel brake controls.
SVI #766/767
Page 11 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
ROADABILITY
The apparatus, when loaded to its estimated in-service weight, shall be capable of the following performance while on dry,
paved roads that are in good condition:
(1) From a standing start, the apparatus shall be able to attain a speed of 35 mph (55 km/hr) within 25 seconds on a level
road.
(2) The apparatus shall be able to attain a minimum top speed of 50 mph (80 km/hr) on a level road.
(3) The apparatus shall be able to maintain a speed of at least 20 mph (32 km/hr) on any grade up to and including 6
percent.
The maximum top speed of fire apparatus with a GVWR over 26,000 lb (11,800 kg) shall not exceed either 68 mph (105
km/hr) or the manufacturer’s maximum fire service speed rating for the tires installed on the apparatus, whichever is
lower.
If the combined water tank and foam agent tank capacities on the fire apparatus exceed 1250 gal (4732 L), or the GVWR
of the vehicle is over 50,000 lb (22,680 kg), the maximum top speed of the apparatus shall not exceed either 60 mph (85
km/ hr) or the manufacturer’s maximum fire service speed rating for the tires installed on the apparatus, whichever is
lower.
SERVICEABILITY
The fire apparatus shall be designed to allow the manufacturer’s recommended routine maintenance checks of lubricant
and fluid levels to be performed by the operator without lifting the cab of a tilt-cab apparatus or without the need for hand
tools.
Where special tools are required for routine service on any component of the apparatus, such tools shall be provided with
the apparatus.
Apparatus components that interfere with repair or removal of other major components shall be attached with fasteners,
such as cap screws and nuts, so that the components can be removed and installed with ordinary hand tools. These
components shall not be welded or otherwise permanently secured into place.
SVI #766/767
Page 12 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CONSTRUCTION DOCUMENTATION
The contractor shall supply, at the time of delivery, at least one (1) copy of the following documents:
(1) The manufacturers record of apparatus construction details, including the following information:
(a) Owner’s name and address
(b) Apparatus manufacturer, model, and serial number
(c) Chassis make, model, and serial number
(d) GAWR of front and rear axles and GVWR
(e) Front tire size and total rated capacity in pounds (kilograms)
(f) Rear tire size and total rated capacity in pounds (kilograms)
(g) Chassis weight distribution in pounds (kilograms) with water and manufacturer-mounted equipment (front and
rear)
(h) Engine make, model, serial number, rated horsepower and related speed, and governed speed; and if so
equipped, engine transmission PTO(s) make, model, and gear ratio
(i) Type of fuel and fuel tank capacity
(j) Electrical system voltage and alternator output in amps
(k) Battery make, model, and capacity in cold cranking amps (CCA)
(l) Chassis transmission make, model, and serial number; and if so equipped, chassis transmission PTO(s) make,
model, and gear ratio
(m)Ratios of all driving axles
(n) Maximum governed road speed
(o) Pump make, model, rated capacity in gallons per minute (liters per minute where applicable), and serial number
(p) Pump transmission make, model, serial number, and gear ratio
(q) Auxiliary pump make, model, rated capacity in gallons per minute (liters per minute where applicable), and serial
number
(r) Water and Foam tank certified capacity in gallons or liters
(s) Paint manufacturer and paint number(s)
(t) Company name and signature of responsible company representative
(u) Weight documents from a certified scale showing actual loading on the front axle, rear axle(s), and overall fire
apparatus (with the water tank full but without personnel, equipment, and hose)
(2) Certification of compliance of the optical warning system
(3) Siren manufacturer’s certification of the siren
(4) Written load analysis and results of the electrical system performance tests
(5) Certification of slip resistance of all stepping, standing, and walking surfaces
(6) If the apparatus has a fire pump, the pump manufacturer’s certification of suction capability
(7) If the apparatus is equipped with a fire pump and special conditions are specified by the purchaser, the pump
manufacturer’s certification of suction capacity under the special conditions
(8) If the apparatus has a fire pump, a copy of the apparatus manufacturer’s approval for stationary pumping
applications
(9) If the apparatus has a fire pump, the engine manufacturer’s certified brake horsepower curve for the engine
furnished, showing the maximum governed speed
(10) If the apparatus has a fire pump, the pump manufacturer’s certification of the hydrostatic test
(11) If the apparatus has a fire pump, the certification of inspection and test for the fire pump
(12) If the apparatus is equipped with an auxiliary pump, the apparatus manufacturer’s certification of the hydrostatic test
(13) When the apparatus is equipped with a water tank, the certification of water tank capacity
(14) If the apparatus has an aerial device, the certification of inspection and test for the aerial device
(15) If the apparatus has a foam proportioning system, the foam proportioning system manufacturer’s certification of
accuracy and the final installer’s certification the foam proportioning system meets this standard
(16) If the system has a CAFS, the documentation of the manufacturer’s pre delivery tests
(17) If the apparatus has a line voltage power source, the certification of the test for the power source
(18) If the apparatus is equipped with an air system, air tank certificates, the SCBA fill station certification (see 24.9.7),
and the results of the testing of the air system installation
(19) Any other required manufacturer test data or reports
SVI #766/767
Page 13 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
OPERATIONS AND SERVICE DOCUMENTATION
The contractor shall deliver with the fire apparatus at least two (2) sets of complete operation and service documentation
covering the completed apparatus as delivered and accepted.
The documentation shall address at least the inspection, service, and operations of the fire apparatus and all major
components thereof.
The contractor shall also deliver with the fire apparatus the following documentation for the entire apparatus and each
major operating system or major component of the apparatus:
Manufacturer’s name and address
Country of manufacture
Source for service and technical information
Parts replacement information
Descriptions, specifications, and ratings of the chassis, pump (if applicable), and aerial device (if applicable)
Wiring diagrams for low voltage and line voltage systems to include the following information:
(a) Pictorial representations of circuit logic for all electrical components and wiring
(b) Circuit identification
(c) Connector pin identification
(d) Zone location of electrical components
(e) Safety interlocks
(f) Alternator–battery power distribution circuits
(g) Input/output assignment sheets or equivalent circuit logic implemented in multiplexing systems
(7) Lubrication charts
(8) Operating instructions for the chassis, any major components such as a pump or aerial device, and any auxiliary
systems
(9) Precautions related to multiple configurations of aerial devices, if applicable
(10) Instructions regarding the frequency and procedure for recommended maintenance
(11) Overall apparatus operating instructions
(12) Safety considerations
(13) Limitations of use
(14) Inspection procedures
(15) Recommended service procedures
(16) Troubleshooting guide
(17) Apparatus body, chassis, and other component manufacturer’s warranties
(18) Special data required by this standard
(19) A material safety data sheet (MSDS) for any fluid that is specified for use on the apparatus
(1)
(2)
(3)
(4)
(5)
(6)
The contractor shall deliver with the apparatus all manufacturers’ operations and service documents supplied with
components and equipment that are installed or supplied by the contractor.
NFPA REQUIRED DOCUMENTATION FORMAT - CD-ROM
The vehicle construction details and the operations and service documentation as required per NFPA 1901 latest edition
shall be provided on a CD-ROM. These manuals shall be divided into sections for ease of reference. There shall be two
(2) copies of the CD-ROM provided with the completed vehicle.
SVI #766/767
Page 14 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
STATEMENTOF EXCEPTIONS
The contractor shall deliver with the fire apparatus either a certification that the apparatus fully complies with all
requirements of this standard or, alternatively, a Statement of Exceptions specifically describing each aspect of the
completed apparatus that is not fully compliant with the requirements of this standard at the time of delivery.
The Statement of Exceptions shall contain, for each noncompliant aspect of the apparatus or missing required item, the
following information:
(1) A separate specification of the section of the applicable standard for which compliance is lacking
(2) A description of the particular aspect of the apparatus that is not in compliance therewith or required equipment that is
missing
(3) A description of the further changes or modifications to the delivered apparatus that must be completed to achieve full
compliance
(4) Identification of the entity that will be responsible for making the necessary post delivery changes or modifications or
for supplying and installing any missing required equipment to the apparatus to achieve full compliance with this
standard
Prior to, or at the time of, delivery of the apparatus, the Statement of Exceptions shall be signed by an authorized agent of
the entity responsible for final assembly of the apparatus and by an authorized agent of the purchasing entity, indicating
mutual understanding and agreement between the parties regarding the substance thereof.
An apparatus that is delivered subject to a Statement of Exceptions other than a certification of full compliance shall not
be placed in emergency service until the apparatus has been modified as necessary to accomplish full compliance with
this standard.
CARRYING CAPACITY
The GAWR and the GCWR or GVWR of the chassis shall be adequate to carry the weight of the completed vehicle when
loaded to its estimated in-service weight. The Body Manufacturer shall establish the estimated in service weight during the
design of the vehicle
The estimated in-service weight shall include the following:
(1)
(2)
(3)
(4)
(5)
(6)
(7)
The chassis, body, and tank(s)
Full fuel, lubricant, and other chassis or component fluid tanks or reservoirs
Full water and other agent tanks
*250 lb (114 kg) in each seating position
Fixed equipment such as pumps, aerial devices, generators, reels, and air systems as installed
Ground ladders, suction hose, designed hose load in their hose beds and on their reels
An allowance for miscellaneous equipment that is the greatest of the values for type of vehicle per NFPA 1901, a
Purchaser provided list of equipment to be carried with weights, or a Purchaser specified miscellaneous equipment
allowance.
The Body Manufacturer shall engineer and design the vehicle such that the completed unit, when loaded to it's estimated
in-service weight, with all movable weights distributed as close as is practical to their intended in-service configuration,
does not exceed the GVWR.
SVI #766/767
Page 15 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
A final Body Manufacturer’s certification of the GVWR or GCWR, along with a certification of each GAWR, shall be
supplied on a label affixed to the vehicle.
Equipment
Allowance
lb.
kg.
2,000
910
Apparatus Type
Storage Areas
Apparatus Size
Pumper Fire Apparatus Equipt. minimum of 40 cu ft Less than 250 cu ft
(1.1 cu mt) of enclosed ( 7 cu mt)
compartmentation.
compartment space
Hose minimum of 30
250 cu ft (7 cu mt)
2,500
1,135
cu ft (0.8 cu mt) for
or more of
2 1/2" (65 mm) or larger fire compartment space
hose.
(2) areas for pre-connects
each minimum of 3.5 cu.ft.
(0.1 cu.mt.) for 1 1/2" (38
mm) or larger fire hose.
Compartment space for pumpers is calculated based on the inside dimensions of the enclosed
compartment.
TESTING
ROAD TEST
Road test shall be conducted in accordance with this section to verify that the completed apparatus is capable of
compliance with Roadability Section.
The tests shall be conducted at a location and in a manner that does not violate local, state or provincial, or federal traffic
laws.
The tests shall be conducted on dry, level, paved roads that are in good condition. The apparatus shall be loaded to its
estimated in service weight.
The engine shall not operate in excess of the maximum governed speed. Acceleration tests shall consist of two runs in
opposite directions over the same route. The fire apparatus shall attain a speed of 35 mph (55 km/hr) from a standing
start within 25 seconds. The fire apparatus shall attain a minimum top speed of 50 mph (80 km/hr).
If the apparatus is equipped with an auxiliary braking system, the manufacturer shall road test the system to confirm that
the system is functioning as intended by the auxiliary braking system manufacturer.
If the apparatus is equipped with an air brake system, the service brakes shall bring the apparatus, when loaded to it's
GVWR, to a complete stop from an initial speed of 20 mph (32.2 km/hr) in a distance not exceeding 35 ft (10.7 m) by
actual measurement on a paved, level, dry surface road that is free of loose material, oil, or grease.
If the apparatus is equipped with a hydraulic brake system, the service brakes shall bring the apparatus, when loaded to
its GVWR, to a complete stop from an initial speed of 30 mph (48.2 km/hr) in a distance not exceeding 88 ft (26.8 m) by
actual measurement on a paved, level, dry surface road that is free of loose material, oil, or grease.
SVI #766/767
Page 16 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST
The vehicles low voltage electrical system shall be tested and certified by the manufacturer. The certified test results shall
be delivered with the completed vehicle. Tests shall be performed when the air temperature is between 0°F and 110°F (–
18°C and 43°C).
TEST SEQUENCE
The following three (3) tests shall be performed in the order in which they appear below. Before each test, the batteries
shall be fully charged until the voltage stabilizes at the voltage regulator set point and the lowest charge current is
maintained for 10 minutes. Failure of any of these tests shall require a repeat of the sequence.
1. RESERVE CAPACITY TEST
The engine shall be started and kept running until the engine and engine compartment temperatures are stabilized at
normal operating temperatures and the battery system is fully charged. The engine shall be shut off, and the minimum
continuous electrical load shall be activated for 10 minutes.
All electrical loads shall be turned off prior to attempting to restart the engine. The battery system shall then be capable of
restarting the engine. Failure to restart the engine shall be considered a test failure of the battery system.
2. ALTERNATOR PERFORMANCE TEST
TEST AT IDLE
The minimum continuous electrical load shall be activated with the engine running at idle speed. The engine temperature
shall be stabilized at normal operating temperature. The battery system shall be tested to detect the presence of battery
discharge current. The detection of battery discharge current shall be considered a test failure.
TEST AT FULL LOAD
The total continuous electrical load shall be activated with the engine running up to the engine manufacturer’s governed
speed. The test duration shall be a minimum of 2 hours. Activation of the load management system shall be permitted
during this test.
An alarm sounded by excessive battery discharge, as detected by the warning system required in 13.3.4, or a system
voltage of less than 11.8 V dc for a 12 V nominal system, 23.6 V dc for a 24 V nominal system, or 35.4 V dc for a 42 V
nominal system for more than 120 seconds shall be considered a test failure.
3. LOW VOLTAGE ALARM TEST
The following test shall be started with the engine off and the battery voltage at or above 12 V for a 12 V nominal system,
24 V for a 24 V nominal system, or 36 V for a 42 V nominal system.
With the engine shut off, the total continuous electrical load shall be activated and shall continue to be applied until the
excessive battery discharge alarm activates. The battery voltage shall be measured at the battery terminals.
The test shall be considered a failure if the alarm does not sound in less than 140 seconds after the voltage drops to
11.70 V for a 12 V nominal system, 23.4 V dc for a 24 V nominal system, or 35.1 V for a 42 V nominal system.
The battery system shall then be able to restart the engine. Failure to restart the engine shall be considered a test failure.
SVI #766/767
Page 17 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST
DOCUMENTATION
The manufacturer shall deliver the following with the fire apparatus:
(1) Documentation of the electrical system performance tests
(2) A written electrical load analysis, including the following:
(a) The nameplate rating of the alternator
(b) The alternator rating
(c) Each of the component loads specified that make up the minimum continuous electrical load
(d) Additional electrical loads that, when added to the minimum continuous electrical load, determine the total
continuous electrical load
(e) Each individual intermittent electrical load.
UL 120/240 VAC CERTIFICATION
The 120/240 volt electrical system shall be tested and certified by Underwriters Laboratories, to perform as listed below;
The prime mover shall be started from a cold start condition, and the unloaded voltage and frequency shall be recorded.
The line voltage electrical system shall be loaded to at least 100 % of the continuous rated wattage stated on the power
source specification label. Testing with a resistive load bank shall be permitted.
The power source shall be operated in the manner specified by the apparatus manufacturer as documented on instruction
plates or in operation manuals. The power source shall be operated at a minimum of 100 % of the continuous rated
wattage as stated on the power source specification label for a minimum of 2 hours.
The load shall be adjusted to maintain the output wattage at or above the continuous rated wattage during the entire 2hour test.
The following conditions shall be recorded at least every 1/2 hour during the test:
(1)
(2)
(3)
(4)
The power source output voltage, frequency, and amperes
The prime mover’s oil pressure, water temperature, and transmission temperature, if applicable
The power source hydraulic fluid temperature, if applicable
The ambient temperature and power source air inlet temperature
The following conditions shall be recorded once during the test for power sources driven by dedicated auxiliary internal
combustion engines:
(1) Altitude
(2) Barometric pressure
(3) Relative humidity
If the generator is driven by the chassis engine and the generator allows for operation at variable speeds, the chassis
engine speed shall be reduced to the lowest rpm allowed for generator operation and the voltage and frequency shall be
recorded.
The load shall be removed, and the unloaded voltage and frequency shall be recorded.
SVI #766/767
Page 18 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
Voltage shall be maintained within ±10 % of the voltage stated on the power source specification label during the entire
test. Frequency shall be maintained within ±3 Hz of the frequency stated on the power source specification label during
the entire test.
The total continuous electrical loads, excluding those loads associated with the equipment defined in NFPA
22.15.7.3.11.2, shall be applied during the testing unless an auxiliary engine drives the power source.
If the apparatus is equipped with a fire pump, the 2-hour certification test of the power source shall be completed with the
fire pump pumping at 100 % capacity at 150 psi (1000 kPa) net pump pressure. The test shall be permitted to be run
concurrently with the pump certification test.
DOCUMENTATION
The manufacturer shall deliver the following with the fire apparatus:
(1) The results of each test shall be recorded on an appropriate form and provided with the delivery of the fire apparatus.
DIELECTRIC VOLTAGE WITHSTAND TEST
The line voltage wiring and permanently connected devices and equipment shall be subjected to a dielectric voltage
withstand test of 900 volts for 1 minute. The testing shall be performed after all body work has been completed.
The test shall be conducted as follows:
(1)
(2)
(3)
(4)
(5)
Isolate the power source from the panel board and disconnect any solid state low voltage components.
Connect one lead of the dielectric tester to all the hot and neutral buses tied together.
Connect the other lead to the fire apparatus frame or body.
Close any switches and circuit breakers in the circuit(s).
Apply the dielectric voltage for 1 minute in accordance with the testing equipment manufacturer’s instructions.
The electrical polarity of all permanently wired equipment, cord reels, and receptacles shall be tested to verify that wiring
connections have been properly made.
Electrical continuity shall be verified from the chassis or body to all line voltage electrical enclosures, light housings, motor
housings, light poles, switch boxes, and receptacle ground connections that are accessible to fire fighters in normal
operations.
If the apparatus is equipped with a transfer switch, it shall be tested to verify operation and that all non grounded
conductors are switched.
Electrical light towers, floodlights, motors, fixed appliances, and portable generators shall be operated at their full rating or
capacity for 30 minutes to ensure proper operation.
SVI #766/767
Page 19 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
UL PUMP CERTIFICATION
The fire pump shall be tested and certified by Underwriters Laboratories, to perform as listed below;



100% of rated capacity at 150 psi (1,000 kPa) net pressure.
70% of rated capacity at 200 psi (1,400 kPa) net pressure.
50% of rated capacity at 250 psi (1700 kPa) net pressure.
The entire pump, both suction and discharge passages, shall be hydrostatically tested to a pressure of 500 psi (3,400
kPa).
The pump shall comply with the applicable requirements of "Standard for Automotive Fire Apparatus 1901, latest edition.
The pump shall be capable of producing fire streams that are free from objectionable pulsation under all normal operating
conditions.
WARRANTY
A full statement shall be provided of the warranties for the vehicle(s) being bid. Warranties should clearly describe the
terms under which the vehicle manufacturer accepts responsibility for the cost to repair defects caused by faulty design,
quality of work or material, and for the applicable period of time after delivery.
Cost of repairs refers to all costs related thereto including, but not limited to, the cost of materials, and the cost of labor.
The Body Manufacturer shall warrant all materials and accessories used on the vehicle(s), whether fabricated by
manufacturer or purchased from an outside source, and will deal directly with the Inter-Canyon Fire Department on all
warranty work.
GENERAL LIMITED WARRANTY - ONE (1) YEAR
The vehicle shall be free of defects in material and workmanship for a period of one (1) year or 12,000 miles, whichever
occurs first starting thirty (30) days after the original invoice date.
The contractor must be the "single source" coordinator of all warranties on the vehicle.
LOW VOLTAGE ELECTRICAL WARRANTY - FIVE (5) YEARS
The vehicle low voltage electrical system shall be free of defects in material and workmanship for a period of five (5) years
or 60,000 miles, whichever occurs first, starting thirty (30) days after the original invoice date.
STRUCTURAL WARRANTY - TEN (10) YEARS
The body shall be free of structural or design failure or workmanship for a period of ten (10) years, or 100,000 miles
whichever occurs first, starting thirty (30) days after the original invoice date.
PAINT LIMITED WARRANTY - TEN (10) YEARS
The body shall be free of bubbling, or peeling as a result of a defect in the method of manufacture for a period of ten (10)
years, or 100,000 miles whichever occurs first, starting thirty (30) days after the original invoice date.
SVI #766/767
Page 20 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CONSTRUCTION PERIOD
The completed vehicle shall be delivered within three hundred sixty (360) days after receipt of a purchase order, or
contract.
Contractor shall not be held liable for delays of chassis delivery due to accidents, strikes, floods or other events not
subject to their control. Contractor shall provide immediate written notice to Inter-Canyon Fire Department as to delays
and to what extent these delays have in completing vehicle within the stated construction time period.
OVERALL HEIGHT
The overall height (OAH) of the vehicle shall be approximately 126" (10' - 6") from the ground. This measurement shall be
taken on flat ground with the tires properly inflated, in the unloaded condition, at that highest point of the vehicle.
OVERALL LENGTH
The overall length (OAL) of the vehicle shall be approximately 360" (30' - 0").
DELIVERY AND DEMONSTRATION
The contractor shall be responsible for the delivery of the completed unit to the Inter-Canyon Fire Departments location.
On initial delivery of the apparatus, the contractor shall supply a qualified representative to demonstrate the apparatus
and provide initial instruction to representatives of the Inter-Canyon Fire Department regarding the operation, care, and
maintenance of the apparatus and equipment supplied at Inter-Canyon Fire Department location.
The delivery engineer shall set delivery and instruction schedule with the person appointed by Inter-Canyon Fire
Department.
After delivery of the apparatus, the Inter-Canyon Fire Department shall be responsible for ongoing training of its personnel
to proficiency regarding the proper and safe use of the apparatus and associated equipment.
SVI #766/767
Page 21 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
MODEL
The chassis shall be a Metro Star model. The cab and chassis shall include design considerations for multiple emergency
vehicle applications, rapid transit and maneuverability. The chassis shall be manufactured for heavy duty service with the
strength and capacity to support a fully laden apparatus, one hundred (100) percent of the time.
MODEL YEAR
The chassis shall have a vehicle identification number that reflects a 2010 model year.
COUNTRY OF SERVICE
The chassis shall be put in service in the country of United States of America (USA).
APPARATUS TYPE
The apparatus shall be a pumper vehicle designed for emergency service use which shall be equipped with a
permanently mounted fire pump which has a minimum rated capacity of 750 gallons per minute (3000 L/min). The
apparatus shall include a water tank and hose body whose primary purpose is to combat structural and associated fires.
VEHICLE TYPE
The chassis shall be manufactured for use as a straight truck type vehicle and designed for the installation of a
permanently mounted apparatus behind the cab. The apparatus of the vehicle shall be supplied and installed by the
apparatus manufacturer.
AXLE CONFIGURATION
The chassis shall feature a 4 X 4 axle configuration consisting of a single rear drive axle with a single front drive steer
axle.
GROSS AXLE WEIGHT RATINGS FRONT
The front gross axle weight rating (GAWR) of the chassis shall be 17,000 pounds.
This front gross axle weight rating shall be adequate to carry the weight of the completed apparatus including all
equipment and personnel.
GROSS AXLE WEIGHT RATINGS REAR
The rear gross axle weight rating (GAWR) of the chassis shall be 24,000 pounds.
This rear gross axle weight rating shall be adequate to carry the weight of the completed apparatus including all
equipment and personnel.
PUMP PROVISION
The chassis shall include provisions to mount a drive line pump in the middle of the chassis, behind the cab, more
commonly known as the midship location.
SVI #766/767
Page 22 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CAB STYLE
The cab shall be a custom, enclosed model, built specifically for the fire service by a company specializing in cab and
chassis design for all fire service applications.
The cab shall be manufactured for heavy-duty service utilizing adequate strength and capacity for the application of
protecting firefighters. The cab shall be of a modular design offering improved strength, durability and reduced weight.
The modular design shall allow for faster, less costly replacement of components. Per pound, sheet panel aluminum
extrusions offer a higher tensile strength, 45,000 PSI, and yield strength, 40,000 PSI, than that of lower grade sheet such
as 3003-H13. For this reason, the cab shall be of aluminum extrusion construction, which shall offer superior strength and
the truest, flattest surface ensuring less expensive paint repairs if needed.
The method of cab construction shall use a process incorporating techniques outlined in accordance with the American
Welding Society D1.1-96 requirements for structural steel welding. All aluminum welding shall be completed to the
American Welding Society and ANSI D1.2-96 requirements for structural welding of aluminum.
To provide a superior finish by reducing welds that fatigue cab metal; the roof, the rear wall and side panels shall be
assembled using proven industrial adhesives, designed specifically for aluminum fabrication, which exceed the strength of
a weld, for construction.
All interior and exterior seams shall be sealed for optimum noise reduction in addition to the most favorable efficiency for
heating and cooling retention.
The cab shall be constructed of 5052-H32 Marine Grade, one hundred percent primary aluminum plate. A single formed,
one (1) piece extrusion, manufactured from 6061-T6 100 percent primary one- quarter inch thick aluminum shall be used
for the “A” pillar adding strength and rigidity to the cab as well as additional roll-over protection. The cab side wall skins
and shall be 0.125 inch thick, the rear wall and roof skin shall be 0.19 inch thick, the front skin shall be 0.125 inch thick.
The cab shall incorporate tongue and groove fitted 6061-T6 0.25 inch thick aluminum extrusions for extreme duty
situations. The cab shall include multi-layer composite insulation for improved cab heating and cooling in addition to noise
reduction.
Proposals offering products built with anything less than the alloy-temper mentioned or from any other material, other than
aluminum, shall not be considered. Additionally, any cabs utilizing recycled or recovered aluminum plate or extrusion
products shall not be considered due impurities in the composition leading to a lack of strength.
The cab shall incorporate a fully enclosed design, allowing for a spacious cab area with no partition between the front and
rear sections of the cab. The walls of the vehicle shall include roof supports allowing for an open design. The outside
dimension of the cab shall be 94.00 inches wide with a minimum interior width of 88.00 inches.
The cab overall length shall be 128.00 inches in length with 54.00 inches from the centerline of the front of the axle to the
back of the cab. The cab shall offer a height of 58.00 inches from the front floor to the headliner and a rear floor to
headliner height of 65.00 inches, at a minimum. All interior measurements shall include the area within the interior
trimmed surfaces and not to any unfinished surface.
In order to offer the optimum amount of cab space to occupants, there shall be no consideration given for any cab unable
to comply with the minimum measurements for interior cab space as listed.
The cab shall include a driver and officer area with two (2) cab doors. The front doors shall offer a clear opening of 40.00
inches wide X 53.50 inches high. The cab shall also include a crew area with up to two (2) cab doors. The rear doors
shall offer a clear opening of 31.00 inches wide X 61.00 inches high. This style of cab shall provide up to eight (8) seating
positions.
SVI #766/767
Page 23 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
The cab shall incorporate a two (2) step configuration from the ground to the cab floor for each door opening. The lower
step shall be constructed of heavy duty safety grating which meets or exceeds Federal Specification RRG-1602-latest
revision and performs under dry, greasy, muddy, soapy and icy conditions and offers open drainage.
The first step for the driver and officer area shall measure 11.44 inches deep X 31.13 inches wide. The intermediate step
shall measure 8.75 inches deep X 33.00 inches wide. The height from the first step to the intermediate step and the
intermediate step to the cab floor shall not exceed 11.00 inches.
The first step for the crew area shall measure 12.13 inches deep X 20.44 inches wide. The intermediate step shall
measure 10.50 inches deep X 23.00 inches wide. The height from the first step to the intermediate step and the
intermediate step to the cab floor shall not exceed 12.50 inches.
The cab front shall be constructed of 5052-H32 Marine Grade, .090 of an inch thick, one hundred percent primary
aluminum plate which shall include a classic front appearance. The front of the cab shall include a cast molded module
accommodating up to four (4) Hi/Low beam headlights and two (2) turn signal lights or up to four (4) warning lights.
CAB FRONT FASCIA
The front cab fascia shall be constructed of 5052-H32 Marine Grade, 0.090 of an inch thick, one hundred percent primary
aluminum plate which shall be an integral part of the cab.
The cab fascia will encompass the entire front of the aluminum cab structure from the bottom of the windshield to the
bottom of the cab and shall be the “Classic” design.
The front cab fascia shall include two (2) molded plastic modules on each side accommodating a total of up to four (4)
Hi/Low beam headlights and two (2) turn signal lights or up to four (4) warning lights. Two (2) chrome plated molded
plastic bezels shall be provided on each side around each set of two lamps.
FRONT GRILLE
The front cab fascia shall include a classic box style, polished stainless steel front grille with a Spartan logo. The grille
shall measure approximately 40.00 inches wide at the top of tapering to 32.00 inches wide at the bottom X 33.00 inches
high X 1.50 inches deep.
The grille shall include a minimum free air intake of 632.90 square inches shall be installed on the front of the cab.
The upper portion of the grille shall be hinged at the bottom so it can be opened to allow easy access for examination of
the windshield wiper motor, linkage and other options mounted within that area. The upper portion of the grille shall be
secured with two (2) flush push button latches.
SVI #766/767
Page 24 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CAB PAINT EXTERIOR
The cab shall be painted prior to the installation of glass accessories and all other cab trim to ensure complete paint
coverage and the maximum in corrosion protection of all metal surfaces.
All metal surfaces on the entire cab shall be ground by disc to remove any surface oxidation or surface debris which may
hinder the paint adhesion. Once the surface is machine ground a high quality acid etching of base primer shall be
applied. Upon the application of body fillers and their preparation, the cab shall be primed with a coating designed for
corrosion resistance and surface paint adhesion. The maximum thickness of the primer coat shall be 2.00 mils.
The entire cab shall then be coated with an intermediate solid or epoxy surfacing agent that is designed to fill any minor
surface defects, provide an adhesive bond between the primer and the paint and improve the color and gloss retention of
the color. The finish to this procedure shall be a sanding of the cab with 360 grit paper, the seams shall be sealed with
SEM brand seam sealer and painted with two (2) to four (4) coats of an acrylic urethane type system designed to retain
color and resist acid rain and most atmospheric chemicals found on the fire ground or emergency scene.
The cab shall then be painted with the specific color designated by the customer with a minimum thickness of 2.00 mils of
paint, followed by a clear top coat not to exceed 2.00 mils.
CAB PAINT MANUFACTURER
The cab shall be painted with PPG Industries paint.
CAB PAINT PRIMARY/LOWER COLOR
The lower paint color shall be PPG FBCH 71663 Red.
CAB PAINT WARRANTY
The cab and chassis shall be covered by a limited manufacturer paint warranty which shall be in effect for ten (10) years
from the first owners date of purchase or in service or the first 100,000 actual miles, whichever occurs first.
CAB PAINT INTERIOR
The visible cab structure surfaces shall be painted with a Zolatone #20-72 silver gray texture finish.
CAB ENGINE TUNNEL
The cab interior shall include an integrated engine tunnel constructed of 5052-H32 Marine Grade, .190 of an inch thick,
aluminum alloy plate. The tunnel shall be a maximum of 41.50 inches wide X 23.00 inches high.
SVI #766/767
Page 25 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CAB ENTRY DOORS
The cab shall include four (4) entry doors, two (2) front doors and two (2) crew doors as high as possible for ease of
entering and egress when outfitted with an SCBA. The doors shall be full height and constructed of extruded aluminum
with a nominal thickness of .125 inch. The exterior skins shall be constructed of .125 inch aluminum plate.
All cab and crew doors shall be of substantial weight for the optimum strength and rigidity for the best performance in all
cab crash testing. Any cab with front and crew doors manufactured of less than the material thickness of .125 inch in both
the extrusion and exterior skin shall not be considered.
The doors shall include a double rolled style automotive rubber seal around the perimeter of each door frame and door
edge which ensures a weather tight fit.
All door hinges shall be hidden within flush mounted cab doors for a pleasing smooth appearance and perfect fit along
each side of the cab. Each door hinge shall be piano style with a 0.38 inch pin and shall be constructed of stainless steel.
The piano style hinge and hidden flush mounted door is the most favorable construction keeping dirt and debris out of the
hinge allowing for optimum operation throughout the lifetime of the door.
Proposals offering door hinge thickness any less than stated shall not be considered.
Proposals including doors that do not comply with the flush mounting as described or those including exposed hinges
shall not be considered.
CAB ENTRY DOOR TYPE
All cab entry doors shall be full length in design to fully enclose the lower cab steps.
CAB STRUCTURAL WARRANTY
The cab structure shall be warranted for a period of ten (10) years or one hundred thousand (100,000) miles which ever
may occur first. Warranty conditions may apply and shall be listed in the detailed warranty document that shall be
provided upon request.
CAB TEST INFORMATION
The cab shall have successfully achieved survival of the International crash test ECE-29, Addendum 28, Revision 1 as
indicated below.
As part of the ECE regulation 29 test, the frontal area of the cab is struck by a 3,700 pound pendulum weight. The weight
is brought back to a sixty degree angle and then the weight is released and allowed to swing forward, imparting some
32,600 pounds foot of force to the cab front face. The cab shall be so constructed that after the test, there will be minimal
intrusion of the cab structure into the passenger area. The doors shall remain usable for both entry and exit. Also, as part
of the test the cab roof must withstand a static load bearing test. The cab shall withstand a weight of over 60,000 pounds
without permanent damage or collapse. The above tests shall be witnessed by and attested to by an independent third
party. The test results shall be recorded on/by cameras, high speed imagers, accelerometers and strain gauges, with
notarized copies of the letters verifying the test results and videos of said test shall be available upon request.
ELECTRICAL SYSTEM
The chassis shall include a single starting electrical system which shall include a 12 volt direct current system,
suppressed per SAE J551. The wiring shall be appropriate gauge cross link with 311 degree Fahrenheit insulation. All
SAE wires in the chassis shall be color coded and shall include the circuit number and function where possible. The wiring
shall be protected by 275 degree Fahrenheit minimum high temperature flame retardant loom.
SVI #766/767
Page 26 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
APPARATUS WIRING PROVISION
An apparatus wiring panel shall be installed on the officer side bulkhead below the dash which shall include eight (8) open
circuits consisting of three (3) 20 amp, one (1) 30 amp, three (3) 10 amp, and one (1) 15 amp circuit, with relays and
breakers with trigger wires which shall be routed to the rocker switch panel.
LOAD MANAGEMENT SYSTEM
The apparatus shall be equipped with a Class 1 Total System Manager (TSM) for performing electrical load management.
The TSM shall have sixteen (16) programmable outputs to supply warning and load switching requirements. Outputs one
(1) through twelve (12) shall be independently programmable to activate during the scene mode, the response mode, or
both. These outputs can also be programmed to activate with the ignition or master warning switch, or to sequence and
shed along with the priority. Output thirteen (13) shall be designated to activate a fast idle system. Output fourteen (14)
shall provide a low voltage warning for an isolated battery. Output fifteen (15) is a user configurable output and shall be
programmable for activating between 10.50 and 15.00 volts. Output sixteen (16) shall provide a low voltage alarm that
activates at the NFPA required 11.80 volts. The TSM shall have a digital display to indicate system voltage in normal
operation mode and also indicate the output configuration during programming mode. The TSM shall be protected
against reverse polarity and shorted outputs and be enclosed in a metal enclosure to enhance EMI/RFI protection.
DATA RECORDING SYSTEM
The chassis shall have a Class One Vehicle Data Recorder system installed. The system shall be designed to meet NFPA
1901. The following information shall be recorded:











Vehicle Speed
Acceleration
Deceleration
Engine Speed
Engine Throttle Position
ABS Event
Seat Occupied Status
Seat Belt Status
Master Optical Warning Device Switch Position
Time
Date
Each portion of the data shall be recorded at the specified intervals and stored for the specified length of time to meet
NFPA 1901 guidelines and shall be retrievable by connecting a laptop computer to the VDR system.
POWER & GROUND STUD
A 40 amp battery direct power and ground stud shall be provided and installed in the electrical distribution panel. The
stud shall be size #10 and protected with a 40 amp circuit breaker.
AUXILIARY POWER & GROUND STUD
An auxiliary set of power and ground studs shall be provided and installed in the officer side under seat storage
compartment. The power and ground studs shall be circuit protected with a 40 amp breaker. The studs shall be .375 inch
diameter and be capable of carrying up to a 40 amp battery direct load.
EXTERIOR ELECTRICAL TERMINAL COATING
All terminals exposed to the elements will be sprayed with a yellow protective rubberized coating to prevent corrosion.
SVI #766/767
Page 27 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
ENGINE
The power plant for the vehicle shall offer a high pressure performance, turbo charged engine which shall feature a high
pressure common rail fuel system. This system shall be coupled with a proven Holset turbo which delivers outstanding
performance at ratings up to 425 HP. The Cummins ISL engine shall include replaceable mid-stop cylinder liners plus
heavy duty roller followers, targeted piston cooling and 30% more efficient oil cooling for improved durability and reliability.
The heavy duty design shall also feature stronger braking capacity.
The engine shall be EPA certified to meet the 2007 emissions standards without compromising performance, reliability or
durability. The Cummins ISL 425 engine shall feature an air charge cooled engine which consists of an in line six (6)
cylinder, four cycle diesel powered engine. The engine shall offer a rating of 425 horse power at 2100 RPM and shall be
governed at 2200 RPM. The torque rating shall feature 1200 foot pounds of torque at 1300 RPM with 543 cubic inches of
displacement. The Cummins ISL 425 engine shall feature an electronic governor.
A wiring harness shall be supplied ending at the back of the cab. The harness shall include a connector which shall allow
an optional harness for the pump panel. The included circuits shall be provided for a tachometer, oil pressure, engine
temperature, hand throttle, high idle and a PSG system. A circuit for J1939 data link shall also be provided at the back of
the cab.
The engine shall include an engine mounted combination full flow/by-pass oil filter with replaceable spin on cartridge for
use with the engine lubrication system. The engine shall include Citgo brand Citgard 500, or equivalent SAE 15W40 CJ4
low ash engine oil which shall be utilized for proper engine lubrication.
DIESEL PARTICULATE FILTER CONTROLS
There shall be two (2) controls for the diesel particulate filter. One (1) control shall be for regeneration and one (1) control
shall be for regeneration inhibit.
ENGINE PROGRAMMING HIGH IDLE SPEED
The engine high idle control shall maintain the engine idle at approximately 1250 RPM when engaged.
ENGINE HIGH IDLE CONTROL
The vehicle shall be equipped with an automatic high-idle speed control which shall be pre-set to operate when the engine
is at a specified RPM to increase alternator output. This device shall operate only when the master switch is activated
and the transmission is in neutral with the parking brake set. The device shall disengage when the operator depresses
the brake pedal, or the transmission is placed in gear, and shall automatically re-engage when the brake is released, or
when the transmission is placed in neutral.
ENGINE PROGRAMMING ROAD SPEED GOVERNOR
The engine shall include programming which will govern the top speed of the vehicle.
AUXILIARY ENGINE BRAKE
A Jacobs engine compression brake, for the six (6) cylinder engine shall be provided. The engine compression brake shall
actuate the vehicles brake lights when engaged. A cutout relay shall be installed to disable the compression brake when
in pump mode or when an ABS event occurs. The engine brake shall activate upon 0% accelerator when in operation
mode.
SVI #766/767
Page 28 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
AUXILIARY ENGINE BRAKE CONTROL
An engine compression brake control device shall be included. The electronic control device shall monitor various
conditions and shall activate the engine brake only if all of the following conditions are simultaneously detected:

A valid gear ratio is detected.

The driver has requested or enabled engine compression brake operation.

The throttle is at a minimum engine speed position.

The electronic controller is not presently attempting to execute an electronically controlled final drive gear shift.

There is no active ABS event.
The compression brake shall be controlled through an off/low/high rocker switch on the dash.
FLUID FILLS
The front of the chassis shall accommodate fluid fills for the engine oil, and the power steering fluid through the grille.
This area shall also accommodate checks for the engine oil, and power steering fluid.
ELECTRONIC ENGINE OIL LEVEL INDICATOR
The engine oil shall be monitored electronically and shall send a signal to activate a warning in the instrument panel when
levels fall below normal. The warning shall activate in a low oil situation upon turning on the master battery and ignition
switches without the engine running.
ENGINE WARRANTY
The Cummins engine shall be warranted for a period of five (5) years or 100,000 miles, whichever occurs first.
REMOTE THROTTLE HARNESS
An apparatus interface wiring harness for the engine shall be supplied with the chassis. The harness shall include a
connector for connection to the chassis harness which shall terminate in the left frame rail behind the cab for reconnection
by the apparatus builder. The harness shall contain connectors for a Class 1 pressure governor/ throttle system as well
as a multiplexed gauge. Separate circuits shall be included for pump controls, “pump engaged” and “OK to Pump”
indication lights, open compartment ground, start signal, park brake ground, ignition signal, master power, customer
ignition, air horn solenoid switch, high idle switch and high idle indication light.
An apparatus interface wiring harness shall also be included which shall be wired to the cab harness interface connectors
and shall incorporate circuits with relays to control pump functions. This harness shall control the inputs for the
transmission lock up circuits, governor/ hand throttle controls and dash display which shall incorporate “pump engaged”
and “OK to Pump” indication lights. The harness shall contain circuits for the apparatus builder to wire in a pump switch.
ENGINE PROGRAMMING REMOTE THROTTLE
The engine ECM discreet wire remote throttle circuit will be turned on for use with a discreet wire based pump controller.
ENGINE PROGRAMMING IDLE SPEED
The engine low idle speed will be programmed at 700 rpm.
ENGINE FAN DRIVE
The engine cooling system fan shall be direct drive belt driven on the engine.
SVI #766/767
Page 29 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
ENGINE COOLING SYSTEM
There shall be a heavy-duty aluminum cooling system designed to meet the demands of the fire industry. The cooling
system shall have the capacity to keep the engine properly cooled under all conditions of road and pumping operations.
The cooling system shall be designed and tested to meet or exceed the requirements specified by the engine and
transmission manufacturer and all EPA requirements. The complete cooling system shall utilize heavy-duty welds and be
mounted to isolate the entire system from vibration or stress. The individual cores of the cooling system shall be mounted
in a manner to allow expansion and contraction at various rates without inducing stress into the adjoining cores.
The cooling system shall be comprised of a stacked, single depth package that provides the maximum cooling capacity
for the specified engine as well as offers excellent serviceability. The main components shall include a surge tank, a
charge air cooler, a recirculation shield, and a radiator.
Proposals unable to offer a stacked single depth cooling package shall not be considered.
There shall be a single depth core that allows greater efficiency, enhanced serviceability, and lighter weight with a higher
ambient capability.
The cooling package core shall not protrude below the frame of the vehicle by more than 1.1 inch. This feature shall
improve the angle of approach thereby reducing possible damage.
The radiator shall be a cross-flow design constructed completely of aluminum with welded side tanks. The radiator shall
include a minimum of a 627 square inch core and shall be bolted to the bottom of the charge air cooler to allow a single
depth core, thus allowing a more efficient and serviceable cooling system. The radiator shall be equipped with a drain
cock to drain the coolant for serviceability.
The cooling system shall include a one piece injected molded Polymer fan blade designed to provide long life in harsh
environments. Polymer fans provide a significant weight reduction over metal fans providing longer life for fan clutch
linings and bearings along with increased fan belt life.
The cooling system shall be equipped with a surge tank that is capable of removing entrained air from the system. The
surge tank shall be equipped with a low coolant probe and sight glass to monitor the level of the coolant. The surge tank
shall have a cap that meets the engine manufactures pressure requirements as well as the system design requirements.
All radiator tubes shall be formed from aluminized steel tubing. Recirculation shields shall be installed where required to
prevent heated air from reentering the cooling package and affecting performance. When a center bumper compartment
is installed an additional shield may be required to redirect the airflow into the coolers.
The charge air cooler shall be a cross-flow design constructed completely of aluminum with welded side tanks. The
charge air cooler shall have a minimum of a 390 square inch core and be bolted to the top of the radiator to allow a single
depth core, thus allowing a more efficient and serviceable cooling system.
All charge air cooler tubes shall be formed from aluminized steel tubing and installed with silicone hump hoses and
stainless steel “constant torque” style clamps meeting the engine manufactures requirements.
ENGINE COOLANT
The cooling package shall include Extended Life Coolant (ELC). The use of ELC provides longer intervals between
coolant changes over standard coolants providing improved performance. The coolant shall contain a 50/50 mix of
ethylene glycol and de-ionized water to keep the coolant from freezing to a temperature of -34 degrees F.
Proposals offering supplemental coolant additives (SCA) shall not be considered, as this is part of the extended life
coolant makeup.
SVI #766/767
Page 30 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
ELECTRONIC COOLANT LEVEL INDICATOR
The instrument panel shall feature a low engine coolant indicator light which shall be located in the center of the
instrument panel. An audible tone alarm shall also be provided to warn of a low coolant incident.
ENGINE PUMP HEAT EXCHANGER
A single bundle type coolant to water heat exchanger shall be installed between the engine and the radiator. The heat
exchanger shall be designed to prohibit water from the pump from coming in contact with the engine coolant. This shall
allow the use of water from the discharge side of the pump to assist in cooling the engine.
COOLANT HOSES
The cooling systems hose shall be formed silicone hose and formed aluminized steel tubing and include stainless steel
constant torque band clamps.
ENGINE AIR INTAKE
The engine air intake system shall include an ember separator air intake filter which shall be located in the front of the cab
behind the officer side fascia. This filter shall protect the downstream air filter from embers using a combination of unique
flat and crimped metal screens constructed into a galvanized steel frame. This multilayered screen shall be designed to
trap embers or allow them to burn out before passing through the pack, while creating only minimal air flow restriction
through the system. Periodic cleaning or replacement of the screen shall be all that is required after installation.
The engine shall also include an air intake filter which shall be bolted to the frame and located under the front of the cab
on the officer side. The dry type filter shall ensure dust and debris safely contained inside the disposable housing,
eliminating the chance of contaminating the air intake system during air filter service via a leak-tight seal.
The air flow distribution and dust loading shall be uniform throughout the high-performance filter cone pack, which shall
result in pressure differential for improved horsepower and fuel economy. The air intake shall be mounted within easy
access via a hinged panel behind the headlight module. The air intake system shall include a restriction indicator light in
the warning light cluster on the instrument panel, which shall activate when the air cleaner element requires replacement.
ENGINE EXHAUST SYSTEM
The exhaust system shall include a diesel particulate filter and a diesel oxidation catalyst to meet current EPA standards.
The system shall utilize 0.065 inch thick stainless steel exhaust tubing between the engine turbo and the diesel particulate
filter. This section of the exhaust system shall be wrapped with a thermal cover in order to retain the necessary heat for
system regeneration. Zero leak clamps seal all system joints between the turbo and diesel particulate filter.
From the diesel particulate filter to the end of the tailpipe the system shall be plumbed with 0.065 inch thick aluminized
steel tubing connected with overlapping band style clamps. The discharge shall terminate horizontally on the officer side
of the vehicle ahead of the rear tires.
The exhaust system shall be mounted below the frame in the outboard position providing maximum space for frame
mounted components such as midship pumps.
ENGINE EXHAUST ACCESSORIES
An exhaust temperature mitigation device shall be shipped loose for installation by the body manufacturer on the vehicle.
The temperature mitigation device shall lower the temperature of the exhaust by combining ambient air with the exhaust
gasses at the exhaust outlet.
SVI #766/767
Page 31 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
TRANSMISSION
The drive train shall include an Allison Gen IV-E model EVS 3000 torque converting, automatic transmission which shall
include electronic controls. The transmission shall feature two (2) 10-bolt PTO pads located on the converter housing.
The transmission shall include two (2) internal oil filters and Castrol TranSynd™ synthetic TES 295 transmission fluid
which shall be utilized in the lubrication of the EVS transmission. An electronic oil level sensor shall be included with the
readout located in the shift selector.
The Gen IV-E transmission shall include prognostic diagnostic capabilities. These capabilities shall include the monitoring
of the fluid life, filter change indication, and transmission clutch maintenance.
The transmission gear ratios shall be:
1st
3.49:1
2nd
1.86:1
3rd
1.41:1
4th
1.00:1
5th
0.75:1
6th
0.65:1 (if applicable)
Rev
5.03:1
TRANSMISSION MODE PROGRAMMING
The transmission, upon start-up, will automatically select a four (4) speed operation. The fifth speed over drive shall be
available with the activation of the mode button on the shifting pad.
TRANSMISSION FEATURE PROGRAMMING
The EVS group package number 127 shall contain the 198 vocational package in consideration of the duty of this
apparatus as a Pumper. This package shall incorporate an automatic neutral with selector override. This feature
commands the transmission to neutral when the park brake is applied, regardless of drive range requested on the shift
selector. This requires re-selecting drive range to shift out of neutral for the override.
This package shall be coupled with the use of a split shaft PTO and incorporate pumping circuits. These circuits shall be
used allowing the vehicle to operate in the fourth range lockup while operating the pump mode due to the 1 to 1 ratio
through the transmission, therefore the output speed of the engine is the input speed to the pump. The pump output can
be easily calculated by using this input speed and the drive ratio of the pump itself to rate the gallons of water the pump
can provide.
An eight (8) pin Delphi connector will be provided next to the steering column connector. This will contain the following
input/output circuits to the transmission control module.
Function ID
C
J
C
G
SVI #766/767
Description
PTO Request
Fire Truck Pump Mode (4th Lockup)
Range Indicator
PTO Enable Output
Signal Return
Wire assignment
142
122 / 123
145 (4th)
130
103
Page 32 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
ELECTRONIC TRANSMISSION OIL LEVEL INDICATOR
The transmission fluid shall be monitored electronically and shall send a signal to activate a warning in the instrument
panel when levels fall below normal.
TRANSMISSION SHIFT SELECTOR
An Allison pressure sensitive range selector touch pad shall be provided and located to the right of the driver within clear
view and easy reach. The shift selector shall provide a prognostic indicator (wrench symbol) on the digital display between
the selected and attained indicators. The prognostics monitor various operating parameters to determine and shall alert
you when a specific maintenance function is required.
TRANSMISSION PRE-SELECT WITH AUXILIARY BRAKE
When the auxiliary brake is engaged, the transmission shall automatically shift to second gear to decrease the rate of
speed assisting the secondary braking system and slowing the vehicle.
TRANSMISSION COOLING SYSTEM
The transmission shall include an air to oil cooler integrated into the lower portion of cooling package. The transmission
cooling system shall meet all transmission manufacturer requirements. The cooling system shall feature a circuit
provision located within the hydraulic transmission oil which shall provide for rapid warm up to the optimum transmission
operating temperature.
TRANSMISSION WARRANTY
The Allison EVS series transmission shall be warranted for a period of five (5) years with unlimited mileage. Parts and
labor shall be included in the warranty.
TRANSFER CASE
The front axle shall be driven by an ArvinMeritor MTC-4210 series two-speed transfer case.
The following controls shall be provided for the T-Case:
- 4x4 / 4x2 Selector switch.
- High / Low gear range selector switch.
The following indicator lights shall show the status of the T-Case:
- 4x4 Mode indicator light.
- 4x2 Mode indicator light.
- "High" gear range indicator light.
- "Low" gear range indicator light.
TRANSFER CASE DRIVEN PTO
The transfer case shall include a no slip power take off shaft. The shaft shall exit to the rear of the unit and include a 1710
yoke. The transfer case shall have a 1.00:1 ratio and shall rotate the same direction as the engine.
SVI #766/767
Page 33 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
TRANSFER CASE DRIVEN PTO CONTROL
The transfer case shall include three (3) toggle switches and six (6) lights. One (1) toggle switch with two (2) lights shall
indicate whether a four wheel drive application is engaged and one (1) toggle switch with two (2) lights which shall be for
High/ Low activation. One (1) toggle switch including a guard which is red in color shall be for pump activation with one
(1) light indicating pump engagement and one (1) light indicating “Ok to Pump”. These switches and lights shall be
located on the panel within the dash.
LH PTO
A Spartan supplied ten (10) bolt standard duty clutched drive PTO shall be installed on the transmission. Installation shall
include mounting of the PTO and wiring the unit with a control switch.
LH PTO MODEL
A ten (10) bolt Chelsea model 277-XGFJP-B5XD heavy duty transmission driven PTO shall be installed. The clutched
shifted PTO is designed specifically for the Allison world transmission and provides torque ranges from 250 to 335 lb. ft.
PTO LOCATION
The transmission driven power take off (PTO) shall be mounted in the 9:00 oclock position.
PTO CONTROL
The left hand power take off shall be controlled by the transmission. The power take off shall be activated by an on/off
rocker switch which contains an integral light which shall illuminate upon a positive engagement of the power take off.
This switch shall be located on dash.
Required operating conditions for enabling this function are:

Throttle position is low

Engine speed is within customer modifiable constant limits

Output speed is within customer modifiable constant limits
Park brake set
DRIVELINE
All drivelines shall be heavy duty metal tube and equipped with Spicer 1710 series universal joints. The shafts shall be
dynamically balanced prior to installation to alleviate future vibration. In areas of the driveline where a slip shaft is
required, the splined slip joint shall be coated with Glide Coat®.
MIDSHIP PUMP / GEARBOX
A mid-ship split shaft pump shall be installed by the apparatus manufacturer. The chassis manufacturer shall not provide
any driveline provisions for the pump installation.
SVI #766/767
Page 34 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
PUMP SHIFT CONTROLS
One (1) pump shift control panel shall be mounted on the drivers dash panel. The following shall be provided on the
panel: a three (3) position locking toggle switch; an engraved PUMP ENGAGED identification light; and an engraved OK
TO PUMP identification light. The pump shift control panel shall be black with a yellow border outline. One (1) label
indicating pump instructions and the transmission shift selector position used for pumping shall be provided and located
so it can be read from the drivers position per NFPA 16.10.1.3. The road mode shall be selected when the switch is in the
up position and pump mode shall be selected when the switch is in the down position.
The center switch position shall exhaust air from both pump and road sides of pump gear box shift cylinder.
PUMP SHIFT CONTROL PLUMBING
Air connections shall be provided from the air supply tank to the pump shift control valve and from the pump shift control
valve to the frame mounted bracket. The frame mounted bracket shall include labeling identifying the pump and road
connection points with threaded 1/4 NPT fittings on the solenoid for attaching the customer installed pump. The air supply
shall be pressure protected from service brake system.
FUEL FILTER/WATER SEPARATOR
The fuel system shall have a Fleetguard FS1003 fuel filter/water separator with a thermostatically controlled integral
heater as a primary filter. The fuel filter shall have a drain valve.
An instrument panel lamp and audible alarm which indicates when water is present in the fuel-water separator shall also
be included.
A secondary fuel filter shall be included as approved by the engine manufacturer.
FUEL LINES
The fuel system lines shall be brown reinforced nylon tubing rated for diesel fuel with brass fittings installed from the tank
to engine including the return.
FUEL SHUTOFF VALVE
A fuel shutoff valve shall be installed in the fuel draw line at the primary fuel filter to allow the fuel filter to be changed
without loss of fuel to the fuel pump.
A second fuel shutoff valve shall be installed in the fuel draw line, near the fuel tank to allow maintenance to be performed
with minimal loss of fuel.
SVI #766/767
Page 35 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
FUEL TANK
The fuel tank shall have a capacity of fifty (50) gallons and shall measure 35.00 inches in width X 15.00 inches in height X
24.00 inches in length. The baffled tank shall be made of 14 gauge aluminized steel. The exterior of the tank shall be
painted with a PRP Corsol™ black anti-corrosive exterior metal treatment finish. This results in a tank which offers the
internal and external corrosion resistance.
The tank shall have a vent port to facilitate venting to the top of the fill neck for rapid filling without "blow-back" and a roll
over ball check vent for temperature related fuel expansion and draw.
The tank is designed with dual draw tubes and sender flanges. The tank shall have 2.00 inch NPT fill ports for right or left
hand fill. A 0.50 inch NPT drain plug shall be centered in the bottom of the tank.
The fuel tank shall be mounted below the frame, behind the rear axle. Two (2) three-piece strap hanger assemblies with
“U” straps bolted midway on the fuel tank front and rear shall be utilized to allow the tank to be easily lowered and
removed for service purposes. Rubber isolating pads shall be provided between the tank and the hanger strap
assemblies. Strap mounting studs through the rail, hidden behind the body shall not be acceptable.
FUEL TANK FILL PORT
The fuel tank fill ports shall be offset with the right fill port located in the middle position and the left fill port located in the
rearward position on the fuel tank.
FRONT AXLE
The front axle shall be an ArvinMeritor MX-16-120 single reduction drive type. The axle shall include a 3.74 inch drop and
a 71.00 inch king pin intersection (KPI). The axle shall include a conventional style hub with a standard knuckle.
The steer axle shall provide durable off road mobility and shall be rated at 17,000 pounds.
FRONT AXLE WARRANTY
The front axle shall be warranted by Meritor for two (2) years with unlimited miles under the general service application.
Details of the Meritor warranty are provided on the PDF document attached to this option.
FRONT AXLE DIFFERENTIAL LUBRICATION
The front axle differential shall be lubricated with oil.
FRONT WHEEL BEARING LUBRICATION
The front axle wheel bearings shall be lubricated with grease.
SVI #766/767
Page 36 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
FRONT SHOCK ABSORBERS
Two (2) Bilstein inert, nitrogen gas filled shock absorbers shall be provided and installed as part of the front suspension
system. The shocks shall be a monotubular design and fabricated using a special extrusion method, utilizing a single
blank of steel without a welded seam, achieving an extremely tight peak-to-valley tolerance and maintains consistent wall
thickness. The monotubular design shall provide superior strength while maximizing heat dissipation and shock life.
The ride afforded through the use of a gas shock is more consistent and shall not deteriorate with heat, the same way a
conventional oil filled hydraulic shock would.
The Bilstein front shocks shall include a digressive working piston assembly allowing independent tuning of the
compression and rebound damping forces to provide optimum ride and comfort without compromise. The working piston
design shall feature fewer parts than most conventional twin tube and “road sensing” shock designs and shall contribute
to the durability and long life of the Bilstein shock absorbers.
Proposals offering the use of conventional twin tube or “road sensing” designed shocks shall not be considered.
FRONT SUSPENSION
The front suspension shall include three (3), 54.00 inch long and 4.00 inch wide taper leaf springs with a military double
wrapped front eye. Both spring eyes shall have a case hardened threaded bushing installed with lubrication counter bore
and lubrication land off cross bore with grease fitting. The spring capacity shall be rated at 17,000 pounds.
STEERING COLUMN/ WHEEL
The cab shall include a Douglas Autotech steering column shall be a seven (7) position tilt and 2.25 inch telescopic type
with an 18.00 inch steering wheel located on the left side of the cab designating the drivers position. The steering wheel
shall be covered with black absorbite padding.
The steering column shall contain a horn button, self-canceling turn signal switch, four-way hazard switch and headlamp
dimmer switch.
POWER STEERING PUMP
The hydraulic power steering pump shall be a TRW PS and shall be gear driven from the engine. The pump shall be a
balanced, positive displacement, sliding vane type.
ELECTRONIC POWER STEERING FLUID LEVEL INDICATOR
The power steering fluid shall be monitored electronically and shall send a signal to activate an audible alarm and visual
warning in the instrument panel when fluid level falls below normal.
FRONT AXLE CRAMP ANGLE
The chassis shall have a front axle cramp angle of 50 degrees to the left and right.
POWER STEERING GEAR
The power steering gear shall be a TRW model TAS 85.
SVI #766/767
Page 37 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CHASSIS ALIGNMENT
The chassis frame rails shall be measured to insure the length is correct and cross checked to make sure they run parallel
and are square to each other. The front and rear axles shall be laser aligned. The front tires and wheels shall be aligned
and toe-in set on the front tires by the chassis manufacturer.
The completed apparatus shall be rechecked for proper alignment once the chassis has been fully loaded and before
being placed in service.
REAR AXLE
The rear axle shall be a Meritor model number RS-24-160. The axle shall be built of superior construction and quality
components to provide the rugged dependability needed to stand up to the fire industrys demands. The axle shall include
rectangular shaped, hot-formed housings for extra strength and rigidity. The axles shall also include torsion flow axle
shafts that feature a surface hardness which resists fatigue and a resilient core which absorbs shock. There shall be
unitized pinion seals within the axle helping to prevent leakage and harmful road contaminants from entering the axle
components. The axle shall include a rigid differential case for high axle strength and reduced maintenance.
The axle shall include single reduction gearing and shall have a rated capacity of 24,000 pounds.
REAR AXLE WARRANTY
The rear axle shall be warranted by Meritor for two (2) years with unlimited miles under the general service application.
Details of the Meritor warranty are provided on the PDF document attached to this option.
REAR AXLE DIFFERENTIAL LUBRICATION
The rear axle differential shall be lubricated with oil.
REAR WHEEL BEARING LUBRICATION
The rear axle wheel bearings shall be lubricated with oil.
VEHICLE TOP SPEED
The top speed of the vehicle shall be approximately 65 MPH +/-2 MPH at governed engine RPM.
REAR SUSPENSION
The single rear axle shall feature a Reyco 79KB vari-rate, self-leveling captive slipper type conventional multi-leaf spring
suspension, with 57.50 inch X 3.00 inch springs. One (1) adjustable and one (1) fixed torque rod shall be provided.
The rear suspension capacity shall be rated from 21,000 to 31,500 pounds.
FRONT TIRE
The front tires shall be Michelin 385/65R-22.5 18PR "J" tubeless radial XZY3 mixed service tread.
The front tire stamped load capacity shall be 18,740 pounds per axle with a speed rating of 65 miles per hour when
properly inflated to 120 pounds per square inch.
The front tire US Fire Service Intermittent Usage load capacity shall be 20,000 pounds per axle with a speed rating of 65
miles per hour when properly inflated to 120 pounds per square inch.
SVI #766/767
Page 38 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
REAR TIRE
The rear tires shall be Michelin 11R-22.5 16PR "H" tubeless radial XZY3 mixed service tread.
The rear tire stamped load capacity shall be 24,020 pounds per axle with a speed capacity of 65 miles per hour when
properly inflated to 120 pounds per square inch.
The rear tire US Fire Service Intermittent Usage load capacity shall be 24,820 pounds per axle with a speed capacity of
65 miles per hour when properly inflated to 120 pounds per square inch.
TIRE PRESSURE INDICATOR
There shall be a voucher provided with the chassis for a pop up style tire pressure indicator at each tire valve stem. The
indicator shall provide visual indication of pressure in the specific tire.
The tire pressure indicators shall be redeemed upon the vehicle manufacturers receipt of the voucher for installation by
the customer.
FRONT WHEEL
The front wheels shall be Accuride hub piloted, 22.50 inch X 12.25 inch steel wheels. The hub piloted mounting system
shall provide easy installation and shall include two-piece flange nuts.
REAR WHEEL
The rear wheels shall be Accuride hub piloted, heavy duty, 22.50 inch X 8.25 inch steel wheels. The hub piloted mounting
system shall provide easy installation and shall include two-piece flange nuts.
WHEEL PAINT
Each of the steel wheels shall be pretreated in a zinc phosphate bath, coated with an acrylic cathode electro deposited
white primer base coat (E-Coat). The E-Coat shall exceed 336 hours under industry standard ASTM salt spray testing.
The wheels shall then be finish painted the same as the primary/lower color of the cab by the chassis manufacturer.
WHEEL TRIM
Stainless steel wheel simulator kits shall be provided for the front wheels and for the rear wheels shipped loose with the
chassis for installation by the apparatus builder
Each wheel simulator kit shall be RealWheels® brand constructed of 304L grade, non-corrosive stainless steel with a
mirror finish. Each wheel simulator shall meet D.O.T. certification. They shall simulate the look of polished aluminum
wheels and come complete with stainless steel hub covers and lug nut covers.
WHEEL GUARDS
The rear dual wheels shall include a plastic isolator approximately 0.04” thick installed between the inner and outer wheel
to help prevent corrosion caused by metal to metal contact.
SVI #766/767
Page 39 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
BRAKE SYSTEM
A rapid build-up air brake system shall be provided. The air brakes shall include a two (2) air tank, three (3) reservoir
system with a total of 4152 cubic inch of air capacity. A floor mounted treadle valve shall be mounted inside the cab for
graduated control of applying and releasing the brakes. An inversion valve shall be installed to provide a controlled
service brake application during an unlikely event including primary air supply loss.
The rear axle spring brakes shall automatically apply in any situation when the air pressure falls below 25 PSI and shall
include a mechanical means for releasing the spring brakes when necessary. An audible alarm shall designate when the
system air pressure is below 60 PSI.
A four (4) sensor, four (4) modulator anti-lock braking system (ABS) shall be installed on the front and rear axles in order
to prevent the brakes from locking or skidding while braking during hard stops or on icy or wet surfaces. This in turn shall
allow the driver to maintain steering control under heavy braking and in most instances, shorten the braking distance.
The electronic monitoring system shall incorporate diagonal circuitry which shall monitor wheel speed during braking
through a sensor and tone ring on each wheel. A dash mounted ABS lamp shall be provided to notify the driver of a
system malfunction. The ABS system shall automatically disengage the auxiliary braking system device when required.
The speedometer screen shall be capable of reporting all active defaults using PID/SID and FMI standards.
FRONT BRAKES
The front brakes shall be Meritor 16.5" x 6" S-cam drum type.
REAR BRAKES
The rear brakes shall be Meritor 16.50 inch X 7.00 inch S-cam drum type.
PARK BRAKE
Upon application of the push-pull valve in the cab, the rear brakes will engage via mechanical spring force. This is
accomplished by dual chamber rear brakes, satisfying the FMVSS parking brake requirements.
In addition to the mechanical rear brake engagement, the front service brakes will also engage via air pressure, providing
additional braking capability.
PARK BRAKE CONTROL
A Meritor-Wabco manual hand control push-pull style valve shall operate the parking brake system. The control shall be
yellow in color.
The parking brake actuation valve shall be mounted on the left hand dash to the right of the steering column within easy
reach of the driver.
FRONT BRAKE SLACK ADJUSTERS
The front brakes shall include Meritor automatic slack adjusters shall be installed on the chassis which features a simple,
durable design offering reduced weight. The automatic slack adjusters shall feature a manual adjusting nut which cannot
inadvertently be backed off and threaded grease fittings for easy serviceability.
REAR BRAKE SLACK ADJUSTERS
The rear brakes shall include Meritor automatic slack adjusters shall be installed on the chassis which features a simple,
durable design offering reduced weight. The automatic slack adjusters shall feature a manual adjusting nut which cannot
inadvertently be backed off and threaded grease fittings for easy serviceability.
SVI #766/767
Page 40 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
FRONT BRAKE DUST SHIELDS
The front axle shall be equipped with brake dust shields.
AIR DRYER
The brake system shall include a Wabco System Saver 1200 air dryer with an integral 100 watt heater with a Metri-Pack
sealed connector. The air dryer incorporates an internal turbo cutoff valve that closes the path between the air
compressor and air dryer purge valve during the compressor "unload" cycle. The turbo cutoff valve allows purging of
moisture and contaminants without the loss of turbo boost pressure. The air dryer shall be located on the right hand
frame rail forward of the front wheel behind the right hand cab step.
FRONT BRAKE CHAMBERS
The front brakes shall be provided with MGM type 24 long stroke brake chambers.
REAR BRAKE CHAMBERS
The rear axle shall include TSE 30/30 brake chambers which shall convert the energy of compressed air into mechanical
force and motion. This shall actuate the brake camshaft, which in turn shall operate the foundational brake mechanism
forcing the brake shoes against the brake drum. The TSE Type 30 brake chamber shall offer a 30.00 square inch
effective area.
AIR COMPRESSOR
The air compressor provided for the engine shall be a Wabco® SS318 single cylinder pass-through drive type compressor
which shall be capable of producing 18.7 CFM at 1200 engine RPMs. The air compressor shall feature a higher delivery
efficiency translating to more air delivery per horsepower absorbed. The compressor shall include an aluminum cylinder
head which shall improve cooling, reduce weight and decrease carbon formation. Superior piston and bore finishing
technology shall reduce oil consumption and significantly increasing the system component life.
AIR GOVERNOR
An air governor shall be provided to control the cut-in and cut-out pressures of the engine mounted air compressor. The
governor shall be calibrated to meet FMVSS requirements. The air governor shall be located on the air cleaner bracket on
the right frame rail behind the officer step.
MOISTURE EJECTORS
An automatic moisture ejector with a manual drain provision shall be installed on the wet tank of the air supply system.
Manual cable actuated drain valves shall be installed on all remaining reservoirs of the air supply system. The actuation
pull cables shall be coiled and tied at each drain valve. The supplied cables when extended shall be sufficient in length to
allow each drain to be activated from the side of the apparatus.
AIR SUPPLY LINES
A dual air system plumbed with color coded reinforced nylon tubing air lines shall be installed on the chassis. The primary
(rear) brake line shall be green, the secondary (front) brake line red, the parking brake line orange and the auxiliary
(outlet) will be blue.
Brass compression type fittings shall be used on the nylon tubing. All drop hoses shall include fiber reinforced neoprene
covered hoses.
SVI #766/767
Page 41 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
WHEELBASE
The chassis wheelbase shall be 170.00 inches.
REAR OVERHANG
The chassis rear overhang shall be 58.00 inches.
FRAME
The frame shall consist of single rails running parallel to each other with cross members forming a ladder style frame.
The frame rails shall be formed in the shape of a "C" channel, 10.25 inch web X 3.50 inches deep upper and lower
flanges X 0.38 inches thick. The high strength low alloy steel shall have a Tensile Elastic Limit of 110,000 psi. Each
single rail shall be rated by a Resistance Bending Moment (RBM) minimum of 1,830,400 inch pounds and have a
minimum section modulus of 16.64 cubic inches calculated by the radius method. The outside dimension frame shall
measure 34.25 inches in width.
Proposals calculating the frame strength using the “box method” shall not be considered.
Proposals including heat treated rails shall not be considered. Heat treating frame rails produces rails that are not uniform
in their mechanical properties throughout the length of the rail. Rails made of high strength, low alloy steel are already at
the required yield strength prior to forming the rail.
A minimum of seven (7) fully gusseted 0.25 inch thick cross members shall be installed. The inclusion of the body
mounting, or bumper mounting shall not be considered as a cross member. The cross members shall be attached using
zinc coated grade 8 fasteners. The head bolts shall be flanged type with distorted threads, held in place by flanged lock
nuts. Each cross member shall be mounted to the frame rails utilizing a minimum of 0.25 inch thick gusset reinforcement
plates at all corners balancing the area of force throughout the entire frame.
Any proposals not including additional reinforcement for each cross member shall not be considered.
Frame rails will be manufactured such that bolt attachment holes are specific for each component and shall not include
any unnecessary holes.
All relief areas shall be cut in with a minimum 2.00 inch radius at intersection points with the edges ground to a smooth
finish to prevent a stress concentration point.
The frame and cross members shall carry a lifetime warranty to the original purchaser. A copy of the frame warranty shall
be made available upon request.
Proposals offering warranties for frames not including cross members shall not be considered.
FRAME WARRANTY
The frame and cross members shall carry a limited lifetime warranty to the original purchaser. The warranty shall include
conditional items listed in the detailed warranty document which shall be provided upon request.
FRAME CLEAR AREA
The chassis frame shall be left clear of chassis mounted components inside or outside the frame rails within the first 30.00
inches behind the cab to allow space for OEM installed components. Cross members may be installed in the clear area if
required for proper frame or driveline configuration.
SVI #766/767
Page 42 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
FRAME PAINT
The frame shall be powder coated black prior to any attachment of components.
All powder coatings, primers and paint shall be compatible with all metals, pretreatments and primers used. The cross
hatch adhesion test per ASTM D3359 shall not have a fail of more than ten (10) squares. The pencil hardness test per
ASTM D3363 shall have a final post-curved pencil hardness of H-2H. The direct impact resistance test per ASTM D2794
shall have an impact resistance of 120.00 inches per pound at 2 mils. The salt spray resistance per ASTM B-117-97
shall pass 500 hours of salt spray test. The applied process shall allow the application of other products over it and still
maintain or exceed the 500 hours salt spray test.
Any proposals offering painted frame with variations from the above process shall not be accepted. The film thickness of
vendor supplied parts shall also be sufficient to meet the performance standards as stated above.
FRONT BUMPER
A one piece, two (2) rib wrap-around style, polished stainless steel front bumper shall be provided. The material shall be
10 gauge 304 stainless steel, 12" high and 99" wide.
FRONT BUMPER EXTENSION LENGTH
The front bumper shall be extended approximately 24.00 inches ahead of the cab.
FRONT BUMPER EXTENSION WIDTH
The front bumper extension shall include an overall width of 34.25 inches.
FRONT BUMPER APRON
The 24.00 inch extended front bumper shall include an apron constructed of 0.19 inch thick embossed aluminum tread
plate.
The apron shall be installed between the bumper and the front face of the cab affixed using stainless steel bolts attaching
the apron to the top bumper flange.
AIR HORN
The front bumper shall include two (2) Hadley brand E-Tone air horns which shall measure 21.00 inches long with a 6.00
inch round flare. The air horn shall be a trumpet style and shall include a chrome finish on the inside and a black painted
finish on the outside of the trumpet.
AIR HORN LOCATION
The air horns shall be recess mounted in the front bumper face, one (1) on the driver side of the bumper in the inboard
position relative to the left hand frame rail and one (1) on the officer side of the bumper in the inboard position relative to
the right hand frame rail.
AIR HORN RESERVOIR
One (1) air tank, with a 1200 cubic inch reservoir, shall be installed on the chassis to act as a supply tank for operating air
horns. The reservoir shall be isolated with a 90 PSI pressure protection valve on the reservoir supply side to prevent
depletion of the air to the air brake system.
SVI #766/767
Page 43 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
ELECTRONIC SIREN SPEAKER
The bumper shall include one (1) Cast Products Inc. model SA4301, 100 watt speaker which shall be recess mounted
within the bumper fascia. The speaker shall include a flat mounting flange and be chrome in color.
ELECTRONIC SIREN SPEAKER LOCATION
The electronic siren speaker shall be located on the front bumper face on the left side outboard of the frame rail in the far
outboard position.
FRONT BUMPER TOW HOOKS
Two (2) heavy duty tow hooks, painted to match the chassis frame, shall be installed below the front bumper, forward
position and bolted directly to the outside of each chassis frame rail with grade 8.00 bolts.
CAB TILT SYSTEM
The entire cab shall be capable of tilting 45.00 degrees to allow for easy maintenance of the engine and transmission.
The electric-over-hydraulic lift system shall include an ignition interlock and red cab lock down indicator lamp on the tilt
control which shall illuminate when holding the “Down” button to indicate safe road operation.
It shall be necessary to activate the master battery switch and set the parking brake in order to tilt the cab. As a third
precaution the ignition switch must be turned off to complete the cab tilt interlock safety circuit.
Two (2) spring-loaded hydraulic hold down hooks located outboard of the frame shall be installed to hold the cab securely
to the frame. Once the hold-down hooks are set in place, it shall take the application of pressure from the hydraulic cab
tilt lift pump to release the hooks.
Two (2) cab tilt cylinders shall be provided with velocity fuses in each cylinder port. The cab tilt pivots shall be 1.90 inch
ball and be anchored to frame brackets with 1.25 inch diameter studs.
A steel safety channel assembly shall be installed on the right side cab lift cylinder to prevent accidental cab lowering.
The safety channel assembly shall fall over the lift cylinder when the cab is in the fully tilted position. A cable release
system shall also be provided to retract the safety channel assembly from the lift cylinder to allow the lowering of the cab.
CAB TILT AUXILIARY PUMP
A manual cab tilt pump module shall be attached to the rear surface of the driver side battery box.
CAB TILT LIMIT SWITCH
A cab tilt limit switch shall be installed. The switch will effectively limit cab's travel when being tilted. The final adjustment
of the switch shall be performed by the apparatus manufacturer to prevent damage to the cab or any bumper mounted
option mounted in the cab tilt arc.
CAB TILT CONTROL RECEPTACLE
The cab tilt shall include a receptacle which shall be temporarily located on the right hand chassis rail rear of the cab to
provide a place to plug in the cab tilt remote control pendant. The tilt pump shall include 8.00 feet of cable with a 6-pin
Deutsch connector that includes a cap. The remote control pendant shall also include 20.00 feet of cable which also
includes a mating connector.
SVI #766/767
Page 44 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CAB WINDSHIELD
The cab windshield shall have a surface area of 2825.00 square inches and be of a two (2) piece wraparound design for
maximum visibility.
The distance from the driver and officer to the windshield shall be a minimum of 42.00 inches at the furthest seated
position. This distance shall ensure the safety of the driver and officer from intruding objects in the unlikely event of a
head on collision.
The glass utilized for the windshield a standard automotive tint. The left and right windshield shall be fully interchangeable
thereby minimizing stocking and maintenance costs. All proposals offering windshields not in compliance with the
minimum measurement of surface area stated above and are not fully interchangeable shall not be considered.
GLASS FRONT DOOR
The front cab doors shall include a window which is 27.00 inches in width X 26.00 inches in height. These windows shall
have the capability to roll down completely into the door housing. This shall be accomplished manually utilizing a crank
style handle on the inside of the door. A reinforced window regulator assembly shall be provided for severe duty use.
There shall be an irregular shaped fixed window which shall measure 2.50 inches wide at the top, 8.00 inches wide at the
bottom X 26.00 inches in height, more commonly known as “cozy glass” ahead of the front door roll down windows.
The windows shall be mounted within the frame of the front doors trimmed with a black anodized ring on the exterior.
GLASS TINT FRONT DOOR
The windows located in the left and right front doors shall have a standard green automotive tint which shall allow
seventy-five percent (75%) light transmittance.
GLASS REAR DOOR RH
The rear right hand side door shall include a window which is 27.00 inches in width X 26.00 inches in height. This window
shall roll up and down manually utilizing a crank style handle on the inside of the door. A reinforced window regulator
assembly shall be provided for severe duty use.
GLASS TINT REAR DOOR RH
The window located in the right hand side rear door shall include a standard green automotive tint which shall allow
seventy-five percent (75%) light transmittance.
GLASS REAR DOOR LH
The rear left hand side door shall include a window which is 27.00 inches in width X 26.00 inches in height. This window
shall roll up and down manually utilizing a crank style handle on the inside of the door. A reinforced window regulator
assembly shall be provided for severe duty use.
GLASS TINT REAR DOOR LH
The window located in the left hand side rear door shall include a standard green automotive tint which shall allow
seventy-five percent (75%) light transmittance.
SVI #766/767
Page 45 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
GLASS SIDE MID RH
The cab shall include a window on the officers side behind the front and ahead of the crew doors which shall measure
16.00 inches wide X 26.00 inches high. This window shall be fixed within this space and shall be rectangular in shape.
The window shall be mounted using self locking window rubber. The glass utilized for this window shall include a green
automotive tint unless otherwise noted.
GLASS TINT SIDE MID RH
The window located on the right hand side of the cab between the front and rear doors shall include a standard green
automotive tint which shall allow seventy-five percent (75%) light transmittance.
GLASS SIDE MID LH
The cab shall include a window on the drivers side behind the front door and ahead of the crew door and above the wheel
well which shall measure 16.00 inches wide X 26.00 inches high. This window shall be fixed within this space and shall
be rectangular in shape. The window shall be mounted using self locking window rubber. The glass utilized for this
window shall include a green automotive tint unless otherwise noted.
GLASS TINT SIDE MID LH
The window located on the left hand side of the cab between the front and rear doors shall include a standard green
automotive tint which shall allow seventy-five percent (75%) light transmittance.
CLIMATE CONTROL
The cab shall include a 57,600 BTU @ 425 CFM front overhead heater/defroster which shall be provided and installed
above the windshield between the sun visors.
The cab shall also include a combination heater air-conditioning unit mounted on the engine tunnel. This unit shall offer
eight (8) adjustable louvers, (4 forward facing , four rearward facing) a temperature control valve and two (2) blowers
offering three (3) speeds which shall be capable of circulating 550 cubic feet of air per minute. The unit shall be rated for
36,000 BTU of cooling and 45,000 BTU of heating. The temperature and blower controls shall be located on the heater/air
conditioning unit.
All defrost/heating systems shall be plumbed with one (1) seasonal shut-off valve at the front corner on the right side of
the cab.
The air conditioner lines shall be a mixture of custom bent zinc coated steel fittings and Aero-quip GH 134 flexible hose
with Aero-Quip EZ-Clip fittings.
CLIMATE CONTROL ACTIVATION
The heating controls, and air conditioning if included, shall be located on the climate control unit.
A/C CONDENSER LOCATION
A roof mounted A/C condenser shall be installed centered on cab forward of raised roof against the slope rise.
A/C COMPRESSOR
The air-conditioning compressor shall be a belt driven, engine mounted, open type compressor that shall be capable of
producing a minimum of 13000 BTU at 1500 engine RPMs. The compressor shall utilize R-134A refrigerant and PAG oil.
SVI #766/767
Page 46 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CAB INSULATION
The cab ceiling and walls shall include 1.00 inch thick foam insulation. The insulation shall act as a barrier absorbing
noise as well as assisting in sustaining the desired climate within the cab interior.
UNDER CAB INSULATION
The underside of the cab tunnel surrounding the engine shall be lined with multi-layer foam insulation, engineered for
application inside diesel engine compartments.
The insulation shall act as a noise barrier, absorbing noise thus keeping the decibel level in the cab well within NFPA
recommendations. As an additional benefit, the insulation shall assist in sustaining the desired temperature within the cab
interior.
The insulation shall measure .56 inch thick including a 1.0#/sf PVC barrier and a moisture and heat reflective foil backing,
reinforced with fiberglass strands. The foil surface acts as protection against moisture and other contaminants. The
insulation shall meet or exceed FMVSS 302 flammability test.
The insulation shall be cut precisely to fit each section and sealed for additional heat and sound deflection. The insulation
shall be held in place by 3 mils of acrylic pressure sensitive adhesive and aluminum pins with hard hat, hold in place
fastening heads.
INTERIOR TRIM FLOOR
The floor of the cab shall be covered with a multi-layer mat consisting of 0.25 inch thick sound absorbing closed cell foam
with a 0.06 inch thick non-slip vinyl surface with a pebble grain finish. The covering shall be held in place by a pressure
sensitive adhesive and aluminum trim molding. All exposed seams shall be sealed with silicone caulk matching the color
of the floor mat to reduce the chance of moisture and debris retention.
INTERIOR FLOOR MAT COLOR
The cab interior floor mat shall be gray in color.
INTERIOR TRIM VINYL
The cab interior shall include trim on the front and rear crew ceiling, the cab walls and the rear wall of the cab. The trim
shall be constructed of insulated vinyl over a hard board backing. The trim shall be securely fastened to the interior of the
cab utilizing snap style fasteners with a decorative cover for a more appealing appearance.
INTERIOR TRIM VINYL COLOR
The cab interior vinyl trim surfaces shall be gray in color.
REAR WALL INTERIOR
The rear wall of the cab shall be trimmed with vinyl.
INTERIOR ABS TRIM COLOR
The cab interior vacuum formed ABS composite trim surfaces shall be gray in color.
SVI #766/767
Page 47 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
HEADER TRIM
The cab interior shall include the header above the driver and officer positions which shall be constructed of vacuum
formed ABS panel.
INTERIOR TRIM SUNVISOR
The header shall include two (2) sun visors, one each side forward of the driver and officer seating positions above the
windshield. Each sun visor shall be constructed of Masonite and covered with padded vinyl trim.
TRIM CENTER DASH
The main center dash area shall be constructed of durable vacuum formed ABS composite.
TRIM LH DASH
The left hand dash shall be a one (1) piece durable vacuum formed ABS composite housing which shall be custom
molded for a perfect fit around the instrument panel and the lower control panels to the left and right of the steering
column.
TRIM RH DASH
The right hand dash trim shall consist of a vacuum formed ABS composite module, which contains a glove compartment
with a hinged locking door and a Mobile Data Terminal (MDT) provision. The glove compartment size shall be 13.50
inches wide X 6.25 inches high X 5.50 inches deep. The MDT provision shall be provided above the glove compartment.
ENGINE TUNNEL TRIM
The cab engine tunnel shall be covered with .44 of an inch thick multi-layer mat consisting of .25 inch closed cell foam, .13
of an inch thick PVC acoustical barrier and .06 inch thick non-slip pebble grain. The engine tunnel mat shall be trimmed
with anodized aluminum stair nosing trim for an aesthetically pleasing appearance.
STEP TRIM
Each cab entry door shall include a three step entry. The first step closest to the ground shall be constructed of polished
5032 H32 aluminum Grip Strut® grating with angled outer corners. The step shall feature a splash guard to reduce water
and debris from splashing in to the step. The splash guard shall have an opening on the outer edge to allow debris and
water to flow through rather than becoming trapped within the stepping surface. The lower step shall be mounted to a
frame which is integral with the construction of the cab for rigidity and strength. The middle step shall be integral with the
cab construction and shall be trimmed with a Flex-Tred ® adhesive grit surface material.
INTERIOR DOOR TRIM
The doors of the cab shall include an aluminum plate the same weight and grade as the cab on the interior of the door.
The aluminum shall be then painted.
CAB PAINT INTERIOR DOOR TRIM
The inner door panel surfaces shall be painted with a Zolatone #20-72 silver gray texture finish.
DOOR TRIM CUSTOMER NAMEPLATE
The interior door trim on the front doors shall include a customer nameplate which states the vehicle was custom built for
their Department.
SVI #766/767
Page 48 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CAB DOOR TRIM REFLECTIVE
The interior of each door shall include high visibility reflective tape. A white reflective tape that measures 1.00 inch in
width shall be provided vertically along the rear outer edge of the door. The lowest portion of each door skin shall include
a reflective tape chevron with red and white stripes and a Spartan logo. The chevron tape shall measure 6.00 inches in
height.
INTERIOR GRAB HANDLE "A" PILLAR
A rubber covered 11.00 inch grab handle shall be provided on the inside of the cab on the hinge post at the driver and
officer doors. The handle shall assist personnel in exiting and entering the cab.
INTERIOR GRAB HANDLE FRONT DOOR
Each front door shall include one (1) ergonomically contoured 9.00 inch cast aluminum handle mounted horizontally on
the interior door panels. The handles shall feature a textured black powder coat finish to assist personnel entering and
exiting the cab.
INTERIOR GRAB HANDLE REAR DOOR
A black powder coated cast aluminum assist handle shall be provided on the inside of each rear crew door. A 30.00 inch
long handle shall extend horizontally the width of the window just above the window sill. The handle shall assist personnel
in exiting and entering the cab.
DASH PANEL GROUP
The main center dash area shall include three (3) removable panels located one (1) to the right of the driver position, one
(1) in the center of the dash and one (1) to the left of the officer position. The center panel shall be within comfortable
reach of both the driver and officer.
SWITCHES CENTER PANEL
The center dash panel shall include twelve (12) rocker switch positons in a single row across the top of the panel.
A rocker switch with a blank legend installed directly above shall be provided for any position without a switch and legend
designated by a specific option. The non-specified switches shall be two-position, black switches with a green indicator
light. Each blank switch legend can be custom engraved by the body manufacturer. All switch legends shall have red
backlighting provided.
SWITCHES LEFT PANEL
The left dash panel shall include eight (8) switches. There shall be six (6) switches across the top of the panel and two (2)
staggered on the left hand portion of the panel. Five (5) of the top row of switches shall be rocker type and the left one (1)
shall be the headlight switch. The remaining switches shall consist of one (1) windshield wiper/washer control switch and
one (1) instrument lamp dimmer switch.
A rocker switch with a blank legend installed directly above shall be provided for any position not designated by a specific
option. The non-designated switches shall be two-position, black switches with a green indicator light. Each blank switch
legend can be custom engraved by the body manufacturer. All switch legends shall have red backlighting provided.
SWITCHES RIGHT PANEL
The right dash panel shall include no rocker switches or legends.
SVI #766/767
Page 49 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
SEAT BELT WARNING
A Class One seat belt warning system, integrated with the Vehicle Data Recorder system, shall be installed for each seat
within the cab. The VDR will provide visual indication of seats which were belted in incorrect sequence or when a seat is
occupied without the seat belt being fastened.
The visual indicator located on the instrument panel shall illuminate and the audible alarm shall sound when the park
brake is released and a seat is occupied without the corresponding seatbelt being fastened. The visual indicator shall
illuminate and the audible alarm shall also sound when the park brake is released and a seat has been belted in the
incorrect sequence. The system shall provide visual and audible warning when any seat is occupied (sixty pounds
minimum), the corresponding seat belt remains unfastened, and the park brake is released. Once activated, the visual
and audible indicators shall remain active until all occupied seats have the seat belts fastened in the correct sequence.
SEAT MATERIAL
The seats shall include a covering of high strength, wear resistant fabric made of durable ballistic polyester. A PVC
coating shall be bonded to the back side of the material to help protect the seats from UV rays and from being saturated
or contaminated by fluids. Common trade names for this material are Imperial 1200 and Durawear.
SEAT COLOR
All seats supplied with the chassis shall be gray in color. All seats shall include red seat belts.
SEAT BACK LOGO
The seat backs shall include the logo for SVI. The logo shall be centered on the standard headrest of the seat back and
on the left side of a split headrest.
SEAT DRIVER
The driver's seat shall be a Seats Inc. 911 series. The seat shall feature a tapered, padded seat cushion. The seat shall
feature two-way manual fore and aft adjustment with 6.00 inches of travel.
The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall include a three-point
shoulder harness with the lap belt, automatic retractor and buckle as an integral part of the seat assembly. The buckle
portion of the seat belt shall be mounted on a semi-rigid stalk extending from the seat base within easy reach of the
occupant.
The minimum vertical dimension from the seat H-point to the ceiling for this belted seating position shall be 35.00 inches.
This model of seat shall have successfully completed the static load tests set forth by FMVSS 207/210. This testing shall
include a simultaneous forward load of 3000 pounds each on the lap and shoulder belts and twenty (20) times the weight
through the center of gravity. This model of seat installed in the cab model, as specified, shall have successfully
completed the dynamic sled testing using FMVSS 208 as a guide with the following accommodations. In order to reflect
the larger size outfitted firefighters, the test dummy used shall be a 95th percentile hybrid III male weighing 225 pounds
rather than the 50th percentile male dummy weighing 165 pounds as referenced in FMVSS 208.
The materials used in construction of the seat shall also have successfully completed testing with regard to the
flammability of materials used in the occupant compartments of motor vehicles as outlined in FMVSS 302, of which
dictates the allowable burning rate of materials in the occupant compartments of motor vehicles.
SVI #766/767
Page 50 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
SEAT BACK DRIVER
The drivers seat shall include a standard seat back incorporating the all belts to seat feature (ABTS). The seat back shall
feature a contoured, adjustable head rest.
SEAT OFFICER
The officer's seat shall be a Seats Inc. 911 ABTS series. The seat shall feature a tapered and padded seat, and cushion.
The seat shall be mounted in a fixed position.
The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall include a three-point
shoulder harness with the lap belt and automatic retractor as an integral part of the seat assembly. The buckle portion of
the seat belt shall extend from the seat base towards the driver position within easy reach of the occupant.
The minimum vertical dimension from the seat H-point to the ceiling for this belted seating position shall be 35.00 inches.
This model of seat shall have successfully completed the static load tests by FMVSS 207/210. This testing shall include a
simultaneous forward load of 3000 pounds each on the lap and shoulder belts and twenty (20) times the weight through
the center of gravity. This model of seat installed in the cab model, as specified, shall have successfully completed the
dynamic sled testing using FMVSS 208 as a guide with the following accommodations. In order to reflect the larger size
outfitted firefighters, the test dummy used shall be a 95th percentile hybrid III male weighing 225 pounds rather than the
50th percentile male dummy weighing 165 pounds as referenced in FMVSS 208. The model of seats shall also have
successfully completed the flammability of materials used in the occupant compartments of motor vehicles as outlined in
FMVSS 302, of which decides the burning rate of materials in the occupant compartments of motor vehicles.
SEAT BACK OFFICER
The officers seat back shall include a Ziamatic brand Load and Lock™ walk away self contained breathing apparatus
(SCBA) bracket. The walk away bracket shall meet NFPA 1901-03 9G dynamic requirements for cylinder restraint
systems for use in crew compartments of fire truck cabs. The bracket shall consist of a back plate and a short back plate,
both of which shall be thermoplastic coated for trouble free service. The bracket shall feature two (2) high cycle double
coated clips which shall not mar the cylinders.
The bracket shall accommodate and secure all types of self-contained breathing apparatus cylinders. Each bracket shall
include a model LLS strap assembly which shall meet the NFPA 1901-03 standard for SCBA retention and shall be easily
adjustable. The seat back shall include a removable padded vinyl cover which shall be provided over the SCBA cavity.
SEAT REAR FACING OUTER LOCATION
The crew area shall include two (2) rear facing crew seats, which include one (1) located directly behind the driver seat
and one (1) located directly behind the officer seat.
SVI #766/767
Page 51 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
SEAT CREW REAR FACING OUTER
The crew area shall include a seat in the rear facing outboard position which shall be a Seats Inc. 911 ABTS series. The
seat shall feature a tapered and padded seat, and cushion. The seat shall be mounted in a fixed position.
The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall include a three-point
shoulder harness with the lap belt and automatic retractor as an integral part of the seat assembly. The buckle portion of
the seat belt shall extend from the seat base towards the driver position within easy reach of the occupant.
The minimum vertical dimension from the seat H-point to the ceiling for each belted seating position shall be 35.00 inches.
This model of seat shall have successfully completed the static load tests by FMVSS 207/210. This testing shall include a
simultaneous forward load of 3000 pounds each on the lap and shoulder belts and twenty (20) times the weight through
the center of gravity. This model of seat installed in the cab model, as specified, shall have successfully completed the
dynamic sled testing using FMVSS 208 as a guide with the following accommodations. In order to reflect the larger size
outfitted firefighters, the test dummy used shall be a 95th percentile hybrid III male weighing 225 pounds rather than the
50th percentile male dummy weighing 165 pounds as referenced in FMVSS 208. The model of seats shall also have
successfully completed the flammability of materials used in the occupant compartments of motor vehicles as outlined in
FMVSS 302, of which decides the burning rate of materials in the occupant compartments of motor vehicles.
SEAT BACK REAR FACING OUTER
The crew area shall include a seat back in the rear facing outer position which shall include a Ziamatic brand Load and
Lock™ walk away self contained breathing apparatus (SCBA) bracket. The mechanical walk away bracket shall meet
NFPA 1901-03 9G dynamic requirements for cylinder restraint systems for use in crew compartments of fire truck cabs.
The bracket shall consist of a back plate and a short back plate, both of which shall be thermoplastic coated for trouble
free service. The bracket shall feature two (2) high cycle double coated clips which shall not mar the cylinders.
The bracket shall accommodate and secure all types of self-contained breathing apparatus cylinders. Each bracket shall
include a model LLS strap assembly which shall meet the NFPA 1901-03 standard for SCBA retention and shall be easily
adjustable. The seat back shall include a removable padded vinyl cover which shall be provided over the SCBA cavity.
SEAT MOUNTING REAR FACING OUTER
The rear facing outer seat shall be mounted facing the rear of the cab.
SEAT BELT ORIENTATION CREW
The crew position seat belts shall follow the standard orientation which extends from the outboard shoulder extending to
the inboard hip.
SEAT FORWARD FACING CENTER LOCATION
The crew area shall include two (2) forward facing center crew seats with both located at the center of the rear wall.
SVI #766/767
Page 52 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
SEAT CREW FORWARD FACING CENTER
The crew area shall include a seat in the forward facing center position which shall be a Seats Inc. 911 series. The seat
shall feature a tapered and padded seat, and cushion. The seat and cushion shall be hinged and compact in design for
additional room and shall remain in the stored position until occupied.
The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall include a three-point
shoulder harness with the lap belt and automatic retractor as an integral part of the seat assembly. The buckle portion of
the seat belt shall extend from the seat base towards the driver position within easy reach of the occupant.
The minimum vertical dimension from the seat H-point to the ceiling for each belted seating position shall be 35.00 inches.
This model of seat shall have successfully completed the static load tests by FMVSS 207/210. This testing shall include a
simultaneous forward load of 3000 pounds each on the lap and shoulder belts and twenty (20) times the weight through
the center of gravity. This model of seat installed in the cab model, as specified, shall have successfully completed the
dynamic sled testing using FMVSS 208 as a guide with the following accommodations. In order to reflect the larger size
outfitted firefighters, the test dummy used shall be a 95th percentile hybrid III male weighing 225 pounds rather than the
50th percentile male dummy weighing 165 pounds as referenced in FMVSS 208. The model of seats shall also have
successfully completed the flammability of materials used in the occupant compartments of motor vehicles as outlined in
FMVSS 302, of which decides the burning rate of materials in the occupant compartments of motor vehicles.
SEAT BACK FORWARD FACING CENTER
The crew area shall include a seat back in the forward facing center position which shall include a Ziamatic brand Load
and Lock™ walk away self contained breathing apparatus (SCBA) bracket. The mechanical walk away bracket shall meet
NFPA 1901-03 9G dynamic requirements for cylinder restraint systems for use in crew compartments of fire truck cabs.
The bracket shall consist of a back plate and a short back plate, both of which shall be thermoplastic coated for trouble
free service. The bracket shall feature two (2) high cycle double coated clips which shall not mar the cylinders.
The bracket shall accommodate and secure all types of self-contained breathing apparatus cylinders. Each bracket shall
include a model LLS strap assembly which shall meet the NFPA 1901-03 standard for SCBA retention and shall be easily
adjustable. The seat back shall include a removable padded vinyl cover which shall be provided over the SCBA cavity.
SEAT MOUNTING FORWARD FACING CENTER
The forward facing center seats shall be installed facing the front of the cab.
SEAT FRAME FORWARD FACING
The forward facing center seating positions shall include an enclosed seat frame which is located and installed on the rear
wall. The seat frame shall measure 42.38 inches wide X 12.38 inches high X 22.00 inches deep. The seat frame shall be
constructed of 5052-H32 Marine Grade, .190 inch thick, 100 percent primary smooth aluminum plate. The seat box shall
be painted with the same color as the remaining interior.
SEAT FRAME FORWARD FACING STORAGE ACCESS
There shall be two (2) access points to the seat frame storage area, one (1) on each side of the seat frame. Each access
point shall be covered by a hinged door which measures 15.00 inches in width X 10.63 inches in height.
CAB FRONT UNDERSEAT STORAGE ACCESS
The left and right under seat storage areas shall have a solid aluminum hinged door with non-locking latch.
SVI #766/767
Page 53 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
SEAT COMPARTMENT DOOR FINISH
All underseat storage compartment access doors shall have a Zolatone #20-72 silver gray texture.
WINDSHIELD WIPER SYSTEM
The cab shall include a parallel arm wiper system which shall clear the windshield of water, ice and debris. There shall be
two (2) windshield wipers, one (1) for the driver and one (1) for the officer, which shall be affixed to a rod style arm. The
system shall include dual motors which shall initiate the arms in which both the driver and officer windshield wipers are
attached, initiating a back and forth motion for each wiper. The wiper motors shall be activated by an intermittent wiper
control located within easy reach of the drivers position.
ELECTRONIC WINDSHIELD FLUID LEVEL INDICATOR
The windshield washer fluid level shall be monitored electronically. When the washer fluid level becomes low the yellow
“Check Message Center” indicator light on the instrument panel shall illuminate and the message center in the
speedometer shall display a “Check Washer Fluid Level” message.
CAB DOOR HARDWARE
The cab entry doors shall be equipped with exterior pull handles, suitable for use while wearing firefighter gloves. The
handles shall be FRP composite with a black matt finish. All doors shall include keyed alike locks that are designed to
prevent accidental lockout.
The interior latches shall be black flush paddle type, which are incorporated into an upper door panel.
DOOR LOCKS
Each cab entry door shall include a manually operated door lock. The each door lock may be actuated from the inside of
the cab by means of a red knob located on the paddle handle of the respective door or by using a TriMark key from the
exterior. The door locks are designed to prevent accidental lock out.
GRAB HANDLES
The cab shall include one (1) 18.00 inch knurled, anti-slip, one-piece exterior assist handle behind each cab door. The
grab handle shall be made of 14 gauge 304- stainless steel and be 1.25 inch diameter to enable non-slip assistance with
a gloved hand.
REARVIEW MIRRORS
Retrac Aerodynamic West Coast style single vision mirror heads model 613285 shall be provided and installed on each of
the front cab doors.
The mirrors shall be mounted via 1.00 inch diameter tubular stainless steel arms to provide a rigid mounting to reduce
mirror vibration.
The mirrors shall measure 8.00 inches wide X 19.00 inches high and shall include an 8.00 inch convex mirrors with a
stainless steel back, model 980-4, installed below the flat glass to provide a wider field of vision. The flat mirrors shall be
motorized with remote horizontal and vertical adjustment. The control switches shall be mounted within easy reach of the
driver. The convex mirrors shall be manually adjustable. The flat mirror glass shall be heated for defrosting in severe cold
weather conditions.
The mirror backs shall be constructed of vacuum formed chrome plated ABS plastic housings that are corrosion resistant
and shall include an amber marker light. The mirrors shall be manufactured with the finest quality non-glare glass.
SVI #766/767
Page 54 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
REARVIEW MIRROR HEAT SWITCH
The heat for the rearview mirrors shall be controlled through a rocker switch in the mirror control panel on the drivers side
dash.
EXTERIOR TRIM REAR CORNER
There shall be mirror finish stainless steel scuff plates on the outside corners at the back of the cab. The stainless steel
plate shall be affixed to the cab using two sided adhesive tape.
TRIM REAR WALL EXTERIOR
The exterior rear wall of the cab shall include 3003-H22 aluminum tread plate which shall be 0.072 inches thick. This
plate shall cover the entire rear wall of the cab.
CAB FENDER
Full width wheel well liners shall be installed on the extruded cab to limit road splash and enable easier cleaning. The twopiece liners shall consist of an inner liner 16.00 inches wide made of vacuum formed ABS composite and an outer
fenderette 3.50 inches wide made of 14 gauge 304 polished stainless steel.
MUD FLAPS FRONT
The front wheel wells shall have mud flaps installed on them.
CAB EXTERIOR MODEL NAMEPLATE
The cab shall include custom “Metro Star” nameplates on the front driver and officer side doors.
CAB EXTERIOR FRONT & SIDE EMBLEMS
The cab shall include three (3) Spartan emblems. There shall be one (1) installed on the front air intake grille and one (1)
installed on each side of the cab exterior above the wheel well.
IGNITION
A master battery system with a keyless start ignition system shall be provided. Each system shall be controlled by a ¼
turn Cole Hersee switch, both of which shall be mounted to the left of the steering wheel on the dash. A chrome push
type starter button shall be provided adjacent to the master battery and ignition switches.
Each switch shall illuminate a green LED indicator light on the dash when the respective switch is placed in the “ON”
position.
The starter button shall only operate when both the master battery and ignition switches are in the “ON” position.
BATTERY
The single start electrical system shall include (6) Harris BCI 31 950 CCA batteries with a 210 minute reserve capacity
and 4/0 welding type dual path starter cables per SAE J541. The cables shall have encapsulated ends with heat shrink
and sealant.
SVI #766/767
Page 55 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
BATTERY TRAY
The batteries shall be installed within two (2) steel battery trays located on the left side and right side of the chassis,
securely bolted to the frame rails. The battery trays shall be coated with the same material as the frame.
The battery trays shall include drain holes in the bottom for sufficient drainage of water. A durable, non-conducting,
interlocking mat made by Dri-Dek shall be installed in the bottom of the trays to allow for air flow and help prevent
moisture build up. The batteries shall be held in place by non-conducting phenolic resin hold down boards.
BATTERY BOX COVER
Each battery box shall include a steel cover which protects the top of the batteries. Each cover shall include flush latches
which shall keep the cover secure as well as a black powder coated handle for convenience when opening.
BATTERY CABLE
The starting system shall include cables which shall be protected by 275 degree F. minimum high temperature flame
retardant loom, sealed and encapsulated at the ends with heat shrink and sealant.
BATTERY JUMPER STUD
The starting system shall include battery jumper studs. These studs shall be located in the forward most portion of the
driver's side lower step. The studs shall allow the vehicle to be jump started, charged, or the cab to be raised in an
emergency in the event of battery failure.
ALTERNATOR
The starting system shall include a 270 amp Leece Neville 12 volt alternator.
integral regulator.
The alternator shall include a self-excited
BATTERY CONDITIONER
A Kussmaul 1200 Pump Plus battery conditioner shall be supplied. The battery conditioner shall be mounted in the cab
behind the driver's seat.
BATTERY CONDITIONER DISPLAY
A Kussmaul battery conditioner display shall be supplied. The battery conditioner display shall be mounted in the cab,
viewable through the cab mid side window behind the left front door.
AUXILIARY AIR COMPRESSOR
A Kussmaul Pump 12V air compressor shall be supplied. The air compressor shall be installed behind the driver's seat.
The air compressor shall be plumbed to the air brake system to maintain air pressure.
SVI #766/767
Page 56 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
ELECTRICAL INLET
A Kussmaul 20 amp super auto-eject electrical receptacle shall be supplied. It shall automatically eject the plug when the
starter button is depressed.
A single item or an addition of multiple items must not exceed the rating of the electric inlet that its connected to.
Amp Draw Reference List:
Kussmaul 1000 Charger - 3.5 Amps
Kussmaul 1200 Charger - 10 Amps
Kussmaul 35/10 Charger - 10 Amps
1000W Engine Heater - 8.33 Amps
1500W Engine Heater - 12.5 Amps
120V Air Compressor - 4.2 Amps
ELECTRICAL INLET LOCATION
An electrical inlet shall be installed on the left hand side of cab over the wheel well.
ELECTRICAL INLET CONNECTION
The electrical inlet shall be connected to the battery conditioner.
ELECTRICAL INLET COLOR
The Kussmaul electrical inlet connection shall include a red cover.
HEADLIGHTS
The cab front shall include (4) rectangular halogen headlamps with separate high and low beams mounted in bright
chrome bezels. The headlamps shall be equipped with the "Daytime Running" light feature, which shall illuminate the
headlights to 80% brilliance when the ignition switch is in the "On" position and the parking brake is released.
FRONT TURN SIGNALS
The front fascia shall include two (2) Whelen model 600 4.00 inch X 6.00 inch LED programmable amber turn signals
which shall be installed in a chrome bezel outboard of the front warning and headlamps.
HEADLIGHT LOCATION
The headlights shall be located on the front fascia of the cab directly below the front warning lights.
SIDE TURN/MARKER LIGHTS
The sides of the cab shall include (2) LED round side marker lights which shall be provided just behind the front cab
radius corners.
MARKER AND ICC LIGHTS
In accordance with FMVSS, there shall be five (5) cab LED marker lamps designating identification, center and clearance
provided. These lights shall be installed on the face of the cab within full view of other vehicles from ground level.
SVI #766/767
Page 57 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
HEADLIGHT AND MARKER LIGHT ACTIVATION
The headlights and marker lights shall be controlled through a rocker switch within easy reach of the driver. There shall
be a dimmer switch within easy reach of the driver to adjust the brightness of the dash lights.
GROUND LIGHTS
Each door shall include an incandescent NFPA compliant ground light mounted to the under side of the cab step below
each door. Each light shall include a polycarbonate lens, a housing which is vibration welded and a bulb which shall be
shock mounted for extended life. The ground lighting shall be activated by the opening of the respective door as well as
rocker switched.
STEP LIGHTS
The middle step located at each door shall include a NFPA compliant 4.00” round incandescent light which shall activate
with the opening of the respective door.
Each light shall produce 21 candle power of illumination and draw 1.5 amps.
ENGINE COMPARTMENT LIGHT
There shall be an incandescent NFPA compliant light mounted under the engine tunnel for area work lighting on the
engine. The light shall include a polycarbonate lens, a housing which is vibration welded and a bulb which shall be shock
mounted for extended life.
FRONT SCENE LIGHTS
The front of the cab shall include two (2) Fire Research Focus model FCA800-S75 contour roof mount lights installed on
the brow of the cab.
Each lamp head shall have one (1) quartz halogen 750 watt 120 volt bulb. The bulb shall draw 6.3 amps and generate
19,600 lumens. Each lamp head shall direct 50 percent of the light onto the action area while providing 50 percent to
illuminate the working area. Each lamp head shall be no more than 4.75 inches in height X 11.50 inches in width. The
lamp heads and brackets shall be powder coated white.
FRONT SCENE LIGHT LOCATION
There shall be two (2) scene lights mounted to the front brow of the cab inboard of the outer front marker lights.
FRONT SCENE LIGHTS ACTIVATION
The front scene lights shall be pre-wired to be activated by the OEM.
INTERIOR OVERHEAD LIGHTING
The cab shall include a two-section incandescent dome lamp with a red and white lens located over each door. The dome
lamps shall be rectangular in shape and shall measure approximately 9.50 inches in length X 5.00 inches in width with a
black colored bezel. The white portion of each lamp shall be activated by opening the respective door and both the red
and white portions can be activated by individual switches on each lamp.
An additional incandescent three (3) light module with dual map lights shall be located over the engine tunnel which can
be activated by individual switches on the lamp.
SVI #766/767
Page 58 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CAB SPOTLIGHTS
The cab shall include two (2) Unity 325 series spotlights. The spotlights shall be mounted one (1) on each side of the cab
just above the outer end of the windshield. The spotlights shall feature a 12 volt, 50 watt halogen lamp with 160,000
candle power output in a 6.00 inch diameter chrome plated plastic head and a rubber grip control handle.
DO NOT MOVE APPARATUS LIGHT
The front headliner of the cab shall include a red flashing light, located in the center for greatest visibility. The light shall
be 6.00 inches long X 2.50 inches wide X 1.75 inches high and shall be clearly labeled "Do Not Move Apparatus". In
addition to the flashing red light, an audible alarm shall be included which shall sound when a door is open and the
parking brake is released.
The light and alarm shall be interlocked for activation when a cab door is not firmly closed, an apparatus cabinet door is
not closed and the parking brake is released.
MASTER WARNING SWITCH
A master switch shall be included in the main rocker switch panel. The switch shall be a rocker type, red in color and
labeled “Master” for identification. The switch shall feature control over all devices wired thought it. Any warning device
switch left in the “ON” position shall automatically power up, when the master switch is activated.
HEADLIGHT FLASHER
An alternating high beam headlamp flashing system shall be installed into the high beam headlamp circuit which shall
allow the high beams to flash alternately from left to right.
Deliberate operator selection of high beams will override the flashing function until low beams are again selected. Per
NFPA, these clear flashing lights will also be disabled “On Scene” when the park brake is applied.
ALTERNATING HEADLIGHT SWITCH
The flashing headlights shall be activated through a rocker switch on the main switch panel. The rocker switch shall be
clearly labeled for identification.
INBOARD FRONT WARNING LIGHTS
The cab front fascia shall include dual Code 3 OsciLaser halogen warning lights which shall offer a simple and reliable
rotating motion or an up and down movement while oscillating from side to side, both with a parabolic reflector for
maximum output. The lights shall be mounted to the front fascia of the cab within a chrome bezel in the inboard position.
INBOARD FRONT WARNING LIGHTS COLOR
The front warning lights mounted on the fascia in the inboard positions shall be red.
FRONT WARNING SWITCH
The front warning lights shall be controlled via rocker switch on the main panel. This switch shall be clearly labeled for
identification.
INTERSECTION WARNING LIGHTS
The chassis shall include two (2) Code 3 45BZ LED 3.00 inch X 7.00 inch intersection warning lights, one (1) each side,
which shall offer multiple flash patterns.
SVI #766/767
Page 59 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
INTERSECTION WARNING LIGHTS COLOR
The intersection lights shall be red.
INTERSECTION WARNING LIGHTS LOCATION
The intersection lights shall be mounted in the rear position on the side of the bumper.
SIDE AND INTERSECTOR WARNING SWITCH
The side and intersector warning lights shall be controlled via rocker switch on the main panel. This switch shall be
clearly labeled for identification.
SIREN CONTROL HEAD
A Code 3 Micro Com2 200 watt remote dual amplifier control head shall be provided and mounted on the dash in the
switch panel in a location specific to the customers needs. The siren shall feature remote switching for horn ring (if a horn
ring siren selector switch is ordered), air horn available at any time, wail, yelp, hi-lo, radio broadcast, public address, noise
canceling microphone, park kill, instant “ON”, adjacent backlighting and scroll mode.
HORN RING SELECTOR SWITCH
A rocker switch shall be installed in the switch panel between the driver and officer to allow control to either the air horn or
the electric horn from the steering wheel horn button. The electric horn shall sound by default when the selector switch is
in either position which is in accordance with FMVSS requirement.
AIR HORN ACTIVATION
The air horn actuation shall be accomplished by the steering wheel horn button and a black push button on the switch
panel. An air horn activation circuit shall be provided to the chassis harness pump panel harness connector.
BACK-UP ALARM
An ECCO model 575 backup alarm shall be installed at the rear of the chassis with an output level of not less than 107
dB. The alarm shall automatically activate when the transmission is placed in reverse.
SVI #766/767
Page 60 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
INSTRUMENTATION
An ergonomically designed instrument panel shall be provided. The gauges shall be backlit with red LED lamps. All
gauges shall be driven by stepper motor movements. The instrumentation system shall be multiplexed and shall receive
engine and transmission information over the J1939 data bus to reduce redundant sensors.
The instrument panel shall contain the following gauges:
One (1) electronic tachometer shall be included. The scale on the tachometer shall read from 0 to 3000 RPM.
One (1) electronic speedometer with an integral LCD odometer/ trip odometer and hour meter shall be included. The
speedometer shall have a dual scale with miles per hour (MPH) as the dominant scale and kilometers per hour (KPH) on
the minor scale. The speedometer scale shall read from 0 to 90 MPH (0 to 140 KPH). The odometer shall display up to
9,999,999.9 miles. The trip odometer shall display up to 9,999.9 miles. The LCD screen shall also be capable of
displaying certain diagnostic functions. The hour meter shall display engine hours of operation.
One (1) three function gauge with primary system, secondary system and fuel level shall be included. The scale on the
air pressure gauges shall read from 0 to 140 pounds per square inch (PSI). The air pressure scales shall be non-linear to
expand the scales in the region of normal operation. A red indictor light in the gauge shall indicate a low air pressure.
The scale on the fuel level gauge shall read from empty to full. A yellow indicator light shall indicate low fuel at the quarter
tank level.
One (1) four function gauge with engine oil pressure, coolant temperature, transmission oil temperature and a voltmeter
shall be included. The scale on the engine oil pressure gauge shall read from 0 to 140 pounds per square inch (PSI).
The engine oil pressure scale shall be non-linear to expand the scale in the region of normal operation. A red indicator
light in the gauge shall indicate low engine oil pressure. The scale on the coolant temperature gauge shall read from 160
to 250 degrees Fahrenheit (F). A red indicator light in the gauge shall indicate high coolant temperature. The scale on
the transmission oil temperature gauge shall read from 100 to 300 degrees Fahrenheit (F). A red indicator light in the
gauge shall indicate high transmission oil temperature. The scale on the voltmeter shall read from 8 to 16 volts. A red
indicator light shall indicate high or low system voltage.
The instrument panel shall contain an Enunciator Module that contains the following indicator lights. All indicator lights
shall contain LED lamps.
RED LAMPS
Stop Engine - indicates critical engine fault. (5)
Park Brake - indicates park brake is set.
Volts - indicates high or low system voltage. (4)
Low Oil Press - indicates low engine oil pressure. (4)
High Coolant Temp - indicates excessive engine coolant temperature. (4)
High Trans Temp - indicates excessive transmission oil temperature. (4)
Low Air - indicates low air pressure in either system one or system two. (4)
Low Coolant Level - indicates low engine coolant level. (1) (5)
Air Filter - indicates excessive engine air intake restriction. (5)
Brake System Fault indicates a failure in the brake system (hydraulic brake systems only). (5)
Seat Belt Indicator indicates when a seat is occupied and corresponding seat belt remains unfastened.
SVI #766/767
Page 61 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
YELLOW LAMPS
Check Engine - indicates engine fault. (5)
Check Trans - indicates transmission fault. (5)
Wait to Start - indicates active engine air preheat cycle. (2) (5)
ABS - indicates anti-lock brake system fault. (5)
Water in Fuel - indicates presence of water in fuel filter. (1) (5)
Check Message Center indicates there is a fault message present in the LCD digital display.
SRS indicates a problem in the RollTek supplemental restraint system. (1) (5)
DPF indicates a restriction of the diesel particulate filter. (3) (5)
HEST indicates a high exhaust system temperature. (3) (5)
MIL indicates an engine emission control system fault. (3) (5)
Low Fuel indicates low fuel. (4)
GREEN LAMPS
Left and Right turn signal indicators.
Aux Brake Active - indicates secondary braking device is active. (1)
High Idle - indicates engine high idle is active. (1)
ATC indicates low wheel traction for automatic tractions control equipped vehicles, also indicates mud/snow mode is
active for ATC system. (1) (5)
OK to Pump indicates the pump engage conditions have been met. (1)
Pump Engaged indicates the pump is currently in use. (1)
BLUE LAMPS
High beam indicator.
The instrumentation system shall provide a constant audible alarm for the following situations:
Low air pressure.
Low engine oil pressure.
High engine coolant temperature.
High transmission oil temperature.
Low coolant level. (1)
High or low system voltage
Critical engine fault (Stop Engine).
The Check Message Center icon will illuminate and a message will be displayed in the LCD screen for the following
situations:
Cab Ajar
Low Oil Level
Door Ajar
Engine Communication Error
Transmission Communication Error
ABS Communication Error
High Coolant Temp
Turn Signal Reminder (turn signal left on for more than one (1) mile)
Low Fuel
Low Oil Pressure
Low Coolant Level
Low Battery Voltage
High Battery Voltage
Low Primary Air Pressure
Low Secondary Air Pressure
High Trans Temp
SVI #766/767
Page 62 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
The instrumentation system will provide a continuous alarm for the following situations:
Stop Engine
Low Coolant Level (1)
Brake System Fault
Check Trans
Check Engine
ABS
Engine Communications Error
Transmission Communications Error
ABS Communications Error
Low Fuel
Low Primary Air Pressure
Low Secondary Air Pressure
Low or High Battery Voltage
High Trans Temp
Low Oil Pressure
High Coolant Temp
The instrumentation system will provide a 160 millisecond second alarm every 880 milliseconds for the following
situations:
Seat Belt
Air Filter
Water in Fuel (1)
Cab Ajar
Low Oil Level
Door Ajar
The instrumentation system will provide a 160 millisecond second alarm every 5 seconds for the following situation:
Turn Signal Reminder (turn signal left on for more than one (1) mile)
(1) Feature only available when optionally equipped.
(2) Feature only available on engines with pre-heat capability.
(3) Feature only on vehicles with diesel particulate filter (DPF).
(4) Warning light is present in gauge.
(5) A message in the LCD screen will also be displayed.
CAB EXTERIOR PROTECTION
The cab face shall have a removable plastic film installed over the painted surfaces to protect the paint finish during
transport to the body manufacturer.
FIRE EXTINGUISHER
A 2.50 pound D.O.T approved fire extinguisher with BC rating shall be shipped loose with the cab.
ROAD SAFETY KIT
The cab and chassis shall include one (1) emergency road side triangle kit.
DOOR KEYS
The cab and chassis shall include a total of four (4) door keys for the manual door locks.
SVI #766/767
Page 63 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
AS BUILT WIRING DIAGRAMS
The cab and chassis shall include one (1) complete set of wiring schematics and option wiring diagrams.
WARRANTY - CAB AND CHASSIS
The chassis manufacturer shall provide a limited parts and labor warranty to the original purchaser of the custom built cab
and chassis for a period of twelve (12) months, or the first 24,000 miles, whichever occurs first. The warranty period shall
commence on the date the vehicle is delivered to the end user. The warranty shall include conditional items listed in the
detailed warranty document which shall be provided upon request.
OPERATORS AND PARTS LIST MANUAL
There shall be one (1) chassis operator's manual which includes a parts list. Also, wiring and air plumbing diagrams shall
be provided as well as a list of any parts or equipment that is shipped loose with the vehicle. All standard wiring and
plumbing diagrams shall be created specifically to the chassis model.
ENGINE AND TRANSMISSION OPERATION MANUALS
There shall be one (1) set of engine operation and maintenance manuals and one (1) set of transmission operation
manuals specific to the models ordered included with the final vehicle in the ship loose items.
CAB/CHASSIS PREPAYMENT
The specified cab/chassis shall be prepaid by Inter-Canyon Fire Department within 30 days of invoice. Inter-Canyon Fire
Department understands that if payment is made after 30 days, additional interest charges may apply.
SVI #766/767
Page 64 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CHASSIS MODIFICATIONS
LUBRICATION AND TIRE DATA PLATE
A permanent label in the driving compartment shall specify the quantity and type of the following fluids used in the vehicle
and tire information:

















Engine oil
Engine coolant
Chassis transmission fluid
Pump transmission lubrication fluid . . (if applicable)
Pump priming system fluid, if applicable . . (if applicable)
Drive axle(s) lubrication fluid
Air conditioning refrigerant . . (if applicable)
Air conditioning lubrication oil . . (if applicable)
Power steering fluid
Cab tilt mechanism fluid . . (if applicable)
Transfer case fluid . . (if applicable)
Equipment rack fluid (if applicable)
CAFS air compressor system lubricant . . (if applicable)
Generator system lubricant . . (if applicable)
Front tire cold pressure
Rear tire cold pressure
Maximum tire speed ratings
VEHICLE DATA PLATE
A permanent label in the driving compartment which indicates the following:





Filter part numbers for the
- Engine
- Transmission
- Air
- Fuel
Serial numbers for the
- Engine
- Transmission
Delivered Weights of the Front and Rear Axles
Paint Brand and Code(s)
Sales Order Number
OVERALL HEIGHT, LENGTH DATA PLATE (US)
The fire apparatus manufacturer shall permanently affix a high-visibility label in a location visible to the driver while
seated.
The label shall show the height of the completed fire apparatus in feet and inches, the length of the completed fire
apparatus in feet and inches, and the GVWR in pounds.
Wording on the label shall indicate that the information shown was current when the apparatus was manufactured and
that, if the overall height changes while the vehicle is in service, the fire department must revise that dimension on the
plate.
SVI #766/767
Page 65 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
ACCIDENT PREVENTION
There shall be a placard in the cab seating area which reads, "ALL OCCUPANTS MUST BE SEATED AND BELTED
WHEN THE APPARATUS IS IN MOTION".
PERSONNEL CAPACITY
A label that states the number of personnel the vehicle is designed to carry shall be located in an area visible to the driver.
ACCIDENT PREVENTION
If the rear bumper is 8" deep or more, there shall be a placard on the rear face of the body, in clear sight from the ground,
which reads, "WARNING - DO NOT RIDE ON STEPS OR DECK AREAS WHILE THE APPARATUS IS IN MOTION.
DEATH OR SERIOUS INJURY MAY RESULT".
WEARING HELMET WARNING
A label stating “DO NOT WEAR HELMET WHILE SEATED” shall be visible from each seating location.
FRONT BUMPER
The front bumper shall be as provided by the cab/chassis manufacturer. No other alternation or modifications are
required.
BUMPER GRAVELSHIELD
The bumper extension gravel shield shall be provided by the cab/chassis manufacturer.
BUMPER COMPARTMENTS
The bumper extension shall have three (3) compartments and shall be as large as possible. The center compartment shall
be used for storage of 100' of 1-3/4" pre-connected hose. The compartment doors shall be 1/8" NFPA compliant
aluminum tread plate with stainless steel hinges and single point lift/turn latches. Each compartment door shall have a
spring hold open device.
Rubber bumpers and chains shall be provided as required to prevent the doors from hitting the cab.
AIR HORN(S)
The air horn(s) shall be supplied and installed by the cab/chassis manufacturer.
FRONT TOW PROVISIONS
The front tow provisions shall be supplied and installed by the cab/chassis manufacturer.
SVI #766/767
Page 66 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
EXHAUST
The exhaust system shall be as provided by cab/chassis manufacturer. No other alternation or modifications are required.
The exhaust piping and discharge outlet shall be located or shielded so as not to expose any portion of the apparatus or
equipment to excessive heating.
Exhaust pipe discharge shall be directed away from any operator’s position.
Where parts of the exhaust system are exposed so that they are likely to cause injury to operating personnel, protective
guards shall be provided.
CELLULAR PHONE ANTENNA INSTALLATION
There shall be one (1) cellular phone antenna mount provided and installed on the cab roof. The end of cellular antenna
shall be routed to a location determined by the Inter-Canyon Fire Department.
Due to multiple configurations of antenna whips, the Manufacturer shall provide the antenna base, and Inter-Canyon Fire
Department shall provide the whip.
RADIO/ANTENNA INSTALLATION
There shall be one (1) Inter-Canyon Fire Department supplied radio(s) with antenna installed in the cab within easy reach
of driver. The location of radio shall be determined by the Inter-Canyon Fire Department at the pre-construction meeting.
Radio shall be installed per manufacturers requirements and wired for proper 12 volt power and ground.
12 VDC ACCESSORY PLUG
There shall be two (2) 12 volt accessory plug(s) furnished and installed in the cab area. One (1) accessory plug shall be
located in the center dash panel, and one (1) accessory plug shall be located inside of the rear cab cabinet.
SEAT BELT COLOR
Section 14.1.3.4 of the NFPA 1901 Standards, 2009 edition, requires all seat belt webbing in cab to be bright red or bright
orange in color, and the buckle portion of the seat belt shall be mounted on a rigid or semi rigid stalk such that the buckle
remains positioned in an accessible location.
SEAT BELT WEB LENGTH - CUSTOM CAB
Sections 14.1.3.2 and 14.1.3.3 of the NFPA 1901 standards, 2009 edition, require the effective seat belt web length for a
Type 1 lap belt for pelvic restraint to be a minimum of 60", and a Type 2 pelvic and upper torso restraint-style seat belt
assembly to be a minimum of 110".
The chassis seat belt web length as supplied by the custom chassis manufacturer shall be compliant to NFPA Standards
14.1.3.2 and 14.1.3.3.
SEAT BELT / VDR SYSTEM - CUSTOM CAB
The seat belt warning and vehicle data recorder systems shall be provided by the cab/chassis manufacturer.
SVI #766/767
Page 67 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
HELMET STORAGE
Six (6) OnScene Solutions Talon model helmet storage bracket(s) shall be provided and installed in the cab driving or
crew area. The helmet mounting will comply with the 9G NFPA requirements. Helmet brackets shall be mounted on the
completed unit, locations as per the Inter-Canyon Fire Department.
CAB CRASH TEST CERTIFICATION
A cab crash test certification from the fire apparatus manufacturer shall be provided with the equipment. A copy of this
certification shall be included with the bid.
NOTE: There shall be no exception to any portion of the cab integrity certification requirements. Nonconformance shall
lead to immediate rejection of bid.
The certification shall state that the cab does meet or exceed the requirements below:
1) European Occupant Protection Standard ECE Regulation No. 29.
2) SAE J2422 Cab Roof Strength Evaluation - Quasi-Static Loading Heavy Trucks.
CAB MIRRORS, DRIVER ADJUSTABLE
Section 14.3.5 of the NFPA 1901 Standards, 2009 edition, requires all primary rear view mirrors used by the driver to be
adjustable from the driver's position.
MUDFLAPS
There shall be rubber mudflaps furnished and installed behind each set of tires.
AIR BRAKE SYSTEM QUICK BUILD-UP
There shall be one (1) cab/chassis supplied Milton male quick connector type air shoreline inlet to provide air to the
chassis air tanks from an external source compressed air shoreline hookup in order to maintain full operating air pressure
while the vehicle is not running. Air inlet shall be located near driver's door. The female end of the connector shall be
supplied by the Inter-Canyon Fire Department.
The quick buildup system shall provide sufficient air pressure so that the apparatus has no brake drag and is able to stop
under the intended operating conditions following the 60-second buildup time.
SVI #766/767
Page 68 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
REAR CAB AREA LAYOUT
INTERIOR CABINET - COUNTER HEIGHT
There shall be one (1) interior counter height cabinet(s) provided in rear crew area behind engine tunnel. Cabinet(s) shall
be constructed of 1/8" smooth finish aluminum, and painted with a gray hammer tone powder coat paint finish for a hard
durable surface. The cabinet shall be designed to match the previous Rescue Pump unit (SVI #593).

One (1) 12 volt terminal block(s) installed to provide 12 VDC power for equipment supplied by the Inter-Canyon Fire
Department. Exact location shall be determined at the pre-construction meeting.

One (1) 120 VAC, 20 amp duplex, straight-blade receptacle ( NEMA 5-20R ). Outlet shall be wired to both shore
power and generator.

The above cabinet(s) shall have double vertically hinged aluminum door(s) and painted with a hammer tone powder
coat paint finish to match cabinet color choice.

There shall be one (1) vertically adjustable shelf in each of the above cabinets. It shall have a 1.25" lip to contain
items while minimizing space used.
FUEL FILL
There shall be one (1) Cast Products fuel fill door located in the streetside exterior wheel well panel, behind the rear axle.
The fill door shall have a spring-loaded hinged door and a permanent label with the text "DIESEL FUEL ONLY".
BODY DESIGN
The importance of public safety associated with emergency vehicles requires that the construction of this vehicle meet the
following specifications. These specifications are written to establish the minimum level of quality and design. All Bidders
shall be required to meet these minimum requirements.
It is the intent of these specifications to fully describe the requirements for a custom built emergency type vehicle. In
order to extend the expected service life of this vehicle, the body module shall be removable from the chassis frame and
be capable of being installed on a new chassis.
The sheet metal material requirements, including alloy and material thickness, throughout the specifications are
considered to be a minimum. Since such materials are available to all Manufacturers, the material specifications shall be
strictly adhered to.
The fabrication of the body shall be formed sheet metal. Formed components shall allow the Inter-Canyon Fire
Department to have the body repaired locally in the case where any object has struck the body and caused damage. The
use of proprietary extrusions will prevent the Inter-Canyon Fire Department from such repair and shall NOT be used.
Following construction of the subframe, which supports the apparatus body, the sheet metal portion of the body shall be
built directly on the subframe. The joining of the subframe and body shall be of a welded integral construction.
The sheet metal fabrication of the body shall be performed using inert gas continuous feed welders only. The entire body
shall be welded construction. The use of pop rivets in any portion of structural construction may allow premature failure of
the body structure. Therefore, pop rivets shall NOT be used in the construction of the structural portions of the body. This
includes side body sheets, inner panels of compartment doors, and any other structural portions of the body.
SVI #766/767
Page 69 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
EXTERIOR ALUMINUM BODY
The fabrication of the body shall be constructed from aluminum 3003H-14 alloy smooth plate. This shall include
compartment front panel, vertical side sheets, side upper rollover panels, rear panels and compartment door frames.
The body compartment floors and exterior panels shall be constructed with not less than 3/16" (.187) aluminum 3003H-14
smooth plate. Interior compartment dividing walls shall be constructed with not less than 1/8" (.125) aluminum 3003H-14
smooth plate. Lighter gauge sheet metal will not be acceptable in these areas.
The door side frame openings shall be formed "C" channel design. An electrical wiring conduit raceway running the full
length of exterior compartments shall be provided. This raceway shall contain all 12 volt wiring running to the rear of the
apparatus, permitting easy accessibility to wiring.
Individual compartment modules, with dead air space voids between compartments, will not be an acceptable method of
compartment construction.
The compartments shall be an integral part of the body construction. Compartment floors from front of body to ahead of
rear axle, also from rear axle to rear of body shall be single one-piece sections. Compartment floors shall be preformed,
then positioned in body and welded into final position.
Compartment floors shall have a "sweep-out" design with door opening threshold positioned lower than compartment
floor, permitting easy cleaning of compartments. Angles, lips, or door moldings are not acceptable in the base of
compartment door opening. One-way rubber drain valves shall be provided in compartment floors so that a water hose
may be used to flush-out compartment area.
All exterior seams in sheet metal below frame, and around the rear wheel well area shall be welded continuous to prevent
moisture from entering compartments. All other interior seams and corners shall be sealed with silicone based caulk prior
to painting.
Only stainless steel bolts, nuts, and sheet metal screws shall be used in mounting exterior trim, hardware and equipment.
Exterior compartments shall have louvers in lower back wall of compartment for ventilation.
BODY SUBFRAME
To assure proper body alignment and clearance, the body subframe shall be constructed directly on the chassis.
The chassis frame rails shall be fitted with 1/4" custom extruded UHMW polyethylene rail cap to isolate the body frame
members from direct contact with chassis frame rails.
The body subframe shall be constructed from 6061T6 aluminum alloy tubing. Subframe shall consist of two (2) 2" x 4" x
1/4" aluminum tubes, the same width as the chassis frame rails, NO EXCEPTION. Welded to this tubing shall be
crossmembers of 2" x 4" x 1/4" aluminum. These crossmembers shall extend the full width of the body to support the
compartments. Crossmembers shall be located at front and rear of the body, below compartment divider walls, and in
front and rear of wheel well opening. Additional aluminum crossmembers shall be located as necessary to support
walkway or heavy equipment.
To form the frame, the tubing shall be beveled and welded at each joint using 5356 aluminum alloy welding wire.
SVI #766/767
Page 70 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
BODY MOUNTING
The body subframe shall be fastened to the chassis frame with a minimum of four (4) spring loaded body mounts. Each
mount shall be configured using a two-piece encapsulated slide bracket. The two (2) brackets shall be fabricated of
heavy duty 1/4" thick steel and shall have a powder coat finish to prevent any corrosion. Each mounting assembly shall
utilizing two (2) 3/4" diameter x 6" long grade 8 bolts and two (2) heavy duty springs. The assembly design shall allow the
body and subframe to act as one (1) component, separate from the chassis. As the chassis frame twists under driving
conditions, the spring mounting system shall eliminate any stress from being transferred into the body. The spring loaded
body mounts shall also prevent frame side rail or body damage caused by unevenly distributed stress and strains due to
load and chassis movement.
Body mountings that do not allow relief from chassis movement will not be acceptable.
14" REAR STEP BUMPER
The full width rear bumper shall be constructed from 2" x 2" x 1/4" aluminum tubing frame and covered with 3/16" NFPA
compliant aluminum tread plate. The bumper shall extend from the rear vertical body panel 12" and provide a rear step
with a minimum of 1/2" space at body for water drainage.
REAR TOW EYES
There shall be two (2) heavy duty rear mounted tow eyes securely attached to the body subframe, below the apparatus
body. The tow eyes shall be fabricated from 3/4" thick steel plate and shall have a black powder coat finish.
GROUND LIGHTS
Two (2) OnScene Solutions 9" LED Nightstik ground lights shall be mounted below the rear bumper.
WHEEL WELL EXTERIOR PANEL
The exterior panel of the body wheel well enclosure shall be constructed from 3/16" smooth aluminum panels.
DIEFORMED BEADED EDGE BODY FENDERS
A die formed beaded edge shall be provided along the radius of the wheel well opening for a finished appearance.
WHEEL WELL LINERS
The wheel wells shall be provided with an easily removable polymer, circular inner fender liner. The inner liner shall be
bolted to the wheel well with stainless steel bolts and spaced away from the wheel well so the liner will not accumulate dirt
or water.
SCBA BOTTLE COMPARTMENTS
There shall be three (3) SCBA compartments located adjacent to the rear wheels. There shall be two (2) on the curbside
and one (1) on the streetside of the apparatus body. Each compartment shall have a Cast Products aluminum door
assembly with a positive catch latch. The compartment shall allow the storage of SCBA bottles up to 7-3/4" in diameter.
The door shall activate the "Hazard Warning Light" in the cab when not in the closed position.
SVI #766/767
Page 71 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
ALUMINUM BODY PAINT SPECIFICATIONS
BODY PAINT PREPARATION
After the body and components have been fabricated they shall be disassembled prior to painting so when the vehicle is
complete there shall be finish paint beneath the removable components. The body shall be totally removed from chassis
during the pain process to insure the entire unit is covered. The body and components shall be metal finished as follows
to provide a superior substrate for painting.
The exterior body shall undergo a thorough cleaning process starting with a biodegradable phosphoric acid solution to
begin the etching process followed by a complete clear water rinse. The next step shall consist of a chemical conversion
coating applied to seal the metal substrate and become part of the metal surface for greater film adhesion. If the
compartment interior is to be painted the interior shall be acid etched as described above then primed with an epoxy
primer and all seams caulked.
All bright metal fittings, if unavailable in stainless steel or polished aluminum, shall be chrome plated. Iron fittings shall be
copper under plated prior to chrome plating.
PAINT PROCESS
The paint process shall follow the strict standards set forth by PPG Industries guidelines. Painters applying PPG products
will be PPG Certified Commercial Technicians, and re-certified every two (2) years.
The body shall go through an eight-stage paint process;
1.
2.
3.
4.
5.
6.
7.
8.
Clean bare metal using a solvent base wax & grease remover.
Finish all exterior body seams as necessary, followed by a thorough sanding of all bare metal to be painted.
Re-clean bare metal using a solvent base wax & grease remover.
Bare Metal Epoxy Primer Coat - PPG Delfleet® Evolution corrosion resistance epoxy primer to be applied at 1.0-2.0
mills DFT over clean abraded bare metal.
Primer Filler Coat - PPG Delfleet® Evolution urethane build primer to achieve total thickness of 3.0-6.0 mils DFT after
sanding.
Basecoat (Color) - PPG Delfleet® Evolution High Solids Polyurethane Basecoat. Apply 1.0-3.0 mils DFT of basecoat
color to achieve full hiding.
Clearcoat PPG Delfleet® Evolution polyurethane premium quality clearcoat with improved mar resistant finish. The
clearcoat shall be applied to achieve a total dry film thickness of 2.0-3.0 mils.
Curing process of the painted body shall go through a force dry/bake cycle process. The painted components shall
be baked 180 degrees for 2 hours to achieve a complete coating cure on the finished product.
MACHINE POLISHED
After the force dry/bake cycle and ample cool down time, the coated surface shall be sanded using 1,000, 1,500, and or
3,000 grit sandpaper to remove surface defects. In the final step, the surface shall be buffed then polished to an extra high
gloss smooth finish. Total dry film thickness of paint will average between 8.0-12.0 mils.
PAINT - ENVIRONMENTAL IMPACT
The contractor shall meet or exceed all current State (his) regulations concerning paint operations. Pollution control shall
include measures to protect the atmosphere, water and soil. PPG Delfleet® Evolution paint shall be free of all heavy metal
(lead & chromate) components. Paint emissions from sanding and painting shall be filtered and collected. All paint wastes
shall be disposed of in an environmentally safe manner. Solvents used in cleanup operations shall be collected, sent offsite for distillation and returned for reuse.
SVI #766/767
Page 72 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
PAINT FINISH - SINGLE COLOR
The body shall be painted with a single color of PPG Delfleet® Evolution paint as described above.
Prior to the assembly and reinstallation of exterior components; i.e. warning and DOT lights, handrails, steps, door
hardware, and miscellaneous items, an isolation tape, or gasket shall be used to prevent damage to the finish painted
surfaces. These components shall be fastened to body using either a plastic insert into body metal with stainless steel
screws or zinc coated nutserts into body surface using stainless steel bolts to prevent corrosion from dissimilar metals.
Touch-up paint shall be provided with completed vehicle.

Paint Color: Match cab/chassis supplied paint color.
BODY UNDERCOATING
The entire underside of body shall be sprayed with black automotive undercoating. Undercoating shall cover all areas
underside of body and wheel well area to help prevent corrosion under the vehicle.
UNDERCOAT WARRANTY
The body undercoating shall have a warranty provided by the manufacturer for the lifetime of the vehicle or twenty (20)
years, whichever occurs first. The warranty shall be transferable between vehicle owners. Should the undercoating
material applied to the underside of the body and wheel wells of the vehicle ever flake off, peel, chip or crack due to drying
out, the damaged area shall be re-sprayed without charge to the vehicle owner.
PAINT WARRANTY
The vehicle shall be provided with a ten (10) year non-prorated warranty to the original owner. Warranty is provided by
PPG Inc. A warranty sheet with all conditions and maintenance procedures shall be provided with the delivered vehicle.
COMPARTMENT INTERIOR FINISH
The compartment interiors shall be treated with phosphoric acid and then sprayed with an epoxy primer applied 1.0 mil
thick. All body seams will be caulked with urethane seam sealer and painted with two (2) coats of textured Zolatone paint.
Zolatone catalysts will be added to the Zolatone to help in resisting moisture and provide a more durable finish. Paint color
shall be gray.
ROOF COMPARTMENT INTERIOR FINISH
The roof compartments shall be treated with phosphoric acid and then sprayed with an epoxy primer will be applied 1.0
mil thick. All body seams will be caulked with urethane seam sealer and painted with two (2) coats of textured Zolatone
paint. Zolatone catalysts will be added to the Zolatone to help in resisting moisture and provide a more durable finish.
Paint color shall be gray.
SVI #766/767
Page 73 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
REFLECTIVE STRIPE
All retroreflective materials shall conform to the requirements of ASTM D 4956, Standard Specification for Retroreflective
Sheeting for Traffic Control, Section 6.1.1 for Type I Sheeting.
All retroreflective materials used that are colors not listed in ASTM D 4956, Section 6.1.1, shall have a minimum
coefficient of retroreflection of 10 with observation angle of 0.2 degrees and entrance angle of -4 degrees.
Any printed or processed retroreflective film construction used shall conform to the standards required of an integral
colored film as specified in ASTM D 4956, Section 6.1.1.
REFLECTIVE STRIPE - CAB SIDE
A retroreflective stripe(s) shall be affixed to at least 50 percent of the cab and body length on each side.
The stripe or combination of stripes shall be a minimum of 4 in. (100 mm) in total width.
The 10 in. (254 mm) wide stripe or combination of stripes shall be permitted to be interrupted by objects (i.e., receptacles,
cracks between slats in roll up doors) provided the full stripe is seen as conspicuous when approaching the apparatus.

The stripe material shall be 3M Scotchcal 680.

This reflective stripe shall be white in color.
There shall be a 2" Scotchcal reflective stripe located above and a second 2" Scotchcal reflective stripe located below the
main stripe.

This reflective stripe shall be blue in color.
REFLECTIVE STRIPE - CAB FRONT
A reflective stripe shall be affixed to the front of cab. The stripe or combination of stripes shall be a minimum of 4 in. (100
mm) in total width.
A retroreflective stripe(s) shall be affixed to at least 25 percent of the width of the front of the apparatus.

The stripe material shall be 3M Scotchcal 680.

This reflective stripe shall be white in color.
SVI #766/767
Page 74 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
REFLECTIVE STRIPE - BODY SIDES
A 10" minimum reflective stripe shall be affixed to the sides of the body.

The stripe material shall be 3M Scotchcal 680.

This reflective stripe shall be white in color.
There shall be a 2" Scotchcal reflective stripe located above and a second 2" Scotchcal reflective stripe located below the
main stripe.

This reflective stripe shall be blue in color.
The stripe shall extend from the chassis to the body where it will angle up and then extend straight back to the rear of the
body.
CHEVRON REFLECTIVE STRIPE - REAR SIDES PANELS
At least 50 percent of the rear-facing vertical surfaces, visible from the rear of the apparatus, excluding any pump panel
areas not covered by a door, shall be equipped with retroreflective striping in a chevron pattern sloping downward and
away from the centerline of the vehicle at an angle of 45 degrees. Each stripe shall be 6" width.
The rear side panels only of the body shall have a Chevron style reflective stripe layout, and cover as much of the rear
side panels as possible. Chevron panels shall have a 3M UV over laminate to protect from UV rays, scene damage, and
everyday use. Chevron panels shall have a minimum 10 year warranty for material failure, and colorfastness.

The stripe material shall be 3M Diamond Grade.
All retroreflective materials required shall conform to the requirements of ASTM D 4956, Standard Specification for
Retroreflective Sheeting for Traffic Control, Section 6.1.1 for Type I Sheeting.

This reflective Chevron stripe shall alternate red and yellow in color.
SVI #766/767
Page 75 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
LETTERING
The following lettering shall be furnished and installed on the completed unit:
There shall be six (6) 6-1/2" high reflective letters furnished and installed on the vehicle. The lettering shall state:
631 on unit 766
634 on unit 767

This reflective lettering shall be white in color.
UPPER BODY SIDE LETTERING
There shall be six (6) 4-1/2" high reflective letters furnished and installed on the vehicle. The lettering shall state:
631 on unit 766
634 on unit 767

This reflective lettering shall be white in color.
There shall be forty six (46) 7" high reflective letters furnished and installed on the vehicle. The lettering shall state:
INTER-CANYON FIRE RESCUE

This reflective lettering shall be white in color.
REAR BODY LETTERING
There shall be three (3) 8" high reflective letters furnished and installed on the vehicle. The lettering shall state:
631 on unit 766
634 on unit 767

This reflective lettering shall be white in color.
FRONT OF CAB LETTERING
There shall be twenty three (23) 2-1/2" high reflective letters furnished and installed on the vehicle. The lettering shall
state:
INTER-CANYON FIRE RESCUE

This reflective lettering shall be white in color.
There shall be six (6) 4-1/2" high reflective letters furnished and installed on the vehicle. The lettering shall be located on
each side of the cab front radius corners and shall state:
631 on unit 766
634 on unit 767

This reflective lettering shall be white in color.
SVI #766/767
Page 76 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CAB ROOF LETTERING
There shall be three (3) 20" high reflective letters furnished and installed on the vehicle. The lettering shall state:
631 on unit 766
634 on unit 767

This reflective lettering shall be white in color.
SUPPLIED DECALS
The bidder shall install three (3) Inter-Canyon Fire Department supplied decal(s) on the vehicle, located per the approved
graphics layout.
EXTERIOR COMPARTMENT DOORS
HINGED DOOR CONSTRUCTION
The exterior compartment doors shall be custom manufactured and built for each compartment. The compartment doors
must be able to withstand years of rugged service and wear. For this reason, the compartment door design, metal
thickness, and attachments must be strictly adhered to.
The compartment doors shall be all aluminum 3003H-14 alloy construction. The exterior panel shall be of 1/8" thickness
smooth plate aluminum and the interior panel shall be of 1/8" thickness smooth plate aluminum. Lighter gauge material
will NOT BE ACCEPTABLE in these areas. The double panel doors shall be 1-3/4" thick to completely enclose the door
latching assembly. Doors shall have drain hole openings for drainage and ventilation.
The doors shall be flush mounted so that the outer surface is in line with the side body surface. Lap or bevel type
constructed doors, doors framed with extrusions, or doors requiring rubber bumpers to prevent unnecessary contact are
NOT ACCEPTABLE.
Compartment door openings shall be sealed with closed cell automotive type rubber molding to provide a weather
resistant seal around door. In addition, rubber molding shall be provided along hinge to prevent moisture entry. Open cell
foam type rubber moldings are NOT ACCEPTABLE.
Hinged compartment doors shall have 14 gauge stainless steel hinge, with 1/4" stainless steel pin. The hinge shall be
bolted to the door and body with stainless steel machine screws. A polyester barrier film gasket shall be placed between
stainless steel hinge and any dissimilar metals as necessary.
Drip rails shall be installed above all compartment door openings. Drip rails shall be completely removable for easy
replacement if necessary.
The latching mechanism of hinged compartment doors shall include stainless steel 6" Hansen offset bent D-ring keyed
handles. A gasket shall be placed between stainless steel handle and door. Door latches shall be a double catching twopoint rotary slam latch, recessed inside the double panel door with striker plate.
All vertically hinged compartment doors shall have a pneumatic cylinder to hold door in the open and closed positions.
Each door shall be capable of being closed without unlatching. Door checks shall be bolted to the upper compartment
door header and the box pan of the door. Door checks that require unlatching by hand will NOT BE ACCEPTABLE. All
horizontally hinged compartment door shall have a door check as specified with each door.
SVI #766/767
Page 77 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
ROLL-UP DOOR CONSTRUCTION - ROBINSON (ROM)
The apparatus shall be equipped with Robinson Series III roll-up exterior compartment doors. Robinson roll-up doors shall
be complete with the following features;
















Doors shall be front roll with drum positioned at upper front portion of compartment to afford maximum clearances and
head room for mounting equipment to ceiling of compartment
There shall be a non-abrasive side brush seals
Magnetic door ajar system must be integrated in lift bar handle and the retainer block to signal open door. No
mechanical switches or switches interior to the compartment shall be used
Every slat must have interlocking end shoes to prevent slat from moving side-to-side and binding the door
Between each slat must be a co-extruded PVC inner seal to prevent metal-to-metal contact and to repel moisture.
This inner seal is not visible to detract from appearance of door
Slats are to have interlocking joints with a folding locking flange to provide security and prevent penetration by sharp
objects
Slats to be double-wall extrusion 1.366" high by .315" thick. Exterior surface to be flat and interior surface to be
concave to prevent loose equipment from interfering with door operation
Latch system to be a full width one piece lift bar operable by one (1) hand
A 2" wide finger pull integrated into the bottom rail extrusion for easy one (1) hand opening and closing
Clip system that connects the curtain slats to the operator drum which allows for easy tension adjustment without
tools
Each roll-up door shall have a 4" diameter counterbalance operator drum to assist in lifting the door.
Track shall be one-piece aluminum that has an attaching flange and finishing flange incorporated into its design
Drip rail will have specially designed seal that prevents the seal from scratching the door
Bottom rail extrusion must have smooth back to prevent loose equipment from jamming the door
Bottom rail to have "V" shaped double seal to prevent water and debris from entering the compartment
Standard replacement parts to be shipped from the United States and available in as little as 48 hours
Each shutter door shall decrease the compartment door frame opening approximately 2.00" in width and approximately
4.50" in height for the bottom section of door assembly.
EXTERIOR ROLL-UP DOOR FINISH - SATIN
The roll-up doors shall have a satin aluminum finish on the door slats and the door trim components.
The specified retroreflective stripe material shall be applied on the roll-up compartment doors. The stripe shall be
precision machine cut for each door slat of the roll-up doors. Under no circumstance will the stripe material be cut on rollup door surface.
SVI #766/767
Page 78 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
BODY HEIGHT MEASUREMENTS
The vertical body dimensions shall be as follows:
AHEAD OF REAR AXLE
Description
A
Bottom of Subframe to Top of Body
B
Bottom of Subframe to Bottom of Body
C
Vertical Door Opening
-with roll-up door
-with hinged door
ABOVE REAR AXLE
Description
D
Vertical Door Opening - Above Rear Wheel
-with roll-up door
-with hinged door
BEHIND REAR AXLE
Description
E
Bottom of Subframe to Bottom of Body
F
Vertical Door Opening
-with roll-up door
-with hinged door
GENERAL
Description
G
Bottom of Drip Rail to Top of Body
Dimension
74.0"
25.0"
67.5"
71.5"
Dimension
34.0"
37.0"
Dimension
20.0"
62.0"
66.0"
Dimension
23.5"
(Dimensions are generic and subject to change during the actual design process)
TWO (2) UPPER BODY COMPARTMENTS
There shall be two (2) compartments on streetside of body. Each of these compartments shall be 57.0" wide x 23.0" x
18.5" deep. The side compartments shall be open under each door sill to allow for long equipment.
Each compartment shall have a lift-up type compartment door hinged on the outboard side. Each door shall be fabricated
from 3/16" NFPA compliant aluminum tread plate. Each door shall have one (1) grab handle mounted on the inside edge
of the door overlap to assist in opening the door and to provide an obstruction free walking area across the door tops.
Each door shall have two (2) pneumatic type cylinders, one (1) at each end, attached to cast aluminum brackets mounted
to the interior surface of the door to hold the door in both the opened and closed positions. Each door shall be mounted
using 16" long, equally spaced, 14 gauge stainless steel hinges, with 1/4" stainless steel pin. The gravity-driven, sealed,
ball-style tilt switch shall be mounted to one of the cast aluminum mounting brackets to activate the door open indicator
system and the interior compartment light. A polyester barrier film gasket shall be placed between stainless steel hinge
and the body mounting surface as necessary to prevent corrosion caused by dissimilar metals.
Each compartment door shall overlap a 2" vertical lip on the body roof to prevent entry of moisture and sealed with
automotive type rubber molding to provide a weather resistant seal.
Each compartment shall have a horizontally mounted OnScene Solutions LED Night Stik on the underside of the door that
will be automatically activated when the door is opened and wired to the NFPA required hazard warning light provided in
cab.
SVI #766/767
Page 79 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
ROOF ACCESS LADDER
The ladder shall be weld constructed of vertical aluminum extrusion tubing and aluminum grip surface ladder rungs with
slip resistant tread grip pattern. It shall be set off from body 8 inches and mounted to body with chrome plated end
stanchions bolted to the body with stainless steel bolts. The ladder shall NOT extend above the body roof. The location
shall be on the rear streetside of the apparatus body.
ROOF ACCESS HANDRAIL(S)
There shall be two (2) handrail(s) mounted on top of body along the outer edges of the specified roof compartment doors
to assist in roof access. The handrails shall be NFPA compliant 1-1/4" extruded aluminum tubing with chrome plated end
stanchions.
BODY WIDTH DIMENSIONS
The body shall be 100.0" wide, not including drip rail or non-permanent fixtures. Interior compartment depth dimensions
shall be:
Area Description
Transverse Area:
- Above Top of Subframe
Compartment Depth:
- Below Top of Subframe
- Ahead of Rear Axle
Compartment Depth:
- Below Top of Subframe
- Behind the Rear Axle
Dimension
95.5"
24.5"
23.5"
(Eng. Note)
(Dimensions are generic and subject to change during the actual design process)
SVI #766/767
Page 80 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
STREETSIDE COMPARTMENT - FRONT (S1)
The interior useable compartment width shall be approximately 16.0" wide.
The approximate compartment door opening shall be 14.0" wide..
This compartment shall have vertically hinged box pan style doors fabricated of 1/8" thick smooth aluminum. The inner
liner of the door shall be 1/8" thick smooth aluminum with an unpainted finish. The door exterior shall be painted job color.
The hinged door(s) shall have a stainless steel 6" Hansen offset bent D-ring non-locking handle. A gasket shall be placed
between stainless steel handle and door. Door latches shall be a two-point (top and bottom) rotary slam, double-catch
latch, recessed inside the double panel door with striker plate.
The hinged door(s) shall have a pneumatic cylinder to hold door in the open and closed positions. Each door shall be
capable of being closed without unlatching. Door checks shall be bolted to the upper compartment door header and the
box pan of the door.
Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The
threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT COMPONENTS

There shall be vertically mounted aluminum shelf trac for shelving installation.

The floor of the compartment above the frame rails shall cover the area directly above the frame rails ONLY (nonextended floor).

One (1) vertically mounted OnScene Solutions LED Nightstik.

Two (2) 3-1/2" x 3-1/2" black plastic louvered vents shall be provided in lower compartment.
SVI #766/767
Page 81 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
STREETSIDE COMPARTMENT - ABOVE REAR WHEELS (S2)
The interior useable compartment width shall be approximately 59.0" wide.
The compartment door opening shall be approximately 52.0" wide.
This compartment shall have a Robinson roll-up door with an exterior satin aluminum finish.
-
There shall be NO keyed lock on this roll-up compartment door.
Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The
threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT COMPONENTS

There shall be vertically mounted aluminum shelf trac for shelving installation.

There shall be one (1) adjustable shelf/shelves approximately 24" deep.

One (1) vertically mounted OnScene Solutions LED Nightstik.

One (1) 120/240 VAC load center.

The 12 volt electrical distribution panel shall be located in the streetside over wheel well compartment.
SVI #766/767
Page 82 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
STREETSIDE COMPARTMENT - REAR (S3)
The interior useable compartment width shall be approximately 45.0" wide.
The compartment door opening shall be approximately 38.0" wide.
This compartment shall have a Robinson roll-up door with an exterior satin aluminum finish.
-
There shall be NO keyed lock on this roll-up compartment door.
Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The
threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT COMPONENTS

There shall be vertically mounted aluminum shelf trac for shelving installation.

There shall be one (1) adjustable shelf/shelves approximately 24" deep.

The floor of the compartment above the frame rails shall cover the area directly above the frame rails ONLY (nonextended floor).

One (1) Hannay ECR1618-17-18 cable reel(s) capable of storing 200' of 10/3 electric cable. The rewind switch for
each reel shall be located adjacent to the reel it controls.
-
The cable reel shall equipped with 200' of 10/3 SEOW black cable, a molded plastic ball clamp, and a single
heavy duty L5-30 twist-lock female plug at the end.

One (1) vertically mounted OnScene Solutions LED Nightstik.

There shall be one (1) underbody slide-out step.

Two (2) 3-1/2" x 3-1/2" black plastic louvered vents shall be provided in lower compartment.
SVI #766/767
Page 83 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CURBSIDE COMPARTMENT - FRONT (C1)
The interior useable compartment width shall be approximately 16.0" wide.
The approximate compartment door opening shall be 14.0" wide..
This compartment shall have vertically hinged box pan style doors fabricated of 1/8" thick smooth aluminum. The inner
liner of the door shall be 1/8" thick smooth aluminum with an unpainted finish. The door exterior shall be painted job color.
The hinged door(s) shall have a stainless steel 6" Hansen offset bent D-ring non-locking handle. A gasket shall be placed
between stainless steel handle and door. Door latches shall be a two-point (top and bottom) rotary slam, double-catch
latch, recessed inside the double panel door with striker plate.
The hinged door(s) shall have a pneumatic cylinder to hold door in the open and closed positions. Each door shall be
capable of being closed without unlatching. Door checks shall be bolted to the upper compartment door header and the
box pan of the door.
Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The
threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT COMPONENTS

There shall be vertically mounted aluminum shelf trac for shelving installation.

The floor of the compartment above the frame rails shall cover the area directly above the frame rails ONLY (nonextended floor).

One (1) vertically mounted OnScene Solutions LED Nightstik.

Two (2) 3-1/2" x 3-1/2" black plastic louvered vents shall be provided in lower compartment.
SVI #766/767
Page 84 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CURBSIDE COMPARTMENT - ABOVE REAR WHEEL (C2)
The interior useable compartment width shall be approximately 39.0" wide.
The compartment door opening shall be approximately 32.0" wide.
This compartment shall have a Robinson roll-up door with an exterior satin aluminum finish.
-
There shall be NO keyed lock on this roll-up compartment door.
Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The
threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT COMPONENTS

There shall be vertically mounted aluminum shelf trac for shelving installation.

The aft compartment wall above the hard suction storage compartment shall be modified to allow for an open area
between compartments C2 and C3.

One (1) vertically mounted OnScene Solutions LED Nightstik.
SVI #766/767
Page 85 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CURBSIDE COMPARTMENT - REAR (C3)
The interior useable compartment width shall be approximately 45.0" wide.
The compartment door opening shall be approximately 38.0" wide.
This compartment shall have a Robinson roll-up door with an exterior satin aluminum finish.
-
There shall be NO keyed lock on this roll-up compartment door.
Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The
threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT COMPONENTS

There shall be vertically mounted aluminum shelf trac for shelving installation.

There shall be two (2) adjustable shelf/shelves approximately 14" deep.

The floor of the compartment above the frame rails shall cover the area directly above the frame rails ONLY (nonextended floor).

One (1) vertically mounted OnScene Solutions LED Nightstik.

There shall be one (1) underbody slide-out step.

Two (2) 3-1/2" x 3-1/2" black plastic louvered vents shall be provided in lower compartment.
SVI #766/767
Page 86 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
REAR COMPARTMENT - CENTER (RC1)
The rear center compartment shall be closed to both side rear compartments.
The rear center compartment shall start at the bottom of the body, between the frame rails, and shall be as high as the
body permits. The frame shall extend to the back of the body, stopping just inside the door opening.
The interior useable compartment width shall be approximately 41.0" wide x 22.0" deep.
The compartment door opening shall be approximately 34.0" wide.
This compartment shall have a Robinson roll-up door with an exterior satin aluminum finish.
-
There shall be NO keyed lock on this roll-up compartment door.
Compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The
threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT COMPONENTS

There shall be vertically mounted aluminum shelf trac for shelving installation.

There shall be one (1) SCBA cylinder storage module for three (3) bottles.
-
There shall be one (1) OnScene Solutions cargo straps provided to secure the stored equipment.

Specified fire extinguishers shall be located on left side of compartment.

One (1) vertically mounted OnScene Solutions LED Nightstik.
SVI #766/767
Page 87 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
HARD SUCTION COMPARTMENT
A hard suction storage compartment will be provided on curbside rear of body extending thru the back of Compts. C1, C2,
and C3. An overlap style access door with be provided on rear body panel with stainless steel hinge, and 6" Hansen
stainless steel D-ring handle.
Compartment will be capable of storing; two (2) 6" x 10' sections of hard suction hose.
Miscellaneous Body Options - 12'
LADDER LIFT SYSTEM, CURBSIDE
A Ziamatic 12 volt DC, 60 amp, HLAS (Horizontal Ladder Access System, Part no. 3097-500-000) shall be provided
above the exterior side body compartments, on the curbside.
The lift system shall be electro-hydraulic with built-in electric safety latches and warning alarm when in operation. Access
shall still be provided to compartments with system in lowered position. Flashing lights on ends shall produce a visual
signal when the system is out of the stored position.
The ladder control panel shall be located on curbside pump panel. The ladder lift system shall be designed to store the
specified ladder compliment specified. The side of ladder storage area shall be enclosed with aluminum and painted the
same color as body.
Storage shall be provided for the following SVI supplied ladders and Inter-Canyon Fire Department supplied pike poles;
One (1) Duo-Safety 1225-A aluminum 35' 3-section ladder (15' 3" x 24" x 9 3/8")
One (1) Duo-Safety 775-A aluminum 14' roof ladder (14' 2 1/2" x 19" x 2 3/4")
One (1) Duo-Safety 585-A aluminum 10' folding ladder (11' 3 1/2" x 1 3/4" x 3 3/4")
One (1) Duo-Safety 10 FP 10' pike pole
One (1) Duo-Safety 8 FP 8' pike pole
One (1) Duo-Safety 5 FP5-DH 5' pike pole with 'D' handle
Provisions shall be included on the ladder lift system to prevent the feet of the folding ladder from extending beyond the
envelope of the lift structure and contacting the body side when closing.
SIDE BODY PROTECTION - RUB RAIL
There shall be side rub rails provided below the compartment door openings on both the streetside and curbside. The rub
rail shall be fabricated from 6063 extruded aluminum, measuring approximately 2-3/4" high x 1-3/8" thick with tapered
aluminum end caps. The rub rail shall be bolted to the body using stainless steel bolts and 1-1/2" diameter x 5/8" thick
rubber mount isolators to prevent damage to the body. The rails shall incorporate LED clearance marker lighting
recessed into the rail fascia to avoid damage to the light in case of impact. The rub rail shall have an accessory mounting
track integrated into the backside of the rail to allow mounting of accessories such as ground lighting.
APPARATUS LABELS
Streetside pump panel drip rail shall be labeled, "NOT A STEP". The label shall be located on the far right (rearward)
portion of the drip rail, adjacent to the specified fold-down steps.
SVI #766/767
Page 88 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
COMPARTMENT COMPONENTS DESCRIPTIONS
All interior compartment components shall be fabricated as follows:
ADJUSTABLE SHELVING HARDWARE
Adjustable shelving hardware shall be provided indicated in the numbered compartment list.
The shelving hardware shall include a minimum of four (4) aluminum shelf tracs mounted vertically on compartment side
walls or vertical partitions. There shall be one (1) cast aluminum shelf bracket per vertical shelf trac to mount each shelf,
tray, or adjustable storage module. Shelving hardware shall be of heavy duty quality with unlimited vertical adjustment
settings.
ADJUSTABLE SHELF/SHELVES
Adjustable shelf/shelves shall be provided in exterior compartment as indicated in the numbered compartment list.
Shelves shall be fabricated from 3/16" (.188) aluminum 3003H-14 alloy smooth plate with a 2" vertical flange along the
front and rear edges. Shelves shall be designed to be used with flanges either in the upward position to hold various
equipment on shelf, or in the downward position for sweep-out shelf surface.
All shelves shall be fully adjustable, from top to bottom of the compartment. There shall be at least four (4) vertical
mounting channels and shelving hardware, two (2) each side of compartment. Shelving hardware shall be of heavy duty
quality with unlimited vertical adjustment settings.
COMPARTMENT LIGHTING
Each enclosed equipment compartment greater than 4 ft3 (0.1 m3) in volume and having an opening greater than 144 in.2
(92,900 mm2) shall have sufficient compartment lighting to provide a minimum of 2 fc (20 lx) at any location on the floor of
the compartment without any shelves, dividers, or equipment in the compartment.
Compartments such as ladder tunnels, pike pole storage tubes, or underbody compartments designed around the
volumetric requirements of specific equipment that can be removed without the use of article illumination shall not be
required to have compartment lighting.
All compartments shall be equipped with OnScene Nightstik LED lights with the following minimum light requirements;





Full Height Compartments, 63” Section (42 LED's)
Wheel well Compartments, 36” Section (24 LED's)
Rear Rescue Compartment, 63” Section (42 LED's)
Low Compartments, 18" Section (12 LED's), Vertical
Low Compartments, 36" Section (24 LED's), Horizontal
The OnScene Nightstik lights shall be rated at 100,000 hours of service and shall be provided with a 5 year free
replacement warranty.
SVI #766/767
Page 89 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
ELECTRIC CORD REEL
Electric cord reel(s) shall be provided in exterior compartment as indicated in the numbered compartment list.
The 120 volt cord reel(s) shall be Hannay with electric rewind, equipped with fully enclosed 45 amp, three (3) conductor
collector rings.
The 12 volt reel rewind system shall be directly wired to the chassis battery system with heavy duty stranded copper wire,
with guarded finger type rewind button located within easy reach of the operator.
Each reel shall have a Hannay 4-way roller assembly to permit cable to feed directly off the reel and away from
compartment. Plastic roller assemblies are not acceptable.
The wiring from the generator system shall be through Carflex electrical weatherproof conduit, with stranded copper
wiring. The wiring shall terminate in a sealed conduit box at the reel with mechanical type connectors for quick removal of
wiring.
Cord Reel General Requirements
All permanently mounted cord reels shall be rated for continuous duty and installed to be accessible for removal, cord
access, maintenance, and servicing.
The power rewind cord reel spool area shall be visible to the operator during the rewind operation, or the reel spool shall
be encapsulated to prevent cord from spooling off the reel.
Rollers or guides shall be provided, where required, to prevent damage to the cord at reel spools or compartment
openings.
Rewind Provision
Power rewind type reels shall have the control in a position where the operator can observe the rewinding operation. If a
reel is in an enclosure or out of direct view, the cord entry point to the enclosure shall be visible to the operator of the reel
control.
The rewind control or crank shall not be more than 72 in. (1830 mm) above the operator’s standing position. The rewind
control shall be marked with a label indicating its function and shall be guarded to prevent accidental operation.
Cord
The reel shall be designed to hold 110 percent of the capacity needed for the intended cord length.
The wire size shall be in accordance with NFPA 70, Table 400.5(A), but in no case shall it be smaller than 12AWG.
Electrical cord shall be Type SEOOW, Type SOOW, or Type STOOW.
A label that indicates the following information shall be provided in a visible location adjacent to any permanently
connected reel:
(1)
(2)
(3)
(4)
(5)
Current rating
Current type
Phase
Voltage
Total cord length
SVI #766/767
Page 90 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
UNDERBODY SLIDE-OUT STEP
There shall be underbody slide-out step(s) furnished and installed. Each platform shall be constructed from 9" deep
"Diamond Back" non-slip vented aluminum stair treads. Step slide shall be securely held in both out and stored position,
utilizing a heavy duty pneumatic cylinder. Each pneumatic cylinder shall be designed to have an over center location
which will assist the step in both extension and retraction. Each step shall be designed to hold 500 lbs., and reinforced to
prevent flexing or damage.
STEP / GROUND LIGHTS
Step and ground lights shall be OnScene Solutions 9" LED Nightstik and be placed at any entry door and step where
personnel climb on or descend from the apparatus to ground level. OnScene LED lights shall have 6 LED lights per 9”
light, and shall be rated at 100,000 hours of service. On Scene Solutions LED lights shall be have a 5 year free
replacement warranty.
All of the required step and ground lights shall be activated when the parking brake is set.
LOW VOLTAGE ELECTRICAL SYSTEM- 12 VDC
General
Any low voltage electrical systems or warning devices installed on the fire apparatus shall be appropriate for the mounting
location and intended electrical load.
Where wire passes through sheet metal, grommets shall be used to protect wire and wire looms. Electrical connections
shall be with double crimp water-tight heat shrink connectors.
All 12 VDC wiring running from front to back of vehicle body shall be run in full length electrical wiring raceway down each
side of body.
Wiring
All electrical circuit feeder wiring supplied and installed by the fire apparatus manufacturer shall meet the requirements of
NFPA Chapter 13.
The circuit feeder wire shall be stranded copper or copper alloy conductors of a gauge rated to carry 125 % of the
maximum current for which the circuit is protected. Voltage drops in all wiring from the power source to the using device
shall not exceed 10 %. The use of star washers for circuit ground connections shall not be permitted.
All circuits shall otherwise be wired in conformance with SAE J1292, Automobile, Truck, Truck-Tractor, Trailer, and Motor
Coach Wiring.
Wiring and Wire Harness Construction
All insulated wire and cable shall conform to SAE J1127, Low Voltage Battery Cable, or SAE J1128, Low Voltage Primary
Cable, type SXL, GXL, or TXL.
SVI #766/767
Page 91 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
All conductors shall be constructed in accordance with SAE J1127 or SAE J1128, except where good engineering
practice dictates special strand construction. Conductor materials and stranding, other than copper, shall be permitted if
all applicable requirements for physical, electrical, and environmental conditions are met as dictated by the end
application. Physical and dimensional values of conductor insulation shall be in conformance with the requirements of
SAE J1127 or SAE J1128, except where good engineering practice dictates special conductor insulation. The overall
covering of conductors shall be moisture-resistant loom or braid that has a minimum continuous rating of 194°F (90°C)
except where good engineering practice dictates special consideration for loom installations exposed to higher
temperatures. The overall covering of jacketed cables shall be moisture resistant and have a minimum continuous
temperature rating of 194°F (90°C), except where good engineering practice dictates special consideration for cable
installations exposed to higher temperatures.
All wiring connections and terminations shall use a method that provides a positive mechanical and electrical connection.
The wiring connections and terminations shall be installed in accordance with the device manufacturer’s instructions. All
ungrounded electrical terminals shall have protective covers or be in enclosures. Wire nut, insulation displacement, and
insulation piercing connections shall not be used.
Wiring shall be restrained to prevent damage caused by chafing or ice buildup and protected against heat, liquid
contaminants, or other environmental factors.
Wiring shall be uniquely identified at least every 2 ft (0.6 m) by color coding or permanent marking with a circuit function
code. The identification shall reference a wiring diagram.
Circuits shall be provided with properly rated low voltage overcurrent protective devices. Such devices shall be readily
accessible and protected against heat in excess of the overcurrent device’s design range, mechanical damage, and water
spray. Circuit protection shall be accomplished by utilizing fuses, circuit breakers, fusible links, or solid state equivalent
devices.
If a mechanical-type device is used, it shall conform to one of the following SAE standards:
(1) SAE J156, Fusible Links
(2) SAE J553, Circuit Breakers
(3) SAE J554, Electric Fuses (Cartridge Type)
(4) SAE J1888, High Current Time Lag Electric Fuses
(5) SAE J2077, Miniature Blade Type Electrical Fuses
Switches, relays, terminals, and connectors shall have a direct current (dc) rating of 125 % of maximum current for which
the circuit is protected.
Power Supply
A 12 V or greater electrical alternator shall be provided. The alternator shall have a minimum output at idle to meet the
minimum continuous electrical load of the vehicle, at 200°F (93°C) ambient temperature within the engine compartment,
and shall be provided with full automatic regulation.
SVI #766/767
Page 92 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
Minimum Continuous Electrical Load
The minimum continuous electrical load shall consist of the total amperage required to simultaneously operate the
following in a stationary mode during emergency operations:
(1) The propulsion engine and transmission
(2) All legally required clearance and marker lights, headlights, and other electrical devices except windshield wipers and
four-way hazard flashers
(3) The radio(s) at a duty cycle of 10 percent transmit and 90 % receive (for calculation and testing purposes, a default
value of 5 A continuous)
(4) The lighting necessary to produce 2 fc (20 lx) of illumination on all walking surfaces on the apparatus and on the
ground at all egress points onto and off the apparatus, 5 fc (50 lx) of illumination on all control and instrument panels,
and 50 percent of the total compartment lighting loads
(5) The minimum optical warning system, where the apparatus is blocking the right-of way
(6) The continuous electrical current required to simultaneously operate any fire pumps, aerial devices, and hydraulic
pumps
(7) Other warning devices and electrical loads defined by the purchaser as critical to the mission of the apparatus
If the apparatus is equipped to tow a trailer, an additional 45 A shall be added to the minimum continuous electrical load
to provide electrical power for the federally required clearance and marker lighting and the optical warning devices
mounted on the trailer.
The condition of the low voltage electrical system shall be monitored by a warning system that provides both an audible
and a visual signal to persons on, in, or near the apparatus of an impending electrical system failure caused by the
excessive discharge of the battery set.
The charge status of the battery shall be determined either by direct measurement of the battery charge or indirectly by
monitoring the electrical system voltage.
If electrical system voltage is monitored, the alarm shall sound if the system voltage at the battery or at the master load
disconnect switch drops below 11.8 V for 12 V nominal systems, 23.6 V for 24 V nominal systems, or 35.4 V for 42 V
nominal systems for more than 120 seconds.
A voltmeter shall be mounted on the driver’s instrument panel to allow direct observation of the system voltage.
Electromagnetic Interference
Electromagnetic interference suppression shall be provided, as required, to satisfy the radiation limits specified in SAE
J551/1, Performance Levels and Methods of Measurement of Electromagnetic Compatibility of Vehicles, Boats (up to 15
m), and Machines (16.6 Hz to 18 GHz).
Wiring Diagram
A complete electrical wiring schematic of actual system shall be provided with finished apparatus. Similar or generic type
electrical schematics shall NOT BE ACCEPTABLE.
Low Voltage Electrical System Performance Test
A low voltage electrical system test certification shall be provided with delivered apparatus.
SVI #766/767
Page 93 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
12 VOLT DIAGNOSTIC RELAY CONTROL CENTER
The 12 volt power distribution shall be conveniently located with easy access for service. All relays and circuit breakers
shall be plug-in type allowing for removal for repairs without necessitating soldering or tools. The sockets mounts for both
the relays and circuit breakers shall be of a design that permits the use of standard automotive type components.
The 12 volt distribution panel shall utilize printed circuit boards mounted in high strength enclosure. Each printed circuit
board shall be provided with twelve (12) heavy duty independent switching relays. Each relay shall have the ability to be
configured either normally open or normally closed and be protected by a 20 amp automatic reset breaker. Each circuit
will be provided with a LED for visual diagnostic.
Power distribution panel shall be located in apparatus body within a protected enclosure with removable or hinged cover.
ROCKER SWITCH PANEL
The 12 volt control switch panel shall be supplied and installed by the cab/chassis manufacturer.
ELECTRICAL SYSTEM MANAGER
The chassis shall contain an electrical system manager for:









Monitoring chassis battery voltage
Shedding pre-determined electrical circuits
Sequencing pre-determined electrical circuits
Automatically controlling chassis engine fast-idle
Monitor master switch and parking brake applications
Automatically control warning light modes ("Calling-For" and "Blocking Right of Way")
Provide low voltage alarm
Programmable control circuits
Remote system status indicator panel
System manager shall perform all electrical functions required by current NFPA 1901 Standards.
The electrical system manager shall be supplied and installed by the cab/chassis manufacturer.
SVI #766/767
Page 94 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
BATTERY SYSTEM
The battery connectors shall be heavy duty type with cables terminating in heat shrink loom. Heavy duty battery cables
shall provide maximum power to the electrical system. Where required, the cables shall be shielded from exhaust tubing
and the muffler. Large rubber grommets shall be provided where cables enter the battery compartment.
Batteries shall be of the high-cycle type. With the engine off, the battery system shall be able to provide the minimum
continuous electrical load for 10 minutes without discharging more than 50 percent of the reserve capacity and then to
restart the engine. The battery system cold cranking amps (CCA) rating shall meet or exceed the minimum CCA
recommendations of the engine manufacturer. The batteries shall be mounted to prevent movement during fire apparatus
operation and shall be protected against accumulations of road spray, snow, and road debris. The batteries shall be
readily accessible for examination, testing, and maintenance.
A means shall be provided for jump-starting the engine if the batteries are not accessible without lifting the cab of a tilt-cab
apparatus.
Where an enclosed battery compartment is provided, it shall be ventilated to the exterior to prevent the buildup of heat
and explosive fumes. The batteries shall be protected against vibration and temperatures that exceed the battery
manufacturer’s recommendation.
A master load disconnect switch shall be provided between the starter solenoid(s) and the remainder of the electrical
loads on the apparatus. The starter solenoids shall be connected directly to the batteries.
Electronic control systems and similar devices shall be permitted to be otherwise connected if so specified by their
manufacturer.
The alternator shall be wired directly to the batteries through the ammeter shunt(s), if one is provided, and not through the
master load disconnect switch.
A green “battery on” pilot light that is visible from the driver’s position shall be provided.
A sequential switching device shall be permitted to energize the optical warning devices and other high current devices
required in minimum continuous electrical load, provided the switching device shall first energize the electrical devices
required in minimum continuous electrical load within five (5) seconds.
BATTERY SWITCH
One (1) battery "On/Off" switch in cab located within easy reach of Driver with green "BATTERY ON" pilot light that is
visible from the driver’s position shall be provided. The switch and pilot light shall be supplied and installed by the
cab/chassis manufacturer.
BATTERY SOLENOID
Battery switch shall consist of a minimum 200 ampere, constant duty solenoid to feed from positive side of battery.
BATTERY CONDITIONER
The battery conditioner shall be supplied and installed by the cab chassis manufacturer.
ENGINE COMPARTMENT LIGHT
Engine compartment light(s) shall be supplied and installed by the cab chassis manufacturer.
SVI #766/767
Page 95 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CAB HAZARD WARNING LIGHT
A red "HAZARD" warning light shall be supplied and installed by the cab/chassis manufacturer. Light shall illuminate
automatically to warn the Driver of the following when the apparatus parking brake is not fully engaged:



Any passenger or compartment door is open
Equipment rack is not in stowed position
Light tower is extended
The light shall be labeled "DO NOT MOVE APPARATUS WHEN LIGHT IS ON".
BACK-UP ALARM
An electronic back-up alarm shall be supplied and installed by the cab/chassis manufacturer. The back-up alarm shall
actuate automatically when the transmission gear selector is placed in reverse.
TAIL LIGHT MODULES
Rear body tail lights shall be vertically mounted per Federal Motor Vehicle Safety Standards. The following lights shall be
furnished:



Two (2) Weldon 1010 LED Series turn signal lights with amber lens and black arrow
Two (2) Weldon 1010 LED Series stop/tail lights with red lens
Two (2) Weldon 1010 LED Series back-up lights with clear lens
Two (2) Cast Products 3-light polished aluminum bezels shall be provided, one (1) each side vertically mounted on the
rear of the apparatus body for the above tail lights.
MIDSHIP MARKER/TURN SIGNAL
Two (2) Whelen LED midship body clearance marker/turn signal lights (T0A00MAR) shall be installed. There shall be one
(1) light on each side of the body, in the wheel well, ahead of the rear axle. Both lights shall have an amber lens and
operate with the chassis clearance marker and turn signals.
MARKER LIGHTS
The apparatus body shall be equipped with all necessary clearance lights and reflectors in accordance with Federal Motor
Vehicle Safety Standards (FMVSS) regulations. All body clearance lights shall be LED to reduce the need for
maintenance and lower the amp draw. Clearance lights shall be wired to the headlight circuit of the chassis.
LICENSE PLATE LIGHT
One (1) Arrow #437 chrome plated license plate light shall be installed on the rear of the apparatus body. License plate
light shall be wired to the headlight circuit of chassis. A fastener system shall be provided for license plate installation.
ELECTRONIC SIREN
The siren control head shall be supplied and installed by the cab/chassis manufacturer.
SIREN SPEAKER
The siren speaker(s) shall be supplied and installed by the cab/chassis manufacturer.
SVI #766/767
Page 96 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
SIDE SCENE LIGHTS
There shall be two (2) Code 3 88Z26 (9" x 7") recess mounted, 50 watt, halogen scene lights provided on the upper body.
Each light will have a 26 degree lens and chrome flange. They will be equally divided between the curbside and
streetside.
Two (2) switches shall be provided, one (1) for the streetside scene lights, and one (1) for the curbside scene lights.
The lights shall be switched at the 12 volt control panel in the cab.
REAR SCENE LIGHTS
Two (2) Code 3 88Z26 (9"x 7")recess mounted, 50 watt, halogen scene lights with a 26 degree lens and chrome flange
shall be provided on the rear of the apparatus body.
The lights shall be switched at the 12 volt control panel in the cab.
The rear scene lights shall also be activated when the apparatus is in reverse.
TRAFFIC DIRECTIONAL LIGHT
One (1) Whelen TA4437M Super LED eight (8) lights, split two-piece housing, traffic directional warning device with 30'
control cable shall be located on upper rear body. The control head shall be located in the cab within easy reach of
Driver.

The traffic directional light shall be surface mounted on upper rear body.
DAVID CLARK INTERCOM SYSTEM
The following David Clark intercom system shall be provided and installed to improve the safety of firefighters and rescue
professionals through enhanced communication and hearing protection. System shall have the following major
components as minimum;
One (1) David Clark U3800 master station module furnished and installed. The module shall have adjustable volume
controls for headsets, and sytem, system on/off controls, and two (2) headset jacks.
2. One (1) David Clark U3811 single radio interface module shall be provided at the Driver location in cab. A David Clark
U3815 single radio interface module shall be provided for Officer location in cab. A David Clark U3805 radio cord
junction module shall be provided in system. The interface shall be designed to work with the Fire Department
supplied radio system.
3. Two (2) David Clark 3441 single receiver, slotted dome under helmet headset(s) shall be provided for Driver and
Officer. Each headset shall have a single plug and shall have radio transmit capabilities. Each headset shall have:
 Microphone on/off button
 Noise canceling electret microphone
 Adjustable headstrap
 Flex-style boom which rotates for left or right dress
4. Two (2) David Clark 3442 under helmet headset(s) and U3801iintercom station (as required) shall be provided and
installed. The U3800 master station shall be utilized for two (2) crew positions in rear of cab. Each headset shall have
a single plug and shall have radio transmit capabilities. Each headset shall have:
 Microphone on/off button
 Noise canceling electret microphone
 Adjustable headstrap
 Flex-style boom which rotates for left or right dress
1.
SVI #766/767
Page 97 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
WARNING LIGHT PACKAGE
Each apparatus shall have a system of optical warning devices that meets or exceeds the requirements of this section.
The optical warning system shall consist of an upper and a lower warning level. The requirements for each level shall be
met by the warning devices in that particular level without consideration of the warning devices in the other level.
For the purposes of defining and measuring the required optical performance, the upper and lower warning levels shall be
divided into four warning zones. The four zones shall be determined by lines drawn through the geometric center of the
apparatus at 45 degrees to a line drawn lengthwise through the geometric center of the apparatus. The four zones shall
be designated A, B, C, and D in a clockwise direction, with zone A to the front of the apparatus.
Each optical warning device shall be installed on the apparatus and connected to the apparatus’s electrical system in
accordance with the requirements of this standard and the requirements of the manufacturer of the device.
A master optical warning system switch that energizes all the optical warning devices shall be provided.
The optical warning system on the fire apparatus shall be capable of two separate signaling modes during emergency
operations. One mode shall signal to drivers and pedestrians that the apparatus is responding to an emergency and is
calling for the right-of-way. One mode shall signal that the apparatus is stopped and is blocking the right-of-way. The use
of some or all of the same warning lights shall be permitted for both modes provided the other requirements of this
chapter are met.
A switching system shall be provided that senses the position of the parking brake or the park position of an automatic
transmission. When the master optical warning system switch is closed and the parking brake is released or the automatic
transmission is not in park, the warning devices signaling the call for the right-of-way shall be energized. When the master
optical warning system switch is closed and the parking brake is on or the automatic transmission is in park, the warning
devices signaling the blockage of the right-of-way shall be energized. The system shall be permitted to have a method of
modifying the two signaling modes.
The optical warning devices shall be constructed or arranged so as to avoid the projection of light, either directly or
through mirrors, into any driving or crew compartment(s). The front optical warning devices shall be placed so as to
maintain the maximum possible separation from the headlights.
UPPER LEVEL OPTICAL WARNING DEVICES
The upper-level optical warning devices shall be mounted as high and as close to the corner points of the apparatus as is
practical to define the clearance lines of the apparatus. The upper-level optical warning devices shall not be mounted
above the maximum height, specified by the device manufacturer.
ZONE A - FRONT WARNING LIGHT
There shall be one (1) Code 3 MX769NFPA1 - 69" long lightbar permanently mounted on the cab roof.
The lightbar configuration (streetside to curbside) shall be:
SVI #766/767
Page 98 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
Upper Level
Section
1
2
3
4
5
Components
50 Watt Rotator
2-Step Cascade Mirror
50 Watt Rotator
Wide "V" Mirror
50 Watt Rotator
Wide "V" Mirror
50 Watt Rotator
Wide "V" Mirror
50 Watt Rotator
2-Step Cascade Mirror
Color
Red
Clear
Clear
Clear
Red
Lower Level
Section
1
2
3
4
5
Components
Intersection Light
Blank
Blank
Blank
Intersection Light
Color
Clear
Clear
Clear
Clear
Clear
All clear lights shall shut down when the parking brake is set to comply with "Blocking" mode requirements as outlined in
NFPA 1901.
The lightbar shall be separately switched at the 12 volt control panel in the cab.
Light bar shall be supplied with two 50 watt alley lights. The lights shall be load managed to be shut off when in blocking
mode and in an low voltage situation.
ZONES B AND D - SIDE WARNING LIGHTS
UPPER REAR CORNER WARNING LIGHTS
There shall be two (2) Code 3 model 85BZR (9" x 7") surface mount LED lights provided, one (1) each side. Each light
shall have a red lens and chrome flange.
The lights shall be switched at the 12 volt control panel in the cab.
UPPER FORWARD CORNER WARNING LIGHTS
There shall be two (2) Code 3 model 85BZR (9" x 7") surface mount LED lights provided, one (1) each side. Each light
shall have a red lens and chrome flange.
The lights shall be switched at the 12 volt control panel in the cab.
ZONE C - REAR WARNING LIGHTS
Two (2) Code 3 model 85BZR (9" x 7") surface mount LED lights shall be provided in the rear upper zone of the body.
There shall be one (1) light mounted on each side, near the corners of the body. Each light shall have a red lens and a
chrome finished flange.
The lights shall be switched at the 12 volt control panel in the cab.
SVI #766/767
Page 99 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
LOWER LEVEL OPTICAL WARNING DEVICES
To define the clearance lines of the apparatus, the optical center of the lower-level optical warning devices in the front of
the vehicle shall be mounted on or forward of the front axle centerline and as close to the front corner points of the
apparatus as is practical.
The optical center of the lower-level optical warning devices at the rear of the vehicle shall be mounted on or behind the
rear axle centerline and as close to the rear corners of the apparatus as is practical. The optical center of any lower-level
device shall be between 18 in. and 62 in. (460 mm and 1600 mm) above level ground for large apparatus, and 18 in. and
48 in. (460 mm and 1220 mm) above level ground for small apparatus.
A midship optical warning device shall be mounted right and the left sides of the apparatus if the distance between the
front and rear lower-level optical devices exceeds 25 ft (7.6 m) at the optical center. Additional midship optical warning
devices shall be required, where necessary, to maintain a horizontal distance between the centers of adjacent lower-level
optical warning devices of 25 ft (7.6 m) or less. The optical center of any midship mounted optical warning device shall be
between 18 in. and 62 in. (460 mm and 1600 mm) above level ground.
ZONE A - FRONT WARNING LIGHTS
The warning lights shall be provided and installed before the cab chassis arrives at the manufacturing facility. They shall
be Code 3 lights to complete an NFPA compliant lower level warning light system.
The lights shall be switched at the 12 volt control panel in the cab.
ZONES B AND D - CAB INTERSECTOR LIGHT (CAB FRONT CORNERS)
The warning lights shall be provided and installed before the cab chassis arrives at the manufacturing facility. They shall
be Code 3 lights to complete an NFPA compliant lower level warning light system.
The lights shall be switched at the 12 volt control panel in the cab.
ZONES B AND D - BODY INTERSECTOR LIGHT (BODY WHEELWELL AREA)
There shall be two (2) Code 3 model 45BZR (7" x 3") surface mount LED lights provided, one (1) each side. Each light
shall have a red lens and a chrome finished flange.
The lights shall be switched at the 12 volt control panel in the cab.
ZONES B AND D - BODY INTERSECTOR LIGHT (BODY REAR CORNERS)
There shall be two (2) Code 3 model 45BZR (7" x 3") surface mount LED lights provided, one (1) each side. Each light
shall have a red lens and a chrome finished flange.
The lights shall be switched at the 12 volt control panel in the cab.
ZONE C - REAR WARNING LIGHTS (LOWER REAR CORNERS)
There shall be two (2) Code 3 model 85BZR (9" x 7") surface mount LED lights provided, one (1) each side. Each light
shall have a red lens and chrome flange.
The lights shall be switched at the 12 volt control panel in the cab.
SVI #766/767
Page 100 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
LINE VOLTAGE ELECTRICAL SYSTEM
ONAN HYDRAULIC GENERATOR
An Onan model CMHG 10000, hydraulic driven generator set shall be installed on the apparatus. The generator shall be
rated at 10,000 watts at 120/240 VAC, 83/42 amps, single phase. Current frequency shall be stable at 60 hertz.
The power generating unit shall be modular unit, housed in stainless steel with an acoustical material added for maximum
sound dampening. The module shall consist of the hydraulic motor, generator, blower, cooler, and all other necessary
components.
For ease of maintenance, the only part of the system that shall require accessibility shall be the oil reservoir which shall
be located as to facilitate periodic checks and the adding of hydraulic fluids.
A means shall be provided to activate the hydraulic generator system.
If the hydraulic generator system is not capable of output as stated on the power source specification label at all engine
speeds, an automatic engine speed control system shall be provided.
If the apparatus is equipped with a fire pump driven by the chassis engine, the generator shall be capable of output as
stated on the power source specification label with the engine at idle.
GENERATOR MONITORING PANEL
To properly monitor the generator performance and load demand during operation, the generator installation shall be
equipped with a full instrument monitor panel located in the dirvers side pump operators panel.
This generator output display shall consolidate five (5) generator monitoring instruments into one device. The display
case shall be waterproof and have dimensions not to exceed 4 1/4" high by 4 1/4" wide by 3 1/4" deep.
The following continuous displays shall be provided with super bright LED digits more than 1/2" high:




Generator frequency in hertz
Line 1 current in amperes
Line 2 current in amperes
Generator voltage in volts
The program shall support the accumulation of elapsed generator hours.
WARRANTY PERIOD
Provided such goods are operated and maintained in accordance with Onan's written instructions, Onan warrants that the
CMHG SERIES Hydraulic Generators shall be free from defects in material and workmanship for a period of five (5) years
or one thousand (1,000) hours, whichever comes first, from the date of delivery to the first purchaser.
HYDRAULIC COMPONENTS
A hydraulic system filter and strainer shall be provided and shall be located in a readily accessible area.
Hydraulic hose shall meet the hydraulic pump manufacturer’s recommendations for pressure, size, vacuum, and abrasion
resistance. Hydraulic fittings shall meet the hydraulic pump manufacturer’s recommendations for pressure, size, and the
type of hose used.
Where the hydraulic hose comes into contact with other surfaces, the hose shall be protected from chafing.
SVI #766/767
Page 101 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
GENERATOR MOUNTING
The generator shall be mounted in the upper dunnage area above the pump module on rubber vibration isolators. The
dunnage area shall be reinforced where necessary to hold weight of generator. A valve shall be provided on the
generator oil drain outlet and piped to underside of generator compartment with flexible hose and plug. The drain shall be
located where easily accessible for generator service.
MANUALS AND SCHEMATICS
Two (2) complete manuals on parts list, maintenance, wiring schematics, hydraulic schematics, circuit boards, voltage
regulator board and other components shall be provided on delivery.
POWER-TAKE-OFF GENERATOR DRIVE
There shall be a "Hot Shift" power-take-off (PTO) installed on the transmission PTO by the cab chassis manufacturer. The
"Hot Shift" PTO is provided to allow the engagement of the PTO at higher engine RPM speeds. The PTO output shall be
connected to the generator through hollow tube type driveline with heavy duty universals.
The engagement of the PTO shall be in the chassis cab with a rocker switch and red pilot light to note engagement of the
PTO.
The power supply to the PTO engagement control shall be wired to the parking brake and a neutral position transmission
switch to prevent engagement unless the vehicle is stopped and transmission has been placed in neutral.
LOADCENTER
The loadcenter shall be a Cutler Hammer, BR Series, specifically designed for protection and distribution of 120/240 volt
AC, such as lighting and small motor branch circuits. The loadcenter enclosure shall be made of 16 gauge galvanized
sheet steel. The galvanized coating provides corrosion protection and as such does not require paint. All trims used on
the BR Loadcenter shall be chromate sealed and finished with electro disposition epoxy paint (ASA61) which exceeds
requirements for outdoor and indoor applications. A combination surface/flush cover with integral door shall be supplied.
The loadcenter shall be UL/CSA listed, NO EXCEPTIONS will be allowed.
OUTLETS AND CIRCUITS
The generator shall supply the electrical equipment and outlets outlined below. Proper circuit protection shall be installed
as noted:

Two (2) 120 volt exterior outlets, one (1) each side near rear wheel well area.
-
The receptacle shall be 20 amp, twist-lock ( NEMA L5-20R ).
SVI #766/767
Page 102 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
GENERAL REQUIREMENTS
Stability
Any fixed line voltage power source producing alternating current (ac) shall produce electric power at 60Hz, ±3Hz when
producing power at all levels between no load and full rated power. Any fixed line voltage power source shall produce
electric power at the rated voltage ±10 percent when producing power at all levels between no load and full rated power.
The maximum voltage supplied to portable equipment shall not exceed 275 volts to ground. Higher voltage shall be
permitted only when used to operate fixed wired, permanently mounted equipment on the apparatus.
Conformance with National Electrical Code
All components, equipment, and installation procedures shall conform to NFPA 70, National Electrical Code, except where
superseded by the requirements of this chapter. Where the requirements of this chapter differ from those in NFPA 70, the
requirements in this chapter shall apply.
Where available, line voltage electrical system equipment and materials included on the apparatus shall be listed and
used only in the manner for which they have been listed. All equipment and materials shall be installed in accordance with
the manufacturer’s instructions.
Location Ratings
Any equipment used in a dry location shall be listed for dry locations. Any equipment used in a wet location shall be listed
for wet locations.
Any equipment, except a PTO-driven generator, used in an underbody or under chassis location that is subject to road
spray shall be either listed as Type 4 or mounted in an enclosure that is listed as Type 4.
If a PTO-driven generator is located in an underbody or under chassis location, the installation shall include a shield to
prevent road spray from splashing directly on the generator.
Grounding
Grounding shall be in accordance with 250.34(A) and 250.34(B) of NFPA 70. Ungrounded systems shall not be used.
Only stranded or braided copper conductors shall be used for grounding and bonding.
The grounded current-carrying conductor (neutral) shall be insulated from the equipment-grounding conductors and from
the equipment enclosures and other grounded parts.
The neutral conductor shall be colored white or gray in accordance with 200.6, “Means of Identifying Grounded
Conductors,” of NFPA 70.
Any bonding screws, straps, or buses in the distribution panelboard or in other system components between the neutral
and equipment-grounding conductor shall be removed and discarded.
Bonding
The neutral conductor of the power source shall be bonded to the vehicle frame. The neutral bonding connection shall
occur only at the power source. In addition to the bonding required for the low voltage return current, each body and each
driving or crew compartment enclosure shall be bonded to the vehicle frame by a copper conductor.
SVI #766/767
Page 103 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
The conductor shall have a minimum amperage rating, as defined in 310.15, “Ampacities for Conductors Rated 0–2000
Volts,” of NFPA 70, of 115 percent of the rated amperage on the power source specification label.
A single conductor that is sized to meet the low voltage and line voltage requirements shall be permitted to be used.
Ground Fault Circuit Interrupters
In special service vehicles incorporating a lavatory, sink, toilet, shower, or tub, 120 V, 15 or 20 A receptacles within 6 ft
(1.8 m) of these fixtures shall have ground fault circuit interrupter (GFCI) protection. GFCIs integrated into outlets or circuit
breakers or as stand-alone devices shall be permitted to be used in situations.
Power Source General Requirements
All power source system mechanical and electrical components shall be sized to support the continuous duty nameplate
rating of the power source.
The power source shall be shielded from contamination that would prevent the power source from operating within its
design specifications.
Power Source Rating
For power sources of 8 kW or larger, the power source manufacturer shall declare the continuous duty rating that the
power source can provide when installed on fire apparatus according to the manufacturer’s instructions and run at 120°F
(49°C) air intake temperature at 2000 ft (600 m) above sea level.
The rating on the power source specification label shall not exceed the declared rating from the power source
manufacturer.
Access shall be provided to permit both routine maintenance and removal of the power source for major servicing. The
power source shall be located such that neither it nor its mounting brackets interfere with the routine maintenance of the
fire apparatus.
Instrumentation
If the power source is rated at less than 3 kW, a “Power On” indicator shall be provided. If the power source is rated at 3
kW or more but less than 8 kW, a voltmeter shall be provided.
If the power source is rated at 8 kW or more, the following instrumentation shall be provided at an operator’s panel:
(1)
(2)
(3)
(4)
Voltmeter
Current meters for each ungrounded leg
Frequency (Hz) meter
Power source hour meter
The instrumentation shall be permanently mounted at an operator’s panel. The instruments shall be located in a plane
facing the operator. Gauges, switches, or other instruments on this panel shall each have a label to indicate their function.
The instruments and other line voltage equipment and controls shall be protected from mechanical damage and not
obstructed by tool mounting or equipment storage.
An instruction plate(s) that provides the operator with the essential power source operating instructions, including the
power-up and power-down sequence, shall be permanently attached to the apparatus at any point where such operations
can take place.
SVI #766/767
Page 104 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
Operation
Provisions shall be made for placing the generator drive system in operation using controls and switches that are
identified and within convenient reach of the operator.
Where the generator is driven by the chassis engine and engine compression brakes or engine exhaust brakes are
furnished, they shall be automatically disengaged for generator operations.
Any control device used in the generator system power train between the engine and the generator shall be equipped with
a means to prevent unintentional movement of the control device from its set position in the power generation mode.
If there is permanent wiring on the apparatus that is designed to be connected to the power source, a power source
specification label that is permanently attached to the apparatus at the operator’s control station shall provide the operator
with the information required.
The power source, at any load, shall not produce a noise level that exceeds 90 dBA in any driving compartment, crew
compartment, or onboard command area with windows and doors closed or at any operator’s station on the apparatus.
Power Supply Assembly
The conductors used in the power supply assembly between the output terminals of the power source and the main
overcurrent protection device shall not exceed 12 ft (4 m) in length.
All power supply assembly conductors, including neutral and grounding conductors, shall have an equivalent amperage
rating and shall be sized to carry not less than 115 percent of the amperage of the nameplate current rating of the power
source.
If the power supply assembly connects to the vibrating part of a generator (not a connection on the base), the conductors
shall be flexible cord or other fine-stranded conductors enclosed in metallic or nonmetallic liquid tight flexible conduit rated
for wet locations and temperatures not less than 194°F (90°C).
Overcurrent Protection
Manually resettable overcurrent devices shall be installed to protect the line voltage electrical system components.
Power Source Protection
A main overcurrent protection device shall be provided that is either incorporated in the power source or connected to the
power source by a power supply assembly.
The size of the main overcurrent protection device shall not exceed 100 percent of the rated amperage stated on the
power source specification label or the rating of the next larger available size overcurrent protection device, where so
recommended by the power source manufacturer.
If the main overcurrent protection device is subject to road spray, the unit shall be housed in a Type 4–rated enclosure.
Branch Circuit Overcurrent Protection
Overcurrent protection devices shall be provided for each individual circuit and shall be sized at not less than 15 amps in
accordance with 240.4, “Protection of Conductors,” of NFPA 70.
Any panelboard shall have a main breaker where the panel has six or more individual branch circuits or the power source
is rated 8 kW or larger.
SVI #766/767
Page 105 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
Each overcurrent protection device shall be marked with a label to identify the function of the circuit it protects.
Dedicated circuits shall be provided for any large appliance or device (air conditioning units, large motors, etc.) that
requires 60 percent or more of the rated capacity of the circuit to which it is connected, and that circuit shall serve no other
purpose.
Panelboards
All fixed power sources shall be hardwired to a permanently mounted panelboard unless one of the following conditions
exists:
(1) All line voltage power connections are made through receptacles on the power source and the receptacles are
protected by integrated overcurrent devices.
(2) Only one circuit is hardwired to the power source, which is protected by an integrated overcurrent device.
The panel shall be visible and located so that there is unimpeded access to the panelboard controls. All panelboards shall
be designed for use in their intended location. The panel(s) shall be protected from mechanical damage, tool mounting,
and equipment storage.
Where the power source is 120/240 V and 120 V loads are connected, the apparatus manufacturer or line voltage system
installer shall consider load balancing to the extent that it is possible.
Wiring Methods
Fixed wiring systems shall be limited to the following:
(1) Metallic or nonmetallic liquid tight flexible conduit rated at temperatures not less than 194°F (90°C) with stranded
copper wire rated for wet locations and temperatures not less than 194°F (90°C)
(2) Type SOW, SOOW, SEOW, or SEOOW flexible cord rated at 600 V and at temperatures not less than 194°F (90°C)
Electrical cord or conduit shall not be attached to chassis suspension components, water or fuel lines, air or air brake
lines, fire pump piping, hydraulic lines, exhaust system components, or low voltage wiring and shall be arranged as
follows:
(1) Separated by a minimum distance of 12 in. (300 mm) from exhaust piping or shielded from such piping
(2) Separated from fuel lines by a minimum distance of 6 in. (150 mm)
A means shall be provided to allow “flexing” between the driving and crew compartment, the body, and other areas or
equipment whose movement would stress the wiring.
Electrical cord or conduit shall be supported within 6 in. (150 mm) of any junction box and at a minimum of every 24 in.
(600 mm) of run.
Supports shall be made of nonmetallic materials or of corrosion-resistant or corrosion-protected metal. All supports shall
be of a design that does not cut or abrade the conduit or cord and shall be mechanically fastened to the apparatus.
Only fittings and components listed for the type of cord or conduit being installed shall be used.
Splices shall be made only in a listed junction box.
SVI #766/767
Page 106 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
Additional Requirements for Flexible Cord Installations
Where flexible cord is used in any location where it could be damaged, it shall be protected by installation in conduit,
enclosures, or guards.
Where flexible cord penetrates a metal surface, rubber or plastic grommets or bushings shall be installed.
Wiring Identification
Each line voltage circuit originating from the main panelboard shall be identified.
The wire or circuit identification either shall reference a wiring diagram or wire list or shall indicate the final termination
point of the circuit.
Where pre-wiring for future power sources or devices exists, the un-terminated ends shall be marked with a label showing
their wire size and intended function.
Wiring System Components
Only stranded copper conductors with an insulation rated for temperatures of at least 194°F (90°C) and wet locations shall
be used. Conductors in flexible cord shall be sized in accordance with Table 400.5(A) of NFPA 70. Conductors used in
conduit shall be sized in accordance with 310.15, “Ampacities for Conductors Rated 0–2000 Volts,” of NFPA 70.
Aluminum or copper-clad aluminum conductors shall not be used.
All boxes shall conform to and be mounted in accordance with Article 314, “Outlet, Device, Pull, and Junction Boxes;
Conduit Bodies; Fittings; and Manholes,” of NFPA 70. All boxes shall be accessible using ordinary hand tools. Boxes shall
not be permitted behind welded or pop-riveted panels.
The maximum number of conductors permitted in any box shall be in accordance with 314.16, “Number of Conductors in
Outlet, Device, and Junction Boxes, and Conduit Bodies,” of NFPA 70.
All wiring connections and terminations shall provide a positive mechanical and electrical connection. Connectors shall be
installed in accordance with the manufacturer’s instructions. Wire nuts or insulation displacement and insulation piercing
connectors shall not be used.
Each switch shall indicate the position of its contact points (i.e., open or closed) and shall be rated for the continuous
operation of the load being controlled. All switches shall be marked with a label indicating the function of the switch.
Circuit breakers used as switches shall be “switch rated” (SWD) or better. Switches shall simultaneously open all
associated line voltage conductors. Switching of the neutral conductor alone shall not be permitted.
Line voltage circuits controlled by low voltage circuits shall be wired through properly rated relays in listed enclosures that
control all non-grounded current-carrying conductors.
SVI #766/767
Page 107 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
Receptacles and Inlet Devices
Wet and Dry Locations
All wet location receptacle outlets and inlet devices, including those on hardwired, remote power distribution boxes, shall
be of the grounding type, provided with a wet location cover, and installed in accordance with Section 406.8, “Receptacles
in Damp or Wet Locations,” of NFPA 70.
All receptacles located in a wet location shall be not less than 24 in. (600 mm) from the ground. Receptacles on off road
fire apparatus shall be a minimum of 30 in. (750 mm) from the ground. All receptacles located in a dry location shall be of
the grounding type and shall be at least 12 in. (300 mm) above the interior floor height. No receptacle shall be installed in
a face-up position.
The face of any wet location receptacle shall be installed in a plane from vertical to not more than 45 degrees off vertical.
Receptacle Label
Each receptacle shall be marked with a label indicating the nominal line voltage (120 volts or 240 volts) and the
current rating in amps of the circuit. If the receptacle is DC or other than single phase, that information shall also be
marked on the label.
All receptacles and electrical inlet devices shall be listed to UL 498, Standard for Safety Attachment Plugs and
Receptacles, or other recognized performance standards.
Receptacles used for DC voltages shall be rated for DC service.
Wiring Schematics
An "As-Built" Wiring diagrams for line voltage systems shall be provided to include the following information;
(a)
(b)
(c)
(d)
(e)
(f)
(g)
Pictorial representations of circuit logic for all electrical components and wiring
Circuit identification
Connector pin identification
Zone location of electrical components
Safety interlocks
Alternator–battery power distribution circuits
Input/output assignment sheets or equivalent circuit logic implemented in multiplexing systems
SVI #766/767
Page 108 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
120/240 VAC SCENE LIGHTING
FRONT CAB-MOUNTED SCENE LIGHT(S)
Two (2) quartz floodlight(s) shall be provided on the front of the cab by the cab/chassis manufacturer. Each light shall be
mounted in a brow-style mounting flange. Scene lights shall be provided with a lens or a means for preventing damage
from water spray and shall be listed for wet location usage.
Each light shall be wired directly to the electrical generator system with Carflex conduit and stranded copper wire. The
floodlights shall be protected with circuit breakers rated at the proper amperage and wire size.

There above lights shall be controlled by one (1) switch(es). The switch(es) shall be located in the cab within reach of
the Driver and/or Officer.
SIDE UPPER RECESSED SCENE LIGHTS
Two (2) Fire Research Focus, model FCA200-S50, recessed light(s) shall be installed. They shall be equally divided
between the curbside and streetside. The housing shall incorporate internal heat-dissipating fins and have cutout
dimensions not to exceed 2" deep by 4 1/4" high by 9 3/4" wide. The lamphead shall protrude no more than 1 1/2" from
the housing flange. Wiring shall extend from the bottom of the recessed housing.
The lamp head shall have one (1) quartz halogen 500 watt 120 volt bulb. The bulb shall draw 4.2 amps and generate
10,500 lumens. The bulb shall be accessible through the front. The lamphead shall direct 50 percent of the light onto the
action area while providing 50 percent to illuminate the working area. Lamphead and housing shall be powder coated
white. The floodlight shall be UL listed as a scene light for fire service use.
Scene lights shall be provided with a lens or a means for preventing damage from water spray and shall be listed for wet
location usage.

The above lights shall be controlled by two (2) switch(es) located on the streetside pump operators panel.
SVI #766/767
Page 109 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
COMMAND LIGHT - SHADOW RT TOWER
The apparatus shall be equipped with one (1) all-electric floodlight tower(s). The unit shall not require tapping into vehicle
braking system to be operated, eliminating the chance for vehicle brake problems. Hydraulic or pneumatic type floodlights
are not acceptable alternatives to the all-electric light tower specified. NO EXCEPTIONS.
The light tower shall have four (4) weatherproof, 500 watt, 120 volt quartz halogen lights. Light heads shall be mounted in
two (2) pairs, giving two (2) vertical lines of two (2) when the lights are in the upright position. The light tower shall have
355 degree rotation and capable of rotating either direction from a stowed position, NO EXCEPTIONS.
The light tower shall be capable of overhanging the side or back of the vehicle (depending on mounting location) to
provide maximum illumination and a warming area adjacent to the vehicle, NO EXCEPTIONS. Positioning of the light
bank shall be accomplished with maintenance free, heavy duty 12 volt linear actuators.
The light tower shall be all aluminum construction, with stainless steel shafts and bronze bushings for long life and low
maintenance.
Light tower shall be controlled with a hand-held umbilical line remote control. The storage station for the remote control
unit shall be equipped with a button to activate the "Auto-Park" automatic nesting feature.
Command Light controls shall include:




Two (2) switches, one (1) for each light bank.
One (1) switch for elevating lower stage.
One (1) light to indicate when light bank is out of roof nest position.
One (1) light to indicate when light bank is rotated to proper nest position.
The controls shall be located on the streetside pump operators panel.
The light tower shall have a full extension over 4' from mounted position and extend from nest position to full upright in 15
seconds. The overall size of nested light tower shall be approximately 21-1/2" wide x 48" long x 7-1/2" high, and weight
approximately 65 lbs.
A flashing warning light shall be provided in cab, indicating when a light tower is not in nested position as required by
NFPA 1901. The operational envelope of the mast shall be automatically illuminated whenever the mast assembly is
being raised, lowered, or rotated as required by NFPA 1901.
The Command Light shall be covered by a one (1) year limited warranty from defects in materials and workmanship. An
operation, maintenance, and parts manual shall be provided with the delivered apparatus.
The light tower shall be mounted to roof of the custom cab which shall be reinforced as necessary to support weight of the
light tower.
SVI #766/767
Page 110 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
HALE FIRE PUMP SYSTEM (PUMP MODULE ASSEMBLY)
PUMP ASSEMBLY
1. The pump shall be of size and design to mount on the chassis rails of a commercial and/ or custom truck chassis, and
have the capacity of 1,500 gallons per minute as NFPA-1901 rated performance requirements.
2. The entire pump shall be assembled and tested at the pump manufacturer's factory.
3. The pump shall function by the utilization of a driveline from the truck transmission. The engine shall provide sufficient
horsepower and RPM to enable the pump to meet and exceed its rated performance.
4. The entire pump, both suction and discharge passages, shall be hydrostatically tested to a pressure of 600 PSI. The
pump shall be tested at the pump manufacturer's facility to performance specifications as outlined by NFPA-1901 rated
performance requirements. The pump shall be free from objectionable pulsation and vibration.
5. The pump body and related parts shall be constructed of fine grain alloy cast iron, with a minimum tensile strength of
30,000 PSI (2,069 bar). All metal moving parts in contact with water shall be manufactured of high quality bronze or
stainless steel. Any pump utilizing castings made of lower tensile strength cast iron not acceptable.
6. The pump body shall be horizontally split, on a single plane in two sections, for ease of removal of the impeller
assembly. Wear rings and bearings associated with the pump body shall remove easily without disturbing the piping or
mounting of the pump in chassis.
7. The pump body shall incorporate the discharge manifold system with a minimum of two (2) 4” (10.16 cm) port and
seven (7) 3” (7.62 cm) ports.
8. The pump shall have one (1) double suction impeller. The pump body shall have two (2) opposed discharge volute
cutwaters to eliminate radial unbalance.
9. The pump shaft shall be rigidly supported by three (3) bearings for minimum deflection. There shall be one (1) high
lead bronze sleeve bearing to be located immediately adjacent to the impeller found on the side opposite of the
gearbox. The sleeve bearing shall be lubricated by a force fed, automatic oil lubricated design, pressure balanced to
exclude foreign material. (No exceptions.) The remaining bearings shall be heavy-duty, deep groove ball bearings in
the gearbox and they shall be splash lubricated.
10. The pump shaft shall have only one (1) packing gland located on the inlet side of the pump.The pump shaft shall be of
split design for ease of repacking. The packing gland shall be manufactured of a full-circle threaded design to exert
uniform pressure on packing and to prevent "cocking" and uneven packing load when it is tightened. (No exceptions.)
The pump shaft shall be adjusted easily by hand with rod or screwdriver without special tools or wrenches required.
The packing rings shall be of a unique, permanently lubricated, long-life graphic composition and have sacrificial zinc
foil separators to protect the pump shaft from galvanic corrosion. (No exceptions.) A mechanical seal shall be
provided in place of pump packing. There shall be only one (1) required on the suction (inboard) side of the pump.
The mechanical seal must be two (2) inches in diameter and shall be spring loaded, maintenance free and selfadjusting.
11. The pump impeller shall have clearance rings manufactured of bronze, easy to remove, without replacing impeller or
pump volute body. The vanes of the impeller intake eyes shall be of sufficient size and design to provide ample
reserve capacity utilizing minimum horsepower.
12. The pump shaft shall be manufactured of heat-treated, electric furnace, corrosion resistant stainless steel for longer
shaft life. The pump shaft shall be sealed with a double-lip oil seal to keep road dirt and water out of gearbox.
SVI #766/767
Page 111 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
GEARBOX
1. The pump gearbox shall be of sufficient size to withstand up to 16,000 lb/ft (7,257 kg/m) of drive through torque of the
engine system. The drive unit shall be designed of ample capacity for lubrication reserve and to maintain the proper
operating temperature.
2. The gearbox drive shafts shall be of heat-treated chrome nickel steel and at least 2-¾” (6.99 cm) in diameter, on both
the input and output drive shafts. The drive shaft shall withstand the full torque of the engine.
3. All drive and pump gears shall be manufactured of the highest quality electric furnace chrome nickel steel. All bores
shall be ground to size, teeth integrated and hardened, to create an extremely accurate gear for long life, smooth, quiet
running, and higher load carrying capability. An accurately cut spur design shall be provided to eliminate all possible
end thrust. (There will be no exceptions.)
4. The pump ratio shall be selected by the apparatus manufacturer to give maximum performance with the engine and
transmission selected.
5. If the gearbox is equipped with a power shift, the shifting mechanism shall be a heat-treated, hard anodized aluminum
power cylinder, with stainless steel shaft. An in-cab control for rapid shift shall be provided that locks in road or pump.
6. All apparatus built with automatic transmissions shall be provided three (3) green warning lights to indicate to the
operator(s) when the pump has completed the shift from road to pump position. The warning lights will be located as
stated: two (2) in the truck driving compartment and one (1) on the pump operators panel adjacent to the throttle
control. For manual transmissions, one (1) green warning light will be provided for the driving compartment. All lights
shall have appropriate identification/instruction plates.
CERTIFICATION
The pump will perform and meet the following tests to receive a Third Party Certification.
100% of rated capacity @150 PSI net pump press.
100% of rated capacity @ 165 PSI net pumps press.
70% of rated capacity @ 200 PSI net pump press.
50% of rated capacity @ 250 PSI net pump press
PRIMING PUMP
The priming pump shall be a positive displacement, oil-less rotary vane electric motor driven pump conforming to NFPA1901 rated performance requirements. The pump body shall be manufactured of heat-treated anodized aluminum for
wear and corrosion resistance.
The pump shall be capable of producing a minimum of 24 Hg vacuum at 2,000 feet (609.6m) above sea level. The electric
motor shall be a 12 VDC totally enclosed unit.
The priming pump shall not require lubrication. The priming pump shall operate by a single pull control valve mounted on
the pump operators panel. The control valve shall be manufactured of bronze construction.
SVI #766/767
Page 112 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
BALL VALVES
The valves including the ball shall be cast of 316 stainless steel with full flow capability. The valve shall have dual seats
made of Acetate Resin with dual seals made of an internally lubricated rubber compound with a steel band.
The valves shall be of floating ball design with a flow pressure rating to exceed NFPA-1901 standards rating of 600 psi.
The valve shall have lubrication capability from a supplied Zert fitting on the adapters for the valve body with the
knowledge that lubrication is not required.
All 3.0”(7.62cm) discharge valves shall be supplied with a true slow close mechanism, which is required to be no less than
70 lb (31.8kg) of hand pressure over a three second throw. The valve shall also require a maximum actuation force of 75
lb (34 kg). The 2½” (6.35cm) side mounted swing handle valve shall also have a true locking mechanism, which shall be
made of a cam and pin arrangement or a twist lock for true locking when the valve is gated. All side control valves will be
supplied with push pull controls unless otherwise noted.
The valve shall be warranted for a period of ten (10) years on all stainless steel components, against defects in design
and manufacturing processes. The wear items such as the seats, seals, and “O” rings shall have a warranty of two years
on replacement parts only.
INTRUMENT PANEL
The Instrument Panel shall be black powder coated aluminum and contain the following:










One (1) 4½” (11.43cm) Intake Master Gauge
One (1) 4½” (11.43 cm) Discharge Master Gauge
One (1) Pump Cooler Valve
One (1) Engine Cooler Valve
One (1) Intelli-Tank Water Level Gauge
Two (2) Test Ports
One (1) Panel Light Switch
One (1) ENFO III
One (1) Captain Pressure Governor
One (1) Intelli-Tank Foam Level Gauge
PIPING AND MANIFOLDS
All the piping and pump body attached manifolding shall be stainless steel. The complete piping system shall be designed
to direct mount all 1-½” or larger ball valves onto the pump body or stainless steel manifolds attached directly to the pump
body.
All NHT pipe thread connections larger than ¾” connections shall be avoided in the construction of the plumbing system.
The following valves shall have groove connection: rear discharge, tank fill, all 2” and 2-½” (5.08 and 6.35cm) pre connect
valves. The tank to pump 3” (7.62 cm) valve shall have a hose barb connection.
TANK FILL
There shall be a 1-½"(3.81cm) pump to tank fill stainless steel valve. Valve shall be controlled at the side or top pump
panel with a chrome handle.
PUMP COOLER AND ENGINE COOLER VALVE
An engine cooler and pump cooler valve shall be installed in the instrument panel. There shall be a turn valve installed
thru the instrument panel and labeled.
SVI #766/767
Page 113 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
SUCTIONS
6" STEAMER INLETS
Two (2) 6" (15.24cm) steamer inlets will be provided, one (1) on the left side and one (1) on the right side. Both inlets
shall have long handle chrome vented caps and a screen.
2-½" LEFT SIDE SUCTION
One (1) 2-½" (6.35 cm) stainless steel valve shall be installed on the left side of the pump panel. The valve shall be
controlled at the streetside pump panel with a chrome handle. The valve shall come equipped with a chrome plug, chain,
inlet strainer, one (1) 2-½" (6.35 cm) NHT chrome inlet swivel and one (1) ¾" bleeder/drain valve.
2-½" RIGHT SIDE SUCTION
One (1) 2-½" (6.35 cm) stainless steel valve shall be installed on the right side of the pump panel. The valve shall be
controlled at the side with a chrome handle. The valve shall come equipped with a chrome plug, chain, inlet strainer, one
(1) 2-½" (6.35 cm) NHT chrome inlet swivel and one (1) ¾" bleeder/drain valve.
4" RIGHT REAR MIV
One (1) 4" (10.16cm) inlet valve shall be installed on the right side of the pump panel. The inlet valve shall be a full flow
butterfly type valve designed to mount on the fire pump between the suction tube extension and suction tube behind the
pump compartment panel. The valve shall not interfere with other suction or discharge openings on the fire pump or with
pump operating controls when properly mounted.
The valve body and related components that are in contact with water shall be manufactured of fine grained corrosion
resistant bronze.
The butterfly disc shall be manufactured from 80,000 PSI minimum yield strength heat treated cast steel then coated with
a durable nitrile rubber to provide a positive seal when the valve is closed.
A pressure relief valve shall be provided that is factory set to 125 PSI and field adjustable from 75 to 250 PSI . The
pressure relief valve shall provide overpressure protection for the suction hose even when the intake valve is closed. An
integral relief valve mounting pad shall be provided on the valve body. This mounting pad shall provide a Hale type 115 43/8 inch bolt circle flange for normal installation. The mounting pad shall have 2-½ inch female NPT threads to permit
remote mounting of the relief valve without special adapters. The outlet of the pressure relief valve shall have 2-½ inch
NHT threads to allow directing the discharge flow away from the pump operator position.
The inlet valve(s) shall be operated by a 12 VDC electric motor with remote capabilities or by a manual hand wheel
located next to the suction tube.
Each valve shall be provided with panel placards indicating control operation. The placards shall have status lights to
indicate whether the valve is open, closed or traversing from one position to another.
Each valve shall be provided with a gear actuator that will cycle the valve from OPEN to CLOSED position in no less than
3 seconds. The gear actuators shall be sealed units designed to provide reliable service in the harsh pump compartment
environment. The ratio of the gear actuator shall be such that the hand wheel will close the valve in no more than 10
complete turns.
SVI #766/767
Page 114 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
The 12 VDC motor on the electric operated valve shall be provided with an automatic resetting, thermally compensated,
overcurrent protection circuit breaker to protect the 12 VDC motor and apparatus electrical system. The electrical wiring
for the valve shall be minimum 14 AWG, type SXL or GXL (SAE J1128) and shall be protected using 257 F minimum
flame retardant, moisture resistant loom or braid. All electrical connections shall use sealed Packard Weather Pack
connectors to provide extra protection from the harsh pump compartment environment to ensure long life and reliable
operation.
The valve body shall have a ¾ inch female NPT threaded port on the top to allow installation of an NFPA compliant large
diameter hose air bleeder valve. The air bleeder valve shall be mounted on the operator panel and be controllable by the
pump operator. Air bleeder valve connections shall have a restriction no larger than ¾ inch to prevent water hammer
when filling hose.
The valve body shall have a ¼ inch female NPT threaded port on the bottom to permit connection of an individual water
drain valve.
A suction tube extension 7-¼ inches wide shall be used to allow for the additional length of the inlet valve. The shorter
suction tube extension, along with a 4, 6 or 9 inch suction tube, will keep the suction tube threads within the apparatus
running boards while maintaining clearance for adapters.
A panel mounted manual override shall be provided to permit operation of the electric remote control valve in the event of
abnormal operating conditions. The manual override shall be designed to permit operation of the valve without the use of
special tools or disassembly of the pump compartment panel or valve.
The valve shall be equipped with o-ring seals for the mounting flanges. The o-ring seal groove shall be sized for proper
squeeze of the o-ring for pressures in excess of 600 PSIG.
TANK TO PUMP
The tank to pump valve shall be 3" (7.62cm) inline, installed between the water tank and the pump. The valve shall be a
quarter turn ball type, fixed pivot design and be constructed of stainless steel. The valve shall be controlled at the
streetside pump panel with a chrome handle.
RELIEF VALVE
There shall be one (1) suction side stainless steel relief pump valve provided on the pump system.
SVI #766/767
Page 115 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
DISCHARGES
2-½" STREETSIDE DISCHARGES
Two (2) 2-½" (6.35cm) discharge with a stainless steel valves shall be located on the streetside pump panel. The valves
shall be a quarter turn ball type and fixed pivot design to allow easy operation at all pump pressures. The 2-½" (6.35cm)
outlet shall be equipped with an integral, stainless steel, 30-degree elbow terminating with 2- ½" (6.35cm) NHT threads. A
chrome vented cap and chain shall also be supplied. The valve shall be controlled at the streetside pump panel with a
chrome handle. A 2-½" (6.35cm) white-faced, Interlube filled pressure gauge shall be installed on the panel near the
control handle to indicate pressures from 0 to 400 P.S.I. The discharge shall also come equipped with a quarter-turn, ¾"
drain valve.
3" CURBSIDE DISCHARGE
One (1) 3" (7.62cm) discharge with a stainless steel valve shall be located in the forward position on the curbside pump
panel. The valve shall be a quarter turn ball type and fixed pivot design to allow easy operation at all pump pressures.
The 3" (7.62cm) outlet shall be equipped with an integral, stainless steel, 30-degree elbow terminating with 3"(7.62cm)
NHT threads. One (1) chrome vented cap and chain shall also be supplied. The valve shall be controlled at the streetside
pump panel with a chrome handle. One 2- ½" (6.35cm) white-faced, Interlube filled pressure gauge shall be installed on
the panel near the control handle to indicate pressures from 0 to 400 P.S.I. The discharge shall also come equipped with
a quarter-turn, ¾" drain valve.
2-½" CURBSIDE DISCHARGE
One (1) 2-½" (6.35cm) discharge with a stainless steel valve shall be located in the rearward position on the curbside
pump panel. The valve shall be a quarter turn ball type and fixed pivot design to allow easy operation at all pump
pressures. The 2-½" (6.35cm) outlet shall be equipped with an integral, stainless steel, 30-degree elbow terminating with
2- ½" NHT threads. One (1) chrome cap and chain shall also be supplied. The valve shall be controlled at the streetside
pump panel with a chrome handle. One (1) 2-½"(6.35cm) white-faced, Interlube filled pressure gauge shall be installed on
the panel near the control handle to indicate pressures from 0 to 400 P.S.I. The discharge shall also come equipped with
a quarter-turn, ¾" drain valve.
3" DECK GUN DISCHARGE
There shall be a 3"(7.62cm) deck gun discharge installed at the top of the pump. The valve shall be a quarter turn ball
type of fixed pivot design and constructed of stainless steel. The valve shall be controlled at the streetside pump panel
with a chrome handle. The valve shall be of the slow-close design so as not to allow the valve to open or close in less
than 3 seconds. One (1) 2-½"(6.35cm) white-faced Interlube filled pressure gauge shall be installed in the operator's
panel near the control handle to indicate pressures from 0 to 400 P.S.I. The discharge shall be equipped with a quarterturn, ¾” drain valve.
2-1/2" CURBSIDE REAR DISCHARGE
One (1) 2-½" (6.35cm) discharge with a stainless steel valve shall be located on the right side rear of the pump manifold
for extension to the curbside rear of the apparatus by the OEM. The valve shall be a quarter turn ball type and fixed pivot
design to allow easy operation at all pump pressures. The 2-½"(6.35cm) outlet shall terminate with a 2-½”(6.35cm)
Victaulic connection. The valve shall be controlled at the streetside pump panel with a chrome handle. One (1) 2-½"
(6.35cm) white-faced Interlube filled pressure gauge shall be installed on the panel near the control handle to indicate
pressures from 0 to 400 P.S.I. The discharge shall come equipped with a quarter-turn, ¾" drain valve.
SVI #766/767
Page 116 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
CROSSLAY
Two (2) crosslays capable of storing up to 200' of 1-¾” double jacketed fire hose shall be installed on the front of the
pump module for use from either side of the apparatus. Each crosslay shall have one (1) 2" (5.08cm) x 1-½” (3.81cm)
NHT male chicksan swivel located on either the streetside or curbside of the pump module. Each crosslay shall have one
(1) 2" (5.08cm) stainless steel valve. The crosslay shall be controlled at the streetside pump panel with a chrome handle.
There shall be a 2-½” (6.35cm) individual line gauge and ¾” quarter turn drain valve provided for each crosslay valve.
2" FRONT BUMPER JUMP LINE DISCHARGE
One (1)2" (5.08cm) stainless steel valve. Valve shall be controlled at the side pump panel with a chrome handle. One (1)
2-½" (6.35cm) white-faced Interlube filled pressure gauge shall be installed on the panel near the control handle to
indicate pressures from 0 to 400 P.S.I. One (1) ¾” quarter-turn drain valve provided.
2" REAR BUMPER JUMP LINE DISCHARGE
One (1)2" (5.08cm) stainless steel valve. Valve shall be controlled at the side pump panel with a chrome handle. One (1)
2-½" (6.35cm) white-faced Interlube filled pressure gauge shall be installed on the panel near the control handle to
indicate pressures from 0 to 400 P.S.I. One (1) ¾” quarter-turn drain valve provided.
VALVE CONTROLS SIDE
Class 1 locking push pull control rods shall be provided for valve actuation. The chrome plated zinc handles shall have a
recessed area for 1” x 3” (2.54 x 12.70cm) identification tags. The controls shall be locked in any position.
WIRING HARNESS
The Class 1 electrical wiring harness shall be manufactured using GXL wire as SAE- J1128 rated performance
requirements. The electrical wiring harness shall be covered by a black split convoluted loom, rated at a minimum of 275º
F. All terminals shall meet the minimum pull test as required by the manufacturers pull test and crimp measurement data.
All splices shall be manufactured using the ultra sonic splice process. The harness shall be 100% connected to a Dynalab
circuit tester to insure continuity and correct assembly.
PRESSURE GOVENOR
The kit shall be equipped with a Class 1 Captain pressure governor that is connected directly to the Electronic Control
Module (ECM) mounted on the engine. The Captain is to operate as a pressure sensor governor (PSG).
ENFO III
The kit shall be equipped with a Class 1 ENFO III Engine Information Display for the pump operators panel. The ENFO III
shall provide engine RPM, system voltage display and alarm, engine oil pressure display and alarm, and engine
temperature display and alarm. The ENFO III is available in English and Metric, and utilizes SAE J-1587 data bus for its
information, and does not require any additional sensors to be mounted.
SVI #766/767
Page 117 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
MASTER GAUGES
All Class 1 gauges shall be fully filled with pulse and vibration dampening Interlube to lubricate the internal mechanisms to
prevent lens condensation and to ensure proper operation to minus 40 degrees F. The 4-½"(11.43cm) white-faced,
Interlube filled pressure gauge shall indicate pressures from 0 to 400 P.S.I. for the discharge, and 30" to 400 P.S.I. for the
suction. The cases shall be temperature compensated with an internal breathing diaphragm to permit fully filled cases and
to allow a rigid lens with a distortion free viewing area. To prevent internal freezing and to keep contaminants from
entering the gauge, the stem and Bourdon tube shall be filled with low temperature oil and be sealed from the water
system using an isolating diaphragm located in the stem (no exceptions). A bright metal bezel shall be supplied for
resistance to corrosion and to protect the lens and case from damage. Two (2) 4-½” (11.43cm) master pump gauges
shall be supplied and mounted next to each other, adjacent to the Captain pressure governor and engine instrumentation.
The intake gauge shall be located to the left of the discharge gauge.
INDIVIDUAL DRAINS
All 2” (5.08cm) or larger discharge outlets shall be equipped with a ¾” ball valve drain valve or larger.
MASTER PUMP DRAIN
The pump shall be equipped with a Class 1 Master Pump 12 port drain to allow draining of the lower pump cavities, volute
and selected water carrying lines and accessories. The drain shall have an all brass body with a stainless steel return
spring.
U.L. TEST POINTS
Two (2) U.L. test plugs shall be mounted on the pump panel for testing of the vacuum and pressures.
TANK LEVEL GAUGE
The Class 1 tank level gauge shall indicate the liquid level on an easy to read display and show 9 levels of indication.
Each tank level gauge system shall include:
One (1) pressure transducer shall be mounted on the outside of the tank. All sealed foam tanks require a second
transducer.
One (1) set of weather resistant connectors, connecting to the digital display, to the pressure transducer and to the
apparatus power.
DISCHARGE GAUGES
Individual Class 1 2-½(6.35 cm) line gauges for each 2” (5.08 cm) or larger discharge shall be provided and mounted
adjacent to the discharge valve control handle. The gauges shall be white-faced, Interlube filled pressure gauges and
handle pressures from 0 to 400 PSI. The pressure gauge shall be fully filled with pulse and vibration dampening Interlube
to lubricate the internal mechanisms to prevent lens condensation and to ensure proper operation to minus 40 degrees F.
The cases shall be temperature compensated with an internal breathing diaphragm to permit filled cases and to allow a
rigid lens with a distortion free viewing area. To prevent internal freezing and to keep contaminants from entering the
gauge, the stem and Bourdon tube shall be filled with low temperature material and be sealed from the water system
using an insolating Sub Z diaphragm located in the stem. A bright metal bezel shall be supplied for resistance to corrosion
and to protect the lens and case from damage.
CLASS A FOAM SYSTEM
The pump module shall be pre-configured for a body builder installed Foam Pro 2001.
SVI #766/767
Page 118 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
WARRANTY
The Hale pump shall be covered by the standard (5) year warranty; first two (2) years parts and labor, and three (3) thru
five (5) years parts only.
BODY BUILDER FIRE PUMP SYSTEM ADDITIONS/MODIFICATIONS
DECK GUN/GENERATOR AREA MODIFICATION
The Class 1 pump module shall be modified by extending the sides upward to just below the Spartan 10" cab height. The
design shall be a recessed tub for location of the hydraulic generator and deck gun/monitor. The tub interior surfaces shall
be fabricated from NFPA compliant 3/16" aluminum tread plate. The exterior surfaces of unit shall be finish painted to
match the body.
FOAM SYSTEM
The apparatus shall be equipped with an electronic, fully automatic, variable speed, direct injection, discharge side foam
proportioning system. The system shall be capable of handling Class A foam concentrates and most Class B foam
concentrates. The foam proportioning operation shall be based on direct measurement of water flows, and remain
consistent within the specified flows and pressures. System must be capable of delivering accuracy to within 3% of
calibrated settings over the advertised operation range when installed according to factory standards. The system shall be
equipped with a digital electronic control display suitable for installation on the pump panel. Incorporated within the control
display shall be a microprocessor that receives input from the system flowmeter(s), while also monitoring foam
concentrate pump output, comparing values to ensure that the operator preset proportional amount of foam concentrate is
injected into the discharge side of the fire pump.
Paddlewheel-type flowmeter(s) shall be installed in the discharges specified to be “foam capable.” When the use of more
than one flowmeter is required, an interface electronics module will be provided to totalize these flows and send the flow
total to the microprocessor in the computer control display.
The digital computer control display shall enable the pump operator to perform the following control and operation
functions for the foam proportioning system:








Provide push-button control of foam proportioning rates from 0.1% to 9.9%, in 0.1% increments
Show current flow-per-minute of water
Show total volume of water discharged during and after foam operations are completed
Show total amount of foam concentrate consumed
Simulate flow rates for manual operation
Perform setup and diagnostic functions for the computer control microprocessor
Flash a “low concentrate” warning when the foam concentrate tank(s) runs low
Flash a “no concentrate” warning and shut the foam concentrate pump off, preventing damage to the pump, should
the foam tank(s) empty
A 12-volt electric motor drive positive displacement foam concentrate pump, rated up to 2.5 gpm (9.5 L/min) @ 150 psi
with operating pressures up to 400 psi (27.6 BAR), shall be installed in a suitable, accessible location. The system will
draw a maximum of 40 amps @ 12 VDC or 21 amps @ 24 VDC. A pump motor electronic driver (mounted to the base of
the pump) shall receive signals from the computer control display and power the 1/2 hp (0.40 Kw) electric motor directly
coupled to the concentrate pump in a variable speed duty cycle to ensure that the correct proportion of concentrate preset
by the pump operator is injected into the water stream.
Full flow check valve shall be provided to prevent foam contamination of fire pump and water tank or water contamination
of foam tank.
SVI #766/767
Page 119 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
Components of the complete proportioning system shall include:







Operator control and display
Paddlewheel flowmeter(s)
Pump and electric motor/motor driver
Wiring harnesses
Low level tank switch
Foam injection check valve
Main waterway check valve
An installation and operation manual shall be provided for the unit, along with a one-year limited warranty by the
manufacturer. The system must be installed and calibrated by a Certified FoamPro Dealer.
The system design shall have passed environmental testing which simulates heavy use on off-road mobile apparatus.
Testing shall have been conducted in accordance to SAE standards.
FOAM DISCHARGES
The following discharges shall be foam capable:




One (1) 2-1/2" rear body discharge
Two (2) 2" pump module cross lays
One (1) 2" front bumper pre-connect discharge
One (1) 2" rear bumper pre-connect discharge
INTAKE(S)
The completed apparatus shall have the following intake(s) added/modified by the body builder;
There shall be one (1) 4" gated intake provided on the curbside rear of the apparatus. The intake shall be extended from
the MIV intake opening on the pump using Class 1 flexible hose and shall terminate at the rear of the apparatus in a 30
degree down-sweep elbow with 5" Storz adapter and 5" Storz plug and chain. A manual drain accessible from the side of
the apparatus shall be provided at the rear of body.
DISCHARGE(S)
The completed apparatus shall have the following discharge(s) added/modified by the body builder;
REAR DISCHARGE(S)
There shall be one (1) 2-1/2" gated discharge(s) extended from pump module to the curbside rear of apparatus. Each
discharge shall terminate in a down-sweep elbow with NHT threads. Each discharge shall include a chrome vented cap
and chain.
FRONT DISCHARGE(S)
There shall be one (1) 2" gated discharge(s) extended from the pump module to the curbside rear of the front bumper.
Each discharge shall terminate with a 2" x 1-1/2" chrome plated Chicksan swivel with NHT threads.
SVI #766/767
Page 120 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
MISCELLANEOUS DISCHARGE(S)
REAR BUMPER & PRE-CONNECT HOSE LAY
An aluminum tread plate cover shall be installed over the top of the rear step bumper to provide a compartment for
storage of up to 100' of 1-3/4" double jacketed fire hose with nozzle. The cover shall be hinged at the rear to lift-up and
expose the pre-connected hose load. There shall be one (1) 2" gated discharge extended from the pump module to the
rear bumper. The discharge shall terminate with a 2" x 1-1/2" NHT male adapter. The hose connection shall be located in
the hose lay for a straight connection.
Hose and nozzle shall be supplied by Inter-Canyon Fire Department.
CROSS LAY(S)
There shall be two (2) cross lay(s) provided with the completed pump module. Each cross lay shall be transverse of the
module with access from either side. Two (2) removable hose trays shall be provided, one (1) for each cross lay, capable
of extending out either side of the pump module with a roller mechanism to assist in removal.
Two (2) vinyl covers shall be provided, one (1) on each side of the apparatus, to prevent the hose load and nozzle from
falling out during travel.
DECK GUN
There shall be one (1) 3" gated discharge located on the upper deck above the pump compartment. Piping shall rise high
enough for a mounted deluge gun to be operated in a 360 degree circle to a lower angle of 15 degrees without being
impeded by any part of the apparatus or equipment.
The discharge shall terminate with a 6-bolt flange with NHT threads.
DELUGE MONITOR
There shall be one (1) TFT manual Extenda-A-Gun, model XG18PL-PL with a Hurricane model XFI-PLNJ 1250 GPM
monitor and model M-R1250SNJ automatic nozzle and model XF-SS10 stream straightener.
PUMP PANEL
The pump controls shall be mounted on an aluminum control panel which shall have a black powder coat painted finish.
The panel shall be hinged, or bolted in place allowing it to be easily removed to gain access to plumbing components.
COLOR CODED LABELS
The completed unit shall have color coded labels for each discharge, intake, master gauge, and drain. Labels shall be
manufactured from an acrylic poly material with the text of each label engraved in the top surface.
PUMP PANEL LIGHTING
All gauges and controls on the pump operators panel shall be adequately illuminated by a shielded light assembly with
OnScene Solutions LED type lights. The lights shall be activated by a weather-proof type switch on the pump operators
panel. This switch shall also activate any area step lighting.
SVI #766/767
Page 121 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
UPF POLY WATER TANK
The water tank capacity shall be approximately 550 U.S. gallons. Certification of the tank capacity shall be recorded on
the manufacturer's record of construction and shall be provided to the purchaser upon delivery of the apparatus.
The UPF Poly-Tank ® IIE shall be constructed of 1/2" thick PT2E™ polypropylene sheet stock. This material shall be a
noncorrosive stress relieved thermoplastic, natural in color, and U.V. stabilized for maximum protection.
The booster tank shall be of a specific configuration and shall be so designed to be completely independent of the body
and compartments. All joints and seams shall be nitrogen welded and tested for maximum strength and integrity. The top
of the booster tank shall be fitted with removable lifting eyes designed with a 3 to 1 safety factor to facilitate easy removal.
The transverse swash partitions shall be manufactured of 3/8" PT2E™ polypropylene (natural in color) and extend from
approximately 4" off the floor to just under the cover. The longitudinal swash partitions shall be constructed of 3/8" PT2E
polypropylene (natural in color) and extend to the floor of the tank through the cover to allow for positive welding and
maximum integrity. All partitions shall be equipped with vent and air holes to permit movement of air and water between
compartments. The partitions shall be designed to provide maximum water flow. All swash partitions shall interlock with
one another and be welded to each other as well as to the walls of the tank.
There shall be one (1) sump in the bottom of the water tank. The sump shall be constructed of 1/2" polypropylene and
shall be located in the left front quarter of the tank. On all tanks that require a front suction, a 4" schedule 40
polypropylene pipe shall be installed that will incorporate a dip tube from the front of the tank to the sump location. The
sump shall be used as a combination clean-out and drain. All tanks shall have an anti-swirl plate located approximately 2"
above the sump to pre-vent air from being entrained in the water while pumping.
All tank fill couplings shall be backed with flow deflectors to break up the stream of water entering the tank, and shall be
capable of withstanding sustained fill rates of up to 1,000 GPM.
The tank lid shall be constructed of 1/2" thick PT2E™ polypropylene to incorporate a multi three-piece locking design that
allows for individual removal and inspection if necessary. The tank lid shall be recessed 3/8" from the top of the tank and
shall be welded to both sides and longitudinal partitions for maximum integrity. Each one of the lids shall have hold
downs consisting of 2" polypropylene dowels spaced a maximum of 30" apart. These dowels shall extend through the
covers and shall assist in keeping the covers rigid under fast filling conditions. A minimum of two lifting dowels shall be
drilled and tapped 1/2" x 13" to accommodate the lifting eyes.
The UPF Poly-Tank IIE shall rest on the body cross members in conjunction with such additional cross members, as
required by the tank manufacturer.
The tank shall be isolated from the cross members through the use of hard rubber strips with, a minimum Rockwell
Hardness of 60 durometer. Additionally, the tank shall be supported around the entire perimeter and captured both front
and rear as well as side to side to prevent the tank from shifting during vehicle operation.
Although the tank shall be designed on a free floating suspension principle, it shall be required that the tank have
adequate hold down restraints to minimize movement during vehicle operation.
The tank shall be completely removable without disturbing or dismantling the apparatus structure.
The tank shall have a lifetime warranty from UPF.
SVI #766/767
Page 122 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
TANK FILL / VENT
The tank shall have a combination vent and manual fill tower marked "Water Fill." The fill tower shall be constructed of
1/2" PT2E polypropylene and shall be a minimum dimension of 8" x 8" at the outer perimeter.
The tower shall be located in the left front corner of the tank. The tower shall have a 1/4" thick removable polypropylene
screen and a PT2E polypropylene hinged-type cover. Inside the fill tower, approximately 4" down from the top, shall be
fastened a combination vent overflow pipe. The vent overflow shall be a minimum of schedule 40 polypropylene pipe that
is designed to run through the tank, and shall be piped behind the rear wheels so as to obtain maximum traction.
There shall be an auxiliary tank vent piped to the rear of the tank to void trapped air and allow filling the tank to the
maximum when filling on un level surfaces.
UPF TANK OVERFLOW
The tank shall be equipped with a minimum of a 6" schedule 40 polypropylene overflow / air vent pipe. The pipe shall be
installed in the fill tower and extend through the tank and dump to the rear of the rear axle.
CLASS A POLYPROPYLENE FOAM CELL
There shall be one (1) 20 U.S. gallon polypropylene foam cell(s) incorporated into the polypropylene water tank.
There shall be one (1) pressure/vacuum vent installed on the foam tank.
There shall be one (1) drain hose connected to the foam cell. The drain shall have a 1/4 turn valve installed inside the
pump house and it shall drain below the frame rail of the chassis.
HOSE BED STORAGE AREA
Hose bed storage area shall be located over water tank and body, and shall exit at the rear of the apparatus. The interior
of storage area shall be free from all projections such as nuts, sharp angles, or brackets that may damage equipment.
The hose bed deck shall be constructed from 3"x3/4" hollow aluminum extrusions welded into a one-piece grid to allow
ventilation and water drainage. The extrusions shall have an anodized radiused ribbed top surface. The deck will be
completely removable for easy access to the booster tank. The booster tank fill tower shall be protected as necessary to
prevent damage from equipment located in the storage area.
HOSEBED PARTITION(S)
There shall be one (1) adjustable aluminum hose bed partition(s) provided in the hose storage area. The partition(s) shall
be 3/16" smooth aluminum with split aluminum tubing welded to the top and rear edges.
HOSEBED CAPACITY
Hose bed storage shall be 1,000' of 5" Jaffrey LDH on left side and 800' of 2-1/2" hose on right side.
VINYL HOSE BED COVER
A red marine grade vinyl cover shall be provided along the rear of the hose bed to prevent the hose load and nozzles from
falling out of the apparatus while driving. The cover shall be designed to attach to the hinged hose bed covers and
include "T" style snap fasteners along the sides and weighted bottom flap.
SVI #766/767
Page 123 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification
ALUMINUM HOSE BED COVER
Hose bed storage area will be covered with a hinged aluminum cover with gas pistons to assist with opening. The cover
shall be formed out of 1/8" NFPA treadplate with formed hat sections for bracing. The doors shall be designed to hinge
outward from the outer edges and be supported from underneath by at least one adjustable hose bed divider.
The doors shall be engineered to support the weight of one person walking on top of the apparatus.
EQUIPMENT PAYLOAD WEIGHT ALLOWANCE
In compliance with NFPA 1901 standards, the pumper shall be designed for an equipment loading allowance of 2,000
lbs. of Inter-Canyon Fire Department provided loose equipment based on the pumper body having less than 250 cu. ft. of
storage space.
EQUIPMENT
The following equipment shall be furnished with the completed pumper vehicle;

One (1) container of assorted stainless steel nuts, bolts, screws and washers used in the construction of the
apparatus shall be provided with the completed apparatus.

There shall be two (2) NFPA approved folding aluminum wheel chocks provided for 44" diameter tires that together
will hold the vehicle when loaded to its GVWR or GCWR, on a hard surface with a 20 % grade, with the transmission
in neutral, and the parking brake released.
-

One (1) Duo-Safety 1225-A series 35' 3-section extension ladder(s) shall be provided with the completed unit. Ladder
mounting shall be per the itemized compartment list or specified by the Inter-Canyon Fire Department.
-

The above specified fire extinguisher(s) shall be installed in compartment R1.
One (1) 20 Lb. ABC dry chemical fire extinguisher(s) shall be provided with the completed apparatus.
-

The ladder(s) shall be mounted on the specified ladder rack.
One (1) 10 LB. CO2 fire extinguisher(s) shall be provided with the completed apparatus.
-

The ladder(s) shall be mounted on the specified ladder rack.
One (1) Duo-Safety 585-A series 12' aluminum folding ladder(s) shall be provided with the completed unit. Ladder
mounting shall be per the itemized compartment list or specified by the Inter-Canyon Fire Department.
-

The ladder(s) shall be mounted on the specified ladder rack.
One (1) Duo-Safety 775A series 14' aluminum roof ladder(s) shall be provided with the completed unit. Ladder
mounting shall be per the itemized compartment list or specified by the Inter-Canyon Fire Department.
-

The wheel chock(s) shall be mounted ahead of the rear wheels, below the pump module, one (1) per side.
The above specified fire extinguisher(s) shall be installed in compartment R1.
One (1) 2-1/2 gallon pressurized water (Class A) fire extinguisher(s) shall be provided with the completed apparatus.
-
The above specified fire extinguisher(s) shall be installed in compartment R1.
SVI #766/767
Page 124 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification

Two (2) Streamlight LiteBox Vehicle Mounting Systems shall be provided. Each flashlight shall be orange in color.
Each flashlight shall have a 12 volt DC charger and vehicle mount kit. Each flashlight shall have a 20 watt spotlight
style bulb and reflector. The flashlights shall be wired to battery direct unless otherwise specified by the customer.
-

Four (4) Streamlight #SL-20XP LED rechargeable flashlight(s) and charger(s) shall be provided. Each flashlight shall
be orange in color. Each flashlight shall have a DC charger and storage sleeve. The flashlights shall be wired to
battery direct unless otherwise specified by the customer.
-

The above specified illuminated warning device(s) shall be shipped loose with completed unit.
Inter-Canyon Fire Department supplied automatic external defibrillator (AED) shall be provided on completed unit
before placing vehicle in service.
-

The above specified traffic cones(s) shall be shipped loose with completed unit.
Inter-Canyon Fire Department supplied NFPA required illuminated warning devices shall be provided on completed
unit before placing vehicle in service.
-

The above specified traffic vest(s) shall be shipped loose with completed unit.
Inter-Canyon Fire Department supplied NFPA required traffic cones shall be provided on completed unit before
placing vehicle in service.
-

The above specified first aid kit(s) shall be shipped loose with completed unit.
Inter-Canyon Fire Department supplied NFPA required traffic vest(s) shall be provided on completed unit before
placing vehicle in service.
-

The above specified SCBA spare air cylinder(s) shall be shipped loose with completed unit.
Inter-Canyon Fire Department supplied NFPA required first aid kit shall be provided on completed unit before placing
vehicle in service.
-

The above specified SCBA air pack(s) shall be shall be shipped loose with the completed unit.
Inter-Canyon Fire Department supplied spare SCBA cylinder for each SCBA carried, each mounted in a bracket
fastened to the apparatus or stored in a specially designed storage space(s).
-

The flashlight(s) shall be mounted on the rear wall of cab between seat and side wall.
Inter-Canyon Fire Department supplied SCBA complying with NFPA 1981, Standard on Open- Circuit Self-Contained
Breathing Apparatus (SCBA) for Emergency Services, for each assigned seating position, but not fewer than two (2),
mounted in brackets fastened to the apparatus or stored in containers supplied by the SCBA manufacturer, shall be
provided on completed unit before placing vehicle in service.
-

The flashlight(s) shall be mounted on the rear wall of cab between seat and side wall.
The above specified AED(s) shall be shipped loose with completed unit.
Two (2) 6" x 10' clear PVC suction hose shall be provided with completed unit.
SVI #766/767
Page 125 of 126
March 16, 2010
Inter-Canyon Fire Rescue
Rescue Pumper
Production Specification

One (1) 6" NST barrel strainer with foot valve to match hard suction hose provided shall be provided with completed
unit. Strainer shall be mounted in streetside pump module compartment.
-
The suction hose(s) shall be mounted in the streetside pump panel compartment.

Inter-Canyon Fire Department supplied NFPA required fire hose and nozzles shall be provided on completed unit
before placing vehicle in service.

One (1) wrench holders with two (2) combination spanner wrenches, and one (1) hydrant wrench shall be provided
with completed unit.
-
The above specified wrench holder(s) shall be mounted on streetside pump panel.
REMAINING NFPA MINOR EQUIPMENT BY PURCHASER
All other minor equipment not specified above, but required by NFPA 1901 before the unit is placed in service shall be
supplied and mounted by Inter-Canyon Fire Department.
SVI #766/767
Page 126 of 126
March 16, 2010
