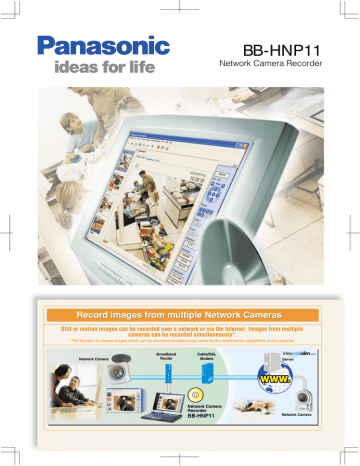

BB-HNP11
Network Camera Recorder
Record images from multiple Network Cameras
Still or motion images can be recorded over a network or via the Internet. Images from multiple
cameras can be recorded simultaneously*.
*The Number of camera images which can be recorded simultaneously varies by the performance capabilities of the computer.
Network Camera
Broadband
Router
Cable/DSL
Modem
Server
WWW.
Network Camera
Recorder
BB-HNP11
Network Camera
BB-HNP11
Network Camera Recorder
Motion Detection Recording and
Timer Recording
The program is equipped with a motion detection
recording function which activates recording only when
people or other moving objects are detected and a timer
recording function which starts and stops recording at
specified times. These two functions can be combined
so that the motion detection recording function is
activated during a specified time period. In addition, the
timer recording function allows up to ten settings for
each camera, so different recording start and stop
schedules can be set for weekdays and weekends.
*The detection sensitivity level of the motion detection recording and
timer recording function varies depending on the camera resolution,
image quality setting, subject condition, network conditions and other
factors.
Recording or playing Images
with Audio
The program lets you use a PC at a distant location for
recording and playing back images with voices captured
by a camera with 2-way voice communication†
connected to the LAN or Internet. With the recording of
both image and sound, you can “feel” the ambience that
cannot be expressed by images alone. The program
permits simultaneous recording of images captured by
multiple cameras.
*Images and voices captured by a camera with 2-way voice
communication† can be recorded while communication is carried out
between the camera and the PC. When images with voices are recorded,
the frame rate may decrease in some cases.
*Use of the program may cause voice transmission to be interrupted or
moving images to stop in some cases, depending on the PC’s
performance and the network environment.
†
Please see the Web site for details.
Recorded Image Search and
Image Conversion Functions
Recorded images can be searched using conditions
such as a preset keyword, recording type, motion
detection recording and timer recording.
Furthermore, all or part of the retrieved image data can
be converted to still image data in the JPEG or MPEG-1
format. The converted images can be viewed by using
standard applications such as Windows® Media Player
or Photo Editor.
Recording Capacity Limit
The recording capacity limit function lets you set the
maximum amount of data to be recorded on the hard
disk of the PC for each camera. When the set
maximum amount is reached, old recorded data is
overwritten by new data, thus allowing the hard disk
space to be used more effectively.
Automatic Backup
This function copies and saves recorded data in
another memory location at a preset time.
*Another PC or drive device on the network cannot be specified as the
destination location. This function is not equipped with automatic
overwriting.
*If the free space on the hard disk runs short, the system may become
unstable. Be sure to allow sufficient free space (100 MB or more).
● File size of recorded image data
Size of one image (image only)
Resolution
640 x 480
320 x 240
160 x 120
Size
Favor clarity
Standard
Favor motion
Approx. 50 KB Approx. 33 KB Approx. 20 KB
Approx. 25 KB Approx. 16 KB Approx. 8 KB
Approx. 7 KB Approx. 5 KB Approx. 3 KB
*The approximate recording capacity is calculated by using the following
formula: Size (KB) x Frame rate (images/sec) x Recording time (sec)
(Example)
One-hour recording of 640 x 480 resolution images at a frame rate of
12 images/sec in Favor clarity mode:
50 KB x 12 images/sec x 3,600 sec (1 hour) = 2,160,000 KB = 2.06GB
In case of images with voices, 4 KB is added per each second:
2,160,000 KB + 4 KB x 3,600 sec = 2,174,400 KB = 2.08 GB
BB-HNP11 Recording Program Specifications for Network Cameras
Camera
registration
Monitoring
Recording
No. of registerable camera units
Camera image view
Image display size
Camera setup
Selected camera image display
Image zoom in/out
Camera control
Preset
Recording file format
Recording media
Recording resolution
Image Quality
Recording interval
No. of camera units for simultaneous
recording
Recording capacity limit function
Motion-detection recording
Timer recording
Image operation
Image search
Disk capacity limit function
Continuous playback
Recorded image view
Operation of recorded images
Automatic backup of recorded images
Format conversion
Recorded image search function
No limitation. Note that the actual number of registerable camera units varies depends on the performance of the PC used.
Images captured by registered cameras are shown in small images on a single screen.
6 sizes from 320 x 240 to 60 x 45
Each camera can be set up individually (camera name, resolution, image quality setting, recording format, timer setting, etc.)
The image of the selected camera can be enlarged (640 x 240, 320 x 240)
Increase/decrease of image size in 25% steps (25% to 700%), image display size adjusted according to window size
Control of basic camera functions (pan/tilt/zoom, brightness, resolution, image quality, sound level)
Preset functions set in cameras can be used
Original file format: Images and voices are recorded continuously in a moving image file.
Hard disk
640 x 480, 320 x 240, 160 x 120
Favor clarity, Standard, Favor motion
Not specified (based on camera's image update interval), specified: 2 images/second to 1 image/hour
Dependent on camera type and performance of PC. See the hardware specifications below.
Maximum recording capacity value can be set for individual camera units (whether to save new data by overwriting or stop recording
when the set capacity is reached can be selected.)
The unit can be set to activate recording when motion is detected (sensitivity and threshold value can be adjusted) or to record for a
certain time length before and after motion detection.
Programming of start and stop schedules based on day of week and time. Key word can be also set for recording.
(10 schedules can be registered per camera)
Monitors the free space on the specified recording disk, and stops recording when the free space becomes smaller than the set value.
Playback of images with voices, playback of image files. Playback speed can be varied.
Displays recorded image files in a list format.
Recorded images can be copied or deleted.
Automatically copies recorded images in a specified folder at a set time.
Converts all or part of recorded images to JPEG or MPEG-1 format.
Search using recording time or key word set before recording.
Specifications of compatible PC
Item
Description
Item
Microsoft® Windows®XP Professional Edition,
Recording
Windows® 2000 (Service Pack2 or later)
Hardware
condition
Web browser Internet Explorer 6.0 or later
specifications
File system NTFS (NT File System) recommended
Voice*
OS
When 10 network camera units are connected
CPU: Intel® Pentium® 4 3GHz or greater, or equivalent
compatible processor, RAM: 512 MB or more
Audio output function (including speaker or headphone)
Description
When 4 network camera units are connected
CPU: Intel® Pentium® 4 1.8GHz or greater, or equivalent
compatible processor, RAM: 256 MB or more
*Applicable products: Cameras with 2-way voice communication† (in IPv4 connection).
*This product can be used only when IPv4 connection is used.
†
Please see the Web site for details.
http://panasonic.co.jp/pcc/products/en/netwkcam/
Design and specifications are subject to change without notice. 10M0405SK-HNP11-LT.X Printed in Japan
