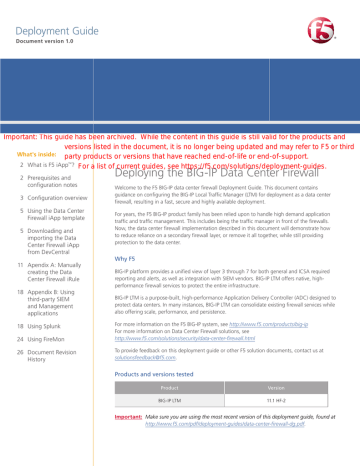

Deploying the BIG-IP Data Center Firewall

Welcome to the F5 BIG-IP data center firewall Deployment Guide. This document contains guidance on configuring the BIG-IP Local Traffic Manager (LTM) for deployment as a data center firewall, resulting in a fast, secure and highly available deployment.

For years, the F5 BIG-IP product family has been relied upon to handle high demand application traffic and traffic management. This includes being the traffic manager in front of the firewalls.

Now, the data center firewall implementation described in this document will demonstrate how to reduce reliance on a secondary firewall layer, or remove it all together, while still providing protection to the data center.

Why F5

BIG-IP platform provides a unified view of layer 3 through 7 for both general and ICSA required reporting and alerts, as well as integration with SIEM vendors. BIG-IP LTM offers native, highperformance firewall services to protect the entire infrastructure.

BIG-IP LTM is a purpose-built, high-performance Application Delivery Controller (ADC) designed to protect data centers. In many instances, BIG-IP LTM can consolidate existing firewall services while also offering scale, performance, and persistence.

For more information on the F5 BIG-IP system, see

http://www.f5.com/products/big-ip

For more information on Data Center Firewall solutions, see

http://www.f5.com/solutions/security/data-center-firewall.html

To provide feedback on this deployment guide or other F5 solution documents, contact us at

[email protected]

.

Products and versions tested

Product Version

BIG-IP LTM 11.1 HF-2

Important:

Make sure you are using the most recent version of this deployment guide, found at http://www.f5.com/pdf/deployment-guides/data-center-firewall-dg.pdf

.

DEPLOYMENT GUIDE

Data Center Firewall

This guide has been archived. For a list of current guides, see https://f5.com/solutions/deployment-guides

What is F5 iApp

?

F5 iApp is a powerful new set of features in the BIG-IP system that provides a new way to architect application delivery in the data center. It includes a holistic, application-centric view of how applications are managed and delivered inside, outside, and beyond the data center.

The Data Center Firewall iApp is meant to help facilitate the deployment and configuration of virtual servers combined with the Data Center Firewall iRule. By combining these two features, the

LTM is able to become a Data Center Firewall using Datagroups and the iRule to control incoming traffic.

For more information on iApp, see the White Paper F5 iApp: Moving Application Delivery Beyond

the Network: http://www.f5.com/pdf/white-papers/f5-iapp-wp.pdf

.

Prerequisites and configuration notes

The following are general prerequisites and configuration notes for this guide: h The BIG-IP system must be running version 11.1 or later.

h You must have the LTM module licensed and provisioned on the BIG-IP system.

h There must be network connectivity between applicable devices.

h If you are configuring this Data Center Firewall iApp to protect an existing application services configured by other iApps, you must disable

Strict Updates

on those iApp

Application Services. If you do not, this Data Center Firewall iApp displays and error and does not complete. The Strict Updates feature is meant to prevent users from manually modifying the iApp configuration.

By disabling Strict Updates, if you use the Reconfigure option on iApp application service and modify the configuration within the iApp template, you must make all changes again manually. See Disabling Strict Updates on page 10 for specific information.

h The iApp template has two functions, creating Source Groups and building the Firewall rules. Before you use the firewall rule builder in the iApp, you must have appropriate BIG-IP

Data Groups configured. You can run the iApp and use the Source Group builder option to create the source Data Groups, or you can create Data Groups manually. But you must have source Data Groups configured before running the Firewall Rule builder.

h While this document contains (optional) guidance for using third party security information and event management (SIEM) applications, it does not cover the installation and initial configuration of these systems. Third party systems must be configured and licensed properly. Consult the vendor documentation for specific details.

2

DEPLOYMENT GUIDE

Data Center Firewall

3

Configuration overview

The BIG-IP data center firewall deployment can be used in multiple ways. The following diagram illustrates the example used in this deployment guide.

Clients vlan_data_center

DNS Servers

DNS virtual server

192.168.200.80

BIG-IP Data Center Firewall vlan_app_network

Application Servers

App virtual server

192.168.175.90

vlan_dmz

DMZ

Optional Logging

Splunk Firemon

Network virtual server

192.168.35.0/24

BIG-IP system vlan_web

Web Servers

Figure 1: Configuration example

In our example, the BIG-IP data center firewall is configured with the following security policies in place:

ALLOW SRC 192.168.100.0/24 PORT ANY DST 192.168.200.80 PORT 53

ALLOW SRC 192.168.100.0/24 PORT ANY DST 192.168.175.90 PORT 443

ALLOW SRC 192.168.50.0/24 PORT ANY DST 192.168.35.0/24 PORT 80 443

DENY ALL

The example policies above cover the 5-tuples required for essential security.

• Source IP

• Source port

• Destination IP

• Destination port

• Destination protocol

The BIG-IP platform inherently locks down traffic based on the destination IP, port, and protocol.

This is because the only traffic that is allowed to pass through the BIG-IP system is traffic destined for a specific IP on a specific port, over a specific protocol.

In this document, we split the 5-tuple into two logical sections, the source and destination.

Another very important aspect of the BIG-IP data center firewall deployment, and firewall systems in general, is logging. The BIG-IP system can be configured to log these messages to third party systems such as Splunk and FireMon. For more information on integrating with these systems see tAppendix B: Using third-party SIEM and Management applications on page 18.

DEPLOYMENT GUIDE

Data Center Firewall

Using the BIG-IP system and the iRule ACL

As mentioned, the BIG-IP system inherently locks down the destination portion of the 5-tuples.

As such, the iRule provides the source aspects by creating the allow sources, the following rule references Figure 1 as an example.

ALLOW SRC srcgrp-1 DST HOST192.168.200.80 PORT 53 PROTOCOL TCP

The source group of

srcgrp-1

consists of the following address,

192.168.100.0/24

. This is specified using the data group function within the LTM. Only traffic from 1

92.168.100.0/24

will have access to

192.168.200.80

on port

53

using TCP, all other traffic will be denied.

Destinations are defined using virtual servers. For our example above we create a virtual server with the IP of 192.168.200.80 serving port 53 with a TCP profile. This ensures that only traffic destined for this address on port 53 is allowed.

Going Beyond the 5-tuples

With the example we have above, the destination portion of the 5-tuple is handled by a virtual server. However, virtual servers are not limited to just being a destination. With a virtual server, profiles and additional protocol awareness is provided.

For example, our second sample rule set is:

ALLOW SRC 192.168.100.0/24 PORT ANY DST 192.168.175.90 PORT 443

The source will be a data group; the destination will be created as a virtual server serving HTTPS with a pool of HTTPS servers behind it.

With this in mind, we can add an HTTP profile to the traffic along with SSL offload. The traffic can then be inspected using the Protocol Security Module or for further depth the Application Security

Module. For more information on these Modules please see

http://www.f5.com/products/big-ip/

.

Using Packet Filters

Another tool made available to use for configuring our sources and destinations are Packet Filters.

These are configured on the BIG-IP system at a global level. This means that packet filters will impact all traffic traversing the BIG-IP system. This is useful in the case of setting global security for non TCP and UDP traffic such as ICMP.

For more information on using Packet Filters please see the BIG-IP data center firewall

Configuration Guide.

4

DEPLOYMENT GUIDE

Data Center Firewall

Important

5

Using the Data Center Firewall iApp template

This section describes how to install and use the Data Center Firewall iApp template. Before you can use the Data Center Firewall iApp template to configure the BIG-IP system, you must download and install the template file.

Downloading and importing the Data Center Firewall iApp from DevCentral

The first task is to download the Data Center Firewall iApp from DevCentral and import it onto the

BIG-IP system. Ensure you download the file with the latest date in the file name.

To download and import the iApp from DevCentral

1. Open a web browser and go to

https://devcentral.f5.com/wiki/iApp.Data-Center-Firewall-iApp-template.ashx

2. Download

f5.data_center_firewall.zip

to a location accessible from your BIG-IP system.

You must download the file, and not copy and paste the contents. F5 has discovered the

copy paste operation does not work reliably.

3. Extract (unzip) the

f5_data_center_firewall.tmpl

file.

4. Log on to the BIG-IP system web-based Configuration utility.

5. On the Main tab, expand

iApp

, and then click

Templates

.

6. Click the

Import

button on the right side of the screen.

7. Click a check in the

Overwrite Existing Templates

box.

8. Click the

Browse

button, and then browse to the location you saved the iApp file.

9. Click the

Upload

button. The iApp is now available for use.

Getting Started with the iApp for the data center firewall

To begin the template, use the following procedure.

1. Log on to the BIG-IP system.

2. On the Main tab, expand

iApp

, and then click

Application Services

.

3. Click

Create

. The Template Selection page opens.

4. In the

Name

box, type a name. In our example, we use data-center-fw_.

5. From the

Template

list, select

f5.data_center_firewall

.

Advanced options

If you select

Advanced

from the

Template Selection

list, you see Sync and Failover options for the application. This feature, new to v11, is a part of the Device Management configuration. This functionality extends the existing High Availability infrastructure and allows for clustering, granular control of configuration synchronization and granular control of failover.

1.

Configure Sync/Failover?

If you want to configure the Application for Sync or failover groups, select

Yes

from the list.

a.

Device Group

If you select Yes from the question above, the Device Group and Traffic Group options appear. If necessary, uncheck the Device Group box and then select the appropriate

Device Group from the list.

b.

Traffic Group

If necessary, uncheck the Traffic Group box and then select the appropriate Traffic Group.

DEPLOYMENT GUIDE

Data Center Firewall

Choosing a template type

As mentioned in the prerequisites, this iApp template has two functions, creating a source data group and building the Firewall rules. If you do not have a source data group currently configured on the BIG-IP system, you

must

either use the iApp to create the source data group

(recommended), or create source data groups manually (see Configuring the Data Groups on page

11 for manual configuration procedures).

h If you have not yet created a source data group on the BIG-IP system, select

Source

Data Group Builder

from the list, and continue with the following section.

h If you have already configured your source data group, either using the template or manually, select

Data Center Firewall Rule Builder

, and go to Firewall Rule builder on

page 7.

Source Data Group Builder

The Source Data Group builder creates BIG-IP iRule Data Groups. Data groups contain the source IP address list for addresses to which you want to allow access.

1.

Data Group name

Specify a name for the data group. The iApp appends this name to the prefix

dg-dcfw-net-

.

2.

Source IP addresses

Specify which source IP addresses should be allowed by the Data Center Firewall. For each IP address, select the appropriate Mask from the list.

You can optionally include a comment.

Click the

Add

button to include additional source addresses. Click

Finished

.

If you want to add more source addresses at a later time, simply click

iApp

>

Application

Services

> and then the name of your application service. On the Menu bar, click

Reconfigure

, and then add the additional servers.

This completes the source data group builder.

When you have finished creating the Source Data Group, continue with

Firewall Rule builder on page 7.

6

DEPLOYMENT GUIDE

Data Center Firewall

Important

Firewall Rule builder

The firewall rule builder creates the Firewall iRule using the source data group you created, and your answers to the template questions. This Data Center Firewall iRule is bound to a BIG-IP LTM virtual server. When client connections are attempted, the connection parameters are compared to the address/virtual server information in the BIG-IP LTM Data Groups you just created.

Firewall settings

1.

Prefix name

Specify a prefix that is used for the BIG-IP virtual servers. Objects created by the iApp use this prefix preceded by

dcfw-

.

2.

Enable comments

Select whether you want to enable comments or not. If you select Yes, a comment field appears in the BIG-IP Data Center Firewall Rules section.

3.

Action on deny

Specify what the BIG-IP system should do with traffic that is denied. You can select Discard or

Reject. If you select Discard, the BIG-IP system drops without sending a response. If you select

Reject, the BIG-IP system rejects the connection and sends a response.

Syslog settings

In this section, you have the option of configuring the Data Center Firewall to send logs to external logging systems, such as Splunk or FireMon.

1.

Using external logging systems

Specify whether you want to configure the Data Center Firewall to send logs to external logging systems. If you select No, the logging questions disappear. Continue with the next section. If you select Yes, continue with #2.

2.

Log all traffic

Select whether you want the Data Center Firewall to log all traffic types.

If you select No, the system only logs matching traffic.

If you select Yes, the system logs non-matching as well as matching traffic.

Use this option with extreme caution, as the BIG-IP system logs all packets, so the volume of log messages could be very large and adversely affect performance.

3.

Logging format

Leave this set to the default. There are no options other than Default at this time.

4.

TCP or UDP

Specify whether the syslog server is using TCP or UDP. The protocol you choose is used by the

BIG-IP system to communicate with the external syslog servers.

5.

IP Address and port of the logging system

Specify the IP address and port used by your external logging system. Click add to include additional servers.

7

DEPLOYMENT GUIDE

Data Center Firewall

8

BIG-IP Data Center Firewall Rule settings

In this section, you configure the Data Center Firewall rule options.

1.

Configure new rules

Select whether you want to create new Firewall rules at this time. If you select No, the rest of the questions in this section disappear; continue with the next section.

If you select Yes, answer the following questions.

2.

Address translation

Select whether you want the BIG-IP to perform address translation. If you select Yes, the

Destination NAT and Inside Address and Port fields appear in the BIG-IP Data Center Firewall

Rules section. You then have the ability to enable or disable address translation for each rule you create.

Custom name

Select whether you want to include a custom name for the BIG-IP virtual server. If you select

Yes, the Custom Name field appears in the BIG-IP Data Center Firewall Rules section. If you select No, the system uses the default name.

3.

VLANs

Specify the VLANs on which the rules created by the Data Center Firewall should be run. You must select a VLAN here.

4.

Idle non-TCP and UDP connections

Specify the number of seconds you want the BIG-IP system to wait before non-TCP or UDP idle connections time out.

This and the following two settings determine the default timeout values. You still have the ability to adjust the timeout value of specific rules in the next section.

5.

Idle TCP connections

Specify the number of seconds you want the BIG-IP system to wait before idle TCP connections time out.

6.

Idle UDP connections

Specify the number of seconds you want the BIG-IP system to wait before idle UDP connections time out.

BIG-IP Data Center Firewall Rules

In this section, you specify the values for the Data Center Firewall rule set. For each row of the ruleset, the BIG-IP system creates a virtual server and applies the Data Center Firewall iRule to it.

Note that this row is very long and you have to scroll to the right to complete all of the options.

1.

Custom Name

If you chose to enable the Custom Name field, this question appears. Type the name you want to give this virtual server.

2.

Address

Specify the IP address for the host or network destination to which you are allowing access.

3.

Mask

Select the appropriate mask from the list or type a value in the box.

4.

Protocol

Select the appropriate protocol from the list or type a value in the box.

DEPLOYMENT GUIDE

Data Center Firewall

Critical

5.

Port

Select the appropriate port from the list or type a value in the box.

6.

Destination NAT

If you selected to enable address translation, this question appears. Select whether you want to enable destination address translation on this rule.

If you select No, do not configure the Inside Address or Inside Port. Continue with #9.

If you select Yes to enable destination address translation, you must complete the Inside

Address and Port.

You

cannot

enable address translation if you are using a network address as your destination. The BIG-IP system creates a one-to-one relation between the outside destination and the inside destination.

7.

Inside Address

Type the IP address of the internal resource you want to use for destination NAT. The BIG-IP system creates a pool with this resource as a member.

8.

Inside Port

Type the associated port used by the internal resource.

9.

Action

Select the action to take for the source data group that you will select in #10.

• If you select Allow, addresses in the source group are allowed by the Data Center Firewall, and all other traffic dropped.

• If you select Deny, all addresses in the source group are dropped and all other traffic is allowed.

10.

Source Group

From the list, select the source Data Group you created.

11.

Allow iApp Edit

Select whether you want to allow iApp edits. If you select Yes, after completing this iApp template, if you re-enter the template to reconfigure the iApp, if you make changes to the rule, the iApp will modify all the relevant objects (virtual server, pool, and/or profiles) to reflect the changes.

If you select No, the iApp does not modify the object that was originally created, it only updates the source group and destination comments. This allows further modification of the virtual servers created by the iApp.

12.

Timeout

Specify a timeout value. You can leave the default, select an option from the list, or type a timeout value. If you leave the default, the iApp uses the timeout values you specified in the previous section.

13.

Mirror

If you have a redundant BIG-IP configuration with an active and standby BIG-IP device, select whether you want to mirror connections between the BIG-IP system you are configuring now, and the standby device.

14.

Log

If you chose to enable external logging systems, select whether you want to enable logging on this virtual server.

9

DEPLOYMENT GUIDE

Data Center Firewall

10

Application Delivery Security

In this section, you specify whether you want to apply the Data Center Firewall ruleset to any of your existing BIG-IP LTM virtual servers. This adds an extra layer of protection for your application deployments.

1.

Apply rule to BIG-IP LTM virtual servers

Select whether you want to apply the Data Center Firewall rule produced by the iApp template to any of your existing BIG-IP virtual servers.

If you select No, continue to the Finish section.

If you select Yes, additional questions appear.

2.

Configured Ruleset

Specify the following information: a. Virtual Server

Select the virtual server to which you want to add the Data Center Firewall rule.

b. Action

Select the action to take for the source data group that you will select in #10.

• If you select Allow, addresses in the source group are allowed by the Data Center

Firewall, and all other traffic dropped.

• If you select Deny, all addresses in the source group are dropped and all other traffic is allowed.

c. Source Group

From the list, select the source Data Group you created.

d. Logging

If you chose to enable external logging systems, select whether you want to enable logging on this virtual server.

Finished

Review your answers to the questions. When you are satisfied, click the

Finished

button. The

BIG-IP system creates the relevant objects.

Disabling Strict Updates

If you need to manually modify any of the configuration objects created by the template, or if you are using this Data Center Firewall iApp to protect an existing virtual server that is owned by an iApp application service, you must first disable the Strict Updates feature. By disabling Strict

Updates, if you re-enter the iApp template and modify the configuration within the iApp, you must make all changes again manually.

To disable Strict Updates

1. On the Main tab, expand

iApp

and then click

Application Services

.

2. Click the name of your Application service from the list.

3. From the

Application Service

list, select

Advanced

.

4. In the

Strict Updates

row, clear the check from the box to disable Strict Updates.

5. Click the

Update

button.

DEPLOYMENT GUIDE

Data Center Firewall

11

Apendix A: Manually creating the Data Center Firewall iRule

In this section, we show you how to manually configure the Data Center Firewall iRule, along with the source Data Groups. For detailed information, see the BIG-IP Data Center Firewall

Configuration Guide, available on Ask F5 (

http://support.f5.com/kb/en-us.html

).

Configuring the Data Groups

The allowed addresses are a list contained within BIG-IP LTM iRule data groups. The data group is used as a static variable in the iRule you will create later in this section.

In this section, we create two data groups, an address data group that contains a list of allowed address, and a string data group that associates the relevant virtual servers to the address group data group.

To configure the address data group

1. On the Main tab, click

Local Traffic > iRules > Data Group List

. The Data Group List screen opens, displaying a list of data groups on the system.

2. Click

Create

.

The New Data Group screen opens.

3. In the

Name

box, type a name. In our example, we use

dg-dcf-shownetworks

. Make note of the name you use here, as it is used in the string data group you create in the following procedure.

4. From the

Type

list, select

Address

.

5. Using the

Address Records

setting, add each IP address that you want to include in the data group: a. For the

Type

setting, select

Host

or

Network

.

b. In the

Address

field, type an IP address.

c. If the address type is

Network

, type a network mask in the

Mask

field.

d. In the

Value

field, type

none

.

e. Click

Add

.

f. Repeat these steps for each IP address you want to include in the data group.

6. Click

Finished

. The new data group appears in the list of data groups. You now have a data group that lists the source IP addresses for allowed traffic.

After creating this data group, you must create a string data group that associates the relevant virtual servers with the address data group you just created. The virtual servers listed in the string data group are those that you intend to use for access control by assigning an access control iRule to them later.

To create the string data group

Before you create this data group, verify that you have created an address data group named dg-dcfshownetworks.

1. On the Main tab, click

Local Traffic

>

iRules

>

Data Group List

. The Data Group List screen opens, displaying a list of data groups on the system.

2. Click

Create

. The New Data Group screen opens.

DEPLOYMENT GUIDE

Data Center Firewall

12

3. In the Name field, type a name. In our example, we use

dg-dcf-fwdb

. Make note of the name you use here, as it is used in the iRule you create in the following section.

4. From the

Type

list, select

String

.

5. Using the String Records setting, create entries consisting of a virtual server name and a data group name: a. In the

String

field, type the name of the virtual server (using lower-case characters) for which you want to implement access control through data groups and the iRule. The iRule is case sensitive. You also must enter the path (such as /Common/<virtual server name>).

b. In the

Value

field, type the name you gave the address data group in step 3 of the previous procedure. In our example, we use

dg-dcf-shownetworks

.

This name must match the name of the other data group exactly.

You also must enter the path (such as /Common/<virtual server name>).

c. Click

Add

.

d. Repeat these steps for each virtual server you want to include in this data group.

Each specified virtual server can represent the same destination IP address as the others, but must have a unique port name or port number.

6. Click

Finished

.

The new data group appears in the list of data groups.

You now have a mapping of virtual servers to source IP addresses that the following access control iRule assigned to those virtual servers can reference.

Creating the Data Center Firewall iRule

The F5 Data Center Firewall iRule is bound to a BIG-IP LTM virtual server. When client connections are attempted, the connection parameters are compared to the address/virtual server information.

The address lists are defined in BIG-IP LTM Data Groups you just created.

There are two versions of the iRule, one version if you want to send log messages to third party logging servers, and a version if you are not sending log messages. Each rule that has logging enabled generates and sends log messages to the log servers. The log messages are sent using the

High Speed Logging interface on the LTM.

Creating the iRule if you are not sending log messages

If you are not configuring the BIG-IP system to send log messages, use the following procedure to create the iRule.

To create the iRule

1. On the Main tab, click

Local Traffic

>

iRules

.

2. Click

Create

.

3. In the

Name

field, type a unique name for the iRule.

4. In the

Definition

section, copy and paste the following iRule, omitting the line numbers.

Make sure to change the value in red to match the path and name of the String Data Group you created.

The following iRule configures the BIG-IP system to DENY by default and only allow what's in the data groups. If you want to ALLOW by default, see the note following the iRule code.

DEPLOYMENT GUIDE

Data Center Firewall

10

11

8

9

12

13

6

7

4

5

1

2

3 when CLIENT_ACCEPTED {

while {1} {

set dcfw_vdg [ class match -value [virtual name] equals /Common/STRING_DATA_GROUP ]

if { ! [ class exists $dcfw_vdg ] } { break }

if { ! [ class match [IP::remote_addr] equals $dcfw_vdg ]

}

{

break

}

return

}

discard

}

If you want to default to ALLOW and only DENY what's in the data group, change line 5 in the iRule above to the following:

if { [ class match [IP::remote_addr] equals $dcfw_vdg ]

5. Click

Finished

.

Attaching the iRule to virtual servers

The final task is to associate this iRule with a virtual server that you want to protect with the Data

Center iRule.

To attach the iRule to a virtual server

1. On the Main tab, click

Local Traffic

>

Virtual Servers

.

2. On the Menu bar, click

Resources

.

3. In the iRule section, click

Manage

.

4. From the

Available

box, click the name of the iRule you just created, and then click the Add

(

<<

) button to move it to the

Enabled

box. If you created two iRules, add them both to the

Enabled box.

5. Click

Finished

.

This completes the configuration if you are not logging.

13

DEPLOYMENT GUIDE

Data Center Firewall

14

Creating the iRule if you are sending log messages

Use this section if you want to send log messages to third party applications.

Before you create the iRule, you must create a BIG-IP pool for the logging servers that is referenced in the Data Center Firewall iRule. If you want to send traffic to multiple logging servers, you must have a pool for each server.

To create the HSL pools

1. On the Main tab, click

Local Traffic

>

Pools

. The Pool List screen opens.

2. Click

Create

. The New Pool screen opens.

3. In the

Name

field, type a unique name for the pool. In our example, we type

splunk_hsl

.

4. From

Health Monitors Available

list, select a monitor (such as

tcp

) and the click the Add

(

<<

) button to move it to the Active list.

5. From the

Load Balancing Method

list, select how the system distributes traffic to members of this pool.

6. In the New Members section, make sure the

New Address

option button is selected.

7. In the

Address

box, type the IP address of a logging server.

8. In the

Service Port

box, type the appropriate port number.

9. Click the

Add

button to add the member to the list.

10. Click

Finished

.

11. If you want to send traffic to more than one logging server, repeat this entire procedure for each server. Each pool must only contain one logging server.

Before creating the iRule on the BIG-IP system, you need modify the values for three objects in the iRule code. These are clearly marked in red text in the iRule.

• The

hostname

variable should be set to the shared name of both the active and standby unit.

• The

hsl_dst

variable contains the name of the LTM pool(s) you created for the logging servers.

• The

MAPPING_DATA_GROUP

must be the name of the string data group you created. In our example, this is

dg-dcf-fwdb

.

The following iRule works for two virtual server types: Forwarding or Performance (Layer 4). If you want to use this functionality for a TCP or UDP virtual server, you must create an additional virtual server with different switch statement. Instructions

To create the iRule

1. On the Main tab, click

Local Traffic

>

iRules

.

2. Click

Create

.

3. In the

Name

field, type a unique name for the iRule.

4. In the

Definition

section, copy and paste the following iRule.

Make sure to change the values in red to match your environment.

DEPLOYMENT GUIDE

Data Center Firewall

15

44

45

46

47

40

41

42

43

36

37

38

39

32

33

34

35

52

53

54

55

48

49

50

51

28

29

30

31

24

25

26

27

20

21

22

23

16

17

18

19

12

13

14

15

10

11

8

9

6

7

4

5

1

2

3 when RULE_INIT {

set static::dbg 0

set static::hsl_dst {{ hslpool1 }{ hslpool2 }}

set static::hostname " hostname "

set static::module "F5-LTM"

set static::msgid "1"

set static::mapping_dg "< MAPPING_DATA_GROUP >"

} when CLIENT_ACCEPTED {

set src [IP::remote_addr]

set dst [IP::local_addr]

set vdg "default_deny"

switch [IP::protocol] {

6 {

set srcp [TCP::remote_port]

set dstp [TCP::local_port]

}

17 {

set srcp [UDP::remote_port]

set dstp [UDP::local_port]

}

default {

set srcp 0

set dstp 0

}

}

while {1} {

set vdg [ class match -value [virtual name] equals $mapping_dg ]

if { ! [ class exists $vdg ] } { break }

if { ! [ class match [IP::remote_addr] equals $vdg ] } { break }

return

}

set msg "[clock format [clock seconds] -format "%Y-%m-%d %H:%M:%S" ] \

$static::hostname \

$static::module \

$vdg \

$static::msgid \

deny \

[IP::protocol] \

$src \

$srcp \

$dst \

$dstp \

[virtual name] \

$src \

$dst \

-"

if { $static::dbg } { log local0. $msg }

foreach hsp $static::hsl_dst {

set hsl [HSL::open -proto UDP -pool $hsp]

HSL::send $hsl $msg

unset hsl

}

reject

}

This rule continues on the following page

DEPLOYMENT GUIDE

Data Center Firewall

16

68

69

70

71

64

65

66

67

60

61

62

63

56

57

58

59

76

77

78

79

72

73

74

75 when SERVER_CONNECTED {

set msg "[clock format [clock seconds] -format "%Y-%m-%d %H:%M:%S" ] \

$static::hostname \

$static::module \

$vdg \

$static::msgid \

allow \

[IP::protocol] \

$src \

$srcp \

$dst \

$dstp \

[virtual name] \

[IP::local_addr] \

[IP::remote_addr] \

-"

if { $static::dbg } { log local0. $msg }

foreach hsp $static::hsl_dst {

set hsl [HSL::open -proto UDP -pool $hsp]

HSL::send $hsl $msg

unset hsl

}

unset -nocomplain src dst srcp dstp msg vdg

}

5. Click the

Finished

button. If you are using the iRule for a Forwarding or Performance Layer

4 virtual server, continue with Attaching the iRule to virtual servers on page 13.

6. If you are using the iRule with a virtual server type of something other than Forwarding or

Performance Layer 4, use the following guidance to create another version of the iRule.

7. Click

Create

to start a new iRule.

8. In the

Name

box, give the iRule a unique name. We recommend a name with TCP or UDP in it, as appropriate.

9. In the

Definition

section, copy and paste the iRule above.

10. You must change the switch statement in the iRule, depending on which protocol you are using (TCP or UDP).

Locate lines 13 to 26:

switch [IP::protocol] {

6 {

set srcp [TCP::remote_port]

set dstp [TCP::local_port]

}

17 {

set srcp [UDP::remote_port]

set dstp [UDP::local_port]

}

default {

set srcp 0

set dstp 0

}

}

DEPLOYMENT GUIDE

Data Center Firewall

11. Depending on which protocol you are using, replace lines 13-26 with the following lines: a.

TCP

:

switch [IP::protocol] {

6 {

set srcp [TCP::remote_port]

set dstp [TCP::local_port]

}

default {

set srcp 0

set dstp 0

}

}

b.

UDP

:

switch [IP::protocol] {

17 {

set srcp [UDP::remote_port]

set dstp [UDP::local_port]

}

default {

set srcp 0

set dstp 0

}

}

12. Click

Finished

.

13. See Attaching the iRule to virtual servers on page 13.

This completes the configuration.

17

DEPLOYMENT GUIDE

Data Center Firewall

Important

18

Appendix B: Using third-party SIEM and Management applications

This appendix contains information on configuring the BIG-IP system with Splunk and FireMon. All of the procedures in this section are optional.

No matter which application you are using, you need to create a BIG-IP pool for the logging servers as described in the preceding section.

Using Splunk

Splunk collects and harness machine data. Splunk has the flexibility to do any type of real-time and historical analysis, and the power to deliver custom dashboards and views to anyone in your organization. By monitoring and analyzing everything from customer clickstreams and transactions to network activity to call records, Splunk turns your machine data into valuable insights. For more information on Splunk, see

http://www.splunk.com/

.

Installing the Splunk application for F5 Networks

The first task is to download and install the Splunk application for F5 Networks.

To download and install the Splunk application for F5

1. From the Splunk web interface home page, on the Menu bar, select

App

, and then click

Find more apps

.

2. In the search box, type

F5 Networks

.

3. Find

Splunk for F5 Networks

, and then click the

Install free

button.

Make sure you install

Splunk for F5 Networks

, and not one of the other Splunk for F5 options.

Once the Application is installed, it appears in the App menu as

Splunk for F5 Networks

.

Adding a data input to Splunk

The data input is a configuration setting that configures Splunk to listen for log messages on UDP or TCP and a specific protocol port number. Use the following procedure to configure a data input to listen for the data center firewall log messages.

To add a data input

1. From the Splunk web interface home page, click

Manager

on the upper right corner of the screen.

2. In the Data section, click

Data inputs

.

3. Click the

Add new

link in the row for the protocol (TCP or UDP) you specified when configuring the F5 Data Center Firewall:

Figure 2: Add new link

DEPLOYMENT GUIDE

Data Center Firewall

4. In the Source section, in the

UDP port

or

TCP port

box, type

514

.

5. In the Source type section, from the

Set sourcetype

list, select

From list

.

6. From the

Select source type from list

options, select

syslog

.

7. Click

Save

.

Accessing the Splunk for F5 Networks Application

To start using the Splunk for F5 Networks application, from the App menu on the upper right, select

Splunk for F5 Networks

. The Menu bar on the summary page is the location to make selections for navigating within the Splunk Application.

The Summary page includes four sections. The top section shows the Indexed data information and reports the total number of events that are indexed, and the date for the earliest and most recent events. The next section lists the available log source protocols and counts. The example shown below is reporting more than 13 million logs have been indexed via UDP on port 514.

The last two sections contain a listing of the identified source types with counts. It also reports a list of all the log source hosts with event counts.

Two dashboards and reports are installed and available in the Applications tab. The report is a collection of database queries and charts pertaining to the most recent 30 minutes of traffic. This report can be scheduled to automatically run. The dashboards are based on BIG-IP LTM logs and the Data Center Firewall iRule logged data, as well as the standard administrative logging of BIG-IP messages. The former is used for the Firewall details. And the latter is used for the LTM Pool details.

19

Figure 3: Summary page of Splunk for F5 Networks

Data Center Firewall menu

From the Data Center Firewall menu at the top of the page, you can choose to launch the dashboards or the Data Center Firewall 30 minute report.

Firewall Activity page

In this section, we describe the contents of the Data Center Firewall activity report. From the

Data

Center Firewall

menu, click

Last 30 minutes

. This report has nine sections. Eight are charted data, and the last section is a listing of log events.

Allow vs Deny

The Allow vs Deny charts plot the log activity over time. This indicates which devices are most active and the distribution of allowed requests versus denied requests.

Top 10 rules

DEPLOYMENT GUIDE

Data Center Firewall

The Top 10 Source Groups chart will report the DCFW Source group activity. These are the names of the data groups that contain the allowed address lists.

Top 10 allowed by source IP

This chart shows the top 10 source IP addresses that were allowed access.

Top 10 denied by source IP

This chart shows the top 10 source IP addresses that were denied access.

Allowed by Device ID

This chart enumerates all the allowed log messages and sorts them by the device ID. The

Device ID is the individual LTM that is receiving the connections requests and in turn sending the log data to Splunk. This value is defined within the iRule variable definitions

Allowed by Virtual Server

This chart enumerates all the allowed connection log events and catalogs them by the

Virtual Server Name. If all Virtual Server names are unique within the deployment then this chart will report each individually. Virtual servers that are named the same will have those stats accumulated and reported as a single element.

Denied by Device ID

This chart enumerates all the denied log messages and sorts them by the device ID.

Denied by Virtual Server

This chart enumerates all the denied connection log events and catalogs them by the Virtual

Server Name. If all Virtual Server names are unique within the deployment then this chart will report each individually. Virtual servers that are named the same will have those stats accumulated and reported as a single element.

F5 LTM Data Center Firewall events

The final section is a listing of the DCFW log events in a table. These events can be clicked on and drilled into so custom searches can be performed.

20

Figure 4: Last 30 minutes page (truncated)

DEPLOYMENT GUIDE

Data Center Firewall

21

The Firewall Traffic dashboard

In this section, we describe the contents of the Data Center Firewall Traffic Summary. From the

Data Center Firewall

menu, click

Firewall Traffic

to launch the Firewall traffic dashboard. This dashboard is an accumulation of event statistics based on the logs sent by the Data Center Firewall iRule.

Summary

The top section is a summary of the dashboard contents. From the list, you can select a specific time frame, create a custom time frame, or view real time reports.

Filters

The next section is a set of four data fields. These fields allow you to tailor which statistics are reported. For example, you can specify a BIG-IP virtual server to narrow the report to just that object. By default all fields are reported without filters.

Session Statistics

The session stats section reports the accumulated numbers of unique Source IPs, Destination IPs, and Devices.

Traffic by Device over time

The traffic by device over time section reports by LTM device the total number of events being received. This is the combination of both allowed and denied events. It’s a rough measurement of how active each device is.

Traffic by Action over time

The traffic by action reports the accumulated allowed vs denied events across the entire deployment.

Action Breakdown

Action breakdown is similar to the Traffic action graph. The user sees a pie chart depicting the ratio of allowed vs denied events. The user can click on the denied or allow pie slices and build a custom report.

Allowed by Source

This section shows the top source IPs that have been allowed. This, and the following sections, allows the user to see the top number of source or destination IPs that are either being allowed access or denied access and which ports they are attempting to access.

Allowed by Destination

This section shows the top destination IPs that have been allowed.

Denied by Source

This section shows the top source IPs that have been denied.

Denied by Destination

This section shows the top destination IPs that have been denied.

The Data Center Firewall Rules Dashboard

In this section, we describe the contents of the Data Center Firewall Rules Summary. From the

Data Center Firewall

menu, click

Firewall Rules

to launch the Firewall traffic dashboard. This dashboard is an accumulation of event statistics based on the logs sent by the Data Center Firewall iRule.

Summary

The top section is a summary of the dashboard contents. From the list, you can select a specific time frame, create a custom time frame, or view real time reports.

Filters

The next section is a set of four data fields. These fields allow you to tailor which statistics are reported. For example, you can specify a Action or RuleID to narrow the report. By

DEPLOYMENT GUIDE

Data Center Firewall

22 default all fields are reported without filters.

Session Statistics

The session stats section reports the accumulated numbers of unique Source IPs,

Destination IPs, and Devices.

Firewall Activity Over Time

This section charts in a stacked bar chart the active Source Address groups (Rules) as well as the Virtual Servers activity. These charts are an indication of the load of traffic being serviced by all of the LTMs in the network.

Top Virtual Server

Reports that top 10 virtual servers and the number of events each server is reporting.

Top Source Address Group

This chart is an indication of the distribution of traffic being reported on a per source address group basis. It also shows which address groups are more or less used.

Top Firewall Comment

This section is based on the Source Address group comment. If comment reporting is enabled in the iRule / iApp settings, this chart reports on each unique comment and accumulates the values over time. For best performance the reporting of Comment fields is disabled by default.

Action by Virtual Server

This reports the number of events each Virtual Server has reported for both the allowed and denied actions.

Action by Source Address Group

This lists the top Source address group reporting the allowed vs denied connection requests.

Pool status dashboard

In this section, we describe the contents of the Pool status dashboard, which is a collection of report data pertaining to LTM Pool status.

Summary

The top section is a summary of the dashboard contents. From the list, you can select a specific time frame, create a custom time frame, or view real time reports.

Session Statistics

This section reports the number of members that are down, number of affected pools, and the maximum downtime counter.

Member Up Events

This section is the listing of Pool Member up events. This also lists the downtime for that member, which pool they belong to, the node name of the pool member and the current status column. The Downtime column reports how long that member was down prior to returning to an active up state.

Members Down by Pool

This chart reports the number of members that are down per pool. In the example on the following page, there are 4 pools being reports with members down counts ranging from

1 to 5 down members.

Member Down Events

This section is similar to Member Up Events. However, it is reporting the member events for nodes that reported down and how long they had been up prior to changing to a down state.

DEPLOYMENT GUIDE

Data Center Firewall

Figure 5: Pool Status summary

Scheduling PDF reporting

Splunk is capable of scheduling reports to be performed on schedule. The dashboards have an

Action menu pull down is how to access the scheduler. This is an add-on application that can be installed the same way the Splunk for F5 Networks was installed. This is a Linux only supported application.

For more information on scheduling PDF delivery refer to the Splunk documentation.

23

DEPLOYMENT GUIDE

Data Center Firewall

24

Using FireMon

FireMon Security Manager provides policy and configuration management, enforcement and auditing of network devices such as firewalls, routers, switches and load balancers, while monitoring for and alerting on configuration changes. Security Manager also assesses current configuration settings and audits these against best practices and compliance standards – and provides extensive options for remediating configuration issues. For more information on FireMon, see

http://www.firemon.com/

.

Prerequisites

h Before configuring FireMon to monitor the BIG-IP LTM instances, make sure the FireMon server is defined in the High Speed Logging configuration for the iApp / iRule as described earlier in this document. h The Remote log server must be configured to send administrative syslog messages to the

FireMon server.

Configuring FireMon with the F5 Datacenter Firewall iRule

FireMon is distributed as a virtual machine or as an appliance. Management access to the FireMon server is accomplished via a client side application.

Configuring FireMon for the BIG-IP LTM

The first task is to configure FireMon for the BIG-IP LTM device.

To configure FireMon for the BIG-IP system

1. Launch the application and enter a valid user name, password, and host IP address or name.

2. From the

Tasks

box, click

Create a new Device

.

3. From the By Vendor menu, expand

F5 Networks

and select

BIG-IP

. The Device-specific menu items open.

4. In the General section, type the appropriate information from your BIG-IP system in the

IP

Address

and

DNS name

boxes. You can optionally provide a description.

5. In the Credentials section, in the

User name

and

Password

boxes, type the BIG-IP system credentials.

6. Click

OK

.

Configuration details

There is a second tab for configuration details. This is for configuration monitoring, and is enabled by default. This feature instructs FireMon to periodically pole the device for its device configuration details. If a device configuration changes, FireMon alerts the administrator changes have been made since the last poling period.

The new BIG-IP system device displays in the Devices pane. Expand the menu tree if necessary and then click the new device to see the properties.

DEPLOYMENT GUIDE

Data Center Firewall

Figure 6: FireMon showing the new BIG-IP device

Figure 6 shows that the device is actively being poled for changes and a listing of when the changes have been detected.

FireMon reports

FireMon has a rich set of prebuilt reports. These reports include Usage, Compliance, Analysis, change control, and change reporting. They are accessed using the Reports menu tab on the left pane.

To run a report

1. From the Reports pane, expand

Reports

and then click

Change Report

.

2. Click

Run Report

.

3. From the Target list, select the appropriate BIG-IP device.

4. Click

Finished

.

The report runs and a Change Report opens, similar to the following.

25

Figure 7: FireMon change report

You can repeat this process for other reports of interest.

DEPLOYMENT GUIDE

Data Center Firewall

Document Revision History

Version

1.0

New guide

Description Date

06/13/2012

26

F5 Networks, Inc. 401 Elliott Avenue West, Seattle, WA 98119 888-882-4447 www.f5.com

F5 Networks, Inc.

Corporate Headquarters [email protected]

F5 Networks

Asia-Pacific [email protected]

F5 Networks Ltd.

Europe/Middle-East/Africa [email protected]

F5 Networks

Japan K.K.

[email protected]

©2012 F5 Networks, Inc. All rights reserved. F5, F5 Networks, the F5 logo, and IT agility. Your way., are trademarks of F5 Networks, Inc. in the U.S. and in certain other countries. Other F5 trademarks are identified at f5.com. Any other products, services, or company names referenced herein may be trademarks of their respective owners with no endorsement or affiliation, express or implied, claimed by F5.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
