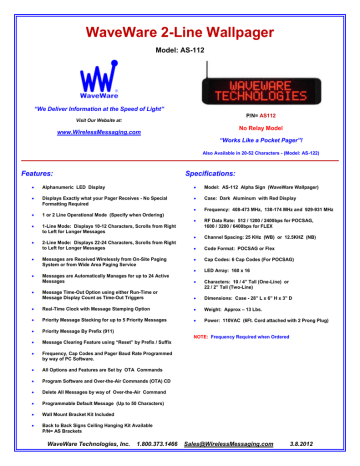

AS-112 Wallpager Brochure (Without Relay)

AS-112 Wallpager Brochure (Without Relay)
WaveWare 2-Line Wallpager
Model: AS-112
“We Deliver Information at the Speed of Light”
P/N= AS112
Visit Our Website at:
No Relay Model
www.WirelessMessaging.com
“Works Like a Pocket Pager”!
Also Available in 20-52 Characters - (Model: AS-122)
Features:
Specifications:

Alphanumeric LED Display

Model: AS-112 Alpha Sign (WaveWare Wallpager)

Displays Exactly what your Pager Receives - No Special
Formatting Required

Case: Dark Aluminum with Red Display


Frequency: 408-473 MHz, 138-174 MHz and 929-931 MHz
1 or 2 Line Operational Mode (Specify when Ordering)


1-Line Mode: Displays 10-12 Characters, Scrolls from Right
to Left for Longer Messages
RF Data Rate: 512 / 1200 / 2400bps for POCSAG,
1600 / 3200 / 6400bps for FLEX


Channel Spacing: 25 KHz (WB) or 12.5KHZ (NB)
2-Line Mode: Displays 22-24 Characters, Scrolls from Right
to Left for Longer Messages

Code Format: POCSAG or Flex

Cap Codes: 6 Cap Codes (For POCSAG)

Messages are Received Wirelessly from On-Site Paging
System or from Wide Area Paging Service


LED Array: 160 x 16
Messages are Automatically Manages for up to 24 Active
Messages

Characters: 10 / 4” Tall (One-Line) or
22 / 2” Tall (Two-Line)
Message Time-Out Option using either Run-Time or
Message Display Count as Time-Out Triggers

Dimensions: Case - 28” L x 6” H x 3” D

Real-Time Clock with Message Stamping Option

Weight: Approx – 13 Lbs.

Priority Message Stacking for up to 5 Priority Messages

Power: 110VAC (6Ft. Cord attached with 2 Prong Plug)

Priority Message By Prefix (911)

Message Clearing Feature using “Reset” by Prefix / Suffix

Frequency, Cap Codes and Pager Baud Rate Programmed
by way of PC Software.

All Options and Features are Set by OTA Commands

Program Software and Over-the-Air Commands (OTA) CD

Delete All Messages by way of Over-the-Air Command

Programmable Default Message (Up to 50 Characters)

Wall Mount Bracket Kit Included

Back to Back Signs Ceiling Hanging Kit Available
P/N= AS Brackets

NOTE: Frequency Required when Ordered
WaveWare Technologies, Inc.
1.800.373.1466
[email protected]
3.8.2012
