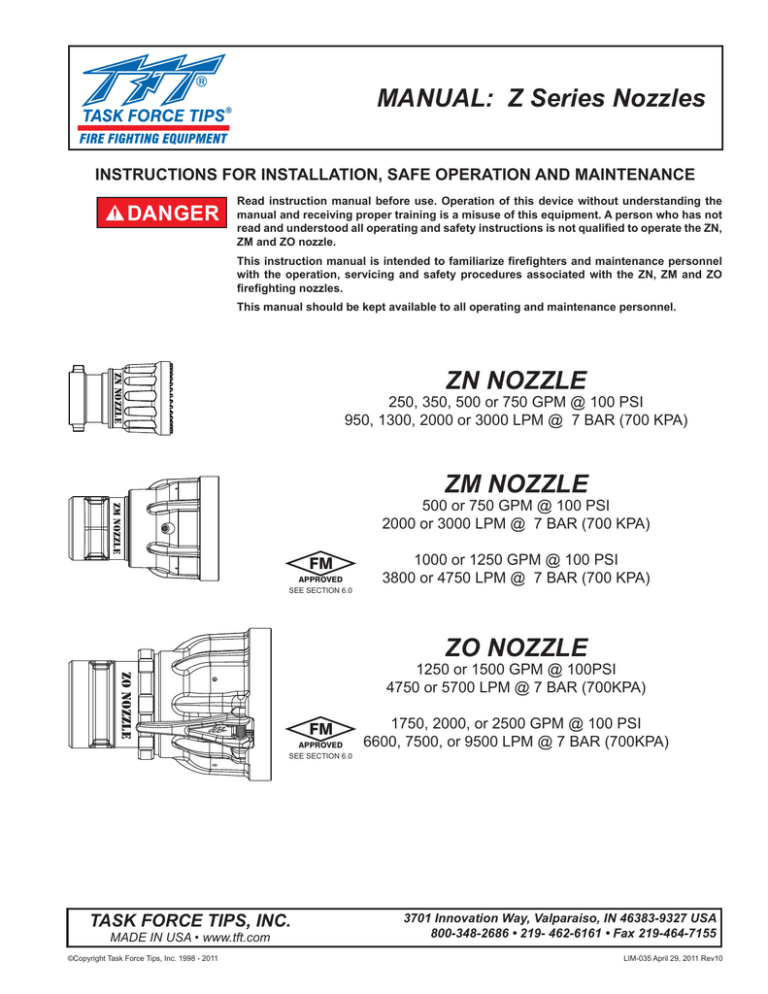

MANUAL: Z Series Nozzles DANGER

MANUAL:  Z Series Nozzles DANGER

MANUAL: Z Series Nozzles

INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION AND MAINTENANCE

DANGER

Read instruction manual before use. Operation of this device without understanding the manual and receiving proper training is a misuse of this equipment. A person who has not read and understood all operating and safety instructions is not qualifi ed to operate the ZN,

ZM and ZO nozzle.

This instruction manual is intended to familiarize fi refi ghters and maintenance personnel with the operation, servicing and safety procedures associated with the ZN, ZM and ZO fi refi ghting nozzles.

This manual should be kept available to all operating and maintenance personnel.

ZN NOZZLE

250, 350, 500 or 750 GPM @ 100 PSI

950, 1300, 2000 or 3000 LPM @ 7 BAR (700 KPA)

FM

APPROVED

SEE SECTION 6.0

ZM NOZZLE

500 or 750 GPM @ 100 PSI

2000 or 3000 LPM @ 7 BAR (700 KPA)

1000 or 1250 GPM @ 100 PSI

3800 or 4750 LPM @ 7 BAR (700 KPA)

ZO NOZZLE

1250 or 1500 GPM @ 100PSI

4750 or 5700 LPM @ 7 BAR (700KPA)

FM

APPROVED

SEE SECTION 6.0

1750, 2000, or 2500 GPM @ 100 PSI

6600, 7500, or 9500 LPM @ 7 BAR (700KPA)

TASK FORCE TIPS, INC.

MADE IN USA • www.tft.com

©Copyright Task Force Tips, Inc. 1998 - 2011

3701 Innovation Way, Valparaiso, IN 46383-9327 USA

800-348-2686 • 219- 462-6161 • Fax 219-464-7155

LIM-035 April 29, 2011 Rev10

DANGER

PERSONAL RESPONSIBILITY CODE

The member companies of FEMSA that provide emergency response equipment and services want responders to know and understand the following:

1. Firefi ghting and Emergency Response are inherently dangerous activities requiring proper training in their hazards and the use of extreme caution at all times.

2. It is your responsibility to read and understand any user’s instructions, including purpose and limitations, provided with any piece of equipment you may be called upon to use.

3. It is your responsibility to know that you have been properly trained in

Firefi ghting and /or Emergency Response and in the use, precautions, and care of any equipment you may be called upon to use.

4. It is your responsibility to be in proper physical condition and to maintain the personal skill level required to operate any equipment you may be called upon to use.

5. It is your responsibility to know that your equipment is in operable condition and has been maintained in accordance with the manufacturer’s instructions.

6. Failure to follow these guidelines may result in death, burns or other severe injury.

FEMSA

Fire and Emergency Manufacturers and Service Association

P.O. Box 147, Lynnfi eld, MA 01940 • www.FEMSA.org

1.0 MEANING OF SAFETY SIGNAL WORDS

2.1 USE WITH SALT WATER

Table Of Contents

5.0 MAINTENANCE

6.0 FM APPROVAL (FACTORY MUTUAL)

7.0 DRAWINGS & PARTS LIST

8.0 WARRANTY

2.4 USE WITH FOAM

2.4.1 FOAMJET LX WITH MASTERSTREAM NOZZLE

3.0 FLOW CHARACTERISTICS OF ZN & ZM NOZZLES

3.1 DETERMINING FLOW WITH PRE-PIPED MONITORS

1.0 MEANING OF SAFETY SIGNAL WORDS

A safety related message is identifi ed by a safety alert symbol and a signal word to indicate the level of risk involved with a particular hazard. Per ANSI standard Z535.4-2007, the defi nitions of the four signal words are as follows:

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE is used to address practices not related to personal injury.

NOTICE

2

©Copyright Task Force Tips, Inc. 1998 - 2011 LIM-035 April 29, 2011 Rev10

2.0 GENERAL INFORMATION

The Task Force Tips ZN, ZM and ZO Series nozzles are deluge nozzles with clean far reaching straight stream. They are adjustable from straight stream to a dense fog pattern. Their rugged construction is compatible with the use of fresh water as well as fi re fi ghting foam solutions. A summary of each nozzle’s characteristics is shown in the tables below.

WARNING

This equipment is intended for use by trained personnel for fi refi ghting. Their use for other purposes may involve hazards not addressed by this manual. Seek appropriate guidance and training to reduce risk of injury.

NOZZLE

ZN

ZM

ZM

Z0

ZO

FLOW (GPM)

250, 350, 500, 750

500, 750

FM

APPROVED

1000, 1250

1250, 1500

1750, 2000, 2500

PRESSURE

(PSI)

100

100

100

100

100

FLOW (LPM)

1000, 1500, 2000, 3000

2000, 3000

3800, 4750

4750, 5700

6600, 7500, 9500

PRESSURE

(BAR,KPA/100)

7

7

7

7

7 k FACTOR

15 - 75

50 - 125

50 - 125

125-250

125-250

NOTES ON TABLES:

2 ½ inch NH female threads are standard. Other threads and coupling sizes can be specifi ed at time of order.

ZM, ZN & Z0 series nozzle are hardcoat anodized ANSI 356 aluminum.

Temperature Rating: -25°F to 135°F (-32° C to 57°C) for ZN nozzles;

-40°F to 135°F (-40°C to 57°C) for ZM & ZO nozzles.

WARNING

Injury can occur from an inadequately supported nozzle. The mounting must be capable of supporting the nozzle reaction force which can be in excess of 665 LBS (1250 GPM at 100 PSI).

WARNING

WARNING

CAUTION

Some volatile liquids can be ignited by static discharge. Static build-up can occur from:

• Electrochemical separation of charge as water drains through low conductivity, refi ned

products.

• Applying foam over a low conductivity liquid of suffi cient depth to retain the charge created as

the foam blanket drains.

• Streaming currents as water or foam is introduced into the storage tank.

1

Water is a conductor of electricity. Application of water solutions on high voltage equipment can cause injury or death by electrocution. The amount of current that may be carried back to the nozzle will depend on the following factors:

Voltage of the line or equipment • Distance from the nozzle to the line or equipment

Size of the stream • Whether the stream is solid or broken • Purity of the water

2

Nozzle must be properly connected. Mismatched or damaged threads may cause nozzle to leak or uncouple under pressure and could cause injury.

CAUTION

Do not couple aluminum to brass. Dissimilar metals coupled together can cause galvanic corrosion that can result in inability to unscrew threads or complete loss of thread engagement.

CAUTION

The nozzle may become damaged if allowed to freeze while containing water. Always drain after use to avoid damage and possible loss of use.

1 Electrostatic Hazards of Foam Blanketing Operations by Peter Howels. Industrial Fire Safety July/August 1993

2 The Fire Fighter and Electrical Equipment, The University of Michigan Extension Service, Fourth Printing 1983. Page 47.

©Copyright Task Force Tips, Inc. 1998 - 2011

3

LIM-035 April 29, 2011 Rev10

2.1 USE WITH SALT WATER

Use with salt water is permissible provided nozzle is thoroughly cleaned with fresh water after each use. The service life of the nozzle may be shortened due to the effects of corrosion and is not covered under warranty.

2.2 VARIOUS MODELS AND TERMS

See fi gures 1A, 1B and 1C for views of the ZN, ZM and ZO Series nozzles.

Stream Shaper / Bumper

Threaded Inlet

Shaper Position Lock

FIG 1A - ZN Nozzle

Shaper Position Lock

Folding Handles

FIG 1B - ZM Nozzle

2.3 PATTERN CONTROL

FIG 1C - ZO Nozzle

TFT’s nozzles have full pattern control from straight stream to wide fog. Turning the stream shaper clockwise (as seen from the operating position behind the nozzle) moves the shaper to the straight stream position. Turning the stream shaper counterclockwise will result in an increasingly wider pattern.

Since the stream trim point varies with fl ow, the stream trim point should be “trimmed” after changing the fl ow to obtain the straightest and farthest reaching stream. To properly trim a stream, fi rst open the pattern to narrow fog. Then narrow the fog pattern to parallel to give maximum reach. Note: Turning the shaper further forward will cause stream crossover and reduce the effective reach of the nozzle.

2.4 USE WITH FOAM

Nozzles may be used with foam solutions. Refer to fi re service training for the proper use of foam.

WARNING

WARNING

WARNING

For Class B fi res, lack of foam or interruption in the foam stream can cause a break in the foam blanket and greatly increase the risk of injury or death. Assure that: Application rate is suffi cient (see NFPA 11 or foam manufacturer’s recommendations); Enough concentrate is on hand to complete task (see NFPA for minimum duration time requirements); Foam logistics have been carefully planned. Allow for such things as: Storage of foam in a location not exposed to the hazard it protects; Personnel, equipment and technique to deliver foam at a rapid enough rate; Removal of empty foam containers; Keeping clear path to deliver foam as hoses, other equipment and vehicles are deployed.

Improper use of foam can result in injury or damage to the environment. Follow foam manufacturer’s instructions and fi re service training to avoid: Using wrong type of foam on a fi re, i.e. Class A foam on a

Class B fi re; Plunging foam into pools of burning liquid fuels; Causing environmental damage; Directing stream at personnel.

There is a wide variety of foam concentrates. Each user is responsible for verifying that any foam concentrate chosen to be used with this unit has been tested to assure that the foam obtained is suitable for the purpose intended.

4

©Copyright Task Force Tips, Inc. 1998 - 2011 LIM-035 April 29, 2011 Rev10

2.4.1 FOAMJET LX WITH MASTERSTREAM NOZZLE

To increase the expansion ratio and drain time, Task Force Tips

“Foamjet LX” (model FJ-LX-M) may be used with the ZN nozzle.

This low expansion foam tube attaches and detaches quickly from the nozzle. Note: As expansion ratio is increased, the reach of the stream will be decreased due to the greater amount of bubbles in the stream and their inability to penetrate the air. Generally, the reach with foam is approximately 10 % less than with water only.

Actual results will vary based on brand of foam, hardness of water, temperature, etc.

FIG 2.4.1 - FJ-LX-MD Shown on ZN Nozzle

3.0 FLOW CHARACTERISTICS OF ZN & ZM NOZZLES

The ZN, ZM & Z0 Nozzles are manufactured to a predetermined fi xed orifi ce. The orifi ce size is not adjustable and is specifi ed at time of order. 250, 350, 500 or 750 GPM fl ow rates at 100 PSI are available on the ZN, 500, 750, 1000 or 1250 GPM @ 100 psi are available on the ZM nozzle and 1250, 1500, 1750, 2000 or 2500 GPM fl ow rates @ 100 psiare available on the ZO. The fl ow rate is marked on the nozzle’s baffl e. Figure 3 gives relationship of fl ow and pressure for various orifi ce sizes.

Line Baffl e

A

250GPM @ 100PSI

B

350GPM @ 100PSI

C

500GPM @ 100PSI

D

750GPM @ 100PSI

E

1000GPM @ 100PSI

Line Baffl e

F

1250GPM @ 100PSI

G

1500GPM @ 100PSI

H

1750GPM @ 100 PSI

I

2000GPM @ 100PSI

J

2500GPM @ 100PSI

WARNING

FIG 3 - Nozzle Flow Characteristics

An inadequate supply of nozzle pressure and/or fl ow will cause an ineffective stream and can result in injury, death or loss of property.

5

©Copyright Task Force Tips, Inc. 1998 - 2011 LIM-035 April 29, 2011 Rev10

3.1 DETERMINING FLOW WITH PRE-PIPED MONITORS

The simplest procedure to determine fl ow is with a fl ow meter. If a fl ow meter is unavailable then the fl ow may be estimated using pressure loss data between the nozzle and an in-line pressure gauge at the pump or considerably upstream from the nozzle. Data is taken with a smooth bore nozzle and handheld pitot gauge. Note: equations assume no substantial change in elevation between in-line pressure gauge and nozzle.

Step1: Determine fl ow of smooth bore nozzle.

Flow water with a smooth bore nozzle and record the nozzle’s size, pitot pressure and in-line pressure gauge reading. The smooth bore nozzle’s fl ow is calculated from the Freeman formula:

Q nozzle

= F x D P pitot

Where: F = 29.71 for English units (GPM, INCHES, PSI)

F = .667 for metric units (LPM, MM, BAR) Note: 1 BAR=100 KPA

Q nozzle

is smooth bore nozzle fl ow in GPM (or LPM)

D is nozzle exit diameter in INCHES (or MM)

P pitot

is pitot pressure in PSI (or BAR)

Step 2: Find piping pressure loss constant.

Using the results from step 1 use the following equation to calculate the pressure loss constant between the in-line pressure gauge and the nozzle.

Where: C piping

is pressure loss constant in GPM2/PSI (or LPM2/BAR)

P inline

is inline pressure gauge reading in PSI (or BAR)

Step 3: Calculate nozzle constant.

Where: C nozzle

is the nozzle’s constant in GPM2/PSI (or LPM2/BAR)

Q nominal

is the nozzle’s nominal fl ow in GPM (or LPM)

P nominal

is the nozzle’s nominal pressure in PSI (or BAR)

Step 4: Calculate fl ow.

Using the pressure loss constant from step 2, the nozzle constant from step 3, and the in-line pressure gauge reading, the fl ow with a fi xed orifi ce nozzle can be calculated with the following equation.

Q =

C

P in-line

— P x C

Q

Q

P

2 smooth

2 nominal nominal x P pitot

Where: Q is fi xed orifi ce nozzle’s fl ow in GPM (or LPM)

Mount a graph or table of the results adjacent to the in-line pressure gauge. Deliver any desired fl ow by adjustment of pump pressure.

3.2 STREAM TRAJECTORY DATA

Figure 5 gives the stream trajectory for the nozzles at various pressures. The graphs represent orifi ce sizes as defi ned in Figure 3.

For other orifi ce sizes and pressures the graphs may be interpolated.

Notes on trajectory graphs:

• Graphs show approximate effective stream trajectory at 30 degrees elevation in no wind conditions. Distance to last water drops approximately 10% farther.

Trajectories shown are for water. The addition of foam is expected to decrease the reach by approximately 10%.

Tail or head winds of 20 MPH (30 KPH) may increase or decrease the range approximately 30%.

6

©Copyright Task Force Tips, Inc. 1998 - 2011 LIM-035 April 29, 2011 Rev10

0

80

70

60

50

40

30

20

10

0

0

10 20 30 40

METERS

50 60

ZN AND ZM NOZZLES, 70 PSI (4.8 BAR, 480 KPA)

20 40 60

D

70 80 90

20

15

10

A B C E

5

80 100 120 140 160 180 200 220 240 260 280 300

0

HORIZONTAL DISTANCE (FEET)

CURVE

A

B

C

D

E

GPM

FLOW

250

420

670

840

1075

LBS

REACTION

110

180

280

350

440

CURVE

A

B

C

D

E

LPM

FLOW

900

1600

2500

3200

4000

KGF

REACTION

50

80

130

160

200

0

80

70

60

50

40

30

20

10

0

0

ZN AND ZM NOZZLES, 100 PSI (7 BAR, 700 KPA)

20

CURVE

A

B

C

D

E

10

40

GPM

FLOW

300

500

800

1000

1250

20

HORIZONTAL DISTANCE (METERS)

30 40 50 60 70

D

80 90

20

10

60

LBS

REACTION

150

250

400

510

630

A B C E

80 100 120 140 160 180 200 220 240 260 280 300

0

HORIZONTAL DISTANCE (FEET)

CURVE

A

B

C

D

E

LPM

FLOW

1100

1900

3000

3800

4700

KGF

REACTION

70

120

180

230

290

80

70

60

50

40

30

20

10

0

0

0

METERS

50

ZN AND ZM NOZZLES, 120 PSI (8.3 BAR, 830 KPA)

20

10

40

20 30 40

A B

60

C

CURVE

A

B

C

D

E

GPM

FLOW

330

550

880

1100

1370

70 80

D

E

90

20

15

10

5

60

LBS

REACTION

180

300

490

610

760

80 100 120 140 160 180 200 220 240 260 280 300

0

HORIZONTAL DISTANCE (FEET)

CURVE

A

B

C

D

E

LPM

FLOW

1200

2100

3300

4200

5200

KGF

REACTION

80

140

220

280

340

©Copyright Task Force Tips, Inc. 1998 - 2011

7

LIM-035 April 29, 2011 Rev10

100

90

80

70

60

50

40

30

20

10

0

0

0

10 20 30

HORIZONTAL DISTANCE (METERS)

40 50 60

ZO NOZZLE, 70 PSI (4.8 BAR, 480 KPA)

70

D

80 90

24

18

12

A

E

6

B

C

20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320

0

HORIZONTAL DISTANCE (FEET)

CURVE

A

B

C

D

E

GPM

FLOW

1050

1250

1400

1700

2010

LBS

REACTION

440

530

590

720

850

CURVE

A

B

C

D

E

LPM

FLOW

4000

4700

5300

6400

7600

KGF

REACTION

200

240

270

320

380

100

90

80

70

60

50

40

30

20

10

0

0

0

10 20 30

HORIZONTAL DISTANCE (METERS)

40 50 60

ZO NOZZLE, 100 PSI (7 BAR, 700 KPA)

70 80

D

90

24

18

12

A

E

6

B

C

20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320

0

HORIZONTAL DISTANCE (FEET)

CURVE

A

B

C

D

E

GPM

FLOW

1250

1500

1750

2000

2500

LBS

REACTION

630

760

880

1010

1260

CURVE

A

B

C

D

E

LPM

FLOW

4700

5700

6600

7600

9500

KGF

REACTION

290

350

400

460

580

100

90

80

70

60

50

40

30

20

10

0

0

0

10 20 30

HORIZONTAL DISTANCE (METERS)

40 50 60

ZO NOZZLE, 120 PSI (8.3 BAR, 830 KPA)

70 80 90

30

25

D

20

15

E

10

A

B

5

C

20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320

0

HORIZONTAL DISTANCE (FEET)

CURVE

A

B

C

D

E

GPM

FLOW

1320

1650

2000

2200

2800

LBS

REACTION

730

910

1110

1220

1550

CURVE

A

B

C

D

E

LPM

FLOW

5000

6200

7600

8300

10600

KGF

REACTION

330

410

500

550

700

Fig. 3.2 Stream Trajectory Data

©Copyright Task Force Tips, Inc. 1998 - 2011

8

LIM-035 April 29, 2011 Rev10

4.0 FLUSHING DEBRIS

Debris in the water may get caught inside the nozzle. This trapped material will cause poor stream quality, shortened reach and reduced fl ow. To remove debris trapped in the nozzle:

1) Shut off fl ow to the nozzle.

2) Move the stream shaper to the wide fog position.

3) For ZN Nozzle: Unscrew baffl e using a 1-1/8 inch (28mm) socket.

For ZM Nozzle: Unscrew the bolt using 7/8” socket and remove baffl e.

For ZO Nozzle: Unscrew the bolt using a large adjustable wrench and remove baffl e.

4) Remove debris. Flow water to fl ush if necessary.

5) Reassemble the nozzle.

WARNING

Large amounts of debris may be unfl ushable and can reduce the fl ow of the nozzle resulting in an ineffective fl ow. In the event of a blockage, it may be necessary to retreat to a safe area.

5.0 MAINTENANCE

Nozzles must be checked regularly to assure proper operation. Contact factory for parts lists and exploded views for particular models.

6.0 FM APPROVAL (FACTORY MUTUAL)

FM Approved nozzles are identifi ed with the symbol

FM

APPROVED on their label.

All models with FM Approval have been tested to FM Approval Class 5511-Firefi ghting Nozzles for Use with Hose, Monitor

Assemblies and other Firefi ghting Equipment.

FM Approved nozzles are not FM Approved for use with foam.

©Copyright Task Force Tips, Inc. 1998 - 2011

9

LIM-035 April 29, 2011 Rev10

7.0 DRAWINGS & PARTS LIST

10

8

7

ZN NOZZLE

6

5

4

3

2 1

ITEM DESCRIPTION

BAFFLE 350 GPM

1 BAFFLE 500 GPM

BAFFLE 750 GPM

2 1/2-13 X 2 STUD - FULL THREAD

3 BUMPER

4 SHAFT

QTY PART

1 Z565

1 Z566

1 Z567

1 VT50-13SD2.0

1 Z700

1 Z505

9

ITEM DESCRIPTION

5 1/4-28 X 1/4 SOCKET SET SCREW

QTY PART

1 VT-25-28SS250

6 SHAPER SEAL 3.255 ID - DEFLASHED 1 Z330

7 IND. NOZ. BODY ALUM 2.5” NH 1 Z650ANJ

8 CAM PIN

9 NAME LABEL - ZN NOZZLE

10 GASKET - 2.5” HOSE COUPLING

1

1

1

Z660

ZL150

V3190

1

2

ZM NOZZLE

3

4

5

6

8

9

10

11

12

13

7

6

7

4

5

ITEM DESCRIPTION

1 GASKET - 2.5” HOSE COUPLING

2

3

NOZZLE BODY 2.5” NH

CUP SEAL 4.25 X 4.75 X 1/4

10-32 X 3/8 SOCKET SET SCREW

PIN - .680 X 1/8” DIA.

NOZZLE SHAPER

GREASE FITTING 1/4-28

QTY PART

1

1

1

1

1

1

1

V3190

ZFM600NJ

XGE380

VT10-32SS375

D07550

ZFM500

VT25-28ZERK

ITEM DESCRIPTION

8 SPRING

9 BAFFLE K=125

10 SUBBAFFLE K=75 & K=100

11 SUBBAFFLE K=50 - LASERED

12 HEAVY HEX BOLT 1/2”-13 X 1.5”

13 ZM NAME LABEL

QTY PART

1 ZFM580

1 ZFM560

1 ZFM565

1 ZFM570

1 ZFM575

1 ZFML150

1

©Copyright Task Force Tips, Inc. 1998 - 2011

10

LIM-035 April 29, 2011 Rev10

7.0 DRAWINGS & PARTS LIST

1

2

Z0 NOZZLE

4

5

6

7

8

9

10

16

17

18

20

3

©Copyright Task Force Tips, Inc. 1998 - 2011

12

13

14

15

ITEM DESCRIPTION

1 GASKET - 2.5"

2

3

ZO NOZZLE BODY 3.5"NH INLET

ZO NOZZLE BODY 3.5"BSP INLET

NAME LABEL - ZO NOZZLE

NAME LABEL - ZO NOZZLE - FM APPROVED

4 TUBING

5 TUBING

6 6-32 X 3/16 SOCKET SET SCREW

7 ZO LOCK RING

8 CUP SEAL 6.25"OD X 5.5" X .375"

9 10-32 X 1/4 SOCKET SET SCREW

10 1/8 X 3/4 HDP SPIROL PIN

11 ZO NOZZLE SHAPER

12 GREASE FITTING 1/4-28

13 PIVOT PIN

14 HANDLE TORSION SPRING

15 STORZ FOLDING HANDLE

16 ZO NOZZLE BAFFLE SPRING

17 BAFFLE K= 250

18 BAFFLE K= 175 & K=200

19 BAFFLE K= 125 & K=150

20 HEAVY HEX BOLT

QTY PART

1 V3190

1

1

ZFM700N

ZFM700B

ZFML250

ZFML255

1 ZFM745

1 ZFM755

1 VT06-32SS187

1 ZFM725

1 ZFM750

1 VT10-32SS250

1 VP125X750

1 ZFM710

1 VT25-28ZERK

2 A4262

2 A4263

2 A4261

1 ZFM740

1 ZFM730

1 ZFM731

1 ZFM732

1 ZFM720

19

11

LIM-035 April 29, 2011 Rev10

8.0 WARRANTY

Task Force Tips, Inc., 3701 Innovation Way, Valparaiso, Indiana 46383-9327 (“TFT”) warrants to the original purchaser of its ZN,

ZM and Masterstream series nozzles (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the fi ve (5) year period from the date of purchase.

TFT’s obligation under this warranty is specifi cally limited to replacing or repairing the equipment (or its parts) which are shown by

TFT’s examination to be in a defective condition attributable to TFT. To qualify for this limited warranty, the claimant must return the equipment to TFT, at 3701 Innovation Way, Valparaiso, Indiana 46383-9327, within a reasonable time after discovery of the defect.

TFT will examine the equipment. If TFT determines that there is a defect attributable to it, TFT will correct the problem within a reasonable time. If the equipment is covered by this limited warranty, TFT will assume the expenses of repair.

If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT may elect to refund the purchase price of the equipment, less reasonable depreciation, in complete discharge of its obligations under this limited warranty. If TFT makes this election, claimant shall return the equipment to TFT free and clear of any liens and encumbrances.

This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any person who is an intended or unintended benefi ciary of the equipment, shall not be entitled to recover from TFT any consequential or incidental damages for injury to person and/or property resulting from any defective equipment manufactured or assembled by TFT. It is agreed and understood that the price stated for the equipment is in part consideration for limiting TFT’s liability. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including failure to provide reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or altered by someone else.

THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE EQUIPMENT ALL

IMPLIED WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE.

THERE IS NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND THAT STATED IN THIS DOCUMENT.

This limited warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state.

TASK FORCE TIPS, INC.

MADE IN USA • www.tft.com

©Copyright Task Force Tips, Inc. 1998 - 2011

3701 Innovation Way, Valparaiso, IN 46383-9327 USA

800-348-2686 • 219- 462-6161 • Fax 219-464-7155

LIM-035 April 29, 2011 Rev10

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
