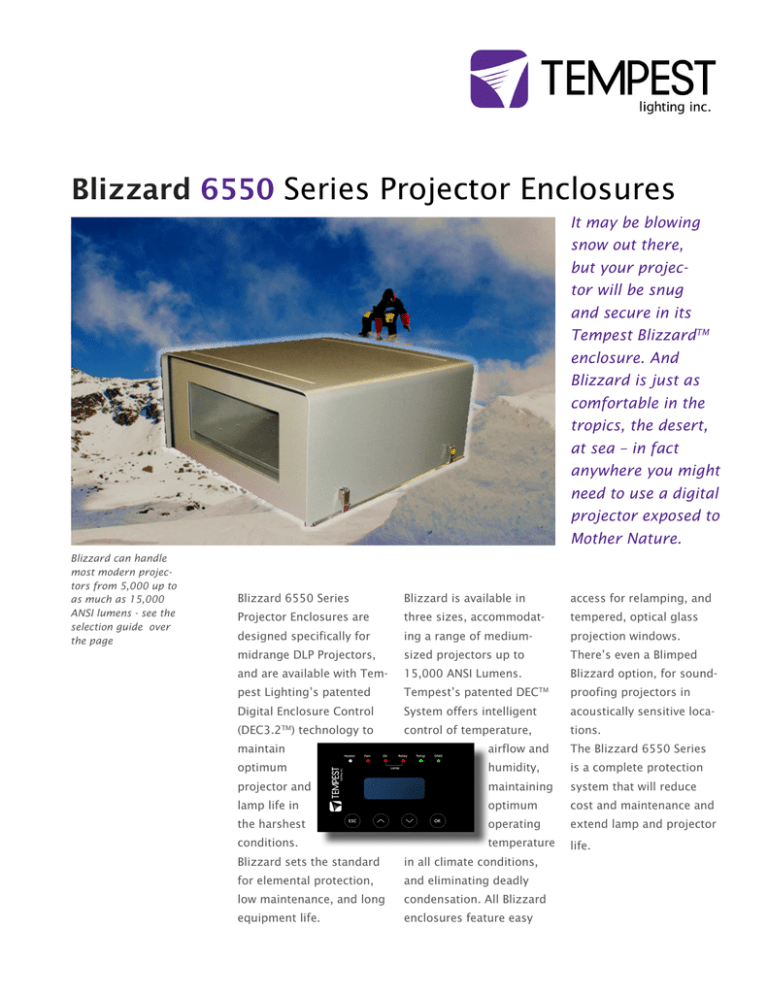

Blizzard 6550 Series Projector Enclosures
It may be blowing
snow out there,
but your projector will be snug
and secure in its
Tempest BlizzardTM
enclosure. And
Blizzard is just as
comfortable in the
tropics, the desert,
at sea – in fact
anywhere you might
need to use a digital
projector exposed to
Mother Nature.
Blizzard can handle
most modern projectors from 5,000 up to
as much as 15,000
ANSI lumens - see the
selection guide over
the page
Blizzard 6550 Series
Blizzard is available in
access for relamping, and
Projector Enclosures are
three sizes, accommodat-
tempered, optical glass
designed specifically for
ing a range of medium-
projection windows.
midrange DLP Projectors,
sized projectors up to
There’s even a Blimped
and are available with Tem-
15,000 ANSI Lumens.
Blizzard option, for sound-
pest Lighting’s patented
Tempest’s patented DECTM
proofing projectors in
Digital Enclosure Control
System offers intelligent
acoustically sensitive loca-
(DEC3.2 ) technology to
control of temperature,
tions.
TM
maintain
airflow and
The Blizzard 6550 Series
optimum
humidity,
is a complete protection
projector and
maintaining
system that will reduce
lamp life in
optimum
cost and maintenance and
the harshest
operating
extend lamp and projector
conditions.
temperature
life.
Blizzard sets the standard
in all climate conditions,
for elemental protection,
and eliminating deadly
low maintenance, and long
condensation. All Blizzard
equipment life.
enclosures feature easy
Enclosure
Exterior grade powder coated aluminum and stainless steel. Wide, tempered optical
glass projection window caters for offset-lens projectors.
Finish
Exterior grade powder coating: epoxy primer, Cardinal T391-BG290 Bronze Texture.
Custom colors to special order.
Ordering Guide:
Model #
Description
Type
Lamp Power
Height
Length*
6550.IN
Blizzard
DEC3.2
230
1,300W
10”/25cm
24”/61cm
6550.US
Blizzard
DEC3.2
120
1,300W
10”/25cm
24”/61cm
6560.IN
Blizzard
Fan
230
1,300W
10”/25cm
24”/61cm
6560.US
Blizzard
Fan
120
1,300W
10”/25cm
24”/61cm
6555.IN
Blizzard Stretch
DEC3.2
230
1,300W
12”/30cm
35”/89cm
6555.US
Blizzard Stretch
DEC3.2
120
1,300W
12”/30cm
35”/89cm
6565.IN
Blizzard Stretch
Fan
230
1,300W
12”/30cm
35”/89cm
6565.US
Blizzard Stretch
Fan
120
1,300W
12”/30cm
35”/89cm
6556.IN
Blizzard X-Stretch
DEC3.2
230
1,300W
12”/30cm
42”/107cm
6556.US
Blizzard X-Stretch
DEC3.2
120
1,300W
12”/30cm
42”/107cm
6566.IN
Blizzard X-Stretch
Fan
230
1,300W
12”/30cm
42”/107cm
6566.US
Blizzard X-Stretch
Fan
120
1,300W
12”/30cm
42”/107cm
Voltage
Projector Maximum:
Maximum Projector
Dimensions
* Be sure to include the
lens in your length calculation!
All models: max projector
width is 26”/66cm.
Enclosure Dimensions
Need something
Smaller?
Check out our Baby
Blizzard 6500 Series
Or Bigger?
Our Cyclone 8000
Series picks up
where Blizzard
A
B
6550/6560
31”/79cm
33”/84cm
14”/36cm
69lb/31kg
jectors up to 30,000
6555/6565
41”/104cm
45”/114cm
16”/41cm
89lb/40kg
ANSI lumens!
6556/6566
49”/124cm
53”/135cm
16”/41cm
98lb/45kg
leaves off, for pro-
Dimension
C
Weight
Access
Cover is removed for installation and maintenance, providing complete open access to the
projector.
Projector Mount
Projector is held securely in place with two universal stainless steel projector clamps.
Security
Rings in the cover latches allow for the inclusion of padlocks for security in public areas.
Cooling/Heating
Cooling by a single AC axial fan located on the rear panel. Incoming air is filtered using a
removable, washable air filter in the rear air intake cowl. Heater is a 500W line voltage strip
heater (DEC3 models only).
Projector Protection
Projector power supply passes through a 2-pole mechanical relay (DEC3 models only), which
will open in the event of a serious over-temperature event, to protect the projector from heat
damage. Threshold levels are user-adjustable.
Digital Enclosure Control
DEC3.2TM – that’s Digital Enclosure Control, 3rd
Generation – takes enclosure control to the next level.
DEC3.2 is a an entirely new controller, featuring highreliability surface-mount electronics, extreme heavy-duty
switching components, and a handy waterproof user
control panel on the outside of the enclosure. DEC3 offers communication via DMX and RDM, or may be used in
its entirely automatic standalone operating mode. DEC3
monitors internal temperature, humidity and lamp current at all times, and uses this information to control its
lamp relay, fans and heaters, and report back over RDM if
desired.
DEC works right out of the box – if you don’t want to play
with its default settings, you don’t need to. DEC’s mission
is to maintain temperature and humidity inside the enclosure within the ‘Goldilocks’ band – never to hot, never
too cold, and never, never, allowing deadly condensation
DEC3’s user interface uses
CapSenseTM technology for a
watertight control panel that’s
easy to use and easy to read.
LED indicators show the status
of all major functions, and the
display shows DMX address,
temperature, humidity and
any error messages you need
to know about.
Use the simple menus to
optimize temperature and
humidity settings, set DMX
address, view and reset lamp
hour counter, and more.
Large Systems? All this is
available over RDM, in your
control room, or even over the
internet.
to form. Condensation is fatal to electronic equipment,
particularly in polluted areas or saline environments,
where it brings not only rust and short-circuits, but also a
Lamp OFF
steady buildup of mineral and salt deposits. Incidentally,
When the lamp is off, DEC goes to work. When conditions
are within normal bounds, DEC pulses the heater at a low
level to prevent condensation, and gently changes the
enclosure air every 30 seconds or so. We call this ‘pulse
mode’, and it is the key to preventing damaging condensation inside your equipment.
this is very hard to control with air-conditioning type systems, which is why we don’t use them.
DEC’s function depends on whether the projector lamp is
on or off:
If the temperature rises above the top
set limit, DEC runs the fans to cool it
down. In cold conditions, DEC will run
the heater as required to maintain the
bottom set temperature.
Lamp ON
When the projector is running, the heat
from the lamp takes care of humidity,
and DEC runs the enclosure’s fan to
change its air every few seconds – ensuring minimal temperature rise above
And while doing all of this, DEC can tell
you what’s happening over your RDM network – a real
outside ambient.
boon in larger installations.
Wiring Information
Electrical
Two 0.875” (22.2mm) holes are provided for wiring access – one for power, one for
signal. Suits US 1/2” ID/International 20mm OD conduit. IEC 3-pin receptacle provided
for projector power inside enclosure.
Note that DEC3 models must be powered 24/7. Installer may provide one or two
switched feeds as preferred, for projector and enclosure power.
Suffix .IN or .US
Voltage
Max Power *
Frequency
Projector Receptacle
.IN
230
550W
50/60Hz
CE17 16amp 2p + E (blue)
.US
120
550W
50/60Hz
NEMA L6-20
* DEC3 models - Fan only models are 50W max.
Mounting
All Blizzard enclosures may be mounted either base-down, on a solid surface or superstructure, or suspended base-up, under a ceiling, structure or overhang.
<< Enclosure mounted
base-down
Note that the projector is held securely
in place with two
stainless steel projector clamps. Clamps
may be fixed in a
Enclosure mounted
base-up >>
Mounting Hardware
(optional)
variety of positions to
accomodate different
projector types.
Two parallel 1 5/8” x 13/16” Unistrut. Use standard Unistrut hardware, or order any of
the mounting kits below. Tempest uses and recommends only stainless steel mounting
hardware.
4900.MC Stainless Steel
pipe clamp kit, for pipes 1.5”
(38mm) to 2” (50mm) OD.
Four required per enclosure.
4925.MC Stainless Steel pipe
clamp kit, for pipes 2” (50mm)
to 2.5”/64mm OD. Four required per enclosure.
4900.MB Stainless Steel Bolt
Kit, for attachment to a (user
supplied) mounting plate up to
1/4”/6mm thick.
Tempest Lighting, Inc. accepts no responsibility whatsoever for damages arising from deficient mounting design
or installation by others.
Sound Insulation (Blimp)
Kits
For applications such as lecture halls and theatres, where the aim of the enclosure is to
eliminate projector fan noise, use fan-only Blizzard enclosure, plus a Blizzard Blimp Kit
(6500.BK). The kit includes a remote fan, 25’/7.6m of padded hose, and a 1.5”/45mm
layer of sound insulation inside the enclosure.
Shipping
(Carton Packed)
6550/6560
Carton 36” x 36” x 24” (91 x 91 x 61cm), weight 95lb/43kg
6555/6565
Carton 52” x 34” x 20” (130 x 84 x 48cm), weight 120lb/55kg
6556/6566
Carton 52” x 34” x 20” (130 x 84 x 48cm), weight 135lb/61kg
All Schedule B Export Code: 8536.30.0000
Approvals
ETL and cETL listed to UL Standard 50, 508
CE: EN55015, EN61000-3-4, EN61000-3-5, EN61000-4-2, EN61000-4-3, EN61000-4-4,
EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, EN60598-1
NEMA Type 3R Enclosure (approximately equivalent to IP54)
This product is protected by US Patent Number 6,352,358.
© Tempest Lighting, Inc., November 2011
In the interest of continuous product improvement,
specifications are subject to change without notice
Tempest Lighting, Inc.,
13110 Saticoy Street, Unit C, North Hollywood, CA 91605, USA
www.tempestlighting.com [email protected]
t: +1 818 787 8984
f: +1 818 982 5582
