Fuse Holders-High Currrent

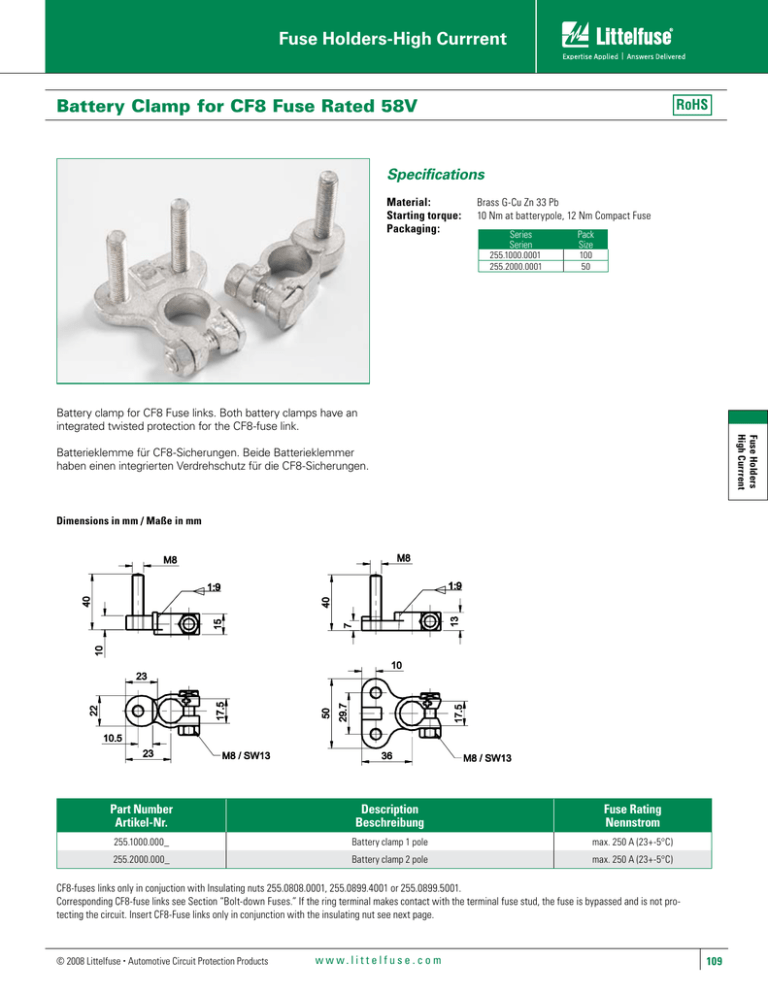

Battery Clamp for CF8 Fuse Rated 58V
Specifications
Material:
Starting torque:
Packaging:
Brass G-Cu Zn 33 Pb
10 Nm at batterypole, 12 Nm Compact Fuse
Series
Serien
255.1000.0001
255.2000.0001
Pack
Size
100
50
Battery clamp for CF8 Fuse links. Both battery clamps have an
integrated twisted protection for the CF8-fuse link.
Fuse Holders
High Currrent
Batterieklemme für CF8-Sicherungen. Beide Batterieklemmer
haben einen integrierten Verdrehschutz für die CF8-Sicherungen.
Dimensions in mm / Maße in mm
Part Number
Artikel-Nr.
Description
Beschreibung
Fuse Rating
Nennstrom
255.1000.000_
Battery clamp 1 pole
max. 250 A (23+-5°C)
255.2000.000_
Battery clamp 2 pole
max. 250 A (23+-5°C)
CF8-fuses links only in conjuction with Insulating nuts 255.0808.0001, 255.0899.4001 or 255.0899.5001.
Corresponding CF8-fuse links see Section “Bolt-down Fuses.” If the ring terminal makes contact with the terminal fuse stud, the fuse is bypassed and is not protecting the circuit. Insert CF8-Fuse links only in conjunction with the insulating nut see next page.
© 2008 Littelfuse • Automotive Circuit Protection Products
www.littelfuse.com
109
