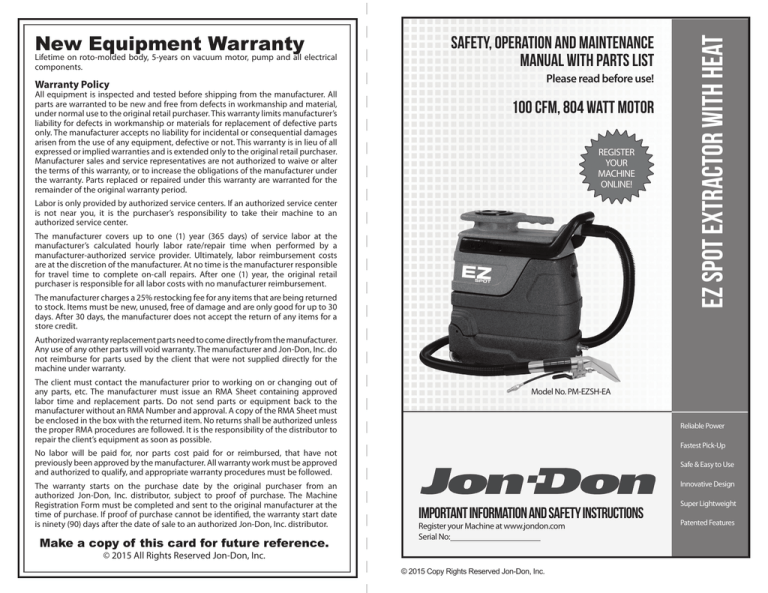

t New Equipment Warranty Safety, Operation and Maintenance Manual with Parts List

t New Equipment Warranty Safety, Operation and Maintenance Manual with Parts List
components.
Safety, Operation and Maintenance
Manual with Parts List
Please read before use!
Warranty Policy
All equipment is inspected and tested before shipping from the manufacturer. All
parts are warranted to be new and free from defects in workmanship and material,
under normal use to the original retail purchaser. This warranty limits manufacturer’s
liability for defects in workmanship or materials for replacement of defective parts
only. The manufacturer accepts no liability for incidental or consequential damages
arisen from the use of any equipment, defective or not. This warranty is in lieu of all
expressed or implied warranties and is extended only to the original retail purchaser.
Manufacturer sales and service representatives are not authorized to waive or alter
the terms of this warranty, or to increase the obligations of the manufacturer under
the warranty. Parts replaced or repaired under this warranty are warranted for the
remainder of the original warranty period.
100 CFM, 804 Watt Motor
REGISTER
YOUR
MACHINE
ONLINE!
Labor is only provided by authorized service centers. If an authorized service center
is not near you, it is the purchaser’s responsibility to take their machine to an
authorized service center.
The manufacturer covers up to one (1) year (365 days) of service labor at the
manufacturer’s calculated hourly labor rate/repair time when performed by a
manufacturer-authorized service provider. Ultimately, labor reimbursement costs
are at the discretion of the manufacturer. At no time is the manufacturer responsible
for travel time to complete on-call repairs. After one (1) year, the original retail
purchaser is responsible for all labor costs with no manufacturer reimbursement.
The manufacturer charges a 25% restocking fee for any items that are being returned
to stock. Items must be new, unused, free of damage and are only good for up to 30
days. After 30 days, the manufacturer does not accept the return of any items for a
store credit.
EZ Spot Extractor with Heat
New
Equipment Warranty
Lifetime on roto-molded body, 5-years on vacuum motor, pump and all electrical
Authorized warranty replacement parts need to come directly from the manufacturer.
Any use of any other parts will void warranty. The manufacturer and Jon-Don, Inc. do
not reimburse for parts used by the client that were not supplied directly for the
machine under warranty.
The client must contact the manufacturer prior to working on or changing out of
any parts, etc. The manufacturer must issue an RMA Sheet containing approved
labor time and replacement parts. Do not send parts or equipment back to the
manufacturer without an RMA Number and approval. A copy of the RMA Sheet must
be enclosed in the box with the returned item. No returns shall be authorized unless
the proper RMA procedures are followed. It is the responsibility of the distributor to
repair the client’s equipment as soon as possible.
Model No. PM-EZSH-EA
Reliable Power
Fastest Pick-Up
No labor will be paid for, nor parts cost paid for or reimbursed, that have not
previously been approved by the manufacturer. All warranty work must be approved
and authorized to qualify, and appropriate warranty procedures must be followed.
The warranty starts on the purchase date by the original purchaser from an
authorized Jon-Don, Inc. distributor, subject to proof of purchase. The Machine
Registration Form must be completed and sent to the original manufacturer at the
time of purchase. If proof of purchase cannot be identified, the warranty start date
is ninety (90) days after the date of sale to an authorized Jon-Don, Inc. distributor.
Make a copy of this card for future reference.
Safe & Easy to Use
Innovative Design
Important Information and Safety Instructions
Register your Machine at www.jondon.com
Serial No:
© 2015 All Rights Reserved Jon-Don, Inc.
© 2015 Copy Rights Reserved Jon-Don, Inc.
Super Lightweight
Patented Features
Dear Valued Client,
Congratulations on the purchase of your 3-Gallon EZ Spot Extractor with Heat carpet
and upholstery machine! The world of carpet cleaning is becoming more high-tech
and competitive and we strive to provide you with the most innovative products. Our
spot extractor with heat is yet another example of this, bringing a new dimension to
carpet and upholstery cleaning with its cutting-edge features, quality and value.
Please review this manual, paying careful attention to the Safety Instructions section.
Keep in mind that any unnecessary damage, neglect or abuse of this machine will void
your warranty. You can be confident that simple maintenance will ensure that your
spot extractor with heat provides quality performance for many years to come.
If warranty questions arise, please consult your manual or contact your distributor.
Should you have any questions regarding maintenance, replacing parts or ordering
parts, please call an authorized distributor.
Before you begin using your EZ Spot Extractor with Heat, please thoroughly review the
Owner’s Manual.
Warranty Registration
Please take a moment to register your machine. Fill out the
information below and mail back to Jon-Don, Inc. immediately.
The warranty starts on the purchase date by the original purchaser, subject to proof
of purchase. Please immediately register your machine by returning this Machine
Registration Card at the time of purchase. If proof of purchase cannot be identified,
the warranty start date is ninety (90) days after the inventory stocking date at the
distributor’s warehouse.
Machine Model
Purchase Date
Motor Type
Serial No.
Place of Purchase
Shipped To
Again, congratulations on the purchase of your 3-Gallon EZ Spot Extractor with Heat
carpet and upholstery machine!
Your Name
Phone
E-mail
Fax
Questions or Comments?
Address Line 1
Phone: 800-556-6366
Address Line 2
Fax: 888-344-6878
City
400 Medinah Road, Roselle, IL 60172
www.jondon.com
State
Zip
Comments:
Mail to:
Jon-Don, Inc.
400 Medinah Road
Roselle, IL 60172
See reverse side for warranty information.
Make a copy of this card for future reference.
© 2015 All Rights Reserved Jon-Don, Inc.
(2) 3-Gallon EZ Spot Extractor with Heat
EZ Spot Extractor With
Heat
By Jon-Don, Inc.
Table of Contents
Please fill out the following information:
New Equipment Warranty..................................................................................4
Model No:
Returned Material Authorization (RMA) Procedure.........................................5
Serial No:
1.0 Safety Instructions......................................................................................5
Distributor Name:
2.0 Set-Up / Prepare Unit for Use.....................................................................5
Distributor Phone No:
3.0 Maintenance................................................................................................6
Date of Purchase:
4.0 Grounding Instructions...............................................................................7
5.0 Machine Schematic Drawing......................................................................8
6.0 Machine Parts List......................................................................................9
7.0 Hoses and Hand Tool Drawing and Parts List..........................................10
8.0 Wiring Diagram........................................................................................11
9.0 Problem Solving.......................................................................................11
400 Medinah Road, Roselle, IL 60172
Phone: 800-556-6366 | Fax: 888-344-6878
www.jondon.com
© 2015 Copy Rights Reserved Jon-Don, Inc.
3-Gallon EZ Spot Extractor with Heat (3)
New Equipment Warranty
Lifetime on roto-molded body, 5-years on vacuum motor, pump and all electrical parts.
Warranty Policy
All equipment is inspected and tested before shipping from the manufacturer. All parts are
warranted to be new and free from defects in workmanship and material, under normal use
to the original retail purchaser. This warranty limits manufacturer’s liability for defects
in workmanship or materials for replacement of defective parts only. The manufacturer
accepts no liability for incidental or consequential damages arisen from the use of any
equipment, defective or not. This warranty is in lieu of all expressed or implied warranties
and is extended only to the original retail purchaser. Manufacturer sales and service
representatives are not authorized to waive or alter the terms of this warranty, or to increase
the obligations of the manufacturer under the warranty. Parts replaced or repaired under
this warranty are warranted for the remainder of the original warranty period.
Labor is only provided by authorized service centers. If an authorized service center is not
near you, it is the purchaser’s responsibility to take their machine to an authorized service
center.
The manufacturer covers up to one (1) year (365 days) of service labor at the manufacturer’s
calculated hourly labor rate/repair time when performed by a manufacturer-authorized
service provider. Ultimately, labor reimbursement costs are at the discretion of the
manufacturer. At no time is the manufacturer responsible for travel time to complete oncall repairs. After one (1) year, the original retail purchaser is responsible for all labor costs
with no manufacturer reimbursement.
The manufacturer charges a 25% restocking fee for any items that are being returned to
stock. Items must be new, unused, free of damage and are only good for up to 30 days.
After 30 days, the manufacturer does not accept the return of any items for a store credit.
Authorized warranty replacement parts need to come directly from the manufacturer. Any
use of any other parts will void warranty. The manufacturer and Jon-Don, Inc. do not
reimburse for parts used by the client that were not supplied directly for the machine under
warranty.
The client must contact the manufacturer prior to working on or changing out of any parts,
etc. The manufacturer must issue an RMA Sheet containing approved labor time and
replacement parts. Do not send parts or equipment back to the manufacturer without an
RMA Number and approval. A copy of the RMA Sheet must be enclosed in the box with
the returned item. No returns shall be authorized unless the proper RMA procedures are
followed. It is the responsibility of the distributor to repair the client’s equipment as soon
as possible.
No labor will be paid for, nor parts cost paid for or reimbursed, that have not previously
been approved by the manufacturer. All warranty work must be approved and authorized
to qualify, and appropriate warranty procedures must be followed.
The warranty starts on the purchase date by the original purchaser from an authorized
Jon-Don, Inc. distributor, subject to proof of purchase. The Machine Registration Form
must be completed and sent to the original manufacturer at the time of purchase. If proof
of purchase cannot be identified, the warranty start date is ninety (90) days after the date of
sale to an authorized Jon-Don, Inc. distributor.
(4) 3-Gallon EZ Spot Extractor with Heat
3-Gallon EZ Spot Extractor with Heat (13)
Returned Material Authorization (RMA) Procedure
Notes:
Original purchaser (distributor/service center) must contact the manufacturer to follow correct
RMA/warranty procedures. Must include a copy of RMA Sheet enclosed in the box with returned
item. No returns shall be authorized unless proper RMA procedures are followed. It is the
responsibility of the distributor to repair the client’s equipment as soon as possible. Labor is only
provided by authorized service centers. If an authorized service center is not near you, it is the
purchaser’s responsibility to take their machine to an authorized service center.
Client must contact the distributor prior to working on or changing out any parts, etc. Manufacturer
must issue an RMA Sheet containing approved labor time and replacement parts. Do not send
parts or equipment back to manufacturer without an RMA number and approval. No labor will
be paid for, nor part costs paid for or reimbursed that have not been previously approved by the
manufacturer. All warranty work must be approved and authorized to qualify and appropriate
warranty procedures must be followed.
1.0 Safety Instructions
WARNING: PLEASE READ AND SAVE! FOLLOW THESE PRECAUTIONS
WHEN USING YOUR SPOT EXTRACTOR.
• DO NOT operate this unit if any part of the unit appears to be damaged.
• DO NOT operate if ground plug is broken.
• DO NOT operate if the unit is in standing water.
• DO NOT use volatile substances or operate where volatile substances exist.
• DO NOT service while unit is running or connected to electricity. Unplug the unit!
• DO NOT use water more than 120 degrees Fahrenheit.
• DO NOT use solvents with this unit.
• DO NOT use as a dry vacuum.
• DO NOT use unit unless completely assembled.
• Use only liquid detergents. Powders do not fully dissolve and damage motor.
• Always use defoamer. Foam will suspend moisture particles that damage motor.
2.0 Set-Up / Prepare Unit for Use
DO NOT EXPOSE TO RAIN. STORE INDOORS.
• All spot extractors – no matter what the time of year – are shipped with antifreeze
in the pump and solution lines. Prior to first use, fill the tank with one quart of warm
water. Attach the hose and using the hand tool, flush out the system by spraying the
one quart of water through the pump.
• Attach the 1-1/2 inch vacuum hose and the brass quick disconnect.
• Fill the base unit (the recovery tank must be removed) with warm water (less than
100 degrees Fahrenheit). Fill to approximately 4 inches from the top. Use a liquid
detergent made for carpet cleaning or upholstery. Read and mix to the dilution ratios
as directed.
(12) 3-Gallon EZ Spot Extractor with Heat
3-Gallon EZ Spot Extractor with Heat (5)
2.0 Set-Up / Prepare Unit for Use Continued
• DO NOT turn heater on until the heater is full of water.
8.0 Wiring Diagram
• NEVER run the vacuum only with the pump on for more than 3 minutes. Water/
solution needs to run through pump at all times to keep the pump cool while in use.
Failure to do so will void the warranty.
• Be sure to replace any filters back into the machine prior to use.
• Do not use citrus acid, buterol or harsh degreasers inside the machine.
Vacuum Shut-Off
The spot extractor is designed with a vacuum restrictor
to reduce the vacuum when the recovery tank is full.
When the vacuum is restricted, the liquid will not travel
up the nozzle of the hand tool. The motor speeds up
(the sound of the motor will change) and this is your
warning to dispose of recovered solution. The restrictor
is a foam float that slides up and down the vacuum tube in the recovery tank.
CAUTION – Electrical wire colors may vary. Determine start and end point of
each wire to confirm connection point.
3.0 Maintenance
Following Each Use
9.0 Problem Solving
IMPORTANT!! Be sure to thoroughly drain water out of heater lines prior to storage in
colder climates. This heater will freeze and possibly crack, voiding your warranty.
Spotter will not run
Remove the vacuum hose from the upper body, un-clip, rotate latch on the back of the
unit and remove the upper section of the spotter. Dispose of the used solution by pouring
the solution out of the vacuum inlet (not the hatch cover) into the toilet or janitor’s closet
sink.
Prevent Mineral Deposit Build-Up
Vinegar may be used to prevent mineral deposit build-up in your machine’s lines and
pump. Failure to do so may clog your lines and pump. Every two weeks, pour vinegar
into the solution tank (dilute with 1/2 water). Run the pump, while squeezing your wand
or upholstery tool’s trigger unit you smell vinegar or notice it coming out of the tool. Let
the machine sit overnight, and no longer, with the vinegar in its lines. The next day, flush
the machine with 1-gallon of clean water or until you do not smell vinegar any longer.
PLEASE NOTE: If you choose to use CLR, follow the directions on the bottle. DO NOT
leave CLR in the machine’s lines and flush thoroughly. CLR may corrode the machine’s
components and VOID your warranty. If you choose to use vinegar, MUST dilute with
1/2 water. Failure to do so may damage the machine’s components and VOID your
warranty.
Never operate this spot extractor when the equipment is not performing as expected
or when any part is visibly damaged. When repair is needed, take the equipment to an
authorized service center.
• Check power connection. Move the grounded plug to an outlet that is working. Verify
that the plug is working by plugging in another electrical component such as lamp,
hair dryer or drill.
• Inspect the power cord for damage.
Loss of vacuum
• Make sure the float is at the bottom of the unit. Open the screw cap and push the float
down.
• Check that the hose cuff is securely attached to the front of the extractor.
Loss of solution pressure
• Verify that the pump is on. Remove jet from end of hand tool and press trigger on
wand.
• Clean the solution intake in the solution tank. Check quick-disconnect for debris.
• If pump is still not working, seek authorized repair services.
(6) 3-Gallon EZ Spot Extractor with Heat
3-Gallon EZ Spot Extractor with Heat (11)
7.0 Hoses and Hand Tool Drawing and Parts List
4.0 Grounding Instructions
Schematic Drawing
DANGER: IMPROPER GROUNDING METHOD CAN RESULT IN A RISK OF
ELECTRIC SHOCK.
Electrical equipment must be grounded. If the machine should malfunction or breakdown,
grounding provides a path of least resistance for electrical current to reduce the risk
of electric shock. The spot extractor is equipped with a cord containing a grounding
conductor and grounding plug. The plug must be inserted into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
If repair or replacement of the cord or plug is necessary, DO NOT connect the grounded
wire to a flat bed terminal. The grounding wire is the wire with insulation and an outer
green surface, with or without yellow stripes.
Grounding Method
The electric equipment is for use on a normal 120 volt circuit. It has a grounded plug
that fits the outlet illustrated in Figure A. If a properly grounded outlet is not available,
a temporary adapter, such as the adapter illustrated in Figure B and C, may be used to
connect the plug into a 2-pole outlet, as shown in Figure C.
The temporary adapter should be used only until a properly grounded outlet, Figure A,
can be installed by a qualified electrician. The green colored rigid ear lug or grounding
means extending from the adapter must be connected to a permanent ground, such as
a properly grounded outlet box cover. Whenever the adapter is used, it must be held in
place by its grounding means and a metal screw, as shown in Figure C.
WARNING:
Parts List
Drawing No.
1
2
3
4
5
6
7
8
9
10
11
Item No.
10-0501
10-0463
50-1008
10-0868
80-8007
10-0388
10-0870
10-0507
10-0506
10-0504
10-0502
Item Description
4” Stainless Steel Upholstery Tool
Black Slip Hose Cuff for Spotter
15-Foot Black Hose 1-1/4”
1/4” Female QD for Spotter
1/4” x 15-Foot Extractor Hose
Velcro Strap
1/4” Male QD
8” Black Hose for Stainless Steel Hand Tool
Valve Clamp for Stainless Steel Hand Tool Valve for Stainless Steel Hand Tool
Jet for Stainless Steel Hand Tool
(10) 3-Gallon EZ Spot Extractor with Heat
Qty. Needed
1.00
2.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
Improper connection of the equipment grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service person if you are in doubt as to
whether the outlet is properly grounded. DO NOT modify the plug provided with the
equipment. If it will not fit into the outlet, have a proper outlet installed by a qualified
electrician.
NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian
Electrical Code.
3-Gallon EZ Spot Extractor with Heat (7)
5.0 Machine Schematic Drawing
6.0 Machine Parts List
Drawing No.
1 2
3
4
5
6
7
8
9 10 11
12
13
14
15
16
17
18 19
20
21
22 23 24 25
26
27 28 29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44 45
46
47
48
49
50
51
52
53
54
55 56 57 58 59 60
61
63
64
65
65
66 67
68
69
70
71
(8) 3-Gallon EZ Spot Extractor with Heat
Item ID
SP-3-ST-BLKGRAN SP-3-RT-BLUGRAN 10-0383 10-0400-D 10-0412 10-0414 10-0384 10-0385 10-0074 10-0216 10-0379 10-0405 10-0302-A 10-0416-A 10-0304 10-0419 SP-3-HS-BLKGRAN 10-0831 10-0832 10-0300 10-0403-M 10-0901 10-0510 80-0017 80-0024-B 10-0826 10-0843 10-0434 10-0407 10-0845-2 10-0301 10-0828 10-0022 10-0017 T-C-011 T-WPUR 80-0011-2 80-0010 10-0843 10-0852 80-0101-M 80-0014 10-0479 10-0870 10-1500-B 10-0814 10-0814-B 10-0907 10-0906 10-0900 10-0801-G SP-3-H-BLK 10-0387 10-0303 10-0822 10-0419-A 10-0014 10-0380 10-1024 10-0354 10-0386 10-1030 10-0027-A T-WBLA 10-0027 10-0448 10-0025 10-1026 10-0400-C 80-0022-A 10-0204 Item Description
3-Gallon Solution Tank - Black Granite
3-Gallon Recovery Tank - Blue Granite 6-32 x 1/4” Phil Pan Screw Latch for Sniper C-Channel for Spotter Handle Rivet for Spotter Handle .125 Thick Nylon Washer .06 Thick Nylon Washer Flat Washer #8 SAE Allen Head Screw for Backpack 8-32 x 3/8” Screw 1-1/2” PVC SCH40 Slip Thread Hatch Cover Gasket for Spotter 1-1/2” Black ABS Stand Pipe Spotter Cap and Float Assembly Screw for Spotter Hatch 3-Gallon Heater Skirt - Black Granite
S/R Bracket for Sniper S/R Strap Bolts 55 psi Pump for Spotter 1/8” Brass Male Nipple 175 psi Relief Valve for Heater 1/8” Brass Plug Bulk Head fitting for Sniper 1/4” MPT x 3/8” Barb 3/4” Hose Clamp for Sniper 3/8” Black Hose for Sniper Threaded Hose for Spotter 1/8” Strait Nylon Barb NPT 1/8” Strainer for Spotter L Bracket for Spotter 90 Degree Brass Fitting for Sniper Shoulder and Waist Belt Screw Deflector Screw Female Terminal Connector
Purple Wire
90 Degree Street Elbow 1/4” Brass Tee 3/8” Black Hose for Sniper 1/4” 90 Degree Brass Elbow 1/4” Male Check Valve 3/8” B x 1/4” F 90 Degree
1/4” Male Close Nipple 1/4” Male QD Heater Element 600 Watt Senor for Sniper Heater Manual Sensor for Heater Strain Relief for Tube Heater Box for Tubular Heater Heater Body Tubular Pipe Wrap Insulation for Heater 3-Gallon Spotter Handle - Black 5/16” x 1” Spotter Wheel Bolt Roller Blade Wheel for Spotter Exhaust Grate for Sniper Screw for Sniper Hatch Motor Screw
10-32 x 3/8” Screw Motor Mount Plate for Spotter 3 Gallon Spotter Motor Stamped Motor Screen Spotter Motor Gasket Strain Relief Nut Black Wire
Pigtail Strain Relief 20-Foot Spotter/Air Mover Cord
On/Off Switch Switch Plate for 3-Gallon w/ Heat Keeper Latch for Sniper Screw for 500 psi Panel Motor Mount Back-Up Washer Qty. Needed
1.00
1.00
6.00
1.00
2.00
4.00
4.00
4.00
11.00
4.00
4.00
1.00
1.00
1.00
1.00
6.00
1.00
1.00
2.00
1.00
1.00
1.00
1.00
2.00
4.00
6.00
1.00
1.00
2.00
1.00
1.00
1.00
3.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
2.00
2.00
2.00
2.00
2.00
2.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
3.00
1.00
1.00
2.00
2.00
3-Gallon EZ Spot Extractor with Heat (9)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
