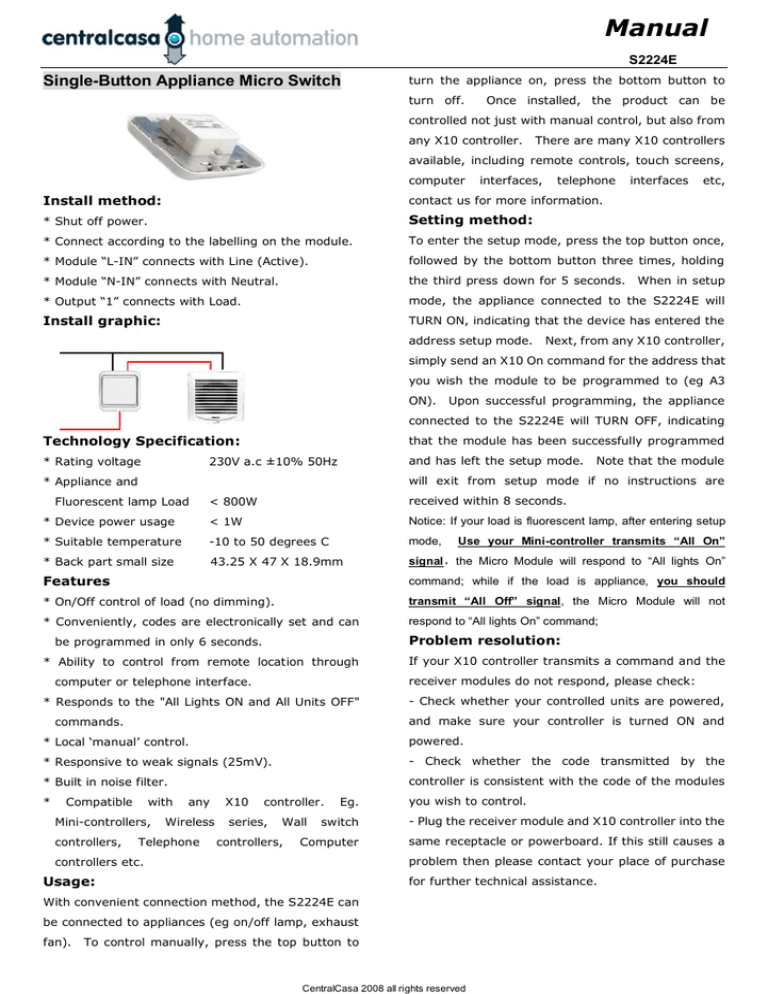

S2224

S2224
Manual
S2224E
Single-Button Appliance Micro Switch
turn the appliance on, press the bottom button to
turn off.
Once installed, the product can be
controlled not just with manual control, but also from
any X10 controller.
There are many X10 controllers
available, including remote controls, touch screens,
computer
interfaces,
telephone
interfaces
etc,
Install method:
contact us for more information.
* Shut off power.
Setting method:
* Connect according to the labelling on the module.
To enter the setup mode, press the top button once,
* Module “L-IN” connects with Line (Active).
followed by the bottom button three times, holding
* Module “N-IN” connects with Neutral.
the third press down for 5 seconds.
* Output “1” connects with Load.
mode, the appliance connected to the S2224E will
Install graphic:
TURN ON, indicating that the device has entered the
address setup mode.
When in setup
Next, from any X10 controller,
simply send an X10 On command for the address that
you wish the module to be programmed to (eg A3
ON).
Upon successful programming, the appliance
connected to the S2224E will TURN OFF, indicating
Technology Specification:
that the module has been successfully programmed
* Rating voltage
and has left the setup mode.
230V a.c ±10% 50Hz
Note that the module
will exit from setup mode if no instructions are
* Appliance and
< 800W
received within 8 seconds.
* Device power usage
< 1W
Notice: If your load is fluorescent lamp, after entering setup
* Suitable temperature
-10 to 50 degrees C
mode,
* Back part small size
43.25 X 47 X 18.9mm
signal,the Micro Module will respond to “All lights On”
Fluorescent lamp Load
Use your Mini-controller transmits “All On”
Features
command; while if the load is appliance, you should
* On/Off control of load (no dimming).
transmit “All Off” signal, the Micro Module will not
* Conveniently, codes are electronically set and can
respond to “All lights On” command;
Problem resolution:
be programmed in only 6 seconds.
* Ability to control from remote location through
If your X10 controller transmits a command and the
receiver modules do not respond, please check:
computer or telephone interface.
* Responds to the "All Lights ON and All Units OFF"
- Check whether your controlled units are powered,
and make sure your controller is turned ON and
commands.
* Local „manual‟ control.
powered.
* Responsive to weak signals (25mV).
- Check whether the code transmitted by the
controller is consistent with the code of the modules
* Built in noise filter.
*
Compatible
with
Mini-controllers,
controllers,
any
Wireless
Telephone
X10
controller.
series,
you wish to control.
switch
- Plug the receiver module and X10 controller into the
Computer
same receptacle or powerboard. If this still causes a
Wall
controllers,
Eg.
problem then please contact your place of purchase
controllers etc.
Usage:
for further technical assistance.
With convenient connection method, the S2224E can
be connected to appliances (eg on/off lamp, exhaust
fan).
To control manually, press the top button to
CentralCasa 2008 all rights reserved
