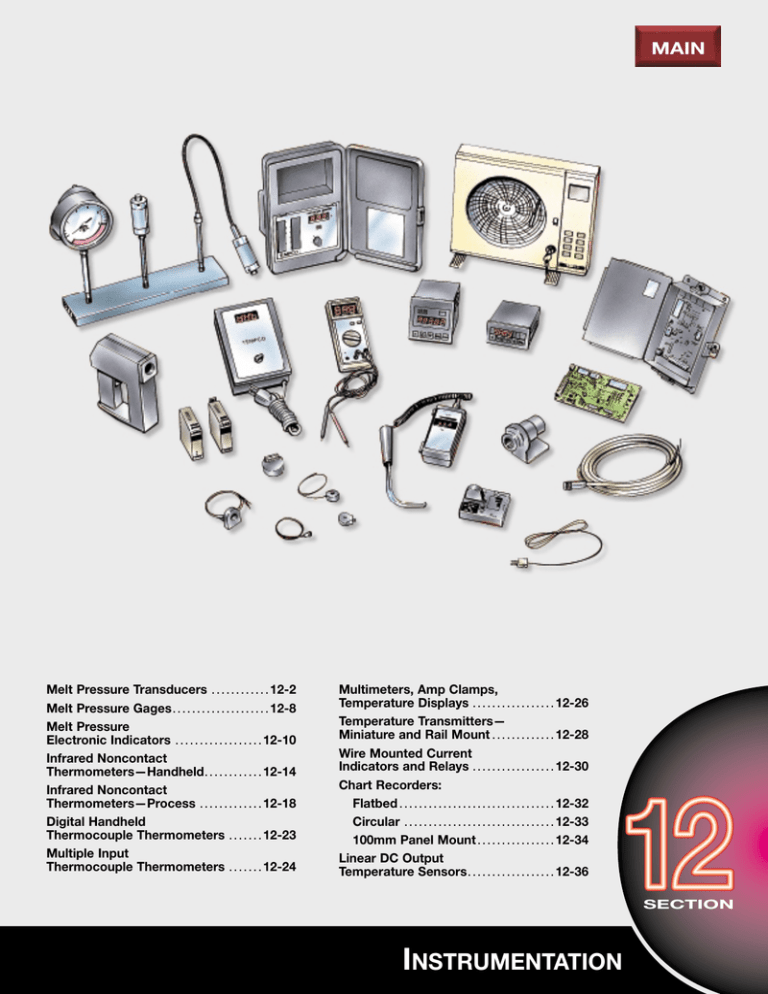

Instrumentation

MAIN

Melt Pressure Transducers . . . . . . . . . . . . 12-2

Melt Pressure Gages. . . . . . . . . . . . . . . . . . . . 12-8

Melt Pressure

Electronic Indicators . . . . . . . . . . . . . . . . . . 12-10

Infrared Noncontact

Thermometers—Handheld. . . . . . . . . . . . 12-14

Infrared Noncontact

Thermometers—Process . . . . . . . . . . . . . 12-18

Digital Handheld

Thermocouple Thermometers . . . . . . . 12-23

Multiple Input

Thermocouple Thermometers . . . . . . . 12-24

Multimeters, Amp Clamps,

Temperature Displays . . . . . . . . . . . . . . . . . 12-26

Temperature Transmitters—

Miniature and Rail Mount . . . . . . . . . . . . . 12-28

Wire Mounted Current

Indicators and Relays . . . . . . . . . . . . . . . . . 12-30

Chart Recorders:

Flatbed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-32

Circular . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-33

100mm Panel Mount . . . . . . . . . . . . . . . . 12-34

Linear DC Output

Temperature Sensors. . . . . . . . . . . . . . . . . . 12-36

I

NSTRUMENTATION

SECTION

INTRODUCTION TO

Melt Pressure

Transducers

Hopper

TEMPCO

Cast-In

Heat/Cool

Bands

Screw

Die

Cooling Tubes

Gear Box Motor

Tempco Melt Pressure Transducers

are used to sense the pressure associated with the extrusion processing of plastic materials. They range in pressure from

0-500 PSI to 0-20,000 PSI with temperatures in the range of 70-750°F. Typical transducer outputs are 3.3 mV/V, 4-20 mA, 0-5 V, or

0-10 V (at full scale output).

APPLICATION

Plastic materials are formed to shape by a process defined as extrusion. This is accomplished by first softening the material with heat. Through the use of a drive screw, which is rotated by a motor, the material is forced toward and then through an opening, called a die, used to shape the plastic melt.

Various compounds, colorants and additives, can be mixed with the plastic materials as they move along the screw path. The heated materials are shaped by the die and/or other post extrusion equipment and then cooled to retain their shape.

WHERE AND WHY TRANSDUCERS ARE USED

Melt pressure transducers can be effectively used along many points of the extrusion process for a variety of reasons:

1.

From a quality control viewpoint, a transducer should be located in the die. The measurement of the melt pressure at this point is used as an indication of flow rate.

2.

To indicate when a screen is in need of changing and also to insure the safety of personnel and equipment alike, a transducer will be located somewhere ahead of the screen changer. These are most likely located either in the adapter or along the screw path within the barrel. An even more accurate determination of screen plugging can be made by reading the differential pressure between transducers located on either side of the screen, one being in the adapter, the other located in the barrel ahead of the screw tip.

3.

For research and development purposes, Tempco transducers should be located at various points along the barrel in order to accurately monitor the pressure and mixing characteristics of the melt.

4.

Transducers are also used for pressure sensing on post-extrusion equipment such as blow molding heads, extrusion pumps, and spinnerettes.

5.

Locating transducers anywhere along the apparatus also serves to improve

the safety of the extruder.

END PRODUCTS OF EXTRUSION

The end results of the extrusion process can be found in various products.

Some examples include:

1.

The feedstock for other plastic packaging systems used for compounding and mixing.

2.

Plastic film used to create bags and packaging materials.

3.

Plastic tubing, hose, and pipe to contain water, gases, or chemicals.

4.

Insulated cable and wire housing.

5.

Filaments used to create textiles, brushes, rope, and twine.

12-2

Stock List & Technical Information at www.tempco.com

Instrumentation

Melt Pressure Transducers

Tempco Tip Material Options

The standard

Tempco transducer diaphragm is machined out of a single piece of type 15-5 PH stainless steel

(.0045") and then heat treated and finally Armoloy coated. This material gives Tempco transducers the transverse strength and toughness needed for most standard applications.

There are, however, certain extrusion processes that require different types of diaphragm materials and/or coatings. Tempco is able to supply customers with diaphragms and coatings specifically suited to their needs and applications.

ELECTROLESS NICKEL COATED DIAPHRAGM

The Electroless Nickel diaphragm option gives the transducer an advantage in abusive environments. The Electroless Nickel offers abrasion resistance and corrosion resistance. This is due to a phenomenon called reduce skin friction. This material will also cut down on diaphragm failures due to adhesion of melt to diaphragm during the process.

There are two different versions of this diaphragm option available. The first is a standard thickness (0.0045") diaphragm made of 15-5 PH stainless steel and then coated with a 0.0002" electroless nickel coating. This version is applicable for use in any pressure range plastic extruder. The second version is a 0.0080" thick diaphragm made of 15-5 PH stainless steel coated with a 0.0002" electroless nickel coating. This version is applicable for use in plastic extruders with pressure ranges of 7,500 PSI and up.

HASTALLOY

®

TIP AND DIAPHRAGM

TITANIUM NITRIDE DIAPHRAGM

This option gives the transducer a Hastalloy tip. This Hastalloy ®

® C-276 tip extends along the stem and includes the 45° cone and threads. The diaphragm

(.0045") is also manufactured of Hastalloy ® .

Hastalloy ® should be used when the following chemicals are present in the process:

HCL Hydrochloric Acid

HF Hydrofluoric Acid

HBn Hydrogen Bromine

HI Hydrogen Iodine

For example, HCL is present when processing PVC and HF is present when processing Teflon ® . If

Hastalloy is not used during these processes, the transducer diaphragm will fail prematurely due to stress cracks as a result of stress corrosion.

Recommended Use: Applications that are extremely corrosive.

The titanium nitride diaphragm is offered for its excellent abrasion resistance.

Its abrasion resistance is superior to the electroless nickel coated diaphragm and like the latter diaphragm the titanium nitride diaphragm comes in two different versions. The first is a standard thickness

(0.0045") diaphragm made of 15-5 PH stainless steel and then coated with a 0.0002" titanium nitride coating. This version is applicable for use in any pressure range plastic extruder. The second version is a 0.0080" thick diaphragm made of 15-5 PH stainless steel coated with a 0.0002" titanium nitride coating. This version is applicable for use in plastic extruders with pressure ranges of 7,500 PSI and up.

INTERNAL RESISTANCE CALIBRATION

SPECIAL DIAPHRAGM

Special 0.006" thick Inconel ® prietary coating diaphragm with a pro-

This special diaphragm is designed to be used in extremely abrasive environments. Superior to all other diaphragm materials for corrosion and abrasion resistance, examples of applications requiring this diaphragm option are ceramics or glass filled nylon.

Recommended use: Applications that are extremely abrasive.

INTERNAL RESISTANCE

CALIBRATION TRACKING

An internal compensation circuit insures that the shunt calibration output will track any changes in pressure sensitivity

(output) due to changes in temperature of the strain gauge housing. The simulated output, therefore, is 80%, ±0.25% of the full scale pressure output over the entire operating temperature range.

Tempco strain gauge sensors rely on the small change in resistance of each strain gauge to generate an analog signal that is proportional to the applied physical input. This resistance change is generated by straining a structural element to which the gauges are attached. The same output can be accomplished by electrically offsetting the resistance of one of the strain gauges through a simple shunt resistor network.

This offsetting resistance network is built into each Tempco transducer.

During manufacturing, each Tempco transducer is pressure calibrated using highly accurate pressure sources and instrumentation. The signal output versus pressure input characteristic is thereby precisely known.

The internal resistance network is adjusted so that the output generated by the shunt resistor simulation method matches precisely the calibrated output of the transducer at a selected point on its calibration curve. The standard simulation value is 80% of the full range rating of each transducer but other values may be chosen.

Applications of Melt Pressure Transducers

Pressure monitoring is a fundamental quality control technique used in modern extrusion processing. Typical applications include:

Film

Adaptable for either blown process or slit casting, pressure monitoring can help produce thinner, more uniform film at faster process speeds. The pressure transducer also provides primary process information helpful for maximizing productivity and minimizing start-up scrap.

Synthetic Fibers

Accurate, reliable pressure monitoring helps deliver greater consistency with less waste by reducing high speed variations, even with high performance fibers.

Wire Coating

Pressure monitoring right in the crosshead die where the wire is coated with plastic insulation improves throughput, quality, and profits. This process parameter has become even more important as wire take-up systems go to higher and higher speeds.

Pipe, Tubing, and Profile

A basic process parameter, pressure monitoring allows tighter tolerances, improves product quality and significantly improves cost effectiveness even for complex and multi-hollow extrusion.

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-3

12-4

Melt Pressure Transducer

CONFIGURATIONS

11/16" 6.00 Std. (12.50 Opt.)

3-1/4"

1-1/16"

1/2"

5/8" Hex

7/16"

.414/.412" Dia.

1-3/8"

Dia.

.307/.305" Dia.

1/2-20 UNF-2A Thread .219/.209"

45

°

Rigid Stem Transducer

This melt pressure transducer is specifically designed for accuracy, stability, and repeatability. It can have a 1.0% or 0.5% combined error, performance that equals or exceeds any other strain gauge melt pressure transducer on the market today.

This model converts applied pressure at the point of measurement to a proportional voltage output signal using well established bonded strain gauge design principles. The small capillary tube filled with a special medium isolates sensitive strain gauges and electronics from potential thermal damage. The rigid stem makes installation fast and easy.

1/2"

1-3/8"

Dia.

3-1/4" 1-1/4"

18" Flexible Stainless Steel Armor Cable

11/16" Dia.

6.00 Std. (12.50 Opt.)

1/2-20 UNF-2A Thread

1-1/16"

1-1/8"

7/16"

.414/.412" Dia.

1/2"

.307/.305" Dia.

5/8" Hex

.219/.209"

45

°

Flexible Armor Tubing Transducer

This model offers all the advantages of the rigid stem transducer, but incorporates an 18-inch flexible capillary tubing with a stainless steel armored jacket between the strain gauge housing and the stem.

This transducer is designed for applications requiring further thermal isolation or where installation would be otherwise difficult or impractical.

1/2"

1-3/8"

Dia.

3-1/4" 1-1/4"

11/16"

Dia.

18" Flexible Stainless Steel Armor Cable

6-32 Set Screw for Thermocouple

6.00 Std. (12.50 Opt.)

5/8" Hex

1/2-20 UNF-2A Thread

1-1/16"

7/16"

.414/.412" Dia.

.307/.305" Dia.

.219/.209"

4-1/4" 1-1/2"

Flexible Stainless Steel Armor Cable

5/8" HEX

45

°

Polarized Quick Coupling with Mating Connector

Type J Thermocouple

Pressure and Temperature Transducer

This model provides simultaneous measurement of pressure and temperature at a single point. Only one transducer mount is required for installation.

The temperature probe is protected from process hazards and can be replaced without interrupting the pressure signal. Pressure performance is identical to previous models.

Stock List & Technical Information at www.tempco.com

Instrumentation

Melt Pressure Transducers

PROPER CARE

for Tempco Melt Pressure Transducers

OVERVIEW

The

Melt Pressure Transducer

is a measuring instrument that is subject to damage if mishandled, improperly installed, or dropped.

MOUNTING THREADS

The transducer mounting threads should be a

1

2

-20UNF-2B and should be cleaned and inspected prior to the installation or reinstallation of a transducer. The use of a high temperature anti-seize compound will help in preventing galling and will allow easy removal of the transducer. Copper graphite antiseize compounds should be used, such as Never-Seez by

Bostik or C5-A by Felpro.

SENSING DIAPHRAGM

The Tempco fluid transducer is a sealed system. The sensing diaphragm is one of the most important components of the transducer. The diaphragm is a one-piece construction, machined out of 15-5 PH stainless steel and is coated with

Armoloy to increase the surface hardness, offering resistance to abrasion. It has a nominal thickness of 0.0045 inches.

If the sensing diaphragm becomes damaged—that is, dented, gouged or deformed in any way, the transducer will no longer provide accurate readings and should be returned for repair/replacement.

MOUNTING TORQUE

Although the transducer is capable of being installed at a mounting torque of up to 500 inch-pounds without damage or zero shift, an adequate seal is made with 100-200 inch-pounds.

Excessive mounting torque will cause seizing and make the transducer difficult to remove.

OPERATING TEMPERATURE

The transducer tip is capable of operating at temperatures up to 750°F (400°C). The transducer electronics are capable of operating at temperatures of up to 170°F (70°C). It is important that the electronic housing not be placed on top of a heater or a heat source.

TRANSDUCER MOUNT

A bad transducer mount is one of the key causes of damage to the transducer. Extruder barrel wear should be monitored.

As the extruder barrel wears, the transducer tip will get closer and closer to the barrel bore until flush with the sidewall. Once the tip is flush, it will then wear at the same rate as the extruder barrel. To alleviate this problem, Tempco recommends that the transducer be recessed 0.015 inches from the barrel bore. A copper shim can be manufactured (to seal on the 45° seating surface) that will act as a spacer backing off the transducer tip from the inside barrel bore.

If the transducer tip protrudes into the extruder barrel, it is subject to unnecessary wear and is vulnerable to damage by a passing screw flite.

Another common transducer mount problem that is a result of barrel wear is rollover. Over time the opening into the barrel is reduced from the recommended dimension of .312"/.314". If a transducer is installed in this under-size hole, the tip becomes crimped or forced into a cone shape, deforming the sensing diaphragm and thus damaging the instrument.

GAUGING THE TRANSDUCER MOUNT

The transducer mount should be gauged prior to the installation of a new transducer or replacement of an existing transducer.

The proper method for gauging the transducer mount is to use a gauge plug coated with machinists blue. If the blue is removed in an area, then there is a burr or imperfection in the transducer mount that must be repaired.

COLD STARTS

One of the most common causes of diaphragm damage is cold starts. A combined temperature and pressure transducer can be used to insure that the extruder barrel is up to temperature prior to the rotation of the extruder screw.

REMOVAL/REPLACEMENT

The transducer should only be removed or replaced while the machine is at operating temperature and the polymer is liquid.

Removal of the transducer from a cold extruder will cause diaphragm damage due to polymer adhesion. A transducer should never be installed into a transducer mount where there is solid polymer. If the diaphragm is forced against a solid, the transducer can easily be overloaded and left with a very high zero offset—too high to be re-zeroed by the zero potentiometer on the instrument.

TIP CLEANING

If the transducer is removed warm, the tip can easily be cleaned with a soft cloth. If there is solid polymer present, a fluidized bed cleaning system can be used. Never use a wire brush, knife, or torch to clean the tip of a transducer.

Given proper care, Tempco transducers will provide years of service.

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-5

GENERAL SPECIFICATIONS

for Melt Pressure Transducers

with 1% or 0.5% Combined Error

Design Features

Fully Interchangeable with All Existing Strain Gauge

Melt Pressure Transducers

Fluid Filled System for Temperature Stability

80% Output Signal for Easy Calibration

Resistance Calibration Tracking

All Stainless Steel Construction

Armoloy Coated Diaphragm

Compatible with All Strain Gauge Signal

Conditioning and Readout Instrumentation

6-Pin or 8-Pin Bendix Connectors Available

CE Approved

DEVICE SPECIFICATIONS

Mechanical

Ranges

PSIG BAR

0-500 0-35

0-750 0-50

0-1000 0-75

0-1500 0-100

PSIG BAR

0-3000 0-200

0-5000 0-350

0-7500 0-500

PSIG BAR

0-10000 0-700

0-15000 0-1000

0-20000 0-1500

Combined Error/Error Band . . . . . . . ±1.0% or ±0.5% of full-scale (FS)

Repeatability. . . . . . . . . . . . . . . . . . . . . . . . . ±0.1% of FS

Hysteresis . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.1% of FS

Overload Capability. . . . . . . . . . . . . . . . . Up to 20,000 PSIG: 2

× FS

Above 20,000 PSIG: 1.5

× FS

Mounting Torque . . . . . . . . . . . . . . . . . . . . 500 inch-pounds maximum

Diaphragm Material . . . . . . . . . . . . . . . . 15-5PH stn. stl. (Armoloy plated)

Electrical

Measuring Element . . . . . . . . . . . . . . . . . Strain gauge Wheatstone bridge

Element Resistance . . . . . . . . . . . . . . . . 350 ohm ±10%

Excitation Voltage . . . . . . . . . . . . . . . . . . 6-12 Volt DC (10 V rec.)

Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.33 millivolts/volt ±2%

Zero Balance . . . . . . . . . . . . . . . . . . . . . . . . ±5.0% full-scale output

Internal Resistance Cali. . . . . . . . . . . Produces precise electrical signal

(Factory Adjusted)

which is 80% of FS within ±0.25%

Temperature on Strain Gauge Housing

Maximum Temperature . . . . . . . . . . . . 160°F or 70°C

Zero Drift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0%/100°F or 2.0%/100°C

Sensitivity Drift . . . . . . . . . . . . . . . . . . . . . . 1.0%/100°F or 2.0%/100°C

Temperature on Diaphragm

Max. Temp. (medium) . . . . . . . . . . . . . . 750°F or 400°C

Zero Shift. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 PSI/100°F or 45 PSI/100°C

Note:

All temperature specifications relate to FS output or full pressure range output.

12-6

Stock List & Technical Information at www.tempco.com

How To Order

Melt Pressure Transducers are offered with the options listed in the worksheet below. Create an ordering code by filling in the boxes with the appropriate number and/or letter designation for your requirements and a part number will be assigned.

Part Numbers for commonly used Melt Pressure Transducers can be found on page 12-12.

1 2 3 4 5 6 7

Instrumentation

Melt Pressure Transducers

Style

BOX

1

A

= Rigid Stem

B

= Flexible Armor Tubing

C

= Transducer with Type J Thermocouple

Type

BOX

2

1

= 1% Combined Error (CE) Most Common

2

= 0.5% CE

Connector

BOX

3

S

= Six-Pin (Most Common)

E

= Eight-Pin

Pressure Range (PSI)

BOX

4

A

= 0-500 (1% CE only)

B

= 0-750 (1% CE only)

F

= 0-5000

G

= 0-7500

C

= 0-1000 (1% CE only)

H

= 0-10000

D

= 0-1500

J

= 0-15000

E

= 0-3000

K

= 0-20000

Bar Pressure Ranges Available Upon Request.

Consult Tempco for Additional Information.

Stem Length

BOX

5

1

= 6 inches (Most Common)

2

= 12.5 inches

Flex Length

BOX

6

00

= None (Style A)

18

= 18 Inches

*

(Styles B & C)

* Other sizes can be made on special request

Diaphragms

BOX

7

Standard Diaphragm Construction

A

= Stainless Steel (.0045") with Armoloy coating (Most Common)

Optional Materials and Coatings

B

= 0.0045" Hastalloy

E

= 0.006" Inconel & Proprietary Coating

C

= 0.008" Electroless Nickel

F

= 0.0045" Titanium Nitride

D

= 0.0045" Electroless Nickel

G

= 0.008" Titanium Nitride

ADDITIONAL OPTIONS AVAILABLE…

Styles

(consult TEMPCO for information if you require one of these products):

Exposed Capillary Transducer: for applications requiring a transducer capable of fitting into extremely tight places

Plastic Melt Pressure Transmitter: 4-20 mA output, 12-36 Vdc input, available w/or w/o thermocouple. FM approved model is also available, consult Tempco.

Connectors

(consult TEMPCO for information if you require one of these options):

Gentran GT-76 compatible wiring: strain gauge connector is wired for compatibility with Gentran GT-76 connector

Barber Coleman TD10 compatible wiring: strain gauge connector is wired for compatibility with Barber Coleman TD10 connector

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-7

Melt Pressure Gauges

With or Without Adjustable Alarm Setting

Tempco’s Melt Pressure Gauges

provide highly reliable, maintenance free, local pressure indications for extrusion and other plastics processes. The sensing diaphragm is designed for minimum deflection, maximum durability, and maximum overload capability.

Design Features

Three models are available:

A rigid stem unit for standard installations

A 30-inch flexible capillary with stainless steel armored jacket between the gauge housing and the stem to allow greater installation flexibility in tight places or for easier viewing and durability.

The third model provides all the features of the

30" flexible capillary model with the addition of a thermocouple (J-type) output for temperature.

All models are rugged, totally self contained and allow extrusion processors to benefit from the significantly improved efficiency that goes with pressure monitoring—at about half the

Melt Pressure Gauge without Adjustable Alarm cost of strain gauge melt pressure transducers.

Each of the models is also available with an optional

adjustable alarm. This adds safety by shutting down the process in the event of a high pressure condition.

Optional diaphragm materials are available for applications that require extra abrasion and/or corrosion resistance. These options are exactly the same as the diaphragm options for melt pressure transducers.

No Power (or Wiring) Required for Non-Alarm Model

No Maintenance

No Grease

Electron Beam Welded

150% Overload Capability without Damage

Optional Thermocouple Version Available

An Economical Alternative for Many Applications

Greater than 180° Movement for Optimum

Readability

PSI, Bar and Kg/cm

2

Ranges Available

Optional Adjustable Alarm with Range from 35 to 90% Full Scale

Stainless Steel Construction

Zero Adjust

Stainless Steel

Armor

5" Dia.

5/8" Hex

1/2-20 UNF-2A

Threads

1/2" Dia.

45

°

.219"

.209"

Dia.

.414"

.412"

.307"

.305"

Dia.

7/16"

1-1/16"

1-1/8"

1/2"

6.00" Std.

(12.50" Opt.)

1-1/4"

3-3/8"

SPECIFICATIONS

Ranges

0-5000 PSIG

0-10,000 PSIG

0-350 Bar

0-700 Bar

Error

Overload Capability

Mounting Torque

Diaphragm Material

±2.0% of full-scale

1.5 times full-scale

500 inch-pounds max

15-5PH stainless steel (Armoloy plated)

Max. Case Temperature

185°F (85°C)

Max. Diaphragm Temp.

750°F (400°C)

Diaphragm Zero Shift

Thermocouple Type

(If applicable)

25 PSI/100°F or 45 PSI/100°C

J-Type (Iron-Constantan)

Alarm Specifications

(for models with alarms)

Power

115 Vac or 220 Vac (50-60 Hz)

Alarm Reset

Latching—Manual Reset

Adjustable Alarm Scale

35%-90% of Full Scale

Relay Contact

5A @ 115 Vac

3A @ 220 Vac

5A @ 30 Vdc

12-8

Stock List & Technical Information at www.tempco.com

Instrumentation

Melt Pressure Gauges

How To Order

Melt Pressure Gauges are offered with the options listed in the worksheet below. Create an ordering code by filling in the boxes with the appropriate number and/or letter designation for your requirements and a part number will be assigned.

Style

BOX

1

A1

= Rigid Stem, Stem Down

A2

= Rigid Stem, Stem Up

B1

= Flexible Armor Tubing

C1

= Gauge with Type J Thermocouple

Alarm

BOX

2

1

= No Alarm (Most Common)

2

= With Alarm (except style A2)

Pressure Range

BOX

3

PSI

A

= 0-5000

B

= 0-10000

Bar

C

= 0-350

D

= 0-700

1 2 3 4 5 6

Stem Length

BOX

4

1

= 6 inches (Most Common)

2

= 12.5 inches

Flex Length

BOX

5

00

= None (Styles A1 & A2)

30

= 30 Inches

*

(Styles B1 & C1)

*

Other sizes can be made on special request

Diaphragms

BOX

6

Standard Diaphragm Construction

A

= Stainless Steel (.0045") with Armoloy coating (Most Common)

Optional Materials and Coatings

B

= 0.0045" Hastalloy

C

= 0.008" Electroless Nickel

E

F

= 0.006" Inconel & Proprietary Coating

= 0.0045" Titanium Nitride

D

= 0.0045" Electroless Nickel

G

= 0.008" Titanium Nitride

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-9

12-10

Micro-Processor Based Melt Pressure Indicators

1

8

DIN

• 2 Alarms with Adjustable Setpoint

• ISO 9002 Certified, CE Approved

• Economically Priced

• Displays Pressure in a 4-Digit LED

Display

• Auto Zero, Auto Span, and Auto

Calibration

777700

Melt Pressure Indicator

• Touch-Type Keypad

• Built-In Strain Gauge Bridge

Excitation

• Filter for Digit Stabilization

• Coded Access for User Lockout

Model Number: PDA00010

1

4

DIN

• 2 Alarms

• Two Auxiliary Outputs (Field Selectable):

0-10 Volt; 0-20 mA; 4-20 mA

• ISO 9002 Certified

• Auto Zero, Auto Span, Auto Calibration, and Auto Re-zero

• Displays % of Full Scale Upon Demand

• 3 Programming Levels with Coded Access

• Peak Value Memory

• Touch-Type Keypad

• Built-In Strain Gauge Bridge Excitation

• Filter for Digit Stabilization

• RS-232 & RS-485 Communication

Available, Consult Factory for More

Information

Model Number: PDA00020

888800

Melt Pressure Indicator

• Displays Pressure & Temperature Simultaneously in Two 4-Digit LED Displays

1

4

DIN

• C E Approved

• 2 Alarms with Adjustable Setpoint for Temperature or Pressure

• Three Auxiliary Outputs: 0-10 Volt; 0-20 mA; 4-20 mA

• Auto Zero, Auto Span, and Auto Calibration

• Displays % of Full Scale in Illuminated Bargraph

• Coded Access

• Touch-Type Keypad

• Built-In Strain Gauge Bridge Excitation

• Filter for Digit Stabilization

Model Number: PDA00030

999900

Melt Pressure and Temperature Indicator

Stock List & Technical Information at www.tempco.com

Instrumentation

Melt Pressure Indicators

Part Number:

770 Series

PDA00010

SPECIFICATIONS

880 Series

PDA00020

990 Series

PDA00030

Electrical

Power:

Operating Temp.:

Noise Immunity:

Fascia Seal Rating:

Termination:

120 Vac ±10% or 230 Vac ±10% field selectable (50/60 Hz)

120 Vac ±10% or 230 Vac ±10% customer specified (50/60 Hz) with built-in line filter

+32°F to +130°F (0° to 55°C)

VDE 0843 & IEC 801

IP54 (Splash-proof, dust-proof)

Screw terminals

120 Vac ±10% or 230 Vac ±10% field selectable (50/60 Hz)

Removable panel screw terminals

Signal Input

Type:

Input Sensitivity:

Zero Balance:

Bridge Excitation:

Calibration:

Housing

Panel Cutout

2.0 to 4.5 mV/V

±20% of full scale

350

Ω strain gauge bridge

1.0 to 4.5 mV/V

±30% of full scale

1.5 to 4.0 mV/V

±40% of full scale

10 Vdc @ 40 mA 10 Vdc (±5.0 Vdc) @ 40 mA

Will accept transducers with internal shunt calibration values from 40%–100% or external calibration resistors

1

8

DIN (48

× 96 × 160 mm)

1.65

× 3.62 in. (42 × 92 mm)

1

4

DIN (96

× 96 × 160 mm)

3.62

× 3.62 in. (92 × 92 mm)

Display

Type:

Ranges:

4-digit LED display

User programmable:

–999 to +9999

5-digit LED display

User programmable to

30,000 units

PSI, kg/cm 2 , BAR, kPa, Pa, MPa

Selectable from keyboard

Displays program steps and error conditions

Two 4-digit LED displays

Red: Pressure

Green: Temperature

Pressure: –999 to +9999

Temperature: 32°F to 752°F

(0° to 400°C)

PSI, kg/cm 2 , BAR, °F, °C

Units:

Decimal:

Set Up Prompts:

Alarms

Type:

Mode:

Set Point Range:

Hysteresis:

Contact Rating:

Indication:

2 SPDT: In the event of a power failure relays go into alarm condition

Low-High, latch/non-latch: set and reset via front panel keyboard

0-100% full scale A1,& 0-120% full scale A2

1.5% full scale (fixed)

5A @ 115 Vac/230 Vac, 8A @ 30 Vdc

Alarm 1 & 2 LED’s illuminate on front panel

Auxiliary Output

Voltage Output:

Current Output:

Linearity:

N

/

A

N

/

A

N

/

A

0-10 Vdc 1000 Watt minimum load

4-20 mA 800 Watt maximum load

0-20 mA 800 Watt maximum load

Less than 0.5% full scale ±1 digit

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-11

SPECIAL DISCOUNT !

Melt Pressure Sensor Package

A special package has been prepared by

Tempco for sale at a special discount price.

This melt pressure sensor package contains all the components necessary for monitoring your extruder melt pressures today at one low cost. The package contains:

• One [1] 1% combined error 18" flexible armor cable

MELT PRESSURE TRANSDUCER with a 6-pin connector, 6" stem length, and a standard armoloy diaphragm tip in a variety of pressure ranges.

• One [1] model 770

MELT PRESSURE INDICATOR

.

• One [1] 25 foot long

TRANSDUCER CABLE assembly for a 6-pin connector.

DISCOUNT PACKAGE

Pressure Part

Range Number

0-500 PDA00101

0-750 PDA00102

0-1000 PDA00103

0-1500 PDA00104

0-3000 PDA00105

0-5000 PDA00106

0-7500 PDA00107

0-10000 PDA00108

0-15000 PDA00109

0-20000 PDA00110

Style

Rigid Stem

Rigid Stem

Rigid Stem

Rigid Stem

Flex Tube

Flex Tube

Flex Tube

Flex Tube with T/C with T/C with T/C with T/C

Combined

Error

1% CE

1% CE

1% CE

1% CE

1% CE

1% CE

1% CE

1% CE

1% CE

1% CE

1% CE

1% CE

COMMONLY USED MELT PRESSURE TRANSDUCERS

Connector

6 Pin

6 Pin

6 Pin

6 Pin

6 Pin

6 Pin

6 Pin

6 Pin

6 Pin

6 Pin

6 Pin

6 Pin

Pressure Stem

Range

0-5000

0-7500

0-10000

0-15000

0-5000

0-7500

0-10000

0-15000

0-5000

0-7500

0-10000

0-15000

Length

6"

6"

6"

6"

6"

6"

6"

6"

6"

6"

6"

6"

Flex

Length

None

None

None

None

18"

18"

18"

18"

18"

18"

18"

18"

Diaphragm

Worksheet

Number

Part

Number

Standard A1SF100A PDD00101

Standard A1SG100A PDD00102

Standard A1SH100A PDD00103

Standard A1SJ100A PDD00104

Standard B1SF118A PDD00105

Standard B1SG118A PDD00106

Standard B1SH118A PDD00107

Standard B1SJ118A PDD00108

Standard C1SF118A PDD00109

Standard C1SG118A PDD00110

Standard C1SH118A PDD00111

Standard C1SJ118A PDD00112

ACCESSORIES

Connectors and Cable Assemblies

6-and 8-Pin Transducer Cables

GENERAL ACCESSORIES

Description Part Number

3-Piece Cleaning Tool Kit (

1

2

-20 thread)

1-Piece Cleaning Tool (M-18 thread)

Transducer Mount Drill Kit

Transducer Pressure Simulator—6-Pin

Transducer Pressure Simulator—8-Pin

Mounting Bracket

PDA00251

PDA00252

PDA00253

PDA00254

PDA00255

PDA00256

These connectors and cable assemblies are designed to be compatible with the 6-pin and 8-pin connectors used on Tempco’s line of melt pressure transducers.

The cable assemblies come with a female connector on one end to connect to the transducer, and the other end has 6 or 8 braided wire leads to connect to input and output sources, displays, or controllers.

The connector offered is the female mating connector with no cable or wiring attached.

TRANSDUCER MATING CONNECTORS

(hardware only)

6-Pin 8-Pin

Part Number Part Number

PDA00215 PDA00213

Thermocouple Cables

These connectors and cable assemblies are designed to be compatible with the connectors used on Tempco’s line of transducers with thermocouples.

The cable assemblies come without any connectors attached; however, a female connector comes with each thermocouple or transducer ordered.

The connector offered is a two-lead polarized female connector designed to mate with the male thermocouple connector.

THERMOCOUPLE

CABLE ASSEMBLIES

Size Part Number

25 feet

50 feet

75 feet

100 feet

PDA00209

PDA00210

PDA00211

PDA00212

THERMOCOUPLE MATING CONNECTORS

(hardware only)

Part Number

PDA00214

TRANSDUCER CABLE ASSEMBLIES

Size

6-Pin 8-Pin

Part Number Part Number

25 feet

50 feet

75 feet

100 feet

PDA00201

PDA00202

PDA00203

PDA00204

PDA00205

PDA00206

PDA00207

PDA00208

12-12

Check Stock & Technical Information @ www.tempco.com

Instrumentation

Melt Pressure Sensor

Industry

CROSS

Reference

When using this cross reference please note that a (

) represents a code for the pressure range; these differ from manufacturer to manufacturer so choose the pressure range that best fits your application needs. Also, though some equipment listed in this cross reference may differ in appearance, the function of the products is equivalent.

Description Dynisco ISI

Melt Pressure Transducer with 1% Combined Error and 6-Pin Connector

6" Rigid Stem Armoloy Coated Tip PT460E-

-6

6" Stem with 18" Flexible Tubing, Armoloy Coated Tip PT462E-

-6

Above Transducer with Thermocouple TPT463E-

-6

ISI 0100-

T-6

ISI 0101-

T-6

ISI 0102-

T-6

Gentran

GT-76/6D6

GT-76/6D6Z1

GT-76/6JD6Z1

Melt Pressure Transducer with 1% Combined Error and 8-Pin Connector

6" Rigid Stem Armoloy Coated Tip

6" Stem with 18" Flexible Tubing, Armoloy Coated Tip

Above Transducer with Thermocouple

N

/

A

N

/

A

N

/

A

ISI 0160-

T-6

ISI 0161-

T-6

ISI 0162-

T-6

Melt Pressure Transducer with 0.5% Combined Error and 6-Pin Connector

6" Rigid Stem Armoloy Coated Tip PT420A-C16-

-6 ISI 0110-

T-6

6" Stem with 18" Flexible Tubing, Armoloy Coated Tip PT422A-C16-

-6 ISI 0111-

T-6

Above Transducer with Thermocouple TPT432A-C16-

-6 ISI 0112-

T-6

GT-76/6D8

GT-76/6D8Z1

GT-76/6JD8Z1

GT-72/6D6

GT-76/6D6Z1

GT-76/6JD6Z1

Melt Pressure Transducer with 0.5% Combined Error and 8-Pin Connector

6" Rigid Stem Armoloy Coated Tip PT420A-

-6

6" Stem with 18" Flexible Tubing, Armoloy Coated Tip PT422A-

-6

Above Transducer with Thermocouple TPT432A-

-6

ISI 0120-

T-6

ISI 0121-

T-6

ISI 0122-

T-6

Melt Pressure Gauge

6" Rigid Stem, Stem Down, Armoloy Coated Tip PG541-

-6

6" Stem with 30" Flexible Tubing, Armoloy Coated Tip PG442-

-6

PG542-

-6

Above Gauge with Thermocouple TPG443-

-6

PG543-

-6

Stem Up, Stem Down, Stem Left versions are available.

Consult Tempco

GT-72/6D8

GT-76/6D8Z1

GT-76/6JD8Z1

ISI 0150-

T-6-SD GT-90/6D

GT-95/6D

ISI 0151-

T-6 GT-95/6Z3

ISI 0152-

T-6 GT-95/6JZ3

Tempco

A1S

100A

B1S

118A

C1S

118A

A1E

100A

B1E

118A

C1E

118A

A2S

100A

B2S

118A

C2S

118A

A2E

100A

B2E

118A

C2E

118A

A21

100A

B11

130A

C11

130A

Melt Pressure Gauge with Adjustable Alarm

6" Rigid Stem, Stem Down, Armoloy Coated Tip PG551-

-6

6" Stem with 30" Flexible Tubing, Armoloy Coated Tip PG552-

-6

Above Gauge with Thermocouple TPG553-

-6

ISI 0150A-

T-6-SD GT-90B/6D

ISI 0151A-

T-6

N

/

A

ISI 0152A-

T-6

N

/

A

A22

100A

B12

130A

C12

130A

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-13

Improved Beam-A-Temp Plus

TM

Infrared Thermometer Noncontact—Handheld

Now With

L

ASER

Sighting

Design Features

Rugged, Portable, Easy To Use

Measure Temperature without Contact

–50° to 1600°F

50:1 Optical Resolution

Dual Digital Temperature Display

±1% Accuracy

High/Low Audible Alarms

Analog and RS232 Outputs

9 Volt Battery Operation

Handy Belt-Pouch and Operator’s

Manual

Most Tools Fix Problems, the BAT Plus Helps Prevent Them

Temperature change often means trouble. With a BAT Plus you can spot problems early and avoid costly downtime or processing problems that lead to rejected product.

Common Industrial Applications

• Plastics

• Paper and Pulp Converting

• Chemicals

• Food Processing

• Pharmaceutical

• Electronics

• Construction

• Industrial Maintenance

Functional Electronics Designed for Accuracy and Convenience

Sophisticated microprocessors insure accuracy and repeatability. For added accuracy most models allow you to adjust for emissivity differences.

Actual and Maximum temperatures are always displayed.

Fahrenheit or Celsius units are switch-selectable in all models.

For added convenience, certain models provide Max.,

Min., Differential, and Average values as well as audible

Hi/Lo alarms.

The overall temperature range of the

BAT

series is 50 to 1600 degrees Fahrenheit. Response time is 350 mSec, far superior to any conventional contact method.

Data outputs on the

BAT 3+, 4+, and 5+

models provide a direct interface to chart recorders or printers.

Customized temperature graphs and tables can be created and displayed with DataTemp ™ software and

PC compatible computers.

The

BAT 5+

has a built-in data logger. It can store up to 64 readings and transfer them to a Lotus 1-2-3 spreadsheet. A printer option is also available.

Rugged, Simple, and Easy to Use

The

BAT Plus

optics and electronics are built to deliver, even in the harshest conditions.

It is a rugged, everyday tool that can be used by anyone. You simply aim, pull the trigger and read the temperature. There is no need to focus and no need to calibrate.

With

L

ASER sighting

you can pinpoint small targets at a distance, even in dark environments.

The

BAT Plus

is ideal for checking temperatures of electrical components, automotive diagnostics, bearings, insulation, steam traps, roofing materials, concrete, pumps, and compressors. Or use it to monitor process or product temperatures.

The Best Feature is the Price

No other handheld thermometer delivers this much for the money. When you consider the thousands of dollars you could save in repairs, rejected product, and downtime, a

BAT Plus

could pay for itself the first time you use it.

12-14

Stock List & Technical Information at www.tempco.com

Instrumentation

Thermometer Noncontact—Handheld

Standard Features

Model:

Part number:

Temperature range:

Emissivity:

Laser sighting: (Meets FDA Class IIIa req.)

Temperature measurement: Real time, MAX

MIN, DIF, AVG

Recall of last reading

Stores 64 pts. in memory

Hi/Lo audible and visual alarm:

Reflected energy compensation (Tamb):

Locking trigger:

DC power input:

Data output: RS232C or 1 mV per °C or °F:

BAT 2+

REB00020

0° to 1000°F (-18° to 540°C)

Fixed @ 0.95

BAT 3+

REB00030

BAT 4+

REB00040

0° to 1600°F (-18° to 870°C)

0.10-1.0 digitally adjustable

BAT 5+

REB00050

Options

(Must be ordered with instrument)

Model:

Tenth Degree Display Resolution:

Close Focus: 3.1 mm (0.12 in) spot size @ cone

tip, maximum cone tip temp. is 180°F (82°C)

Sub Zero: -46 to 400°C (-50 to 750°F)

N.I.S.T. calibration certification

BAT 2+

AVAILABILITY

BAT 3+

BAT 4+

Accessories

(BAT 3+, 4+, 5+ only):

AC Adapter:

Output Cable:

Description

9 Vdc Output at 100 mAmp, tip positive, 110 Vac

60" (1.5 m) Analog

Printer:

Thermal-type with internal battery or AC adapter

9.5

× 6.4 × 2.3 in., (241 × 163 × 58 mm) 2.2 lbs., 1.0 kg

Software Programs: (Computer cable included)

DataTemp™ 1

DataTemp™ 2

5

1

4

" or 3

1

2

" disk data transfer to Lotus 1-2-3 or ASCII

Logs up to 5,000 points and makes graphs or tables

Part Number

REB00205

REB00206

REB00207

REB00208

REB00209

Specifications

Accuracy:

Repeatability:

Spectral Response:

Response Time:

Temperature Display:

Display resolution:

Ambient operating range:

Relative humidity:

Storage Temperature:

Power:

Dimensions (L x W x H):

Weight:

Tripod Mount:

Greater of ±1% of reading or ±1.0°C (1.5°F), @

23±5°C (73±9°F) ambient operating temperature

Greater of ±0.5% of reading or ±0.5°C (±1°F)

8 to 14 microns, thermopile detector

350 mSec

°F or °C selectable, 4 digit backlit LCD

1°C or °F std. (0.1°C or °F in AVG mode or all modes with option)

32° to 120°F (0° to 50°C)

10-95% RH noncondensing @ up to 30°C (86°F)

-20 to 50°C (-4 to 120°F) w/o battery

9 VDC Alkaline or battery

5.5

× 1.75 × 7 in. (140 × 44 × 178 mm)

1 lb., 4 oz. (0.6 kg)

1

4

—20 UNC

BAT 5+

Part Number

REB00201

REB00202

REB00203

REB00204

°

C

LOCK

HI ALARM

TAMB

Tamb

LO ALARM

Liquid Crystal

Display for

BAT 5+

1

Spotsize

DISTANCE: SENSOR TO OBJECT (FT)

2 3 4 5 6 7 8 9 10

0.85

0.85 0.9

1.0

1.2

1.5

1.7

2.0

2.3

2.7

Nominal D:S = 50:1

21 21

22

24

30

42

52

68

100 250 500 1000 1500 2000 2500

DISTANCE: SENSOR TO OBJECT (mm)

3000

How To Order

Choose the BAT Plus, accessories, and/or options desired, order by the associated Part Number.

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-15

Beam-A-Temp

LC — Low Cost Noncontact Thermometer

Design Features

Rugged, Portable, Easy-To-Use

Measure Temperature without Contact

0° to 750°F

8:1 Optical Resolution

Digital Temperature Display

±2% Accuracy

High/Low Audible Alarms

9 Volt Battery Operation

Handy Belt-Pouch

Common Industrial Applications

• Plastics

• Paper and Pulp Converting

• Chemicals

• Food Processing

• Pharmaceutical

• Electronics

• Construction

• Industrial Maintenance

Temperature Change Often Means Trouble

A

Beam-A-Temp™ LC

(BAT LC) can spot heat problems early in your electrical and mechanical systems, machinery and equipment— and help you avoid costly repairs, downtime, and ruined product.

HOLD

F

C

BAT LC2 Readout

Rugged, Simple, and Safe to Use

An everyday maintenance tool, the

LC

can be used by anyone. There’s no need to focus or calibrate-and no need for special training. You simply aim, pull the trigger, and read the temperature.

Since there is no need to touch what you are measuring, temperatures of hazardous, hard-to-reach, or moving materials can be taken without getting burned or shocked—and without contamination.

The

BAT LC

is also designed to be held away from the eye.

So your vision is not blocked in dangerous environments.

Accurate and Reliable

Proven circuitry assures accuracy and repeatability, even for targets as small as 2 cm (0.8 in.) in diameter. The rugged optics are environmentally sealed, so you get measurements you can count on, day after day, even in the harshest conditions.

12-16

Available with

L

ASER sighting

so you can pinpoint small targets at a distance— even in the dark!

Special Features

Powered by a single 9V battery,

BAT LC

models measure temperatures from -4 to 932°F (-20 to 500°C). The

LC4

also has an adjustable high alarm, temperature recall, adjustable emissivity, and MaxScan, a handy feature that tracks the highest temperature measured.

The Best Feature is the Price

No other portable noncontact thermometer delivers this much for the money. As for a return on investment, a

BAT LC

could easily pay for itself the first time you use it by spotting a minor problem before it turns into a major one.

$

Stock List & Technical Information at www.tempco.com

Specifications

Model:

Part Number:

MAX, MIN,

T

AVG temperatures:

Recall last reading:

HI or LO audible/visual alarm:

LCD backlight:

Laser Sight (Class II):

Temperature range:

Accuracy:

Repeatability:

Response time (95% response):

Spectral response:

Emissivity:

Temperature display:

Display resolution:

Ambient operating range:

Relative humidity:

Storage temperature:

Power:

Battery life (alkaline):

Dimensions:

Weight:

LC2

REB00120

LC3 LC6

REB00130

MAX only

REB00160

-20 to 500°C -18 to 400°C

(0 to 750°F) (-4 to 932°F)

Greater of ±2% of reading or ±2°C (±3°F),

@ 23±5°C (73±9°F) ambient operating temperature

Greater of ±1% of reading or ±1°C (±2°F)

500 ms

7-18 microns nominal, thermopile detector preset 0.95

0.3 to 1.0 digitally adjustable

°C or °F (selectable), 3 digit LCD

1°C or °F in all modes

0 to 50°C (32 to 120°F)

10-95% RH noncondensing, @ up to 30°C (86°F)

-25 to 70°C (-13 to 158°F) without battery

9V alkaline or nicad battery

50 hrs. (no backlight), 20 hrs. (backlight used 50%)

137

× 41 × 196 mm (5.4 × 1.6 × 7.7 in.)

270 gm (9.5 oz.)

Accessories

Description

Belt Pouch Carrying Kit (with wrist strap)

Waterproof Toolbox

N.I.S.T. calibration certification

Part Number

REB00301

REB00302

REB00303

HI LO

F

C

MAX MIN T AVG

[email protected]

150mm

[email protected]

[email protected]

1m

500mm

[email protected]

1.5m

[email protected]

3m

MODE

BAT LC4 Readout

.8" @

6"

2.5" @

20"

4.5" @

36"

TARGET SPOT SIZES

8" @

60"

16" @

120"

How To Order

Choose the BAT LC unit and/or accessories desired, order by the associated Part Number.

Instrumentation

Noncontact Thermometer

TYPICAL USES

Find hot spots in motors and bearings.

Monitor steam trap lines for temperature differences.

Find hot spots in electrical connections

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-17

Noncontact Infrared Thermocouple NCIT-LC Series

Design Features

0° to 500°C (32°F to 932°F)

Compact and Rugged

Designed for On-Line Monitoring and Control

Ultra Fast Response Time

Stainless Steel Sensing Head

High Ambient Temperature Rating

3-Foot Cable

Four Different Analog Outputs Offered

Mounting Hardware Included

12-24 VDC Powered

Common Industrial Applications

• Plastics

• Paper and Pulp Converting

• Chemicals

• Food Processing

• Pharmaceutical

• Electronics

• Construction

• Industrial Maintenance

P

RECISION INFRARED

TEMPERATURE

MEASUREMENT

has been around for years to increase productivity, reduce costs and improve product quality. Microfabrication techniques have allowed us to reduce the size and cost of our sensors, bringing the benefits of this technology to a new group of users. The NCIT-

LC is designed for applications in the

0°C to 500°C (32°F to 932°F) temperature range.

12-18

World’s Smallest IR Sensors

The NCIT-LC is a two-piece system with a miniature sensing head and separate electronics. The sensor is small enough to be installed just about anywhere, yet it performs as well as much larger systems.

The sensor is housed in rugged stainless steel to ensure long-term performance, even in harsh environments with ambient temperatures up to 85°C (185°F). And the NCIT-LC’s response time is as fast or faster than many high-end systems.

Rugged, Reliable, Practical Features

The NCIT-LC’s electronics include: Emissivity and selectable Peak Hold, Valley Hold, and

Averaging—features you won’t normally find in systems in this price range. Output format is field selectable.

Accessories, including an air purge jacket, air cooling jacket, and mounting adapters, ensure accuracy in applications ranging from plastics manufacturing to food processing.

Affordable IR

The NCIT-LC’s miniature size and low cost make it ideal for installation at multiple points along your process. Accurate. Easy to install.

Practical. With the NCIT-LC, precision infrared temperature measurement is now an economic alternative.

Lower cost sensors are available with fixed emissivity; consult

Tempco for further details.

Stock List & Technical Information at www.tempco.com

General Specifications

Repeatability:

. . . . . . . . . . . . . . . . . . .

±1% of reading, ±1°C (2°F)

Temperature Resolution:

.

±0.1°C (±0.2°F)

Response Time:

Resolution 2:1

. . . . . . . . . . . .

150 mSec (95% response)

Resolution 4:1

. . . . . . . . . . . .

120 mSec (95% response)

Spectral Response:

. . . . . . . . .

7.6 18 µm

Emissivity:

. . . . . . . . . . . . . . . . . . . . . . . .

0.20 to 1.00 adjustable

Signal Processing:

. . . . . . . . . . .

Peak/Valley Hold, Averaging

Power:

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12-24 VDC, ±10%

Output:

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Field selectable by model

Output Impedance (TC):

. .

50 ohms

Minimum

Load Impedance (mV):

. . . . .

100K ohms

Maximum Loop Impedance

(mA outputs):

. . . . . . . . . . . . . . . . . . .

500 ohms @ 24 VDC power supply

Current Draw:

. . . . . . . . . . . . . . . . . .

< 40 mA

Mechanical

Sensing Head

Construction:

. . . . . . . . . . . . .

Stainless Steel

Dimensions:

. . . . . . . . . . . . . . .

14 mm dia. x 28 mm L (0.55" dia. x 1.1"L)

Electronics Housing w/Electronics Card

Construction:

. . . . . . . . . . . . .

Zinc, die-cast

Dimensions:

. . . . . . . . . . . . . . .

80 x 60 x 25 mm (3.2" x 2.4" x 1.0")

Weight:

. . . . . . . . . . . . . . . . . . . . . . .

270 g (9.5 oz)

Environmental

Rating:

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

IP 65, NEMA 4

Ambient Temperature Range

Sensor:

. . . . . . . . . . . . . . . . . . . . . . .

0 to 85°C (32 to 185°F)

Housing:

. . . . . . . . . . . . . . . . . . . . .

0 to 50°C (32 to 122°F)

w/air cooling:

. . . . . . . . . . . . .

–18 to 200° (0 to 392°F)

Relative humidity:

. . . . . . . . . . . .

10 to 95%

Note:

The basic system includes the sensing head and nut, die cast housing with pre-mounted electronic board, and 3m (10 ft.) cable.

Instrumentation

Infrared Thermocouple

0

.2

DISTANCE: SENSOR TO OBJECT (in)

10

5

20

10

2

1

5

26.5

55

0

135

260

DISTANCE: SENSOR TO OBJECT (mm)

*Far field

255

500

Models and Temperature Ranges

Part

Number

REN00120

or

REN00100

REN00125

or

REN00105

Output

Range

Type J Tc

Type K Tc

0-5 Volt

0-20 mA

4-20 mA

Temperature

0-180°C (32-356°F)

0-500°C (32-932°F)

0-500°C (32-932°F)

0-500°C (32-932°F)

0-500°C (32-932°F)

Accuracy

(whichever is greater)

±3% or ±3°C

±3% or ±3°C

±2% or ±2°C

±2% or ±2°C

±2% or ±2°C

Note:

1. REN00120 and REN00125 have optical resolutions of 2:1.

2. REN00100 and REN00105 have optical resolutions of 10:1.

NEMA-4 Enclosure

25

(1.0)

60

(2.4)

80

(3.2)

Sensor head

28mm (1.1")

17mm (0.67")

14mm

(0.55")

M12

× 1

Air Cooling System –

REN00301

4 (.15)

40

(1.57)

30

(1.18)

14

(.55)

28

(1.1)

8 (.3)

Air Purging Jacket –

REN00302

21mm

(.83")

47mm (1.85")

Hose with

3mm (.12") I.D.

and

5mm (.2") O.D.

Mounting Bracket –

REN00303

12.5

(.49)

16

(.63)

29

(1.14)

18

(.71)

27

(1.06)

14

(.55)

22

(.87)

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-19

Noncontact Infrared Thermocouple NCIT Series

Design Features

0° to 1000°F

Compact and Rugged

Designed for On-Line Monitoring and Control

Fast Response Time

NEMA-4 Sensing Head

High Ambient Temperature Rating

Detachable 15-Foot Cable

Four Different Analog Outputs Offered

Mounting Hardware Included

DC or AC Powered

Common Industrial Applications

• Plastics

• Paper and Pulp Converting

• Chemicals

• Food Processing

• Pharmaceutical

• Electronics

• Construction

• Industrial Maintenance

Noncontact Thermocouple for

Special Temperature Measurement

The NCIT line brings the benefits of non-contact temperature measurement to an increasing number of applications in which cost is a major concern.

Advances in optical and electronic design, originally developed for high-end infrared systems, have been adapted to this low-cost line without compromise in performance when compared to infrared sensors that cost twice as much just a few years ago.

The NCIT models can’t scratch, tear, smear, or contaminate because they don’t make contact with your product. They are easier and safer to install and maintain because they can be positioned away from hot and hazardous processes and moving products.

They remain accurate over a longer time because they’re not subjected to the abuse that a contact device receives. And they deliver much faster response time than contact thermocouples, while rivaling their accuracy and repeatability.

In the long run, non-contact thermocouples can help you improve quality, speed production, and save money.

Small, Rugged and Versatile

Most of the electronics are contained in the remote circuitboard—not the sensing head, so it’s small enough to fit in tight places. If it’s necessary to get in close, the NEMA-4 sensing head can withstand ambient temperatures to 185°F (85°C) without a special cooling jacket. The optional cooling jacket takes the rated ambient up to 350°F (177°C).

Excellent optical resolution is offered for the price. With standard and close-focus models, you can mount the unit further away or up close, and still focus on small target areas.

Microprocessor technology makes it possible to offer a wide temperature range and four outputs: Type J, Type K,

1 mV/degree, and contact closure.

Adjustable Setpoint Model

The model NCIT-4 offers the additional capability of on/off control, alarm annunciation, or other automatic action by giving you a remotely adjustable setpoint. When the setpoint temperature is exceeded, a contact closure is actuated. The setpoint is operable throughout the 0 to 1000 degree range.

Each NCIT includes sensing head with quick-release cable (15 feet), electronics board, mounting nut, fixed bracket and if required, a rugged NEMA-4 electronics enclosure.

Proven Technology

Noncontact infrared temperature sensors have proven advantageous and reliable in many industries for over 25 years.

Tempco brings this technology to you at a price competitive with thermocouples.

If temperature is a factor in your quality and manufacturing yield, then put this technology to work for you.

12-20

Stock List & Technical Information at www.tempco.com

Standard Focus

12 24

DISTANCE: SENSOR TO OBJECT, (IN)

36 60 90 120

1.3

30

2.0

51

2.9

77

9.2

7.0

4.5

104

FOCAL POINT D:S = 13:1

FAR FIELD > 90" (2.28 m), D:S = 13:1

137

170

205

230

0.30

0.60

1.00

1.40

1.80

2.20

DISTANCE: SENSOR TO OBJECT, (m)

2.60

3.00

Instrumentation

Infrared Thermocouple

Close Focus

12 24

DISTANCE: SENSOR TO OBJECT, (IN)

36 60 90

13.0

7.8

120

0.3"@2"*

5.2

2.6

*FOCAL POINT D:S = 7:1

FAR FIELD > 12" (0.305 m), D:S = 4.5:1

65

130

8 [email protected] mm*

220

0.30

0.60

300

390

1.00

1.40

1.80

2.20

DISTANCE: SENSOR TO OBJECT, (m)

2.60

3.00

Standard Specifications

Model:

Part Number:

Data Output:

Temperature Range:

Emissivity:

Spectral Response:

Detecting Element:

Accuracy:

Repeatability:

Response Time:

Fail-Safe Operation:

Power:

Environmental Rating:

Vibration:

Shock:

Ambient Operating Range:

Storage Temperature:

Relative Humidity:

Connection:

Dimensions:

*

NCIT-1 NCIT-2 NCIT-3 NCIT-4

REN00010

*

Type J

REN00020

*

Type K

REN00030

*

1 mV/

REN00040

*

100 mA

Thermocouple

50

Ω Impedance

Thermocouple

50

0° to 1000°F (–18°-538°C)

Ω Impedance

Emissivity 0.1 to 1.0 digitally adjustable

°F or °C NO/NC switch

Contact closure

0° to 1000°F (–18°-538°C)

Adjustable setpoint

0°-999°F (–18°-538°C)

8 to 14 microns

Thermopile

Greater of ±1% of reading or ±2.5°F (1.4°C), @ 73°F±9° (23°C ±5°C) ambient operating temp.

±0.5% of reading, ±1°F or °C

800 ms (95% response)

Under-ranging (low scale); over-ranging (full scale); cable break (full scale)

9-24 VDC or nominal 12 VAC, 50 to 60 Hz., 25 mA

Sensing head: NEMA-4

MIL-STD-810D (IEC 68-2-6): 3G’s on any axis, 11 to 200 Hz

MIL-STD-810D (IEC 68-2-27): 50G’s on any axis, 11 ms

Sensing head: 32° to 185°F (0° to 85°C) Box: 32° to 120°F (0° to 50°C)

–22 to 150°F (–30 to 65°C)

Sensing head: 10-95% non-condensing @ 72 to 100°F (22 to 43°C)

Detachable 15 ft. (4.5 m) cable included

Sensing head: 3.66" (93 mm) L

× 1.65" (42 mm) dia.

Electronic card: 3.94" (100 mm) L

× 6.3" (160 mm) dia.

Last digit of Part Number becomes a 1 for a Close Focus Lens

Note:

The basic system includes the Sensing head,

Electronic board, mounting bracket and 15 ft. cable.

Conduit Adapter (Acc.) –

1/2" NPT

Dimensional Specifications

REN00205

NEMA-4 Enclosure –

REN00210

Pipe Adapter (Acc.) –

REN00206

21mm (0.83")

(2 Places)

50mm

(2")

Closed Cell

Neoprene Gasket

225mm (9")

206mm (8.25")

38 (1.5)

20 UN-2B

56

(2.25) between wrench flats

125mm

(5)

75mm

(3")

100mm

(4")

71

(2.8)

83

(3.25)

Ø 63

(2.5)

25mm

(1")

0.313" Dia. (7.825)

(4 Places)

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-21

Infrared Thermocouple

Standard Sensing Head

All sensors are supplied with a fixed bracket and a mounting nut. Alternatively, the sensor may be mounted through a hole, on a customer-supplied bracket, with the pipe adapter, or with other accessories. The sensor cable may

42

(1.65)

93

(3.66) be shortened, but not lengthened. Avoid installing the sensor cable in noisy electrical environments such as around electrical motors, switch gear, or induction heaters. In these

38 (1.5)

20 UN-2A environments, it is recommended to install the cable in conduit. A conduit adapter accessory is available for this purpose.

28

(1.125)

Air/Water Cooled Sensing Head

The Air/Water-Cooled Housing option allows the sensor to be used in ambient temperatures up to 250°F (121°C) with air cooling, or 350°F (177°C) with water cooling. It is supplied with two 1 ⁄

8

" NPT brass fittings.

Air flow at 77°F (25°C) should be 3 to 5 cfm

(1.4 to 2.4 liters/sec) with a pressure drop across the housing of 2 to 5 PSIG (0.14 to

0.35 kg/cm 2 ). Water flow should be approximately 0.5 gallons (2 liters) per minute; water temperature should be 50 to 80°F (10 to 27°C) for efficient cooling

53

(2.1)

63

(2.5)

1/8 NPT NIPPLE

(2 PLCS)

Chilled water below 50°F (10°C) is not recommended. To avoid condensation and lens damage, Tempco suggests using the Air Purge Collar with the

Air/Water-Cooled Housing. All units ordered with the Air/Water-Cooled Housing include the Air Purge Collar.

21

(0.82)

51

(2.02)

92

(3.66)

22

(0.88)

38 (1.5)

20 UN-2A

THREAD

Air Purge Collar

The Air Purge Collar accessory is used to keep dust, moisture, airborne particles and vapors away from the lens. It may be installed before or after the bracket. Air flows into the

1

8

" NPT brass fitting and out the front aperture. Air flow should be a maximum of 1-3 cfm (0.5-1.5 liters/sec).

Clean or “instrument" air is recommended to avoid contaminants from settling on the lens.

Ø 63

(2.5)

Ø 38

(1.5)

38 (1.5)

20 UN-2B

22

(.875)

75

(3)

3 (1/8)

27 NPT

25

(1)

38

(1.5)

38 (1.5)

20 UN-2A

12-22

OPTIONS

Description

Close Focus

Water/Air-Cooled Housing

(includes air purge collar)

N.I.S.T. Certification

Part Number

REN00202

REN00203

ACCESSORIES

Description

Air Purge Collar

Conduit Adapter

Pipe Adapter

Mounting Nut (Spare)

Fixed Bracket (Spare)

110/220 Vac to 12 Vac transformer

NEMA-4 Enclosure

Part Number

REN00204

REN00205

REN00206

REN00207

REN00208

REN00209

REN00210

Stock List & Technical Information at www.tempco.com

Instrumentation

Thermometer

Digital Handheld Thermocouple Thermometer

Instrument Specifications

Accuracy: ±1% of reading ±1 digit with instrument itself at room temperature (20° to 30°C). For colder or warmer ambient temperature to 0°C and 50°C, add (0.03% of reading ±0.1°C)/°C. Can be recalibrated in the field with instructions provided.

Thermocouple: Type J, Iron-Constantan; –112°F to 1382°F, switchable to –80°C to 750°C

Resolution: All temperatures less than 200° (F or C) are shown in 0.1° resolution. Temperatures above 200° are shown in 1° resolution.

Battery Life: 500 hours per battery; capacity up to 3 (9V) “transistor radio” batteries. LO BATT signal gives 10 hours warning.

Display: Black-on-silver LCD digits

1

2

" tall.

Housing: Rugged ABS Housing 3" x 5" x 1

3

4

". Weight 12 oz. with battery and typical probe.

Part Number: DTM10000

Right-Angle Ceramic

Tip Surface Probe

Max. temp. for sensor: 1200°F for type J, response time: 4 sec.

Part Number

Probe

DTA00020

Kit

DTM10020

Complete Thermometer Unit and Right-Angle Probe

Tempco’s DTM10000

digital thermometer features a rugged housing with a clip for hooking onto a belt or tool pouch and blackon-silver 1 ⁄

2

" tall LCD digits for easy reading. Easily cleaned membrane switch is resistant to accumulation of dirt or grease. The instrument is switchable from °F to °C and has proven itself to be invaluable in applications where several methods of temperature measurement are necessary.

Temperature sensing kits are available at a 10% discount. These include: a meter, a probe (of the appropriate type), and a vinyl case.

Straight Shaft Ceramic

Tip Surface Probe

Max. temp. for sensor:

1200°F for type J, response time: 4 sec.

Part Number:

Probe

DTA00010

Kit

DTM10010

High Temperature

Reduced Tip

Needle Probe

4" stem, max. temp.

for sensor: 930°F for type J, response time: 2 sec.

Part Number:

Probe

DTA00030

Kit

DTM10030

Vinyl Carrying Case

Belt-mounting vinyl case to carry thermocouple thermometer and probe.

Part Number:

Case

DTA00050

1

8

" Diameter

Needle Probe

4" probe length, max.

temp. for sensor: 500°F for type J, response time: 3 sec.

Part Number:

Probe

DTA00040

How To Order

Select the digital thermometer and/or accessories from this page and order by the item(s) Part Number.

Note: NIST traceability certificate can be supplied.

Consult Tempco for more information.

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-23

Design Features

Thermocouple Calibrations Available are

K, or J Linearized in Four Sections for

Good Accuracy

RTD Cold Junction Compensates

Accurately for Ambient Temperature

Changes as Fast as 2°/Min.

High Impedance Circuit Allows Use of

Probes with Up to 1000 Ft. of 24 Ga.

Wire; Several Transformer Isolated

Monitors Can Connect to the Same Probe

1

2

" High LCD Display is Sunlight Readable

Powered by 9V Alkaline “Transistor”

Battery

Durable Rotary Selector for Displaying 12

Thermocouple Inputs

Large Pointer Selector Knob Clearly

Indicates the Monitored Location

Polymer Coated Circuit Will Perform

Indefinitely Even in High Humidity

Environments

Made in the United States and Warranted

Against Material or Workmanship Defects for 1 Year

Multi-Station Portable Thermocouple Monitors

These thermocouple monitors were designed to assist field technicians with testing or calibrating HVAC/refrigeration systems, baking/curing ovens, motors, engines, and much more. Instant response circuits allow a technician to compare up to 12 temperature probes quickly.

These circuits have been optimized to deliver accuracy and stability over a wide environmental range. The durable carrying case is compact and features a compartment for storing wire and probes.

TEMPERATURE MONITORS

No. of

Inputs Scale

Thermocouple

J K

6

6

12

12

°F

°C

°F

°C

DTM30010 DTM30015

DTM30020 DTM30025

DTM30030 DTM30035

DTM30040 DTM30045

How To Order

Choose the Part Number of the Temperature Monitor that best fits the needs of your application.

A 120 Vac model (with optional LED display) is available; please consult Tempco for order information.

Specifications

Display Range:

–199 to 1999 °F or °C

Measuring Accuracy:

± 1 ⁄

2

% of reading ±1°

Ambient Oper. Temp.: –5° to 140°F (–21° to 60°C)

Relative Humidity:

90% max. no condensation

Cold Junction Offset:

1° max. for 32° to 110°F (0° to 43°C)

Display Updates:

3 times per second

LCD Height:

0.5" (12.7 mm) high

Construction:

High-density polyethylene case, aluminum panel with meter and miniature thermocouple jacks

Dimensions:

12"

× 8" × 3"

Power Requirement:

9 Vdc (9V “transistor” alkaline battery)

Weight:

2.0 lb. (0.9 kg.)

DISPLAY RANGE

°F °C

Thermocouple Type Min.

Max.

Min.

Max.

J-Fe/Constantan

K-Chromel ™ /Alumel ™

–60 1400

–60 1999

–50

–50

750

1100

12-24

Stock List & Technical Information at www.tempco.com

Instrumentation

Temperature Monitors

7.00

.56 High

LED Display

5.00

2.40

.40

5.50

.06 Thick Tempered

Aluminum Enclosure

12 TC Input

Selector

TC Wire

7/8 Hole

Power Cord

120VAC 50/60HZ

Thermocouple

Input Screws

Design Features

Thermocouple Calibrations Available are T, K, J, or E Linearized in Four Sections for Good Accuracy

RTD Cold Junction Compensates Accurately for Ambient Temperature Changes as Fast as 2°/Min.

1 ⁄

2

" High Red LED Display Provides Excellent Readability

Large Pointer Selector Knob Clearly Indicates the Monitored 1 of 12 Locations

Polymer Coated Circuit Will Perform Indefinitely Even in High Humidity Environments

Made in the United States and Warranted Against Material or Workmanship Defects for 1 Year

DISPLAY RANGE

°F °C

Thermocouple Type Min.

Max.

Min.

Max.

J-Fe/Constantan

K-Chromel ™ /Alumel ™

–60 1400

–60 1999

–50

–50

750

1100

12 Location Temperature Monitor

These thermocouple monitors were designed for industrial or commercial applications that require monitoring of 12 locations economically. The circuits have been optimized to deliver accuracy and stability over a wide environmental range. Typical applications include monitoring HVAC systems, baking/curing ovens, food or medical freezers, solar installations, refrigeration equipment, motor bearings, engines, etc.

Specifications

Display Range:

–199 to 1999 °F or °C

Measuring Accuracy:

±1/2% of reading ±1°

Ambient Oper. Temp.: –15° to 130°F (-26° to 54°C)

Relative Humidity:

90% max. no condensation

Cold Junction Offset:

1° max. for 32° to 110°F (0° to 43°C)

Display Updates:

3 times per second

LED Height:

Construction:

0.56" (14 mm) high

Aluminum enclosure, surface mounting with swing-out front panel

Power Requirement:

120 or 230 Vac, 50/60 Hz.

Power Cord Length:

5 ft.

Weight:

1.7 lb. (0.8 kg.)

Typical Applications

• Monitoring HVAC Systems

• Food or Medical Freezers

• Industrial Process Equipment

• Motor Bearings

• Baking/Curing Ovens

• Molding Machines

• Refrigeration Equipment

• Engines

Volts

AC

120

120

230

230

TEMPERATURE MONITORS

Scale

Thermocouple

J K

°F

°C

°F

°C

DTM20010 DTM20015

DTM20020 DTM20025

DTM20030 DTM20035

DTM20040 DTM20045

Note: 230V units have internal terminal connections for AC power input.

How To Order

Choose the Part Number of the Temperature Monitor that best fits the needs of your application.

If calibrations of type E or T are required, consult

Tempco for part number.

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-25

Electronic Test Instruments

Digital Multimeter — For Volts, Ohms, & Amps

Features:

Heavy Duty design with large 0.95" easy to read 3 1 ⁄

2 digit display

Full Overload Protection and Indication

AC/DC Current measurements to 20A

Low battery and polarity indication

Transistor test, Diode Check and audible continuity <30 ohms.

Wide frequency range-Autoranging

2kHz-20MHz

Complete with heavy duty rubber protective holster with stand, strap, test leads and 9V battery.

Specifications

DC Voltage:

AC Voltage:

DC Current:

AC Current:

Resistance:

Capacitance:

Frequency:

Dimensions:

Weight:

Range

200mV, 2V, 20V, 200V, 1000V

200mV, 2V, 20V, 200V, 750V

200µA, 2mA, 20mA, 200mA, 20A

2mA, 20mA 200mA, 20A

200, 2K, 20K, 200K, 2M, 20M

2nF, 20nF, 200nF, 2µF, 20µF

2KHz, 20KHz, 200KHz, 2MHz, 20MHz

3.5"

× 7.5" × 1.4" (88 × 191 × 36mm)

11 oz (312g)

Part Number: EMV00010

Basic Accuracy

200mV: 0.25% ±2d; others 0.6% ±4d

±1.2% ±3d

±0.8% ±4d; 20A: 1.5% ±5d

±1.5% ±5d; 20A: 2.0% ±5d

±0.8% ±4d; 20M: 3% ±10d

±3.0% ±3d

±1.0% ±5d

1000A AC/DC Clamp Digital Multimeter

Capture current surges with Peak Hold plus measure temperature

Features:

Wide range to 1000 Amps

100mA resolution

Jaws open to 1.3"

New hand guard design complies with IEC-1010-1 for operator safety

Peak Hold and Data Hold

Accepts any type K thermocouple for temperature measurements

Measure AC or DC current during motor or heater startup and recall highest point of surge using Peak

Hold function. Dual Hall effect sensors provide DCA accuracy to 2% of full scale.

Full function Digital Multimeter also measures voltage, resistance, plus diode check. Large 3

1

2

Overload and Low Battery.

digit LCD display indicates

Complete with carrying case and test leads and standard type

K bead wire thermocouple with the temperature option.

Specifications

Ranges Resolution Accuracy

AC/DC Current:

AC Frequency 40-400Hz

Overload Protection:

AC Voltage:

200A 0.1A

1000A 1A

1000A (within 1 minute)

200V

600V

0.1V

1V

2% of full scale

1% rdg + 2 digits

DC Voltage:

200mV 0.1mV

200V 0.1V

600V 1V

Overload Protection:

Resistance:

Temperature: °F

°C

AC/DC 600V

2000

–40-1400°F

–40-750°C

Peak Hold (accuracy):

Yes (3%)

1

1% rdg + 2 digits

1.2%FS + 2°F

Peak Hold Decay Rate: Less than 1 digit/sec

Operating Temperature: 32-122°F (0-50°C)

Dimensions:

9.1

× 2.8 × 1.4" (230 × 70 × 36 mm)

Part Numbers: EMV00020 with °F temperature

EMV00030 with °C temperature

EMV00040 with NO temperature

12-26

Stock List & Technical Information at www.tempco.com

Instrumentation

Electronic Test Instruments

Megohmmeter/Insulation Tester

1mA test current ensures 1000V/500V/250V rated

Features:

Three test ranges

200M

Ω/1000VDC

200M

Ω/500VDC

200M

Ω/250VDC

Power lock for 3-minute test

Auto power off and Data

Hold

No voltage drop at low resistance

Full function indication and

Overload Protection

Measures resistance to

200

Ω and Volts to 750VAC

Complete with 6 AA batteries, test leads and case with neck strap

Specifications

Range

Insulation Voltage:

Overload Protection:

Dimensions:

250/500/1000

Insulation resistance (accuracy): 200/2000M

Ω (3% + 5 digits)

Output short circuit current:

≤ 2.5mA

Resistance (accuracy):

200

Ω (1% rdg)

2200 V (<1 min)

3.8"

× 6.3" × 2.3" (97 × 160 × 58mm)

Part Number: EMM00010

1

8

th

DIN Digital Temperature Panel Displays

Features:

Models for Type J, K, or T thermocouples and Pt

100

Ω RTD

1999 count 0.56" LED display

Switchable between °F or °C calibration

1

8

DIN case (cutout 1.77

× 3.66"; 45 × 92 mm), with screw terminals

Analog Recorder output of 1mV per degree

Bezel dimensions: 3.78

× 1.89 × 4.57" deep

(96

× 48 × 116mm deep)

Powered by 110/220VAC

Part Numbers: EMT00010

Type J thermocouple input

EMT00020

Type K thermocouple input

EMT00030

Type T thermocouple input

EMT00040

RTD (Pt 100

Ω) input

EMT00200

NEMA-4 Bezel Cover

Digital Multimeter Temperature Adapter

Plugs into any multimeter for direct temperature readings.

Type K adapter is °F or °C switchable with 1mV per 1° output. Use

200mV range of multimeter to obtain readings from –50 to 199.9°F or °C. Using multimeter’s 2V scale will enable measurements to

1400°F/750°C. Complete with fast response bead wire probe.

Dimensions: 3

× 2 × 1" (76 × 51 × 25mm)

Part Number: EMT00050

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-27

User selectable for all thermocouple types, mV and Pt-100 RTD

2-Wire Miniature Universal Temperature/Process Transmitters

1.30" (33mm)

1.73" (44mm)

.71" (18mm)

.300" (7.6mm)

.165" (4.2mm)

1.10" (28mm)

The Tempco ETM Series of 2-wire transmitters offers both isolated and non-isolated versions. They are designed to fit in a standard industrial thermal head.

Features:

Better measurement stability through improved circuitry and enhanced RFI-EMI rejection.

Ease of maintenance through product standardization

Field rangable

Isolated version eliminates ground loop errors

Universal input capabilities reduce the required inventory levels needed.

The ETM Transmitter is constructed of an upper and lower section. The lower section contains the isolation and output circuitry, while the upper half contains the “personality” components that define the input sensor type and the measure range. The two halves snap into each other for a perfect fit, yet enable disassembly for the purpose of input and range changes.

E T M

Input/Output:

ETM1

= Non isolated

ETM2

= Isolated

Units:

F

= °F

C

= °C

M

= mV

Input Signal:

R

= RTD

T

= Thermocouple

M

= mV

Range (Maximum)

Range (Minimum)

If thermocouple input, enter

type code

; if not enter

0

Code is T/C Type J, K, R, S, B or E

Specifications

Isolation:

Output Span:

Input-RTD:

-TC:

Input Span-RTD:

-TC:

Burnout Protection:

Adjustability:

Supply Voltage:

Maximum Load = :

Ambient Temp:

Humidity:

Linearity-RTD:

-TC/mV:

Stability-RTD:

-TC/mV:

Tc CJ Compensation: model ETM100___ non-isolated model ETM200___ isolated

N

/

A

500 Vdc or peak AC

4-20 mA, limiting at <28mA

Pt-100, 2- or 3-wire all known types

20°C min. 500°C max.

10mV min.

5mV min.

Upscale standard

±25% for both zero and span

8-38 Vdc 10-40 Vdc

Polarity Protected

(Vsupply-8V)÷20mA (Vsupply-10V)÷20mA

–20°C to +70°C

0-95% RH, Non condensing

±0.05% of span

±0.03% of span

±0.1% of span

±0.1% of span

0.03% of span/°C

0.04% of span/°C

0.02% of span/°C

0.02% of span/°C

0.05°C/°C of ambient temperature

How To Order

Transmitters are offered with the options listed in the worksheet. Create an ordering code by filling in the boxes with the appropriate number and/or letter designation for your requirements and a part number will be assigned.

12-28

Stock List & Technical Information at www.tempco.com

Instrumentation

Process Transmitters

2-Wire Rail Mount Universal Temperature/Process Transmitters

General Specifications

Output:

I/O Isolation:

Power Supply:

4-20 mA limiting at <28mA

If specified: 1000VDC or peak AC min.

12-50 VDC reverse polarity protected

Linearity:

Calibration:

±0.05% of span (for linear input)

±0.1% of span or better (for linear input)

Output ripple (to 1kHz):

<0.02% of span

C.M.R.R.:

>120db DC to 60Hz

Zero Span Adjustability: ±20% of span minimum

Operating Temperature: –10°C to 70°C

Humidity:

Mounting:

Dimensions:

0 to 95% RH, non-condensing

DIN rail 35mm or panel

22.5mm (W)

× 79mm (H) × 83mm (D)

Component Specifications

RTD Transmitter

Range:

∆ Max. 800°C; ∆ Min. 10°C

Sensor Excitation: 1 mA constant current

Linearity: Better than ±0.05% of span

Input Span: Minimum,10°C; Maximum, 800°C

Thermocouple Transmitter

Types: E, J, K, R, S, T, B, N, W3, W5

Input Span: Minimum: 5 mV

Input Impedance: 10 Megohms

Linearity: Better than ±0.05% of span

DC/Volt Transmitter

Range: Min. 2 mV, Max. 300V

Protection: 20X rated input, 300VDC max

Input Span: Min.-2mV; Max.-300 V

Linearity: > ±0.05% for linear input

DC/mA Transmitter

Range: Min. 10 µA; Max. 100 mA

Protection: 20X rated input, 250 mA max

Input Span: Min. 10 µA; Max. 100 mA

Linearity: > ±0.05% for linear input

Potentiometer Transmitter

Range: Min. 100

Ω; Max. 20 KΩ

Sensor Excitation: 50mV constant voltage (nominal)

Input Span: 10% of potentiometer, minimum

Linearity: > ±0.05% for linear input

How To Order

Transmitters are offered with the options listed in the worksheet. Create an ordering code by filling in the boxes with the appropriate number and/or letter designation for your requirements and a part number will be assigned.

Features:

Universal Inputs

High Density design

High Accuracy

Reduced Inventory

E T R

Low Cost

The ETR Series is the world’s first 4-20 mA analog transmitter to offer a combination of selectable input and multiranging capabilities in a single DIN rail mounted instrumentation package.

Input sensor type is selectable via DIP switch configuration and offers the choice of most common sensors used in the industrial environment. Ranging is equally easy and can be done in a matter of minutes.

Only one instrument is used for all types and ranges of thermocouples, RTD’s, Potentiometric and DC inputs.

The ETR Series is housed in a slim line High Density package for a minimum of panel space and highest cost efficiency.

Isolation:

I

= Isolated

N

= Non Isolated

Input Type:

1

= TC

2

= RTD, Pt-100

3

= DC signal

4

= Potentiometer

If thermocouple input, enter

type code

; if not, enter

0

Code is T/C Type J, K, R, S, B or E

Range (Minimum)

Range (Maximum)

Units:

F

= °F

C

= °C

V

= mV

A

= mA

O

= Ohms

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-29

Wire Mounted Current Indicators

Tempco’s wire mounted electrical current indicators provide an effective method of monitoring electrical current. The indicator is attached directly to a current-carrying wire. When the current exceeds the turn-on point, the red LED will illuminate to indicate the presence of current.

Red LED Indicator

Part Number: CTT00001

A green LED model is available; consult

Tempco for ordering information.

Mounting Bracket

for Current Ring

Part Number: CTT00003

Wire Turn-On Wire

Passes

(Amps) Dia. (in.)

1

2

3

N

2

1

.667

2 ÷ N

.29

.14

.13

Features

Self Powered

Easy to Install

Supplied with Plastic Tie

Indicates Current from 2 to 100 Amps (1 Wire Pass)

Applications

• Monitor Heater Element Status

• Observe Remote Loads

.25" .20" Dia.

.29" Dia.

1.04"

.95" .46"

Remote Current Indicators

The Tempco remote current sensing transformer is installed around the current-carrying wire and is connected directly to the LED panel indicator. When the current exceeds the turn-on point of the sensing transformer, the LED illuminates to indicate the presence of current.

Two sizes of remote current sensing transformers are available for use with either of two types of

LED indicators listed below.

Applications

• Indicate Open Heater Elements

• Observe Remote Loads

• Indicate Phase Loss

• Monitor Motor Operation

• Requires LED Panel Indicator

Max. Wire Dia.: .29 inches

Indicating Range: 2 to 100 A

Max. Transient Current: 150 A for 5 sec.

Working Class: 600 Volts, 50-60 Hz

Lead Wire Length: 12"

Part Number: CTT00004

Max. Wire Dia.: .55 inches

Indicating Range: 2.5 to 100 A

Max. Transient Current: 150 A for 5 sec.

Working Class: 600 Volts, 50-60 Hz

Lead Wire Length: 24"

Part Number: CTT00005

Surface Mounting Bracket

For use on model CTT00005 only

Dimensions: 1

3

8

"

× 1

1

4

"

Mounting Dims.: (2) #6 screws

7

8

" apart

Part Number: CTT00006

12-30

Panel Indicators for Remote Current Transformers

Press-In Panel LED Indicator

Panel LED Indicators

Press-In LED Panel Indicator

LED Type: T-1-

3

4

, Red Bi-Polar

Part Number: CTL00001

Splash-Proof LED Indicator

Supplied with rubber sealing washer

LED Type: T-1

3

4

, Red Bi-Polar

Part Number: CTL00002

Splash-Proof Panel LED Indicator

Stock List & Technical Information at www.tempco.com

Instrumentation

Current Sensing Relay

3-1/2" 2-15/16"

7/8"

2-1/8"

9/32"

1-15/16"

2-1/2"

9/32"

Specifications

Mounting: 2—

3

16

" dia. clearance holes on 1

15

16

" by 2

15

16

" centers

Environmental:

Operating Temperature: -30°C to +60°C

Storage Temperature: -55°C to +125°C

Power-On Delay: 100 ms max.

Hysteresis: 5% max.

Input Power Supply: 120 VAC

Input Terminals: 2—

1

4

" Male Quick Connect

Operating Class: 600 V

Sensed Current:

Max. Continuous: 200% Full Scale

Frequency: 60-400 Hz

Output Relay:

Arrangement: 1 Form C (SPDT)

Terminals: 3—

1

4

" Male Quick Connect

RELAY CONTACT RATINGS

Voltage

Load

Type

240 VAC

240 VAC

125 VAC

28 VDC

Resistive

Motor

Motor

Resistive

N.O.

Contact

20 A

2 HP

1 HP

20 A

N.C.

Contact

10 A

1

2

1

4

HP

HP

10 A

Relay Trip Status

1

= Relay Energized on High Current

(above trip point)

2

= Relay Energized on Low Current

(below trip point)

C T R

The TEMPCO series of Current Sensing Relays provides an effective and highly stable method for monitoring electrical current.

The current-carrying wire is routed through the opening extending from the top of the case. When current reaches the level set by the trip point adjustment, the electromechanical relay is energized.

An adjustable timer is provided to delay activation of the relay. A precision voltage reference circuit ensures a highly repeatable trip point. Design of the power-on delay circuitry allows the supply power to be repeatedly cycled on and off, without affecting the stability of the current sensing operation.

Features

Variable Trip Point and Time Delay

Monitors Currents from 10 mA to 60 AC Amps

Output Relay Rated Up to 20 Amps

LED Relay Status Indicator

Dead Band Prevents Relay Chatter

Calibrated Dial

Applications

• Monitor Electrical Heater Elements

• Sense Motor Over/Under Loads

• Detect Lamp Burn-Out

• Indicate Phase Loss

Options

L

= Latching

E

= Extended Freq. Range

N

= None

Trip Ranges

1

= 1.0 to 10 AC Amps

2

= 3.0 to 30 AC Amps

3

= 6.0 to 60 AC Amps

4

= .01 to 0.1 AC Amps

5

= 0.1 to 1.0 AC Amps

Time-On Delay

A

= .5 to 6 Sec.

B

= 2 to 25 Sec.

Trip Point Dial

CD

= Calibrated Dial

##

= Fixed Setpoint

(specify required value)

How To Order

Current Relays are offered with the options listed in the worksheet above. Create an ordering code by filling in the boxes with the appropriate number and/or letter designation for your requirements and a part number will be assigned.

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-31

Specifications

Recording Width: 100 mm

Min/Max Display Ranges:

Type J: -100.0 to +1100°C

Type K: -100.0 to +1200°C

Type T: -100.0 to +400°C

Pt 100 Rtd: -100.0 to +850°C

Accuracy: 1.5% FS or 1.5°C (T/C Input)

1% FS or 1°C (RTD Input)

Response Time: 1.5 seconds

Zero Suppression: -100, 0, 100, 200, 300, 400, 500°C

Measuring Ranges (Span): 50, 100, 200, 500, 1000°C

Operating Ambient Temp.: 0 to 50°C

Power Supply: 120 Vac (through external transformer),

50/60 Hz; 12 Vdc; Internal C-size (9 each) Ni/Cad Batteries

Dimensions: 3"H

× 12"W × 9.1"D (76 × 305 × 231 mm)

Weight: 4.9 lbs. (2.22 kg)

Compact Flatbed Temperature Chart Recorder

Tempco’s SE recorder saves space without giving up functionality by providing a full range of inputs in a small “footprint”. It operates on line voltage, external 12 Vdc, as well as standard and rechargeable internal “C” size batteries. When used with rechargeable batteries, it automatically documents the recorder settings directly on the chart, insuring data is always accurately interpreted.

An integrated 3

1

2 digit LCD displays the sensed temperature in real time. Standard features include immediate electronic over-range protection to protect the servo system in over-range situations.

The servo system is also enclosed to prevent dust and debris from impairing operation. Superimposed event marking, electric pen lift, as well as a detachable dust cover are also standard.

Unique input terminals provide both wire clamp and banana jack connections, allowing all types of leads to be accommodated.

The completely remote-controllable, quartz-clocked chart drive system allows users to control chart run/stop, forward/reverse, and speed as well as the electric pen lift remotely via external switch closures or TTL level signals. The SE is delivered complete with a roll of standard chart paper and one disposable recording pen.

How To Order

Choose the Part Number of the unit and/or accessories that best fit your application needs.

Features

Accepts Types J, K, and T Thermocouples; and

RTDs (Pt 100)

50, 100, 200, 500, 1000°C Measuring Ranges

Built-In 3

1

2

" Digital LCD Display

Internal Cold Junction Temperature Switchable

On/Off

Variety of Power Sources Available: Internal

Standard or Ni/Cad Batteries, Battery Backed-Up

Line Supply, External 12 Vdc, Line Voltage

Measuring Parameters Plotting

Transparent, Hinged, Detachable Dust-Cover

Simple Frontloading System

CHART RECORDER

Description

Part

Number

Flatbed Temperature Recorder RCR30010

ACCESSORIES

Description

Carrying Case

Roll Paper 100 mm

× 16 m

0 to 100 Scale…

0 to 30 Scale…

(3) Disposable Felt-Tip Pens

(9) C-cell Ni/Cad Batteries

Part

Number

RCA30001

RCA30002

RCA30003

RCA30004

RCA30005

12-32

Stock List & Technical Information at www.tempco.com

Instrumentation

Chart Recorder

K-Thermocouple Remote Sensing Temperature Recorder

The KTx Series was developed to provide the ultimate in versatility and accuracy. All KTx Series models accept any type K thermocouple probe with a miniconnector plug, so it serves as many recorders in one. If your workplace requires that you document temperatures for a variety of precision applications, KTx Series is the one remote recorder that will do all the jobs.

Remote sensing is ideal for extreme environments like freezers, kilns, ovens, and chambers. Super accurate with 4 Fahrenheit, 3 Celsius ranges and 3 recording time options.

You set all the recording parameters, using keypad and dip switches, so you can change parameters easily for use in multiple applications.

Features

Keyhole Slots for Wall Mounting

Large Digital Display

Locking Keypad: On/Off, Alarm Set, Min/Max

Batteries for Back-Up Power

Snap-On Feet for Added Stability

K-Thermocouple Bead Wire Probe Included

Locking Door

Common Applications

Manufacturing: Food Processing, Oven & Chamber temperature monitoring, process control

Quality Control: Laboratories, Test Conditions monitoring, Verify adherence to standards and regulations

Storage: Critical storage, Food storage,

Refrigerator/Freezer monitoring and maintenance

RECORDERS

— 3 Models to Choose From

Description

Part

Number

KTx High Range 0 to 2000°F with

6" Stainless Steel Probe (2100°F Max)

KTx Medium Range –50 to 500°F with

Bead Wire Probe (500°F Max)

KTx Low Range -250 to 150°F with

Bead Wire Probe (500°F Max)

RCR20010

RCR20020

RCR20030

Included with every recorder are the following: probe, batteries, AC adapter, one red pen, 1-point NIST traceable calibration, and one box of charts: High Range (0 to

+1000°F/°C 7-day), Medium Range (0 to +100°F/°C 7-day), and Low Range (0 to –100°F/°C 7-day).

Specifications

Ranges:

High Range Recorder: 0 to +250°F/°C, 0 to +500°F/°C,

0 to +1000°F/°C, 0 to +2000°F

Med. Range Recorder: 0 to +100°F/°C, -50 to +50°F/°C,

0 to +250°F/°C, 0 to +500°F

Low Range Recorder: 0 to -100°F/°C, 0 to -150°F/°C,

+20 to -120°F/°C, +150 to -250°F

Temperature Accuracy: ±0.3% of reading ±1.0°C (±1.8°F)

Average Response Time: 10 seconds for 60% step change; depending on sensor thermocouple

Alarms: Audio/Visual high and low alarms

Recording Times: 24-hour, 7-day, and 31-day

Power: 120V AC adapter with 4 “D” batteries for power back-up

Dimensions: 10.5"

× 13.2" × 2.8" thick

Chart Size: 8" diameter

CHARTS

(60 per box)

Temp. Range 24-Hr

Part Number

7-Day 31-Day

High

Range

0 to +250°F/°C RCA20001 RCA20002 RCA20003

0 to +500°F RCA20004 RCA20005 RCA20006

0 to +1000°F/°C RCA20007 RCA20008 n/a

0 to +2000°F/°C RCA20009 RCA20010 n/a

-50 to +50°F/°C RCA20011 RCA20012 RCA20013

0 to +100°F/°C

0 to +250°F/°C

RCA20014

RCA20001

RCA20015

RCA20002

RCA20016

RCA20003

Medium

Range

0 to +500°F

0 to -100°F/°C

RCA20004 RCA20005 RCA20006

RCA20014 RCA20015 RCA20016

Low 0 to -150°F/°C RCA20017 RCA20018 n/a

Range +20 to -120°F/°C RCA20019 RCA20020 RCA20021

+150 to -250°F RCA20022 RCA20023 n/a

ACCESSORIES

Description

Part

Number

(6) Red Replacement Pens RCA20101

Stainless Steel Basic Probe (316SS) RCA20102

Replacement Type “K” Bead Probe RCA20103

NIST Traceable Calibration 3-Pt.

RCA20104

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-33

100 mm Strip Chart Recorder

12-34

Chart Recording Made Easy

Tempco’s

Series 345

100 mm chart recorder is a rugged unit designed to perform in most difficult industrial environments. A durable metal chassis construction insures trouble-free reliability and quality construction.

Designed for ease of use, the

Series 345

chart recorder comes with front mounted operator controls. These controls allow access to many of the operations that these recorders can do—from setting alarms to chart speed selection to printing mode.

With the annotation option, readings are easily and clearly marked for easy analysis later. This option records the date, the time, the minimum and maximum measured values, and chart speed—just to name a few.

Features

100 mm Strip Chart

One, Two, or Three Pen Continuous Trace

40 Character Vacuum Fluorescent Display

Thermocouple, RTD, mV, and V Input

Digital Accuracy 0.1% of Span

EEPROM Memory Ensures Total Security

Chart Annotation Option for Logging, Scaling and Text

Printing

Powerful Yet Simple Interface

Application specific programming can be done via the integral keyboard. Menu driven selections provide prompts instructing the user on the alpha-numeric display with six front panel keys to completely configure the recorder. The alpha-numeric display is a 40-character vacuum fluorescent display that displays real time information or programming menus.

Channel information can be displayed two ways: Individually, with value, channel number, units, tag name, and alarm information; or three channels displayed simultaneously with value and units. Long life, plug-in ink markers, three available print modes, and a selection of chart sizes and speeds allow a great selection in the variety of output available to be charted.

Never Lose Important Information Again

Information is backed up by EEPROM and RAM microchips with battery back-up. Thus a power failure does not require a total reprogram of the recorder.

The

Tempco 345

chart recorder also has fully isolated universal input channels capable of accepting RTDs, TCs, current, dc volts, and millivolt sources.

Adaptable to Whatever Needs You Have

Universal inputs make data sampling simple. Data can be measured using thermocouples, RTDs, or a simple millivolt or volt signal can be used. The operating voltage of the unit is factory preset to 115 volts; however, the unit is internally switch selectable for 230 volts. Chart speed is also flexible, capable of ranging from 1 mm every hour to 1 cm every second. This is programmed via the integral keyboard and thus is easily changed from application to application.

There are also many customizing options available. The annotating option mentioned above allows the recording of data directly on the chart while it is graphing. An event input option is offered that allows an external event to activate a function of the recorder. There is also a relay output, option which is activated by an internal trigger or an external event input. Even a locking glass door is offered as an option.

Stock List & Technical Information at www.tempco.com

115 Volt ac (Internally switchable to 230 V)

17mm

3/4"

Standard Features for 345 Models

Universal Programmable

Inputs (TC, RTD, mV, and V)

Glass Door

Instrumentation

Chart Recorder

16 Meter Z-Fold Paper

Chart and Appropriate Pens

144mm

137mm

32mm

1-5/16"

137mm

5-7/16"

144mm

5-11/16"

Maximum panel thickness = 25mm

345mm (short cover)

Specifications

Number of Inputs: 1, 2, or 3

Input Type: Universal (TC, RTD, mV, V)

Operating Voltage: 115 Vac (switch selectable for 230V)

Chart Size: 100 mm

Chart Length: 16 meter Z-fold

Environmental: 0-50°C (32-122°F); 0-90% RH

Case Panel Space: 144

× 144 mm

Cutout: 138

× 138 mm

Depth: 345 mm

Weight: 7 Kg (15.4 lb)

Accuracy: 0.1% of span ±5 µV

Scan Speed: 250 ms

Full scale response: <0.5 sec.

Noise Rejection:

Common Mode: 120 dB

Normal Mode: 60 dB NMR

Input Impedance: >20 M

Channel Isolation: 500V

Writing System: Blue, red, and green disposable pen

(1 Mile of line each pen)

Chart Speeds: 1 mm/Hr up to 36,000 mm/hr

Configuration Method: Integral keyboard

Options

EVENT INPUTS

This allows an external event to have boolean (on or off) control over the activation of certain features on the chart recorder. Which feature(s), and how it is triggered is all programmable via the integral keyboard.

RELAY OUTPUT

These relays operate in response to any internal trigger or external event input, (2) Single Pole, Double Throw relays on a circuit board.

ANNOTATION OPTION (Clock and Pen)

This option supplies an additional pen and a clock to record vital information on the chart while it is being recorded. Examples of the information recorded by the annotation option are the date, time, minimum value, maximum value, and chart speed, etc.

LOCKING GLASS DOOR

How To Order

Series 345 Chart Recorders are offered with the options listed in the worksheet below. Create an ordering code by filling in the boxes with the appropriate number and/or letter designation for your requirements and a part number will be assigned.

R C R 1

1

Number of Pens

BOX

1

1

= 1 Pen

2

= 2 Pens

3

= 3 Pens

Annotation Option

BOX

4

N

= No

Y

= Yes

2 3 4

Relay Output

BOX

2

N

= No

Y

= Yes

5

Glass Door with Lock

BOX

5

N

= No

Y

= Yes

Event Input

BOX

3

N

= No

Y

= Yes

ACCESSORIES

Description

16 m Z-fold Paper

Replacement Pens

Blue

Red

Green

Annotation

Part Number

RCA10101

RCA10102

RCA10103

RCA10104

RCA10105

Call Toll Free: (800) 323-6859 • F

AX

: (630) 350-0232 • E-Mail: [email protected]

12-35

Linear Temperature Device

Temperature Probes for PLCs and Process Controls

Tempco’s Linear Temperature Device combines the functions of temperature sensing, signal conditioning, transmission, and linearization in a single rugged package.

Inside the 316 stainless steel probe are highly miniaturized electronics and a proprietary laser trimmed silicon temperature sensor.

The output signal is permanently calibrated to produce

10mV per degree. Therefore, a temperature of 225°F produces a direct reading signal of 2.25 VDC.

CHARACTERISTICS

Isolation

• Minimizes ground loop problems

Voltage Protection

• Excitation reversal protection

• Over voltage protection

Bibolar Operation

• Automatically switches polarity from + to - when below

0°F or C

Sensor

• Solid state technology

• Individually laser trimmed for accuracy

Probe

• High heat transfer

• Various configurations

Linearization

• 10mV/Degree

Construction

• NEMA 6P sealed crimp

• Instrument grade 316 stainless steel

Signal Conditioning

• Cold end compensated, no external requirements

• Signal trimmed 0.00VDC for 0°F or C

Noise Filter

• Wide excitation voltage

Long Distance

• Over

1

2 mile transmission

• Differential line, so line loss is eliminated

• Shielded multi-conductor cable

WIRING CONNECTIONS

The Tempco LTD Series temperature sensor is a 4-wire plus shield type device. The excitation voltage is 5-30 VDC.

This range accommodates the common voltages found in most process control systems.

Black Wire: + pos. signal

Brown wire:

+ pos. power input

W hiitte Wiirre

– neg. signal

Blue wire:

– neg. power input

Or use the micro connector. It is a push connector with locking ring for reliable connections. It offers convenience for maintenance, a NEMA 6P seal, and passes the shield through the connector.

Specifications

Minimum Probe Size:

1

4

" dia. x 1

5

8

" length

Operating Range: -60°F to +300°F (-51°C to +150°C)

Storage Temperature: -76°F to +356°F (-60°C to +180°C)

Isolation: 600 VDC (VAC RMS)

Supply Voltage: 5 to 30 VDC Unregulated

Output Signal: -0.60 to +3.00 VDC (10mV/Degree)

Max. Output Current: 10mA

Max. Cable Length: Over

1

2 mile

Ratings: NEMA 6P (submersible in water)

Accuracy: Typical ±0.2°F, Max. ±0.5°F at 77°F

Non-linearity: Min. ±0.0°F, Typ. ±0.3°F, Max. ±0.6°F

Sheath: 316 SS

The LTD Temperature Sensor can be manufactured in a wide variety of configurations. Please Specify your requirements and a part number will be assigned when the order is placed.

Style

How To Order

Straight Wand

1

8

" through

1

2

" NPT Fitting Probe

1

8

" through

1

2

" NPT High Pressure Probe

1

8

" through

1

2

" NPT Hex Nipple Probe

1

8

" through

1

2

" NPT Hex Nipple High Pressure Probe

5 ⁄

16

" through

1

2

" SAE Bolt Probe

1" through 4" Sanitary Flange Probe

Termination Stripped and tinned conductors or micro connector with mating connector

Probe Length

1

4

" nib,

5

8

", 1", 1

5

8

", 2", 3", 6", 9", 12", 48"

Tip Style No Tip, Round, Flat, Point, Lug

Range 230°F, 110°C, 300°F, 150°C

12-36

Stock List & Technical Information at www.tempco.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
