Fuse Holders

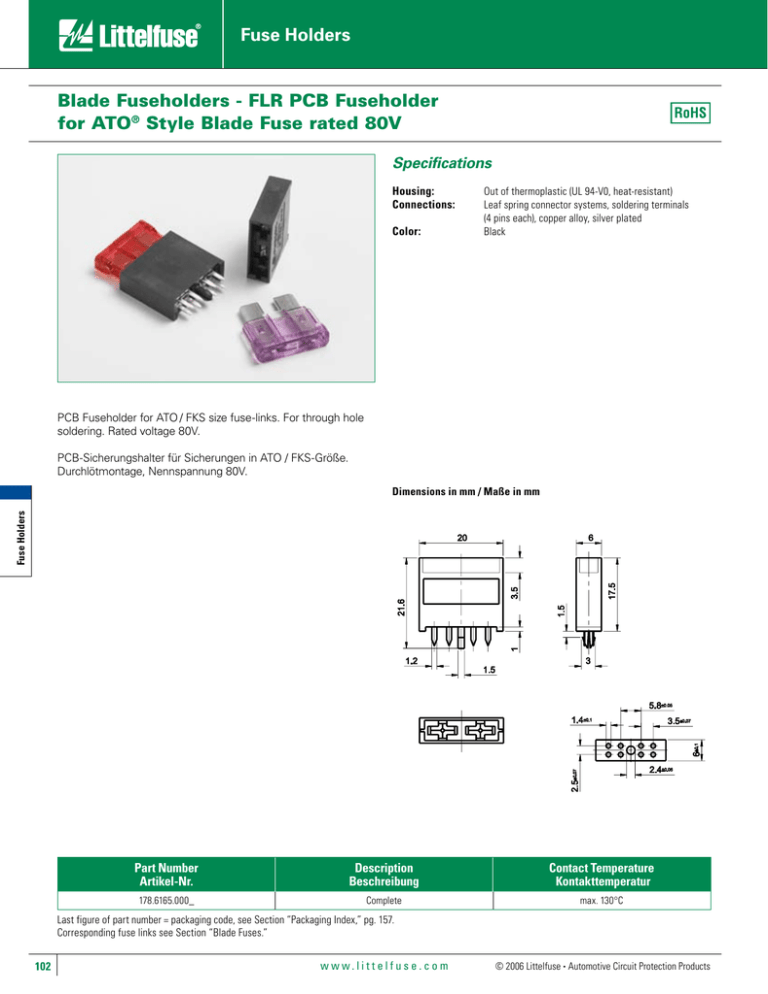

Blade Fuseholders - FLR PCB Fuseholder
for ATO® Style Blade Fuse rated 80V
Specifications
Housing:
Connections:
Color:
Out of thermoplastic (UL 94-V0, heat-resistant)
Leaf spring connector systems, soldering terminals
(4 pins each), copper alloy, silver plated
Black
PCB Fuseholder for ATO / FKS size fuse-links. For through hole
soldering. Rated voltage 80V.
PCB-Sicherungshalter für Sicherungen in ATO / FKS-Größe.
Durchlötmontage, Nennspannung 80V.
Fuse Holders
Dimensions in mm / Maße in mm
Part Number
Artikel-Nr.
Description
Beschreibung
Contact Temperature
Kontakttemperatur
178.6165.000_
Complete
max. 130°C
Last figure of part number = packaging code, see Section “Packaging Index,” pg. 157.
Corresponding fuse links see Section “Blade Fuses.”
102
www.littelfuse.com
© 2006 Littelfuse • Automotive Circuit Protection Products
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Littelfuse:
178.6165.0001 178.6165.0002
