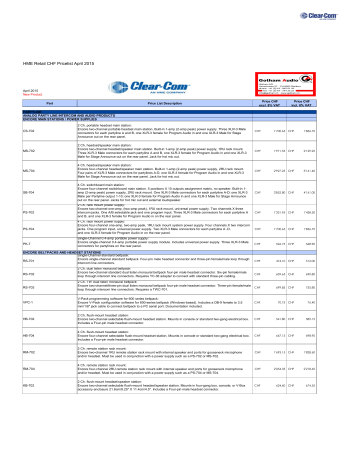

Clear-Com_Retail Price List April 2015

Clear-Com_Retail Price List April 2015
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
PARTYLINE
ANALOG PARTY LINE INTERCOM AND AUDIO PRODUCTS
ENCORE MAIN STATIONS / POWER SUPPLIES
CS-702
2 Ch. portable headset main station:
Encore two-channel portable headset main station. Built-in 1-amp (2-amp peak) power supply. Three XLR-3 Male
connectors for each partyline A and B, one XLR-3 female for Program Audio in and one XLR-3 Male for Stage
Announce out on the rear panel.
CHF
1'700.65 CHF
1'836.70
MS-702
2 Ch. headset/speaker main station:
Encore two-channel headset/speaker main station. Built-in 1-amp (2-amp peak) power supply, 1RU rack mount.
Three XLR-3 Male connectors for each partyline A and B, one XLR-3 female for Program Audio in and one XLR-3
Male for Stage Announce out on the rear panel. Jack for hot mic out.
CHF
1'971.55 CHF
2'129.25
MS-704
4 Ch. headset/speaker main station:
Encore four-channel headset/speaker main station. Built-in 1-amp (2-amp peak) power supply, 2RU rack mount.
Four pairs of XLR-3 Male connectors for partylines A-D, one XLR-3 female for Program Audio in and one XLR-3
Male for Stage Announce out on the rear panel. Jack for hot mic out.
CHF
2'927.25 CHF
3'161.40
SB-704
4 Ch. switchboard main station:
Encore four-channel switchboard main station. 5 positions X 10 outputs assignment matrix, no speaker. Built-in 1amp (2-amp peak) power supply, 2RU rack mount. One XLR-3 Male connectors for each partyline A-D; one XLR-3
Male per Partyline output 1-10; one XLR-3 female for Program Audio in and one XLR-3 Male for Stage Announce
out on the rear panel. Jacks for hot mic out and external loudspeaker.
CHF
3'852.80 CHF
4'161.00
CHF
1'331.95 CHF
1'438.50
CHF
1'700.65 CHF
1'836.70
CHF
526.75 CHF
568.90
CHF
474.10 CHF
512.00
CHF
639.65 CHF
690.80
CHF
699.85 CHF
755.80
PS-702
PS-704
PK-7
2 Ch. rack mount power supply:
Encore two-channel one-amp, (two-amp peak), 1RU rack mount, universal power supply. Two channels X three
intercom jacks. One A/B selectable jack and one program input. Three XLR-3 Male connectors for each partyline A
and B, and one XLR-3 female for Program Audio in on the rear panel.
4 Ch. rack mount power supply:
Encore four-channel one-amp, two-amp peak, 1RU rack mount system power supply. Four channels X two intercom
jacks. One program input, universal power supply. Two XLR-3 Male connectors for each partyline A -D,
and one XLR-3 female for Program Audio in on the rear panel.
Single-Channel 0.4-amp portable power supply:
Encore single-channel 0.4-amp portable power supply module. Includes universal power supply. Three XLR-3 Male
connectors for partylines on the rear panel.
ENCORE BELTPACKS AND HEADSET STATIONS
Single-Channel standard beltpack:
Encore single-channel standard beltpack. Four-pin male headset connector and three-pin female/male loop through
RS-701
intercom line connectors.
RS-702
RS-703
2 Ch. dual listen monaural beltpack:
Encore two-channel standard dual listen monaural beltpack four-pin male headset connector. Six-pin female/male
loop through intercom line connectors. Requires YC-36 adapter to connect with standard three-pin cabling.
2 Ch. TW dual listen monaural beltpack:
Encore two-channel/three-pin dual listen monaural beltpack four-pin male headset connector. Three-pin female/male
loop through intercom line connectors. Requires a TWC-701.
VPC-1
V-Pack programming software for 600 series beltpack:
Encore V-Pack configuration software for 600-series beltpack (Windows-based). Includes a DB-9 female to 3.5
mm/1/8" jack cable to connect beltpack to a PC serial port. Documentation included.
CHF
70.75 CHF
76.40
HB-702
2 Ch. flush-mount headset station:
Encore two-channel selectable flush-mount headset station. Mounts in console or standard two-gang electrical box.
Includes a Four-pin male headset connector.
CHF
541.80 CHF
585.15
HB-704
4 Ch. flush-mount headset station:
Encore four-channel selectable flush-mount headset station. Mounts in console or standard two-gang electrical box.
Includes a Four-pin male headset connector.
CHF
647.15 CHF
698.90
RM-702
2 Ch. remote station rack mount:
Encore two-channel 1RU remote station rack mount with internal speaker and ports for gooseneck microphone
and/or headset. Must be used in conjunction with a power supply such as a PS-702 or MS-702.
CHF
1'693.15 CHF
1'828.60
RM-704
4 Ch. remote station rack mount:
Encore four-channel 2RU remote station rack mount with internal speaker and ports for gooseneck microphone
and/or headset. Must be used in conjunction with a power supply such as a PS-704 or MS-704.
CHF
2'054.35 CHF
2'218.65
KB-702
2 Ch. flush-mount headset/speaker station:
Encore two-channel selectable flush-mount headset/speaker station. Mounts in four-gang box, console, or V-Box
accessory enclosure 21.6cm/8.25" X 11.4cm/4.5". Includes a Four-pin male headset connector.
CHF
624.60 CHF
674.55
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
KB-702GM
2 Ch. flush-mount headset/speaker GN mic:
Encore two-channel selectable flush-mount headset/speaker station, gooseneck microphone jack and VOX. Mounts
in four-gang box, console, or V-Box accessory enclosure 21.6cm/8.25" X 11.4cm/4.5". Includes a Four-pin male
headset connector.
CHF
827.75 CHF
893.95
KB-701
Single-Channel flush-mount PTT speaker station:
Encore single-channel half-duplex flush-mount push-to-talk speaker/microphone station mounts In four-gang box,
console, or accessory enclosure 21.6cm/8.25" x 11.4cm/4.5".
CHF
624.60 CHF
674.55
V-BOX
Wedge shaped enclosure for KB stations:
Encore portable wedge-shaped enclosure for angled or vertical mounting. Desktop/wall-mount enclosure for KB-701, CHF
KB-702GM and KB-702 stations.
421.40 CHF
455.10
EB7-4W
4-wire adapter board for KB/HB:
Encore plug-in 4-wire adapter board for KB-701/702 and HB-702/704 stations. (No PSU provided) Please note this
board requires a 400071Z power supply.
CHF
444.00 CHF
479.50
EF-701M
4-wire interface with call signal:
Encore four-wire interface with call signal. Interfaces matrix to a single channel of standard or TW party-line.
CHF
1'188.95 CHF
1'284.05
IF4W4
4 Ch., 4-wire interface:
Encore four-channel 3/4-wire camera interface. 1RU rack mount provides four discrete Clear-Com to 3-wire or 4-wire
interface circuits. Can be used to connect to four different two-wire partyline channels or a single partyline channel
with four 4-wire connections.
CHF
1'806.00 CHF
1'950.50
TW-12C
CC/RTS system interface:
Clear-Com/RTS system interface - 1RU rack mount. Interface a single intercom channel. Clear-Com to Clear-Com or
Clear-Com to RTS systems.
CHF
1'708.20 CHF
1'844.85
TW-47
2-way radio interface:
Clear-Com/RTS two-way radio interface connects Clear-Com or RTS to most two-way radios. A custom interface
cable will be required and is not provided.
CHF
812.70 CHF
877.70
PIC-4704
IFB central controller:
Encore IFB main station 1RU rack mount. Requires MA-704/AX-704 controllers and IC-25-6 cable or similar and
power supply such as the PS-702.
CHF
1'730.75 CHF
1'869.20
MA-704
IFB control panel mic jack:
Encore IFB control panel with 6.35mm/1/4" microphone jack, four individual talent buttons and "All" talk button. For
use with the PIC-4704. See the optional CEP-RK console for rack mounting.
CHF
1'414.70 CHF
1'527.90
AX-704
IFB expansion control panel:
Encore IFB expansion control panel with four individual talent buttons. For use with the PIC-4704 and MA-704. See
the optional CEP-RK console for rack mounting.
CHF
1'158.85 CHF
1'251.55
TR-50
Monaural IFB talent receiver:
Wired monaural IFB talent receiver 3.5mm/1/8" mini jack includes TS-1. Requires a Clear-Com PSU.
See also CC-010A earpiece.
CHF
290.45 CHF
313.70
CEP-RK
Rack kit for MA-704 and AX-704:
1RU rack mount kit for MA-704 and AX-704 control panels. Holds up to three IFB control panels.
CHF
281.45 CHF
303.95
TS-1
Monaural talent earphone:
Monaural talent earphone. Monaural IFB talent earphone. Plugs into TR-50 and wireless IFB receivers.
CHF
69.25 CHF
74.75
YC-66
Y adapter for IFB systems:
Six-pin Y adapter for IFB systems. Two six-pin female connectors wired to one six-pin male.
CHF
192.65 CHF
208.05
ENCORE SYSTEM INTERFACES
ENCORE IFB SYSTEM INTERFACES
QUE-COM INTERCOM COMPONENTS
SMQ-1
Que-Com single-ear headset/beltpack:
Que-Com single-ear headset/beltpack combination.
CHF
436.45 CHF
471.35
SP-3
3-way intercom line splitter:
Three-way intercom line splitter. One three-pin female and three three-pin male XLR-type connectors.
CHF
115.90 CHF
125.15
BROADCAST AUDIO PRODUCTS
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
AB-120
Commentator/translation console:
On-air announcer box, no 4-wire interface, no 48V phantom power.
CHF
2'084.45 CHF
2'251.20
400071Z
Spare AB-120 PSU:
Spare AB-120 PSU
CHF
33.10 CHF
35.75
CHF
4'048.45 CHF
4'372.30
PROGRAMMABLE SOURCE-ASSIGNMENT PANEL
8x24 Ch. program station assignment panel:
Eight 24-channel programmable station-assignment panel. Stores 14 presets and expandable up to 15 sources and
72 destinations. Assigns 24 stations or groups to one of eight party-line channels. 2RU rack mount.
ENCORE INTERCONNECT CABLES AND CONNECTORS
RCS-2700
IC-25
Intercom cable 25 feet:
7.5m/25ft intercom cable - three-pin XLR-type.
CHF
76.75 CHF
82.90
IC-50
Intercom cable 50 feet:
15.2m/50ft intercom cable - three-pin XLR-type.
CHF
108.35 CHF
117.05
IC-100
Intercom cable 100 feet:
30.4m/100ft intercom cable - three-pin XLR-type.
CHF
162.55 CHF
175.55
IC-25-2P
2 pairs superflex intercom cable 25 feet:
Two pairs 7.6m/25ft intercom cable - six-pin XLR-type for use with RS-702 and RS-602 beltpacks.
CHF
200.15 CHF
216.20
IC-50-2P
2 pairs superflex intercom cable 50 feet:
Two pairs 15.2m/50ft intercom cable - six-pin XLR-type for use with RS-702 and RS-602 beltpacks.
CHF
261.85 CHF
282.80
IC-100-2P
2 pairs superflex intercom cable 100 feet:
Two pairs 30.4m/100ft intercom cable - six-pin XLR-type for use with RS-702 and RS-602 beltpacks.
CHF
376.25 CHF
406.35
IC-25-6
4 pairs superflex intercom cable 25 feet:
Four pairs 7.6m/25ft intercom cable - six-pin XLR-type required to connect PIC-4704 to MA-704 and AX-704.
CHF
284.45 CHF
307.20
IC-50-6
4 pairs superflex intercom cable 50 feet:
Four pairs 15.2m/50ft intercom cable - six-pin XLR-type required to connect PIC-4704 to MA-704 and AX-704.
CHF
391.30 CHF
422.60
IC-100-6
4 pairs superflex intercom cable 100 feet:
Four pairs 30.4m/100ft intercom cable - six-pin XLR-type required to connect PIC-4704 to MA-704 and AX-704.
CHF
571.90 CHF
617.65
FL-7
Call signal flasher:
Encore call signal flasher provides adjustable visual and/or audible indication of a call signal.
CHF
586.95 CHF
633.90
WP-2
2 Ch. selectable intercom outlet:
Encore channel selectable intercom outlet wall plate. Three-pin male connector and channel select switch on a
single-gang wall plate.
CHF
102.35 CHF
110.55
WP-6
2 Ch. 6-pin intercom outlet:
Two-channel six-pin intercom outlet wall plate six-pin male connector on a single-gang wall plate for RS-702.
CHF
143.00 CHF
154.40
YC-36
2 Ch. beltpack adapter:
Three-pin to six-pin adapter combines two single-channel three-pin cables into a single two-channel six-pin
connector for use with RS-702 and RS-602 beltpacks.
CHF
150.50 CHF
162.55
TWC-701
TW adaptor module:
Two-channel/three-pin XLR adapter module. Combines two intercom channels onto a single three-pin cable for use
with RS-703 and RS-603 beltpacks. Connect up to fifteen RS-703 beltpacks to TWC-701 output.
CHF
571.90 CHF
617.65
GM-9
9 inch plug-in GN mic:
22.9cm/9" plug-in gooseneck microphone for party-line stations, i-series and ICS panels.
CHF
284.45 CHF
307.20
GM-18
18 inch plug-in GN mic:
45.8cm/18" plug-in gooseneck microphone for party-line stations, i-series and ICS panels.
CHF
299.50 CHF
323.45
ENCORE SYSTEM ACCESSORIES
HELIXNET DIGITAL NETWORKED PARTYLINE
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
HMS-4X
HelixNet digital 4 Ch. headset/speaker main station:
HelixNet digital four-channel headset/speaker main station - supports up to 20 HBP-2X beltpacks. Three rear panel
expansion bays accept up to three (optional) interface modules. Uses optional 110/340 series gooseneck
microphones. High-contrast OLED display per channel.
CHF
6'163.00 CHF
6'656.00
HBP-2X
HelixNet digital 2 Ch. dual listen monaural beltpack:
HelixNet digital two-channel standard dual listen monaural beltpack with display and four-pin male headset
connector. Three-pin female/male loop through intercom line connectors. High-contrast OLED display.
CHF
1'414.70 CHF
1'527.90
HBP-2XS
HelixNet digital 2 Ch. dual listen beltpack:
HelixNet digital two-channel standard dual listen beltpack with display and five-pin female headset connector.
Three-pin female/male loop through intercom line connectors. High-contrast OLED display.
CHF
1'414.70 CHF
1'527.90
HLI-4W2
HelixNet 4-wire module:
4-wire interface module. Dual channel 4-wire interface with transformer balancing.
CHF
1'392.15 CHF
1'503.50
HLI-2W2
HelixNet 2-wire module:
2-wire Clear-Com/RTS dual party-line interface module. Does not power the party-lines attached to HLI-2W2
modules. These require Encore master station PSUs such as the PS-702 or MS-702 or RTS equivalent power
supply.
CHF
1'595.30 CHF
1'722.90
HLI-ET2
HelixNet Ethernet module:
Ethernet interface module. Dual channel Ethernet for LAN connectivity.
CHF
857.85 CHF
926.50
CHF
857.85 CHF
926.50
HLI-MMFO
HelixNet Fiber MM TxVr:
One Multi-Mode transceiver for the HelixNet HLI-FBS fiber module. The HLI-FBS fiber module accepts two SFP
transceivers and comes with one with SM transceiver already fitted. The HLI-FBS module can mix the fitted default
Single Mode transceiver with one of these Multi-Mode transceivers for two different fiber links.
CHF
164.05 CHF
177.15
HLI-SMFO
HelixNet Fiber SM TxVr:
One Single-Mode transceiver for the HelixNet HLI-FBS fiber module. The HLI-FBS fiber module takes two SFP
transceivers and comes with one SM transceiver already fitted. The HLI-FBS module can house two fiber
transceivers when the module is in the middle of chained fiber link with other HLI-FBS modules either side.
CHF
186.60 CHF
201.55
HRM-4X
HelixNet Remote Station:
HelixNet digital four-channel headset/speaker remote station. Powered though single screened twisted pair PL cable,
CHF
PoE or external wall AC adapter. Uses optional 110/340 series gooseneck microphones. High-contrast OLED display
per channel.
3'612.00 CHF
3'900.95
HKB-2X
HelixNet Speaker Station:
HelixNet digital two-channel headset/speaker wall station. Powered though single screened twisted pair PL cable,
PoE or external wall AC adapter (supplied with the S-MOUNT). Uses optional 110/340 series gooseneck
microphones. High-contrast OLED display per channel. Can be fitted into a 4 gang US standard wall plate or
mounted in the S-Mount wall and desktop mount.
CHF
2'182.25 CHF
2'356.85
S-MOUNT
HelixNet Wall/Desk Mount:
HelixNet desktop or wall mounting kit for the HKB-2X. Comes with an AC power adapter.
CHF
602.00 CHF
650.15
240175Z
Spare HelixNet Main Station PSU Clip:
HelixNet Main Station Replacement PSU Clip
CHF
24.10 CHF
26.00
453G026
Spare HelixNet AC In-line PSU (Mains cable not included):
HelixNet Replacement AC In-line PSU (Mains cable not included)
CHF
39.15 CHF
42.25
453G025
Spare HelixNet Speaker Station AC Wall Wart PSU:
HelixNet Speaker Station Replacement AC Wall Wart PSU
CHF
39.15 CHF
42.25
110/340
340mm standard length GN mic:
Standard length microphone - gooseneck 34cm/12", for use with HelixNet and V-Series.
CHF
383.80 CHF
414.50
HLI-FBS
HelixNet Fiber module:
Fiber interface module. The HLI-FBS Fiber Linking Module provides a daisy-chain fiber interface to connect to other
HelixNet Main Stations.
With the Fiber Modules, Main stations share partyline channels and program audio, and make them available to any
station and beltpack
on the linked system. Fiber Modules can be mixed with Ethernet Modules in the same network.
The HLI-FBS comes with one SFP LC duplex Single Mode transceiver, (see sales options for HLI-MMFO and HLI-
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
110/100
100mm short GN mic:
Short microphone - gooseneck 10cm/4", for use with HelixNet and V-Series.
CHF
444.00 CHF
479.50
110/490
490mm long GN mic:
Long microphone - extended gooseneck 49cm/19", for use with HelixNet and V-Series.
CHF
489.15 CHF
528.25
WBS-IFB WIRELESS
ANALOG WIRELESS
WBS-670 & WBS-680 FREQUENCY AGILE UHF WIRELESS INTERCOM SYSTEMS
WBS BASE STATIONS
WBS-670/A2
Single-Channel wireless UHF base station, band A2:
Single-channel frequency-agile UHF wireless intercom base station band A2. Tx: 518-536 MHz Rx: 632-650 MHz.
CHF
7'261.65 CHF
7'842.55
WBS-670/B4
Single-Channel wireless UHF base station, band B4:
Single-channel frequency-agile UHF wireless intercom base station band B4. Tx: 536-554 MHz Rx: 668-686 MHz.
CHF
7'261.65 CHF
7'842.55
WBS-680/A2
2 Ch. wireless UHF base station, band A2:
Two-channel frequency-agile UHF wireless intercom base station band A2. Tx: 518-536 MHz Rx: 632-650 MHz.
CHF
9'436.35 CHF
10'191.25
WBS-680/B4
2 Ch. wireless UHF base station, band B4:
Two-channel frequency-agile UHF wireless intercom base station band B4. Tx: 536-554 MHz Rx: 668-686 MHz.
CHF
9'436.35 CHF
10'191.25
WBS-680/E88
2 Ch. wireless UHF base station, band E88:
Two-channel frequency-agile UHF wireless intercom base station band E88. Tx: 590-608 MHz Rx: 470-488 MHz.
CHF
9'436.35 CHF
10'191.25
WTR-670/A2
Single-Channel wireless UHF transceiver, band A2:
Single-channel frequency-agile UHF wireless intercom beltpack. Tx: 632-650 MHz Rx: 518-536 MHz.
CHF
2'362.85 CHF
2'551.90
WTR-670/B4
Single-Channel wireless UHF transceiver, band B4:
Single-channel frequency-agile UHF wireless intercom beltpack. Tx: 668-686 MHz Rx: 536-554 MHz.
CHF
2'362.85 CHF
2'551.90
WTR-680/A2
2 Ch. wireless UHF transceiver, band A2:
Two-channel frequency-agile UHF wireless intercom beltpack. Tx: 632-650 MHz Rx: 518-536 MHz.
CHF
2'994.95 CHF
3'234.55
WTR-680/B4
2 Ch. wireless UHF transceiver, band B4:
Two-channel frequency-agile UHF wireless intercom beltpack. Tx: 536-554 MHz Rx: 668-686 MHz.
CHF
2'994.95 CHF
3'234.55
WTR-680/E88
2 Ch. wireless UHF transceiver, band E88:
Two-channel frequency-agile UHF wireless intercom beltpack. Tx: 470-488 MHz Rx: 590-608 MHz.
CHF
2'994.95 CHF
3'234.55
WTR-BAT
Rechargeable battery pack WTR-670/680:
Rechargeable battery pack for WTR-670 or WTR-680 beltpack.
CHF
242.30 CHF
261.70
WTR4C-E
4-bay charger for WTR-BAT Euro:
50/60Hz power supply including Euro AC connector battery charger for four WTR-BAT rechargeable batteries, 220V
and four WTR-BAT rechargeable batteries.
CHF
2'633.75 CHF
2'844.45
AN-685/A
Spare WBS beltpack Antenna WTR-670/680 485 - 553.9 MHz:
Replacement Flex Antenna WTR-670/680 485 - 553.9 MHz
CHF
75.25 CHF
81.25
AN-685/B
Spare WBS beltpack Antenna WTR-670/680 554 - 635.9 MHz:
Replacement Flex Antenna WTR-670/680 554 - 635.9 MHz
CHF
75.25 CHF
81.25
AN-685/C
Spare WBS beltpack Antenna WTR-670/680 636 -725.9 MHz:
Replacement Flex Antenna WTR-670/680 636 -725.9 MHz
CHF
75.25 CHF
81.25
AN-685/D
Spare WBS beltpack Antenna WTR-670/680 470 - 488 MHz:
Replacement Flex Antenna WTR-670/680 470 - 488 MHz
CHF
75.25 CHF
81.25
AN-685/E
Spare WBS beltpack Antenna WTR-670/680 796.1 - 813.9 MHz:
Replacement Flex Antenna WTR-670/680 796.1 - 813.9 MHz
CHF
75.25 CHF
81.25
WBS TRANSCEIVER BELTPACKS
WBS WIRELESS ACCESSORIES
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
AND-680-BW
Spare WBS Base station Antenna WBS-670/680 710-880 MHz (Blue & White):
Replacement Flexible 1/2 Wave Dipole Antenna WBS-670/680 710-880 MHz (Blue & White)
CHF
135.45 CHF
146.30
AND-680-GW
Spare WBS Base station Antenna WBS-670/680 610-710 MHz (Green & White):
Replacement Flexible 1/2 Wave Dipole Antenna WBS-670/680 610-710 MHz (Green & White)
CHF
135.45 CHF
146.30
AND-680-RW
Spare WBS Base station Antenna WBS-670/680 470-550 MHz (Red & White):
Replacement Flexible 1/2 Wave Dipole Antenna WBS-670/680 470-550 MHz (Red & White)
CHF
135.45 CHF
146.30
AND-680-YW
Spare WBS Base station Antenna WBS-670/680 525-610 MHz (Yellow & White):
Replacement Flexible 1/2 Wave Dipole Antenna WBS-670/680 525-610 MHz (Yellow & White)
CHF
135.45 CHF
146.30
AN-685/F
Spare WBS beltpack Antenna WTR-670/680 726 - 825 MHz:
Replacement Flex Antenna WTR-670/680 726 - 825 MHz
CHF
75.25 CHF
81.25
FSII-BASE
FreeSpeak II Digital wireless base station:
FreeSpeak II Digital license-free wireless base station. Supports up to 20 Beltpacks and 10 antennas. (Two
antennas can connect to the base station directly or up to 10 antennas can be connected by using two x PD2203
splitters) The base station has connections for two party-lines and four 4-wires plus a dedicated SA output and
dedicated program audio input.
CHF
14'884.45 CHF
16'075.20
FSII-BP19-X4-EU
FreeSpeak II digital wireless BP EU:
Digital wireless beltpack including four talk and listen buttons with integral crosspoint level rotary controls and
answerback and menu key. LED level and call signalization and OLED menu. Includes XLR-4M headset connector,
USB DC charging connections, belt clips, shoulder strap, BAT60 rechargeable Lithium Ion battery and single AC
USB charger part 453G029.
CHF
2'581.10 CHF
2'787.55
FSII-TCVR-19-EU
FreeSpeak II active antenna EU:
Active antenna powered either locally or from the matrix CAT5 connection. One antenna supports up to five
FreeSpeak II beltpacks. More antennas needed if roaming or more beltpack support is required. Includes AC PSU
adapter part 453G023.
CHF
2'423.05 CHF
2'616.90
PD2203
Antenna splitter:
Antenna splitter box. Provides five antenna feeds from one antenna port on the FSII-BASE station or Matrix Integra
rear card. Including PSU.
CHF
2'859.50 CHF
3'088.25
FSII-BP-USB-CHRGR
FreeSpeak II BP USB Charger:
Spare FreeSpeak II Beltpack USB AC Charger with international plug kit (Part# 453G029).
CHF
112.90 CHF
121.90
AC60
FreeSpeak II 5 way charger:
FreeSpeak II 5 bay drop in beltpack charger and battery charger unit. Comes with AC adapter part # 453G008-1
CHF
827.75 CHF
893.95
AC60-W-MOUNT
AC60 Wall bracket kit:
AC60 metal wall bracket to support the FreeSpeak II 5 way drop-in charger
CHF
72.25 CHF
78.00
BAT60
Spare FreeSpeak II Battery:
Spare FreeSpeak II beltpack spare Li-ion battery
CHF
90.30 CHF
97.50
453G023
Spare FreeSpeak II Antenna AC adapter:
Spare FreeSpeak II Antenna in-line AC adapter
CHF
85.80 CHF
92.65
453G008-1
Spare AC60 AC adapter:
Spare FreeSpeak II AC60 charger in-line AC adapter
CHF
112.90 CHF
121.90
CHF
2'859.50 CHF
3'088.25
FS-CC WIRELESS
DIGITAL WIRELESS
FREESPEAK II (1.9GHz)
FREESPEAK II ACCESSORIES
Legacy FREESPEAK / CELLCOM (1.9GHz) (Now replaced by FreeSpeak II see above)
PD2203
Antenna splitter:
Antenna splitter box. Provides five antenna feeds from one antenna port on the FreeSpeak/Cellcom base station or
Matrix Integra rear card. Including PSU.
HME DX WIRELESS
HME DX100 COMPLETE DIGITAL WIRELESS SYSTEMS (2.4GHz)
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
CZ11383
4-Up DX100 system without headsets:
MB100 Single-Channel stand-alone license-free mobile base station w/2 antennas; 115/230 VAC power supply,
115VAC power cord, AA battery sled for base; 4 BP200 Beltpacks with; 8 BAT41 batteries and 4 pouches; AC40A
Battery Charger; 115/230 VAC power supply, 115VAC power cord, manual *No headsets are included with this
system*
CHF
7'069.20 CHF
7'634.75
CZ11396
4-Up DX100 system w/ WH200 headsets:
MB100 Single-Channel stand-alone license-free mobile base station w/2 antennas; 115/230 VAC power supply,
115VAC power cord, AA battery sled for base; 4 WH200 All-In-One-Wireless Headsets with; 8 BAT41 batteries;
AC40A Battery Charger; 115/230 VAC power supply, 115VAC power cord, manual
CHF
7'204.65 CHF
7'781.00
CZ11433
4-Up DX100 system w/ HS15 headsets:
MB100 Single-Channel stand-alone license-free mobile base station w/2 antennas; 115/230 VAC power supply,
115VAC power cord, AA battery sled for base; 4 BP200 Beltpacks with; 8 BAT41 batteries and 4 pouches; 4 HS15
Single Muff Noise canceling Headsets, AC40A Battery Charger,115/230 VAC power supply, 115VAC power cord,
manual
CHF
8'094.75 CHF
8'742.35
CZ11465
DX121 system without headsets:
BS121 license-free base station with HS-XLR4F Interface cable, 2 antennas, 115/230 VAC power supply, 115VAC
power cord, 1 BP200 Beltpack with 2 BAT41 batteries and pouch, manual *No headset is included with this system*
CHF
3'515.25 CHF
3'796.45
CZ11464
DX121 system w/ WH200 headset:
BS121 license-free base station with HS-XLR4F Interface cable, 2 antennas, 115/230 VAC power supply, 115VAC
power cord, WH200 All-In-One-Wireless Headset with 2 BAT41 batteries, manual
CHF
3'599.10 CHF
3'887.05
CZ11462
DX121 system w/ HS15 headset:
BS121 license-free base station with HS-XLR4F Interface cable, 2 antennas, 115/230 VAC power supply, 115 VAC
power cord, BP200 Beltpack with 2 BAT41 batteries and pouch; 1 HS15 Single Muff Noise canceling Headset,
manual
CHF
3'818.40 CHF
4'123.85
CZ11375
4-Up DX200 system without headsets:
BS200 license-free base station w/2 antennas; 115/230 VAC power supply; 115VAC power cord, 4 BP200 Beltpacks
with; 8 BAT41 batteries and 4 pouches; AC40A Battery Charger; 115/230 VAC power supply, 115VAC power cord,
manual *No headsets are included with this system*
CHF
9'823.35 CHF
10'609.20
CZ11447
4-Up DX200 system w/ WH200 headsets:
BS200 license-free base station w/2 antennas; 115/230 VAC power supply; 115 VAC power cord, 4 WH200All-InOne-Wireless Headsets with 8 BAT41 batteries; 1 HS15 Single Muff Noise canceling Headset; AC40A Battery
Charger; 115/230 VAC power supply, 115VAC power cord, manual
CHF
10'210.35 CHF
11'027.20
CZ11432
4-Up DX200 system w/ HS15 headsets:
BS200 license-free base station w/2 antennas; 115/230 VAC power supply; 115 VAC power cord, 4 BP200
Beltpacks with; 8 BAT41 batteries and 4 pouches; 5 HS15 Single Muff Noise canceling Headsets; AC40A Battery
Charger; 115/230 VAC power supply, 115VAC power cord , manual
CHF
11'861.55 CHF
12'810.45
CZ11513
4-Up DX210 system w/ HS15 headsets:
BS210 license-free base station w/2 antennas; 115/230 VAC power supply; 115 VAC power cord, 4 BP210
Beltpacks with; 8 BAT41 batteries and 4 pouches; 5 HS15 Single Muff Noise Canceling Headsets; AC40A Battery
Charger; 115/230 VAC power supply, 115VAC power cord, manual.
CHF
13'151.55 CHF
14'203.65
CZ11514
4-Up DX210 system w/ WH210 headset:
BS210 license-free base station w/2 antennas; 115/230 VAC power supply; 115 VAC power cord, 4 WH210 All-inone-Wireless Headsets with 8 batteries; 1 HS15 Single Muff Noise canceling Headset, AC40A Battery Charger;
115/230 VAC power supply, 115VAC power cord, manual.
CHF
12'106.65 CHF
13'075.20
CZ11515
4-Up DX210 system without Headsets:
BS210 license-free base station w/2 antennas; 115/230 VAC power supply; 115 VAC power cord, 4 BP210
Beltpacks with; 8 BAT41 batteries and 4 pouches; AC40A Battery Charger; 115/230 VAC power supply, 115VAC
power cord, manual.
CHF
11'874.45 CHF
12'824.40
HME DX121 COMPLETE SYSTEMS (2.4GHz)
HME DX200 COMPLETE SYSTEMS (2.4GHz)
HME DX210 COMPLETE SYSTEMS (2.4GHz)
HME DX100, DX121, DX200 AND DX210 COMMUNICATORS
CZ12013
BP200 beltpack w/HS15 headset, :
Beltpack with 2 BAT41 batteries, pouch, HS15 Single Muff Noise canceling Headset
CHF
1'283.55 CHF
1'386.25
CZ11435
BP200 beltpack w/HS15D headset:
Beltpack with 2 BAT41 batteries, pouch, HS15D Dual Muff Noise canceling Headset
CHF
1'322.25 CHF
1'428.05
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
CZ11442
BP200 beltpack w/HS16 headset:
Beltpack with 2 BAT41 batteries, pouch, HS16 Single Muff Lightweight Headset
CHF
1'322.25 CHF
1'428.05
CZ11381
BP200 beltpack w/HS4-3 earpiece and lapel mic:
Beltpack with 2 BAT41 batteries, pouch, HS4-3 Earpiece Lapel Mic Kit
CHF
1'141.65 CHF
1'233.00
CZ12014
BP200 beltpack without headset:
Beltpack with 2 BAT41 batteries, pouch, .
CHF
1'044.90 CHF
1'128.50
CZ11392
WH200 wireless headset:
All-In-One Wireless Headset with 2 BAT41 batteries, headstrap
CHF
1'064.25 CHF
1'149.40
CZ12015
BP210 beltpack without headset:
Two-Channel Beltpack with 2 BAT41 batteries and pouch. For use with the DX210 base station. .
CHF
1'309.35 CHF
1'414.10
CZ11518
WH210 wireless headset:
All-In-One Wireless Headset with 2 BAT41 batteries, headstrap. For use with the DX210 base station.
CHF
1'302.90 CHF
1'407.15
HME DX300ES COMMUNICATORS (2.4GHz)
CZ11439
BP300 beltpack w/HS15 headset, MB300ES base station only:
Beltpack with 1 BAT41 battery, pouch, and HS15 Single Muff Noise canceling Headset
CHF
754.65 CHF
815.00
CZ11440
BP300 beltpack w/HS15D headset, MB300ES base station only:
Beltpack with 1 BAT41 battery, pouch, and HS15D Dual Muff Noise canceling Headset
CHF
928.80 CHF
1'003.10
CZ12017
BP300 beltpack without headset, MB300ES base station only:
Beltpack with 1 BAT41 battery, and pouch.
CHF
503.10 CHF
543.35
CZ11407
WH300 all-in-one wireless headset, MB300ES base station only:
All-In-One Wireless Headset with 1 BAT41 battery, and headstrap
CHF
799.80 CHF
863.80
CHF
1'993.05 CHF
2'152.50
HME DX SERIES BASESTATIONS (2.4GHz)
CZ12020
MB100 base station
Base station with 115/230VAC power supply, 115VAC power cord, base battery sled, 2 antennas, and manual.
CZ12027
BS121 base station
Base station with HS-XLR4F Interface cable, 115/230VAC power supply, 115VAC power cord, 2 antennas, and
manual.
CHF
2'502.60 CHF
2'702.80
CZ12028
BS200 base station without headset:
License-free base station with 115/230VAC power supply, 115VAC power cord, 2 antennas, and manual.
CHF
4'947.15 CHF
5'342.90
CZ12029
BS210 base station without headset:
DX210 license-free base station w/2 antennas. 115/230 VAC power supply. Includes 115 VAC power cord and
manual.
CHF
5'888.85 CHF
6'359.95
CZ12030
MB300ES base station:
License-free base station with 115/230VAC power supply, 115VAC power cord, two AA battery sleds, two antennas,
interconnect cable, and manual.
CHF
4'076.40 CHF
4'402.50
CHF
9'624.50 CHF
10'394.45
CHF
7'517.50 CHF
8'118.85
TEMPEST WIRELESS
TEMPEST2400 DIGITAL WIRELESS (2.4 GHz)
CM-244-EU
CM-222-EU
Tempest2400 2.4 GHz 4 Ch. Basestation:
Tempest 2.4 GHz four-channel, full feature license-free Basestation. Including AC power cord, USB cable, 6ft
programming cable with ⅛" (3.5mm) straight mini-jack connector, two whip antennas and T-desk software. Supports
up to five wireless BeltStations in normal mode and unlimited BeltStations in shared and split modes. Seamless
roaming capable.
Tempest2400 2.4 GHz 2 Ch. Basestation:
Tempest 2.4 GHz two-channel, full feature license-free Basestation. Including AC power cord, USB cable, 6ft
programming cable with ⅛" (3.5mm) straight mini-jack connector, one whip antenna and T-desk software. Supports
up to five wireless BeltStations in normal mode and unlimited BeltStations in shared and split modes. Seamless
roaming capable.
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
CB-222-EU
Tempest2400 2.4 GHz 2 Ch. MasterBelt:
Tempest 2.4 GHz 2 channel, dual-listen wireless Master Beltstation as a mobile Basestation. Allows up to five
Normal Mode (CP-222) BeltStations and unlimited Shared Mode BeltStations, to connect to a single BeltStation
which acts as Basestation, 4-PIN male XLR, program port and USB connector. Comes with USB cable, 1/8" stereo
mini programming cable, 2000mAh Li-Poly rechargeable battery and multi-blade international wall charger. Does not
require a Basestation to function and will not pair with a Basestation.
CHF
3'980.75 CHF
4'299.20
CP-242-EU
Tempest2400 2.4 GHz 4 Ch. BeltStation:
Tempest 2.4 GHz four-channel, dual listen wireless BeltStation, four-pin male XLR, program port and USB
connector. Including Li-poly rechargeable battery and AC USB wall charger. Seamless roaming capable.
CHF
3'213.20 CHF
3'470.25
CP-222-EU
Tempest2400 2.4 GHz 2 Ch. BeltStation:
Tempest 2.4 GHz two-channel, dual listen wireless BeltStation, four-pin male XLR, program port and USB connector. CHF
Including Li-poly rechargeable battery and AC USB wall charger. Seamless roaming capable.
2'551.00 CHF
2'755.05
CCT-RT-EU
Tempest2400 2.4 GHz remote transceiver:
Tempest 2.4 GHz Remote Antenna Transceiver. Power provided by Tempest 2400 Basestation via CAT-5 cable up
to 457m/1500ft. Including 4.5m/15ft CAT-5 cable and two whip antennas. Utilizing the remote transceiver disables
the antennas at the base.
CHF
3'153.00 CHF
3'405.20
CCT-RT-EX
Tempest 2400/900 Remote Antenna Line Extender:
Extends distance of CCT-RT, and CCT-9RT, up to 3000 feet, can use 3 in parallel for a maximum distance of 5000
ft, includes AC adapter.
CHF
1'482.45 CHF
1'601.00
SG-100
Tempest2400 ZSync dongle:
Tempest ZSync dongle. For use with Basestations with Radio version 1.18 or later. Allows a zero synchronization
reference to enable Nomad Seamless Roaming and to improve performance of multi-Base systems in non-roaming
applications. Includes integrated 5VDC wall power supply.
CHF
594.50 CHF
642.05
SG-120
Tempest2400 Parallel ZSync generator:
Tempest parallel ZSync generator. For use with Basestations with Radio version 1.18 or later. Allows a zero
synchronization reference to enable Tempest2400 Seamless Roaming and to improve performance of multi-Base
systems in non-roaming applications. Provides 12 parallel ZSync feeds. Multiple Parallel ZSync generators may be
linked for larger system configuration. 1RU rack mount, Includes AC power cord.
CHF
3'755.00 CHF
4'055.35
T-BC5A
Tempest 5-bay battery charger:
Tempest five-bay battery charger for charging lithium-polymer batteries outside of the BeltStation.
CHF
1'121.25 CHF
1'210.90
T-LP1
Tempest Li-Poly battery:
Lithium polymer battery for Tempest BeltStations.
CHF
149.00 CHF
160.90
CCT-WAKIT2
Tempest2400 2.4 GHz 2 Ch. 2dBi antenna extension kit:
Tempest 2.4 GHz 2 dBi whip antenna expansion cable kit for the 2 CH Tempest base. Includes one 25ft (7.7m) RPTNC jack to RP-TNC plug cable, one mounting clamp, and one standard rack screw
CHF
270.90 CHF
292.55
CCT-WAKIT4
Tempest2400 2.4 GHz 4 Ch. 2dBi antenna extension kit:
Tempest 2.4 GHz 2dBi whip antenna expansion cable kit for the 4 CH Tempest base or CCT-RT. Includes two 25ft
(7.7m) RP-TNC jack to RP-TNC plug cables, two mounting clamps, and two standard rack screws.
CHF
444.00 CHF
479.50
BOG-C1575B
Tempest Bogen 'C' clamp:
Bogen "C" clamp C1575B. Including mounting bracket for CCT-RT or spare part for clamp in CCT-DAKIT1.
CHF
88.80 CHF
95.90
400102Z
Tempest BeltStation multi-blade USB wall charger spare:
Tempest BeltStation USB multi-blade wall charger (US, UK, EU, AUS blades) - Spare.
CHF
58.70 CHF
63.40
CCT-WA
Spare Tempest 2400 Basestation Whip Antenna:
Tempest 2400 Replacement Whip Antenna,
CHF
73.75 CHF
79.65
CCT-BSUG
Tempest2400 2.4 GHz radio upgrade service:
Tempest2400 radio upgrade service price per radio to upgrade BeltStations, Basestations, and CCT-RT radio
modules from 1.14 /1.15 versions to 1.18 (Roaming Capable)
CHF
526.75 CHF
568.90
Single-ear standard HS XLR-4F:
Single enclosed ear headset with superior audio quality and on/ off switch in gooseneck microphone boom, includes
HS-ES ear sock and headset bag - field removable four-pin female XLR for standard Clear-Com connection.
CHF
436.45 CHF
471.35
HEADSETS & ACCESSORIES
HEADSETS AND ACCESSORIES
CC-300-X4
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
CC-400-X4
Double-ear standard HS XLR-4F:
Double enclosed ear headset with superior audio quality and on/ off switch in gooseneck microphone boom includes
HS-ES ear socks and headset bag- field removable four-pin female XLR for standard Clear-Com connection.
CHF
519.25 CHF
560.75
CC-300-Y4
Single-ear standard HS XLR-4M:
Single enclosed ear headset with superior audio quality and on/ off switch in gooseneck microphone boom, includes
HS-ES ear sock and headset bag - field removable four-pin male XLR for RTS compatible connection.
CHF
496.65 CHF
536.40
CC-400-Y4
Double-ear standard HS XLR-4M:
Double enclosed ear headset with superior audio quality and on/ off switch in gooseneck microphone boom includes
HS-ES ear socks and headset bag- field removable four-pin male XLR for RTS compatible connection.
CHF
586.95 CHF
633.90
CC-300-X5
Single-ear standard HS XLR-5M:
Single enclosed ear headset with superior audio quality and on/ off switch in gooseneck microphone boom includes
HS-ES ear sock and headset bag - field removable five-pin male XLR.
CHF
496.65 CHF
536.40
CC-400-X5
Double-ear standard HS XLR-5M:
Double enclosed ear headset with superior audio quality and on/ off switch in gooseneck microphone boom includes
HS-ES ear socks and headset bag - field removable five-pin male XLR.
CHF
579.45 CHF
625.80
CC-300-X6
Single-ear standard HS XLR-6M:
Single enclosed ear headset with superior audio quality and on/ off switch in gooseneck microphone boom includes
HS-ES ear sock and headset bag - field removable six pin male XLR.
CHF
496.65 CHF
536.40
CC-400-X6
Double-ear standard HS XLR-6M:
Double enclosed ear headset with superior audio quality and on/ off switch in gooseneck microphone boom includes
HS-ES ear socks and headset bag - field removable six-pin male XLR.
CHF
579.45 CHF
625.80
CC-300-X7
Single-ear standard HS XLR-7F:
Single enclosed ear headset with superior audio quality and on/ off switch in goose neck microphone boom includes
HS-ES ear sock and headset bag - seven-pin female XLR.
CHF
504.20 CHF
544.50
CC-400-X7
Double-ear standard HS XLR-7F:
Double enclosed ear headset with superior audio quality and on/ off switch in gooseneck microphone boom includes
HS-ES ear socks and headset bag - field removable seven-pin female XLR.
CHF
594.50 CHF
642.05
CC-300-Y5
Single-ear standard HS XLR-5F:
Single enclosed ear headset with superior audio quality and on/ off switch in gooseneck microphone boom includes
HS-ES ear sock and headset bag - field removable five-pin female XLR.
CHF
504.20 CHF
544.50
CC-400-Y5
Double-ear standard HS XLR-5F:
Double enclosed ear headset with superior audio quality and on/ off switch in gooseneck microphone boom includes
HS-ES ear socks and headset bag field removable five-pin female XLR.
CHF
586.95 CHF
633.90
CC-300-B6
Single-ear standard HS non-terminated:
Single enclosed ear headset with superior audio quality and on/ off switch in gooseneck microphone boom includes
HS-ES ear sock and headset bag - non-terminated (bare wires).
CHF
481.60 CHF
520.15
CC-400-B6
Double-ear standard HS non-terminated:
Double enclosed ear headset with superior audio quality and on/ off switch in gooseneck microphone boom includes
HS-ES ear socks and headset bag- non-terminated (bare wires).
CHF
564.40 CHF
609.55
CC-010A
IFB Ear Set (mini-jack):
IFB Ear Set Includes Audio Driver, Coiled Acoustic Ear tube with Clothing Clip, 5 Ft (1.5m) cable with ⅛" (3.5mm)
Straight Mini-jack Connector. Replaces CC-010.
CHF
118.90 CHF
128.40
CC-25
Single-ear light headset (mini-jack):
Single open ear lightweight around-the-ear mounted headset. Including 2.5mm/0.1" mini-jack for use with RS-600Series Beltpacks only.
CHF
230.25 CHF
248.70
CC-26K-X5
Single-ear light headset XLR-5M:
Single open ear lightweight headset - five-pin male XLR.
CHF
299.50 CHF
323.45
CC-26K-X4
Single-ear light headset XLR-4F:
Single open ear lightweight headset - four-pin female XLR for standard Clear-Com connection.
CHF
299.50 CHF
323.45
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
CC-27
Wrap-around light headset XLR-4F:
Single ear bud, wrap around rear worn headset - four-pin female XLR for standard Clear-Com connection.
CHF
222.75 CHF
240.55
CC-40
Single-ear economy headset XLR-4F:
Single enclosed ear economy headset - four-pin female XLR for standard Clear-Com connection. Optional ear sock
covers (ES-1) are recommended.
CHF
239.30 CHF
258.45
CC-60
Double-ear economy headset XLR-4F:
Double enclosed ear economy headset - four-pin female XLR for standard Clear-Com connection. Optional ear sock
covers (ES-1) are recommended.
CHF
284.45 CHF
307.20
PT-7
Push-to-talk handheld mic XLR-4F:
Push-to-talk handheld microphone - four-pin female XLR for standard Clear-Com connection.
CHF
191.15 CHF
206.45
HS-6
Telephone-style handset XLR-4F:
Telephone-style handset with coiled cord and push to talk button on telephone handset- four-pin female XLR for
standard Clear-Com connection.
CHF
215.20 CHF
232.45
CZ11450
HS15 headset:
Single muff noise-canceling headset, Electret mic, with Mini DIN connector.
CHF
298.00 CHF
321.85
CZ11451
HS15D headset:
Double muff noise-canceling headset Electret mic, with Mini DIN connector
CHF
496.65 CHF
536.40
CZ11452
HS16 headset:
Single muff lightweight headset with directional Electret mic. Mini DIN connector.
CHF
346.15 CHF
373.85
CZ11453
HSI6000 headset adapter:
2.5mm Headset Adapter for BP200 Beltpack and BP300 Beltpack
CHF
130.95 CHF
141.40
CZ11454
HS4-3 earpiece and lapel mic:
Earpiece & lapel (clip-on) Electret mic
CHF
129.45 CHF
139.80
G27245-1
Clear-Com 4-pin MD-XLR4M adapter:
Adapter Cable for use with Clear-Com 4-pin XLR4F terminated dynamic headset with DX Mini DIN headset
connector
CHF
135.45 CHF
146.30
G27256-1
MD-XLR4F adapter:
Adapter Cable for using XLR4M terminated dynamic headset with DX Mini DIN headset connector
CHF
135.45 CHF
146.30
115G394
Headset extension cable:
Single 6' headset extension cable for HS15/15D, HS16 headsets
CHF
18.05 CHF
19.50
G27267-1
MD-XLR5F adapter:
Adapter Cable for using XLR5M terminated dynamic headset with DX Mini DIN headset connector
CHF
135.45 CHF
146.30
101G048
DX base antenna:
5.9” Reverse TNC base antenna
CHF
77.40 CHF
83.60
647G006
DX antenna splitter/combiner:
2-Way Antenna Splitter/Combiner
CHF
158.65 CHF
171.35
G28066-1
RMK200 mounting kit:
1RU Mounting Panel for base antennas, includes two 2' cables
CHF
190.90 CHF
206.20
G27009-1
DX 6' remote antenna kit:
Single 6 foot (1.8m) RP-TNC jack to RP-TNC plug cable with right angle bracket for remote base antenna on DX
base stations, two kits are required to remote both antennas
CHF
117.40 CHF
126.80
G26671-1
DX 30' remote antenna kit:
Single 30 foot (7.7m) RP-TNC jack to RP-TNC plug cable with right angle bracket for remote base antenna on DX
base stations, two kits are required to remote both antennas
CHF
167.70 CHF
181.10
HME DX SERIES HEADSETS
HME DX SERIES ACCESSORIES
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
104034
BAT41 rechargeable battery:
Battery, Li-ion rechargeable, for BP200/210/300 beltpacks and WH200/210/300.
CHF
63.20 CHF
68.25
CZ11378
AC40A battery charger:
Battery charger, 4-port quick charger w/adapter, 115/230 VAC, power cord for BAT41 batteries.
CHF
832.05 CHF
898.60
G28820-1Z1
AC850A charger:
4 Port charger for BAT850 battery, power supply, cord and manual
CHF
1'541.55 CHF
1'664.85
G28572-1
HS-XLR4F interface cable:
48" Interface cable. Bare leads to XLR4F headset connector
CHF
74.80 CHF
80.80
G28572-2
HS-XLR4M interface cable:
48" Interface cable. Bare leads to XLR4M headset connector
CHF
74.80 CHF
80.80
G27942-1
Base station monitor speaker:
Compact Speaker with enclosure. Plugs into rear of BS200 base station or WS200 Speaker Station
CHF
247.70 CHF
267.50
115G362
4 ft. DX headset cable w/ connector:
48" headset bare leads cable with molded mini-DIN connector
CHF
34.85 CHF
37.60
115G372
CAT-5 cable:
Base station Interconnect Cable - 7' with RJ45 connectors
CHF
11.60 CHF
12.55
176G018
Travel case for DX300ES:
Travel Case for DX300 Systems. Includes foam inserts, holds MB300 base station, 4 belt packs, with storage for
cables and headsets.
CHF
645.00 CHF
696.60
107G065
DX Beltpack Pouch:
Rubber outer case for DX Beltpack
CHF
10.30 CHF
11.15
CZ11458
HS15 Single-muff headset, 4F:
Single Muff Electret Microphone Noise canceling Headset with 4-pin female connector for use with HME PRO850 or
Clear-Com V-series, FreeSpeak/ CellCom, Tempest, RS-700 & HelixNet
CHF
289.70 CHF
312.90
CZ11459
HS15D Dual-muff Headset, 4F:
Double Muff Electret Microphone Noise canceling Headset with 4-pin female connector for use with HME PRO850 or
traditional Clear-Com V-series, FreeSpeak/ CellCom, Tempest, RS-700 & HelixNet
CHF
402.05 CHF
434.20
HME PRO850 HEADSETS
HME PRO850 WIRELESS ACCESSORIES
G24589-1
RAK850 remote kit:
Ground Plane Adapter for one BS850 base station antenna with 30' of cable
CHF
176.20 CHF
190.30
G28077-1
RMK850 mounting kit:
1RU panel for mounting BS850 base station antennas, with 2' of cable
CHF
162.00 CHF
174.95
G27021-1
BAT850 NiMH battery:
7.2V 2100mAH NiMH rechargeable battery for BP850 beltpack, MB100 base station, MB300ES base station and
WS200 Speaker Station
CHF
102.90 CHF
111.10
CZ11484
AC850A charger:
4 Port charger for BAT850 batteries, power supply, cord and manual
CHF
1'395.35 CHF
1'507.00
105G073
Battery sled, 6 AA:
Battery sled for BP850 Beltpack, WS200 Station, and MB100/MB300ES bases. Holds 6 “AA” cells.
CHF
7.10 CHF
7.65
172G658
BP850 battery sled door:
Battery sled door for BP850 Beltpack
CHF
5.90 CHF
6.40
115G342
BP850 Config cable:
BP850 Beltpack configuration cable
CHF
14.20 CHF
15.35
196G018
Power supply cable:
115 VAC cable for use with VAC power supply
CHF
22.45 CHF
24.25
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
12VDC power supply with cord:
115/230 VAC universal power supply and cord for HME Wireless base stations, WS200 Speaker Station, or AC40A
battery charger
CHF
196.30 CHF
212.00
ES-1
1 pair ear sock covers for headsets:
Ear Sock cover for CC-40, CC-60, and discontinued CC-95 and CC-260 enclosed ear headsets, 1 pair.
CHF
24.10 CHF
26.00
HS-ES
1 pair ear sock covers for 300/400 headsets:
Ear Sock cover for all CC-300 and CC-400 headsets, 1 pair.
CHF
9.05 CHF
9.75
HS-WS
CC-300/400 Windscreen:
CC-300/400 Windscreen and Cable tie
CHF
22.60 CHF
24.40
506110Z
CC-300 Replacement Temple Pad:
CC-300 Replacement Part kit
CHF
18.05 CHF
19.50
506108Z
CC-300/400 Replacement Ear Pad:
CC-300/400 Replacement Part kit
CHF
30.10 CHF
32.50
HC-X4
CC-300 spare cable with XLR(f) 4 pin:
CC-300 Replacement Part kit
CHF
90.30 CHF
97.50
HC-Y4
CC-300 spare cable with XLR(m) 4 pin:
CC-300 Replacement Part kit
CHF
138.45 CHF
149.55
HC-X5
CC-300 spare cable with XLR(m) 5 pin:
CC-300 Replacement Part kit
CHF
135.45 CHF
146.30
HC-X6
CC-300 spare cable with XLR(m) 6 pin:
CC-300 Replacement Part kit
CHF
143.00 CHF
154.40
HC-X7
CC-300 spare cable with XLR(f) 7 pin:
CC-300 Replacement Part kit
CHF
165.55 CHF
178.80
HC-Y5
CC-300 spare cable with XLR(f) 5 pin:
CC-300 Replacement Part kit
CHF
150.50 CHF
162.55
HC-B6
CC-300 spare cable with no connector:
CC-300 Replacement Part kit
CHF
90.30 CHF
97.50
507000Z
CC-40/60 Replacement Ear Cushion:
CC-40/60 Replacement Part
CHF
7.55 CHF
8.15
507003Z
CC-40/60 Replacement Temple Pad:
CC-40/60 Replacement Part
CHF
3.00 CHF
3.25
507004Z
CC-40/60 Replacement Windscreen:
CC-40/60 Replacement Part
CHF
4.50 CHF
4.90
CC-27-CUS
CC-27 Replacement Ear Cushion:
CC-27 Replacement Part
CHF
4.50 CHF
4.90
CC-27-CUS10
CC-27 Pack of 10 Replacement Ear Cushions:
CC-27 Replacement Part
CHF
37.65 CHF
40.65
CC-27-CUS25
CC-27 Pack of 25 Replacement Ear Cushions:
CC-27 Replacement Part
CHF
82.80 CHF
89.40
CC-25-CUS
CC-25 Replacement Ear Cushion:
CC-25 Replacement Part
CHF
4.50 CHF
4.90
CC-26K-WINZ
CC-26K Replacement Windscreen:
CC-26K Replacement Part
CHF
16.55 CHF
17.90
CZ11421
Headset Consumables
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
CC-26K-CUSZ
CC-26K Replace Ear Cushion:
CC-26K Replacement Part
CHF
12.05 CHF
13.00
CC-010-ETIP
CC-010 & CC-010A Replacement Ear Tip:
CC-010 & CC-010A Replacement Part
CHF
6.00 CHF
6.50
CC-010-ETUBE
CC-010A Replacement Ear Tube and Ear Tip:
CC-010A Replacement Part
CHF
37.65 CHF
40.65
ECLIPSE-HX-PICO
Eclipse HX-Pico, 36-port 1RU digital matrix:
1RU HX-PiCo 36-port matrix frame. 1RU frame with user menu and 32 RJ-45 programmable panel/4-wire ports and
four 4-wire in/out ports. Matrix has dual-redundant PSUs. The price now includes EHX 8.0 configuration software.
CHF
15'027.45 CHF
16'229.60
ECLIPSE-HX-DELTA-0P
Spare HX-Delta frame, without port cards:
Spare Eclipse HX-Delta 4 slot matrix frame. Including 3RU card frame with three interface module slots, dualredundant CPU's (CPU-HX-SPARE) and dual-redundant power supplies.
CHF
19'376.90 CHF
20'927.05
ECLIPSE-HX-DELTA-16P
Eclipse HX-Delta, with 16 ports:
Eclipse HX-Delta 4 slot 16-port matrix frame. Including 3RU card frame with back-plane circuit boards and three
interface module slots, dual-redundant CPU's (CPU-HX-SPARE), dual-redundant power supplies and 1 x MVX-A16HX port card. Requires EHX configuration software.
CHF
24'651.90 CHF
26'624.05
ECLIPSE-HX-DELTA-32P
Eclipse HX-Delta, with 32 ports:
Eclipse HX-Delta 4 slot 32-port matrix frame. Including 3RU card frame with back-plane circuit boards and three
interface module slots, dual-redundant CPU's (CPU-HX-SPARE), dual-redundant power supplies and 2 x MVX-A16HX port card. Requires EHX configuration software.
CHF
30'077.45 CHF
32'483.60
ECLIPSE-HX-DELTA-48P
Eclipse HX-Delta, with 48 ports:
Eclipse HX-Delta 4 slot 48-port matrix frame. Including 3RU card frame with back-plane circuit boards and three
interface module slots, dual-redundant CPU's (CPU-HX-SPARE), dual-redundant power supplies and 3x MVX-A16HX port card. Requires EHX configuration software.
CHF
41'854.05 CHF
45'202.35
ECLIPSE-HX-DELTA-64P
Eclipse HX-Delta, with 64 ports:
Eclipse HX-Delta 4 slot 64-port matrix frame. Including 3RU card frame with back-plane circuit boards and three
interface module slots, dual-redundant CPU's (CPU-HX-SPARE), dual-redundant power supplies and 4 x MVX-A16HX port card. Requires EHX configuration software.
CHF
52'705.10 CHF
56'921.50
272G048
Spare external PSU bracket for Eclipse HX-Delta:
PSU bracket to hold the Eclipse-HX Delta external PSUs
CHF
60.20 CHF
65.00
ECLIPSE-HX-MEDIAN-0P
Spare HX-Median frame, without port cards:
Spare Eclipse HX-Median 7 slot matrix frame. Including 6RU card frame with eight interface module slots, dualredundant CPU's (CPU-HX-SPARE) and dual-redundant power supplies.
CHF
25'389.35 CHF
27'420.50
ECLIPSE-HX-MEDIAN-16P
Eclipse HX-Median, with 16 ports:
Eclipse HX-Median 7 slot 16-port matrix frame. Including 6RU card frame with back-plane circuit boards and eight
interface module slots, dual-redundant CPU's (CPU-HX-SPARE), dual-redundant power supplies and 1 x MVX-A16HX port card. Requires EHX configuration software.
CHF
30'995.50 CHF
33'475.10
ECLIPSE-HX-MEDIAN-32P
Eclipse HX-Median, with 32 ports:
Eclipse HX-Median 7 slot 32-port matrix frame. Including 6RU card frame with back-plane circuit boards and eight
interface module slots, dual-redundant CPU's (CPU-HX-SPARE), dual-redundant power supplies and 2 x MVX-A16HX port cards. Requires EHX configuration software.
CHF
37'971.15 CHF
41'008.85
ECLIPSE-HX-MEDIAN-48P
Eclipse HX-Median, with 48 ports:
Eclipse HX-Median 7 slot 48-port matrix frame. Including 6RU card frame with back-plane circuit boards and eight
interface module slots, dual-redundant CPU's (CPU-HX-SPARE), dual-redundant power supplies and 3 x MVX-A16HX port cards. Requires EHX configuration software.
CHF
50'297.10 CHF
54'320.85
ECLIPSE-HX-MEDIAN-64P
Eclipse HX-Median, with 64 ports:
Eclipse HX-Median 7 slot 64-port matrix frame. Including 6RU card frame with back-plane circuit boards and eight
interface module slots, dual-redundant CPU's (CPU-HX-SPARE), dual-redundant power supplies and 4 x MVX-A16HX port cards. Requires EHX configuration software.
CHF
61'584.60 CHF
66'511.35
MATRIX
ECLIPSE-HX
ECLIPSE-HX MAIN FRAMES
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
ECLIPSE-HX-MEDIAN-80P
Eclipse HX-Median, with 80 ports:
Eclipse HX-Median 7 slot 80-port matrix frame. Including 6RU card frame with back-plane circuit boards and eight
interface module slots, dual-redundant CPU's (CPU-HX-SPARE), dual-redundant power supplies and 5 x MVX-A16HX port cards. Requires EHX configuration software.
CHF
75'633.80 CHF
81'684.50
ECLIPSE-HX-MEDIAN-96P
Eclipse HX-Median, with 96 ports:
Eclipse HX-Median 7 slot 96-port matrix frame. Including 6RU card frame with back-plane circuit boards and eight
interface module slots, dual-redundant CPU's (CPU-HX-SPARE), dual-redundant power supplies and 6 x MVX-A16HX port cards. Requires EHX configuration software.
CHF
87'831.80 CHF
94'858.35
ECLIPSE-HX-MEDIAN-112P
Eclipse HX-Median, with 112 ports:
Eclipse HX-Median 7 slot 112-port matrix frame. Including 6RU card frame with back-plane circuit boards and eight
interface module slots, dual-redundant CPU's (CPU-HX-SPARE), dual-redundant power supplies and 7 x MVX-A16HX port cards. Requires EHX configuration software.
CHF
100'744.70 CHF
108'804.30
ECLIPSE-HX-OMEGA-0P
Spare Eclipse HX-Omega frame, without port cards:
Spare Eclipse HX-Omega 15 slot matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE) and dual-redundant power supplies.
CHF
35'796.45 CHF
38'660.15
ECLIPSE-HX-OMEGA-16P
Eclipse HX-Omega, with 16 ports:
Eclipse HX-Omega 15 slot 16-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 1 x MVX-A16-HX port card. Requires EHX configuration software.
CHF
46'241.15 CHF
49'940.40
ECLIPSE-HX-OMEGA-32P
Eclipse HX-Omega, with 32 ports:
Eclipse HX-Omega 15 slot 32-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 2 x MVX-A16-HX port cards. Requires EHX configuration software.
CHF
58'980.95 CHF
63'699.45
ECLIPSE-HX-OMEGA-48P
Eclipse HX-Omega, with 48 ports:
Eclipse HX-Omega 15 slot 48-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 3 x MVX-A16-HX port cards. Requires EHX configuration software.
CHF
70'998.40 CHF
76'678.25
ECLIPSE-HX-OMEGA-64P
Eclipse HX-Omega, with 64 ports:
Eclipse HX-Omega 15 slot 64-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 4 x MVX-A16-HX port cards. Requires EHX configuration software.
CHF
83'602.75 CHF
90'290.95
ECLIPSE-HX-OMEGA-80P
Eclipse HX-Omega, with 80 ports:
Eclipse HX-Omega 15 slot 80-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 5 x MVX-A16-HX port cards. Requires EHX configuration software.
CHF
96'831.70 CHF
104'578.25
ECLIPSE-HX-OMEGA-96P
Eclipse HX-Omega, with 96 ports:
Eclipse HX-Omega 15 slot 96-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 6 x MVX-A16-HX port cards. Requires EHX configuration software.
CHF
111'588.25 CHF
120'515.30
ECLIPSE-HX-OMEGA-112P
Eclipse HX-Omega, with 112 ports:
Eclipse HX-Omega 15 slot 112-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 7 x MVX-A16-HX port cards. Requires EHX configuration software.
CHF
126'352.30 CHF
136'460.45
ECLIPSE-HX-OMEGA-128P
Eclipse HX-Omega, with 128 ports:
Eclipse HX-Omega 15 slot 128-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 8 x MVX-A16-HX port cards. Requires EHX configuration software.
CHF
140'235.90 CHF
151'454.75
ECLIPSE-HX-OMEGA-144P
Eclipse HX-Omega, with 144 ports:
Eclipse HX-Omega 15 slot 144-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 9 x MVX-A16-HX port cards. Requires EHX configuration software.
CHF
155'097.80 CHF
167'505.60
ECLIPSE-HX-OMEGA-160P
Eclipse HX-Omega, with 160 ports:
Eclipse HX-Omega 15 slot 160-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 10 x MVX-A16-HX port cards. Requires EHX configuration software.
CHF
169'508.15 CHF
183'068.80
ECLIPSE-HX-OMEGA-176P
Eclipse HX-Omega, with 176 ports:
Eclipse HX-Omega 15 slot 176-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 11 x MVX-A16-HX port cards. Requires EHX configuration software.
CHF
184'136.75 CHF
198'867.70
ECLIPSE-HX-OMEGA-192P
Eclipse HX-Omega, with 192 ports:
Eclipse HX-Omega 15 slot 192-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 12 x MVX-A16-HX port cards. Requires EHX configuration software.
CHF
199'058.85 CHF
214'983.55
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
ECLIPSE-HX-OMEGA-208P
Eclipse HX-Omega, with 208 ports:
Eclipse HX-Omega 15 slot 208-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 13 x MVX-A16-HX port cards. Requires EHX configuration software.
CHF
214'146.45 CHF
231'278.15
ECLIPSE-HX-OMEGA-224P
Eclipse HX-Omega, with 224 ports:
Eclipse HX-Omega 15 slot 224-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 14 x MVX-A16-HX port cards. Requires EHX configuration software.
CHF
226'201.50 CHF
244'297.60
ECLIPSE-HX-OMEGA-240P
Eclipse HX-Omega, with 240 ports:
Eclipse HX-Omega 15 slot 240-port matrix frame. Including 6RU card frame with dual-redundant CPU's (CPU-HXSPARE), dual-redundant power supplies and 15 x MVX-A16-HX port cards. Requires EHX configuration software.
CHF
236'871.95 CHF
255'821.70
MVX-A16-HX
Spare 16 port card for Eclipse-HX:
Spare Eclipse HX-Median, HX-Delta or HX-Omega 16 port analog panel/direct/interface front and rear card set.
Takes one slot in the matrix frame.
CHF
13'748.20 CHF
14'848.05
CPU-HX-SPARE
Spare Eclipse-HX CPU card:
Spare Eclipse HX-Median, HX-Delta or HX-Omega system processor front card. This stores and executes system
configurations.
CHF
3'875.40 CHF
4'185.40
E-QUE-HX
Eclipse-HX Integra Wireless or E1/T1 Trunking card:
Eclipse HX-Delta, HX-Median or HX-Omega Integra digital wireless card set to support up to 10 active antennas. The
rear card has eight ports for directly connecting antennas (without power) and up to 10 antennas using the optional
PD2203 splitters. Can also be used for E1 (30 Channel) or T1 (24 Channel) trunking. Maximum four cards per
Eclipse frame as standard. Takes one slot in the 6RU or 3RU matrix frame.
CHF
16'825.90 CHF
18'171.95
IVC-32-HX
Eclipse-HX IP card:
IVC-32-HX Eclipse-HX AoIP interface (includes front and read cards). Employs IV-Core technology to provide 32
independently configurable IP audio channels for connection to V-Series panels, Concert clients and other EclipseHX matrix systems (as Tie lines or Intelligent Links). Up to 3 Audio Channels can be assigned to each V-series
panel. All channels may be independently optimized for LAN, WAN or Internet connections and employ the
established G.722 low latency Audio Codec. Maximum of 4 cards per Eclipse-HX frame (excluding HX-Omega which
supports 6). Requires one card slot.
CHF
17'345.15 CHF
18'732.75
E-MADI64-HX
Eclipse-HX MADI 64 Ch. Card:
Eclipse-MADI-HX 64 port card set. Configurable via ECS for 16, 32, 48, 56 or 64 channels and sample rates of 44.1
KHz, 48.0 KHz or 96 KHz (32 Ch. only) in this mode. All ports include VOX. Duplex LC connections using Multi-mode
fiber, 1km/0.6 mile distance continuous glass. BNC Coax connections for Input, Output and Video/ world clock Input.
Requires EHX v7.0 or newer. Takes one slot in the 6RU or 3RU matrix frame.
CHF
14'749.00 CHF
15'928.90
LMC-64-HX
Eclipse-HX level meter card:
LMC-64-HX level meter card set for the Eclipse HX-Delta 4 slot, Eclipse HX-Median 7 slot or Eclipse HX-Omega 15
slot matrices. Provides Clear-Vu meters on Production Maestro Pro giving up to 64 channels of matrix input or output
port metering. Takes one slot in the 6RU or 3RU matrix frame.
CHF
15'042.50 CHF
16'245.85
E-FIB-HX
Eclipse-HX Fiber interface card:
Fiber-Net interface card set for the 4 slot HX-Delta, 7 slot HX-Median or 15 slot HX-Omega matrices. A Single E-FIBHX provides connections for both a main and a backup Fiber ring. Provides Duplex LC single mode fiber
connections, supporting up to 10km (6.6mile) of continuous glass. Maximum two card sets per Eclipse HX frame.
Takes one slot in the 6RU or 3RU matrix frame.
CHF
14'598.50 CHF
15'766.40
EHX.8.0.0
EHX Eclipse-HX Configuration Software DVD v8.0.0:
EHX – Eclipse-HX configuration software DVD v8.0.0 with softcopy manuals. This license includes use of EHX client
and/or server S/W on multiple PCs on a single Eclipse-HX networked system. Please see "Upgrade-Kits" for Eclipse
to Eclipse-HX upgrades. Logic-Maestro, for conditional logic control, is now included with EHX. Production-Maestro,
is included for time limited demos, if you wish to purchase Production-Maestro please contact your Clear-Com Rep
for a license code. (Note ECS 5.2.x is available for legacy compatible systems).
CHF
1'903.85 CHF
2'056.15
HCI-E-HX
Eclipse-HX host control interface License:
Host control interface (HCI) License. Allows control and/or monitoring on an Eclipse-HX matrix via the Eclipse HCI
Protocol. Each Eclipse matrix requires a separate license. HCI Licenses are not transferable. See SVC-HCI-SUP for
Clear-Com support to the nominated application developer in using the HCI interface.
CHF
12'190.50 CHF
13'165.75
PM-PRO-1-HX
Eclipse-HX PM-Pro user license and DVD:
Production Maestro Pro is a PC based Assignment tool for the Eclipse system providing fast and reliable assignment
of 4-wires, Conferences and IFB resources. Every matrix requires one license for each Production Maestro Pro
Client that connects to it. Requires EHX v7.0 or newer. See LMC-64 Matrix card for Clear-Vu metering. Clear-Vu
requires ECS 5.2 or higher. DVD includes Manuals.
CHF
2'400.50 CHF
2'592.50
ECLIPSE-HX MATRIX CARDS
ECLIPSE HX MATRIX SOFTWARE
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
PM-PRO-SITE-HX
Eclipse-HX PM-PRO site license and DVD:
Production Maestro Pro is a PC based Assignment tool for the Eclipse system providing fast and reliable assignment
of 4-wires, Conferences and IFB resources. This site license provides a fixed price for 10 Production Maestro Pro
licenses per matrix in the EHX linked network. See LMC-64-HX Matrix card for Clear-Vu metering. DVD includes
Manuals.
CHF
24'230.50 CHF
26'168.95
UPGRADE-PKG-PICO-HX
Eclipse PiCo to HX-PiCo upgrade package:
Upgrade of an Eclipse-PiCo matrix to Eclipse-HX PiCo (with the latest software release). The associated hardware
upgrade of the PiCo matrix must be performed by Clear-Com factory service in the US or by the European service
center in Germany. The customer is responsible for all shipping, customs, duties and taxes. Any agreed repairs to
the original PiCo, if required, will incur extra charges. Please contact your Clear-Com Sales Representative re pricing
for onsite upgrades.
CHF
1'369.55 CHF
1'479.10
UPGRADE-KIT-MED-HX
Eclipse Median to HX-Median upgrade Kit:
Kit of parts to convert an Eclipse Median matrix into its HX-Median counterpart. Implementation of the HX-Median
upgrade requires on-site Clear-Com Application Engineering support.
Please see Factory Configuration & Services below and contact your Clear-Com Sales Representative for pricing.
CHF
1'369.55 CHF
1'479.10
UPGRADE-KIT-OME-HX
Eclipse Omega to HX-Omega upgrade Kit:
Kit of parts to convert an Eclipse Omega matrix into its HX-Omega counterpart. Implementation of the HX-PiCO
upgrade requires on-site Clear-Com Application Engineering support.
Please see Factory Configuration & Services below and contact your Clear-Com Sales Representative for pricing.
CHF
1'369.55 CHF
1'479.10
ECLIPSE-PICO
Eclipse 36-port 1RU digital matrix:
1RU PiCo 36-port matrix frame. 1RU frame with user menu and 32 RJ-45 programmable panel/4-wire ports and four
4-wire in/out ports. Has dual-redundant PSUs. Requires ECS configuration software.
CHF
15'027.45 CHF
16'229.60
ECLIPSE-MEDIAN/0
Spare Median frame with CPU & CPU:
Spare Eclipse-Median 7 slot matrix frame. Including 6RU card frame with eight interface module slots, dualredundant 710746Z CPU processors and dual-redundant power supplies.
CHF
25'389.35 CHF
27'420.50
ECLIPSE-MEDIAN/16
Eclipse-Median 16:
Eclipse-Median 7 slot 16-port matrix frame. Including 6RU card frame with back-plane circuit boards and eight
interface module slots, dual-redundant 710746Z CPU processors, dual-redundant power supplies and 1 x MVX-A16
port card. Requires ECS configuration software.
CHF
30'995.50 CHF
33'475.10
ECLIPSE-MEDIAN/32
Eclipse-Median 32:
Eclipse-Median 7 slot 32-port matrix frame. Including 6RU card frame with back-plane circuit boards and eight
interface module slots, dual-redundant 710746Z CPU processors, dual-redundant power supplies and 2 x MVX-A16
port cards. Requires ECS configuration software.
CHF
37'971.15 CHF
41'008.85
ECLIPSE-MEDIAN/48
Eclipse-Median 48:
Eclipse-Median 7 slot 48-port matrix frame. Including 6RU card frame with back-plane circuit boards and eight
interface module slots, dual-redundant 710746Z CPU processors, dual-redundant power supplies and 3 x MVX-A16
port cards. Requires ECS configuration software.
CHF
50'297.10 CHF
54'320.85
ECLIPSE-MEDIAN/64
Eclipse-Median 64:
Eclipse-Median 7 slot 64-port matrix frame. Including 6RU card frame with back-plane circuit boards and eight
interface module slots, dual-redundant 710746Z CPU processors, dual-redundant power supplies and 4 x MVX-A16
port cards. Requires ECS configuration software.
CHF
61'584.60 CHF
66'511.35
ECLIPSE-MEDIAN/80
Eclipse-Median 80:
Eclipse-Median 7 slot 80-port matrix frame. Including 6RU card frame with back-plane circuit boards and eight
interface module slots, dual-redundant 710746Z CPU processors, dual-redundant power supplies and 5 x MVX-A16
port cards. Requires ECS configuration software.
CHF
75'633.80 CHF
81'684.50
ECLIPSE-MEDIAN/96
Eclipse-Median 96:
Eclipse-Median 7 slot 96-port matrix frame. Including 6RU card frame with back-plane circuit boards and eight
interface module slots, dual-redundant 710746Z CPU processors, dual-redundant power supplies and 6 x MVX-A16
port cards. Requires ECS configuration software.
CHF
87'831.80 CHF
94'858.35
ECLIPSE-MEDIAN/112
Eclipse-Median 112:
Eclipse-Median 7 slot 112-port matrix frame. Including 6RU card frame with back-plane circuit boards and eight
interface module slots, dual-redundant 710746Z CPU processors, dual-redundant power supplies and 7 x MVX-A16
port cards. Requires ECS configuration software.
CHF
100'744.70 CHF
108'804.30
ECLIPSE v5.2.x DIGITAL MATRIX
ECLIPSE MAIN FRAMES
(Provides Legacy Panel Support. For latest features please use Eclipse-HX)
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
ECLIPSE-OMEGA/0
Spare Omega frame:
Spare Eclipse-Omega 15 slot matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU processors
and dual-redundant power supplies.
CHF
35'796.45 CHF
38'660.15
ECLIPSE-OMEGA/16
Eclipse-Omega 16:
Eclipse-Omega 15 slot 16-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 1 x MVX-A16 port card. Requires ECS configuration software.
CHF
46'241.15 CHF
49'940.40
ECLIPSE-OMEGA/32
Eclipse-Omega 32:
Eclipse-Omega 15 slot 32-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 2 x MVX-A16 port cards. Requires ECS configuration software.
CHF
58'980.95 CHF
63'699.45
ECLIPSE-OMEGA/48
Eclipse-Omega 48:
Eclipse-Omega 15 slot 48-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 3 x MVX-A16 port cards. Requires ECS configuration software.
CHF
70'998.40 CHF
76'678.25
ECLIPSE-OMEGA/64
Eclipse-Omega 64:
Eclipse-Omega 15 slot 64-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 4 x MVX-A16 port cards. Requires ECS configuration software.
CHF
83'602.75 CHF
90'290.95
ECLIPSE-OMEGA/80
Eclipse-Omega 80:
Eclipse-Omega 15 slot 80-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 5 x MVX-A16 port cards. Requires ECS configuration software.
CHF
96'831.70 CHF
104'578.25
ECLIPSE-OMEGA/96
Eclipse-Omega 96:
Eclipse-Omega 15 slot 96-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 6 x MVX-A16 port cards. Requires ECS configuration software.
CHF
111'588.25 CHF
120'515.30
ECLIPSE-OMEGA/112
Eclipse-Omega 112:
Eclipse-Omega 15 slot 112-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 7 x MVX-A16 port cards. Requires ECS configuration software
CHF
126'352.30 CHF
136'460.45
ECLIPSE-OMEGA/128
Eclipse-Omega 128:
Eclipse-Omega 15 slot 128-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 8 x MVX-A16 port cards. Requires ECS configuration software.
CHF
140'235.90 CHF
151'454.75
ECLIPSE-OMEGA/144
Eclipse-Omega 144:
Eclipse-Omega 15 slot 144-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 9 x MVX-A16 port cards. Requires ECS configuration software.
CHF
155'097.80 CHF
167'505.60
ECLIPSE-OMEGA/160
Eclipse-Omega 160:
Eclipse-Omega 15 slot 160-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 10 x MVX-A16 port cards. Requires ECS configuration software.
CHF
169'508.15 CHF
183'068.80
ECLIPSE-OMEGA/176
Eclipse-Omega 176:
Eclipse-Omega 15 slot 176-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 11 x MVX-A16 port cards. Requires ECS configuration software.
CHF
184'136.75 CHF
198'867.70
ECLIPSE-OMEGA/192
Eclipse-Omega 192:
Eclipse-Omega 15 slot 192-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 12 x MVX-A16 port cards. Requires ECS configuration software.
CHF
199'058.85 CHF
214'983.55
ECLIPSE-OMEGA/208
Eclipse-Omega 208:
Eclipse-Omega 15 slot 208-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 13 x MVX-A16 port cards. Requires ECS configuration software.
CHF
214'146.45 CHF
231'278.15
ECLIPSE-OMEGA/224
Eclipse-Omega 224:
Eclipse-Omega 15 slot 224-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 14 x MVX-A16 port cards. Requires ECS configuration software.
CHF
226'201.50 CHF
244'297.60
ECLIPSE-OMEGA/240
Eclipse-Omega 240:
Eclipse-Omega 15 slot 240-port matrix frame. Including 6RU card frame with dual-redundant 710746Z CPU
processors, dual-redundant power supplies and 15 x MVX-A16 port cards. Requires ECS configuration software.
CHF
236'871.95 CHF
255'821.70
Spare 16 port card:
Spare Eclipse Median or Omega 16 port analog panel/direct/interface front and rear card set. Takes one slot in the
6RU.
CHF
13'748.20 CHF
14'848.05
ECLIPSE MATRIX CARDS
MVX-A16
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
710746Z
Spare CPU card:
Spare Eclipse Median or Omega system processor configuration front card.
CHF
3'875.40 CHF
4'185.40
E-QUE
Integra Wireless or E1/T1 Trunking card:
Eclipse Median or Omega Integra digital wireless card set to support up to 10 active antennas. The rear card has
eight ports for directly connecting antennas (without power) and up to 10 antennas using the optional PD2203
splitters. Can also be used for E1 (30 Channel) or T1 (24 Channel) trunking. Maximum four cards per Eclipse frame.
Requires ECS.5.0 or newer. Takes one slot in the 6RU.
CHF
16'825.90 CHF
18'171.95
IVC-32
Eclipse IP card:
IVC-32 IP matrix card set for the Eclipse-Median 7 slot or Eclipse-Omega 15 slot matrices with "Instant Voice"
technology for 32 audio channels of low latency, high performance IP audio connections to V-Series panels and
Concert 2.0 clients. The Ethernet port connection is available for use on the customers LAN, WAN or Internet
connection. Maximum four cards per Eclipse frame. Requires ECS.5.1 or newer. Takes one slot in the 6RU.
CHF
17'871.90 CHF
19'301.65
E-MADI64
Eclipse MADI 64 Ch. card:
Eclipse-MADI 64 port card set. Configurable via ECS for 16, 32, 48, 56 or 64 channels and sample rates of 44.1
KHz, 48.0 KHz or 96 KHz (32 Ch. only) in this mode. All ports include VOX. Duplex LC connections using Multi-mode
fiber, 1km/0.6 mile distance continuous glass. BNC Coax connections for Input, Output and Video/ world clock Input.
Requires Eclipse 5.2.4 or newer. Takes one slot in the 6RU.
CHF
14'749.00 CHF
15'928.90
LMC-64
Eclipse level meter card:
LMC-64 level meter card and rear card set for the Eclipse-Median 7 slot or Eclipse-Omega 15 slot matrices to
provide the Clear-Vu meters on Production Maestro Pro giving up to 64 channels of matrix input or output port
metering. Takes one slot in the 6RU or 3RU matrix frame. Requires ECS 5.2 or higher.
CHF
15'042.50 CHF
16'245.85
E-FIB
Fiber interface card:
Fiber-Net interface card set for the Eclipse-Omega 15 slot and Median 7 slot frames. A Single E-FIB provides
connections for both a Main and a Backup Fiber ring. Duplex LC connections using single mode fiber, 10km/6.6mile
distance continuous glass. Maximum two card sets per Eclipse frame. Requires Eclipse v4.2 or newer. Takes one
slot in the 6RU or 3RU matrix frame.
CHF
14'598.50 CHF
15'766.40
ECS.5.2
Eclipse Configuration Software DVD v5.2:
Eclipse configuration system programming software DVD v5.2 with manuals. Provides IP manager, panel key, PL,
IFB, ISO Fixed Group and GPI control configuration and assignment. You may use the ECS client software on any
PC within a single networked matrix system.
CHF
1'903.85 CHF
2'056.15
ECS-OLD-SW-CHARGE
Charge for older system software:
Additional charge for non-default factory fit Eclipse system software. ECS compliant version choice limited to
ECS.4.2, ECS.5.0.4, ECS.5.1.1 and ECS.5.1.3. Please specify the ECS compliant version with your order.
CHF
1'843.65 CHF
1'991.10
HCI/E
Eclipse host control interface License:
Host control interface (HCI) License. Allows control and/or monitoring on Eclipse matrices via the Eclipse HCI
Protocol. Each Eclipse matrix requires a separate license. HCI Licenses are not transferable. See SVC-HCI-SUP for
Clear-Com support to the nominated application developer in using the HCI interface.
CHF
12'190.50 CHF
13'165.75
PRODUCTION-MAESTRO-PRO-1
Production Maestro Pro user license & DVD:
Production Maestro Pro is a PC based Assignment tool for the Eclipse system providing fast and reliable assignment
of 4-wires, Conferences and IFB resources. Every matrix requires one license for each Production Maestro Pro
Client that connects to it. Requires ECS.5.1.3 or newer. See LMC-64 Matrix card for Clear-Vu metering. Clear-Vu
requires ECS.5.2 or higher. DVD includes Manuals.
CHF
2'400.50 CHF
2'592.50
PM-PRO-SITE-HX
Production Maestro Pro site license & DVD:
Production Maestro Pro is a PC based Assignment tool for the Eclipse system providing fast and reliable assignment
of 4-wires, Conferences and IFB resources. This site license provides a fixed price for 10 Production Maestro Pro
licenses per matrix in the ECS linked network. Requires ECS.5.1.3 or newer. See LMC-64 Matrix card for Clear-Vu
metering. Clear-Vu requires ECS.5.2 or higher. DVD includes Manuals.
CHF
24'230.50 CHF
26'168.95
SOFTWARE-UG-PICO
PiCo system upgrade charge:
Charge for the upgrade of one Eclipse-PiCo system software to the latest Eclipse version. Please supply Sales with
all supporting information to enable the correct sets of EPROMs and DVDs to be dispatched. If in doubt please
contact your distributor or technical support center. Please see "Upgrade-Kits" for Eclipse to Eclipse-HX upgrades.
CHF
1'143.80 CHF
1'235.30
SOFTWARE-UG-MED&OME
Median/Omega upgrade charge:
Charge for the upgrade of one Eclipse-Omega 15 slot or Median system software to the latest Eclipse version.
Please supply Sales with all supporting information to enable the correct sets of EPROMs and DVDs to be
dispatched. If in doubt please contact your distributor or technical support center. Please see "Upgrade-Kits" for
Eclipse to Eclipse-HX upgrades.
CHF
1'369.55 CHF
1'479.10
ECLIPSE MATRIX SOFTWARE (Non HX)
ECLIPSE-HX POWER SUPPLIES (also suitable for ECLIPSE)
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
720379Z
Spare PSU for Eclipse and Eclipse-HX(Median & Omega):
Spare PSU Module. Suitable for Eclipse HX-Median, Eclipse HX-Omega, Eclipse Median and Eclipse Omega.
CHF
1'151.35 CHF
1'243.45
453G020
Spare external PSU for Eclipse HX-Delta:
Spare external PSU for Eclipse HX-Delta
CHF
180.60 CHF
195.05
400101Z
Spare PSU for Eclipse HX-PiCo and Eclipse PiCo:
Spare Eclipse PiCo and HX-PiCo PSU Module.
We recommend purchasing in pairs to balance voltages.
CHF
466.55 CHF
503.85
V12LDX4Y-IP
V-Series panel 1RU 12 lever XLR4:
IP enabled V-Series 1RU 12 lever key yellow ten-character display panel with XLR-4 male headset connector and
user menu. The panel has 12 keys including one reply/answer-back key and eight shift pages. Each key has
individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio channels when connected
over IP infrastructure (Eclipse-HX only).
CHF
3'980.75 CHF
4'299.20
V12LDX5Y-IP
V-Series panel 1RU 12 lever XLR5:
IP enabled V-Series 1RU 12 lever key yellow ten-character display panel with XLR-5 female binaural headset
connector and user menu. The panel has 12 keys including one reply/answer-back key and eight shift pages. Each
key has individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio channels when
connected over IP infrastructure (Eclipse-HX only).
CHF
3'980.75 CHF
4'299.20
V12LDX7Y-IP
V-Series panel 1RU 12 lever XLR7:
IP enabled V-Series 1RU 12 lever key yellow ten-character display panel with XLR-7 male headset connector and
user menu. The panel has 12 keys including one reply/answer-back key and eight shift pages. Each key has
individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio channels when connected
over IP infrastructure (Eclipse-HX only).
CHF
4'025.90 CHF
4'347.95
V24LDX4Y-IP
V-Series panel 2RU 24 lever XLR4:
IP enabled V-Series 2RU 24 lever key yellow ten-character display panel with XLR-4 male headset connector and
user menu. The panel has 24 keys including one reply/answer-back key, dial keypad and eight shift pages. Each key
has individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio channels when
connected over IP infrastructure (Eclipse-HX only).
CHF
5'357.80 CHF
5'786.40
V24LDX5Y-IP
V-Series panel 2RU 24 lever XLR5:
IP enabled V-Series 2RU 24 lever key yellow ten-character display panel with XLR-5 female binaural headset
connector and user menu. The panel has 24 keys including one reply/answer-back key, dial keypad and eight shift
pages. Each key has individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio
channels when connected over IP infrastructure (Eclipse-HX only).
CHF
5'357.80 CHF
5'786.40
V24LDX7Y-IP
V-Series panel 2RU 24 lever XLR7:
IP enabled V-Series 2RU 24 lever key yellow ten-character display panel with XLR-7 male headset connector and
user menu. The panel has 24 keys including one reply/answer-back key, dial keypad and eight shift pages. Each key
has individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio channels when
connected over IP infrastructure (Eclipse-HX only).
CHF
5'402.95 CHF
5'835.20
CHF
3'837.75 CHF
4'144.75
CHF
3'890.45 CHF
4'201.65
V12RDX5
V-Series panel 1RU 12 rotary XLR5:
IP enabled V-Series 1RU 12 Rotary and pushbutton key yellow ten-character display panel with XLR-5 female
binaural headset connector and user menu. The panel has 12 rotary buttons for listen and crosspoint control and 12
pushbuttons as talk keys including one reply/answer-back key and eight shift pages. Requires version ECS.5.2 or
EHX.7.0 and higher. Provides intercom and up to 2 auxiliary audio channels when connected over IP infrastructure
(Eclipse-HX only).
CHF
3'837.75 CHF
4'144.75
V24RDX4
V-Series panel 2RU 24 rotary XLR4:
IP enabled V-Series 2RU 24 Rotary and pushbutton key yellow ten-character display panel with XLR-4 male headset
connector and user menu. The panel has 24 rotary buttons for listen and crosspoint control and 24 pushbuttons as
talk keys including one reply/answer-back key, dial keypad and eight shift pages. Requires version ECS.5.2 or
EHX.7.0 and higher. Provides intercom and up to 2 auxiliary audio channels when connected over IP infrastructure
(Eclipse-HX only).
CHF
5'282.55 CHF
5'705.15
ECLIPSE-HX V-SERIES IP PANELS (YELLOW DISPLAY) (also suitable for ECLIPSE)
V12RDX4
V12RDX7
V-Series panel 1RU 12 rotary XLR4:
IP enabled V-Series 1RU 12 Rotary and pushbutton key yellow ten-character display panel with XLR-4 male headset
connector and user menu. The panel has 12 rotary buttons for listen and crosspoint control and 12 pushbuttons as
talk keys including one reply/answer-back key and eight shift pages. Requires version ECS.5.2 or EHX.7.0 and
higher. Provides intercom and up to 2 auxiliary audio channels when connected over IP infrastructure (Eclipse-HX
only).
V-Series panel 1RU 12 rotary XLR7:
IP enabled V-Series 1RU 12 Rotary and pushbutton key yellow ten-character display panel with XLR-7 male headset
connector and user menu. The panel has 12 rotary buttons for listen and crosspoint control and 12 pushbuttons as
talk keys including one reply/answer-back key and eight shift pages. Requires version ECS.5.2 or EHX.7.0 and
higher . Provides intercom and up to 2 auxiliary audio channels when connected over IP infrastructure (Eclipse-HX
only).
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
V24RDX5
V-Series panel 2RU 24 rotary XLR5:
IP enabled V-Series 2RU 24 Rotary and pushbutton key yellow ten-character display panel with XLR-5 female
binaural headset connector and user menu. The panel has 24 rotary buttons for listen and crosspoint control and 24
pushbuttons as talk keys including one reply/answer-back key, dial keypad and eight shift pages. Requires version
ECS.5.2 or EHX.7.0 and higher. Provides intercom and up to 2 auxiliary audio channels when connected over IP
infrastructure (Eclipse-HX only).
CHF
5'282.55 CHF
5'705.15
V24RDX7
V-Series panel 2RU 24 rotary XLR7:
IP enabled V-Series 2RU 24 Rotary and pushbutton key yellow ten-character display panel with XLR-7 male binaural
headset connector and user menu. The panel has 24 rotary buttons for listen and crosspoint control and 24
pushbuttons as talk keys including one reply/answer-back key, dial keypad and eight shift pages. Requires version
ECS.5.2 or EHX.7.0 and higher. Provides intercom and up to 2 auxiliary audio channels when connected over IP
infrastructure (Eclipse-HX only).
CHF
5'290.10 CHF
5'713.30
V12PDX4Y-IP
V-Series panel 1RU 12 pushbutton XLR4:
IP enabled V-Series 1RU 12 pushbutton yellow ten-character display panel with XLR-4 male headset and user
menu. The panel has 12 pushbuttons including one reply/answer-back key and eight shift pages. Each key has
individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio channels when connected
over IP infrastructure (Eclipse-HX only).
CHF
3'454.00 CHF
3'730.30
V12PDX7Y-IP
V-Series panel 1RU 12 pushbutton XLR7:
IP enabled V-Series 1RU 12 pushbutton yellow ten-character display panel with XLR-7 male headset and user
menu. The panel has 12 pushbuttons including one reply/answer-back key and eight shift pages. Each key has
individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio channels when connected
over IP infrastructure (Eclipse-HX only).
CHF
3'499.15 CHF
3'779.05
V12PDX5Y-IP
V-Series panel 1RU 12 pushbutton XLR5:
IP enabled V-Series 1RU 12 pushbutton yellow ten-character display panel with XLR-5 female binaural headset and
user menu. The panel has 12 pushbuttons including one reply/answer-back key and eight shift pages. Each key has
individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio channels when connected
over IP infrastructure (Eclipse-HX only).
CHF
3'454.00 CHF
3'730.30
V24PDX4Y-IP
V-Series panel 2RU 24 pushbutton XLR4:
IP enabled V-Series 2RU 24 pushbutton yellow ten-character display panel with XLR-4 male headset and user
menu. The panel has 24 pushbuttons including one reply/answer-back key, dial keypad and eight shift pages. Each
key has individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio channels when
connected over IP infrastructure (Eclipse-HX only).
CHF
4'665.50 CHF
5'038.75
V24PDX5Y-IP
V-Series panel 2RU 24 pushbutton XLR5:
IP enabled V-Series 2RU 24 pushbutton yellow ten-character display panel with XLR-5 female binaural headset and
user menu. The panel has 24 pushbuttons including one reply/answer-back key, dial keypad and eight shift pages.
Each key has individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio channels
when connected over IP infrastructure (Eclipse-HX only).
CHF
4'665.50 CHF
5'038.75
V12LDDX4Y-IP
V-Series desktop 12 lever XLR4:
IP enabled V-Series 12 lever key yellow ten-character display desktop panel with XLR-4 male headset connector and
CHF
user menu. The desktop has 12 keys including one reply/answer-back key, dial keypad and eight shift pages. Each
key has individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio channels when
connected over IP infrastructure (Eclipse-HX only).
4'665.50 CHF
5'038.75
V12LDDX5Y-IP
V-Series desktop 12 lever XLR5:
IP enabled V-Series 12 lever key yellow ten-character display desktop panel with XLR-5 female binaural headset
connector and user menu. The desktop has 12 keys including one reply/answer-back key, dial keypad and eight shift
pages. Each key has individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio
channels when connected over IP infrastructure (Eclipse-HX only).
CHF
4'665.50 CHF
5'038.75
V12LDDX7Y-IP
V-Series desktop 12 lever XLR7:
IP enabled V-Series 12 lever key yellow ten-character display desktop panel with XLR-7 male headset connector and
CHF
user menu. The desktop has 12 keys including one reply/answer-back key, dial keypad and eight shift pages. Each
key has individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio channels when
connected over IP infrastructure (Eclipse-HX only).
4'710.65 CHF
5'087.50
V12RDDX4
V-Series desktop 12 rotary XLR4:
IP enabled V-Series 12 Rotary key yellow ten-character display desktop panel with XLR-4 male headset connector
and user menu. The desktop has 12 rotary buttons for listen and crosspoint control and 12 pushbuttons as talk keys
including one reply/answer-back key. dial keypad and eight shift pages. Requires version ECS.5.2 or EHX.7.0 and
higher. Provides intercom and up to 2 auxiliary audio channels when connected over IP infrastructure (Eclipse-HX
only).
4'530.05 CHF
4'892.45
CHF
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
V12RDDX5
V-Series desktop 12 rotary XLR5:
IP enabled V-Series 12 Rotary key yellow ten-character display desktop panel with XLR-5 female binaural headset
connector and user menu. The desktop has 12 rotary buttons for listen and crosspoint control and 12 pushbuttons as
CHF
talk keys including one reply/answer-back key. dial keypad and eight shift pages. Requires version ECS.5.2 or
EHX.7.0 and higher. Provides intercom and up to 2 auxiliary audio channels when connected over IP infrastructure
(Eclipse-HX only).
4'530.05 CHF
4'892.45
V12RDDX7
V-Series desktop 12 rotary XLR7:
IP enabled V-Series 12 Rotary key yellow ten-character display desktop panel with XLR-7 male binaural headset
connector and user menu. The desktop has 12 rotary buttons for listen and crosspoint control and 12 pushbuttons as
CHF
talk keys including one reply/answer-back key. dial keypad and eight shift pages. Requires version ECS.5.2 or
EHX.7.0 and higher. Provides intercom and up to 2 auxiliary audio channels when connected over IP infrastructure
(Eclipse-HX only).
4'537.60 CHF
4'900.60
V12PDDX4Y-IP
V-Series desktop 12 pushbutton XLR4:
IP enabled V-Series 12 pushbutton yellow ten-character display desktop panel with XLR-4 male headset connector
and user menu. The desktop has 12 buttons including one for reply/answer-back, dial keypad and eight shift pages.
Each button has individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary audio channels
when connected over IP infrastructure (Eclipse-HX only).
CHF
3'995.80 CHF
4'315.45
V12PDDX5Y-IP
V-Series desktop 12 pushbutton XLR5:
IP enabled V-Series 12 pushbutton yellow ten-character display desktop panel with XLR-5 female binaural headset
connector and user menu. The desktop has 12 buttons including one for reply/answer-back, dial keypad and eight
shift pages. Each button has individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary
audio channels when connected over IP infrastructure (Eclipse-HX only).
CHF
3'995.80 CHF
4'315.45
V12PDDX7-IP
V-Series desktop 12 pushbutton XLR7:
IP enabled V-Series 12 pushbutton yellow ten-character display desktop panel with XLR-7 male binaural headset
connector and user menu. The desktop has 12 buttons including one for reply/answer-back, dial keypad and eight
shift pages. Each button has individual up/down crosspoint level buttons. Provides intercom and up to 2 auxiliary
audio channels when connected over IP infrastructure (Eclipse-HX only).
CHF
4'018.35 CHF
4'339.80
V12LDEY
V-Series panel 1RU 12 lever expansion:
V-Series 1RU 12 lever key yellow ten-character display expansion key panel. Connects to the host V-Series panel
over CAT5 up to 7m/25ft. Up to eight lever key expansion panels can be connected to the V-Series host Lever
panel.
CHF
3'454.00 CHF
3'730.30
V12RDE
V-Series panel 1RU 12 rotary expansion:
V-Series 1RU 12 Rotary key yellow ten-character display expansion key panel. Connects to the V-Series host panel
over CAT5 up to 7m/25ft. Up to eight Rotary expansion panels can be connected to the host V-series Rotary panel.
Requires version ECS.5.2 or EHX.7.0 and higher .
CHF
3'280.90 CHF
3'543.35
V12PDEY
V-Series panel 1RU 12 pushbutton expansion:
V-Series 1RU 12 pushbutton yellow ten-character display expansion key panel. Connects to the V-Series host panel
over CAT5 up to 7m/25ft. Up to eight pushbutton expansion panels can be connected to the V-Series host
pushbutton panel.
CHF
2'949.80 CHF
3'185.80
V12LDX4Y-AES-IP
V-Series panel 1RU 12 lever XLR4 AES:
IP enabled V-Series 1RU 12 lever key yellow ten-character display panel with XLR-4 male headset connector and
user menu. The panel has 12 keys including one reply/answer-back key and eight shift pages. Each key has
individual up/down crosspoint level buttons. Including factory fitted AES adapter card for coax cable connection or
AES3 digital audio over CAT5. Provides Intercom and 1 aux audio channel over AES. Provides intercom and up to 2
aux audio channels over IP infrastructure (Eclipse-HX only).
CHF
4'755.80 CHF
5'136.25
V12LDX5Y-AES-IP
V-Series panel 1RU 12 lever XLR5 AES:
IP enabled V-Series 1RU 12 lever key yellow ten-character display panel with XLR-5 female binaural headset
connector and user menu. The panel has 12 keys including one reply/answer-back key and eight shift pages. Each
key has individual up/down crosspoint level buttons. Including factory fitted AES adapter card for coax cable
connection or AES3 digital audio over CAT5. Provides Intercom and 1 aux audio channel over AES. Provides
intercom and up to 2 aux audio channels over IP infrastructure (Eclipse-HX only).
CHF
4'755.80 CHF
5'136.25
V24LDX4Y-AES-IP
V-Series panel 2RU 24 lever XLR4 AES:
IP enabled V-Series 2RU 24 lever key yellow ten-character display panel with XLR-4 male headset connector and
user menu. The panel has 24 keys including one reply/answer-back key, dial keypad and eight shift pages. Each key
CHF
has individual up/down crosspoint level buttons. Including factory fitted AES adapter card for coax cable connection
or AES3 digital audio over CAT5. Provides Intercom and 1 aux audio channel over AES. Provides intercom and up to
2 aux audio channels over IP infrastructure (Eclipse-HX only).
6'110.30 CHF
6'599.10
ECLIPSE-HX V-SERIES PANELS with AES & IP ( Also suitable for ECLIPSE)
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
V24LDX5Y-AES-IP
V-Series panel 2RU 24 lever XLR5 AES:
IP enabled V-Series 2RU 24 lever key yellow ten-character display panel with XLR-5 female binaural headset
connector and user menu. The panel has 24 keys including one reply/answer-back key, dial keypad and eight shift
pages. Each key has individual up/down crosspoint level buttons. Including factory fitted AES adapter card for coax
cable connection or AES3 digital audio over CAT5. Provides Intercom and 1 aux audio channel over AES. Provides
intercom and up to 2 aux audio channels over IP infrastructure (Eclipse-HX only).
CHF
6'110.30 CHF
6'599.10
V12RDX4-AES
V-Series panel 1RU 12 rotary XLR4 AES:
IP enabled V-Series 1RU 12 Rotary and pushbutton key yellow ten-character display panel with XLR-4 male headset
connector and user menu. The panel has 12 rotary buttons for listen and crosspoint control and 12 pushbuttons as
talk keys including one reply/answer-back key and eight shift pages. Including factory fitted AES adapter card for
coax cable connection or AES3 digital audio over CAT5. Requires version ECS.5.2 or higher. Provides Intercom and
1 aux audio channel over AES. Provides intercom and up to 2 aux audio channels over IP infrastructure (Eclipse-HX
only).
CHF
4'612.85 CHF
4'981.85
V12RDX5-AES
V-Series panel 1RU 12 rotary XLR5 AES:
IP enabled V-Series 1RU 12 Rotary and pushbutton key yellow ten-character display panel with XLR-5 female
binaural headset connector and user menu. The panel has 12 rotary buttons for listen and crosspoint control and 12
pushbuttons as talk keys including one reply/answer-back key and eight shift pages. Including factory fitted AES
adapter card for coax cable connection or AES3 digital audio over CAT5. Requires version ECS.5.2 or higher.
Provides Intercom and 1 aux audio channel over AES. Provides intercom and up to 2 aux audio channels over IP
infrastructure (Eclipse-HX only).
CHF
4'612.85 CHF
4'981.85
V12RDX7-AES
V-Series panel 1RU 12 rotary XLR7 AES:
IP enabled V-Series 1RU 12 Rotary and pushbutton key yellow ten-character display panel with XLR-7 male binaural
headset connector and user menu. The panel has 12 rotary buttons for listen and crosspoint control and 12
pushbuttons as talk keys including one reply/answer-back key and eight shift pages. Including factory fitted AES
adapter card for coax cable connection or AES3 digital audio over CAT5. Requires version ECS.5.2 or higher.
Provides Intercom and 1 aux audio channel over AES. Provides intercom and up to 2 aux audio channels over IP
infrastructure (Eclipse-HX only).
CHF
4'612.85 CHF
4'981.85
V24RDX4-AES
V-Series panel 2RU 24 rotary XLR4 AES:
IP enabled V-Series 2RU 24 Rotary and pushbutton key yellow ten-character display panel with XLR-4 male headset
connector and user menu. The panel has 24 rotary buttons for listen and crosspoint control and 24 pushbuttons as
talk keys including one reply/answer-back key, dial keypad and eight shift pages. Including factory fitted AES adapter CHF
card for coax cable connection or AES3 digital audio over CAT5. Requires version ECS.5.2 or higher. Provides
Intercom and 1 aux audio channel over AES. Provides intercom and up to 2 aux audio channels over IP
infrastructure (Eclipse-HX only).
5'959.80 CHF
6'436.60
V24RDX5-AES
V-Series panel 2RU 24 rotary XLR5 AES:
IP enabled V-Series 2RU 24 Rotary and pushbutton key yellow ten-character display panel with XLR-5 female
binaural headset connector and user menu. The panel has 24 rotary buttons for listen and crosspoint control and 24
pushbuttons as talk keys including one reply/answer-back key, dial keypad and eight shift pages. Including factory
fitted AES adapter card for coax cable connection or AES3 digital audio over CAT5. Requires version ECS.5.2 or
higher. Provides Intercom and 1 aux audio channel over AES. Provides intercom and up to 2 aux audio channels
over IP infrastructure (Eclipse-HX only).
CHF
5'959.80 CHF
6'436.60
V24RDX7-AES
V-Series panel 2RU 24 rotary XLR7 AES:
IP enabled V-Series 2RU 24 Rotary and pushbutton key yellow ten-character display panel with XLR-7 male binaural
headset connector and user menu. The panel has 24 rotary buttons for listen and crosspoint control and 24
pushbuttons as talk keys including one reply/answer-back key, dial keypad and eight shift pages. Including factory
fitted AES adapter card for coax cable connection or AES3 digital audio over CAT5. Requires version ECS.5.2 or
higher. Provides Intercom and 1 aux audio channel over AES. Provides intercom and up to 2 aux audio channels
over IP infrastructure (Eclipse-HX only).
CHF
5'959.80 CHF
6'436.60
V12PDX4Y-AES-IP
V-Series panel 1RU 12 pushbutton XLR4 AES:
IP enabled V-Series 1RU 12 pushbutton yellow ten-character display panel with XLR-4 male headset and user
menu. The panel has 12 pushbuttons including one reply/answer-back key and eight shift pages. Each key has
individual up/down crosspoint level buttons. Including factory fitted AES adapter card for coax cable connection or
AES3 digital audio over CAT5. Provides Intercom and 1 aux audio channel over AES. Provides intercom and up to 2
aux audio channels over IP infrastructure (Eclipse-HX only).
CHF
4'236.60 CHF
4'575.50
V12PDX5Y-AES-IP
V-Series panel 1RU 12 pushbutton XLR5 AES:
IP enabled V-Series 1RU 12 pushbutton yellow ten-character display panel with XLR-5 female binaural headset and
user menu. The panel has 12 pushbuttons including one reply/answer-back key and eight shift pages. Each key has
individual up/down crosspoint level buttons. Including factory fitted AES adapter card for coax cable connection or
AES3 digital audio over CAT5. Provides Intercom and 1 aux audio channel over AES. Provides intercom and up to 2
aux audio channels over IP infrastructure (Eclipse-HX only).
CHF
4'236.60 CHF
4'575.50
V24PDX4Y-AES-IP
V-Series panel 2RU 24 pushbutton XLR4 AES:
IP enabled V-Series 2RU 24 pushbutton yellow ten-character display panel with XLR-4 male headset and user
menu. The panel has 24 pushbuttons including one reply/answer-back key, dial keypad and eight shift pages. Each
key has individual up/down crosspoint level buttons. Including factory fitted AES adapter card for coax cable
connection or AES3 digital audio over CAT5. Provides Intercom and 1 aux audio channel over AES. Provides
intercom and up to 2 aux audio channels over IP infrastructure (Eclipse-HX only).
CHF
5'418.00 CHF
5'851.45
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
V24PDX5Y-AES-IP
V-Series panel 2RU 24 pushbutton XLR5 AES:
IP enabled V-Series 2RU 24 pushbutton yellow ten-character display panel with XLR-5 female binaural headset and
user menu. The panel has 24 pushbuttons including one reply/answer-back key, dial keypad and eight shift pages.
Each key has individual up/down crosspoint level buttons. Including factory fitted AES adapter card for coax cable
connection or AES3 digital audio over CAT5. Provides Intercom and 1 aux audio channel over AES. Provides
intercom and up to 2 aux audio channels over IP infrastructure (Eclipse-HX only).
CHF
5'418.00 CHF
5'851.45
V12LDDX4Y-AES-IP
V-Series desktop 12 lever XLR4 AES:
IP enabled V-Series 12 lever key yellow ten-character display desktop panel with XLR-4 male headset connector and
user menu. The desktop has 12 keys including one reply/answer-back key, dial keypad and eight shift pages. Each
CHF
key has individual up/down crosspoint level buttons. Including factory fitted AES adapter card for coax cable
connection or AES3 digital audio over CAT5. Provides Intercom and 1 aux audio channel over AES. Provides
intercom and up to 2 aux audio channels over IP infrastructure (Eclipse-HX only).
5'418.00 CHF
5'851.45
V12LDDX5Y-AES-IP
V-Series desktop 12 lever XLR5 AES:
IP enabled V-Series 12 lever key yellow ten-character display desktop panel with XLR-5 female binaural headset
connector and user menu. The desktop has 12 keys including one reply/answer-back key, dial keypad and eight shift
pages. Each key has individual up/down crosspoint level buttons. Including factory fitted AES adapter card for coax
cable connection or AES3 digital audio over CAT5. Provides Intercom and 1 aux audio channel over AES. Provides
intercom and up to 2 aux audio channels over IP infrastructure (Eclipse-HX only).
CHF
5'418.00 CHF
5'851.45
V12PDDX4Y-AES-IP
V-Series desktop 12 pushbutton XLR4 AES:
IP enabled V-Series 12 pushbutton yellow ten-character display desktop panel with XLR-4 male headset connector
and user menu. The desktop has 12 buttons including one for reply/answer-back, dial keypad and eight shift pages.
Each button has individual up/down crosspoint level buttons. Including factory fitted AES adapter card for coax cable
connection or AES3 digital audio over CAT5. Provides Intercom and 1 aux audio channel over AES. Provides
intercom and up to 2 aux audio channels over IP infrastructure (Eclipse-HX only).
CHF
4'816.00 CHF
5'201.30
V12PDDX5Y-AES-IP
V-Series desktop 12 pushbutton XLR5 AES:
IP enabled V-Series 12 pushbutton yellow ten-character display desktop panel with XLR-5 female binaural headset
connector and user menu. The desktop has 12 buttons including one for reply/answer-back, dial keypad and eight
shift pages. Each button has individual up/down crosspoint level buttons. Including factory fitted AES adapter card
for coax cable connection or AES3 digital audio over CAT5. Provides Intercom and 1 aux audio channel over AES.
Provides intercom and up to 2 aux audio channels over IP infrastructure (Eclipse-HX only).
CHF
4'816.00 CHF
5'201.30
V12RDDX4-AES
V-Series desktop 12 rotary XLR4 AES:
IP enabled V-Series 12 Rotary key yellow ten-character display desktop panel with XLR-4 male headset connector
and user menu. The desktop has 12 rotary buttons for listen and crosspoint control and 12 pushbuttons as talk keys
including one reply/answer-back key, dial keypad and eight shift pages. Including factory fitted AES adapter card for
coax cable connection or AES3 digital audio over CAT5. Requires version ECS.5.2 or higher. Provides Intercom and
1 aux audio channel over AES. Provides intercom and up to 2 aux audio channels over IP infrastructure (Eclipse-HX
only).
CHF
5'222.35 CHF
5'640.15
V12RDDX5-AES
V-Series desktop 12 rotary XLR5 AES:
IP enabled V-Series 12 Rotary key yellow ten-character display desktop panel with XLR-5 female binaural headset
connector and user menu. The desktop has 12 rotary buttons for listen and crosspoint control and 12 pushbuttons as
talk keys including one reply/answer-back key, dial keypad and eight shift pages. Including factory fitted AES adapter CHF
card for coax cable connection or AES3 digital audio over CAT5. Requires version ECS.5.2 or higher. Provides
Intercom and 1 aux audio channel over AES. Provides intercom and up to 2 aux audio channels over IP
infrastructure (Eclipse-HX only).
5'222.35 CHF
5'640.15
V24LDX7Y-AES-IP
V-Series 24 Lever XLR7 AES:
IP enabled V-Series 2RU 24 lever key yellow ten-character display panel with XLR-7 male headset connector and
user menu. The panel has 24 keys including one reply/answer-back key. dial keypad and eight shift pages. Each key
CHF
has individual up/down crosspoint level buttons. Including factory fitted AES adapter card for coax cable connection
or AES3 digital audio over CAT5. Provides Intercom and 1 aux audio channel over AES. Provides intercom and up to
2 aux audio channels over IP infrastructure (Eclipse-HX only).
6'110.30 CHF
6'599.10
V12RDDX7-AES
V-Series desktop 12 rotary XLR7 AES:
IP enabled V-Series 12 Rotary key yellow ten-character display desktop panel with XLR-7 male binaural headset
connector and user menu. The desktop has 12 rotary buttons for listen and crosspoint control and 12 pushbuttons as
talk keys including one reply/answer-back key, dial keypad and eight shift pages. Including factory fitted AES adapter CHF
card for coax cable connection or AES3 digital audio over CAT5. Requires version ECS.5.2 or higher. Provides
Intercom and 1 aux audio channel over AES. Provides intercom and up to 2 aux audio channels over IP
infrastructure (Eclipse-HX only).
5'222.35 CHF
5'640.15
V-SERIES MICROPHONES (also used on HelixNet)
110/340
340mm standard length GN mic:
Standard length microphone - gooseneck 34cm/12", for use with 4000, V-Series and HelixNet panels.
CHF
383.80 CHF
414.50
110/100
100mm short GN mic:
Short microphone - gooseneck 10cm/4", for use with 4000, V-Series and HelixNet panels.
CHF
444.00 CHF
479.50
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
490mm long GN mic:
Long microphone - extended gooseneck 49cm/19", for use with 4000, V-Series and HelixNet panels.
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
CHF
489.15 CHF
528.25
CHF
842.80 CHF
910.20
CHF
857.85 CHF
926.50
CHF
147.50 CHF
159.30
453G023
Universal PSU for V-Series & 4000 Panels:
Spare 110/220V AC PSU for V-Series, 4000 panels, ICS-22, AP-22, XP-22, XPL-22 and FreeSpeak/CellCom
PD2201 / CEL-TA antennas and PD2203 splitters. For V-series panels only the relevant new bracket is 251800Z (on
the spares list).
CHF
85.80 CHF
92.65
PNL-DESKTOP-KIT
Desktop ears for rack panels:
Panel desktop rack kit. Pair of metal panel ears with soft feet to allow rack mounting panels to sit on a desktop
surface. Suitable for both 1RU and 2RU panels.
CHF
413.90 CHF
447.00
V-DISP-YEL-L
V-Series lever display change yellow:
Factory charge to replace one 6-way blue display lever key module with a 6-way yellow display lever key module.
1RU panels require two 6-way modules and 2RU panels require four. This service is available to match existing Vseries blue display panels with yellow display ones.
CHF
933.10 CHF
1'007.75
i-1200E
I-Series 1RU 16 key non-display panel:
I-Series 1RU with 2 non-display key modules providing 16 pushbuttons, gooseneck and headset connections,
loudspeaker with level control. See AUX101 module for panel audio and GPI options. Uses GN-250/450 or GM-9/18
series of microphones. No keypad.
CHF
2'031.75 CHF
2'194.30
i-1400E
I-Series 1RU 32 key non-display panel:
I-Series 1RU with 4 non-display key modules providing 32 pushbuttons, gooseneck and headset connections,
loudspeaker with level control. See AUX101 module for panel audio and GPI options. Uses GN-250/450 or GM-9/18
series of microphones. No keypad.
CHF
2'483.25 CHF
2'681.90
i-1430E
i-Series 1RU 32 key display & keypad:
I-Series 1RU with four display key modules and keypad providing 32 pushbuttons and four displays, keypad for local
assignments, gooseneck and headset connections and loudspeaker with level control. See I-1470E or AUX101
module for panel audio and GPI options. Uses GN-250/450 or GM-9/18 series of microphones.
CHF
4'605.30 CHF
4'973.70
i-1470E
i-Series 1RU 32 key display, keypad & AUX-101:
I-Series 1RU with four display key modules and a keypad providing 32 pushbuttons and four displays, gooseneck
and headset connections and loudspeaker with level control. Includes AUX101 module for panel audio and GPI
options. Uses GN-250/450 or GM-9/18 series of microphones.
CHF
5'297.60 CHF
5'721.40
i-1210E
I-Series 1RU 16 key display panel:
I-Series 1RU with two display key module providing 16 pushbuttons and display, gooseneck and headset
connections and loudspeaker with level control. See AUX101 module for panel audio and GPI options. Uses GN250/450 or GM-9/18 series of microphones. No keypad.
CHF
3'002.50 CHF
3'242.65
i-1110E
I-Series 1RU 8 key display panel:
I-Series 1RU with one display key module providing eight pushbuttons and display, gooseneck and headset
connections and loudspeaker with level control. See AUX101 module for panel audio and GPI options. Uses GN250/450 or GM-9/18 series of microphones. No keypad.
CHF
2'633.75 CHF
2'844.45
e-1410E
i-Series 32 key expansion panel & display:
I-Series expansion panel with four display key modules providing an extra 32 pushbuttons.
CHF
3'807.65 CHF
4'112.25
110/490
V-SERIES SPARES AND OPTIONS
V-AES-OPTN
V-DISP-YEL-P
V-PNL-SW
V-Series panel AES adapter card:
V-Series panel AES3/RJ-45 and AES/BNC adapter card. This card allows the V-Series panels to operate over coax
cable to the AES-6-CX module or over CAT5 to the AES-6-RJ module. This adapter card only fits latest issue VSeries panels (built after Oct 2008).
V-Series display change yellow:
Factory charge to replace one 6-way blue display module with a 6-way yellow display module. 1RU panels require
two 6-way modules and 2RU panels require four. This service is available to match existing V-series blue display
panels with yellow display ones.
V-Series software downgrade:
V-Series Panel older software version. No charge for versions 5.1.3 or 5.2. Downgrade charge for earlier versions.
Default version is v5.2 or HX 7.1.
Specify panels like this: V12LDX5-IP-[4.2]
I-SERIES PANELS (AVAILABLE FOR ECLIPSE-HX and ECLIPSE VERSIONS)
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
i-Series relay/GPI & audio option:
I-Series relay-GPI and audio I/O option card. Customer fit option. See i-1470E for factory fitted option.
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
CHF
586.95 CHF
633.90
GN-250
250mm standard length plug-in GN mic:
I-Series gooseneck microphone 25cm/10". Also available for ICS-1008E and ICS-1016E panels and party-line
stations.
CHF
323.60 CHF
349.45
GN-450
450mm long plug-in GN mic:
I-Series gooseneck microphone 45cm/18". Also available for ICS-1008E and ICS-1016E panels and party-line
stations.
CHF
338.65 CHF
365.70
ICS-1008E
16 pushbutton panel (no display):
16-key pushbutton panel (paper label, no display) 1RU. Uses GM-9, GM-18, GN-250 or GN-450 microphones. Uses
an external universal PSU-24 supplied. Not compatible with Eclipse-HX
CHF
1'941.45 CHF
2'096.75
ICS-1016E
32 pushbutton panel (no display):
32-key pushbutton panel (paper label, no display) 1RU. Uses GM-9, GM-18, GN-250 or GN-450 microphones. Uses
an external universal PSU-24 supplied. Not compatible with Eclipse-HX
CHF
2'167.20 CHF
2'340.60
ICS-22
Flush 2 label selector speaker station:
Flush-mount two port selectable speaker station. Mounts in a four-gang US wall box. This item requires external 1628V DC power, (AC wall wart included). For installation please see the Product Manual. Not compatible with EclipseHX.
CHF
1'414.70 CHF
1'527.90
DT-BOX
Desktop box:
Desktop box for ICS-21 or ICS-22.
CHF
436.45 CHF
471.35
ICS-52/92PNL-UG
ICS-52 or 92 panel upgrade charge:
Kit to allow ICS-52 and ICS-92 panels to be connected to Eclipse matrix systems. Includes single panel 710630
EPROM and RJ-45 rear panel. Not compatible with Eclipse-HX
CHF
248.35 CHF
268.20
ICS-62/102PNL-UG
ICS-62 or 102 panel upgrade charge:
Kit to allow ICS-62 and ICS-102 panels to be connected to Eclipse matrix systems. Includes single panel 710631
EPROM and RJ-45 rear panel. Not compatible with Eclipse-HX
CHF
188.15 CHF
203.20
ICS-2003PNL-UG
ICS-2003 panel upgrade charge:
Kit to allow ICS-2003 panels to be connected to Eclipse matrix systems. Includes single panel 710648Z AND
710649Z EPROMS. Not compatible with Eclipse-HX
CHF
75.25 CHF
81.25
ICS-1008/16PNL-UG
ICS-1008 or 1016 panel upgrade charge:
Kit to allow ICS-1008 and ICS-1016 panels to be connected to Eclipse matrix systems. Includes single panel
710632Z EPROMS. Not compatible with Eclipse-HX
CHF
75.25 CHF
81.25
710684Z
Eclipse 4200 panel isolator card:
Spare panel RJ-45 Isolator card required when the 42xxE rack mounted panels are connected to Eclipse matrix
systems. Not compatible with Eclipse-HX
CHF
436.45 CHF
471.35
710685Z
Eclipse 4294 desktop panel isolator card:
Spare panel RJ-45 Isolator card required for 4294 desktop panels are connected to Eclipse matrix systems. Not
compatible with Eclipse-HX
CHF
436.45 CHF
471.35
4224/15/26PNL-UG
Eclipse 4200 pushbutton upgrade panel kit:
Kit to allow 4224/15/26 panels to be connected to Eclipse matrix systems. Including 710684Z isolator card, boot
EPROM and Clear-Com badge. Not compatible with Eclipse-HX
CHF
925.60 CHF
999.60
4212/22PNL-UG
Eclipse 4200 LCD panel upgrade kit:
Kit to allow 4212/4222 panels to be connected to Eclipse matrix systems. Including 710685Z isolator card, boot
EPROM and Clear-Com badge. Not compatible with Eclipse-HX
CHF
925.60 CHF
999.60
4294PNL-UG
Eclipse 4200 desktop panel upgrade kit:
Kit to allow 4294 desktop panels to be connected to Eclipse matrix systems. Including 710685Z isolator card, boot
EPROM and Clear-Com badge. Not compatible with Eclipse-HX
CHF
925.60 CHF
999.60
AUX-101
I-SERIES MICROPHONES (also used ICS panels)
ICS PANEL SUPPORT (NOT AVAILABLE FOR ECLIPSE HX VERSION)
4000 SERIES 2 PANEL SUPPORT (NOT AVAILABLE FOR ECLIPSE HX VERSION)
ECLIPSE-HX INTERFACE MODULES (also suitable for ECLIPSE)
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
CCI-22
2 Ch. Partyline Module:
2-wire Clear-Com/RTS dual party-line interface. Does not power the party-lines attached to CCI-22 modules, these
require Encore master station PSUs such as the PS-702 or MS-702. Includes DB-9 mating connectors.
CHF
1'557.70 CHF
1'682.30
FOR-22
2 Ch. 4wire/2 way transmitter Balanced module:
4-wire/two-way radio dual interface module. Dual channel 4-wire interface with transformer balancing and level
control. Including software controlled relay changeover per channel. Includes DB-9 mating connectors. May require
custom cable for radio connections, (not supplied).
CHF
1'693.15 CHF
1'828.60
TEL-14
2 Ch. Telephone Hybrid module:
Two-line auto-nulling dual digital telephone interface module. Provides telephone line balancing for two separate
POTS lines. Intercom panels can dial out and the lines dial into ports under software control. See 710755Z new
CPU.
CHF
4'349.45 CHF
4'697.40
RLY-6
6 SPDT Relay Control Module:
Relay control interface module (six SPDT relays).
CHF
1'610.35 CHF
1'739.20
GPI-6
6 Opto Input Control Module:
Input control interface module (six universal inputs).
CHF
1'610.35 CHF
1'739.20
AES-6-RJ
6 Ch. AES3 digital audio module:
AES-6 AES3 digital audio interface module for use with IMF-3, IMF-102 and Eclipse-Median, Eclipse HX-Median and
Eclipse HX-Delta frames. Uses RJ-45 connectors. Provides for six monaural or three stereo AES3 digital audio
channels to ports on the Eclipse or Eclipse-HX matrices.
CHF
3'326.05 CHF
3'592.15
AES-6-CX
6 way coax digital panel module:
AES-6 coax interface module for use with IMF-3, IMF-102, Eclipse-Median, Eclipse HX-Median and Eclipse HX-Delta
frames. Provides V-Series-AES coax panels (or 4000 panels with the PDE4536 option card) two channel coax
connection for use with Eclipse and Eclipse-HX matrices.
CHF
3'326.05 CHF
3'592.15
IMF-102
1RU interface module frame including PSU:
1RU interface module frame with internal PSU, holds one or two horizontal interface modules. Note: Does not power
the party-lines attached to CCI-22 modules.
CHF
1'587.80 CHF
1'714.80
IMF-3
3RU interface module frame excluding PSU:
IMF-3 interface module frame 3RU, holds 11 interface modules. Includes cable and blanking plates are supplied as
required Requires a 1RU external power supply, PSU-101, if using an interface besides the CCI-22. Limit of 8 TEL14 modules.
CHF
2'821.90 CHF
3'047.65
PSU-101
1RU PSU for IMF-3 interface frame:
PSU-101 power supply for the IMF-3. Includes cable, Note: Does not power the party-lines attached to CCI-22
modules.
CHF
1'768.40 CHF
1'909.85
820079Z
IMF-3 or 102 blank cover kit:
Blank cover kit includes front and rear blanking plates and fixing screws.
CHF
33.10 CHF
35.75
BAL-8
1RU 8 port transformer isolation:
1RU eight port transformer isolation. Interface contains eight four-pair, transformer-isolated ports. Each port handles
two audio signals and two RS-422 data lines. The unit isolates the connection between Eclipse ports and peripheral
devices such as cameras or monitoring systems.
CHF
1'407.20 CHF
1'519.75
TW-60
1RU 4 Ch. radio comms interface:
Four channel two-way radio interface connecting Clear-Com or other radios to any two-way radio. Has a variable
audio delay for offsetting key up times.
CHF
3'311.00 CHF
3'575.90
IFB-104
1RU 4 port IFB breakout interface:
1RU four-port XLR-3 IFB intercom/audio cue break out matrix interface. Each IFB output and program audio/cue
audio uses XLR-3 I/O and is transformer balanced. Connections to the matrix use RJ-45. If directly connecting TR50s, a power supply such as the PK-7 or PS-702 is required.
CHF
1'256.70 CHF
1'357.20
FIM-S222
Dual port fiber matrix to 2 remote panels:
Two-port matrix frame to/from panel or module fiber interface (dual fiber run required). Can be used for one or two
audio connections over fiber. Price quoted is for one unit and two units are required per two 4-wire audio channels or
two panel to matrix links.
CHF
4'056.00 CHF
4'380.45
CHF
978.25 CHF
1'056.50
PRINTED ECLIPSE-HX SYSTEM MANUALS
MAN-ECLIPSE-HX-PICO
Eclipse HX-PiCo paper manual set:
Eclipse HX-PiCo paper manual set. This is a bound set of paper manuals in addition to the CD-ROM already
supplied with the equipment. It includes all Eclipse interfaces and panels.
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
MAN-ECLIPSE-HX-MEDIAN
Eclipse HX-Median paper manual set:
Eclipse HX-Median 7 slot paper manual set. This is a bound set of paper manuals in addition to the CD-ROM already CHF
supplied with the equipment. Including all Eclipse interfaces and panels.
978.25 CHF
1'056.50
MAN-ECLIPSE-HX-OMEGA
Eclipse HX-Omega paper manual set:
Eclipse HX-Omega 15 slot paper manual set. This is a bound set of paper manuals in addition to the CD-ROM
already supplied with the equipment. Including all Eclipse interfaces and panels.
CHF
534.30 CHF
577.00
MAN-ECLIPSE-PICO
Eclipse-PiCo paper manual set:
Eclipse-PiCo paper manual set. This is a bound set of paper manuals in addition to the CD-ROM already supplied
with the equipment. It includes all Eclipse interfaces and panels.
CHF
978.25 CHF
1'056.50
MAN-ECLIPSE-MEDIAN
Eclipse-Median paper manual set:
Eclipse-Median 7 slot paper manual set. This is a bound set of paper manuals in addition to the CD-ROM already
supplied with the equipment. Including all Eclipse interfaces and panels.
CHF
978.25 CHF
1'056.50
MAN-ECLIPSE-OMEGA
Eclipse-Omega 15 slot paper manual set:
Eclipse-Omega 15 slot paper manual set. This is a bound set of paper manuals in addition to the CD-ROM already
supplied with the equipment. Including all Eclipse interfaces and panels.
CHF
534.30 CHF
577.00
CL-10-P
Concert 10 client perpetual access licenses:
PC based Intercom system for 10 clients. Includes Linux Server software with PERPETUAL licenses for 10 Clients
and 8 Server audio Channels. Requires a physical server. Each client can integrate PC audio sources into the
system. Concert can function as a stand-alone system or together with Eclipse/Eclipse-HX and IP card, each client is
a virtual matrix panel. Clients are supported on Windows 7, 8, MAC and ENPS (via Active X).
CHF
5'267.50 CHF
5'688.90
CL-15-P
Concert 15 client perpetual access licenses:
PC based Intercom system for 15 clients. Includes Linux Server software with PERPETUAL licenses for 15 Clients
and 8 Server audio Channels. Requires a physical server. Each client can integrate PC audio sources into the
system. Concert can function as a stand-alone system or together with Eclipse/Eclipse-HX and IP card, each client is
a virtual matrix panel. Clients are supported on Windows 7, 8, MAC and ENPS (via Active X).
CHF
9'782.50 CHF
10'565.10
CL-25-P
Concert 25 client perpetual access licenses:
PC based Intercom system for 25 clients. Includes Linux Server software with PERPETUAL licenses for 25 Clients
and 8 Server audio Channels. Requires a physical server. Each client can integrate PC audio sources into the
system. Concert can function as a stand-alone system or together with Eclipse/Eclipse-HX and IP card, each client is
a virtual matrix panel. Clients are supported on Windows 7, 8, MAC and ENPS (via Active X).
CHF
18'060.00 CHF
19'504.80
CL-50-P
Concert 50 client perpetual access licenses:
PC based Intercom system for 50 clients. Includes Linux Server software with PERPETUAL licenses for 50 Clients
and 8 Server audio Channels. Requires a physical server. Each client can integrate PC audio sources into the
system. Concert can function as a stand-alone system or together with Eclipse/Eclipse-HX and IP card, each client is
a virtual matrix panel. Clients are supported on Windows 7, 8, MAC and ENPS (via Active X).
CHF
33'862.50 CHF
36'571.50
CL-100-P
Concert 100 client perpetual access licenses:
PC based Intercom system for 100 clients. Includes Linux Server software with PERPETUAL licenses for 100 Clients
and 8 Server audio Channels. Requires a physical server. Each client can integrate PC audio sources into the
system. Concert can function as a stand-alone system or together with Eclipse/Eclipse-HX and IP card, each client is
a virtual matrix panel. Clients are supported on Windows 7, 8, MAC and ENPS (via Active X).
CHF
52'675.00 CHF
56'889.00
CL-10-A
Concert 10 client annual access licenses:
PC based Intercom system for 10 clients. Includes Linux Server software with ANNUAL licenses for 10 Clients and 8
CHF
Server audio Channels. Requires a physical server. Each client can integrate PC audio sources into the system.
Concert can function as a stand-alone system or together with Eclipse/Eclipse-HX and IP card, each client is a virtual
matrix panel. Clients are supported on Windows 7, 8, MAC and ENPS (via Active X).
2'709.00 CHF
2'925.70
CL-15-A
Concert 15 client annual access licenses:
PC based Intercom system for 15 clients. Includes Linux Server software with ANNUAL licenses for 15 Clients and 8
CHF
Server audio Channels. Requires a physical server. Each client can integrate PC audio sources into the system.
Concert can function as a stand-alone system or together with Eclipse/Eclipse-HX and IP card, each client is a virtual
matrix panel. Clients are supported on Windows 7, 8, MAC and ENPS (via Active X).
4'966.50 CHF
5'363.80
CL-25-A
Concert 25 client annual access licenses:
PC based Intercom system for 25 clients. Includes Linux Server software with ANNUAL licenses for 25 Clients and 8
CHF
Server audio Channels. Requires a physical server. Each client can integrate PC audio sources into the system.
Concert can function as a stand-alone system or together with Eclipse/Eclipse-HX and IP card, each client is a virtual
matrix panel. Clients are supported on Windows 7, 8, MAC and ENPS (via Active X).
6'020.00 CHF
6'501.60
ECLIPSE SYSTEM MANUALS
CONCERT IP INTERCOM SYSTEM (Please contact your Clear-Com representative to expand an existing installation)
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
CL-50-A
Concert 50 client annual access licenses:
PC based Intercom system for 50 clients. Includes Linux Server software with ANNUAL licenses for 50 Clients and 8
Server audio Channels. Requires a physical server. Each client can integrate PC audio sources into the system.
Concert can function as a stand-alone system or together with Eclipse/Eclipse-HX and IP card, each client is a virtual
matrix panel. Clients are supported on Windows 7, 8, MAC and ENPS (via Active X).
CHF
17'157.00 CHF
18'529.55
CL-100-A
Concert 100 client annual access licenses:
PC based Intercom system for 100 clients. Includes Linux Server software with ANNUAL licenses for 100 Clients and
8 Server audio Channels. Requires a physical server. Each client can integrate PC audio sources into the system.
Concert can function as a stand-alone system or together with Eclipse/Eclipse-HX and IP card, each client is a virtual
matrix panel. Clients are supported on Windows 7, 8, MAC and ENPS (via Active X).
CHF
26'638.50 CHF
28'769.60
CL-05-C
Concert 5 client cloud access licenses:
PC Intercom system software running on Clear-Com managed Cloud Server. Price includes 5 ANNUAL client
subscription licenses. Each remote client can integrate audio sources into the system. Clients are supported on
Windows 7, 8, and MAC. Customer MUST have Internet Access. Subscription can be renewed at the end of the
year.
CHF
3'250.80 CHF
3'510.85
CL-10-C
Concert 10 client cloud access licenses:
PC Intercom system software running on Clear-Com managed Cloud Server. Price includes 10 ANNUAL client
subscription licenses. Each remote client can integrate audio sources into the system. Clients are supported on
Windows 7, 8, and MAC. Customer MUST have Internet Access. Subscription can be renewed at the end of the
year.
CHF
5'779.20 CHF
6'241.55
CL-15-C
Concert 15 client cloud access licenses:
PC Intercom system software running on Clear-Com managed Cloud Server. Price includes 15 ANNUAL client
subscription licenses. Each remote client can integrate audio sources into the system. Clients are supported on
Windows 7, 8, and MAC. Customer MUST have Internet Access. Subscription can be renewed at the end of the
year.
CHF
7'675.50 CHF
8'289.55
CL-25-C
Concert 25 client cloud access licenses:
PC Intercom system software running on Clear-Com managed Cloud Server. Price includes 25 ANNUAL client
subscription licenses. Each remote client can integrate audio sources into the system. Clients are supported on
Windows 7, 8, and MAC. Customer MUST have Internet Access. Subscription can be renewed at the end of the
year.
CHF
11'468.10 CHF
12'385.55
CL-50-C
Concert 50 client cloud access licenses:
PC Intercom system software running on Clear-Com managed Cloud Server. Price includes 50 ANNUAL client
subscription licenses. Each remote client can integrate audio sources into the system. Clients are supported on
Windows 7, 8, and MAC. Customer MUST have Internet Access. Subscription can be renewed at the end of the
year.
CHF
18'782.40 CHF
20'285.00
CL-100-C
Concert 100 client cloud access licenses:
PC Intercom system software running on Clear-Com managed Cloud Server. Price includes 100 ANNUAL client
subscription licenses. Each remote client can integrate audio sources into the system. Clients are supported on
Windows 7, 8, and MAC. Customer MUST have Internet Access. Subscription can be renewed at the end of the
year.
CHF
29'979.60 CHF
32'377.95
CH-04-P
Concert 4 server channel perpetual licenses:
Additional 4 PERPETUAL server audio channel licenses. Brings Total to 12 channels.
CHF
1'204.00 CHF
1'300.30
CH-08-P
Concert 8 server channel perpetual licenses:
Additional 8 PERPETUAL server audio channel licenses. Brings Total to 16 channels.
CHF
1'806.00 CHF
1'950.50
CH-16-P
Concert 16 server channel perpetual licenses:
Additional 16 PERPETUAL server audio channel licenses. Brings Total to 24 channels.
CHF
2'889.60 CHF
3'120.75
CH-32-P
Concert 32 server channel perpetual licenses:
Additional 32 PERPETUAL server audio channel licenses. Brings Total to 40 channels.
CHF
4'816.00 CHF
5'201.30
CH-64-P
Concert 64 server channel perpetual licenses:
Additional 64 PERPETUAL server audio channel licenses. Brings Total to 72 channels.
CHF
7'705.60 CHF
8'322.05
CH-04-A
Concert 4 server channel annual licenses:
Additional 4 ANNUAL server audio channel licenses. Brings Total to 12 channels.
CHF
677.25 CHF
731.45
CH-08-A
Concert 8 server channel annual licenses:
Additional 8 ANNUAL server audio channel licenses. Brings Total to 16 channels.
CHF
918.05 CHF
991.50
CH-16-A
Concert 16 server channel annual licenses:
Additional 16 ANNUAL server audio channel licenses. Brings Total to 24 channels.
CHF
1'444.80 CHF
1'560.40
CH-32-A
Concert 32 server channel annual licenses:
Additional 32 ANNUAL server audio channel licenses. Brings Total to 40 channels.
CHF
2'483.25 CHF
2'681.90
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
CH-64-A
Concert 64 server channel annual licenses:
Additional 64 ANNUAL server audio channel licenses. Brings Total to 72 channels.
CHF
3'913.00 CHF
4'226.05
Concert-Server
Pre-Loaded Concert Server Assembly:
Server Hardware pre-loaded with Concert Server software.
CHF
3'882.90 CHF
4'193.55
Concert-Server-4W
Pre-Loaded 4/W Concert Server Assembly:
Server Hardware equipped with 8 duplex 4-Wire audio ports and pre-loaded with Concert Server software. Includes
breakout to 16 XLRs (8 Inputs and 8 Outputs). Utilizes an ASI5640 sound card.
CHF
7'133.70 CHF
7'704.40
CONCERT-RJ45-CBL-DONGLE
RJ45 Adaptor Cable for Concert Server:
RJ45 adaptor cable for Concert servers which fitted with an Audio Science ASI5640 sound card. Supports up to 8 bidirectional voice channels to Eclipse matrix systems.
CHF
677.25 CHF
731.45
CHF
3'002.50 CHF
3'242.65
2 Ch, Partyline IP communications interface:
Two channel Partyline IP communications interface for extending Partyline audio communications and call signaling
to remote sites over IP networks (LAN, WAN, Internet). Supports two channels of audio and signaling which can be
routed to up to five other LQ units
CHF
3'002.50 CHF
3'242.65
Pre-Loaded 4/W Concert Server Assembly:
Server Hardware equipped with 8 duplex 4-Wire audio ports and pre-loaded with Concert Server software. Includes
breakout to 16 XLRs, (8 Inputs and 8 Outputs). Uses an ASI5640 sound card.
CHF
7'133.70 CHF
7'704.40
CZ12037
ProGrid Live Package:
ProGrid Package suitable for live events, stage boxes to back of house, sport venues and large corporate AV.
Comprises of one PG2-MADI-C-FX interface to audio consoles and/or router, one - PG16-8MI/8LO-FX and one PG16-8MI/8LO-TP as I/O to stage devices and two LQ LQ-2W2 PL intercom interfaces. The price includes MultiMode Transceivers and Factory System ID Configuration.
CHF
34'193.60 CHF
36'929.10
CZ12039
ProGrid Yamaha Package:
ProGrid Yamaha Sound desk Package suitable for live events, large corporate AV and touring theater to provide
stage mics to console connections. The remote stage box mic gains can be controlled from the Yamaha desk
surface over ProGrid. Comprises of three Y3R-TP interface to the Yamaha audio console, one PG2-MADI-C-FX
MADI interface and two PG16-8MI/8LO-FX as I/O to stage devices. The price includes Multi-Mode Transceivers and
Factory System ID Configuration.
CHF
30'927.75 CHF
33'401.95
CZ12038
ProGrid MADI Console Package:
ProGrid Sound desk Package suitable for multi-stage live events, large corporate AV and fixed audio installs to
provide stage mics, line/I/O to console connections over MADI. Two PG2-MADI-C-FXM Co-axial MADI interface and
one PG32-AES-FX interface for the remote stage box. The price includes Multi-Mode Transceivers and Factory
System ID Configuration.
CHF
23'432.85 CHF
25'307.50
PG32-AES-FX
ProGrid 4x8 AES3 Iface:
1RU, 4x 8 AES3 channels ports, allowing any I/O combination of 32 AES3 (64 mono channels), Dual PSU, Fiber &
SANE Twisted Pair CAT5. This unit does not include fiber transceivers. Transceivers must be ordered separately
from the options given.
CHF
8'608.60 CHF
9'297.30
PG2-MADI-F-FX
ProGrid 2xMADI Iface SM:
1RU, 2x 64 MADI In + 2x 64 MADI Out via SC optical port, Dual PSU, Fiber & SANE Twisted Pair CAT5. This unit
does not include fiber transceivers. Transceivers must be ordered separately from the options given.
CHF
8'375.35 CHF
9'045.35
PG2-MADI-C-FX
ProGrid 2xMADI If BNC MM:
1RU, 2x 64 MADI In + 2x 64 MADI Out via BNC port, Dual PSU, Fiber & SANE Twisted Pair CAT5. This unit does not CHF
include fiber transceivers. Transceivers must be ordered separately from the options given.
8'375.35 CHF
9'045.35
ICON (INTERCOM CONNECTIVITY SOLUTIONS)
These products can be used to extend Clear-Com into other Intercom or Audio Systems.
LQ 2W and 4W IP Interfaces
LQ-4W2
LQ-2W2
2 Ch, 4-Wire IP communications interface:
Two channel 4-Wire IP communications interface for extending 4-Wire audio communications and call signaling to
remote sites over IP networks (LAN, WAN, Internet). Supports two channels of audio and which can be routed to up
to five other LQ units
ICON IP Audio Networking
Concert-Server-4W
SIGNAL TRANSPORT SOLUTIONS
ProGrid System Packages
All devices (except Yamaha models) include dual PSU
ProGrid R Series DD Products
All devices include dual PSU
ProGrid R Series Converter Products
All devices include dual PSU
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
PG16-16MI-FX
ProGrid 16 Mic ip Ifce FX:
1RU, 16 Microphone Inputs, Dual PSU, Single Mode Fiber & SANE Twisted Pair CAT5, includes 17 x 3-pole
Euroblock screw connectors. This unit does not include fiber transceivers. Transceivers must be ordered separately
from the options given.
CHF
11'317.60 CHF
12'223.00
PG16-16MI-TP
ProGrid 16 Mic ip Ifce TP:
1RU, 16 Microphone Inputs, Dual PSU, SANE Twisted Pair CAT5 Only, includes 17 x 3-pole Euroblock screw
connectors
CHF
9'376.15 CHF
10'126.25
PG16-16LI-FX
ProGrid 2x8 lne ip If FX:
1RU, 2 x 8 channel Line Inputs, Dual PSU, Fiber & SANE Twisted Pair CAT5, includes 17 x 3-pole Euroblock screw
connectors. This unit does not include fiber transceivers. Transceivers must be ordered separately from the options
given.
CHF
9'895.40 CHF
10'687.00
PG16-16LI-TP
ProGrid 2x8 lne ip If TP:
1RU, 2 x 8 channel Line Inputs, Dual PSU, SANE Twisted Pair CAT5 Only, includes 17 x 3-pole Euroblock screw
connectors
CHF
7'953.95 CHF
8'590.25
PG16-16LO-FX
ProGrid 2x8 lne op If FX:
1RU, 2 x 8 channel Line Outputs, Dual PSU, Fiber & SANE Twisted Pair CAT5, includes 17 x 3-pole Euroblock
screw connectors. This unit does not include fiber transceivers. Transceivers must be ordered separately from the
options given.
CHF
10'361.95 CHF
11'190.90
PG16-16LO-TP
ProGrid 2x8 lne op If TP:
1RU, 2 x 8 channel Line Outputs, Dual PSU, SANE Twisted Pair CAT5 Only, includes 17 x 3-pole Euroblock screw
connectors
CHF
8'420.50 CHF
9'094.10
PG16-8MI-8LI-FX
ProGrid 8 Mic 8 ip If FX:
1RU, 1 x 8 channel Microphone Inputs, 1 x 8 channel Line Inputs, Dual PSU, Fiber & SANE Twisted Pair CAT5,
includes 17 x 3-pole Euroblock screw connectors. This unit does not include fiber transceivers. Transceivers must be
ordered separately from the options given.
CHF
10'602.75 CHF
11'450.95
PG16-8MI-8LI-TP
ProGrid 8 Mic 8 ip If TP:
1RU, 1 x 8 channel Microphone Inputs, 1 x 8 channel Line Inputs, Dual PSU, SANE Twisted Pair CAT5 Only,
includes 17 x 3-pole Euroblock screw connectors
CHF
8'661.30 CHF
9'354.20
PG16-8MI-8LO-FX
ProGrid 8 Mic 8 op If FX:
1RU, 1 x 8 channel Microphone Inputs, 1 x 8 channel Line Outputs, Dual PSU, Fiber & SANE Twisted Pair CAT5,
includes 17 x 3-pole Euroblock screw connectors. This unit does not include fiber transceivers. Transceivers must be
ordered separately from the options given.
CHF
10'836.00 CHF
11'702.90
PG16-8MI-8LO-TP
ProGrid 8 Mic 8 op If TP:
1RU, 1 x 8 channel Microphone Inputs, 1 x 8 channel Line Outputs, Dual PSU, SANE Twisted Pair CAT5 Only,
includes 17 x 3-pole Euroblock screw connectors
CHF
8'894.55 CHF
9'606.10
PG16-8LI-8LO-FX
ProGrid 8 ip 8 op If FX:
1RU, 1 x 8 channel Line Inputs, 1 x 8 channel Line Outputs, Dual PSU, Fiber & SANE Twisted Pair CAT5, includes
17 x 3-pole Euroblock screw connectors. This unit does not include fiber transceivers. Transceivers must be ordered
separately from the options given.
CHF
10'128.65 CHF
10'938.95
PG16-8LI-8LO-TP
ProGrid 8 ip 8 op If TP:
1RU, 1 x 8 channel Line Inputs, 1 x 8 channel Line Outputs, Dual PSU, SANE Twisted Pair CAT5 Only, includes 17 x CHF
3-pole Euroblock screw connectors
8'187.20 CHF
8'842.20
PG16-8DMPRE-FX
ProGrid 8 dual Mic If FX:
1RU, 1 x 8 channel Microphone Inputs with dual preamps and converters, Dual PSU, Fiber & SANE Twisted Pair
CAT5, includes 17 x 3-pole Euroblock screw connectors. This unit does not include fiber transceivers. Transceivers
must be ordered separately from the options given.
CHF
9'564.30 CHF
10'329.40
PG16-8DMPRE-TP
ProGrid 8 dual Mic If TP:
1RU, 1 x 8 channel Microphone Inputs with dual preamps and converters, Dual PSU, SANE Twisted Pair CAT5 Only,
includes 17 x 3-pole Euroblock screw connectors
CHF
7'622.85 CHF
8'232.65
PG8-8MI-FX
ProGrid 8 Mic ip Ifce FX:
1RU, 1 x 8 channel Microphone Inputs, Dual PSU, Fiber & SANE Twisted Pair CAT5, includes 9 x 3-pole Euroblock
screw connectors. This unit does not include fiber transceivers. Transceivers must be ordered separately from the
options given.
CHF
8'420.50 CHF
9'094.10
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
PG8-8MI-TP
ProGrid 8 Mic ip Ifce TP:
1RU, 1 x 8 channel Microphone Inputs, Dual PSU, SANE Twisted Pair CAT5 Only, includes 9 x 3-pole Euroblock
screw connectors.
CHF
6'441.40 CHF
6'956.70
PG8-8LI-FX
ProGrid 1x8 lne ip If FX:
1RU, 1 x 8 channel Line Inputs, Dual PSU, Fiber & SANE Twisted Pair CAT5, includes 9 x 3-pole Euroblock screw
connectors. This unit does not include fiber transceivers. Transceivers must be ordered separately from the options
given.
CHF
7'705.60 CHF
8'322.05
PG8-8LI-TP
ProGrid 1x8 lne ip If TP:
1RU, 1 x 8 channel Line Inputs, Dual PSU, SANE Twisted Pair CAT5 Only, includes 9 x 3-pole Euroblock screw
connectors.
CHF
5'726.55 CHF
6'184.65
PG8-8LO-FX
ProGrid 1x8 lne op If FX:
1RU, 1 x 8 channel Line Outputs, Dual PSU, Fiber & SANE Twisted Pair CAT5, includes 9 x 3-pole Euroblock screw
connectors. This unit does not include fiber transceivers. Transceivers must be ordered separately from the options
given.
CHF
7'938.90 CHF
8'574.00
PG8-8LO-TP
ProGrid 1x8 lne op If TP:
1RU, 1 x 8 channel Line Outputs, Dual PSU, SANE Twisted Pair CAT5 Only, includes 9 x 3-pole Euroblock screw
connectors.
CHF
5'922.20 CHF
6'395.95
PG8-INTERCOM-CC-FX
ProGrid 8 422C Icom If FX:
1RU, 8 x 4-channel Intercom Inputs + 8 x 4-channel Intercom Outputs, Dual PSU, Fiber & SANE Twisted Pair CAT5,
Clear-Com Intercom. This unit does not include fiber transceivers. Transceivers must be ordered separately from the
options given.
CHF
8'330.20 CHF
8'996.60
PG8-INTERCOM-485-FX
ProGrid 8 485R Icom If FX:
1RU, 8 x 4-channel Intercom Inputs + 8 x 4-channel Intercom Outputs, Dual PSU, Fiber & SANE Twisted Pair CAT5,
Intercom with RS485 data. This unit does not include fiber transceivers. Transceivers must be ordered separately
from the options given.
CHF
8'330.20 CHF
8'996.60
PG8-INTERCOM-444-FX
ProGrid 8 444 Icom If FX:
1RU, 8 x 4-channel Audio Inputs and Outputs, Dual PSU, Fiber & SANE Twisted Pair CAT5, Intercom with 4 GPIO.
This unit does not include fiber transceivers. Transceivers must be ordered separately from the options given.
CHF
8'330.20 CHF
8'996.60
PG4-INTERCOM-CC-FX
ProGrid 4 422C Icom If FX:
1RU, 4 x 4-channel Intercom Inputs + 4 x 4-channel Intercom Outputs, Dual PSU, Fiber & SANE Twisted Pair CAT5,
Clear-Com intercom. This unit does not include fiber transceivers. Transceivers must be ordered separately from the
options given.
CHF
6'923.00 CHF
7'476.85
PG4-INTERCOM-485-FX
ProGrid 4 485R Icom If FX:
1RU, 4 x 4-channel Intercom Inputs + 4 x 4-channel Intercom Outputs, Dual PSU, Fiber & SANE Twisted Pair CAT5.
This unit does not include fiber transceivers. Transceivers must be ordered separately from the options given.
CHF
6'923.00 CHF
7'476.85
PG4-INTERCOM-444-FX
ProGrid 4 444 Icom If FX:
1RU, 4 x 4-channel Intercom Inputs + 4 x 4-channel Intercom Outputs, Dual PSU, Fiber & SANE Twisted Pair CAT5.
This unit does not include fiber transceivers. Transceivers must be ordered separately from the options given.
CHF
6'923.00 CHF
7'476.85
2 x 4 Ch CC I-com + 4 video i/o fiber i/f:
A set of two point to point Broaman Intercom and Video interfaces each with two SANE CAT5 network ports and
Optocore Single-Mode LC Fiber interface, includes 4 Clear-Com RS422 intercom channels, 4 3G-SDI video inputs
and 4 3G-SDI video outputs. A separate sync output is available. GPIO Option card. Redundant PSU included. Both
Broaman MUX interfaces are required for an end to end link.
CHF
41'974.45 CHF
45'332.40
YG2
Yamaha Master module:
Master module with 8 or 16 audio I/O, HA Remote transport, 10/100Mb Fast Ethernet port.
CHF
3'499.15 CHF
3'779.05
YS2
Yamaha Slave module:
Slave module with 8 or 16 audio I/O. Up to 3x YS2 in 16 channel mode or up to 7x YS2 in 8 channel mode when
used in conjunction with 1x YG2 module.
CHF
1'166.40 CHF
1'259.70
Y3R-TP
Yamaha SANE module:
SANE module with 8 or 16 audio I/O, HA Remote transport, 10/100Mb Fast Ethernet port. Each card is independent
and multiple cards can be used in one Yamaha console.
CHF
1'286.80 CHF
1'389.70
ProGrid R Series Intercom Products
Broaman Video Audio Networking Devices All devices include dual PSU
MUX-22-CC
ProGrid Yamaha Products
ProGrid Fiber Transceivers
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
PG-SMFO-2G
ProGrid Single mode XCVR 2G bit:
A pair of Single Mode fiber transceivers for any ProGrid single interface. Price is for 2 transceivers per unit.
CHF
647.15 CHF
698.90
PG-MMFO-2G
ProGrid Multi mode XCVR 2G bit:
A pair of Multi Mode fiber transceivers for any ProGrid single interface. Price is for 2 transceivers per unit.
CHF
225.75 CHF
243.80
OC2-1-LC
ProGrid 1RU PB 2L 1LC:
1U patch bay with 1 panel mounted 2 lens Expanded Beam connector with one duplex Multi Mode fiber (2 meters)
with LC connectors (formerly part no. OptoCon 4/1).
CHF
910.55 CHF
983.35
OC2-150
ProGrid 150M 2F MM CAB:
150m of 2 fiber Multi Mode tactical road ready cable on OCD- cable drum with hermaphroditic Expanded Beam
connectors. (Formerly part no. Opto Cable 4/150).
CHF
3'559.35 CHF
3'844.05
INTEROPERABILITY
CC-Gateway Radio and Telecom Interfaces
CC-GATEWAY X1 2 Port Compact Gateway
CG-X1-M4W1
Clear-Com X1 4-wire Gateway:
Compact 4 wire gateway with external power supply, two ports of 4-wire, for radio bridging, audio interfacing, with
Clear-Com signaling for Eclipse and HelixNet.
CHF
2'392.95 CHF
2'584.40
CG-X1-MIP1
Clear-Com X1 IP Gateway:
Compact IP gateway with external power supply, one Ethernet port, and one 4-wire port, with SIP for ROIP, and
VOIP applications. Supports 8 SIP accounts.
CHF
2'844.45 CHF
3'072.00
CG-X4 -M4W1
Clear-Com X4 Gateway -2 ports 4-wire:
Expandable modular gateway platform with external power supply, two ports of 4-wire, for radio bridging, audio
interfacing, with Clear-Com signaling for Eclipse and HelixNet.
CHF
5'252.45 CHF
5'672.65
CG-X4 -M4W2
Clear-Com X4 Gateway -4 ports 4-wire:
Expandable modular gateway platform with external power supply, four ports of 4-wire, for radio bridging, audio
interfacing, with Clear-Com signaling for Eclipse and HelixNet.
CHF
6'147.95 CHF
6'639.75
CG-X4 -M4W3
Clear-Com X4 Gateway -6 ports 4-wire:
Expandable modular gateway platform with external power supply, six ports of 4-wire, for radio bridging, audio
interfacing, with Clear-Com signaling for Eclipse and HelixNet.
CHF
7'043.40 CHF
7'606.85
CG-X4 -M4W4
Clear-Com X4 Gateway- 8 ports 4-wire:
Expandable modular gateway platform with external power supply, eight ports of 4-wire, for radio bridging, audio
interfacing, with Clear-Com signaling for Eclipse and HelixNet.
CHF
7'938.90 CHF
8'574.00
CG-X4-MIP1
Clear-Com X4 Gateway- 1 port IP, 1 port 4-wire:
Expandable modular IP gateway with external power supply, one Ethernet port, and one 4-wire port, with SIP for
ROIP, and VOIP applications. Supports 8 SIP accounts.
CHF
5'703.95 CHF
6'160.25
CG-X4 -MIP1-M4W1
Clear-Com X4 Gateway- 1 port IP, 3 ports 4-wire:
Expandable modular IP gateway with external power supply, one Ethernet port, and three 4-wire ports, with SIP for
ROIP, and VOIP applications. Supports 8 SIP accounts.
CHF
6'599.45 CHF
7'127.40
CG-X4 -MIP1-M4W2
Clear-Com X4 Gateway- 1 port IP, 5 ports 4-wire:
Expandable modular IP gateway with external power supply, one Ethernet port, and five 4-wire ports, with SIP for
ROIP, and VOIP applications. Supports 8 SIP accounts.
CHF
7'494.90 CHF
8'094.50
Clear-Com X4 Gateway- 1 port IP, 7 ports 4-wire:
Expandable modular IP gateway with external power supply, one Ethernet port, and seven 4-wire ports, with SIP for
ROIP, and VOIP applications. Supports 8 SIP accounts.
CHF
8'262.45 CHF
8'923.45
CG-X41-RU
19” Rack mount for one X4 Gateway:
1RU rack mount shelf with mounting flanges for one X4 gateway
CHF
790.15 CHF
853.35
CG-X42-RU
19” Rack mount two X4 Gateways:
1RU rack mount shelf with mounting flanges for two X4 gateways
CHF
872.90 CHF
942.75
CGX-MF
Mounting Flanges for X4 Gateways:
2 flanges, for mounting X4 gateways
CHF
37.65 CHF
40.65
CC-GATEWAY X4 2-8 Port Compact Gateway
CC-GATEWAY Multi-Port Frames
CG-X4 -MIP1-M4W3
CC-GATEWAY Accessories
HME Retail CHF Pricelist April 2015
April 2015
New Product
Part
Price List Description
Price CHF
excl. 8% VAT
Price CHF
incl. 8% VAT
CG-C3
Eclipse Matrix/HelixNet 4-wire cable 3Ft:
Interface cable with correct pin outs for connecting Clear-Com gateway ports to Eclipse/HelixNet ports, RJ45.
CHF
22.60 CHF
24.40
CGX-PS
X4/X1 Gateway Chassis power supply:
External power supply with locking connector
CHF
248.35 CHF
268.20
CG-MIP
VoIP/RoIP Module 1 port IP, 1 port 4-wire:
Gateway module with one Ethernet port, and one 4-wire port, with SIP for ROIP, and VOIP applications. Supports 8
SIP accounts.
CHF
1'347.00 CHF
1'454.75
CG-M4W
Two-Port 4-wire Interface:
Gateway module with two ports of 4-wire, for radio bridging, audio interfacing, with Clear-Com signaling for Eclipse
and HelixNet.
CHF
895.50 CHF
967.10
CG-MDR
Digital Radio Module - 3 ports virtual,1 port serial:
3 channel Digital Voice Systems: AMBE-3003™ Vocoder encode or decode AMBE™
CHF
1'798.50 CHF
1'942.35
CG-MCF
Conferencing Module - 32 ports:
Used to provide 4-wire port conference bridging with X12 and X32 Gateway frames.
CHF
1'046.00 CHF
1'129.65
CG-MPF
Multi-Port- X4 Four Slot Expansion Chassis - supports 8 ports:
Module chassis for X12 and X32, supports 4 gateway modules.
CHF
2'852.00 CHF
3'080.15
CG-X12
Clear-Com X12 Gateway Server- 3 Slots:
Platform for multiple ports and gateway software applications. Supports 24 ports
CHF
14'937.15 CHF
16'132.10
CG-X32
Clear-Com X32 Gateway Frame- 8 Slots:
Expansion frame applications requiring large port counts. Supports 64 ports
CHF
15'494.00 CHF
16'733.50
CG-X1
Single Slot-X1 Gateway chassis with power supply:
One slot gateway chassis, supports one Clear-Com Gateway module
CHF
1'497.50 CHF
1'617.25
CG-X4
Four Slot - X4 Gateway chassis with power supply:
Four slot gateway chassis, supports four Clear-Com Gateway modules
CHF
4'357.00 CHF
4'705.55
CC-GATEWAY Multi-Port Frames
CC-GATEWAY Modules
CC-GATEWAY Chassis
Gotham Swiss VAT Number: CHE-108.113.335 MwST, ZAZ 2935-5
Swiss Bank:
ZKB AG 8953 Dietikon, Clearing Nr. 700, Swift ZKBK CH ZZ 80A
CHF IBAN CH44 0070 0111 5002 6205 6 (USD-and EUR-upon request)
Schweizerische Post Bank
Konto: 80-6584-3, BIC: POFICHBEXXX, IBAN CH81 0900 000 8000 6584 3
Beneficiary: Gotham LTD, CH 8953 Dietikon
We reserve the right to deny orders for any reasons what so ever.
01.04.2015
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
