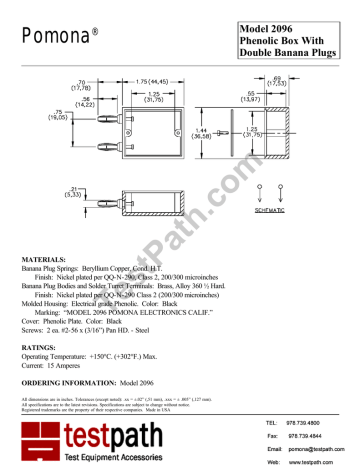

Pomona 2096 Datasheet

Pomona 2096 Datasheet
Model 2096
Phenolic Box With
Double Banana Plugs
Pa
t
h.
co
m
Pomona
®
Te
st
MATERIALS:
Banana Plug Springs: Beryllium Copper, Cond. H.T.
Finish: Nickel plated per QQ-N-290, Class 2, 200/300 microinches
Banana Plug Bodies and Solder Turret Terminals: Brass, Alloy 360 ½ Hard.
Finish: Nickel plated per QQ-N-290 Class 2 (200/300 microinches)
Molded Housing: Electrical grade Phenolic. Color: Black
Marking: “MODEL 2096 POMONA ELECTRONICS CALIF.”
Cover: Phenolic Plate. Color: Black
Screws: 2 ea. #2-56 x (3/16”) Pan HD. - Steel
RATINGS:
Operating Temperature: +150°C. (+302°F.) Max.
Current: 15 Amperes
ORDERING INFORMATION: Model 2096
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888’403-3360
Technical Assistance: 800-241-2060
S:\Engineering \Release\DataSheets\FlukeDataSheet\d2096_1_01.doc
PomonaACCESS 90125 (800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
