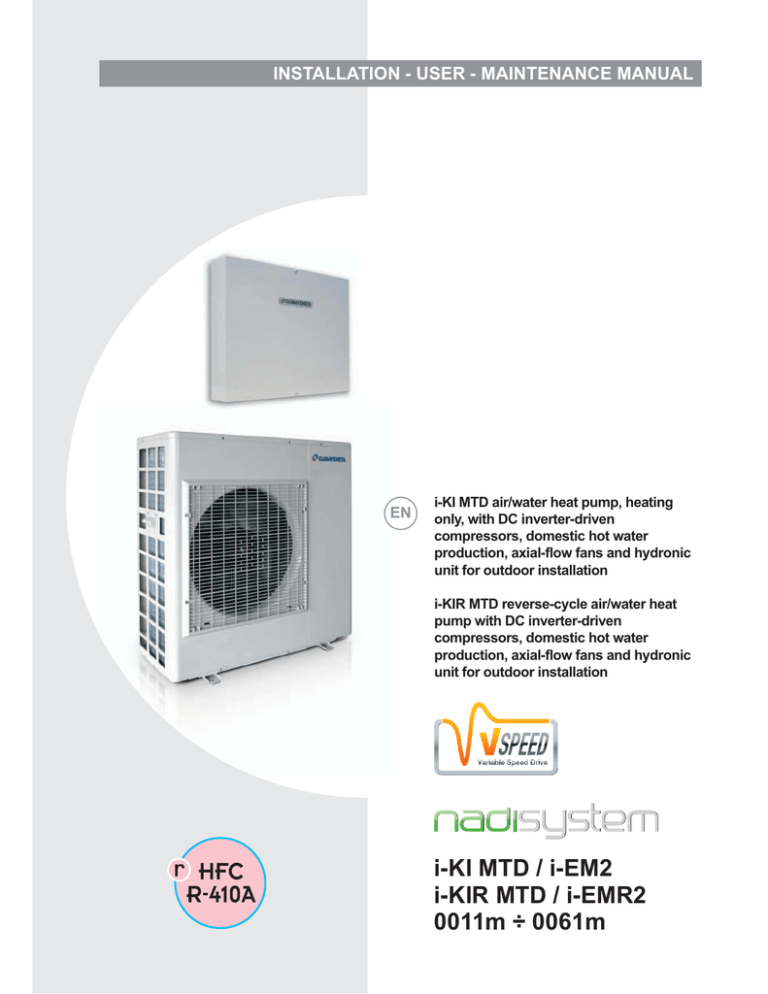

INSTALLATION - USER - MAINTENANCE MANUAL

EN

i-KI MTD air/water heat pump, heating only, with DC inverter-driven compressors, domestic hot water production, axial-flow fans and hydronic unit for outdoor installation i-KIR MTD reverse-cycle air/water heat pump with DC inverter-driven compressors, domestic hot water production, axial-flow fans and hydronic unit for outdoor installation

i-KI MTD / i-EM2 i-KIR MTD / i-EMR2

0011m ÷ 0061m

INDEX

U I A

General warnings

U I A

Waiver of liability

U I A

Fundamental safety rules

I A

Receiving and handling the product

U I A

Unit identification

I

I A

Description of standard unit

Dimensioned drawings

I

Minimum clearances

I A

Heat pump installation

I A

Inside module installation

I A

Water connections

I A

Electrical connections

I A

Inside module electrical panel layout

I A

Mains power supply connections

I A

Installer connections to be performed on the inside module

17

18

20

10

11

12

16

8

9

6

7

3

4

3

3

I A

General technical data

I A

Operating limits

A

Checking and starting up the unit

A

Description of room controller buttons and display

A

Disposal

U I A

Useful information

U I A

List of parameters

U I A

Installer operations CHECKLIST

31

32

34

36

A

Operation and functions of the room controller 37

A

Control and operating characteristics 46

U I A

System configuration 51

A

Maintenance and service

A

Shutting down for long periods

A

Routine maintenance

A

Special maintenance

57

62

62

63

63

63

64

66

The following symbols are used in this publication and inside the unit:

U

User

I

Installer

A

Assistance

Important

Prohibition

Danger voltage

Eurovent certification program.

The manufacturer reserves the right to modify the data in this manual without warning.

Danger high temperatures

2

i-KI MTD / i-KIR MTD EN 10/2010

GENERAL WARNINGS

These appliances have been designed to chill and/or heat water and must be used in applications compatible with their performance characteristics; these appliances are designed for residential or similar applications.

Incorrect installation, regulation and maintenance or improper use absolve the manufacturer from all liability, whether contractual or otherwise, for damage to people, animals or things.

Only those applications specifically indicated in this list are permitted

Read this manual carefully. All work must be carried out by qualified personnel in conformity with legislation in force in the country concerned.

The warranty is void if the above instructions are not respected and if the unit is started up for the first time without the presence of personnel authorised by the

Company (where specified in the supply contract) who should draw up a “start-up” report.

U I A

The documents supplied with the unit must be consigned to the owner who should keep them carefully for future consultation in the event of maintenance or service.

All repair or maintenance work must be carried out by the Company’s Technical Service or qualified personnel following the instructions in this manual.

The air-conditioner must under no circumstances be modified or tampered with as this may create situations of risk. Failure to observe this condition absolves the manufacturer of all liability for resulting damage.

WAIVER OF LIABILITY

This publication is the sole property of Manufacturer. Any reproduction or disclosure of such is strictly prohibited without the written authorisation of Manufacturer.

This document has been prepared with maximum care and attention paid to the content shown. Nonetheless, Manufac-

turer waives all liability deriving from the use of such document.

U I A

Read this document carefully. All work must be performed, components selected and materials used in complete accordance with the legislation in force in material in the country concerned, and considering the operating conditions and intended uses of the system, by qualified personnel.

FUNDAMENTAL SAFETY RULES

U I A

Ricordiamo che l’utilizzo di prodotti che impiegano energia elettrica ed acqua, comporta l’osservanza di alcune regole fondamentali di sicurezza quali:

The unit must not be used by children or by unfit persons without suitable supervision.

Do not touch the unit with bare feet or with wet or damp parts of the body.

Never perform any cleaning operations before having disconnected the unit from the mains power supply.

Do not modify safety or control devices without authorisation and instructions from the manufacturer.

Do not pull, detach or twist the electrical cables coming from the unit, even when disconnected from the mains electricity supply.

Do not open doors or panels providing access to the internal parts of the unit without first ensuring that the switch QF1 is in the OFF position (see the wiring diagram).

Do not introduce pointed objects through the air intake and outlet grills.

Do not dispose of, abandon or leave within reach of children packaging materials (cardboard, staples, plastic bags, etc.) as they may represent a hazard.

Respect safety distances between the unit and other equipment or structures. Guarantee adequate space for access to the unit for maintenance and/or service operations.

Power supply: the cross section of the electrical cables must be adequate for the power of the unit and the power supply voltage must correspond with the value indicated on the respective units. All units must be earthed in conformity with legislation in force in the country concerned.

Terminals 6, 7, 9, 10, 11, 12, 13, 21, 22 on the inside

module may be live even when the unit has been disconnected. Check for voltage before proceeding.

Water connections should be carried out as indicated in the instructions to guarantee correct operation of the unit. Add glycol to the water circuit if the unit is not used during the winter or the circuit is not emptied.

Handle the unit with the utmost care (see weight distribution table) to avoid damage.

EN 10/2010 i-KI MTD / i-KIR MTD

3

RECEIVING AND HANDLING THE PRODUCT

VISUAL INSPECTION

When the items are consigned by the carrier:

- make sure that the goods delivered correspond to the description on the delivery note, comparing this against the data on the packaging label.

- make sure the packaging and the unit are intact.

If damage or missing components are noted, indicate this on the delivery note. A formal complaint should be sent via fax or registered post to the After Sales Department within eight days from the date of receipt of the items.

I A

STORING THE UNITS

The units must be stored sheltered from direct sunlight, rain, wind or sand.

Avoid exposing the units to direct sunlight, as the pressure inside the refrigerant circuit may reach dangerous values and cause the activation of the safety valves, where fitted.

The units cannot be stacked.

The packaging should not be removed until the unit is located in the installation site.

HANDLING PACKAGED UNITS

The unit should always be handled by qualified personnel using equipment adequate for the weight of the unit, in compliance with the safety standards in force (and subsequent amendments).

Lifting by forklift (1)

Insert the forks under the long side of base, opening the forks as fare as possible.

Lifting by crane (2)

Use slings with hooks suitable for the weight being lifted.

Secure the hook to the lifting bracket fixed to the unit, use always four equal length slings, as shown in the figure, to ensure the weight is balanced.

The weight of the unit is biased towards the compressor side.

During transport, the unit should be kept in a vertical position.

1

HEAT PUMP

H

P

L

Bar code

(compressor side)

i-KI/i-KIR Dimensions

Dimension L

Dimension P

Dimension H

Gross weight

0011m 0031m 0061m

mm 985 1040 1120 mm 425 550 470 mm 865

Kg 62

940

91

1610

136

2

INSIDE MODULE

B

H

L

P

i-EM2/i-EMR2 Dimensions

Dimension L

Dimension P

Dimension H

Gross weight mm mm mm

Kg

0011m÷0061m

430

350

180

6,3

4

i-KI MTD / i-KIR MTD EN 10/2010

RECEIVING AND HANDLING THE PRODUCT

REMOVING THE PACKAGING

The packaging must be removed by the operator using suitable protective equipment (gloves, glasses, etc.).

Take special care not to damage the unit. Observe the local standards in force as regards disposal of the packaging, using specialist collection or recycling centres.

Do not dispose of packaging materials in the environment or leave them within reach of children as they may represent a hazard.

Envelope B located in the inside module contains:

• user manual;

• CE declaration;

• installation - user - maintenance manual

• 2 fittings complete with probe socket;

• remote room control unit A5 (must be installed)

The following probes are already connected to the inside module and must be positioned in the system:

• DHW storage water temperature probe BT8

• outside air temperature probe BT11 (must be installed)

• probe BT9 only to be installed when supplementary source is available

• system return BT1 and outlet BT2 water temperature probes, to be placed in the probe socket on the fittings supplied

Envelope A located in the outside module contains:

• Condensate drain elbow fitting

• CE declaration

Make sure the components listed above are not lost or misplaced.

HANDLING UNPACKAGED UNITS

When the packaging has been removed:

• Remove the base.

• Fit the vibration damping feet (accessories).

• Handle the unit using equipment that is suitable for its weight (forklift or crane), in compliance with the safety standards in force (and subsequent amendments).

• Do not drag the unit as the feet may be damaged or break.

I A

3

The installation - user - maintenance manual is an integral part of the unit and should therefore be read and kept carefully.

A

Hole Ø22

EN 10/2010 i-KI MTD / i-KIR MTD

5

UNIT IDENTIFICATION

The heat pump can be identified from:

PACKAGING LABEL

Describes the product identification data

Packaging label

U I A

Packaging label

RATING PLATE

Describes the unit technical and performance specifications.

Shows the serial number used to uniquely identify the unit.

The serial number is also used to identify the unit’s spare parts.

If service is required, the following information must be provided to the service centre:

Model, serial number, year of production.

i-KI / i-KIR 0011m

Installation and maintenance operations are much more difficult if the identification plates or anything else needed to clearly identify the product are tampered with, removed or missing.

i-KI / i-KIR 0031m

Rating plate with serial number

Rating plate with serial number

i-KI / i-KIR 0061m

Rating plate with serial number

NOMENCLATURE

i-KI / i-KIR MTD 0011 m size

Power supply voltage: m = 230V/50Hz/1ph

Model

6

i-KI MTD / i-KIR MTD EN 10/2010

DESCRIPTION OF STANDARD UNIT

I A

These air cooled reverse-cycle chillers with axial-flow fans operate with R410A refrigerant fluid and are suitable for outdoor installation.

The units are CE marked, as established by the EU direc-

HEAT PUMP i-KI / i-KIR 0011m

Expansion vessel

Pressure gauge

Air vent valve tives, including the latest amendments, and the corresponding approximated national legislation.

They are factory tested and on site installation is limited to water and electrical connections.

INSIDE MODULE i-EM2 / i-EMR2

Safety valve

Board

Board with display

Terminal block

Compressor

Water pump

HEAT PUMP i-KI / i-KIR 0031m

HEAT PUMP i-KI / i-KIR 0061m

Main board

Board with display

Terminal block

Air vent valve

Pressure gauge

Water pump

Compressor

Safety valve

Safety valve

Air vent valve

Pressure gauge

Terminal block

Board with display

Heat exchanger

Compressor

Water pump

Air vent valve

Expansion vessel

Water inlet

Water outlet

VERSIONS AVAILABLE

i-KI MTD air/water heat pump, heating only, with DC inverter-driven compressors, domestic hot water production, axial-flow fans and hydronic unit.

i-KIR MTD reverse-cycle air/water heat pump with DC inverter-driven compressors, domestic hot water production, axial-flow fans and hydronic unit.

The heat pump is supplied complete with an electronic module to be installed inside the home’s boiler room. The i-EM2 module, for heating only units, and i-EMR2, for reversecycle units, must be supplied at 230V-50Hz and connected to the heat pump.

The i-EM2 and i-EMR2 modules come as standard with a remote display terminal, temperature/humidity probe and outside air temperature probe for system water outlet temperature set point compensation.

Further information and technical specifications are provided in the manual supplied with the electronic module.

EN 10/2010 i-KI MTD / i-KIR MTD

7

DIMENSIONAL DRAWINGS

HEAT PUMP i-KI / i-KIR 0011m

Anchoring foot

57 43

825 73 15,3 300 42

R3/4(20A) Water inlet

Water outlet

HEAT PUMP i-KI / i-KIR 0031m

Anchoring foot

122,5 580 122,5

90

275

60

INSIDE MODULE i-EM2 / i-EMR2

6

333

Water outlet

Water inlet

HEAT PUMP i-KI / i-KIR 0061m

155 540

850

155

70 67

1000 24

Water

1” 1/4

Water

1” 1/4

205 590 205

8

i-KI MTD / i-KIR MTD EN 10/2010

MINIMUM CLEARANCES

HEAT PUMP 0011m

More than

100 mm

More than

600 mm

HEAT PUMP 0061m

More than

100 mm

Wiring cover

More than

600 mm

HEAT PUMP 0031m

More than

120 mm

More than

100 mm

More than

600 mm

INSIDE MODULE i-EM2 / i-EMR2

100

Wiring cover

More than

600 mm

100

More than

100 mm

More than

100 mm

More than

600 mm

More than

600 mm

EN 10/2010 i-KI MTD / i-KIR MTD

9

HEAT PUMP INSTALLATION

CHOICE OF INSTALLATION SITE

Before installing the unit, agree with the customer the site where it will be installed, taking the following points into consideration:

• Check that the fixing points are adequate to support the weight of the unit;

• Pay scrupulous respect to safety distances between the unit and other equipment or structures to ensure that air entering the unit and discharged by the fans is free to circulate.

POSITIONING

• Before handling the unit, check the capacity of the lift equipment used, respecting the instructions on the packaging.

• To move the unit horizontally, make appropriate use of a lift truck or similar, bearing in mind the weight distribution of the unit.

• To lift the unit, insert tubes long enough to allow positioning of the lifting slings and safety pins in the special holes in the base of the unit.

• To avoid the slings damaging the unit, place protection between the slings and the unit.

• The unit should be installed on special vibration dampers.

• See the chapter on DIMENSIONAL DRAWINGS for the support positions and the corresponding weights for the correct sizing of the vibration dampers.

• Fix the unit, making sure it is level and that there is easy access to water and electrical components.

• If the site is exposed to strong winds, fix the unit adequately using tie rods if necessary.

• In heating mode the unit produces a significant quantity of condensate, which must be suitably drained. Condensate drainage must not cause problems to objects or people.

I A

• Follow the instructions shown in the chapter on “Minimum clearances” to allow room for maintenance operations.

• Unit for outdoor installation

If installing multiple units the clearances must be doubled.

• If the outside air temperature is less than 0°C, the condensate may freeze; in these case fit a frost protection heater on the drain line.

• For correct operation of the unit, avoid the following:

- bstacles to air flow

- leaves that may block the heat exchange coil

- strong winds that stop or reinforce air flow

- sources of heat too close to the unit, recirculation or stratification of air

10

i-KI MTD / i-KIR MTD EN 10/2010

HEAT PUMP INSTALLATION

CHOICE OF INSTALLATION SITE

Before installing the unit, agree with the customer the site where it will be installed, taking the following points into consideration:

• the unit must be installed indoors;

• the unit must be installed by fastening to a vertical wall

• safety distances between the unit and other equipment

• careful attention must be paid to structures so as to ensure sufficient ventilation.

• Follow the instructions shown in the chapter on DIMEN-

SIONED DRAWINGS to allow room for maintenance operations.

• The maximum length of the connection cable between i-

KI/i-KIR and the i-EM2/i-EMR inside module is 30 m, making this also the maximum distance between the two modules.

I A

If installing multiple units the clearances must be doubled.

A

POSITIONING

• See the figure on the side for the points used to fasten the module (A) to the vertical wall and corresponding distances.

• Fix the unit, making sure there is easy access.

"PE"

"L"

"N"

"6"

A

"60"

EN 10/2010 i-KI MTD / i-KIR MTD

11

WATER CONNECTIONS

The choice and installation of components is the responsibility of the installer who should follow good working practice and current legislation. Before connecting the pipes, make sure they do not contain stones, sand, rust, dross or other foreign bodies which might damage the unit.

Water connection dimensions

0011m

57 43

(3/4”) water return

(3/4”) water outlet

0031m

(1”) water outlet

(1”) water return

60

0061m

(1” 1/4) water return

(1” 1/4) water outlet

90

I A

Construction of a bypass is recommended to enable the pipes to be washed through without having to disconnect the unit (see drain valves). The connection piping should be supported in such a way as to avoid it weighing on the unit.

Required components

The following components must be installed in the water circuit:

1. A flow switch (inlet). The flow switch must be cali-

brated by the installer to a value equal to 70% of rated flow (obligatory).

2. An intake filter must be installed as close as possi-

ble to the evaporator and positioned to allow easy access for routine maintenance.

Recommended components

The following components should be installed in the water circuit:

1. Two pressure gauges with a suitable scale (intake and outlet);

2. Two vibration damper joints (intake and outlet);

3. Two shut off valves (normal in intake and calibrating in outlet);

4. Two thermometers (intake and outlet);

5. All the pipes must be insulated with suitable material to prevent the formation of condensate and heat loss. The insulating material must be a vapour barrier. Make sure that the control and shut off devices protrude from the insulation.

6. At the lowest points in the system, install drain valves for easy emptying.

7. At the highest points in the system, install automatic or manual air vent valves.

8. The unit is fitted as standard with an expansion vessel (8 liters); make sure this is correctly sized for the water content of the system and the expected operating temperature, otherwise install an additional expansion vessel.

Failure to install the flow switches will mean the heat exchangers are not protected in the event of no flow of liquid. The Manufacturer cannot be held liable for any damage to the unit and/or the system following the failure to install these devices or the filter.

The correct operation of the components that help ensure the safety of the appliance and the system should be checked regularly.

Specifically, this involves cleaning the filters and checking the operation of the flow switches installed.

Make sure that the frost protection heaters on the heat exchanger are powered when the unit is off.

Water flow to the chiller unit must conform to the values shown in the section on “General Technical Data”.

The flow of water must be maintained constant during operation. The water content of the unit must be such as to avoid disturbing operation of the refrigerant circuits.

67 70

12

i-KI MTD / i-KIR MTD EN 10/2010

WATER CONNECTIONS

Probe socket fittings

- Remove the protective caps from the water connections

- Install the probe socket fittings supplied on the system circuit inlet and return. For i-KI/i-KIR 0011m units, install

the 1"-3/4" reducers as standard between the probe

socket fittings and water connections. To fasten the probe socket fittings use two spanners. Place probe BT1 on the inlet connection and BT2 on the outlet connection.

Warnings: use conductive paste to improve the temperature reading.

Fasten the probes placed in the probe sockets to the fittings, using suitable ties.

Risk of freezing

The unit must be prevented from freezing at outside air temperatures around 0°C.

1. use suitable percentages of antifreeze (see “Ethylene glycol solutions”)

2. protect the piping with heating sheaths,

In caso di unità ferma per un lungo periodo di tempo si consiglia di svuotare l’impianto verificando che non vi siano ristagni d’acqua nei punti più bassi dell’impianto o rubinetti chiusi nei quali si possa fermare dell’acqua.

Ethylene glycol solutions

Water and ethylene glycol solutions used as a heat carrier in the place of water reduce the performance of the unit.

Multiply the performance figures by the values given in the following table.

The heat pumps must be fitted with a filling/top-up system connected to the return line and a drain valve in the lowest part of the system.

Systems filled with antifreeze or subject to special legislative requirements must be installed with low-loss headers.

Probe socket

Water outlet connection

Water return connection

I A

It is recommended to use non-toxic food grade antifreeze, compliant with the standards in force in the countries where the unit is used, if domestic hot water production is also featured.

The antifreeze used must be corrosion inhibited and compatible with the water circuit components.

0

Freezing point (°C)

-5 -10 -15 -20 cPf cQ cdp

Percentage of ethylene glycol by weight

0

1

1

1

12%

0,985

1,02

1,07 cPf: cooling capacity correction factor cQ: flow rate correction factor cdp: pressure drop correction factor

20%

0,98

1,04

1,11

28%

0,974

1,075

1,18

35%

0,97

1,11

1,22

-25

40%

0,965

1,14

1,24

Water quality

The manufacturer is not liable for obstruction, breakage or noise resulting from the failure to install filters or vibration dampers.

Particular types of water used for filling or topping up must be treated with appropriate treatment systems.

For reference values, see the table.

PH 6-8

Electrical conductivity less than 200 mV/cm (25°C)

Chlorine ions

Sulphuric acid ions less than 50 ppm less than 50 ppm

Total iron

Alkalinity M

Total hardness

Sulphur ions

Ammonia ions

Silicon ions less than 0.3 ppm less than 50 ppm less than 50 ppm none none less than 30 ppm

Fouling factors

The performance data given refer to conditions with clean evaporator plates (fouling factor = 1).

For different fouling factors, multiply the figures in the performance tables by the coefficient given in the following table.

Fouling factors

(m

2

°C/W) f1

Evaporator fk1

4,4 x 10 -5

0,86 x 10 -4

1,72 x10 -4

-

0,96

0,93 f1: capacity correction factor fk1: compressor power input correction factor fx1: total power input correction factor

-

0,99

0,98

fx1

-

0,99

0,98

EN 10/2010 i-KI MTD / i-KIR MTD

13

WATER CONNECTIONS

System circuit connection

• Use a flat gasket to ensure tightness

• Connect the flexible joints to the probe socket fittings installed on the heat pump

• Connect the system pipes to the flexible joints

• Use two spanners to tighten the water connections

• Install the filter on the system return pipe

Maximum water content in the system

The heat pump is supplied with expansion vessel for the

SYSTEM (NOT FOR DOMESTIC HOT WATER) and a 3 bar safety valve.

The expansion vessel is suitable for the radiant panel system, hydronic terminal system and radiator system with following installation maximum water content *:

Size

0011m

0031m

0061m

l l l

Radiant panel system

Hydronic terminal system

Hot water at 35°C and cold water at 18°C

Hot water at

45°C cold water at 7°C

300

400

400

180

240

240

Radiator system

Up to 60°C

100

135

135

* expansion vessel pre-charged to 150 kPa (max 12 metre height difference)

Water content in the system

The minimum system water content must be guaranteed at all times.

Expansion vessel size

Safety valve calibration

I A

The expansion vessel pre-charge pressure depends on the height the heat pump is installed at.

To determine the pre-charge value, proceed as follows:

Vessel pre-charge = H + 0.3

H in bars (10 metres ~ 1 bar)

H

For height differences exceeding 12 metres, the volume of water in the system as described above may decrease; evaluate whether the expansion vessel supplied is sufficient for each system, otherwise install an additional expansion vessel.

Size

Minimum water content

Size

Expansion vessel

Size

Safety valve l

0011 0031 0061

26 26 60 l

0011 0031 0061

6 8 8 bar

0011 0031 0061

3 3 3

Utility water circuit connection diagram

Factory connections

1

9

8

7

13

Installer connections

1

11

10

9

2

12

11

1

2

4

3

5

F

6

T

13

UTILITY

RETURN

6

T

13

UTILITY

OUTLET

2 Vibration damper joint

3 Shut off valve

12

5 Flow switch (obligatory)

6 Thermometer

7 Pump

10 Wire mesh filter

11 Temperature sensor

12 Unit fill/drain valve

13 System vent

14

i-KI MTD / i-KIR MTD EN 10/2010

WATER CONNECTIONS

Condensate drain

The unit is fitted with condensate pan; this must be connected to a drain system to take away the water that forms, see the drawing.

In heating mode the unit produces a significant quantity of condensate, which must be suitably drained.

Proceed as follows:

• Connect the unit condensate drain

• Make sure the drain hose has a incline of at least 2 cm/m, without obstructions or choking.

• Connect the condensate drain hose to a rainwater drain.

Do not connect to the sewage system as odours may be sucked up if the water in the drain trap evaporates.

• After connecting, check correct drainage of the condensate by pouring water into the pan.

• If necessary, suitably insulate the condensate drain hose.

• Condensate drainage must not cause problems to objects or people.

I A

Hose

Condensate drain elbow fitting

If the outside air temperature is less than 0°C, the condensate drained from the collection pan may freeze.

The unit must be supported on a suitable structure or brackets to keep it off the ground, with a frost protection heater fitted on the drain line.

FILLING THE SYSTEM

ON

OFF

- Before starting to fill, place the unit mains switch QF1 in the OFF position.

- Before filling, check that the system drain valve is closed.

- Open all system and terminal air vents.

- Open system shut off valves.

- Start filling by slowly opening the system water fill valve outside the unit.

- When water begins to leak out of the terminal air vent valves, close them and continue filling until the pressure gauge indicates a pressure of 1.5 bar.

The system must be filled to a pressure of between 1 and 2 bars.

It is recommended that this operation be repeated after the unit has been operating for a number of hours. The pressure in the system should be checked regularly and if it drops below 1 bar, the water content should be topped-up.

Check the tightness of the joints.

EMPTYING THE SYSTEM

ON

OFF

- Before starting to empty, place switch QF1 in the “OFF” position

- Make sure the system fill/top-up water valve is closed.

- Open the drain valve outside the unit and all the installation and terminal air vent valves..

If the fluid in the circuit contains antifreeze, it should not be allowed to drain freely, as it is pollutant.

It should be collected for possible reuse.

When draining after heat pump operation, take care as the water may be hot (up to 50°).

EN 10/2010 i-KI MTD / i-KIR MTD

15

ELECTRICAL CONNECTIONS

The heat pumps must be installed downstream of a main switch (QF1, see wiring diagram), as required by the standards in force in the country where the unit is installed. Connection to the mains power supply and the connection of the flow switch to the corresponding terminals must be performed by authorised personnel in compliance with the standards in force.

For all electrical work, refer to the electrical wiring diagrams in this manual.

It is also recommended to check that:

- The characteristics of the mains electricity supply are adequate for the power ratings indicated in the electrical specifications below, also bearing in mind the possible use of other equipment at the same time.

Power to the unit must be turned on only after installation work (plumbing and electrical) has been completed.

All electrical connections must be carried out by qualified personnel in accordance with legislation in force in the country concerned

Respect instructions for connecting phase, neutral and earth conductors..

The power line should be fitted upstream with a suitable device to protect against short-circuits and leakage to earth, isolating the installation from other equipment.

Voltage must be within a tolerance of ±10% of the rated power supply voltage for the unit (for three phase units, the unbalance between the phases must not exceed 3%).

If these parameters are not respected, contact the electricity supply company.

For electrical connections, use double insulation cable in conformity with legislation in force in the country concerned.

A thermal overload switch and a lockable mains disconnect switch, in compliance with the CEI-EN standards (contact opening of at least 3mm), with adequate switching and residual current protection capacity based on the electrical data table shown below, must be installed as near as possible to the appliance.

An efficient earth connection is obligatory.

The manufacturer cannot be held liable for any damage caused by the failure to correctly earth the unit.

In the case of three phase units, ensure the phases are connected correctly.

Do not use water pipes to earth the unit.

WARNING

• The power supply current rating must be equal to the sum of the current drawn by the air-water heat pump and the current drawn by any other electrical appliances.

If the contracted current rating is insufficient, make sure this is adapted accordingly.

• If the voltage is low and the air-water heat pump has difficulty starting, contact your electricity supplier to have the voltage increased.

I A

How to connect the cables to the terminal

Pay attention during wiring operations

• When stripping a main cable, always use special tools such as wire strippers. If no specific tool is available, strip the wires carefully using a knife, etc.

(1) Use crimp-on terminals with insulating sleeves as illustrated in the figure below for connecting the wires to the terminal block.

(2) Securely fasten the crimp-on terminals to the wires using a special tool, so that the wires don’t come free.

Stripped wire: 10 mm Crimp-on terminal

Sleeve

(3) Use the cables specified, connect them securely and in such a way that they don’t exert pressure on the terminals.

(4) Use a suitable screwdriver to tighten the screws on the terminals. Don’t use damaged screwdrivers, otherwise the screw heads may also be damaged and the screws cannot be tightened correctly.

(5) Don’t over-tighten the screws on the terminals, otherwise they may break.

Screw with special washer

Crimp-on terminal

Cable

Screw with special washer

Crimp-on terminal

Terminal blocks

Cable

Make sure a dedicated power supply with residual current circuit breaker is used.

In accordance with the following designations, use cables with wire sizes as described in the table below.

The power cable must be approved in compliance with IEC

60245 IEC57(H05RN-F)

As concerns all-pole disconnection, the product requires a hard-wired overcurrent protection device in compliance with wiring standards and relevant national requirements. The classification of this device must be suitable for the product specifications.

Size

Power supply cable

(mm 2 )

MAX.

MIN.

0011m

2,0

0031m

4,0

0061m

5,5

1,5

3,5

4,0

Internal electronic module connection cable (mm 2 )

MAX.

2,0

2,5

5,5

MIN.

1,5

1,5

4,0

Swotch rating

(A)

16

20

32

16

i-KI MTD / i-KIR MTD EN 10/2010

ELECTRICAL CONNECTIONS

Strip the end of the connection cables according to the measurements shown in the following drawing.

Power supply

Internal electronic module

Residual current circuit breaker

10 mm 30 mm

I A

WARNING

The connection cable must be stripped along a 10 mm section. If this section is shorter, contact may be defective.

Longer sections may cause short-circuits.

• Use a residual current circuit breaker with a gap of around

3 mm between contacts.

• Poor wiring may not only cause malfunctions but also damage to the PC board.

• Suitably tighten all the screws.

• To check these are tight, tug the cable lightly.

Electrical data at maximum conditions allowed (full load)

Size i-EM2 / i-EMR2

0011m÷0061m

Power supply

(V-Ph-Hz)

230-1-50

Size Power supply i-KI / i-KIR (V-ph-Hz)

0011m

0031m

0061m

230-1-50

230-1-50

230-1-50

Total

F.L.A. F.L.I. S.A.

(A) (kW) (A)

10,9 2,48 0,8

18,3 4,12 1,4

25,0 5,70 1,4

F.L.A.

(A)

6

Fan

F.L.I.

(kW)

0,05

0,10

0,14

FU5

(A)

4

Fuses (5x20T 250V)

FU6

(A)

1,25

FU7

(A)

0,5

Pump Fuses (5x20T 250V)

F.L.I. CF1 CF2 CF3 CF4 CF5 CF6 CF7

(kW) (A) (A) (A) (A) (A) (A) (A)

0,09 15 3,15 3 15 15 15 15

0,13 25 15 5 3,15 3,15 3,15 3,15

0,18 30 5 3 3 3,15 3,15

Maximum values for sizing the protection switches and power supply cables.

F.L.A. Maximum current input

F.L.I. Maximum power input

S.A.

Start-up current

INSIDE MODULE ELECTRICAL PANEL LAYOUT

I A

A3

TC1

A1

PE

U N

6 7 9 10 11 12 13 21 22 25 26 27 28 29 30 33 34 39 40 41 42 43 44 45 46 47 48 49 50 5152 53 54 55 56 57 58 59 60

PE PE

INSTALLER TERMINAL BLOCK

EN 10/2010 i-KI MTD / i-KIR MTD

17

MAINS POWER SUPPLY CONNECTIONS

- Before connecting the unit to the mains power supply, make sure that for each connection to the mains power supply switch QF1 is open (“OFF”).

1

- Remove the protective cover from the heat pump terminal block by unscrewing the fastening screw.

2

ON

OFF

Wiring cover

Screw

I A

- Remove the protective cover from the electrical panel on the inside module by unscrewing the fastening screws and removing the cover.

3

INSIDE MODULE SUPPLIED WITH CONNECTION TO THE HEAT PUMP

- If power is supplied to the inside module via a connection to the heat pump, connect power to the heat pump and the communication cable to the inside module as shown in figure 4.

4

Power supply

Residual current circuit breaker QF1

A

C

L N

1 2

3

PE

U N 60

Connection cable to inside electronic module (C)

Power cable (A)

18

i-KI MTD / i-KIR MTD EN 10/2010

MAINS POWER SUPPLY CONNECTIONS

I A

- Make sure that all the protective devices removed to make the electrical connections have been repositioned before powering up the unit.

- Reposition the wiring cover on the heat pump and the cover on the inside module and fasten them to the unit

- For all mains power connections, move the main switch QF1 (outside the appliance) to “ON”.

HEAT PUMP AND INSIDE MODULE POWERED SEPARATELY

- If power is supplied to the inside module separately from the heat pump, connect power to the heat pump, the communication cable from the heat pump to the inside module and power to the inside module, as shown in figure 5.

5

Power supply

Residual current circuit breaker

QF1

Power supply

Residual current circuit breaker

QF2

A

B

B

C

L N

1

2 3

PE

U N 60

Connection cable to inside electronic module (C)

Power cable (A)

Power cable (B)

- Make sure that all the protective devices removed to make the electrical connections have been repositioned before powering up the unit.

- Reposition the wiring cover on the heat pump and the cover on the inside module and fasten them to the unit

- For all mains power connections, move the main switch QF1 (outside the appliance) to “ON”.

- When connecting the circuit breakers and power cables to the inside and outside module make sure phase and neutral are connected correctly.

EN 10/2010 i-KI MTD / i-KIR MTD

19

INSTALLER CONNECTIONS TO BE PERFORMED ON THE INSIDE MODULE

Below is a list of the electrical connections that the installer needs to complete for the INSIDE MODULE only.

The maximum length of probe cables is 100 m for 1 mm2 cables, and 50 m for 0.5 mm 2 cables.

Outside air probe (BT11) connection

The outside air probe allows the system water temperature set point to be compensated during heating or cooling operation.

Installation instructions

The outside air probe must be installed:

• outside of the home

• not in direct sunlight, away from flue gas discharges, air outlets, or doors and windows.

• on a perimeter wall facing north/north-west

• at a minimum height of 2.5 metres above the ground or at most half way up the house.

Mounting method:

• Open the cover of the sensor by unscrewing the 4 screws.

• Attach a probe to the wall and the correct position as described above.

• For the electrical connections see “Connection diagram”.

• Re-place the cover of the sensor.

BT11

1 2

I A

N-W

N

45 46

Water outlet and return temperature probe BT1 and

BT2 connection to heat pump

• Fit probes BT1 and BT2 in the probe sockets on the heat pump outlet and return fittings using super-conductive paste.

• Fasten the probes to the corresponding fittings using ties.

• Connect the probes to the inside module terminal block as shown in the figure.

• Carefully insulate the entire area of the probe socket fittings so as to prevent condensate or energy losses.

• If the probe cables need to be extended make sure the extensions are positioned indoors or inside the heat pump.

TECHNICAL DATA

Sensing element

Degree of protection

NTC 10Kohm ± 1% (25°C)

IP65

Perm. ambient / carriage temperature -50°C...+100°C

Measuring range

Materials

-50°C...+100°C

PA 15% GK, Colour RAL 9010

BT2

58 59 56 57

Water outlet connection

BT1

Tie

Water return connection

20

i-KI MTD / i-KIR MTD EN 10/2010

Tie

INSTALLER CONNECTIONS TO BE PERFORMED ON THE INSIDE MODULE

A5 room controller connection

Installation instructions

The room controller must be installed in the best reference position for temperature control.

Position the room controller as follows:

• around 1.5 metres from the floor, in a part of the room that allows the sensor to accurately measure the room temperature;

• away from cold air flows, sunlight or other sources of heat.

• leave enough space above the room controller to allow assembly and removal where necessary.

• If the room controller is removed from its base, it disconnects from the power supply and consequently is no longer operating.

Installation procedure

Assembly

• Separate the front from the rear of the terminal using a screwdriver r (1)

• Disconnect the 4-pin connector from the front part (2)

• Remove the cover A1, unscrewing the screw A2 (3).

• Fix the controller support to the wall using the holes A3

(4). Support hole size and spacing in figure (5).

• Make the electrical connections as shown in the figure (6), also see the wiring diagram.

1

3 4

A3

A1

A2

6

A5 room controller terminal block

A3

5

2

131

83,5

E

Installer terminal block

I A

min.

10 cm

51 52 53 54 55

Number of wires

Power supply wire size

Maximum distance

5 shielded

0.5 mm

2

500 m

EN 10/2010 i-KI MTD / i-KIR MTD

21

INSTALLER CONNECTIONS TO BE PERFORMED ON THE INSIDE MODULE

• Close the cover A1 and secure it with the screw A2

• Plug in the 4-pin connector, figure (7)

• Replace the terminal, starting with the lower tabs, applying a hinge movement. Make sure that the electrical wires are inside to ensure correct fastening (click on).

• Dimensions of A5 room controller figure (8).

7

Wall

8

I A

143

8 28

YV5 3-way valve for domestic hot water production

The 3-way valve installed outside of the unit deviates the flow of hot water produced by the unit to the DHW storage tank.

During domestic hot water production, the cooling/heating demand is not satisfied.

Wire the three-way valve supplied as an accessory by Manufacturer following the instructions shown in the figure.

The valve is also fitted with a limit switch. The limit switch contact is either closed or open based on the position of the valve.

Limit switch (red and green wires):

Auxiliary contact closed = Valve open

Auxiliary contact open = Valve closed

If not supplied by Manufacturer, the 3-way valve for domestic hot water production should have the following characteristics:

• Voltage 230V AC, 50/60 Hz

• Opening/closing time 10s.

• Delta P 500 kPa

• Fluid temperature 0°C to 90°C

Use three-way valves with pressure drop below 20 kPa.

For further details see the chapter “Operating characteristics”.

9 12 13

Auxiliary contact

Brown

Black

Blue

Green

Red

Yellow/Green

YV5

If three-way valves with a travel time greater than 10 seconds are used, modify the setting of parameter 0231

Description

Three-way valve travel time for domestic hot water production

Menu

Mn02

Parameter no.

0231

Default

12

Value to be set UOM

Set the travel time for valves not supplied by the heat pump manufacturer sec.

Optional connection

KM2 System outlet electric heater

An electric heater installed at the outlet can be activated as a supplementary heater for the system.

Solution 1

System with heat pump and electric heater with storage tank.

Position probe BT9 in the storage tank.

1

N

6 7

230V / 400V

43 44

BT9

22

i-KI MTD / i-KIR MTD EN 10/2010

INSTALLER CONNECTIONS TO BE PERFORMED ON THE INSIDE MODULE

Solution 2

System with heat pump and outlet electric heater WITHOUT storage tank.

Position probe BT9 on the system outlet pipe.

2

6 7 43 44

230V / 400V

I A

BT9

N

Outlet electric heater control

A) REPLACEMENT: The electric heater is enabled when the outside temperature is less than the value of parameter

0304 and the compressor is off, figure 3.

To enable heater activation in REPLACEMENT mode set parameter 0303 = 1 and 010G = 1.

Electric heater operation reflects the trend in water outlet temperature, as shown on the graph in figure 4.

If the heat pump shuts down due to an alarm, the electric heater is activated automatically regardless of the outside air temperature.

In REPLACEMENT mode the electric heater activation delay time is ignored, and the device is activated immediately if necessary.

Outlet electric heater operating parameters in REPLACE-

MENT mode

Description Menu

Mn03

Parameter no

0300 Activation electrical heater

0 = Electrical Heater not enabled

1 = Electrical Heater enabled

Type of outlet electric heater operation

0 = Supplementary

1 = Replacement

Enable boiler

Mn01

Mn03

0 = Boiler not enabled

1 = Boiler enabled

Activation with low outside air temperature

0 = Function not enabled

1 = Function enabled

Mn03

Outside air temperature to enable electric heater

Integration time to activate outlet electric heaters

Mn03

Mn06

010G

0301

0303

0304

0617

Value to be set

1

1

0

1

Example

-5°C

600

UOM

°C

°C*sec

Set the parameters following the sequence described in the table

B) SUPPLEMENTARY: the electric heater operates in supplementary heating mode, together with the compressor, to satisfy the heating load.

Supplementary heating for low outside air temperature

The electric heater is enabled only when the outside temperature is less than the value of parameter 0304, figure 3.

To enable supplementary heating for low outside air temperature set parameter 0303 = 1 and 010G = 0

Electric heater operation reflects the trend in water outlet temperature, as shown on the graph in figure 4.

Outlet electric heater operating parameters in SUPPLE-

MENTARY mode for OUTSIDE AIR TEMP.

Description Menu

Mn01

Parameter no

0300 Activation electrical heater

0 = Electrical Heater not enabled

1 = Electrical Heater enabled

Type of outlet electric heater operation

0 = Supplementary

1 = Replacement

Enable boiler

0 = Boiler not enabled

1 = Boiler enabled

Activation with low outside air temperature

0 = Function not enabled

Mn03

Mn03

Mn03

1 = Function enabled

Outside air temperature to enable electric heater

Minimum outside air temperature for heat pump operation (make sure the

Mn03

Mn03 value set is the same as shown in the table)

Electric heater delay time (allows the heat pump to reach steady operation and thus avoid activating the heater when not needed)

Integration time to activate outlet electric heaters

Mn06

Mn06

010G

0301

0303

0304

0311

0616

0617

Value to be set

0

1

0

1

Example

-5°C

-20

60

600

UOM

°C

°C min.

°C*sec

Set the parameters following the sequence described in the table

EN 10/2010 i-KI MTD / i-KIR MTD

23

INSTALLER CONNECTIONS TO BE PERFORMED ON THE INSIDE MODULE

Supplementary heating always enabled

Supplementary heating with the electric heater is enabled for all outside air temperatures.

To enable heating at all times set parameter 0303 = 0 and

010G = 0

Electric heater operation reflects the trend in water outlet temperature, as shown on the graph in figure 4.

I A

Outlet electric heater operating parameters in SUPPLE-

MENTARY mode when always ENABLED

Description Menu

Activation electrical heater

0 = Electrical Heater not enabled

1 = Electrical Heater enabled

Type of outlet electric heater operation

0 = Supplementary

1 = Replacement

Enable boiler

0 = Boiler not enabled

1 = Boiler enabled

Activation with low outside air temperature

0 = Function not enabled

1 = Function enabled

Minimum outside air temperature for heat pump operation (make sure the value set is the same as shown in the table)

Electric heater delay time

(allows the heat pump to reach steady operation and thus avoid activating the heater when not needed)

Integration time to activate outlet electric heaters

Mn03

Mn01

Mn03

Mn03

Mn03

Mn06

Mn06

Parameter no

0300

Value to be set

1

010G

0301

0303

0311

0616

0617

0

0

0

-15

60

600

UOM

°C min.

°C*sec

Set the parameters following the sequence described in the table

3

Outlet heater

Enabled

3°C

4

Electric heater activation delay time 0616

Integration time 0617

System water control set point

Actual water temperature

System HP control hysteresis

OFF

0304 Outside temperature to enable outlet heaters

Outside air T

Heater

ON

OFF

Compressor

ON

OFF

Once the heater is enabled, supplementary heating is activated when the integration time set for parameter 0617 is reached and the delay time 0616 has elapsed.

The delay time is ignored when the unit is first started.

Example:

Value 0617 = 600°C*sec

Outlet temperature set point= 50°C

Actual temperature = 40°C

(50 – 40) x 60 sec = 600°Csec. ----> Electric heater ON

Low values of 0617 mean frequent activation of the heater.

Too high values of 0617 mean long delays in activating the heater

24

i-KI MTD / i-KIR MTD EN 10/2010

INSTALLER CONNECTIONS TO BE PERFORMED ON THE INSIDE MODULE

KM2 Boiler

A boiler can be used as a supplementary or replacement heat source for the system.

Solution 1

System with heat pump and boiler with storage tank.

1

6 7 43 44

Boiler

Solution 2

System with heat pump and boiler without storage tank.

2

6 7 43 44

I A

BT9

Boiler control

A) REPLACEMENT: the boiler is only enabled if the outside air temperature is less than the value of parameter 0307 and the compressor is off, figure 3.

To enable boiler activation in REPLACEMENT mode set parameter 0306=1 and 010H = 1

Boiler operation reflects the trend in water temperature, as shown on the graph in figure 4.

If the heat pump shuts down due to an alarm the boiler is activated automatically regardless of the outside air temperature.

In REPLACEMENT mode the activation delay time is ignored, and the boiler is activated immediately if necessary.

B) SUPPLEMENTARY: the boiler operates in supplementary heating mode, together with the compressor, to satisfy the heating load.

Supplementary heating for low outside air temperature

The boiler is enabled only when the outside air temperature is less than the value of parameter 0307, figure 3.

To enable the supplementary heating for outside air temperature set parameter 0306 = 1 and 010H = 0

Boiler operation reflects the trend in water temperature, as shown on the graph in figure 4.

BT9

Boiler

Boiler operating parameters in REPLACEMENT mode

Description Menu

Mn03

Parameter no.

0300

Value to be set

0

UOM

Enable electric heater

0 = Heater not enabled

1 = Heater enabled

Activation Boiler

0 = Boiler not enabled

1 = Boiler enabled

Type of boiler operation

0 = Supplementary

1 = Replacemen

Activation with low outside air temperature

0 = Function not enabled

1 = Function enabled

Outside air temperature to enable boiler

Integration time to activate boiler

Mn03

Mn01

Mn03

Mn03

Mn06

0301

010H

0306

0307

0619

1

1

1

Example

-5°C

600

°C

°C*sec

Set the parameters following the sequence described in the table

Boiler operating parameters in SUPPLEMENTARY mode for outside temperature

UOM

Description Menu

Enable electric heater

0 = Heater not enabled

1 = Heater enabled

Activation Boiler

0 = Boiler not enabled

1 = Boiler enabled

Type of boiler operation

0 = Supplementary

1 = Replacemen

Activation with low outside air temperature

0 = Function not enabled

1 = Function enabled

Outside air temperature to enable boiler

Minimum outside air temperature for heat pump operation (make sure the value set is the same as shown in the table)

Boiler activation delay time (allows the heat pump to reach steady operation and thus avoid activating the boiler when not needed)

Integration time to activate boiler

Mn03

Mn03

Mn01

Mn03

Mn03

Mn03

Mn06

Mn06

Parameter no.

0300

Value to be set

0

0301

010H

0306

0307

0311

0618

0619

1

0

1

Example

-5°C

-20

60

600

°C

°C min.

°C*sec

Set the parameters following the sequence described in the table

EN 10/2010 i-KI MTD / i-KIR MTD

25

INSTALLER CONNECTIONS TO BE PERFORMED ON THE INSIDE MODULE

Supplementary heating always enabled

Supplementary heating by boiler is enabled for all outside air temperatures.

To enable heating at all times set parameter 0306 = 0 and

010H = 0

Boiler operation reflects the trend in water temperature, as shown on the graph in figure 4.

I A

Boiler operating parameters in SUPPLEMENTARY mode when always ENABLED

Description Menu

Enable electric heater

0 = Heater not enabled

1 = Heater enabled

Activation Boiler

0 = Boiler not enabled

1 = Boiler enabled

Type of boiler operation

0 = Supplementary

1 = Replacement

Activation with low outside air temperature

0 = Function not enabled

1 = Function enabled

Outside air temperature to enable boiler

Minimum outside air temperature for heat pump operation (make sure the value set is the same as shown in the table)

Boiler activation delay time (allows the heat pump to reach steady operation and thus avoid activating the boiler when not needed)

Integration time to activate boiler

Mn03

Mn03

Mn01

Mn03

Mn03

Mn03

Mn06

Mn06

Parameter no.

0300

Value to be set

0

0301

010H

0306

0307

0311

0618

0619

1

0

0

Example

-5°C

-25

60

600

UOM

°C

°C min.

°C*sec

Set the parameters following the sequence described in the table

3

Boiler

Enabled

3°C

4

Boiler activation delay time 0618

Integration time 0619

System outlet temperature set point

Actual water temperature

System HP control hysteresis

OFF

0304 Outside temperature to enable boiler

Outside air T

Boiler

ON

OFF

Compressor

ON

OFF

Once the boiler has been enabled, supplementary heating is activated when the integration time set for parameter 0619 is reached and the delay time 0618 has elapsed. The delay time is ignored when the unit is first started.

Example:

Value 0619 = 600°C*sec

Outlet temperature set point= 50°C

Actual temperature = 40°C

(50 – 40) x 60 sec = 600°Csec. ----> Boiler ON

Low values of 0619 mean frequent activation of the boiler.

Too high values of 0619 mean long delays in activating the boiler

26

i-KI MTD / i-KIR MTD EN 10/2010

INSTALLER CONNECTIONS TO BE PERFORMED ON THE INSIDE MODULE

KM4 DHW storage electric heater

An electric heater can be managed for heating the DHW storage.

10 11

DHW storage electric heater control

The electric heater is activated to reach a temperature value that the heat pump on its own is not able to reach.

Example:

Domestic hot water temperature produced with heat pump

0023 = 55°C

Domestic hot water temperature produced with electric heater 0209 = 65°C.

The electric heater works so as to increase the DHW storage temperature from 55°C to 65°C, figure 1

N U

Domestic hot water electric heater

I A

Description

Electric heater operating mode

0 = Heat pump only

1 = Electric heater only

2 = Heat pump + Electric heater

Menu

Mn02

Parameter no.

0202

Value to be set

2

UOM

Domestic hot water temperature set point with heat pump

Domestic hot water temperature set point with heater

Mn00

Mn02

0023

0209

Example

55

Example

65

°C

°C

1

0209

0023

Compressor

ON

OFF

Heater

ON

OFF t

Legionella prevention function with electric heater

The Legionella prevention function ensures the elimination of the Legionella bacteria that reside in domestic water storage tanks. The temperature and duration of the Legionella prevention cycles are typically:

• 2 minutes > 70°C

• 4 minutes > 65°C

• 60 minutes > 60°C

To enable the Legionella prevention function, set 0222=1

Description Menu

Mn02

Parameter no.

0202

Value to be set

2 Domestic hot water heating

0 = heat pump only

1 = electric heater only

2 = heat pump + electric heater

Legionella prevention function with:

0 = heat pump only

1 = electric heater only

2 = heat pump + electric heater

Enable Legionella prevention function

0 = Not enabled

1 = Enabled

Domestic hot water temperature set point for Legionella prevention

Legionella prevention cycle day

MONDAY (0=no; 1=yes)

Legionella prevention cycle day

TUESDAY (0=no; 1=yes)

Legionella prevention cycle day

WEDNESDAY (0=no; 1=yes)

Legionella prevention cycle day

THURSDAY (0=no; 1=yes)

Legionella prevention cycle day

FRIDAY (0=no; 1=yes)

Legionella prevention cycle day

SATURDAY (0=no; 1=yes)

Legionella prevention cycle day

SUNDAY (0=no; 1=yes)

Legionella prevention cycle time

Mn02

Mn02

Mn02

Mn02

Mn02

Mn02

Mn02

Mn02

Mn02

Mn02

Mn02

0223

0222

0211

0213

0214

0215

0216

0218

0219

0220

0221

1

1

Example

65°C

0

0

Example 1

0

0

0

0

02

UOM

°C h

Maximum Legionella prevention function duration

Mn02 0225 20 min.

Set the parameters following the sequence described in the table

EN 10/2010 i-KI MTD / i-KIR MTD

27

INSTALLER CONNECTIONS TO BE PERFORMED ON THE INSIDE MODULE

HL1 Configurable contact

This contact can be configured for the following functions:

• Alarm signal

• Secondary circuit pump

• Dehumidifier

Alarm signal

A visual or audible signal device can be activated if the unit shuts down due to a malfunction.

Configure the contact, selecting the desired function by setting parameter 015A:

Description

Enable the contact as:

0= Alarm signal

1= Dehumidifier

3= Secondary circuit pump

Menu

Mn01

Parameter no.

015A

Value to be set

0

UOM

-

21 22

Secondary circuit pump

If the system features a low-loss header, contact HL1 can be used to activate the circulating pump on the secondary circuit.

Configure the contact, selecting the desired function by setting parameter 015A:

Description

Enable the contact as:

0= Alarm signal

1= Dehumidifier

3= Secondary circuit pump

Menu

Mn01

Parameter no.

015A

Value to be set

3

UOM

-

21 22

230V 50Hz

U N

1

230V 50Hz

U N

2

N

L

I A

1 Storage tank

2 System pump HL1

Dehumidifier

A dehumidifier can be activated in radiant panel systems to reduce humidity in cooling mode.

The contact closes and the dehumidifier is activated when the humidity measured by the probe on the A5 room controller exceeds the value set for parameter 0172.

Configure the contact, selecting the desired function by setting parameter 015A:

Description UOM Menu

Mn01

Parameter no.

015A

Value to be set

1 Enable the contact as:

0= Alarm signal

1= Dehumidifier

3= Secondary circuit pump

SA1 Remote ON/OFF

The unit can be switched on/off from a remote control unit, for example a timer or room thermostat.

The remote off function stops the compressor, fan and pumps, while frost protection remains active.

- The unit can be switched on/off from contact SA1 only when the unit has been switched on using the button on the A5 room controller

Contact closed = Heat pump ON

Contact open = Heat pump OFF

28

i-KI MTD / i-KIR MTD EN 10/2010

21 22

25 26

SA1

Dehumidifier

INSTALLER CONNECTIONS TO BE PERFORMED ON THE INSIDE MODULE

SA2 Remote cooling/heating

Cooling/heating operating mode can be managed from a remote control unit.

If remote cooling/heating changeover is enabled, the operating mode cannot be changed on the keypad.

Set the following parameters:

Description Menu

Mn01

Parameter no.

0100

Value to be set

0 Enable remote contact

0= remote contact enabled

1= remote contact disabled

(only from keypad)

UOM

-

27 28

Contact closed = Cooling

Contact open = Heating

SA2

SA3 Remote system/domestic water priority

The priority of heat pump operation can be selected using a remote contact.

Use a switch to select the following functions:

Contact closed = Domestic hot water only

Contact open = Domestic hot water + System

Set the following parameters:

Description Menu

Mn01

Parameter no.

0100

Value to be set

0 Enable remote contact

0= remote contact enabled

1= remote contact disabled

(selection from keypad only)

UOM

-

29 30

SA3

SA5 Deactivation contact for excess power consumption

The heat pump accepts an external deactivation signal from contact SA5 if a power consumption management system is used to disconnect devices based on set priority, thus avoiding activation of the contactor on the power meter.

Configure the contact, selecting the desired function by setting parameter 015D:

Description

Enable the contact as:

0= Reduced electricity rate

1= Stop operation due to excess power consumption

Menu

Mn01

Parameter no.

015D

Value to be set

1

UOM

-

Contact closed: heat pump operation not allowed.

Contact open: heat pump operation allowed.

33 34

SA5

I A

EN 10/2010 i-KI MTD / i-KIR MTD

29

INSTALLER CONNECTIONS TO BE PERFORMED ON THE INSIDE MODULE

SA5 Reduced electricity rate contact

Forced refilling of the reserve storage tanks can be activated based on different electricity rates during the day.

During reduced rate periods, the heat pump can be forced on so as to heat the domestic hot water or system storage tank, where fitted.

Configure the contact, selecting the desired function by setting parameter 015D:

Description Menu

Mn01

Parameter no.

015D

Value to be set

0

UOM

Enable the contact as:

0= Reduced electricity rate

1= Stop operation due to excess power consumption

Enable the set point as:

0= Economy

1= Comfort

Set the value of the domestic hot water ECONOMY set point

Set the value of the domestic hot water COMFORT set point

Mn00

Mn00

Mn00

0015

0022

0023

0

Example

47

Example

50

-

°C

°C

33 34

Contact closed: forced operation during the reduced rate period.

Contact open: heat pump operation at full electricity rate.

During operation at reduced electricity rate, contact closed, the domestic hot water set point is 50°C, as shown in the example, with the contact open it’s 47°C.

This allows operation at a higher temperature, within the unit’s operating limits, exploiting the lower electricity cost.

SA5

F3 System flow switch

System flow switch connection, compulsory component.

39 40

F3

BT8 Domestic hot water storage temperature probe

The domestic hot water temperature inside the storage tank is measured using probe BT8

41 42

BT8

I A

30

i-KI MTD / i-KIR MTD EN 10/2010

GENERAL TECHNICAL DATA

Rated heating capacity

Total power consumption

COP EN14511

Cooling capacity

Total power consumption

EER EN14511

Heating capacity

Total power consumption

COP EN14511

Cooling capacity

Total power consumption

EER EN14511

ESEER

Type of compressor

No. of compressors

Refrigerant

Quantity of refrigerant

No. of fans

Type of system pump

Power supply

Sound power

Sound pressure

OUTDOOR UNIT DIMENSIONS

L

P

H

Operating weight

INSIDE MODULE DIMENSIONS

L

P

H

Operating weight

1

1

1

2

3

3

2

2

3

4

4

4

4 kW kW kW kW kW kW kW kW

0011m

6,00

1,46

4,11

5,30

1,74

3,05 kg

5

6

7

V-ph-Hz dB(A) dB(A)

DC inverterdriven rotary

1

R410A

1,05

1

Ci

230-1-50

60

46 mm mm mm kg mm mm mm kg

825

300

787

59

411

75

333

5,3

850

330

882

85

411

75

333

5,3

i-KI

0031m

9,55

2,38

4,02

9,00

2,90

3,10

Scroll DC

Inverter

1

R410A

1,50

1

Ci

230-1-50

64

50

0061m

15,70

3,83

4,10

14,70

4,55

3,23

Twin Rotary

DC Inverter

1

R410A

2,99

2

Ci

230-1-50

65

51

DC inverterdriven rotary

1

R410A

1,05

1

Ci

230-1-50

60

46

0011m

5,85

1,46

4,01

4,40

1,06

4,15

5,30

1,74

3,05

4,00

1,03

3,90

4,00

1000

330

1418

123

411

75

333

5,3

825

300

787

59

411

75

333

5,3

850

330

882

85

411

75

333

5,3

I A

Scroll DC

Inverter

1

R410A

1,50

1

Ci

230-1-50

64

50

i-KIR

0031m

9,55

2,37

4,02

7,02

2,18

3,22

9,00

2,90

3,10

4,92

2,01

2,45

3,26

0061m

15,70

3,83

4,10

16,60

4,15

4,00

14,70

4,55

3,23

12,30

3,77

3,26

3,90

Twin Rotary

DC Inverter

1

R410A

2,99

2

Ci

230-1-50

65

51

1000

330

1418

123

411

75

333

5,3

Notes

1 System water temperature 30/35°C, outside air temperature 7°C DB/ 6°C WB

2 System water temperature 23/18°C, outside air temperature 35°C DB

3 System water temperature 40/45°C, outside air temperature 7°C DB/ 6°C WB

4 System water temperature 12/7°C, outside air temperature 35°C DB

Total power consumption calculated by adding compressor and fan power consumption.

6 Sound power in accordance with ISO 9614 and Eurovent 8/1

7 Average sound pressure on reflecting surface (Q=2) at a distance of 1 metre from the outside of the unit.

EN 10/2010 i-KI MTD / i-KIR MTD

31

OPERATING LIMITS

I A

COOLING

45

40

35

30

25

20

15

0 5 10 15

Water outlet temperature (°C)

20 25

HEATING

50

45

40

35

30

25

20

15

10

-5

-10

5

0

-15

-20

-25

15 25 35 45 55 65

Water outlet temperature (°C)

Min/max water temperature difference = 5/10 °C (in minimum flow conditions, 7 l/min)

MAX return temperature to heat pump = 55°C

MAX outlet temperature to heat pump for DHW production = 58°C

Water circuit pressure min/max = 1/3 bar

Maximum glycol percentage = 40%

The temperature of the fluid leaving the unit must always be within the manufacturer’s specified operating range, even during start-up and when first putting into heating mode. To ensure this, the water circuit can be fitted with a bypass valve and/or other solutions, such as electric heaters with temperature control inside the storage tank.

32

i-KI MTD / i-KIR MTD EN 10/2010

OPERATING LIMITS

PUMP CHARACTERISTICS

0011m

[kPa]

80

70

60

50

40

30

120

110

100

90

20

10

0

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 [L/min]

0031m

40

30

20

10

[kPa]

80

70

60

50

0

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 [L/min]

I A

0061m

[kPA]

130

120

110

100

90

80

70

60

50

40

30

20

10

0

0 5 10 15 20 25 30 35 40 45 50 [L/min]

The pressure head values refer to the values available at the water connections.

EN 10/2010 i-KI MTD / i-KIR MTD

33

CHECKING AND STARTING UP THE UNIT

CHECKS BEFORE STARTING THE UNIT

• the vibration damping feet are fitted

• inlet filters are fitted on the system

• suitably-sized expansion vessel and safety valve installed on the DHW circuit

• an expansion vessel is installed if the expansion vessel on the unit is undersized

• make sure vibration damper joints are installed on water connections

• a low-loss header is installed if the water content is insufficient

A

• make sure the position of the outside air probe corresponds to the instructions shown in the manual

• make sure the position of the room control unit corresponds to the instructions shown in the manual

• make sure that the electrical power available is adequate for the unit installed

• make sure the non-return valve is installed on the DHW circuit

PREPARING FOR FIRST START UP

The unit must be started up for the first time by the Techni-

cal Service. Before starting up the unit, make sure that:

• the unit has been properly installed as described in this manual

• All safety conditions have been respected;;

• The unit is adequately fixed to the surface it rests on;

• Clearances have been respected;

• Water connections have been carried out as indicated in the instruction manual;

• All water connections are tight.

• Make sure the water circuit has been washed and drained.

• The water circuit is filled and vented.

• Make sure there is no air in the system. If necessary vent the system using the vent valve.

If venting after operation in heat pump mode, be careful as the water may be hot;

• The water valves are open;

• Electrical connections have been carried out correctly;

• Voltage is within a tolerance of 10% of the rated voltage for the unit;

• Make sure that unbalance between phases is less than

2%, for three-phase units.

• The unit is correctly earthed;

• All electrical connections are tight.

• make sure that the outside air and water temperature are within the unit operating limits shown in this manual.

Before starting up, power up the unit for at least two hours by switching QF1 and QS1 to ON (see the wiring diagram) to allow the oil in the compressor sump to heat up.

STARTING UP FOR THE FIRST TIME

Before starting the unit:

• Make sure the switch QF1 is in the OFF position, Fig. 1.

• Make sure the contact of the on/off device SA1 (see the wiring diagram) is open (if featured).

• Make sure the “A5” room controller is off.

1

ON

OFF

• Position the main unit switch QS1 in the ON position, Fig.

2.

2

ON

• Move switch QF1 (outside the unit) to “ON”, Fig. 3.

3

ON

OFF

34

i-KI MTD / i-KIR MTD EN 10/2010

CHECKING AND STARTING UP THE UNIT

• Once having powered up the heat pump, the display on the room control unit shows this message (1):

1

• Followed by (2):

2

A

• Wait a few minutes, the unit is ready to operate when the display shows (3):

Before starting up, power up the unit for at least two hours, with the compressor off, so as to allow the oil in the compressor sump to heat up.

When commissioning the heat pump, the user must configure the type of system.

See the chapter “System configuration”, check the application diagrams that the control unit is able to manage.

3

• Set the current date and time on the A5 room controller

• Configure the type of system and the number of A5 room controllers. See the chapter "System configuration".

• Switch on the unit by pressing button 3

• Select the required operating mode by pressing button 5

• Select the required room temperature by turning knob 4

For further information on the operation and functions of the room controller, see "Operation and functions of the room controller".

A5 room controller

5 mode

3

4

EN 10/2010 i-KI MTD / i-KIR MTD

35

DESCRIPTION OR ROOM CONTROLLER BUTTONS AND DISPLAY

BUTTONS

5

6

7 mode

1

2

3

4

NO. Description

1 Temperature and humidity probe

2 Domestic hot water (DHW) production button

ON/OFF button

3

ESC button in parameter programming mode

Knob

4 - Turning: scroll room temperature values, parameters and menus

- Pressing: Confirm settings

Select operating mode button 5

6

7

Set time bands button

Backlit display

A

DISPLAY

1

2

10

9

8

6

7

3

4

5

N° Description

1 Operating mode

Symbol Function

Heating

Cooling automatic mode changeover based on outside air temperature

Domestic hot water production enabled

Room temperature/humidity, room set point, parameter value display

2 Main field

3

4

5

6

Temperature unit of measure

Set point

Relative humidity

Time band

On indicates room set point programming

Indicates the type of active time band

7 Day of the week

8 Actuator operating

9 Secondary field

10 Active time band error message system pump active

- flashing: compressor timer, delay

- fixed: compressor active

Defrost active

Fan active

Boiler or electric heater active

Frost protection active

Time, menu, parameter number display

On indicates active time band

* Any delays in the "compressor" symbol switching off are due to the PI calculation of the compensation curve.

36

i-KI MTD / i-KIR MTD EN 10/2010

OPERATION AND FUNCTIONS OF THE ROOM CONTROLLER

Meaning of the symbols

Symbol Meaning

Press and release x3 sec.

Hold for 3 seconds

Turn the knob

Display

During normal operation of the unit, the display shows the following information:

3

4

1

2

5 operating mode selected domestic hot water production enabled room temperature hour and minutes day

1

5

2

3

4

A

Additional information displayed

During operation of the unit, pressing the knob displays the information described below.

Press the knob

Room temperature set point

Press the knob

Humidity set point

Press the knob

Outside air temperature

Press the knob

Domestic hot water set point

Press the knob

Room humidity

Press the knob

EN 10/2010 i-KI MTD / i-KIR MTD

37

OPERATION AND FUNCTIONS OF THE ROOM CONTROLLER

Setting the time and date

1 2

x3 sec.

3

Press the button for 3 seconds

4

Press the knob

5

• The hours flash

• Turn the knob to select the hour value

6

A

• Press the knob to confirm

7

• The minutes flash

• Turn the knob to select the minutes value

8

• Press the knob to confirm

9

• The day flashes

• Turn the knob to select the day**

10

• Press the knob to confirm

• Press the button to exit.

• Main display

** Mon = Lunedi, Tue = Martedi, Wed = Mercoledi, Thu = Giovedi, Fri = Venerdi, Sat = Sabato, Sun = Domenica

38

i-KI MTD / i-KIR MTD EN 10/2010

OPERATION AND FUNCTIONS OF THE ROOM CONTROLLER

A

Switching ON

The button enables operation of the pump or the zone valve controlled by the room controller, the heat pump is activated by selecting the operating mode using the button, as shown below.

1 2 3

x3 sec.

ZONE OFF

Press the button for 3 seconds

ZONE ON**

** The heat pump is not yet operating, the mode has to be selected: heating, cooling, auto or domestic hot water production.

Selecting the operating mode

None Automatic mode changeover Cooling

No operating mode selected.

Heat in OFF.

• Press the mode button

• AUTOMATIC** mode changeover selected

• Press the mode button

• COOLING mode selected

** AUTO automatic mode changeover based on the outside air temperature

Heating

• Press the mode button

• HEATING mode selected

Selecting the room temperature set point

1 2 3 4

• Turn the knob

• The room temperature set point is displayed

• Turn the knob to change the room temperature set point

• Wait a few seconds for confirmation

• The display shows the room temperature

EN 10/2010 i-KI MTD / i-KIR MTD

39

OPERATION AND FUNCTIONS OF THE ROOM CONTROLLER

Domestic hot water production

1 2 3

Domestic hot water production not enabled

Press the .

• Domestic hot water production enabled

• The symbol is displayed

Selecting the domestic hot water set point

The domestic hot water temperature is measured by the probe installed inside the DHW storage tank.

1 2

x3 sec.

3

A

4

• Press thei + seconds

5

buttons together for 3

• Turn the knob and select the value of parameter 012

6

• Press the knob to confirm

7

• Press the knob to confirm

8

• Turn the knob and select parameter 0023

9

• Press the knob • Turn the knob to select the domestic hot water set point

• Press the knob to confirm

40

i-KI MTD / i-KIR MTD EN 10/2010

OPERATION AND FUNCTIONS OF THE ROOM CONTROLLER

10 11

• Press the button twice until reaching the main display.

• Main display

A

EN 10/2010 i-KI MTD / i-KIR MTD

41

OPERATION AND FUNCTIONS OF THE ROOM CONTROLLER

Programming the time bands

The room controller can customise on/off times for each zone in the system, based on six time bands.

The six time bands are identified by the following symbols, selected by turning the knob:

A

Time band 1

Time band 2 Time band 3 Time band 4 Time band 5 Time band 6

The time bands on systems with multiple zones, each of which is managed by its own room controller (maximum 6), must be programmed on each room controller.

For installations with heap pump connected directly to the system, without storage tanks and secondary pumps, parameter

011D must be set to 0. This means that heat pump operation will be managed based on the time bands.

1 2 3

x5 sec.

• Press the button for 5 seconds

• Turn the knob • Press to confirm

The time bands can be programmed by selecting the days in preset groups or for each individual day.

4 5 6 7

A

GROUP OF 7 DAYS

A Turn the knob

B Press the knob to confirm

B

A

GROUP OF 5 DAYS

A Turn the knob

B Press the knob to confirm

B

A

GROUP OF 2 DAYS

A Turn the knob

B Press the knob to confirm

B

A

INDIVIDUAL DAY

A Turn the knob

B Press the knob to confirm

B

8 9 10 11

A

Time band 1

• Press the knob to confirm

Time band 1 start hours

A Turn the knob

B Press the knob to confirm the hour value

42

i-KI MTD / i-KIR MTD EN 10/2010

B

A

Time band 1 start minutes

A Turn the knob

B Press the knob to confirm the minutes value

B

A

B

Time band 1 room temp. set point

A Turn the knob

B Press the knob to confirm

8 + 9 .... 10 .... 11 12 13 14

A

B

Time band 2

• Press the knob to confirm

Continue as described from step 8 to step 11 to set the hours, minutes and room temperature set point for the other time bands

Once the time bands have been set

A Turn the knob and select ESC

B Press to confirm

Press the button to exit programming mode

• Press the button twice until reaching the main display.

• Main display

Time band program example

Below is an example of a time band program with two temperature levels, Comfort 20°C, Economy 18°C, and OFF.

Time band 1

Time band 2

Time band 3

Time band 4

Time band 5

Time band 6

20°C

18°C

OFF

0

Activating time bands

1

4 8 12 16 20 24

2

• Press the button.

Deactivating time bands

1

• The symbol is displayed

• Time band ACTIVE

2

• Press the button. • The symbol is no longer displayed

• Time band DEACTIVATED

Once the time bands have been deactivated check that the room set point is at the required value, otherwise turn the knob to select the desired temperature.

EN 10/2010 i-KI MTD / i-KIR MTD

43

OPERATION AND FUNCTIONS OF THE ROOM CONTROLLER

A

Switching OFF

The button disables operation of the pump or the zone valve controlled by the room controller, the heat pump is deactivated using the button, as shown in " Selecting the operating mode".

1 2 3

x3 sec.

Unit ON - ZONE ON

• Press the button for 3 seconds

Unit OFF - ZONE OFF

ACCESSING THE PROGRAMMING LEVELS

The room controller has a menu structure, divided into levels so as to allow access only to authorised users, as shown below:

Level

User

Password

012

Menu description

Room unit

Menu code

Mnu00

Installer

022

034

Authorised technical service Contact Manufacturer

Zone room terminal address setting

System configuration

DHW

Supplem. sources

Cascade/Forced fan

Primary and DHW exchanger input / output

Addr

Mnu01

Mnu02

Mnu03

Mnu04

Mnu06

Mnu09

Compressor

Source heat exchanger

Mnu05

Mnu07

Defrost Mnu08

Alarm log Mnu11

Serial protocol Mnu12

Procedure for accessing the menu

1 2

x3 sec.

3

• Main display

• Press the + buttons together for 3 seconds

• Turn the knob and select the password (as shown in the table)

44

i-KI MTD / i-KIR MTD EN 10/2010

OPERATION AND FUNCTIONS OF THE ROOM CONTROLLER

4 5 6

A

• Press the knob to confirm

7

A

A Turn the knob to select the menu

B Press the knob to confirm

8

B

• Turn the knob and select the parameter to be set

9

• Press the knob

10

• The parameter value flashes

• Turn the knob to change the parameter value

11

• Press the knob to confirm

• Press the button twice until reaching the main display

• Main display

Press the button to exit programming mode

EN 10/2010 i-KI MTD / i-KIR MTD

45

CONTROL AND OPERATING CHARACTERISTICS

Temperature control

The heating or cooling circuit water outlet temperature is calculated by the controller and depends on the following factors:

A) system outlet set point compensation in heating or cooling (see paragraph)

B) room temperature influence (see paragraph)

C) minimum and maximum outlet temperature limit (see paragraph)

D) room temperature set point

A) System water outlet temperature set point compensation

The water outlet temperature set point in heating or cooling is calculated based on the outside temperature trend according to settable curves.

Water outlet set point compensation diagram in HEAT-

ING

The compensation curve in heating mode can be modified to allow correct heat pump operation depending on the heating system used (radiant panels, radiators, fan coils).

Example: Selecting heating curve 1,4 with an outside air temperature of -5°C gives a water outlet temperature of

+55°C.

A heating curve that is too high gives an excessive outlet temperature, a curve that is too low may mean the desired room temperature is not reached.

The curve can be set separately for each zone, depending on the type of room terminal.

The following compensation curves are recommended:

Type of terminal

Radiant panels

Fan coils

Radiators

Compensation curve number

0.25÷0.7

0,9÷1,1

1,2÷1,5

The compensation curves in HEATING are divided into:

• SYSTEM curve determines the general water outlet temperature to the terminal units.

• ZONE curve determines the water outlet temperature in the mixed circuit.

For systems configured with mixed zones, the SYSTEM curve and ZONE curve must be selected.

The system and zone curve work in cascading, the mixed zone curve may therefore not request a higher value than the one supplied by the system curve.

-5

Outside air temp. °C

A

Description

Enable SYSTEM compensation curve

0= Disabled

1= Enabled

SYSTEM compensation curve number

Menu

Mn01

Mn01

Enable compensation curve zone

LT1

0= Disabled

1= Enabled

Compensation curve number zone LT1

Mn01

Mn01

Parameter no.

0152

0159

0167

Default

0

1

0

0174

0182

0,7

0 Enable compensation curve zone

LT2

0= Disabled

1= Enabled

Compensation curve number zone LT2

Mn01

Mn01

Enable compensation curve zone

LT3

0= Disabled

1= Enabled

Compensation curve number zone LT3

Mn01

Mn01

0189

015E

012A

0,7

0

0,7

UOM

2,2

1

0,8

0,6

0,4

0,2

2

1,8

1,6

1,4

1,2

-25

46

i-KI MTD / i-KIR MTD EN 10/2010

CONTROL AND OPERATING CHARACTERISTICS

B) Room temperature influence in HEATING

The compensation curve determines the water outlet temperature in heating; this may then be corrected based on the difference between the desired room set point and the actual room temperature.

The correction made to the outlet temperature depends on the “Room Authority” coefficient.

The higher the value of the Room Authority the higher the correction to the system outlet temperature, and vice-versa.

This allows the outlet temperature to adapt quickly to changes in the conditions inside the room.

The function can only be ENABLED if the A5 room controller is positioned in the room and used to measure the reference temperature.

Set authority values for the SYSTEM equal to or greater than those for zones LT1, LT2, LT3.

C) System outlet temperature limits in HEATING

These define the temperature limits (minimum and maximum) that can be requested from the circuit and never exceeded.

In the figure the minimum limit is 30°C and the maximum is

40°.

Between 30 and 40°C the outlet temperature will be able to vary based on the trend in outside temperature.

For systems configured with mixed zones, the limits for the

SYSTEM curve and ZONE curve must be selected.

A

Example referred to compensation curve 1.0

10

0

-10

-20

-30

-40

60

50

40

30

20

-2.5

Description

2 -1,5 -1 -0,5 0 0,5 1

DT (Room temperature °C - Room set point °C)

1,5

Menu

Mn01

Parameter no.

0163

Default

0 Enable room temperature influence on SYSTEM

0= Disabled

1= Enabled

SYSTEM Room Authority Mn01 0164 30

Mn01 0178 0 Enable Room temperature influence on LT1

0= Disabled

1= Enabled

LT1 Room Authority

Enable Room temperature influence on LT2

0= Disabled

1= Enabled

LT2 Room Authority

Enable Room temperature influence on LT3

0= Disabled

1= Enabled

LT3 Room Authority

Mn01

Mn01

Mn01

Mn01

Mn01

0179

0193

0194

012D

012E

30

0

30

0

30

2

10 %

25 %

50 %

75 %

99 %

UOM

%

%

%

%

Outlet set point with room temp. 20°C

100

90

80

70

60

50

40

30

20

10

20 15 10 5 0 -5 -10

Outside temp. (°C)

-15 -20 -25 -30

Description Menu

Mn01

Parameter no

0165 MINIMUM outlet set point limit for

SYSTEM curve

MAXIMUM outlet set point limit for

SYSTEM curve

Mn01 0166

Default

30

48

MINIMUM outlet set point limit for compensation curve in zone LT1

MAXIMUM outlet set point limit for compensation curve in zone LT1

Mn01

Mn01

0180

0181

23

45

MINIMUM outlet set point limit for compensation curve in zone LT2

MAXIMUM outlet set point limit for compensation curve in zone LT2

Mn01

Mn01

MINIMUM outlet set point limit for compensation curve in zone LT3

MAXIMUM outlet set point limit for compensation curve in zone LT3

Mn01

Mn01

0195

0196

012F

012G

23

45

23

45

°C

°C

UOM

°C

°C

°C

°C

°C

°C

EN 10/2010 i-KI MTD / i-KIR MTD

47

CONTROL AND OPERATING CHARACTERISTIC

Water outlet set point compensation diagram in COOL-

ING

The compensation curve in cooling mode can be modified to allow correct heat pump operation depending on the cooling system used (radiant panels, fan coils).

Points T1 and T2 correspond to two outside temperature values that respectively identify the maximum and minimum system outlet temperature.

Outlet set point

Tm1

Tm2

Te1 Te2 Outside temp.

The compensation curves in COOLING are divided into:

• SYSTEM curve determines the general water outlet temperature to the terminal units.

• ZONE curve determines the water outlet temperature in the mixed circuit.

For systems configured with mixed zones, the SYSTEM curve and ZONE curve must be selected.

The system and zone curve work in cascading, the mixed zone curve may therefore not request a higher value than the one supplied by the system curve.

Maximum room humidity compensation

The water outlet temperature set point, calculated based on the compensation curve, can be compensated according to the maximum relative humidity in the room.

The water outlet temperature value can increase so as to avoid possible formation of condensate in the radiant cooling systems (underfloor, ceiling, wall, etc.).

If the relative humidity measured by the A5 room unit A5 exceeds the value set for parameter 012P, 0172, 0187, the water outlet temperature set point increases until reaching the maximum outlet temperature.

The maximum outlet temperature is the set point calculated according to the compensation curve in cooling mode plus the value set for parameter 0158, 0173, 0188.

Outlet temperature hysteresis (°C)

Value: parameter 0158 parameter 0173 parameter 0188

Value parameter 0157

Value parameter 0172

Value parameter 0187

100% UR% Room humidity (RH%)

A

Description Menù Parameter no.

0154 Enable SYSTEM compensation curve

0= Disabled

1= Enabled

Maximum outlet temperature set point limit in cooling mode (Tm1)

Minimum outside temperature corresponding to max. outlet temperature (Te1)

Minimum outlet temperature set point limit in cooling mode (Tm2)

Maximum outside temperature corresponding to min. outlet temperature (Te2)

Enable compensation curve zone LT1

0= Disabled

1= Enabled

Maximum outlet temperature set point limit in cooling mode (Tm1)

Minimum outside temperature corresponding to max. outlet temperature (Te1)

Minimum outlet temperature set point limit in cooling mode (Tm2)

Maximum outside temperature corresponding to min. outlet temperature (Te2)

Enable compensation curve zone LT2

0= Disabled

1= Enabled

Maximum outlet temperature set point limit in cooling mode (Tm1)

Minimum outside temperature corresponding to max. outlet temperature (Te1)

Minimum outlet temperature set point limit in cooling mode (Tm2)

Maximum outside temperature corresponding to min. outlet temperature (Te2)

Enable compensation curve zone LT3

0= Disabled

1= Enabled

Maximum outlet temperature set point limit in cooling mode (Tm1)

Minimum outside temperature corresponding to max. outlet temperature (Te1)

Minimum outlet temperature set point limit in cooling mode (Tm2)

Maximum outside temperature corresponding to min. outlet temperature (Te2)

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

0128

0129

0130

0131

0169

0132

0133

0134

0135

0184

0136

0137

0138

0139

011T

012H

012J

012L

012M

Default

0

20

23

18

36

0

20

23

18

36

0

20

23

18

36

0

20

23

18

36

UOM

°C

°C

°C

°C

°C

°C

°C

°C

°C

°C

°C

°C

°C

°C

°C

°C

Description Menu Parameter no.

0156 * Enable compensation for room humidity, SYSTEM

0= Disabled 1= Enabled

Room relative humidity value to start increasing water outlet temperature set point SYSTEM

Maximum outlet temperature hysteresis corresponding to 100% relative humidity

Enable compensation for room humidity, ZONE LT1

0= Disabled 1= Enabled

Room relative humidity value to start increasing water outlet temperature set point ZONE LT1

Maximum outlet temperature hysteresis corresponding to 100% relative humidity

Enable compensation for room humidity, ZONE LT2

0= Disabled 1= Enabled

Room relative humidity value to start increasing water outlet temperature set point ZONE LT2

Maximum outlet temperature hysteresis corresponding to 100% relative humidity

Enable compensation for room humidity, ZONE LT3

0= Disabled 1= Enabled

Room relative humidity value to start increasing water outlet temperature set point ZONE LT2

Maximum outlet temperature hysteresis corresponding to 100% relative humidity

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

0157 *

0158 *

0171

0172

0173

0186

0187

0188

012N

012P

012R

Default

0

70

15

0

70

15

0

70

15

0

70

15

UOM

%

°C

%

°C

%

°C

%

°C

* Parameters to be set only when the heat pump is connected directly to the system, without storage tank on the outlet.

48

i-KI MTD / i-KIR MTD EN 10/2010

CONTROL AND OPERATING CHARACTERISTICS

Automatic mode changeover based on outside temperature

In mode, the operating mode (heating / cooling) changes automatically, avoiding the need for the user to change the mode manually.

Mode changeover is based on the diagram shown in the figure.

The centre zone A corresponds to an area of inactivity, as the outside climate conditions mean neither heating nor cooling is required.

A

Heating Cooling

ON

A

OFF

0106= 16°C

0106+0107=18°C

0108=26°C

Outside temp.

0108-0109=24°C

Description

Automatic mode changeover set point in HEATING

Automatic mode changeover differential in HEATING

Automatic mode changeover set point in COOLING

Automatic mode changeover differential in COOLING

Menu

Mn01

Parameter no.

0106

Default

16

Mn01 0107 2

Mn01

Mn01

0108

0109

24

2

UOM

°C

°C

°C

°C

System pump operation

When reaching the system water set point, the compressor stops and the system pump is activated periodically, so as to minimise energy consumption.

Pump operating time can be selected using parameter

0147, while the interval between one sniffing cycle and the next is set using parameter 0148.

Intermittent activation of system pump operation can be selected using parameter 0143 (0= system pump always on to, 1=system pump activated at intervals).

In systems with fan coils, the time between one sniffing cycle and the next should be reduced in order to avoid cooling excessive of the water, and if the system water content is equal to the minimum value shown in the paragraph on

"water connections", parameter 0143 should be set to 0.

EN 10/2010 i-KI MTD / i-KIR MTD

49

CONTROL AND OPERATING CHARACTERISTICS

Heat pump operation with fixed set point

Outlet water set point compensation using the compensation curves can be disabled.

To enable fixed set point operation, set parameter 0152=0 and 0154=0

The heat pump will operate based on the fixed outlet set point defined by parameters 0153 (Heating) and 0155 (cooling).

Description Menu

Mn01

Parameter no.

0152 Enable outlet set point in

HEATING

0= Fixed set point in heating

ENABLED

1= Fixed set point in heating

DISABLED

Fixed water outlet temperature set point in HEATING

Mn01 0153

Default

0

57

Enable outlet set point in

COOLING

0= Fixed set point in cooling

ENABLED

1= Fixed set point in cooling

DISABLED

Fixed water outlet temperature set point in COOLING

Mn01

Mn01

0154

0155

0

8

U I A

UOM

-

°C

-

°C

FROST PROTECTION

Frost protection based on system water temperature

The frost protection function is active even if the controller is in standby. To prevent the water freezing and damaging the plate heat exchanger, the microprocessor shuts down the compressor and activates the system heat exchanger heater if the temperature measured by the heat exchanger outlet temperature probe is than +4°C. The frost prevention temperature set point can only be modified by an authorised service centre, and only after verifying that the water circuit contains antifreeze. Tripping of this alarm shuts down the compressor but not the pump, which remains active.

To reset normal operation, the water outlet temperature must rise to more than: +7°C on the system side. Reset is automatic.

Frost protection based on outside air temperature

Frost protection on the heating and domestic hot water circuits based on outside air temperature is always active, even when the heat pump is off.

The system and domestic hot water pumps are activated when the outside air temperature falls below the value set for parameter 0141.

Description

Outside temperature to enable frost protection

Menu

Mn01

Parameter no.

0141

Default

4

UOM

°C

System and DHW circuit water pump

ON

OFF

1°C

Outside air T

0141 Outside air temperature to enable frost protection

50

i-KI MTD / i-KIR MTD EN 10/2010

SYSTEM CONFIGURATION

The heat pump controller can select configurations for 15 different types of system by setting parameter 0101.

The following table describes the system configurations available.

U I A

Menu

Parameter

0101

Mixed zone 1

5

ZONA "1"

M

5

Mixed zone 2

ZONA "1"

M

5

Mixed zone 3

High temperature zone 1 (fan coils / radiators)

High temperature zone 2 (fan coils / radiators)

High temperature zone 3 (fan coils / radiators)

DHW recirculation

N-EM1 expansion module

ZONA "1"

ZONA "1" ZONA "1" ZONA "1"

5 5 5 n°

M T

T

T

T

T

T

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

5

6

7

3

4

0

1

2

10

11

8

9

12

13

14

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Configuration 0 does NOT require additional expansion modules

Configurations from 1 to 3 require 1 additional N-EM1 expansion module

Configurations from 4 to 11 require 2 additional N-EM1 expansion modules

Configurations 12, 13 and 14 require 3 additional N-EM1 expansion modules

The water connection and wiring diagrams for configurations from 1 to 14 are shown on the instruction sheet enclosed with the

N-EM1 expansion module.

The parameters required for correct system operation can be set on the A5 room controller supplied with the heat pump.

The next few pages are divided into the following sections:

Section 1 WATER CIRCUIT DIAGRAM

Section 2 WIRING DIAGRAM

Section 3 PARAMETER CONFIGURATION

2

2

2

1

2

0

1

1

2

2

2

2

3

3

3

EN 10/2010 i-KI MTD / i-KIR MTD

51

SYSTEM CONFIGURATION

U I A

Heat pump connection to the system without low-loss header. Make sure the useful pressure head of the circulating pump on the unit is sufficient for the pressure drop in the system. If the minimum system content does not reach values shown in this manual, install an additional storage tank on the heat pump return pipe. No system configurations are required.

For installations with heap pump connected directly to the system, without storage tanks and secondary pumps, parameter

011D must be set to 0. This means that heat pump operation will be managed based on the time bands.

Water circuit diagram

Water circuit diagram (not a working drawing)

52

i-KI MTD / i-KIR MTD EN 10/2010

SYSTEM CONFIGURATION

Parameter configuration

Description Menu

SYSTEM compensation curves in heating mode

Enable SYSTEM compensation curve

0= Disabled

1= Enabled

SYSTEM compensation curve number

Enable room temperature influence on SYSTEM

0= Disabled

1= Enabled

Mn01

Mn01

Mn01

SYSTEM Room Authority

MINIMUM return set point limit for SYSTEM curve

MAXIMUM return set point limit for SYSTEM curve

SYSTEM compensation curves in cooling mode

Enable SYSTEM compensation curve

0= Disabled

1= Enabled

Mn01

Mn01

Mn01

Mn01

Maximum outlet temperature set point limit in cooling mode (Tm1) Mn01

Minimum outside temperature corresponding to max. outlet temperature (Te1)

Mn01

Minimum outlet temperature set point limit in cooling mode (Tm2) Mn01

Maximum outside temperature corresponding to min. outlet temperature (Te2)

Mn01

Parameter no.

0152

0159

0163

0164

0165

0166

0154

0128

0129

0130

0131

Default

0

20

23

18

36

0

1

0

30

30

48

Write set value

U I A

UOM

-

°C

°C

°C

°C

-

-

-

%

°C

°C

EN 10/2010 i-KI MTD / i-KIR MTD

53

SYSTEM CONFIGURATION

System number 0

Water circuit diagram

U I A

Water circuit diagram (not a working drawing)

54

i-KI MTD / i-KIR MTD EN 10/2010

SYSTEM CONFIGURATION

System number 0

Wiring diagram

U I A

VAC

24

GND

TxRx-

TxRx+

GND

2

1

L

Black

Brown

Blue

Green

Red

Yellow/Green

Blue

Black

Brown

EN 10/2010 i-KI MTD / i-KIR MTD

55

SYSTEM CONFIGURATION

System number 0

Parameter configuration

Description Menu

System type (table 1)

SYSTEM compensation curves in heating mode

Enable SYSTEM compensation curve

0= Disabled

1= Enabled

SYSTEM compensation curve number

Enable room temperature influence on SYSTEM

0= Disabled

1= Enabled

Mn01

Mn01

Mn01

Mn01

SYSTEM Room Authority

MINIMUM return set point limit for SYSTEM curve

MAXIMUM return set point limit for SYSTEM curve

SYSTEM compensation curves in cooling mode

Enable SYSTEM compensation curve

0= Disabled

1= Enabled

Mn01

Mn01

Mn01

Mn01

Maximum outlet temperature set point limit in cooling mode (Tm1) Mn01

Minimum outside temperature corresponding to max. outlet temperature (Te1)

Mn01

Minimum outlet temperature set point limit in cooling mode (Tm2) Mn01

Maximum outside temperature corresponding to min. outlet temperature (Te2)

Contact HL1 configuration, secondary circuit pump

Mn01

Enable contact HL1 HIGH TEMPERATURE ZONE

The contact closes and the pump or motor-driven shut-off valve is activated)

Mn01

Parameter no.

0101

0152

0159

0163

0164

0165

0166

0154

0128

0129

0130

0131

015A

* obligatory values for the present configuration

Default

0

0

30

30

48

0

1

0

0

20

23

18

36

U I A

Write set value

0*

UOM

-

-

%

°C

°C

-

-

-

°C

°C

°C

°C

3*

56

i-KI MTD / i-KIR MTD EN 10/2010

Alarm signals

When an alarm is activated, the symbol comes one.

Displaying alarms

1

x3 sec.

2 3

• Press the and onds buttons for 3 sec-

• Turn the knob

• Display the alarm codes

Resetting alarms

1

x3 sec.

2

• Press the knob to confirm

• Resolve the problem and then reset the alarms using the procedure described in

“Resetting alarms”

3

• Press the and onds buttons for 3 sec-

• Turn the knob

• Select

• Press the knob to confirm

• Alarms reset

Alarm log

The alarm log can only be displayed using the service keypad. Contact an authorised service centre.

The room controller can display the most recently activated alarm code from Mn11:

- parameter 1100 = no. of alarms saved in the log (visible only with service keypad)

- parameter 1101= code of last alarm activated

- parameter 1102= alarm activation hour

- parameter 1103= alarm activation minutes

- parameter 1104= alarm activation day

- parameter 1105= alarm activation month

- parameter 1106= alarm activation year

EN 10/2010 i-KI MTD / i-KIR MTD

57

MAINTENANCE AND SERVICE

A057

A058

A063

A064

A075

A077

A094

A095

A096

A097

A098

A025

A030

A033

A034

A035

A036

A038

A041

A042

A030

A033

A034

A035

A036

A038

A041

A054

A055

A056

A099

A100

A101

A102

A103

A104

A109

A114

A115

A116

A117

A120

A121

A122

A123

A124

A125

A126

A127

A128

A129

TABLE OF REMOTE KEYPAD ALARMS

Alarms displayed on the remote keypad.

Alarm code

A001

A002

A003

A005

A006

A013

Cause

BT1 System heat exchanger water inlet temperature probe

BT2 System heat exchanger water outlet temperature probe

BT8 DHW storage temperature probe

BT9 Storage tank temperature probe

BT11 Outside air temperature probe

F1 High pressure switch

A019

A022

Difference between low and high pressure in refrigerant circuit too low

Operation outside of limits

Differential pressure switch / system flow switch F3 activated

Compressor operating hours reached

System pump operating hours reached

Domestic hot water pump operating hours reached

Mixed zone pump operating hours reached

Fan operating hours reached

System heat exchanger frost prevention alarm

DHW storage temperature too high

Inside frost prevention alarm

Compressor operating hours reached

Legionella prevention alarm

Temperature probe N-THC n.1

Address setting error on remote terminal supplied with the unit

Address setting error on expansion module 2

Temperature probe in low temperature zone LT2, expansion 2

Address setting error on expansion module 3

Temperature probe in low temperature zone LT3, expansion 3

Water temperature too high in mixed circuit, expansion module 1

Water temperature too high in mixed circuit, expansion module 2

End defrost due to maximum time

Temperature probe N-THC n.2

Address setting error on zone remote terminal

Temperature probe N-THC n.3

Address setting error on zone remote terminal

Temperature probe N-THC n.4

Address setting error on zone remote terminal

Temperature probe N-THC n.5

Address setting error on zone remote terminal

Address setting error on expansion module 1

Low temperature zone LT1 temperature probe, expansion 1

Low pressure alarm from low pressure switch

Solar/pool module address setting error

Solar/pool module general alarm

Master unit not connected, cascade control

Slave unit not connected, cascade control

Water temperature too high in mixed circuit, expansion module, expansion module 3

Temperature probe N-THC n.6

Address setting error on zone LT3 remote terminal i-KI/i-KIR general alarm - Problems relating to the heat pump

Humidity probe N-THC n.1

Humidity probe N-THC n.2

Humidity probe N-THC n.3

Humidity probe N-THC n.4

Humidity probe N-THC n.5

Humidity probe N-THC n.6

58

i-KI MTD / i-KIR MTD EN 10/2010

A

Solution

Probe faulty or disconnected

Probe faulty or disconnected

Probe faulty or disconnected

Probe faulty or disconnected

Probe faulty or disconnected

Check connection

Check refrigerant circuit pressure

Check refrigerant circuit pressure

Check refrigerant charge

Make sure outside air temperature and water temperature set point are inside the specified operating limits

Make sure filters are clean

Check water flow

Check for air in the system

Scheduled maintenance

Scheduled maintenance

Scheduled maintenance

Scheduled maintenance

Scheduled maintenance

Scheduled maintenance

Scheduled maintenance

Check connections

Probe faulty or disconnected

Check connections

Check address

Check connections

Check address, must be 1

Probe faulty or disconnected

Check connections

Check address, must be 2

Probe faulty or disconnected

Check connections

Probe faulty or disconnected

Check connections

Check address

Check connections

Probe faulty or disconnected

Check connections

Check address

Check connections

Probe faulty or disconnected

Check connections

Check address

Check connections

Probe faulty or disconnected

Check connections

Check address

Check connections

Check address, must be 1

Probe faulty or disconnected

Check connection

Check refrigerant circuit pressure

Check connections

Check address

Check connections

Probe faulty or disconnected

Check connections

Check address

See alarms on the heat pump display and check these against the table on the following page

Check connections

Probe faulty or disconnected

Check connections

Probe faulty or disconnected

Check connections

Probe faulty or disconnected

Check connections

Probe faulty or disconnected

Check connections

Probe faulty or disconnected

Check connections

Probe faulty or disconnected

MAINTENANCE AND SERVICE

I A

TABLE OF ALARMS ON HEAT PUMP DISPLAY

Alarms shown on the board display (PCB Display) located in the compressor compartment.

ERROR

CODE

-

-

-

-

-

A0

A1

A2

A3

A4

DC voltage error

Outlet temperature error

Overcurrent protection

Direct current (DC) measurement

Current transformer disconnected

Overcurrent protection

FEATURES, PARTS, COMPONENTS

-

-

-

-

-

MALFUNCTIONING

Alternating current

(AC) measurement

POWER SUPPLY

FUSE CF3 (250V T5A)

FUSE CF2 (250V T5A)

FUSE CF1 (250V T25A) tester tester tester

CHECKS

Check the power supply

Check electrical continuity using a

Check electrical continuity using a

Check electrical continuity using a

SOLUTION SIZE

Verify the power supply

If CF3 is blown, replace it and check if there is a short-circuit on a connector on the 4-way valve, frost protection heater, expansion vessel or circulating pump.

If a short-circuit is found, replace the components.

If CF2 is blown, replace it and check if there is a short-circuit on a connector on the 4-way valve, frost protection heater or expansion vessel. If a short-circuit is found, replace the components.

If CF1 is blown, replace the CONTROL BOARD on the unit (PCB-CONTROLLER) and check resistance between the pink-grey and orange-blue wires on the

POWER SUPPLY MODULE (PCBPOWER MODULE) connector. If these values are below 100kΩ, replace the

POWER SUPPLY MODULE.

0011-0031

0031

0061

0031

CONTROL BOARD

(PCB-CONTROLLER)

FAN MOTOR

FUSE CF4 (250V T3.15A)

POWER SUPPLY MODULE

POWER SUPPLY

COMPRESSOR DISCHARGE

TEMPERATURE PROBE

COMPRESSOR SUCTION

TEMPERATURE PROBE

REFRIGERANT GAS LEAK

COMPRESSOR DISCHARGE

TEMPERATURE PROBE

COMPRESSOR SUCTION

TEMPERATURE PROBE

REFRIGERANT GAS LEAK

Other than described above.

Replace the CONTROL BOARD (PCB-CONTROLLER)

Unplug connector 9 and measure the resistance between the red and black wires on the connector. The correct resistance value is above 100kΩ.

Disconnect the terminals (orange and blue) and check the resistance between orange-blue. If the resistance is greater than 100kΩ, the POWER SUPPLY

MODULE is normal.

Check power supply

Check resistance using a tester

[see table 2]

Check resistance using a tester

[see table 1]

Check the service valve and the refrigerant circuit.

Check resistance using a tester

[see table 4]

Check resistance using a tester

[see table 3]

Check the service valve and the refrigerant circuit.

If the resistance is less than 100kΩ, replace the fan motor.

Check electrical continuity of fuse CF4 using a tester.

If CF4 is blown, replace it.

If the resistance is less than 100kΩ, replace the POWER

SUPPLY MODULE.

Verify the power supply

Replace the probe

Replace the probe

Collect all the refrigerant and then recharge to the specified mass

Replace the probe

Replace the probe

Collect all the refrigerant and then recharge to the specified mass

ABNORMAL CURRENT DRAW

Check the installation position (intake and outlet air blocked)

Check for excessive gas

POWER SUPPLY VOLTAGE

DROP

MODULE DI POWER

FUSE CF2 (250V T15A)

Check power supply voltage (230V)

Operate without connecting the compressor connector.

Check electrical continuity of FUSE

CF2 (250V T15A) using a tester

Make sure the position doesn’t block the air intake and outlet

If excessive gas is evident, collect all the refrigerant and then recharge in accordance with rated data.

Confirm power supply voltage (230V)

If the same error appears again, replace the POWER SUP-

PLY MODULE.

If CF2 is blown, replace the CONTROL BOARD (PCB-CON-

TROLLER)

COMPRESSOR

CONTROL BOARD

(PCB-CONTROLLER)

Other not specified above

-

Replace the COMPRESSOR

Replace the CONTROL BOARD (PCB-CONTROLLER)

ABNORMAL CURRENT DRAW

Check the installation position (intake and outlet air blocked)

Check for excessive gas

Make sure the position doesn’t block the air intake and outlet

If excessive gas is evident, collect all the refrigerant and then recharge in accordance with rated data.

Confirm power supply voltage (230V)

POWER SUPPLY VOLTAGE

DROP

MOMENTARY POWER CUT (IN

THE EVENT DI LIGHTNING)

Check power supply voltage (230V)

Restart operation

0061

0011-0031

0031

0011-0031

0011-0031

0031

0011-0031

0061

0011-0031

0031

0011-0031

0031

0011-0031

A5

Abnormal COM-

PRESSOR rotation

INCORRECT OPERATION IN

OVERLOAD

WATER PUMP BLOCKED

WATER CIRCUIT BLOCKED

POWER SUPPLY VOLTAGE

DROP

FUSE CF4 (250V T15A)

FUSE CF2 (250V T15A)

POWER SUPPLY MODULE

COMPRESSOR

Check the installation position (intake and outlet air blocked)

Check for excessive gas

Check the pump and the water circuit.

Make sure the position doesn’t block the air intake and outlet

If excessive gas is evident, collect all the refrigerant and then recharge in accordance with rated data.

Remove any obstructions, clean the water filter, unblock the pump.

Check power supply voltage (230V) Confirm power supply voltage (230V)

Check electrical continuity of FUSE

CF4 (250V T15A) using a tester

Check electrical continuity of FUSE

CF2 (250V T15A) using a tester

Check the resistance of the POWER

SUPPLY MODULE using a tester.

Unplug the connector from the compressor and measure the resistance at the ends of the connector six times: between white-black, black-red, redwhite respectively and then reversing polarity => If all the measurements are above 100kΩ, the POWER SUPPLY

MODULE is working normally

Other not specified above

If CF4 is blown, replace the CONTROL BOARD

(PCB-CONTROLLER)

If CF2 is blown, replace the CONTROL BOARD

(PCB-CONTROLLER)

If one of these values is less than 100kΩ, replace the POW-

ER SUPPLY MODULE

Replace the COMPRESSOR

0011-0031

0011

0011-0031

0011

0031

0011-0031

EN 10/2010 i-KI MTD / i-KIR MTD

59

MAINTENANCE AND SERVICE

ERROR

CODE

FEATURES, PARTS, COMPONENTS

MALFUNCTIONING

CHECKS SOLUTION SIZE

A6

A7

A8

C0

C2

C1

Return temperature probe error

Defrost temperature probe error

Outlet temperature probe error

Power supply module error

Outside temperature probe error

Upper fan motor error

(*1)

COMPRESSOR SUCTION

TEMPERATURE PROBE

DEFROST PROBE

COMPRESSOR DISCHARGE

TEMPERATURE PROBE

POWER SUPPLY MODULE

OUTSIDE TEMPERATURE

PROBE

FUSE CF7 (250V T3.15A)

FAN MOTOR (*1)

CONTROL BOARD

(PCB-CONTROLLER)

FUSE CF6 (250V T3.15A)

Check resistance using a tester

[see table 1]

Check resistance using a tester

[see table 3]

Check resistance using a tester

[see table 1]

Check resistance using a tester

[see table 3]

Check resistance using a tester

[see table 2]

Check resistance using a tester

[see table 4] (*2)

-

Replace the probe if faulty

Replace the probe if faulty

Replace the probe if faulty

0031

0011

0031

0011

0031

0011

Replace the POWER SUPPLY MODULE

Check resistance using a tester

[see table 1]

Replace the probe if faulty

Check electrical continuity of FUSE

CF7 (250V T15A) using a tester

If CF7 is blown, replace the fan motor. If CF7 is not blown, check fan motor voltage. If the voltage is within the standard values, replace the fan motor. If the voltage is not within the standard values, replace the

CONTROL BOARD (PCB-CONTROLLER).

0011-0031

0061

Check electrical continuity of FUSE

CF6 (250V T15A) using a tester

If CF6 is blown, replace the fan motor. If CF6 is not blown, check fan motor voltage. If the voltage is within the standard values, replace the fan motor. If the voltage is not within the standard values, replace the

CONTROL BOARD (PCB-CONTROLLER).

C3

Lower fan motor error

(*1)

FAN MOTOR (*1)

CONTROL BOARD

(PCB-CONTROLLER)

FUSE CF4 (250V T3.15A)

Check electrical continuity of FUSE

CF4 (250V T15A) using a tester

If CF4 is blown, replace the fan motor. If CF4 is not blown, check fan motor voltage. If the voltage is within the standard values, replace the fan motor. If the voltage is not within the standard values, replace the

CONTROL BOARD (PCB-CONTROLLER).

0031

C3 Fan motor error (*1)

FAN MOTOR (*1) Check FAN MOTOR voltage

If the voltage is correct, replace the FAN MOTOR.

If the voltage is not correct, replace the CONTROL BOARD

(PCB).

0011

C4

C5

C6

C7

POWER MODULE temperature increase

(above 110°C)

CONTROL BOARD

(PCB-CONTROLLER)

INCORRECT INSTALLATION

TEMPERATURE PROBE

POWER SUPPLY MODULE

Power supply module temperature probe error

TEMPERATURE PROBE

POWER SUPPLY MODULE

CONTROL BOARD

(PCB-CONTROLLER) error

PCB serial interface error

CONTROL BOARD

(PCB-CONTROLLER)

INCORRECT CONTROL

BOARD (PCB-CONTROLLER)

- WIRING LOOSE PCB INTER-

FACE CONNECTION CABLE

OR CONTACTS

PCB INTERFACE

CONTROL BOARD

(PCB-CONTROLLER)

Check the installation position

(intake and outlet air blocked)

-

-

Check loose cable connections and contacts

Other not specified above

Other not specified above

Make sure the position doesn’t block the air intake and outlet

Replace the POWER SUPPLY MODULE

Replace the POWER SUPPLY MODULE

Replace the CONTROL BOARD (PCB-CONTROLLER)

After having corrected the wiring, restart operation

Replace the PCB interface

Replace the CONTROL BOARD (PCB-CONTROLLER)

C8

Printed circuit board

(PCB) serial converter error

CONNECTOR 13 INCORRECT

CONTACT or POWER SUPPLY

MODULE and PRINTED CIR-

CUIT BOARD (PCB)

Power down, wait around 3 minutes

Unplug connector 13 and plug it back in, then power up again

If the same error appears again, replace the POWER SUP-

PLY MODULE.

After having replaced the POWER

SUPPLY MODULE, restart operation

If the same error appears again, replace the printed circuit board (PCB).

CC

Heat pump PCB controller serial error

INCORRECT WIRING [PCB

INTERFACE – HEAT PUMP

CONTROLLER] OR LOOSE

CONTACTS

PCB INTERFACE

HEAT PUMP CONTROLLER

Check loose cable connections and contacts

Other not specified above

Other not specified above

Check loose cable connections and contacts. Then restart operation

Replace the PCB interface

Replace heat pump PCB controller

E4

E5

Water outlet temperature probe error

Water return temperature probe error

WATER OUTLET TEMPERA-

TURE PROBE

WATER RETURN TEMPERA-

TURE PROBE

Check resistance using a tester

[see table 1]

Check resistance using a tester

[see table 5]

Check resistance using a tester

[see table 1]

Check resistance using a tester

[see table 5]

Replace the probe if faulty

Replace the probe if faulty

FU

High pressure switch activated

AIR CIRCULATION

INSUFFICIENT

WATER CIRCULATION

INSUFFICIENT

Check the installation position

(intake and outlet air blocked)

Check the temperature difference between water intake and outlet.

If the difference is high it means that water flow-rate is too low.

Make sure the position doesn’t block the air intake and outlet

Remove obstructions, clean the water filter and unblock the pump.

(*1) While fan motor and/or pump control is active, disconnect the power supply completely and touch the corresponding terminals or connectors.

(*2) If an open circuit is measured on the discharge temperature thermistor, the error screen is displayed 10 minutes after operation commences.

If an open circuit is measured on the discharge temperature thermistor, the error screen is displayed immediately.

0011-0031

0031

0011

0031

0011

0061

60

i-KI MTD / i-KIR MTD EN 10/2010

I A

MAINTENANCE AND SERVICE

I A

ERROR

CODE

P1

P3

U5

FEATURES, PARTS, COMPONENTS

MALFUNCTIONING

Circulating pump error

High pressure switch error

Below-normal temperature measured

CHECKS SOLUTION SIZE

CIRCULATING PUMP PRINTED

CIRCUIT BOARD (PCB) (*1)

WATER PUMP BLOCKED

WATER CIRCUIT BLOCKED

High pressure switch

Check pump voltage

Check the pump and the water circuit.

If the voltage is within the standard values, the pump does not need to be replaced. If the voltage is not within the standard values, replace the printed circuit board (PCB).

Remove any obstructions, clean the water filter, unblock the pump.

Check loose cable connections and contacts if the same error appears again replace the high pressure switch

0011-0031

0061

THE OUTSIDE TEMPERATURE

FALLS BELOW -20°C

OUTSIDE TEMPERATURE PROBE

The unit should not be operated below -20°C to protect the various components

Check resistance using a tester

[see table 1]

When the temperature increases again, the unit automatically resumes operation

Replace the probe if faulty

0031

4-WAY VALVE

No cooling

No heating

OUTSIDE AIR RECIRCULATION

WATER CIRCULATION OUTLET

AND RETURN TEMPERATURE

PROBE

GAS LEAK

WATER CIRCUIT BLOCKED

Check resistance using a tester

Check air blockages at intake and outlet

Check resistance using a tester

[see table 1]

Check resistance using a tester

[see table 5]

Check the service valve and the refrigerant circuit.

Check the temperature difference between water outlet and return.

If the difference is high it means that water flow-rate is too low.

If the value is not within the standard range, replace the coil

Make sure the position doesn’t block the air intake and outlet

0011-0031

If one of these probes is faulty, replace it

After having repaired the leak, collect all the refrigerant and then recharge to the specified mass

Remove obstructions, clean the water filter and unblock the pump.

0031

0011

0011-0031

Heat pump display

To display the data measured by the probes on the outdoor unit, set switch 4 on the display to the ON position.

Then scroll the data shown in the table using the PUMP SW button.

Monitor d0 d1 d2 d3 d5 d6 d8 d9

Data Display Monitor Description

Water return temperature

Compressor operating frequency

Discharge temperature

Power consumption

Defrost thermistor temperature

Room air temperature

Suction temperature

Water outlet temperature

Unit

1 °C

1 Hz

1 °C

100 W

1 °C

1 °C

1 °C

1 °C

MODE SW.

1 2 3

4

Monitor display

PCB (DISPLAY)

PUMP SW.

RESET SW.

Table 1

Defrost temperature probe

(0031m)

Outside temperature probe

Suction temperature probe

(0031m)

Water circulation outlet temperature probe

Table 2

Discharge temperature probe

(0031m)

TEMPERATURE

(°C)

0

5

10

15

20

25

30

35

40

45

50

55

Resistance

(kΩ)

31

24

19

15

12

10

8

6,7

5,5

4,6

3,8

3,2

TEMPERATURE

(°C)

10

20

35

40

50

80

Resistance

(kΩ)

1000

600

300

250

160

50

Table 3

Defrost temperature probe

(0011m, 0061m)

Suction temperature probe

(0011m, 0061m)

TEMPERATURE

(°C)

0

5

10

15

20

25

30

35

40

45

50

55

Resistance

(kΩ)

29

23

19

15

12

10

8,3

6,9

5,7

4,8

4,1

3,4

Table 4

Discharge temperature probeo (0011m, 0061m)

Table 5

Circuit water outlet and return temperature probe (0011m)

TEMPERATURE

(°C)

10

20

35

40

50

80

Resistance

(kΩ)

100

64

33

27

18

6,4

TEMPERATURE

(°C)

0

10

20

30

40

50

Resistance

(kΩ)

31

19

12

8,1

5,5

3,8

EN 10/2010 i-KI MTD / i-KIR MTD

61

MAINTENANCE AND SERVICE

Resetting alarms displayed by the board on the unit

Press the PUMP SW and RESET SW buttons at the same time for 5 seconds to reset the alarm.

The alarms are reset automatically no operations are carried out for 5 minutes.

While an error code is being displayed, holding the reset button for 10 seconds or more resets the alarm log.

Alarm log shown by the board on the unit

Press and hold the PUMP SW and RESET SW buttons together for 5 seconds until the log of error codes and the sequential number is shown.

The PUMP SW button is used to select a maximum of 8 past error codes on the display.

If there are no errors saved, the display shows "--".

0011m

alarm no.

0031m alarm no.

A

PUMP SW

RESET SW

RESET SW button

PUMP SW button

SYSTEM emergency operation

If the heat pump is not working correctly or the compressor has shut down, emergency operation can be activated.

Emergency operation involves heating the water using the electric heaters available on the system (outlet, storage tank).

The compressor remains off.

To enable manual operation of system heaters, set parameter 0620 = 1 (manual)

Description Menu

Mn01

Parameter no.

010G Type of outlet electric heater operation

0 = Supplementary

1 = Replacement

Enable manual heater operation Mn06 0620

Default

1

UOM

1

Set the parameters following the sequence described in the table

DOMESTIC HOT WATER emergency operation

If the heat pump is not working correctly or the compressor has shut down, emergency operation can be activated.

Emergency operation involves heating the domestic hot water using the electric heater inside the storage tank.

To enable manual operation of DHW storage heaters, set parameter 0202 = 1

SHUTTING DOWN FOR LONG PERIODS

After deactivating the heat pump:

- Disconnect the unit from the power supply.

- Make sure the remote keypad is in the “OFF” position.

- Place QF1 in the OFF position (see wiring diagram).

- Deactivate the indoor terminal units by placing the switch of each unit in the “OFF” position.

- Close the water valves.

If the outside temperature may fall below zero; there is the risk of freezing.

The water circuit MUST BE EMPTIED AND CLOSED (if draining after operation in heat pump mode, beware that

Description

Electric heater operating mode

0 = heat pump only

1 = electric heater only

2 = heat pump + electric heater

Menu

Mn02

Parameter no.

0202

Valore da impostare

1

UOM

A

the water may be hot), or antifreeze must be added in the proportion recommended by the manufacturer.

It is recommended to use non-toxic food grade antifreeze, compliant with the standards in force in the countries where the unit is used, if domestic hot water production is also featured.

If the mains switch is turned to “off” for more than four hours, after turning it on and before reactivating the unit, leave the power on but the unit deactivated for at least two hours to preheat the oil in the compressor sump.

62

i-KI MTD / i-KIR MTD EN 10/2010

SCHEDULED MAINTENANCE

Never perform any cleaning operations before having disconnected the unit from the mains power supply.

Make sure power is not connected before proceeding.

Control maintenance is fundamental to maintain the efficiency of the unit both in terms of operation and energy consumption. The Technical Service maintenance plan must be observed, with an annual service which includes the following operations and checks:

- Filling of the water circuit;

- Presence of air bubbles in the water circuit;

- Efficiency of safety devices;

- Power supply voltage;

- Electrical power input;

- Tightness of electrical and water connections;

UNSCHEDULED MAINTENANCE

Never perform any cleaning operations before having disconnected the unit from the mains power supply.

Make sure power is not connected before proceeding.

CHEMICAL WASHING

It is recommended to chemically flush the plate heat exchanger after every 3 years of operation.

To perform this operation, contact a specialist technician.

REFRIGERANT GAS CHARGE

The chillers are filled with R410A refrigerant gas and tested in the factory. In normal conditions, there should be no need for the Technical Service to intervene to check the refrigerant gas. However, over time, small leaks may develop at the joints leading to loss of refrigerant and draining of the circuit, causing the unit to function poorly.

In this case, the leaks of refrigerant must be identified and repaired and the refrigerant circuit recharged.

Proceed as follows:

- Empty and dry the entire refrigerant circuit using a vacuum pump connected to the low and high pressure tap until the vacuometer reads about 10 Pa.

Wait a couple of minutes and check that this value does not rise to more than 50 Pa.

- Connect the refrigerant gas cylinder or a filling cylinder to the low pressure line pressure gauge connection

- Charge the quantity of refrigerant indicated on the unit’s rating plate.

DISPOSAL

The unit must be disposed of according to the legislation in force in the country concerned

A

- Condition of the compressor contactor;

- Efficiency of the plate heat exchanger resistor;

- Verification of operating pressure, superheating and subcooling

- Efficiency of the compressor heater

- Cleaning of the finned coil every three months

- Cleaning of the fan grills

- Cleaning of condensate drain pan.

- Cleaning of water filters.

- Checking the ventilation openings on the base are free of leaves, bushes or anything else that may obstruct air flow.

For units installed near the sea, the intervals between maintenance should be halved.

- Always check the superheating and subcooling values, which should be between 5 and 10°C and 4 and 8°C.

- After a couple of hours operation, check that the liquid indicator indicates a dry circuit (dry-green).

In the event of partial leaks, the circuit must be completely emptied before being recharged.

The R410A refrigerant must only be charged in the liquid state.

Operating conditions other than rated conditions may produce considerably different values.

Tightness testing or identification of leaks must only be carried out using R410A refrigerant gas, checking with a suitable leak detector.

The refrigerant circuit must not be charged with a refrigerant other than that indicated on the rating plate and in this manual.

The use of a different refrigerant may cause serious damage to the compressor.

Oxygen, acetylene or other flammable or poisonous gases must never be used in the refrigerant circuit as they may cause explosion or poisoning.

Oils other than those indicated must not be used.

The use of different oil may cause serious damage to the compressor.

A

USEFUL INFORMATION

For information on technical assistance and obtaining spare parts, contact

CLIMAVENETA S.P.A.

AFTER SALES DEPARTMENT - RESIDENTIAL BUSINESS

Via Duca d’Aosta 121 - 31031 Mignagola di Carbonera (TV) ITALY

Tel: +39.0424.509500

Fax: +39.0424.509563

www.climaveneta.com - [email protected]

U I A

EN 10/2010 i-KI MTD / i-KIR MTD

63

LIST OF PARAMETERS

Description

Enable domestic hot water set point: 0 = Economy, 1 = Comfort

Domestic hot water Economy set point

Domestic hot water Comfort set point

User password

Enable remote contact: 0= remote contact enabled, 1= remote contact disabled (selection from keypad only)

Automatic mode changeover set point in HEATING

Automatic mode changeover differential in HEATING

Automatic mode changeover set point in COOLING

Automatic mode changeover differential in COOLING

Type of outlet heater operation: 0 = Supplementary , 1 = Replacement

Type of boiler operation: 0 = Supplementary , 1 = Replacement

Maximum return set point limit in cooling mode (Tm1)

Outside minimum temperature corresponding to max. return temperature (Te1)

Enable compensation for room humidity, ZONE LT3: 0= Disabled , 1= Enabled

Room relative humidity value to start increasing water outlet temperature set point, ZONE LT3

Maximum outlet temperature hysteresis corresponding to 100% relative humidity

Minimum return set point limit in cooling mode (Tm2)

Maximum outside temperature corresponding to min. return temperature (Te2)

Maximum outlet temperature set point limit in cooling mode (Tm1)

Minimum outside temperature corresponding to max. outlet temperature (Te1)

Minimum outlet temperature set point limit in cooling mode (Tm2)

Maximum outside temperature corresponding to min. outlet temperature (Te2)

Maximum outlet temperature set point limit in cooling mode (Tm1)

Minimum outside temperature corresponding to max. outlet temperature (Te1)

Minimum outlet temperature set point limit in cooling mode (Tm2)

Maximum outside temperature corresponding to min. outlet temperature (Te2)

Inside temperature to enable frost protection

Outside air temperature for frost protection

Enable SYSTEM compensation curve 0= Disabled 1= Enabled

Fixed return water temperature set point in HEATING

Enable SYSTEM compensation curve: 0= Disabled, 1= Enabled

Fixed return water temperature set point in COOLING

Enable compensation for room humidity, SYSTEM: 0= Disabled , 1= Enabled

Room relative humidity value to start increasing SYSTEM return water set point

Maximum return temperature hysteresis corresponding to 100% relative humidity

SYSTEM compensation curve number

Enable contact as: 0= Alarm signal, 1= Dehumidifier, 3= Secondary circuit pump

Enable compensation curve for zone LT3 0= Disabled 1= Enabled

Enable room temperature influence on SYSTEM 0= Disabled 1= Enabled

SYSTEM Room Authority

Minimum set point limit for SYSTEM curve

Maximum set point limit for SYSTEM curve

Enable compensation curve for zone LT1 0= Disabled 1= Enabled

Enable compensation curve for zone LT1: 0= Disabled, 1= Enabled

Enable compensation for room humidity, ZONE LT1: 0= Disabled , 1= Enabled

Room relative humidity value to start increasing water outlet temperature set point, ZONE LT1

Maximum outlet temperature hysteresis corresponding to 100% relative humidity

Zone LT1 compensation curve number

Enable room temperature influence on LT1 0= Disabled 1= Enabled

LT1 Room Authority

MINIMUM outlet set point limit for compensation curve in zone LT1

MAXIMUM outlet set point limit for compensation curve in zone LT1

Enable compensation curve for zone LT2 0= Disabled 1= Enabled

Enable compensation curve for zone LT2: 0= Disabled, 1= Enabled

Enable compensation for room humidity, ZONE LT2: 0= Disabled , 1= Enabled

Room relative humidity value to start increasing water outlet temperature set point, ZONE LT2

Maximum outlet temperature hysteresis corresponding to 100% relative humidity

Zone LT2 compensation curve number

Enable room temperature influence on LT2 0= Disabled 1= Enabled

LT2 Room Authority

MINIMUM outlet set point limit for compensation curve in zone LT2

MAXIMUM outlet set point limit for compensation curve in zone LT2

Electric heater operating mode: 0 = heat pump only, 1 = electric heater only, 2 = heat pump + electric heater

Domestic hot water set point with heater

64

i-KI MTD / i-KIR MTD EN 10/2010

U I A

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Menu Parameter no. UOM

Mn00 0015

Mn00

Mn00

0022

0023

°C

°C

Mn00

Mn01

Mn01

Mn01

0036

0100

0106

0107

Mn01

Mn01

Mn01

Mn01

0108

0109

010G

010H

°C

°C

°C

°C

°C

°C

0128

0129

012N

012P

012R

0130

0131

0132

0133

0134

0135

0136

0137

0138

0139

0140

°C

°C

°C

°C

%

°C

°C

°C

°C

°C

°C

°C

°C

°C Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

0141

0152

0153

0154

0155

0156

°C

°C

%

°C

Mn01

Mn01

Mn01

Mn01

Mn01

Mn02

Mn02

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

0189

0193

0194

0195

0196

0202

0209

0179

0180

0181

0182

0184

0186

0187

0188

0166

0167

0169

0171

0172

0173

0174

0178

0157

0158

0159

015A

015E

0163

0164

0165

%

°C

°C

%

°C

%

°C

°C

%

°C

%

°C

°C

°C

LIST OF PARAMETERS

Description

Domestic hot water temperature set point for Legionella prevention

Legionella prevention cycle day MONDAY (0=no 1=yes)

Legionella prevention cycle day TUESDAY (0=no 1=yes)

Legionella prevention cycle day WEDNESDAY (0=no 1=yes)

Legionella prevention cycle day THURSDAY (0=no 1=yes)

Legionella prevention cycle day FRIDAY (0=no 1=yes)

Legionella prevention cycle day SATURDAY (0=no 1=yes)

Legionella prevention cycle day SUNDAY (0=no 1=yes)

Legionella prevention cycle time

Enable Legionella prevention function 0 = Not enabled 1 = Enabled

Legionella prevention function with: 0 = heat pump only 1 = electric heater only 2 = heat pump + electric heater

Maximum Legionella prevention function duration

Enable electric heater: 0 = Heater not enabled, 1 = Heater enabled

Enable boiler: 0 = Boiler not enabled, 1 = Boiler enabled

Activation for low outside air temperature: 0 = Function not enabled, 1 = Function enabled

Outside air temperature to enable electric heater

Activation for low outside air temperature: 0 = Function not enabled, 1 = Function enabled

Outside air temperature to enable boiler

Minimum outside air temperature for heat pump operation

(make sure the value shown in the table is set)

Electric heater activation delay time

(allows the heat pump to reach steady operation and thus avoid activating the heater when not needed)

Integration time to activate outlet electric heaters

Boiler activation delay time

(allows the heat pump to reach steady operation and thus avoid activating the boiler when not needed)

Integration time to activate boiler

Enable manual heater operation

Domestic hot water set point

User password

Relationship between plant and ambient: 0 = Unit work on ambient request, 1 = Unit work indipendent

Installer password

Enable compensation curve for LT3 in HEATING 0= Disabled (fixed set point operation) 1= Enabled

Enable compensation curve for zone LT3: 0= Disabled, 1= Enabled

Fixed water outlet temperature set point for LT3 in HEATING

Zone LT3 compensation curve number

Enable room temperature influence on LT3 0= Disabled 1= Enabled

LT3 Room Authority

MINIMUM outlet set point limit for compensation curve in zone LT3

MAXIMUM outlet set point limit for compensation curve in zone LT3

Maximum outlet temperature set point limit in cooling mode (Tm1)

Minimum outside temperature corresponding to max. outlet temperature (Te1)

Minimum outlet set point limit in cooling mode (Tm2)

Minimum outside temperature corresponding to min. outlet temperature (Te2)

Activation of system pump operation at intervals: 0= system pump always on, 1=system pump operation at intervals

System pump operating time in sniffing mode

System pump off time between one sniffing cycle and the next

Enable contact as: 0 =Reduced electricity rate, 1=Stop operation due to excess power consumption

Enable compensation curve for LT1 in HEATING 0= Disabled (fixed set point operation) 1= Enabled

Fixed water outlet temperature set point for LT1 in HEATING

Enable compensation curve for LT2 in HEATING 0= Disabled (fixed set point operation) 1= Enabled

Fixed water outlet temperature set point for LT2 in HEATING

Minimum heat pump operating time for system

Maximum heat pump operating time to reach domestic hot water set point

Three-way valve travel time for domestic hot water production

BT1 Heat exchanger water inlet temperature probe

BT2 Heat exchanger water outlet temperature probe

BT8 Domestic hot water probe

BT7 Unit control air temperature probe

BT9 Storage tank probe

BT11 Outside air temperature probe for set point management

Mn06

Mn06

Mn06

Mn02

Mn09

Mn09

Mn09

Mn09

Mn09

Mn09

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn02

Mn02

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn06

Mn06

Mn00

Mn00

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn01

Mn02

Mn02

Mn02

Mn02

Mn02

Mn03

Mn03

Mn03

Menu Parameter no. UOM

Mn02 0211 °C

Mn02

Mn02

0213

0214

Mn02

Mn02

Mn02

Mn02

0215

0216

0218

0219

Mn03

Mn03

Mn03

0220

0221

0222

0223

0225

0300

0301

0303

0304

0306

0307 h min.

°C

°C

Mn03 0311 °C min.

°C*sec min.

°C*sec

0616

0617

0618

0231

0900

0901

0902

0903

0904

0905

0148

015D

0168

0170

0183

0185

0226

0227

011U

012A

012D

012E

012F

012G

012H

012J

0619

0620

0023

0036

011D

011G

011R

011T

012L

012M

0143

0147

°C

%

°C

°C

°C

°C

°C

°C

°C

°C sec.

°C

°C

°C

°C

°C

°C

EN 10/2010 i-KI MTD / i-KIR MTD

65

INSTALLER OPERATIONS CHECKLIST

U I A

Installer: __________________________________________ Designer: _______________________________________

Type of application:___________________________________________________________________________________

Street ___________________________________________________________________________ number _____________

City/town __________________________ Postcode/ZIP code _____________ Province/State _________________________

Unit model installed ________________________________________ Serial number _________________________________

Is there a system design? YES

NO

If YES, has the system been developed completely in accordance with the design? YES

NO

Installation date: ____________________________________

Systems included:

• Winter heating AT (radiators)

• Winter heating MT (fan coil)

• Winter heating BT (radiant panels)

• Summer cooling

• DHW production

• Solar thermal installed

Mark the type of system installed and describe the components in the corresponding tables

Heating system circuit

HEAT

PUMP

HEAT

PUMP

Storage tank

Additional expansion vessel

Volume [l]

Type/model

Secondary pump

Installed?

Type/model

Hot water set point:

Cold water set point:

__________ °C

__________ °C

Domestic hot water circuit

HEAT

PUMP

HEAT

PUMP

HEAT

PUMP

66

i-KI MTD / i-KIR MTD EN 10/2010

Volume [l]

Type/model

Coil water volume [l]

Coil heat exchange area

[m 2 ]

Storage tank with coil

Storage cylinder

Expansion vessel

Domestic hot water set point: __________ °C

INSTALLER OPERATIONS CHECKLIST

CONCERNING UNIT INSTALLATION OPERATIONS AND SETUP FOR COMMISSIONING

HAVE THE FOLLOWING CHECKS BEEN COMPLETED?

U I A

Components installed (as described in the paragraph on "Water circuit connections")

• Two pressure gauges with a suitable scale are installed on the inlet and outlet

• Shut-off valves are installed on the heating system circuit and domestic hot water circuit inlet and outlet

• Two thermometers are installed, on the inlet and outlet

• All pipes are insulated with suitable vapour barrier material to prevent formation of condensate and heat loss, with control and shut-off devices protruding from the insulation

• Drain valves are installed at the lowest points in the system

• Automatic or manual air vent valves are installed at the highest points in the system

• An additional expansion vessel is installed on the system if the standard vessel is insufficient

• Vibration damper joints are installed on the inlet and outlet water pipes

• A low-loss header is installed if the water content is insufficient

• Vibration damper supports are installed on the unit

• The domestic hot water production system is installed

• The safety valve is installed and suitably sized

• The domestic hot water expansion vessel is installed and suitably sized

YES NO

❑ ❑

❑ ❑

❑ ❑

❑ ❑

❑ ❑

❑ ❑

❑ ❑

❑ ❑

❑ ❑

❑ ❑

❑ ❑

❑ ❑

❑ ❑

Checks (as described in the paragraph on "Checking and starting up the unit")

• Two pressure gauges with a suitable scale are installed on the inlet and outlet

• The unit is positioned as described in the chapter on "Positioning" in this manual

• The filter is installed on the system return/inlet as close as possible to the unit and in a position that is easy to access for maintenance. REQUIRED component, this must be installed before water circulates through the heat

exchanger otherwise the warranty will be void

CHECKED

• The filter is installed on the domestic hot water return/inlet as close as possible to the unit and in a position that is easy to access for maintenance. REQUIRED component, this must be installed before water circulates through the heat exchanger otherwise the warranty will be void

• (Water-to-water units only) The filter is installed on the source return/inlet as close as possible to the unit and in a position that is easy to access for maintenance. REQUIRED component, this must be installed before water circulates through the heat exchanger otherwise the warranty will be void

• The flow switch is installed on the unit's outlet to the heating system circuit and is electrically connected.

REQUIRED component, this must be installed before water circulates through the heat exchanger otherwise

the warranty will be void

• (Water-to-water units only) The flow switch is installed unit's outlet to the source circuit and is electrically connected. REQUIRED component, this must be installed before water circulates through the heat exchanger

otherwise the warranty will be void

EN 10/2010 i-KI MTD / i-KIR MTD

67

INSTALLER OPERATIONS CHECKLIST

U I A

Checks (as described in the paragraph on "Checking and starting up the unit")

• The connection pipes are suitably supported so that these do not weigh on the appliance

• Correct sizing of the expansion vessel has been verified according to the system water content and the expected operating temperature

• The position of the outside air temperature probe complies with the information provided in the installation manual

• The position of the room controllers installed complies with the information provided in the installation manual

• The position of the DHW storage tank probe complies with the information provided in the installation manual

• (Units with heat recovery only) The non-return valve is fitted on the domestic hot water circuit

CHECKED

• All safety conditions have been respected

• The unit is fixed to the surface it rests on

• Water connections have been carried out as indicated in the installation manual

• All water connections are tight

• All electrical connections are tight

• Make sure the water circuit has been washed and drained

• There is no air in the system (vent if necessary)

• The valves on the water circuit are open

• Electrical connections have been carried out correctly

• Voltage is within a tolerance of 10% of the rated voltage for the unit

• Unbalance between phases is less than 2%, for three-phase units

• Maintenance clearances comply with the specifications in the Installation manual under the section on

POSITIONING

• Power supply electrical complies with the data on the rating plate and specified in the Installation manual under the section on MAINS POWER SUPPLY CONNECTION

• The system water content complies with the specifications in the Installation manual under the section on

WATER CONNECTIONS

• Suitable water flow-rate for operation of the entire unit is guaranteed as specified in the Installation manual under the section on WATER CONNECTIONS

• (Air-to-water units only) The system has been protected with antifreeze, respecting the quantities shown in the

Installation manual under the section on WATER CONNECTIONS

• The DHW storage tank has been fitted with an electric heater for Legionella prevention

It is hereby declared that the site and access to the site where the unit to be operated or serviced is installed has been made safely accessible in compliance with all safety standards specified by Italian law 81/08 in force. A supervisor must be present on site to inform workers of residual risks in the workplace.

WARNING:

Failure to complete commissioning due to causes not attributable to the unit will require a second visit, to be charged to the customer directly by the local service centre.

Installer's signature ___________________________________________________ Date ________________________

68

i-KI MTD / i-KIR MTD EN 10/2010

Climaveneta S.p.A.

Via Sarson 57/c

36061 Bassano del Grappa (VI)

Italy

Tel +39 0424 509500

Fax +39 0424 509509 [email protected]

www.climaveneta.com

Climaveneta France

3, Village d’Entreprises

ZA de la Couronne des Prés

Avenue de la Mauldre

78680 Epone

France

Tel +33 (0)1 30 95 19 19

Fax +33 (0)1 30 95 18 18 [email protected]

www.climaveneta.fr

Climaveneta Deutschland

Rhenus Platz, 2

59439 Holzwickede

Germany

Tel +49 2301 91222-0

Fax +49 2301 91222-99 [email protected]

www.climaveneta.de

Climaveneta

Espana - Top Clima

Londres 67, 1° 4°

08036 Barcelona

Spain

Tel +34 963 195 600

Fax +34 963 615 167 [email protected]

www.climaveneta.com

Climaveneta Chat Union

Refrig. Equipment Co Ltd

88 Bai Yun Rd, Pudong Xinghuo

New dev. zone 201419 Shanghai

China

Tel 008 621 575 055 66

Fax 008 621 575 057 97

Climaveneta Polska Sp. z o.o.

Ul. Sienkiewicza 13A

05-120 Legionowo

Poland

Tel +48 22 766 34 55-57

Fax +48 22 784 39 09 [email protected]

www.climaveneta.pl

Climaveneta India

Climate Technologies (P) LTD

#3487, 14th Main, HAL 2nd stage,

Indiranagar, Bangalore 560008

India

Tel +91-80-42466900 - 949

Fax +91-80-25203540 [email protected]

Climaveneta UK LTD

Highlands Road,

Shirley Solihull

West Midlands B90 4NL

Tel: +44 (0)871 663 0664

Fax: +44 (0)871 663 1664

Freephone: 0800 801 819 [email protected]

www.climaveneta.co.uk

www.climaveneta.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
