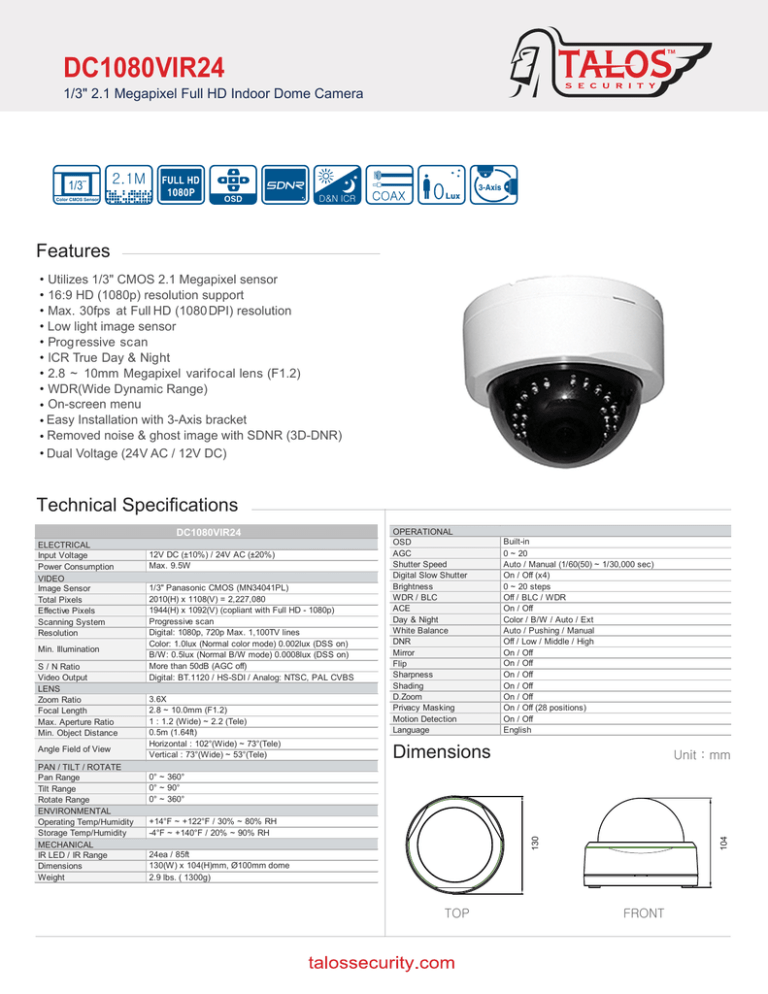

DC1080VIR24
1/3" 2.1 Megapixel Full HD Indoor Dome Camera
1/3¨
2.1M
3-Axis
D&N ICR
Color CMOS Sensor
Features
• Utilizes 1/3" CMOS 2.1 Megapixel sensor
• 16:9 HD (1080p) resolution support
• Max. 30fps at Full HD (1080 DPI) resolution
• Low light image sensor
• Progressive scan
• ICR True Day & Night
• 2.8 ~ 10mm Megapixel varifocal lens (F1.2)
• WDR(Wide Dynamic Range)
• On-screen menu
• Easy Installation with 3-Axis bracket
• Removed noise & ghost image with SDNR (3D-DNR)
• Dual Voltage (24V AC / 12V DC)
Technical Specifications
S / N Ratio
Video Output
LENS
Zoom Ratio
Focal Length
Max. Aperture Ratio
Min. Object Distance
Angle Field of View
PAN / TILT / ROTATE
Pan Range
Tilt Range
Rotate Range
ENVIRONMENTAL
Operating Temp/Humidity
Storage Temp/Humidity
MECHANICAL
IR LED / IR Range
Dimensions
Weight
12V DC (±10%) / 24V AC (±20%)
Max. 9.5W
1/3" Panasonic CMOS (MN34041PL)
2010(H) x 1108(V) = 2,227,080
1944(H) x 1092(V) (copliant with Full HD - 1080p)
Progressive scan
Digital: 1080p, 720p Max. 1,100TV lines
Color: 1.0lux (Normal color mode) 0.002lux (DSS on)
B/W: 0.5lux (Normal B/W mode) 0.0008lux (DSS on)
More than 50dB (AGC off)
Digital: BT.1120 / HS-SDI / Analog: NTSC, PAL CVBS
3.6X
2.8 ~ 10.0mm (F1.2)
1 : 1.2 (Wide) ~ 2.2 (Tele)
0.5m (1.64ft)
Horizontal : 102°(Wide) ~ 73°(Tele)
Vertical : 73°(Wide) ~ 53°(Tele)
OPERATIONAL
OSD
AGC
Shutter Speed
Digital Slow Shutter
Brightness
WDR / BLC
ACE
Day & Night
White Balance
DNR
Mirror
Flip
Sharpness
Shading
D.Zoom
Privacy Masking
Motion Detection
Language
Built-in
0 ~ 20
Auto / Manual (1/60(50) ~ 1/30,000 sec)
On / Off (x4)
0 ~ 20 steps
Off / BLC / WDR
On / Off
Color / B/W / Auto / Ext
Auto / Pushing / Manual
Off / Low / Middle / High
On / Off
On / Off
On / Off
On / Off
On / Off
On / Off (28 positions)
On / Off
English
Dimensions
Unit : mm
0° ~ 360°
0° ~ 90°
0° ~ 360°
+14°F ~ +122°F / 30% ~ 80% RH
-4°F ~ +140°F / 20% ~ 90% RH
104
Min. Illumination
DC1080VIR24
130
ELECTRICAL
Input Voltage
Power Consumption
VIDEO
Image Sensor
Total Pixels
Effective Pixels
Scanning System
Resolution
24ea / 85ft
130(W) x 104(H)mm, Ø100mm dome
2.9 lbs. ( 1300g)
TOP
FRONT
