OBSERVE ALL SAFETY

PRECAUTIONS!

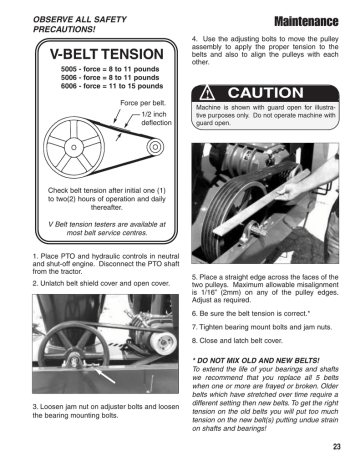

V-BELT TENSION

5005 - force = 8 to 11 pounds

5006 - force = 8 to 11 pounds

6006 - force = 11 to 15 pounds

Force per belt.

1/2 inch deflection

Maintenance

4. Use the adjusting bolts to move the pulley assembly to apply the proper tension to the belts and also to align the pulleys with each other.

!

CAUTION

Machine is shown with guard open for illustrative purposes only. Do not operate machine with guard open.

Check belt tension after initial one (1) to two(2) hours of operation and daily thereafter.

V Belt tension testers are available at most belt service centres.

1. Place PTO and hydraulic controls in neutral and shut-off engine. Disconnect the PTO shaft from the tractor.

2. Unlatch belt shield cover and open cover.

5. Place a straight edge across the faces of the two pulleys. Maximum allowable misalignment is 1/16” (2mm) on any of the pulley edges.

Adjust as required.

6. Be sure the belt tension is correct.*

7. Tighten bearing mount bolts and jam nuts.

8. Close and latch belt cover.

3. Loosen jam nut on adjuster bolts and loosen the bearing mounting bolts.

* DO NOT MIX OLD AND NEW BELTS!

To extend the life of your bearings and shafts we recommend that you replace all 5 belts when one or more are frayed or broken. Older belts which have stretched over time require a different setting then new belts. To get the right tension on the old belts you will put too much tension on the new belt(s) putting undue strain on shafts and bearings!

23

Maintenance

AIRLOCK TIPS

Check Airlock Tips clearance when there is a noticeable drop in capacity of the Conveyair.

If clearance exceeds 0.38 mm (0.015”) adjust as shown below.

a. Checking clearance:

Disengage PTO and hydraulic power and shut off engine. Wait for all moving parts to stop.

2. Relieve the pressure on the hydraulic lines and disconnect from tractor.

3. Remove hydraulic lines from the airlock drive motor to allow rotation of the airlock.

3. Remove the eight bolts securing the receiver tank to the airlock mount plate. Remove the receiver tank from the frame.

!

CAUTION

High pressure fluids can penetrate the skin and cause infection and toxic reaction

4.

Open the inspection door on the receiver tank. Use a feeler gauge to check the clearance between the tips and the shell.

b. Airlock Tip Adjustment

1. Remove the connector on the air line between the BPS and the receiver tank.

2. Attach an overhead hoist to the receiver tank.

24

WARNING

ROTATING AIRLOCK HAZARD

To prevent serious injury or death from airlock blades:

1. Do not place hands in tank when airlock is turning.

2. Shut-off engine and wait for moving parts to stop before opening door to adjust, service or unplug.

4. Position tip next to top of shell.

5. Loosen slightly the 5 bolts attaching the tip to the blade of the airlock.

6. Move the tip until you have 0.006” (0.15 mm) clearance between tip end and clockwise side of shell.

7. Tighten the bolts and torque to 34-40 Nm

(20-25 ft. lbs.)

8. Rotate the rotor clockwise to ensure that there is no contact between the tips, end plates and the shell. Adjust if there is contact.

9. Mark the tip with a felt pen as done and proceed with remaining tips till all have been adjusted.

10. Replace receiver tank and check that all connections are airtight.

Maintenance

RESERVOIR BREATHER

(Clean every 50 hours)

Clean breathers allow the pressure in the oil reservoir to equalize with the outside as the temperature changes.

AIR PUMP OIL RESERVOIR

(Change oil every 100 hours, more often if conditions are very dusty).

1. Place small pan under the drain plug and remove plug. Drain for 10 minutes.

2. Re-install and tighten the drain plug.

1. Remove breather from the top of the reservoirs.

2. Soak/Wash in a good grade of solvent.

3. Dry with an airhose and re-install.

Breather hole

Sight glass

3. Remove breather and add oil through the breather hole. Fill to center of the sight glass and re-install breather.

IMPORTANT

• Overfilling causes heating from the oil churning.

• Underfilling causes heating from lack of lubrication.

4. Repeat on other reservoir.

25

Maintenance

BPS

(Blower Protection System)

The air which is sucked from the receiver tank and drawn toward the air-pump contains dust which is harmful to the pump. This dust is trapped by the BPS system and collected in the dust canister. The amount of dust collected depends on the amount of dust and fines in the grain being moved.

NOTE

If machine is allowed to overfill (plug) - a. Remove screen on top of BPS and clean if required and reinstall.

Remove BPS lid and take out Screen

DO NOT strike the screen with any hard object as damage to the screen will diminish its effectiveness.

Dust canister

Remove and empty dust canister regularly. Do not allow to overfill. When canister is three quarters full it should be considered full!

b. Empty canister and also allow any grain which may have accumulated in BPS to run out.

Refer to unplugging instructions under

OPERATION on page 16.

26

Maintenance

SHEAR PIN

A shear pin is provided in the PTO shaft to protect the drive system during an overload.

Changing the Shear Pin

1. Place all controls in neutral, stop engine, set park brake, remove ignition key and wait for all moving parts to stop before dismounting.

2. Disconnect the PTO shaft from the tractor and lay to the side to provide maximum clearance for the shear bolt.

3. Carefully remove remaining shear bolt using a hammer and punch if necessary. Do not enlarge the holes.

4. Install the new shear bolt and tighten.

IMPORTANT

These shear bolts are specially designed to provide protection for the drive system.

Do not install just any bolt, use genuine

Thor parts.

HYDRAULIC SAFETY

1. Make sure that all components in the hydraulic system are kept in good condition.

2. Replace any worn, cut, abraded, flattened or crimped hoses and metal lines.

3. Before applying pressure to the system, make sure all components are tight and that lines, hoses and couplings are not damaged.

Do not use tape, clamps or cement to repair hydraulic lines. The hydraulic system operates under high pressure, creating a hazardous unsafe condition when such repairs fail suddenly.

4. Wear proper hand and eye protection when searching for a high pressure hydraulic leak. Use a piece of wood or cardboard as a backstop instead of hands to isolate and identify leak.

5. If injured by a concentrated high pressure stream of hydraulic fluid, seek attention immediately. Serious infection or toxic reaction can develop from hydraulic fluid piercing the skin surface.

WARNING

High pressure fluids can penetrate the skin and cause infection and toxic reaction.

27

Check tightness of bolts periodically, using bolt torque chart as a guide. Always replace hardware with the same strength bolt.

English Torque Specifications

SAE-2 SAE-5 SAE-8

A

* Torque value for bolts and capscrews are identified by their head markings.

Torque values indicated above are valid for non-greased or non oiled threads and heads unless otherwise specified. Do not grease or oil bolts or capscrews unless otherwise specified in this manual. When using locking elements, increase torque values by 5%.

Bolt Bolt Torque*

Dia.

SAE 2 SAE 5 SAE 8

“A” N.m (lb-ft) N.m (lb-ft) N.m (lb-ft)

1/4” 8 (6) 12

5/16” 13 (10) 25

3/8” 27

7/16” 41

(20)

(30)

45

72

(9)

(19)

(33)

(53)

17

36

63

100

(12)

(27)

(45)

(75)

1/2” 61

9/16” 95

(45) 110 (80) 155 (115)

(70) 155 (115) 220 (165)

5/8” 128 (95) 215 (160) 305 (220)

3/4” 225 (165) 390 (290) 540 (400)

7/8” 230 (170) 570 (420) 880 (650)

1” 345 (225) 850 (630) 1320 (920)

Metric Torque Specifications

Bolt

Diameter

“A”

M3

M4

M5

M6

M8

M10

M12

M14

M15

M20

M24

28

A

8.8

10.9

Bolt Torque*

6

10

25

50

8.8

N.m

(lb-ft)

3

.5

(.4)

(2.2)

(4)

(7)

(18)

(37)

90 (66)

140 (103)

225 (166)

435 (321)

750 (553)

10.9

N.m

(lb-ft)

1.8

(1.3)

4.5

(3.3)

9 (7)

15 (11)

35 (26)

70 ( 52)

125 (92)

200 (148)

310 (228)

610 (450

)

1050 (774)

HYDRAULIC FITTING

TORQUE

Tighten Flare Tube Fittings*

1. Check flare and flare seat for defects that might cause leakage.

2. Align tube with fitting before tightening.

3. Lubricate connection and hand tighten swivel nut.

4. To prevent twisting the tube(s), use two wrenches. Place one wrench on the connector body and with the second tighten the swivel nut to the torque shown.

Tube Nut size Torque

Size Across

OD Flats

Value*

Recommended

Turns to Tighten

(After finger

Tightening) in.

in.

N.m (lb-ft) Flats Turns

3/16 7/16 8 ( 6) 1 1/6

1/4 9/16 12 (9) 1 1/6

5/16 5/8 16 (12) 1 1/6

3/8 11/16 24 (18) 1 1/6

1/2 7/8

5/8

46 (34) 1 1/6

1 62 (46) 1 1/6

3/4 1 1/4 102 (75) 3/4 1/8

7/8 1 3/8 122 (90) 3/4 1/8

* The torque values shown are based on lubricated connections as in reassembly.

Hydraulic Schematic

Standard

Boom

Cylinder

Hydraulic

Motor

Boom

Hydraulic

Valve

Flow

Control

Valve

Control

Panel

To Tractor

From Tractor

29

Hydraulic Schematic

With Reverse Option

Boom

Cylinder

30

Hydraulic

Motor

To Tractor From Tractor

Boom

Hydraulic

Valve

Flow

Control

Valve

Airlock

Control

Valve

Control

Panel

Hydraulic

Oil Tank

Filter

Hydraulic Schematic

Self-contained with reverse option

Boom

Cylinder

Boom

Hydraulic

Valve

Airlock

Control

Valve

Flow

Control

Valve

Control

Panel

Hydraulic

Motor

Hydraulic

Pump

31
