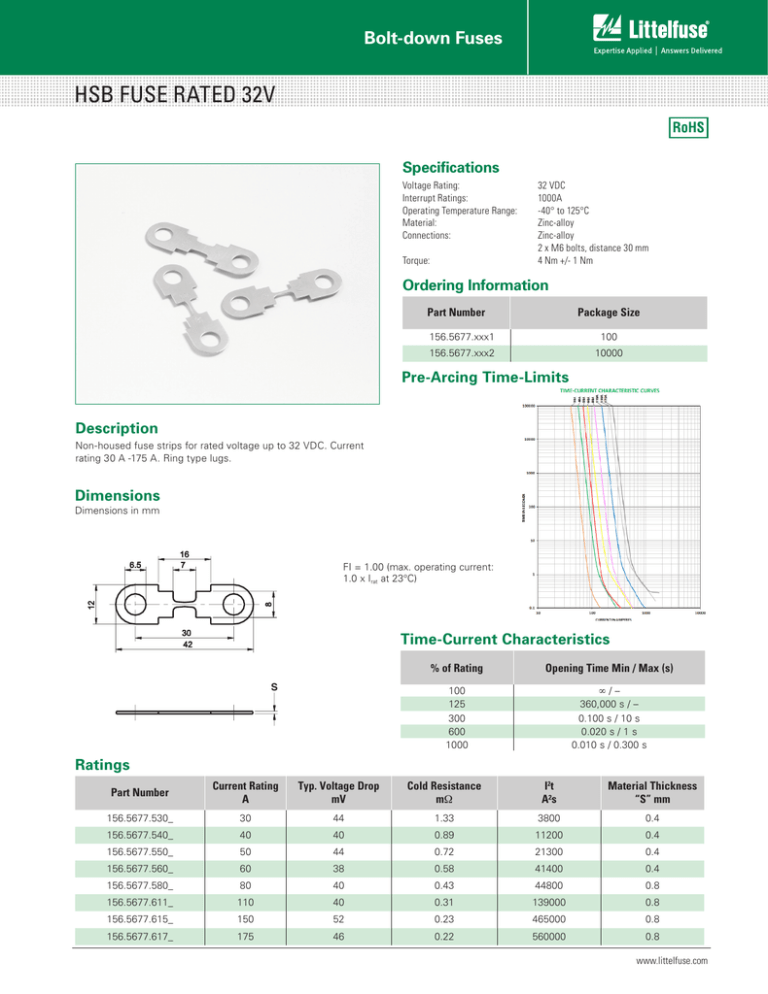

HSB FUSE RATED 32V Bolt-down Fuses Specifications

HSB FUSE RATED 32V Bolt-down Fuses Specifications
Bolt-down Fuses
HSB FUSE RATED 32V
Specifications
Voltage Rating: 32 VDC
Interrupt Ratings: 1000A
Operating Temperature Range: -40° to 125°C
Material:Zinc-alloy
Connections:Zinc-alloy
2 x M6 bolts, distance 30 mm
Torque:
4 Nm +/- 1 Nm
Ordering Information
Part Number
Package Size
156.5677.xxx1
100
156.5677.xxx2
10000
Pre-Arcing Time-Limits
Description
Non-housed fuse strips for rated voltage up to 32 VDC. Current
rating 30 A -175 A. Ring type lugs.
Dimensions
Dimensions in mm
FI = 1.00 (max. operating current:
1.0 x Irat at 23°C)
Time-Current Characteristics
S
% of Rating
Opening Time Min / Max (s)
100
125
300
600
1000
∞/–
360,000 s / –
0.100 s / 10 s
0.020 s / 1 s
0.010 s / 0.300 s
Ratings
Part Number
Current Rating
A
Typ. Voltage Drop
mV
Cold Resistance
mΩ
I2t
A²s
Material Thickness
“S” mm
156.5677.530_
30
44
156.5677.540_
40
40
1.33
3800
0.4
0.89
11200
156.5677.550_
50
0.4
44
0.72
21300
0.4
156.5677.560_
156.5677.580_
60
38
0.58
41400
0.4
80
40
0.43
44800
0.8
156.5677.611_
110
40
0.31
139000
0.8
156.5677.615_
150
52
0.23
465000
0.8
156.5677.617_
175
46
0.22
560000
0.8
www.littelfuse.com
