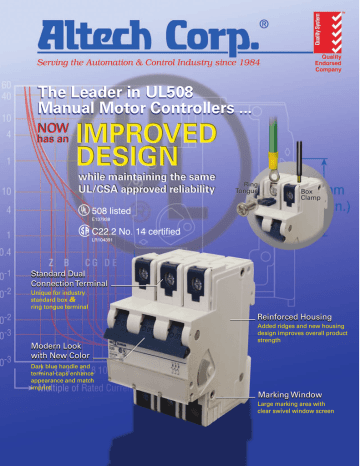

The Leader in UL508

Manual Motor Controllers ...

Ring

Tongue

Box

Clamp

Standard Dual

Connection Terminal

Unique for industry standard box

&

ring tongue terminal

Modern Look with New Color

Dark blue handle and terminal caps enhance appearance and match imprint

Added ridges and new housing design improves overall product strength

Large marking area with clear swivel window screen

Typical UL508 Application

Power Circuit of a UL508A Panel

Altech's V-EA UL508

Manual Motor Controllers are approved for

Group Installations

2

Disclaimer: This an application example. Installation should be done by a qualified electrician under the guidance of UL/NEC
