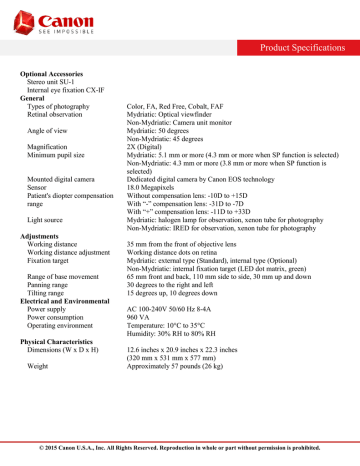

Product Specifications

Product Specifications
Product Specifications
Optional Accessories
Stereo unit SU-1
Internal eye fixation CX-IF
General
Types of photography
Retinal observation
Angle of view
Magnification
Minimum pupil size
Mounted digital camera
Sensor
Patient's diopter compensation
range
Light source
Adjustments
Working distance
Working distance adjustment
Fixation target
Range of base movement
Panning range
Tilting range
Electrical and Environmental
Power supply
Power consumption
Operating environment
Physical Characteristics
Dimensions (W x D x H)
Weight
Color, FA, Red Free, Cobalt, FAF
Mydriatic: Optical viewfinder
Non-Mydriatic: Camera unit monitor
Mydriatic: 50 degrees
Non-Mydriatic: 45 degrees
2X (Digital)
Mydriatic: 5.1 mm or more (4.3 mm or more when SP function is selected)
Non-Mydriatic: 4.3 mm or more (3.8 mm or more when SP function is
selected)
Dedicated digital camera by Canon EOS technology
18.0 Megapixels
Without compensation lens: -10D to +15D
With “-” compensation lens: -31D to -7D
With “+” compensation lens: -11D to +33D
Mydriatic: halogen lamp for observation, xenon tube for photography
Non-Mydriatic: IRED for observation, xenon tube for photography
35 mm from the front of objective lens
Working distance dots on retina
Mydriatic: external type (Standard), internal type (Optional)
Non-Mydriatic: internal fixation target (LED dot matrix, green)
65 mm front and back, 110 mm side to side, 30 mm up and down
30 degrees to the right and left
15 degrees up, 10 degrees down
AC 100-240V 50/60 Hz 8-4A
960 VA
Temperature: 10°C to 35°C
Humidity: 30% RH to 80% RH
12.6 inches x 20.9 inches x 22.3 inches
(320 mm x 531 mm x 577 mm)
Approximately 57 pounds (26 kg)
© 2015 Canon U.S.A., Inc. All Rights Reserved. Reproduction in whole or part without permission is prohibited.
