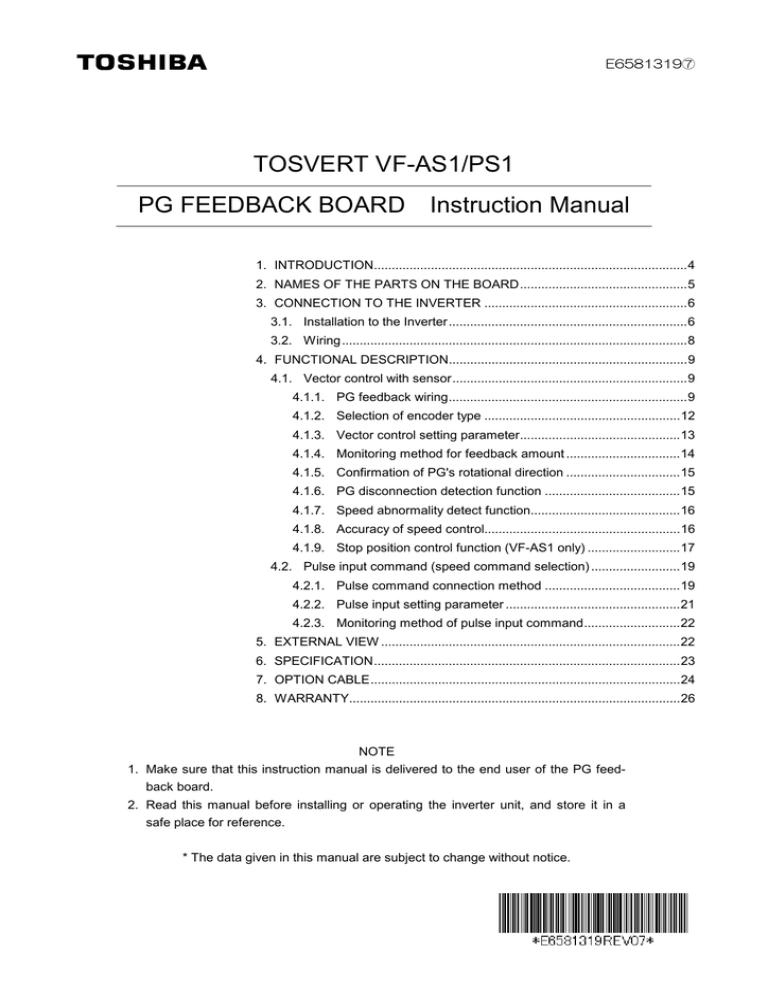

TOSVERT VF-AS1/PS1
PG FEEDBACK BOARD Instruction Manual
1. INTRODUCTION........................................................................................4
2. NAMES OF THE PARTS ON THE BOARD...............................................5
3. CONNECTION TO THE INVERTER .........................................................6
3.1. Installation to the Inverter ...................................................................6
3.2. Wiring.................................................................................................8
4. FUNCTIONAL DESCRIPTION...................................................................9
4.1. Vector control with sensor..................................................................9
4.1.1. PG feedback wiring...................................................................9
4.1.2. Selection of encoder type .......................................................12
4.1.3. Vector control setting parameter.............................................13
4.1.4. Monitoring method for feedback amount ................................14
4.1.5. Confirmation of PG's rotational direction ................................15
4.1.6. PG disconnection detection function ......................................15
4.1.7. Speed abnormality detect function..........................................16
4.1.8. Accuracy of speed control.......................................................16
4.1.9. Stop position control function (VF-AS1 only) ..........................17
4.2. Pulse input command (speed command selection) .........................19
4.2.1. Pulse command connection method ......................................19
4.2.2. Pulse input setting parameter .................................................21
4.2.3. Monitoring method of pulse input command...........................22
5. EXTERNAL VIEW ....................................................................................22
6. SPECIFICATION......................................................................................23
7. OPTION CABLE.......................................................................................24
8. WARRANTY.............................................................................................26
NOTE
1. Make sure that this instruction manual is delivered to the end user of the PG feedback board.
2. Read this manual before installing or operating the inverter unit, and store it in a
safe place for reference.
* The data given in this manual are subject to change without notice.
© Toshiba Schneider Inverter Corporation 2005
All rights reserved.
E6581319⑦
Safety Precautions
On the inverter and in its instruction manual, important information is contained for preventing injuries to users and damages to assets and for proper use of the device. Read
the instruction manual attached to the inverter along with this instruction manual for completely understanding the safety precautions and adhere to the contents of these manuals.
Explanation of markings
Marking
Warning
Meaning of marking
Indicates that errors in operation may lead to death or serious injury.
Indicates that errors in operation may lead to injury (*1) to people or that these errors
Caution
may cause damage to physical property. (*2)
(*1) Such things as injury, burns or shock that will not require hospitalization or long periods of outpatient treatment.
(*2) Physical property damage refers to wide-ranging damage to assets and materials.
Meanings of symbols
Marking
Meaning of marking
Indicates prohibition (Don't do it).
What is prohibited will be described in or near the symbol in either text or picture
form.
Indicates something mandatory (must be done).
What is mandatory will be described in or near the symbol in either text or picture form.
Indicates warning.
What is dangerous will be described in or near the symbol in either text or picture form.
Indicates caution.
What the caution should be applied to will be described in or near the symbol in either text or picture form.
1
E6581319⑦
Handling in general
Warning
▼ Never disassemble, modify or repair the inverter.
Never
Disassemble
Disassembling the inverter could cause electric shocks, fire or injuries.
Request your TOSHIBA distributor for repairs.
▼ Do not remove connectors when the power is on.
It could lead to electric shocks.
▼ Do not put or insert foreign objects such as waste cable, bars, or wires into the in-
Prohibited
verter.
It could lead to electric shocks or fire.
▼ Do not splash water over the inverter.
It could lead to electric shocks or fire.
▼ Wiring should be conducted after turning the inverter power off.
▼ Turn off the power immediately in case any abnormalities such as smokes, smells or
abnormal noise are found.
Mandatory
Neglect of these conditions could lead to fire.
Ask your TOSHIBA distributor for repairs.
Transportation and Installation
Warning
▼ Do not install or operate the inverter if it is damaged or any part is missing from it.
Operating the inverter in a defective condition could lead to electric shocks or fire.
Ask your TOSHIBA distributor for repairs.
▼ Do not put any inflammable material near the inverter.
Prohibited
It could catch fire if the inverter sparks because of a breakdown and the like.
▼ Do not install the inverter where it could be splashed with water and the like.
It could lead to electric shocks or fire.
▼ When installing this option, be careful not to touch the leads from parts on the circuit
board.
Doing so could result in injury.
▼ Inverter must be used under environmental conditions prescribed in this instruction
manual.
Mandatory
Using the inverter under conditions not specified by the instruction manual could lead
to breakdown.
2
E6581319⑦
Wiring
Warning
▼ Be sure to perform the following preparatory work before proceeding to wiring.
Turn the power off.
Wait 15 minutes or more after turning the power off and confirm that the charge lamp
(on the inverter) is extinct.
Using a circuit tester that has a D.C. voltage measuring capacity of more than 800V,
check to see that the voltage remaining in the D.C. main circuit (between PC and PA)
Mandatory
is below 45V.
Failure to do this preparation could lead to electric shocks.
▼ Tighten the terminal board fixing screws at the specified torque.
Failure to do this could lead to fire.
About operation
Warning
▼ Do not touch inverter terminals when they are energized even if the motor is halted.
Touching terminals while the power is energized could lead to electric shocks.
▼ Do not wipe the body with a wet cloth.
Prohibited
It could lead to electric shocks.
▼ Do not pull on the cable
It could cause damage or error.
About disposal of Inverter
Caution
▼ Dispose of the inverter as an industrial waste.
Unless it is disposed of as an industrial waste, it will become risks for human injury.
Mandatory
Notes on use
Notes
▼ Do not install the inverter where the temperature or the humidity will change rapidly.
▼ Keep a distance of 20cm or more between the inverter's power cable and the encoder
cable.
Or the inverter might malfunction because of noise.
3
E6581319⑦
1. Introduction
Thank you for purchasing the PG Feedback Board (PGFB board) for Industrial Inverter,
TOSVERT VF-AS1/PS1 series.
By the use of this optional board, it is possible for the VF-AS1/PS1 series inverters to conduct pulse row speed command and vector control with sensor. This instruction manual describes installation and application of “PGFB board”. Read this manual carefully before using the board.
Keep this manual near at hand of the operator who uses the “PGFB Board” for future reference in the maintenance and inspection.
* Please use this option for VF-AS1 that the software version (CPU version 1) is V124 or successor.
When it is used with the V106 or earlier software and the number of pulse inputs except
1024, the motor rotation may become unstable.
Refer to the instruction manual of the inverter for the check method of the version.
＜Description of the PGFB Board type＞
＞
ＶＥＣ
００４ Ｚ －０
Revision number
Without cable
Vector compatible type number
004: For 12V push-pull / open collector type encoder
005: For 15V push-pull / open collector type encoder
006: For 24V push-pull / open collector type encoder
007: For 5V line driver type encoder
Vector control with sensor compatible
＜Confirmation on Accessories＞
＞
Following accessories are the options to the PGFB Board.
Upon unpacking, confirm on the following items:
◎ Instruction Manual: E6581319(English)
◎ PGFB Board (printed circuit board), Detachable TB
Manual
4
E6581319⑦
2. Names of the Parts on the Board
External views of the PGFB Board are described in this section together with the names of
parts on the board.
External views and names of parts on the board (terminals)
Holes for tighten board
Option connector
6
5
4
3
2
1
..............
..............
..............
..............
..............
..............
Terminal
Name
PGCC
PGVC
NB
B
NA
A
Terminal Function
Encoder common terminal
Encoder power terminal
Phase B PG feedback cathode side
Phase B PG feedback anode side
Phase A PG feedback cathode side
Phase A PG feedback anode side
The detachable terminal block
The detachable terminal block connector
5
E6581319⑦
3. Connection to the Inverter
Install the PGFB to the inverter according to the procedures below.
3.1.Installation to the Inverter
(1) Confirm that the all power of the inverter are turned off beforehand.
Note: Wait 15 minutes or more after turning the power off and confirm that the
charge lamp on the inverter is unlit.
(2) Fastening the board on the inverter
(A) For VFAS1/VFPS1 200V 45kW or less, 400V 75kW or less
1. Inset the minus screw driver into the upper left hole of the front cover. And pull down and
unlock the hook.
2. Pull down and unlock the right hook of the front cover like the left hook.
3. Pull the front cover upper side, and remove the front cover.
4. Using encoder wiring terminal as the front side, push the PGFB board along with the
guide of the board.* Make sure the optional circuit board connects firmly with the inverter
and the plastic bosses on the inverter case have securely fitted in the holes for fixation at
the upper and lower parts of the option board.
5. Insert the tabs at the lower part of the front cover into the slots at the lower part of the
inverter to attach the front cover to the inverter.*
1.
2.
3.
4.
Connecter pins
5.
Connecter pins
Detach the
front cover
* Do not bend the connecter
pins when you install the
option card and panel.
Attach the front cover
Attach the board
6
E6581319⑦
(B) For VFAS1/VFPS1 200V 55kW or more, 400V 90kW or more
1. Inset the minus screw driver into the upper left hole of the front cover. And pull down and
unlock the hook.
2. Pull down and unlock the right hook of the front cover like the left hook.
3. Pull the front cover upper side, and remove the front cover.
4. Push the hooks pointed by the arrows and remove the standard option case.
5. Using encoder wiring terminal as the front side, push the PGFB board along with the guide
of the board. Make sure the optional circuit board connects firmly with the inverter and the
plastic bosses on the inverter case have securely fitted in the holes for fixation at the upper
and lower part of the option board.
6. Install the standard option case by fitting the tabs on the lower side of the option case into
the slots at the lower part of the inverter front panel. *
7. Make sure the option case is securely attached to the inverter. Then, check if the plastic
bosses on the inverter case have fitted in the holes at the upper part of the option case.
8. Insert the tabs at the lower part of the front cover into the slots at the lower part of standard
option case and then attach the front cover to the option case. *
1
2
3
4
Connecter pins
5
Detach the
front cover
* Do not bend the connecter
pins when you install the
option card and panel.
Detach the standard option case
Attach the board
Connecter pins
Connecter pins
8
7
6
Attach the standard option case
7
Attach the front cover
E6581319⑦
3.2. Wiring
When conducting wiring, follow the instructions bellow.
- Use twisted pair shield wire for signal lines.
- Applicable wire size is 0.2 to 0.75 mm².
- Peel the wire end for about 5 mm.
- When wiring, use a screw driver with the blade thickness of about 0.4 mm and width of
about 2.5 mm.
- Tightening torque for terminal base should be about 0.22 to 0.25 N・m.
- Never bind the signal lines and main circuit wiring.
<Encoder output format and PGFB board interface>
Encoder output format
PGFB board wiring
PGFB board interface
Vc c
Complementary
A･B
A･B
A･B
Vc c
A･B
NA･NB
A･B
Photo-coupler
0V
Note:
･In case of the two-phase input,
the disconnection detection by
the hardware is valid.
(f376=2, f377=2)
･In case of the single-phase
input, the disconnection detection only by the software is
valid.
(f376=1, f377=1)
A･B
0V
Note:
･The disconnection detection
only by the software is valid.
(f377=1)
Vc c
Open collector
NA･NB
470 ohm
A
B
1k ohm
NA
NB
470 ohm
VEC004Z（12V）
VEC005Z（15V）
VEC006Z（24V）
A･B
A･B
VF：1.2 - 1.7V
NA･NB
0V
Line driver
Note: The disconnection detection only by the software is valid.
(f377=1)
A･B
A･B
A･B
NA･NB
A
B
LTC485 equivalent
NA
NB
26LS31 equivalent
Note:
･In case of the two-phase input, the disconnection detection by the
hardware is valid. (f376=2, f377=2)
･In case of the single-phase input, the disconnection detection is
invalid. (f376=1, f377=0)
8
220
1k
220
VEC007Z（5V）
E6581319⑦
4. Functional Description
In this section, functions added by the installation of the PGFB board, on top of the standard
inverter functions, are described.
4.1.Vector control with sensor
Using the pulse-row feedback signal from the encoder installed on the motor shaft or load
rotation shaft, vector control with sensor can be conducted.
Speed control operation
:0 speed to 150% torque, speed control range 1:1000 (1000 ppr-PG)
speed accuracy ±0.02% (50Hz base digital input)
Torque control operation :Torque control accuracy: ±10% (torque control range: –100% to 100%)
4.1.1.PG feedback wiring
In case of VEC004,VEC005Z,VEC006Z (complementary/open collector)
As for the pulse input signals, A and NA are connected for Phase A, B and NB are connected for Phase B.
The polarity of the pulse input signals should be as follows:
+ side: A, B
- side: NA, NB
The encoder installation direction and signal line wiring should be determined so
that the signal that are fed back from the encoder will show the waveform shown in
Figure 4-1 in terms of the motor rotation direction.
* Forward rotation or reverse rotation is judged from the feedback pulses of Phase A
and Phase B (2-phase pulse that have 90 degrees of phase difference). Therefore, it
should be noted that, when connections are wrong, there is possibility for abnormal
rotation of the motor.
Phase A(VA)
Phase A(VA)
Forward rotation
Reverse rotation
Phase B(VB)
A
NA
B
NB
Phase B(VB)
A
A
X1 X2 X3 X4
VA
B
T
PG
B
VＢ
Phase difference : Xn >= 0.15T(n = 1,2,3,4)
Figure 4-1 Judgement on normal and reverse rotations by the PG feedback
of two phases (Phases A and B)
<When PG feedback signal is single phase>
1. For PG feedback signal, connect terminals A and NA.
2. The judgement on forward rotation and reverse rotation is impossible.
Only the speed control mode is applicable.
9
E6581319⑦
Inverter
R
U
S
V
T
W
IM
PG
E
Free run is stopped when OFF.
Forward rotation with ON and
reduce speed and stop with OFF.
ST *
A
F
NA
B
NB
PGVC
R
Reverse rotation with ON and
reduce speed and stop with OFF.
When both forward and reverse
rotation is ON, reverse rotation.
CC
PGCC
VEC004Z
VEC005Z
VEC006Z
* In VF-PS1, please assign ST (standby)
A
A
B
B
Vcc
0V
When single phase, connect
terminals A and NA only.
(In case of standard shipment setting.)
function to arbitrary terminals.
Figure 4-2 Example of complementary encoder connection
Inverter
R
U
S
V
T
W
IM
PG
E
With OFF, free-run stop
Forward rotation with ON and
reduce speed and stop with OFF.
Reverse rotation with ON and
reduce speed and stop with OFF.
When both forward and reverse
rotation is ON, reverse rotation.
A
ST *
F
NA
B
NB
PGVC
R
CC
PGCC
VEC004Z
VEC005Z
VEC006Z
* In VF-PS1, please assign ST (standby)
Vcc
A
Vcc
B
Vcc
0V
When single phase, connect
terminals A and NA only.
(In case of standard shipment setting.)
function to arbitrary terminals.
Figure 4-3 Example of open collector encoder connection
10
E6581319⑦
* Caution in case of using open collector encoder connection
In case using pulse command oscillator and open collector encoder, the rise time of the
voltage when the transistor is OFF tends to be longer than the fall time at the time when
the transistor is ON. Therefore, if the maximum input frequency becomes higher, the
pulse duty cannot maintain the 50±10% specification. Conduct derating on the maximum
input frequency so that the pulse duty will be within the following specification range.
<Derating computation formulae of open collector’s maximum input pulse frequency >
0.8 / (Maximum input frequency x A) – Voltage rise time >= 3 x 10
–6
…..(1)
A
: (single phase input: 2) (two-phase input: 4)
Voltage rise time
: Encoder exclusive pulse rise time + R x C
Encoder exclusive pulse rise time (s) : Please inquire at the encoder manufacturer.
R (ohm) (Input resistance)
: Internal resistance 1000 (ohm) + external resistance value
(in case there is external resistance)
C (F) (Cable static capacity)
: Please inquire at the cable manufacturer.
<Example>
Encoder
: IRS350-500 (SUMTAK), 2-phase input
-6
Encoder pulse rise time: 0.35 x 10 (s)
Cable
: ROVV-SB-0.2-5P-10m (Furukawa Electric)
Static capacity: 120 x 10
–12
(F/m) x 10 (m)
From Formulae (1)
0.8 / (Maximum input frequency x A) – Voltage rise time >= 3 x 10
–6
Voltage rise time = (0.35 x 10 ) + 1000 x (120 x 10
-12
–6
x 10) = 1.55 x 10
-6
[Maximum input frequency] <= 87912 (Pulse/s) [Single phase input]
<= 43956 (Pulse/s) [Two-phase input]
The case of VEC007(Line Driver)
As for the PG feedback signals, Terminal A and NA are connected for Phase A, Terminal B
and NB are connected for Phase B.
The polarity of the pulse input signal should be as follows.
Non-inverting input side: A, B
Inverting input side: NA, NB
The signal feedback from the encoder should have the waveform shown in Figure 4-1
in terms of the motor rotation direction. The encoder installation direction and signal
wiring should be done accordingly.
* Forward rotation or reverse rotation is judged from the feedback pulses of Phase A
and Phase B (2-phase pulse that have 90 degrees of phase difference). Therefore, it
should be noted that, when connections are wrong, there is possibility for abnormal
rotation of the motor.
11
E6581319⑦
Inverter
R
U
S
V
T
W
IM
PG
E
With OFF, free-run stop
ST *
Forward rotation with ON and
reduce speed and stop with OFF
A
F
S1
NA
B
NB
PGVC
CC
Torque control with ON and
reduce speed and stop with OFF.
F115(S1 terminal) : Set to 112.
PGCC
A
A
B
B
Vcc
0V
VEC007Z
* In VF-PS1, please assign ST (standby)
function to arbitrary terminals.
Figure 4-4 Example of wiring for line driver encoder (Speed/Torque switching operation)
* When using two-phase PG, motor forward and reverse rotation can be judged by PG.
When prohibition on reverse rotation is set by the inverter parameter (f311=1) and
when the motor is rotating to reverse direction due to an external force, the inverter
starts with reverse operation in accordance with the motor’s direction for a time and
the motor will be able to shift to the forward rotation and the smooth startup becomes possible.
4.1.2.Selection of encoder type
The encoder type should be selected, following the table below.
Maximum
Encoder Type
Characteristics
Wiring
Length
PG Compatible
Board
Rated voltage output with emitter/follower combination.
Complementary
High anti-nose characteristics. High-speed response.
Long-distance transmission capability.
100m
VEC004Z
Need to pay attention to waveform irregularity.
VEC005Z
The collector of the transistor is output directly.
Open Collector
Low anti-noise characteristics. Low-cost.
Need to pay attention to waveform irregularity and dis-
VEC006Z
10m
tortion.
IC output for high-speed transmission.
Line Driver
High anti-noise characteristics. High-speed response.
When transmitting over a long-distance, need to pay
attention to power voltage drop.
12
30m
VEC007Z
E6581319⑦
4.1.3.Vector control setting parameter
During operation with vector control with sensor, it would be necessary to set the following
parameters shown in the table below.
Table 4-1
Title
Function
Name
<Basic parameters>
Setting at
Shipment
Parameter Setting
0: Constant torque characteristics
1: Voltage decrease curve
2: Automatic torque boost
3: Sensorless vector control 1 (speed)
V/F
4: Sensorless vector control 2 (speed/torque) *
pt Selection
5: V/f 5-point setting
6: PM control
7: PG feedback vector control 1 (speed)
8: Sensorless vector control 2 (speed/torque) *
* These functions can not select for VF-PS1 (torque control is impossible).
0
When conducting vector control with sensor (speed/torque control) with this board option,
pt= 8 should be set.
For torque control operation, it is necessary to allocate control switching (torque/position) to
one of the terminal function selection f110 to f118 (input terminal function selection 1 to
8) (when cmod=0) or to allocate to communication control switching (when cmod=2,
3 or 4), in addition to the above parameters.
For details of adjustment methods by the speed control command and torque control command, refer to the inverter manual.
Table 4-2
Title
Extended Parameter
Function Name
Parameter Setting
f375 Number of PG input pulses
f376 Selection of number of PG input phases
f377 PG disconnection detection
f400 Auto tuning 1
f401 Slip frequency gain
f402 Auto-tuning 2
f405 Motor rated capacity (motor name plate)
f406 Motor rated current (motor name plate)
f407 Motor rated revolutions (motor name plate)
f410 Motor constant 1 (torque boost)
f411 Motor constant 2 (no load current)
f412 Motor constant 3 (leak inductance)
f413 Motor constant 4 (rated slip)
13
1 - 9999
1: Single phase input
2: 2-phase input
0: Deselect
1: Select (with filter)
2: Select (Detection of momentary
power failure)
0: No auto-tuning
1: Initialize motor constant (0 after
execution)
2: Continue operation continued after
auto-tuning (0 after execution)
3: Auto-tuning by input terminal signal
4: Motor constant auto calculation (0
after execution)
0 - 100%
0: No tuning
1: Self-cooled motor tuning
2: Forced air-cooled motor tuning
0.10 - 500.0kW
0.1 - 2000A
-1
100 - 60000min
0.0 - 30.0%
10 - 90%
0 - 250%
0.1 - 25.0%
Setting at
Shipment
500
2
0
0
70
0
Depends
on type.
E6581319⑦
The motor constant parameter (f405 to f413) requires setting according to the motor
used.
For details, refer to the inverter manual.
(1) The PG number of input pulses (f375) is the number of encoder output pulses per
one motor rotation.
(2) For PG input phase number selection (f376), set as follows:
If the encoder pulse is single-phase: 1
If the encoder pulse is two-phase (Phase A and Phase B signal): 2
When the settings for the above (1) and (2) are wrong, the motor rotation will become
abnormal.
(3) Even though when setting up the PG disconnection detection f377=2 (Select (Detection of momentary power failure, hardware detection)), if the Selection of number of
PG input phases f376=1(single phase), the detection method is same as
f377=1 (software detection).
When f377 parameter is changed, it is necessary to turn off the power.
(Keep the inverter off until the LED turns off.)
4.1.4.Monitoring method for feedback amount
Motor rotation speed can be monitored.
The motor is equipped with status monitor which is displayed on the panel and analog monitor which used analog output terminals (FM, AM terminals)
Set items (1) and (2) for motor speed monitoring.
(1) Speed feedback (real-time value) (Unit: Hz/free unit)
The real-time display of motor speed can be made (Monitor display setting: 53).
(2) Speed feedback (one-second filter) (Unit: Hz/free unit)
The filtered motor speed (feedback value) is displayed. (Monitor display setting: 54).
The monitoring for the above (1) and (2) is possible also in cases except for pt= 7, 8* (PG
feedback vector control operation). For example, the monitoring can be used for confirmation
of the initial PG feedback amount in open loop (V/F operation and the like).
* This function is reserved in VF-PS1.
<Setting method for status monitoring>
In order to monitor motor rotation speed in condition monitoring, it is necessary to
change the setting for extended parameters (f710 to f718).
Refer to Monitoring Operating Condition section of the inverter manual.
<Setting method for analog monitoring>
In order to monitor motor rotation speed by the analog output terminal, it is necessary to
change the setting for basic parameter (fmsl, fm).
Refer to Meter Setting and Calibration section of the inverter manual.
14
E6581319⑦
4.1.5.Confirmation of PG's rotational direction
PG's connection in A and B phases and rotational direction of motor can be confirmed as follows.
Set the parameters changed back to the original values following confirming the rotational
direction.
(1) Set parameter pt (V/F control selected) = 0 (constant torque characteristics).
(2) Set parameter f711 (status monitor 1 display selected) = 53 (Signed speed feedback
(real-time value)).
(3) Enter an operating command for positive rotation and command frequency of 1-10Hz to
the inverter.
(4) Confirm the motor be turning in the positive direction.
(5) Display status monitor 1 by using the status monitor indication of inverter.
(6) Monitor display, when PG input is determined positive turn 3Hz, “ 3.0” is displayed.
When it is determined negative turn 3.0Hz, “-3.0” is displayed. When determined negative rotation, PG's A/B phase connections and motor wiring are not correct. They must be
corrected.
4.1.6. PG disconnection detection function
* Parameter
Title
Function Name
Adjustment Range
f376 Selection of number of PG input phases
f377 PG disconnection detection
Setting at
Shipment
1: Single phase input
2: 2-phase input
0: Deselect
1: Select (with filter)
2: Select (Detection of momentary power failure)
2
0
* Functions
PG wiring disconnection detection can be confirmed as follows. But the disconnection detection method (f377) is depended on the using encoder type and the wiring method
(f376). Please refer to the table of “Encoder output format and PGFB board interface” of
chapter 3.2 Wiring
Note1) When f377 parameter is changed, it is necessary to turn off the power.
(Keep the inverter off until the LED turns off.)
Note2) Even if f377 =1 is set, PG disconnection detection do not work in the following
condition.
>When the drive is stop, it does not work.
>When the operation frequency is less than 4 Hz, it does not work.
>When the drive is deceleration operation, it may not work.
15
E6581319⑦
4.1.7.Speed abnormality detect function
* Parameter
Title
Function Name
Adjustment Range
f622 Abnormal speed detection time
f623 Overspeed detection frequency upper band
f624 Overspeed detection frequency lower band
0.01 - 100.00sec
0.0: Disabled, 0.1 - 30Hz
0.0: Disabled, 0.1 - 30Hz
Setting at
Shipment
0.01
0.0
0.0
* Functions
When operating the speed control with sensor (pt = 7, 8 *), include during stop condition,
the feedback speed is observed. When the timer count of speed error is over the setting time,
the system trips by a speed error (e-13).
Output frequency
Output frequency［Hz］
f623
f624
Feedback speed
e-13 trip (speed error)
０
Time［s］
f622
f622
* This function is reserved in VF-PS1.
4.1.8.Accuracy of speed control
The accuracy of speed control with the PG feedback can be obtained by the following formulae.
Accuracy of speed control = Command frequency accuracy + feedback detection accuracy
Command frequency accuracy = ±
1
0.01(Hz)
x 100 x
Fc (Hz)
2
［% ］
(using digital command)
Feedback detection accuracy = ±
1
1
X 100 X
2
( FC ( P 2))× PG × PH ×(1 / RT )
FC
: Inverter output frequency
P
: Number of motor poles
PG
: Number of PG pulses/rotation
PH
: Single Phase = 1,
RT
: Refer to below table
Two-Phase = 4
Inverter capacity
Speed response RT
- 2.2kW
300 rad/s
3.7kW - 7.5kW
180 rad/s
11kW -
90 rad/s
16
［% ］
E6581319⑦
4.1.9.Stop position control function (VF-AS1 only)
* Parameter
Title
Function
Adjustment range
Example of
setting
0: Constant torque characteristics
1: Voltage decrease curve
2: Automatic torque boost
3: Sensorless vector control 1 (speed)
4: Sensorless vector control 2 (speed/torque)
V/f control mode selection
5: V/f 5-point setting
6: PM control
7: PG feedback vector control 1
(speed)
8: PG feedback vector control 2
(speed/torque)
0: No PID control
1: Process type PID control
(temp./pressure, etc.) operation
PID control switching
2: Speed type PID control
(potentiometer, etc.) operation
3: Stop retaining P control
0: Deviation input (no feedback input)
1: VI/II (voltage/current input)
2: RR/S4 (potentiometer/voltage input)
PID control feedback control
3: RX (voltage input)
signal selection
4: Optional AI1 (differential current input)
5: Optional AI2 (voltage/current input)
6: PG feedback option
Proportional (P) gain
0.01 - 100.0
Number of PG input pulses
1 - 9999 pulses/revolution
1: Single-phase input
Number of PG input phases
2: Two-phase input
Simple positioning completion
1 - 4000
range
pt
f359
f360
f362
f375
f376
f381
0
3
6
0.01
500
2
100
Note: This function will not be performed if f240 (starting frequency), f241 (operation starting frequency) and f243 (stop frequency) are not set at 0Hz, because a 0 Hz command
is not issued in that case.
* Functions
This function, which is aimed at a retaining the load at standstill at its normal stop position, is
used along with the speed sensor vector control function to prevent the position of an elevator at standstill from shifting.
Switching to position control takes place when the load is at a standstill.
The settings of these parameters take effect only in sensor speed control mode.
In speed control mode 7 or 8 specified with the V/f control mode section parameter (pt),
simple positioning control is performed upon receipt of a simple positioning signal, with the
position at that time used as the reference point (positional deviation: 0).
If the number of PG pulses is smaller than the area of f381, that signal can be output on a
terminal block that is set to the 118 as output terminal function.
17
E6581319⑦
Title
f118
Ex.) When using the RR/S4 terminal as the simple positioning signal input terminal
Function
Adjustment range
Default setting
Input terminal function selection 8 (RR/S4) 0 – 155
72
Preset-speed operation frequency 1
Preset speed operation frequency 2
Output frequency [Hz]
Stop position
control mode
Preset speed
operation frequency 2
*1
0
Time [s]
Run command (F)
Preset speed 1 (S1)
Preset speed 2 (S2)
Stop position command signal (RR/S4)
*1
f381
Positioning completion range
If the stop position control command is entered during high-speed operation, a trip may occur
because of overcurrent or overvoltage. To avoid this, do not enter the stop position control
command before the motor enters into low-speed operation.
If a trip occurs because of overvoltage when stop position control is performed
If a trip due to overvoltage (op2 or op3) occurs when the motor is decelerated by stop
position control, reduce the proportional (P) gain with f362 to prolong the deceleration
time.
Note: The deceleration time setting (dec) has no effect during stop position control.
Output frequency [Hz]
During deceleration
Overvoltage trip
(op2 or op3)
Acceleration
Time [s]
Proportional (P) gain (f362)
Output frequency [Hz]
Acceleration
Deceleration
Time [s]
18
E6581319⑦
4.2.Pulse input command (speed command selection)
It is possible to input inverter operation frequency command by pulse signals.
This command cannot be used when vector control operation with sensor is effective.
- Inverter output frequency can be controlled in ratio with the pulse output signal from the
pulse oscillator.
- By inputting two-phase pulse with 90 degrees phase difference, it is possible to input forward and reverse rotation commands.
4.2.1.Pulse command connection method
Two-phase pulse input command
1. Connect pulse input signal to the point between terminals A and NA on phase A and for
between terminals B and NB on phase B
2. The polarity of the pulse input signals should be as follows:
+ side: A and B
- side: NA and NB
3. Forward and reverse operation can be judged by the pulse from the phase A and B by
using a judgement circuit together with the operational frequency command.
4. The judgement on forward and reverse rotation is made as shown in Figure 4-5.
Phase A(VA)
Phase A(VA)
Forward rotation
Reverse rotation
Phase B(VB)
A
NA
B
NB
Figure 4-5
Phase B(VB)
A
A
X1 X2 X3 X4
VA
PG
B
B
VＢ
T
Phase difference : Xn >= 0.15T(n = 1,2,3,4)
Judgement on forward and reverse rotation by the two-phase (Phase A and
Phase B) pulse rows
<Caution when using open collector method>
When using open collector method in 4.1.1, the maximum frequency should be derated
by referring to the caution item.
19
E6581319⑦
The case for single-phase pulse input command
For the pulse input signal, connect between A and NA.
For switching between forward and reverse rotation, with cmod= 0 (Terminal input validation), ON and OFF actions between Terminal F-CC and R-CC are used.
Inverter
MCCB
R
U
S
V
T
W
IM
With OFF, free-run stop
E
With ON, forward rotation
and with OFF, speed
reduction and stop.
Pulse oscillator
A
ST *
(With ON, reverse
rotation, with OFF, speed
reduction and stop.)
F
NA
R
B
CC
PG
NB
VEC004Z
VEC005Z
VEC006Z
(When ON for both forward and
reverse rotation, reverse rotation.)
When using in single phase,
connect the pulse oscillator
between A and NA.
* In VF-PS1, please assign ST (standby)
function to arbitrary terminals.
Figure 4-6 Example of connection when operating on pulse row command (speed command)
20
E6581319⑦
4.2.2.Pulse input setting parameter
Table 4-3 Necessary Parameter for pulse input setting
Title
Function Name
Adjustment Range
fmod Speed command selection
f200 Frequency priority selection
f207
f208
f234
f235
f236
f237
f375
Frequency setting mode selection 2
Speed command priority switching frequency
RP/high speed pulse input point 1 setting
RP/high speed pulse input point 1 frequency
RP/high speed pulse input point 2 setting
RP/high speed pulse input point 2 frequency
Number of PG input pulses
f376 Selection of number of PG input phases
f377 PG disconnection detection
12：High-speed pulse input
0 : fmod/f207 terminal
switching (input terminal
function selection 104, 105)
1 : fmod/f207 frequency
switching (switching with
f208)
Same as fmod (1 - 13)
0.1 - fh Hz
0 - 100%
0.0 - fh Hz
0 - 100%
0.0 - fh Hz
1 - 9999
1 : Single-phase input
2 : Two-phase input
0 : Deselect
1 : Select (with filter)
2 : Select (Detection of momentary power failure)
Setting at
Shipment
2
0
1
0.1
0
0.0
100
80.0
500
2
0
* Calculation of the reference frequency
The input pulse frequency is calculated to the percent base data. The calculated percent
data is converted to the frequency in accordance with 2 point setting (from f234 to
f237). Refer to the below figure. By inputting two-phase pulse with 90 degrees phase difference, it is possible to input forward and reverse rotation commands.
InputPulse frequency
× 100 (%)
Percent base data =
PG input pulse × Maximum frequency
Frequency
command
f237
80Hz
Percent base data
f235
0Hz
f234
0％
f236
100％
Percent base data
Figure 4-7 Percent base data and frequency command value
*1: The CPU software less than V104 can not detect the direction command of rotation with
two-phase input. About the CPU version, please refer to the inverter instruction manual.
21
E6581319⑦
4.2.3.Monitoring method of pulse input command
The pulse input command frequency can be monitored.
In order to monitor the pulse input command frequency, set up the monitor display in the
frequency command value [Unit: Hz/free unit].
The pulse input command frequency can be confirmed even before the motor is used.
Initial value can be confirmed for the combination testing.
For setting method of the condition monitor, refer to the inverter instruction manual in the
“monitoring operation condition” section.
5.External View
External view of PGFB board / Unit external dimension when installing the board. (Unit: mm)
138
Option board dimension
39.3
22
E6581319⑦
6.Specification
<Environment Specification>
Item
Specification
Indoor, less than 3,000 m from the sea level.
No direct sunlight, corrosive or explosive gas, steam, cutting dusts or dusts,
grinding solution, and grinding oil.
-10 to + 60℃
-25 to +65℃
20 to 93 % (No condensation)
5.9m/s² (0.6G) or less (from 10Hz to 55Hz)
Use Environment
Ambient Temperature
Storage Temperature
Relative Humidity
Vibration
<Control Specification>
Type
Full-vector
operation with sensor
PG Method
PG Wiring Length
PG Power Supply
Max. Pulse Input
Frequency
Pulse input voltage
Recommended
Encoder
Encoder Wiring
VEC004Z
VEC005Z
VEC007Z
VEC006Z
Speed control operation:
150% torque at zero speed
Speed control range: 1:1000(1000 ppr PG)
Speed accuracy ± 0.02% (50 Hz base digital input)
Torque control operation *: Torque control accuracy ± 10%
Torque control range: -100 to 100%
Complementary, Open-collector
Line driver
100m (Max.) (Complementary)
30m (Max.)
VEC004Z : 12V -160mA
VEC005Z : 15V -150mA
VEC007Z : 5V -160mA
VEC006Z : 24V -90mA
300kHz or less.
(In case of two-phase open collector method, derating need to be considered)
Pulse duty: 50 ± 10%
12V DC to 24V DC
Line Driver (LTC486 equivalent)
Manufacturer: SUMTAK Co., Ltd.
Manufacturer: SUMTAK Co., Ltd.
Type: IRS360 series
Type: IRS320 series
Supply Voltage: From10.8V to 26.4V
Supply Voltage: 5V
Output Method: complementary output
Output Method: line-driver output
Type of Wire: Twisted Pair Shield Cable
Conductor Resistance:
Conductor Resistance (ohm/m) x cable length (m) x 2 x power consumption (A) < VD (V)
VD(V): 1.0(V) (VEC004Z, VEC005Z, VEC006Z)
0.3(V) (VEC007Z)
Applicable Wire: 0.2 to 0.75mm²
(Power Line) In case of 0.2mm² cable,
maximum of 30m (VEC004Z, VEC005Z, VEC006Z)
maximum of 10m (VEC007Z)
Recommended Cable :
KURAMO Electric: KVC-36SB
Furukawa Electric: ROVV-SB
* Torque control is impossible in VF-PS1.
23
E6581319⑦
7.Option Cable
TOSHIBA’s sensor cable for VFV3 motor:
Use the sensor cable CAB011 (option) for connection with Toshiba VFV3 motor.
Connection to this option, strip the each wire and wire according to the following table.
Connect ground terminal of inverter
Connect motor frame ground
Cannon plug
Type-Form
CAB011-10M
CAB011-20M
CAB011-30M
Length (mm)
10000±50
20000±50
30000±50
Table7-1
Processing of VFV3 sensor cable CAB011
Signal
Wire color※
Cannon Plug
Name
A
B
C
D
E
F
G
N
H
J
Yellow
NA
K
Yellow/White
A
L
Green
NB
M
Green/White
B
N
Black, Red
COM
P
Black/White,
P5
Red/White
Description
(PG terminal side processing)
Connect to NA terminal.
Connect to A terminal.
Connect to NB terminal.
Connect to B terminal.
Connect to PGCC terminal.
Connect to PGVC terminal.
* Two wires connect to the PGVC and the PGCC of this option.
* There are cases where the wire color may have been changed. Therefore, be sure to confirm on the terminal number of the connector before processing to wire.
* The cut line should be insulated not to contact other wires.
24
E6581319⑦
When using CAB010 (option), conduct terminal processing on the CN8 side, referring to Table 7-2.
Connect ground terminal of inverter
ＣＮ８
Connect motor frame ground
Remove screw
Cannon plug
CN8(Disassemble)
Table7-2
Processing of VFV3 sensor cable
Signal
Description
Name
(PG terminal side processing)
-
-
-
B
-
-
-
3
C
-
-
-
4
D
-
-
-
5
E
-
-
-
6
F
-
-
-
7
G
Blue/White
NZ
Not used (Cut)
8
-
-
-
-
9
N
Black
-
Not used (Cut)
10
H
Blue
Z
Not used (Cut)
CN8
Cannon Plug
Wire color※
1
A
2
11
J
Yellow
NA
Connect to NA terminal.
12
K
Yellow/White
A
Connect to A terminal.
13
L
Green
NB
Connect to NB terminal.
14
M
Green/White
B
Connect to B terminal.
15
N
Brown, Red
COM
Connect to PGCC terminal.
16
P
Brown/White,
Red/White
P5
Connect to PGVC terminal.
* Two wires connect to the PGVC and the PGCC of this option.
* There are cases where the wire color may have been changed. Therefore, be sure to confirm on the terminal number of the connector before processing to wire.
* The cut line should be insulated not to contact other wires.
25
E6581319⑦
8.Warranty
TOSHIBA provides guarantee with the product under the following conditions.
1. If and when a trouble occurs on the board properly installed and handled within one year
of delivery, and if the trouble is clearly attributable to defects inherent in our design and
manufacture, the product will be repaired free of charge.
2. The warranty covers only the delivered board.
3. Even in the term of the warranty, repair/adjustment service will be changed for the following cases.
- Fault or damage resulting from misuse, unauthorized modification or repair.
- Fault or damage resulting from falling down of the product or traffic accident during
transportation.
- Fault or damage originating from fire, salt water/salty breezes, some kind of gas, earthquake, storm or flood, lightning, abnormal supply voltage, other natural disasters.
- Fault or damage caused by improper use of the inverter as it is used for a purpose out of
its original application.
4. If field inspection of the inverter is carried out at the spot of installation, all travelling expenses incurred will be charged. If there is another special warranty contracted for the inverter, the special warranty has priority over this warranty.
26

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
