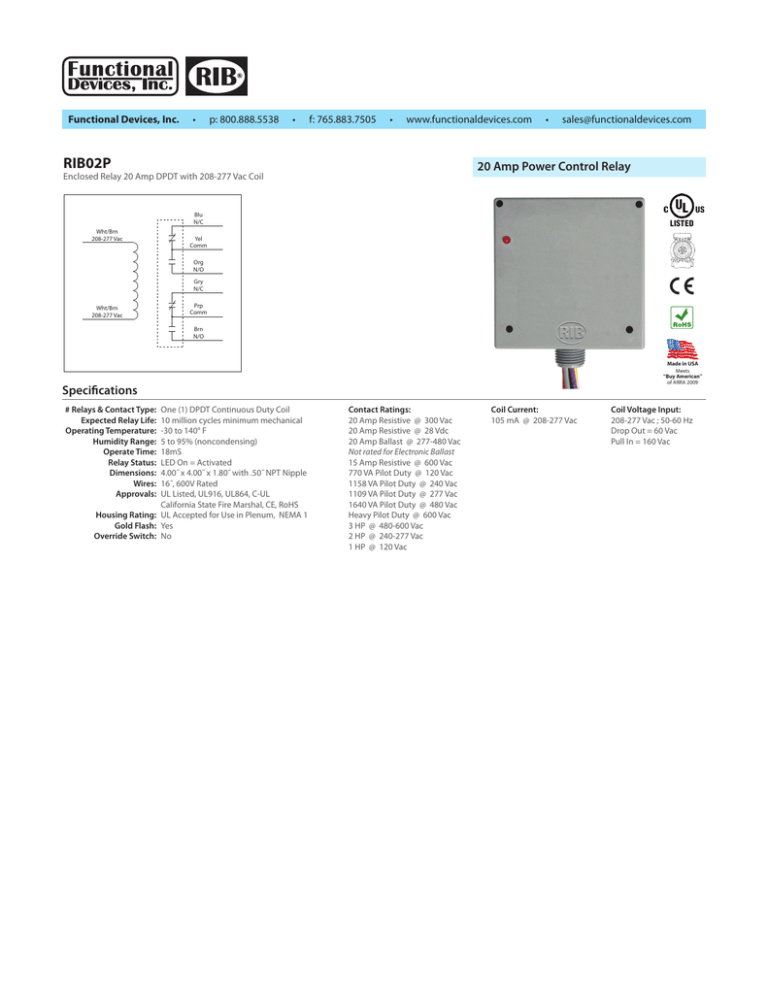

RIB02P
•
[email protected]
20 Amp Power Control Relay
Enclosed Relay 20 Amp DPDT with 208-277 Vac Coil
Blu
N/C
Wht/Brn
208-277 Vac
Yel
Comm
Org
N/O
Gry
N/C
Wht/Brn
208-277 Vac
Prp
Comm
Brn
N/O
Made in USA
Meets
“Buy American”
of ARRA 2009
Specifications
# Relays & Contact Type:
Expected Relay Life:
Operating Temperature:
Humidity Range:
Operate Time:
Relay Status:
Dimensions:
Wires:
Approvals:
One (1) DPDT Continuous Duty Coil
10 million cycles minimum mechanical
-30 to 140° F
5 to 95% (noncondensing)
18mS
LED On = Activated
4.00˝ x 4.00˝ x 1.80˝ with .50˝ NPT Nipple
16˝, 600V Rated
UL Listed, UL916, UL864, C-UL
California State Fire Marshal, CE, RoHS
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Gold Flash: Yes
Override Switch: No
Contact Ratings:
20 Amp Resistive @ 300 Vac
20 Amp Resistive @ 28 Vdc
20 Amp Ballast @ 277-480 Vac
Not rated for Electronic Ballast
15 Amp Resistive @ 600 Vac
770 VA Pilot Duty @ 120 Vac
1158 VA Pilot Duty @ 240 Vac
1109 VA Pilot Duty @ 277 Vac
1640 VA Pilot Duty @ 480 Vac
Heavy Pilot Duty @ 600 Vac
3 HP @ 480-600 Vac
2 HP @ 240-277 Vac
1 HP @ 120 Vac
Coil Current:
105 mA @ 208-277 Vac
Coil Voltage Input:
208-277 Vac ; 50-60 Hz
Drop Out = 60 Vac
Pull In = 160 Vac
