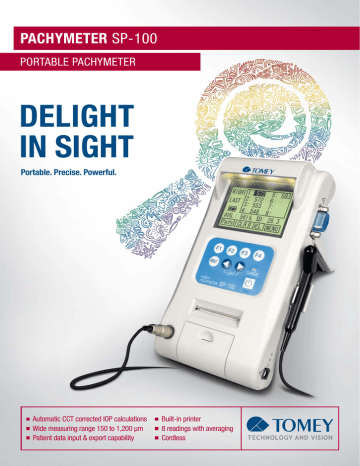

PACHYMETER SP-100
Portable Pachymeter
DELIGHT
IN SIGHT
Portable. Precise. Powerful.
Automatic CCT corrected IOP calculations
Wide measuring range 150 to 1,200 µm
Patient data input & export capability
Built-in printer
8 readings with averaging
Cordless
THE TOMEY PORTABLE PACHYMETER SP-100
QUALITY IN DETAIL
Small Size – High Ability
The Tomey pachymeter SP-100 covers all your needs regarding pachymetry. Small and portable design, wireless
operation and light weight make the SP-100 an “easy-to-use unit”.
Customised Pachymeter
You need adjustable IOP correction? Easily done! With the programmable IOP formula you are able to get the central
corneal thickness (CCT) corrected IOP. The SP-100 calculates this automatically with the formula of your choice.
The system displays the average of 8 measurements. Every single measurement is already an average out of up
to 20 exams.
Documentation
You can print your results on the built-in printer or transmit it to a PC or network system via serial port. The printout
includes the patient ID, name and measured data. The rechargeable battery with AC/DC adapter has a standby time
up to 6 hours.
Average will be calculated out of 8 single
measurements
IOP calculation
Settings display
Sample printout
Pachymeter probe
Control panel
Illuminated LC display
PACHYMETRY FUNCTION
Single Mode
Frequency
Velocity range
Default setting
Measurement range
Measurement accuracy
8 single, average / minimum / latest options
20 MHz
1,400 to 2,000 m/s
1,640 m/s
1,400 to 2,000 m/s
± 0.005 mm
MAIN UNIT
Display
Printer
Communication port
STN 2.7” dot Matrix LCD
240 x 160 pixel
Built-in thermal printer
RS-232
DIMENSIONS & ELECTRIC REQUIREMENTS
Dimensions WDH
118 x 207 x 59 mm
Weight
approx. 0.53 kg
Battery Model Sonyo GS
Working time
6 hours 45 minutes
Battery charger
Output 7.0 V
2A
Load current 2011/10 - subject to change without notice
