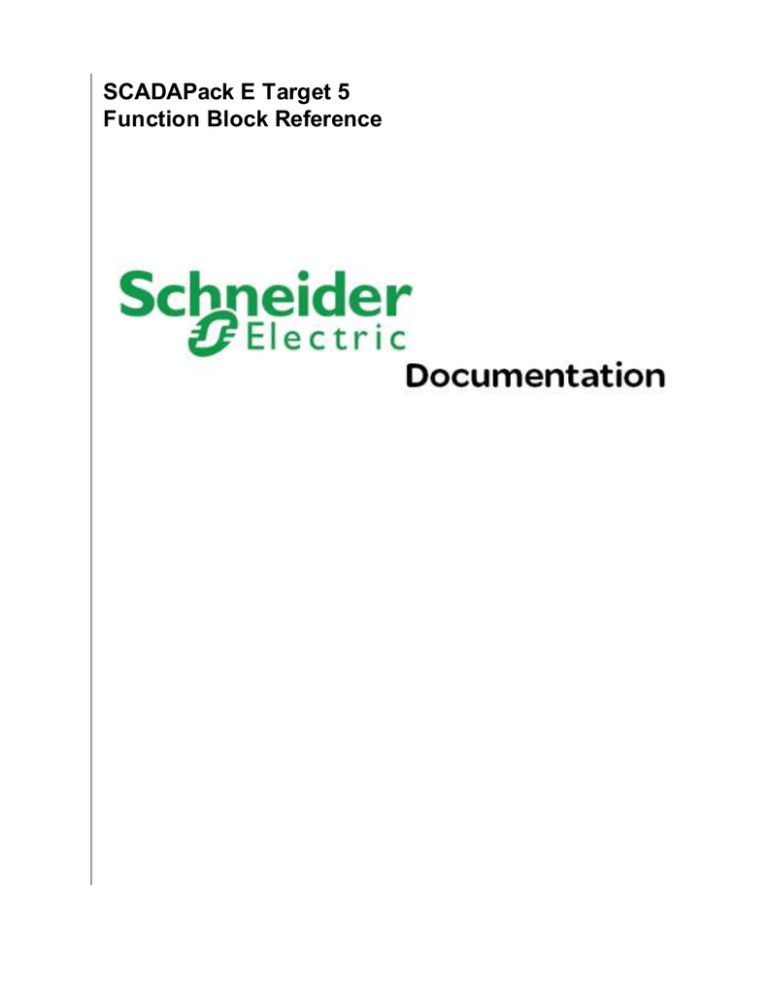

SCADAPack E Target 5

Function Block Reference

2 SCADAPack E Target 5 Function Block Reference

Table of Contents

Part I SCADAPack E Target 5 Function Block

Reference

5

2 ................................................................................................................................... 6

3 ................................................................................................................................... 9

4 ................................................................................................................................... 11

4.2.1

4.2.2

4.3

4.2.3

4.3.1

4.3.2

4.3.3

4.3.4

4.3.5

4.3.6

4.3.7

4.3.8

4.1

4.1.1

4.1.1.1

4.1.1.2

4.1.1.3

4.1.1.4

4.1.1.5

4.1.1.6

4.1.1.7

4.1.1.8

4.1.1.9

4.1.1.10

4.1.1.11

4.1.2

4.1.2.1

4.1.2.2

4.1.3

getpntb

getpntc getpntf

getpntsl

getpntss

getpntus

setpntb

setpntf

setpntsl

setpntss

setpntus

rdfld_i

rdfld_r

......................................................................................................................................... 14

......................................................................................................................................... 15

......................................................................................................................................... 15

......................................................................................................................................... 17

......................................................................................................................................... 18

......................................................................................................................................... 19

......................................................................................................................................... 20

......................................................................................................................................... 21

......................................................................................................................................... 22

......................................................................................................................................... 23

......................................................................................................................................... 25

......................................................................................................................................... 27

......................................................................................................................................... 33

4.2

4.1.3.1

4.1.3.2

4.1.3.3

4.1.3.4

rdrec

rdrec_dg

rdrec_cn

rdrec_an

4.1.4

4.1.5

rdstring

4.1.5.1

4.1.6

rtucrob

......................................................................................................................................................... 50

......................................................................................................................................... 52

4.1.6.1

4.1.6.2

setatr_i

setatr_r

......................................................................................................................................... 38

......................................................................................................................................... 40

......................................................................................................................................... 44

......................................................................................................................................... 46

......................................................................................................................................... 56

......................................................................................................................................... 61

os_time loc_time

timedate

peer_rdq

peer_w rq ......................................................................................................................................................... 70

peer_rdx

peer_w rx ......................................................................................................................................................... 73

peer_rdc

peer_w rc ......................................................................................................................................................... 75

dc_poll

......................................................................................................................................................... 65

......................................................................................................................................................... 65

......................................................................................................................................................... 67

......................................................................................................................................................... 68

......................................................................................................................................................... 72

......................................................................................................................................................... 74

......................................................................................................................................................... 78

Contents 3

4.4

4.3.9

4.4.1

4.4.2

4.5

4.4.3

4.5.1

4.5.2

4.5.3

4.5.4

4.5.5

4.5.6

4.5.7

4.5.8

4.6

4.5.9

4.6.1

4.6.2

4.6.3

4.7

4.6.4

4.7.1

4.7.2

4.7.3

4.7.4

4.7.5

4.7.6

4.7.7

4.8

4.7.8

mbusctrl

mtcpctrl

df1ctrl

comopen

comclose ......................................................................................................................................................... 86 comrx

comrxb

comrxclr

comtx comtxb

getport

setport

total

flow

pidd

pida

gen_evt

genmsevt ......................................................................................................................................................... 109

ana_time ......................................................................................................................................................... 111

rtuparam ......................................................................................................................................................... 115

chgroute ......................................................................................................................................................... 123

chgrtnum ......................................................................................................................................................... 125

chgrtprt

......................................................................................................................................................... 81

......................................................................................................................................................... 82

......................................................................................................................................................... 83

......................................................................................................................................................... 85

......................................................................................................................................................... 86

......................................................................................................................................................... 87

......................................................................................................................................................... 88

......................................................................................................................................................... 89

......................................................................................................................................................... 89

......................................................................................................................................................... 90

......................................................................................................................................................... 91

......................................................................................................................................................... 93

......................................................................................................................................................... 96

......................................................................................................................................................... 99

......................................................................................................................................................... 103

......................................................................................................................................................... 108

......................................................................................................................................................... 126

4.8.1

4.8.2

4.8.3

4.8.4

4.8.5

4.9

4.8.6

4.9.1

4.9.2

4.9.3

4.10

4.9.4

ip_add

ip_del

ip_cycgw ......................................................................................................................................................... 130

ip_ping

almadd

almproc

almload

almclr

4.10.1

4.10.1.1

4.10.1.2

4.10.1.3

4.10.1.4

4.10.1.5

4.10.1.6

4.10.1.7

4.10.1.8

4.10.1.9

4.10.1.10

4.10.1.11

F_CD

......................................................................................................................................................... 127

......................................................................................................................................................... 129

......................................................................................................................................................... 131

......................................................................................................................................................... 135

......................................................................................................................................................... 136

......................................................................................................................................................... 140

......................................................................................................................................................... 141

F_DEL

F_DELTREE

F_COPY

F_JOIN

F_REN

F_MKDIR

F_RMDIR

F_DSKSEL

F_PWD

F_DV_RDY

......................................................................................................................................... 142

......................................................................................................................................... 143

......................................................................................................................................... 144

......................................................................................................................................... 145

......................................................................................................................................... 146

......................................................................................................................................... 147

......................................................................................................................................... 147

......................................................................................................................................... 148

......................................................................................................................................... 149

......................................................................................................................................... 150

......................................................................................................................................... 151

3

4 SCADAPack E Target 5 Function Block Reference

4.10.2

4.10.2.1

4.10.2.2

4.10.3

4.10.3.1

4.10.3.2

4.10.3.3

4.10.3.4

4.10.3.5

4.10.3.6

4.10.3.7

4.10.3.8

4.10.4

FINDFILE

DIR_INFO

F_WOPEN

F_ROPEN

F_CLOSE

F_EOF

FA_READ

FA_WRITE

FM_READ

FM_WRITE

......................................................................................................................................... 152

......................................................................................................................................... 154

......................................................................................................................................... 156

......................................................................................................................................... 157

......................................................................................................................................... 157

......................................................................................................................................... 158

......................................................................................................................................... 159

......................................................................................................................................... 159

......................................................................................................................................... 160

......................................................................................................................................... 161

I

SCADAPack E Target 5 Function Block Reference 5

SCADAPack E Target 5 Function Block Reference

©2013 Control Microsystems Inc.

All rights reserved.

Printed in Canada.

Version: 8.05.4

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein. This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications. It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof. Neither Schneider Electric nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. If you have any suggestions for improvements or amendments or have found errors in this publication, please notify us.

No part of this document may be reproduced in any form or by any means, electronic or mechanical, including photocopying, without express written permission of Schneider Electric.

All pertinent state, regional, and local safety regulations must be observed when installing and using this product. For reasons of safety and to help ensure compliance with documented system data, only the manufacturer should perform repairs to components.

When devices are used for applications with technical safety requirements, the relevant instructions must be followed. Failure to use Schneider Electric software or approved software with our hardware products may result in injury, harm, or improper operating results.

Failure to observe this information can result in injury or equipment damage.

1 Technical Support

Support related to any part of this documentation can be directed to one of the following support centers.

Technical Support: The Americas

Available Monday to Friday 8:00am – 6:30pm Eastern Time

Toll free within North America 1-888-226-6876

6 SCADAPack E Target 5 Function Block Reference

Direct Worldwide

Email

+1-613-591-1943

[email protected]

Technical Support: Europe

Available Monday to Friday 8:30am – 5:30pm Central European Time

Direct Worldwide

Email

+31 (71) 597-1655 [email protected]

Technical Support: Asia

Available Monday to Friday 8:00am – 6:30pm Eastern Time (North America)

Direct Worldwide

Email

+1-613-591-1943

[email protected]

Technical Support: Australia

Inside Australia

Email

1300 369 233 [email protected]

2 Safety Information

Read these instructions carefully, and look at the equipment to become familiar with the device before trying to install, operate, or maintain it. The following special messages may appear throughout this documentation or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.

The addition of this symbol to a Danger or Warning safety label indicates that an electrical hazard exists, which will result in personal injury if the instructions are not followed.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will

result in death or serious injury.

SCADAPack E Target 5 Function Block Reference 7

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, can

result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, can

result in minor or moderate injury.

CAUTION

CAUTION used without the safety alert symbol, indicates a potentially hazardous situation which, if not avoided, can result in equipment damage..

PLEASE NOTE

Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel.

No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.

A qualified person is one who has skills and knowledge related to the construction and operation of electrical equipment and the installation, and has received safety training to recognize and avoid the hazards involved.

BEFORE YOU BEGIN

SCADAPack Workbench and SCADAPack E Smart RTU are not suitable for controlling safety-critical systems. SCADAPack Workbench and SCADAPack E Smart RTU are not tested for, nor have approval for use in, the control of safety-critical systems. Safety-critical systems should be controlled by an approved safety-critical platform that is independent of SCADAPack Workbench and SCADAPack E

Smart RTU.

WARNING

UNINTENDED EQUIPMENT OPERATION

Do not control safety-critical systems with SCADAPack Workbench and

SCADAPack E Smart RTU.

Failure to follow these instructions can result in death, serious injury or equipment damage.

Do not use this product on machinery lacking effective point-of-operation guarding. Lack of effective point-of-operation guarding on a machine can result in serious injury to the operator of that machine.

8 SCADAPack E Target 5 Function Block Reference

CAUTION

EQUIPMENT OPERATION HAZARD

Verify that all installation and set up procedures have been completed.

Before operational tests are performed, remove all blocks or other temporary holding means used for shipment from all component devices.

Remove tools, meters, and debris from equipment.

Failure to follow these instructions can result in injury or equipment damage.

Follow all start-up tests recommended in the equipment documentation. Store all equipment documentation for future references.

Software testing must be done in both simulated and real environments.

Verify that the completed system is free from all short circuits and grounds, except those grounds installed according to local regulations (according to the National Electrical Code in the U.S.A, for instance). If high-potential voltage testing is necessary, follow recommendations in equipment documentation to prevent accidental equipment damage.

Before energizing equipment:

Remove tools, meters, and debris from equipment.

Close the equipment enclosure door.

Remove ground from incoming power lines.

Perform all start-up tests recommended by the manufacturer.

OPERATION AND ADJUSTMENTS

The following precautions are from the NEMA Standards Publication ICS 7.1-1995 (English version prevails):

Regardless of the care exercised in the design and manufacture of equipment or in the selection and ratings of components, there are hazards that can be encountered if such equipment is improperly operated.

It is sometimes possible to misadjust the equipment and thus produce unsatisfactory or unsafe operation. Always use the manufacturer’s instructions as a guide for functional adjustments.

Personnel who have access to these adjustments should be familiar with the equipment manufacturer’s instructions and the machinery used with the electrical equipment.

Only those operational adjustments actually required by the operator should be accessible to the operator. Access to other controls should be restricted to prevent unauthorized changes in operating characteristics.

3

SCADAPack E Target 5 Function Block Reference 9

Overview

This document describes Function Blocks and Functions supported by the SCADAPack E Smart RTU with the SCADAPack Workbench.

These function blocks or functions access to SCADAPack E Smart RTU configuration and I/O data in the form of point properties and attributes, and access to SCADAPack E Smart RTU facilities such as serial ports, point data objects, peer-to-peer DNP3 communication, real time clock and additional control functions.

Functions can be implemented using the Function Block Diagram or Structured Text languages.

The manual is arranged as follows:

Point Attribute Function Blocks

12

presents the function blocks that return or set point properties.

Real Time Clock Function Blocks

65

describes function blocks which provide access to the real time clock.

DNP3 Communication Function Blocks

68

describes function blocks that interface with the

SCADAPack E Smart RTU peer-to-peer communication facilities. Peer function blocks transfer data directly between the point databases of two peer DNP3 devices.

Serial Port User Communication Functions

84

describes function blocks to set or retrieve serial port properties on the SCADAPack E Smart RTU.

Miscellaneous Function Blocks

107

describes miscellaneous function blocks.

TCP/IP Interface Functions

127

describe function blocks interface to TCP/IP communication and configuration services.

Alarm Group Functions & Function Block

134

describes the Summary Alarm functions and function blocks. These provide a mechanism for grouping individual Digital point states (alarms) in to a named alarm group, and configuring an alarm output if any of the points in the group change to the alarm state.

File System Interface Functions & Function Blocks

141

describes interfaces to the SCADAPack E

Smart RTU file system to allow manipulation of files.

Assumed Knowledge

Exposure to SCADAPack Workbench is recommended.

Target Audience

Systems Engineers

Commissioning Engineers

Maintenance Technicians

References

Workbench Help

10 SCADAPack E Target 5 Function Block Reference

SCADAPack E Technical Reference Manuals.

4

SCADAPack E Target 5 Function Block Reference 11

Function Blocks

SCADAPack Workbench provides function blocks and functions for the SCADAPack E Smart RTU.

Point Attribute Function Blocks

12

Real Time Clock Function Blocks

65

DNP3 Peer Communication Function Blocks

68

Special Digital Output Controls

PLC Communications Control Function Blocks

81

Serial Port User Communication Functions

84

Process Function Blocks

92

Miscellaneous Function Blocks

107

TCP/IP Interface Functions

127

Alarm Group Functions

134

File System Interface Functions

141

12 SCADAPack E Target 5 Function Block Reference

4.1

Point Attribute Function Blocks

These function blocks set or return the property or attribute of a point stored in the point database. Point properties or attributes that can be set or retrieved using the SCADAPack E Configurator can also be accessed using the function blocks presented in this subsection of the manual.

Physical and user points within the SCADAPack E Smart RTU (and some system points) have both

Property and Attribute fields associated with them. The distinction between these field types within a point is particularly needed for point processing.

A “Property” field of a point represents a physical or derived quantity, describing a particular aspect of the real time condition of a point.

An “Attribute” field of a point dictates how the SCADAPack E Smart RTU should manipulate or present a particular aspect of a point. In terms of data processing, some attributes describe how some point properties are derived. Multiple point attributes may impact a point property. Similarly, multiple point properties may be impacted by a single attribute. For more information on point properties and attributes, consult the SCADAPack Workbench Technical Reference manual.

getpnt & setpnt

13

rdfld

26

rdrec

38

rdstring

50

setatr

56

SCADAPack E Target 5 Function Block Reference 13

4.1.1

Read and Write Point Values

Get database point value (getpntxx) and set database point value (setpntxx) functions and function blocks are used to interface IEC 61131-3 logic with the point database.

These functions require significantly more processing time than accessing points through I/O Devices.

See SCADAPack Workbench I/O Device reference manual. Impact on IEC 61131-3 Resource performance should be considered when using these functions instead of I/O devices.

getpntxx functions and function blocks read database point values in to IEC 61131-3 variables, in various formats.

getpntb

14

(get point binary)

getpntc

15

(get point counter)

getpntf

15

(get point floating point)

getpntsl

17

(get point signed long)

getpntss

18

(get point signed short)

getpntus

19

(get point unsigned short) setpntxx function and function blocks write IEC 61131-3 variable values in to database point variables, in various formats.

setpntb

20

(set point binary)

setpntf

21

(set point floating point)

setpntsl

22

(set point signed long)

setpntss

23

(set point signed short)

setpntus

25

(set point unsigned short)

14 SCADAPack E Target 5 Function Block Reference

4.1.1.1

getpntb

Get value of binary point

Description

The getpntb function returns the state of a specified database binary point. If the point is found and its current value is ON then TRUE is returned, otherwise FALSE is returned.

This function provides a method for accessing binary database points.

Arguments

Inputs Type Description

Point DINT Address of a database binary point number to read. In conjunction with the output_point parameter, it refers to a unique database point. Point may be a binary input, binary output, derived binary point or system binary point

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the SCADAPack E Target 5

Technical Reference for details.

OUTPUT_POI

NT

BOOL Set to TRUE for the address to refer to a binary output point. Set to FALSE for the address to refer to a binary input point, derived binary point or system binary point.

Outputs Type

GETPNTB BOOL

Description

TRUE if value of the binary point is ON

FALSE if value of the binary point is OFF or does not exist prototype:

See Also

setpntb

20 value := GETPNTB (point_num, is_output_point);

SCADAPack E Target 5 Function Block Reference 15

4.1.1.2

getpntc

Get value of counter point

Description

The getpntc function block returns the value of a specified database counter point. If the point is found the current count value is returned, otherwise 0 is returned.

Arguments

Inputs Type

Point DINT

Description

Address of a database counter point number to read.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the SCADAPack E Target

5 Technical Reference for details.

Outputs

Value

Type

UDINT

Description

32-bit unsigned integer value of counter point if found, otherwise 0

4.1.1.3

getpntf

Get value of analog point as floating point (real)

Description

The getpntb function returns the engineering value of a specified database analog point. If the point is found then the current value is returned, otherwise 0.0 is returned. This function provides a method for accessing analog database points.

16 SCADAPack E Target 5 Function Block Reference

Arguments

Inputs Type Description

Point DINT Address of database analog point number to read. In conjunction with the output_point parameter, it refers to a unique database point. Point may be a analog input, analog output, derived analog point or system analog point

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the SCADAPack E Target 5

Technical Reference for details.

OUTPUT_POIN

T

BOOL Set to TRUE for the address to refer to an analog output point. Set to FALSE for the address to refer to an analog input point, derived analog point or system analog point.

Outputs Type

GETPNTF REAL

Description

Current Engineering Value if found, otherwise 0.0

prototype:

See Also

setpntf

21 value := GETPNTF (point_num, is_output_point);

SCADAPack E Target 5 Function Block Reference 17

4.1.1.4

getpntsl

Get value of analog point as a 32-bit signed integer.

Description

The getpntsl function returns the integer value of a specified database analog point. If the point is found then the current value is returned, otherwise 0 is returned. This function provides a method for accessing analog database points.

The name of this function block is identical to the Target 3 function block. The L in the name refers to a

Target 3 long integer (32-bit signed value). It should not be confused with the Target 5 data type LINT which refers to a 64-bit signed value.

Arguments

Inputs Type Description

Point DINT Address of database analog point number to read. In conjunction with the output_point parameter, it refers to a unique database point. Point may be a analog input, analog output, derived analog point or system analog point

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the SCADAPack E Target 5

Technical Reference for details.

OUTPUT_POI

NT

BOOL Set to TRUE for the address to refer to an analog output point. Set to FALSE for the address to refer to an analog input point, derived analog point or system analog point.

Outputs Type

GETPNTSL DINT

Description

Current Integer Value if found, otherwise 0 prototype:

See Also

setpntsl

22 value := GETPNTSL (point_num, is_output_point);

18 SCADAPack E Target 5 Function Block Reference

4.1.1.5

getpntss

Get value of analog point as signed short integer

Description

The getpntss function returns the integer value of a specified database analog point. If the point is found then the current value is returned, otherwise 0 is returned.

If the current integer value of the analog point is > 32767, then the output value is clamped to 32767

If the current integer value of the analog point is < -32768, then the output value is clamped to -32768

This function provides a method for accessing analog database points.

Arguments

Inputs

Point

Type Description

DINT Address of database analog point number to read. In conjunction with the

output_point parameter, it refers to a unique database point. Point may be a analog input, analog output, derived analog point or system analog point

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the SCADAPack E Target

5 Technical Reference for details.

OUTPUT_POIN

T

BOOL Set to TRUE for the address to refer to an analog output point. Set to FALSE for the address to refer to an analog input point, derived analog point or system analog point.

Outputs Type

GETPNTSS INT

Description

Current Integer Value if found, otherwise 0

The value from the analog point is clamped in the range -32768 to

32767 prototype:

See Also

setpntss

23 value := GETPNTSS (point_num, is_output_point);

SCADAPack E Target 5 Function Block Reference 19

4.1.1.6

getpntus

Get value of analog point as unsigned short integer

Description

The getpntus function returns the integer value of a specified database analog point. If the point is found then the current value is returned, otherwise 0 is returned.

If the current integer value of the analog point is > 65535 , then the output value is clamped to 65535

If the current integer value of the analog point is < 0, then the output value is clamped to 0

This function provides a method for accessing analog database points.

Arguments

Inputs Type Description

Point DINT Address of database analog point number to read. In conjunction with the output_point parameter, it refers to a unique database point. Point may be a analog input, analog output, derived analog point or system analog point

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the SCADAPack E Target 5

Technical Reference for details.

OUTPUT_POIN

T

BOOL Set to TRUE for the address to refer to an analog output point. Set to FALSE for the address to refer to an analog input point, derived analog point or system analog point.

Outputs Type

GETPNTUS UINT

Description

Current Integer Value if found, otherwise 0

The value from the analog point is clamped in the range 0 to 65535 prototype:

See Also

setpntus

25 value := GETPNTUS (point_num, is_output_point);

20 SCADAPack E Target 5 Function Block Reference

4.1.1.7

setpntb

Set value of binary point

Description

The setpntb function writes the BOOL state of value to the specified database binary point's current value. If the point is found and the value is successfully written, the output variable is set TRUE; otherwise it is set FALSE. If the point is not found, nothing is done and the output is set FALSE.

Arguments

Inputs

Point

Type

DINT

VALUE BOOL

Outputs Type

SETPNTB BOOL

Description

Address of a binary point number. Point may be a binary output, derived binary point or system binary point.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the

SCADAPack E Target 5 Technical Reference for details.

Value to write to the binary point.

Description

TRUE if the value was successfully set.

FALSE for other cases.

prototype:

See Also

getpntb

14 setok := SETPNTB (point_num, req_state);

SCADAPack E Target 5 Function Block Reference 21

4.1.1.8

setpntf

Set value of analog point as floating point (real)

Description

The setpntf function writes the value to the specified database analog point's Current Engineering Value.

If the point is found and the value is successfully written, the output variable is set TRUE; otherwise it is set FALSE. If the point is not found, nothing is done and the output is set FALSE.

This function can set the value of physical analog outputs, derived analogs and system analog points.

Arguments

Inputs

Point

Type

DINT

VALUE REAL

Outputs Type

SETPNTF BOOL

Description

Address of a binary point number. Point may be a binary output, derived binary point or system binary point.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the

SCADAPack E Target 5 Technical Reference for details.

Value to write to the binary point.

Description

TRUE if the value was successfully set.

FALSE for other cases.

prototype:

See Also

getpntf

15 setok := SETPNTF (point_num, req_state);

22 SCADAPack E Target 5 Function Block Reference

4.1.1.9

setpntsl

Set value of analog point as a 32-bit signed integer.

Description

The setpntsl function writes the value to the specified database analog point's Current Integer Value. If the point is found and the value is successfully written, the output variable is set TRUE; otherwise it is set FALSE. If the point is not found, nothing is done and the output is set FALSE.

This function can set the value of physical analog outputs, derived analogs and system analog points.

The name of this function block is identical to the Target 3 function block. The L in the name refers to a

Target 3 long integer (32-bit signed value). It should not be confused with the Target 5 data type LINT which refers to a 64-bit signed value.

Arguments

Inputs

Point

Type

DINT

VALUE DINT

Outputs Type

SETPNTSL BOOL

Description

Address of an analog point number. Point may be an analog output, derived analog point or system analog point.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the

SCADAPack E Target 5 Technical Reference for details.

Value to write to the analog point.

Description

TRUE if the value was successfully set.

FALSE for other cases.

prototype:

See Also

getpntsl

17 setok := SETPNTSL (point_num, req_state);

SCADAPack E Target 5 Function Block Reference 23

4.1.1.10 setpntss

Set value of analog point as signed short integer

Description

The setpntss function writes the value to the specified database analog point's Current Integer Value. If the point is found and the value is successfully written, the output variable is set TRUE; otherwise it is set FALSE. If the point is not found, nothing is done and the output is set FALSE.

If the input value is > 32767, then the point value will be clamped to 32767

If the input value is < -32768, then the point value will be clamped to -32768

This function can set the value of physical analog outputs, derived analogs and system analog points.

Arguments

Inputs

Point

VALUE

Type

DINT

INT

Description

Address of an analog point number. Point may be an analog output, derived analog point or system analog point.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the

SCADAPack E Target 5 Technical Reference for details.

Value to write to the analog point.

The value written to the point is clamped in the range -32768 to

32767

Outputs Type

SETPNTSS BOOL

Description

TRUE if the value was successfully set.

FALSE for other cases.

prototype: setok := SETPNTSS (point_num, req_state);

24 SCADAPack E Target 5 Function Block Reference

See Also

getpntss

18

SCADAPack E Target 5 Function Block Reference 25

4.1.1.11 setpntus

Set value of analog point as unsigned short integer

Description

The setpntus function writes the value to the specified database analog point's Current Integer Value. If the point is found and the value is successfully written, the output variable is set TRUE; otherwise it is set FALSE. If the point is not found, nothing is done and the output is set FALSE.

If the input value is > 65535, then the point value will be clamped to 65535

If the input value is < 0, then the point value will be clamped to 0

This function can set the value of physical analog outputs, derived analogs and system analog points.

Arguments

Inputs

Point

VALUE

Type

DINT

UINT

Description

Address of an analog point number. Point may be an analog output, derived analog point or system analog point.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the

SCADAPack E Target 5 Technical Reference for details.

Value to write to the analog point.

The value from the point is clamped in the range 0 to 65535

Outputs

SETPNTUS

Type Description

BOOL TRUE if the value was successfully set.

FALSE for other cases.

prototype:

See Also

getpntus

19 setok := SETPNTUS (point_num, req_state);

26 SCADAPack E Target 5 Function Block Reference

4.1.2

Read Point Attributes

Read point field function blocks

rdfld_i

27

rdfld_r

33

SCADAPack E Target 5 Function Block Reference 27

4.1.2.1

rdfld_i

Read point attribute of type integer

Description

The rdfld_i function reads an point attribute or property and returns the value in a 32 bit integer variable.

Arguments

Inputs

POINT

TYPE

Type

DINT

DINT

ATTRIB DINT

Description

Point Address can be a numeric Point Address, a variable containing the Point Address or a defined word referencing a point address.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the

SCADAPack E Target 5 Technical Reference for details.

Point Data Type argument can be one of the defined words below or an integer value corresponding to the data type.

Defined Word

Equivalent Numeric

Value

Comment

DIN

Dout

1

2

Digital input point

Digital output point

AIN

AOUT

CIN

3

4

5

Analog input point

Analog output point

Counter input point

Desired point attribute (property) argument can be a defined word or an integer value corresponding to the attribute.

See tables below for defined words and their corresponding numeric values.

28 SCADAPack E Target 5 Function Block Reference

Outputs

CNF

STATUS

VALUE

TYPE

BOOL

DINT

DINT

DESCRIPTION

Confirm valid or invalid status

Possible Values Meaning

TRUE Confirm Valid Status

FALSE

5

8

3

4

12

18

Status of Read Request

Possible Values Meaning

1

2

-1

0

Unknown Status Code

Success

Point does not exist

Bad point type

Unknown attribute for this point

Bad value for this attribute

Invalid attribute for this function block

Point is locked

Database is locked

Data Processor Unavailable

Depends on 'Attrib' input parameter.

rdfld_i Function Attributes (attrib) for Point Properties

Attribute

(Defined Word)

Qlty

Fail

IOF

ISA

Ilock

Equivalent Numeric

Value

Description

100

101

102

103

104

Point Quality

Point Operation Unsuccessful

IO Not Responding

IEC 61131-3 Controlled

Remote Control Interlock Enabled

State

Alarm

A4L

Raw

RoRise

RoFall

NC

ORange

URange

ADF

A4H

A3H

A2H

A1H

A1L

A2L

A3L

HI

CntRZ

PObj

DigDbActive

AnaDbActive

105

106

119

120

121

122

107

115

117

118

123

53

3

128

129

114

113

112

111

110

109

108

SCADAPack E Target 5 Function Block Reference 29

Current State

Binary Point is in Alarm (this attribute is used with Binary points only).

Alarm Limit Transgress 4H

Alarm Limit Transgress 3H

Alarm Limit Transgress 2H

Alarm Limit Transgress 1H

Alarm Limit Transgress 1l

Alarm Limit Transgress 2l

Alarm Limit Transgress 3l

Alarm Limit Transgress 4l

Current Integer Value

Rate Of Rise Exceeded

Rate of Fall Exceeded

No Change Detected

Over Range

Under Range

Ad Reference Check

High Limit Exceeded

Counter Reset to Zero on Power Up

DNP Static Object Type

Digital Dead-band Timer Active

Analog Dead-band Timer Active

rdfld_i Function Attributes (attrib) for Integer (Analog) Points

Attribute

(Defined Word)

Equivalent

Numeric Value

Description

RoRPN

RoFPN

17

18

Rate Of Rise Point Number

Rate Of Fall Point Number

30 SCADAPack E Target 5 Function Block Reference

Rmin

Rmax

RoCTm

NCTm

Ev4H

Ev3H

Ev2H

Ev1H

Ev1L

Ev2L

Ev3L

Ev4L

LimHi

CntDev

EvDev

EvDevUnsol

Attribute

(Defined Word)

NCPN

CexPN

EvDevTp

42

51

52

50

65

46

45

44

43

39

49

48

47

29

30

38

Equivalent

Numeric Value

Description

19

20

97

No Change Point Number

Counter Exceeded Point

Number

Raw Min

Raw Max

Rate Of Change Time

No Change Time

Limit Event Enable 4h

Limit Event Enable 3h

Limit Event Enable 2h

Limit Event Enable 1h

Limit Event Enable 1l

Limit Event Enable 2l

Limit Event Enable 3l

Limit Event Enable 4l

Counter High Limit

Counter Change Deviation

Event Deviation

Event Deviation Unsolicited

Enable

Event Deviation Type

rdfld_i Function Attributes (attrib) for Digital (BOOL) Points

Attribute

(Defined Word)

Inv

AState

AClrTm

Equivalent

Numeric Value

Description

11

12

14

Invert Point State

Alarm Active State

Alarm Clear Time Deadband

PTm

DebTm

DblStPt

15

16

54

SCADAPack E Target 5 Function Block Reference 31

Output Pulse Time

Debounce Time

Double Status Point Number

rdfld_i Function Attributes (attrib)

Attribute

(Defined Word)

AInh

Equivalent

Numeric Value

Description

7 Alarm Inhibit

ATm

Bad

IlockPN

IlockTm

PrId

TInh

PClassMA

PClassM1

PClassM2

PClassM3

5

9

8

10

6

4

66

67

68

69

Alarm Time Deadband

Point Is Bad

Remote Control Interlock Point

Interlock Alarm Timeout

Profile Id

Trend Inhibit

Point Data Class (All Masters)

Point Data Class Master 1

Point Data Class Master 2

Point Data Class Master 3

The defined words in the tables above are reserved and should be used exclusively to retrieve point properties using this function block. User variables which duplicate these defined words but are not being used in the same context will generate errors during the compilation.

An IEC 61131-3 Function Block Diagram example of RDFLD_I is illustrated below. The current integer value (Attrib = Raw) of analog input point labeled POINT_speedcontrol_MyResource (analog input point

1) has been obtained. A variable or defined word POINT_speedcontrol_MyResource contains the point address of analog input point labeled ‘speedcontrol’. Alternatively, the numeric point address of the analog input can also be used.

32 SCADAPack E Target 5 Function Block Reference

IEC 61131-3 Structured Text prototypes take on the following form: prototype: rdfld_i_inst (POINT, TYPE, ATTRIB) complete_confirm := rdfld_i_inst.CNF

return_status := rdfld_i_inst.STATUS

return_value := rdfld_i_inst.VALUE

where rdfld_i_inst is an FB instance of the function block rdfld_i defined in the program dictionary.

An equivalent Structured Text implementation is listed below. This code will store the outputs of the function block rdfld_i in the variables CNF, STATUS and VALUE.

(* Code Begins Here *)

(* BOOL

(* DINT

(* REAL

(* FB instances

CNF

STATUS

Value rdfld_i_inst

*)

*)

*)

*) rdfld_i_inst(POINT_speedcontrol_MyResource, AIN, Raw); if (rdfld_i_inst.CNF) then

CNF := rdfld_i_inst.CNF;

STATUS := rdfld_i_inst.status;

VALUE := rdfld_i_inst.value; end_if;

(* Code Ends Here *)

SCADAPack E Target 5 Function Block Reference 33

4.1.2.2

rdfld_r

Read point attribute of type real

Description

Point database attributes and property fields that return real (float) values may be read using the function block “RDFLD_R”.

Attributes and properties may be read from the point database. The format of this function block is the same as “RDFLD_I” except that the “Value” field in the case of “RDFLD_R” is a REAL (float) value, and in the case of “RDFLD_I” is an Integer value. The description below illustrates the purpose, inputs and outputs of the RDFLD_R function block. Each time the function block is called, the SCADAPack E

Smart RTU updates the Value variable from the specified point database field for the specified point and point type.

Arguments

Inputs

POINT

Type

DINT

TYPE DINT

Description

Point Address can be a numeric Point Address, a variable containing the Point Address or a defined word referencing a point address.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database.

See the SCADAPack E Target 5 Technical Reference for details.

Point Data Type argument can be one of the defined words below or an integer value corresponding to the data type.

Defined Word

DIN

DOUT

AIN

AOUT

3

4

Equivalent Numeric

Comment

Value

1

2

Digital input point

Digital output point

Analog input point

Analog output point

34 SCADAPack E Target 5 Function Block Reference

ATTRIB DINT

CIN 5 Counter input point

Desired point attribute (property) argument can be an defined word or an integer value corresponding to the attribute.

See

Table 6.5

35

for defined words and their corresponding numeric values.

Outputs

CNF

STATUS

VALUE

TYPE

BOOL

DINT

REAL

DESCRIPTION

Confirm valid or invalid status

Possible Values Meaning

TRUE Confirm Valid Status

FALSE

5

8

3

4

12

18

Status of Read Request

Possible Values Meaning

1

2

-1

0

Unknown Status Code

Success

Point does not exist

Bad point type

Unknown attribute for this point

Bad value for this attribute

Invalid attribute for this function block

Point is locked

Database is locked

Data Processor Unavailable

Depends on 'Attrib' input parameter.

SCADAPack E Target 5 Function Block Reference 35

36

37

40

41

50

22

21

35

33

34

27

26

25

24

23

31

32

116

28

rdfld_r Function Attributes (attrib)

Attribute

(Defined Word)

Equivalent

Numeric Value

Description

Lim3L

Lim4L

LimRise

LimFall

LimNC

AclrVal

LimZero

EvDev

LimOR

LimUR

Emin

Emax

Eng

Lim4H

Lim3H

Lim2H

Lim1H

Lim1L

Lim2L

Engineering Min

Engineering Max

Current Engineering Value

Engineering Limit 4H

Engineering Limit 3H

Engineering Limit 2H

Engineering Limit 1H

Engineering Limit 1L

Engineering Limit 2L

Engineering Limit 3L

Engineering Limit 4L

Rate Of Rise

Rate Of Fall

No Change

Alarm Clear Value Deadband

Zero Threshold Limit

Even _Deviation

Over Range Limit

Under Range Limit

The defined words in

Table 6.5

35

are reserved and should be used exclusively to retrieve point properties using this function block. User defined variables which duplicate these defined words but are not being used in the same context will generate errors during the compilation.

An IEC 61131-3 Function Block Diagram example of RDFLD_R is illustrated in

Figure 6.4

36

below. The current floating point or real value of analog input point labeled POINT_speedcontrol_MyResource

(analog input pont 1) has been obtained. A variable or defined word POINT_speedcontrol_MyResource contains the point address of analog input point labeled ‘speedcontrol’. Alternatively, the numeric point

36 SCADAPack E Target 5 Function Block Reference

address of the analog input can also be used.

IEC 61131-3 Structured Text prototypes take on the following form: prototype: rdfld_r _inst (POINT, TYPE, ATTRIB) complete_confirm := rdfld_r_inst.CNF

return_status := rdfld_r_inst.STATUS

return_value := rdfld_r_inst.VALUE

where rdfld_r_inst is an instance of the function block rdfld_r defined in the program dictionary.

An equivalent Structured Text implementation of the function block diagram in

Figure 6.4

36

is listed below. This code will store the outputs of the function block rdfld_r in the variables CNF, STATUS and

VALUE.

(* Code Begins Here *)

(* BOOL

(* DINT

CNF

STATUS

*)

*)

(* REAL Value *)

(* FB instances rdfld_r_inst *) rdfld_r_inst(POINT_speedcontrol_MyResource, AIN, Eng); if (rdfld_r_inst.CNF) then

CNF := rdfld_r_inst.CNF;

STATUS := rdfld_r_inst.STATUS;

VALUE := rdfld_r_inst.VALUE; end_if;

(* Code Ends Here *)

SCADAPack E Target 5 Function Block Reference 37

4.1.3

Read Common Point Attributes

Function blocks to read common fields from a point record

rdrec

38

rdrec_dg

40

rdrec_cn

44

rdrec_an

46

38 SCADAPack E Target 5 Function Block Reference

4.1.3.1

rdrec

Read point attribute of type real

Description

The RDREC function block reads attributes for point types. If an attribute is not defined for the point in question, a value of zero is returned.

Arguments

Inputs iPOINT iTYPE

Type

DINT

DINT

Description

Point Address can be a numeric Point Address, a variable containing the DNP Point Address or a defined word referencing a point address.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database.

See the SCADAPack E Target 5 Technical Reference for details.

Point Data Type argument can be one of the defined words

SCADAPack E Target 5 Function Block Reference 39

below or an integer value corresponding to the data type.

Defined Word

DIN

DOUT

AIN

AOUT

CIN

3

4

Equivalent Numeric

Comment

Value

1

2

Digital input point

Digital output point

Analog input point

Analog output point

5 Counter input point

Outputs

Cnf

TYPE

BOOL

Status DINT

DESCRIPTION

Confirm valid or invalid status

Possible

Values

Meaning

Confirm Valid Status TRUE

FALSE

4

5

2

3

Status of Read Request

Possbile

Values

Meaning

-1

0

1

Unknown Status Code

Success

Point does not exist

8

12

Bad Point Type

Unknown attribute for this point

Bad Value for this attribute

Invalid Attribute for this function block

Point is locked

Database is locked

40 SCADAPack E Target 5 Function Block Reference

oPN oQLTY oFAIL oIOF oISA oBAD oADF oSTATE oRAW oENG oILOCK

DINT

DINT

BOOL

BOOL

BOOL

BOOL

BOOL

BOOL

DINT

REAL

BOOL

18 Data Processor Unavailable

Point Number

Point Quality

Point Operation Unsuccessful

IO not Responding

IEC 61131-3 Controlled

Point is Bad

A/D Reference Invalid

Point State

Raw Point Value

Engineering (REAL) Value

Control Interlock Active

4.1.3.2

rdrec_dg

Read attributes for digital points

Description

The rdrec_dg function block reads attributes for digital (binary) points. Return Values not existing for a point type will return 0.

SCADAPack E Target 5 Function Block Reference 41

Arguments

Inputs iPOINT iType

Type

DINT

DINT

Description

Point Address can be a numeric Point Address, a variable containing the DNP Point Address or a defined word referencing a point address.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database.

See the SCADAPack E Target 5 Technical Reference for details.

Point Data Type argument can be one of the defined words below or an integer value corresponding to the data type.

Defined Word

Equivalent Numeric

Value

Comment

DIN

DOUT

1

2

Digital input point

Digital output point

Outputs oCNF

TYPE

BOOL

DESCRIPTION

Confirm valid or invalid status

Possible Meaning

42 SCADAPack E Target 5 Function Block Reference

oSTATUS oPN oQLTY oALARM oBAD oPTIME oSTATE

DINT

DINT

DINT

BOOL

BOOL

DINT

BOOL

Values

TRUE

FALSE

Confirm Valid Status

3

4

5

8

1

2

Status of Read Request

Possbile

Values

Meaning

-1

0

Unknown Status Code

Success

Point does not exist

Bad Point Type

12

18

Unknown attribute for this point

Bad Value for this attribute

Invalid Attribute for this function block

Point is locked

Database is locked

Data Processor Unavailable

Point Number

Point Quality

Point in Alarm

Point is Bad

Output Pulse Time

Point State

IEC 61131-3 Structured Text prototypes take on the following form:

Prototype: rdrec_dg_inst (point, type) complete_confirm := rdrec_dg_inst.ocnf

return_status := rdrec_dg_inst.pstatus

SCADAPack E Target 5 Function Block Reference 43

Point_number := rdrec_dg_inst.oPN …….

where rdrec_dg_inst is an instance of the function block rdrec_dg defined in the program dictionary.

A sample Structured Text implementation is listed below.

(* Code Snippet Begins Here *)

(* Ensure dictionary has the following variables defined:

(* BOOL

(* DINT cnf status

*)

*)

(* DINT

(* DINT

(* BOOL

(* BOOL

(* DINT

(* BOOL point_number point_quality alarm_state bad_point pulse_tme point_state

*)

*)

*)

*)

*)

*)

*) (* FB instances rdrec_dg_inst rdrec_dg_inst(POINT_DIN1, DIN) if (rdrec_dg_inst.ocnf) then cnf := rdrec_dg_inst.ocnf; status := rdrec_dg_inst.ostatus; point_number := rdrec_dg_inst.opn; point_quality := rdrec_dg_inst.oqlty; alarm_state := rdrec_dg_inst.oalarm; bad_point := rdrec_dg_inst.obad; pulse_time := rdrec_dg_inst.optime; point_state := redrec_dg_inst.ostate; end_if;

(* Code Ends Here *)

44 SCADAPack E Target 5 Function Block Reference

4.1.3.3

rdrec_cn

Read attributes for counter points

Description

The rdrec_cn function block reads attributes for counter points. The return value for a point type that does not exist is 0.

Arguments

INPUTS TYPE iPOINT DINT

DESCRIPTION

Point Address can be a numeric Point Address, a variable containing the Point Address or a defined word referencing a point address.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the

SCADAPack E Target 5 Technical Reference for details.

OUTPUTS

CNF

STATUS

TYPE

BOOL

DINT oPN oQLTY oLIMHI oHI oRAW

DINT

DINT

UDINT

BOOL

UDINT

SCADAPack E Target 5 Function Block Reference 45

DESCRIPTION

Confirm valid or invalid status

Possible

Values

Meaning

Confirm Valid Status TRUE

FALSE

4

5

8

12

18

0

1

2

3

Status of Read Request

Possible

Values

Meaning

-1 Unknown Status Code

Success

Point does not exist

Bad Point Type

Unknown attribute for this point

Bad Value for this attribute

Invalid Attribute for this function block

Point is locked

Database is locked

Data Processor Unavailable

Point Number

Point Quality

Counter high limit

Counter limit exceeded

Raw counter value

IEC 61131-3 Structured Text prototypes take on the following form:

46 SCADAPack E Target 5 Function Block Reference

Prototype: rdrec_cn_inst (point, type) complete_confirm := rdrec_cn_inst.cnf

return_status := rdrec_cn_inst.status

Point_number := rdrec_cn_inst.opn

Point_quality := rdrec_cn_inst.oQlty

where rdrec_cn_inst is an instance of the function block rdrec_cn.

4.1.3.4

rdrec_an

Read attributes for analog (integer) input points

Description

The RDREC_AN function block reads attributes for analogue points. The return value for a point type that does not exist is 0.

SCADAPack E Target 5 Function Block Reference 47

Arguments

INPUTS TYPE iPOINT DINT

DESCRIPTION

Point Address can be a numeric Point Address, a variable containing the Point Address or a defined word referencing a

48 SCADAPack E Target 5 Function Block Reference

iTYPE DINT point address.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the

SCADAPack E Target 5 Technical Reference for details.

Point data type argument can be one of the defined words below or an integer value corresponding to the data type.

Defined

Word

Equivalent

Numeric

Value

Comment

AIN 3 Analog input point

AOUT 4 Analog output point

OUTPUTS

CNF

STATUS

TYPE

BOOL

DINT

DESCRIPTION

Confirm valid or invalid status

Possible

Values

Meaning

Confirm Valid Status TRUE

FALSE

4

5

2

3

8

Status of Read Request

Possbile

Values

Meaning

-1

0

1

Unknown Status Code

Success

Point does not exist

Bad Point Type

Unknown attribute for this point

Bad Value for this attribute

Invalid Attribute for this function block

Point is locked

REAL

REAL

REAL

REAL

BOOL

BOOL

BOOL

BOOL

DINT

DINT

REAL

REAL

REAL

REAL

BOOL

BOOL

BOOL

BOOL

DINT

REAL oA4H oA3H oA2H oA1H oLIM1L oLIM2L oLIM3L oLIM4L oPN oQLTY oLIM4H oLIM3H oLIM2H oLIM1H oA1L oA2L oA3L oA4L oRAW oENG

SCADAPack E Target 5 Function Block Reference 49

12

18

Database is locked

Data Processor Unavailable

Point Number

Point Quality

Engineering Limit 4H

Engineering Limit 3H

Engineering Limit 2H

Engineering Limit 1H

Engineering Limit 1L

Engineering Limit 2L

Engineering Limit 3L

Engineering Limit 4L

Alarm Limit Transgress 4H

Alarm Limit Transgress 3H

Alarm Limit Transgress 2H

Alarm Limit Transgress 1H

Alarm Limit Transgress 1L

Alarm Limit Transgress 2L

Alarm Limit Transgress 3L

Alarm Limit Transgress 4L

Raw value

Floating point value

50 SCADAPack E Target 5 Function Block Reference

4.1.4

rdstring

Read a string point

Description

Reads a string point or STRING from the system string map. The return value for a point that does not exist is 0.

Arguments

INPUTS

Point

TYPE

DINT

Req BOOL

DESCRIPTION

Point Address can be a numeric Point Address, a variable containing the DNP Point Address or a defined word referencing a point address.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the

SCADAPack E Target 5 Technical Reference for details.

Request to read a point

Possible

Values

Meaning

TRUE Read point enabled

FALSE Read point function disabled

OUTPUTS

Cnf

TYPE

BOOL

DESCRIPTION

Confirm valid or invalid status

Possible Meaning

OUTPUTS

Status

Value

Length

TYPE

DINT

STRING

DINT

SCADAPack E Target 5 Function Block Reference 51

DESCRIPTION

Values

TRUE

FALSE

Confirm Valid Status

0

1

Status of Read Request

Possbile

Values

Meaning

-1 Unknown Status Code

Success

Point does not exist

Return string message

The number of characters read into the STRING variable from the string point's current value

A sample function block implementation of rdstring is illustrated below. It reads the string system point

50100 where the name of the first IEC 61131-3 Resource is stored. The resulting name is stored in the variable application_name upon a successful read operation. The read operation is triggered by setting the BOOL variable read_string to TRUE.

Figure 6.13: rdstring Function Block Example

A structured text implementation of rdstring is listed below. In this example, variable APP_1 contains the point address of the resource running on resource 1. This is the system point number for the first resource name.

Read_String := TRUE;

APP_1 := 50100; r_string(Read_String, APP_1);

52 SCADAPack E Target 5 Function Block Reference

IF(r_string.CNF) THEN

Read_String := FALSE;

IF(r_string.STATUS = SUCCESS) THEN

ReadStringValue := r_string.VALUE; valid_string := TRUE;

ELSE valid_string := FALSE;

END_IF;

END_IF;

4.1.5

Digital Output Controls

Digital output points on the SCADAPack E Smart RTU can be activated for a predetermined length of time. There are two mechanisms for creating pulses on the digital output ports under control of the IEC

61131-3 Resource.

A IEC 61131-3 Resource may choose to switch a BOOL Output variable on and off with timing through logic. In this case the Resource controls the output point directly. Exact output timing will be dependent on the consistency of the Resource scan rate

The

rtucrob

52

function block may be used to activate an output. In this case the Resource instructs the SCADAPack E Smart RTU point processing task to activate the output point, using the processing tasks' timing, rather than the IEC 61131-3 Resource timing. In general this will produce more accurate pulse timing.

If the digital output point is on a remote DNP3 device through the Data Concentrator, then the pulse command is initiated on the remote device using a DNP3 CROB control. It is recommended that the

rtucrob

52

function block be used in this case as it provides flexibility in setting CROB parameters for interoperability with the remote DNP3 device.

4.1.5.1

rtucrob

The function block ‘rtucrob’ sends a control message to output points. These may be:

Control to an output point on the local SCADAPack E Smart RTU.

Control using a DNP3 CROB (control request object block - object group 12 variation 1) to an output point mapped to a remote DNP3 device by the SCADAPack E Smart RTU Data Concentrator facility.

There cannot be an Boolean output device definition for the physical digital output being controlled (i.e.

No output device whose address range corresponds to the address of the output point)

Description

The function block will execute when the req input value transitions from FALSE to TRUE. req needs to be set to FALSE before each subsequent control is issued from this instance of the function block.

The SCADAPack E Smart RTU will not send a control as instructed by this function block if the digital point was not found, was read-only (eg. physical input point), if a remote control interlock point was

SCADAPack E Target 5 Function Block Reference 53

active for this point, or if a pulse is currently being executed on this point.

The onTime duration is specified by the Resource, or uses the point's Output Pulse Time attribute if the onTime is zero.

The offTime duration is specified by the Resource. If an offTime value of 0 is set 10 ms is used as the default pulse off duration.

The number of pulses generated is determined by the count variable which is limited to a maximum value of 255. Once initiated by the program, the digital output pulse is controlled by the Data

Processor Task and is independent of the Resource cycle time.

The funcCode parameter specifies which DNP3 function code is used to send the CROB control code

(see table below)

The ctrlCode parameter specifies which CROB control code is used (see table below)

The function blocks returns the CONF and STATUS parameters if there is a status code returned or when the DNP3 CROB request is sent to the remote device.

54 SCADAPack E Target 5 Function Block Reference

Arguments

INPUTS TYPE

Req BOOL

Point DINT

OnTime

OffTime

Count

Time

Time

DINT

FuncCode DINT

CtrlCode DINT

DESCRIPTION

Request to pulse an output point

Possible

Values

Meaning

TRUE pulse initiated on transition to TRUE

FALSE pulse point function disabled

Point Address can be a numeric Point Address, a variable containing the Point Address or a defined word referencing a point address.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the

SCADAPack E Target 5 Technical Reference for details.

Pulse On duration (ms timer format)

Pulse Off duration (ms timer format)

Number of pulse cycles in the pulse train

The function code to send if the point is on a remote DNP3 device. Use one of the following defines:

CROB_DirOp

CROB_SelOp

CROB_DONA

Direct Operate

Select Before Operate

Direct Operate, No Acknowledgement

The control code to send if the point is on a remote DNP3 device.

Use one of the following defines:

CROB_PulseOn

CROB_PulseOff

CROB_LatchOn

CROB_LatchOff

CROB_Trip

CROB_Close

CROB_Clear

OUTPUTS

Conf

Status

TYPE

BOOL

DINT

SCADAPack E Target 5 Function Block Reference 55

DESCRIPTION

Confirm that Status is ready

Possible

Values

Meaning

TRUE

FALSE

Pulse has completed or pulse request is unsuccessful. TRUE indicates the

Status output is ready to read.

Pulse has not been completed or REQ

= false.

2

3

4

Status of Request. This should only be read if the conf output is TRUE.

Possible

Values

Meaning

-1 Generic status code

0

1

Output pulse has completed executing.

Pulse not yet completed, or Digital

Point Not Found

(This value changes to 1 as the pulse command is initiated and returns to 0 after the pulse has been generated. If this value stays at 1, the point was not found).

Unsuccessful: remote interlock active

Unsuccessful: pulse already executing

Invalid funcCode input.

Status values of -1, 0,1 or 4 may be returned when controlling points on a remote device. Other status codes may be returned if controlling an output point on the local

SCADAPack E Smart RTU.

prototype: RTUCROB(REQ, POINT, ONTIME, OFFTIME, COUNT, FUNCCODE, CTRLCODE);

56 SCADAPack E Target 5 Function Block Reference

4.1.6

Database Point Attributes

These function blocks set database point attributes

setatr_i

56

setatr_r

61

4.1.6.1

setatr_i

Set integer point attributes

Description

Point database attributes represented by integer values may be set using function block “setatr_i”.

The tables below describe the inputs and outputs of the setatr_i function block. Each time the function block is called, the SCADAPack E Smart RTU updates the specified point database field for the specified point number and point type from the value of a variable.

SCADAPack E Target 5 Function Block Reference 57

Arguments

INPUTS TYPE

Point DINT

Type DINT

Attrib DINT

Value DINT

DESCRIPTION

Point Address can be a numeric Point Address, a variable containing the Point Address or a defined word referencing a point address.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the

SCADAPack E Target 5 Technical Reference for details.

point data type argument can be one of the defined words below or an integer value corresponding to the data type.

Defined

Word

Equivalent

Numeric

Value

Comment

DIN

DOUT

1

2

Digital input point

Digital output point

AIN

AOUT

CIN

3

4

5

Analog input point

Analog output point

Counter input point

Desired point attribute (property) argument can be an defined word or an integer value corresponding to the attribute – see

Table 6.6

58

.

Desired field value

58 SCADAPack E Target 5 Function Block Reference

OUTPUTS

Cnf

Status

TYPE

BOOL

DINT

DESCRIPTION

Confirm status ready to write

Possible

Values

Meaning

Confirm Valid Status TRUE

FALSE

2

3

0

1

4

5

Status of Read Request

Possbile

Values

Meaning

-1 Unknown Status Code

Success

Information not found

Bad Point Type

Unknown attribute for this point

Bad value for this attribute

Invalid attribute for this point

Structured text prototypes take on the following format:

SETATR_I _INST(POINT, TYPE, ATTRIB,VALUE) complete_confirm := SETATR_I_NST.CNF

return_status := SETATR_I_INST.STATUS

Valid Attributes (attrib) for setatr_i Function Block

Attribute

(Defined Word)

PClassMA

PClassM1

PClassM2

Equivalent

Numeric Value

Description

66

67

68

Point Type where this field applies

Point Data Class (All Masters) All

Point Data Class Master 1 All

Point Data Class Master 2 All

SCADAPack E Target 5 Function Block Reference 59

PrId

ATm

Inv

AState

AClrTm

PTm

DebTm

RoRPN

RoFPN

NCPN

CexPN

CntRZ

Attribute

(Defined Word)

PClassM3

PObj

IlockPN

IlockTm

Bad

AInh

TInh

Rmin

Rmax

5

6

7

69

3

4

14

15

16

17

9

10

11

12

18

19

20

53

Equivalent

Numeric Value

8

29

30

Description

Point Data Class Master 3

DNP3 Static Object Type

Remote Interlock Point

Interlock timeout

Point is bad

Alarm Inhibit

0 = alarm enable

1 = alarm disable

Trend Inhibit

0 = trend enable

1 = trend disable

Point Type where this field applies

All

All

Output points only

Output points only

All

All

All

Profile Id

Alarm Time Deadband

Invert Point State

Alarm Active State

Alarm Clear Time Deadband

Output Pulse Time

Debounce Time

Rate Of Rise Point Number

Rate Of Fall Point Number

No Change Point Number

Analog

Analog

Counter Exceeded Point Number Counter

Counter Reset to Zero on power up

Counter

0 = retain previous value

1 = Reset to zero

Raw Min Analog

Raw Max Analog

All

All

Digital points only

Digital points only all

Digital output only

Digital input only

Analog

60 SCADAPack E Target 5 Function Block Reference

Attribute

(Defined Word)

RoCTm

NCTm

Ev4H

Ev3H

Ev2H

Ev1H

Ev1L

Ev2L

Ev3L

Ev4L

LimHi

CntDev

AclrVal

51

52

40

Equivalent

Numeric Value

Description

38

39

49

48

47

46

45

44

43

42

Rate Of Change Time

No Change Time

Limit Event Enable 4h

0 = event disabled

1 = event enabled

Limit Event Enable 3h

0 = event disabled

1 = event enabled

Limit Event Enable 2h

0 = event disabled

1 = event enabled

Limit Event Enable 1h

0 = event disabled

1 = event enabled

Limit Event Enable 1l

0 = event disabled

1 = event enabled

Limit Event Enable 2l

0 = event disabled

1 = event enabled

Limit Event Enable 3l

0 = event disabled

1 = event enabled

Limit Event Enable 4l

0 = event disabled

1 = event enabled

Counter High Limit

Counter Change Deviation

Alarm Clear Value Deadband

Point Type where this field applies

Analog

Analog

Analog

Analog

Analog

Analog

Analog

Analog

Analog

Analog

Counter

Counter

Analog

SCADAPack E Target 5 Function Block Reference 61

Attribute

(Defined Word)

LimZero

LimOR

LimUR

EvDev

EvDevUnsol

EvDevTp

Equivalent

Numeric Value

Description

41

33

34

50

65

97

Zero Threshold Limit

Over Range Limit

Under Range Limit

Event Deviation

Event Deviation Unsolicited enable

Event Deviation Type

Point Type where this field applies

Analog

Analog

Analog

Analog

Analog

Analog

4.1.6.2

setatr_r

Set real point attributes

Description

point database attributes represented by real (floating point) values may be set using function block

“setatr_r”.

The table below describes the inputs and outputs of the setatr_r function block. Each time the function block is called, the SCADAPack E Smart RTU updates the specified point database field for the specified point number and point type from the value of a variable.

Arguments

INPUTS TYPE

Point DINT

DESCRIPTION

Point Address can be a numeric Point Address, a variable containing the Point Address or a defined word referencing a point address.

The I/O Device Pre-Processor generates Defined Words for variables associated with points in the RTU database. See the

62 SCADAPack E Target 5 Function Block Reference

Type

Attrib

Value

DINT

DINT

REAL

SCADAPack E Target 5 Technical Reference for details.

point data type argument can be one of the defined words below or an integer value corresponding to the data type.

Defined

Word

Equivalent

Numeric

Value

Comment

DIN 1 Digital input point

DOUT

AIN

AOUT

CIN

2

3

4

5

Digital output point

Analog input point

Analog output point

Counter input point

Desired point attribute (property) argument can be an defined word or an integer value corresponding to the attribute – see

Table 6.7

63

.

Desired field value

OUTPUTS

Cnf

TYPE

BOOL

Status DINT

SCADAPack E Target 5 Function Block Reference 63

DESCRIPTION

Confirm status ready to write

Possible

Values

Meaning

TRUE Confirm Valid Status

FALSE

3

4

5

1

2

Status of Read Request

Possible

Values

Meaning

-1

0

Unknown Status Code

Success

Information not found

Bad Point Type

Unknown attribute for this point

Bad value for this attribute

Invalid attribute for this point

Valid Attribute (attrib) Values for setatr_r

Attribute

(Defined Word)

Equivalent

Numeric Value

Description

Emin

Emax

31

32

Engineering Min

Engineering Max

Lim4H

Lim3H

Lim2H

Lim1H

Lim1L

Lim2L

28

27

26

25

24

23

Engineering Limit 4H

Engineering Limit 3H

Engineering Limit 2H

Engineering Limit 1H

Engineering Limit 1L

Engineering Limit 2L

Point Type where this field applies

Analog

Analog

Analog

Analog

Analog

Analog

Analog

Analog

64 SCADAPack E Target 5 Function Block Reference

Lim3L

Lim4L

LimRise

LimFall

LimNC

EvDev

36

37

50

22

21

35

Engineering Limit 3L

Engineering Limit 4L

Rate Of Rise

Rate Of Fall

No Change

Event Deviation

Analog

Analog

Analog

Analog

Analog

Analog

SCADAPack E Target 5 Function Block Reference 65

4.2

Real Time Clock Function Blocks

The following function blocks provide a IEC 61131-3 Resource access to the SCADAPack E Smart RTU real time clock.

os_time

65

loc_time

65

timedate

67

4.2.1

os_time

Return UTC time in seconds since 00:00:00, 1st Jan 1970

Description

This function block returns the current time (UTC) as used by the SCADAPack E Smart RTU operating system. The return parameter is an DINT variable, in ‘Seconds since 00:00:00, 1st Jan 1970. This function block does not adjust for time zone offsets or daylight saving time. I.e. it returns the time from the real time clock.

Arguments

OUTPUT TYPE DESCRIPTION

TIME DINT operating system time (UTC) in seconds since 00:00:00, 1970

4.2.2

loc_time

Return local time since midnight, in milliseconds

Description

This function block returns the local time. If the real time clock is operating in UTC mode, the LOCAL

TIME OFFSET FROM UTC system point is applied prior to returning the data. In addition, the

SCADAPack E Smart RTU examines a system point called TIME ZONE MODIFIER – binary system point 50302, and adjusts for summer time by adding 1 hour (if the point is set) prior to presenting the time to the user. The return parameter is a timer variable in “ms since midnight” timer format (e.g..

t#23h59m59s999ms).

66 SCADAPack E Target 5 Function Block Reference

Arguments

OUTPUTS TYPE DESCRIPTION

TIME Time local time in milliseconds since midnight

SCADAPack E Target 5 Function Block Reference 67

4.2.3

timedate

Return local time and date

Description

This function block returns the local time and date. Return parameters are of type integer. If the real time clock is operating in UTC mode, the LOCAL TIME OFFSET FROM UTC system point is applied prior to returning the data. In addition, the SCADAPack E Smart RTU examines a system point called

TIME ZONE MODIFIER – binary system point 50302, and adjusts for summer time by adding 1 hour (if the point is set) prior to presenting the time to the user.

Arguments

OUTPUTS

HOUR

MINUTE

SECOND

DAY

DATE

MONTH

YEAR

TYPE

DINT

DINT

DINT

DINT

DINT

DINT

DINT

DESCRIPTION

Current hour in 24 hour format (0-23)

Current minute (0-59)

Current second (0-59)

Current day (1-7 where 1 = Sunday)

Current date (1-31)

Current month (1-12)

Current year (2000-2099)

68 SCADAPack E Target 5 Function Block Reference

4.3

DNP3 Peer Communication Function Blocks

The Peer function blocks transfer data directly between the point databases of two peer devices.

Peer Read or Write point requests will be queued by the functions “peer_rdq” and “peer_wrq”, but executed by the functions “peer_rdx” and “peer_wrx”, i.e. a request built up using one or more “peer_rdq” calls to the same queue is sent to the destination device (or Executed) by the function block “peer_rdx” using that queue. A request built up using one or more “peer_wrq” calls to the same queue is sent to the destination device (or Executed) by the function block “peer_wrx” using that queue.

Two “queue lists” are created for each IEC 61131-3 Resource, one for Read requests and the other for

Write requests. These queue lists hold any number of named “point request queues”. For example, a program may use an instance of the “peer_rdq” function to send ‘Read’ requests into a queue named

“Lane Cove West A” and another instance of “peer_rdq” to send ‘Read’ requests into another queue named of “North Head STP”. Two separate queues would be created, each of which are executed independently.

The queues and “queue lists” persist while the Resource is running, but will be cleared when the

Resource is stopped or the SCADAPack E Smart RTU is Cold Reset. Points queued using “peer_rdq” need not be re-queued unless the Resource is stopped.

4.3.1

peer_rdq

Adds a range of remote DNP points into a named Read Request queue

Description

This function adds a specified number of DNP points, to be read from a remote peer and written to a local device, into a queue for later execution. The DNP point numbers will be added to a specified queue if present or a new queue will be created with the given name. The final Read request is executed by the peer_rdx function block, see Section

peer_rdx

72

. The “peer_rdq” function would be typically executed only at IEC 61131-3 Resource startup.

SCADAPack E Target 5 Function Block Reference 69

Arguments

INPUTS

RemPt

LocPt

ObjTp

TYPE

DINT

DINT

DINT

NumPt

Qname

DINT

STRING

DESCRIPTION

DNP point number in the destination device to read from valid values are 0-65534.

DNP point number in the local device to write needs to be a valid physical output tor derived point.

DNP data object to read from peer device. The following values are valid for this function:

BinaryInput BinInput_Status BinOutput_Stat

BinCounter_32 inCounter_16

BinCtr_16_NoFlag AnalogIn_32

AnaIn32_NoFlag

AnaOut_32_Stat

BinCtr_32_NoFlag

AnalogIn_16

AnaIn_16_NoFlag AnalogIn_Float

AnaOut_16_Stat AnaOutFloat_Stat

Number of consecutive points to add to queue. Valid entries are

1 – 65534.

String name of queue, max 50 characters, spaces OK.

The “LocPt” or Local Point parameter should refer to a DIGITAL_OUT_TYPE, ANALOG_OUT_TYPE or

COUNTER_TYPE point type, depending on which “ObjTp” DNP Object Type is specified.

OUTPUTS TYPE DESCRIPTION

PEER_RDQ BOOL TRUE for successful

FALSE for not successful

70 SCADAPack E Target 5 Function Block Reference

4.3.2

peer_wrq

Adds a range of DNP points on the local device into a named Write queue

Description

This function adds a specified number of DNP points, to be copied from the local device onto a Remote device, into a queue for later execution. The DNP point numbers will be added to a specified queue if present or a new queue will be created with the given name. The final Write request is executed by the peer_wrx function block, See 4.4.4 - peer_wrx. The “peer_wrq” function would be typically executed only at Resource startup.

Arguments

INPUTS

RemPt

LocPt

ObjTp

TYPE

DINT

DINT

DINT

NumPt

Qname

DINT

STRING

DESCRIPTION

DNP point number in the destination device to write to.

Valid values are 0-65534.

DNP point number in the local device where the current value or state is read from needs be a valid input point type.

DNP data object to write to peer device. The following values are valid for this function:

CROB_DirOp AnaOut_32_DirOp

AnaOut_16_DirOp AnaOutFloat_DirOp

Number of consecutive points to add to queue. Valid entries are

1 – 65534.

String name of queue, max 50 characters, spaces OK.

The “LocPt” or Local Point parameter should refer to a DIGITAL_IN_TYPE or ANALOG_IN_TYPE point type, depending on which “ObjTp” DNP Object Type is specified.

SCADAPack E Target 5 Function Block Reference 71

OUTPUTS TYPE

PEER_WRQ BOOL

DESCRIPTION

TRUE for successful

FALSE for not successful

72 SCADAPack E Target 5 Function Block Reference

4.3.3

peer_rdx

Execute queued DNP Read requests

Description

When triggered with a rising edge on the REQ input, the function block will look for a matching queue name with the one supplied by the user. If found, it will iterate the queue in order to build up one or more DNP request fragments. Consecutive point numbers will be packed into the DNP request fragment in an efficient manner.

The returned values or states of the remote points are written directly to the local points specified when the point request was queued with “peer_rdq”. Where the user has queued a point request using a DNP

Object type that supports status flags, the response status flags will be written to the local points.

The local points will contain valid data (and flags) when CNF & RDY are TRUE. The Analog “Stat” output variable will contain Zero if the transaction was successful, otherwise a status code. Also see

Status

Codes

79

.

Should the DNP request be unsuccessful, the programmer may choose to set the "Point is Bad" property on local points in that named Read queue. This will cause the Data Processor to also set each point's "Point is Failed" property. A subsequent successful transaction could clear the "Point is Bad" property.

Arguments

INPUTS TYPE

Req

Add

QName

DESCRIPTION

Data Transfer Request. Initiate data transfer request on rising edge BOOL

DINT DNP destination device address. Valid range is 0-65534.

STRING String name of the queue, max 50 characters, spaces OK.

DT TIME Transaction time-out (peer device request only.)

SCADAPack E Target 5 Function Block Reference 73

OUTPUTS

Cnf

Rdy

Stat

TYPE DESCRIPTION

BOOL Data transfer confirm TRUE indicates completion of request. FALSE, otherwise.

BOOL Data is ready

DINT

Status = 0 indicates a successful read

Status = 255 indicates an outstanding DNP request

See

Status Codes

79

for other status codes

4.3.4

peer_wrx

Execute queued DNP Write requests

Description

The operation of this function block is very similar to the “peer_rdx” function block. It triggers a DNP

“Direct Operate” control for the points queued using the “peer_wrq” function. The local points in the

Write queue will not have any properties changed.

When triggered with a rising edge on the REQ input, the function block will look for a matching queue name with the one supplied by the user. If found, it will iterate the queue in order to build up one or more DNP request fragments. Consecutive point numbers will be packed into the DNP request fragment in an efficient manner.

The returned values or states of the remote points are written directly to the local points specified when the point request was queued with “peer_wrq”. Where the user has queued a point request using a DNP

Object type that supports status flags, the response status flags will be written to the remote points.

The remote points will contain valid data (and flags) when CNF & RDY are TRUE. The Analog “Stat” output variable will contain Zero if the transaction was successful, otherwise a status code. Also see

Status Codes

79

.

74 SCADAPack E Target 5 Function Block Reference

Arguments

INPUTS

Req

Add

QName

DT

TYPE

BOOL

DINT

DESCRIPTION

Data Transfer Request. Initiate data transfer request on rising edge

DNP destination device address. Valid range is 0-65534

STRING String name of the queue, max 50 characters, spaces OK

TIME Transaction time-out (peer device request only)

OUTPUTS

Cnf

Rdy

Stat

TYPE DESCRIPTION

BOOL Data transfer confirm TRUE indicates completion of request. FALSE, otherwise

BOOL Data is ready

DINT

Status = 0 indicates a successful write (control)

Status = 255 indicates an outstanding DNP request

See

Status Codes

79

for other status codes

4.3.5

peer_rdc

Clear a Read request queue

Description

The “peer_rdc” functions allow clearing every point in a named queue. The functions will return TRUE if the specified queue is found and its points are removed successfully.

SCADAPack E Target 5 Function Block Reference 75

Arguments

INPUTS TYPE

QName

DESCRIPTION

STRING String name of the queue, max 50 characters, spaces OK.

OUTPUTS TYPE

PEER_RDC BOOL

DESCRIPTION

TRUE for success otherwise FALSE.

4.3.6

peer_wrc

Clear a Write request queue

Description

The “peer_wrc” functions allow clearing every point in a named queue. The functions will return TRUE if the specified queue is found and its points are removed successfully.

Arguments

INPUTS TYPE

QName

DESCRIPTION

STRING String name of the queue, max 50 characters, spaces OK.

OUTPUTS TYPE DESCRIPTION

PEER_WRC BOOL TRUE for success, otherwise FALSE.

4.3.7

Peer Read Example Program

This example shows how a Peer Read test program might be implemented. Setting the Boolean variable

“start queue” TRUE causes four Read Queue functions to be executed once only. Following that, setting the “run_peer” variable TRUE will cause the “peer_rdx” to send a DNP Peer read request. The “peer_rdx” function block will be re-triggered by its Confirm (CNF) line going TRUE to indicate completion. This cycle will continue until “run_peer” is set FALSE.

Setting the “clear_queue” Boolean variable TRUE causes the “peer_rdc” function to execute once. This

76 SCADAPack E Target 5 Function Block Reference

will clear every Read request in the named queue.

SCADAPack E Target 5 Function Block Reference 77

78 SCADAPack E Target 5 Function Block Reference

4.3.8

dc_poll

Force an Integrity Poll to configured remote devices.

Description

The IEC 61131-3 Resource can force the Data Concentrator or master device to send a DNP3 Integrity poll (Class 1,2,3,0 poll) to configured remote devices in order to update the local database with a current image of remote device point values. The DC_POLL Function Block is used to send this request.

The function block operates regardless if the Data Concentrator is currently disabled or not. The dc_poll function block will raise its CNF output when the IED’s polled have responded or timed out. If the dc_poll request is issued while the Data Concentrator is disabled, IED responses will not generate local events in the Data Concentrator.

SCADAPack E Target 5 Function Block Reference 79

Arguments

INPUTS TYPE

Req BOOL

DESCRIPTION

Data Transfer Request. Initiate data transfer request on rising edge

OUTPUTS TYPE

Cnf BOOL

Rdy

Status

BOOL

DINT

DESCRIPTION

Data transfer confirm: indicates completion of request

TRUE => Request Completed

FALSE => Request not completed

Status of data

TRUE => Data ready

FALSE => Data not ready

When CNF is TRUE and RDY is FALSE this indicates a table data access status code is active

Status = 0 indicates a successful poll

Status = 255 indicates an outstanding DNP request

See

Status Codes

79

for other status codes

4.3.9

Status Codes

These Status Codes are returned by Peer Function Blocks

DNP STATUS DESCRIPTION

80 SCADAPack E Target 5 Function Block Reference

64

65

66

127

53

61

62

63

11

50

51

52

0

8

9

10

130

251

252

253

254

255

Operation successful

DNP timeout

Bad Read

Bad Operate

Operation Canceled

Bad Function IIN set

Object Unknown IIN set

Out of Range IIN set

Control Already Executing

Control Arm Timeout expired

Control Select not received

Incorrect control formatting

Control operation not supported

Control queue full

Check control hardware

Request could not be added to queue

Request not licensed

Invalid ObjectType parameter

Invalid ObjectType code

Point does not exist

Invalid ObjectType for this function block

Request in progress

SCADAPack E Target 5 Function Block Reference 81

4.4

PLC Communications Control Function Blocks

These function blocks provide an interface to disable and enable Read and Write communications to

PLC Devices.

mbusctrl

81

mtcpctrl

82

df1ctrl

83

4.4.1

mbusctrl

Control Communications to Modbus Device

Description

This function block allows enabling or disabling of communication with Modbus PLC devices configured using PLC device I/O devices. Device communications setup by mbusxxyy I/O devices can be controlled using this function block.

Every I/O device defining the communication to the specified Modbus PLC device are affected by this function block.

A PLC device address of 0 will enable or disable communications to every device on the specified port.

82 SCADAPack E Target 5 Function Block Reference

Arguments

INPUTS

Address

Port

En_RD

En_WR

TYPE

DINT

DINT

BOOL

BOOL

DESCRIPTION

Modbus address of the device to control. An address of 0 will enable/ disable communication to every device on the specified port

The serial port number that the device is connected to

When TRUE, PLC device input devices (with the specified Modbus PLC device address) will be updated at the configured data update rate. When

FALSE, data reads to the PLC Device will be disabled

When TRUE, data changes on PLC device output devices (with the specified Modbus PLC device address) will be written to the device.

When FALSE, data writes to the PLC Device will be disabled

OUTPUTS

Q

TYPE DESCRIPTION

BOOL FALSE if the Address or Port inputs are incorrect; otherwise TRUE

4.4.2

mtcpctrl

Control Communications to Modbus/TCP or Modbus RTU in TCP Device

Description

This function block allows enabling or disabling of communication with Modbus/TCP PLC devices configured using PLC device I/O devices. Device communications setup by mtcpxxyy or mrtpxxyy I/O devices can be controlled using this function block.

Every I/O device defining the communication to the specified Modbus/TCP or Modbus RTU in TCP PLC device are affected by this function block.

A PLC device address of 0 will enable or disable communications to every device at the specified IP

Address.

SCADAPack E Target 5 Function Block Reference 83

Arguments

INPUTS TYPE DESCRIPTION

Address DINT Modbus address of the device to control. An address of 0 will enable/ disable communication to every device on the specified port

IPAddress STRING The IP address that the device is connected to

En_RD BOOL When TRUE, PLC device input devices (with the specified Modbus/TCP or Modbus RTU in TCP PLC device address) will be updated at the configured data update rate. When FALSE, data reads to the PLC

Device will be disabled

En_WR BOOL When TRUE, data changes on PLC device output devices (with the specified Modbus/TCP or Modbus RTU in TCP PLC device address) will be written to the device. When FALSE, data writes to the PLC Device will be disabled

OUTPUTS

Q

TYPE DESCRIPTION

BOOL FALSE if the Address or Port inputs are incorrect; otherwise TRUE

4.4.3

df1ctrl

Control Communications to DF/1 Device

Description

This function block allows enabling or disabling of communication with DF/1 PLC devices configured using PLC device I/O devices. Device communications setup by df1xxyy I/O devices can be controlled using this function block.

Every I/O device defining the communication to the specified DF/1 PLC device are affected by this function block.

84 SCADAPack E Target 5 Function Block Reference

A PLC device address of 0 will enable or disable communications to every device on the specified port.

Arguments

INPUTS

Address

Port

En_RD

En_WR

TYPE

DINT

DINT

BOOL

BOOL

DESCRIPTION

DF/1 address of the device to control. An address of 0 will enable/disable communication to every device on the specified port

The serial port number that the device is connected to

When TRUE, PLC device input devices (with the specified DF/1 PLC device address) will be updated at the configured data update rate. When

FALSE, data reads to the PLC Device will be disabled

When TRUE, data changes on PLC device output devices (with the specified DF/1 PLC device address) will be written to the device. When

FALSE, data writes to the PLC Device will be disabled

OUTPUTS

Q

TYPE DESCRIPTION

BOOL FALSE if the Address or Port inputs are incorrect; otherwise TRUE

4.5

Serial Port User Communication Functions

These function blocks provide an interface to setup serial port parameters on the SCADAPack E Smart

RTU.

comopen

85

comclose

86

comrx

86

comrxb

87

comrxclr

88

SCADAPack E Target 5 Function Block Reference 85

comtx

89

comtxb

89

getport

90

setport

91

4.5.1

comopen

Open a serial port for use

Description

This function is used to open a serial port for use within a program. The function returns a positive integer

ID for the opened port if successful, or a zero if not successful. The ID is used by the comrx, comtx, comclose and comrxclr functions to identify which port to act upon, as more than one serial port may be in use. The port “Function” configuration needs to be set to “ISaGRAF-User” using the SCADAPack E

Configurator before the port can be used within an IEC 61131-3 program. Multiple ports may be configured for ISaGRAF-User and opened for User access by the IEC 61131-3 Resource.

Arguments

INPUTS TYPE

PORT

DESCRIPTION

STRING Serial Port to control valid values are:

PORT 0

PORT 1

PORT 2

PORT 3

PORT 4

PORT is case insensitive (upper and lower case allowed), and a space before the port digit is optional (e.g. “PORT0” & “PORT 0” allowed).

OUTPUTS TYPE DESCRIPTION

86 SCADAPack E Target 5 Function Block Reference

COMOPEN DINT Id of serial port. Return value is 0 if port could not be opened.

4.5.2

comclose

Close a serial port

Description

This function is used to close a serial port currently in use by a program (ie. A port previous opened using the comopen function). The figure below shows the function with the following calling and return parameters:

Arguments

INPUTS TYPE

ID DINT

DESCRIPTION

ID of serial port to close (ID from previous comopen)

OUTPUTS TYPE DESCRIPTION

COMCLOSE BOOL TRUE if operation is successful. Else FALSE.

4.5.3

comrx

Read characters from a serial port

Description

This function receives a string of ASCII characters from an open serial port. Either a string length or a terminating character can be specified to indicate when to stop reading characters. The figure below shows the function with the following calling and return parameters:

SCADAPack E Target 5 Function Block Reference 87

Arguments

INPUTS TYPE

ID DINT

NUM

CH

DINT

DINT

DESCRIPTION

ID of serial port to close (ID from previous comopen)

Number of characters to be read (0 = no minimum length to be read)

Watch for this character to terminate string (non–valid ASCII character

>=256 disables a terminating character)

OUTPUTS

COMRX

TYPE DESCRIPTION

STRING Character string read from serial port

4.5.4

comrxb

Read binary characters from serial port and display in ASCII

Description

This function receives an array of binary characters from an open serial port and displays it as an ASCII string. This function is used for receiving binary protocols. Either an array length or a terminating character can be specified to indicate when to stop reading characters. The array length should be set as twice the number of binary characters that you wish to receive. For example, to receive the binary characters 0x32 0xF4 0x5D, you would set NumChars to be 6, and the received msg would be the string

‘32F45D’ (which has 6 characters).

88 SCADAPack E Target 5 Function Block Reference

Arguments

INPUTS TYPE

ID DINT

NUM

CH

DINT

DINT

DESCRIPTION

ID of serial port to close (ID from previous comopen)

2 * Number of characters to be read (0 = no minimum length to be read)

Watch for this character to terminate string (non–valid ASCII character

>=256 disables a terminating character)

OUTPUTS

COMRXB

TYPE DESCRIPTION

STRING Character string representation of the binary protocol from serial port

4.5.5

comrxclr

Clear serial port receive (RX) buffer

Description

This function is used to clear a serial port receive buffer. It requires that the serial port has been opened using the comopen function.

Arguments

INPUTS TYPE

ID DINT

DESCRIPTION

ID of serial port to close (ID from previous comopen)

OUTPUTS TYPE DESCRIPTION

COMRXCLR BOOL TRUE if characters were cleared from the buffer.

FALSE if characters were not cleared (i.e. no characters available), or if the port wasn't open, or if the ID was invalid.

SCADAPack E Target 5 Function Block Reference 89

4.5.6

comtx

Write characters to a serial port

Description

This function writes a string of ASCII characters to an open serial port.

Arguments

INPUTS TYPE

ID

IN

LEN

DESCRIPTION

DINT ID of serial port to close (ID from previous comopen)

STRING Character string to write to the serial port

DINT Number of characters to write. The LEN parameter also allows for the transmission of the NUL (ASCII 0) character, which is generally used to terminate a string of characters.

OUTPUTS TYPE DESCRIPTION

COMTX BOOL TRUE if operation successful.

4.5.7

comtxb

Convert a string of ASCII characters to binary and write to serial port

Description

This function converts a string of ASCII characters to binary and writes them out an open serial port. The

NumChars variable should be set to the number of ASCII characters to transmit (i.e. twice the number of binary characters that will be transmitted). That is, to transmit the binary characters 0x02 0xFD 0x6A then you would set TxMsg as ‘02FD6A’ and NumChars as 6.

90 SCADAPack E Target 5 Function Block Reference

Arguments

INPUTS

ID

IN

LEN

TYPE

DINT

DESCRIPTION

ID of serial port to close (ID from previous comopen)

STRING Character string to convert to binary and write to serial port

DINT Number of characters to write. (2* the number of binary characters to write).

OUTPUTS

COMTXB

TYPE DESCRIPTION

BOOL TRUE if operation successful.

4.5.8

getport

Read a DNP3 RS-232 line state

Description

The GETPORT function block reads a serial port hardware line state for a DNP3 serial port only.

This function is not supported on non-DNP3 ports. DNP3 driver ports (PPP, GPRS, 1xRTT, Hayes

Modem) are also not supported.

SCADAPack E Target 5 Function Block Reference 91

Arguments

Inputs Data type Notes

REQ

PORT

BOOL

UINT

Data Read request: initiate data transfer when asserted (rising edge)

DNP3 Serial Port Number

PARAM UINT Which DNP serial port hardware line to read. Use one of the following defines:

CTS,

DCD,

DSR

These are defined in the Global Data Types - Defined Words tab.

Outputs Data type Notes

CNF BOOL Data transfer confirm: indicates completion of request

STATUS UINT Transaction status value:

Success = 0,

Invalid Port = 1,

Invalid Param. = 2

LSTATE BOOL The state of the serial port hardware line. True if the hardware line is asserted.

4.5.9

setport

Set a DNP3 port RS-232 line state

Description

The SETPORT function block sets a serial port hardware line state for a DNP3 serial port only.

This function is not supported on non-DNP3 ports. DNP3 driver ports (PPP, GPRS, 1xRTT, Hayes

Modem) are also not supported.

92 SCADAPack E Target 5 Function Block Reference

Arguments

Inputs Data Type Notes

REQ

PORT

BOOL

UINT

PARAM UINT

LSTATE BOOL

Data Write request: initiate data transfer when asserted (rising edge)

DNP3 Serial Port Number

Which DNP serial port hardware line to control. Use one of the following defines are valid:

RTS,

DTR

These are defined in the Global Data Types - Defined Words tab.

The new state of the serial port hardware line. True if the hardware line is to be asserted.

Outputs Data Type Notes

CNF BOOL

STATUS UINT

Data transfer confirm: indicates completion of request

Transaction status value:

Success = 0,

Invalid Port = 1,

Invalid Param. = 2

4.6

Process Function Blocks

These function blocks interact with physical processes. They include Proportional-Integral-Derivative

(PID) control, flow accumulation and flow totalizing features.

SCADAPack E Target 5 Function Block Reference 93

4.6.1

pida

103

pidd

99

total

93

flow

96

total

Non-Volatile Totalizer

Description

The total function block reads a rate input and integrates it over the sample interval to accumulate a total. Up to 32 total function blocks can be added to a program.

When the accumulate input is ON the function accumulates the total. The time1 and timeP outputs report the totals.

When the enable input is ON, accumulation is enabled. When the enable input is OFF, the accumulated values and the logged data are deleted.

When the log input goes from OFF to ON, the accumulated total is saved in the history records. Older history is pushed down and the oldest record is discarded.

Stored data is retained when the program is stopped, and when the controller is powered off or reset.

The accumulated total does not change if the period is changed.

The accumulated total is set to zero if the period is invalid.

32 total function blocks can be added to each IEC 61131-3 Resource.

The total function block appears as follows.

94 SCADAPack E Target 5 Function Block Reference

Arguments

Inputs

ID enable log accumulate input units interval period

Type

DINT

BOOL

BOOL

BOOL

REAL

DINT

DINT

DINT

Description

Identifies the internal totalizer (1 to 32).

Enables accumulation and creates log.

FALSE to TRUE transition = create and initialize log

TRUE = enable accumulation

FALSE = delete log and clear outputs

Log Data

FALSE to TRUE = log data

Accumulate flow

ON = accumulate flow

Rate Input

Input rate period

0 = seconds

1 = minutes

2 = hours

3 = days

The interval specifies the sample interval at which the rate input will be sampled. A sample is taken and a calculation performed if the time since the last sample is greater than or equal to the sample interval. Valid values are 1 to 65535 tenths of a second.

The period over which readings are taken will vary, but will stay in the range –1 * (Expected Interval +

Configured Sample Interval + Maximum time between ladder logic scans) <= Actual Sampling Interval <= +1

* (Expected Interval + Configured Sample Interval +

Maximum time between ladder logic scans). As a result the total for individual periods may fluctuate despite a constant input.

Specified record to be displayed (1 to 35).

The accumulated total does not change if the period is changed.

SCADAPack E Target 5 Function Block Reference 95

The accumulated total is set to zero if the period is invalid.

Outputs status totl1 end1 time1 totlP endP timeP

Type

DINT

REAL

DINT

DINT

REAL

DINT

DINT

Description

Status

0 = normal

1 = invalid ID

2 = invalid Units input

3 = invalid Interval input

4 = invalid Period input

Total for period 1

Time at end of period 1

Seconds from January 1, 1970

Accumulation time for period 1

Time in seconds

Total for specified period

Time at end of specified period

Seconds from January 1, 1970

Accumulation time in specified period

Time in seconds

Notes

The total function block stored data is retained when the program is stopped, power is cycled or the controller is reset. The stored data is cleared when the controller is initialized or when the enable input is

OFF.

The accumulated value is a floating-point number. Floating-point numbers are approximations. If the accumulated value grows large, then low rate inputs will have little or no effect on the accumulated value and the accumulated value will not be accurate. Use the log input to save the accumulated value and start a new accumulation when the accumulated value grows large.

The log input needs to be triggered at a suitable rate or the accumulator will overflow, and the accumulated value will not be accurate.

96 SCADAPack E Target 5 Function Block Reference

4.6.2

flow

Non-Volatile Flow Accumulator

Description

The flow function accumulates flow from pulse type devices such as turbine flow meters.

When the accumulate input is ON the function accumulates volume and calculates the flow rate.

When the Log Data input goes from OFF to ON, the accumulated volume is saved in the history registers. Older history is pushed down and the oldest record is discarded. The Log Data input needs to be triggered at least once every 119 hours (at the maximum pulse rate of 10kHz). Otherwise the volume accumulator will overflow, and the accumulated volume will not be accurate.

The accuracy of the FLOW block improves with longer periods between logging data. For greatest accuracy avoid logging small periods of time.

When the accumulator enabled input is ON, accumulation and rate calculations are enabled. When the input is OFF, accumulators, stored data and the outputs are set to zero.

The function reads and accumulates the number of pulses, and divides by the K factor to calculate the total volume. This is done on each scan of the controller logic. The function calculates the flow rate in engineering units based on the K-factor provided. The rate updates once per second if there is sufficient flow. If the flow is insufficient, the update slows to as little as once every ten seconds to maintain resolution of the calculated rate.

Stored data is retained when the program is stopped, and when the controller is powered off or reset.

32 flow function blocks can be added each IEC 61131-3 Resource.

The flow accumulator function block flow appears as follows.

SCADAPack E Target 5 Function Block Reference 97

Arguments

Inputs enable log accumulate k input type units period

ID

Type

BOOL

BOOL

BOOL

REAL

DINT

DINT

DINT

DINT

DINT

Description

TRUE = enable accumulation

FALSE = clear outputs

Log Data

FALSE to TRUE transition = log data

Accumulate flow

TRUE = accumulate flow

K factor

F needs to be a positive value.

Pulse Input

Input type

0 = 32 bit running counter

1 = 32 bit difference

Rate period

0 = seconds

1 = minutes

2 = hours

3 = days

Specified record to be displayed (1 to 35).

Identifies the internal flow accumulator (1 to 32).

98 SCADAPack E Target 5 Function Block Reference

Outputs status rate vol1 end1 time1 volP endP timeP

Type

DINT

REAL

REAL

DINT

DINT

REAL

DINT

DINT

Description

Status

0 = normal

1 = invalid K input

2 = invalid Period input

3 = invalid Type input

4 = invalid Units input

5 = pulse rate is too low for accurate flow rate calculation

6 = invalid ID

Flow rate

Volume for period 1

Time at end of period 1

Seconds from January 1, 1970

Flow time for period 1

Time in seconds

Volume for specified period

Time at end of specified period

Seconds from January 1, 1970

Flow time in specified period

Time in seconds

Notes

The flow function block stored data is retained when the program is stopped, power is cycled or the controller is reset. The stored data is cleared when the controller is initialized or when the enable input is

OFF.

When a Resource is stopped and restarted, the flow function block will calculate the elapsed time from the last sample (before the Resource was stopped) until new the start time (after the Resource is started). This time is added to the flow time.

The maximum pulse rate is 10 kHz. Measuring the accumulated pulses and dividing by the K factor calculates the accumulated flow. The K factor cannot be changed while an accumulation is in progress.

Only change the K factor while accumulation is stopped.

SCADAPack E Target 5 Function Block Reference 99

4.6.3

pidd

Discrete Output PID Function Block

Description

The pidd function block performs a PID algorithm and controls two discrete outputs. The output is a duty cycle of a BOOL value. The duty cycle depends on the value of the output. The increase output, iOut, is cycled when the outputPercent is greater than zero. The decrease output, dOut, is cycled when the outputPercent is less than zero.

In automatic mode, the output is calculated using the PID algorithm. A new calculation is done at the rate specified by cycleTime.

In manual mode (auto = FALSE), the outPercent is set to the value of the outManualPercent input. The output is limited to the range set by fullPercent and zeroPercent.

If the cycleTime parameter is less than the cycle time of the IEC 61131-3 Resource, the sampling period is the period of the IEC 61131-3 Resource.

The analog output function block pidd appears as follows.

100 SCADAPack E Target 5 Function Block Reference

Arguments

Inputs

Pv

Sp

Gain

Reset

Rate

Deadband

FullPercent

ZeroPercent

CycleTime

Auto

OutManualPercent

Type

REAL

REAL

REAL

REAL

REAL

REAL

REAL

REAL

Time

BOOL

REAL

Description

The process value is used to calculate the process error in the PID algorithm. error = pv – sp

The setpoint value is used to calculate the process error in the PID algorithm. error = pv – sp

The proportional gain. A positive value of gain configures a forward-acting PID controller and a negative value of gain configures a reverse acting controller.

The reset time, in seconds. This controls the reset gain (or magnitude of integral action) in a PI or PID controller. Valid range is any value greater than 0. A value of 0 disables the reset action.

The rate time, in seconds. This controls the rate gain

(or magnitude of derivative action) in a PD or PID controller. Valid range is any value greater than 0. A value of 0 disables the rate action.

The setpoint deadband is used by the PID algorithm to determine if the process requires control outputs. If the absolute value of the error is less than the deadband, then the function block skips execution of the control algorithm. This permits faster execution when the error is within a certain acceptable range or deadband. Valid range is any value greater than 0.

The full scale output limit in percent of cycleTime.

The zero scale output limit in percent of cycleTime.

The value of the PID algorithm execution period measured in seconds. Any value greater than or equal to 0.001 seconds (1 ms) may be specified. If the cycleTime specified is less than the scan time of the

IEC 61131-3 Resource, the scan time of the IEC

61131-3 Resource becomes the PID cycleTime.

When set to TRUE to the output value is calculated using the PID algorithm. When set to FALSE the output value is set to the value of outManualPercent.

The value that the output is set to when the pida

SCADAPack E Target 5 Function Block Reference 101

Inputs

MotorOutput

Type

BOOL

Description function block is in the manual mode.

When set to TRUE iOut and dOut are off when error is within the deadband. When set to FALSE iOut and dOut act normally.

Outputs

Iout

Dout

OutPercent

Type

BOOL

BOOL

REAL

Description

The increase output. This output cycles when outPercent is greater than zero.

The decrease output. This output cycles when outPercent is less than zero.

PID algorithm output.

PID Velocity Algorithm

The PIDD function uses the velocity form of the PID algorithm. The velocity form calculates the change in the output and adds it to the previous output.

m n m n

1

K e n e n

1

T e n

T i

R

T p n

2

p n

where

e n s n p n

and: e = error s = setpoint p = process value

K = gain

T = execution period

Ti = integral or reset time

R = rate gain m = output

The above parameters are fully described below.

1

p n

2

Setpoint

The setpoint is a floating-point value representing the desired value of the process value. The error value is the difference between the process value and the setpoint.

error = process value – setpoint (+/- deadband).

102 SCADAPack E Target 5 Function Block Reference

Process Value

The process value is a value that represents the actual state of the process being controlled. See the

Function Variables section above for the registers to use for the process value input to the PIDD.

Gain

The proportional (P) part of the PID algorithm is the gain. A positive value of gain configures a forwardacting PID controller and a negative value of gain configures a reverse acting controller.

Reset Time

The integral (I) part of the PID algorithm is the reset time. This value, in seconds, controls the reset gain

(or magnitude of integral action) in a PI or PID controller. This is typically referred to as Seconds Per

Repeat. From the equation above it is seen that the integral action of the PI or PID controller is a function of the reset time and the execution period (cycle time). A smaller reset time provides more integral action and a larger reset time provides less integral action. Valid range is any value greater than

0. A value of 0 disables the reset action.

Rate Gain

The derivative (D) part of the PID algorithm is the rate time. This value, in seconds, controls the rate gain

(or magnitude of derivative action) in a PD or PID controller. From the equation above it is seen that the derivative action of the PD or PID controller is a function of the rate gain and the execution period (cycle time). A larger rate gain provides more derivative action and a smaller rate gain provides less derivative action. Valid range is any value greater than 0. A value of 0 disables the rate action.

Deadband

The deadband parameter is used by the PID algorithm to determine if the process requires the control outputs to be changed. If the absolute value of the error is less than the deadband, then the function block skips execution of the control algorithm. This stops changes to the output when the process value is near the setpoint and can reduce wear on the control elements. Valid range is any value greater than

0.

Full Scale Output

The full% setting is the full-scale output limit in percent of cycle time. For example if the cycle time is 10 seconds and the full% value is 100 then the maximum duty cycle of the output% is 100 percent or 10 seconds.

When the zero% value is 0 or greater then the increase output is turned on for the duty cycle of the output%. When the zero% value is less than zero the decrease output is turned on for the duty cycle of the output% when the output% is negative.

Zero Scale Output

The zero% setting is the zero scale output limit in percent of cycle time. When the zero% value is 0 or greater then the increase output is turned on for the duty cycle of the output%. When the zero% value is less than zero the decrease output is turned on for the duty cycle of the output% when the output% is negative.

SCADAPack E Target 5 Function Block Reference 103

4.6.4

Cycle Time

The cycle time is the floating-point value of the PID algorithm execution period measured in seconds.

Any value greater than or equal to 0.001 seconds (1 ms) may be specified. If the cycle time specified is less than the scan time of the program, the program scan time becomes the PID cycle time.

Manual Mode Output

The manual mode output% is the value that the output% is set to when the PIDD function is in manual mode.

Motor Output

When the motor output is set to enabled the increase and decrease outputs are de-energized when error is within the deadband. When the motor output is set to disabled the increase and decrease outputs operate continuously based on the output%.

See Also

pida

103

pida

Analog Output PID Function Block

Description

The pida function block performs a PID algorithm and calculates an analog output.

In automatic mode, the output is calculated using the PID algorithm. A new calculation is done at the rate specified by cycleTime.

In manual mode (auto = FALSE), the output is set to the value of the outManual input. The output is limited to the range set by full and zero.

If the cycleTime parameter is less than the cycle time of the IEC 61131-3 Resource, the sampling period is the period of the IEC 61131-3 Resource.

The analog output function block pida appears as follows.

104 SCADAPack E Target 5 Function Block Reference

Arguments

Inputs

Pv

Sp

Gain

Reset

Rate

Deadband

Type

REAL

REAL

REAL

REAL

REAL

REAL

Description

The process value is used to calculate the process error in the

PID algorithm. error = pv – sp

The setpoint value is used to calculate the process error in the

PID algorithm. error = pv – sp.

The proportional gain. A positive value of gain configures a forward-acting PID controller and a negative value of gain configures a reverse acting controller.

The reset time, in seconds. This controls the reset gain (or magnitude of integral action) in a PI or PID controller. Valid range is any value greater than 0. A value of 0 disables the reset action.

The rate time, in seconds. This controls the rate gain (or magnitude of derivative action) in a PD or PID controller. Valid range is any value greater than 0. A value of 0 disables the rate action.

The setpoint deadband is used by the PID algorithm to determine if the process requires control outputs. If the absolute

SCADAPack E Target 5 Function Block Reference 105

Inputs

Full

Zero

CycleTime

Auto

OutManual

Type

REAL

REAL

Time

BOOL

REAL

Description value of the error is less than the deadband, then the function block skips execution of the control algorithm. This permits faster execution when the error is within a certain acceptable range or deadband. Valid range is any value greater than 0.

The full input is used in limiting the maximum output value of the pida function block. If the PID algorithm calculates an out quantity that is greater than the value stored in full the out quantity is set equal to the value stored in full. The full input should be greater than the zero input.

The zero input is used in limiting the minimum output value of the pida function block. If the PID algorithm calculates an out quantity that is less than the value stored in zero, the out quantity is set equal to the value stored in zero. The zero input should be less than the full input.

The value of the PID algorithm execution period measured in seconds. Any value greater than or equal to 0.001 seconds (1 ms) may be specified. If the cycleTime specified is less than the scan time of the IEC 61131-3 Resource, the scan time of the

IEC 61131-3 Resource becomes the PID cycleTime.

When set to TRUE to the out value is calculated using the PID algorithm. When set to FALSE the out value is set to the value of outManual.

The value that the out is set to when the pida function block is in the manual mode.

Outputs

Out

Type

REAL

Description

PID algorithm output.

PID Velocity Algorithm

The PIDA function uses the velocity form of the PID algorithm. The velocity form calculates the change in the output and adds it to the previous output.

m n

where

e n s n m n

1

K e n e n

1

T e n

T i p n

R

T p n

2

p n

1

p n

2

106 SCADAPack E Target 5 Function Block Reference

and: e = error s = setpoint p = process value

K = gain

T = execution period

Ti = integral or reset time

R = rate gain m = output

The above parameters are fully described below.

Setpoint

The setpoint is a floating-point value representing the desired value of the process value. The error value is the difference between the process value and the setpoint.

error = process value – setpoint (+/- deadband).

Process Value

The process value is a value that represents the actual state of the process being controlled.

Gain

The proportional (P) part of the PID algorithm is the gain. A positive value of gain configures a forwardacting PID controller and a negative value of gain configures a reverse acting controller.

Reset Time

The integral (I) part of the PID algorithm is the reset time. This value, in seconds, controls the reset gain

(or magnitude of integral action) in a PI or PID controller. This is typically referred to as Seconds Per

Repeat. From the equation above it is seen that the integral action of the PI or PID controller is a function of the reset time and the execution period (cycle time). A smaller reset time provides more integral action and a larger reset time provides less integral action. Valid range is any value greater than

0. A value of 0 disables the reset action.

Rate Gain

The derivative (D) part of the PID algorithm is the rate time. This value, in seconds, controls the rate gain

(or magnitude of derivative action) in a PD or PID controller. From the equation above it is seen that the derivative action of the PD or PID controller is a function of the rate gain and the execution period (cycle time). A larger rate gain provides more derivative action and a smaller rate gain provides less derivative action. Valid range is any value greater than 0. A value of 0 disables the rate action.

Deadband

The deadband parameter is used by the PID algorithm to determine if the process requires the control outputs to be changed. If the absolute value of the error is less than the deadband, then the function block skips execution of the control algorithm. This stops changes to the output when the process value is near the setpoint and can reduce wear on the control elements. Valid range is any value greater than

0.The setpoint is a floating-point value representing the desired value of the process value.

SCADAPack E Target 5 Function Block Reference 107

Full

The full setting is used in limiting the maximum output value of the PIDA function. If the PID algorithm calculates an output quantity that is greater than the value stored in full, the output quantity is set equal to the value stored in full. The full setting should be greater than the zero setting.

Zero

The zero setting is used in limiting the minimum output value of the PIDA function. If the PID algorithm calculates an output quantity that is less than the value stored in zero, the output quantity is set equal to the value stored in zero. The zero setting should be less than the full setting.

Cycle Time

The cycle time is the floating-point value of the PID algorithm execution period measured in seconds.

Any value greater than or equal to 0.001 seconds (1 ms) may be specified. If the cycle time specified is less than the scan time of the program, the program scan time becomes the PID cycle time.

Manual Mode

The manual mode output is the value that the output is set to when the PIDA function is in manual mode.

See Aso

pidd

99

4.7

Miscellaneous Function Blocks

These miscellaneous function blocks provide a variety of control and communication functions.

gen_evt

108

genmsevt

109

ana_time

111

cmd_exec

113

rtuparam

115

chgroute

123

chgrtnum

125

chgrtprt

126

108 SCADAPack E Target 5 Function Block Reference

4.7.1

gen_evt

Generate an event for a given point

Description

This function block provides a mechanism to force point events on appropriately configured configuration points. Typically events are generated for points on significant value changes, with the associated timestamp reporting the actual time of the value change. This mechanism allows events to be generated

(forced) on the specified points as required. The value included in the forced event will be the current point database value of the point in question.

The gen_evt function block includes a time input parameter which allows a timestamp to be included in the forced DNP3 event. The time input parameter represents the “number of seconds since 1970”. This time input parameter needs to coincide with how the real time clock is set, i.e. either UTC or Standard

Time format. (This value can be obtained from the os_time function block as detailed in Section

os_time

65

). If a zero value is entered for the time input parameter, the operating system will timestamp the forced DNP3 event.

Events generated using the gen_evt function blocks are inserted into the DNP3 event buffer as Buffered events.

Hint:

If IEC 61131-3 logic is to be used to write value changes to the specified point before forcing the event use the DNP3 communication function blocks to update the point values (where the

ObjectType input is set to Local_RTU_Data), as opposed to using output devices. The operating system will then process the value update before the "force event" request.

Arguments

INPUTS TYPE

Req

Index

Type

BOOL

DINT

DINT

DESCRIPTION

Force events request. This invokes a request to force a event on the specified point when asserted (rising edge).

This input specifies the point number of the configuration point.

This input specifies the point type of the configuration point. Valid values for the Type input are listed as follows

Time

SCADAPack E Target 5 Function Block Reference 109

DINT

DIN or 1 (Digital Input )

AIN or 3 (Analog Input)

CIN or 5 (Counter Input)

This input specifies the timestamp to be used in the forced point event.

This input represents the number of seconds since January 1st, 1970 and is specified as UTC time. If a 0 value is entered, the operating system will timestamp the event with the current time.

OUTPUTS TYPE

Sts DINT

DESCRIPTION

1

2

Data transfer confirm indicates completion of request

0 = Success

-1

=

=

=

Point does not exist

Bad Point Type

Unsuccessful

Notes

In order for the gen_evt function block to successfully force events on the specified point (i.e. the configuration point specified by the Index and Type input parameters), the Point Data Class attribute of the configuration point needs to be configured as follows.

Point Data Class : Set this attribute to Class 1, Class 2 or Class 3.

Alarm Inhibit: The event will be forced on the point irrespective of the state of the Alarm Inhibit attribute. Therefore if events are only to be generated on the specified point using the gen_evt function block, then set the Alarm Inhibit attribute to YES which will stop normal value changes from generating events on the specified point.

4.7.2

genmsevt

Generate an event for a given point with millisecond time input

Description

This function block provides a mechanism to force point events on appropriately configured configuration points. Typically events are generated for points on significant value changes, with the associated timestamp reporting the actual time of the value change. This mechanism allows events to be generated

(forced) on the specified points as required. The value included in the forced event will be the current point database value of the point in question.

The genmsevt function block includes timeSec and a msTime input parameters which allows a

110 SCADAPack E Target 5 Function Block Reference

timestamp to be included in the forced DNP3 event.

The TimeSec input parameter represents the “number of seconds since 1970”. This input parameter needs to coincide with how the real time clock is set, i.e. either UTC or Standard Time format. (This value can be obtained from the os_time function block as detailed in Section

os_time

65

).

If a zero value is entered for the TimeSec input parameter, the operating system will timestamp the forced DNP3 event.

If a negative value is entered for the TimeSec input parameter the forced DNP3 event is time stamped with the maximum supported time value: 19-JAN-2038 03:14:08.999.

The msTime input is the millisecond portion of the timestamp to be included in the forced DNP3 event.

This parameter allows a more precise DNP3 timestamp to be generated. Values of 0 to 999 are valid.

The events generated using the genmsevt function blocks are inserted into the DNP3 event buffer as

Buffered events.

Hint:

If IEC 61131-3 logic is to be used to write value changes to the specified point before forcing the event, check that these point value updates are carried out using the DNP3 communication function blocks (where the ObjectType input is set to Local_RTU_Data), as opposed to using output devices. The operating system will then process the value update before the "force event" request.

Arguments

INPUTS TYPE

Req BOOL

Index

Type

DINT

DINT

DESCRIPTION

Force events request. This invokes a request to force a event on the specified point when asserted (rising edge).

This input specifies the point number of the configuration point.

This input specifies the point type of the configuration point. Valid values for the Type input are listed as follows

DIN or 1 (Digital Input )

AIN or 3 (Analog Input)

CIN or 5 (Counter Input)

SCADAPack E Target 5 Function Block Reference 111

TimeSec DINT msTime DINT

This input specifies the timestamp to be used in the forced point event.

This input represents the number of seconds since January 1st, 1970 and must be specified as UTC time. If a 0 value is entered, the operating system will timestamp the event with the current time and the msTime input is ignored.

This input is the millisecond portion of the timestamp to be included in the forced DNP3 event. This parameter allows a more precise DNP3 timestamp to be generated. Values of 0 to 999 are valid. This input is ignored if the TimeSec input is set to 0.

OUTPUTS TYPE

Sts DINT

4

-1

1

2

DESCRIPTION

Data transfer confirm indicates completion of request

0 = Success

=

=

=

=

Point does not exist

Bad Point Type

Invalid ms Time

Unsuccessful

Notes

In order for the genmsevt function block to successfully force events on the specified point (i.e. the configuration point specified by the Index and Type input parameters), the Point Data Class attribute of the configuration point needs to be configured as follows.

Point Data Class : Set this attribute to Class 1, Class 2 or Class 3.

Alarm Inhibit: The event will be forced on the point irrespective of the state of the Alarm Inhibit attribute. Therefore if events are only to be generated on the specified point using the genmsevt function block, then set the Alarm Inhibit attribute to YES which will stop normal value changes from generating events on the specified point.

4.7.3

ana_time

Read analog point float value with timestamp

Description

This function block provides an analog point’s current engineering value, and the relevant timestamp corresponding to the reported value. In order to provide an accurate timestamp for the point, the

SCADAPack E Smart RTU can record a value and timestamp for a point when a DNP3 event is generated. This information is then available through this function block.

112 SCADAPack E Target 5 Function Block Reference

The function block can be operated in one of 2 modes. The first mode ignores point events and presents current floating point value and current time. The second mode uses pointFloat Events to obtain greater accuracy timestamps. This second mode requires that the point in question be appropriately configured to generate point float events for any change of value as described at the end of this subsection.

If multiple point events are generated between resource scans, only the recent value and timestamp will be available to the function block. If the point is not configured as detailed below, the timestamp presented shall be the time at which the function block outputs are updated.

Arguments

INPUTS TYPE

Point DINT

Mode DINT

DESCRIPTION specifies the point number of the analog point.

0 = MODE_RTC:

The timestamps presented represent the time at which the function block outputs are updated. Using this mode along with the elevated resource task priority (see Section

rtuparam

115

) can result in relatively constant time intervals between timestamps. The that point events are not used to derive timestamps in this mode.

1 = MODE_EVT:

Point float event timestamps are used to update the function block timestamp output. In the absence of any point events, the timestamp presented, is the time at which the function block outputs are updated

(same as for mode MODE_RTC). This mode produces timestamps of greater accuracy though the interval between timestamps can vary significantly.

OUTPUTS TYPE

Value REAL

DESCRIPTION

The engineering value of the point. The SCADAPack E Smart

RTUchecks to see if any events for the point have been generated since the last scan, and if so the recent event will provide the value to the function block output. If no events have generated since the last scan, the current value will be retrieved from the point database

Time

Sts

Time

DINT

SCADAPack E Target 5 Function Block Reference 113

using the points CURRENT ENGINEERING VALUE property.

STRING string containing converted value.

The time-stamp at which the current value occurred (milliseconds since midnight). The SCADAPack E Smart RTU checks to see if any events fro the point have been generated since the last scan, and if so the recent event will provide the timestamp to the function block output. If no events have generated since the last scan, the current time (as milliseconds since midnight) will be presented as the function block timestamp output.

Note that the time is presented as Standard Time without local time or daylight savings correction.

Function block status values are indicated as follows:

0 = Success

1 = Point does not exist

6

-1

= Invalid argument to function block (e.g. incorrect mode)

= Unsuccessful

Notes

In order for the ANA_TIME function block to provide accurate time stamping in MODE_EVT mode, it is necessary that the analog point be correctly configured to generate events as follows (refer to the

SCADAPack E Configurator User Manual for further details):

Point Data Class: Set this attribute to Class 1, Class 2 or Class 3.

DNP Static Object Type: Set this attribute to Object 30 variation 5 or Object 40 variation 3.

Event Deviation : Set to 0% so that an event is generated for ANY value change

Alarm Inhibit: Set to NO.

4.7.4

cmd_exec

Execute a Command Line Command

Description

The CMD_EXEC function block executes a subset of the SCADAPack E Smart RTU command line functions. The command to execute is passed into the function block as a string and executed by the

SCADAPack E Smart RTU when requested.

114 SCADAPack E Target 5 Function Block Reference

Arguments

Inputs Data Type Notes iReq BOOL Command Execute request: initiate command when asserted (rising edge) iCmd STRING Command to be Executed (See below for acceptable command list)

Outputs Data Type Notes oRdy BOOL Command execute confirm: indicates completion of request oSts DINT Transaction status value:

Success = 0

Incomplete Command = 1

Command Not Found = 2

Command Unsuccessful = 3

Restarting services will impact process control and RTU availability. Assess the impact prior to performing a restart operation.

WARNING

UNEXPECTED EQUIPMENT OPERATION

Evaluate the operational state of the equipment monitored and controlled by the

SCADAPack E RTU prior to restarting services.

Failure to follow these instructions can result in death, serious injury or equipment damage.

The following commands will be accepted by the CMD_EXEC Function Block. For detailed information on these commands, refer to the SCADAPack E Operational Reference Manual, Section Command Line

& Diagnostics.

APPEND, JOIN Append file to end of another

SCADAPack E Target 5 Function Block Reference 115

CLEAR

COPY

DEL, DELETE

REN, RENAME

RESTART

GETCONFIG

FILEDIAG

SYSDIAG

PLCDIAG

Clear specified information

Duplicate a file

Delete a file

Rename a file

Restart facilities

Generate an configuration file

Enable/Disable File Diagnostics

Enable/Disable System File Diagnostics

Enable/Disable PLC File Diagnostics

4.7.5

rtuparam

Modify a specific RTU parameter

Description

This function block provides the ability to modify SCADAPack E Smart RTU operational parameters.

The RTUPARAM function block operates in a similar way to the peer communication function blocks described above, with respect to the REQ, CNF, RDY and STATUS parameters.

Changes to operating parameters made with this function block are not permanently stored in Non-

Volatile memory (NV-RAM).

When the SCADAPack E Smart RTU is reset (and/or Warm reset in the case of DNP parameters), the parameter values revert to the previous value that was stored in NV-RAM when the SCADAPack E Smart

RTU was configured.

Some parameters accept a value of "-1" (as indicated in the table below). Using this value reverts the parameter to the value that was stored in NV-RAM when the SCADAPack E Smart RTU was configured.

The global defined word "USE_RTU_DEFAULT" is also provided for this purpose.

Arguments

INPUTS TYPE DESCRIPTION

116 SCADAPack E Target 5 Function Block Reference

Req

Param

Value1

Value2

BOOL

DINT

DINT

DINT

Data transfer request initiated on rising edge.

Name of parameter to modify

Parameter dependent value. See

Table 1 below

117

Parameter dependent value. See

Table 1 below

117

OUTPUTS

Cnf

Rdy

Status

TYPE DESCRIPTION

BOOL

Data transfer confirm TRUE indicates completion of request.

FALSE, otherwise.

BOOL Data transferred successfully.

DINT

0 for success when Cnf and Rdy are TRUE. Otherwise see status codes in

Table 2 below

122

.

SCADAPack E Target 5 Function Block Reference 117

Table 1: PARAM and VALUE fields for RTUPARAM

PARAM PAR

AM

Value

*

Value1

MASTER_COMPORT 1

UNSOL_TX_DELAY 2

0 = Port0

1 = Port1

2 = Port2

3 = Port3

4 = Port4

5 = Ethernet 1

6 = Ethernet 2

10 = Port5

11 = Port6

12 = Port7

13 = Port8

-1 = return to configured value

Secs

-1 = return to configured value

APPL_TO 3 Secs

-1 = return to configured value

Value2 Comment

0 = Master

1

1 = Master

1

2 = Master

2

3 = Master

3

Changes communication port to which unsolicited messages are directed, for the appropriate

DNP3 Master station

0 = Master

1

1 = Master

1

2 = Master

2

3 = Master

3

Changes Unsolicited transmission delay to the appropriate DNP3 Master session

Changes DNP application layer timeout used for default Peer and

Data Concentrator requests

COLD_RESTART

APPL_EVENT_TO

4

5 Secs

-1 = return to configured value

Restarts the SCADAPack E

Smart RTU

0 = Master

1

1 = Master

Changes DNP event confirm timeout to the appropriate DNP3

Master session.

118 SCADAPack E Target 5 Function Block Reference

PARAM PAR

AM

Value

*

Value1 Value2 Comment

1

2 = Master

2

3 = Master

3

MY_DNP_ADDRESS 6 New DNP Address

= 0 to 65529

-1 = return to configured value

Changes the following DNP3 addresses:

Slave address when communicating with Master 1

DNP address when sending

Peer requests

DNP address when sending

Data Concentrator requests

Changes address “on-line” without a DNP3 Warm Restart or

RTU restart.

Changes the TCP/IP address for

Ethernet Port 1 “on-line” without an RTU restart.

ETH_IP_ADDRESS_1 7

ETH_IP_ADDRESS_2

(for SCADAPack E

Smart RTU models supporting dual Ethernet interfaces)

UNSOL_CLASSES

8

9

Numeric Value of the new TCP/IP address**

-1 = return to configured value

Numeric Value of the new TCP/IP address**

-1 = return to configured value

Changes the TCP/IP address for

Ethernet Port 2 “on-line” without an RTU restart.

No Classes = 0

Class 1,2,3 = 14

Class 1 = 2

Class 2 = 4

Class 3 = 8

0 = Master

1

1 = Master

1

2 = Master

2

Changes the DNP enabled

Unsolicited Event Classes “online” without a restart. This functionality may be useful in a dual-redundancy change-over situation

SCADAPack E Target 5 Function Block Reference 119

PARAM PAR

AM

Value

*

Value1

Class 1,2 = 6

Class 1,3 = 10

Class 2,3 = 12

Value2

3 = Master

3

Comment

SYS_ERR_CODE

ISA_TASK_PRI

DISCONNECT_PORT

UNSOL_ALLOWED

10

11

12

13

-1 = return to configured value

100-999

0 = Normal Priority

1 = High_Priority

User status code number sent to

Status Code system analog point 50020

Increases this Resource task’s priority in the operating system.

Requires that the IEC 61131-3

Resource be configured with

"Trigger cycles" in the Run Time

Options' Cycle Timing settings.

Also requires the IEC 61131-3

Resource actually scans faster than the configured Cycle

Timing.

0 = Port0

1 = Port1

2 = Port2

3 = Port3

4 = Port4

Requests that the serial port driver task associated with the supplied port number disconnects its current connection (if it has one). Valid for PPP, GPRS, 1xRTT and

Hayes Modem port modes only.

0 = No Unsolicited

Allowed

1 = Unsolicited

Allowed

-1 = return to configured value

0 = Master

1

1 = Master

1

2 = Master

2

3 = Master

3

Controls Unsolicited Response transmissions to the appropriate

DNP3 Master session.

120 SCADAPack E Target 5 Function Block Reference

PARAM

DISABLE_MASTER

DISABLE_DCONS

PORT_CONF_MODE

PAR

AM

Value

*

Value1

14

15

16

Value2 Comment

0 = Enable Master

1 = Disable Master

0 = Master

1

1 = Master

1

2 = Master

2

3 = Master

3

A disabled Master session does not respond to any

DNP3 messages from that master, nor generate any

Unsolicited Responses until it is enabled again by the IEC 61131-

3 Resource.

May be used in conjunction with system points

63420,63421,63422 to set

Master(s) to a disabled startup state, then later enable the

Master(s) with this parameter

0 = Data

Concentrator

Enabled

1 = Data

Concentrator

Disabled

0=Never

1=Sometimes

2=Always

-1 = return to configured value

0 = Port0

1 = Port1

2 = Port2

3 = Port3

4 = Port4

5 =

Ethernet 1

6 =

Ethernet 2

10 = Port5

11 = Port6

12 = Port7

13 = Port8

When disabled, the DNP3 Data

Concentrator does not generate any periodic polls (forced polls are ok) or confirm any

Unsolicited responses from

IEDs. #

Changes the link layer confirm mode of a serial or Ethernet port to the mode specified. See the

DNP3 Technical Reference for a description of these modes.

SCADAPack E Target 5 Function Block Reference 121

PARAM

RESTART_SERVICE

PAR

AM

Value

*

Value1

17 1 = History

2 = Sampler

3 = Profile

4 = TCP_Service

5 = Mask

Value2 Comment

Appends trend sampler files to file called history. Refer to the

Trend Sampler Manual for more information on “restart history”.

Restarts Sampler task.

Refer to the Trend Sampler

Reference manual for more information on “restart sampler”.

Restarts the Profile task

Restarts the TCP Service task

(TCP serial port service).

Clears the system status code, reset reasons mask, and task watchdog mask system points

DISABLE_PORT 18 0 = Port0 / USB++

1 = Port1

2 = Port2

3 = Port3

4 = Port4

5 = Ethernet 1

6 = Ethernet 2

10 = Port5

11 = Port6

12 = Port7

13 = Port8

0 = Enable

Port

1 = Disable

Port

Disables or Enables the operation of the specified port number.

Active PSTN / GSM or TCP/IP connections are not automatically closed on the port.

You can use the

DISCONNECT_PORT parameter

(described above) to close a connection prior to disabling the port if desired.

122 SCADAPack E Target 5 Function Block Reference

* The PARAM name are defined in Schneider Electric common.eqv file (global defines).

** The numeric value of a TCP/IP address may be obtained from the

STRING_TO_IP

132

function.

++ On SCADAPack 300E controllers, PORT_DISABLE on Port0 disables the USB Peripheral Port. This disables USB peripheral port activities. If a device is connected to the USB peripheral port either prior to, or after the port is disabled, the device will not be able to communicate when the port is enabled. The device needs to be disconnected and reconnected after the port is enabled to resume communication.

# If the Data Concentrator becomes disabled due to an RTUPARAM request, local mapped points are not marked as “I/O Not responding”, as would normally be the case for points mapped to a nonresponding IED. The “Data Concentrator Ready” (Binary System Point 50269) state is set to False.

When the Data Concentrator is re-enabled by a IEC 61131-3 logic request, IED’s are marked internally as IED_NOT_FOUND. Their state will then be changed to IED_RUNNING or IED_COMMS_FAILED depending upon the result of the initial poll response.

When the Data Concentrator restart is complete, the “Data Concentrator Ready” (Binary System Point

50269) state will change to True.

2

3

4

5

6

-1

0

1

Table 2: RTUPARAM Status Codes

RTUPARAM

STATUS

DESCRIPTION

Unsuccessful

Operation successful

Information not found

Bad Point Type

Unknown attribute for this point

Bad value for this attribute

Invalid attribute for this point

Invalid argument

SCADAPack E Target 5 Function Block Reference 123

4.7.6

chgroute

Modify entries in the DNP3 Routing Table

Description

This function block provides the ability to modify entries in the DNP3 Routing Table. The chgroute function block operates in a similar way to the peer communication function blocks described above, though the parameters that are modified are in the local device. The parameter meanings are as follows:

Arguments

INPUTS TYPE

Req BOOL

RTindex DINT

Column DINT

NewData DINT

DESCRIPTION

Data transfer request initiated on rising edge.

Route Table Row Index (0-49). The RTindex parameter defines the

Route Table row in which the parameter is to be changed. The route table rows are configured by SCADAPack E Configurator and are indicated as Rows 1 to 50. Corresponding values for Rtindex are 0-49.

Route Table Column number (0-7). See

Table 1

123

New value for route table entry.

OUTPUTS

Cnf

Status

TYPE DESCRIPTION

BOOL

Data transfer confirm TRUE indicates completion of request. FALSE, otherwise.

DINT 0 for success when Cnf is TRUE. Otherwise see

Status Codes

79

Table 1: Column Parameters for chgroute

124 SCADAPack E Target 5 Function Block Reference

3

4

5

1

2

Column

Value

0

DNP Route Table

Column

Source Port

Source Start

Source End

Dest Start

Dest End

Dest Port

Valid Column Values

0-65535

0-65535

0 = Port0 / USB

1 = Port1

2 = Port2

3 = Port3

4 = Port4

5 = Ethernet1

6 = Ethernet2

10 = Port5

11 = Port6

12 = Port7

13 = Port8

0 = Port0 / USB

1 = Port1

2 = Port2

3 = Port3

4 = Port4

5 = Ethernet1

6 = Ethernet2

10 = Port5

11 = Port6

12 = Port7

13 = Port8

254 = Any

255 = Table End

0-65535

0-65535

Comment

Source port of DNP3 message to be routed

Source DNP node Address

Range

Destination DNP node

Address Range

Destination port to route

DNP3 message to

6

7

Status

Lifetime

SCADAPack E Target 5 Function Block Reference 125

0 = Offline Static

1 = Online Static

256 = Offline Dynamic

257 = Online Dynamic

512 = Offline Fixed

513 = Online Fixed

0-32767 secs

Route Type

Lifetime of Dynamic Route for automatic status change from Online to

Offline

4.7.7

chgrtnum

Change DNP3 Routing Table Connect Number String

Description

This function block provides the ability to modify the “Connect No.” string in the DNP3 Routing Table of the SCADAPack E Smart RTU. This can change a PSTN or GSM Dial number string, IP address string, etc.

The chgrtnum function block operates in a similar way to the chgroute function block described above.

This function block, though, takes a DNP Destination address as a parameter, and searches the route table for an entry whose destination address range includes the function block parameter value.

The first matching entry that is found has its Connect No. field updated by the function block DIAL parameter value (string).

Arguments

INPUTS TYPE

Req

Dest

BOOL

DINT

DESCRIPTION

Data transfer request initiated on rising edge.

Destination DNP node address to search (0-65535)

126 SCADAPack E Target 5 Function Block Reference

Dial STRING

Connect No. (message string) to transfer to the matching route entry.

E.g. Dial number, IP address

OUTPUTS TYPE DESCRIPTION

Cnf BOOL

Data transfer confirm TRUE indicates completion of request. FALSE, otherwise.

Status DINT 0 for success when Cnf is TRUE. Otherwise see

Status Codes

79

4.7.8

chgrtprt

Change DNP3 Routing Table port number

Description

This function block provides the ability to modify the destination port number in a DNP3 Routing Table.

The CHGRTPRT function block operates in a similar way to the CHGROUTE function block described above. This function block, though, takes a DNP Destination address as a parameter, and searches the route table for an entry whose destination address range includes the function block parameter value.

The first matching entry that is found has its Destination Port updated by the function block PORT parameter value (DINT analog).

Arguments

INPUTS

Req

TYPE

BOOL

Dest DINT

Port DINT

DESCRIPTION

Data transfer request initiated on rising edge

Destination DNP node address to search (0-65535)

Destination Port number to transfer to the matching route entry.

Port number values for this parameter are:

0=Port0 / USB

2=Port2

1=Port1

3=Port3

SCADAPack E Target 5 Function Block Reference 127

4=Port4

6=Ethernet2

5=Ethernet1

10=Port5 11=Port6

12=Port7 13=Port8

OUTPUTS

Cnf

Status

TYPE

BOOL

DINT

DESCRIPTION

Data transfer confirm TRUE indicates completion of request.

FALSE, otherwise

0 for success when Cnf is TRUE. Otherwise see

Status

Codes

79

4.8

TCP/IP Interface Functions

These function blocks provide interfaces to TCP/IP communication and configuration services. For more information on IP routing with the SCADAPack E Smart RTU, see the TCP/IP Technical Reference manual:

ip_add

127

ip_del

129

ip_cycgw

130

ip_ping

131

string_to_ip

132

ppp_echo

133

4.8.1

ip_add

Add an IP Routing Table Entry

Description

This function provides an interface to the TCP/IP facilities in the SCADAPack E Smart RTU for adding an entry to the IP Routing Table. The ip_add function adds a routing entry to the IP Routing Table. A route entry access counter is incremented each time that the function is executed for this route. An ip_del function decrements the access counter and removes the route entry when the access counter is 0.

Execute the ip_add function when the route is first added, only. Depending on the input parameter settings, add one of these route entry types, listed in order of descending implementation:

DEFAULT GATEWAY

128 SCADAPack E Target 5 Function Block Reference

GATEWAY Route

NETWORK Route

HOST Route

The Function Block Interface and the associated Port Type assignments are shown in the table below:

Function Block

Interface Number

0

1

2

3

4

10

11

PPP on Serial Port 0

PPP on Serial Port 1

PPP on Serial Port 2

PPP on Serial Port 3

PPP on Serial Port 4

Ethernet 1

Ethernet 2

Port Type

Route Entries added using this function are not preserved in NV RAM so are not retained if the

SCADAPack E Smart RTU is restarted or powered off.

Arguments

INPUTS TYPE ip_dest

DESCRIPTION

STRING Destination IP Address for route

SCADAPack E Target 5 Function Block Reference 129

mask ip_gw metric ttl interface DINT

STRING Destination Subnet Mask for route

STRING Gateway host IP Address for route

DINT

TIME route metric (cost) for added route. (0 = use default interface metric)

Time to Live route entry. (t#0 = static route: no lifetime)

Number of IP interface (E.g. 0=Port0, 1=Port1, etc.).

OUTPUTS TYPE DESCRIPTION

IP_ADD DINT

Indicates status code when adding to IP Table.

0 = success; For other status and non-execution codes, refer to

SCADAPack E RTU TCP/IP Status (Codes and Descriptions) in the

TCP/IP Technical Manual.

4.8.2

Further information about IP Route Types can be found in IP Routing (IP Route Types) in the TCP/IP

Technical Manual and in TCP/IP Folder (Advanced TCP/IP Property Page) in the Configurator User

Manual.

ip_del

Delete an IP Routing table entry

Description

This function interfaces to the TCP/IP facilities in the SCADAPack E Smart RTU for deleting an entry to the IP Routing Table. The IP_DEL function removes a routing entry to the IP Routing Table. The route entry’s access counter is decremented each time that the function is executed and the route entry is deleted when the access counter reaches 0. It is advised to execute the function only when it is required to delete a route.

The specified IP address and mask information needs to match those used to previously to add an entry to the route table, i.e. via static routes in the configuration, command line ROUTE ADD command or ip_add function.

Configured static route entries previously preserved in NV RAM are not permanently removed by the ip_del function. The permanent route entries will be restored upon a restart or power on.

130 SCADAPack E Target 5 Function Block Reference

Arguments

INPUTS TYPE ip_dest

DESCRIPTION

STRING Destination IP Address for route mask STRING Destination Subnet Mask for route

OUTPUTS

IP_DEL

TYPE DESCRIPTION

DINT

Indicates status code when adding to IP Table.

0 = success

OR

EINVAL: 2019 = An invalid parameter was provided to a TCP/IP function or function block. For example, if you define an IP address in single quotes ( e.g., '172.168.1.100' ), this syntax creates this status code. Check the function or function block inputs.

OR

ERTNOTFOUND: 2036 = Routing Table entry not found. This status code is reported when the requested entry is not in the Routing Table.

4.8.3

ip_cycgw

Cycle default IP gateway route

Description

This function interfaces to the TCP/IP facilities in the SCADAPack E Smart RTU for cycling default gateway entries in the IP Routing Table. The IP_CYCGW function cycles between DEFAULT GATEWAY route entries in the IP Routing Table. This is only applicable where multiple DEFAULT GATEWAY entries have been added to the IP Routing Table.

This operation of this function has no effect if there are no DEFAULT GATEWAY entries in the IP

Routing Table, or if there is only a single DEFAULT GATEWAY entry.

The first DEFAULT GATEWAY entry found in the routing table is the active default gateway. This entry will be the initial active default gateway whenever the SCADAPack E Smart RTU is restarted or powered on.

SCADAPack E Target 5 Function Block Reference 131

Arguments

OUTPUTS TYPE DESCRIPTION

IP_CYCGW DINT Indicates status code when cycling between default gateway IP routes.

0 = success

4.8.4

ip_ping

Ping a remote IP node

Description

This function block interfaces to the TCP/IP PING Client facilities in the SCADAPack E Smart RTU. The ip_ping function block sends an ICMP ECHO request to the IP host specified by the ip_dest parameter.

This tests IP (Network Layer) operations on the remote host.

It is suggested that the ip_ping function block could be used by a program executing in the second IEC

61131-3 Resource, so as not to slow the performance of a main control programs executing in the first

IEC 61131-3 Resource.

This function block executes synchronously with the Resource execution scan, and may significantly increase the IEC 61131-3 Resource scan rate, particularly if the remote IP hose does not reply to the

PING request.

132 SCADAPack E Target 5 Function Block Reference

Arguments

INPUTS TYPE ip_dest

DESCRIPTION

STRING Destination IP address of remote host len DINT Number of bytes to send in ping request. (needs to be less than 1500) ttl timeout

TIME

TIME

Time To Live for ping packet on IP network. (t#0 = default TTL)

Time to wait for remote IP host to respond

OUTPUTS status elapsed

TYPE DESCRIPTION

DINT

Indicates status code for Ping request.

0 = success

TIME

Elapsed time between Ping Response and Ping Request. Valid when

STATUS = 0

4.8.5

string_to_ip

Convert a string to an IP address

Description

This function converts an STRING type containing a TCP/IP address in dotted decimal format into a numeric value.

Arguments

INPUTS TYPE sVal

DESCRIPTION

STRING TCP/IP address as a string in dotted decimal format.

OUTPUTS TYPE DESCRIPTION

SCADAPack E Target 5 Function Block Reference 133

STRING_TO_IP DINT TCP/IP address as an DINT value.

Structured text example: rtuparam_2 (FALSE, ETH_IP_ADDRESS_1, 0, 0);

IF (r_trig2.Q = TRUE) THEN rtuparam_2 (TRUE, ETH_IP_ADDRESS_1, string_to_ip('192.168.0.218'), 0);

END_IF;

4.8.6

ppp_echo

Check the status of a PPP link

Description

This function interfaces to the TCP/IP facilities for querying the status of a PPP link on a SCADAPack E

Smart RTU. The ppp_echo function sends an LCP ECHO command to the nominated PPP interface on an SCADAPack E Smart RTU.

A successful status (0) indicates PPP link “UP” state on the serial interface.

PPP_ECHOmay return a timed-out status (Status = 2040) on a busy PPP link. Therefore it is advisable to check the link a few times after a timeout before being confident that connection on the PPP link is lost.

For more information on using PPP with the SCADAPack E Smart RTU, see the TCP/IP Technical

Reference Manual.

This function executes synchronously with the Resource execution scan, and may significantly increase the IEC 61131-3 Resource scan rate, particularly if the peer PPP device does not reply to the LCP

ECHO request.

It is suggested that the ppp_echo function could be used by a program executing in the second IEC

61131-3 Resource, so as not to slow the performance of a main control application executing in the first

IEC 61131-3 Resource.

134 SCADAPack E Target 5 Function Block Reference

Arguments

INPUTS TYPE interface DINT len DINT timeout TIME

DESCRIPTION

Number of PPP port IP interface. (E.g. 0=Port0, 1=Port1, etc.)

Number of bytes to send in LCP Echo. Needs to be less than 500.

Time to wait for the peer PPP device to respond

OUTPUTS TYPE DESCRIPTION

PPP_ECHO DINT

Indicates status code for PPP ECHO operation.

0 = success

4.9

Alarm Group Functions & Function Block

Alarm functions and function blocks provide a mechanism for grouping individual Digital point states

(alarms) in to a named alarm group, then provide a summary alarm output if any of the points in the group transition in to an alarm state. There are three aspects of the summary alarm functions that are provided through user interfaces:

Configuration of points within a named alarm group

Processing of the alarm group

Transferring and loading the point “mask” values externally through points.

These interfaces are handled through independent functions and function blocks. As detailed below, the point numbers registered for alarm summaries need not necessarily have to be imported in to the IEC

61131-3 Resource through an input device.

almadd

135

almproc

136

almload

140

almclr

141

The Data Processor sub-system supports the concept of point alarms, as a standard feature. Each binary point within the point database has a “Point-In-Alarm” property which is processed through these

Summary Alarm interfaces.

For information on alarm processing see the Data Processing Technical Reference manual.

SCADAPack E Target 5 Function Block Reference 135

4.9.1

almadd

Add a point to an alarm group

Description

Creating and configuring the Alarm Group is performed by a call to the almadd Function.

Typically the function calls to configure an alarm group are executed during the start-up phase of a IEC

61131-3 Resource. Once executed at startup, this code no longer needs to be executed while the IEC

61131-3 Resource is running. Where an alarm group identified by the string passed to GRPNAME does not exist, it will be created by the almadd function and the specified Point number will be added to the alarm group. A subsequent call to the almadd function whose GRPNAME has been previously created, will add the new point to the existing alarm group.

The function Output is used to indicate the success (or otherwise) of the creation of a named alarm group, and/or the successful (or otherwise) addition of the point to the named alarm group.

Attempting to add the same Point number twice to the same Alarm Group name will result in the almadd function returning status code 3.

Arguments

INPUTS

GrpName

Point

TYPE

STRING

DINT

OUTPUTS

ALMADD

TYPE

DINT

DESCRIPTION

INPUTS of alarm group (a string)

Digital Input or User Point number.

DESCRIPTION

Indicates status code status:

-1 = Internal Status Code

0 = Success

1 = Point does not exist

2 = Invalid Group

3 = Point already exists in Group

136 SCADAPack E Target 5 Function Block Reference

Structured Text Example

This function dynamically creates an alarm group and dynamically adds points to the alarm groups.

Apart from upper memory limitations of the SCADAPack E Smart RTU CPU, there is no design limit to the number of alarm groups that can be created using this function block. Similarly there is no design limit to the number of points that can be added to an alarm group.

IF (almadd(‘ProtectionFault’, POINT_P_PHA_TRIP) = 0) THEN

Status1 := almadd(‘ProtectionFault’,POINT_P_PHB_TRIP);

Status2 := almadd(‘ProtectionFault’,POINT_P_PH_TRIP);

END_IF;

4.9.2

almproc

Process a summary alarm group

Description

Processing (execution) of the Alarm Group is performed by a call to the ALMPROC Function Block.

Once configured in a one-off execution of IEC 61131-3 logic using calls to the almadd function block instance (as described in Section

almadd

135

above), a call to an almproc function block would typically occur each scan. The rate of execution could be controlled through additional logic if required, but optimal responsiveness is achieved through execution each scan.

The almproc function block takes as an input an alarm group name (as created and configured by calls to the ALMADD function block). The almproc function block summarizes the alarm states of the given alarms and asserts its alm_out output parameter when one of the input points is in alarm. In addition, an

ACCEPT input masks the active alarms and clears the alm_out output parameter. An alarm condition that is cleared on a point (i.e. a point that goes out of the alarm state) automatically clears the mask for that alarm on the next scan of the almproc function. A recurrence of the alarm, or occurrence of another new alarm, again sets the alm_out output parameter. An ACCEPT masks the active alarms and clears the alm_out output parameter.

An RTU restart or IEC 61131-3 Resource restart clears the internal alarm mask. If an almload function is not used prior to using almproc active alarms on the Alarm Group will cause regeneration of the alm_out condition. almload can be used to restore an alarm mask, thereby preserving the alarm mask and stopping regeneration of the group alarm. See Section

almload

140

below.

SCADAPack E Target 5 Function Block Reference 137

Arguments

INPUTS TYPE DESCRIPTION

GrpName STRING String value identifying alarm group.

Accept

Reset

BOOL OFF to ON transition (rising edge) of this point accepts current alarms.

BOOL OFF to ON (rising edge) transition of this point clears internal alarm asks and generates the ALARM output if required.

Mask_pt DINT digital user point number.

0 = No mask point

138 SCADAPack E Target 5 Function Block Reference

OUTPUTS

Status

Alm_out

TYPE

DINT

BOOL

DESCRIPTION

Indicates status code status:

-1 = Internal Status Code

0 = Success

1 = Point does not exist

2 = Invalid group

4 = Mask point does not exist

Unaccepted new alarm has occurred. Activating the

ACCEPT input tasks the current alarms and clears the

ALARM output point.

Point database attributes are applied to the logic associated with Alarm activation as shown in the following table. See the Data Processing Technical Manual for more information.

Point Attribute Description Effect on ALARM activation

Invert State

(Physical digital inputs)

When OFF, the physical input in an Energized state represents

“ON” (active) state in the database.

No direct effect

(see Alarm Active State below)

When ON, the physical input in an Energized state represents

“OFF” (active) state in the database.

Debounce Time

(Physical digital inputs)

Alarm Active State

Alarm Time Deadband

Duration (in ms) that the input needs to stay active before it is registered as being ON in the database.

Delays updating point state in the

Database after the input is active.

Indicates which state in the point database represents the “alarm” state of the point.

Determines which point state causes activation of the “Point-in-

Alarm” property.

When this attribute value = ON, the database point state being

ON is the alarm condition.

Duration (in Seconds) that the point needs to stay in the alarm state before the “Point-in-Alarm” property is activate.

Delays activation of the alarm property of the point.

Point Attribute

Alarm Clear Time

Deadband

Alarm Inhibit

SCADAPack E Target 5 Function Block Reference 139

Description Effect on ALARM activation

Duration (in Seconds) that the point must stay out the alarm state before the “Point-in-Alarm” property is de-activated.

Delays clearing of the alarm property of the point.

Inhibits the “Point-in-Alarm” property being activated, regardless of the input condition.

Stops the point going in to the alarm state.

Transition of the RESET input parameter (from OFF to ON state) causes the alarm mask (internal for that alarm group) to be reset. Following clearing of the mask, any active alarm states previously masked will reactivate the ALM_OUT output.

‘fleeting alarms’ of very short duration may not annunciate via the ALM_OUT output if the scan rate (or call rate to the ALMPROC function block) exceeds the duration of the alarm condition.

A short duration alarm that exceeds a point’s alarm time deadband (configured in the point database) and the scan rate will activate the ALM_OUT output. The ALM_OUT output will remain active (until

ACCEPTed) even if the input point alarm condition is no longer active.

The MASK_PT input parameter is used to allow the internal Function Block mask to be written out into consecutive Digital User points. These User points can be read later by the ALMLOAD Function in order to load a new internal mask. This may be used to make the internal mask non-volatile or to transfer the internal mask values to another device via DNP3 Peer Function Blocks for redundancy purposes, for example. If the MASK_PT input is zero, this functionality is disabled. If the point supplied to the

MASK_PT input does not exist for one or more points in the Alarm Group, the STATUS value will be set to a status code of 4. However, this does not otherwise affect processing of the Alarm Group.

The STATUS output parameter is used to indicate the success (or otherwise) of the processing of a named alarm group. The ALM_OUT output indicates the presence of a new alarm that has not yet been accepted.

A typical structured text example could be:

SumAlm_ProtFault(‘ProtectionFault’, Oper_ACCEPT, Oper_RESET);

IF (SumAlm_ProtFault.Status = 0) THEN

ProtFault_Alarm := SumAlm_ProtFault.ALM_OUT;

OPERATE(Oper_ACCEPT, 0);

OPERATE(Oper_RESET, 0);

END_IF; where “SumAlm_ProtFault” is an Instance of an “ALMPROC” function block. “Oper_ACCEPT” is a

Boolean variable being the operator ‘Accept’ input and “Oper_RESET” is a Boolean variable to clear the summary alarm mask. “ProtFault_Alarm” could be a BOOL Output variable that updates a point in the point database. In this example it is assumed that the Oper_ACCEPT and Oper_RESET inputs are latched variables on input devices from database points. The OPERATE function clears the variables and their point source in the database. If pulse points were to be used instead of latch points, the OPERATE function calls would be unnecessary. However, when using Pulse Points, the pulse duration of ACCEPT and RESET points needs to be long enough to significantly exceed the length of the scan.

140 SCADAPack E Target 5 Function Block Reference

4.9.3

almload

Load a mask to an alarm group

Description

Loading of the Alarm Group internal mask from an external source can be performed by a call using the almload function.

The almload function takes as an input an alarm group name (as created and configured by calls to the

ALMADD function block) and an User Digital point number. When used for restoring the alarm mask state, this Digital point number is normally the same number that was supplied as the MASK_PT input parameter to the ALMPROC function block for the same alarm group name.

The MASK_PT input parameter is used to allow the internal almproc Function Block mask to be loaded by reading consecutive Digital User points. If the MASK_PT input is zero, a status code is returned. The number of digital points read corresponds to the number of alarms in the Alarm Group.

Arguments

INPUTS

GrpName

Mask_pt

TYPE

STRING

DINT

OUTPUTS

ALMLOAD

TYPE

DINT

DESCRIPTION

String value identifying alarm group.

digital user point number.

0 = No mask point

DESCRIPTION

-1 = Internal Status Code

0 = Success

1 = Point does not exist

2 = Invalid group

SCADAPack E Target 5 Function Block Reference 141

4.9.4

almclr

Destroy an alarm group

Description

A previously created Alarm Group can be removed using the ALMCLR function. Calling this function frees system resources associated with the named Alarm Group. After this function is called, the named alarm group no longer exists and does not perform alarm group functions. Alarm group functions and function blocks referencing this alarm group after an ALMCLR will result in unsuccessful status codes being set.

Arguments

INPUTS

GrpName

TYPE

STRING

OUTPUTS

ALMCLR

TYPE

DINT

DESCRIPTION

String value identifying alarm group.

DESCRIPTION

-1 = Internal Status Code

0 = Success

2 = Invalid group

4.10

File System Interface Functions

This section describes the functions and function blocks that support access to the SCADAPack E

Smart RTU file system. Many of the functions and function blocks detailed in this section return an analog status value.

Functions that provide similar functionality to the command line interface for file system access are detailed in Section

File System Management Functions

142

.

The directory / drive information function blocks are detailed in Section

Directory Information Function

Blocks

152

and the file read / write functions are detailed in Section

File Read / Write Functions

155

.

Refer to Section

File System Access Status Codes

162

for a list of file system status codes.

142 SCADAPack E Target 5 Function Block Reference

4.10.1

File System Access Functions

This functions allow IEC 61131-3 logic to manage the file system. Equivalent functionality provided by the SCADAPack E Smart RTU command line commands are indicated where applicable.

Function Name

F_DEL

142

Equivalent Command Line command

Purpose

DEL Delete Files

F_DELTREE

F_COPY

F_JOIN

F_CD

148

F_PWD

144

145

F_REN

146

F_MKDIR

147

F_RMDIR

147

F_DSKSEL

150

F_DV_RDY

143

149

151

DELTREE

COPY

JOIN or APPEND

RENAME

MD

RMDIR

CD

DSKSEL

Delete a directory and files

Copy a file

Append files

Rename a file

Make a directory

Remove a directory

Change current working directory

Select a Disk device

returns the Present Working Directory

indicates if a disk Device is Ready

4.10.1.1 F_DEL

Delete a file from the file system

Description

The F_DEL function is used to delete the specified file from the file system from within a program.

Arguments

INPUTS iFile

TYPE

STRING

DESCRIPTION

Filename to delete (including path)

SCADAPack E Target 5 Function Block Reference 143

OUTPUTS

F_DEL

TYPE

DINT

DESCRIPTION

Status of Delete Request

The iFile argument specifies the filename to delete, and is case insensitive (upper and lower case allowed). The maximum number of characters allowed for the iFile argument is 255.

The iFile argument and a may include the complete path, e.g. “C:\sample.txt”. If only the filename is specified, the current working directory will be used to determine the complete path. The current working directory can be changed in IEC 61131-3 logic using F_CD function (see Section

F_CD Function

148

).

The function returns a 0 if the delete request was successful. If an unsuccessful operation was detected, a negative DINT value is returned. Refer to Section

File System Access Status Codes

162

for the range of possible status codes and their descriptions.

4.10.1.2 F_DELTREE

Delete a directory and its contents

Description

The F_DELTREE function is used to remove the specified directory and files in that directory.

Subdirectories and files below the specified directory are also deleted.

The function returns a 0 if the delete tree request was successful. If an unsuccessful operation was detected, a negative DINT value is returned. Refer to Section

File System Access Status Codes

162

for the range of possible status codes and their descriptions.

Arguments

INPUTS iDir

TYPE

STRING

DESCRIPTION

Directory to delete

OUTPUTS

F_DELTREE

TYPE

DINT

DESCRIPTION

Status of Delete Request iDir is case insensitive (upper and lower case allowed). The maximum number of characters allowed for the iDir argument is 255.

144 SCADAPack E Target 5 Function Block Reference

4.10.1.3 F_COPY

Copy a file

Description

The F_COPY function is used to copy the specified source file to a new file in the file system whose name is specified as the destination filename.

The iSrc argument specifies the filename of the file to be copied, and the iDest argument specifies the filename for the new copied file. Both of these arguments are case insensitive (upper and lower case allowed). The maximum number of characters allowed for the iSrc and iDest arguments is 255. The iForce argument allows existing destination files to be overwritten.

The iSrc and iDest arguments may include the complete path, e.g. “C:\sample.txt”. If only the filename is specified, the current working directory will be used to determine the complete path. The current working directory can be changed in IEC 61131-3 logic using F_CD function (see Section

F_CD Function

148

).

The function returns a 0 if the copy request was successful. If an unsuccessful operation was detected, a negative DINT value is returned. Refer to Section

File System Access Status Codes

162

for the range of possible status codes and their descriptions.

Arguments

INPUTS iSrc iDest iForce

TYPE

STRING

STRING

BOOL

OUTPUTS

F_COPY

TYPE

DINT

DESCRIPTION

Source file to be copied

Filename for the new copied file

Forces copy over existing files

DESCRIPTION

Status of Delete Request

SCADAPack E Target 5 Function Block Reference 145

4.10.1.4 F_JOIN

Append a file to another file

Description

The F_JOIN function is used to append the specified source file to the specified destination file. The third argument to this function block allows the programmer to “optionally” specify a maximum size (in bytes) for the destination file.

The iSrc argument specifies the filename of the file(s) to be appended, and the iDest argument specifies the filename to which the source file is appended to. Both of these arguments are case insensitive

(upper and lower case allowed). The maximum number of characters allowed for the iSrc and iDest arguments is 255.

The iLimit argument specifies the maximum size of the destination file. If this argument is zero, the source file(s) will be unconditionally appended to the destination file.

The iSrc and iDest arguments may include the complete path, e.g. “C:\sample.txt”. If only the filename is specified, the current working directory will be used to determine the complete path. The current working directory can be changed in IEC 61131-3 logic using F_CD function (see

F_CD Function

148

).

The iSrc filename may include a wildcard specification, e.g. SF*

The function returns a 0 if the join request was successful. If an unsuccessful operation was detected, a negative DINT value is returned. Refer to

File System Access Status Codes

162

for the range of possible status codes and their descriptions.

The F_JOIN function can be used with wildcards and executed cyclically. In cases where there are no source files in the file system matching the iSrc filename, the F_JOIN function block intentionally does

NOT return a file system status code. In this specific case the function returns 0.

Arguments

INPUTS iSrc iDest iLimit

TYPE

STRING

STRING

UDINT

DESCRIPTION

Source file(s) to be appended. The string may include a wildcard specification, e.g. SF*

File name to which the source file(s) is appended.

‘Optional’ maximum size for the destination file ( 0 = no limit)

146 SCADAPack E Target 5 Function Block Reference

OUTPUTS

F_JOIN

TYPE

DINT

DESCRIPTION

Status of Request

4.10.1.5 F_REN

Rename a file

Description

The F_REN function is used to rename a specified file to a new filename in the file system. The figure below shows the function with the following calling and return parameters:

The iOld argument specifies the existing filename of the specified file, and the iNew argument specifies the new filename for the specified file. Both of these arguments are case insensitive (upper and lower case allowed). The maximum number of characters allowed for the iOld and iNew arguments is 255.

The iOld and iNew arguments may include the complete path, e.g. “C:\sample.txt”. If only the filename is specified, the current working directory will be used to determine the complete path. The current working directory can be changed in IEC 61131-3 logic using F_CD function (see

F_CD Function

148

).

The function returns a 0 if the rename request was successful. If an unsuccessful operation was detected, a negative DINT value is returned. Refer to

File System Access Status Codes

162

for the range of possible status codes and their descriptions.

Arguments

INPUTS iOld iNew

TYPE

STRING

STRING

OUTPUTS

F_REN

TYPE

DINT

DESCRIPTION

Existing filename

New filename

DESCRIPTION

Status of Request

SCADAPack E Target 5 Function Block Reference 147

4.10.1.6 F_MKDIR

Create a directory

Description

The F_MKDIR function is used to make (create) directories, and requires a single argument which specifies the directory name (or complete path) to be created. If the directory name alone is specified, the directory is created as a subdirectory of the current working directory. A complete path specification allows directories to be created wherever required. The current working directory can be changed in IEC

61131-3 logic using F_CD function (see

F_CD Function

148

). The F_MKDIR function supports creation of directories on other drives, i.e. different to the current drive. iDir is case insensitive (upper and lower case allowed). The maximum number of characters allowed for the iDir argument is 255.

The function returns a 0 if the make directory request was successful. If an unsuccessful operation was detected, a negative DINT value is returned. Refer to

File System Access Status Codes

162

for the range of possible status codes and their descriptions.

Arguments

INPUTS iDir

TYPE

STRING

OUTPUTS

F_MKDIR

TYPE

DINT

DESCRIPTION

Directory to create

DESCRIPTION

Status of Request

4.10.1.7 F_RMDIR

Remove a directory

Description

The F_RMDIR function is used to remove directories, and requires a single argument which specifies the directory name (or complete path) to be removed. If the directory name alone is specified, the directory needs to exist as a subdirectory of the current working directory. A full path specification allows directories to be removed wherever required. The current working directory can be changed in IEC 61131-

3 logic using F_CD function (see

F_CD Function

148

). The F_RMDIR function supports removal of

148 SCADAPack E Target 5 Function Block Reference

directories on other drives, i.e. different to the current drive.

iDir is case insensitive (upper and lower case allowed). The maximum number of characters allowed for the iDir argument is 255.

The function returns a 0 if the remove directory request was successful. If an unsuccessful operation was detected, a negative DINT value is returned. Refer to

File System Access Status Codes

162

for the range of possible status codes and their descriptions.

Arguments

INPUTS iDir

TYPE

STRING

OUTPUTS

F_RMDIR

TYPE

DINT

DESCRIPTION

Directory to remove

DESCRIPTION

Status of Request

4.10.1.8 F_CD

Change the current working directory

Description

The F_CD function is used to change the current working directory within a given drive. If the directory is directly below the current working directory, only the directory name is required, otherwise the complete path is required. An iDIR argument of “..” will change the working directory to one level above the current working directory.

iDir is case insensitive (upper and lower case allowed). The maximum number of characters allowed for the iDir argument is 255.

The function returns a 0 if the change working directory request was successful. If an unsuccessful operation was detected, a negative DINT value is returned. Refer to

File System Access Status Codes

162

for the range of possible status codes and their descriptions.

SCADAPack E Target 5 Function Block Reference 149

Arguments

INPUTS iDir

TYPE

STRING

OUTPUTS

F_CD

TYPE

DINT

DESCRIPTION

Target Directory

DESCRIPTION

Status of Request

4.10.1.9 F_DSKSEL

Change the working drive device

Description

The F_DSKSEL function is used to change the between working drive devices on the file system. After executing this function, the current working directory on the target drive will be selected (see notes below).

Arguments

INPUTS iDrive

TYPE

STRING

OUTPUTS

F_DSKSEL

TYPE

DINT

DESCRIPTION

Target Drive (e.g. C: E: c: e:)

Text is case insensitive

DESCRIPTION

Status of Request. 0 = Success. See

File System Access

Status Codes

162

for the range of possible status codes and their descriptions

The following disk devices are available:

150 SCADAPack E Target 5 Function Block Reference

Drive

C:

D:

E:

F:

Type

Main Flash File

System Drive

RAM Drive

External

CompactFLASH Drive

Internal Flash File

System Drive

Size

(SCADAPack

ES and

SCADAPack

ER)

12 MB

Size

(SCADAPack

300E)

7 MB

2 MB up to 2 GB

16 MB

128 KB

-

-

Description

Main file system used by the operating system and available for user data. It is recommended that user files be placed in sub-directories below the root directory

Used for temporary storage by the operating system (e.g. log files, sampler files, etc)

External drive available for user data

(not available on SCADAPack 300E controllers)

Additional file system available for user files. It is recommended that user files be placed in sub-directories below the root directory

(not available on SCADAPack 300E controllers)

Using sub-directories

The current working directory on each drive is preserved prior to changing drives.

For example, If the current working directory is currently “C:\testdir”, and the last specified working directory on the “D drive” was “D:\targetdir”, the F_DSKSEL function with the argument “D:” would then result with “D:\targetdir” as the current working directory. Calling the F_DSKSEL function with the argument “C:” would then result with “C:\testdir” as the current working directory.See

F_CD

148

.

4.10.1.10 F_PWD

Display the current working directory

Description

The F_PWD function is used to display the present (current) working directory for the Resource task in which the function is called.

SCADAPack E Target 5 Function Block Reference 151

Arguments

OUTPUTS

F_PWD

TYPE

STRING

DESCRIPTION

Present (current) Working Directory.

4.10.1.11 F_DV_RDY

Determine if drive is ready

Description

The F_DV_RDY function is used to determine whether or not the specified drive is mounted and ready.

The figure below shows the function with the following calling and return parameters: iDrive is case insensitive (upper and lower case allowed). The maximum number of characters allowed for the iDrive argument is 10.

The function returns TRUE if the specified drive is mounted and ready for use, otherwise FALSE in returned.

Arguments

INPUTS iDrive

TYPE

STRING

OUTPUTS

F_DV_RDY

TYPE

BOOL

DESCRIPTION

Target Drive to be checked (e.g. C: E:)

DESCRIPTION

Status of Request

152 SCADAPack E Target 5 Function Block Reference

4.10.2

Directory Information Function Blocks

The functionality of the command line DIR command is provided by the following function blocks

FINDFILE Function Block

152

DIR_INFO Function Block

154

4.10.2.1 FINDFILE

Search for a file

Description

The FINDFILE function block searches a given directory for a specific file. The specific file details to be returned are determined by the specified file operation, i.e. “first file”, “next file”, or the “oldest file”. The function block also allows the programmer to specify the directory to search, and a filter as the search criteria, which is only required when searching for the “first file”. In addition to the retrieved filename, this function block also returns size of the file in bytes and the file creation data in seconds since 1970.

All instances of the FINDFILE function block in the IEC 61131-3 Resource share the same internal position data. This means that calling one instance of FILEFIND with the FIND_FIRST operation would affect the results from later calling a different instance with the FIND_NEXT operation. Only one

FINDFILE function block can be active in a Resource.

SCADAPack E Target 5 Function Block Reference 153

Arguments

INPUTS

iOpn iDir iFilt

TYPE

DINT

STRING

STRING

DESCRIPTION

Specifies which file operation to be carried out. The possible values are listed as follows:

0 =

FIND_FIRST

This instructs the FindFile function block to search for the first file in the specified directory

(defined in common.eqv as FIND_FIRST)

1 =

FIND_NEXT

This instructs the FindFile function block to search for the next file in the specified directory.

The filter for the search would have been specified in the previous "FIND_FIRST" call defined in common.eqv as FIND_NEXT).

2 =

FIND_OLDE

ST

This instructs the FindFile function block to search for the oldest file in the specified directory. The filter for the "oldest" file search is specified by the Dir input parameter defined in common.eqv as FIND_OLDEST).

specifies the directory for the file search. This argument is case insensitive (upper and lower case allowed) and the maximum number of characters allowed is 255. If no directory path is specified, the current working directory will be referenced for the search. specifies the filter for the search criteria, e.g. “*” to search all files. This is not required for the FIND_NEXT calls as this would have been specified in the FIND_FIRST call. This argument is case insensitive (upper and lower case allowed) and the maximum number of characters allowed is 255. If no filter is specified then “*” will be used.

154 SCADAPack E Target 5 Function Block Reference

OUTPUTS

oSts oName oSize oDate

TYPE

DINT

STRING

UDINT

UDINT

DESCRIPTION

specifies which status of the requested file operation. The function block oSts value returns 0 if the search was successful (according the specified search criteria). If an unsuccessful operation was detected, a negative DINT value is returned. Refer to

File System Access Status Codes

162 for the range of possible status codes and their descriptions.

specifies the file name retrieved and is only valid if the oSts output indicates success, i.e. 0. The maximum number of characters allowed for the oName output is 255.

specifies the size of the detected file in bytes and is only valid if the oSts output indicates success, i.e. 0.

specifies the time and date stamp of the detected file in

“seconds since 1970”, and is only valid if the oSts output indicates success, i.e. 0.

4.10.2.2 DIR_INFO

Read directory information

Description

The DIR_INFO function block reads the following information for a given directory number of files in the directory total bytes used in directory (according to specified filter) bytes available in the current working drive

SCADAPack E Target 5 Function Block Reference 155

Arguments

INPUTS

iDir iFilt

OUTPUTS

oSts oNum oUsed oFree

TYPE

STRING

STRING

TYPE

DINT

UDINT

UDINT

UDINT

DESCRIPTION

specifies the directory for the information search. This argument is case insensitive (upper and lower case allowed) and the maximum number of characters allowed is 255. If no directory is specified, the current working directory will be referenced for the directory information search. specifies the filter for the DIR_INFO information search, e.g.

“*” to include all files. This argument is case insensitive

(upper and lower case allowed) and the maximum number of characters allowed is 255. If no filter is specified then “*” will be used.

DESCRIPTION

specifies which status of the directory information search.

The function block oSts value returns 0 if the information search was successful. If an unsuccessful operation was detected, a negative DINT value is returned. Refer to

File

System Access Status Codes

162

for the range of possible status codes and their descriptions.

specifies the number of files in the directory according to the search criteria, i.e. the iFiltr input. The presented value is only valid if the oSts output indicates success.

specifies the total number of bytes used by files in the directory that satisfy the search criteria, i.e. the iFiltr input.

The presented value is only valid if the oSts output indicates success.

specifies the total number of bytes available in the file system. The presented value is only valid if the oSts output indicates success.

4.10.3

File Read / Write Functions

This section describes the functions that provide both read and write access to files in the file system and allow for transfer of both ASCII and binary data.

F_WOPEN

156

F_ROPEN

157

156 SCADAPack E Target 5 Function Block Reference

F_CLOSE

157

F_EOF

158

FA_READ

159

FA_WRITE

159

FM_READ

160

FM_WRITE

161

4.10.3.1 F_WOPEN

Open a file in write mode

Description

The F_WOPEN function opens the specified file in write mode. It is to be used with the FA_WRITE,

FM_WRITE, and F_CLOSE functions.

The iPATH argument specifies the filename to open in write mode.

This argument may include the complete path, otherwise the current working directory shall be used to determine the complete path for the specified file. This argument is case insensitive (upper and lower case allowed), and the maximum number of characters allowed is 255.

The F_WOPEN return parameter presents a file handle to be used for subsequent file accesses. A returned value of 0 indicates the specified file could not be opened in write mode.

Arguments

INPUTS iPath

TYPE

STRING

OUTPUTS

F_WOPEN

TYPE

DINT

DESCRIPTION

Filename to open in write mode (may include path)

DESCRIPTION

File ID (file handle)

SCADAPack E Target 5 Function Block Reference 157

4.10.3.2 F_ROPEN

Open a file in read mode

Description

The F_ROPEN function opens the specified file in read mode. It is to be used with the FA_READ,

FM_READ, and F_CLOSE functions.

The iPATH argument specifies the filename to open in read mode.

This argument may include the complete path, otherwise the current working directory shall be used to determine the complete path for the specified file. This argument is case insensitive (upper and lower case allowed), and the maximum number of characters allowed is 255.

The F_ROPEN return parameter presents a file handle to be used for subsequent file accesses. A returned value of 0 indicates the specified file could not be opened in read mode.

Arguments

INPUTS iPath

TYPE

STRING

OUTPUTS

F_ROPEN

TYPE

DINT

DESCRIPTION

Filename to open in read mode (may include path)

DESCRIPTION

File ID (file handle)

4.10.3.3 F_CLOSE

Close an open file

Description

The F_CLOSE function closes files that have been opened with F_WOPEN or F_ROPEN.

The iID argument specifies the file handle that was returned in calls to either F_WOPEN or F_ROPEN. A valid ID value for a currently open file is non-zero.

The F_CLOSE return parameter presents a BOOL status for the file close request. TRUE is returned is the file close is OK, otherwise FALSE is returned.

158 SCADAPack E Target 5 Function Block Reference

Arguments

INPUTS iID

TYPE

DINT

OUTPUTS

F_CLOSE

TYPE

BOOL

DESCRIPTION

File ID (file handle)

DESCRIPTION

Status of file close request

4.10.3.4 F_EOF

Test for end of file

Description

The F_EOF function tests whether the end of file has been reached.

The iID argument specifies the file handle that was returned in calls to either F_WOPEN or F_ROPEN. A valid ID value for a currently open file is non-zero.

The F_EOF return parameter presents a BOOL status for the end of file test. TRUE is returned is the end of file has been reached in the last read or write procedure call, otherwise FALSE is returned.

Arguments

INPUTS iID

TYPE

DINT

DESCRIPTION

File ID (file handle)

OUTPUTS

F_EOF

TYPE

BOOL

SCADAPack E Target 5 Function Block Reference 159

DESCRIPTION

Status of request

4.10.3.5 FA_READ

Read analog values from a binary file

Description

The FA_READ function reads analog values from a binary file. It is to be used with the F_ROPEN and

F_CLOSE functions. This function makes a sequential access to the file from the previous position. The first call after F_ROPEN reads the first 4 bytes of the file. Each call pushes the “read” pointer. To check whether the end of file is reached, the F_EOF function is used.

The iID argument specifies the file handle that was returned in the call to F_ROPEN. A valid ID value for a currently open file is non-zero.

The FA_READ return parameter returns the DINT analog value read from the file.

Arguments

INPUTS iID

TYPE

DINT

OUTPUTS

FA_READ

TYPE

DINT

DESCRIPTION

File ID (file handle)

DESCRIPTION

DINT value read from file

4.10.3.6 FA_WRITE

Write analog value to binary file

Description

The FA_WRITE function writes analog values to a binary file. It is to be used with the F_WOPEN and

F_CLOSE functions. This function makes a sequential access to the file from the previous position. The

160 SCADAPack E Target 5 Function Block Reference

first call after F_WOPEN writes the first 4 bytes of the file. Each call pushes the “write” pointer.

The iID argument specifies the file handle that was returned in the call to F_WOPEN. A valid ID value for a currently open file is non-zero. The IN argument represents the actual value that will be written (in 4 bytes) to the specified file.

The FA_WRITE return parameter returns the status of the file write request. TRUE is returned if the file write was successful, otherwise FALSE is returned.

Arguments

INPUTS iID iIN

TYPE

DINT

DINT

OUTPUTS

FA_WRITE

TYPE

BOOL

DESCRIPTION

File ID (file handle)

DINT value to be written to file

DESCRIPTION

Status of file write request

4.10.3.7 FM_READ

Read a string from a binary file

Description

The FM_READ function reads STRING values from a binary file. It is to be used with the F_ROPEN and

F_CLOSE functions. This function makes a sequential access to the file from the previous position. The first call after F_ROPEN reads the first string of the file. Each call pushes the “read” pointer. A string is terminated by null (0), end of line (‘\n’) or return (‘\r’). To check whether the end of file is reached, the

F_EOF function is used.

The iID argument specifies the file handle that was returned in the call to F_ROPEN. A valid ID value for a currently open file is non-zero.

The FM_READ return parameter returns the string read from the file.

SCADAPack E Target 5 Function Block Reference 161

Arguments

INPUTS iID

TYPE

DINT

OUTPUTS

FM_READ

TYPE

STRING

DESCRIPTION

File ID (file handle)

DESCRIPTION

Variable read from file

4.10.3.8 FM_WRITE

Write a string to a binary file

Description

The FM_WRITE function writes a STRING variable to a binary file as a null terminated string. It is to be used with the F_WOPEN and F_CLOSE functions. This function makes a sequential access to the file from the previous position. The first call after F_WOPEN writes the first string to the file. Each call pushes the “write” pointer.

The iID argument specifies the file handle that was returned in the call to F_WOPEN. A valid ID value for a currently open file is non-zero. The IN argument represents the actual string that will be written to the specified file.

The FM_WRITE return parameter returns the status of the file write request. TRUE is returned if the file write was successful, otherwise FALSE is returned.

162 SCADAPack E Target 5 Function Block Reference

Arguments

INPUTS iID iIN

TYPE

DINT

STRING

DESCRIPTION

File ID (file handle)

STRING variable to be written to file

OUTPUTS

FM_WRITE

TYPE

BOOL

DESCRIPTION

Status of file write request

4.10.4

File System Status Codes

Many file system functions and function blocks return an DINT status code. The status code values are detailed in the following table.

Status Value Description

0

-1

Success

Unknown Status Code

-1000

-1001

-1002

-1003

Source name is illegal

Source file is in use

Source file does not exist

Invalid file pointer

-1004

-1005

-1006

-1007

-1008

-1009

Illegal position

Illegal destination name

Source file name in use

Invalid query structure

Destination file name in use

Could not create working buffer

-1014

-1015

-1016

-1017

-1010

-1011

-1012

-1013

SCADAPack E Target 5 Function Block Reference 163

Could not write to file

Could not create file

New file would exceed the maximum file size

Requested operation not supported

Directory in use

File or Directory does not exist

Invalid Path

File or Directory already exists
