Set-up Diagrams

Set-up Diagrams
Set It Up and Watch It Grow!

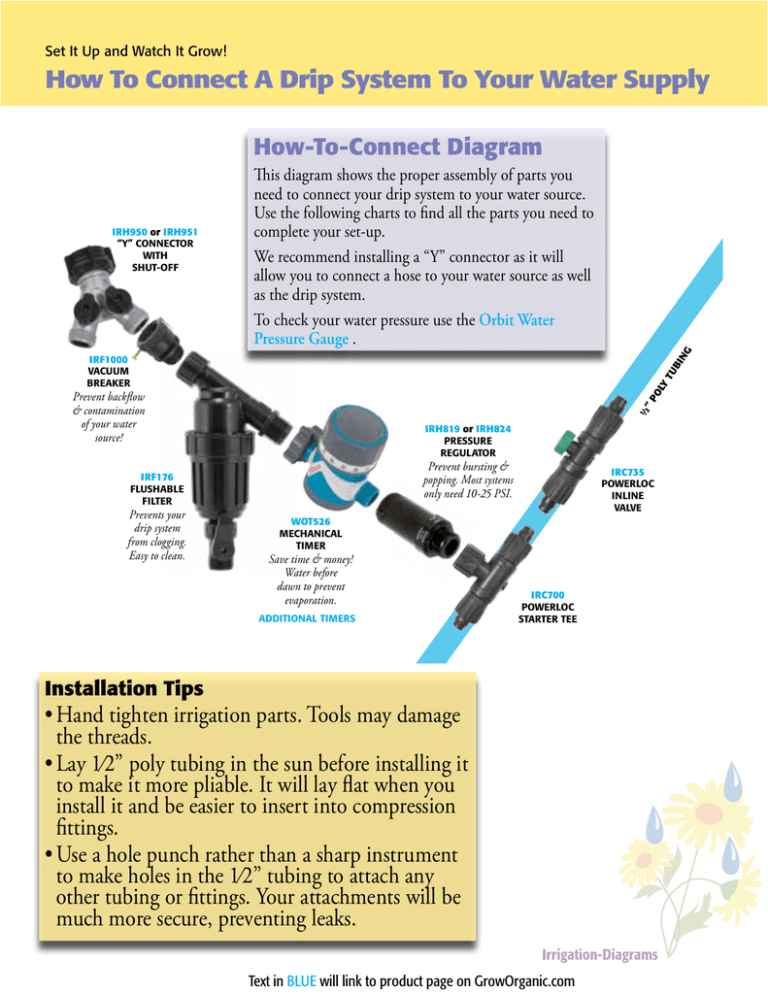

How To Connect A Drip System To Your Water Supply
How-To-Connect Diagram
NG
IRH950 or IRH951
“Y” CONNECTOR
WITH
SHUT-OFF
This diagram shows the proper assembly of parts you
need to connect your drip system to your water source.
Use the following charts to find all the parts you need to
complete your set-up.
We recommend installing a “Y” connector as it will
allow you to connect a hose to your water source as well
as the drip system.
To check your water pressure use the Orbit Water
Pressure Gauge .
OL
Y
TU
BI
IRF1000
VACUUM
BREAKER
½
”P
Prevent backflow
& contamination
of your water
source!
IRH819 or IRH824
PRESSURE
REGULATOR
Prevent bursting &
popping. Most systems
only need 10-25 PSI.
IRF176
FLUSHABLE
FILTER
Prevents your
drip system
from clogging.
Easy to clean.
IRC735
PowerLoc
INLINE
VALVE
WOT526
MECHANICAL
TIMER
Save time & money!
Water before
dawn to prevent
evaporation.
Additional timers
IRC700
powerloc
starter TEE
Installation Tips
•Hand tighten irrigation parts. Tools may damage
the threads.
•Lay 1⁄2” poly tubing in the sun before installing it
to make it more pliable. It will lay flat when you
install it and be easier to insert into compression
fittings.
•Use a hole punch rather than a sharp instrument
to make holes in the 1⁄2” tubing to attach any
other tubing or fittings. Your attachments will be
much more secure, preventing leaks.
Irrigation-Diagrams
Text in BLUE will link to product page on GrowOrganic.com
When Meandering, Moderate Water Coverage Is Needed
Uniform Distribution Of Water
Mr. Soaker Hose
IRP650
Pressure Compensating Emitterline
IRP700
Flexible Emitter Line is perfect to wind around your
shrubs and trees where moderate water coverage is
needed.
½”
R LI
NE
irc710
power-loc tee
½” POLY TUBING
irc710
power-loc
tee
¼” E M I T
TE
R
LI
NE
irc710
power-loc
tee
irC620
BARBED
TEE
irc710
power-loc
tee
IT
TE
Soaker Hose seeps water the entire distance
of the hose. Waters plants roots directly, no
evaporation or wasted water. You can cut
it to any length to create your own custom
system.
IRc735
INLINE VALVE
EM
IRc735
INLINE VALVE
IRC220 BARBED TEE
IRC220 BARBED TEE
AK
ER
HOSE
irC620
BARBED TEE
IRc735
power-loc
INLINE
VALVE
irc710
power-loc
tee
Emitter Line with it’s 12” or 6” spacing is great for
your planted vegetable beds. Spaced emitters allow
the water to be directed exactly where you need it around your plants.
irc725
END WITH
SCREW CAP
EMITTERLINE - 12” SPACING
IRc735
INLINE VALVE
SO
½” POLY TUBING
IRc545
FIGURE 8
CLOSURE
½” POLY TUBING
irc710
power-loc
tee
irc725
END WITH
SCREW CAP
Use 1/2” or 1/4” Poly Tubing Fittings with Emitterline
IRc735
power-loc
INLINE
VALVE
SO
½” POLY TUBING
½” POLY TUBING
AK
ER
HOSE
irc710
power-loc
tee
irc710
power-loc
tee
IRc545
FIGURE 8
CLOSURE
Irrigation-Diagrams
Text in BLUE will link to product page on GrowOrganic.com
irc725
END WITH
SCREW CAP
EMITTERLINE - 12” SPACING
Use 1/2” or 1/4” Poly Tubing Fittings with Emitterline
Irrigation-Diagrams
Text in BLUE will link to product page on GrowOrganic.com
1/4” & 1/8” Poly Tubing & Connectors
IRP500
Drip Tape
IRE201
flag
EMITTER
¼” POLY
TUBING
The chevron pattern in
the water way creates
a turbulent flow.
IRE303
PRESSURE COMPENSATING
EMITTER
Drip Tape 8” SPACING
IRC440
TAPE-LOC
END W/CAP
IRE401
INLINE EMITTERS
Micro Sprayer with
Flow Control
¼” POLY
TUBING
IRc735
INLINE VALVE
irc710
power-loc tee
Drip Tape 8” SPACING
IRC450
TAPE-LOC
¼ BARBED
½” POLY TUBING
Direction of
water flow
IRc545
FIGURE 8
CLOSURE
IRR605
SHORT STAKE
IRH415
INLINE
VALVE
The slits open
automatically under
pressure to allow water
to flow and drip freely.
½” POLY TUBING
½” POLY TUBING
With the right size poly tubing and connectors,
emitters and sprayers, you can deliver the right
amount of water to your plants in the most efficient
way. From raised beds to individual plants in the
ground or in a planter, a drip system can fulfill all
your watering needs.
IRH415
INLINE
VALVE
Tiny inlets act as filters
to keep the system
free of debris.
Cost–Effective, Low Pressure
Versatile And Efficient
Drip tape
must be
used on
low water
pressure,
(5–15 PSI),
achieved by
installing
a pressure
regulator.
Drip Tape 8” SPACING
IRC441
drip tape
sleeve end
½” POLY TUBING
IRc735
INLINE VALVE
irc710
power-loc
tee
irc710
power-loc
tee
IRS686
IRS686
360°
360°
ULTRA-JET
SPRAYER
ULTRA-JET
SPRAYER
IRS654
90°
0-JET
SPRAYER
IRR642
RISER
TUBE
IRR611
SPIKE
STAKE
irc210
1⁄4”
Barbed
Coupler
IRc545
FIGURE 8
CLOSURE
irc210
1⁄4”
Barbed
Coupler
IRR609
IRRIGATION
STAKE
½” POLY TUBING
Irrigation-Diagrams
Text in BLUE will link to product page on GrowOrganic.com
Irrigation-Diagrams
Text in BLUE will link to product page on GrowOrganic.com
