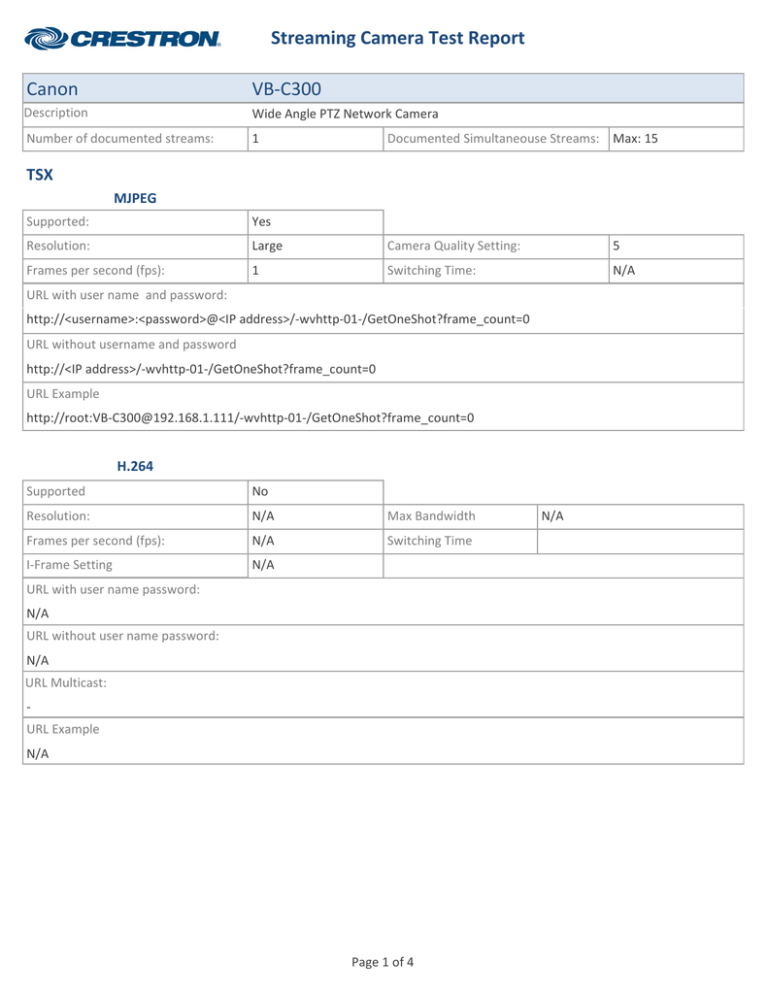

Streaming Camera Test Report
Canon
VB-C300
Description
Wide Angle PTZ Network Camera
Number of documented streams:
1
Documented Simultaneouse Streams: Max: 15
TSX
MJPEG
Supported:
Yes
Resolution:
Large
Camera Quality Setting:
5
Frames per second (fps):
1
Switching Time:
N/A
URL with user name and password:
http://<username>:<password>@<IP address>/-wvhttp-01-/GetOneShot?frame_count=0
URL without username and password
http://<IP address>/-wvhttp-01-/GetOneShot?frame_count=0
URL Example
http://root:[email protected]/-wvhttp-01-/GetOneShot?frame_count=0
H.264
Supported
No
Resolution:
N/A
Max Bandwidth
Frames per second (fps):
N/A
Switching Time
I-Frame Setting
N/A
URL with user name password:
N/A
URL without user name password:
N/A
URL Multicast:
URL Example
N/A
Page 1 of 4
N/A
Canon
VB-C300
TPMC-V12/15, DGE-2. TPMC-8X-GA
MJPEG
Supported:
Yes
Resolution:
640x480
Camera Quality Setting:
5
Frames per second (fps):
N/A
Switching Time:
N/A
URL with user name and password:
http://root:[email protected]<IpAddress>/-wvhttp-01-/GetOneShot?frame_count=0
URL without username and password
N/A
URL Example
http://root:[email protected]/-wvhttp-01-/GetOneShot?frame_count=0
H.264
Supported
No
Resolution:
N/A
Max Bandwidth
Frames per second (fps):
N/A
Switching Time
I-Frame Setting
N/A
URL with user name password:
N/A
URL without user name password:
N/A
URL Multicast:
N/A
URL Example
N/A
Page 2 of 4
N/A
Canon
VB-C300
TPMC-4SM
MJPEG
Supported:
No
Resolution:
N/A
Camera Quality Setting:
N/A
Frames per second (fps):
N/A
Switching Time:
N/A
URL with user name and password:
N/A
URL without username and password
N/A
URL Example
N/A
H.264
Supported
No
Resolution:
N/A
Max Bandwidth
Frames per second (fps):
N/A
Switching Time
I-Frame Setting
N/A
URL with user name password:
N/A
URL without user name password:
N/A
URL Multicast:
N/A
URL Example
N/A
Page 3 of 4
N/A
Canon
VB-C300
Crestron App
MJPEG
Supported:
Yes
Resolution:
640x480
Camera Quality Setting:
1
Frames per second (fps):
N/A
Switching Time:
2-4 sec
URL with user name and password:
http://root:[email protected]<IPAddress>/-wvhttp-01-/GetOneShot?frame_count=0
URL without username and password
N/A
URL Example
http://root:[email protected]/-wvhttp-01-/GetOneShot?frame_count=0
H.264
Supported
No
Resolution:
N/A
Max Bandwidth
N/A
Frames per second (fps):
N/A
Switching Time
N/A
I-Frame Setting
N/A
URL with user name password:
N/A
URL without user name password:
N/A
URL Multicast:
N/A
URL Example
N/A
Page 4 of 4
