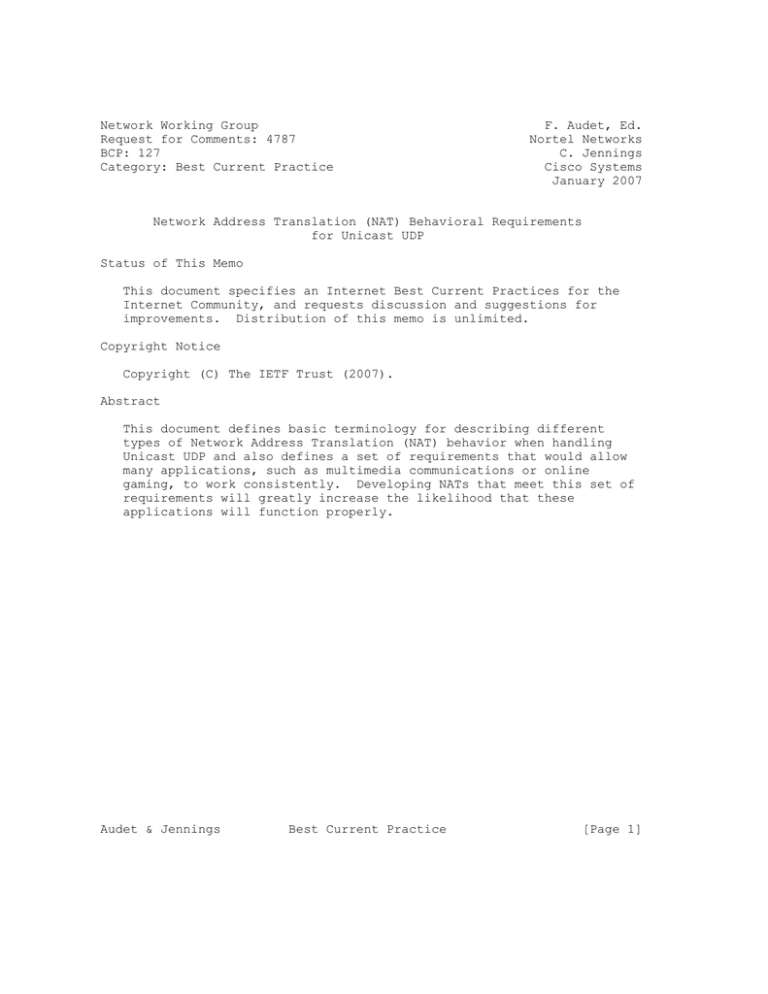

Network Working Group F. Audet, Ed.

Request for Comments: 4787 Nortel Networks

BCP: 127 C. Jennings

Category: Best Current Practice Cisco Systems

January 2007

Network Address Translation (NAT) Behavioral Requirements

for Unicast UDP

Status of This Memo

This document specifies an Internet Best Current Practices for the

Internet Community, and requests discussion and suggestions for

improvements. Distribution of this memo is unlimited.

Copyright Notice

Copyright (C) The IETF Trust (2007).

Abstract

This document defines basic terminology for describing different

types of Network Address Translation (NAT) behavior when handling

Unicast UDP and also defines a set of requirements that would allow

many applications, such as multimedia communications or online

gaming, to work consistently. Developing NATs that meet this set of

requirements will greatly increase the likelihood that these

applications will function properly.

Audet & Jennings Best Current Practice [Page 1]

RFC 4787 NAT UDP Unicast Requirements January 2007

Table of Contents

1. Applicability Statement . . . . . . . . . . . . . . . . . . . 3

2. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 3

3. Terminology . . . . . . . . . . . . . . . . . . . . . . . . . 4

4. Network Address and Port Translation Behavior . . . . . . . . 5

4.1. Address and Port Mapping . . . . . . . . . . . . . . . . . 5

4.2. Port Assignment . . . . . . . . . . . . . . . . . . . . . 9

4.2.1. Port Assignment Behavior . . . . . . . . . . . . . . . 9

4.2.2. Port Parity . . . . . . . . . . . . . . . . . . . . . 11

4.2.3. Port Contiguity . . . . . . . . . . . . . . . . . . . 11

4.3. Mapping Refresh . . . . . . . . . . . . . . . . . . . . . 12

4.4. Conflicting Internal and External IP Address Spaces . . . 13

5. Filtering Behavior . . . . . . . . . . . . . . . . . . . . . . 15

6. Hairpinning Behavior . . . . . . . . . . . . . . . . . . . . . 16

7. Application Level Gateways . . . . . . . . . . . . . . . . . . 17

8. Deterministic Properties . . . . . . . . . . . . . . . . . . . 18

9. ICMP Destination Unreachable Behavior . . . . . . . . . . . . 19

10. Fragmentation of Outgoing Packets . . . . . . . . . . . . . . 20

11. Receiving Fragmented Packets . . . . . . . . . . . . . . . . . 20

12. Requirements . . . . . . . . . . . . . . . . . . . . . . . . . 21

13. Security Considerations . . . . . . . . . . . . . . . . . . . 24

14. IAB Considerations . . . . . . . . . . . . . . . . . . . . . . 25

15. Acknowledgments . . . . . . . . . . . . . . . . . . . . . . . 26

16. References . . . . . . . . . . . . . . . . . . . . . . . . . . 26

16.1. Normative References . . . . . . . . . . . . . . . . . . . 26

16.2. Informative References . . . . . . . . . . . . . . . . . . 26

Audet & Jennings Best Current Practice [Page 2]

RFC 4787 NAT UDP Unicast Requirements January 2007

1. Applicability Statement

The purpose of this specification is to define a set of requirements

for NATs that would allow many applications, such as multimedia

communications or online gaming, to work consistently. Developing

NATs that meet this set of requirements will greatly increase the

likelihood that these applications will function properly.

The requirements of this specification apply to Traditional NATs as

described in [RFC2663].

This document is meant to cover NATs of any size, from small

residential NATs to large Enterprise NATs. However, it should be

understood that Enterprise NATs normally provide much more than just

NAT capabilities; for example, they typically provide firewall

functionalities. A comprehensive description of firewall behaviors

and associated requirements is specifically out-of-scope for this

specification. However, this specification does cover basic firewall

aspects present in NATs (see Section 5).

Approaches using directly signaled control of middle boxes are out of

scope.

UDP Relays (e.g., Traversal Using Relay NAT [TURN]) are out of scope.

Application aspects are out of scope, as the focus here is strictly

on the NAT itself.

This document only covers aspects of NAT traversal related to Unicast

UDP [RFC0768] over IP [RFC0791] and their dependencies on other

protocols.

2. Introduction

Network Address Translators (NATs) are well known to cause very

significant problems with applications that carry IP addresses in the

payload (see [RFC3027]). Applications that suffer from this problem

include Voice Over IP and Multimedia Over IP (e.g., SIP [RFC3261] and

H.323 [ITU.H323]), as well as online gaming.

Many techniques are used to attempt to make realtime multimedia

applications, online games, and other applications work across NATs.

Application Level Gateways [RFC2663] are one such mechanism. STUN

[RFC3489bis] describes a UNilateral Self-Address Fixing (UNSAF)

mechanism [RFC3424]. Teredo [RFC4380] describes an UNSAF mechanism

consisting of tunnelling IPv6 [RFC2460] over UDP/IPv4. UDP Relays

have also been used to enable applications across NATs, but these are

generally seen as a solution of last resort. Interactive

Audet & Jennings Best Current Practice [Page 3]

RFC 4787 NAT UDP Unicast Requirements January 2007

Connectivity Establishment [ICE] describes a methodology for using

many of these techniques and avoiding a UDP relay, unless the type of

NAT is such that it forces the use of such a UDP relay. This

specification defines requirements for improving NATs. Meeting these

requirements ensures that applications will not be forced to use UDP

relay.

As pointed out in UNSAF [RFC3424], "From observations of deployed

networks, it is clear that different NAT box implementations vary

widely in terms of how they handle different traffic and addressing

cases". This wide degree of variability is one factor in the overall

brittleness introduced by NATs and makes it extremely difficult to

predict how any given protocol will behave on a network traversing

NAT. Discussions with many of the major NAT vendors have made it

clear that they would prefer to deploy NATs that were deterministic

and caused the least harm to applications while still meeting the

requirements that caused their customers to deploy NATs in the first

place. The problem NAT vendors face is that they are not sure how

best to do that or how to document their NATs’ behavior.

The goals of this document are to define a set of common terminology

for describing the behavior of NATs and to produce a set of

requirements on a specific set of behaviors for NATs.

This document forms a common set of requirements that are simple and

useful for voice, video, and games, which can be implemented by NAT

vendors. This document will simplify the analysis of protocols for

deciding whether or not they work in this environment and will allow

providers of services that have NAT traversal issues to make

statements about where their applications will work and where they

will not, as well as to specify their own NAT requirements.

3. Terminology

The key words "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT",

"SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in this

document are to be interpreted as described in [RFC2119].

Readers are urged to refer to [RFC2663] for information on NAT

taxonomy and terminology. Traditional NAT is the most common type of

NAT device deployed. Readers may refer to [RFC3022] for detailed

information on traditional NAT. Traditional NAT has two main

varieties -- Basic NAT and Network Address/Port Translator (NAPT).

NAPT is by far the most commonly deployed NAT device. NAPT allows

multiple internal hosts to share a single public IP address

simultaneously. When an internal host opens an outgoing TCP or UDP

session through a NAPT, the NAPT assigns the session a public IP

Audet & Jennings Best Current Practice [Page 4]

RFC 4787 NAT UDP Unicast Requirements January 2007

address and port number, so that subsequent response packets from the

external endpoint can be received by the NAPT, translated, and

forwarded to the internal host. The effect is that the NAPT

establishes a NAT session to translate the (private IP address,

private port number) tuple to a (public IP address, public port

number) tuple, and vice versa, for the duration of the session. An

issue of relevance to peer-to-peer applications is how the NAT

behaves when an internal host initiates multiple simultaneous

sessions from a single (private IP, private port) endpoint to

multiple distinct endpoints on the external network. In this

specification, the term "NAT" refers to both "Basic NAT" and "Network

Address/Port Translator (NAPT)".

This document uses the term "session" as defined in RFC 2663: "TCP/

UDP sessions are uniquely identified by the tuple of (source IP

address, source TCP/UDP ports, target IP address, target TCP/UDP

Port)".

This document uses the term "address and port mapping" as the

translation between an external address and port and an internal

address and port. Note that this is not the same as an "address

binding" as defined in RFC 2663.

This document uses IANA terminology for port ranges, i.e., "Well

Known Ports" is 0-1023, "Registered" is 1024-49151, and "Dynamic

and/or Private" is 49152-65535, as defined in

http://www.iana.org/assignments/port-numbers.

STUN [RFC3489] used the terms "Full Cone", "Restricted Cone", "Port

Restricted Cone", and "Symmetric" to refer to different variations of

NATs applicable to UDP only. Unfortunately, this terminology has

been the source of much confusion, as it has proven inadequate at

describing real-life NAT behavior. This specification therefore

refers to specific individual NAT behaviors instead of using the

Cone/Symmetric terminology.

4. Network Address and Port Translation Behavior

This section describes the various NAT behaviors applicable to NATs.

4.1. Address and Port Mapping

When an internal endpoint opens an outgoing session through a NAT,

the NAT assigns the session an external IP address and port number so

that subsequent response packets from the external endpoint can be

received by the NAT, translated, and forwarded to the internal

endpoint. This is a mapping between an internal IP address and port

IP:port and external IP:port tuple. It establishes the translation

Audet & Jennings Best Current Practice [Page 5]

RFC 4787 NAT UDP Unicast Requirements January 2007

that will be performed by the NAT for the duration of the session.

For many applications, it is important to distinguish the behavior of

the NAT when there are multiple simultaneous sessions established to

different external endpoints.

The key behavior to describe is the criteria for reuse of a mapping

for new sessions to external endpoints, after establishing a first

mapping between an internal X:x address and port and an external

Y1:y1 address tuple. Let’s assume that the internal IP address and

port X:x are mapped to X1’:x1’ for this first session. The endpoint

then sends from X:x to an external address Y2:y2 and gets a mapping

of X2’:x2’ on the NAT. The relationship between X1’:x1’ and X2’:x2’

for various combinations of the relationship between Y1:y1 and Y2:y2

is critical for describing the NAT behavior. This arrangement is

illustrated in the following diagram:

E

+------+ +------+ x

| Y1 | | Y2 | t

+--+---+ +---+--+ e

| Y1:y1 Y2:y2 | r

+----------+ +----------+ n

| | a

X1’:x1’ | | X2’:x2’ l

+--+---+-+

...........| NAT |...............

+--+---+-+ I

| | n

X:x | | X:x t

++---++ e

| X | r

+-----+ n

a

l

Address and Port Mapping

The following address and port mapping behavior are defined:

Endpoint-Independent Mapping:

The NAT reuses the port mapping for subsequent packets sent

from the same internal IP address and port (X:x) to any

external IP address and port. Specifically, X1’:x1’ equals

X2’:x2’ for all values of Y2:y2.

Audet & Jennings Best Current Practice [Page 6]

RFC 4787 NAT UDP Unicast Requirements January 2007

Address-Dependent Mapping:

The NAT reuses the port mapping for subsequent packets sent

from the same internal IP address and port (X:x) to the same

external IP address, regardless of the external port.

Specifically, X1’:x1’ equals X2’:x2’ if and only if, Y2 equals

Y1.

Address and Port-Dependent Mapping:

The NAT reuses the port mapping for subsequent packets sent

from the same internal IP address and port (X:x) to the same

external IP address and port while the mapping is still active.

Specifically, X1’:x1’ equals X2’:x2’ if and only if, Y2:y2

equals Y1:y1.

It is important to note that these three possible choices make no

difference to the security properties of the NAT. The security

properties are fully determined by which packets the NAT allows in

and which it does not. This is determined by the filtering behavior

in the filtering portions of the NAT.

REQ-1: A NAT MUST have an "Endpoint-Independent Mapping" behavior.

Justification: In order for UNSAF methods to work, REQ-1 needs to be

met. Failure to meet REQ-1 will force the use of a UDP relay,

which is very often impractical.

Some NATs are capable of assigning IP addresses from a pool of IP

addresses on the external side of the NAT, as opposed to just a

single IP address. This is especially common with larger NATs. Some

NATs use the external IP address mapping in an arbitrary fashion

(i.e., randomly): one internal IP address could have multiple

external IP address mappings active at the same time for different

sessions. These NATs have an "IP address pooling" behavior of

"Arbitrary". Some large Enterprise NATs use an IP address pooling

behavior of "Arbitrary" as a means of hiding the IP address assigned

to specific endpoints by making their assignment less predictable.

Other NATs use the same external IP address mapping for all sessions

associated with the same internal IP address. These NATs have an "IP

address pooling" behavior of "Paired". NATs that use an "IP address

pooling" behavior of "Arbitrary" can cause issues for applications

that use multiple ports from the same endpoint, but that do not

negotiate IP addresses individually (e.g., some applications using

RTP and RTCP).

Audet & Jennings Best Current Practice [Page 7]

RFC 4787 NAT UDP Unicast Requirements January 2007

REQ-2: It is RECOMMENDED that a NAT have an "IP address pooling"

behavior of "Paired". Note that this requirement is not

applicable to NATs that do not support IP address pooling.

Justification: This will allow applications that use multiple ports

originating from the same internal IP address to also have the

same external IP address. This is to avoid breaking peer-to-peer

applications that are not capable of negotiating the IP address

for RTP and the IP address for RTCP separately. As such it is

envisioned that this requirement will become less important as

applications become NAT-friendlier with time. The main reason why

this requirement is here is that in a peer-to-peer application,

you are subject to the other peer’s mistake. In particular, in

the context of SIP, if my application supports the extensions

defined in [RFC3605] for indicating RTP and RTCP addresses and

ports separately, but the other peer does not, there may still be

breakage in the form of the stream losing RTCP packets. This

requirement will avoid the loss of RTP in this context, although

the loss of RTCP may be inevitable in this particular example. It

is also worth noting that RFC 3605 is unfortunately not a

mandatory part of SIP [RFC3261]. Therefore, this requirement will

address a particularly nasty problem that will prevail for a

significant period of time.

Audet & Jennings Best Current Practice [Page 8]

RFC 4787 NAT UDP Unicast Requirements January 2007

4.2. Port Assignment

4.2.1. Port Assignment Behavior

This section uses the following diagram for reference.

E

+-------+ +-------+ x

| Y1 | | Y2 | t

+---+---+ +---+---+ e

| Y1:y1 Y2:y2 | r

+---------+ +---------+ n

| | a

X1’:x1’ | | X2’:x2’ l

+--+---+--+

...........| NAT |...............

+--+---+--+ I

| | n

+---------+ +---------+ t

| X1:x1 X2:x2 | e

+---+---+ +---+---+ r

| X1 | | X2 | n

+-------+ +-------+ a

l

Port Assignment

Some NATs attempt to preserve the port number used internally when

assigning a mapping to an external IP address and port (e.g., x1=x1’,

x2=x2’). This port assignment behavior is referred to as "port

preservation". In case of port collision, these NATs attempt a

variety of techniques for coping. For example, some NATs will

overridden the previous mapping to preserve the same port. Other

NATs will assign a different IP address from a pool of external IP

addresses; this is only possible as long as the NAT has enough

external IP addresses; if the port is already in use on all available

external IP addresses, then these NATs will pick a different port

(i.e., they don’t do port preservation anymore).

Some NATs use "Port overloading", i.e., they always use port

preservation even in the case of collision (i.e., X1’=X2’ and

x1=x2=x1’=x2’). Most applications will fail if the NAT uses "Port

overloading".

A NAT that does not attempt to make the external port numbers match

the internal port numbers in any case is referred to as "no port

preservation".

Audet & Jennings Best Current Practice [Page 9]

RFC 4787 NAT UDP Unicast Requirements January 2007

When NATs do allocate a new source port, there is the issue of which

IANA-defined range of port to choose. The ranges are "well-known"

from 0 to 1023, "registered" from 1024 to 49151, and "dynamic/

private" from 49152 through 65535. For most protocols, these are

destination ports and not source ports, so mapping a source port to a

source port that is already registered is unlikely to have any bad

effects. Some NATs may choose to use only the ports in the dynamic

range; the only downside of this practice is that it limits the

number of ports available. Other NAT devices may use everything but

the well-known range and may prefer to use the dynamic range first,

or possibly avoid the actual registered ports in the registered

range. Other NATs preserve the port range if it is in the well-known

range. [RFC0768] specifies that the source port is set to zero if no

reply packets are expected. In this case, it does not matter what

the NAT maps it to, as the source port will not be used. However,

many common OS APIs do not allow a user to send from port zero,

applications do not use port zero, and the behavior of various

existing NATs with regards to a packet with a source of port zero is

unknown. This document does not specify any normative behavior for a

NAT when handling a packet with a source port of zero which means

that applications cannot count on any sort of deterministic behavior

for these packets.

REQ-3: A NAT MUST NOT have a "Port assignment" behavior of "Port

overloading".

a) If the host’s source port was in the range 0-1023, it is

RECOMMENDED the NAT’s source port be in the same range. If the

host’s source port was in the range 1024-65535, it is

RECOMMENDED that the NAT’s source port be in that range.

Justification: This requirement must be met in order to enable two

applications on the internal side of the NAT both to use the same

port to try to communicate with the same destination. NATs that

implement port preservation have to deal with conflicts on ports,

and the multiple code paths this introduces often result in

nondeterministic behavior. However, it should be understood that

when a port is randomly assigned, it may just randomly happen to

be assigned the same port. Applications must, therefore, be able

to deal with both port preservation and no port preservation.

a) Certain applications expect the source UDP port to be in the

well-known range. See the discussion of Network File System

port expectations in [RFC2623] for an example.

Audet & Jennings Best Current Practice [Page 10]

RFC 4787 NAT UDP Unicast Requirements January 2007

4.2.2. Port Parity

Some NATs preserve the parity of the UDP port, i.e., an even port

will be mapped to an even port, and an odd port will be mapped to an

odd port. This behavior respects the [RFC3550] rule that RTP use

even ports, and RTCP use odd ports. RFC 3550 allows any port numbers

to be used for RTP and RTCP if the two numbers are specified

separately; for example, using [RFC3605]. However, some

implementations do not include RFC 3605, and do not recognize when

the peer has specified the RTCP port separately using RFC 3605. If

such an implementation receives an odd RTP port number from the peer

(perhaps after having been translated by a NAT), and then follows the

RFC 3550 rule to change the RTP port to the next lower even number,

this would obviously result in the loss of RTP. NAT-friendly

application aspects are outside the scope of this document. It is

expected that this issue will fade away with time, as implementations

improve. Preserving the port parity allows for supporting

communication with peers that do not support explicit specification

of both RTP and RTCP port numbers.

REQ-4: It is RECOMMENDED that a NAT have a "Port parity

preservation" behavior of "Yes".

Justification: This is to avoid breaking peer-to-peer applications

that do not explicitly and separately specify RTP and RTCP port

numbers and that follow the RFC 3550 rule to decrement an odd RTP

port to make it even. The same considerations apply, as per the

IP address pooling requirement.

4.2.3. Port Contiguity

Some NATs attempt to preserve the port contiguity rule of RTCP=RTP+1.

These NATs do things like sequential assignment or port reservation.

Sequential port assignment assumes that the application will open a

mapping for RTP first and then open a mapping for RTCP. It is not

practical to enforce this requirement on all applications.

Furthermore, there is a problem with glare if many applications (or

endpoints) are trying to open mappings simultaneously. Port

preservation is also problematic since it is wasteful, especially

considering that a NAT cannot reliably distinguish between RTP over

UDP and other UDP packets where there is no contiguity rule. For

those reasons, it would be too complex to attempt to preserve the

contiguity rule by suggesting specific NAT behavior, and it would

certainly break the deterministic behavior rule.

In order to support both RTP and RTCP, it will therefore be necessary

that applications follow rules to negotiate RTP and RTCP separately,

and account for the very real possibility that the RTCP=RTP+1 rule

Audet & Jennings Best Current Practice [Page 11]

RFC 4787 NAT UDP Unicast Requirements January 2007

will be broken. As this is an application requirement, it is outside

the scope of this document.

4.3. Mapping Refresh

NAT mapping timeout implementations vary, but include the timer’s

value and the way the mapping timer is refreshed to keep the mapping

alive.

The mapping timer is defined as the time a mapping will stay active

without packets traversing the NAT. There is great variation in the

values used by different NATs.

REQ-5: A NAT UDP mapping timer MUST NOT expire in less than two

minutes, unless REQ-5a applies.

a) For specific destination ports in the well-known port range

(ports 0-1023), a NAT MAY have shorter UDP mapping timers that

are specific to the IANA-registered application running over

that specific destination port.

b) The value of the NAT UDP mapping timer MAY be configurable.

c) A default value of five minutes or more for the NAT UDP mapping

timer is RECOMMENDED.

Justification: This requirement is to ensure that the timeout is

long enough to avoid too-frequent timer refresh packets.

a) Some UDP protocols using UDP use very short-lived connections.

There can be very many such connections; keeping them all in a

connections table could cause considerable load on the NAT.

Having shorter timers for these specific applications is,

therefore, an optimization technique. It is important that the

shorter timers applied to specific protocols be used sparingly,

and only for protocols using well-known destination ports that

are known to have a shorter timer, and that are known not to be

used by any applications for other purposes.

b) Configuration is desirable for adapting to specific networks

and troubleshooting.

c) This default is to avoid too-frequent timer refresh packets.

Some NATs keep the mapping active (i.e., refresh the timer value)

when a packet goes from the internal side of the NAT to the external

side of the NAT. This is referred to as having a NAT Outbound

refresh behavior of "True".

Audet & Jennings Best Current Practice [Page 12]

RFC 4787 NAT UDP Unicast Requirements January 2007

Some NATs keep the mapping active when a packet goes from the

external side of the NAT to the internal side of the NAT. This is

referred to as having a NAT Inbound Refresh Behavior of "True".

Some NATs keep the mapping active on both, in which case, both

properties are "True".

REQ-6: The NAT mapping Refresh Direction MUST have a "NAT Outbound

refresh behavior" of "True".

a) The NAT mapping Refresh Direction MAY have a "NAT Inbound

refresh behavior" of "True".

Justification: Outbound refresh is necessary for allowing the client

to keep the mapping alive.

a) Inbound refresh may be useful for applications with no outgoing

UDP traffic. However, allowing inbound refresh may allow an

external attacker or misbehaving application to keep a mapping

alive indefinitely. This may be a security risk. Also, if the

process is repeated with different ports, over time, it could

use up all the ports on the NAT.

4.4. Conflicting Internal and External IP Address Spaces

Many NATs, particularly consumer-level devices designed to be

deployed by nontechnical users, routinely obtain their external IP

address, default router, and other IP configuration information for

their external interface dynamically from an external network, such

as an upstream ISP. The NAT, in turn, automatically sets up its own

internal subnet in one of the private IP address spaces assigned to

this purpose in [RFC1918], typically providing dynamic IP

configuration services for hosts on this internal network.

Auto-configuration of NATs and private networks can be problematic,

however, if the NAT’s external network is also in RFC 1918 private

address space. In a common scenario, an ISP places its customers

behind a NAT and hands out private RFC 1918 addresses to them. Some

of these customers, in turn, deploy consumer-level NATs, which, in

effect, act as "second-level" NATs, multiplexing their own private

RFC 1918 IP subnets onto the single RFC 1918 IP address provided by

the ISP. There is no inherent guarantee, in this case, that the

ISP’s "intermediate" privately-addressed network and the customer’s

internal privately-addressed network will not use numerically

identical or overlapping RFC 1918 IP subnets. Furthermore, customers

of consumer-level NATs cannot be expected to have the technical

Audet & Jennings Best Current Practice [Page 13]

RFC 4787 NAT UDP Unicast Requirements January 2007

knowledge to prevent this scenario from occurring by manually

configuring their internal network with non-conflicting RFC 1918

subnets.

NAT vendors need to design their NATs to ensure that they function

correctly and robustly even in such problematic scenarios. One

possible solution is for the NAT to ensure that whenever its external

link is configured with an RFC 1918 private IP address, the NAT

automatically selects a different, non-conflicting RFC 1918 IP subnet

for its internal network. A disadvantage of this solution is that,

if the NAT’s external interface is dynamically configured or re-

configured after its internal network is already in use, then the NAT

may have to renumber its entire internal network dynamically if it

detects a conflict.

An alternative solution is for the NAT to be designed so that it can

translate and forward traffic correctly, even when its external and

internal interfaces are configured with numerically overlapping IP

subnets. In this scenario, for example, if the NAT’s external

interface has been assigned an IP address P in RFC 1918 space, then

there might also be an internal node I having the same RFC 1918

private IP address P. An IP packet with destination address P on the

external network is directed at the NAT, whereas an IP packet with

the same destination address P on the internal network is directed at

node I. The NAT therefore needs to maintain a clear operational

distinction between "external IP addresses" and "internal IP

addresses" to avoid confusing internal node I with its own external

interface. In general, the NAT needs to allow all internal nodes

(including I) to communicate with all external nodes having public

(non-RFC 1918) IP addresses, or having private IP addresses that do

not conflict with the addresses used by its internal network.

REQ-7: A NAT device whose external IP interface can be configured

dynamically MUST either (1) automatically ensure that its internal

network uses IP addresses that do not conflict with its external

network, or (2) be able to translate and forward traffic between

all internal nodes and all external nodes whose IP addresses

numerically conflict with the internal network.

Justification: If a NAT’s external and internal interfaces are

configured with overlapping IP subnets, then there is, of course,

no way for an internal host with RFC 1918 IP address Q to initiate

a direct communication session to an external node having the same

RFC 1918 address Q, or to other external nodes with IP addresses

that numerically conflict with the internal subnet. Such nodes

can still open communication sessions indirectly via NAT traversal

techniques, however, with the help of a third-party server, such

as a STUN server having a public, non-RFC 1918 IP address. In

Audet & Jennings Best Current Practice [Page 14]

RFC 4787 NAT UDP Unicast Requirements January 2007

this case, nodes with conflicting private RFC 1918 addresses on

opposite sides of the second-level NAT can communicate with each

other via their respective temporary public endpoints on the main

Internet, as long as their common, first-level NAT (e.g., the

upstream ISP’s NAT) supports hairpinning behavior, as described in

Section 6.

5. Filtering Behavior

This section describes various filtering behaviors observed in NATs.

When an internal endpoint opens an outgoing session through a NAT,

the NAT assigns a filtering rule for the mapping between an internal

IP:port (X:x) and external IP:port (Y:y) tuple.

The key behavior to describe is what criteria are used by the NAT to

filter packets originating from specific external endpoints.

Endpoint-Independent Filtering:

The NAT filters out only packets not destined to the internal

address and port X:x, regardless of the external IP address and

port source (Z:z). The NAT forwards any packets destined to

X:x. In other words, sending packets from the internal side of

the NAT to any external IP address is sufficient to allow any

packets back to the internal endpoint.

Address-Dependent Filtering:

The NAT filters out packets not destined to the internal

address X:x. Additionally, the NAT will filter out packets

from Y:y destined for the internal endpoint X:x if X:x has not

sent packets to Y:any previously (independently of the port

used by Y). In other words, for receiving packets from a

specific external endpoint, it is necessary for the internal

endpoint to send packets first to that specific external

endpoint’s IP address.

Address and Port-Dependent Filtering:

This is similar to the previous behavior, except that the

external port is also relevant. The NAT filters out packets

not destined for the internal address X:x. Additionally, the

NAT will filter out packets from Y:y destined for the internal

endpoint X:x if X:x has not sent packets to Y:y previously. In

other words, for receiving packets from a specific external

endpoint, it is necessary for the internal endpoint to send

packets first to that external endpoint’s IP address and port.

Audet & Jennings Best Current Practice [Page 15]

RFC 4787 NAT UDP Unicast Requirements January 2007

REQ-8: If application transparency is most important, it is

RECOMMENDED that a NAT have an "Endpoint-Independent Filtering"

behavior. If a more stringent filtering behavior is most

important, it is RECOMMENDED that a NAT have an "Address-Dependent

Filtering" behavior.

a) The filtering behavior MAY be an option configurable by the

administrator of the NAT.

Justification: The recommendation to use Endpoint-Independent

Filtering is aimed at maximizing application transparency; in

particular, for applications that receive media simultaneously

from multiple locations (e.g., gaming), or applications that use

rendezvous techniques. However, it is also possible that, in some

circumstances, it may be preferable to have a more stringent

filtering behavior. Filtering independently of the external

endpoint is not as secure: An unauthorized packet could get

through a specific port while the port was kept open if it was

lucky enough to find the port open. In theory, filtering based on

both IP address and port is more secure than filtering based only

on the IP address (because the external endpoint could, in

reality, be two endpoints behind another NAT, where one of the two

endpoints is an attacker). However, such a policy could interfere

with applications that expect to receive UDP packets on more than

one UDP port. Using Endpoint-Independent Filtering or Address-

Dependent Filtering instead of Address and Port-Dependent

Filtering on a NAT (say, NAT-A) also has benefits when the other

endpoint is behind a non-BEHAVE compliant NAT (say, NAT-B) that

does not support REQ-1. When the endpoints use ICE, if NAT-A uses

Address and Port-Dependent Filtering, connectivity will require a

UDP relay. However, if NAT-A uses Endpoint-Independent Filtering

or Address-Dependent Filtering, ICE will ultimately find

connectivity without requiring a UDP relay. Having the filtering

behavior being an option configurable by the administrator of the

NAT ensures that a NAT can be used in the widest variety of

deployment scenarios.

6. Hairpinning Behavior

If two hosts (called X1 and X2) are behind the same NAT and

exchanging traffic, the NAT may allocate an address on the outside of

the NAT for X2, called X2’:x2’. If X1 sends traffic to X2’:x2’, it

goes to the NAT, which must relay the traffic from X1 to X2. This is

referred to as hairpinning and is illustrated below.

Audet & Jennings Best Current Practice [Page 16]

RFC 4787 NAT UDP Unicast Requirements January 2007

NAT

+----+ from X1:x1 to X2’:x2’ +-----+ X1’:x1’

| X1 |>>>>>>>>>>>>>>>>>>>>>>>>>>>>>--+---

+----+ | v |

| v |

| v |

| v |

+----+ from X1’:x1’ to X2:x2 | v | X2’:x2’

| X2 |<<<<<<<<<<<<<<<<<<<<<<<<<<<<<--+---

+----+ +-----+

Hairpinning Behavior

Hairpinning allows two endpoints on the internal side of the NAT to

communicate even if they only use each other’s external IP addresses

and ports.

More formally, a NAT that supports hairpinning forwards packets

originating from an internal address, X1:x1, destined for an external

address X2’:x2’ that has an active mapping to an internal address

X2:x2, back to that internal address, X2:x2. Note that typically X1’

is the same as X2’.

Furthermore, the NAT may present the hairpinned packet with either an

internal (X1:x1) or an external (X1’:x1’) source IP address and port.

Therefore, the hairpinning NAT behavior can be either "External

source IP address and port" or "Internal source IP address and port".

"Internal source IP address and port" may cause problems by confusing

implementations that expect an external IP address and port.

REQ-9: A NAT MUST support "Hairpinning".

a) A NAT Hairpinning behavior MUST be "External source IP address

and port".

Justification: This requirement is to allow communications between

two endpoints behind the same NAT when they are trying each

other’s external IP addresses.

a) Using the external source IP address is necessary for

applications with a restrictive policy of not accepting packets

from IP addresses that differ from what is expected.

7. Application Level Gateways

Certain NATs have implemented Application Level Gateways (ALGs) for

various protocols, including protocols for negotiating peer-to-peer

sessions, such as SIP.

Audet & Jennings Best Current Practice [Page 17]

RFC 4787 NAT UDP Unicast Requirements January 2007

Certain NATs have these ALGs turned on permanently, others have them

turned on by default but allow them to be turned off, and others have

them turned off by default but allow them be turned on.

NAT ALGs may interfere with UNSAF methods or protocols that try to be

NAT-aware and therefore must be used with extreme caution.

REQ-10: To eliminate interference with UNSAF NAT traversal

mechanisms and allow integrity protection of UDP communications,

NAT ALGs for UDP-based protocols SHOULD be turned off. Future

standards track specifications that define ALGs can update this to

recommend the defaults for the ALGs that they define.

a) If a NAT includes ALGs, it is RECOMMENDED that the NAT allow

the NAT administrator to enable or disable each ALG separately.

Justification: NAT ALGs may interfere with UNSAF methods.

a) This requirement allows the user to enable those ALGs that are

necessary to aid in the operation of some applications without

enabling ALGs, which interfere with the operation of other

applications.

8. Deterministic Properties

The classification of NATs is further complicated by the fact that,

under some conditions, the same NAT will exhibit different behaviors.

This has been seen on NATs that preserve ports or have specific

algorithms for selecting a port other than a free one. If the

external port that the NAT wishes to use is already in use by another

session, the NAT must select a different port. This results in

different code paths for this conflict case, which results in

different behavior.

For example, if three hosts X1, X2, and X3 all send from the same

port x, through a port preserving NAT with only one external IP

address, called X1’, the first one to send (i.e., X1) will get an

external port of x, but the next two will get x2’ and x3’ (where

these are not equal to x). There are NATs where the External NAT

mapping characteristics and the External Filter characteristics

change between the X1:x and the X2:x mapping. To make matters worse,

there are NATs where the behavior may be the same on the X1:x and

X2:x mappings, but different on the third X3:x mapping.

Another example is that some NATs have an "Endpoint-Independent

Mapping", combined with "Port Overloading", as long as two endpoints

are not establishing sessions to the same external direction, but

then switch their behavior to "Address and Port-Dependent Mapping"

Audet & Jennings Best Current Practice [Page 18]

RFC 4787 NAT UDP Unicast Requirements January 2007

without "Port Preservation" upon detection of these conflicting

sessions establishments.

Any NAT that changes the NAT Mapping or the Filtering behavior

without configuration changes, at any point in time, under any

particular conditions, is referred to as a "non-deterministic" NAT.

NATs that don’t are called "deterministic".

Non-deterministic NATs generally change behavior when a conflict of

some sort happens, i.e., when the port that would normally be used is

already in use by another mapping. The NAT mapping and External

Filtering in the absence of conflict is referred to as the Primary

behavior. The behavior after the first conflict is referred to as

Secondary and after the second conflict is referred to as Tertiary.

No NATs have been observed that change on further conflicts, but it

is certainly possible that they exist.

REQ-11: A NAT MUST have deterministic behavior, i.e., it MUST NOT

change the NAT translation (Section 4) or the Filtering

(Section 5) Behavior at any point in time, or under any particular

conditions.

Justification: Non-deterministic NATs are very difficult to

troubleshoot because they require more intensive testing. This

non-deterministic behavior is the root cause of much of the

uncertainty that NATs introduce about whether or not applications

will work.

9. ICMP Destination Unreachable Behavior

When a NAT sends a packet toward a host on the other side of the NAT,

an ICMP message may be sent in response to that packet. That ICMP

message may be sent by the destination host or by any router along

the network path. The NAT’s default configuration SHOULD NOT filter

ICMP messages based on their source IP address. Such ICMP messages

SHOULD be rewritten by the NAT (specifically, the IP headers and the

ICMP payload) and forwarded to the appropriate internal or external

host. The NAT needs to perform this function for as long as the UDP

mapping is active. Receipt of any sort of ICMP message MUST NOT

destroy the NAT mapping. A NAT that performs the functions described

in the paragraph above is referred to as "support ICMP Processing".

There is no significant security advantage to blocking ICMP

Destination Unreachable packets. Additionally, blocking ICMP

Destination Unreachable packets can interfere with application

failover, UDP Path MTU Discovery (see [RFC1191] and [RFC1435]), and

traceroute. Blocking any ICMP message is discouraged, and blocking

ICMP Destination Unreachable is strongly discouraged.

Audet & Jennings Best Current Practice [Page 19]

RFC 4787 NAT UDP Unicast Requirements January 2007

REQ-12: Receipt of any sort of ICMP message MUST NOT terminate the

NAT mapping.

a) The NAT’s default configuration SHOULD NOT filter ICMP messages

based on their source IP address.

b) It is RECOMMENDED that a NAT support ICMP Destination

Unreachable messages.

Justification: This is easy to do and is used for many things

including MTU discovery and rapid detection of error conditions,

and has no negative consequences.

10. Fragmentation of Outgoing Packets

When the MTU of the adjacent link is too small, fragmentation of

packets going from the internal side to the external side of the NAT

may occur. This can occur if the NAT is doing Point-to-Point over

Ethernet (PPPoE), or if the NAT has been configured with a small MTU

to reduce serialization delay when sending large packets and small

higher-priority packets, or for other reasons.

It is worth noting that many IP stacks do not use Path MTU Discovery

with UDP packets.

The packet could have its Don’t Fragment bit set to 1 (DF=1) or 0

(DF=0).

REQ-13: If the packet received on an internal IP address has DF=1,

the NAT MUST send back an ICMP message "Fragmentation needed and

DF set" to the host, as described in [RFC0792].

a) If the packet has DF=0, the NAT MUST fragment the packet and

SHOULD send the fragments in order.

Justification: This is as per RFC 792.

a) This is the same function a router performs in a similar

situation [RFC1812].

11. Receiving Fragmented Packets

For a variety of reasons, a NAT may receive a fragmented packet. The

IP packet containing the header could arrive in any fragment,

depending on network conditions, packet ordering, and the

implementation of the IP stack that generated the fragments.

Audet & Jennings Best Current Practice [Page 20]

RFC 4787 NAT UDP Unicast Requirements January 2007

A NAT that is capable only of receiving fragments in order (that is,

with the header in the first packet) and forwarding each of the

fragments to the internal host is described as "Received Fragments

Ordered".

A NAT that is capable of receiving fragments in or out of order and

forwarding the individual fragments (or a reassembled packet) to the

internal host is referred to as "Receive Fragments Out of Order".

See the Security Considerations section of this document for a

discussion of this behavior.

A NAT that is neither of these is referred to as "Receive Fragments

None".

REQ-14: A NAT MUST support receiving in-order and out-of-order

fragments, so it MUST have "Received Fragment Out of Order"

behavior.

a) A NAT’s out-of-order fragment processing mechanism MUST be

designed so that fragmentation-based DoS attacks do not

compromise the NAT’s ability to process in-order and

unfragmented IP packets.

Justification: See Security Considerations.

12. Requirements

The requirements in this section are aimed at minimizing the

complications caused by NATs to applications, such as realtime

communications and online gaming. The requirements listed earlier in

the document are consolidated here into a single section.

It should be understood, however, that applications normally do not

know in advance if the NAT conforms to the recommendations defined in

this section. Peer-to-peer media applications still need to use

normal procedures, such as ICE [ICE].

A NAT that supports all the mandatory requirements of this

specification (i.e., the "MUST"), is "compliant with this

specification". A NAT that supports all the requirements of this

specification (i.e., including the "RECOMMENDED") is "fully compliant

with all the mandatory and recommended requirements of this

specification".

Audet & Jennings Best Current Practice [Page 21]

RFC 4787 NAT UDP Unicast Requirements January 2007

REQ-1: A NAT MUST have an "Endpoint-Independent Mapping" behavior.

REQ-2: It is RECOMMENDED that a NAT have an "IP address pooling"

behavior of "Paired". Note that this requirement is not

applicable to NATs that do not support IP address pooling.

REQ-3: A NAT MUST NOT have a "Port assignment" behavior of "Port

overloading".

a) If the host’s source port was in the range 0-1023, it is

RECOMMENDED the NAT’s source port be in the same range. If the

host’s source port was in the range 1024-65535, it is

RECOMMENDED that the NAT’s source port be in that range.

REQ-4: It is RECOMMENDED that a NAT have a "Port parity

preservation" behavior of "Yes".

REQ-5: A NAT UDP mapping timer MUST NOT expire in less than two

minutes, unless REQ-5a applies.

a) For specific destination ports in the well-known port range

(ports 0-1023), a NAT MAY have shorter UDP mapping timers that

are specific to the IANA-registered application running over

that specific destination port.

b) The value of the NAT UDP mapping timer MAY be configurable.

c) A default value of five minutes or more for the NAT UDP mapping

timer is RECOMMENDED.

REQ-6: The NAT mapping Refresh Direction MUST have a "NAT Outbound

refresh behavior" of "True".

a) The NAT mapping Refresh Direction MAY have a "NAT Inbound

refresh behavior" of "True".

REQ-7 A NAT device whose external IP interface can be configured

dynamically MUST either (1) Automatically ensure that its internal

network uses IP addresses that do not conflict with its external

network, or (2) Be able to translate and forward traffic between

all internal nodes and all external nodes whose IP addresses

numerically conflict with the internal network.

REQ-8: If application transparency is most important, it is

RECOMMENDED that a NAT have "Endpoint-Independent Filtering"

behavior. If a more stringent filtering behavior is most

important, it is RECOMMENDED that a NAT have "Address-Dependent

Filtering" behavior.

Audet & Jennings Best Current Practice [Page 22]

RFC 4787 NAT UDP Unicast Requirements January 2007

a) The filtering behavior MAY be an option configurable by the

administrator of the NAT.

REQ-9: A NAT MUST support "Hairpinning".

a) A NAT Hairpinning behavior MUST be "External source IP address

and port".

REQ-10: To eliminate interference with UNSAF NAT traversal

mechanisms and allow integrity protection of UDP communications,

NAT ALGs for UDP-based protocols SHOULD be turned off. Future

standards track specifications that define an ALG can update this

to recommend the ALGs on which they define default.

a) If a NAT includes ALGs, it is RECOMMENDED that the NAT allow

the NAT administrator to enable or disable each ALG separately.

REQ-11: A NAT MUST have deterministic behavior, i.e., it MUST NOT

change the NAT translation (Section 4) or the Filtering

(Section 5) Behavior at any point in time, or under any particular

conditions.

REQ-12: Receipt of any sort of ICMP message MUST NOT terminate the

NAT mapping.

a) The NAT’s default configuration SHOULD NOT filter ICMP messages

based on their source IP address.

b) It is RECOMMENDED that a NAT support ICMP Destination

Unreachable messages.

REQ-13 If the packet received on an internal IP address has DF=1,

the NAT MUST send back an ICMP message "Fragmentation needed and

DF set" to the host, as described in [RFC0792].

a) If the packet has DF=0, the NAT MUST fragment the packet and

SHOULD send the fragments in order.

REQ-14: A NAT MUST support receiving in-order and out-of-order

fragments, so it MUST have "Received Fragment Out of Order"

behavior.

a) A NAT’s out-of-order fragment processing mechanism MUST be

designed so that fragmentation-based DoS attacks do not

compromise the NAT’s ability to process in-order and

unfragmented IP packets.

Audet & Jennings Best Current Practice [Page 23]

RFC 4787 NAT UDP Unicast Requirements January 2007

13. Security Considerations

NATs are often deployed to achieve security goals. Most of the

recommendations and requirements in this document do not affect the

security properties of these devices, but a few of them do have

security implications and are discussed in this section.

This document recommends that the timers for mapping be refreshed on

outgoing packets (see REQ-6) and does not make recommendations about

whether or not inbound packets should update the timers. If inbound

packets update the timers, an external attacker can keep the mapping

alive forever and attack future devices that may end up with the same

internal address. A device that was also the DHCP server for the

private address space could mitigate this by cleaning any mappings

when a DHCP lease expired. For unicast UDP traffic (the scope of

this document), it may not seem relevant to support inbound timer

refresh; however, for multicast UDP, the question is harder. It is

expected that future documents discussing NAT behavior with multicast

traffic will refine the requirements around handling of the inbound

refresh timer. Some devices today do update the timers on inbound

packets.

This document recommends that the NAT filters be specific to the

external IP address only (see REQ-8) and not to the external IP

address and UDP port. It can be argued that this is less secure than

using the IP and port. Devices that wish to filter on IP and port do

still comply with these requirements.

Non-deterministic NATs are risky from a security point of view. They

are very difficult to test because they are, well, non-deterministic.

Testing by a person configuring one may result in the person thinking

it is behaving as desired, yet under different conditions, which an

attacker can create, the NAT may behave differently. These

requirements recommend that devices be deterministic.

This document requires that NATs have an "external NAT mapping is

endpoint independent" behavior. This does not reduce the security of

devices. Which packets are allowed to flow across the device is

determined by the external filtering behavior, which is independent

of the mapping behavior.

When a fragmented packet is received from the external side, and the

packets are out of order so that the initial fragment does not arrive

first, many systems simply discard the out-of-order packets.

Moreover, since some networks deliver small packets ahead of large

ones, there can be many out-of-order fragments. NATs that are

capable of delivering these out-of-order packets are possible, but

they need to store the out-of-order fragments, which can open up a

Audet & Jennings Best Current Practice [Page 24]

RFC 4787 NAT UDP Unicast Requirements January 2007

Denial-of-Service (DoS) opportunity, if done incorrectly.

Fragmentation has been a tool used in many attacks, some involving

passing fragmented packets through NATs, and others involving DoS

attacks based on the state needed to reassemble the fragments. NAT

implementers should be aware of [RFC3128] and [RFC1858].

14. IAB Considerations

The IAB has studied the problem of "Unilateral Self Address Fixing",

which is the general process by which a client attempts to determine

its address in another realm on the other side of a NAT through a

collaborative protocol reflection mechanism [RFC3424].

This specification does not, in itself, constitute an UNSAF

application. It consists of a series of requirements for NATs aimed

at minimizing the negative impact that those devices have on peer-to-

peer media applications, especially when those applications are using

UNSAF methods.

Section 3 of UNSAF lists several practical issues with solutions to

NAT problems. This document makes recommendations to reduce the

uncertainty and problems introduced by these practical issues with

NATs. In addition, UNSAF lists five architectural considerations.

Although this is not an UNSAF proposal, it is interesting to consider

the impact of this work on these architectural considerations.

Arch-1: The scope of this is limited to UDP packets in NATs like the

ones widely deployed today. The "fix" helps constrain the

variability of NATs for true UNSAF solutions such as STUN.

Arch-2: This will exit at the same rate that NATs exit. It does not

imply any protocol machinery that would continue to live

after NATs were gone, or make it more difficult to remove

them.

Arch-3: This does not reduce the overall brittleness of NATs, but

will hopefully reduce some of the more outrageous NAT

behaviors and make it easer to discuss and predict NAT

behavior in given situations.

Arch-4: This work and the results [RESULTS] of various NATs

represent the most comprehensive work at IETF on what the

real issues are with NATs for applications like VoIP. This

work and STUN have pointed out, more than anything else, the

brittleness NATs introduce and the difficulty of addressing

these issues.

Audet & Jennings Best Current Practice [Page 25]

RFC 4787 NAT UDP Unicast Requirements January 2007

Arch-5: This work and the test results [RESULTS] provide a reference

model for what any UNSAF proposal might encounter in

deployed NATs.

15. Acknowledgments

The editor would like to acknowledge Bryan Ford, Pyda Srisuresh, and

Dan Kegel for their multiple contributions on peer-to-peer

communications across a NAT. Dan Wing contributed substantial text

on IP fragmentation and ICMP behavior. Thanks to Rohan Mahy,

Jonathan Rosenberg, Mary Barnes, Melinda Shore, Lyndsay Campbell,

Geoff Huston, Jiri Kuthan, Harald Welte, Steve Casner, Robert

Sanders, Spencer Dawkins, Saikat Guha, Christian Huitema, Yutaka

Takeda, Paul Hoffman, Lisa Dusseault, Pekka Savola, Peter Koch, Jari

Arkko, and Alfred Hoenes for their contributions.

16. References

16.1. Normative References

[RFC0768] Postel, J., "User Datagram Protocol", STD 6, RFC 768,

August 1980.

[RFC0791] Postel, J., "Internet Protocol", STD 5, RFC 791,

September 1981.

[RFC2119] Bradner, S., "Key words for use in RFCs to Indicate

Requirement Levels", BCP 14, RFC 2119, March 1997.

16.2. Informative References

[RFC0792] Postel, J., "Internet Control Message Protocol", STD 5,

RFC 792, September 1981.

[RFC1191] Mogul, J. and S. Deering, "Path MTU discovery",

RFC 1191, November 1990.

[RFC1435] Knowles, S., "IESG Advice from Experience with Path MTU

Discovery", RFC 1435, March 1993.

[RFC1812] Baker, F., "Requirements for IP Version 4 Routers",

RFC 1812, June 1995.

[RFC1858] Ziemba, G., Reed, D., and P. Traina, "Security

Considerations for IP Fragment Filtering", RFC 1858,

October 1995.

Audet & Jennings Best Current Practice [Page 26]

RFC 4787 NAT UDP Unicast Requirements January 2007

[RFC1918] Rekhter, Y., Moskowitz, R., Karrenberg, D., Groot, G.,

and E. Lear, "Address Allocation for Private

Internets", BCP 5, RFC 1918, February 1996.

[RFC2460] Deering, S. and R. Hinden, "Internet Protocol, Version

6 (IPv6) Specification", RFC 2460, December 1998.

[RFC2623] Eisler, M., "NFS Version 2 and Version 3 Security

Issues and the NFS Protocol’s Use of RPCSEC_GSS and

Kerberos V5", RFC 2623, June 1999.

[RFC2663] Srisuresh, P. and M. Holdrege, "IP Network Address

Translator (NAT) Terminology and Considerations",

RFC 2663, August 1999.

[RFC3022] Srisuresh, P. and K. Egevang, "Traditional IP Network

Address Translator (Traditional NAT)", RFC 3022,

January 2001.

[RFC3027] Holdrege, M. and P. Srisuresh, "Protocol Complications

with the IP Network Address Translator", RFC 3027,

January 2001.

[RFC3128] Miller, I., "Protection Against a Variant of the Tiny

Fragment Attack (RFC 1858)", RFC 3128, June 2001.

[RFC3261] Rosenberg, J., Schulzrinne, H., Camarillo, G.,

Johnston, A., Peterson, J., Sparks, R., Handley, M.,

and E. Schooler, "SIP: Session Initiation Protocol",

RFC 3261, June 2002.

[RFC3424] Daigle, L. and IAB, "IAB Considerations for UNilateral

Self-Address Fixing (UNSAF) Across Network Address

Translation", RFC 3424, November 2002.

[RFC3489] Rosenberg, J., Weinberger, J., Huitema, C., and R.

Mahy, "STUN - Simple Traversal of User Datagram

Protocol (UDP) Through Network Address Translators

(NATs)", RFC 3489, March 2003.

[RFC3550] Schulzrinne, H., Casner, S., Frederick, R., and V.

Jacobson, "RTP: A Transport Protocol for Real-Time

Applications", STD 64, RFC 3550, July 2003.

[RFC3605] Huitema, C., "Real Time Control Protocol (RTCP)

attribute in Session Description Protocol (SDP)",

RFC 3605, October 2003.

Audet & Jennings Best Current Practice [Page 27]

RFC 4787 NAT UDP Unicast Requirements January 2007

[RFC4380] Huitema, C., "Teredo: Tunneling IPv6 over UDP through

Network Address Translations (NATs)", RFC 4380,

February 2006.

[RFC3489bis] Rosenberg, J., "Simple Traversal Underneath Network

Address Translators (NAT) (STUN)", Work in Progress,

October 2006.

[ICE] Rosenberg, J., "Interactive Connectivity Establishment

(ICE): A Methodology for Network Address Translator

(NAT) Traversal for Offer/Answer Protocols", Work

in Progress, October 2006.

[RESULTS] Jennings, C., "NAT Classification Test Results", Work

in Progress, October 2006.

[TURN] Rosenberg, J., "Obtaining Relay Addresses from Simple

Traversal Underneath NAT (STUN)", Work in Progress,

October 2006.

[ITU.H323] "Packet-based Multimedia Communications Systems", ITU-

T Recommendation H.323, July 2003.

Authors’ Addresses

Francois Audet (editor)

Nortel Networks

4655 Great America Parkway

Santa Clara, CA 95054

US

Phone: +1 408 495 2456

EMail: [email protected]

Cullen Jennings

Cisco Systems

170 West Tasman Drive

MS: SJC-21/2

San Jose, CA 95134

US

Phone: +1 408 902 3341

EMail: [email protected]

Audet & Jennings Best Current Practice [Page 28]

RFC 4787 NAT UDP Unicast Requirements January 2007

Full Copyright Statement

Copyright (C) The IETF Trust (2007).

This document is subject to the rights, licenses and restrictions

contained in BCP 78, and except as set forth therein, the authors

retain all their rights.

This document and the information contained herein are provided on an

"AS IS" basis and THE CONTRIBUTOR, THE ORGANIZATION HE/SHE REPRESENTS

OR IS SPONSORED BY (IF ANY), THE INTERNET SOCIETY, THE IETF TRUST AND

THE INTERNET ENGINEERING TASK FORCE DISCLAIM ALL WARRANTIES, EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY THAT THE USE OF

THE INFORMATION HEREIN WILL NOT INFRINGE ANY RIGHTS OR ANY IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

Intellectual Property

The IETF takes no position regarding the validity or scope of any

Intellectual Property Rights or other rights that might be claimed to

pertain to the implementation or use of the technology described in

this document or the extent to which any license under such rights

might or might not be available; nor does it represent that it has

made any independent effort to identify any such rights. Information

on the procedures with respect to rights in RFC documents can be

found in BCP 78 and BCP 79.

Copies of IPR disclosures made to the IETF Secretariat and any

assurances of licenses to be made available, or the result of an

attempt made to obtain a general license or permission for the use of

such proprietary rights by implementers or users of this

specification can be obtained from the IETF on-line IPR repository at

http://www.ietf.org/ipr.

The IETF invites any interested party to bring to its attention any

copyrights, patents or patent applications, or other proprietary

rights that may cover technology that may be required to implement

this standard. Please address the information to the IETF at

[email protected]

Acknowledgement

Funding for the RFC Editor function is currently provided by the

Internet Society.

Audet & Jennings Best Current Practice [Page 29]

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
