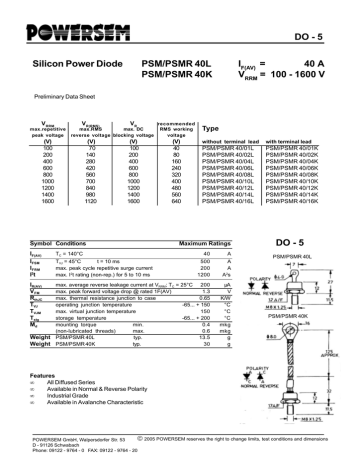

datasheet for PSM/PSMR 40/12L by Powersem
DO - 5
PSM/PSMR 40L
PSM/PSMR 40K
Silicon Power Diode
IF(AV) =
40 A
VRRM = 100 - 1600 V
Preliminary Data Sheet
V RRM
max.repetitive
peak voltage
V R(RMS)
VR
recommended
RMS working
voltage
(V)
70
140
280
420
560
700
840
980
1120
(V)
100
200
400
600
800
1000
1200
1400
1600
(V)
40
80
160
240
320
400
480
560
640
max.RMS
max. DC
reverse voltage blocking voltage
(V)
100
200
400
600
800
1000
1200
1400
1600
Symbol Conditions
IF(AV)
I FSM
I FRM
I2t
TC = 140°C
Type
without terminal lead
with terminal lead
PSM/PSMR 40/01L
PSM/PSMR 40/02L
PSM/PSMR 40/04L
PSM/PSMR 40/06L
PSM/PSMR 40/08L
PSM/PSMR 40/10L
PSM/PSMR 40/12L
PSM/PSMR 40/14L
PSM/PSMR 40/16L
PSM/PSMR 40/01K
PSM/PSMR 40/02K
PSM/PSMR 40/04K
PSM/PSMR 40/06K
PSM/PSMR 40/08K
PSM/PSMR 40/10K
PSM/PSMR 40/12K
PSM/PSMR 40/14K
PSM/PSMR 40/16K
Maximum Ratings
40
A
500
200
1200
A
A
A2s
max. average reverse leakage current at VRRM; TC = 25°C 200
max. peak forward voltage drop @ rated 1F(AV)
1.3
max. thermal resistance junction to case
0.65
operating junction temperature
-65... + 150
max. virtual junction temperature
150
storage temperature
-65... + 200
mounting torque
min.
0.4
(non-lubricated threads)
max.
0.6
Weight PSM/PSMR 40L
typ.
13.5
Weight PSM/PSMR 40K
typ.
30
µA
V
K/W
°C
°C
°C
mkg
mkg
g
g
TVJ = 45°C
t = 10 ms
max. peak cycle repetitive surge current
max. I2t rating (non-rep.) for 5 to 10 ms
IR(AV)
V FM
RthJC
TVJ
TVJM
Tstg
Md
DO - 5
PSM/PSMR 40L
PSM/PSMR 40K
Features
•
All Diffused Series
•
Available in Normal & Reverse Polarity
•
Industrial Grade
•
Available in Avalanche Characteristic
 2005 POWERSEM reserves the right to change limits, test conditions and dimensions
POWERSEM GmbH, Walpersdorfer Str. 53
D - 91126 Schwabach
Phone: 09122 - 9764 - 0 FAX: 09122 - 9764 - 20
