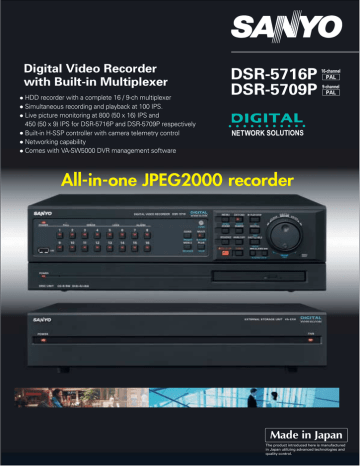

Digital Video Recorder
with Built-in Multiplexer
HDD recorder with a complete 16 / 9-ch multiplexer
Simultaneous recording and playback at 100 IPS.
Live picture monitoring at 800 (50 x 16) IPS and
450 (50 x 9) IPS for DSR-5716P and DSR-5709P respectively
Built-in H-SSP controller with camera telemetry control
Networking capability
Comes with VA-SW5000 DVR management software
DSR-5716P
DSR-5709P
16-channel
PAL
9-channel
PAL
All-in-one JPEG2000 recorder
Made in Japan
The product introduced here is manufactured
in Japan utilizing advanced technologies and
quality control.
A High-end Recorder Offering 100IPS in JPEG2000
Enables extended recording in superior picture quality.
It’s an advanced model with new network features.
JPEG2000
A high compression rate is achieved while eliminating block
noise and pixcelation associated with the JPEG format. The
new, elaborate compression method assures better picture
quality and longer recording time. By using the ROI (Region
of Interest) feature, it is possible to record at a higher picture
quality for defined areas on the screen. Additional
advantages of using JPEG2000 over JPEG format are:
• Smaller image file size, enabling more images to be
transmitted
• Unique Progressive Scan method which allows higher
refresh rate for multi-channel view at remote PCs
DSR-5709P
Simultaneous Recording and Playback at
100 IPS (720 x 288 pixels)
SANYO's expertise in the field has made it possible to
record and playback simultaneously at a maximum speed of
100 IPS.
Exclusive Extension Units
The VA-EXH, an external HDD unit for further extending
recording time, and the VA-EXD1 B, a disc writer for backingup or copying data to portable media, are both available for
the DSR-5716P / DSR-5709P.
(Note) The S-ATA board VZU-SATB1 is needed when connected to the
external HDD unit, VA-EXH.
Conventional picture
JPEG2000
*Images used may differ slightly from actually recorded scenes.
An all-in-one Unit with Superior
Expandability that Also Serves as a
System Hub
The DSR-5716P / DSR-5709P processes a variety of signals
— digital, SSP, network — and can play the role of a system
hub. It offers clear picture recording and split-screen
surveillance and comes with USB terminals. Its video
terminals enable multi-screen real-time monitoring at 100
IPS. And it comes with a telemetry function that offers
control over PTZ / zoom cameras, including those supplied
by other manufacturers. It is an all-new unit that is capable of
accommodating even the most sophisticated surveillance
need.
Extended Recording Time
JPEG2000 improves picture quality without increasing the
size of the data file, or maintains current quality with a
reduced file size. This means you get more recording time
from the same HDD capacity.
System extension units
External HDD unit VA-EXH
The VA-EXH is an expansion unit that employs four HDD (S-ATA)
bays and enables further extension of recording time.
S-ATA Board VZU-SATB1 for VA-EXH
The VZU-SATB1 enables the connection to an external HDD unit.
Disc writer (DVD+R/+RW, CD-R/RW) VA-EXD1 B
This CD / DVD-writer is a perfect match for the DSR-5716P /
DSR-5709P.
SCSI Board VZU-SCB1 for Some external RAID system
The VZU-SCB1 enables the connection to an external RAID system.
For further details on compatible devices, please contact the place of
purchase.
New Developments in Network Surveillance
Choosing Live Picture Resolution at Remote Terminals
When the main unit is set to record video at basic quality, you can still
choose enhanced quality for monitoring live video on a remote PC. It is
also possible to record super-fine quality pictures on the main unit and
monitor the basic quality video on a terminal to reduce network load. In
short, the unit allows the user to choose the quality of live video
independently, regardless of its recording mode.
* This does not apply when the recording is done at the maximum rate of 100IPS.
Recording at basic quality
Internet
Live video monitoring at fine quality
Internet
PC
Multi-screen Display for Network PCs
The DVR Viewer2 software allows the user to
select from full-screen, Quad, Multi-9, and Multi-16
displays on any PC on the network. The DVR
Viewer2 software is automatically downloaded by
copying an image. It is also available for download
on our website.
Network operation frame
1
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
2
3
4
10
6
8
11
14
13
17
16
21
22
19
5
7
9
12
15
20
18
1. Channel number
2. Channel selection
3. Multi 9/16 screen display
4. Quad-screen display
5. Previous event
6. Next event
7. Slower
8. Faster
9. Reverse playback
10. Stop
11. Play
12. Previous image
13. Still
14. Next image
15. Search
16. Copy (by setting)
17. Download (by setting)
18. Menu settings
19. Disconnect
20. Record
21. Stop
22. Timer
Network camera control frame
1
01
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
2
Remote Control by a PC
The built-in network terminal enables remote control of the DSR-5716P /
DSR-5709P through a PC that is connected to the network (by using
Internet Explorer Version 5.0 or higher, without the need for exclusive
software). It is also possible to monitor live video, playback recorded
pictures, control PTZ dome camera systems, and download video/audio
recordings to the PC. Limiting user access to certain functions of the
machine by the use of passwords ensures the security of the system.
5
7
10
12
13
15
16
17
18
MENU
ZOOM
SEQ
3
FOCUS
IRIS
+
AF
PAN
TOUR
01
02
07
08
03
04
05
09
3
4
6
9
8
11
14
06
GO
01
19
20
1. Channel number
2. Channel selection
3. Pan/tilt
4. Menu set
5. [MENU]
6. Control speed
7. [ZOOM]
8. [FOCUS]
9. [IRIS]
10. -/+
11. [AF]
12. [SEQ]
13. [PAN]
14. [TOUR]
15. Preset access
16. Preset register
17. Record
18. Record stop
19. Timer
20. Disconnect
Other Features
•Triplex recording with 1-field switching •Four-level password security lock (Level 1 to 4) •Video loss alarm
•30-day memory back-up •Resume function •Disk full alarm •On-screen mode setting, menu languages built in: English /
French / German / Spanish •Built-in time date generator •Six different search functions •Alarm counter •Auto delete
•Jog shuttle •Forward / reverse field advance •Automatic summer time adjustment •Lifetime counter •Through output
of video •Position adjustable camera titles (10-character) •One push adjustable clock •Push-lock terminals for easy
installation
By installing the VA-SW5000 software bundled
with the unit, remote surveillance of a large-scale
system can be easily accomplished from a local
PC. System setup and DVR operation is also
possible. In addition, it allows simultaneous
access of up to eight users. The four-level
security feature effectively prevents hacking and
maintains the system integrity. Each user is
allowed to sign-on independently and can access
a maximum of 256 DVR units. Also included in
the features is e-mailing any alarm event to a
predefined mail address. The user-friendly GUI,
which is customized the way only possible with
exclusive software, ensures easy operation of
the surveillance system.
CCTV system
Management Software
VA-SW5000
VA-SW5000
System environment
Slave computer
Master computer
Windows® 2000 Professional (SP4), Windows® XP Professional
®
®
Pentium 4 - 3.0GHz
Pentium 4 - 3.4GHz or faster
[RECOMMENDED: Pentium® 4 - 3.4GHz] [RECOMMENDED: Pentium® 4 - 3.4GHz]
1024MB or more
RAM
VIDEO
XGA (1024 x 768pixel) 16-bit color, DirectX® 9.0 or above
[Recommended graphics cards]
RADEON 9000 series or later
ATI
NVIDIA® GeForce 4 series or later, Quadro 4 series or later
Matrox Millennium P series or later (On-board video is not recommended.)
XGA (1024 x 768 pixel) 16-bit color
MONITOR
System setup area: 120MB
System setup area: 120MB
HDD
Data save area: 2GB or above
100Mbps x 1 [RECOMMENDED: 1Gbps x 1] 100Mbps x 1
LAN PORT
Computer
NET
LAN: 100Mbps [RECOMMENDED: 1Gbps]
WORK side
Internet: 1.5Mbps (Downstream) [RECOMMENDED: 5Mbps]
LAN: 10Mbps [RECOMMENDED: 100Mbps]
DVR side
Internet: 1.5Mbps (Upstream) [RECOMMENDED: 5Mbps]
CD-ROM Drive (for Software Install)
CD-ROM Drive (for Software Install)
OTHERS
E-mail account x 1 (SMTP / POP)
OS
CPU
ROI (Region of Interest)
ROI is one of the advanced features included in the
JPEG2000 compression method. By setting ROI, it is
possible to apply better picture quality for particular areas
preset on the screen.
The ROI area setting is up to the user.
Alarm Log Search
Recordings made during a particular period are shown in a
user-friendly GUI. By designating the hour, minute, month,
or day of the week of alarm events, a search is performed on
a log file to narrow the search and bring up the desired
scene.
Alarm Log OSD Select the month
Select the week and the day
Select the ALARM SEARCH
or ALARM THUMBNAIL SEARCH
Finally, select the time of
images that need to be reviewed
ROI: OFF BASIC mode (12KB)
ROI: MAX Static ROI recording (12KB)
Use the same amount
of data …
for enhancing the picture quality
of regions of interest
Camera Telemetry Control
The DSR-5716P / DSR-5709P are capable of controlling PTZ
dome cameras and zoom cameras through coaxial cables or
RS-485. It also allows this control from a network PC or a
controller. The unit also supports protocols of other major
brands.
PTZ Camera
Camera control (PTZ cameras & zoom
cameras only) available from the front
panel, PC or a controller
PC
Controller
Camera with no Alarm Input Controlled by an External
Alarm
Through this unit, an external alarm can prompt PTZ cameras
such as VCC-9500P / VCC-9600P / VCC-9700P / VCC-9800P
to return to preset positions and perform other operations.
There are four operations available — PRESET, TOUR, AUTO
PAN and SEQUENCE.
* This control is activated only when the setting of alarm
recording is ON and the setting of alarm trigger is the external alarm.
Built-in VGA (1024 x 768 pixels) Terminal
The VGA terminal allows direct connection to a PC monitor,
which can then be used to monitor surveillance video. It also
enables remote terminals to replay video with VGA quality,
thus improving the thoroughness of monitoring.
Supports up to 2TB HDD
The unit has two HDD bays, each supporting up to 2TB HDD
to make the unit the right choice in today’s trend for bigger
drives. Selecting a drive of the same capacity will allow the
use of the mirroring* function for data backup.
For the latest available range of optional drives, contact the
place of purchase.
* Mirror Recording
DSR-5716P / DSR-5709P each comes with two HDD bays. With two
HDDs of the same capacity installed, it is possible to record the same
video on two HDDs, thus allowing for a backup.
Longer Recording Time with an Expansion Unit
The DSR-5716P or DSR-5709P with two 750 GB HDD units
(1.5TB total capacity) can, for example, be connected to
external HDD unit VA-EXH with 3 TB capacity (750 GB x 4,
using Serial ATA HDD units) to further increase its storage
capacity to a stunning 4.5 TB. This enables unprecedented
uninterrupted recording. Adding HDD units also allows
extensive storage of recorded data or data backup with
mirror recording.
* The DSR-57xxP unit with VZU-SCB1 cannot be connected to the
VA-EXH extension unit.
Multi Alarm Events Copy
Now it is possible to copy recorded video and audio directly
to external media without the use of the archive area. This
allows the user to retrieve desired video quickly.
CD-R/RW, DVD+R/+RW
The unit comes with two USB terminals located on both the
front and rear panels. Using one of these terminals, it is
possible to back-up data to CD-R/RW discs (Max. 640MB),
DVD+R/+RW (Max. 4.6GB). The use of discs ensures secure
storage of necessary video and audio data.
* Recommended products only
USB Ports
The DSR-5716P and DSR-5709P come with two USB ports,
one each on the front and rear panel. The front USB port is
handy for using USB memories, for features such as
Downloading and Uploading in the setup menu, newly added
firmware update, and downloading images. The rear port can
be used to connect VA-EXD1B, which enables the
downloading of images to a CD or DVD.
* When the front and rear USB ports are used simultaneously, the front
port is always given priority.
Pre-alarm Recording
The pre-alarm recording mode allows the user to save up to
15 minutes of video prior to an alarm input, offering a great
advantage when analyzing a situation.
Timer Recording
The timer recording mode allows the user to set eight
different settings. Different settings for each day of the
week and multiple settings for the same day are possible. It
is also possible to specify the start / stop time or use a
different recording speed.
LOCATIONS OF CONTROLS AND INDICATORS
4
5
9 8
13 14 15
10 16
17 18
! %
$
(
%"
2
3
$
$
1. POWER indicator
2. FULL indicator
3. ERROR indicator
4. LOCK indicator
5. ALARM indicator
6. USB 2.0 terminal
7. [CAMERA SELECT]
buttons
8. [FUNC.] button
9 .[QUAD] button
20. [MARK / COPY] button
21. [SHUTTLE HOLD] button
22. [REC/STOP] button
23. [TIMER] button
24. [ALARM] button
25. Jog dial (inside) and
shuttle dial (outside)
26. [MENU RESET] button
Independent Alarm Recording Rate for Each Channel
The unit lets the user set different rates of recording for
each camera for recordings activated by the motion
sensor or an alarm input. Within the preset time frame,
the user has freedom to change the recording rate for
each camera according to needs.
Camera
" 6ch Alarm
sensor
RM
ALA 2
PUT
OUT 1
PUT
OUT
LL
FU
OUT
NG
RNI
WA RESET
RM IN
ALA ER
TIM
EXT OUT
CK
CLO IN
CK
CLO
6ch
! " 2ch Alarm
sensor
4ch Alarm
sensor
Alarm Functions
Using the built-in motion sensor and external sensors, the
following alarm functions are available.
(1) Monitor Display Switching
(2) Buzzer and Indicator Lamp Warnings
(3) E-mail notification
(4) Controlling external devices through relay outputs
Extensive Display Options
For both live picture monitoring (during multiplex
recording) and playback of pictures, the user can select
from 16-screen, 13-screen, 9-screen, 6-screen, 4-screen
and full-screen (1-screen) display.
• Plus display • Screen position assignment
• Monitor masking
" 18
! " 9 1011
12
13 14 15 16
1. Optional board slot
2. VIDEO IN terminals
3.VIDEO OUT terminals
4. ALARM IN terminals (1 to 16)
5. SENSOR ALARM OUT terminals
6. Control terminals
7. [ALL RESET] button
8. USB terminal
9. LAN terminal
(10BASE-T/100BASE-TX)
6
10. AUDIO IN terminal
11. AUDIO OUT terminal
12. VGA OUT terminal
13. MAIN MONITOR output terminal
14. MON2 output terminal
15. RS-485 termination switch
16. RS-485 control connectors (A) (B)
17. power socket (AC IN)
18. Power cord holder
Live, full-motion video monitoring with split-screens
Live video images from multiple cameras can be
simultaneously displayed on one monitor without
interrupting motion, at the speed of 50 IPS. 16-screen,
13-screen, 9-screen, 6-screen, 4-screen and full-screen
display are all available. The maximum number of
cameras for DSR-5709P is nine respectively.
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50
IPS
50 IPS 50 IPS
50 IPS
50 IPS 50 IPS
Five Different Picture Qualities and 28 Recording
Speeds Enable Flexible Settings
The picture quality is selectable from BASIC, NORMAL,
ENHANCED, FINE and SUPER FINE. Together with the
28 different recording speeds, the user can select the
most suitable recording mode for each situation.
750 GB
Recording Time
Recording Speed
IPS
Different recording rate for each camera
within the preset time frame
12.50IPS on 2ch
The aggregate
PTZ Camera
rate cannot
12.50IPS on 4ch
exceed 100IPS.
12.50IPS on 6ch
7 8
Motion Sensor
DSR-5716P / DSR-5709P comes with a built-in motion
sensor. Different settings can be made for each channels
independently. The sensor can detect moving objects
within the screen by picking up changes in brightness.
The user can use this feature to trigger an alarm
recording.
4ch
26
Programmed Recording
For each of four available programs (P1 to P4), the user
can specify particular cameras for recording. In addition,
different recording speeds can be set for each program.
These programs can also be used when making a timer
recording or a pre-alarm recording.
2ch
19
20
22 23 24 21
10. [MULTI] button
11. [MON2] button
12. [PLUS] button
13. [MENU] button
14. [EXIT/OSD] button
15. [PLAY/STOP] button
16. [ZOOM] button
17. [SEARCH] button
18. [STILL] button
19. [SEQUENCE] button
11 12
7
# 6
M
AR
AL
2
UT
TP
OU 1
UT
TP
OU
LL
FU
T
OU
NING T
WAR RESE
M
AR IN
AL ER
T TIM
EX OUT
K
OC
CL K IN
OC
CL
#
'
5 17
4
"
&
1
25
100.00
50.00
25.00
16.67
12.50
8.33
6.25
5.00
4.17
3.57
3.13
2.78
2.50
2.27
1.92
1.67
1.47
1.32
1.19
1.09
1.00
0.50
0.33
0.25
0.20
0.10
0.05
0.03
Recording
Interval
(sec.)
0.01
0.02
0.04
0.06
0.08
0.12
0.16
0.20
0.24
0.28
0.32
0.36
0.40
0.44
0.52
0.60
0.68
0.76
0.84
0.92
1
2
3
4
5
10
20
30
Picture Quality
Basic
12kB
130
260
518
778
1,038
1,558
2,077
2,595
3,112
3,635
4,145
4,667
5,190
5,715
6,758
7,770
8,827
9,830
10,903
11,903
12,975
25,950
39,317
51,898
64,873
129,747
259,493
432,490
Normal Enhanced
16kB
24kB
102
71
206
140
413
281
618
420
825
560
1,238
840
1,647
1,121
2,060
1,403
2,471
1,680
2,885
1,962
3,293
2,238
3,596
2,520
4,122
2,802
4,541
3,087
5,367
3,650
6,170
4,196
7,010
4,767
7,805
5,307
8,658
5,888
9,453
6,428
10,302
7,008
20,607
14,013
31,223
21,233
41,216
28,025
51,518
35,033
103,035
70,062
206,067
140,127
343,448
233,546
(unit: hour)
Fine
Super Fine
32kB
40kB
53
42
108
86
213
10
318
258
425
342
638
513
851
683
1,062
855
1,272
1,025
1,488
1,197
1,695
1,365
1,910
1,538
2,123
1,710
2,337
1,883
2,765
2,225
3,177
2,558
3,611
2,907
4,020
3,,237
4,460
3,590
4,871
3,920
5,307
4,272
10,616
8,546
16,085
12,945
21,233
17,088
26,540
21,360
53,078
42,723
106,158
85,443
176,928
142,406
Audio
Recording
3
Available
2
Not available
1
* The recording time may vary slightly depending on the complexity of the images and the presence of
an audio signal.
* The recording time will change depending on the settings for the storage area, and the availability of an
optional HDD. Contact the place of purchase for details on increasing the capacity by adding a HDD.
Reference: 24H = 1 day, 168H = 1 week, 720H = 1 month, 8760H = 1 year
DSR-5716P / DSR-5709P
VA-EXH
375
349
344
420
10
10
96
86
96
465.2
420
(Unit: mm)
Cooling fan
VA-RACMK2 (option)
VA-EXD1 B
22.6
329.5
420
76.2
50
Option
30.1
MODEL
DSR-5716P
(Unit: mm)
DSR-5709P
Max HDD Capacity (Technically) per bay 2TB
720 x 288 (pixels)
JPEG2000
5 levels (Basic, Normal, Enhanced, Fine, Super Fine)
28 levels. (100 to 0.033 FPS)
Recording area / Archive area
16
10
88
VA-RACMK2
General Hard disk capacity
Picture resolution
Compression
Picture quality
Recording speed
Recording area
Number of cameras
Menu language
Date / Clock setup
Magnification
Search Mode
54
Rack Mount Bracket
9
English / French / German / Spanish
Day / Month / Year (last two digits) / Hour / Minute / Second
2x digital zoom using the [ZOOM] button
Alarm log Search, Alarm Search, Alarm Thumbnail Search,
Time/Date Search, Archive Area Search,
Motion detection Search, Bookmark Search
Approximately 30 days (for 48 hours of electrification)
Memory backup
Signal format
PAL standard (Color) / CCIR standard (B/W) auto select,
Video
625 lines, 50 IPS
Video input
VBS / VS 1.0 V (p-p) 75 Ω
VBS / VS 1.0 V (p-p) 75 Ω
BNC x 16
BNC x 9
Video output
BNC x 16
BNC x 9
Main monitor output
VS 1.0 V (p-p) 75 Ω BNC x 1, VGA x 1
Monitor 2 output
VBS / VS 1.0 V (p-p) 75 Ω BNC x 1
VGA output
Dsub-15 pin
Audio input
-8 dBs 27 kΩ unbalanced RCA x 1
Audio
Audio output
-8 dBs 600 Ω unbalanced RCA x 1
10BASE-T / 100BASE-TX, RJ-45 x 1
Control LAN
Compatible protocol: UDP, TCP/IP, HTTP server,
signal
NTP, SMTP, DHCP
RS-485 / 422
RJ-11 x 2, (With a termination switch)
USB
USB2.0 Series terminal x 2 (Front x 1, Rear x 1)
Alarm input
No-volt contacts
No-volt contacts
(100ms or more) x 16
(100ms or more) x 9
Alarm output
Relay (DC24 V Max. 1A / AC125 V Max. 0.3 A)
Sensor alarm
Open collector, Low level
Open collector, Low level
output
active (Max. 25 mA) x 9
active (Max. 25 mA) x 16
Remote control input
Two-wire voltage control x 2
Non rec out
Normal 5 V DC, Low level active x1
Clock set input
No-volt contacts (100ms or more) x 1
Active low, Open collector Max. 25mA x 1
Clock set output
No-volt contacts (100ms or more) x 1
Alarm reset
Normal DC 5 V Low level active x 1
Warning output
Normal DC 5 V Low level active x 1
Disk full output
Normal DC 5 V Low level active x 1
Output 1 / Output 2
No-volt contacts (100 ms or more) x1
External timer input
SANYO, Pelco, GE, AD, BBV
Protocols
Option SCSI board (Ultra 160 SCSI), Option S-ATA board
Expandable slot
120 V to 240 V AC, 50 / 60 Hz
Electrical Power source
720mA
Power consumption
Temperature: 5°C to 40°C [41°F to 104°F], Humidity: 80% or less
Operating conditions
420(W) x 96(H) x 365(D) mm [16.5(W) x 3.8(D) x 14.4(D) in]
Physical Dimensions
6.1 kg [13.5 lbs.] (without HDD), 6.6 kg [14.6 lbs.] (with one HDD)
Weight (Approx.)
7.2 kg [15.9 lbs.] (with two HDDs)
NOTE: Specifications subject to change without notice
Warnings regarding HDDs
• Do not attempt to install or replace a HDD on your own. You cannot use these HDDs on PCs.
• The unit may be damaged if it is exposed to an impact or vibration, or the power plug is disconnected
during operation.
• Sanyo will not be held liable for any data loss due to an HDD error or a failure during recording.
(Unit: mm)
MODEL
VA-EXH
Product name
EMC standard
Safety standard
Mirroring
Hard disk bay
Terminal
Power supply voltage
Power consumption
Operating conditions
Dimensions
Weight (Approx.)
External storage unit
CE
CE
Available
3.5-inch (x4)
7-pin external storage unit connection terminal (x4)
120 V to 240V AC, 50 / 60 Hz
680 mA
Temperature: 5°C to 40°C [41°F to 104°F], Humidity: 80% or less
420 (W) x 96 (H) x 344 (D) mm [16.5(W) x 3.8(H) x 13.5(D) in.]
6 kg [13.0 lbs.] (without HDD), 6.6 kg [14.0 lbs.] (with a HDD),
7.2 kg [15.0 lbs.] (with 2 HDDs)
MODEL
VA-EXD1 B
Product name
Disk drive
Recording format
Supported media
Terminals
Power supply
Power consumption
Operating conditions
Dimensions
Weight
External disc unit
Slim type
ISO9660
DVD+R/+RW and CD-R/RW
USB terminal (USB2.0, series B terminal) (x1)
120 V to 240 V AC, 50 / 60 Hz
1000 mA
Temperature: 5°C to 40°C [41°F to 104°F], Humidity: 80% or less
420 (W) x 54 (H) x 329.5 (D) mm [16.5(W) x 2.1(H) x 13.0(D) in.]
3.9 kg [8.0 lbs.]
H-SSP Control Camera Lineup
1/4" Color CCD High-resolution
AF Speed Dome Camera
1/4" Color CCD High-resolution Vandal-resistant
PT Network Dome Camera
36x VCC-9800P
2.6x VDC-DP9585P
1/4" Color CCD High-resolution
AF Speed Dome Camera
1/4" Color CCD High-resolution PT
Indoor mini Dome
Network Camera
Optical
zoom
Optical
zoom
36x VCC-9700P
2.6x VCC-P9575P
Optical
zoom
Optical
zoom
1/4" Color CCD High-resolution
AF Speed Dome Camera
30x VCC-9600P
1/4" Color CCD High-resolution
Vandal-resistant Dome Camera
Optical
zoom
2.6x VDC-DP7585P
Optical
zoom
1/4" Color CCD High-resolution
AF Speed Dome Camera
30x VCC-9500P
+ VA-50ST
Optical
zoom
1/4" Color CCD High-resolution
Indoor mini Dome Camera
1/4" Color CCD High-resolution
Weatherproof Auto Focus Zoom Camera
2.6x VCC-P7575PA
Optical
zoom
2.6x VCC-XZ200P
Optical
zoom
+ VA-50ST
+ VA-20ST
* “Microsoft”, “Internet Explorer” and “Windows” are registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
* All other company and product names are registered trademarks and/or trademarks of their respective
owners.
*Caution: Please consult the instruction manual to ensure safe and proper operation of the product.
DI Company of SANYO Electric Co., Ltd. obtained
Quality Management System ISO9001 and Environmental
Management System ISO14001 certifications.
EC00J0303
Distributed by:
SANYO Electric Co., Ltd.
www.sanyosecurity.com
© 2007 SANYO Printed in Japan
'07.2. AP
SMS139
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
