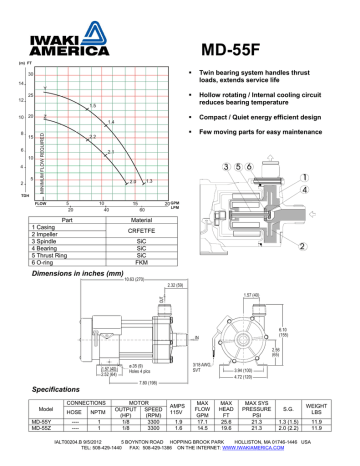

MD-55F_Specs

MD-55F_Specs
MD-55F
(m) FT
30

Twin bearing system handles thrust
loads, extends service life

Hollow rotating / Internal cooling circuit
reduces bearing temperature

Compact / Quiet energy efficient design

Few moving parts for easy maintenance
14
Y
25
12
1.5
10 20
Z
8
15
6
10
4
5
2
MINIMUM FLOW REQUIRED
1.4
2.2
2.1
1.3
2.0
TDH
FLOW
5
20
10
40
60
Part
1 Casing
2 Impeller
3 Spindle
4 Bearing
5 Thrust Ring
6 O-ring
GPM
LPM
Material
CRFETFE
SiC
SiC
SiC
FKM
Dimensions in inches (mm)
10.63 (270)
2.32 (59)
1.57 (40)
6.10
(155)
IN
2.56
(65)
2.52 (64)
3/18 AWG,
SVT
ø.35 (9)
Holes 4 plcs
3.94 (100)
4.72 (120)
7.80 (198)
Specifications
CONNECTIONS
Model
MD-55Y
MD-55Z
HOSE
NPTM
-------
1
1
MOTOR
OUTPUT SPEED
(HP)
(RPM)
1/8
3300
1/8
3300
AMPS
115V
1.9
1.6
MAX
FLOW
GPM
17.1
14.5
MAX
HEAD
FT
25.6
19.6
MAX SYS
PRESSURE
PSI
21.3
21.3
S.G.
WEIGHT
LBS
1.3 (1.5)
2.0 (2.2)
11.9
11.9
IALT00204.B 9/5/2012
5 BOYNTON ROAD HOPPING BROOK PARK
HOLLISTON, MA 01746-1446 USA
TEL: 508-429-1440
FAX: 508-429-1386 ON THE INTERNET: WWW.IWAKIAMERICA.COM
