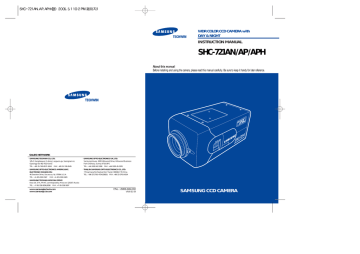

SHC-721 A

WDR COLOR CCD CAMERA with

DAY & NIGHT

INSTRUCTION MANUAL

SHC-721AN/AP/APH

About this manual

Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for later reference.

SALES NETWORK

SAMSUNG TECHWIN CO., LTD.

145-3, Sangdaewon 1-dong, Jungwon-gu, Seongnam-si,

Gyeonggi-do 462-703, Korea

TEL : +82-31-740-8137~8141 FAX : +82-31-740-8145

SAMSUNG OPTO-ELECTRONICS AMERICA,INC.

ELECTRONIC IMAGING DIV.

40 Seaview Drive, Secaucus, NJ 07094, U.S.A

TEL : +1-201-902-0347 FAX : +1-201-902-0429

SAMSUNG TECHWIN MOSCOW OFFICE

Korp 14, 37-A, PR-KT, Lenningradsky, Moscow 125167, Russia

TEL : +7-95-258-9296,9298 FAX : +7-95-258-9297

www.samsungtechwin.com

www.samsungcctv.com

SAMSUNG OPTO-ELECTRONICS UK, LTD.

Samsung House, 1000 Hillswood Drive, Hillswood Business

Park Chertsey, Surrey KT16 OPS

TEL : +44-1932-45-5308 FAX : +44-1932-45-5325

TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD.

7 Pingchang Rd, Nankai Dist. Tianjin 300190, P.R China

TEL : +86-22-2761-4724(33821) FAX : +86-22-2761-6514

P/No. : Z6806-0484-01B

VAN 05. 04

SAMSUNG CCD CAMERA

The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

WARNING - Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

CAUTION : To prevent electric shock and risk of fire hazards:

Do NOT use power sources other than that specified.

Do NOT expose this appliance to rain or moisture.

This installation should be made by a qualified service person and should conform to all local codes.

Features

Wide Dynamic Range(WDR)

SV-II DSP chip built-in SAMSUNG TECHWIN allows the camera to find the best picture conditions in any environment and automatically gives a necessary light level compensation, so you can always obtain the clear picture, the finest detail and perfect light contrast.

Fine Picture Condition Under Very

Low Illumination (Sense up)

1/3 high density CCD and digital processor permit high quality pictures to be captured in very low light condition.

High Resolution

The horizontal resolution of 500TV lines at Color mode and 550TV lines at BW mode can be achieved by using a high density CCD having Double Speed

410,000 pixels SONY CCD, which provides clean, noiseless and reliable pictures.

Day & Night

The camera provides automatic mode changeover by sensing day or night conditions. It can change color mode in the day condition for optimal color and

BW mode in night condition for clear identification.

Motion Detection

The camera transmits an alert signal to the REMOTE jack when it detects motion of an object. If you connect an optional alarm to the camera, you can get the effective surveillance.

VIDEO/DC Lens Selectable

The camera accepts 2 types of auto iris lenses (DC type/VIDEO type) and is set with the VIDEO/DC selection switch.

Electronic Iris

The electronic iris shutter is automatically controlled at the speed of

1/60~1/200,000sec (NTSC Models),

1/50~1/200,000sec (PAL Models)

Controlled by OSD menu and

RS-232C

You can control the camera using OSD menu and RS-232C jack at a remote place.

SSNR(Samsung Super Noise

Reduction) CHIP

SHC-721AN/AP/APH has an assistant DSP chip that can remove image noise efficiently and it shows clean and obvious image in low luminance.

COLOR CCD CAMERA

4

User’s Manual

Warning

The camera needs periodic inspection.

Contact an authorized technician for inspection.

Stop using your camera when you find a malfunction.

If you use your camera around smoke or unusual heat for a long time, a fire may be caused.

Do not Install the camera on a surface that can not support it.

Unless the surface is suitable, it could cause falling or other hazards.

Do not hold plug with wet hands.

It could cause an electric shock.

Do not disassemble the camera.

It may result in fire, electric shock or other hazards.

Do not use the camera close to a gas or oil leak.

It may result in fire or other hazards.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

COLOR CCD CAMERA

5

User’s Manual

Contents

Precautions

Composition

Name and Function of Each Part

Front

Side

Bottom

Back

Connection

Lens

• Installing Auto Iris Lens

• Installing C/CS-Mount Lens

Connecting to Monitor

Connecting to Power

11

11

12

13

14

15

15

8

10

19

20

Operating Your Camera

Configuration of The Menu

Setting Up The Menu

• CAMERA ID

• BACKLIGHT

• WHITE BALANCE

• MOTION DETECTION

• LENS

• SHUTTER SPEED CONTROL

• SESE UP

• GAIN

• SSNR

• SPECIAL

Using Reomte Jack / MD Output

Troubleshooting

Specifications

21

21

22

23

33

35

36

36

37

26

27

28

32

40

41

43

COLOR CCD CAMERA

6

User’s Manual COLOR CCD CAMERA

7

User’s Manual

Precautions

Do not install the camera in extreme temperature conditions.

Do not install or use the camera in an environment where the humidity is high.

Do not drop the camera or subject them to physical shocks.

Never keep the camera face to strong light directly.

Only use the camera under conditions where temperatures are between -10˚C and +50˚C. Be especially careful to provide ventilation when operating under high temperatures.

It can cause the image quality to be poor.

Do not install the camera under unstable lighting conditions.

Do not touch the front lens of the camera.

It can cause malfunctions to occur.

Do not expose the camera to rain or spill beverage on it.

It can damage the CCD.

Severe lighting change or flicker can cause the camera to work improperly.

It is one of the most important parts of the camera. Be careful not to be stained by fingerprint.

COLOR CCD CAMERA

8

User’s Manual

If it gets wet, wipe it dry immediately.

Liquids can contain minerals that corrode the electronic components.

Notes

• If the camera is exposed to spotlight or object reflecting strong light, smear or blooming may occur.

• Please check that the power satisfies the normal specification before connecting the camera.

COLOR CCD CAMERA

9

User’s Manual

Composition

1. WDR Color CCD Camera

SHC-721A

2. Auto Iris Lens Plug

3. Remote Plug

4. L-Wrench

5. C-Mount Adapter

6. Instruction Manual

COLOR CCD CAMERA

10

User’s Manual

Name and Function of Each Section

Front

C-Mount Lens Adapter

Used to attach C-mount lens.

Tripod Mounting Bracket Screw Hole

Used to fix the Tripod mounting bracket on the top of the camera.

CS-Mount Lens Adapter

Used to attach CS-mount lens.

COLOR CCD CAMERA

11

User’s Manual

Name and Function of Each Section

Side

Auto Iris Lens Connector

Used to connect Auto Iris Lens plug.

DC/VIDEO Selection Switch

Used to choose DC or VIDEO according to the type of your Auto

Iris Lens.

Menu Setup Buttons Cover

Bottom

Tripod Mounting Hole

Used to install the camera on an optional tripod. The tripod must be equipped with the screw specified as shown below.

1/4"-20 UNC (20 THREAD)

L:4.5mm±0.2mm (ISO standard), or 0.197" (ASA standard)

L

Tripod Mounting Bracket

Menu Setup Buttons

• SET Button: Used to access menu mode. Also used to confirm the setting.

• UP/DOWN Button: Used to choose the desired menu item. It also moves the cursor up or down in the menu screen.

• LEFT/RIGHT Button: Used to change the parameter of the selected menu item.

It also moves the cursor the left or right in the menu screen.

COLOR CCD CAMERA

12

User’s Manual

You can remove and install this bracket on the top of the camera. You must use the supplied screw or the equivalent (within 4mm). If not, the bracket may not be fixed properly.

COLOR CCD CAMERA

13

User’s Manual

Name and Function of Each Section

Back

Video Output Jack

Used to connect an external video monitor in jack.

Remote Jack

Used to connect a remote plug.

Power LED

The LED turns on when power is supplied.

AC/DC Type

MD Output Terminal

Used to output motion detection signal.

Frame Ground

High Voltage Type

AC / DC Power Terminal

Used to connect an AC 24V or DC 12V power source.

COLOR CCD CAMERA

14

User’s Manual

Connection

LENS

The lens is not supplied with this camera. Purchase a lens suitable for your environment. This camera accepts the auto iris lens and both C-and

CS-mount lens.

Notes

If the lens is marked with fingerprints or other marks, the image quality might be poor.

It is recommended to use a high quality lens to improve the image quality under low illumination.

For using main functions it is recommended to use Auto Iris Lens with DC type.

Installing Auto Iris Lens

1. Peel approximately 8mm from the end of the lens cable outer cover.

approx. 8mm

2. Peel approximately 2mm from the end of the cable inner cover.

approx. 2mm

COLOR CCD CAMERA

15

User’s Manual

Connection

3. Remove the cover from the iris lens plug supplied, and solder the lens cable to the plug as shown below.

• Video type :

No. 1 Pin --- Red (Power source)

No. 2 Pin --- N.C

No. 3 Pin --- White (Video signal)

No. 4 Pin --- Black (GND)

• DC type :

No. 1 Pin --- Damping -

No. 2 Pin --- Damping +

No. 3 Pin --- Drive +

No. 4 Pin --- Drive -

Lens cable

No. 3 Pin

No. 1 Pin connector

No. 4 Pin

No. 2 Pin

4. Remove the protective cap, and attach the lens to the camera by turning clockwise.

5. Connect the lens plug to the auto iris connector on the right side of the camera.

Installing C/CS-Mount lens

Before mounting a lens, please check whether it is a C-mount or CS-mount lens.

The back focus is set for the CS-mount lens at the factory.

• Mounting a CS-Mount lens

After removing the protecting cap, attach the lens into the camera by turning clockwise.

6. Set the DC/VIDEO selection switch to DC or VIDEO according to the type of the lens.

COLOR CCD CAMERA

16

User’s Manual

Notes

Use the lens under the specification as shown. Otherwise the lens can damage the camera or abnormal fixing may result.

C-mount lens : 10 mm or less

CS-mount lens : 5 mm or less

A heavy lens may disturb the balance with the camera and possibly result in damage. Don't use a lens heavier than 450g.

It is recommended to set the lens ALC mode to Av mode (Average). Pk mode can be occurred hunting.

COLOR CCD CAMERA

17

User’s Manual

Connection

• Mounting a C-Mount lens

1. Attach the C-Mount lens adapter by turning clockwise.

2. Attach the lens to the camera by turning clockwise.

COLOR CCD CAMERA

18

User’s Manual

Connecting to Monitor

Connect the VIDEO Out jack to the monitor VIDEO In jack.

CCD Camera Monitor

• As the connecting method varies with the instruments, refer to the manual supplied with the instrument.

• If necessary, you can connect the monitor to the REMOTE jack on the back of your camera. For details, see page 40.

• Only connect the cable when the power is turned off.

• Set the 75W/Hi-Z selection switch as shown below if you have an intermediate device.

Intermediate End monitor

CCD Camera

COLOR CCD CAMERA

19

User’s Manual

Connection

Connecting to Power

Each model has different power specification. Please check the name of the model and power specification before connecting to power source.

For AC / DC Power Type

• The wire is polarized. Be sure to connect the wire that white line is on covering to ‘-’ terminal and connect the other one to ‘+’ terminal.

• Use AC 24V/300mA or DC 12V/500mA power source for SHC-721AN/AP

Resistance of copper wire [at 20C˚ (68˚F)]

Copper wire size (AWG) #24(0.22mm

2

) #22(0.33mm

2

)

Resistance (/ m)

Voltage Drop (V/m)

0.078

0.028

0.050

0.018

#20(0.52mm

2

) #18(0.83mm

2

)

0.030

0.011

0.018

0.006

• As the voltage drop according to the length of the cable in the above table, a camera may malfunction if there is an excessively long cable run.

* Voltage for camera operation: 12V DC ±10%

* Voltage drops in the above table are variable according to types of cable manufacturer.

For High Voltage Type

• The wire is non-polarized.

• Use AC 230V~, 50Hz power source for SHC-721APH

Notes

• Be sure to connect power only after all the installation is complete.

• Note that AC or DC adaptor is not supplied with camera.

• Use the UL listed, class 2 power transformer of AC 24V adaptor.

• Ground should be connected to the GND terminal.

COLOR CCD CAMERA

20

User’s Manual

Operating Your Camera

Configuration of The Menu

SETUP MENU

CAMERA ID (see page 23)

• OFF • ON

BACKLIGHT (see page 26)

• WDR • BLC • OFF

WHITE BAL. (see page 27)

• W-ATW • S-ATW • AWC • MANUAL

MOTION DET. (see page 28)

• OFF • MD1 • MD2

LENS (see page 32)

• DC / Video • Manual

SHUTTER (see page 33)

• OFF • 1/100 (1/120) • ESC • MANUAL

SENSE UP (see page 35)

• Auto • OFF

GAIN (see page 36)

• OFF • AGC-L • AGC-H

SSNR (see page 36)

• OFF • LOW • MIDDLE • HIGH

SPECIAL (see page 37)

• COLOR • SYNC • PRIVACY • PRESET

• END • EXIT

EXIT

COLOR CCD CAMERA

21

User’s Manual

Operating Your Camera

Setting Up The Menu

Use the five Setup Menu buttons on side of the camera.

UP button

LEFT button

SET button

RIGHT button

DOWN button

1. Press the SET button to access the setup mode.

• Setup menu is displayed on the monitor screen.

SETUP

CAMERA ID OFF

BACKLIGHT WDR

WHITE BAL.

W-ATW

MOTION DET.

LENS

OFF

DC

SHUTTER OFF

SENSE UP OFF

GAIN AGC-L

SSNR MIDDLE

SPECIAL

EXIT

2. Select the desired feature using the UP or DOWN button.

• Each time you press the UP or DOWN button, the arrow indicator moves up or down.

• Move the arrow indicator to the desired feature item.

Select the function using the UP or DOWN button.

SETUP

CAMERA ID OFF

BACKLIGHT WDR

WHITE BAL.

W-ATW

MOTION DET.

LENS

OFF

DC

SHUTTER OFF

SENSE UP OFF

GAIN AGC-L

SSNR MIDDLE

SPECIAL

EXIT

Change the status using the LEFT or RIGHT button.

3. Change the status of the selected feature using the LEFT or RIGHT button.

4. When completed, move the arrow indicator to 'EXIT' and press the SET button.

Notes

• For the mode with you can access submenu.

• You can access submenu using SET button.

Camera ID

If you enter a camera ID, the name will be displayed in the screen monitor.

1. Press the SET button to display the setup menu and move the arrow indicator to 'Camera ID' using the UP or DOWN button.

2. Set 'Camera ID' to 'ON' using the LEFT or RIGHT button.

Notes

• If the camera ID feature is set to 'OFF', the name will not displayed in the monitor.

SETUP

CAMERA ID OFF

BACKLIGHT WDR

WHITE BAL.

MOTION DET.

LENS

W-ATW

OFF

DC

SHUTTER OFF

SENSE UP OFF

GAIN AGC-L

SSNR

SPECIAL

MIDDLE

EXIT

Operating Your Camera

3. Press SET button.

Camera ID

POS CLR RESET END

4. You can enter up to 16 characters.

Move the cursor to character-enter location by using the LEFT or

RIGHT button.

Select the desired character by using UP or DOWN button.

•The factory defualt characters are A, B, ···, a, b, ···, ., -, ··· 0, 1···, 8, 9

Camera ID

POS CLR RESET END

Press the SET button to confirm the blinking character. The first character is saved and the cursor in the bottom of the screen moves to the next position.

Repeats steps , and until you create the full name you want.

Notes

• If you make a mistake while entering name

Move the cursor to ‘Clr’, press ‘SET’ button.

After erasing the character from right to left, correct the character again.

COLOR CCD CAMERA

24

User’s Manual

5. Select the position at which the camera ID will be located on the screen.

Move the cursor to 'Pos' and press SET button.

Camera ID

POS CLR RESET END

The camera ID is displayed on the bottom-left of the monitor screen.

(Default position)

FRONT DOOR

Select the position by using the 4-directional buttons, then press the SET button to confirm the position.

FRONT DOOR

6. When completed, move the cursor to 'End' and press SET button.

COLOR CCD CAMERA

25

User’s Manual

Operating Your Camera

Backlight

SV-II DSP chip built-in provides intelligent light level control to overcome the severe Backlight conditions.

1. Press the SET button to display the setup menu and move the arrow indicator to ‘Backlight’ using the UP or DOWN button.

SETUP

CAMERA ID OFF

BACKLIGHT WDR

WHITE BAL.

W-ATW

2. SET ‘Backlight’ to the desired mode using the LEFT or RIGHT button.

WDR: In case that bright and dark parts exist on the screen at the same time, your camera allows you to see both parts clearly

BLC: When the image is in front of strong background lighting, your camera allows you to get the clear image

OFF: Deactivation

WDR BLC

3. Press the ‘SET’ button.

• When ‘WDR’ is chosen, you can adjust the level.

OFF

WDR Set

Level 0

Press SET to Return

You can select the level from -4 to 4. WDR sensitivity is increased or decreased.

COLOR CCD CAMERA

26

User’s Manual

4. When completed, press the SET button.

Notes

• If you select ESC or manual in ‘shutter’ menu, you can’t use WDR mode.

• If you select WDR mode, the following phenomenon may appear by lighting condition. In these cases do not select WDR mode.

Unnatural color change or unnatural phenomenon on the screen

Noise of bright part on the screen

• According to the area of bright part on the screen there may be the difference of

WDR performance so be sure to adjust the degrees of the visual angle when installing your camera.

• If you increase WDR level, unnatural phenomenon may appear.

• For the optimal WDR performance, in case of observing the object that is in the place of the changing illumination, use Auto Iris Lens with DC type.

White Balance Control

Your camera provides 4 ‘White Bal.’ control modes. You can select the most suitable one. You can adjust the white balance.

1. Press the SET button to display the setup menu and move the arrow indicator to 'White Balance' using the UP or DOWN button.

2. Set ‘White Bal.’ to the desired mode using LEFT or RIGHT button.

SETUP

CAMERA ID OFF

BACKLIGHT WDR

WHITE BAL.

W-ATW

MOTION DET.

LENS

OFF

DC

The four white balance control modes are as follows :

W-ATW(Wide Auto Tracking White balance): When color temperature is

2400~12000K, select this mode. (EX. a fluorescent lamp, outdoor)

COLOR CCD CAMERA

27

User’s Manual

Operating Your Camera

S-ATW(Special Auto Tracking White balance): When color temperature is

1800~6000K, specially in sodium lamp, select this mode. (EX. sodium lamp, inside the tunnel)

AWC(Auto White balance Control): The white balance is automatically adjusted in a specific environment. In order to obtain the best result, press the SET button while the camera focuses on white paper. If the environment including the light source is changed, you have to adjust the white balance again.

Manual: To fine adjust, select the Manual mode. You can increase or decrease the red or blue factor while monitoring the difference on the screen. Set to 'Manual' mode and press the SET button. Increase or decrease the value for red(R-Gain) and blue(B-Gain), watching the color of the picture, and press the SET button when you obtain the best color.

Notes

• Proper White Balance may not be obtained under the following conditions, in these cases select the AWC mode.

When the scene contains mostly high color temperature object, such as a blue sky or sunset.

When the scene is dim.

If your camera faces fluorescent lamp directly or is installed in the place of the changing illumination.

Motion Detection

Your camera transmits an alert signal when it detects motion of an object on the screen. If you connect the camera to an external alarm, you can pay attention to the screen when the alarm sounds. This feature is useful when you have to monitor several screens simultaneously. Whenever your camera detects motion of object displaying ‘Motion Detected’ with the number counted up on the screen.

1. Press the SET button to display the setup menu and move the arrow indicator to 'Motion Det.' using the UP or DOWN button.

COLOR CCD CAMERA

28

User’s Manual

2. Set ‘Motion Det.’ to the desired mode using LEFT or RIGHT button.

SETUP

CAMERA ID OFF

BACKLIGHT WDR

WHITE BAL.

W-ATW

MOTION DET. OFF

LENS DC

SHUTTER OFF

SENSE UP OFF

MD1: Your camera detects the object’s motion by outline or difference of a color tone, so this mode is very useful for the daytime or observing small moving object.

Press SET button.

Move the arrow indicator to ‘Area Set’ using UP and DOWN button, and then press the SET button.

Set the areas you want to observe.

· You can adjust the top, bottom, left and right base lines by 13 steps from top to bottom, 18 steps from left to right with an increment of 1.

COLOR CCD CAMERA

29

User’s Manual

Operating Your Camera

· Move the arrow indicator to 'Top' using the UP or DOWN button and increase or decrease the value using the LEFT or RIGHT button. Repeat the procedure for bottom, left and right.

18 6

13 5

Maximum

· When completed, press SET button.

Minimum

Notes

• If you set some areas of 48 areas, your camera detects the object’s motion within the areas you set.

MD2: Your camera detects object’s motion by the variation of brightness, so this mode is very useful for night or observing large moving object.

Also MD2 enables you to set seperated areas.

Press SET button.

Move the arrow indicator to ‘Area Set’ like MD1.

Set the areas you want to observe.

· After setting, move the cursor to edge in any direction and then press the button just one more, let ‘End’ brink.

· Press the SET button.

Notes

Tips on Using the Motion Detection Feature

• As you increase or decrease MD Level, the areas’ sensitivity is increased or decreased for object.

• After selecting zone and sensitivity, perform a test operation to make sure it works properly.

• If the lighting flickers, the motion detection feature might not work properly.

• The object should occupy 10% or more of its zone. The bigger the object, the higher sensitivity.

• If the brightness of an object changes rapidly by sudden lighting change, the camera may detect it as a motion.

• Your camera can count up to 999. If you reset your camera with selecting ‘Reset’ in Special menu or turn it off and on, your camera’ll count up from 0.

• When this feature is activated, another algorithm may take more time to be operated.

• This system does not guarantee prevention of fires or thefts. The manufacturer is not responsible for any accident or damage.

• You can use the MD output terminal jack on the rear of the camera to connect an external alarm device. For details, see page 40.

· Move the cursor to the area you want to observe, and then press the SET button.

COLOR CCD CAMERA

30

User’s Manual COLOR CCD CAMERA

31

User’s Manual

Operating Your Camera

Lens Selection

You can set the type of the lens, and control the brightness of the screen.

1. Press the SET button to display the setup menu and move the arrow indicator to 'Lens' using the UP or DOWN button.

2. Set ‘Lens’ to the desired mode using LEFT or RIGHT button.

• You can select from DC / Video, Manual

SETUP

CAMERA ID OFF

BACKLIGHT WDR

WHITE BAL.

W-ATW

MOTION DET.

LENS

OFF

DC

SHUTTER OFF

SENSE UP OFF

DC / Video: When using auto iris lens

When using Auto Iris Lens with Video type

Adjust ALC volume on the lens properly. Normally ALC volume should be turned all the way to Av(Average).

According to the type of the lens used, the lens may not perform properly.

In such a case, adjust the volume level on the lens.

For adjusting the volume level set ‘Auto Lens VR Adjust’ level in submenu of the ‘Video’ mode to the middle of bar between in the place with more than 300lux)

. (adjust the level

COLOR CCD CAMERA

32

User’s Manual

Manual: When using manual lens

• If you select ‘DC’ mode, you can adjust the desired Brightness.

Notes

• When the auto iris lens is mounted, you have to set the DC/Video selection switch on the side of the camera properly according to the type of the lens. The setup window displays DC or Video according to status of this selection switch.

(refer to page 12 picture)

3. When completed move the arrow indicator to ‘END’ and press the SET button.

Shutter Speed Control

You can control brightness of the screen by the shutter speed.

1. Press the SET button to display the setup menu and move the arrow indicator to ‘Shutter’ using the UP or DOWN button.

2. Set ‘Shutter’ to the desired mode using the LEFT or RIGHT button.

OFF: Deactivation

1/100(1/120: PAL Models): Flickerless mode (When WDR mode is off)

ESC: When setting the optimal shutter speed automatically

Manual: When setting shutter speed manually

SETUP

CAMERA ID OFF

BACKLIGHT WDR

WHITE BAL.

W-ATW

MOTION DET.

LENS

OFF

DC

SHUTTER OFF

SENSE UP OFF

3. If you choose ‘Manual’, select the optimal shutter speed.

COLOR CCD CAMERA

33

User’s Manual

Operating Your Camera

• You can select speed from ‘1/60’ to ‘1/200,000’sec (NTSC Models), ‘1/50’ to ‘1/200,000’sec (PAL Models).

• When the shutter speed is increased or decreased using the LEFT or RIGHT button, you can find the difference by monitoring the brightness of the screen.

Manual Set

Value : 1/60

Press SET to Return

Manual Set

Value : 1/50

Press SET to Return

PAL Models NTSC Models

4. When completed, press the SET button.

Notes

• For effective 1/100 mode set WDR mode in Backlight menu to OFF. 1/100 mode is not effective with WDR mode.

• If the camera directly faces strong fluorescent light with 'ESC' mode, the image may become unstable.

• If you choose ‘ESC’, you can adjust the brightness of monitor screen using the

LEFT or RIGHT button.

• If you choose ESC or Manual mode, you can’t use WDR mode in ‘Backlight’ menu.

• If you select manual mode, Sense up is not operated.

Sense up

You can always get the clear image with this function under night or lowlighting level.

1. Press the SET button to display the setup menu and move the arrow indicator to 'Sense up' using the UP or DOWN button.

2. Set ‘Sense up’ to the desired mode using the LEFT or RIGHT button.

Auto: When your camera is under night or low-lighting level, select this mode.

OFF: Deactivation

SETUP

CAMERA ID OFF

BACKLIGHT WDR

WHITE BAL.

W-ATW

MOTION DET.

LENS

OFF

DC

SHUTTER OFF

SENSE UP OFF

GAIN

SSNR

AGC-L

MIDDLE

SPECIAL

EXIT

Notes

• If you press the set button on ‘Auto’ mode. You can adjust brightness by increasing or decreasing the shutter speed. (EX. x2,...., x32, x64, ...., x128)

• If you increase the number of shutter speed, moving object gets an more afterimage.

• Under Sense up activated noise, sports or a whitish phenomenon may appear in the picture as the sensitivity of the camera is increased. This is normal phenomenon.

COLOR CCD CAMERA

34

User’s Manual COLOR CCD CAMERA

35

User’s Manual

Operating Your Camera

Gain

To get brighter picture.

1. Press the SET button to display the setup menu and move the arrow indicator to ‘GAIN’ using the UP or DOWN button.

2. Set ‘gain’ to desired mode using the LEFT or RIGHT mode.

AGC-H: Gain is increased or decreased from 0 to 30dB automatically as following the illumination.

AGC-L: Gain is increased or decreased from 0 to 27dB automatically as following the illumination.

OFF: Deactivation

SETUP

CAMERA ID OFF

BACKLIGHT WDR

WHITE BAL.

W-ATW

MOTION DET.

LENS

OFF

DC

SHUTTER OFF

SENSE UP OFF

GAIN AGC-L

SSNR

SPECIAL

MIDDLE

EXIT

SSNR(Samsung Super Noise Reduction)

To reduce the noise on the screen.

1. Press the SET button to display the setup menu and move the arrow indicator to ‘SSNR’ using the UP or DOWN button.

2. Set ‘SSNR’ to desired mode using the LEFT or RIGHT mode.

LOW: low reduction of the noise

MIDDLE: middle reduction of the noise

COLOR CCD CAMERA

36

User’s Manual

HIGH: high reduction of the noise

OFF: Deactivation

SETUP

CAMERA ID OFF

BACKLIGHT WDR

WHITE BAL.

W-ATW

MOTION DET. OFF

LENS DC

SHUTTER OFF

SENSE UP OFF

GAIN AGC-L

SSNR

SPECIAL

EXIT

MIDDLE

Notes

• If you change the ‘GAIN’ menu from AGC-L to AGC-H, sensitivity is increased as well as noise on the screen.

SPECIAL

1. Press the SET button to display the setup menu and move the arrow indicator to ‘SPECIAL’ using the UP or DOWN button.

COLOR CCD CAMERA

37

User’s Manual

Operating Your Camera

2. Press the SET button.

COLOR : choose color or B/W mode

- ON : color mode - OFF : B/W mode

- AUTO1 : generally color mode, B/W mode in low luminance.

- AUTO2 : AUTO2 is identical with AUTO1 under SENSE UP : AUTO condition.

Notes

• When you use Auto Iris Lens with Video type, do not set the level on the lens to too low, Color/BW may not change over automatically.

• When Gain in SET UP menu is OFF, Color / BW do not change over automatically.

• If Gain is OFF, you can select ON or OFF on COLOR menu.

• For the stable operation, whenever the mode is changed over between color and BW mode, five setup menu buttons on the camera do not operate for about 3 seconds.

• The burst signal doesn’t come out with BW mode, so when connecting with pheripheral equipments be sure to check the specification of those.

• The object may be more out of focus when using a source of near-infrared light than using the visible light.

SYNC : Two SYNCHRONIZATION modes are available INTERNAL and

EXTERNAL LINE-LOCK. In LINE-LOCK mode, it synchronizes the video signal between cameras without a synchronous generator.

The line-lock synchronization is only used in the areas of 60Hz

(NTSC Models) / 50Hz (PAL Models).

- INT : Internal synchronization

- OFF : External line-lock synchronization

· If you choose ‘L/L’, you can adjust the desired phase. Press the SET button.

-You can adjust the desired phase from 0 to 270.

LINE LOCK

PHASE : 225

PRESS SET TO RETURN

COLOR CCD CAMERA

38

User’s Manual

Notes

• When the power frequency is 50Hz, you can not use line-lock mode(NTSC Models).

• When the power frequency is 60Hz, you can not use the line-lock mode(PAL Models).

• ‘Sync.’ mode is fixed to ‘INT’ in DC 12V input power.

PRIVACY: To mask area which you want to mask

- OFF: Deactivation

- ON: Privacy mode activated

· Press the SET button.

· Move the arrow indicator to area you want to mask.

· Set ‘ON’ using LEFT or RIGHT button.

· Press the SET button and then set the area’s bounds with the method like

MD1 Set. (see page 29)

· When completed, press the SET button.

PRESET: To reset your camera to factory default condition

END: To move Top-menu

EXIT: To finish setting menu

COLOR CCD CAMERA

39

User’s Manual

Using Remote Jack / MD Output

If you connect a remote plug to the REMOTE jack on the rear of the camera as shown below, you can access the menu setup mode from a remote place.

1. RS-232C Communication Setting.

• Mode : Serial • Data Bit : 8 • Bit/sec : 19200bps • Stop Bit : 1

• Port : Com1 • Parity : None

2. Setup menu Command.

Setup menu

Set

Up

Down

Left

Right

Command

AA, EE, 0F, CC, 55

AA, EE, 1E, CC, 55

AA, EE, 1D, CC, 55

AA, EE, 1B, CC, 55

AA, EE, 17, CC, 55

Byte

5

5

5

5

5

3. MD(Motion Detection) output Signal Level

+4.0V~+5.0V

There is motion

0V

There is no motion

2.5±0.5sec

Notes

• You must turn the camera power off when you connect or remove the remote plug.

COLOR CCD CAMERA

40

User’s Manual

Troubleshooting

If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact an authorized technician.

Problem

Nothing appears on the screen.

The image on the screen is dim.

The image on the screen is dark.

The camera is not working properly, and the surface of the camera is hot.

Solution

• Check that the power cord and line connection between the camera and monitor are fixed properly.

• Check that you have properly connected VIDEO cable to the camera VIDEO output jack.

• Check that the DC/VIDEO selection switch on the side of the camera is set to a proper position according to the type of your auto iris lens.

• Are you using Auto Iris Lens with VIDEO type?

Adjust VR Level properly (refer to page 32)

• Is lens stained with dirt? Clean your lens with soft, clean cloth.

• Set the monitor to proper condition.

• If the camera is exposed to too strong light, change the camera position.

• Adjust the lens’ focus properly.

• Adjust the contrast feature of the monitor.

• If you have an intermediate device, set the 75Ω / Hi-z properly. (refer to page 19)

• Are you using the Auto Iris Lens? Adjust the level on the lens properly.

• Check that you have properly connected the camera to an appropriate power source. (refer to page 20)

COLOR CCD CAMERA

41

User’s Manual

Troubleshooting

Problem

Motion Detection function is not active.

The color of the picture is not matched.

The image on the screen flickers.

L/L mode isn’t able to be selected.

Solution

• Have you set ‘Motion Det.’ menu to OFF?

• Have you set ‘MD Level’ to too low?

• Have you set ‘MD Area’ properly?

• Check that you have properly set the ‘White Bal.’ menu.

• Is the camera facing to direct sunlight or fluoresent lighting? Change the camera position.

• Are you using Auto Iris Lens? Check that you have properly connected the lens plug to the Auto Iris connector on the side of the camera.

• Have you connected your camera to DC power source? Connect it to AC power source.

COLOR CCD CAMERA

42

User’s Manual

Specifications

Item

Power Source

Power Consumption

Image Sensor

Total Pixels

Effective Pixels

Scanning System

Synchronization

Video Output

Resolution

Wide Dynamic Range

Day & Night

Gain Control

Electronic Shutter Speed

Sense up

Iris Mode

White Balance

Min. Illumination

S/N (Y signal)

RS-232C

Motion Detection

O.S.D

SSNR

Privacy Function

Lens Mount

Operating Temperature

Operating Humidity

Dimension (mm)

Weight (W/O Lens & Power Cord)

SHC-721AN SHC-721AP SHC-721APH

DC 12V / AC 24V compatible AC 230V / 50Hz

330mA (DC) / 4.0W (AC) 4.2W

1/3", Vertical double density interline CCD

811(H) x 508(V), 1/3" CCD

768(H) x 494(V), 1/3" CCD

795(H) x 596(V), 1/3" CCD

752(H) x 582(V), 1/3" CCD

2:1 Interlaced 525 Lines/60 Fields/30 Frames 2:1 Interlaced 625 Lines/50 Fields/25 Frames

Internal / Line Lock

1.0V[p-p] NTSC Composite, 75Ω / BNC Connector 1.0V[p-p] PAL Composite, 75Ω / BNC Connector

500Lines (color) / 550Lines (B/W)

Built-in (46dB)

ON / OFF / AUTO 1 / AUTO 2 (Filter Auto Change)

AGC-L, AGC-H, OFF Selectable

1/60~1/200,000sec (Auto / Manual) 1/50~1/200,000sec (Auto / Manual)

Built-in (selectable limit~X128)

ESC / Video Drive / DC Drive

W-ATW / S-ATW / AWC / Manual

Color: 0.3lux at F1.2, B/W: 0.01lux at F1.2

50dB (Weight on)

Built-in

MD1 / MD2 / OFF (Built-in Alarm Output Connector)

Built-in

Built-in (LOW / MIDDLE / HIGH / OFF)

ON / OFF (4 Programmable Zone)

C / CS Mount

-10°C ~ +50°C (14°F ~ 122°F)

30% ~ 90% RH

69(W) X 56(H) X 125(D) without mounting foot & connector

460g 500g

COLOR CCD CAMERA

43

User’s Manual

DECLARATION OF CONFORMITY

Application of Council Directive(s) 89 / 336 / EEC

Manufacturer's Name SAMSUNG TECHWIN CO., LTD

Manufacturer's Address SAMSUNG TECHWIN CO., LTD

42, SUNGJU-DONG CHANGWON-CITY,

KYUNGNAM, KOREA, 641-120

European Representative Name

European Representative Address

Equipment Type/Environment

Model Name

Beginning Serial NO.

Year of Manufacture

Conformance to

CCTV Camera

SHC-721AP/APH

S404000

2004. 4. 1

EN 50081-1 : 1992

EMC-Directive 89/336 EEC and 92/31/EEC

EN 50130-4 : 1996

We, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s).

Manufacturer SAMSUNG TECHWIN CO., LTD Legal Representative in Europe

Signature Signature

Full Name

Position

YOUNG TAEK SON

QUALITY CONTROL MANAGER

Full Name

Position

Place

Date 2004. 4. 1 Date

MEMO

MEMO MEMO

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
