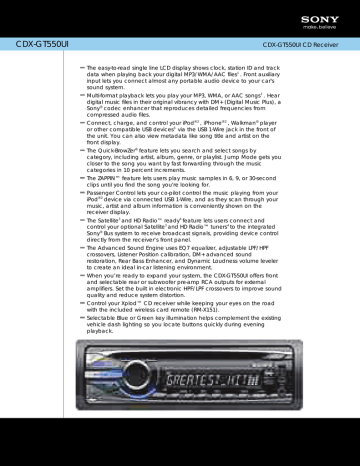

CDXGT550UI MFG SPEC SHEET
CDX-GT550UI
CDX-GT550UI CD Receiver
The easy-to-read single line LCD display shows clock, station ID and track
data when playing back your digital MP3/WMA/AAC files1 . Front auxiliary
input lets you connect almost any portable audio device to your car's
sound system.
Multi-format playback lets you play your MP3, WMA, or AAC songs1 . Hear
digital music files in their original vibrancy with DM+ (Digital Music Plus), a
Sony® codec enhancer that reproduces detailed frequencies from
compressed audio files.
Connect, charge, and control your iPod®2 , iPhone®2 , Walkman® player
or other compatible USB devices5 via the USB 1-Wire jack in the front of
the unit. You can also view metadata like song title and artist on the
front display.
The Quick-BrowZer® feature lets you search and select songs by
category, including artist, album, genre, or playlist. Jump Mode gets you
closer to the song you want by fast forwarding through the music
categories in 10 percent increments.
The ZAPPIN™ feature lets users play music samples in 6, 9, or 30-second
clips until you find the song you're looking for.
Passenger Control lets your co-pilot control the music playing from your
iPod®2 device via connected USB 1-Wire, and as they scan through your
music, artist and album information is conveniently shown on the
receiver display.
The Satellite3 and HD Radio™ ready4 feature lets users connect and
control your optional Satellite3 and HD Radio™ tuners4 to the integrated
Sony® Bus system to receive broadcast signals, providing device control
directly from the receiver’s front panel.
The Advanced Sound Engine uses EQ7 equalizer, adjustable LPF/HPF
crossovers, Listener Position calibration, DM+ advanced sound
restoration, Rear Bass Enhancer, and Dynamic Loudness volume leveler
to create an ideal in-car listening environment.
When you’re ready to expand your system, the CDX-GT550UI offers front
and selectable rear or subwoofer pre-amp RCA outputs for external
amplifiers. Set the built in electronic HPF/LPF crossovers to improve sound
quality and reduce system distortion.
Control your Xplod™ CD receiver while keeping your eyes on the road
with the included wireless card remote (RM-X151).
Selectable Blue or Green key illumination helps complement the existing
vehicle dash lighting so you locate buttons quickly during evening
playback.
CDX-GT550UI
Features
Detach face with front aux input The easy-to-read single line LCD
display shows clock, station ID and track data when playing back
your digital MP3/WMA/AAC files1 . Front auxiliary input lets you connect
almost any portable audio device to your car's sound system.
MP3/WMA/AAC playback1 Multi-format playback lets you play your
MP3, WMA, or AAC songs1 . Hear digital music files in their original
vibrancy with DM+ (Digital Music Plus), a Sony® codec enhancer that
reproduces detailed frequencies from compressed audio files.
Front USB 1-Wire Connect, charge, and control your iPod®2 , iPhone®2 ,
Walkman® player or other compatible USB devices5 via the USB 1-Wire
jack in the front of the unit. You can also view metadata like song title
and artist on the front display.
Intuitive Search Features The Quick-BrowZer® feature lets you search and
select songs by category, including artist, album, genre, or playlist.
Jump Mode gets you closer to the song you want by fast forwarding
through the music categories in 10 percent increments.
ZAPPIN™ track sampling search The ZAPPIN™ feature lets users play
music samples in 6, 9, or 30-second clips until you find the song you're
looking for.
Passenger Control Passenger Control lets your co-pilot control the
music playing from your iPod®2 device via connected USB 1-Wire, and
as they scan through your music, artist and album information is
conveniently shown on the receiver display.
ADDITIONAL FEATURES
Satellite3 /HD Radio™ ready4
Advanced Sound Engine
CDX-GT550UI CD Receiver
Convenience
Tilt Range: 0-45° mounting angle
Display
Technology: LCD
Display Color: Black color / Negative
Text Displayed: Source, artist, track, playback time, menu and clock
Text Lines: 2 lines of information
Amplifier Section
Speaker Impedance: 4-8 Ohms
Max power output: 52 watts x 4 at 4 ohms
Tuner
FM Usable Sensitivity: 10 dBf
Selectivity: 75 dB at 400 kHz
S/N Ratio: 70 dB (mono)
Frequency Response: FM: 20-15,000 Hz
Stereo Separation: 40 dB at 1 KHz
Power
Output Power: 52W x4 Watts Max Power - CEA2006 Standard Power Output: 17 Watts
RMS per channel into 4 Ohms, 4 channels driven from 20 Hz to 20 kHz with less
than 1% THD+N.
Current Drain: 3 - 5 amps
Input Voltage: 12 V DC car battery (negative ground)
Inputs and Outputs
RCA Audio Output(s): Front and Rear/Sub selectable RCA pre-amp outputs
Digital Audio Input(s): Ability to use all forms of USB devices may vary as not all
devices are compatible.
This unit can be connected to the following iPods. Update your iPod to the latest
software before you use it.
iPod Nano 1st generation*
iPod Nano 2nd generation (aluminum)
RCA outputs for external amplifiers
iPod Nano 3rd generation (video)
Wireless card remote
iPod 5th generation (video)*
Blue or Green key illumination
Specifications
iPod Classic
iPod Touch
Convenience Features
iPhone
CD Text Display: CD/MP3/WMA/AAC data displayed
On-Screen Clock: 12H
Dimmer Adjust: Manual - on/off
Key Illumination: Switchable: Blue / Green
This unit is compliant with MSC (Mass Storage Class) and MTP (Media Transfer
Protocol) type USB devices compliant with the USB standard.
General
Disc Capacity: 1
Color: Dark Titanium
Audio
Preout Impedance: 220 ohms
Preout Voltage: 2 volt
S/N Ratio: Audio Power: CEA2006 S/N 80 dBA
Frequency Response: CD: 10-20,000 Hz
Wow and Flutter: Below measurable limit
Station Preset(s): 18 FM / 12 AM
Digital-to-Analog Converter: 24 bit
Tuner Frequency Range:
FM:Tuner Frequency Range(MHz): 87.5-107.9
This unit cannot recognize USB devices via a USB hub.
If you have any questions or problems concerning your unit that are not covered
in the owners manual, consult your nearest Sony dealer.
USB Port(s): Front USB - Full Speed
Antenna Terminal(s): AM/FM Antenna Input Terminal
12V Trigger Output(s):
Power antenna
Amplifier turn on
Remote Jack: Optional wired remote input terminal
Audio In:
Front Aux with variable level: -8dB ∼ +18dB
Front USB input
AM:Tuner Frequency Range(kHz): 530-1710
Tuner Type: SSIR-EXA with RDS
Band: AM / FM
Signal-to-Noise Ratio (dB): CD: 120 dB
Format(s) Supported: MP3/WMA/AAC files1
Sony Bus terminals
Infrared Port: Wireless remote
Equalizer: EQ7: 7 band EQ,
Supplied Accessories
+/- 6 dB at 63 Hz
+/- 6 dBb at 160 Hz
+/- 6 dBb at 400 Hz
+/- 6 dBb at 1 kHz
+/- 6 dBb at 2.5 kHz
+/- 6 dBb at 6.3 kHz
+/- 6 dBb at 16 kHz
Dimensions
Weight: 1.3 kg (2 lb. 14 oz.)
Measurements: 178 x 50 x 179mm
Parts for installation and connections (1 set)
RM-X151 wireless remote
Optional Accessories
Replacement remote: RM-X151
CD changer (6 discs): CDX-T69
Source selector: XA-C40
Aux-in selector: XA-300
HD Radio® tuner: XT-100HD
®
iPod USB cable: RC-100IP
Color: Dark Titanium
UPC Code: 027242795983
1. Not all MP3 and WMA files may playback due to file variations. Copyright protected ACC-LC files cannot be
played back.
2. Ability to use
all generations
iPod Dealer
products may
vary as not
products are
compatible. Compatible
with
Please
visitofthe
Source
forallcurrent
information
at
iPod® touch, iPod Nano 3rd generation, iPod classic
3. Satellite radio service requires awww.sony.com/dealersource
satellite radio tuner and service subscription, sold separately.
4. HD Radio™ capability requires an optional HD Radio tuner (XT-100HD).
5. Ability to use all forms of USB devices may vary as not all devices are compatible.
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com
Last Updated: 02/23/2011
© 2010 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is
prohibited. Sony, Walkman, Xplōd, ZAPPIN, Quick-BrowZer and the Sony and Xplod logos are trademarks of
Sony. iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries. All other
