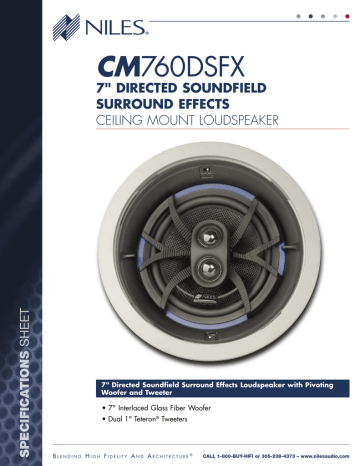

CM760DSFX
SPECIFICATIONS SHEET
7" DIRECTED SOUNDFIELD
SURROUND EFFECTS
CEILING MOUNT LOUDSPEAKER
7" Directed Soundfield Surround Effects Loudspeaker with Pivoting
Woofer and Tweeter
• 7" Interlaced Glass Fiber Woofer
• Dual 1" Teteron® Tweeters
BLENDING HIGH FIDELITY AND ARCHITECTURE®
CALL 1-800-BUY-HIFI or 305-238-4373 – www.nilesaudio.com
7
INCH DIRECTED SOUNDFIELD SURROUND EFFECTS CEILING MOUNT LOUDSPEAKER
7" Directed Soundfield
Surround Effects
Loudspeaker with Pivoting
Woofer and Tweeter
CM760DSFX
Stock Number
FG01311
Features
■ Fully pivoting, patented woofer assembly focuses the bass and midrange tones directly into the
listening area (pivots up to 20º)
■ Twist & Lock™ baffle and frame mechanism facilitates quick installation and trouble-free upgrades
■ Integrated woofer/baffle design delivers greater low frequency response by employing a 7" woofer
where competitive models of the same outer size employ 6 1/2" woofers
■ Butyl rubber cone surround damps resonance and provides exceptional durability
■ Dual 1" pivoting fluid-cooled Teteron® dome tweeters offer ultra-wide dispersion and silky-smooth
high-frequency response
■ Bridge-mounted surround effects (FX) tweeter array directs the high-frequency sounds at opposing
angles to create realistic surround sound effects
■ Includes flush-mount MicroPerf™ aluminum grille for a clean and unobtrusive look
■ Adjustable Dipole/Bipole and effects level controls provide for optimum room matching
Specifications
■ Frequency Response: 52Hz to 21kHz +/-3dB
■ Impedance: 8 ohm nominal; 6 ohm minimum
■ Recommended Amplifier Power: 10 to 150 Watts
■ Frame Dimensions: 11 inches
■ Hole cutout dimensions: 9 3/4 inches
■ Depth behind ceiling: 5 7/8 inches
Warranty: Lifetime limited
US Patent: 6, 683, 963
Pivoting Woofer
and Tweeter
Technology
CES Innovations
Design &
Engineering Award
P RODUCT CONSTRUCTION AND ACCESSORIES
5-7/8" Depth
SPECIFICATIONS SHEET
9-3/4"
Hole
Cutout
9-3/4"
Hole
Cutout
11"
Frame Outer
Diameter
6-3/16" Depth
Loudspeaker Model
Model
Stock Number
CM760DSFX
FG01311
Works With
Previous Bracket
New Bracket
Metal Enclosure
Hole Cover
DS8 Series
Bracket Kit
CM700DS BKT
CM700 DSCE
CM700DS
Hole Cover
FG01357
FG01397
FG01053
NILES AUDIO CORPORATION 12331 SW 130 Street, Miami, FL 33186 1-800-BUY-HIFI – www.nilesaudio.com
©2007 Niles Audio Corporation. All Rights Reserved. Niles and the Niles logo are registered trademarks of Niles Audio Corporation. CS0064B
FG01318
