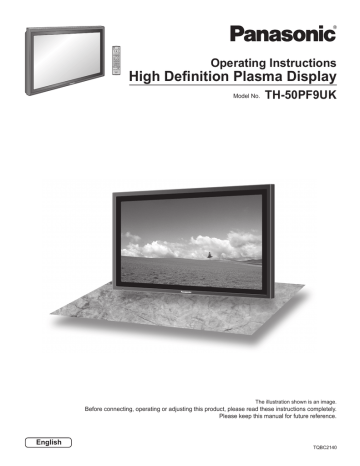

Operating Instructions

High Defi nition Plasma Display

Model No.

TH-50PF9UK

English

The illustration shown is an image.

Before connecting, operating or adjusting this product, please read these instructions completely.

Please keep this manual for future reference.

TQBC2140

2

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualifi ed service personnel.

The lightning flash with arrow-head within a triangle is in tend ed to tell the user that parts inside the product are a risk of electric shock to per sons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the ap pli ance.

WARNING : To prevent damage which may result in fi re or shock hazard, do not expose this apparatus to rain or mois ture.

Do not place containers with water (fl ower vase, cups, cosmetics, etc.) above the set.

(including on shelves above, etc.)

WARNING : 1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualifi ed service personnel.

2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin grounding-type power plug. This plug will only fi t a grounding-type power outlet. This is a safety fea ture.

If you are unable to insert the plug into the outlet, contact an electrician.

Do not defeat the purpose of the grounding plug.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories specifi ed by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

3

Dear Panasonic Customer

4

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new Plasma Display.

To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference.

Retain your purchase receipt as well, and record the model number and serial number of your set in the space provided on the rear cover of these instructions.

Table of Contents

Important Safety Instructions .................................. 3

FCC STATEMENT ...................................................... 5

Safety Precautions ................................................... 6

Maintenance .............................................................. 7

Accessories .............................................................. 8

Accessories Supplied .............................................. 8

Remote Control Batteries ........................................ 8

Connections .............................................................. 9

PC Input Terminals connection .............................. 10

SERIAL Terminals connection ............................... 11

DVI-D connection .................................................. 12

COMPONENT / RGB connection &

RGB signal (R, G, B) ............................................. 12

Power ON / OFF ..................................................... 13

Basic Controls ........................................................ 14

On-Screen Menu Displays ..................................... 16

Initial selections ..................................................... 18

Selecting the input signal ...................................... 18

Selecting the On-Screen Menu Language ............ 18

ASPECT Controls ................................................... 19

Adjusting POS. /SIZE ............................................. 20

MULTI PIP ................................................................ 22

Advanced PIP .......................................................... 23

PICTURE Adjustments ........................................... 24

ADVANCED SETTINGS ........................................ 25

SOUND Adjustment ................................................ 26

MUTE .................................................................... 26

Digital Zoom ............................................................ 27

PRESENT TIME SETUP / SET UP TIMER .............. 28

PRESENT TIME SETUP ....................................... 28

SET UP TIMER ..................................................... 29

SCREENSAVER (For preventing after-images) ... 30

Setup of SCREENSAVER Time ............................ 31

Reduces screen after-image ................................. 31

SIDE BAR ADJUST ............................................... 32

Reduces power consumption ............................... 33

Customizing the Input labels ................................. 33

SET UP for MULTI DISPLAY ................................... 34

How to setup MULTI DISPLAY ............................. 34

How to set the Display location number for each Plasma Display ....................................... 35

SEAM HIDES VIDEO Setting ............................... 36

ID Remote Control Function .................................. 36

SET UP for Input Signals ....................................... 37

COMPONENT / RGB IN SELECT ......................... 37

3D Y/C FILTER ...................................................... 37

COLOR SYSTEM / Panasonic AUTO ................... 38

3:2 PULLDOWN / VIDEO NR ................................ 38

SYNC .................................................................... 39

H-FREQ. (kHz) / V-FREQ. (Hz) ............................. 39

Options Adjustments ............................................. 40

Shipping condition ................................................. 43

Troubleshooting ..................................................... 44

DVI-D/COMPONENT/RGB/PC input signals ......... 45

Specifi cations ......................................................... 46

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced technician for help.

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION:

Pursuant to 47CFR, Part 15.21 of the FCC rules, any changes or modifi cations to this monitor not expressly approved by Panasonic Corporation of North America could cause harmful interference and would void the user’s authority to operate this device.

FCC Declaration of Conformity

Model No. TH-50PF9UK

Responsible Party: Panasonic Corporation of North America

One Panasonic Way, Secaucus, NJ 07094

Contact Source: Panasonic Broadcast & Television Systems Company

1-800-524-1448

CANADIAN NOTICE:

This Class B digital apparatus complies with Canadian ICES-003.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause permanent after-image to remain on the Plasma Display.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in NORMAL mode.

Trademark Credits

• VGA is a trademark of International Business Machines Corporation.

• Macintosh is a registered trademark of Apple Computer, USA.

• S-VGA is a registered trademark of the Video Electronics Standard Association.

Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

5

Safety Precautions

CAUTION

This Plasma Display is for use only with the following optional accessories. Use with any other type of optional

accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)

• Speakers ................................................................. TY-SP50P8W-K

• Pedestal .................................................................. TY-ST07-K, TY-ST08-K

• Mobile stand ............................................................ TY-ST42PF3

• Wall-hanging bracket (vertical) ................................ TY-WK42PV7

• Wall-hanging bracket (angled) ................................ TY-WK42PR7

• Wall-hanging bracket (drawer type) ........................ TY-WK42DR1

• Ceiling-hanging bracket .......................................... TY-CE42PS7

• BNC Component Video Terminal Board .................. TY-42TM6A

• BNC Composite Video Terminal Board ................... TY-42TM6B

• BNC Dual Video Terminal Board ............................. TY-FB9BD

• DVI-D Terminal Board for PF Series ....................... TY-FB9FDD

• RCA Component Video Terminal Board .................. TY-42TM6Z

• RCA Composite Video Terminal Board ................... TY-42TM6V

• RGB Active Through Terminal Board ...................... TY-42TM6G

• PC Input Terminal Board ......................................... TY-42TM6P

• Composite / Component Video Terminal Board ...... TY-42TM6Y

• SDI Terminal Board ................................................. TY-FB7SD

• HD-SDI Terminal Board ........................................... TY-FB7HD, TY-FB9HD

• HDMI Terminal Board .............................................. TY-FB8HM

• Ir Through Terminal Board ...................................... TY-FB9RT

• Touch Panel ............................................................ TY-TP50P8-S

• Anti glare fi lter ......................................................... TY-AR50P9W

Always be sure to ask a qualifi ed technician to carry out set-up.

Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being played with by young children, creating the potential risk of suffocation.

When using the Plasma Display

Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.

• Top of the Plasma Display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries can happen if any body parts are brought too close. Placing any object near the top of the display could also result in heat damages to the object as well as to the Display if its ventilation holes are blocked.

Be sure to disconnect all cables before moving the

Plasma Display.

• Moving the Display with its cables attached might damage the cables which, in turn, can cause fi re or electric shock.

Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.

• Electric shocks can result if this is not done.

Clean the power cable regularly to prevent it from becoming dusty.

• Built-up dust on the power cord plug can increase humidity which might damage the insulation and cause fi re. Unplug the cord from the wall outlet and clean it with a dry cloth.

This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment.

Install your infrared sensor in a place away from direct or refl ected light from your Plasma Display.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the Plasma Display.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in

NORMAL mode.

6

Safety Precautions / Maintenance

WARNING

Setup

Do not place the Plasma Display on sloped or unstable surfaces.

• The Plasma Display may fall off or tip over.

Do not place any objects on top of the Plasma

Display.

• If water spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result in fi re or electric shock. If any foreign objects get inside the Plasma Display, please consult an Authorized

Service Center.

Do not cover the ventilation holes.

• Doing so may cause the Plasma Display to overheat, which can cause fire or damage to the Plasma

Display.

Transport only in upright position!

• Transporting the unit with its display panel facing upright or downward may cause damage to the internal circuitry.

If using the pedestal (optional accessory), leave a space of 3

15

/

16

” (10 cm) or more at the top, left and right, 2

3

/

8

(6 cm) or more at the bottom, and 2

3

/

4

” (7 cm) or more at the rear. If using some other setting-up method, leave a space of 3

15

/

16

” (10 cm) or more at the top, bottom, left and right, and 2

3

/

4

” (7 cm) or more at the rear.

AC Power Supply Cord

The Plasma Display is designed to operate on 120 V

AC, 50/60 Hz.

Securely insert the power cord plug as far as it will go.

• If the plug is not fully inserted, heat may be generated which could cause fi re. If the plug is damaged or the wall socket plate is loose, they should not be used.

Do not handle the power cord plug with wet hands.

• Doing so may cause electric shocks.

Do not do anything that might damage the power cable.

When disconnecting the power cable, hold the plug, not the cable.

• Do not make any modifi cations, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pull the power cable. Doing so may cause damage to the power cable which can cause fi re or electric shock.

If damage to the cable is suspected, have it repaired at an Authorized Service Center.

If the Plasma Display will not be used for a long period of time, unplug the power cord from the wall outlet.

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the

Plasma Display, unplug the power cord immediately.

• Continuous use of the Display under these conditions might cause fi re or permanent damage to the unit.

Have the Display evaluated at an Authorized Service

Center. Services to the Display by any unauthorized personnel are strongly discouraged due to its high voltage dangerous nature.

If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately.

• A short may occur, which could cause fi re. Contact an

Authorized Service Center for any repairs that need to be made.

Maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water to which a small amount of neutral detergent has been added, and then wipe it evenly with a dry cloth of the same type until the surface is dry.

• Do not scratch or hit the surface of the panel with fi ngernails or other hard objects, otherwise the surface may become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.

• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get inside the unit, operating problems may result.

• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

7

Accessories

Accessories Supplied

Operating

Instruction book

Check that you have the Accessories and items shown

Remote Control

Transmitter

EUR7636070R

Batteries for the

Remote Control

Transmitter

(2 × AA Size)

Fixing bands × 2 AC cord

Remote Control Batteries

Requires two AA batteries.

1. Pull and hold the hook, then open the battery cover.

2. Insert batteries - note correct polarity ( + and -).

3. Replace the cover.

+

-

+

-

“AA” size

Helpful Hint:

For frequent remote control users, replace old batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.

Disposal of batteries should be in an environment-friendly manner.

Observe the following precautions:

1. Batteries should always be replaced as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

5. Battery replacement is necessary when the remote control acts sporadically or stops operating the Plasma Display.

8

Connections

When connecting the speakers, be sure to use only the optional accessory speakers.

Refer to the speaker’s Installation Manual for details on speaker installation.

Speakers (Optional accessories)

1

2

1

SPEAKERS

Terminals (R)

SPEAKERS

Terminals (L)

AC cord connection (see page 13)

2

– AC cord fi xing

1. Open the clamper.

2. Insert the AC cord and close the clamper securely.

3. Slide up the clamper and fi x the AC cord plug securely.

When loosen the clamper:

4. Insert the point of the fi xed clamper into the small hole on the lower r i g h t o f the back cover as necessary.

Clamper

AC cord

Note: The power plug in the illustration may not be the type fi tted to your set.

– Cable fi xing bands

Secure any excess cables with bands as required.

Pass the attached cable fi xing band through the clip as shown in the fi gure.

To secure cables connected to Terminals, wrap the cable fi xing band around them then pass the pointed end through the locking block, as shown in the fi gure.

While ensuring there is suffi cient slack in cables to minimize stress (especially in the power cord), fi rmly bind all cables with the supplied fi xing band.

To tighten:

To loosen:

Push the catch

Pull

1 2 Pull

SLOT1

AUDIO

DVI-D IN

SLOT2

R AUDIO L

P

R

/C

R

/R P

B

/C

B

/B

COMPONENT/RGB IN

Y/G

SLOT3

PC IN

AUDIO

SERIAL

Optional Terminal

Board Insert Slot

(covered)

DVI-D IN

Terminals

(see page 12)

COMPONENT/RGB IN and Audio IN Terminals

(see page 12)

From EXTERNAL monitor terminal on

Computer (see page 10)

Note:

At factory shipment, Terminal boards are installed in SLOT 2 and SLOT 3.

From SERIAL

Terminal on Computer

(see page 11)

9

Connections

PC Input Terminals connection

COMPUTER

PC IN

AUDIO

Conversion adapter

(if necessary)

RGB

PC cable

Mini D-sub 15p

Audio

Connect a cable which matches the audio output terminal on the computer.

Stereo plug

Notes:

• Due to space limitations, occasionally you may have trouble connecting Mini D-sub 15P cable with ferrite core to PC input Terminal.

• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

• The display resolution is a maximum of 1,440 × 1,080 dots when the aspect mode is set to “NORMAL”, and 1,920 ×

1,080 dots when the aspect mode is set to “FULL”. If the display resolution exceeds these maximums, it may not be possible to show fi ne detail with suffi cient clarity.

• The PC input terminals are DDC1/2B-compatible. If the computer being connected is not DDC1/2B-compatible, you will need to make setting changes to the computer at the time of connection.

• Some PC models cannot be connected to the set.

• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.

• The computer shown in the illustration is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specifi ed frequency range.

• Component Input is possible with the pin 1, 2, 3 of the D-sub 15P Connector.

• Change the “COMPONENT/RGB-IN SELECT” setting in the “SET UP” menu to “COMPONENT”

(when COMPONENT connection) or “RGB” (when RGB signal connection). (see page 37)

Signal Names for Mini D-sub 15P Connector

5

10

4

9

3

8

2

7

1

6

15 14 13 12 11

Pin Layout for PC Input

Terminal

Pin No.

Signal Name

1

R (P

R

/C

R

)

2

3

4

5

G (Y)

B (P

B

/C

B

)

NC (not connected)

GND (Ground)

Pin No.

Signal Name

6

GND (Ground)

7

8

9

10

GND (Ground)

GND (Ground)

NC (not connected)

GND (Ground)

Pin No.

11

12

13

14

15

Signal Name

NC (not connected)

SDA

HD/SYNC

VD

SCL

10

Connections

SERIAL Terminals connection

The SERIAL terminal is used when the Plasma Display is controlled by a computer.

COMPUTER

RS-232C Straight cable

SERIAL

1 2 3 4 5

6 7 8 9

Pin layout for SERIAL Terminal

D-sub 9p

Notes:

• Use the RS-232C cable to connect the computer to the Plasma Display.

• The computer shown is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

The SERIAL terminal conforms to the RS-232C interface specifi cation, so that the Plasma Display can be controlled by a computer which is connected to this terminal.

The computer will require software which allows the sending and receiving of control data which satisfi es the conditions given below. Use a computer application such as programming language software. Refer to the documentation for the computer application for details.

Communication parameters

Signal level

Synchronization method

Baud rate

Parity

Character length

Stop bit

Flow control

RS-232C compliant

Asynchronous

9600 bps

None

8 bits

1 bit

-

4

2

3

5

7

8

6

RS-232C Conversion cable

Details

R X D

GND

Non use

Shorted

1

NC

Basic format for control data

The transmission of control data from the computer starts with a STX signal, followed by the command, the parameters, and lastly an ETX signal in that order.

If there are no parameters, then the parameter signal does not need to be sent.

STX C1 C2 C3

Start

(02h)

: P1 P2 P3 P4 P5 ETX

Colon

3-character command (3 bytes)

Parameter(s)

(1 - 5 bytes)

End

(03h)

Notes:

• If multiple commands are transmitted, be sure to wait for the response for the fi rst command to come from this unit before sending the next command.

• If an incorrect command is sent by mistake, this unit will send an “ER401” command back to the computer.

Command

Command

PON

POF

AVL

AMT

IMS

DAM

Parameter

None

None

**

0

1

None

SL1

SL2

SL3

PC1

None

NORM

ZOOM

FULL

JUST

SELF

Power ON

Control details

Power OFF

Volume 00 - 63

Audio MUTE OFF

Audio MUTE ON

Input select (toggle)

Slot1 input

Slot2 input

Slot3 input

PC input

Screen mode select (toggle)

NORMAL (4 : 3)

ZOOM

FULL

JUST

Panasonic AUTO

With the power off, this display responds to PON command only.

11

Connections

DVI-D connection

PC with DVI-D video out

DVI-D video cable

(Within 5 m) AUDIO

DVI-D IN

SLOT2

Mini-plug (M3)

DVI-D Input Connector

Pin Layouts

16

24

8

17

1

9

Pin No.

1

2

3

4

5

6

7

8

Signal Name

T.M.D.S. data 2-

T.M.D.S. data 2+

T.M.D.S. data 2/4 shielded

T.M.D.S. data 4-

T.M.D.S. data 4+

DDC clock

DDC data

Pin No.

13

14

15

16

17

18

19

20

Connection port view

9

10

11

T.M.D.S. data 1-

T.M.D.S. data 1+

T.M.D.S. data 1/3 shielded

21

22

23

12

T.M.D.S. data 3-

24

Notes:

• Additional equipment, cables and adapter plugs shown are not supplied with this set.

• Refer to page 45 for applicable input signal.

Signal Name

T.M.D.S. data 3+

+5 V DC

Ground

Hot plug sense

T.M.D.S. data 0-

T.M.D.S. data 0+

T.M.D.S. data 0/5 shielded

T.M.D.S. data 5-

T.M.D.S. data 5+

T.M.D.S. clock shield

T.M.D.S. clock+

T.M.D.S. clock-

COMPONENT / RGB connection & RGB signal (R, G, B)

Example of input signal source

COMPONENT VIDEO OUT

R

R

DVD

Y, P

B

, P

R

,

OUT

P

B

Y

Digital TV-SET-TOP-BOX

(DTV-STB)

L

AUDIO

OUT

R

RCA-BNC adapter plug

Computer

RGB Camcorder or

R AUDIO L

P

R

/C

R

/R P

B

/C

B

/B

COMPONENT/RGB IN

Y/G

SLOT3

Notes:

• Change the “COMPONENT/RGB-IN SELECT” setting in the “SET UP” menu to “COMPONENT”

(when COMPONENT connection) or “RGB” (when RGB signal connection). (see page 37)

• Additional equipment, cables and adapter plugs shown are not supplied with this set.

• SYNC ON G signal is needed. (see page 39)

12

Power ON / OFF

Connecting the AC cord plug to the Plasma Display.

Fix the AC cord plug securely to the Plasma Display with the clamper. (see page 9)

Connecting the plug to the Wall Outlet

Press the Power switch on the Plasma Display to turn the set on: Power-On.

Power Indicator: Green

Example: The screen below is displayed for a while after the

Plasma Display is turned on. (setting condition is an example.)

INPUT MENU -/ VOL +/ ENTER/

Power Indicator

Remote Control

Sensor

When the POWER is turned on for the fi rst time, the LANGUAGE selection screen is displayed.

From the second time on, language selection can be done from the setup menu. (see page 18)

Select the desired language using the or button and press the ACTION ( ) button.

OSD LANGUAGE

English (UK)

Deutsch

Français

Italiano

Español

ENGLISH (US)

Русский

SELECT SET

From the second time on, the screen shown below is displayed for a while

(setting condition is an example).

Press the button on the remote control to turn the Plasma Display off.

Power Indicator: Red (standby)

Press the button on the remote control to turn the Plasma Display on.

Power Indicator: Green

Turn the power to the Plasma Display off by pressing the switch on the unit, when the Plasma Display is on or in standby mode.

Note:

During operation of the power management function, the power indicator turns orange in the power off state.

P C

F U L L

13

Basic Controls

Remote control sensor

Main Power On / Off Switch

Power Indicator

The Power Indicator will light.

• Power-OFF .... Indicator not illuminated (The unit will still consume some power as long as the power cord is still inserted into the wall outlet.)

• Standby ......... Red

• Power-ON ...... Green

INPUT MENU -/ VOL

+

/ ENTER/

Volume Adjustment

Volume Up “+” Down “–”

When the menu screen is displayed:

“+” : press to move the cursor up

“–” : press to move the cursor down

(see page 16)

Enter / Aspect button

(see page 16, 19)

MENU Screen ON / OFF

Each time the MENU button is pressed, the menu screen will switch. (see page 16)

Normal Viewing PICTURE SET UP

SOUND POS. /SIZE

INPUT button

(INPUT1, INPUT2, INPUT3 and PC selection)

(see page 18)

• DPMS .............Orange (With PC input signal and during operation of PC’s screensaver.)

SURROUND button

The surround setting switches on and off each time the SURROUND button is pressed.

The benefi ts of surround sound are enormous. You can be completely enveloped in sound; just as if you were at a concert hall or cinema.

Note:

The surround settings are memorized separately for each AUDIO MENU (STANDARD, DYNAMIC,

CLEAR).

N button (see page 20, 21, 24, 25, 26)

POS. /SIZE button (see page 20)

PICTURE button (see page 24)

INPUT button

(INPUT1, INPUT2, INPUT3 and PC selection)

Press to select INPUT1, INPUT2, INPUT3 and PC input

SLOTS sequentially. (see page 18)

Sound mute On / Off (see page 26)

Numeric buttons (see page 36, 42)

ASPECT button

Press to adjust the aspect. (see page 19)

MULTI Window buttons (see page 22)

SURROUND ON

14

Basic Controls

Standby (ON / OFF) button

The Plasma Display must fi rst be plugged into the wall outlet and turned on at the power switch (see page 13).

Press ON to turn the Plasma Display On, from Standby mode. Press OFF to turn the Plasma Display Off to Standby mode.

POSITION buttons

ACTION button

Press to make selections.

SOUND button

(see page 26)

R button (see page 17)

Press the R button to return to previous menu screen.

Status button

Press the “Status” button to display the current system status.

P C

N O R M A L

OFF TIMER 90

1

2

3

1

2

Input label

Aspect mode (see page 19)

3

Off timer

The off timer indicator is displayed only when the off timer has been set.

SET UP button (see page 16, 17)

DIRECT INPUT buttons

Press the INPUT “1”, “2”, “3” or “PC” input mode selection button to select the INPUT mode.

This button is used to switch directly to INPUT mode.

These buttons can only display the slot which is installed. If you press the button whose slot is not installed, it automatically displays the current input signal.

Note:

After-image (image lag) may occur on the plasma display panel when a still picture is kept on the panel for an extended period. The function that darkens the screen slightly is activated to prevent after-image (see page 44), this function is not the perfect solution to after-image.

Channel Adjustment

This button cannot be used for this model.

Volume Adjustment

Press the Volume Up “+” or Down “–” button to increase or decrease the sound volume level.

OFF TIMER button

The Plasma Display can be preset to switch to stand-by after a fi xed period. The setting changes to 30 minutes, 60 minutes, 90 minutes and

0 minutes (off timer cancelled) each time the button is pressed.

30 60 90

0

When three minutes remain, “OFF TIMER 3” will fl ash.

The off timer is cancelled if a power interruption occurs.

Remote ID lock (see page 36)

Digital Zoom (see page 27)

Press to access

Digital Zoom.

This displays an enlargement of the designated part of the displayed image.

15

On-Screen Menu Displays

The MENU button on the unit can also be pressed.

To PICTURE adjust menu (see page 24)

1/2 PICTURE

NORMALIZE

NORMAL

PICTURE MENU


BRIGHTNESS

COLOR

TINT

SHARPNESS

STANDARD

25

0

5

0

0


COLOR TEMP

COLOR MANAGEMENT

ADVANCED SETTINGS

NORMAL

OFF

ON

2/2

1

Press to select .

INPUT MENU -/ VOL

+

/ ENTER/

Each time the MENU button is pressed, the menu screen will switch.

Normal Viewing PICTURE SETUP

SOUND POS. /SIZE

[ from the unit ]

INPUT MENU -/ VOL

+

/ ENTER/

1 2

1

2

Press to select.

Press to access each adjust screen.

Press to select

“ON”.

Press to enter

ADVANCED

SETTINGS.

To ADVANCED SETTINGS

(see page 24, 25)

ADVANCED SETTINGS

NORMALIZE

NORMAL

BLACK EXTENSION

INPUT LEVEL

W/B HIGH R

W/B HIGH B

W/B LOW R

W/B LOW B

GAMMA

AGC

0

0

0

0

0

0

2.2

OFF

SET UP 1/2

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

16

To POS. /SIZE adjust menu (see page 20)

During “VIDEO (S VIDEO)”, “Digital”,

“SDI” and “HDMI” input signal.

POS. /SIZE

NORMALIZE

AUTO SETUP

H-POS

H-SIZE

V-POS

V-SIZE

NORMAL

1:1 PIXEL MODE

0

0

0

0

OFF

D u r i n g “ C O M P O N E N T ” ,

“RGB” and “PC” input signal.

POS. /SIZE

NORMALIZE

AUTO SETUP

H-POS

H-SIZE

V-POS

NORMAL

V-SIZE

DOT CLOCK

CLOCK PHASE

1:1 PIXEL MODE

0

0

0

0

0

0

OFF

To SOUND adjust menu

(see page 26)

SOUND

NORMALIZE

AUDIO MENU

NORMAL

BASS

MID

TREBLE

BALANCE

SURROUND

AUDIO OUT (PIP)

STANDARD

0

0

0

0

OFF

MAIN

SET UP

SCREENSAVER

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

2/2

On-Screen Menu Displays

Note:

Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.

To SIGNAL screen for VIDEO

(S VIDEO) (see page 37, 38)

SIGNAL

[ VIDEO ]

2

Press to access e a c h a d j u s t screen.

[ from the unit ]

INPUT MENU -/ VOL

+

/ ENTER/

Press to return to next menu screen.

To SIGNAL screen for

COMPONENT (see page 38)

SIGNAL

[ COMPONENT ]

To SIGNAL screen for RGB

(see page 38, 39)

SIGNAL

[ RGB ]

Press the R button to return to previous menu.

To SIGNAL screen for Digital

(see page 38, 39)

SIGNAL

[ Digital ]

3D Y/C FILTER (NTSC)

COLOR SYSTEM

3 : 2 PULLDOWN

Panasonic AUTO (4 : 3)

VIDEO NR

ON

AUTO

OFF

NORMAL

OFF

3 : 2 PULLDOWN

VIDEO NR

OFF

OFF

SYNC

3 : 2 PULLDOWN

VIDEO NR

H-FREQ.

V-FREQ.

33.8

60.0

kHz

Hz

AUTO

OFF

OFF

3 : 2 PULLDOWN

VIDEO NR

H-FREQ.

V-FREQ.

33.8

60.0

Note: “SIGNAL” setup menu displays a different setting condition for each input signal. (see page 18)

To setup SCREENSAVER

(See page 30-32)

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

START TIME

FINISH TIME

SIDE BAR ADJUST

WOBBLING

PEAK LIMIT

WHITE BAR SCROLL

TIME OF DAY

6:15

12:30

BRIGHT

OFF

OFF

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION WHITE BAR SCROLL

MODE

SHOW DURATION

SAVER DURATION

INTERVAL

6:15

12:30

SIDE BAR ADJUST

WOBBLING

PEAK LIMIT

BRIGHT

OFF

OFF

To setup MULTIDISPLAY screen.

(See page 34)

MULTI DISPLAY SETUP

Press to select START TIME/ FINISH TIME

(When TIME OF DAY is selected).

Press to select SHOW DURATION/ SAVER DURATION

(When INTERVAL is selected).

Press to set up.

Press the R button to return to

“SET UP” menu.

SCREENSAVER kHz

Hz

OFF

OFF

PRESENT TIME OF DAY 99:99

START

FUNCTION WHITE BAR SCROLL

TIME OF DAY

MODE

START TIME

FINISH TIME

6:15

12:30

SIDE BAR ADJUST

WOBBLING

PEAK LIMIT

BRIGHT

OFF

OFF

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

WHITE BAR SCROLL

SHOW DURATION

SAVER DURATION

INTERVAL

6:15

12:30

SIDE BAR ADJUST

WOBBLING

PEAK LIMIT

BRIGHT

OFF

OFF

MULTI DISPLAY SETUP

HORIZONTAL SCALE

VERTICAL SCALE

SEAM HIDES VIDEO

LOCATION

OFF

× 2

× 2

OFF

A1

To SET UP TIMER selection screen. (see page 28, 29)

SET UP TIMER

PRESENT TIME OF DAY 99:99

Press to select POWER ON

TIME / POWER OFF TIME.

POWER ON FUNCTION

POWER ON TIME

POWER OFF FUNCTION

POWER OFF TIME

OFF

0:00

OFF

0:00

Press to set up POWER

ON TIME / POWER OFF

TIME.

To PRESENT TIME SETUP.

(see page 28)

PRESENT TIME SETUP

PRESENT TIME OF DAY 99:99

SET

PRESENT TIME OF DAY 99:99

Press the R button to return to

“SET UP” menu.

SET UP TIMER

PRESENT TIME OF DAY 99:99

POWER ON FUNCTION

POWER ON TIME

POWER OFF FUNCTION

POWER OFF TIME

OFF

0:00

OFF

0:00

SET UP TIMER

PRESENT TIME OF DAY 99:99

POWER ON FUNCTION

POWER ON TIME

POWER OFF FUNCTION

POWER OFF TIME

OFF

0:00

OFF

0:00

17

Initial selections

Selecting the input signal

Select the input signals to be connected by installing the optional Terminal Boards.

Press to select the input signal to be played back from the equipment which has been connected to the Plasma

Display.

Input signals will change as follows:

INPUT1 INPUT2 INPUT3 PC

Notes:

• Selecting is also possible by pressing the INPUT button on the unit.

• Input terminal will not be selected if the terminal board is not installed into the SLOT.

• Select to match the signals from the source connected to the component/RGB input terminals. (see page 37)

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

Selecting the On-Screen Menu Language

INPUT MENU -/ VOL

+/

ENTER/

INPUT MENU -/ VOL

+

/ ENTER/

Press to display the SET UP menu.

Press to select OSD LANGUAGE.

Press to select your preferred language.

Selectable languages

English(UK)

Deutsch

Français

Italiano

Español

ENGLISH(US)

.......(Chinese)

.......(Japanese)

Русский

.......(Russian)

SET UP 1/2

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

18

ASPECT Controls

The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture.

[from the unit]

Press repeatedly to move through the aspect options:

NORMAL ZOOM FULL

Panasonic AUTO JUST

INPUT MENU -/ VOL

+

/ ENTER/

The aspect mode changes each time the ENTER button is pressed.

[During MULTI PIP Operations]

• Picture and Picture, Picture in Picture :

NORMAL FULL

• Others : Aspect switching is not possible.

Notes:

• For PC signal input, the mode switches between “NORMAL”, “ZOOM” and “FULL” only.

• For a 1125 (1080) / 60i · 50i · 60p · 50p · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p signal input, the mode is set to “FULL” mode, and switching is not possible.

• Panasonic AUTO can be selected only during Video signal input.

• The aspect mode is memorized separately for each input terminal.

Mode

4

NORMAL

Picture Explanation

NORMAL will display a 4:3 picture at its standard 4:3 size.

NORMAL

3

ZOOM

4

3

16

ZOOM

9

ZOOM mode magnifi es the central section of the picture.

FULL

4

3

16

FULL

9

FULL will display the picture at its maximum size but with slight elongation.

JUST

4

3

16

JUST

9

JUST mode will display a 4:3 picture at its maximum size but with aspect correction applied to the center of the screen so that elongation is only apparent at the left and right edges of the screen. The size of the picture will depend on the original signal.

Panasonic

AUTO

4

3

16

Panasonic AUTO

9

For an elongated image Image is expanded

4

3

Changes in accordance with the

Panasonic AUTO mode setting (see page 38).

For a 4:3 image

The display will automatically become enlarged (depending on the picture source), allowing you to view the picture at its maximum size.

Notes:

• Panasonic AUTO mode is designed to automatically adjust the aspect ratio to handle a mix of 16:9 and 4:3 program material. Certain 4:3 program material, such as stock market data screens, may occasionally cause the image size to change unexpectedly. When viewing such programs, it is recommended that the ASPECT be set to NORMAL.

• If adjusting the PICTURE V-POS/V-SIZE in Panasonic AUTO with FULL mode, the adjustment is not memorized. When exiting the mode, the screen will return to a former adjustment.

• Panasonic AUTO can not be selected while TY-FB9BD (optional BNC

Dual Video Terminal Board) is installed.

Note: Do not allow the picture to be displayed in NORMAL mode for an extended period, as this can cause a permanent after-image to remain on the Plasma Display Panel.

19

1

2

Adjusting POS. /SIZE

Press to display the POS. /SIZE menu.

Press to select AUTO SETUP / H-POS / H-SIZE /

V-POS / V-SIZE / DOT CLOCK / CLOCK PHASE /

1:1 PIXEL MODE

3

Press to adjust POS. /SIZE.

4

Press to exit from adjust mode.

Notes:

• Adjustment details are memorized separately for different input signal formats

(Adjustments for component signals are memorized for 525 (480) / 60i · 60p, 625

(575) / 50i · 50p, 1125 (1080) / 60i · 50i · 60p · 50p · 24p · 25p · 30p · 24sF, 1250

(1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/Digital signals are memorized for each frequency.)

• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This picture position movement cannot be controlled by the

POS. /SIZE function.

• If adjusting the PICTURE V-POS / V-SIZE in Panasonic AUTO with FULL mode, the adjustment is not memorized. When exiting the mode, the screen will return to a former adjustment.

During “VIDEO (S VIDEO)”, “Digital”,

“SDI” and “HDMI” input signal.

POS. /SIZE

NORMALIZE

AUTO SETUP

H-POS

H-SIZE

V-POS

NORMAL

V-SIZE

1:1 PIXEL MODE

0

0

0

0

OFF

D u r i n g “ C O M P O N E N T ” ,

“RGB” and “PC” input signal.

POS. /SIZE

NORMALIZE

AUTO SETUP

H-POS

H-SIZE

V-POS

V-SIZE

NORMAL

DOT CLOCK

CLOCK PHASE

1:1 PIXEL MODE

0

0

0

0

0

0

OFF

Helpful Hint ( /

NORMALIZE

Normalization)

While the POS. /SIZE display is active, if either the N button on the remote control is pressed at any time or the ACTION

( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

20

H-SIZE

V-POS

V-SIZE

AUTO SETUP

H-POS

Adjusting POS. /SIZE

Automatically adjust H-POS / V-POS / CLOCK PHASE / DOT CLOCK and set H-SIZE / V-SIZE the standard value when RGB signal is input.

Notes:

• If the dot clock frequency is 162 MHz or higher, DOT CLOCK cannot be made.

• If the image is that the edge is hardly fi gured out or shadowy, that cannot be adjusted automatically.

In such case, press AUTO SETUP again after changing the image to the clearer one.

• When DVI-D is input, CLOCK PHASE cannot be adjusted automatically.

• Select NORMALIZE in POS. /SIZE and press the ACTION ( ) button when appropriate

adjustment cannot be made.

Adjust the horizontal position.

Adjust the horizontal size.

Adjust the vertical position.

Adjust the vertical size.

DOT CLOCK (During “COMPONENT”, “RGB” and “PC” input signal)

Periodic striped pattern interference (noise) may occur when a striped pattern is displayed. If this happens, adjust so that any such noise is minimized.

CLOCK PHASE (During “COMPONENT”, “RGB” and “PC” input signal)

Eliminate the fl ickering and distortion.

1:1 PIXEL MODE Adjusts the display size when 1125i, 1125p or 1250i signal is input.

Notes:

• Select ON when you would like to replay 1920 × 1080 input signal.

• Applicable input signal;

1125 / 50i · 60i · 24sF · 24p · 25p · 30p · 50p · 60p , 1250 / 50i

• Select OFF when fl ickering is shown around the image.

• H-SIZE, V-SIZE and DOT CLOCK cannot be adjusted when ON is selected.

OFF ON

Helpful Hint ( /

NORMALIZE

Normalization)

While the POS. /SIZE display is active, if either the N button on the remote control is pressed at any time or the ACTION

( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

21

MULTI PIP

Press repeatedly.

Each time pressing this button main picture and sub picture will be displayed as follows below.

Normal

Viewing

[Picture and Picture]

Main picture Sub picture

[Picture out Picture]

Main picture Sub picture

[Picture in Picture]

Main picture Sub picture

MULTI PIP MULTI PIP

A B

A

B

MULTI PIP

A

B

SWAP SWAP SWAP

Press to swap main picture and sub picture.

B A

B

A

B

A

Press to select the input mode.

[Example]

Under main Picture and sub picture display, select the picture which you would like to change input modes.

Notes:

• The sub picture sound is heard while a sub picture operation is underway.

• The sub picture operation automatically returns to the main picture operation if a sub picture operation has not been performed for about 5 seconds or if any of the remote control buttons is pressed (except

button).

Main picture label is bright Sub picture label is bright

A

C

PC1

VIDEO2

B

SELECT

Input modes switching is possible

A

A

PC1

VIDEO2

B

Main picture label is changed Sub picture label is changed

VIDEO2

VIDEO1

PC1

VIDEO2

B D

Press to change input signal.

Picture is changed

Press to move the sub picture.

Each time the location of the sub picture will be moved.

Notes:

• This button is effective only in the picture in picture.

• The sub picture may be hidden by the on screen display, depending on its position.

Notes:

• Sound output is from the picture which is selected in Audio OUT(PIP) (See page 26).

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of the pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals displayed on the main picture and depending on the 2-picture display mode.

• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.

• Computer screen picture is displayed in a simplifi ed format, and it may not be possible to discern details on them satisfactorily.

• Following combinations of two analog signals cannot be displayed simultaneously;

Component - Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) - PC (RGB)

• Following signals are not applicable to this menu.

1125 / 50p • 60p, 1152 × 864 @60 Hz, 1400 × 1050 @60 Hz, 1600 × 1200 @60Hz, 1920 × 1200 @60 Hz

22

1

2

Advanced PIP

Press to display the Setup menu.

Press to select “OSD Language”.

3

4

Press and hold until the Options menu is displayed.

Press to select Advanced PIP.

Options 1/3

5

Press to adjust the menu.

Off : Sets normal two screen display mode

(see page 22).

On : Sets Advanced PIP mode.

Press to confi rm.

Off-timer function

Onscreen display

Initial INPUT

Initial VOL level

Maximum VOL level

INPUT lock

Studio W/B

Advanced PIP

Display size

Off

Off

Enable

On

Off

0

0

Off

Off

Off

Off

6

(When Advanced PIP is On)

Press to exit from

Options menu.

One screen Advanced PIP

7

Press repeatedly.

Each time pressing this button main picture and sub picture will be

Sub screen Main screen

Note:

displayed as above.

To use , , , buttons for the screen operations, follow the procedures in the previous page.

Notes:

• Advanced PIP corresponding signal

Sub screen

NTSC, PAL, SECAM (tuner, video)

525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i,

1125/50i, 1250/50i (Component Video, RGB, DVI, SDI, HDMI)

Main screen

[email protected], [email protected], [email protected],

[email protected] (RGB, DVI, HDMI)

[email protected] (DVI)

• Sound output is from the picture which is selected in Audio OUT (PIP) (See page 26).

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of the pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals displayed on the main picture and depending on the 2-picture display mode.

• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.

• Computer screen picture is displayed in a simplifi ed format, and it may not be possible to discern details on them satisfactorily.

• Following combinations of two analog signals cannot be displayed simultaneously;

Component - Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) - PC (RGB)

• Following signals are not applicable to this menu.

1125 / 50p • 60p, 1152 × 864 @60 Hz, 1400 × 1050 @60 Hz, 1600 × 1200 @60Hz, 1920 × 1200 @60 Hz

• Refer to each board's operating instruction for DVI, SDI, HDMI's corresponding signals.

23

PICTURE Adjustments

1

Press to display the PICTURE menu.

2

Select to adjust each item.

Press to select the menu to adjust.


NORMALIZE

NORMAL

PICTURE MENU


BRIGHTNESS

COLOR

TINT

SHARPNESS

1/2

STANDARD

25

0

0

0

5


COLOR TEMP

COLOR MANAGEMENT

ADVANCED SETTINGS

NORMAL

OFF

ON

2/2

Select the desired level by looking at the picture behind the menu.

Note:

Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.

Press to select “ON”.

Press to enter

Advanced Settings.

ADVANCED SETTINGS ON

Enables fine picture adjustment at a professional level (see next page).

ADVANCED SETTINGS

NORMALIZE NORMAL

BLACK EXTENSION

INPUT LEVEL

W/B HIGH R

W/B HIGH B

W/B LOW R

W/B LOW B

GAMMA

AGC

0

0

0

0

0

0

2.2

OFF

ADVANCED SETTINGS OFF

Displays images with settings of the

PICTURE menu.

Press the left or right button to switch between modes.

STANDARD

SUPER CINEMA

DYNAMIC

CINEMA

STANDARD

For viewing in standard (evening lighting) environments.

This menu selects the normal levels of BRIGHTNESS and PICTURE.

DYNAMIC

For viewing in brighter environments.

This menu selects higher than normal levels of

BRIGHTNESS and PICTURE.

CINEMA

Ideal for movies.

SUPER CINEMA

Displays velvety picture.

Note:

If you would like to change the picture and color of the selected PICTURE menu to something else, adjust using the items in the PICTURE menu. (see next page)

Press the left or right button to switch between modes.

NORMAL

COLOR MANAGEMENT ON

COOL WARM

Enables vivid color adjustment automatically.

Helpful Hint ( /

NORMALIZE

Normalization)

While the “PICTURE” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION

( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

24

PICTURE Adjustments

Item


BRIGHTNESS

COLOR

Less

Effect Adjustments

Darker

Less

More

Brighter

More

Adjusts the proper picture contrast.

Adjusts for easier viewing of dark pictures such as night scenes and black hair.

Adjusts color saturation.

TINT

Reddish Greenish

Adjusts for natural fl esh tones.

SHARPNESS

Less More

Adjusts picture sharpness.

Notes:

• “COLOR” and “TINT” settings cannot be adjusted for “RGB/PC” and “Digital” input signal.

• You can change the level of each function

(PICTURE, BRIGHTNESS, COLOR, TINT,

SHARPNESS) for each PICTURE MENU.

• The “TINT” setting can be adjusted for NTSC signal only during “VIDEO

(S VIDEO)” input signal.

• In PICTURE, there is not a noticeable change even when contrast is increased with a bright picture or reduced with a dark picture.

ADVANCED SETTINGS

Item

BLACK

EXTENSION

Less

Effect Details

More

Adjusts the dark shades of the image in gradation.

INPUT

LEVEL

Less More

Adjustment of parts which are extremely bright and hard to see.

(This cannot be adjusted when the input signal is Digital.)

W/B HIGH R

Adjusts the white balance for light red areas.

Less More

W/B HIGH B

Adjusts the white balance for light blue areas.

Less More

W/B LOW R

Less More

Adjusts the white balance for dark red areas.

W/B LOW B

Adjusts the white balance for dark blue areas.

Less More

GAMMA

Down Up

S CURVE 2.0 2.2 2.5

AGC

OFF ON

Increases the brightness of dark signal automatically.

Notes:

• Carry out “W/B” adjustment as follows.

1. Adjust the white balance of the bright sections using the “W/B HIGH R” and “W/B HIGH B” settings.

2. Adjust the white balance of the dark sections using the “W/B LOW R” and “W/B LOW B” settings.

3. Repeat steps 1 and 2 to adjust.

Steps 1 and 2 affect each other’s settings, so repeat each step in turn to make the adjustment.

• The adjustment values are memorized separately for each input terminal.

• The adjustment range values should be used as an adjustment reference.

Helpful Hint ( /

NORMALIZE

Normalization)

On the remote control unit, while the “ADVANCED SETTINGS” menu is displayed, if either the N button is pressed at any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

25

SOUND Adjustment

1

Press to display the SOUND menu.

2

Select to adjust each item.

Press to select the menu to adjust.

Select the desired level by listening to the sound.

BASS

Adjusts low pitch sounds

MID

Adjusts normal sounds

TREBLE

Adjusts pitch sounds

BALANCE

Adjusts left and right volumes

SURROUND

Select On or Off

SOUND

NORMALIZE

AUDIO MENU

NORMAL

BASS

MID

TREBLE

BALANCE

SURROUND

AUDIO OUT (PIP)

MAIN

0

0

0

STANDARD

0

OFF

MAIN

Selects main picture sound.

STANDARD

DYNAMIC

CLEAR

INPUT1

PC

Emits the original sound.

Accentuates sharp sound.

Attenuates human voice.

(When main picture sound is chosen.)

A

B

SUB

Selects PIP frame sound.

INPUT1

PC

(When PIP frame sound is chosen.)

A

B

Musical note is displayed on right side of the audio output screen label.

Notes:

• Press the SURROUND button to directly turn the surround effect ON and OFF. (see page 14)

• BASS, MID, TREBLE and SURROUND settings are memorized separately for each AUDIO MENU.

Helpful Hint ( /

NORMALIZE

Normalization)

While the “SOUND” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION

( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

MUTE

Useful when answering the phone or receiving unexpected visitors.

Press this button to mute the sound.

Press again to reactivate sound. Sound is also reactivated when power is turned off or volume level is changed.

26

Digital Zoom

This displays an enlargement of the designated part of the displayed image.

1

Display the “Operation Guide”.

Press to access Digital Zoom.

The “Operation Guide” will be displayed.

During Digital Zoom, only the following buttons can be operated.

[Remote control] [Unit]

POSITION / ACTION button

VOL button

INPUT MENU -/ VOL

+

/ ENTER/

VOL button

MUTE button

SURROUND button

OFF TIMER button

2

Select the area of the image to be enlarged.

Press on the enlargement location to select.

The cursor will move.

EXIT

1

EXIT

3

Select the magnifi cation required for the enlarged display.

Each time this is pressed, the magnifi cation factor changes.

This is shown in the image being displayed.

× 1 × 2 × 3

4

Return to normal display (quit Digital Zoom).

Press to exit from the Digital Zoom.

Notes:

• When power goes OFF (including “Off Timer” operation), Digital Zoom terminates.

• The Digital Zoom function cannot be selected while in the following operation state:

“Multi-viewer” (Picture in Picture, Picture out Picture, Picture and Picture) operation. (see page 22)

• While Digital Zoom is in operation, “Adjusting POS. /SIZE” cannot be used.

• Following signals are not applicable to this menu.

1125 / 50p • 60p, 1152 × 864 @60 Hz, 1400 × 1050 @60 Hz, 1600 × 1200 @60Hz, 1920 × 1200 @60 Hz

× 4

27

PRESENT TIME SETUP / SET UP TIMER

The timer can switch the Plasma Display ON or OFF.

Before attempting Timer Set, confi rm the PRESENT TIME OF DAY and adjust if necessary.

Then set POWER ON TIME / POWER OFF TIME.

1

Press to display the SET UP menu.

2

Press to select SET UP TIMER or

PRESENT TIME SETUP.

Press to display the SET UP TIMER screen or

PRESENT TIME SETUP screen.

SET UP 1/2

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

2/2 SET UP

SCREENSAVER

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

PRESENT TIME SETUP

Display the PRESENT TIME SETUP screen.

To set up PRESENT TIME OF DAY, follow the procedure described below.

1

Press to select PRESENT TIME OF DAY.

PRESENT TIME SETUP

PRESENT TIME OF DAY 99:99

Press to set up PRESENT TIME OF DAY.

button: Forward

button: Back

Notes:

SET

PRESENT TIME OF DAY 99:99

• Pressing “ ” or “ ” button once changes PRESENT TIME OF DAY 1minute.

• Pressing “ ” or “ ” button continuously changes PRESENT TIME OF DAY by 15 minutes.

2

Press to select Set.

PRESENT TIME SETUP

SET

PRESENT TIME OF DAY 99:99

PRESENT TIME OF DAY

99:99

3

Press to store PRESENT TIME SETUP.

Note:

Set cannot be selected unless PRESENT TIME OF DAY is set.

Press to exit from PRESENT TIME SETUP.

28

PRESENT TIME SETUP / SET UP TIMER

SET UP TIMER

Display the SET UP TIMER SCREEN.

1

Press to select

POWER ON TIME / POWER OFF TIME.

SET UP TIMER

PRESENT TIME OF DAY 99:99

Press to set up POWER ON TIME / POWER OFF

TIME.

button: Forward

button: Back

POWER ON FUNCTION

POWER ON TIME

POWER OFF FUNCTION

POWER OFF TIME

OFF

0:00

OFF

0:00

Notes:

• Pressing “ ” or “ ” button once changes POWER ON TIME / POWER OFF TIME

1minute.

• Pressing “ ” or “ ” button continuously changes POWER ON TIME / POWER OFF

TIME by 15 minutes.

2

Press to select POWER ON FUNCTION

/ POWER OFF FUNCTION.

Press to select ON.

SET UP TIMER

PRESENT TIME OF DAY 99:99

POWER ON FUNCTION

POWER ON TIME

POWER OFF FUNCTION

POWER OFF TIME

OFF

0:00

OFF

0:00

3

Press twice to exit from SET UP.

Note:

Timer function will not work unless “PRESENT TIME OF DAY” is set.

29

SCREENSAVER

(For preventing after-images)

Do not display a still picture, especially in NORMAL mode, for any length of time.

If the display must remain on, a SCREENSAVER should be used.

1

2

Press to display the SET UP menu.

Press to select the SCREENSAVER.

SET UP

SCREENSAVER

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

2/2

Press to select the SCREENSAVER screen.

3

4

5

NEGATIVE / SCROLL selection

MODE selection

Press to select the FUNCTION.

Press to select the desired function.

WHITE BAR SCROLL NEGATIVE

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

WHITE BAR SCROLL

OFF

START TIME

FINISH TIME

6:15

12:30

SIDE BAR ADJUST

WOBBLING

PEAK LIMIT

BRIGHT

OFF

OFF

WHITE BAR SCROLL : A white bar will scroll from left to right.

NEGATIVE : A negative image will be displayed on the screen.

Press to select the MODE.

Press to select each mode items.

OFF

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

START TIME

FINISH TIME

WHITE BAR SCROLL

OFF

SIDE BAR ADJUST

6:15

12:30

BRIGHT

WOBBLING

PEAK LIMIT

OFF

OFF

INTERVAL : Operates when SHOW DURATION and SAVER DURATION are set up and those times arrive.

TIME OF DAY : Operates when START TIME and FINISH TIME are set up and those times arrive.

ON : Operates when START is selected and the ACTION ( ) button is pressed.

START setting

SCREENSAVER

When the MODE is set to ON, press to select

START.

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

START TIME

FINISH TIME

WHITE BAR SCROLL

ON

SIDE BAR ADJUST

6:15

12:30

BRIGHT

WOBBLING OFF

PEAK LIMIT

OFF

Press to start SCREENSAVER.

The menu screen will disappear and the SCREENSAVER will be activated. To stop the

SCREENSAVER under ON, press the R button.

30

SCREENSAVER (For preventing after-images)

Setup of SCREENSAVER Time

After selecting TIME OF DAY or INTERVAL, the relevant Time Setup will become available for selection and the Operating

Time may be set. (Time cannot be set when “MODE” is “ON” or “OFF”.)

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

START TIME

FINISH TIME

WHITE BAR SCROLL

TIME OF DAY

6:15

12:30

BRIGHT SIDE BAR ADJUST

WOBBLING

PEAK LIMIT

OFF

OFF

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

SHOW DURATION

WHITE BAR SCROLL

INTERVAL

SAVER DURATION

SIDE BAR ADJUST

6:15

12:30

BRIGHT

WOBBLING

PEAK LIMIT

OFF

OFF

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

START TIME

FINISH TIME

SIDE BAR ADJUST

WOBBLING

PEAK LIMIT

WHITE BAR SCROLL

OFF

6:15

12:30

BRIGHT

OFF

OFF

Press to select START TIME / FINISH TIME

(When TIME OF DAY is selected).

Press to select SHOW DURATION / SAVER

DURATION (When INTERVAL is selected).

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

START TIME

FINISH TIME

SIDE BAR ADJUST

WOBBLING

PEAK LIMIT

WHITE BAR SCROLL

TIME OF DAY

6:15

12:30

BRIGHT

OFF

OFF

Press to setup.

button: Forward

Notes:

button: Back

• Pressing “ ” or “ ” button once changes the Time 1minute.

[However, switching occurs every 15 minutes when Periodic Time is selected.]

• Pressing “ ” or “ ” button continuously changes the Time by 15 minutes.

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION WHITE BAR SCROLL

TIME OF DAY

MODE

START TIME

FINISH TIME

0:00

0:00

SIDE BAR ADJUST

WOBBLING

PEAK LIMIT

BRIGHT

OFF

OFF

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

SHOW DURATION

WHITE BAR SCROLL

INTERVAL

SAVER DURATION

SIDE BAR ADJUST

0:00

0:00

BRIGHT

WOBBLING

PEAK LIMIT

OFF

OFF

Note: Timer function will not work unless “PRESENT TIME OF DAY” is set.

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

WHITE BAR SCROLL

SHOW DURATION

SAVER DURATION

INTERVAL

6:15

SIDE BAR ADJUST

WOBBLING

PEAK LIMIT

12:30

BRIGHT

OFF

OFF

Reduces screen after-image

These functions prevent the occurrence of an “after image” on the display when turned ON.

WOBBLING: Automatically shifts the display image at a dot level pitch (therefore unnoticeable to the eye) to prevent after image of sharper contour of image.

ON1: Shifts the image over time.

ON2: Shifts the image depending on screen-detection.

PEAK LIMIT: Suppresses image contrast (peak brightness).

Note: When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 44)

1

SET UP 2/2

2

Press to display the SET UP menu.

Press to select “SCREENSAVER”.

SCREENSAVER

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

3

Press to display SCREENSAVER menu.

Press to select “WOBBLING” or “PEAK LIMIT”.

Press to select “ON1”, “ON2” or “OFF” (WOBBLING).

“ON” or “OFF” (PEAK LIMIT).

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

START TIME

WHITE BAR SCROLL

OFF

6:15

FINISH TIME

SIDE BAR ADJUST

WOBBLING

PEAK LIMIT

12:30

BRIGHT

OFF

OFF

31

SCREENSAVER (For preventing after-images )

SIDE BAR ADJUST

Do not display a picture in NORMAL mode for an extended period, as this can cause an after-image to remain on the side bars on either side of the display fi eld.

To reduce the risk of such an after-image, change the brightness of the side bars. side bars

NORMAL mode

This function may be applicable to the non-picture area.

Non picture area after-images

Picture out Picture Picture and Picture

Display the SCREENSAVER screen.

(Refer to the previous page, operation guide steps 1 and 2)

1

Press to select the SIDE BAR ADJUST.

Press to select OFF, DARK, MID, BRIGHT.

OFF DARK MID BRIGHT

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

START TIME

FINISH TIME

WHITE BAR SCROLL

OFF

SIDE BAR ADJUST

6:15

12:30

BRIGHT

WOBBLING

PEAK LIMIT

OFF

OFF

2

Press to exit from SCREENSAVER.

Notes:

• To reduce the occurrence of after-images, set the SIDE BAR ADJUST to BRIGHT.

• The side bar may fl ash (alternate black/white) depending on the picture being shown on the screen. Using Cinema mode will reduce such fl ashing.

32

Reduces power consumption

• POWER SAVE:

• STANDBY SAVE:

When this function is turned ON, luminous level of the Plasma Display is suppressed, so power consumption is reduced.

When this function is turned ON, power consumption of the microcomputer is reduced during power supply standby (see page 13-15), so standby power of the set is reduced.

• POWER MANAGEMENT: The unit power supply is turned ON or OFF depending on whether or not there is a signal during PC input mode.

This function is enabled when it is turned ON. (Only during input from PC(Mini D-sub) terminal)

• AUTO POWER OFF: Equipment power supply is turned OFF when there is no signal.

When this is set to On, the power supply of the unit goes Off 10 minutes after the input signals stop.

This function is effective for input signals except input from PC (Mini D-sub) terminal.

1

2

Press to select

“POWER SAVE”

“STANDBY SAVE”

“POWER MANAGEMENT”

“AUTO POWER OFF”.

Press to select “ON” or “OFF”.

SET UP 1/2

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

3

Press to exit from SET UP.

Note:

“POWER MANAGEMENT” and “AUTO POWER OFF” are effective during normal viewing (one picture screen) only.

Customizing the Input labels

This function can change the label of the Input signal to be displayed.

Select the input signal which you would like to change its label before customizing the Input labels. (see page 15, 18)

Press to select INPUT LABEL.

Press to change the INPUT LABEL.

SET UP 1/2

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

Note:

While selecting a Input signal through Optional Terminal Board connected to Slot 1, Slot 2 and Slot 3, the Input label will depend on each Optional Terminal Board.

INPUT LABELS for Slot 1, Slot 2, Slot 3 and Mini D-sub:

[Slot1 Input] INPUT1/VIDEO1/COMPONENT1/RGB1/DIGITAL1/PC1/DVD1/CATV1/VCR1/STB1

[Slot2 Input]

[Slot3 Input]

INPUT2/VIDEO2/COMPONENT2/RGB2/DIGITAL2/PC2/DVD2/CATV2/VCR2/STB2

INPUT3/VIDEO3/COMPONENT3/RGB3/PC3/DVD3/CATV3/VCR3/STB3

[PC (Mini D-sub) input] PC/COMPONENT/RGB/DVD/STB

When TY-FB9BD (optional BNC Dual Video Terminal Board) is used, an “A” or “B” is added at the end of each input label, depending on the input selected (see below).

Addition sign

Selected Input

“A”

Composite

“B”

S VIDEO

33

SET UP for MULTI DISPLAY

By lining up Plasma Displays in groups, for example, as illustrated below, an enlarged picture may be displayed across all screens.

For this mode of operation, each plasma display has to be set up with a Display number to determine its location.

(Example) group of 4 (2 × 2) group of 9 (3 × 3) group of 16 (4 × 4)

(see page 35 for more displays lineups.)

Note: Following signals are not applicable to this menu.

1125 / 50p • 60p, 1152 × 864 @60 Hz, 1400 × 1050 @60 Hz, 1600 × 1200 @60Hz, 1920 × 1200 @60 Hz

How to setup MULTI DISPLAY

1

Press to display the SET UP menu.

2

3

Press to select the MULTI DISPLAY SETUP.

Press to display the “MULTI DISPLAY SETUP” menu.

SET UP

SCREENSAVER

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

2/2

Press to select the MULTI DISPLAY SETUP.

Press to select “ON” or “OFF”.

MULTI DISPLAY SETUP

MULTI DISPLAY SETUP

HORIZONTAL SCALE

VERTICAL SCALE

SEAM HIDES VIDEO

LOCATION

OFF

× 2

× 2

OFF

A1

34

4

SET UP for MULTI DISPLAY

How to set the Display location number for each Plasma Display

Press to select HORIZONTAL SCALE.

Press to select “× 1”, “× 2”, “× 3”, “× 4”.

MULTI DISPLAY SETUP

MULTI DISPLAY SETUP

HORIZONTAL SCALE

VERTICAL SCALE

SEAM HIDES VIDEO

LOCATION

OFF

× 2

× 2

OFF

A1

5

Press to select VERTICAL SCALE.

Press to select “× 1”, “× 2”, “× 3”, “× 4”.

MULTI DISPLAY SETUP

MULTI DISPLAY SETUP

HORIZONTAL SCALE

VERTICAL SCALE

SEAM HIDES VIDEO

LOCATION

OFF

× 2

× 2

OFF

A1

6

7

Press to select SEAM HIDES VIDEO.

Press to select “OFF”, “ON”.

MULTI DISPLAY SETUP

MULTI DISPLAY SETUP

HORIZONTAL SCALE

VERTICAL SCALE

SEAM HIDES VIDEO

LOCATION

OFF

× 2

× 2

OFF

A1

Press to select LOCATION.

Press to select the required arrangement number.

(A1-D4 : Refer to the following)

MULTI DISPLAY SETUP

MULTI DISPLAY SETUP

HORIZONTAL SCALE

VERTICAL SCALE

SEAM HIDES VIDEO

LOCATION

OFF

× 2

× 2

OFF

A1

Display Number locations for each arrangement.

(Examples)

( 2 × 1) ( 2 × 3 )

( 4 × 2 ) ( 4 × 4 )

8

Press twice to exit from SET UP.

35

SET UP for MULTI DISPLAY

SEAM HIDES VIDEO Setting

To hide joints between TVs.

To show joints between TVs.

Reference

Step 6, Page 35

Suitable for moving image display.

ON

Suitable for still image display.

OFF

ID Remote Control Function

You can set the remote control ID when you want to use this remote control on one of several different TVs.

1

Switch to on the right side.

2

3

Press the button on the remote control.

Press one of - , for the tens digit setting.

4

Press one of - , for the units digit setting.

Notes:

• The numbers in 2, 3 and 4 should be set up quickly.

• Adjustable ID number range is 0 - 99.

• If a number button is pressed more than two times, the fi rst two numbers become the ID number for the remote control.

ID remote control button operation

The operation is the same as normal remote control except for the button.

ID Cancellation

Press button on remote control. (This has the same effect as pressing the , , buttons at the same time.)

Notes:

• Set the Remote ID “On” to operate the ID remote control.

If remote ID is set to “On”, you can use the remote control without identical ID number during option menu display.

(see page 42)

• The ID remote control cannot be used when ID select is set to anything other than 0, and the remote control ID is not the same as the ID select number (see page 42).

36

SET UP for Input Signals

COMPONENT / RGB IN SELECT

Select to match the signals from the source connected to the COMPONENT / RGB input terminals.

Y, P

B

, P

R

signals “COMPONENT”

R, G, B, HD, VD signals “RGB”

1

Press to display the SET UP menu.

2

Press to select the “COMPONENT / RGB-IN

SELECT”.

Press to select the desired mode.

3

Press to exit from adjust mode.

SET UP 1/2

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

RGB

PC

OFF

OFF STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

OFF

OFF

ENGLISH (US)

Note:

Selection may not be possible, depending on which optional board is installed.

3D Y/C FILTER

– For NTSC AV images

Select “SIGNAL” from the “SET UP” menu during VIDEO (S VIDEO) input signal mode.

(“SIGNAL [VIDEO]” menu is displayed.)

1

Press to select the “3D Y/C FILTER (NTSC)”.

2

Press to set ON / OFF.

Press to exit from adjust mode.

Note:

When ON, this setting only affects NTSC input signals.

SET UP 1/2

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

Press ACTION ( ) button

SIGNAL

[ VIDEO ]

3D Y/C FILTER (NTSC)

COLOR SYSTEM

3 : 2 PULLDOWN

Panasonic AUTO (4 : 3)

VIDEO NR

ON

AUTO

OFF

NORMAL

OFF

37

SET UP for Input Signals

COLOR SYSTEM / Panasonic AUTO

Select SIGNAL from the “SET UP” menu during VIDEO (S VIDEO) input signal mode.(“SIGNAL [VIDEO]” menu is displayed.)

SET UP 1/2

Press to select the “COLOR SYSTEM” or “Panasonic

AUTO”.

Press to select each function.

If the image becomes unstable:

With the system set on Auto, under conditions of low level or noisy input signals the image may in rare cases become unstable. Should this occur, set the system to match the format of the input signal.

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

Press ACTION ( ) button

SIGNAL

3D Y/C FILTER (NTSC)

COLOR SYSTEM

3 : 2 PULLDOWN

Panasonic AUTO (4 : 3)

VIDEO NR

[ VIDEO ]

ON

AUTO

OFF

NORMAL

OFF

Mode Function

COLOR SYSTEM

Set the color system to match the input signal. If set to “AUTO”, the color system is determined automatically.

AUTO PAL SECAM M.NTSC

NTSC

Panasonic AUTO

(4 : 3 )

Set to “NORMAL” to view 4:3 images in an unchanged format when Panasonic AUTO is selected. If you would like to view 4:3 images in Just format, set to “JUST”.

Note:

Panasonic AUTO does not function when TY-FB9BD (BNC Dual Video Terminal Board (option)) is used.

3:2 PULLDOWN / VIDEO NR

3:2 PULLDOWN: When ON, the display attempts to reproduce a more natural interpretation of sources such as movie pictures, which are recorded at 24 frames per second.

1/2

If the picture is not stable, turn the setting to OFF.

SET UP

Notes:

When ON, this setting only affects the following signal input:

SIGNAL

COMPONENT/RGB-IN SELECT

RGB

• NTSC / PAL signal input during “VIDEO (S VIDEO)” input signal.

• 525i(480i) 625i(575i), 1125(1080)/60i signal input during “COMPONENT” input signal.

INPUT LABEL

POWER SAVE

STANDBY SAVE

PC

OFF

OFF

VIDEO NR: Automatically reduces unwanted picture noise.

Note:

VIDEO NR cannot be adjusted while a PC signal is being applied.

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

OFF

OFF

ENGLISH (US)

Press ACTION ( ) button

1

Press to select 3:2

PULLDOWN or VIDEO NR.

Press to set ON/OFF.

SIGNAL

3D Y/C FILTER (NTSC)

COLOR SYSTEM

3 : 2 PULLDOWN

Panasonic AUTO (4 : 3)

VIDEO NR

[ VIDEO ]

ON

AUTO

OFF

NORMAL

OFF

SIGNAL

[ RGB ]

SYNC

3 : 2 PULLDOWN

VIDEO NR

H-FREQ.

V-FREQ.

33.8

60.0

kHz

Hz

AUTO

OFF

OFF

2

Press to exit from adjust mode.

SIGNAL

3 : 2 PULLDOWN

VIDEO NR

[ COMPONENT ]

OFF

OFF

SIGNAL

[ Digital ]

3 : 2 PULLDOWN

VIDEO NR

H-FREQ.

V-FREQ.

33.8

60.0

kHz

Hz

OFF

OFF

38

SET UP for Input Signals

SYNC

Select SIGNAL from the “SET UP” menu during RGB input signal.

1

2

Press to adjust.

Press to exit from adjust mode.

Setting RGB sync signal

Confi rm that the input is set to RGB INPUT (this setting is valid only for RGB INPUT signal).

AUTO:

ON G:

VBS:

The H and V sync or synchronized signal are automatically selected.

If both input, it is selected the H and V sync.

Uses a synchronized signal on the Video G signal, which is input from the G connector.

Uses a synchronized signal of Composite Sync input, which is input from the HD connector.

SET UP 1/2

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

Press ACTION ( ) button

SIGNAL

[ RGB ]

SYNC

3 : 2 PULLDOWN

VIDEO NR

H-FREQ.

V-FREQ.

33.8

60.0

kHz

Hz

AUTO

OFF

OFF

SYNC

SYNC

SYNC

AUTO

ON G

VBS

H-FREQ. (kHz) / V-FREQ. (Hz)

Displays the H (Horizontal) / V (Vertical) frequencies.

This display is valid only for RGB/PC and Digital input signal.

Display range:

Horizontal 15 - 110 kHz

Vertical 48 - 120 Hz

H-FREQ.

V-FREQ.

33.8

60.0

kHz

Hz

39

1

2

Options Adjustments

Press to display the Setup menu.

Press to select “OSD Language”.

3

4

5

6

Press and hold until the Options menu is displayed.

Press to select your preferred menu.

Press to adjust the menu.

Press to confi rm.

Press to exit from

Options menu.

Options

Off-timer function

Onscreen display

Initial INPUT

Initial VOL level

Maximum VOL level

INPUT lock

Studio W/B

Advanced PIP

Display size

Off

Off

Enable

On

Off

0

0

Off

Off

Off

Off

1/3

Item

Off-timer function

Onscreen display

Initial INPUT

Effect Adjustments

Enable Disable

Enable: Enables “Off-timer function”.

Disable: Disables “Off-timer function”.

Note: When “Disable” is set, the Off-timer is cancelled.

On Off

On: Displays all the following on screen.

• Power on display

• Input signal switch display

• No signal display

• Mute and the remaining time of off-timer after was pressed.

Off: Hides all the items above from view.

PC

Adjusts the input signal when TV is turned on.

Notes:

• Only the adjusted signal is displayed. (see page 18).

• Signal can be displayed when the Terminal board is installed.

• This menu is available only when “INPUT lock” is “Off”.

40

Options Adjustments

Options 1/3

Item

Initial VOL level

Off-timer function

Onscreen display

Initial INPUT

Initial VOL level

Maximum VOL level

INPUT lock

Studio W/B

Advanced PIP

Display size

Off

Off

Enable

On

Off

0

0

Off

Off

Off

Off

Effect Adjustments

Off On

Press button to adjust the volume when TV is turned on.

On

Off: Sets normal volume.

On: Sets your preferred volume.

Notes:

• When “Maximum VOL level” is “On”, the volume can only be adjusted between 0 and your maximum range.

• You can hear the changed volume regardless of your volume setting before opening the options menu if you adjust the volume when “Initial VOL level” is “On” and cursor is on the menu.

Maximum VOL level

Off On

INPUT lock

Studio W/B

Off On

Advanced PIP

Off On

Press button to adjust the maximum volume.

On

Off: Sets auto maximum volume.

On: Sets your preferred maximum volume.

Notes:

• If the “Maximum VOL level” is set lower than the “Initial VOL level”, the “Initial VOL level” automatically becomes the same as the “Maximum VOL level”.

• The volume display can go up to 63 regardless of the settings.

• You can hear the changed volume regardless of your volume setting before opening the options menu if you adjust the volume when “Maximum VOL level” is “On” and cursor is on the menu.

PC

Locks the input switch operation.

Notes:

• Only the adjusted signal is displayed (see page 18).

• Signal can be displayed when the Terminal board is installed.

• Input switch can be used when this is set to “Off”.

• In two screen display mode, if anything other than “Off” is set, the value will be fi xed as the value input in the single screen display mode.

Off: Nullify all the settings adjusted.

On: Sets the color temperature for TV studio.

Note: Valid only when the low is set as color temperature on screen adjustment.

Off: Sets normal two screen display mode (see page 22).

On: Sets Advanced PIP mode (see page 23).

Notes:

• When “INPUT lock” is “On”, you cannot use all the two screen display functions.

• , buttons are unavailable during Advanced PIP mode operation.

Adjusts the image display size on screen.

Off: Sets the normal image display size on screen.

On: Sets the image display size approximately 95 % of the normal image display.

Off On

Display size

Off On

Notes:

• This setting is valid only when the input signals are as follows; 525i, 525p, 625i, 625p, 750/60p, 750/50p,

1125/60i, 1125/50i, 1125/24sF, 1125/25p, 1125/24p, 1125/30p, 1125/50p/60p, 1250/50i (Component

Video, RGB, DVI, SDI, HDMI)

• This setting is invalid when two screen display, digital zoom or Multi screen is selected.

• When “Display size” is set to “On”, “H-POS” and “V-POS” in “POS. /SIZE” can be adjusted.

• Refer to each board's operating instruction for DVI, SDI, HDMI's corresponding signals.

41

Options Adjustments

Item

Button lock

Remocon

User level

ID select

Remote ID

Serial ID

Options

2/3

Button lock

Remocon User level

ID select

Remote ID

Serial ID

Off

Off

0

Off

Off

Effect Adjustments

Off MENU&ENTER

On

Off: All the buttons at the bottom of the main unit can be used.

MENU & ENTER:

Locks and buttons on bottom face of main unit.

MENU ENTER/

On: Locks all the button on bottom face of main unit.

User1

Off: You can use all of the buttons on the remote control.

User1: You can only use , , , , , , , buttons on the remote control.

User2: You can only use , , buttons on the remote control.

User3: Locks all the buttons on remote control.

Sets panel ID number when panel is used in “Remote ID” or “Serial ID”.

Set value range: 0 - 100

(Standard value: 0)

Off On

Off On

Off: Disables ID remote control functions. You can use normal remote control operations.

On: Enable ID remote control functions.

Sets the panel ID Control.

Off: Disables external control by the ID.

On: Enables the external control by the ID.

Options 3/3

Item

Slot Power

Slot power

V . lnstallation

Rotate

Serial Slot Select

O f f

O f f

O f f

Slot1

Effect Adjustments

Auto

Off: Power is not transmitted to the slot power.

Auto: Power is transmitted to the slot power only when main power is on.

On: Power is transmitted to the slot power when main power is on or in the standby state.

Note: In some cases, power is transmitted to the slot power when main power is on or in the standby state regardless of the slot power setting.

V.Installation

Off On

This mode cannot be used for this model.

Rotate

Serial Slot

Select

Off On

Off: Does not rotate the image.

On: Rotates the image 180 degrees.

Slot1 Slot2 Slot3

Selects the slot which communicates serial.

Note: The setting of an external command can be set only from the fi xed serial terminal (see page 11)

Normalization

When both main unit buttons and remote control are disabled due to the “Button lock”, “Remocon User level” or “Remote

ID” adjustments, set all the values “Off” so that all the buttons are enabled again.

Press the button on main unit together with button on the remote control and hold for more than 5 seconds. The

“SHIPPING” menu is displayed and the lock is released when it disappears.

42

Shipping condition

This function allows you to reset the unit to the factory setting.

1

Press to display the SET UP menu.

2

Press to select “OSD LANGUAGE”.

3

4

Press and hold till the SHIPPING menu is displayed.

Press to select “YES”.

SET UP

1/2

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

SHIPPING YES

Press to confi rm.

[from the unit]

1 Press the MENU button till the Setup menu is displayed.

2 Press the Volume Up “+” or Down “–” button to select “OSD LANGUAGE”.

3 Press and hold the ENTER button till the SHIPPING menu is displayed.

4 Press the Volume Up “+” or Down “–” button to select “YES”.

5 Press the ENTER button.

Note:

Press the R button to return to SET UP menu when SHIPPING menu is displayed.

43

Troubleshooting

Before you call for service, determine the symptoms and make a few simple checks as shown below.

Symptoms


Interference

Normal Picture

No Picture

No Picture

Sound

Noisy Sound

No Sound

No Sound

Normal Sound

Checks

Electrical Appliances

Cars / Motorcycles

Fluorescent light

Volume

(Check whether the mute function has been activated on the remote control.)

Not plugged into AC outlet

Not switched on

PICTURE and BRIGHTNESS/Volume setting

(Check by pressing the power switch or stand-by button on the remote control.)

If a signal with a non-applicable color system format, or frequency is input, only the input terminal indication is displayed.

No Color Normal Sound

Color controls set at minimum level. (see page 24, 25)

COLOR SYSTEM (see page 38)

No remote control operations can be performed.

Check whether the batteries have discharged completely and, if they have not, whether they were inserted properly.

Check whether the remote control sensor is exposed to an outdoor light or a strong fl uorescent light.

Check whether the remote control designed specifi cally for use with the unit is being used.

(The unit cannot be operated by any other remote control.)

A cracking sound is sometimes heard from the unit.

If there is nothing wrong with the picture or sound, this is the sound of the cabinet undergoing very slight contractions in response to changes in the room temperature. There are no adverse effects on the performance or other aspects.

The top or bottom of the picture on the screen is cut off when I use the zoom function.

Adjust the position of the picture on the screen.

Areas at the top and bottom of the screen where the image is missing appear when I use the zoom function.

When using a video software program (such as a cinema size program) with a screen wider than one in the 16:9 mode, blank areas separate from the images are formed at the top and bottom of the screen.

I can hear sounds coming from inside the unit.

When the power is turned on, a sound of the display panel being driven may be heard: This is normal and not indicative of malfunctioning.

This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the type of input signal. However, this is not a malfunction.

Plasma Display panel

Symptoms

The screen darkens slightly when bright pictures with minimal movements are shown.

It takes a while for the picture to appear.

The edges of the images fl icker.

Check

The screen will darken slightly when photos, still images of a computer or other pictures with minimal movements are shown for an extended period. This is done to reduce after-image on the screen and the shortening of the screen’s service life: It is normal and not indicative of malfunctioning.

The unit digitally processes the various signals in order to reproduce esthetically pleasing images. As such, it sometimes takes a few moments for the picture to appear when the power has been turned on, when the input has been switched or when the images for the main picture and sub picture on the two screens are swapped.

Due to the characteristics of the system used to drive the panel, the edges may appear to fl icker in the fast-moving parts of the images: This is normal and not indicative of malfunctioning.

The brightness on both sides of images in NORMAL mode changes.

Some parts of the screen do not light up.

When viewing the side panels at the “BRIGHT” or “MID” setting, the brightness on both sides may change depending on the kind of program shown: This is normal and not indicative of malfunctioning.

The plasma display panel is manufactured using an extremely high level of precision technology, however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a malfunction.

After-images appear

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the Plasma Display.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in NORMAL mode.

Note:

The permanent after-image on the Plasma Display resulting from fi xed image use is not an operating defect and as such is not covered by the Warranty.

This product is not designed to display fi xed images for extended periods of time.

Whirring sounds can be heard from the display unit.

The display unit is fi tted with a cooling fan to dissipate heat generated during normal use. The whirring sound is caused by rotation of the fan and is not a malfunction.

44

DVI-D/COMPONENT/RGB/PC input signals

Applicable input signals for Component / RGB, Mini D-sub 15P (Component / RGB), DVI-D (

*

Mark)

Signal name

13 1,125 (1,080) / 30p

17

18

22

23

24

25

26

640 × 400 @70 Hz

640 × 480 @60 Hz

800 × 600 @56 Hz

800 × 600 @60 Hz

800 × 600 @72 Hz

800 × 600 @75 Hz

800 × 600 @85 Hz

33 1,066 ×600 @60 Hz

36 1,280 × 960 @60 Hz

37 1,280 × 960 @85 Hz

38 1,280 × 1,024 @60 Hz

39 1,280 × 1,024 @75 Hz

40 1,280 × 1,024 @85 Hz

43 1,400 × 1,050 @60 Hz

44 1,600 × 1,200 @60 Hz

45 1,600 × 1,200 @65 Hz

46 1,920 × 1,200 @60 Hz

47 Macintosh13” (640 × 480)

48 Macintosh16” (832 × 624)

Horizontal frequency

(kHz)

85.01

56.25

60.32

72.19

75.00

85.06

59.94

25.00

24.00

50.00

70.07

59.94

72.81

75.00

59.94

59.94

50.00

50.00

50.00

60.00

50.00

60.00

60.00

50.00

50.00

47.92

30.00

60.00

85.00

60.02

75.03

85.02

50.00

60.00

60.00

60.00

50.00

60.00

70.07

75.03

85.00

60.32

60.00

75.00

65.00

59.95

66.67

74.54

43.27

35.16

37.88

48.08

46.88

53.67

31.47

28.13

27.00

31.25

31.46

31.47

37.86

37.50

15.73

31.47

15.63

31.25

31.25

45.00

37.50

67.50

33.75

56.26

28.13

27.00

33.75

60.00

85.94

63.98

79.98

91.15

39.55

48.36

65.22

75.00

39.55

48.36

56.48

60.02

68.68

37.88

53.70

67.50

81.25

74.04

35.00

49.72

Vertical frequency

(Hz)

Component / RGB

/ Mini D-sub 15P

(Component / RGB)

*

*

1

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

2

2

DVI-D

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

49 Macintosh21” (1,152 × 870) 68.68

75.06

1: When selected the RGB format and 525p signal input to the Mini D-sub 15P terminal, it is recognized as VGA 60Hz signal.

2: When inputted VGA 60Hz format signal from the other than Mini D-sub 15P terminal, it is recognized as 525p signal.

Note: Signals without above specifi cation may not be displayed properly.

*

45

Specifi cations

Power Source

Power Consumption

Screen size

Power on

Stand-by condition

Power off condition

Plasma Display panel

(No.of pixels)

TH-50PF9UK

120 V AC, 50/60 Hz

650 W

Save OFF 1.0 W, Save ON 0.8 W

0.1 W

Drive method : AC type 50-inch,

16:9 aspect ratio

43.5” (1,106 mm) (W) × 24.5” (622 mm) (H)

× 50” (1,269 mm) (diagonal)

2,073,600 (1,920 (W) × 1,080 (H))

[5,760 × 1,080 dots]

Operating condition

Temperature

Humidity

Dimensions (W × H × D)

32 °F - 104 °F (0 °C - 40 °C)

20 % - 80 %

Applicable signals

Color System

Scanning format

NTSC, PAL, PAL60, SECAM, Modifi ed NTSC

525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p · 50i · 50p

·24p · 25p · 30p · 24sF ···· SMPTE274M, 1250 (1080) / 50i

PC signals VGA, SVGA, XGA, SXGA,

UXGA ···· (compressed)

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

Connection terminals

DVI-D Video Input

Audio Input

DVI-D 24 Pin x 1 compliance with DVI Revision 1.0

* Refer to page 12 for applicable signals

Stereo mini jack (M3) x 1

0.5 Vrms

Compatible with HDCP 1.1

Content Protection

COMPONENT/RGB

PC

SERIAL

SPEAKERS (6

Ω)

Y/G (BNC)

P

B

/B (BNC), P

R

/R (BNC)

AUDIO IN (RCA PIN JACK × 2)

(HIGH-DENSITY MINI D-SUB 15PIN)

Y or G with/sync 1.0 Vp-p (75

Ω)

0.7 Vp-p (75

Ω)

0.5 Vrms

Y or G with/sync 1.0 Vp-p (75

Ω)

Y or G without/sync 0.7 Vp-p (75

Ω)

0.7 Vp-p (75

Ω)

0.7 Vp-p (75

Ω)

B/P

B

/C

B

:

R/P

R

/C

R

:

HD/VD:

VBS(use HD port)

AUDIO IN (M3 JACK)

1.0 - 5.0 Vp-p (high impedance) with/picture 1.0 Vp-p (high impedance) without/picture 0.3 Vp-p (high impedance)

0.5 Vrms

EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE

16 W [8 W + 8 W] (10 % THD)

Accessories Supplied

Remote Control Transmitter

Batteries

Fixing bands

EUR7636070R

2 × AA Size

(TMME203 or TMME187) × 2

47.6” (1,210 mm) × 28.5” (724 mm) × 3.7” (95 mm)

(excluding handle portion)

Mass (weight)

main unit only with speakers approx. 92.6 lbs approx. 101.4 lbs

Note:

Design and specifi cations are subject to change without notice. Mass and dimensions shown are approximate.

46

Panasonic Broadcast & Television Systems

Company, Unit of Panasonic Corporation of

North America

One Panasonic Way 2A-4

Secaucus, NJ 07094

Panasonic Puerto Rico, Inc.

Ave. 65de Infanteria, Km.9.5

San Gabriel Industrial Park

Carolina, Puerto Rico 00985

PANASONIC PLASMA SCREEN

Limited Warranty

Panasonic Broadcast & Television Systems Company or

Panasonic Puerto Rico, Inc. (collectively referred to as

“the Warrantor”) will repair this product and all included accessories with new or refurbished parts, free of charge in the USA or Puerto Rico, of the original purchase in the event of a defect in materials or workmanship as follow: inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lighting damage, or service by anyone other than an authorized repair facility, or damaged this attributable to acts of God.

LIMITS AND EXCLUSIONS

Models or Parts

Part

Warranty

Labor

Warranty

There are no express warranties except as listed above.

Plasma Screen 1 Year 1 Year

Carry-in or mail-in service in the USA may be obtained during the warranty period by contacting Panasonic

Broadcast & Television Systems Company Factory

Servicenter listed in the Service Directory or call toll free 1-800-526-6610 to locate an authorized Servicenter.

Carry-in or mail-in service in Puerto Rico can be obtained during the warranty period by

787-750-5135

THE WARRANTOR SHALL NOT BE LIABLE FOR

INCIDENTAL OR CONSEQUENTIAL DAMAGES

(INCLUDING, WITHOUT LIMITION, DAMAGE

TO DISCS) RESULTING FROM THE USE OF THIS

PRODUCT, OR ARISING OUT OF ANY BREACH OF

THE WARRANTY. ALL EXPRESS AND IMPLIED

WARRANTIES, INCLUDING THE WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR

PARTICULAR PURPOSE, ARE LIMITED TO THE

APPLICABLE WARRANTY PERIOD SET FORTH

ABOVE.

This warranty is extended only to the original purchaser and is non transferable. A purchase receipt or other proof of date of original purchase will be required before warranty service is rendered.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may nor apply to you. This warranty gives you specific legal rights and you may other rights, which vary from state to state.

This warranty only covers failures due to defects in materials or workmanship, which occur during normal use. The warranty does not cover damage which occur in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result installation, set-up adjustments, improper antenna,

If you have a problem with this product that is not handled to your satisfaction, then write the Consumer

Affairs Department at the Company address indicated above.

In the USA

FOR THE NEAREST SERVICE CENTER

1-800-526-6610

Regional Offi ces

New Jersey

50 Meadowlands Pkwy – 2A4

Secaucus, NJ 07094

201-348-7975

Illinois

1713 N. Randall – E1-E1

Elgin, IL 60123

847-468-5270

Georgia

1225 Northbrook Pkwy

Suwanee, GA 30093

770-338-6855

In Puerto Rico

For service call 787-750-5135

California

3330 Cahuenga Blvd West

Los Angeles, CA 90068

323-436-3505

Panasonic Canada Inc.

Broadcast & Television Systems Division

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

LIMITED WARRANTY STATEMENT

Panasonic Canada Inc. (also known as PCI) warrants this product to be free of defects in material and workmanship under normal use during the applicable warranty coverage period described below. PCI agrees to repair, or at its option, exchange, any part that becomes defective. However, the product must be purchased and serviced in Canada. The product or part that shows evidence of defect must be delivered prepaid or carried in to an authorized Panasonic Broadcast

Service Center. This warranty does not cover shipping costs.

The warranty coverage period is one year for both parts and labour beginning with the date of original end user purchase, subject to the exceptions as stated below.

Repaired or replacement parts supplied during the warranty coverage period carry the unexpired portion of the original warranty coverage period. Proof of product purchase is a condition of warranty service. The owner must produce the product purchase receipt or other satisfactory evidence of date of original purchase.

This warranty does not apply to external appearance items, such as handles, knobs, safety windows, etc. This warranty does not apply to any part, or parts, of the product, installed, altered, repaired or misused in any way that, in the opinion of PCI, affects the reliability of or detracts from the performance of the product.

For products requiring routine preventive maintenance, that maintenance must be performed in order to maintain warranty coverage.

Serial numbers that have been altered, defaced or removed void this warranty. This warranty does not cover replacements or repairs necessitated by loss or damage resulting from any cause beyond the control of PCI.

Marking or retained images (sometimes called “burn-in”) resulting from the display of fixed images on video display products are not defects and are not covered under this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR

ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

WARRANTY COVERAGE PERIOD EXCEPTIONS

Item Parts

Video Tape

P2 Cards

Video Heads

30 days—Replacement only

(content not covered)

(Content not covered)

D5 Video heads

1 year or 2,000 hrs. (prorated)

Whichever comes first

1 year or 500 hrs.

Whichever comes first

Maintenance Items

Colour Camera CCD

Imaging Block

LCD/CRT Monitors

* DLP™ Projectors

90 days

2 years

* LCD Projectors above

2,500 ANSI Lumens

* LCD Projectors below

2,500 ANSI Lumens

Projector Lamps

2 years

3 years or 5,000 hrs.

Whichever comes first

3 years or 2,500 hrs.

Whichever comes first

3 years or 1,500 hrs.

Whichever comes first

Plasma Displays

Hard Drive Disk Unit

90 Days or 500 hrs.

Whichever comes first

1 year (burn-in not covered)

1 year plus balance (if any) of any original Manufacturer’s

Limited Warranty.

(Content not covered)

Labour

N/A

N/A

1 year or 2,000 hrs.

Whichever comes first

1 year or 500 hrs.

Whichever comes first

90 days

1 year

1 year

3 years or 5,000 hrs.

Whichever comes first

3 years or 2,500 hrs.

Whichever comes first.

3 years or 1,500 hrs.

Whichever comes first

90 Days or 500 hrs.

Whichever comes first.

1 year (burn-in not covered)

1 year

≥Dust, smoke, rental/staging environment and twenty-four/seven operation, dramatically decreases the interval between performances of routine preventive maintenance required to maintain this warranty coverage.

Warranty Service

If the product needs to be shipped for service, carefully pack (preferably in the original carton) and enclose a letter, detailing the complaint. Send prepaid and adequately insured to the local authorized Panasonic Broadcast Service Centre in your area or to Panasonic Broadcast & Security Systems Service Department, 5770

Ambler Drive, Mississauga, Ontario, L4W 2T3. Shipping to the latter location requires a return authorization before shipment. No liability is assumed for loss or damage to the product while in transit.

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identifi cation in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

©

2006 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.

Panasonic Broadcast & Television Systems Company

Unit of Panasonic Corporation of North America

Executive Offi ce :

One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7000

EASTERN ZONE : One Panasonic Way 4E-7 Secaucus, NJ 07094 (201) 348-7621

Mid-Atlantic/New England : One Panasonic Way 4E-7 Secaucus, NJ 07094 (201) 348-7621

Southeast Region : 1225 Northbrook Parkway, Ste 1-160 Suwanee GA 30024 (770)338-6835

Central Region : 1707 N Randall Road E1-C-1, Elgin, IL 60123 (847)468-5200

WESTERN ZONE : 3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500

Dallas Region : 6226 Abington Way, Houston, TX 77008 (713) 802-2726

No. CA/Northwest Region : 5870 Stone Ridge, #3, Pleasanton, CA (925) 416-5108

Government Marketing Department : 52 West Gude Drive, Rockville, MD 20850 (301) 738-3840

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario

L4W 2T3

Printed in JAPAN

MBS0806A0
