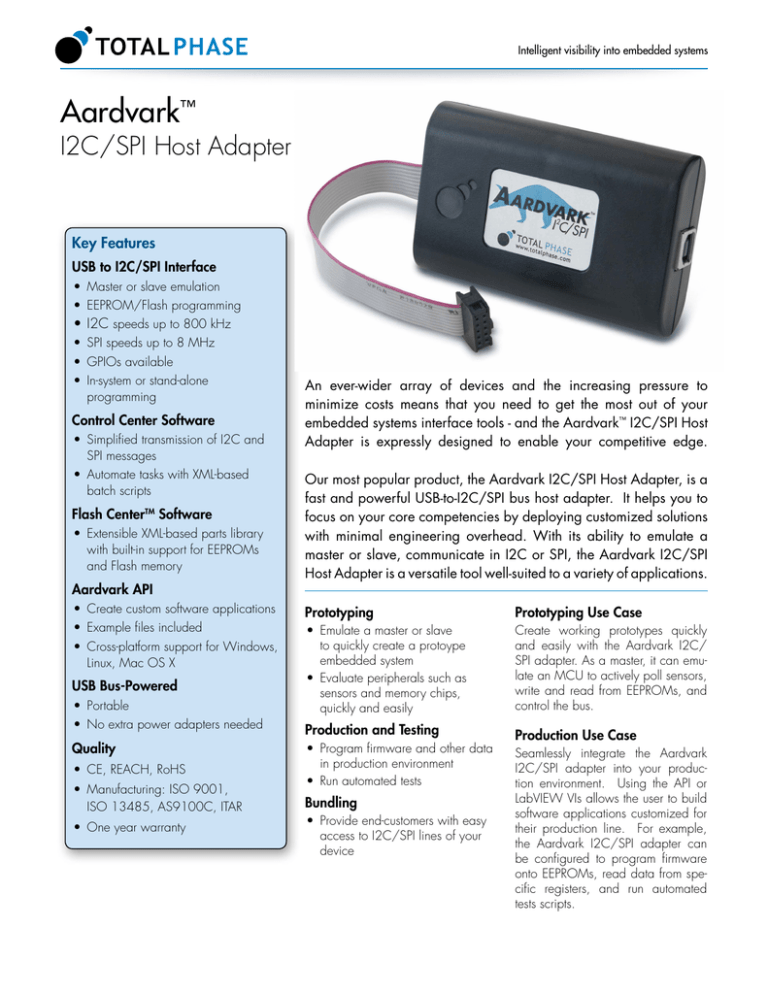

Intelligent visibility into embedded systems
Aardvark™
I2C/SPI Host Adapter
Key Features
USB to I2C/SPI Interface
• Master or slave emulation
• EEPROM/Flash programming
•I2C speeds up to 800 kHz
• SPI speeds up to 8 MHz
• GPIOs available
• In-system or stand-alone
programming
Control Center Software
• Simplified transmission of I2C and
SPI messages
• Automate tasks with XML-based
batch scripts
Flash CenterTM Software
• Extensible XML-based parts library
with built-in support for EEPROMs
and Flash memory
Aardvark API
• Create custom software applications
• Example files included
• Cross-platform support for Windows,
Linux, Mac OS X
USB Bus-Powered
• Portable
• No extra power adapters needed
Quality
• CE, REACH, RoHS
• Manufacturing: ISO 9001,
ISO 13485, AS9100C, ITAR
• One year warranty
An ever-wider array of devices and the increasing pressure to
minimize costs means that you need to get the most out of your
embedded systems interface tools - and the Aardvark™ I2C/SPI Host
Adapter is expressly designed to enable your competitive edge.
Our most popular product, the Aardvark I2C/SPI Host Adapter, is a
fast and powerful USB-to-I2C/SPI bus host adapter. It helps you to
focus on your core competencies by deploying customized solutions
with minimal engineering overhead. With its ability to emulate a
master or slave, communicate in I2C or SPI, the Aardvark I2C/SPI
Host Adapter is a versatile tool well-suited to a variety of applications.
Prototyping
Prototyping Use Case
• Emulate a master or slave
to quickly create a protoype
embedded system
• Evaluate peripherals such as
sensors and memory chips,
quickly and easily
Create working prototypes quickly
and easily with the Aardvark I2C/
SPI adapter. As a master, it can emulate an MCU to actively poll sensors,
write and read from EEPROMs, and
control the bus.
Production and Testing
Production Use Case
• Program firmware and other data
in production environment
• Run automated tests
Bundling
• Provide end-customers with easy
access to I2C/SPI lines of your
device
Seamlessly integrate the Aardvark
I2C/SPI adapter into your production environment. Using the API or
LabVIEW VIs allows the user to build
software applications customized for
their production line. For example,
the Aardvark I2C/SPI adapter can
be configured to program firmware
onto EEPROMs, read data from specific registers, and run automated
tests scripts.
Aardvark™ I2C/SPI Host Adapter
Applications
Memory‌
Programming
EEPROMs
Flash
Sensors
Accelerometers
Pressure
Temperature
Light
Industrial and Home
Automation
Motor controls
Lighting controls
Audio Processing‌
Converters
Signal Processing
Specifications
Software
Hardware
The Control Center Software provides quick and easy
access to all features of the Aardvark I2C/SPI Host
Adapter. The Flash Center software enable users to easily read and write to I2C- and SPI-based memory.
Bit Rate
I2C Master: 1 kHz - 800 kHz
SPI Master: 125 kHz - 8MHz
SPI Slave: 0.1 MHZ - 4 MHz
Target Bus Interface
I2C Master/Slave
SPI Master/Slave
Up to 6 GPIO pins
Host Bus Interface
USB 1.1
Type B receptacle
Target Bus Cable
10-pin ribbon cable
1.27 mm (0.05”) pitch
130.175 mm (5 1/8”) length
Target Bus Connector
Type: 2x5 IDC female, 2.54 mm (0.10”) pitch
Pinout:
Power Pins: GND (Pins 2, 10), NC/+5V (Pins 4, 6)
I2C Pins: SCL (Pin 1), SDA (Pin 3)
SPI Pins: MISO (Pin 5), SCLK (Pin 7), MOSI (Pin 8), SS (Pin 9)
GPIO Pins: 1, 3, 5, 7, 8, 9
DC Characteristics
Target Power: +5V, 25mA max
I2C/SPI Signal: 3.3V, 10mA
Dimensions (W x D x L)
55.6 x 22.2 x 89 mm (2.19” x 0.87” x 3.5”)
Weight
64 g (0.14 lbs)
Operating Temperature
10 to 35 oC (50 to 95 oF)
Control Center Software Features
• Streamlined user interface for configuation of I2C,
SPI, and GPIOs at the click of a button
• I2C and SPI messages can be saved and loaded
from binary files
• XML-based batch scripting for automating repetitive
read and write commands with built-in help system
Flash Center Software Features
• Easily program, read, and write to I2C and SPI
EEPROMs and flash memory
Aardvark API and LabVIEW Support
• Create custom applications using the flexible,
powerful, and well-documented Aardvark API
• 32- and 64-bit support for C/C++/C#, Python,
.NET, VB.Net, VB 6
• LabVIEW Instrument drivers
Operating Systems Supported (32-bit and 64-bit)
• Windows: XP, Vista, 7, 8, 8.1
• Linux: Red Hat, SuSE, Ubuntu, Fedora, Arch,
CentOS, Debian
• Mac OS X: 10.4-10.9
Ordering information
Aardvark I2C/SPI Host Adapter
Part Number
Country of Origin
HTS
ECCN
TP240141
USA
8543200000
EAR99
Control Center: I2C and SPI Modules in use
+1 (408) 850-6501
| [email protected] | www.totalphase.com
©2014 Total Phase, Inc. All rights reserved.
R20140323
