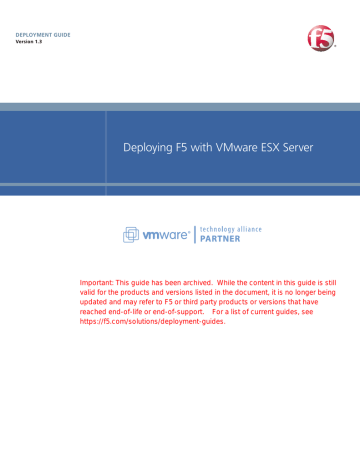

Deploying F5 with VMware ESX Server

DEPLOYMENT GUIDE
Version 1.3
Deploying F5 with VMware ESX Server
Important: This guide has been archived. While the content in this guide is still
valid for the products and versions listed in the document, it is no longer being
updated and may refer to F5 or third party products or versions that have
reached end-of-life or end-of-support. For a list of current guides, see
https://f5.com/solutions/deployment-guides.
Table of Contents
Table of Contents
Deploying F5 with VMware ESX Server
Prerequisites and configuration notes ..............................................................................1-1
Revision history ......................................................................................................................1-2
Configuring the BIG-IP LTM system for VMware ESX
Load Balancing of Virtual Machine Guest Applications .................................................1-3
Load balancing behavior with DRS ....................................................................................1-6
Load Balancing behavior with VMware HA .....................................................................1-7
Using LTM to improve hardware capacity in a virtual environment .........................1-8
Configuring the F5 WebAccelerator module with applications running on VMware
Prerequisites and configuration notes ..............................................................................2-1
Configuration example .........................................................................................................2-1
Configuring the WebAccelerator module .......................................................................2-2
Connecting to the BIG-IP LTM device ..............................................................................2-2
Creating an HTTP Class profile .........................................................................................2-2
Modifying the Virtual Server to use the Class profile ...................................................2-3
Creating an Application ........................................................................................................2-4
Using BIG-IP GTM to provide global site redirection to a secondary data center
Configuring a self IP address on the BIG-IP LTM ...........................................................3-2
Creating a Listener on the GTM ........................................................................................3-2
Creating data centers on the GTM system .....................................................................3-3
Creating the monitor ............................................................................................................3-4
Creating Servers for the data center ................................................................................3-5
Creating a GTM pool ............................................................................................................3-6
Creating a wide IP on the GTM .........................................................................................3-8
Configuring the Wide IP as an MX record using ZoneRunner ...................................3-9
Deploying the ARX with Windows XP VMware VMs for accessing Content Shares
Prerequisites and configuration notes ..............................................................................4-1
Configuration example .........................................................................................................4-1
Integrating ARX and VMware Virtual machines ......................................................................4-3
Configuring the ARX ......................................................................................................................4-3
Configuring Active Directory Authentication .................................................................4-3
Verifying the Active Directory Authentication ...............................................................4-8
Creating the CIFS Namespace ............................................................................................4-9
Creating a Managed Volume ............................................................................................ 4-10
Adding the External Filers ................................................................................................. 4-13
Adding root level share ..................................................................................................... 4-14
Adding a second CIFS Share ............................................................................................. 4-16
Creating the Share farm .................................................................................................... 4-17
Creating the Virtual Service ............................................................................................. 4-19
Integrating the VMware Guest operating system ................................................................. 4-22
Mounting the Virtual Server CIFS share ........................................................................ 4-22
Generating an ARX Metadata Report ............................................................................ 4-25
Deploying the ARX for VMware ESX virtualized Windows 2008 in a Managed Volume
Prerequisites and configuration notes ..............................................................................5-1
Product versions and revision history ..............................................................................5-2
Configuration example .........................................................................................................5-2
F5 Deployment Guide
i
Table of Contents
Configuring Windows Server 2008 for the ARX ....................................................................5-3
Joining the Active Directory Domain ................................................................................5-3
Initializing a new VMware storage device ........................................................................5-4
Initializing the Windows Server 2008 Disk ......................................................................5-5
Creating a CIFS File Share ...................................................................................................5-7
Assigning the Local Backup Operator ...............................................................................5-8
Configuring the ARX ................................................................................................................... 5-10
Configuring the Active Directory Authentication ....................................................... 5-10
Verifying Active Directory Authentication ................................................................... 5-11
Creating the CIFS Namespace ......................................................................................... 5-12
Creating a volume ............................................................................................................... 5-13
Adding the External Filers ................................................................................................. 5-14
Adding the root level share .............................................................................................. 5-15
Creating the Share farm .................................................................................................... 5-16
Creating a Tiered Storage policy .................................................................................... 5-17
Creating the Virtual Service ............................................................................................. 5-20
Verifying Client access ................................................................................................................ 5-23
Mounting the Virtual Server CIFS share ........................................................................ 5-23
Generating an ARX Metadata Report ............................................................................ 5-24
Conclusion ............................................................................................................................ 5-25
ii
1
Deploying F5 with VMware ESX Server
• Configuring the BIG-IP LTM system for VMware
ESX
• Load Balancing of Virtual Machine Guest
Applications
• Load balancing behavior with DRS
• Load Balancing behavior with VMware HA
• Using LTM to improve hardware capacity in a virtual
environment
This guide has been archived. For a list of current guides, see https://f5.com/solutions/deployment-guides
Deploying F5 with VMware ESX Server
Welcome to the F5 Deployment Guide on VMware ESX Server. This
document provides guidance and configuration procedures for deploying the
BIG-IP Local Traffic Manager (LTM), BIG-IP Global Traffic Manager
(GTM), WebAccelerator, and ARX series with VMware ESX server and the
applications running on those devices.
VMware ESX Server, particularly when deployed as part of VMware
Virtual Infrastructure, permits a high degree of flexibility for guest
operating systems and applications within a datacenter, or between remote
data centers. By using BIG-IP LTM and GTM in conjunction with ESX
Server, administrators and application architects can improve scalability,
ease administrative overhead, and improve end-user experience for
applications hosted within a virtualized environment. For additional
resources on F5 and VMware, see the VMware forum on DevCentral.
To provide feedback on this deployment guide or other F5 solution
documents, contact us at [email protected].
Important
This guide is different than F5’s typical Deployment Guides, as the F5
configuration is highly dependent on which applications that are running on
the VMware ESX devices. Therefore, most of this document provides
general guidance for deploying F5 devices with VMware, as opposed to
specific configuration procedures. Refer to the Deployment Guide specific
to your application for specific configuration procedures.
This Deployment Guide is broken up into the following chapters:
• Configuring the BIG-IP LTM system for VMware ESX, on page 1-3
• Configuring the F5 WebAccelerator module with applications running
on VMware, on page 2-1
• Using BIG-IP GTM to provide global site redirection to a secondary
data center, on page 3-1
• Deploying the F5 ARX with Windows XP VMware Virtual machines for
accessing Content Shares, on page 4-1
• Deploying the F5 ARX for VMware ESX virtualized Windows Server
2008 in a Managed Volume, on page 5-1
Prerequisites and configuration notes
The following are prerequisites for this solution:
◆
1-1
This Deployment Guide was tested using VMware Virtual Infrastructure
3. Although many of the basic practices outlined in the Load Balancing
of Virtual Machine Guest Applications, on page 1-3 section of this
document are also valid for VMware Server or other VMware
virtualization products, most other sections depend on enterprise-level
features only found in the Virtual Infrastructure suite.
Deploying F5 with VMware ESX Server
◆
We recommend running BIG-IP LTM version 9.4 or later.
◆
Within the context of this deployment guide, virtual server will be used
to refer to an IP address and port on a BIG-IP LTM which accepts
network traffic. On ESX Server, virtualized operating systems will be
referred to as guests.
Revision history
Product and versions tested for this deployment guide:
Product Tested
Version Tested
BIG-IP LTM, GTM, WebAccelerator
v9.4.2
F5 ARX
5.0.1
VMware ESX
ESX Server 3, 3.5
Revision history:
Document Version
Description
1.0
New deployment guide
1.1
Added Chapter 4, Deploying the ARX with VMware ESX
Servers for Shared Content Access, for deploying the F5
ARX with VMware. No updates to other sections of the
guide.
1.2
Added Chapter 5, Configuring the ARX for VMware ESX
virtualized Windows Server 2008 in a Managed Volume.
No updates to other sections of the guide.
1.3
Removed the WANJet chapter. For guidance on long
distance VMware deployments, see the VMware
Long-Distance VMotion deployment guides, availabe at
www.f5.com/solutions/resources/deployment-guides/#letterV
F5 Deployment Guide
1-2
Configuring the BIG-IP LTM system for VMware ESX
This section provides general guidance for deploying the BIG-IP LTM
system with VMware ESX devices. This section contains the following
topics:
• Load Balancing of Virtual Machine Guest Applications
• Load balancing behavior with DRS, on page 1-6
• Load Balancing behavior with VMware HA, on page 1-7
• Using LTM to improve hardware capacity in a virtual environment, on
page 1-8
Load Balancing of Virtual Machine Guest Applications
In most ways, an application within an ESX guest behaves much like a
application running outside of a virtualized environment. Because a BIG-IP
LTM directs traffic to a network address, guests that are defined as members
in an LTM pool can be located on any number of ESX servers, and
distributed among multiple host servers in any manner.
Figure 1.1 Using the BIG-IP LTM to direct traffic to ESX deployments
1-3
Deploying F5 with VMware ESX Server
Considerations for load balancing method
When configuring a BIG-IP LTM system, the IP addresses and Service
Ports of the target device or application are added to a load balancing pool.
For each BIG-IP LTM pool that contains an ESX device, we recommend
choosing one of the following load balancing methods:
◆
Observed (member)
The Observed load balancing method allows the BIG-IP LTM to use a
combination of logic based on the Least Connections and Fastest load
balancing methods to determine the optimal ESX guest to which new
traffic should be directed. Since virtualized guests usually co-exist with
other applications on the same hardware, this ensures that new traffic is
sent to the pool member most able to handle the traffic. For instance, if
an ESX server is engaged in heavy disk activity due to events occurring
within other guests, and the target guest is therefore unable to process
requests in as timely a manner as during normal situations, LTM will
dynamically adjust traffic levels to target those guests on other hosts that
are better able to process the traffic. The Observed method is particularly
useful when ESX hosts may be of dissimilar hardware profiles, or when
applications are not evenly distributed throughout an environment.
◆
Predictive (member)
The Predictive load balancing method is similar to Observed, except that
it also takes into account trending of each pool member. In a
highly-dynamic ESX environment, or one that is subject to extreme
traffic fluctuations, the Predictive algorithm may help decrease the
number of VMotion migrations triggered by VMware DRS technology
by directing traffic to guests that not only have the least connections and
fastest response times, but those that are likely to remain that way.
To modify the load balancing method of a BIG-IP LTM pool
1. On the Main tab, expand Local Traffic, and then click Pools.
The Pool screen opens.
2. From the Pool list, click the name of the applicable pool.
The Pool Properties screen opens.
3. On the menu bar, click Members.
4. From the Load Balancing Method list, select Observed (member)
or Predictive (member) based on the preceding descriptions.
5. Click the Update button.
Figure 1.2 Changing the load balancing method of the pool
F5 Deployment Guide
1-4
VMware ESX Server makes it easy to clone existing guests, to suspend
guests and resume their operation quickly at a later time, and to fully boot
guests that have been shut down. As a result, administrators have the option
of quickly adding guests at either predictable intervals, or to meet
unexpected traffic spikes. You may want to pre-allocate IP addresses for
guests and pre-configure those as nodes and pool members within BIG-IP
LTM. No traffic will be sent to those guests unless and until such time as
they are brought online, but in that scenario no further configuration of the
LTM is required once you make the decision to activate the guests.
Considerations for the health monitor
Health monitors for applications running on ESX should be based on
application behavior, not simple methods such as icmp or tcp. For example,
we recommend an advanced health monitor based on the http parent that
checks for a specific response string from the guest application. This ensures
that newly-provisioned, newly-unsuspended, or newly-migrated guests are
truly ready to process application traffic correctly.
You can modify an existing health monitor, or create a new one based on the
following procedure.
To create an advanced health monitor
1. On the Main tab, expand Local Traffic, and then click Monitors.
2. Click the Create button. The New Monitor screen opens.
3. In the Name box, type a name for the Monitor.
In our example, we type advhttp-monitor.
4. From the Type list, select http.
5. In the Configuration section, in the Interval and Timeout boxes,
type an Interval and Timeout. We recommend at least a 1:3 +1 ratio
between the interval and the timeout (for example, the default
setting has an interval of 5 and an timeout of 16). In our example,
we use a Interval of 30 and a Timeout of 91.In the Send String and
Receive Rule sections, you can add a Send String and Receive Rule
specific to the device being checked.
6. In the Send String box, type a string that you expect the target
device to return. In our example, we use a Send String of GET/
iisstart.htm.
If the page you are requesting in the Send String requires
authentication, type a user name and password in the appropriate
boxes.
7. In the Receive Rule box, type what you expect to receive from the
Send String. In our example, we expect the Under Construction
page to be returned, so we type [Uu]nder [Cc]onstruction (see
Figure 1.3).
1-5
Deploying F5 with VMware ESX Server
8. Click the Finished button.
The new monitor is added to the Monitor list.
Figure 1.3 Creating an advanced HTTP monitor
Load balancing behavior with DRS
VMware DRS is a technology for resource balancing, allocation, and
management among hosts. Using DRS, an administrator can define
threshold limits on each host. When an ESX guest encounters the CPU or
memory threshold, DRS moves that guest to a host with more resources.
VMware's VMotion technology allows this to occur while the guest is still
running.
BIG-IP LTM continues to direct traffic to the guest on the new host; to
LTM, this is still the same pool member. By using Predictive or Observed
load balancing methods, traffic is automatically sent to the guest at a level
appropriate to new capacities of guest, which is now running on a host that
is less constrained.
The BIG-IP LTM offers the additional benefit of mitigating the very brief
time in which VMotioned guests are not on the network. A busy web server,
for instance, may have several requests interrupted mid-stream. Although
many clients will be able to gracefully re-request the data, it's also possible
that an application may mis-behave or that content may be delivered
F5 Deployment Guide
1-6
incompletely. By using BIG-IP LTM, which will manage the direct
connectivity to the servers on behalf of the clients, you ensure that only
valid, correct, and complete data is returned to the client.
Figure 1.4 Using a BIG-IP LTM to transparently direct appropriate traffic
to a VMotioned guest
Load Balancing behavior with VMware HA
VMware HA (High Availability) will restart ESX guests on different hosts,
if their original hardware hosts fail. Unlike with VMware DRS, which
moves guests to hosts that have more resources available, in a hardware
failure situation the total resources available to the resource pool will
decrease. As a result, it's likely that guests will restart on hosts with
more-constrained capabilities.
BIG-IP LTM will direct traffic to the newly-restarted guests regardless of
which host they are assigned. Also, by using Predictive or Observed load
balancing methods, the guests will receive the proportional amount of traffic
appropriate to their new hosts.
1-7
Deploying F5 with VMware ESX Server
Figure 1.5 Using a BIG-IP LTM to direct traffic to a restarted and
correctly responding guest on a different host
Using LTM to improve hardware capacity in a virtual environment
ESX guests share the CPU, disk, and RAM resources of their hosts. By
decreasing the per-transaction resources required by each guest, you can
dramatically increase the number of virtual machines that can run
effectively on any host, while also increasing the effective work that each
virtual machine can accomplish.
As an example, BIG-IP's TCP Express feature set ensures optimal network
performance for all clients and servers, regardless of operating system and
version.
The F5 WebAccelerator (available as a module on the BIG-IP system) can
also significantly improve hardware capacity in a virtual environment. See
Configuring the F5 WebAccelerator module with applications running on
VMware, on page 2-1.
Offloading SSL transactions
One of the strengths of the BIG-IP LTM is the ability to terminate HTTPS
or other SSL connections, and send traffic to the guests unencrypted. This
reduces CPU and memory load on ESX guests by using the dedicated
F5 Deployment Guide
1-8
decryption hardware on the LTM. By terminating SSL/TLS connections at
the BIG-IP LTM, you also simplify certificate management, and allow new
guest to come online quickly and inexpensively.
To configure the BIG-IP LTM system to offload SSL you need to install a
SSL certificate on the BIG-IP LTM and add the certificate and key to a
Client SSL profile which is added to the appropriate virtual server. The
following procedures describe how to import an SSL certificate into the
BIG-IP LTM, how to add the certificate to a profile, and how to modify the
virtual server to include the profile.
For information on generating certificates, or using the BIG-IP LTM to
generate a request for a new certificate and key from a certificate authority,
see the Managing SSL Traffic chapter in the Configuration Guide for
Local Traffic Management.
Importing keys and certificates
Once you have obtained a certificate from a certificate authority, you can
import this certificate into the BIG-IP LTM system using the Configuration
utility.
To import a key or certificate
1. On the Main tab, expand Local Traffic.
2. Click SSL Certificates. The list of existing certificates displays.
3. In the upper right corner of the screen, click Import.
4. From the Import Type list, select the type of import (Certificate or
Key).
5. In the Certificate (or Key) Name box, type a unique name for the
certificate or key.
6. In the Certificate (or Key) Source box, choose to either upload the
file or paste the text.
7. Click Import.
If you imported the certificate, repeat this procedure for the key.
Creating a Client SSL profile
The next step is to create a Client SSL profile. This profile contains the SSL
certificate and Key information for decrypting the SSL traffic on behalf of
the servers.
To create a new Client SSL profile
1. On the Main tab, expand Local Traffic, and then click Profiles.
The HTTP Profiles screen opens.
2. On the Menu bar, from the SSL menu, select Client.
The Client SSL Profiles screen opens.
1-9
Deploying F5 with VMware ESX Server
3. In the upper right portion of the screen, click the Create button.
The New Client SSL Profile screen opens.
4. In the Name box, type a name for this profile. In our example, we
type clientssl-profile.
5. In the Configuration section, check the Certificate and Key
Custom boxes.
6. From the Certificate list, select the name of the Certificate you
imported in the Importing keys and certificates section.
7. From the Key list, select the key you imported in the Importing keys
and certificates section.
8. Click the Finished button.
Modifying the virtual server to include the Client SSL profile
The final task to enable the BIG-IP LTM to offload SSL is to modify the
appropriate virtual server to include the Client SSL profile you just created.
To modify an existing virtual server to use the Client SSL
profile
1. On the Main tab, expand Local Traffic, and then click Virtual
Servers. The Virtual Servers screen opens.
2. From the Virtual Server list, click the virtual server that will be
offloading SSL traffic.
3. In the Configuration section, from the SSL Profile (Client) list,
select the name of the profile you created in Creating a Client SSL
profile, on page 1-9. In our example, we select clientssl-profile.
4. Click the Update button.
Figure 1.6 Adding the Client SSL profile to the virtual server
F5 Deployment Guide
1 - 10
Creating BIG-IP LTM profiles to optimize application transactions
The BIG-IP LTM system uses profiles to enhance your control over
managing network traffic, and makes traffic-management tasks easier and
more efficient. For applications running on VMware, we recommend using
custom HTTP and TCP profiles to optimize the BIG-IP LTM to Guest
connections. This allows each guest to perform as efficiently as possible.
The optimized HTTP profile makes use of F5’s RAM cache and
compression engine which speed application transactions.
Although it is possible to use the default profiles, we strongly recommend
you create new profiles based on the default parent profiles, even if you do
not change any of the settings initially. Creating new profiles allows you to
easily modify the profile settings specific to the application, and ensures you
do not accidentally overwrite the default profile.
Creating an HTTP profile
The HTTP profile contains numerous configuration options for how the
BIG-IP LTM system handles HTTP traffic. In the following example, we
leave all settings at their default levels. You can modify any of the profile
settings to tune the profile to your application. Although you can use the
default profiles, we strongly recommend creating new profiles based off of
the parent profile to make
To create a new HTTP profile
1. On the Main tab, expand Local Traffic, and then click Profiles.
The HTTP Profiles screen opens.
2. In the upper right portion of the screen, click the Create button.
The New HTTP Profile screen opens.
3. In the Name box, type a name for this profile. In our example, we
type http-optimized.
4. From the Parent Profile list, select
http-wan-optimized-compression-caching.
5. Check the Custom box for Content Compression, and leave
Content List selected.
6. Modify any of the other settings as applicable for your network. In
our example, we leave the settings at their default levels.
7. Click the Finished button.
Creating the WAN optimized TCP profile
The next profile we create is a LAN optimized profile.
To create a new TCP profile
1. On the Main tab, expand Local Traffic, and then click Profiles.
The HTTP Profiles screen opens.
2. On the Menu bar, from the Protocol menu, click tcp.
1 - 11
Deploying F5 with VMware ESX Server
3. In the upper right portion of the screen, click the Create button.
The New TCP Profile screen opens.
4. In the Name box, type a name for this profile. In our example, we
type optimized-tcp-wan.
5. From the Parent Profile list, select tcp-wan-optimized.
6. Modify any of the settings as applicable for your network. In our
example, we leave the settings at their default levels.
7. Click the Finished button.
Creating the LAN optimized TCP profile
The next profile we create is a LAN optimized profile.
To create a new TCP profile
1. On the Main tab, expand Local Traffic, and then click Profiles.
The HTTP Profiles screen opens.
2. On the Menu bar, from the Protocol menu, click tcp.
3. In the upper right portion of the screen, click the Create button.
The New TCP Profile screen opens.
4. In the Name box, type a name for this profile. In our example, we
type optimized-tcp-lan.
5. From the Parent Profile list, select tcp-lan-optimized.
6. Modify any of the settings as applicable for your network. In our
example, we leave the settings at their default levels.
7. Click the Finished button.
Modifying the virtual server to use the new profiles
The next task is to modify the virtual server to use the new profiles you just
created.
1. On the Main tab, expand Local Traffic, and then click Virtual
Servers. The Virtual Servers screen opens.
2. From the Virtual Server list, click the virtual server that will use the
new profiles.
3. From the Configuration list, select Advanced.
The Advanced configuration options appear.
4. From the Protocol Profile (Client) list, select the name of the
profile you created in the Creating the WAN optimized TCP profile
section. In our example, we select optimized-tcp-wan.
5. From the Protocol Profile (Server) list, select the name of the
profile you created in the Creating the LAN optimized TCP profile
section. In our example, we select optimized-tcp-lan.
F5 Deployment Guide
1 - 12
6. From the HTTP Profile list, select the name of the profile you
created in the Creating an HTTP profile section. In our example, we
select http-optimized.
7. Click the Update button.
This concludes the BIG-IP LTM system guidance for VMware devices.
1 - 13
2
Deploying the WebAccelerator module
with VMware ESX Servers
• Configuring the WebAccelerator module
• Creating an HTTP Class profile
• Modifying the Virtual Server to use the Class profile
• Creating an Application
Configuring the F5 WebAccelerator module with
applications running on VMware
In this chapter, we configure the WebAccelerator module for the VMware
devices to improve hardware capacity in a virtual environment. The F5
WebAccelerator is an advanced web application delivery solution that
provides a series of intelligent technologies designed to overcome problems
with browsers, web application platforms and WAN latency issues which
impact user performance.
For more information on the F5 WebAccelerator, see
www.f5.com/products/big-ip/product-modules/webaccelerator.html.
Prerequisites and configuration notes
The following are prerequisites for this section:
◆
We assume that you have already configured the BIG-IP LTM system for
directing traffic to the ESX deployment as described in this Deployment
Guide.
◆
You must have purchased and licensed the WebAccelerator module on
the BIG-IP LTM system, version 9.4 or later.
◆
If you are using the BIG-IP LTM version 9.4.2 or later, you must have
created an HTTP profile on the BIG-IP LTM system that has RAM
Cache enabled. In our example we use a parent profile that includes
RAM Cache. If you did not create an HTTP profile with RAM Cache
enabled, you must create a new HTTP profile, based on a parent profile
that uses RAM Cache (we recommend HTTP Acceleration) and associate
it with the virtual server. This is only required for BIG-IP LTM version
9.4.2 and later.
Configuration example
Using the configuration in this section, the BIG-IP LTM system with
WebAccelerator module is optimally configured to improve hardware
capacity for the VMware devices. The BIG-IP LTM with WebAccelerator
module both offloads the servers from serving repetitive and duplicate
content.
In this configuration, a remote client with WAN latency accesses an ESX
device via the WebAccelerator. The user’s request is accelerated on repeat
visits by the WebAccelerator instructing the browser to use the dynamic or
static object that is stored in its local cache. Additionally, dynamic and static
objects are cached at the WebAccelerator so that they can be served quickly
without requiring the server to re-serve the same objects.
2-1
Deploying the WebAccelerator module with VMware ESX Servers
Configuring the WebAccelerator module
Configuring the WebAccelerator module requires creating an HTTP class
profile and creating an Application. The WebAccelerator device has a large
number of other features and options for fine tuning performance gains, see
the WebAccelerator Administrator Guide for more information.
Connecting to the BIG-IP LTM device
Use the following procedure to access the BIG-IP LTM system’s web-based
Configuration utility using a web browser.
To connect to the BIG-IP LTM system using the
Configuration utility
1. In a browser, type the following URL:
https://<administrative IP address of the BIG-IP device>
A Security Alert dialog box appears, click Yes.
The authorization dialog box appears.
2. Type your user name and password, and click OK.
The Welcome screen opens.
Creating an HTTP Class profile
The first procedure is to create an HTTP class profile. When incoming
HTTP traffic matches the criteria you specify in the WebAccelerator class,
the system diverts the traffic through this class. In the following example,
we create a new HTTP class profile, based on the default profile.
To create a new HTTP class profile
1. On the Main tab, expand WebAccelerator, and then click Classes.
The HTTP Class Profiles screen opens.
2. In the upper right portion of the screen, click the Create button.
The New HTTP Class Profile screen opens.
3. In the Name box, type a name for this Class. In our example, we
type example-class.
4. From the Parent Profile list, make sure httpclass is selected.
5. In the Configuration section, from the WebAccelerator row, make
sure Enabled is selected.
6. In the Hosts row, from the list select Match Only. The Host List
options appear.
a) In the Host box, type the host name that your end users use to
access the application on the ESX devices. In our example, we
type http://example-application.f5.com/.
F5 Deployment Guide
2-2
b) Leave the Entry Type at Pattern String.
c) Click the Add button.
d) Repeat these sub-steps for any other host names users might use
to access the SAP deployment.
7. The rest of the settings are optional, configure them as applicable
for your deployment.
8. Click the Finished button. The new HTTP class is added to the list.
Modifying the Virtual Server to use the Class profile
The next step is to modify the virtual server on the BIG-IP LTM system to
use the HTTP Class profile you just created.
To modify the Virtual Server to use the Class profile
1. On the Main tab, expand Local Traffic, and then click Virtual
Servers. The Virtual Servers screen opens.
2. From the Virtual Server list, click the name of the virtual server
you created for the application on the VMware devices. In our
example, we click example-http-vs.
The General Properties screen for the Virtual Server opens.
3. On the Menu bar, click Resources.
The Resources screen for the Virtual Server opens.
4. In the HTTP Class Profiles section, click the Manage button.
5. From the Available list, select the name of the HTTP Class Profile
you created in the preceding procedure, and click the Add (<<)
button to move it to the Enabled box. In our example, we select
example-class.
6. Click the Update button. The HTTP Class Profile is now associated
with the Virtual Server.
Important
If you are using the BIG-IP LTM version 9.4.2 or later, you must have
created an HTTP profile on the BIG-IP LTM system that has RAM Cache
enabled. In our example, we use a parent profile that includes RAM Cache.
If you did not create an HTTP profile with RAM Cache enabled, you must
create a new HTTP profile, based on a parent profile that uses RAM Cache
(such as HTTP Acceleration), and modify the virtual server to use this new
profile. This is only required for BIG-IP LTM version 9.4.2 and later.
To create the HTTP profile, use Creating an HTTP profile, on page 1-11,
selecting the HTTP Acceleration parent profile. You must leave RAM Cache
enabled; all other settings are optional. To modify the virtual server, follow
2-3
Deploying the WebAccelerator module with VMware ESX Servers
Steps 1 and 2 from the preceding procedure to access the virtual server, and
then from the HTTP Profile list, select the name of the new profile you just
created and click Update.
Creating an Application
The next procedure is to create a WebAccelerator Application. The
Application provides key information to the WebAccelerator so that it can
handle requests to your application appropriately.
To create a new Application
1. On the Main tab, expand WebAccelerator, and then click
Applications.
The Application screen of the WebAccelerator UI opens in a new
window.
2. Click the New Application button.
3. In the Application Name box, type a name for your application.
In our example, we type Example Application.
4. In the Description box, you can optionally type a description for
this application.
5. From the Local Policies list, select the Policy that best matches the
application you are running on the VMware devices. If there is not a
predefined policy for your application, you can create a new
WebAccelerator policy for your application.
6. In the Requested Host box, type the host name that your end users
use to access the application. This should be the same host name
you used in Step 6a in the preceding procedure. In our example, we
type http://example-application.f5.com/.
If you have additional host names, click the Add Host button and
enter the host name(s).
7. Click the Save button.
The rest of the configuration options on the WebAccelerator are optional,
configure these as applicable for your network. With this base configuration,
your end users will notice a marked improvement in performance after their
first visit.
F5 Deployment Guide
2-4
2-5
3
Deploying the BIG-IP GTM for VMware
ESX Server multi-data center deployments
• Configuring a self IP address on the BIG-IP LTM
• Creating a Listener on the GTM
• Creating data centers on the GTM system
• Creating the monitor
• Creating Servers for the data center
• Creating a GTM pool
• Creating a wide IP on the GTM
• Configuring the Wide IP as an MX record using
ZoneRunner
Using BIG-IP GTM to provide global site redirection
to a secondary data center
In this chapter, we configure the BIG-IP Global Traffic Manager for
muli-data center deployments of VMware. VMware Infrastructure makes
hosting duplicate sites or applications in remote data centers an easier and
more-manageable task. Because of that, it's even more important than ever
to have a global traffic management solution that can direct clients to the
correct, functional site in a timely manner.
The BIG-IP Global Traffic Manager module (GTM) can perform all
required functions to make this possible. If for instance Site 1 becomes
unavailable because its Internet connection is severed, BIG-IP-GTM
modifies DNS to direct clients to Site 2 when appropriate -- when
replication of VMware images is complete, guests are running, and the
application is accepting traffic.
The BIG-IP GTM is available as a module on the BIG-IP system.
For more information on the BIG-IP GTM, see
www.f5.com/products/big-ip/product-modules/global-traffic-manager.html
Figure 3.1 Logical configuration example using BIG-IP Local and Global Traffic Managers
3-1
Deploying the BIG-IP GTM for VMware ESX Server multi-data center deployments
Configuring a self IP address on the BIG-IP LTM
The first task in this configuration is to create a unique self IP address on the
BIG-IP LTM system for use by the GTM. You need a unique self IP address
for each redundant pair of BIG-IP LTM devices in this configuration, so if
you have multiple pairs of BIG-IP LTMs you need a unique self IP for each
one.
The IP address you choose, and the VLAN to which you assign it, must be
accessible by any clients that will be performing DNS queries against the
GTM. It may be a private IP address if a Network Address Translation
(NAT) device, such as a BIG-IP LTM, a firewall, or a router, is providing a
public address and forwarding DNS traffic to the listener.
To create a self IP address
1. On the Main tab, expand Network, and then click Self IPs.
The Self IP screen opens.
2. Click the Create button.
The new Self IP screen opens.
3. In the IP Address box, type an IP address in the appropriate VLAN
(the VLAN you choose in step 5).
In our example, we type 10.133.20.70.
4. In the Netmask box, type the corresponding subnet mask.
In our example, we type 255.255.255.0.
5. From the VLAN list, select the appropriate VLAN.
6. Click the Finished button.
The new self IP address appears in the list.
Creating a Listener on the GTM
The next task is to create a listener on the BIG-IP GTM system. A listener
instructs the Global Traffic Manager to listen for network traffic destined for
a specific IP address. In our case, this specific IP address is the self IP
address on the LTM system we just created.
To create a listener on the GTM system
1. On the Main tab of the navigation pane, expand Global Traffic and
then click Listeners. The main listeners screen opens.
2. Click the Create button.
3. In the Destination box, type the self IP address you created in
Configuring a self IP address on the BIG-IP LTM, on page 3-2. In
our example, we type 10.133.20.70 (see Figure 3.2).
4. Leave the VLAN Traffic list set to All VLANs.
5. Click the Finished button.
F5 Deployment Guide
3-2
6. Repeat this procedure for any additional self IP addresses you
configured in the Configuring a self IP address on the BIG-IP LTM
section.
Figure 3.2 Creating a new listener
Creating data centers on the GTM system
The next step is to create data centers on the GTM system for each
real-world location that will host globally load balanced ESX devices
servers. A data center defines the group of Global Traffic Managers, Local
Traffic Managers, host systems, and links that share the same subnet on the
network. In our example, we created a Seattle data center and a New York
data center.
To create a new Datacenter on the GTM system
1. On the Main tab of the navigation pane, expand Global Traffic and
click Data Centers. The main screen for data centers opens.
2. Click the Create button.
The New Data Center screen opens.
3. In the Name box, type a name for this datacenter. In our example,
we type Seattle DC.
4. In the Location box, type a location that describes the physical
location of the data center. In our example, we type Seattle,
Washington.
5. In the Contact box, type the name of the person responsible for
managing the network at the data center. In our example, we type
[email protected].
6. Make sure the State list remains at Enabled (see Figure 3.3).
7. Click the Finished button.
8. Repeat this procedure for each of your data centers. In our example,
we repeat the procedure once for our New York data center.
3-3
Deploying the BIG-IP GTM for VMware ESX Server multi-data center deployments
Figure 3.3 Creating a new GTM data center
Creating the monitor
The next task is to create a monitor on the GTM system. Monitors verify
connections on pools and virtual servers and are designed to check the status
of a pool or virtual server on an ongoing basis, at a set interval. If a pool or
virtual server being checked does not respond within a specified timeout
period, or the status of a pool or virtual server indicates that performance is
degraded, then the Global Traffic Manager can redirect the traffic to another
resource.
In our example, the application running on our VMware devices is an email
application, so we create a SMTP monitor. The SMTP monitor issues
standard Simple Mail Transport Protocol (SMTP) commands to ensure that
the BIG-IP LTM virtual server is available. You can configure a monitor
most appropriate for your configuration.
Although it is possible to use the default monitor, we recommend creating a
new monitor based off the default monitor, which enables you to configure
specific options.
To create a BIG-IP GTM health monitor
1. On the Main tab of the navigation pane, expand Global Traffic and
then click Monitors.
2. Click the Create button. The New Monitor screen opens.
3. In the Name box, type a name for the monitor. In our example, we
type gtm_smtp
4. From the Type list, select SMTP.
5. Configure the options as applicable for your deployment. In our
example, we leave the options at their default levels.
6. Click the Finished button.
The new monitor is added to the list.
F5 Deployment Guide
3-4
Creating Servers for the data center
The next task is to create a GTM Server for the data centers. A server
defines a specific system on the network. In this deployment, the GTM
servers are the BIG-IP LTM systems we configured earlier in this guide.
To create a GTM server
1. On the Main tab of the navigation pane, expand Global Traffic and
click Servers.
The main screen for servers opens.
2. Click the Create button. The New Server screen opens.
3. In the Name box, type a name that identifies the Local Traffic
Manager. In our example, we type Seattle_BIG-IP.
4. From the Product list, select either BIG-IP System (Single) or
BIG-IP System (Redundant) depending on your configuration. In
our example, we select BIG-IP System (Redundant).
5. From the Address List section, in the Address box, type the self IP
address of the BIG-IP LTM device, and then click the Add button.
In our example, we type 10.133.20.227.
6. If you selected BIG-IP System (Redundant) in Step 4, from the Peer
Address List section, in the Address box, type the self IP address of
the redundant BIG-IP LTM device, and then click the Add button.
Note: Do not use a floating IP address of the redundant pair. Do not
use the administrative interface of the either member of a redundant
pair.
7. From the Data Center list, select the name of the data center you
created in the Creating data centers on the GTM system section. In
our example, we select Seattle DC.
8. In the Health Monitors section, from the Available list, select the
name of the monitor you created in the Creating the monitor
section, and click the Add (<<) button. In our example, we select
gtm_smtp.
9. In the Resources section, from the Virtual Server Discovery list,
choose an option. We recommend Enabled (No Delete). With this
option, the GTM will discover all the virtual servers you have
configured on the LTM(s) via iControl, and will update, but not
delete them.
10. Click the Finished button.
3-5
Deploying the BIG-IP GTM for VMware ESX Server multi-data center deployments
Figure 3.4 Creating a GTM server
Creating a GTM pool
The next task is to create a pool on the GTM device that contains the BIG-IP
LTM virtual server.
To create a pool on the GTM
1. On the Main tab of the navigation pane, expand Global Traffic and
click Pools (located under Wide IPs).
F5 Deployment Guide
3-6
2. Click the Create button. The New Pool screen opens.
3. In the Name box, type a name for the pool. In our example, we type
Seattle_pool.
4. In the Health Monitors section, from the Available list, select the
name of the monitor you created in the Creating the monitor
section, and click the Add (<<) button. In our example, we select
gtm_smtp.
5. In the Load Balancing Method section, choose the load balancing
methods from the lists appropriate for your configuration. In our
example, we select Global Availability, Round Robin, and Return
to DNS, in that order.
6. In the Member List section, from the Virtual Server list, select the
virtual server you created for the ESX devices, and click the Add
button. You must select the virtual server by IP Address and port
number combination. In our example, we select 10.133.20.200:25.
If you have additional virtual servers for the ESX devices
configured on the BIG-IP LTM system, repeat this step.
7. Click the Finished button.
Figure 3.5 Creating a pool on the BIG-IP GTM
3-7
Deploying the BIG-IP GTM for VMware ESX Server multi-data center deployments
Creating a wide IP on the GTM
The next task is to create a wide IP on the GTM system. A wide IP is a
mapping of a fully-qualified domain name (FQDN) to a set of virtual servers
that host the domain’s content.
To create a wide IP on the GTM system
1. On the Main tab of the navigation pane, expand Global Traffic and
click Wide IPs.
2. Click the Create button. The New Wide IP screen opens.
3. In the Name box, type a name for the Wide IP. In our example, we
type mail.example.com.
4. In our example, we are not using any iRules, so we skip the iRule
section. Configure as appropriate for your deployment.
5. In the Pools section, from the Load Balancing Method list, select a
load balancing method. In our example, we select Global
Availability. Global Availability instructs the GTM to select the
first pool in the wide IP until it becomes unavailable, at which point
it selects the next pool until the first pool becomes available again.
In our example, the GTM sends all incoming email to the first-listed
pool, Seattle_pool. If that pool is unavailable, all incoming email is
sent to the next-listed pool, NewYork_pool. If you wish to
distribute incoming email among multiple pools, select another
method, such as Ratio.
Consult the online documentation or the product manual for more
details about load balancing methods.
6. From the Pool List section, from the Pool list, select the name of the
pool you created in the Creating a GTM pool section, and then click
the Add button.
In our example, we select Seattle_pool.
Repeat this step for any additional pools. In our example, we repeat
one time for the NewYork_pool.
7. All other settings are optional, configure as appropriate for your
deployment.
8. Click the Finished button (see Figure 3.6).
F5 Deployment Guide
3-8
Figure 3.6 Creating a new Wide IP on the GTM system
The next task is to add the newly-created Wide IP as an MX record in your
DNS system. If using the GTM as your primary DNS system, this is done
through the ZoneRunner utility.
Configuring the Wide IP as an MX record using ZoneRunner
The final task in this configuration is to configure the Wide IP as an MX
record in a DNS system. In our example, we are using the GTM system as
our primary DNS, and use ZoneRunner to add the Wide IP as an MX record.
The ZoneRunner utility is an advanced feature of the Global Traffic
Manager. We highly recommend that you become familiar with the various
aspects of BIND and DNS before you use this feature. For in-depth
information, we recommend the following resources:
• DNS and BIND, 4th edition, Paul Albitz and Cricket Liu
• The IETF DNS documents, RFC 1034 and RFC 1035
3-9
Deploying the BIG-IP GTM for VMware ESX Server multi-data center deployments
• The Internet Systems Consortium web site,
http://www.isc.org/index.pl?/sw/bind/
For information on adding the required MX record to other DNS servers, for
instance BIND or Microsoft Windows 2007 DNS Service, consult the
appropriate product documentation.
To add the Wide IP as an MX record using ZoneRunner
1. On the Main tab of the navigation pane, expand Global Traffic and
click ZoneRunner.
2. Click the Create button. The New Resource Record screen opens.
3. From the View list, select a view. In our example, we select
external.
4. From the Zone list, select the appropriate zone. In our example, we
select example.com
5. In the Name box, type a name for the Resource Record. Make sure
the domain for which you are creating an MX record is shown, and
note that it must end with a period.
6. In the TTL box, type a number of seconds. In our example, we type
500 (which is the default TTL for our zone).
7. From the Type list, select MX.
8. In the Preference box, type 10. Preference is a numeric value for
the preference of this mail exchange host relevant to all other mail
exchange hosts for the domain. Lower numbers indicate a higher
preference, or priority.
In a traditional DNS configuration, you would create multiple MX
records with different priorities; however, since you're using GTM
to provide true wide-area load balancing, it is only necessary to
create a single record in this case.
9. In the Mail Server, enter the name of the Wide IP that you created
in Creating a wide IP on the GTM. Make sure that this name also
ends with a period. In our example, we type mail.example.com.
10. Click the Finished button (see Figure 3.7).
F5 Deployment Guide
3 - 10
Figure 3.7 Creating a new Resource Record using ZoneRunner
This concludes the BIG-IP GTM configuration. For more information on the
BIG-IP GTM, see the GTM documentation.
3 - 11
4
Deploying the ARX with VMware ESX
Servers for Shared Content Access
• Integrating ARX and VMware Virtual machines
• Configuring the ARX
• Integrating the VMware Guest operating system
Deploying the F5 ARX with Windows XP VMware
Virtual machines for accessing Content Shares
This chapter illustrates how the F5 ARX can interoperate with VMware
Virtual machines running Microsoft Windows XP. The Windows Virtual
machines will boot from the VMware VMDK datastore and mount ARX
Virtual volumes as content drives.
The benefit of this type of configuration is Virtual Machines can migrate
from one VMware server to the next and still maintain consistent access to
the shared content available from the ARX Virtualized storage shares.
The shared content is kept in sync between data centers by leveraging the
external filer’s replication/mirroring technology. The filers simultaneously
mirror the main data center’s content to distant data center filers. When a
failover between data centers is invoked, the read-only copies in the far end
data center are changed to read/write access and the guest systems can
mount the local replicas. This guide demonstrates how to access the
replicated data after the read/write access has been granted.
For more information on the ARX series, see
http://www.f5.com/products/arx-series/
Prerequisites and configuration notes
The following are additional prerequisites and configuration notes for this
chapter:
◆
In our configuration, the VMware Guest operating system was Microsoft
Windows XP.
Configuration example
In the following diagram, we show basic connectivity between clients, ARX
and Virtual Machines accessing content shares. The VMware virtual
machines operate within the ESX hypervisor. These VMs will attach to the
ARX virtualized volumes via the LAN.
4-1
Deploying the ARX with VMware ESX Servers for Shared Content Access
Figure 4.1 Logical configuration example
F5® Deployment Guide
4-2
Integrating ARX and VMware Virtual machines
To configure the ARX and the VMware Virtual machines, you must
complete the following procedures:
◆
Configuring the ARX, on page 4-3
• Configuring Active Directory Authentication, on page 4-3
• Verifying the Active Directory Authentication, on page 4-8
• Creating the CIFS Namespace, on page 4-9
• Creating a Managed Volume, on page 4-10
• Adding the External Filers, on page 4-13
• Adding root level share, on page 4-14
• Adding a second CIFS Share, on page 4-16
• Creating the Share farm, on page 4-17
• Creating the Virtual Service, on page 4-19
◆
Integrating the VMware Guest operating system, on page 4-22
• Mounting the Virtual Server CIFS share, on page 4-22
• Generating an ARX Metadata Report, on page 4-25
Configuring the ARX
In this section, we configure the ARX to access the external storage devices.
We create a CIFS namespace with two shares added to it. The shares are
incorporated into a managed volume. The storage volumes are organized
into an ARX Share Farm.
Tip
Familiarize yourself with the ARX Common Operations page on the ARX
configuration utility. Most of the following procedures start from the
Common Operations page.
Configuring Active Directory Authentication
The first task in configuring the ARX device is to add an Active Directory
Authentication Server. There are three procedures required to add an Active
Directory Authentication device: Adding an NTLM Authentication Server,
adding a Proxy user, and adding the ARX device to the Active Directory
Forest.
Adding the NTLM Authentication Server
The first procedure is to add the NTLM authentication server.
4-3
Deploying the ARX with VMware ESX Servers for Shared Content Access
To add the NTLM authentication server
1. In a web browser, open the ARX Manager user interface.
2. From the navigation pane, expand Authentication, and then click
NTLM Auth. Servers.
3. Click the Add button.
4. In the NTLM Auth. Server Name box, type the Fully Qualified
Domain Name (FQDN) name of the server.
5. In the IP address box, type the IP address of the server.
6. In the Windows Domain box, type the Windows Domain. In our
example, we type acme.com.
7. In the Secure Agent password box, type the Secure Agent
Password. The Secure Agent password is the password assigned on
the Domain Controller for the Secure Agent application. Repeat the
password in the Confirm Secure Agent Password box.
8. Click OK.
Figure 4.2 Adding a new Authentication Server
Assigning Backup Operator Privileges
The Proxy User as defined on the ARX is an Active Directory User that is
used to access the backend filer shared volumes. This user must be assigned
a special privilege in order to access the files. The Backup Operator is a
special operator allowed to access all files and directories of a volume in a
non-interactive manner.
This privilege should be applied to the local group within each external filer
the ARX will manage.
The ARX CLI Storage-Management Guide is available on the ARX. The
ARX GUI has a Documentation link facilitating access to the pre-installed
manuals on each switch. See https://<ARX IP
Address>/acopia/docs/cliStorage/cliStorage.pdf
Note
If you have already assigned a Backup Operator, continue with Adding the
Proxy user, on page 4-7.
F5® Deployment Guide
4-4
There are multiple ways to configure Backup Operator Privileges. If the filer
is a Microsoft Windows server, you can use the server’s computer
management interface. The Microsoft Management Console (MMC) is
another option. Note that not all filers support MMC. For those filers use the
filer’s user interface to configure the equivalent privilege.
Using the MMC, the Local User groups can be configured on the filer
remotely. In the following example we manage the local groups of a
Windows Server acting as an external filer to the ARX.
To assign the backup operator using MMC
1. From a remote client, launch MMC (for example, from the
Windows Start menu, click Run, and then type mmc, and click Ok.
The MMC Console opens.
2. From the File menu, click Add/Remove Snap-in.
3. Click the Add... button. The Add Standalone Snap-in dialog box
opens.
4. From the Snap-in list, click Computer Management, and then click
the Add button. The Computer Management dialog box opens.
Figure 4.3 Add Standalone Snap-in Dialog Box
5. Click the Another Computer option button, and then type the IP
address or host name of the remote filer. In our example, we type
\\10.10.10.1.
6. Click the Finish button, and then click the Ok button on the
Add/Remove Snap-in page.
You return to the MMC console.
4-5
Deploying the ARX with VMware ESX Servers for Shared Content Access
7. From the MMC navigation pane, expand Computer Management for
the server you just added. Under Computer Management, expand
Local Users and Groups, and then click Groups.
The local groups for the server appear on the right.
Figure 4.4 MMC Console to the Local Users Groups.
8. Double click Backup Operator. The Backup Operator Properties
open. The list will most likely be empty.
9. Click Add to add the domain user to the list of Local Backup
Operators. The select user dialog box opens.
10. Type the ARX Active Directory (AD) Proxy User user name and
click Check Names. Be sure to provide an accurate Active
Directory user name. In our example, acmeuser001 is our Proxy
User. Click OK. The Enter Network Password dialog box opens.
11. In the User name and Password boxes, type the AD Administrative
credentials, and then click OK (in order to add an AD user to the
local groups, Administrative privileges are required).
The select users dialog box opens with the fully qualified name of
the domain user.
12. Click OK. The backup operator properties screen opens with the
AD user successfully added to the Backup Operator Local Group.
13. Click the OK.
The backup operator configuration is complete. We recommend you save
this Console session for future use.
F5® Deployment Guide
4-6
Adding the Proxy user
The next task is to create a Proxy User on the ARX system. This is the
Active Directory user that was assigned as the Backup Operator. These user
credentials are used to access the backend filer CIFS shares.
To create a proxy user
1. From the navigation pane, expand Authentication, and then click
CIFS Proxy users.
2. Click the Add button.
3. In the Proxy User name box, type the name. In our example, we
type acmeuser.
4. In the Proxy User Account box, type the proxy user account. In our
example, we type acmeuser001.
5. In the Proxy User Account Password, type the password. Retype
the password in the Confirm Proxy User Account Password box.
6. In the Windows Domain and Pre Win2k Domain boxes, type the
appropriate Windows Domain. In our example, we type acme.com
and acme in the boxes.
7. Click the Save button.
Figure 4.5 Adding a CIFS Proxy User
Adding the ARX device to the Active Directory Forest
The final procedure in this section is to add the ARX Switch to the Active
Directory Forest.
To add the ARX device to the Active Directory Forest
1. From the navigation pane, expand Authentication, and then click
Active Dir. Forests.
2. Click the Add button.
3. In the Forest Name box, type a name for this forest. In our
example, we type acme.
4-7
Deploying the ARX with VMware ESX Servers for Shared Content Access
4. From the Domain Type list, select forest-root.
5. In the Domain Name box, type a name for this domain. In our
example, we type acme.com.
6. In the Domain Controller IP box, type the Domain Controller IP
address. In our example, we type 10.60.112.10.
7. Check the Preferred, KDC and DNS boxes.
8. Click the OK button.
Figure 4.6 Adding an Active Directory Forest
The Active Directory authentication configuration is complete. Use the
following procedure to verify the ARX has joined the Active Directory
domain.
Verifying the Active Directory Authentication
To verify that the ARX is properly joined to the Active Directory domain,
log into the ARX using the SSH command line management interface, and
type the following command:
show active-directory status
The output should look similar to the following. Verify the Status state is
Active:
arx500-1# show active-directory status
Offline timeout is set to
PROCESSOR
2000 milliseconds.
1.1:
Domain Name
Domain Controller
Status
Preferred
--------------------------------------------------
-------------------
--------
----
ACME.COM
10.60.112.10
Active
Yes
If the Status state is not active, try the following troubleshooting steps:
1. Verify the user admin user credentials are correct.
F5® Deployment Guide
4-8
2. Review the syslog output. GUI: maintenance tab->Logs->syslog
and/or traplog. Review for error statements.
3. From the CLI: show logs syslog and show logs traplog
4. From the CLI: show active-directory domain acme.com and
double check IP address of the Domain Controller
Creating the CIFS Namespace
The next task to create the CIFS Namespace.
To create the CIFS Namespace
1. From the left navigation pane, click Common Operations.
2. Click the Create Namespace button. The Create Namespace wizard
opens.
3. In the Namespace name box, type a name. In our example, we type
Content.
You can optionally type a description.
4. From the Protocol options, click the CIFS box, and then click Next.
Figure 4.7 Namespace creation dialog
5. From the CIFS authentication information screen, click the Use
Kerberos and Use NTLM boxes.
6. Click the Next button.
4-9
Deploying the ARX with VMware ESX Servers for Shared Content Access
Figure 4.8 CIFS Authentication settings
7. Review the summary, and click the Finish button.
The namespace is created.
Creating a Managed Volume
The backend filer CIFS shares will be incorporated into an ARX Managed
Volume. File placement policy is managed at the volume level. The volume
attributes to be defined are namespace, volume name, description, CIFS
parameters, and the metadata store mount point. In this example, we place
the Volume Metadata onto the incumbent legacy storage platform. ARX
best practices state Metadata should be created on an NFS export if one is
available. Alternatively, a CIFS share could be used.
To create a managed volume
1. From the left navigation pane, click Common Operations.
2. Click the Create Volume button. The Create Volume wizard opens.
3. From the Namespace list, select the name of the namespace you
created in Creating the CIFS Namespace, on page 9.
In our example, we select Content.
4. In the Volume name box, type the volume name. In our example,
we type /data. You can optionally add a description. See Figure 4.9.
5. Click the Next button.
F5® Deployment Guide
4 - 10
Figure 4.9 Creating a Volume
6. From the Metadata file server protocol list, select an appropriate
protocol. In our example, we select NFSv3-UDP.
7. From the Metadata file server list, select the file server if it has
already been configured. In our example, the external filer has not
yet been configured, so we click the Add button.
a) In the Name box, type a name for the file server. In our example,
we type netapp.
b) In the Primary IP address box, type the IP address of the filer.
c) Configure the other options as applicable for your configuration.
In our example, we leave the defaults.
d) Click the Save button. You return to the Volume metadata page.
Figure 4.10 New External filer for the MetaData database
4 - 11
Deploying the ARX with VMware ESX Servers for Shared Content Access
8. On the Metadata page, click Next.
9. From the CIFS Parameters page, in the Auto-synchronization
section, click the Auto-synchronize box.
10. In the CIFS Attributes section, click the Auto-detect CIFS
attributes box. Click the Next button.
Figure 4.11 New External filer for the MetaData database
11. From the Volume Parameters page, in the Performance Tuning
section, from the VPU ID list, select Dynamic. Ensure the Auto
Reserve files box is checked.
12. In the Enable Volume section, click the Enable the volume when
finished button (see Figure 4.12).
13. Click the Next button.
14. Review the summary, and click Finish.
F5® Deployment Guide
4 - 12
Figure 4.12 Volume Parameters
Adding the External Filers
In this section we will add the external filer entries to the ARX. This entry is
referenced later when we add the filer shares to the managed volume.
To add the External Filers
1. From the navigation pane, click File Servers.
2. Click the Add button. The Add File Server screen opens.
3. In the Name box, type a name for this File Server. In our example,
we type filer1.
4. In the Primary IP Address box, type the primary IP address.
5. In the Secondary IP Address box, type any secondary IP addresses,
and click the Add button. In our example, we do not include any
secondary IP addresses.
6. In the Description box, you can optionally type a description.
7. In the Ignore Directories (optional) box, type any snapshot
directories the ARX should ignore on the backend file shares, and
click the Add button.
8. Click the OK button.
4 - 13
Deploying the ARX with VMware ESX Servers for Shared Content Access
Figure 4.13 External Filer definition
Repeat the preceding procedure for a second external filer and name it
filer2. The purpose the second filer is to facilitate building a share farm that
consists of a share from two separate filers for concatenating and load
balancing access to the storage devices.
Adding root level share
First file share we will add is the root level share. This is the incumbent
legacy storage volumes with file content. The subsequent shares to be added
will adapt to the root volume permissions.
To add a root level share
1. From the left navigation pane, click Common Operations.
2. Click the Add Share button. The Add Share Wizard opens.
3. In the Share Name box, type a name for this Share. In our example,
we type share1.
F5® Deployment Guide
4 - 14
4. From the Namespace list, select the name of the namespace you
created in Creating the CIFS Namespace, on page 4-9. In our
example, we select Content.
5. From the Volume list, select the name of the Volume you created in
Creating a Managed Volume, on page 4-10. In our example, we
select /data. Click the Next button.
Figure 4.14 Share name definition
6. From the File Server list, select the name of the file server you
created in Adding the External Filers, on page 13. In our example,
we select filer1.
7. In the CIFS Share box, type the name of the CIFS share.
In our example, we type share1.
8. In the Import Conflict Resolution section, check the Rename files
with naming collisions on import and Rename directories with
naming collisions on import boxes (see Figure 4.15).
9. Optional: You can select the ability for the ARX to take ownership
if the share is owned by another ARX by clicking the Allow this
switch to import this share, even if it’s owned by another Acopia
switch box.
10. Make sure the Enable this Share when finished box is checked.
11. Click the Next button.
12. Review the summary, and click the Finish button.
4 - 15
Deploying the ARX with VMware ESX Servers for Shared Content Access
Figure 4.15 Add Share Wizard
Adding a second CIFS Share
Now add as second share to the managed volume. This share will be used in
a share farm. A share farm is a way to add storage to an existing manage
volume and is often used to build a load balanced environment for storage
access. This new share will be on a second external filer named filer2.
To add a root level share
1. From the left navigation pane, click Common Operations.
2. Click the Add Share button. The Add Share Wizard opens.
3. In the Share Name box, type a name for this Share. In our example,
we type share1.
4. From the Namespace list, select the name of the namespace you
created in Creating the CIFS Namespace, on page 4-9. In our
example, we select Content.
5. From the Volume list, select the name of the Volume you created in
Creating a Managed Volume, on page 4-10. In our example, we
select /data. Click the Next button.
6. From the File Server list, select the name of the file server you
created in Adding the External Filers, on page 4-13. In our example,
we select filer2.
7. In the CIFS Share box, type the name of the CIFS share.
In our example, we type share2.
F5® Deployment Guide
4 - 16
8. In the Import Conflict Resolution section, check the Rename files
with naming collisions on import and Rename directories with
naming collisions on import boxes. Also, click Synchronize
directory attributes between shares on import so the new volume
inherits the root share attributes. (see Figure 4.16).
9. Make sure the Enable this Share when finished box is checked.
10. Click the Next button.
11. Review the summary, and click the Finish button.
Figure 4.16 Specify the external filer, share name, and attributes.
Creating the Share farm
A share farm is a load balancing feature. When files are migrated to the
share farm the files are stripped between the share farm members. If a
managed volume needs more capacity the user can add more shares to the
share farm and dynamically redistribute files across all shares.
In this example we will group the two previous added shares together.
To create a share farm
1. From the left navigation pane, click Common Operations.
2. Click the Load Balancing button.
The Load Balancing Wizard opens.
3. In the Policy Name box, type a name. In our example, we type
ShareFarm.
4 - 17
Deploying the ARX with VMware ESX Servers for Shared Content Access
4. From the Namespace list, select the name of the namespace you
created in Creating the CIFS Namespace, on page 4-9. In our
example, we select Content.
5. From the Managed volume list, select the name of the Volume you
created in Creating a Managed Volume, on page 4-10. In our
example, we select /data. Click the Next button.
Figure 4.17 Create Share Farm wizard
6. On the Shares page, click the boxes for the file shares to be included
in the share farm. In our example, we click the boxes for share1 and
share2.
Figure 4.18 Select the shares to include
7. On the Load Balancing page, select a load balancing algorithm and
choose one of the constraint options. In our example, we leave these
settings at the default levels.
Figure 4.19 Configuring the load balancing algorithm and options
F5® Deployment Guide
4 - 18
8. Make sure the Enable this load balancing policy when finished
box is checked.
9. Click the Next button.
10. Review the summary, and click the Finish button.
Creating the Virtual Service
The Virtual Service is how the ARX presents CIFS Shares to the network
clients. Clients send file requests through the Virtual Service and the ARX
proxies these requests to the appropriate backend filer.
The VMware guest operating system nodes connect to the Virtual service IP
and map the share to an unused drive letter.
To create the virtual service
1. From the left navigation pane, click Common Operations.
2. Click the Create Virtual Services button. The Add Virtual Service
Wizard opens.
3. From the Namespace list, select the namespace you created in
Creating the CIFS Namespace, on page 4-9. In our example, we
select Content.
4. Click the Create a new virtual service (VIP) button.
a) In the Virtual service DNS name box, type the DNS name for
the virtual service. In our example, we type share.acme.com.
b) In the IP Address box, type the IP address of the VIP. In our
example, we type 172.30.72.102.
c) In the Subnet Mask box, type the appropriate subnet mask. In
our example, we type 255.255.255.192.
d) From the VLAN ID list, select the appropriate VLAN ID. In our
example, we select 302.
5. Ensure the Enable the virtual service when finished box is
checked.
6. Click the Next button.
4 - 19
Deploying the ARX with VMware ESX Servers for Shared Content Access
Figure 4.20 Virtual Service creation
7. On the Windows Domain page, from the Windows Domain Name
list, select the appropriate domain. In our example, we select
acme.com.
8. In the Pre Win2k Domain box, type the Pre Win2k domain. In our
example, we type acme.
Click Next.
9. On the Export page, from the Volume list, select the Volume you
created in Creating a Managed Volume, on page 10. In our example,
we select /data.
10. In the Volume Path box, type the path. In our example, we type /.
11. In the Export Name box, type a name for the export. In our
example, we type share. You can optionally type a description (see
Figure 4.21).
12. Click the Add Export button.
13. Click the Next button.
14. Review the summary, and click the Finish button.
F5® Deployment Guide
4 - 20
Figure 4.21 Virtual Service file share export
You can review the Virtual Service by clicking Virtual Services in the
navigation pane. The admin state shows enabled and the status shows ready.
Figure 4.22 Virtual Service Summary
4 - 21
Deploying the ARX with VMware ESX Servers for Shared Content Access
Integrating the VMware Guest operating system
In this section, we show how the Windows Guests can access the ARX
Virtual Service and the managed volume CIFS share. This process is the
same process to follow if the client is a virtual machine or a physical
machine. One of the many benefits of virtual machines is their ability to be
mobile. The ARX adds flexibility with the Managed Volume and Virtual
Services that creates a robust virtual machine environment providing
continuous access to data content as VMs migrate from one data center to
the next.
The following list of items will be configured in order to integrate and verify
client access to the ARX Virtual Service.
• Mounting the Virtual Server CIFS share, on page 4-22
• Generating an ARX Metadata Report, on page 4-25
Mounting the Virtual Server CIFS share
In this section, we confirm that the Virtual Service is operating properly by
mapping a network drive to the Virtual Service Export from a VMware
Guest Windows Client. You can either start a Remote Desktop Session to
the guest, or access the guest console through the VMware vSphere client
and clicking the console tab.
Figure 4.23 VMware vSphere Console tab
The next step is to map the network drive.
To map a network drive
1. Open Windows Explorer, and from the Tools menu, select Map
Network Drive. The Map Network Drive wizard opens.
2. From the Drive list, select an unused drive letter. We select Y.
3. In the Folder box, type the network folder. The folder is comprised
of the Virtual Service FQDN and export path. In our example, we
type \\share.acme.com\share.
F5® Deployment Guide
4 - 22
Figure 4.24 Map the Share as a Network Drive
4. Click the Connect using a different user name link. In the User
name and Password boxes, type a domain user with the proper
access rights. In our example, we use the Proxy User credentials.
Figure 4.25 Connect As the Acmeuser001 user credentials
Microsoft Windows mounts the drive. The drive can be explored and the
following screen displays the file contents of the virtual service export.
4 - 23
Deploying the ARX with VMware ESX Servers for Shared Content Access
Figure 4.26 Virtual service shared drive contents
The export shows the files and directories that exist. The user cannot
determine which of the two backend file shares the files reside on. The ARX
has merged the files and directories into one common virtual path.
In this example there are six root level directories. Under these directories
there is various test content. The content is stripped across the backend
servers and presented as a unified volume to the client.
The volume statistics can be viewed from the ARX GUI by clicking the
Managed Volume tab in the left pane. Select the /data volume. In our
example the volume contains 60 file distributed within 41 directories (see
Figure 4.27).
F5® Deployment Guide
4 - 24
Figure 4.27 Managed Volume Statistics
Generating an ARX Metadata Report
The file placement can be determined by executing an ARX report. The
administrator can also view the directory contents on the backend servers
and see how the files are placed. In this section, we demonstrate how to
create an ARX Report.
To generate an ARX Metadata Report
1. From the navigation pane, click Managed Volumes.
2. From the Volume column, click the name of the appropriate
volume. In our example, we click /data.
3. Click the Report button.
4. In the Path box, type /.
5. In the Report Type row, click Metadata.
4 - 25
Deploying the ARX with VMware ESX Servers for Shared Content Access
6. In the Output Report Name box, type a name for the report.
7. Click the OK button.
Figure 4.28 Volume Report
The report is generated and is accessible by clicking Reports in the
navigation pane, then clicking the name of the report you just created. The
following snippet of the report displays filenames and the file shares they
are located on.
**** Metadata-Only Report: Started at Mon Aug 24 15:34:50 2009 ****
**** Software Version: 5.00.001.11704 (Jun 24 2009 22:25:14) [nbuilds]
**** Hardware Platform: ARX-1000
**** Report Destination:
**** Namespace: Content
**** Volume: /data
**** Path: /
Share
Physical Filer
--------------------
----------------------------------------------------------
[share1
]
10.10.10.2:share1
[share2
]
10.10.10.3:share2
**** Legend:
****
FL = File: The reported entry is a file.
****
DR = Directory: The reported entry is a directory.
****
LN = Link: The reported entry has a link count greater than one.
****
NL = No Lock: Was unable to lock parent directory during report.
****
CC = NFS case-blind name collision.
****
IC = Name contains invalid CIFS characters.
****
FN = Name may conflict with a filer-generated name.
****
SP = A persistent split is registered in the metadata, due to a FGN.
****
NF = Name is only accessible to NFS clients.
Type
F5® Deployment Guide
Share
Path
4 - 26
---------------------
--------------------
-------------------------------------
[
DR
]
[share2
]
/#acopia-trailchartest-19358-1246298087
[
DR
]
[share2
]
/#acopia-trailchartest-19358-1246297951
[
DR
]
[share2
]
/#acopia-trailchartest-22403-1246383883
[
DR
]
[share2
]
/#acopia-trailchartest-14577-1246383880
[
DR
]
[share2
]
/tom
[
DR
]
[share1
]
/jimmy
[
DR
]
[share1
]
/subshare2
[
DR
]
[share2
]
/#acopia-trailchartest-19358-1246297734
[
DR
]
[share2
]
/#acopia-trailchartest-19358-1246294573
[
DR
]
[share2
]
/#acopia-trailchartest-19629-1246297743
[
DR
]
[share1
]
/maryanne
[
DR
]
[share2
]
/#acopia-trailchartest-19358-1246296923
[
DR
]
[share2
]
/#acopia-trailchartest-24971-1246377419
[
DR
]
[share1
]
/subshare1
[
DR
]
[share2
]
/mary
[
DR
]
[share2
]
/jim
[
DR
]
[share1
]
/tommy
[
DR
]
[share2
]
/#acopia-trailchartest-19358-1246297636
]
[share2
]
/global-config
[FL
[
DR
]
[share2
]
/#acopia-trailchartest-9249-1246383466
[
DR
]
[share2
]
/#acopia-trailchartest-9249-1246382574
[
DR
]
[share2
]
/#acopia-trailchartest-9249-1246383402
[
DR
]
[share2
]
/#acopia-trailchartest-19168-1246383561
[
DR
]
[share2
]
/#acopia-trailchartest-19358-1246296056
[
DR
]
[share2
]
/#acopia-trailchartest-14577-1246383558
[
DR
]
[share2
]
/#acopia-trailchartest-19358-1246295874
[FL
]
[share2
]
/#acopia-trailchartest-19358-1246294573/PQ3E3F~P
[FL
]
[share2
]
/#acopia-trailchartest-19358-1246295874/PQ3E3F~P
[FL
]
[share2
]
/#acopia-trailchartest-19358-1246296056/PQ3E3F~P
[FL
]
[share2
]
/#acopia-trailchartest-19358-1246296923/PQ3E3F~P
[FL
]
[share2
]
/#acopia-trailchartest-19358-1246297636/PQ3E3F~P
[
DR
]
[share1
]
/jimmy/d2
[
DR
]
[share1
]
/jimmy/d3
[
DR
]
[share2
]
/jimmy/dirondd1
[
DR
]
[share1
]
/jimmy/d1
[
DR
]
[share1
]
/jimmy/d4
[
DR
]
[share2
]
/jimmy/dirondd2
[
DR
]
[share1
]
/jimmy/d5
[
DR
]
[share2
]
/jimmy/dirondd
]
[share1
]
/subshare1/global-config
[FL
[
DR
]
[share1
]
/tommy/d2
[
DR
]
[share1
]
/tommy/d3
[
DR
]
[share1
]
/tommy/d1
[
DR
]
[share1
]
/tommy/d4
[
DR
]
[share1
]
/tommy/d5
[
DR
]
[share1
]
/tommy/foo
[
DR
]
[share1
]
/tommy/goo
[FL
]
[share2
]
/#acopia-trailchartest-19358-1246297734/PQ3E3F~P
[FL
]
[share2
]
/#acopia-trailchartest-19629-1246297743/PQ3E3F~P
[FL
]
[share2
]
/#acopia-trailchartest-19358-1246297951/PQ3E3F~P
[FL
]
[share2
]
/#acopia-trailchartest-19358-1246298087/PQ3E3F~P
4 - 27
Deploying the ARX with VMware ESX Servers for Shared Content Access
[FL
]
[share2
]
/#acopia-trailchartest-24971-1246377419/PQ3E3F~P
[FL
]
[share2
]
/#acopia-trailchartest-9249-1246382574/PQ3E3F~P
[FL
]
[share2
]
/#acopia-trailchartest-9249-1246383402/PQ3E3F~P
[FL
]
[share2
]
/#acopia-trailchartest-9249-1246383466/PQ3E3F~P
[FL
]
[share2
]
/#acopia-trailchartest-14577-1246383558/PQ3E3F~P
[FL
]
[share2
]
/#acopia-trailchartest-19168-1246383561/PQ3E3F~P
[FL
]
[share2
]
/#acopia-trailchartest-14577-1246383880/PQ3E3F~P
[FL
]
[share2
]
/#acopia-trailchartest-22403-1246383883/PQ3E3F~P
**** Total Files:
19
**** Total Directories:
40
**** Total Links:
0
**** Total Locking Errors:
0
**** Total items:
**** Elapsed time:
59
00:00:00
**** Metadata-Only Report: DONE at Mon Aug 24 15:34:50 2009 ****
Conclusion
This chapter of the deployment guide demonstrated the way to integrate F5
ARX platform with VMware Guest operating systems. The deployment
enables the virtualized servers to mount a common content share. This
facilitates a site to site failover of both Virtual Servers as well as the data
content they need access too. The ARX external filers can replicate the
content between data centers and when a failover is initiated these
replication peers can present the same content to the virtual servers that was
presented in the primary site.
For more information on configuring the F5 ARX, refer to the
documentation, available on Ask F5.
F5® Deployment Guide
4 - 28
4 - 29
5
Configuring the ARX for VMware ESX virtualized
Windows Server 2008 in a Managed Volume
• Configuring Windows Server 2008 for the ARX
• Configuring the ARX
• Verifying Client access
Deploying the F5 ARX for VMware ESX virtualized
Windows Server 2008 in a Managed Volume
This chapter illustrates how the F5 ARX can interoperate with VMware®
Virtual Machines running Microsoft® Windows® Server 2008. The
Windows Virtual machines boot from the VMware Virtual Machine Disk
Format (VMDK) datastore and present CIFS shares to the ARX to be
managed as Tier-2 external filers.
When the performance of one virtualized windows server is exceeded, the
system administrator can add additional virtualized servers and incorporate
them into the managed volume to meet the performance and storage
capacity needs.
For more information on the ARX system, see
http://www.f5.com/products/arx-series/
To provide feedback on this deployment guide or other F5 solution
documents, contact us at [email protected].
Prerequisites and configuration notes
The following are prerequisites and configuration notes for this deployment:
◆
This document is based on ARX version 5.0.1
◆
We assume the ARX is configured for network access and the initial
switch interview has been completed. If not, refer to the ARX Hardware
Installation guide for specific details.
◆
The example scenario in this deployment guide is based on the
following:
• The Tier 1 external filer storage is pre-configured and available as a
network resource.
• Three Windows Server 2008 VMware Guest OS systems are installed
and available as a network resource.
• Microsoft Active Directory Domain is preconfigured and the F5
Secure Agent is installed.
◆
5-1
The ARX is deployed in production environments in a high availability
pair. This guide demonstrates how to configure the first of the two
clustered ARX switches.
Configuring the ARX for VMware ESX virtualized Windows Server 2008 in a Managed Volume
Product versions and revision history
Products and versions tested for this deployment guide:
Product Tested
Version Tested
F5 Acopia ARX
5.0.1
VMware ESX
3.5.0 or later
Microsoft Windows Server 2008
2008
Microsoft XP Client
XP SP3
Configuration example
In the following diagram, we show basic connectivity between clients, the
ARX, and Virtual Machines accessing content shares. The VMware virtual
machines operate within the ESX provisory. These VMs share network
storage to be managed by the ARX.
The ARX manages the CIFS shares from the data center LAN into a single
managed volume. This volume is shared to the client LAN with an ARX
Virtual Service. Clients do not have direct access to the data center LAN.
ARX Managed Volume
CIFS Share
ARX
ARX1000
ARX1000
Client LAN
Data Center LAN
File Servers
Test Client
NetApp
VMware ESX Server
Figure 5.1 Logical configuration example
F5® Deployment Guide
5-2
Configuring Windows Server 2008 for the ARX
In this section, we configure the Windows 2008 Servers. You must complete
the following tasks on the each Windows Server:
• Joining the Active Directory Domain, on page 5-3
• Initializing a new VMware storage device, on page 5-4
• Initializing the Windows Server 2008 Disk, on page 5-5
• Creating a CIFS File Share, on page 5-7
• Assigning the Local Backup Operator, on page 5-8
Note
You must complete the following procedures for each of the Windows 2008
Servers to be included in the ARX Managed Volume. In our example, we
repeat the procedures for the three Windows 2008 Servers in our
implementation.
Joining the Active Directory Domain
The first task is to authenticate the file servers to the Active Directory (AD)
Domain Controller. This adds the file servers into the Domain as Domain
Computers and registers the IP addresses with DNS.
To join the Active Directory domain
1. Use RDP to connect to the server, or open the server console with
the VMware vSphere client.
2. From the Windows Start menu, click Control Panel.
3. On the Control Panel screen, click System. The System Properties
screen opens.
4. Under Computer name, domain, and workgroup settings, click
Change Settings.
5. Click the Computer Name tab, and then click the Change button.
6. In the Member of section, click the Domain button, and type the
appropriate domain in the box.
7. Click the OK button.
8. When prompted, type the User Name and Password of an account
with domain administrator permissions.
9. Click the OK button. You see a Welcome to the domain message. If
you do not, double-check your DNS server settings, administrator
credentials, or basic network connectivity to the domain controllers.
10. You must restart the computer to apply the changes. We recommend
shutting down the Windows Server 2008 device instead of
rebooting.
5-3
Configuring the ARX for VMware ESX virtualized Windows Server 2008 in a Managed Volume
Initializing a new VMware storage device
The next task is to configure a new storage device. In this section, we create
a new Hard Drive using the VMware VSphere Client which is subsequently
initialized by the Windows Server. Note that this process needs to occur
with the VM shutdown.
To initialize a new VMware storage device
1. Launch the VMware vSphere client.
2. From the navigation pane, select the appropriate virtual machine. In
the main pane, click Edit virtual machine settings. The properties
box opens.
3. On the Hardware tab, click the Add button. The Add Hardware
wizard opens.
4. Click Hard Disk, and then click Next.
Figure 5.2 Add Hardware Wizard
5. In the Disk box, ensure Create a new virtual disk is selected. Click
Next.
6. From the Disk list, select or type a number for the virtual disk size.
In our example, we type 10 and select GB for the disk size (see
Figure 5.3). Click Next.
7. On the Advanced Options page, configure as applicable. In our
example, the Windows 2008 Virtual Machine is installed with a
Virtual SCSI controller. VMware selects the next available LUN by
default. We leave all settings at the default, and then click Next.
F5® Deployment Guide
5-4
Figure 5.3 Virtual Disk Capacity
8. Review the options and then click Finish. The system creates the
disk and the virtual machine properties page opens with the new
disk highlighted with a status of Adding.
9. Click OK to close the properties box.
10. Click Play to power on the virtual machine.
Initializing the Windows Server 2008 Disk
The next task is to use the Windows Disk Manager to initialize and format
the new virtual disk.
To initialize the new virtual disk
1. From the Start menu, select Administrative Tools, and then click
Computer Management. Expand the Storage menu and then click
Disk Management.
The Computer Management screen opens, and you see the disk you
just created in the list.
2. If the new disk has a status of Offline, right-click the disk and then
select Online.
5-5
Configuring the ARX for VMware ESX virtualized Windows Server 2008 in a Managed Volume
Figure 5.4 Disk Manager
3. To initialize the disk, right-click the disk and the click Initialize
Disk.
4. Leave the partition style at MBR (Master Boot Record). Click OK.
The disk state should now show Basic and online.
Next, we create and format a simple volume.
5. Right-click the disk you just initialized, and select New Simple
Volume. The New Simple Volume Wizard opens.
Figure 5.5 Create a simple volume
6. Click the Next button to start the wizard.
7. In the Simple Volume Size in MB box, type the maximum disk
space, as we want the volume to be the entire disk. Click Next.
8. Make sure Assign the following drive letter is selected, and choose
a letter from the list. In our example, we select F. Click Next.
F5® Deployment Guide
5-6
9. On the Format Partition page, click Format this volume with the
following settings button, and complete the following:
a) From the File System list, select NTFS.
b) From the Allocation unit size list, you can select a unit size. We
leave this setting at the Default.
c) In the Volume label box, type a name. In our example, we type
Share Volume.
d) Check the Perform a quick format box.
e) Click Next.
Figure 5.6 Format Partition page
10. Review the new volume parameters, and then click Finish.
The disk reports the status of Healthy (Primary partition).
Keep the Disk Management utility open and proceed to the next
section to share the new drive.
Creating a CIFS File Share
The disk is ready to be shared on the network as a CIFS network device file
share. The drive sharing is a simple task. The CIFS share name is what the
ARX imports into a managed volume.
To create the CIFS file share
1. From the Disk Management utility, right-click the drive (Share
Volume (F:) in our example) and select Properties. The drive
properties window opens.
5-7
Configuring the ARX for VMware ESX virtualized Windows Server 2008 in a Managed Volume
2. Click the Sharing tab, and then click the Advanced Sharing button.
3. On the Advanced Sharing page, click the Share this folder box.
4. In the Share name box, type a name, and then click the Add button.
In our example, we type share1.
Figure 5.7 Advanced Sharing
5. You can optionally limit the number of simultaneous users. We
recommend not limiting the number of users.
6. Click the Permissions to set the Share Level permissions. The
permissions box opens.
7. Check the Allow boxes for Full Control and Change.
8. Click OK.
9. Click OK again on the Advanced Sharing settings page, and then
click Close to complete the creation of the CIFS share.
10. Important: Repeat this procedure for each Windows 2008 server to
be included in the ARX Managed Volume. For simplicity name
each share sequentually (for example share1, share2, share3).
Assigning the Local Backup Operator
The next task is to assign Local Backup Operator rights to the Windows
Servers for the Active Directory Domain User. This is the ARX Proxy User
and is required in order to allow the ARX to perform various directory and
file transactions.
F5® Deployment Guide
5-8
Tip
For the following advanced features the ARX proxy user should be assigned
to the Local Adminstrators group: Access based Enumeration (import and
priv-exec), Filer subshares (Export and replicate), Share enable replicate /
export subshares, and snapshot creations. These features are not a part of
this deployment guide.
To assign a local backup operator
1. Use RDP to connect to the server, or open the server console with
the VMware vSphere client.
2. From the Windows Start menu, navigate to Administrative Tools,
and then select Computer Management.
3. From the navigation pane, expand System Tools, expand Local
Users and Groups, and then click Groups.
4. Double-click the Backup Operator group. The Backup Operators
Properties page opens. Click the Add button.
5. In the Enter object names to select box, type the domain user with
administrative credentials and then click Check Names. If multiple
names return, select the correct user and then click OK.
6. Type the network password, and then click OK. You return to the
Select Users, Computer, or Groups box.
7. Click OK. You return to the Backup Operator Properties box, and
the new user is now a Member of the local backup operators group.
8. Click OK to finish.
This completes the Windows Server 2008 configuration. Be sure to repeat
these procedures for each of the Windows 2008 Servers to be included in the
ARX Managed Volume.
5-9
Configuring the ARX for VMware ESX virtualized Windows Server 2008 in a Managed Volume
Configuring the ARX
This section we configure the ARX to access the external storage devices.
We create a CIFS namespace with 4 shares added to it. The first share is the
Root Level share and is the Tier-1 filer. The remaining 3 shares are the
Virtualized Windows Servers. The shares are incorporated into a managed
volume. The storage volumes are organized into an ARX Share Farm.
Configuring the Active Directory Authentication
The first task in configuring the ARX device is to create a new Active
Directory (AD) Authentication server
To create the active directory authentication server
1. From the navigation pane, expand Authentication, and then click
NTLM Auth. Servers. The server summary opens.
2. Click the Add button. The Add NTLM Authentication server page
opens.
3. In the NTLM Auth. Server Name box, type a name for the server.
In our example, we type siterequest.
4. In the IP Address box, type the IP address of the server. We type
10.60.112.10.
5. In the Windows Domain Name box, type the Windows domain. In
our example, we type siterequest.com.
6. In the Secure Agent Password box, type the password. This is the
password assigned on the domain controller for the secure agent
application. Confirm the password in the next box.
7. Leave the Agent Port box at the default.
8. Click OK.
Figure 5.8 Create a new Authentication Server
F5® Deployment Guide
5 - 10
Creating a Proxy User
The next task in configuring NTLM authentication is to create a proxy user.
To create a proxy user
1. From the navigation pane, expand Authentication, and then click
CIFS Proxy Users. The Summary page opens.
2. Click the Add button. The Add CIFS proxy user page opens.
3. In the Proxy Username box, type the username. This is the Active
Directory user that was assigned as the Backup Operator. These user
credentials are used to access the backend filer CIFS shares.
4. In the Proxy User Account, type the Proxy User Account.
5. In the Proxy User Account Password box, type the password.
Confirm the password in the next box.
6. In the Windows Domain box, type the domain. In our example, we
type siterequest.com.
7. In the Pre Win2k Domain box, type the domain. In our example, we
type siterequest.
8. Click the OK button.
Adding the Active Directory Forest details
The next task is to add the Active Directory Forest details to the ARX.
To add the Active Directory Forest details
1. From navigation pane, expand Authentication, click Active Dir.
Forests, and then click the Add button.
2. From the Domain Type list, select forest-root.
3. In the Domain Name box, type the Domain name. In our example,
we type siterequest.com.
4. In the Domain Controller IP box, type the Controller IP.
5. Check the Preferred, KDC, and DNS boxes, and then click the
Add button.
The active Directory authentication configuration is complete.
Verifying Active Directory Authentication
In this section we verify that the ARX is properly joined to the Active
Directory domain.
Log into the ARX via SSH to access the command line interface. Enter the
show active-directory status command.
5 - 11
Configuring the ARX for VMware ESX virtualized Windows Server 2008 in a Managed Volume
arx500-1# show active-directory status
Offline timeout is set to 2000 milliseconds.
PROCESSOR 1.1:
Domain Name
Domain Controller
Status
Preferred
--------------------------------------------------
-------------------
--------
----
SITEREQUEST.COM
10.60.112.10
Active
Yes
Verify that the Status state is Active.
Creating the CIFS Namespace
The next task is to create a CIFS namespace on the ARX.
To create the CIFS namespace
1. From the left navigation pane, click Common Operations.
2. Click the Create Namespace button. The Create Namespace wizard
opens.
3. In the Namespace name box, type a name. In our example, we type
Content. You can optionally type a description.
4. From the Protocol list, click the CIFS box, and then click Next.
Figure 5.9 CIFS namespace wizard
5. In the CIFS authentication protocol section, check the Use
Kerberos and Use NTLM boxes.
6. In the Proxy User section, type the name of the proxy user. In our
example, we type acmeuser001. Click the Next button.
7. Click the Finished button.
F5® Deployment Guide
5 - 12
Creating a volume
The backend filer CIFS shares will be incorporated into an ARX Managed
Volume. File placement policy is managed at the volume level. In this
example, we place the Volume Metadata onto the incumbent legacy storage
platform. ARX best practices state Metadata should be created on an NFS
export if one is available. Alternatively, a CIFS share could be used.
To create the managed volume
1. From the navigation pane, click Managed Volumes, and then click
the Add button.
2. From the Namespace list, select the name of the namespace you
created. In our example, we select Content.
3. In the Volume Name box, type the name for the volume. In our
example, we type /data. You can optionally type a description.
4. Click Next.
5. From the Metadata file server protocol list, select NFSv3-UDP.
6. From the Metadata file server row, click the Add button to create
an external filer. The new file server wizard opens. Complete the
following:
a) In the Name box, type a name for this File Server. In our
example, we type netapp.
b) In the Primary IP Address box, type the primary IP address.
c) In the Secondary IP Address box, type any secondary IP
addresses, and click the Add button. In our example, we do not
include any secondary IP addresses.
d) In the Description box, you can optionally type a description.
e) Make sure there is a check in the This file server supports
snapshots box.
f) From the File Server Type list, select NetApp.
In order to allow the ARX access to these filers (EMC, NetApp,
Windows) management access is required.
g) In the Management IP Address box, type the management IP
address.
h) From the Management Protocol list, select the appropriate
protocol. In our example, we select SSH.
i) In the Management Proxy User box, type the proxy user. In our
example, we type root.
j) In the Ignore Directories (optional) box, type any snapshot
directories the ARX should ignore, and click the Add button. In
our example, we type .snapshot, ~snapshot.
5 - 13
Configuring the ARX for VMware ESX virtualized Windows Server 2008 in a Managed Volume
k) Click the Save button. You return to the managed volume
wizard.
7. In the Metadata CIFS share/ NFS path box, type the path. In our
example, we type /metadata.
8. Click Next. The CIFS parameter option page opens
9. Check the box in the Auto-synchronization section, and then check
the Auto detect CIFS Attributes box. Click Next. The Volume
parameters page opens.
10. Configure the Performance Tuning section as applicable for your
configuration.
11. Click the Files and directories can be renamed during import
and re-import button.
12. Check the Enable the volume when finished box, and then click
Next.
13. Review the summary, and then click Finish.
Adding the External Filers
The next task is to add the external filer entries to the ARX. These entries
are referenced later when we add the filer shares to the managed volume.
To add the External Filers
1. From the navigation pane, click File Servers.
2. Click the Add button. The Add File Server screen opens.
3. In the Name box, type a name for this File Server. In our example,
we type filer1.
4. In the Primary IP Address box, type the primary IP address. In our
example, we type 10.10.10.2.
5. In the Secondary IP Address box, type any secondary IP addresses,
and click the Add button. In our example, we do not include any
secondary IP addresses.
6. In the Description box, you can optionally type a description.
7. In the Ignore Directories (optional) box, type any snapshot
directories the ARX should ignore on the backend file shares, and
click the Add button.
8. Click the OK button.
9. Repeat this entire procedure for additional filers. In our example, we
repeat this procedure twice and name the filers filer2 and filer3.
We add the additional files to facilitate building a share farm that
consists of a share from three separate filers for concatenating and
load balancing access to the storage devices.
F5® Deployment Guide
5 - 14
Adding the root level share
First file share we will add is the root level share. This is the incumbent
legacy storage volumes with file content. The subsequent shares to be added
will adapt to the root volume permissions.
To add a root level share
1. From the left navigation pane, click Common Operations.
2. Click the Add Share button. The Add Share Wizard opens.
3. In the Share Name box, type a name for this Share. In our example,
we type Share0.
4. From the Namespace list, select the name of the namespace you
created in Creating the CIFS Namespace, on page 5-12. In our
example, we select Content.
5. From the Volume list, select the name of the Volume you created in
Creating a volume, on page 5-13. In our example, we select /data.
Click the Next button.
6. From the File Server list, select the name of the file server you
created in step 6a of Adding the External Filers, on page 5-14. In
our example, we select netapp.
7. In the CIFS Share box, type the name of the CIFS share.
In our example, we type share0.
8. In the Import Conflict Resolution section, check the Rename files
with naming collisions on import and Rename directories with
naming collisions on import boxes (see Figure 5.10).
9. Click the Next button.
10. Review the summary, and click the Finish button.
11. Important: Repeat this procedure to add the virtualized Windows
2008 shares to the managed volume. These are the shares from the
filers you created in Adding the External Filers, on page 14 (Filer1,
Filer2, and Filer3 in our example). These shares are used in a share
farm. A share farm is a way to add storage to an existing manage
volume and is often used to build a load balanced environment for
storage access.
Give the shares a unique name, and from the File Server list, select
the appropriate file server (filer1, filer2 and so on).
In Step 8, also check Synchronize directory attributes between
shares on import. This ensures the new volume inherits the root
share attributes.
5 - 15
Configuring the ARX for VMware ESX virtualized Windows Server 2008 in a Managed Volume
Figure 5.10 Add Share Wizard
Creating the Share farm
A share farm is a load balancing feature. When files are migrated to the
share farm the files are stripped between the share farm members. If a
managed volume needs more capacity the user can add more shares to the
share farm and dynamically redistribute files across all shares.
In this example we group the three previously added shares together.
To create the Share farm
1. From the left navigation pane, click Common Operations.
2. Click the Load Balancing button. The Load Balancing Wizard
opens.
3. In the Policy name box, type a name for this policy. In our example,
we type Sharefarm.
4. From the Namespace list, select the name of the namespace you
created in Creating the CIFS Namespace, on page 5-12. In our
example, we select Content.
5. From the Managed volume list, select the name of the Volume you
created in Creating a volume, on page 5-13. In our example, we
select /data. Click the Next button.
F5® Deployment Guide
5 - 16
6. Click the boxes of the file shares to be included in the share farm. In
our example we select the share1, share2, and share3 file shares.
Click the Next button.
Figure 5.11 Select the shares to include
7. From the Load Balancing Algorithm list, select an appropriate
load balancing method. In our example, we select Round-Robin.
8. In the Constraint Options section, click the Place new files in the
same shares as their parent directories box.
9. In the Enable section, ensure the Enable this load balancing policy
when finished box is checked.
10. Click the Next button.
11. Review the summary and then click the Finish button.
Creating a Tiered Storage policy
The next task is to create a tiered storage policy. This policy enumerates the
file contents of the Tier-1 (share0) platform and if any files have not been
modified for more than 90 days they are migrated to the Tier-2 (Share Farm)
storage pool.
To create the file placement policy
1. From the left navigation pane, click Common Operations.
2. Click the Tiered Storage button. The Tiered Storage Wizard opens.
3. In the Policy name prefix box, type a prefix. In our example, we
type Tiering.
4. From the Namespace list, select the name of the namespace you
created in Creating the CIFS Namespace, on page 5-12. In our
example, we select Content.
5. From the Managed volume list, select the name of the Volume you
created in Creating a volume, on page 5-13. In our example, we
select /data.
5 - 17
Configuring the ARX for VMware ESX virtualized Windows Server 2008 in a Managed Volume
6. From the Number of tiers list, select a number of tiers. In our
example we select 2.
Click the Next button.
Figure 5.12 Tiering Policy Wizard
7. For Tier 1, select the root-level share you created in Adding the root
level share, on page 5-15. In our example, we select share0. Click
the Next button.
8. For Tier 2, select the second Share farm you created in Creating the
Share farm, on page 5-16. In our example, we select Sharefarm.
Click the Next button.
9. The next step is to specify the criteria for moving files and the
schedule. Click the Add button to the right of Schedule to define the
schedule to be associated with the policy.
a) In the Schedule Name box, type a name for this schedule. In our
example, we type Tiering_Schedule.
b) In the Start Time fields, you can specify a specific start time. In
our example, we leave the fields at the default.
c) In the Interval section, click the Hours button, from the Hour
list, select 1, and then click the Add button.
d) The other fields are optional, configure as applicable for your
deployment.
e) Click the Save button (see Figure 5.13). You return to the Tiered
Storage Wizard.
F5® Deployment Guide
5 - 18
Figure 5.13 Creating a new policy schedule
10. From the Move files not list, select Modified. In the In the last
box, type a number and select a time period. In our example, we
type 90 and select days from the list.
11. From the Schedule list, select the schedule you just created if it is
not already selected.
12. In the Enable box, ensure the Enable this policy when finished box
is checked.
13. Click the Next button.
14. Review the summary and then click the Finish button.
5 - 19
Configuring the ARX for VMware ESX virtualized Windows Server 2008 in a Managed Volume
Figure 5.14 Specify the Tiering Policy attributes
The Tiered Storage policy is created and migrates files that have not been
modified for 90 days or longer to be moved from Tier-1 to Tier-2. This frees
up space on the Tier-1 filer by moving inactive data files to lower cost
storage filers.
Creating the Virtual Service
The Virtual Service is how the ARX presents CIFS Shares to the network
clients. Clients send file requests through the Virtual Service and the ARX
proxies these requests to the appropriate backend filer.
The ARX Client nodes connect to the Virtual service FQDN or IP address
and map the share to an unused drive letter. The Virtual Service is created
within the IP address scope of the Client LAN.
To create the virtual service
1. From the navigation pane, click Virtual Services.
2. Click the Add button. The Add Virtual Service Wizard opens.
3. From the Namespace list, select the namespace you created in
Creating the CIFS Namespace, on page 5-12. In our example, we
select Content.
4. Click the Create a new virtual service (VIP) button.
a) In the Virtual service DNS name box, type the DNS name for
the virtual service. In our example, we type
share.siterequest.com.
F5® Deployment Guide
5 - 20
b) In the IP Address box, type the IP address of the VIP. In our
example, we type 172.30.72.102.
c) In the Subnet Mask box, type the appropriate subnet mask. In
our example, we type 255.255.255.192.
d) From the VLAN ID list, select the appropriate VLAN ID. In our
example, we select 302.
e) Ensure the Enable the virtual service when finished box is
checked.
Figure 5.15 New Virtual Service Wizard
5. Click the Next button.
6. From the Windows Domain Name box, select the Windows
domain name. In our example, we select siterequest.com.
7. In the Pre Win2k Domain box, type the Pre Win2k Windows
domain name. In our example, we type siterequest.
8. The other settings on this screen are optional, configure as
appropriate for your deployment. In our example, we leave the rest
of the settings at the default level.
9. Click the Next button. The Virtual Service Exports screen opens.
10. In the New Export section, from the Volume list, select the Volume
you created in Creating a volume, on page 5-13. In our example, we
select /data.
11. In the Volume Path box, type the Volume Path. In our example, we
type /.
12. In the Export Name box, type a name for the Export. In our
example, we type share.
5 - 21
Configuring the ARX for VMware ESX virtualized Windows Server 2008 in a Managed Volume
13. Configure the other options as applicable for your configuration,
and then click the Add Export button.
14. Click the Next button.
15. Review the summary and then click Finish.
The virtual service also needs to be incorporated into the Active
Directory domain as a domain computer.
16. Check the box for the Virtual Service you just created and then click
the Join Domain button.
17. Type the Username, User Password, and the Organizational Unit,
and then click OK.
Figure 5.16 Join Active Directory Domain
You can now review the Virtual Service by clicking Virtual Services from
the navigation pane. Notice the Domain Join is Joined, Admin State is
enabled and the Status is ready.
F5® Deployment Guide
5 - 22
Verifying Client access
In this section, we verify the Test Client can access the ARX Virtual Service
and the managed volume CIFS share. The ARX adds flexibility with the
Managed Volume and Virtual Services that create a robust virtual machine
environment providing continuous client access to data.
The following list of items will be configured in order to integrate and verify
client access to the ARX Virtual Service.
• Mounting the Virtual Server CIFS share, following
• Generating an ARX Metadata Report, on page 5-24
Mounting the Virtual Server CIFS share
To confirm the Virtual Service is operating properly, we map a network
drive to the Virtual Service Export from a Windows Client. The export
shows that files and directories exist. The user cannot determine on which
backend file share the files reside. The ARX has merged the files and
directories into one common virtual path.
To map the Virtual Service CIFS Share to drive letter
1. From a Windows client, open Windows Explorer, and, from the
Tools menu, select Map Network Drive.
2. Select an unused Drive Letter and the network folder. The folder is
comprised of the Virtual Service FQDN and export path.
3. From the Drive list, select an unused Drive Letter.
4. In the Folder box, type the network folder. The folder is comprised
of the Virtual Service FQDN and export path. In our example, we
type \\share.siterequest.com\share.
5. Select Connect using a different user name and specify the
Domain User with the proper access rights. In our example, we use
the Proxy User credentials.
6. Click Finish. Microsoft Windows mounts the drive. The drive can
be explored and the following screen displays the file contents of
the virtual service export.
5 - 23
Configuring the ARX for VMware ESX virtualized Windows Server 2008 in a Managed Volume
Figure 5.17 Virtual service shared drive contents
In this example, there are multiple root level directories. Under these
directories there is various test content. The content is stripped across the
backend servers and presented as a unified volume to the client.
The volume statistics can be viewed from the ARX by clicking the
Managed Volume in the left pane and then clicking the volume (/data in
our example).
Generating an ARX Metadata Report
File placement can be determined by creating an ARX report. The
administrator can also view the directory contents on the backend servers
and see how the files are placed. In this section, we demonstrate how to
create an ARX Report.
To generate an ARX Metadata report
1. From the navigation pane, click the Managed Volumes and then
click the volume (/data in our example).
2. From the Managed Volume Details screen, click Report.
3. On the Report Volume page, complete the following:
a) In the Path box, type the path. In our example, we type /.
b) In the Report type row, click Metadata.
c) In the Output Report Name box, type a name. In our example,
we type metadata_report.
d) Click OK.
F5® Deployment Guide
5 - 24
The ARX generates the report, which is accessible from the
navigation pane by clicking Reports, and then clicking the name of
the report you just created.
Add files to the Virtual Service CIFS share and rerun the report.
Wait for the Tiering Policy to be invoked and compare the results of
a metadata report from before versus after the policy is executed.
Figure 5.18 Volume Report
Conclusion
This deployment guide demonstrated the way to integrate F5 ARX platform
with VMware Guest operating systems. The deployment enables the
virtualized servers file shares to be used as ARX External Filers. This
creates a multi-tiered storage solution for load balancing across multiple
virtualized Windows 2008 servers.
For more information on configuring the F5 ARX, refer to the
documentation, available on Ask F5.
5 - 25
