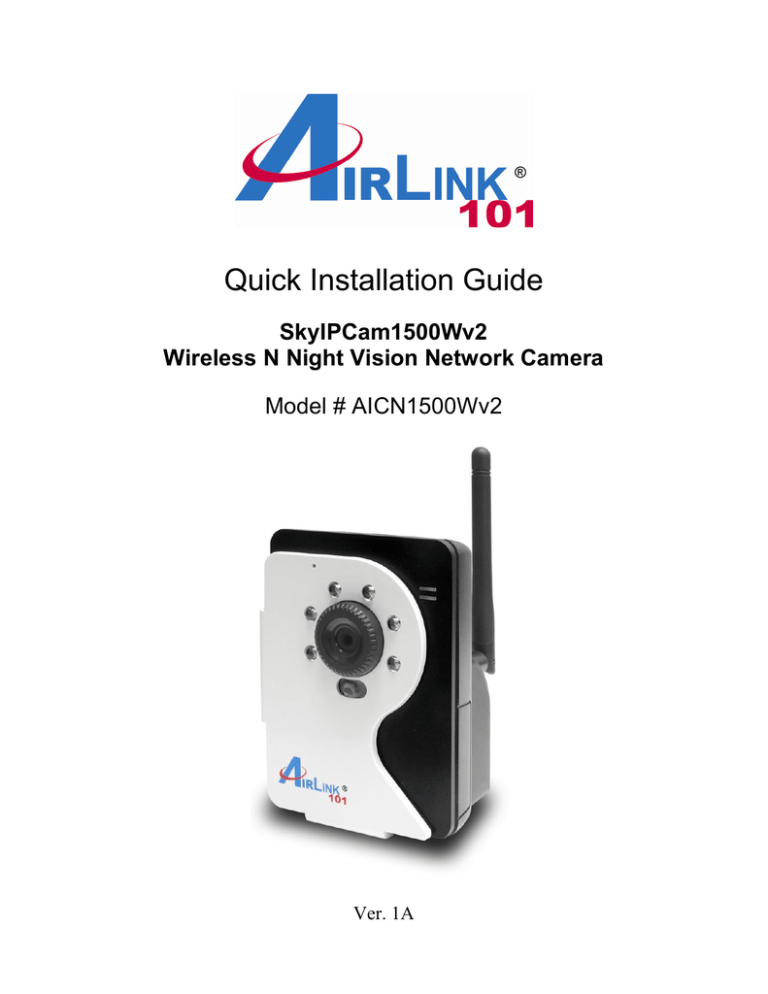

Quick Installation Guide SkyIPCam1500Wv2 Wireless N Night Vision Network Camera

Quick Installation Guide SkyIPCam1500Wv2 Wireless N Night Vision Network Camera

Quick Installation Guide

SkyIPCam1500Wv2

Wireless N Night Vision Network Camera

Model # AICN1500Wv2

Ver. 1A

Package Contents

• Wireless N Night Vision Network Camera AICN1500Wv2

• Antenna

• Camera

• Power

Stand

Adapter

• Ethernet

• Utility

• Quick Installation Guide

System Requirement

Accessing the Camera using Web Browser

- Supported Browsers*: Microsoft® Internet Explorer 6.0 or above;

Apple Safari, Mozilla Firefox with JAVA plug-in

­

CPU: Intel Pentium III 800MHz or above

­

RAM: 512MB

­

Resolution: 800x600 or above

Accessing the Camera using Software SkyIPCam UltraView

­

Platform:

Microsoft® Windows® 7, Vista and XP

­

Hard Disk:

80GB or above

­

Resolution:

1024x768 or above

­

Suggested Hardware Requirement*

▪ 1~8 cameras connected: Intel Core 2 Duo; 2GB RAM

▪ 9~32 cameras connected: Intel Core 2 Quad; 4GB RAM

Accessing the Camera using iPhone and iPod Touch

­

You can download SkyIPCam apps from iTunes for free

Note

If you connect multiple cameras to monitor various places simultaneously, it is recommended that you use a higher-end computer.

For Windows 7 users, please turn off the UAC(User Account Control) to allow certain functions of the camera to work properly.

* It is recommended to use Internet Explore to view/manage the camera, because Safari and Mozilla Firefox may not support certain features, such as configuring motion detection or snapshot.

Section 1

This Quick Installation Guide only provides basic instructions for installation.

For detailed information on using this product, including the bundled software

SkyIPCam UltraView, please refer to the User’s Manual on the supplied CD.

Getting Started

Step 1.1

Attach the enclosed external antenna to the camera.

Step 1.2

Connect one end of the Ethernet cable to the IP Camera and connect the other end to one of the LAN ports on your router or switch.

Step 1.3

Turn on the IP Camera by connecting one end of supplied power adapter to the power jack of the Camera and connecting the other end to the electrical outlet.

Step 1.4

Verify that the yellow light (Power) is solid and the green light (Link) is blinking.

Section 2

Installing the SkyIPCam Utility and UltraView

Step 2.1

Insert the provided CD into your computer’s CD ROM drive.

Step 2.2

Click on Install Utility and Software.

Note: If you do not see the autorun menu pops up on the screen. Please go to your CD-ROM drive > UltraView folder > run “Setup.exe”.

Windows 7 and Vista users:

an AutoPlay window pops up on screen, please make sure you give permission to run the setup program by clicking Run

Autorun.exe.

Step 2.3

Click Install to install the SkyIPCam Utility and UltraView.

Step 2.4

Click Finish when installation has finished.

Section 3

Configuring the Camera

Step 3.1

Go to Start > (All) Programs > Airlink101 SkyIPCam UltraView >

SkyIPCam Utility.

Step 3.2

Click on Search to find the camera on your network. Select the

Camera you wish to configure and click on Link.

Note

If the Camera you wish to configure does not show up in the utility, make sure the camera is properly connected to the same local network as your computer is, and the Green LED should be on. Click on Search to try again.

Step 3.3

You may simply accept the suggested default setting DHCP if your router’s DHCP server is enabled, so the router will automatically assign a dynamic IP address to your camera. Another option is to select Static IP, you can manually change the last 3-digit number of the IP Address, in case that the suggested one has already been used by another device in the same network.

Enter “admin” for both ID and password, and click Change.

Step 3.4

Once the utility has saved the changes, it will return to the original screen. Select your camera from the list and click Link.

Step 3.5

When you are prompted for the user name and password, enter

“admin” for both User name and Password, and click OK.

Step 3.6

The camera viewing window will appear. Click on Setup, and then click on Smart Wizard.

Step 3.7

Enter a name for your camera and a location if you like. Then enter

“admin” for both Admin Password and Confirm Password. Click Next.

Step 3.8

You can change the camera’s IP settings in the below window. If you have done this in Step 3.3, click Next and go to the next step.

Step 3.9

If you would like to set up email alerts that you can receive in the future, enter your email information here. You can get this information from your internet service provider. You can also set this up at a later time. Click

Next.

Step 3.10

Enter the wireless information according to your wireless router’s (or access point’s) setting if you would like to connect the camera wirelessly to the network. You can log into the router’s (or AP’s) web configuration pages to get the SSID and encryption details. Click Next.

Step 3.11

Confirm your settings at the last window. If everything is correct, click Apply and the configuration is completed.

Section 4

Viewing Images

Method 1 --- Access from Web Browser

Step 4.1

If you know the IP address of your network camera, you may open the

Web Browser on your computer.

Step 4.2

Type the IP address of your camera (the default IP is 192.168.2.240) in the Address bar, and then press [Enter].

Step 4.3

Enter “admin” for both the User name and Password, and click OK.

Step 4.4

If it is the first time for your computer to access the Web based viewing page, you may be prompted to install the software of ActiveX Control.

Click on the bar on top of the screen and click on Run Add-on or Install

ActiveX Control (depends on different IE versions).

Step 4.5

Click on Run, and then you may be able to view images.

Step 4.6

To get a clear view of images, you can simply rotate the camera’s lens clockwise or counter-clockwise to adjust the focus.

Method 2 --- Access from SkyIPCam Utility

Step 4.7

Go to Start > (All) Programs > AirLink101 SkyIPCam UtraView, and open the Airlink101 SkyIPCam Utility.

Step 4.8

Select your camera from the list and click on Link.

Step 4.9

Follow Step 4.3 to Step 4.6 mentioned in Method 1.

Section 5

Technical Support

E-mail: [email protected]

Toll Free: 1-888-746-3238

Website: www.airlink101.com

*Theoretical maximum wireless signal rate based on IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, mix of wireless products used, radio frequency interference (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate. Specifications are subject to change without notice. All products and trademarks are the property of their respective owners. Copyright ©2011 AirLink101

®
