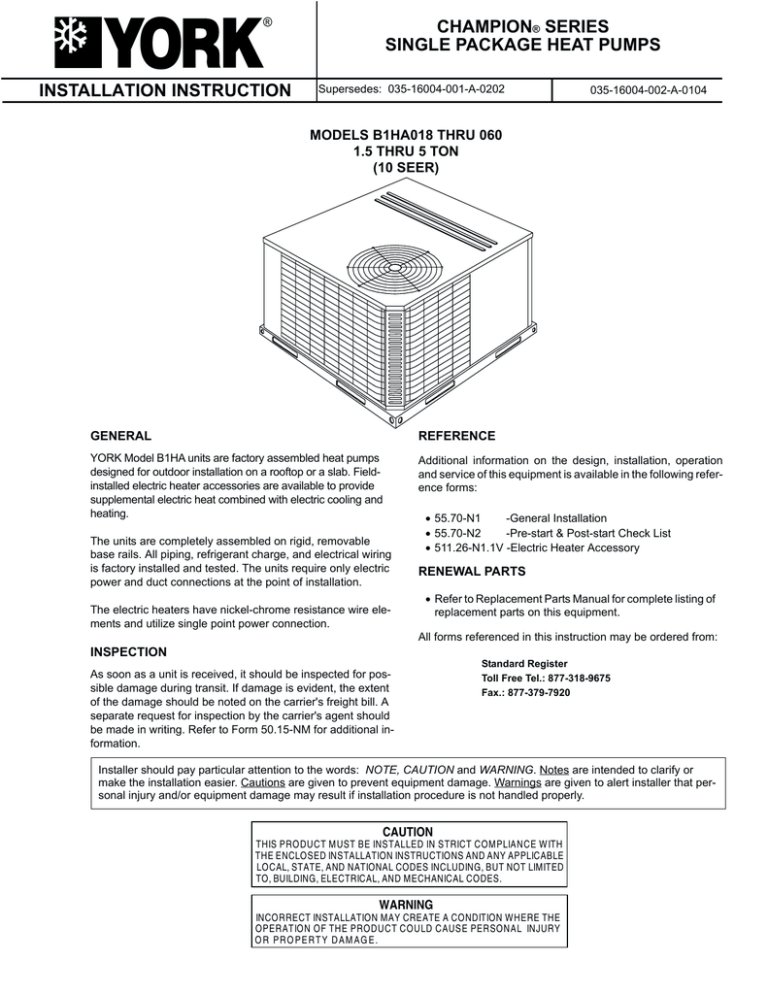

INSTALLATION INSTRUCTION
CHAMPION® SERIES
SINGLE PACKAGE HEAT PUMPS
Supersedes: 035-16004-001-A-0202
035-16004-002-A-0104
MODELS B1HA018 THRU 060
1.5 THRU 5 TON
(10 SEER)
GENERAL
REFERENCE
YORK Model B1HA units are factory assembled heat pumps
designed for outdoor installation on a rooftop or a slab. Fieldinstalled electric heater accessories are available to provide
supplemental electric heat combined with electric cooling and
heating.
Additional information on the design, installation, operation
and service of this equipment is available in the following reference forms:
The units are completely assembled on rigid, removable
base rails. All piping, refrigerant charge, and electrical wiring
is factory installed and tested. The units require only electric
power and duct connections at the point of installation.
The electric heaters have nickel-chrome resistance wire elements and utilize single point power connection.
• 55.70-N1
-General Installation
• 55.70-N2
-Pre-start & Post-start Check List
• 511.26-N1.1V -Electric Heater Accessory
RENEWAL PARTS
• Refer to Replacement Parts Manual for complete listing of
replacement parts on this equipment.
All forms referenced in this instruction may be ordered from:
INSPECTION
As soon as a unit is received, it should be inspected for possible damage during transit. If damage is evident, the extent
of the damage should be noted on the carrier's freight bill. A
separate request for inspection by the carrier's agent should
be made in writing. Refer to Form 50.15-NM for additional information.
Standard Register
Toll Free Tel.: 877-318-9675
Fax.: 877-379-7920
Installer should pay particular attention to the words: NOTE, CAUTION and WARNING. Notes are intended to clarify or
make the installation easier. Cautions are given to prevent equipment damage. Warnings are given to alert installer that personal injury and/or equipment damage may result if installation procedure is not handled properly.
CAUTION
THIS PRODUCT M UST BE INSTALLED IN STRICT COMPLIANCE W ITH
THE ENCLOSED INSTALLATION INSTRUCTIONS AND ANY APPLICABLE
LOCAL, STATE, AND NATIONAL CODES INCLUDING, BUT NOT LIMITED
TO, BUILDING, ELECTRICAL, AND MECHANICAL CODES.
WARNING
INCORRECT INSTALLATION MAY CREATE A CONDITION WHERE THE
OPERATION OF THE PRODUCT COULD CAUSE PERSONAL INJURY
OR PROPERTY DAMAGE.
035-16004-002-A-0104
PRODUCT NOMENCLATURE
B
1
H A
0
2
4
A
0
6
PRODUCT CATEGORY
VOLTAGE CODE
B = Single Package Heat Pumps
(Air Cooled)
PRODUCT GENERATION
1 = NEW or Current Design
PRODUCT IDENTIFIER
HA = Heat Pump (10 SEER)
06 = 208/230-1-60
25 = 208/230-3-60
46 = 460-3-60
58 = 575-3-60
NOMINAL COOLING
CAPACITY (MBH)
018 = 18,000 BTUH 042 = 42,000 BTUH
024 = 24,000 BTUH 048 = 48,000 BTUH
030 = 30,000 BTUH 060 = 60,000 BTUH
036 = 36,000 BTUH
FACTORY
INSTALLED ELECTRIC HEAT
A = No Electric Heat Installed
INSTALLATION
LIMITATIONS
These units must be installed in accordance with the following national and local safety codes.
1. National Electrical Code ANSI/NFPS No. 70 or Canadian
Electrical Code Part 1, C22.1 (latest editions).
2. Local plumbing and waste water codes and other applicable local codes.
Refer to Table 1 for unit application data and to Table 4 for
electric heat application data.
If components are to be added to a unit to meet local codes,
they are to be installed at the dealer's and/or the customer's expense.
Size of unit for proposed installation should be based on
heat loss/heat gain calculations made in accordance with industry recognized procedures identified by the Air Conditioning Contractors of America.
TABLE 1 - UNIT APPLICATION DATA
208/230V3
460V
575V
Wet Bulb Temperature (°F) of Air on
Evaporator Coil,
Min. / Max.
Dry Bulb Temperature (°F) of Air on
Condenser Coil, Min.2 / Max.
Voltage Variation
Min. / Max.1
1
2
3
187 / 2533
414 / 504
518 / 630
57 / 72
5. Maintain level tolerance of unit to 1/8" maximum.
RIGGING OR HANDLING
Care must be exercised when moving the unit. Do not remove any packaging until the unit is near the place of installation. Rig unit with slings placed under the unit. Spreader
bars of sufficient length should be used across the top of the
unit.
BEFORE LIFTING A UNIT, MAKE SURE THAT ITS WEIGHT
IS DISTRIBUTED EQUALLY ON THE CABLES SO THAT IT
WILL LIFT EVENLY.
Units may also be moved or lifted with a fork-lift. Slotted
openings in the skid are provided for this purpose. Forks
must pass completely through the base.
Refer to Table 2 for unit weights and to Figure 1 for approximate center of gravity.
TABLE 2 - UNITS WEIGHTS
SHIPPING
WEIGHT
(lbs.)
OPERATING
WEIGHT
(lbs.)
“A”
“B”
“C”
“D”
018
350
345
103
92
73
82
024
350
345
95
92
80
83
030
360
355
98
94
82
85
036
367
362
100
96
84
87
042
394
389
107
103
90
93
048
445
440
121
117
102
105
060
490
485
133
129
112
116
UNIT
SIZE
45 / 120
Rated in accordance with ARI Standard 110, utilization range “A”.
A low ambient accessory is available for operation down to 0°F
“T1" transformer primary tap must be moved from the 230 volt connection to the 208 volt
connection for low voltage applications of 208 volt and below.
LOCATION
Use the following guidelines to select a suitable location for
these units.
1. Unit is designed for outdoor installation only.
2. Condenser must have an unlimited supply of air. Where a
choice of location is possible, position unit on either north or
east side of building.
3. For ground level installation, a level pad or slab should be
used. The thickness and size of the pad or slab used should
meet local codes and unit weight. Do not tie the slab to the
building foundation.
4. For roof top installation, be sure the structure will support
the weight of the unit plus any field installed components.
2
Unit must be installed on a level roof curb or appropriate
angle iron frame providing adequate support under the
compressor/condenser section.
CORNER WEIGHTS
(location, lbs.)
“D”
CENTER OF GRAVITY
“A”
FRONT
OF
UNIT
“C”
“B”
49 18
25
22
47 14
FIG. 1 - CENTER OF GRAVITY
Unitary Products Group
035-16004-002-A-0104
CAUTION: When fastening duct work to the side duct flanges on
the unit, insert the screws through the duct flanges only.
DO NOT insert the screws through the casing. Outdoor
duct work must be insulated and waterproofed.
CLEARANCES
All units require certain clearances for proper operation and
service. Refer to Figure 3 for the clearances required for
combustion, construction, servicing and proper unit operation.
NOTE: Be sure to note supply and return openings.
WARNING: Do not permit overhanging structures or shrubs to
obstruct the condenser air discharge outlet.
Refer to Figure 3 for information concerning rear and bottom
supply and return air duct openings.
DUCT WORK
FILTERS
Single phase units are shipped without a filter and is the responsibility of the installer to secure a filter in the return air ductwork or
install a Filter/Frame Kit (1FF0114).
These units are adaptable to downflow use as well as rear
supply and return air duct openings. To convert to downflow,
use the following steps:
A filter rack and high velocity filters are standard on three
phase units.
1. Remove the duct covers found in the bottom return and
supply air duct openings. There are four (4) screws securing each duct cover (save these screws to use later).
Filters must always be used and must be kept clean. When
filters become dirt laden, insufficient air will be delivered by
the blower, decreasing your units efficiency and increasing
operating costs and wear-and-tear on the unit and controls.
2. Install the duct covers, removed in step one, to the rear supply and return air duct openings. Secure with the four (4)
screws used in step one.
3. Seal duct covers with silicone caulk.
Filters should be checked monthly especially since this unit is
used for both heating and cooling.
Downflow units must have an “L”-shaped supply duct without
any outlets or registers located below the outlet of the unit.
CONDENSATE DRAIN
A condensate trap is required to be installed in the condensate drain. The plumbing must conform to local codes. Use a
sealing compound on male pipe threads. Install the condensate drain line (3 4“ NPTF) to spill into an open drain.
Duct work should be designed and sized according to the
methods of the Air Conditioning Contractors of America
(ACCA), as set forth in their Manual D.
A closed return duct system shall be used. This shall not preclude use of economizers or ventilation air intake. Flexible
joints may be used in the supply and return duct work to minimize the transmission of noise.
CONTROL WIRING
THERMOSTAT
** = Minimum wire size of 18 AWG
wire should be used for all field
installed 24 volt wire.
UNIT TERMINAL STRIP
**
R
R
G
G
Y
PROGRAMMABLE
THERMOSTAT ONLY
W 2
24 VOLT TRANSFORMER
W 1
O
* = Only required on units with
supplemental electric heat.
Y
*
W
NOTE:
HEAT ANTICIPATOR
SHOULD BE SET AT 0.25
AMPS FOR ALL MODELS.
C
O
C
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can
cause improper and dangerous operation. Verify proper operation after servicing.
POWER WIRING
REFER TO ELECTRICAL DATA
TABLES TO SIZE THE DISCONNECT SWITCH, WIRING &
OVERCURRENT PROTECTION.
REFER TO ELECTRICAL DATA TABLES TO SIZE THE DISCONNECT
SWITCH, WIRING & OVERCURRENT PROTECTION.
FIG. 2 - TYPICAL FIELD WIRING DIAGRAM
Unitary Products Group
3
035-16004-002-A-0104
N.E.C./C.E.C. Voltage tolerances which must be maintained
at the compressor terminals during starting and running conditions are indicated on the unit Rating Plate and Table 3.
SERVICE ACCESS
Access to all serviceable components is provided by the following removable panels:
• Blower service access
• Electrical/Filter access
• Compressor service access
The wiring entering the cabinet must be provided with mechanical strain relief.
A fused disconnect switch should be field provided for the unit.
If any of the wire supplied with the unit must be replaced, replacement wire must be of the type shown on the wiring diagram.
Refer to Figure 3 for location of these access panels and minimum clearances.
THERMOSTAT
The room thermostat should be located on an inside wall approximately 56" above the floor where it will not be subject to
drafts, sun exposure or heat from electrical fixtures or appliances. Follow manufacturer's instructions enclosed with the
thermostat for general installation procedure. Six color coded
insulated wires (minimum #18 AWG) should be used to connect thermostat to unit. See Figure 2.
Electrical line must be sized properly to carry the load. Each
unit must be wired with a separate branch circuit fed directly
from the meter panel and properly fused.
POWER AND CONTROL WIRING
COMPRESSORS
Field wiring to the unit must conform to provisions of the current N.E.C. ANSI/NFPA No. 70 or C.E.C. and/or local ordinances. The unit must be electrically grounded in
accordance with local codes or, in their absence, with the
Units are shipped with compressor mountings factoryadjusted for shipping. Caution: Loosen compressor bolts
half turn before operating unit.
Refer to Figure 2 for typical field wiring and to the appropriate
unit wiring diagram for control circuit and power wiring information.
.
TABLE 2 - PHYSICAL DATA
MODELS
CENTRIFUGAL BLOWER (Dia. x Wd. in.)
FAN MOTOR HP (Three Speed)
ROWS DEEP
INDOOR
FINS PER INCH
COIL
FACE AREA (Sq. Ft.)
PROPELLER DIA. (in.)
OUTDOOR
FAN MOTOR HP
FAN
NOM. CFM TOTAL
ROWS DEEP
OUTDOOR
FINS PER INCH
COIL
FACE AREA (Sq. Ft.)
CHARGE
REFRIGERANT 22 (lbs./oz.)
FILTER
FACE AREA (Sq. Ft. / Qty. / Size)
COMPRESSOR HERMETIC Type, (Qty. = 1)
018
9X6
INDOOR
BLOWER
024
10 X 8
BHA
036
10 x 8
042
11 X 10
048
11 X 10
3
3
1
2
1
2
1
2
3
2
15
4.38
22
2
13
4.38
22
3
13
4.38
22
3
15
4.38
22
3
15
4.38
22
3
16
5.62
22
060
11 X 10
1
3
16
5.62
22
1
4
1
4
1
4
1
4
1
4
1
4
1
4
1,800
1
20
8.3
4 / 12
1.800
1
20
11.7
5 / 12
2,800
1
16
16.4
9/0
2,800
1
20
16.4
10 / 0
Scroll
Scroll
Reciprocating Reciprocating
030
10 X 8
4
4
1,800
2,400
2,400
1
1
1
20
20
20
11.7
11.7
11.7
7/8
5/5
5/5
4.28 / 2 / 14" x 22"
Scroll
Scroll
Scroll
4
TABLE 3 - ADDITIONAL STATIC PRESSURE RESISTANCE
RESISTANCE, IWG
DESCRIPTION
CFM
500
600
700
800
900
1,000 1,100 1,200 1,300 1,400 1,500 1,600 1,700 1,800 1,900 2,000
Wet Indoor coil
0.01
0.01
0.01
0.02
0.02
0.03
0.03
0.04
0.04
0.04
0.04
0.04
0.05
0.05
0.06
0.07
Economizer
0.00
0.00
0.00
0.01
0.01
0.01
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.07
0.08
0.08
Filter/Frame Kit
0.01
0.02
0.02
0.02
0.02
0.02
0.03
0.03
0.03
0.03
0.04
0.05
0.05
0.06
0.06
0.07
Electric Heat
0.02
0.03
0.03
0.03
0.04
0.04
0.05
0.06
0.07
0.08
0.09
0.10
0.01
0.11
0.11
0.12
NOTE: 1. Deduct these resistance values from the available external static pressure shown in the respective Blower Performance Table.
2. The pressure thru the economizer is greater for 100% outdoor air then for 100% return air. If the resistance of the return air duct system is less then 0.25 IWG, the unit will deliver
less CFM during full economizer operation.
4
Unitary Products Group
035-16004-002-A-0104
TABLE 4 - SIDE AND BOTTOM SUPPLY AIR BLOWER PERFORMANCE
230/460/575 volts
030
036
042
048
060
CFM
WATTS
1.00
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
.90
- 668 401 652 386 - 654 233 541 209 - 702 220 641 206 536 183 - 987 507 873 493 760 480
- 935 338 867 322 800 304 733 286 867 268 900 290 850 287 800 243 760 220 697 238 843 183 - 1200 640 1100 620 987 507 873 493 760 480
1200 390 1134 397 1068 368 1002 367 936 339 897 322 800 304 900 280 850 267 800 243 - 1414 617 1317 688 1219 660 1116 533 1013 507 910 480
- 1472 647 1394 626 1297 495 1199 465 1102 435 985 397 1462 526 1400 506 1337 486 1275 467 1167 440 1100 414 1012 387 - 1697 740 1580 706 1463 672 1339 640 1216 608 1092 576
- 1673 830 1566 594 1439 558 1322 522 1182 476 - 1680 607 1608 584 1630 660 1425 528 1320 496 1214 464 1050 420 - 1947 882 1867 857 1786 832 1706 807 1637 782 1569 757 1500 732
1876 792 1829 772 1783 753 1736 733 1668 706 1599 680 1531 653 1434 622 1337 591 1240 560
1544 620 1508 610 1472 600 1436 590 1375 573 1313 557 1252 540 - 2499 1290 2391 1233 2283 1177 2175 1120 2067 1080 1958 1040 1850 1000
- 2454 1163 2387 1117 2320 1070 2229 1023 2137 977 2046 930 1950 887 1854 843 1758 800
2242 1090 2201 1053 2161 1017 2120 980 2041 927 1962 873 1883 820 1797 787 1711 753 1625 720
1.10
WATTS
024
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
EXTERNAL STATIC PRESSURE - IWG
.40
.50
.60
.70
.80
.30
CFM
018
MOTOR
SPEED
.20
WATTS
MODEL NO.
BHA
CFM
.10
-
-
NOTE: Above data includes allowances for a dry indoor coil and no filters. For additional pressure drops, refer to the “Additional Static Pressure Resistance” table.
208 volts
456
257
456
480
676
428
707
563
993
824
706
786
786
912
1094
1474
1240
1864
1753
1557
444
444
456
547
673
537
967
788
691
684
1389
1739
1652
1528
432
640
940
752
677
-
-
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
060
CFM
048
WATTS
042
1.10
CFM
036
1.00
WATTS
030
- 689 374 593 361 497 347 - 690 231 659 210 487 188 741 226 686 212 632 198 577 185 453 165 - 990 468 888
- 961 351 902 321 841 305 751 290 720 274 660
810 261 765 240 720 219 675 198 627 215 - 1171 604 1080 486 980 468 888
1080 351 1021 341 961 331 902 321 841 306 781 280 810 261 766 240 - 1440 608 1381 581 1273 656 1185 530 1097 604 1004
1465 631 1395 512 1325 492 1255 473 1167 446 1079 419 952 392 1316 473 1260 455 1204 438 1148 420 1069 396 990 372 911 348 - 1728 725 1633 697 1527 666 1422 636 1317 606 1205
- 1674 614 1590 590 1506 567 1400 636 1296 602 1190 470 1063
1679 867 1612 646 1449 526 1377 504 1282 476 1188 447 1093 418 - 1982 870 1939 850 1897 830 1813 800 1728 770 1644 740 1559
1694 690 1662 673 1629 657 1597 640 1542 623 1486 607 1431 590 1336
1385 520 1349 510 1312 500 1276 490 1235 480 - 2450 1213 2366 1165 2282 1117 2198 1068 2114 1020 1989
2339 1170 2275 1118 2211 1067 2147 1015 2083 963 2019 912 1955 860 1854
1929 940 1877 903 1824 867 1772 830 1720 793 1667 757 1615 720 1586
.90
CFM
024
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
EXTERNAL STATIC PRESSURE - IWG
.40
.50
.60
.70
.80
.30
WATTS
018
MOTOR
SPEED
.20
WATTS
MODEL NO.
BHA
CFM
.10
NOTE: Above data includes allowances for a dry indoor coil and no filters. For additional pressure drops, refer to the “Additional Static Pressure Resistance” table.
NOMINAL VOLTAGE
ELECTRIC HEAT
CORRECTION
FACTORS
Unitary Products Group
240
480
600
VOLTAGE
208
230
460
575
KW CAP. MULTIPLIER
.75
.92
.92
.92
5
035-16004-002-A-0104
COMPRESSOR
POWER
SUPPLY
ELECTRIC HEAT ACCESSORY
SUPPLY
OUTDOOR
AIR
FAN
BLOWER
MOTOR
MOTOR,
FLA
TOTAL
FLA
MODEL NO.
KW
AMPS
STAGE
MODEL
BHA
TABLE 5 - ELECTRICAL DATA (HEAT PUMP / ELECTRIC HEAT)
RLA
LRA
018 208/230-1-60
9.0
48.0
1.1
2.6
024 208/230-1-60
11.2
60.0
1.1
2.6
14.7
73.0
1.1
2.6
14.7
0.0
73.0
0.0
1.1
0.0
17.3
94.0
17.3
0.0
94.0
0.0
2NH04500506
2NH04500706
2NH04500506
2NH04500706
2NH04501006
2NH04500506
2NH04500706
2NH04501006
2NH04501506
1
2
1
2
2
1
2
2
2
2.6
0.0
2ND04501506
2
1.1
3.5
2NH04500506
2NH04500706
2NH04501006
2NH04501506
1
2
2
2
1.1
0.0
3.5
0.0
2ND04501506
2
1
2
2
2
030 208/230-1-60
036 208/230-1-60
20.5
120.0
1.1
3.5
2NH04500506
2NH04500706
2NH04501006
2NH04501506
20.5
0.0
120.0
0.0
1.1
0.0
3.5
0.0
2ND04501506
2
048 208/230-1-60
24.4
140.0
1.5
4.0
060 208/230-1-60
28.9
165.0
1.5
7.0
036 208/230-3-60
10.9
78.0
1.1
3.5
042 208/230-3-60
14.1
110.0
1.1
3.5
048 208/230-3-60
14.1
105.0
1.5
4.0
060 208/230-3-60
16.0
125.0
1.5
7.0
036
460-3-60
5.8
40.0
0.6
1.8
042
460-3-60
7.1
54.0
0.6
1.8
048
460-3-60
7.1
55.0
0.8
2.0
060
460-3-60
8.0
67.0
0.8
3.5
2NP04501006
2NP04501506
2NP04502006
2NX04502506
2NH04501006
2NH04501506
2NH04502006
2NH04502506
2NH04501025
2NH04501525
2NH04501025
2NH04501525
2NP04501025
2NP04501525
2NP04502025
2NH04502525
2NH04501025
2NH04501525
2NH04502025
2NH04502525
2NH04501046
2NH04501546
2NH04501046
2NH04501546
2NP04501046
2NH04501546
2NH04502046
2NH04502546
2NH04501046
2NH04501546
2NP04502046
2NP04502546
2
2
2
2
2
2
2
2
1
1
1
1
1
1
2
2
1
1
2
2
1
1
1
1
1
1
2
2
1
1
2
2
042 208/230-1-60
= Dual element, time delay type.
‚= Standard circuit breakers may be used in Canada and on applications
over 60 amps where the heaters are separately fused.
6
3.8/5.0 *
5.6/7.5 *
3.8/5.0 *
5.6/7.5 *
7.5/10.0 *
3.8/5.0 *
5.6/7.5 *
7.5/10.0 *
11.3/15.0 *
3.8/5.0
7.5/10.0
3.8/5.0 *
5.6/7.5 *
7.5/10.0 *
11.3/15.0 *
3.8/5.0
7.5/10.0
3.8/5.0 *
5.6/7.5 *
7.5/10.0 *
11.3/15.0 *
3.8/5.0
7.5/10.0
7.5/10.0 *
11.3/15.0 *
15.0/20.0 *
18.8/25.0 *
7.5/10.0 *
11.3/15.0 *
15.0/20.0 *
18.8/25.0 *
7.5/10.0 *
11.3/15.0 *
7.5/10.0 *
11.3/15.0 *
7.5/10.0 *
11.3/15.0 *
15.0/20.0 *
18.8/25.0 *
7.5/10.0 *
11.3/15.0 *
15.0/20.0 *
18.8/25.0 *
10.0 **
15.0 **
10.0 **
15.0 **
10.0 **
15.0 **
20.0 **
25.0 **
10.0 **
15.0 **
20.0 **
25.0 **
18.1/20.8
27.1/31.3
18.1/20.8
27.1/31.3
36.1/41.7
18.1/20.8
27.3/31.3
36.1/41.7
54.2/62.5
18.1/20.8
36.1/41.7
18.1/20.8
27.1/31.3
36.1/41.7
54.2/62.5
18.1/20.8
36.1/41.7
18.1/20.8
27.1/31.3
36.1/41.7
54.2/62.5
18.1/20.8
36.1/41.7
36.1/41.7
54.2/62.5
72.2/83.3
90.3/104.2
36.1/41.7
54.2/62.5
72.2/83.3
90.3/104.2
20.8/24.1
31.3/36.1
20.8/24.1
31.3/36.1
20.8/24.1
31.3/36.1
41.7/48.1
52.1/60.1
20.8/24.1
31.3/36.1
41.7/48.1
52.1/60.1
12.8
18.0
12.0
18.0
12.0
18.0
24.1
30.1
12.0
18.0
24.1
30.1
MINIMUM
CIRCUIT
AMPACITY
MAX.
FUSE
SIZE, 
AMPS
MAX.
HACR ‚
BREAKER
SIZE
37.5/41.0
48.8/54.0
40.7/44.2
52.0/57.2
63.3/70.2
44.7/48.2
56.0/61.2
67.3/74.2
89.8/100.3
44.7/48.2
45.1/52.1
48.8/52.3
60.1/65.3
71.4/78.3
93.9/104.4
48.8/52.3
45.1/52.1
52.8/56.3
64.1/69.3
75.4/82.3
97.9/108.4
52.8/56.3
45.1/52.1
81.1/88.1
103.7/114.1
126.3/140.2
148.8/166.2
89.8/96.7
112.3/122.8
134.9/148.8
157.5/174.8
44.3/48.3
57.3/63.3
48.3/57.3
61.3/67.3
49.2/53.2
62.2/68.2
75.3/83.3
88.3/98.3
54.6/58.6
67.6/73.6
80.7/88.7
93.7/103.7
24.6
32.2
26.2
33.8
26.7
34.2
41.7
49.3
29.4
36.9
44.4
51.9
40/45
50/60
45/50
60/60
70/80
50/50
60/70
70/80
90/110
50/50
50/60
60/60
70/70
80/80
100/110
60/60
50/60
60/70
70/80
80/90
100/110
60/70
50/60
90/100
110/125
150/150
150/175
100/110
125/125
150/150
175/175
45/50
60/70
50/60
70/70
50/60
70/70
80/90
90/100
60/60
70/80
90/90
100/110
25
35
30
35
30
35
45
50
30
40
45
60
40/45
50/60
45/50
60/60
70/80
50/50
60/70
70/80
90/110
50/50
50/60
60/60
70/70
80/80
100/110
60/60
50/60
60/70
70/80
80/90
100/110
60/70
50/60
90/100
110/125
150/150
150/175
100/110
125/125
150/150
175/175
45/50
60/70
50/60
70/70
50/60
70/70
80/90
90/100
60/60
70/80
90/90
100/110
25
35
30
35
30
35
45
50
30
40
45
60
* = KW listed is for 240 volts, use table at top of page for 208 or 230 volts.
** = KW listed is for 480 volts, use table at top of page for 460 volts.
*** = KW listed is for 600 volts, use table at top of page for 575 volts.
Unitary Products Group
035-16004-002-A-0104
TABLE 5 - ELECTRICAL DATA (HEAT PUMP / ELECTRIC HEAT) (Continued)
RLA
LRA
OUTDOOR
FAN
MOTOR
FLA
POWER
SUPPLY
SUPPLY
AIR
BLOWE
R
MOTOR,
FLA
ELECTRIC HEAT ACCESSORY
MINIMUM
CIRCUIT
AMPACITY
MAX.
FUSE
SIZE, 
AMPS
MAX.
HACR ‚
BREAKER
SIZE
STAGE
MODEL
BHA
COMPRESSOR
KW
036
575-3-60
4.5
32.0
0.4
1.5
2NH04501058
2NH04501558
1
1
10.0 ***
15.0 ***
9.6
14.4
19.6
25.6
20
30
20
30
042
575-3-60
5.8
44.0
0.4
1.5
2NH04501058
2NH04501558
1
1
10.0 ***
15.0 ***
9.6
14.4
21.1
27.2
25
30
25
30
048
575-3-60
5.6
44.0
0.6
1.6
2NH04501058
2NH04501558
2NH04502058
2NH04502558
1
1
2
2
10.0
15.0
20.0
25.0
***
***
***
***
9.6
14.4
19.2
24.1
21.3
27.3
33.3
39.3
25
30
35
40
25
30
35
40
060
575-3-60
6.4
50.0
0.6
2.8
2NH04501058
2NH04501558
2NP04502058
2NP04502558
1
1
2
2
10.0
15.0
20.0
25.0
***
***
***
***
9.6
14.4
19.2
24.1
23.4
29.5
35.5
41.5
25
30
40
45
25
30
40
45
 = Dual element, time delay type.
‚ = Standard circuit breakers may be used in Canada and on applications
over 60 amps where the heaters are separately fused.
Unitary Products Group
MODEL NO.
TOTAL
AMPS
* = KW listed is for 240 volts, use table at top of page for 208 or 230 volts.
** = KW listed is for 480 volts, use table at top of page for 460 volts.
*** = KW listed is for 600 volts, use table at top of page for 575 volts.
7
035-16004-002-A-0104
TABLE 6 - ELECTRICAL DATA (BASIC UNIT)
MODEL POWER SUPBHA
PLY
018
024
030
036
042
048
060
036
042
048
060
036
042
048
060
036
042
048
060
208/230-1-60
208/230-1-60
208/230-1-60
208/230-1-60
208/230-1-60
208/230-1-60
208/230-1-60
208/230-3-60
208/230-3-60
208/230-3-60
208/230-3-60
460-3-60
460-3-60
460-3-60
460-3-60
575-3-60
575-3-60
575-3-60
575-3-60
SUPPLY
VOLTAGE
OUTDOOR
MINIMUM
AIR
LIMITATIONS COMPRESSOR
FAN
BLOWER CIRCUIT

MOTOR,
MOTOR, AMPACITY
FLA
MIN. MAX.
RLA
LRA
FLA
187
253
9.0
48.0
1.1
2.6
14.9
187
253
11.2
60.0
1.1
2.6
17.7
187
253
12.0
73.0
1.1
2.6
18.7
187
253
17.3
94.0
1.1
3.5
26.2
187
253
20.5
120.0
1.1
3.5
30.2
187
253
24.4
140.0
1.5
4.0
36.0
187
253
28.9
165.0
1.5
7.0
44.6
187
253
10.9
78.0
1.1
3.5
18.2
187
253
14.1
110.0
1.1
3.5
22.2
187
253
14.1
105.0
1.5
4.0
23.1
187
253
16.0
125.0
1.5
7.0
28.5
414
504
5.8
40.0
0.6
1.8
9.6
414
504
7.1
54.0
0.6
1.8
11.2
414
504
7.1
55.0
0.8
2.0
11.7
414
504
8.0
67.0
0.8
3.5
14.3
518
630
4.5
32.0
0.4
1.5
7.6
518
630
5.8
44.0
0.4
1.5
9.1
518
630
5.6
44.0
0.6
1.6
9.3
518
630
6.4
50.0
0.6
2.8
11.4
 = Rated in accordance with ARI Standard 110, utilization range “A”.
8
‚ = Dual element, time delay type.
MAX.
MAX.
FUSE
UNIT
HACR
TRANSFORMER
SIZE, BREAKER POWER
SIZE (VA)
FACTOR
SIZE,
AMPS
AMPS
‚
20
20
.96
40
25
25
.96
40
25
25
.96
40
35
35
.96
40
40
40
.96
40
50
50
.96
40
60
60
.96
40
25
25
.96
75
30
30
.96
75
30
30
.96
75
40
40
.96
75
15
15
.96
75
15
15
.96
75
15
15
.96
75
20
20
.96
75
15
15
.96
75
15
15
.96
75
15
15
.96
75
15
15
.96
75
Unitary Products Group
035-16004-002-A-0104
Checking Supply Air CFM
curate. To ensure a dry coil, the compressors should be deactivated while the test is being run.
To check the supply air CFM after the initial balancing has
been completed:
4.Knowing the pressure drop across a dry coil, the actual
CFM through the unit can be determined from the curve in
Coil Delta P vs. Supply Air CFM figure.
1.Remove the two ¼ inch dot plugs in the duct panel.
2.Insert at least 8 inches of ¼ inch tubing into each of these
holes for sufficient penetration into the airflow on both sides
of the indoor coil.
WARNING! Failure to properly adjust the total system air
quantity can result in extensive system damage.
3.Using an inclined manometer, determine the pressure drop
across the dry evaporator coil. Since the moisture on an
evaporator coil may vary greatly, measuring the pressure
drop across a wet coil under field conditions would be inac-
After readings have been obtained, remove the tubes and
reinstall the two ¼ inch plugs removed in Step 1.
NOTE: De-energize the compressors before taking any test
measurements to ensure a dry indoor coil.
B1HA Coil Delta
B1HA024
0.4
B1HA018
B1HA030-36
B1HA048-60
0.35
B1HA042
0.3
Delta Static (IWG)
B1HA018
B1HA024
0.25
B1HA042
B1HA030-36
B1HA048-60
0.2
Linear (B1HA018)
Linear (B1HA024)
Linear (B1HA030-36)
0.15
Linear (B1HA042)
Linear (B1HA048-60)
0.1
0.05
0
0
500
1000
1500
2000
2500
Airflow (CFM)
Unitary Products Group
9
035-16004-002-A-0104
TABLE 7 - COOLING SUPERHEAT AT COMPRESSOR SUCTION, AIRFLOW = 600 CFM (B1HA018)
INDOOR WB TEMPERATURE, °F
OUTDOOR
TEMPERATURE,
°F
55
57
59
61
63
65
67
69
71
73
75
65
9.2
14.5
19.7
25.0
30.2
35.5
40.8
40.3
39.7
39.2
38.7
70
9.6
14.2
18.8
23.4
28.0
32.5
37.1
37.3
37.5
37.7
37.9
75
10.1
14.0
17.9
21.8
25.7
29.5
33.4
34.3
35.2
36.1
37.0
80
10.5
13.7
17.0
20.2
23.4
26.6
29.8
31.4
33.0
34.6
36.2
85
11.0
13.5
16.0
18.5
21.1
23.6
26.1
28.4
30.7
33.0
35.4
90
11.4
13.3
15.1
16.9
18.8
20.6
22.4
25.5
28.5
31.5
34.5
95
11.9
13.0
14.2
15.3
16.5
17.6
18.8
22.5
26.2
30.0
33.7
100
9.0
10.3
11.7
13.1
14.4
15.8
17.1
20.1
23.0
26.0
28.9
105
6.0
7.6
9.2
10.8
12.4
14.0
15.5
17.7
19.8
22.0
24.1
110
-
-
6.7
8.5
10.3
12.1
13.9
15.3
16.6
18.0
19.3
115
-
-
-
6.3
8.3
10.3
12.3
12.9
13.4
14.0
14.5
TABLE 8 - HEATING SUPERHEAT AT COMPRESSOR SUCTION, AIRFLOW = 600 CFM (B1HA018)
10
OUTDOOR TEMPERATURE, °F
INDOOR DB
TEMPERATURE,
°F
-10
0
10
20
30
40
50
60
55
9.7
10.2
10.9
12.1
14.2
17.6
23.3
32.8
70
-
-
-
3.0
5.1
8.5
14.2
23.7
80
-
-
-
-
-
4.1
9.8
19.3
Unitary Products Group
035-16004-002-A-0104
TABLE 9 - COOLING SUPERHEAT AT COMPRESSOR SUCTION, AIRFLOW = 800 CFM (B1HA024)
OUTDOOR
TEMPERATURE,
°F
55
57
59
61
63
65
67
69
71
73
75
65
17.0
18.2
19.4
20.5
21.7
22.8
24.0
27.0
30.0
33.0
36.0
70
14.3
15.5
16.7
17.8
19.0
20.1
21.3
24.6
27.9
31.1
34.4
75
11.6
12.8
13.9
15.1
16.3
17.4
18.6
22.2
25.7
29.3
32.9
80
8.9
10.1
11.2
12.4
13.6
14.7
15.9
19.7
23.6
27.5
31.4
85
6.2
7.4
8.5
9.7
10.9
12.0
13.2
17.3
21.5
25.7
29.9
90
-
-
5.8
7.0
8.2
9.3
10.5
14.5
19.4
23.9
28.3
95
-
-
-
-
5.5
6.6
7.8
12.5
17.3
22.1
26.8
100
-
-
-
-
-
5.4
6.3
10.4
14.6
18.7
22.9
105
-
-
-
-
-
-
-
8.3
11.8
15.4
19.0
110
-
-
-
-
-
-
-
6.2
9.1
12.1
15.0
115
-
-
-
-
-
-
-
-
6.4
8.8
11.1
INDOOR WB TEMPERATURE, °F
TABLE 10 - HEATING SUPERHEAT AT COMPRESSOR SUCTION, AIRFLOW = 800 CFM (B1HA024)
HEATING SUPERHEAT AT COMPRESSOR SUCTION, °F
INDOOR DB
TEMPERATURE,
°F
-10
0
10
20
30
40
50
55
12.6
13.0
13.5
14.2
15.4
17.2
19.9
24.2
70
-
-
-
-
3.3
5.1
7.9
12.1
80
-
-
-
-
-
-
4.9
9.1
60
TABLE 11 - COOLING SUPERHEAT AT COMPRESSOR SUCTION, AIRFLOW = 1,000 CFM (B1HA030)
INDOOR WB TEMPERATURE, °F
OUTDOOR
TEMPERATURE,
°F
55
57
59
61
63
65
67
69
71
73
75
65
17.0
20.0
22.9
25.9
28.9
31.8
34.8
39.0
43.1
47.3
51.5
70
14.3
16.9
19.5
22.2
24.8
27.5
30.1
34.2
38.2
42.3
46.4
75
11.5
13.9
16.2
18.5
20.8
23.1
25.4
29.4
33.4
37.3
41.3
80
8.8
10.8
12.8
14.8
16.7
18.7
20.7
24.6
28.5
32.3
36.2
85
6.1
7.7
9.4
11.0
12.7
14.4
16.0
19.8
23.6
27.4
31.1
90
-
-
6.0
7.3
8.7
10.0
11.3
15.0
18.7
22.4
26.1
95
-
-
-
-
-
5.6
6.6
10.2
13.8
17.4
21.0
100
-
-
-
-
-
-
5.2
7.9
10.7
13.4
16.2
105
-
-
-
-
-
-
-
5.6
7.6
9.5
11.4
110
-
-
-
-
-
-
-
-
-
5.6
6.7
115
-
-
-
-
-
-
-
-
-
-
-
TABLE 12 - HEATING SUPERHEAT AT COMPRESSOR SUCTION, AIRFLOW = 1,000 CFM (B1HA030)
INDOOR DB
TEMPERATURE,
°F
-10
0
10
20
30
40
50
60
55
15.3
15.6
16.0
16.8
17.9
19.6
22.2
26.2
70
-
-
-
-
3.2
4.9
7.5
11.5
80
-
-
-
-
-
-
4.5
8.5
Unitary Products Group
OUTDOOR TEMPERATURE, °F
11
035-16004-002-A-0104
TABLE 13 - COOLING SUPERHEAT AT COMPRESSOR SUCTION, AIRFLOW = 1,200 CFM (B1HA036)
INDOOR WB TEMPERATURE, °F
OUTDOOR
TEMPERATURE,
°F
55
57
59
61
63
65
67
69
71
73
75
65
12.8
16.1
19.3
22.5
25.8
29.0
32.2
35.0
37.7
40.4
43.1
70
11.4
14.3
17.2
20.1
22.9
25.8
28.7
31.6
34.4
37.3
40.1
75
9.9
12.5
15.0
17.6
20.1
22.7
25.2
28.2
31.1
34.1
37.1
80
8.5
10.7
12.9
15.1
17.3
19.5
21.7
24.8
27.9
31.0
34.0
85
7.0
8.9
10.8
12.6
14.5
16.3
18.2
21.4
24.6
27.8
31.0
90
5.6
7.1
8.6
10.1
11.7
13.2
14.7
18.0
21.3
24.7
28.0
25.0
95
-
5.3
6.5
7.7
8.8
10.0
11.2
14.6
18.1
21.5
100
-
-
5.1
6.0
6.9
7.8
8.7
11.7
14.7
17.7
20.7
105
-
-
-
-
-
5.6
6.2
8.7
11.3
13.9
16.4
110
-
-
-
-
-
-
-
5.8
7.9
10.0
12.2
115
-
-
-
-
-
-
-
-
-
6.2
7.9
TABLE 14 - HEATING SUPERHEAT AT COMPRESSOR SUCTION, AIRFLOW = 1,200 CFM (B1HA036)
HEATING SUPERHEAT AT COMPRESSOR SUCTION, °F
INDOOR DB
TEMPERATURE,
°F
-10
0
10
20
30
40
55
9.7
10.1
10.7
11.8
13.7
17.0
22.6
32.2
70
-
-
-
-
4.6
7.8
13.4
23.0
80
-
-
-
-
-
-
7.3
16.9
50
60
TABLE 15 - COOLING SUPERHEAT AT COMPRESSOR SUCTION, AIRFLOW = 1,400 CFM (B1HA042)
INDOOR WB TEMPERATURE, °F
OUTDOOR
TEMPERATURE,
°F
55
57
59
61
63
65
67
69
71
73
75
65
34.0
34.2
34.4
34.6
34.8
35.0
35.2
36.2
37.3
38.4
39.4
70
31.1
31.5
31.9
32.2
32.6
33.0
33.4
34.8
36.3
37.7
39.2
75
28.3
28.8
29.4
29.9
30.5
31.0
31.6
33.4
35.3
37.1
39.0
80
25.4
26.1
26.9
27.6
28.3
29.1
29.8
32.0
34.3
36.5
38.7
85
22.6
23.5
24.4
25.3
26.2
27.1
28.0
30.6
33.2
35.9
38.5
90
19.7
20.8
21.9
23.0
24.0
25.1
26.2
29.2
32.2
35.2
38.3
95
16.9
18.1
19.4
20.6
21.9
23.2
24.4
27.8
31.2
34.6
38.0
100
14.5
15.6
16.6
17.7
18.7
19.7
20.8
24.4
27.9
31.5
35.1
105
12.2
13.1
13.9
14.7
15.5
16.3
17.1
20.9
24.6
28.4
32.1
110
9.9
10.5
11.1
11.7
12.3
12.9
13.5
17.4
21.3
25.3
29.2
115
7.6
8.0
8.4
8.8
9.1
9.5
9.9
14.0
18.1
22.1
26.2
TABLE 16 - HEATING SUPERHEAT AT COMPRESSOR SUCTION, AIRFLOW = 1,400 CFM (B1HA042)
OUTDOOR TEMPERATURE, °F
INDOOR DB
TEMPERATURE,
°F
-10
0
10
20
30
40
55
5.1
5.5
6.2
7.4
9.6
13.5
20.3
32.4
70
-
-
-
-
5.0
8.9
15.7
27.8
80
-
-
-
-
-
5.4
12.2
24.3
12
50
60
Unitary Products Group
035-16004-002-A-0104
TABLE 17 - COOLING SUPERHEAT AT COMPRESSOR SUCTION, AIRFLOW = 1,600 CFM (B1HA048)
OUTDOOR
TEMPERATURE,
°F
INDOOR WB TEMPERATURE, °F
55
57
59
61
63
65
67
69
71
73
75
65
11.4
12.4
13.5
14.6
15.7
16.8
17.9
19.3
20.7
22.1
23.5
70
10.3
11.2
12.2
13.1
14.0
14.9
15.9
17.4
18.9
20.4
21.9
75
9.3
10.0
10.8
11.6
12.3
13.1
13.9
15.4
17.0
18.6
20.2
80
8.2
8.8
9.4
10.0
10.6
11.2
11.8
13.5
15.2
16.9
18.5
85
7.2
7.7
8.1
8.5
9.0
9.4
9.8
11.6
13.4
15.1
16.9
90
6.5
7.0
7.4
7.9
8.3
8.8
9.2
10.6
12.0
13.4
14.8
95
5.9
6.3
6.8
7.2
7.7
8.1
8.6
9.6
10.6
11.6
12.6
100
-
5.5
6.1
6.6
7.2
7.8
8.4
9.3
10.3
11.3
12.3
105
-
-
5.4
6.1
6.8
7.5
8.2
9.1
10.1
11.0
11.9
110
-
-
-
5.5
6.3
7.2
8.0
8.9
9.8
10.7
11.6
115
-
-
-
-
5.9
6.9
7.8
8.7
9.5
10.4
11.2
TABLE 18 - HEATING SUPERHEAT AT COMPRESSOR SUCTION, AIRFLOW = 1,600 CFM (B1HA048)
HEATING SUPERHEAT AT COMPRESSOR SUCTION, °F
INDOOR DB
TEMPERATURE,
°F
-10
0
10
20
30
40
50
55
8.3
8.4
8.6
9.0
10.1
12.4
17.4
28.6
70
-
-
-
-
-
4.2
9.2
20.4
80
-
-
-
-
-
-
5.7
16.9
60
TABLE 19 - COOLING SUPERHEAT AT COMPRESSOR SUCTION, AIRFLOW = 2,000 CFM (B1HA060)
INDOOR WB TEMPERATURE, °F
OUTDOOR
TEMPERATURE,
°F
55
57
59
61
63
65
67
69
71
73
75
65
26.7
27.6
28.5
29.4
30.3
31.2
32.1
33.0
33.9
34.8
35.7
70
21.9
23.0
24.1
25.2
26.3
27.4
28.5
30.0
31.4
32.8
34.3
75
17.0
18.3
19.7
21.0
22.3
23.7
25.0
27.0
28.9
30.9
32.9
80
12.2
13.7
15.3
16.8
18.4
19.9
21.5
24.0
26.5
29.0
31.4
85
7.3
9.1
10.8
12.6
14.4
16.2
17.9
20.9
24.0
27.0
30.0
90
7.2
8.3
9.4
10.6
11.7
12.8
13.9
17.3
20.6
23.9
27.2
95
7.0
7.5
8.0
8.5
9.0
9.5
9.9
13.6
17.2
20.8
24.4
100
7.2
7.6
8.0
8.3
8.7
9.1
9.5
12.4
15.3
18.2
21.1
105
7.4
7.7
7.9
8.2
8.5
8.7
9.0
11.2
13.4
15.6
17.8
110
7.6
7.8
7.9
8.1
8.2
8.4
8.5
10.0
11.5
13.0
14.4
115
7.8
7.8
7.9
7.9
8.0
8.0
8.1
8.8
9.6
10.3
11.1
TABLE 20 - HEATING SUPERHEAT AT COMPRESSOR SUCTION, AIRFLOW = 2,000 CFM (B1HA060)
INDOOR DB
TEMPERATURE,
°F
-10
0
10
20
30
40
50
55
5.5
5.7
6.2
6.8
8.0
9.9
13.1
18.6
70
-
-
-
-
-
4.8
8.0
13.4
80
-
-
-
-
-
-
5.6
11.0
Unitary Products Group
OUTDOOR TEMPERATURE, °F
60
13
035-16004-002-A-0104
HIGH VOLTAGE CONN.
7 " DIA. KNOCKOUT
8
FRONT
COMPRESSOR
SERVICE ACCESS
COMPARTMENT PANEL
HIGH VOLTAGE CONN.
13132" DIA. KNOCKOUT
LOW VOLTAGE CONN.
7 “ DIA. KNOCKOUT
8
“A”
2 38
UNIT SIZE
DIMENSION
“A”
018 - 042
33 12
048 - 060
4112
(OVERALL)
SIDE SUPPLY
AIR OPENING
REFRIGERANT
CONNECTIONS
SIDE RETURN
AIR OPENING
ELECTRICAL/FILTER
SERVICE ACCESS
COMPARTMENT PANEL
17 14
17 14
28 14
49 18
22 14
22 14
2 12
(OVERALL)
28 14
HIGH VOLTAGE CONN.
12364" DIA. KNOCKOUT
47 14
(OVERALL)
3 34
LOW VOLTAGE
CONN.
7 “ DIA. KNOCK8
112
UNIT CONDENSATE
CONNECTION 34“ NPTI
(TRAP REQUIRED)
4 12
FRONT
HIGH VOLTAGE
CONN. 13132“ x 7 8“ DIA.
KNOCKOUT
All dimensions are in inches. They are
subject to change without notice. Certified
dimensions will be provided upon request.
SIDE SUPPLY
AIR OPENING
14 12
43 12 40 12
26 34
28 38
22 12
6
14 12
BACK
OUTDOOR
COIL
3 38
CONDENSATE
DRAIN 34“ NPTI
SIDE RETURN
AIR OPENING
BOTTOM SUPPLY
AIR OPENING
2 38
14 12
13 4
3 12
15
15
14
15
CLEARANCES
(Minimum)
Front
12"
Back
0"
Left Side (Filter Access) 24"
Right Side
24"
Below Unit 
0"
36" (For Condenser
Above Unit ‚
Air Discharge)
28
4
3
9
16
3 12
BOTTOM RETURN
AIR OPENING
13 4
 Units may be installed on combustible floors made from wood or class A,
B or C roof covering material.
‚ Units must be installed outdoors. Overhanging structures or shrubs
should not obstruct outdoor air discharge outlet.
FIG. 3 - DIMENSIONS AND CLEARANCES
14
Unitary Products Group
035-16004-002-A-0104
SEQUENCE OF OPERATION
Anti-short Cycle Timer
This unit has an anti-short cycle timer built in to the defrost control. This timer will not permit the compressor to start within five
minutes after the completion of the last cycle or power interruption. To bypass the anti-short cycle feature, short the “TEST”
pins together for 2 seconds.
The following sequences of operation are based on using a
standard single-stage heat pump thermostat.
Cooling Operation
WITH POWER TO UNIT AND THERMOSTAT IN COOLING
MODE.
1. If the fan switch on the thermostat is in the “ON” position,
the 24 volts at “G” will energize the “K1" relay on the fan
control board, close the ”K1" relay contacts, and energize
the indoor blower motor. If the fan switch on the thermostat
is in the “AUTO” position, the blower will operate only when
there is a call for cooling by the thermostat.
2. On a call for cooling, the thermostat will send 24 volts to “Y”
and “O” on the fan control board. After the anti-short cycle
period is complete,The 24 volt signal will energize contactor “M1", and the reversing valve solenoid. Power will be
supplied to the compressor and outdoor fan motor, and the
reversing valve will switch to the cooling position. If the fan
switch on the thermostat is on the ”AUTO" position, the fan
control will energize the indoor blower.
3. When the demand for cooling has been satisfied, the 24
volt “Y” signal is removed and the “M1" contactor will be deenergized. If the fan switch on the thermostat is in the ”ON"
position, the indoor blower will continue to run. If the fan
switch is in the “AUTO” position, the “K1" relay will open and
de-energize the indoor blower motor after a 60 second delay,
Heating Operation
WITH POWER TO UNIT AND THERMOSTAT IN HEATING
MODE.
stat is in the “ON” position, the indoor blower will continue to
run. If the fan switch is in the “AUTO” position, the “K1" relay
will open and de-energize the indoor blower motor after the
appropriate time delay.
Please refer to Tables 7 and 8 for more information.
Defrost Operation
The minimum time between defrosts can be field selected at
30, 60 or 90 minutes. The default time is 90 minutes if the
jumper is not installed.
Defrost will initiate when the defrost sensor, located on the outdoor coil, senses a temperature below 31°F and when the time
since the last defrost is greater than the selected time on the
defrost control. The defrost cycle terminates when either the
defrost sensor reaches 55°F or the unit has been in defrost
mode for 10 minutes. If the room thermostat opens during defrost, the unit will resume operation in defrost when the thermostat re-closes.
During the defrost mode, the defrost control will provide a 24
volt signal from terminal “W1/66" to the fan control terminal
”W1". This signal will energize electric heat stage 1, if the unit is
so equipped.
For trouble shooting purposes, the defrost cycle can be manually initiated by shorting the “TEST” pins together for 5 seconds. Defrost will terminate normally during the “TEST” mode.
Heat Pump Safety Switch Operation
If the unit is equipped with the field installed upgrade safety
package, the refrigeration system will be protected against
high or low refrigerant pressure and low indoor coil temperature. If any of these three safety switches opens, the unit will be
shut off for the 5 minute anti-short cycle time. Once this has expired, a six hour elapsed run timer begins. If a second opening
of a safety switch occurs during this six hour period, the compressor will be locked out.
1. If the fan switch on the thermostat is in the “ON” position,
the 24 volts at “G” will energize the “K1" relay on the fan
control board, close the ”K1" relay contacts, and energize
the indoor blower motor. If the fan switch on the thermostat
is in the “AUTO” position, the blower will operate only when
there is a call for heating by the thermostat.
Resetting the lockout function is accomplished by;
2. On a call for heating, the thermostat will send 24 volts to “Y”
on the fan control board. After the anti-short cycle period is
complete, the 24 volts signal will energize contactor coil
“M1" and power will be supplied to the compressor and outdoor fan motor. The reversing valve will remain in the heating position. If the fan switch on the thermostat is in the
”AUTO" position, the fan control will energize the indoor
blower.
3. Shorting the “TEST” pins together for more than 2 seconds.
3. For units equipped with supplementary electric heat, if the
heat pump cannot meet the demand, the thermostat “W”
will send 24 volts to “W2" on the fan control board. This signal will also be sent through the defrost control terminals
”W" and “W1/66" and back to the fan control ”W1". This 24
volt signal will energize all stages of electric heat.
4. When the heating demand is satisfied, the electric heat will
be de-energized when the 24 volt “W” signal is removed,
and the “M1" contactor will be de-energized when the 24
volt ”Y" signal is removed. If the fan switch on the thermo-
1. Removing power from the control's thermostat 1st stage
(Y) input for a time not to exceed 5 seconds (ON-OFF-ON).
2. Removing power from “R” for more than 2 seconds.
Electric Heat Limit Switch Operation
The limit switch responds to over temperature conditions in the
air duct. Opening of the device results in dropping power to the
relays. The control logic will also respond by turning off the relays. After four limit cycle trips the unit goes into a 1 hour soft
lockout period. If during this period the control “sees” another
limit cycle, the unit will go into a hard lockout condition. Once in
a hard lockout state, the fan is locked on and the heaters are
disabled. Only a power cycle will clear the state.
During the soft lockout period, the fan responds to thermostat
input but the heaters are enabled. This is to sense a failed
heater relay. The limit cycle count is reset at the start of a heat
request. If the limit remains open for period of 80 seconds or
more, the control is immediately put into a hard lockout condition. Only a power cycle will clear this state.
SECURE OWNER'S APPROVAL: When the system is functioning properly, secure the owner's approval. Show him
the location of all disconnect switches and the thermostat. Teach him how to start and stop the unit and how to adjust temperature settings within the limitations of the system.
Unitary Products Group
15
035-16004-002-A-0104
TABLE 21 - THERMOSTAT SIGNALS (SINGLE PHASE UNITS)
SIGNAL
STATE
BOARD FUNCTION
ON
FAN INSTANT ON
OFF
FAN INSTANT OFF
ON
FAN INSTANT ON
COMPRESSOR AND OUTDOOR FAN INSTANT ON (AFTER ANTI-SHORT CYCLE DELAY)
REVERSING VALVE ENERGIZED
SYSTEM OPERATES IN COOLING
OFF
COMPRESSOR AND OUTDOOR FAN INSTANT OFF
FAN 60 SEC. DELAY OFF
ON
FAN INSTANT ON
COMPRESSOR AND OUTDOOR FAN INSTANT ON (AFTER ANTI-SHORT CYCLE DELAY)
SYSTEM OPERATES IN HEATING
OFF
COMPRESSOR AND OUTDOOR FAN INSTANT OFF
FAN 60 SEC. DELAY OFF
ON
FAN INSTANT ON
HEATER BANK 1 ELEC. HEAT INSTANT ON
HEATER BANK 2 ELEC. HEAT 10 SEC. DELAY ON
HEATER BANK 3 ELEC. HEAT 20 SEC. DELAY ON
OFF
HEATER BANK 3 ELEC. HEAT INSTANT OFF
HEATER BANK 2 ELEC. HEAT 12 SEC. DELAY OFF
HEATER BANK 1 ELEC. HEAT 1 SEC. DELAY OFF
FAN 10 SEC. DELAY OFF
ON
FAN INSTANT ON
COMPRESSOR AND OUTDOOR FAN INSTANT ON
SYSTEM OPERATES IN HEATING
HEATER BANK 1 ELEC. HEAT INSTANT ON
HEATER BANK 2 ELEC. HEAT 10 SEC. DELAY ON
HEATER BANK 3 ELEC. HEAT 20 SEC. DELAY ON
OFF
COMPRESSOR AND OUTDOOR FAN INSTANT OFF
HEATER BANK 3 ELEC. HEAT INSTANT OFF
HEATER BANK 2 ELEC. HEAT 12 SEC. DELAY OFF
HEATER BANK 1 ELEC. HEAT 1 SEC. DELAY OFF
FAN 60 SEC. DELAY OFF
ON
FAN INSTANT ON
HEATER BANK 1 ELEC. HEAT INSTANT ON
HEATER BANK 2 ELEC. HEAT 10 SEC. DELAY ON
HEATER BANK 3 ELEC. HEAT 20 SEC. DELAY ON
OFF
HEATER BANK 3 ELEC. HEAT INSTANT OFF
HEATER BANK 2 ELEC. HEAT 12 SEC. DELAY OFF
HEATER BANK 1 ELEC. HEAT 1 SEC. DELAY OFF
FAN 10 SEC. DELAY OFF
“G”
“G” & “Y” & “O”
“G” & “Y”
“G” & “W”
“G” & “Y” & “W”
“W”
16
Unitary Products Group
035-16004-002-A-0104
TABLE 22 - THERMOSTAT SIGNALS (THREE PHASE UNITS)
SIGNAL
STATE
BOARD FUNCTION
ON
FAN INSTANT ON
OFF
FAN INSTANT OFF
ON
FAN INSTANT ON
COMPRESSOR AND OUTDOOR FAN INSTANT ON (AFTER ANTI-SHORT CYCLE DELAY)
REVERSING VALVE ENERGIZED
SYSTEM OPERATES IN COOLING
OFF
COMPRESSOR AND OUTDOOR FAN INSTANT OFF
FAN 60 SEC. DELAY OFF
ON
FAN INSTANT ON
COMPRESSOR AND OUTDOOR FAN INSTANT ON (AFTER ANTI-SHORT CYCLE DELAY)
SYSTEM OPERATES IN HEATING
OFF
COMPRESSOR AND OUTDOOR FAN INSTANT OFF
FAN 60 SEC. DELAY OFF
ON
FAN INSTANT ON
HEATER BANK 1, 2 & 3 ELEC. HEAT INSTANT ON
HEATER BANK 4, 5 & 6 ELEC. HEAT 10 SEC. DELAY ON
OFF
HEATER BANK 4, 5 & 6 ELEC. HEAT INSTANT OFF
HEATER BANK 1, 2 & 3 ELEC. HEAT 12 SEC. DELAY OFF
FAN 10 SEC. DELAY OFF
ON
FAN INSTANT ON
COMPRESSOR AND OUTDOOR FAN INSTANT ON
SYSTEM OPERATES IN HEATING
HEATER BANK 1, 2 & 3 ELEC. HEAT INSTANT ON
HEATER BANK 4, 5 & 6 ELEC. HEAT 10 SEC. DELAY ON
OFF
COMPRESSOR AND OUTDOOR FAN INSTANT OFF
HEATER BANK 4, 5 & 6 ELEC. HEAT INSTANT OFF
HEATER BANK 1, 2 & 3 ELEC. HEAT 12 SEC. DELAY OFF
FAN 60 SEC. DELAY OFF
ON
FAN INSTANT ON
HEATER BANK 1, 2 & 3 ELEC. HEAT INSTANT ON
HEATER BANK 4, 5 & 6 ELEC. HEAT 10 SEC. DELAY ON
OFF
HEATER BANK 4, 5 & 6 ELEC. HEAT INSTANT OFF
HEATER BANK 1, 2 & 3 ELEC. HEAT 12 SEC. DELAY OFF
FAN 10 SEC. DELAY OFF
“G”
“G” & “Y” & “O”
“G” & “Y”
“G” & “W”
“G” & “Y” & “W”
“W”
MAINTENANCE
NORMAL MAINTENANCE
WARNING: Prior to any of the following maintenance procedures, shut off all power to the unit, to avoid personal injury.
Periodic maintenance consists of changing or cleaning filters
and general cleaning of the outdoor coil.
FILTERS - Inspect once a month. Replace Disposable or
clean Permanent Type as necessary. DO NOT replace Permanent Type with Disposable.
MOTORS - Indoor and outdoor fan motors are permanently
lubricated and require no maintenance.
Unitary Products Group
OUTDOOR COIL - Dirt should not be allowed to accumulate
on the outdoor coil surface or other parts in the air circuit.
Cleaning should be as often as necessary to keep the coil
clean. Use a brush, vacuum cleaner attachment, or other
suitable means. If water is used to clean the coil, be sure
that the power to the unit is shut off prior to cleaning.
CAUTION: Exercise care when cleaning the coil so that the
coil fins are not damaged.
Do not permit the hot condenser air discharge to be
obstructed by overhanging structures or shrubs.
17
035-16004-002-A-0104
FOR DUAL POINT
ELECTRIC HEAT
POWER SUPPLY
SEE DETAIL A
SEE
DETAIL
"B"
FOR DEFROST
CONTROL
031-09104-000A
SEE DETAIL C
DEFROST
CONTROL
031-01268-000B
OPTIONAL CCH
SECONDARY POWER SUPPLY
FOR DUAL POINT ELEC HEAT
208/230-1-60
USE COPPER
CONDUCTORS ONLY
CCH
709/BK
(M1)
(M1)
BLK
BLK
POWER SUPPLY
208/230-1-60
USE COPPER
CONDUCTORS ONLY
F1
710/PR
F3
703/BK
(K3)
711/BK
(K5)
705/PR
(HTR2)
713/PR
(HTR3)
F5
706/BK
(K4)
714/BK
(K6)
708/PR
(HTR4)
716/PR
(HTR5)
DETAIL C
S / P CONFIGURATION
F2
M1
CCH
BLK
BLK
F6
T2
M1 - 2
222/Y
M
COMPR
RELAY
T1
D / P CONFIGURATION
F4
DETAIL A
L1
L1
L2
BLU
DS
R
DFST
STAT
BLU C
L2
DETAIL B
DUAL POINT ELECTRIC HEAT (SEE NOTE 9)
FIG. 4 - TYPICAL WIRING DIAGRAM (208/230-1-60 POWER SUPPLY)
18
Unitary Products Group
035-16004-002-A-0104
DETAIL A
M1
222/Y
BLU
DS
FOR DEFROST
CONTROL
031-09104-000A
SEE DETAIL A
M
COMPR
RELAY
R
DFST
STAT
BLU C
DEFROST
CONTROL
031-01268-000B
FIG. 5 - TYPICAL WIRING DIAGRAM (230-3-60 POWER SUPPLY)
Unitary Products Group
19
035-16004-002-A-0104
E L E M E N T A R Y D IA G R A M
P O W E R S U P P L Y W /O U T
E L E C H E A T 4 6 0 -3 -6 0
O R 5 7 5 -3 -6 0
G N D
L U G
U S E C O P P E R
C O N D U C T O R S
O N L Y
P O W E R S U P P L Y W /
E L E C H E A T 4 6 0 -3 -6 0
O R 5 7 5 -3 -6 0
M 1 -1
7 0 9 /R
L 1
L 1
7 1 1 /P R
L 2
(S E E D E T A )
R C 3
IO
F A N
M O T O R
1
7
8
7 0 5 /B L
5
9
7
4
K 4 -3
7 1 9 /0
9
H T R
1
H T R
3
C
D E T A IL B
H T R
5
7 1 2 /B L
5
8
R
D F S T
S T A T
7 1 8 /B K
K 4 -2
7 1 3 /P R
1
7 0 8 /Y
6
K 4 -1
7 1 7 /R
H T R
2
H T R
4
H T R
6
1 0 9 /B K
7 2 0 /Y
6
C
1 0 8
/P R
2 1 3 /R
C B
2 0 5 /R
2 0 1 /B R
F O R
C O N
0 3 1 S E E
D E
T R
0 9 1
D E
A
F R O S T
O L
0 4 -0 0 0 A
T A IL B
K 3
B
1
8 1 4 /Y
2 1 3 /R
P 3
2 2 4 /R
L 2
L 1
L 2
L 1
F L
3
L 1
H 4
L 1
H 3
S 3
2 0 3 /B R
F S
8 0 3
M 1
8 0 4
/B K
H P
B L U
2 2 2 /Y
L P
R V S
2 2 1 /B R
R V S
K 4
2 1 D , 2 4 D
R
Y
G
W 2
W 1
O
C
T B 1
R O O M
4 D , 5 D , 6 D
R
O N
F A N
G
C
Y
O
R V
C
D E F
W
W 1
A U T O
2 1 8 /Y
T H 1 /T C 1 A N T
H
H E A T
T H 2
E M
2 1 7 /G Y
C O O L
O F F
T C 1
T H 1
2 1 5 /O
D E F
2 2 0 /O
T H E R M O S T A T
O
R
8 0 2
2 2 1 /B R
8 1 0 /B L
K 1
X
P R E S S
S W IT C H
B L U
5
6
H 2
T 'S T A T
8 0 5
/B L
2 1 9 /B K
S E E N O T E 7
D S
M
1 1 D , 1 4 D , 1 5 D
8 1 1 /0
4
F 2 4
D E F R O S T
C O N T R O L
0 3 1 -0 1 2 6 8 -0 0 0 B
C O M P R
R E L A Y
L S
8 0 8 /B R
3
C O N T R O L L O G IC
C O N D F A N
/B K
/B K
B L U
C
D F S T
S T A T
2 0 4 /B R
S E E N O T E 8
8 0 9 /O
2
K 2
K 2
R
1
L H
H 1
B L U
D S
P 2
2
7 E
S 2
T
2 0 9 \R
L 2
4
2 0 2 /Y
8 D
2 4 V
F A N C O N T R O L
B O A R D
K 1
8 1 3 /B R
T 1
2 1 2
/R
2 0 8 /P R
2 2 3 /B R
4 8 0 O R 6 0 0
2 1 4 /B R
2 0 6 /B R
M 2
2 0 7 /B R
M 3
C O M P R
R E L A Y
0 0 F A N
M O T O R
B R N
P R P
K 3 -3
7 0 7 /0
P R P
R C 2
M
7 0 4 /B K
4
K 3 -2
7 0 6 /P R
1 3 0 /P R
B R N
T 1
B L K
K 3 -1
7 0 3 /R
M 1
B L K
1 0 5 /B L
C C H
B L K
3
L 3
L 1
L 1
T 1
C O M P R
L 2
M 3 -1
M 2 -1
1 2 0 /Y
L 1
1 2 6 /Y
T 3
L 3
1 1 0
/O
S E E N O T E 6
1 2 3 /B L
M 1 -3
(S E E D E T A )
(S E E D E T A )
1 1 4 /B K
T 2
L 2
7 1 0 /O
L 3
1 2 1 /B K
T 1
M 1 -2
H T (R E D )
E M
H T
2 1 6 /W
Y
X
2 2 0 /O
2 0 3 /B R
W
T H 2
A N T
B
FIG. 6 - TYPICAL WIRING DIAGRAM (460-3-60 & 575-3-60 POWER SUPPLY)
20
Unitary Products Group
035-16004-002-A-0104
TYPICAL WIRING DIAGRAM LEGEND (See pages 16, 17 and 18)
CB
CCH
COMPR
DS
F1 F2 F3
F4 F5 F6
F7 F8 F9
F24
FS
HP
HTR 1
HTR 2
HTR 3
HTR 4
HTR 5
HTR 6
K1
K2
K3
K7
LP
LS
M1
M2
M3
PTCR
RC1/RC2
RC1
RC2
RC3
RVS
S2/P2
S3/P3
S4/P4
S3/P3
T1
TB2
CIRCUIT BREAKER 24V, 3 AMP
CRANKCASE HEATER (OPTIONAL)
COMPRESSOR
DEFROST SENSOR, CLOSES @ 31˚F, OPENS @ 55˚F.
FUSES, LINE VOLTAGE - 60 AMP (10, 15, 20 & 25 KW ELEC HEAT)
FUSES, LINE VOLTAGE - 30 AMP (10, 15, 20 & 25 KW ELEC HEAT)
FUSES, LINE VOLTAGE - 30 AMP (20, 25 KW ELEC HEAT)
FUSE 24V SECONDARY, 5 AMP
FREEZESTAT SWITCH (OPTIONAL ACCESSORY) OPEN @ 26˚ F
HIGH PRESSURE SWITCH (OPTIONAL ACCESSORY) OPENS @ 280 PSIG
ELECTRIC HEATER (OPT. ACCSSRY: ALL KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 7.5, 10, 15, 20 & 25 KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 20 & 25 KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 15, 20 & 25 KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 20 & 25 KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 20 & 25 KW ELEC HEAT)
RELAY INDOOR FAN MOTOR
RELAY ELECTRIC HEATER
RELAY ELECTRIC HEATER, 24 VDC COIL
RELAY LIMIT TRIP, 25 VDC COIL
LOW PRESSURE SWITCH (OPTIONAL ACCESSORY) OPEN @ 7 PSIG
LIMIT SWITCH, ELECTRIC HEAT (PART OF ELEC HEAT ACCESSORY)
CONTACTOR, COMPRESSOR & OUTDOOR FAN
CONTACTOR, ELECTRIC HEAT, 230V COIL
CONTACTOR, ELECTRIC HEAT, 230V COIL
START ASSIST (OPTIONAL DEVICE)
COMPRESSOR START & OUTDOOR FAN RUN CAPACITOR
COMPRESSOR START CAPACITOR (ALTERNATE)
OUTDOOR FAN RUN CAPACITOR (ALTERNATE)
INDOOR FAN RUN CAPACITOR
REVERSING VALVE SOLENOID
SOCKET/PLUG CONNECTION ON FAN CONTROL BOARD, LOW VOLTAGE
SOCKET/PLUG CONNECTION ON FAN CONTROL BOARD, LINE VOLTAGE
SOCKET/PLUG CONNECTION ON ID FAN MOTOR, 24V
SOCKET/PLUG CONNECTION ON ID FAN MOTOR, 230V
TRANSFORMER, 24V, 40 VA
TERMINAL BLOCK ECM MOTOR "SPEED" CONNECTIONS
IDENTIFIED TERMINAL ON RUN CAPACITOR
ROOM THERMOSTAT 24V CONNECTIONS
TB1 ON FAN/ELEC HEAT CONTROL BOARD
FACTORY WIRING AND DEVICES
OPTIONAL WIRING AND DEVICES
FIELD WIRING
TYPICAL WIRING DIAGRAM NOTES (See pages 16, 17 and 18)
Unitary Products Group
21
035-16004-002-A-0104
22
Unitary Products Group
035-16004-002-A-0104
Unitary Products Group
23
035-16004-002-A-0104
Unitary Products Group
5005 York Drive, Norman, Oklahoma 73069
Subject to change without notice. Printed in U.S.A.
Copyright  by York International Corporation 2004. All Rights Reserved.
Supersedes: 035-16004-001-A-0202
035-16004-002-A-0104
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
