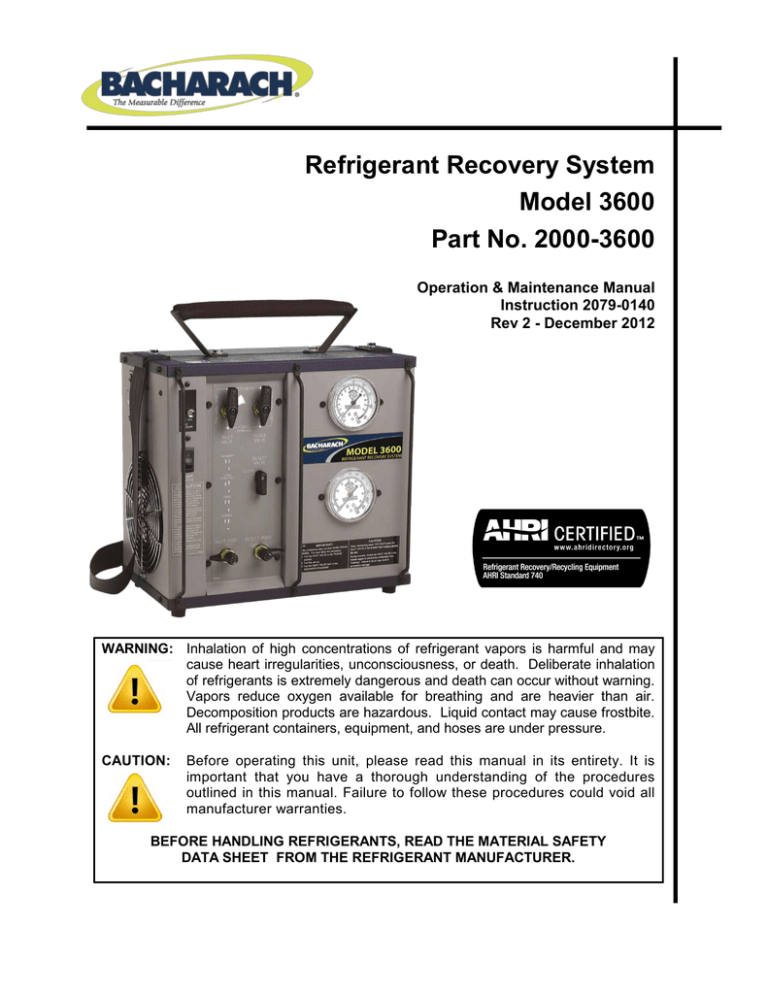

Refrigerant Recovery System

Model 3600

Part No. 2000-3600

Operation & Maintenance Manual

Instruction 2079-0140

Rev 2 - December 2012

WARNING: Inhalation of high concentrations of refrigerant vapors is harmful and may cause heart irregularities, unconsciousness, or death. Deliberate inhalation of refrigerants is extremely dangerous and death can occur without warning.

Vapors reduce oxygen available for breathing and are heavier than air.

Decomposition products are hazardous. Liquid contact may cause frostbite.

All refrigerant containers, equipment, and hoses are under pressure.

CAUTION: Before operating this unit, please read this manual in its entirety. It is important that you have a thorough understanding of the procedures outlined in this manual. Failure to follow these procedures could void all manufacturer warranties.

BEFORE HANDLING REFRIGERANTS, READ THE MATERIAL SAFETY

DATA SHEET FROM THE REFRIGERANT MANUFACTURER.

Refrigerant Recovery System Model 3600

Table of Contents

CHAPTER 1: INTRODUCTION ................................................................................................................................. 3

1.1.

O

VERVIEW

........................................................................................................................................................ 3

1.2.

S

PECIFICATIONS

.................................................................................................................................................. 3

1.3.

F

EATURES

......................................................................................................................................................... 4

CHAPTER 2: SAFETY ............................................................................................................................................... 5

2.1.

G

ENERAL

S

AFETY

I

NSTRUCTIONS

............................................................................................................................ 5

2.2.

O

PERATIONAL

S

AFETY

......................................................................................................................................... 6

CHAPTER 3: FEATURES .......................................................................................................................................... 7

3.1.

L

OCATION AND

D

ESCRIPTION OF

U

NIT

F

EATURES

...................................................................................................... 7

3.2.

LED D

ISPLAY

..................................................................................................................................................... 8

CHAPTER 4: RECOVERY .......................................................................................................................................... 9

4.1.

H

ELPFUL

H

INTS FOR

R

ECOVERING

R-410A .............................................................................................................. 9

4.2.

V

APOR

/L

IQUID

R

ECOVERY

P

ROCEDURES

................................................................................................................. 9

4.3.

V

APOR

R

ECOVERY

H

OSE

C

ONNECTION

................................................................................................................. 11

4.4.

L

IQUID

P

USH

-P

ULL

R

ECOVERY

G

ENERAL

I

NFORMATION

........................................................................................... 12

4.5.

L

IQUID

R

ECOVERY

P

ROCEDURES

.......................................................................................................................... 13

4.6.

L

IQUID

P

USH

-P

ULL

H

OSE

C

ONNECTIONS

............................................................................................................... 14

4.7.

P

UMP

D

OWN

O

PERATIONS

................................................................................................................................ 15

4.8.

DOT R

ECOVERY

C

YLINDER

S

AFETY

....................................................................................................................... 16

CHAPTER 5: TROUBLESHOOTING ......................................................................................................................... 17

CHAPTER 6: ELECTRICAL SCHEMATIC ................................................................................................................... 18

CHAPTER 7: REPLACEMENT PARTS ...................................................................................................................... 19

2

Model 3600

CHAPTER 1: INTRODUCTION

Refrigerant Recovery System

1.1. Overview

Congratulations on your purchase of the Bacharach Model 3600 high performance oilless recovery system. Bacharach has worked hard to make the Model 3600 the highest performing, most portable and easiest to use recovery system on the market. We are committed to your complete satisfaction!

Please note that Bacharach requires that a filter be used on the inlet hose coming from the system being serviced in order to protect the compressor from particulate.

A standard filter or filter dryer is suggested. The compressor warranty will be voided if it is determined that a filter was not used during the operation of this equipment.

WARNING: Before starting the 3600 recovery unit, you MUST OPEN the outlet port on the unit and open the port to the recovery tank. Read the entire operating instruction manual before use. Failure to open the outlet port will cause permanent damage to the unit and void the warranty.

WARNING: You must use a DOT recovery cylinder approved for use with R-410A refrigerant.

This recovery system is equipped with a high-pressure shutoff switch set to turn the unit off at 550 psi. Using any other cylinder may cause the pressure in the recovery cylinder to exceed the cylinder’s pressure rating.

CAUTION: These instructions are for personnel trained and experienced in the handling of refrigerants. Unqualified individuals should not attempt to operate this equipment.

Failure to follow proper operating procedures may cause personal injury.

1.2. Specifications

Category

Model

Description

Refrigerants

Power Source

Wattage/Amperes

Compressor

High Pressure Shutoff

Dimensions (H x W x D)

Weight

Description

Model 3600

Portable Commercial Oilless Recovery System

R12, R-22, R-134a, R-500, R-502, R-410AHP/MP Blends

120V AC 60 Hz

800 W / 8.0 A max

½ HP High Performance Oilless

550 psi

12.0" x 13" x 7.5"

35 Lbs.

3

Refrigerant Recovery System Model 3600

Refrigerant

R-22

R-134A

R-410A

Refrigerant Recovery Rates Certified per AHRI 740-95 & 740-98

Liquid Rate Liquid Push-Pull Rate Vapor Rate

4.96 lb/min

2.25 kg/min

3.86 lb/min

1.75 kg/min

3.31 lb/min

1.50 kg/min

13.01 lb/min

5.90 kg/min

11.84 lb/min

5.37 kg/min

15.70 lb/min

7.12 kg/min

0.37 lb/min

0.17 kg/min

0.29 lb/min

0.13 kg/min

0.42 lb/min

0.19 kg/min

1.3. Features

Designed specifically for the new R-410A blend that has much higher vapor pressures.

New oilless compressor technology that is QUIETER, FASTER, AND LIGHTER than current products on the market.

When used properly, tolerates liquid during vapor recovery operations with no compressor damage.

Extremely easy to operate.

Extra large condensing ensures high recovery rates even on the hottest days.

Self-purging valve completely purges the condenser and tubing, eliminating cross contamination when switching between refrigerants.

Solid state LED status display keeps the operator informed of the operational status of the unit.

The following situations are monitored: High Pressure Shutoff, Recovery Cylinder Full Shutoff (If option is installed), Automatic Vacuum Shutoff, and System Operating.

Suction and discharge gauges eliminate the need for a manifold gauge set.

Inlet and outlet ball valves provide full refrigerant flow and positive shutoff.

Automatic vacuum shutoff at 13” HG vacuum.

Automatic high-pressure shutoff at 550 psi.

Rugged heavy-duty steel construction with epoxy powder coating for long life.

Options include: Deluxe carrying case to protect the 3600 from damage during transport,

Automatic 80% tank full shutoff.

Specifications are subject to change without notice.

4

Model 3600

CHAPTER 2: SAFETY

Refrigerant Recovery System

2.1. General Safety Instructions

1. K

NOW

Y

OUR

E

QUIPMENT

Read and understand the operation manual and labels affixed to the unit. Learn its application and limitations as well as the specific potential hazards of your equipment.

2. G

ROUND

A

LL

E

QUIPMENT

This unit is equipped with an approved three pronged grounded power cord and plug. The green wire is the ground wire and should never be connected to a live terminal.

3. U

SE THE

P

ROPER

E

XTENSION

C

ORD

Use the following guide for choosing the proper extension cord:

16 gauge cord- maximum length 25 feet

14 gauge cord- maximum length 50 feet

12 gauge cord- maximum length 100 feet

4. A

VOID

D

ANGEROUS

E

NVIRONMENTS

Do not use this unit in damp or wet locations or expose it to rain. Secure unit when working above floor level. This equipment should be used in a location with mechanical ventilation that provides at least four air changes per hour or the equipment should be located at least 18 inches above the floor.

This equipment should not be used in the vicinity of spilled or open containers of flammable materials.

5. D

ISCONNECT

U

NIT

B

EFORE

S

ERVICING

Electrical shock hazard may be present when the unit is disassembled.

6. A

VOID

A

CCIDENTAL

S

TARTING

Make sure the system switch is in the OFF position before connecting electrical devices.

7. R

EPAIR

D

AMAGED

P

ARTS

Do not operate the unit with a defective part. Repair unit to proper operating conditions.

8. U

SE

R

ECOMMENDED

A

CCESSORIES

Follow the instructions that accompany all accessories. Improper use of accessories may damage the equipment or create a hazard.

9. U

SE

C

AUTION

W

HEN

C

ONNECTING OR

D

ISCONNECTING

H

OSES

Improper usage may result in refrigerant burns (frostbite). If a significant refrigerant leak occurs, proceed immediately to a well ventilated area.

10. U

SE THE PROPER RECOVERY CYLINDER RATED FOR USE WITH

R-410A

WARNING: You must use the proper DOT approved recovery cylinder with the Model 3600. This recovery system is equipped with a high-pressure shutoff switch set to turn the unit off at 550 psi.

Using any other cylinder may cause the pressure in the recovery cylinder to exceed the cylinder’s pressure rating.

5

Refrigerant Recovery System Model 3600

2.2. Operational Safety

WARNING: Inhalation of high concentrations of refrigerant vapors is harmful and may cause heart irregularities, unconsciousness, or death. Deliberate inhalation of refrigerants is extremely dangerous and death may occur without warning. Vapor reduces oxygen available for breathing and is heavier than air. Decomposition products are hazardous. Liquid contact can cause frostbite. All refrigerant containers, equipment and hoses are under high pressure.

• Avoid breathing high concentrations of vapors.

• Use with sufficient ventilation to keep operator exposure below recommended limits, especially in enclosed and low lying areas.

• Avoid contact of liquid with eyes and prolonged skin exposure.

• Wear safety goggles and protective gloves.

• Do not apply open flame or heat unit above 125°F.

• Do not allow refrigerants to contact open flame. Decomposition will occur.

FIRST AID: If high concentrations of refrigerant vapors are inhaled, immediately remove person(s) to fresh air. Keep calm. If not breathing, give artificial respiration. If breathing is difficult, give oxygen. Call a doctor. Do not give epinephrine or similar drugs.

EYE: In case of liquid contact, immediately flush eye with water.

Seek medical attention.

SKIN: Flush with water. Treat for frostbite by gently warming the affected area.

CAUTION: All refrigerant hoses, recovery tanks, refrigerant lines, the unit, and other vessels containing refrigerants should be handled at all times as if under high pressure.

6

Model 3600

CHAPTER 3: FEATURES

Refrigerant Recovery System

3.1. Location and Description of Unit Features

# Component

1

2

Purge Ball

Valve

Inlet Port

Ball Valve

This valve determines what function the Model

3600 performs. This valve is UP during recovery operations and DOWN for purging and liquid push-pull operations.

Opens or closes the inlet port. It is pointing

UP (open) for all recovery operations and points DOWN for purging operations.

T his valve is also used to throttle back the liquid intake when a knocking sound is heard.

See the description on the following page.

Description

3 LED Status

Display

4 System

Switch

5 Outlet Port

Ball Valve

When in the ON position, this switch starts the recovery operation by turning the compressor on.

6 Inlet Port Refrigerant hose connection for incoming refrigerant vapors.

7 Outlet Port Refrigerant hose connection for outgoing refrigerant.

8 Outlet

Pressure

Gauge

9 Inlet

Pressure

Gauge

Opens or closes the outlet port. It points DOWN when it is open and to the left when CLOSED.

Displays the outlet/discharge pressure.

Displays the inlet/suction pressure of the system being evacuated.

Umbilical

Cord -

Optional

Accessory

(Not shown)

This optional accessory connects to the recovery cylinder overfill sensor and automatically shuts the unit off when the recovery cylinder reaches the 80% liquid fill limit.

NOTE: If the Model 3600 is equipped with an 80% shutoff cord, it will not work unless it is not connected to a DOT recovery cylinder with a compatible level float switch. If the recovery cylinder does not have a float switch, a shorting cap must be installed in order to operate the system.

Protects against high amperage. Located on the left side of the machine. Compressor

Circuit

Breaker (Not shown)

7

Refrigerant Recovery System Model 3600

3.2. LED Display

LED

Green

Red

Red

Meaning Explanation

Normal Operation Indicates that the power switch is ON and the compressor is running.

High Pressure

Condition

Tank Full

Indicates that there is a high pressure condition that must be corrected. The internal high pressure switch activates at 550 psi.

Indicates that the recovery cylinder is full (if the Automatic 80%

Tank Full Shutoff Option is installed).

8

Model 3600

CHAPTER 4: RECOVERY

Refrigerant Recovery System

4.1. Helpful Hints for Recovering R-410A

R-410A has been designated by the EPA as a “very-high-pressure” refrigerant. Because of its higher vapor pressure, recovering R-410A has some unique challenges. The higher vapor pressure requires more work from the compressor, resulting in higher temperatures and increased wear on moving compressor parts.

In order to reduce the affects of these conditions, Bacharach recommends the following:

• Whenever possible, cool your recovery tank with ice or water. This keeps the compressor discharge pressures lower, which will result in faster recovery rates and longer compressor life.

• Avoid recovering large amounts of R-410A at one time. Allow the recovery unit and cylinder to cool before starting the next recovery job.

• Always purge the machine completely when switching from R410a and back to prevent cross contamination.

Following these simple hints will improve both recovery performance and compressor life.

4.2. Vapor/Liquid Recovery Procedures

Step

1

2

3

4

5

Description

Turn off all electrical or mechanical power to the refrigerant device to be evacuated.

Make proper hose connections: Connect refrigerant hoses to recovery cylinder, the unit, and A/C system as shown in Figure 1. NOTE: You must use an external filter drier in the suction line in order to meet the conditions of the unit warranty. Caution: If the 80% shutoff

cord is not used, a scale must be used to monitor the refrigerant level in the recovery cylinder.

NOTE: Although the 3600 was designed to handle liquid slugging, pumping large amounts of liquid over extended periods of time will reduce the life of the compressor. If large amounts of liquid are present, it is recommended that you use the liquid push - pull method of recovery prior to vapor recovery operations. (See Figures 3 & 4).

Place the inlet and purge ball valves in the “CLOSED” position and the outlet valve is in

the “OPEN” position. Open the DOT recovery tank liquid valve. (See Figure 2).

Turn the system switch to the “ON” position. The LED status display will be green.

Regulate the inlet port ball valve when liquid refrigerant is present.

WARNING: A “knocking” sound coming from the compressor indicates too much liquid is entering the compressor. The inlet ball valve must be regulated as shown in the shaded region until this knocking sound stops, otherwise compressor damage could occur. Pumping liquid when the compressor is knocking will damage the compressor and will reduce the compressor life and will void the compressor warranty.

9

Refrigerant Recovery System Model 3600

Step

6

Description

Monitor the LED status display. The unit will shut off automatically when the proper vacuum level is achieved and the status display LED will turn off.

7

LED

Green

Red

Description

Indicates that the power switch is ON and the compressor is running.

If the green LED is off, this indicates that the unit has shut down because the system being evacuated has reached 13" HG. (the evacuation is complete). Check the suction pressure to verify that the system being evacuated is down to at least 13" HG vacuum. Turn the system switch to the OFF position. Wait 5 minutes. If the inlet pressure rises above 0 psig. Repeat steps 3-6. If the inlet pressure remains below 0 psig, close all valves and disconnect the hose from the A/C system.

NOTE: A small amount of inlet pressure may be needed to reset the vacuum switch, this is normal.

(a) Indicates that there is a high-pressure condition that must be corrected. Check for restrictions or a full recovery tank. Correct the problem and turn the system switch OFF to reset the system.

Repeat steps 3-6.

(b) Indicates that the recovery tank is full (if the 80% automatic shutoff option is installed). Change the recovery tank and repeat steps

3-6.

Purge the system by positioning the inlet and purge ball valve in the “PURGE” position

(both pointing DOWN). This should be done with the unit off. If the valves are turned while the unit is running, the system may shut off either on high-pressure or vacuum. If the unit is manually or automatically turned off before the evacuation is complete, repeat steps 3-7.

NOTE: If the circuit breaker trips, wait 5 seconds, reset circuit breaker and go to step 3. If the compressor thermal overload trips, wait 16 to 30 minutes before restarting.

10

Model 3600

4.3. Liquid/Vapor Recovery Hose Connections

Refrigerant Recovery System

Figure 1. Liquid/Vapor Recovery Hose Connections

Use only approved DOT recovery cylinders. Follow precautions and warnings listed on the cylinder.

If servicing a system with a compressor burn-out, use a high acid type filter drier and do not reuse.

Recovery Mode Storage Mode

Figure 2. Model 3600 Valve Settings for Recovery and Storage Modes

11

Refrigerant Recovery System Model 3600

4.4. Liquid Push-Pull Recovery General Information

Attention: Before attempting the following liquid push-pull recovery operations, please review this page.

It may not be possible to recover liquid refrigerant from some types of refrigeration equipment.

A scale or liquid sight glass can be used to determine when all the liquid is recovered. The unit will not pull a vacuum using the push-pull liquid recovery operation. To finish the recovery operation, you must proceed to vapor recovery operations.

Guidelines

If any of these conditions are present in the system being evacuated, liquid push-pull operations may not be practical and vapor recovery operations should be performed.

• The equipment contains less than 15 lbs. of refrigerant.

• The equipment is a heat pump or other system with refrigerant flow that would prevent you from isolating the liquid.

• Equipment has an accumulator between the service ports used in the liquid recovery process.

• Liquid refrigerant migration has occurred and the location of the liquid is unknown.

• The refrigerant tubing design on the equipment does not allow for a solid column of liquid refrigerant to be formed.

Direct Liquid Recovery Operations

All compressors are designed to compress gases. Normally compressors are not capable of pumping non-compressible fluids such as liquid refrigerant, however, the 3600 has been designed with a special head and valves that enable it to handle liquid directly. This feature makes the 3600 easier to use by minimizing the need to monitor incoming refrigerant vapors and reduces compressor failures due to liquid slugging.

It is important to remember that the 3600 is a compressor and not a liquid pump. When large amounts of liquid are present, the liquid push-pull method of recovery should be used. Using the 3600 to pump large amounts of liquid refrigerant over a long period of time will reduce the compressor life.

WARNING: A “Knocking” sound coming from the compressor indicates too much liquid is entering the compressor. The inlet ball valve must be regulated as shown in the shaded region until this knocking sound stops, otherwise compressor damage could occur. Pumping liquid when the compressor is knocking will damage the compressor and will reduce the compressor life.

This will void the compressor warranty.

A sudden slug of liquid into the compressor may cause a sudden spike in pressure and cause the highpressure safety shutoff switch to shut the compressor off. If this happens, you must clear the liquid from the compressor before you can restart the compressor. To prevent this from happening, always open the inlet valve slowly when starting a recovery job. Opening the inlet valve quickly could allow a slug of liquid to enter the cylinder and cause the high-pressure switch to shut the system down.

12

Model 3600 Refrigerant Recovery System

4.5. Liquid Push Pull Recovery Procedures

Liquid push-pull operations are performed by using hot compressor gas to push liquid refrigerant out of a system. The purge valve accomplishes this by re-directing the hot compressor gas around the condenser. See the diagram on top of the unit for hose connections.

Step

1

2

3

4

5

6

7

8

Description

Turn off all electrical or mechanical power to the refrigerant device to be evacuated.

Make proper hose connections. Connect the discharge hose from the outlet port to the lowpressure side of the system you are servicing. Connect a hose between the liquid port

(receiver or condenser) on the system being serviced and the liquid valve on the DOT recovery tank. Connect the inlet hose from the DOT recovery tank vapor valve and the unit’s inlet port. See Figure 3 for hose connection schematic. NOTE: You must use an external filter drier in the suction line in order to meet the conditions of the unit warranty. Caution: If the

80% shutoff cord is not used, a scale must be used to monitor the refrigerant level in the recovery cylinder.

Place the inlet and purge valves in the “LIQUID PUSH-PULL” position. This will allow hot compressor gas to bypass the condenser. OPEN the liquid and vapor valves on the tank,

(See Figure 4)

Open the outlet ball valve and the DOT recovery tank vapor and liquid valves on the

DOT recovery tank.

Turn the system switch to the “ON” position. When all liquid refrigerant is recovered, turn the system switch to the “OFF” position. NOTE: Liquid push-pull operations do not pull a vacuum on a system. You must perform a vapor recovery operation in order to pull the system down to the required vacuum level.

Monitor the LED status display.

LED

Green

Description

SYSTEM ON: The “SYSTEM ON” indicator should be ON during normal operations.

No LED

Red

EVACUATION COMPLETE: Indicates that the unit has shut down because the system being evacuated has reached 13" HG. (the evacuation is complete). During liquid push-pull operations the system will not be pulled into a vacuum. NOTE: A small amount of inlet pressure might be needed to reset the vacuum switch, this is normal.

HIGH PRESSURE: Indicates that there is a high pressure condition that must be corrected. Check for restrictions or a full recovery cylinder. Correct problem and turn system switch to the OFF position. Repeat steps 3-6.

TANK FULL: Indicates that the recovery cylinder is full (if the 80%

Automatic Tank Full Shutoff Option is installed). Change the recovery cylinder and repeat steps 3-6.

Turn the system switch to the OFF position when all liquid is recovered. The liquid recovery operation is complete when the scale or optional sight glass indicates no liquid is being transferred to the recovery cylinder. NOTE: The unit must be manually shut off during all liquid recovery operations.

Proceed to vapor recovery operations to complete the recovery operation. If the unit is manually or automatically turned off before the liquid recovery is complete, repeat steps 3-8.

NOTE: If the circuit breaker trips, wait 10 seconds, reset circuit breaker and go to step 2. If the compressor thermal overload trips, wait 16 to 30 minutes before restarting.

13

Refrigerant Recovery System

4.6. Liquid Push-Pull Hose Connections

Model 3600

Figure 3. Liquid Push Pull Hose Connections

Use only approved DOT recovery cylinders. Follow precautions and warnings listed on the cylinder.

If servicing a system with a compressor burn-out, use a high acid type filter drier and do not reuse.

Liquid Push-Pull Mode Storage Mode

Figure 4. Model 3600 Valve Settings for Push-Pull and Storage Modes

14

Model 3600 Refrigerant Recovery System

4.7. Pump Down Operations

The Model 3600 is equipped with a pump-down purge valve that allows the technician to pump down or evacuate the 3600 before proceeding to the next recovery operation. This procedure not only eliminates cross contamination, but also conserves refrigerant. Follow the steps below to ensure your pump down operation is performed correctly.

Step Description

1

2

3

4

After recovery operations are complete and the system switch is in the OFF position:

FIRST - Place the inlet valve in the PURGE position

SECOND

THIRD

- Place the purge valve in the PURGE position

- Place the outlet valve in the OPEN position as illustrated below.

It is important to turn the valves in this order to ensure the compressor properly

equalizes.

Turn the system switch to the “ON” position. The LED status will be green.

NOTE: If the compressor fails to start, cycle the purge valve from the RECOVERY to PURGE position to reduce the pressure difference shown on the system’s gauges.

Allow the unit to run until it shuts off automatically. The status display will flash “EVACUATION

COMPLETE” indicating that the purge operation is complete.

Turn the system switch to the OFF position and turn the outlet valve to the “CLOSE” position. Close the inlet and outlet valves on the DOT recovery tank.

During the pump down operation, the 3600’s compressor pulls the entire system and discharge hose into a vacuum and discharges the gas directly out of the discharge port leaving no more than ¼ ounce of refrigerant left in the system.

CAUTION! Never turn the purge valve when the unit is operating! Severe damage may occur.

Figure 5. Model 3600 Valve Settings for Pump Down Operation

15

Refrigerant Recovery System Model 3600

4.8. DOT Recovery Cylinder Safety

An optional 80% recovery cylinder shutoff cord is available with the Model 3600. If equipped, this cord connects to the recovery cylinder float switch and will automatically shut the Model 3600 off when the recovery cylinder becomes 80% full.

When the Model 3600 is equipped with the 80% shutoff cord, Bacharach recommends that you use this cord for added safety. If the Model 3600 is not equipped with an 80% shutoff cord, or, if you are using a recovery cylinder that does not have a float switch, then you must use a scale and the guidelines below to prevent overfilling of the cylinder.

N

OTE

:

T

HE SHORTING CAP MUST BE USED IN ORDER TO OPERATE THE

M

ODEL

3600

WITHOUT THE

80%

SHUTOFF

CORD ATTACHED TO THE RECOVERY CYLINDER

.

Bacharach uses and recommends the Air Conditioning & Refrigeration Institute's (AHRI) guideline K for the safe filling and handling of used refrigerant. This Publication is available from ARI.

WARNING: You must use a DOT recovery cylinder approved for use with R-410A refrigerant.

This recovery system is equipped with a high-pressure shutoff switch set to turn the unit off at 550 psi. Using any other cylinder may cause the pressure in the recovery cylinder to exceed the cylinder’s pressure rating.

The following information provides the safe fill weights for used refrigerant based on the size of the container and is in accordance with Guideline K.

Water Capacity Net Refrigerant

Weight

Gross Container Weight

(Approx.)

30 lbs

50 lbs

24 lbs

40 lbs

38 lbs

59 lbs

95 lbs

145 lbs

238 lbs

76 lbs

98 lbs

190 lbs

118 lbs

153 lbs

274 lbs

16

Model 3600 Refrigerant Recovery System

CHAPTER 5: TROUBLESHOOTING

Problem

Compressor

Will Not Start

Fan Will Not

Start

Unit Starts But

Stops After a

Few Minutes of

Operation

LED Status

Red LED

Green LED

NONE

Green LED

NONE

LED Off

Red LED

Green LED

Possible Cause

Green LED Vacuum pressure switch has been activated

Solution

Turn unit off. Apply 1-2 psig pressure to inlet port to reset vacuum switch

Remove restrictions in the high side.

Check for restrictions in the discharge line. Ensure that the tank valves and discharge valves are open.

Recovery cylinder has reached

450 psi high pressure limit.

Bad thermal overload

Circuit breaker is tripped

No power to the unit

Defective fan

Obstruction in fan blades

System switch is off

Evacuation is complete

If refrigerant remains in the system, check for restrictions in the suction line

Liquid valve on dot cylinder closed or outlet ball valve is not open

Other restriction(s) in discharge hose

Circuit breaker tripped due to compressor stall

The unit is too hot. Thermal overload tripped

Circuit breaker tripped due to too much pressure or liquid in the system

Replace with empty cylinder or cool cylinder with water/ice

Call Bacharach for service

Reset circuit breaker

Plug the unit into a 110-120 volt power source

Replace fan

Remove obstruction

Turn system and fan switch to on position

Check inlet pressure, verify vacuum level is at least 10"hg

Ensure all valves are open

Open the valves

Turn unit off.

Remove restriction

Reduce the inlet and/or outlet pressure

Let the unit cool down for 15 minutes

Purge the system and continue

17

Refrigerant Recovery System

CHAPTER 6: ELECTRICAL SCHEMATIC

Model 3600

18

Model 3600 Refrigerant Recovery System

CHAPTER 7: REPLACEMENT PARTS

Part # Component Description

0007-1700 FILTER/DRYER

2002-0011 COMPRESSOR RE-BUILD KIT, INCLUDES: SUCTION & DISCHARGE

VALVES, SPRINGS, ONE VALVE PLATE, & O-RINGS

2012-0130 POWER CORD SJTO, 18/3, 6FT

2012-0080 GUARD, FAN 5.9"

2013-0010 FAN MOTOR, 6" 115VAC

2014-0010 RELAY, 115V/60HZ, MOTOR START

2014-0310 SWITCH, PRESSURE, 550 psig

2014-0050 CIRCUIT BREAKER, 15 AMP

2014-0060 SWITCH, ROCKER

2014-0090 SWITCH, VACUUM, 13" HG

2014-0110 CAPACITOR 233-280 MFD 110VAC

2015-0182 BOARD, LED CIRCUIT, ¾ x 3 ¼

2024-0030 VALVE, BALL, 1/8x1/8 FEM, NPT

2024-0050 VALVE, CHECK, 1/4"

2024-0270 VALVE, 3-WAY, BALL, 1/8" FEM. NPTF DROP

2030-0031 CONDENSER ASSY., MODEL 3600

2035-0380 SUCTION HOSE, 1/4" FLR X 1/4" FLR. (BLUE)

2035-0390 DISCHARGE HOSE, 1/4" FLR X 1/4" FLR (RED)

2041-0120 BRACKET, CARRY STRAP

2041-0210 BRACKET, MOUNTING GAUGE, 2 1/2"

2045-0051 COMPRESSOR ASSY 120VAC, 50/60HZ L/S

2051-0660 CAP, PLASTIC W/RETAINER 1/4"SAE

2054-0080 RUBBER ISOLATOR 3/4 X 5/8, ¼-20

2054-0120 RUBBER FOOT, 5/8 OD X 9/16 H

2055-0030 STRAP, NYLON, 2"W x 53" LONG

2055-0050 HANDLE, FOAM, BLK, 10"

2063-0010 GAUGE, HI PRESSURE, R-410A, 2.5” diameter

2063-0020 GAUGE, LOW PRESSURE, R-410A, 2.5’ diameter

2079-0140 MANUAL FOR 3600-115

Part # Accessory

2002-0081 AUTOMATIC 80% TANK FULL SHUTOFF KIT

2010-0000 RECOVERY SCALE

T

O

O

RDER

P

ARTS

C

ALL

: 724-334-5000

F

AX

: 724-334-5001

QTY

1.00

1.00

2.00

4.00

4.00

1.00

1.00

1.00

1.00

1.00

2.00

1.00

1.00

1.00

2.00

2.00

1.00

1.00

1.00

1.00

1.00

1.00

1.00

1.00

1.00

1.00

1.00

1.00

1.00

19

Refrigerant Recovery System

World Headquarters

621 Hunt Valley Circle, New Kensington, PA 15068

Ph: 724-334-5000 • Fax: 724-334-5001 • Toll Free: 1-800-736-4666

Web site: www.MyBacharach.com • E-mail: [email protected]

P

RINTED IN

U.S.A.

20

Model 3600

® R

EGISTERED

T

RADEMARK

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
