DBL 81
2621 Ridgepoint Drive, Suite 235 Austin, TX 78754
800.866.6506
www.ikey.com

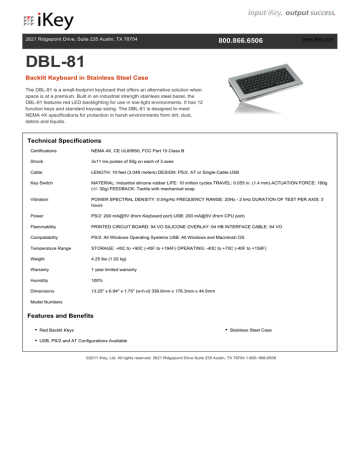

DBL-81
Backlit Keyboard in Stainless Steel Case
The DBL-81 is a small-footprint keyboard that offers an alternative solution when
space is at a premium. Built in an industrial strength stainless steel bezel, the
DBL-81 features red LED backlighting for use in low-light environments. It has 12
function keys and standard keycap sizing. The DBL-81 is designed to meet
NEMA 4X specifications for protection in harsh environments from dirt, dust,
debris and liquids.
Technical Specifications
Certifications
NEMA 4X, CE UL60950, FCC Part 15 Class B
Shock
3x11 ms pulses of 50g on each of 3 axes
Cable
LENGTH: 10 feet (3.048 meters) DESIGN: PS/2, AT or Single-Cable USB
Key Switch
MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4 mm) ACTUATION FORCE: 180g
(+/- 30g) FEEDBACK: Tactile with mechanical snap
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3
hours
Power
PS/2: 200 [email protected] (from Keyboard port) USB: 200 [email protected] (from CPU port)
Flammability
PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 VO
Compatability
PS/2: All Windows Operating Systems USB: All Windows and Macintosh OS
Temperature Range
STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)
Weight
4.25 lbs (1.02 kg)
Warranty
1 year limited warranty
Humidity
100%
Dimensions
13.25" x 6.94" x 1.75" (w-h-d) 336.6mm x 176.3mm x 44.5mm
Model Numbers
Features and Benefits
Red Backlit Keys
Stainless Steel Case
USB, PS/2 and AT Configurations Available
©2011 iKey, Ltd. All rights reserved. 2621 Ridgepoint Drive Suite 235 Austin, TX 78754 1-800- 866-6506
