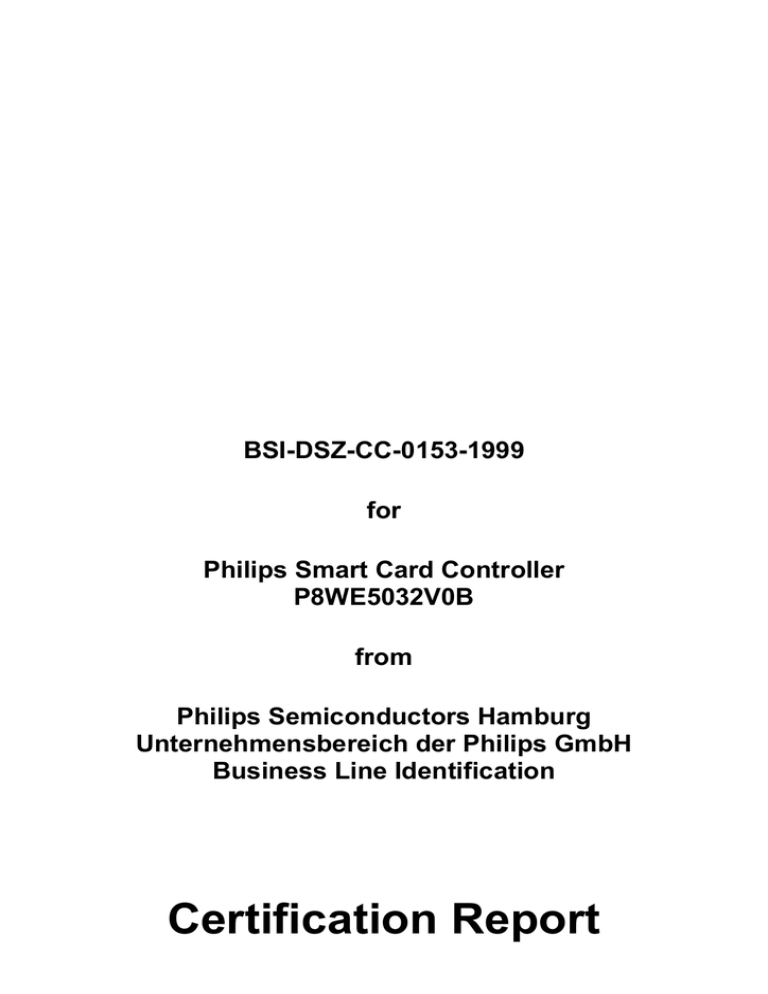

BSI-DSZ-CC-0153-1999 for

Philips Smart Card Controller

P8WE5032V0B from

Philips Semiconductors Hamburg

Unternehmensbereich der Philips GmbH

Business Line Identification

Certification Report

- Bundesamt für Sicherheit in der Informationstechnik, Postfach 20 03 63, D-53133 Bonn

Telefon +49 228 9582-0, Infoline +49 228 9582-111, Telefax +49 228 9582-455

BSI-DSZ-CC-0153-1999

Philips Smart Card Controller

P8WE5032V0B

from

Philips Semiconductors Hamburg

Unternehmensbereich der Philips GmbH

Business Line Identification

Common Criteria Arrangement

The IT product identified in this certificate has been evaluated at an accredited and licensed/ approved evaluation facility using the Common Methodology for IT Security Evaluation (CEM)

Version 0.6 and CEM Part 2 Version 1.0 Annex B for conformance to the Common Criteria for IT

Security Evaluation, Version 2.0 (CC).

Evaluation Results:

Functionality:

Cryptographic support

Protection of the TOE Security Functions

Assurance Package:

EAL3

This certificate applies only to the specific version and release of the product in its evaluated configuration and in conjunction with the complete Certification Report.

The evaluation has been conducted in accordance with the provisions of the certification scheme of the Bundesamt für Sicherheit in der Informationstechnik and the conclusions of the evaluation facility in the evaluation technical report are consistent with the evidence adduced.

The remarks printed on the reverse side are part of this certificate.

Bonn, 15 November 1999

The President of the Bundesamt für

Sicherheit in der Informationstechnik

Dr. Henze L.S.

Bundesamt für Sicherheit in der Informationstechnik

Godesberger Allee 183 - D-53175 Bonn - Postfach 20 03 63 - D-53133 Bonn

Telefon (0228) 9582-0 - Telefax (0228) 9582-455 - Infoline (0228) 9582-111

In accordance with a decree issued by the Bundesministerium des Innern (German Ministry of the

Interior), the Common Criteria and the application for this certificate, the strength of the cryptoalgorithms suitable for encryption and decryption was not evaluated.

This certificate is not an endorsement of the IT product by the Bundesamt für Sicherheit in der

Informationstechnik or any other organisation that recognises or gives effect to this certificate, and no warranty of the IT product by Bundesamt für Sicherheit in der Informationstechnik or any other organisation that recognises or gives effect to this certificate, is either expressed or implied.

BSI-DSZ-CC-0153-1999 Certification Report

Preliminary Remarks

Under the BSIG

1

Act, the Bundesamt für Sicherheit in der Informationstechnik

(BSI) has the task of issuing certificates for information technology products.

Certification of a product is carried out on the instigation of the vendor or a distributor, hereinafter called the sponsor.

A part of the procedure is the technical examination (evaluation) of the product according to the security criteria published by the BSI or generally recognised security criteria.

The evaluation is normally carried out by an evaluation facility recognised by the

BSI or by BSI itself.

The result of the certification procedure is the present Certification Report. This report contains among others the certificate (summarised assessment) and the detailed Certification Results.

The Certification Results contain the technical description of the security functionality of the certified product, the details of the evaluation (strength and weaknesses) and instructions for the user.

1

Act setting up the Bundesamt für Sicherheit in der Informationstechnik (BSI-

Errichtungsgesetz, BSIG) of 17 December 1990, Bundesgesetzblatt I p. 2834

V

Certification Report

Contents

Part A: Certification

Part B: Certification Results

Part C: Excerpts from the Criteria

BSI-DSZ-CC-0153-1999

VI

BSI-DSZ-CC-0153-1999 Certification Report

A Certification

1 Specifications of the Certification Procedure

The certification body conducts the procedure according to the criteria laid down in the following:

BSIG

2

BSI Certification Ordinance

3

BSI Schedule of Costs

4

Special decrees issued by the Bundesministerium des Innern (Federal

Ministry of the Interior)

DIN EN 45011

BSI Certification – Description of the Procedure [BSI 7125]

Common Criteria for Information Technology Security Evaluation [CC],

Version 2.0

5

Common Methodology for IT Security Evaluation [CEM], Part 1

Version 0.6, Part 2 Version 0.6, Part 2 Version 1.0 Annex B

5

4

3

2

Act setting up the Bundesamtes für Sicherheit in der Informationstechnik (BSI-

Errichtungsgesetz, BSIG) of 17 December 1990, Bundesgesetzblatt I p. 2834

Ordinance on the Procedure for Issuance of a Certificate by the Bundesamtes für

Sicherheit in der Informationstechnik (BSI-Zertifizierungsverordnung, BSIZertV) of 7 July

1992, Bundesgesetzblatt I p. 1230

Schedule of Cost for Official Procedures of the Bundesamt für Sicherheit in der

Informationstechnik (BSI-Kostenverordnung, BSI-KostV) of 29th 1992, Bundesgesetzblatt I p. 1838

Proclamation of the Bundesministeriums des Innern of 16th February 1999 in the

Gemeinsames Ministerialblatt p. 1945

A-1

Certification Report BSI-DSZ-CC-0153-1999

2 Recognition Agreements

In order to avoid multiple certification of the same product in different countries a mutual recognition of IT security certificates - as far as such certificates are based on ITSEC or CC - under certain conditions was agreed.

2.1

ITSEC - Certificates

An agreement on the mutual recognition of certificates based on ITSEC became effective on 3 March 1998. This agreement was signed by the national bodies of

Finland, France, Germany, Greece, Italy, The Netherlands, Norway, Portugal,

Spain, Sweden, Switzerland and the United Kingdom.

2.2

CC - Certificates

An arrangement on the mutual recognition of certificates based on the CC evaluation assurance levels up to and including EAL 4 became effective on

5 October 1998 between the national certification bodies of France, Germany,

United Kingdom, Canada and the United States. The joint Certification Body of

Australia and New Zealand became member of the Arrangement on 18 October

1999.

A-2

BSI-DSZ-CC-0153-1999 Certification Report

3 Performance of Evaluation and Certification

The certification body monitors each individual evaluation to ensure a uniform procedure, a uniform interpretation of the criteria and uniform ratings.

The product Philips Smart Card Controller P8WE5032V0B has undergone the certification procedure at BSI.

The evaluation of the product Philips Smart Card Controller P8WE5032V0B was conducted by debis Systemhaus Information Security Services GmbH and concluded on 3 November 1999. The debis Systemhaus Information Security

Services GmbH is an evaluation facility recognised by BSI (ITSEF)

6

.

The sponsor, vendor and distributor is Philips Semiconductors Hamburg,

Unternehmensbereich der Philips GmbH, Business Line Identification.

The certification was concluded with

• the comparability check and

• the preparation of this Certification Report.

This work was completed by the BSI on 15 November 1999.

The confirmed assurance package is only valid on the condition that

• all stipulations regarding generation, configuration and operation, as given in the following report, are observed,

• the product is operated in the environment described, where specified in the following report.

This Certification Report only applies to the version of the product indicated here. The validity can be extended to new versions and releases of the product, provided the sponsor applies for re-certification of the modified product, in accordance with the procedural requirements, and the evaluation does not reveal any security deficiencies.

For the meaning of the assurance levels and the confirmed strength of functions, please refer to the excerpts from the criteria at the end of the Certification

Report.

6

Information Technology Security Evaluation Facility

A-3

Certification Report BSI-DSZ-CC-0153-1999

4 Publication

The following Certification Results contain pages B-1 to B-12.

The product Philips Smart Card Controller P8WE5032V0B has been included in the BSI list of the certified products, which is published regularly (see also

Internet: http:// www.bsi.bund.de). Further information can be obtained via the

BSI-Infoline 0228/9582-111.

Further copies of this Certification Report may be ordered from the vendor

7

of the product. The Certification Report may also be obtained in electronic form at the internet address stated above.

7

Philips Semiconductors Hamburg, Unternehmensbereich der Philips GmbH, Business Line

Identification, P.O. Box 54 02 40, D-22502 Hamburg

A-4

BSI-DSZ-CC-0153-1999 Certification Report

B Certification Results

The following results represent a summary of

• the security target of the sponsor for the target of evaluation,

• the corresponding evaluation results of the accredited and licensed evaluation facility,

• supplementary notes and stipulations of the certification body.

B-1

Certification Report BSI-DSZ-CC-0153-1999

Contents of the certification results

1 Executive Summary..................................................................................... 3

2 Identification ................................................................................................ 5

3 Security Policy ............................................................................................. 5

4 Assumptions and Clarification of Scope ...................................................... 5

5 Architectural Information.............................................................................. 6

6 Documentation ............................................................................................ 7

7 IT Product Testing ....................................................................................... 7

8 Evaluated Configuration .............................................................................. 8

9 Results of the Evaluation............................................................................. 8

10 Evaluator Comments/Recommendations .................................................. 10

11 Security Target .......................................................................................... 10

12 Definitions.................................................................................................. 10

13 Bibliography............................................................................................... 12

B-2

BSI-DSZ-CC-0153-1999 Certification Report

1 Executive Summary

The Target of Evaluation (TOE) is the "Philips Smart Card Controller

P8WE5032V0B". It provides a hardware platform for a smart card to run smart card applications executed by a smart card operating system. The smart card operating system and the application stored in the User-Mode ROM and in the

EEPROM are not part of the TOE. The TOE provides functionality to perform the Data Encryption Algorithm (DEA) resistant to Differential Power Analysis

(DPA) attacks and to generate random numbers with a defined minimum quality.

The TOE was evaluated against the claims of the Security Target [ST] by debis

Systemhaus Information Security Services GmbH. The evaluation was completed on 3 November 1999. The debis Systemhaus Information Security

Services GmbH is an evaluation facility approved by BSI (ITSEF)

8

.

The sponsor, vendor and distributor is Philips Semiconductors Hamburg,

Unternehmensbereich der Philips GmbH, Business Line Identification.

The TOE security assurance requirements are based entirely on the assurance components and classes defined in Part 3 of the Common Criteria (see

Annex C or [CC] Part 3 for details). The TOE meets the assurance requirements of assurance level EAL 3 (Evaluation Assurance Level 3).

The TOE provides functions (F.DEA) according to the Data Encryption Algorithm (DEA) of the Data Encryption Standard (DES). F.DEA is a modular basic cryptographic function which provides the DEA algorithm as defined by FIPS

PUB 46 [FIPS46] by means of a hardware co-processor and supports the 2-key

Triple DES algorithm according to ISO 8732 (1988), Chapter 12.1.3 [ISO8732].

The 56 bit key for (single) DEA and the two 56 bit keys (112 bit) for the 2-key

Triple DES algorithm are to be provided by the environment of the TOE.

The TOE implements functions (F.DPA) which avert that the key used for encryption and decryption during the calculation of F.DEA could be disclosed by externally measuring the power consumption of the smart card chip (Differential

Power Attack, DPA).

Additionally, the TOE implements a physical hardware random number generator (F.RND). This generator continuously produces random numbers with a length of one byte. Each byte will at least contain a 6 bit entropy. The random numbers could be used by the smart card operating system or by smart card applications if necessary.

The threats which were assumed for the evaluation and averted by the TOE are specified in the Security Target [ST] and can be summarized as follows. It is assumed that the attacker is a human or a process acting on behalf of him being located outside the smart card. The attacker may compromise user data being encrypted by the TOE or he may compromise the key needed to calculate the plain text from cipher text. It is assumed that the attacker has knowledge of the cipher text only and is not able to use the decryption function of the TOE nor

8

Information Technology Security Evaluation Facility

B-3

Certification Report BSI-DSZ-CC-0153-1999

being able to observe the behaviour of the TOE during the cryptographic operation. Furthermore, an attacker may compromise cryptographic keys by analysing the power consumption of the smart card chip during the cryptographic operation of the TOE (Differential Power Analysis, DPA) or the attacker may compromise cryptographic keys generated by using the random number generator of the TOE.

In addition, a threat is assumed that can affect the security of the TOE and must be averted by the TOE security environment. This threat covers key-dependent functions which may be implemented in the smart card operating system or applications executed on the smart card chip but not in the TOE itself. An attacker may compromise cryptographic keys during these key-dependent functions using the Differential Power Analysis (DPA).

Since the security objectives are derived solely from the threats, no organisational security policy is described.

The TOE has two different operating modes, user mode and test mode. The application software being executed on the TOE shall not use the test mode.

The TOE is delivered as a hardware unit at the end of the chip manufacturing process. At this point in time the operating system software is already stored in the non-volatile memories of the chip and the test mode is disabled. Thus, there are no special procedures for generation or installation that are important for a secure use of the TOE. The further production and delivery processes, like the integration into a smart card, personalization and the delivery of the smart card to an end user, have to be organized in a way that excludes all possibilities of physical manipulation of the TOE. There are no special security measures for the startup of the TOE besides the requirement that the controller has to be used under the well-defined operating conditions as described in the user documentation.

The smart card operating system and the smart card application software have to use security relevant user data of the TOE (especially keys and plain text data) in a secure way. It is assumed that the Security Policy of the environment does not contradict the Security Objectives of the TOE. Only appropriate secret keys as input for the cryptographic function of the TOE have to be used to ensure the strength of cryptographic operation.

The environment in which the smart card (plastic card with the embedded chip) is used guarantees the physical integrity of the TOE embedded in the smart card and the usage of the TOE under the defined operating conditions (which are described in the user documentation).

The developers of the application software or the operating system have to ensure that the software fulfils the assumptions for a secure use of the TOE. In particular the assumptions imply that developers are trusted to develop software that fulfils the assumptions.

The Certification Results only apply to the version of the product indicated in the

Certificate and on the condition that all the stipulations are kept as detailed in this Certification Report. This certificate is not an endorsement of the IT product by the Bundesamt für Sicherheit in der Informationstechnik (BSI) or any other

B-4

BSI-DSZ-CC-0153-1999 Certification Report

organisation that recognises or gives effect to this certificate, and no warranty of the IT product by BSI or any other organisation that recognises or gives effect to this certificate, is either expressed or implied.

2 Identification

The following TOE deliverables are provided for a customer who purchases the

TOE:

No Type Identifier Form of Delivery

1 HW The 8-bit smart card controller Philips P8WE5032V0B Hardware Chip

2 DOC The Data Sheet [DS] Hardcopy

3 DOC The Guidance, Delivery and Operation Manual [GDO] Hardcopy

Deliverables of the TOE

The TOE is identified by P8WE5032V0B. A so called on-chip code is printed onto the chip during production and can be checked by the customer, too.

Additionally, a FabKey according to the defined FabKey-procedures supports the secure delivery and the identification of the TOE.

To ensure that the customer receives this evaluated version, the delivery procedures described in [GDO] have to be followed.

3 Security Policy

The security policy of the TOE is to provide basic security functions to be used by the smart card operating system and the smart card application thus providing an overall smart card system security. Therefore the TOE will implement a cryptographic symmetric block cipher algorithm to ensure the confidentiality of plain text data by encryption and to support secure authentication protocols.

Additionally, the TOE will ensure the confidentiality of cryptographic keys during cryptographic functions performed by the TOE and it will provide a random number generation of appropriate quality.

4 Assumptions and Clarification of Scope

The smart card operating system and the application stored in the User-Mode

ROM and in the EEPROM are not part of the TOE. The code in the Test-Mode

ROM of the TOE is used by the manufacturer of the smart card to check the chip function. This test code is disabled before the operational use of the smart card.

The smart card applications need the security functions of the smart card operating system based on the security features of the TOE. With respect to security the composition of this TOE, the operating system, and the smart card application is important. Within this composition the security functionality is only partly provided by the TOE and causes dependencies between the TOE security functions and the functions provided by the operating system or the smart card application on top. These dependencies are expressed by environmental and secure usage assumptions as outlined in the user documentation.

B-5

Certification Report BSI-DSZ-CC-0153-1999

The chip contains a FameX co-processor which accelerates modulo calculation for public key cryptosystems. The FameX co-processor is out of the scope of this evaluation.

The threats assumed do not include active physical attacks to the smart card chip. These have to be averted by the environmental assumption (see [ST] chapter 4). The security functionality of the TOE presupposes that the integrity of the Philips 5032 smart card controller is not being violated in any form.

If the smart card operating system developer and application software programmer are not the same, it is important that the operating system developer has to document all information regarding security relevant restrictions to the application software programmer, especially for all those restrictions which have to be fulfilled by the application software.

5 Architectural Information

The Philips 5032 smart card controller is an integrated circuit (IC) providing a hardware platform to a smart card operating system and smart card application software. For the implementation of the TOE Security Functions the components 8-bit 80C51 CPU, Special Function Registers (SFR), Triple-DES Co-

Processor and a Random Number Generator (RNG) are used. The complete hardware description of the Philips 5032 smart card controller is to be found in the Data Sheet [DS]. The complete instruction set of the Philips 5032 smart card controller is also described in the Data Sheet.

During evaluation the TOE was divided into major subsystems to describe the

TOE Security Functions. Correspondingly, the security enforcing subsystems

IC.DEA, IC.RNG and IC.POW mainly implement the three security functions of the TOE as described within the Security Target [ST].

The security function F.DEA is the encryption and decryption of 8 byte text blocks with 56 bit keys, conformant to the Digital Encryption Standard DES.

Furthermore, F.DEA supports the 2-key triple-DES encryption/decryption, which makes it possible to encrypt 8 byte text blocks with 112 bit long keys (two 56 bit keys). It is implemented mainly by the subsystem IC.DEA.

The security function F.DPA is the property of the TOE to resist Differential

Power Analysis attacks during the execution of F.DEA. The subsystem IC.DEA

will take countermeasures to avert, that the power consumption of the TOE contains sufficient information about the key, which is used by IC.DEA for its calculation. The subsystem IC.POW realises the power supply of the smart card.

The security function F.RND is the continuous production of random numbers with the length of one byte. These numbers will have a Shannon entropy of at least 6 bit per byte randomly produced. This is implemented by a physical hardware random number generator in the subsystem IC.RNG.

Certain Special Function Registers (SFR) are part of the subsystems IC.DEA

and IC.RND mentioned above and provide the interface to the software using the security functions of the TOE.

B-6

BSI-DSZ-CC-0153-1999 Certification Report

6 Documentation

The following documentation is provided with the product by the developer to the consumer:

Note that the customer who buys the TOE is normally the developer of the operating system and/or application software which will use the TOE as hardware computing platform. The documents [GDO] and [DS] will be used by the customer to implement the software (operating system / application software) which will use the TOE.

7 IT Product Testing

The developer provided extensive testing of the TOE Security Functions.

The tests performed by the developer can be divided into three categories.

First, there are tests which are performed in a simulation environment. The developer provided evidence that the probabilistic countermeasures against

DPA are functional by testing the internal operation of the subsystem which implements these countermeasures. The second category uses a user program which resides in the User-EEPROM of the TOE. These programs are used to stimulate the TSF in order to obtain test results. The last category uses the

Test-ROM of the chip in the same way.

For F.DEA it was shown that the subsystem implementing F.DEA is conformant to the NIST specification [FIPS46]. The implementation of the TOE was checked using the methodology and the reference data from the NIST publication [500-61]. Additionally, the results were compared to results from an independent implementation of the DES algorithm. Furthermore, encryption of random data with both implementations was also performed and compared.

After having performed these tests the independent DEA implementation was also used to get evidence of the correct triple-DES implementation according to

[ISO8732]. Both DEA implementations were used to encrypt/decrypt reference data and the results have been compared.

To test F.DPA a simulator test was done first to get evidence that the DPA countermeasures have been correctly implemented in the respective subsystem of the TOE. Then a real DPA attack on the chip assuming an outside attacker knowledge was performed. This test was performed in a lab specialized for these kind of attacks.

To test F.RND the developer performed a set of statistical tests, FIPS 140 tests

[FIPS140] (monobit-test, poker-test, runs-test and longruns-test) and the calculation of the Shannon entropy. Almost every element of this set of statistical analyses have been performed by the developer under various conditions. All tests provide evidence that F.RND was well realised and all chips tested produced random numbers with an empirical Shannon entropy of at least 7.9 bits per bytes.

B-7

Certification Report BSI-DSZ-CC-0153-1999

The evaluators performed independent tests to supplement, augment and to verify the tests performed by the developer. The test strategy applied by the evaluators was, to test each TSF of the TOE with at least one test. Besides repeating exactly the developers tests, test parameters were varied and additional analysis was done.

The test results confirm the correct implementation of the TOE Security

Functions.

For penetration testing the evaluators took all security functions into consideration. Because it was assumed within the Security Target not to consider the physical tampering of the TOE, penetration tests using such effects were not appropriate. For the security function F.DPA the evaluators performed penetration attacks by varying certain operational parameters of the TOE. The penetration tests did not detect any insecure state.

8 Evaluated Configuration

The TOE is identified by P8WE5032V0B. There is only one configuration of the

TOE (all TSF are active and usable). All information of how to use the TOE and its security functions by the software is provided within the user documentation.

The TOE has two different operating modes, user mode and test mode. The application software being executed on the TOE shall not use the test mode.

Thus, the evaluation was mainly performed in the user mode. For all evaluation activities performed in test mode, there was a rationale why the results were valid for the user mode, too.

9 Results of the Evaluation

The Evaluation Technical Report [ETR] was provided by the ITSEF according to the requirements of the Scheme, the Common Criteria [CC] and Methodology

[CEM].

The verdicts for the CC, part 3 assurance classes and components (according to EAL3 and the class ASE for the Security Target Evaluation) are summarised in the following table.

EAL3 assurance classes and components

Security Target evaluation

TOE description

Security environment

ST introduction

Security objectives

PP claims

IT security requirements

Explicitly stated IT security requirements

TOE summary specification

Configuration Management

Authorisation controls

TOE CM coverage

CC Class ASE

ASE_DES.1

ASE_ENV.1

ASE_INT.1

ASE_OBJ.1

ASE_PPC.1

ASE_REQ.1

ASE_SRE.1

ASE_TSS.1

CC Class ACM

ACM_CAP.3

ACM_SCP.1

Verdict

PASS

PASS

PASS

PASS

PASS n.a.

PASS

PASS

PASS

PASS

PASS

PASS

B-8

BSI-DSZ-CC-0153-1999 Certification Report

EAL3 assurance classes and components

Delivery and operation

Delivery procedures

Installation, generation, and start-up procedures

Development

Informal functional specification

Security enforcing high-level design

Informal correspondence demonstration

Guidance documents

Administrator guidance

User guidance

Life cycle support

Identification of security measures

Tests

Analysis of coverage

Testing: high-level design

Functional testing

Independent testing - sample

Vulnerability assessment

Examination of guidance

Strength of TOE security function evaluation

Developer vulnerability analysis

CC Class ADO

ADO_DEL.1

ADO_IGS.1

CC Class ADV

ADV_FSP.1

ADV_HLD.2

ADV_RCR.1

CC Class AGD

AGD_ADM.1

AGD_USR.1

CC Class ALC

ALC_DVS.1

CC Class ATE

ATE_COV.2

ATE_DPT.1

ATE_FUN.1

ATE_IND.2

CC Class AVA

AVA_MSU.1

AVA_SOF.1

AVA_VLA.1

Verdict

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

Verdicts for the assurance components (n.a.= not applicable)

All assurance components were assessed with the verdict PASS. This includes that all evaluator action elements being part of the assurance components are also assessed with PASS. Therefore, the TOE as defined in the Security Target

[ST] is considered to be Part 3 conformant.

The Security Target [ST], chapter 6.1 claims, that the TOE will fulfil the following

TOE security functional requirements: a) Requirements taken from Part 2 of the [CC] (CC Part 2 conformant) are b) Requirements that are explicitly stated without reference to the [CC] and defined within the Security Target [ST], chapter 10 Annex (CC Part 2 extended):

The evaluation performed in accordance to EAL3 has shown that the TOE security functional requirements are correctly realised by the TOE security functions. Thus, in realising these functional requirements, it is assured that the

TOE will meet the security objectives claimed in the Security Target [ST].

The evaluation has shown that the TOE will fulfil the claimed strength of function SOF-basic for the probabilistic implemented TOE Security Functions

(i) Random Number Generation and (ii) resistance of the Triple-DES coprocessor against Differential Power Analysis (DPA). For the TOE Security

Function (iii) DES encryption and decryption by the Triple-DES co-processor no strength of function claim has been applied.

B-9

Certification Report BSI-DSZ-CC-0153-1999

No Protection Profile (PP) conformance claims were made in the Security

Target [ST]. Thus, the evaluation results do not confirm any PP conformance.

The results of the evaluation are only applicable to Philips Smart Card

Controller P8WE5032V0B. The validity can be extended to new versions and releases of the product, provided the sponsor applies for re-certification of the modified product, in accordance with the procedural requirements, and the evaluation does not reveal any security deficiencies.

10 Evaluator Comments/Recommendations

The operational documentation [GDO] and [DS] contains all necessary information about the usage of the TOE. Besides this information, which the user has to follow, the evaluators have no further recommendations to the user of the TOE.

11 Security Target

The Security Target [ST] of the TOE is provided within a separate document.

12 Definitions

12.1

Acronyms

CC

DES

DPA

Common Criteria for IT Security Evaluation

Data Encryption Standard; symmetric block cipher algorithm

Differential Power Analysis

EAL

IT

ITSEF

PP

Evaluation Assurance Level

Information Technology

Information Technology Security Evaluation Facility

Protection Profile

SF

SFP

SOF

Security Function

Security Function Policy

Strength of Function

ST

TOE

Security Target

Target of Evaluation

Triple-DES Symmetric block cipher algorithm based on the DES

TSC

TSF

TSP

TSF Scope of Control

TOE Security Functions

TOE Security Policy

B-10

BSI-DSZ-CC-0153-1999 Certification Report

12.2

Glossary

Augmentation - The addition of one or more assurance component(s) from

Part3 to an EAL or assurance package.

Extension - The addition to an ST or PP of functional requirements not contained in Part 2 and/or assurance requirements not contained in Part 3 of the CC.

Formal - Expressed in a restricted syntax language with defined semantics based on well-established mathematical concepts.

Informal - Expressed in natural language.

Object - An entity within the TSC that contains or receives information and upon which subjects perform operations.

Protection Profile - An implementation-independent set of security requirements for a category of TOEs that meet specific consumer needs.

Security Function - A part or parts of the TOE that have to be relied upon for enforcing a closely related subset of the rules from the TSP.

Security Target - A set of security requirements and specifications to be used as the basis for evaluation of an identified TOE.

Semiformal - Expressed in a restricted syntax language with defined semantics.

Strength of Function - A qualification of a TOE security function expressing the minimum efforts assumed necessary to defeat its expected security behaviour by directly attacking its underlying security mechanisms.

SOF-basic - A level of the TOE strength of function where analysis shows that the function provides adequate protection against casual breach of TOE security by attackers possessing a low attack potential.

SOF-medium - A level of the TOE strength of function where analysis shows that the function provides adequate protection against straightforward or intentional breach of TOE security by attackers possessing a moderate attack potential.

SOF-high - A level of the TOE strength of function where analysis shows that the function provides adequate protection against deliberately planned or organised breach of TOE security by attackers possessing a high attack potential.

Subject - An entity within the TSC that causes operations to be performed.

Target of Evaluation - An IT product or system and its associated administrator and user guidance documentation that is the subject of an evaluation.

TOE Security Functions - A set consisting of all hardware, software, and firmware of the TOE that must be relied upon for the correct enforcement of the

TSP.

B-11

Certification Report BSI-DSZ-CC-0153-1999

TOE Security Policy - A set of rules that regulate how assets are managed, protected and distributed within a TOE.

TSF Scope of Control - The set of interactions that can occur with or within a

TOE and are subject to the rules of the TSP.

13 Bibliography

[CC] Common Criteria for IT Security Evaluation, Version 2.0

[CEM] Common Methodology for IT Security Evaluation (CEM), Part 1

Version 0.6, Part 2 Version 0.6, Part 2 Version 1.0 Annex B

[BSI 7125] BSI certification: Procedural Description (BSI 7125, Version 5.1,

January 1998)

[ST] Security Target of the First Evaluation of Philips P8WE5032 Smart

Card Controller, Version 1.0, September 20th 1999

[GDO]

[DS]

[ETR]

[FIPS46]

Guidance, Delivery and Operation Manual of the First Evaluation of Philips P8WE5032 Smart Card Controller, Version 1.0, October

5th 1999

Data Sheet – Philips P8WE5032 Secure 8-bit Smart Card Controller, Preliminary Specification, Revision 2.1, June 1999

Evaluation Technical Report of the Philips P8WE5032V0B Smart

Card Controller, Version 1.0, November 2 nd

1999 (non-public

Document)

U.S. Department of Commerce / National Bureau of Standards

Data Encryption Standard, FIPS PUB 46, 1977 January 15

[ISO8732] International Organization for Standardization: Banking – Key

Management, International Standard ISO 8732 (1988), Chapter

12.1.3

[FIPS140] U.S. Department of Commerce / National Bureau of Standards

Processing Standards Publication 140-1 1994 - SECURITY

REQUIREMENTS FOR CRYPTOGRAPHIC MODULES, 1994

January 11

[500-61] U.S. Department of Commerce / National Bureau of Standards;

NBS Special Publication 500-61, Maintenance Testing for the Data

Encryption Standard, August 1980

B-12

BSI-DSZ-CC-0153-1999 Certification Report

C Excerpts from the Criteria

CC Part 1:

Caveats on evaluation results (Kapitel 5.4)

„The pass result of evaluation shall be a statement that describes the extent to which the PP or TOE can be trusted to conform to the requirements. The results shall be caveated with respect to Part 2 (functional requirements), Part 3 (assurance requirements) or directly to a PP, as listed below.

a) Part 2 conformant - A PP or TOE is Part 2 conformant if the functional requirements are only based upon functional components in Part 2.

b) Part 2 extended - A PP or TOE is Part 2 extended if the functional requirements include functional components not in Part 2.

c) Part 3 conformant - A PP or TOE is Part 3 conformant if the assurance requirements are in the form of an EAL or assurance package that is based only upon assurance components in Part 3.

d) Part 3 augmented - A PP or TOE is Part 3 augmented if the assurance requirements are in the form of an EAL or assurance package, plus other assurance components in Part 3.

e) Part 3 extended - A PP or TOE is Part 3 extended if the assurance requirements are in the form of an EAL associated with additional assurance requirements not in Part 3 or an assurance package that includes (or is entirely made up from) assurance requirements not in Part 3.

f) Conformant to PP - A TOE is conformant to a PP only if it is compliant with all parts of the PP.“

C-1

Certification Report BSI-DSZ-CC-0153-1999

CC Teil 3:

Assurance categorisation (chapter 2.5)

„The assurance classes, families, and the abbreviation for each family are shown in

Table 2.1.

Assurance Class

Class ACM:

Configuration management

CM capabilities

CM scope

Delivery Class ADO: Delivery and operation

Class ADV:

Development

Installation, generation and start-up

Functional specification

Class AGD: Guidance documents

High-level design

Implementation representation

TSF internals

Low-level design

Representation correspondence

Security policy modeling

Administrator guidance

Class ALC: Life cycle support

User guidance

Development security

Class ATE: Tests

Flaw remediation

Life cycle definition

Tools and techniques

Coverage

Depth

Functional tests

Independent testing

Covert channel analysis Class AVA:

Vulnerability assessment

Assurance Family

CM automation

Misuse

Strength of TOE security functions

Vulnerability analysis

Abbreviated Name

Table 2.1 -Assurance family breakdown and mapping“

ACM_AUT

AVA_MSU

AVA_SOF

AVA_VLA

ACM_CAP

ACM_SCP

ADO_DEL

ADO_IGS

ADV_FSP

ADV_HLD

ADV_IMP

ADV_INT

ADV_LLD

ADV_RCR

ADV_SPM

AGD_ADM

AGD_USR

ALC_DVS

ALC_FLR

ALC_LCD

ALC_TAT

ATE_COV

ATE_DPT

ATE_FUN

ATE_IND

AVA_CCA

C-2

BSI-DSZ-CC-0153-1999 Certification Report

Evaluation assurance levels (chapter 6)

The Evaluation Assurance Levels (EALs) provide an increasing scale that balances the level of assurance obtained with the cost and feasibility of acquiring that degree of assurance. The CC approach identifies the separate concepts of assurance in a TOE at the end of the evaluation, and of maintenance of that assurance during the operational use of the TOE.

It is important to note that not all families and components from Part 3 are included in the EALs. This is not to say that these do not provide meaningful and desirable assurances. Instead, it is expected that these families and components will be considered for augmentation of an EAL in those PPs and STs for which they provide utility.

Evaluation assurance level (EAL) overview (chapter 6.1)

„Table 6.1 represents a summary of the EALs. The columns represent a hierarchically ordered set of EALs, while the rows represent assurance families. Each number in the resulting matrix identifies a specific assurance component where applicable.

As outlined in the next section, seven hierarchically ordered evaluation assurance levels are defined in the CC for the rating of a TOE's assurance. They are hierarchically ordered inasmuch as each EAL represents more assurance than all lower EALs. The increase in assurance from EAL to EAL is accomplished by substitution of a hierarchically higher assurance component from the same assurance family (i.e.

increasing rigour, scope, and/or depth) and from the addition of assurance components from other assurance families (i.e. adding new requirements).

These EALs consist of an appropriate combination of assurance components as described in chapter 2 of this Part 3. More precisely, each EAL includes no more than one component of each assurance family and all assurance dependencies of every component are addressed.

While the EALs are defined in the CC, it is possible to represent other combinations of assurance. Specifically, the notion of “augmentation“ allows the addition of assurance components (from assurance families not already included in the EAL) or the substitution of assurance components (with another hierarchically higher assurance component in the same assurance family) to an EAL. Of the assurance constructs defined in the CC, only EALs may be augmented. The notion of an “EAL minus a constituent assurance component“ is not recognised by the CC as a valid claim. Augmentation carries with it the obligation on the part of the claimant to justify the utility and added value of the added assurance component to the EAL. An EAL may also be extended with explicitly stated assurance requirements.

C-3

Certification Report BSI-DSZ-CC-0153-1999

Assurance

Class

Configuration management

Delivery and operation

Development

Guidance documents

Life cycle support

Tests

Vulnerability assessment

Assurance

Family

ACM_AUT

ACM_CAP

ACM_SCP

ADO_DEL

ADO_IGS

ADV_FSP

ADV_HLD

ADV_IMP

ADV_INT

ADV_LLD

ADV_RCR

ADV_SPM

AGD_ADM

AGD_USR

ALC_DVS

ALC_FLR

ALC_LCD

ALC_TAT

ATE_COV

ATE_DPT

ATE_FUN

ATE_IND

AVA_CCA

AVA_MSU

AVA_SOF

AVA_VLA

Assurance Components by

Evaluation Assurance Level

EAL1 EAL2 EAL3 EAL4 EAL5 EAL6 EAL7

1

1

2

2

1

1

1

1

1

1

1

2

1

1

1

1

1

1

1

1

1

2

1

1

3

1

1

1

1

2

1

1

1

1

2

1

1

2

1

1

1

4

2

2

1

2

2

1

1

1

1

1

1

1

1

1

2

1

1

2

2

1

2

4

3

2

1

2

3

1

1

3

3

2

1

1

1

1

2

2

2

1

2

2

2

1

3

Table 6.1 - Evaluation assurance level summary“

5

3

2

1

2

3

2

2

1

3

4

3

1

2

2

3

3

2

2

2

2

3

1

4

2

3

3

3

3

3

2

3

1

4

1

3

3

3

2

1

4

5

3

5

3

3

1

2

C-4

BSI-DSZ-CC-0153-1999 Certification Report

Evaluation assurance level 1 (EAL1) - functionally tested (chapter 6.2.1)

„Objectives

EAL1 is applicable where some confidence in correct operation is required, but the threats to security are not viewed as serious. It will be of value where independent assurance is required to support the contention that due care has been exercised with respect to the protection of personal or similar information.

EAL1 provides an evaluation of the TOE as made available to the customer, including independent testing against a specification, and an examination of the guidance documentation provided. It is intended that an EAL1 evaluation could be successfully conducted without assistance from the developer of the TOE, and for minimal outlay.

An evaluation at this level should provide evidence that the TOE functions in a manner consistent with its documentation, and that it provides useful protection against identified threats.“

Evaluation assurance level 2 (EAL2) - structurally tested (chapter 6.2.2)

„Objectives

EAL2 requires the co-operation of the developer in terms of the delivery of design information and test results, but should not demand more effort on the part of the developer than is consistent with good commercial practice. As such it should not require a substantially increased investment of cost or time.

EAL2 is therefore applicable in those circumstances where developers or users require a low to moderate level of independently assured security in the absence of ready availability of the complete development record. Such a situation may arise when securing legacy systems, or where access to the developer may be limited.“

Evaluation assurance level 3 (EAL3) - methodically tested and checked

(chapter 6.2.3)

„Objectives

EAL3 permits a conscientious developer to gain maximum assurance from positive security engineering at the design stage without substantial alteration of existing sound development practices.

EAL3 is applicable in those circumstances where developers or users require a moderate level of independently assured security, and require a thorough investigation of the TOE and its development without substantial re-engineering.“

Evaluation assurance level 4 (EAL4) - methodically designed, tested, and

reviewed (chapter 6.2.4)

„Objectives

EAL4 permits a developer to gain maximum assurance from positive security engineering based on good commercial development practices which, though rigorous, do not require substantial specialist knowledge, skills, and other resources. EAL4 is the

C-5

Certification Report BSI-DSZ-CC-0153-1999

highest level at which it is likely to be economically feasible to retrofit to an existing product line.

EAL4 is therefore applicable in those circumstances where developers or users require a moderate to high level of independently assured security in conventional commodity

TOEs and are prepared to incur additional security-specific engineering costs.“

Evaluation assurance level 5 (EAL5) - semiformally designed and tested

(chapter 6.2.5)

„Objectives

EAL5 permits a developer to gain maximum assurance from security engineering based upon rigorous commercial development practices supported by moderate application of specialist security engineering techniques. Such a TOE will probably be designed and developed with the intent of achieving EAL5 assurance. It is likely that the additional costs attributable to the EAL5 requirements, relative to rigorous development without the application of specialised techniques, will not be large.

EAL5 is therefore applicable in those circumstances where developers or users require a high level of independently assured security in a planned development and require a rigorous development approach without incurring unreasonable costs attributable to specialist security engineering techniques.“

Evaluation assurance level 6 (EAL6) - semiformally verified design and

tested (chapter 6.2.6)

„Objectives

EAL6 permits developers to gain high assurance from application of security engineering techniques to a rigorous development environment in order to produce a premium TOE for protecting high value assets against significant risks.

EAL6 is therefore applicable to the development of security TOEs for application in high risk situations where the value of the protected assets justifies the additional costs.“

Evaluation assurance level 7 (EAL7) - formally verified design and tested

(chapter 6.2.7)

„Objectives

EAL7 is applicable to the development of security TOEs for application in extremely high risk situations and/or where the high value of the assets justifies the higher costs. Practical application of EAL7 is currently limited to TOEs with tightly focused security functionality that is amenable to extensive formal analysis.“

C-6

BSI-DSZ-CC-0153-1999 Certification Report

Strength of TOE security functions (AVA_SOF) (chapter 14.3)

AVA_SOF

Strength of TOE security functions

„Objectives

Even if a TOE security function cannot be bypassed, deactivated, or corrupted, it may still be possible to defeat it because there is a vulnerability in the concept of its underlying security mechanisms. For those functions a qualification of their security behaviour can be made using the results of a quantitative or statistical analysis of the security behaviour of these mechanisms and the effort required to overcome them. The qualification is made in the form of a strength of TOE security function claim.“

Vulnerability analysis (AVA_VLA) (chapter 14.4)

AVA_VLA

Vulnerability analysis

„Objectives

Vulnerability analysis is an assessment to determine whether vulnerabilities identified, during the evaluation of the construction and anticipated operation of the TOE or by other methods (e.g. by flaw hypotheses), could allow users to violate the TSP.

Vulnerability analysis deals with the threats that a user will be able to discover flaws that will allow unauthorised access to resources (e.g. data), allow the ability to interfere with or alter the TSF, or interfere with the authorised capabilities of other users.“

„Application notes

A vulnerability analysis is performed by the developer in order to ascertain the presence of security vulnerabilities, and should consider at least the contents of all the

TOE deliverables including the ST for the targeted evaluation assurance level. The developer is required to document the disposition of identified vulnerabilities to allow the evaluator to make use of that information if it is found useful as a support for the evaluator's independent vulnerability analysis.“

„Independent vulnerability analysis goes beyond the vulnerabilities identified by the developer. The main intent of the evaluator analysis is to determine that the

TOE is resistant to penetration attacks performed by an attacker possessing a low (for AVA_VLA.2), moderate (for AVA_VLA.3) or high (for AVA_VLA.4) attack potential.“

C-7

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
