Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
Catalog #0307

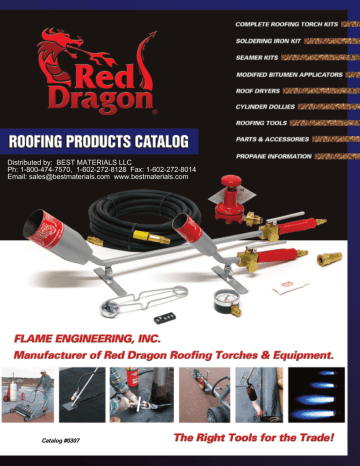

The Complete Red Dragon Roofing Products Catalog
About The Red Dragon Roofing Products Catalog
We are pleased to intoduce this new, full color, Roofing Products
Catalog. We have always been advocates of safe practices while
using torches on the roof and would like to call your attention to
the important Safety Data on page 20. Also, call and ask for our
FREE video presentation, “On the Roof Safety With Propane
Torches.” And don’t forget that 11 Red Dragon Roofing Torch
Kits are CSA* Certified so you know you are getting the safest,
most reliable torch kits on the market today.
Please note, we have also improved the Red Dragon Roof
Dryerfound on page 10. It now has even more drying power
with a larger horsepower engine and higher rpm blower.
Attention Red Dragon Distributors
Helping our distributors is a top priority and we continue to do
this in a number of ways. Flame Engineering promotes Red
Dragon products through an extensive advertising plan and
aggressive trade show participation. We encourage you to
advertise! We have a complete photography file of our products
on CD-Rom, available to anyone wishing to advertise or include
Red Dragon products in their catalog. Please call today for more
information about co-op advertising or a free copy of our
product photo CD.
Thank you for choosing RED DRAGON!
* CSA International (formerly the American Gas Association and Canadian Gas Association)
is an independent testing laboratory specializing in LP and Natural Gas Equipment for the
United States and Canada. Flame Engineering was the first torch manufacturer to receive
both American Gas Association and Canadian Gas Association certification.
TABLE OF CONTENTS
Roofing Torch Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 6
Soldering Iron Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Seamer Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Modified Bitumen Applicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 9
Roof Dryers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Cylinder Dollies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Infrared Non-Contact Thermometers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Roofing Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 - 13
Spud Bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Core Cutter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Bitumen Hooker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Roll Hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Roofing Trowels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Spark Lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Roofing Torch Parts And Accessories . . . . . . . . . . . . . . . . . . . . . . . . . .14 - 18
Replacement Torches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Piezo Ignitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Squeeze Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Quick Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
P.O.L.’s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 - 17
M.O.P.’s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Needle Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Adapters & Couplings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Pressure Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Regulators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
LP Gas Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Torch Kits, SPA Wagon and Roof Dryer Assembly Diagrams . . . . . . .18 - 19
Propane Properties And Safety Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
COMPLETE ROOFING TORCH KITS
RED DRAGON TORCHES are made of durable, lightweight steel and contain all parts necessary to torch
down modified bitumen.
Each product is tested prior to leaving the factory and is guaranteed in quality and workmanship.
We stock a complete line of parts and accessories available for immediate delivery, all of which include
standard American fittings.
RED DRAGON RT COMBO
Other manufacturers have unsuccessfully attempted to copy the RT COMBO. This kit is truly the choice of professional roofers. Be certain to
ask for all kits by name and number and you’ll be sure to receive genuine RED DRAGON TORCHES – the best tools for the trade.
This combination field and detail torch kit is our most
popular model. The handy quick connect feature enables
the operator to switch from stand-up to detail torch in a
snap – without tools and while still using the same LP
gas hose, regulator and tank.
CSA Certified for U.S and Canada.
Also available in a Lightweight Model – RT Combo LW.
KIT INCLUDES:
Qty Part #
Description
1
RT 21/2-20
400,000 BTU Field Torch w/Male Quick Connect Adaptor
or RT 21/2-20 LW 400,000 BTU Field Torch w/Male Quick Connect Adaptor
1
RT 11/2-10
50,000 BTU Detail Torch w/Male Quick Connect Adaptor
(see Replacement Parts and Accessories for Torch Components)
HN-5
U.L. Listed Female Quick Connect
1
1
HP-25
U.L. Listed 25' LP Gas Hose
1
567 RC
U.L. Listed Regulator
1
P-W 795
U.L. Listed Hand Tighten POL
1
G-23
Pressure Gauge
2
TB-4
Welded Torch Stand
1
L-2001
Spark Lighter and Flints
Order SKU #
RT COMBO
RT COMBO LW
Wt Each
9.3 lbs
9.0 lbs
Case Qty
4
4
The QUICK CONNECT feature allows the operator to instantly switch from
stand-up to detail torch with no tools while continuing to use the same LP gas
hose, regulator and tank!
RED DRAGON RT 21/2-20 C
The work horse of all Red Dragon roofing torch kits, the
RT 21/2-20 C performs stand up work with ease and is
noted for durability and efficiency on the job. This kit
excels in balance and flame control and has an overall
torch length of 29.” One size fits all!
CSA Certified for U.S and Canada.
Also available in a Lightweight Model – RT 21/2-20 LW C.
KIT INCLUDES:
Qty Part #
Description
1
RT 21/2-20
400,000 BTU Field Torch
or RT 21/2-20 LW 400,000 BTU Field Torch
(see Replacement Parts and Accessories for Torch Components)
U.L. Listed 25' LP Gas Hose
HP-25
1
567 RC
U.L. Listed Regulator
1
1
P-W 795
U.L. Listed Hand Tighten POL
1
G-23
Pressure Gauge
Welded Torch Stand
TB-4
1
1
L-2001
Spark Lighter and Flints
Order SKU #
RT 21/2-20 C
RT 21/2-20 LW C
2
In recent tests, the
RED DRAGON
RT 21/2-20 C proved to be
as hot or hotter than any
competitive brand and
capable of exceeding
400,000 BTU!
Wt Each
8.5 lbs
8.2 lbs
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
Case Qty
4
4
RED DRAGON HSB-25 C / HSH-25 C HEAD START KITS
These two kits are each equipped with a Piezo ignitor for
a quick start, time after time. Requires no electrical input
– just push the ignitor button located on the torch head
(HSB-25 C) or near the torch handle (HSH-25 C).
CSA Certified for U.S and Canada.
The HSB-25 C features a Piezo ignitor on the torch bell for a
quick start every time.
KIT INCLUDES:
Description
Qty Part #
1
HSB-25
400,000 BTU Field Torch w/Ignitor on Torch Bell
or HSH-25
400,000 BTU Field Torch w/ignitor on Handle
(see Replacement Parts and Accessories for Torch Components)
1
HP-25
U.L. Listed 25' LP Gas Hose
567 RC
U.L. Listed Regulator
1
P-W 795
U.L. Listed Hand Tighten POL
1
G-23
Pressure Gauge
1
TB-4
Welded Torch Stand
1
Order SKU #
HSB-25 C
HSH-25 C
Wt Each
7.5 lbs
7.5 lbs
Case Qty
4
4
The HSH-25 C features a Piezo ignitor near the handle for a
quick start every time.
RED DRAGON RT TWIN C
This power house is perfect for the roofer who prefers
the high, 600,000 BTU output of the dual VT 21/2-0 burner
system. This durable and very effective kit is sure to
increase productivity and is still very affordable. (May
require a 100 lb. or larger LP Cylinder).
CSA Certified for U.S and Canada.
KIT INCLUDES:
Qty Part #
Description
1
RT Twin
600,000 BTU Field Torch w/Ignitor on Torch Bell
(see Replacement Parts and Accessories for Torch Components)
1
HP-25
U.L. Listed 25' LP Gas Hose
U.L. Listed Regulator
567 RC
1
1
P-W 795
U.L. Listed Hand Tighten POL
Pressure Gauge
G-23
1
Welded Torch Stand
TB-4
1
1
L-2001
Spark Lighter and Flints
The Twin Heads produce 600,000 BTU
allowing you to handle those special
jobs which require wider flame
coverage and more heat output.
Order SKU #
RT TWIN C
Wt Each
9.4 lbs
Case Qty
4
All torch kits listed on pages 2 & 3
are CSA Certified for the U.S. & Canada.
All RED DRAGON Torches Are
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
3
COMPLETE ROOFING TORCH KITS
RED DRAGON RT 3-20 C
This heavy duty kit is perfect for the roofer who requires
higher BTU output. At 500,000 BTU this kit increases
flame width, length and overall heat coverage with a
single torch head.
CSA Certified for U.S and Canada.
KIT INCLUDES:
Description
Qty Part #
RT 3-20
500,000 BTU Field Torch w/Ignitor on Torch Bell
1
(see Replacement Parts and Accessories for Torch Components)
1
HP-25
U.L. Listed 25' LP Gas Hose
1
567 RC
U.L. Listed Regulator
P-W 795
U.L. Listed Hand Tighten POL
1
G-23
Pressure Gauge
1
TB-4
Welded Torch Stand
1
L-2001
Spark Lighter and Flints
1
Order SKU #
RT 3-20 C
Wt Each
8.1 lbs
Case Qty
4
RED DRAGON RT BASIC
The RT Basic is available for the price conscious roofer
who wants a great torch but the very basic requirements
in features and accessories. P.O.L. fitting requires wrench
tightening, no pressure gauge, and no spark lighter
included.
CSA Certified for U.S and Canada.
Order SKU #
RT BASIC
Wt Each
7.2 lbs
KIT INCLUDES:
Qty Part #
Description
1
RT 21/2-20 LW 500,000 BTU Field Torch w/Ignitor on Torch Bell
(see Replacement Parts and Accessories for Torch Components)
1
HP-25
U.L. Listed 25' LP Gas Hose
1
567 RC
U.L. Listed Regulator
1
P-3200 W
U.L. Listed Safety POL
1
TB-4
Welded Torch Stand
All RED DRAGON Torches Are
SAFETY FIRST!
At Flame Engineering, Inc., we
promote the safe use of all our
products. Call or write for your
FREE Safety Video entitled “On The
Roof Safety With Propane
Torches.” This is a must-see video
for new roofing employees and is a
great reminder for veteran roofers.
Implement this video into your
safety program today.
No purchase necessary.
All torch kits listed on pages 4 & 5
are CSA Certified for the U.S. & Canada.
4
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
Case Qty
4
RED DRAGON RT 11/2-10 C DETAIL TORCH KIT
Need a detail torch to make
easy work around flashings,
walls, and other obstacles?
Ask for the RT 11/2-10 C
torch kit. Overall length is
15”, the preference of
professional roofers today.
Use this kit with one of our
hand trowels (TW-5 & TW-7
on page 13) for easy patch
work and cleanup.
CSA Certified for U.S and
Canada.
Order SKU #
RT 11/2-10 C
Wt Each
7.0 lbs
Case Qty
4
KIT INCLUDES:
Qty Part #
Description
1
RT 11/2-10
50,000 BTU Detail Torch
(see Replacement Parts and Accessories for Torch Components)
HP-25
U.L. Listed 25' LP Gas Hose
1
567 RC
U.L. Listed Regulator
1
P-W 795
U.L. Listed Hand Tighten POL
1
G-23
Pressure Gauge
1
TB-4
Welded Torch Stand
1
1
L-2001
Spark Lighter and Flints
IMPORTANT NOTE:
WE DON’T MANUFACTURE HOT
AIR TORCHES FOR THIS REASON;
Visible or invisible, heat can be
dangerous if not used safely and
properly. All hot air torches
generate sufficient heat to burn if
left in one place long enough. We
promote the safe use of all torches.
RED DRAGON RK 5-10 C ROOF PATCH KIT
For small spot repairs, reach for the RK 5-10 C Roof
Patch Kit. A handy kit for quick fix-ups. Compact and
easily carried up a ladder. Comes complete with a 5 lb.
capacity cylinder. CSA Certified for U.S and Canada.
KIT INCLUDES:
Qty Part #
Description
1
RT 11/2-10
50,000 BTU Detail Torch
(see Replacement Parts and Accessories for Torch Components)
1
C-6
5 lb. LP Gas Cylinder
1
HP-10
U.L. Listed 10' LP Gas Hose
1
567 RC
U.L. Listed Regulator
1
P-W 795
U.L. Listed Hand Tighten POL
1
G-23
Pressure Gauge
1
TB-4
Welded Torch Stand
Spark Lighter and Flints
L-2001
1
Order SKU #
RK 5-10 C
Wt Each
7.0 lbs
Case Qty
1
The RK 5-10 C is compact and
easily carried up a ladder.
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
5
COMPLETE ROOFING TORCH KITS
RED DRAGON RT 21/2-20 CDX
A complete roofing torch kit, the CDX model includes both
stand-up and detail heads (tools required for changing
heads). Whenever changing torch heads, please
remember to use thread sealant or compound to ensure a
safe transition.
Also available in a Lightweight Model - RT 21/2-20 LW CDX.
KIT INCLUDES:
Qty Part #
Description
1
RT 21/2-20
400,000 BTU Field Torch
or RT 21/2-20 LW 400,000 BTU Field Torch
(see Replacement Parts and Accessories for Torch Components)
50,000 BTU Detail Torch Head
VT 11/2-0
1
ET-4
4” Torch Extension
1
HP-25
U.L. Listed 25' LP Gas Hose
1
1
567 RC
U.L. Listed Regulator
1
P-W 795
U.L. Listed Hand Tighten POL
1
G-23
Pressure Gauge
1
TB-4
Welded Torch Stand
1
L-2001
Spark Lighter and Flints
Order SKU #
RT 21/2-20 CDX
RT 21/2-20 LW CDX
Wt Each
9.0 lbs
8.4 lbs
Case Qty
4
4
RED DRAGON ST 1-12 C PROPANE SOLDERING IRON
The Red Dragon Soldering Iron kit stays hot, enabling you to solder consistently and quickly.
No electricity or acetylene bottles necessary here – just a one-gallon propane cylinder. Each
kit is equipped with a Diamond Point Tip. Optional Chisel Point Tip available upon request.
Solder flashings, gutters, copper, and more with the ST 1-12 C.
Order SKU #
ST 1-12 C Soldering Kit
ST-11 Diamond Point Tip
ST-13 Chisel Point Tip
6
Wt Each Case Qty
4
7.2 lbs
0.4 lbs
1
0.4 lbs
1
KIT INCLUDES:
Qty Part #
1
ST 1-12
1
ST-11
HP-10
1
1
567 RC
1
V-334
1
P-3200 W
1
G-23
ST 1-B
1
•
Optional ST-13
The ST 1-12 shown with optional
ST-13 Chisel Point Tip and standard
ST-11 Diamond point tip. Please
specify upon ordering.
Description
25,000 BTU Soldering Iron Assembly
Diamond Point Tip
U.L. Listed 10' LP Gas Hose
U.L. Listed Regulator
Flame Adjusting Valve
Soft Nose Excess Flow POL
Pressure Gauge
Welded Torch Stand
Chisel Point Tip
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
All RED DRAGON Torches Are
RED DRAGON SS 500 C SIMPLE SEAMER
The Red Dragon Simple Seamer allows you to finish
seams from a standing position. No more back fatigue
caused by all that stooping and bending with a hand
trowel and hand torch. The lightweight Simple Seamer
features a 50,000 BTU heated trowel with a dual grip
handle to ensure ease in use. It is perfect for reheating
laps, finishing seams, degranulating, filling voids or loose
areas, and reheating seams. Torch position and trowel
angle are adjustable and the squeeze valve gives you full
control of the torch while you work.
KIT INCLUDES:
Qty Part #
1
SS 500
1
HP-25
1
567 RC
P-W 795
1
V-880 P
1
G-23
1
L-2001
1
Description
50,000 BTU Torch Assembly
U.L. Listed 25' LP Gas Hose
U.L. Listed Regulator
U.L. Listed Hand Tighten POL
Squeeze Valve
Pressure Gauge
Spark Lighter and Flints
Order SKU #
SS 500 C
Wt Each
10.8 lbs
Case Qty
1
The Simple Seamer allows you to
finish seams from a standing
position, reducing back fatigue.
RED DRAGON SP1-6A MASTER SEAMER
Use the Red Dragon Master Seamer on jobs where a wagon is awkward and a precision
seam weld is critical. The Master Seamer is designed to apply torchable modified bitumen
asphalt. Originally designed for insulated membranes. Consult your materials manufacturer
for more information on proper installation of your system.
The Red Dragon Master Seamer is very user friendly. It reduces stooping, troweling and hand
torching seams by raising the membrane, torching the underside of the seam and then
finishing the weld with our special “trailing” wheels. Each unit is packed partially assembled.
KIT INCLUDES:
Qty Part #
1
MS 11/2-0
1
HP-25
567 RC
1
1
P-W 795
V-880 P
1
G-23
1
1
L-2001
Order SKU #
SP1-6A
Description
50,000 BTU Torch Assembly
U.L. Listed 25' LP Gas Hose
U.L. Listed Regulator
U.L. Listed Hand Tighten POL
Squeeze Valve
Pressure Gauge
Spark Lighter and Flints
Wt Each
38.0 lbs
Case Qty
1
The Master Seamer raises the
membrane, torches the underside
of the seam and finishes the weld
with special “trailing” wheels. Also,
just a simple turn of the “T” handle
and the torch reverses to work the
opposite side of the roll.
RED DRAGON Seamers Are
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
7
MODIFIED BITUMEN APPLICATORS
RED DRAGON MODIFIED BITUMEN APPLICATORS CAN GREATLY REDUCE APPLICATION TIME!
ARE MADE OF DURABLE, LIGHTWEIGHT STEEL CONSTRUCTION .
APPLY 3/4, 1 AND 1 1/2 SQUARE ROLLS.
BUY 3 AND WE’LL ASSEMBLE THEM FREE OF CHARGE
(3 assembled units ship by truck only, in one box)
RED DRAGON SPA 540 A & SPA 740 A MODIFIED BITUMEN APPLICATORS
Both the Red Dragon SPA 540 A (5 burners) & SPA 740 A (7 burners) feature onehandle design and complete manifold adjustability, making these wagons the
most requested in the industry. Each torch has a flame adjusting needle valve
for total flame control and the manifold moves to and from the roll with a
simple twist of the handle. The manifold angle can also be adjusted and side
shields and superior design concentrate the heat on the material – not the
operator. Use on APP systems.
SPA-740 A
SPA-540 A
Torch and manifold
adjustments are easily
made on the SPA 540 A &
740 A. Each torch has a
needle valve, and the
manifold moves back and
forth by rotating the handle.
UNIT INCLUDES:
Qty Part #
5 or 7 VT 21/2-0
5 or 7 V 3055 P
1
HP-25
1
567 RC
1
P-1685
1
V-880 P
1
G-23
1
L-2001
Description
400,000 BTU Vapor Torch Head
Flame Adjusting Needle Valve
U.L. Listed 25' LP Gas Hose
U.L. Listed Regulator
U.L. Listed POL
Squeeze Valve
Pressure Gauge
Spark Lighter
Order SKU #
SPA-540 A
SPA-740 A
Wt Each
82.0 lbs
84.0 lbs
Case Qty
1
1
(shipped in 2 boxes)
Now apply bitumen with the
trailing wheels on or off the roll.
SPA-540 A & SPA-740 A
both feature the easy roll mounting system.
As Easy as One, Two, Three!
This NEW design allows the trailing wheels to be assembled inside
or outside the frame on the SPA-540 A & SPA-740 A, as some
modified bitumen manufacturers specify no wheels on the seam.
8
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
RED DRAGON SPA 1000 MODIFIED BITUMEN APPLICATOR
By customer request we are offering a new wagon similar to a
competitor’s model. The older style two handle design modernized
by Red Dragon technology. Features include a stainless steel
manifold and framework and 7 durable vapor torches. Each torch has
a flame adjusting needle valve for total flame control and the
manifold easily moves to and from the roll. Lighter weight than the
competition and American made. For use by professional roofing
contractors.
UNIT INCLUDES:
Qty Part #
Description
2
VT 21/2-0 400,000 BTU Vapor Torch Head
VT 2-0
100,000 BTU Vapor Torch Head
5
V 3055 P
Flame Adjusting Needle Valve
7
HP-50
U.L. Listed 50' LP Gas Hose
1
R-499
U.L. Listed Regulator
1
1
P-1685
U.L. Listed POL
1
V-880 PH-1 Squeeze Valve/Handle Assembly
1
G-23
Pressure Gauge
Order SKU #
SPA-1000
Wt Each
54.0 lbs
Case Qty
1
RED DRAGON SPA-520
ECONOMY MODIFIED BITUMEN APPLICATOR
With five adjustable torches on a stationary manifold, the
SPA 520 features one-handle design and a spool-type roller
bar. This drag unit is the economy model of the line.
All RED DRAGON Modified
Bitumen Applicators Are
UNIT INCLUDES:
Description
Qty Part #
5
VT 21/2-0 400,000 BTU Vapor Torch Head
5
V 3055 P
Flame Adjusting Needle Valve
1
HP-25
U.L. Listed 25' LP Gas Hose
U.L. Listed Regulator
567 RC
1
1
P-1685
U.L. Listed POL
V-880 P
Squeeze Valve
1
1
G-23
Pressure Gauge
Order SKU #
SPA-520
Wt Each
57.3 lbs
Case Qty
1
(shipped in 1 box)
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
9
ROOF DRYER, CYLINDER DOLLIES & NON-CONTACT INFRARED
SAVE LABOR
EASY TO OPERATE
DRY WET SURFACES
REMOVE FROST & DEW
REDUCE COSTLY DOWN TIME
SAFE, NO ELECTRICITY REQUIRED
CLEAR LIGHT DEBRIS
RED DRAGON RD 6005 ROOF DRYER
NEW MODEL HAS MORE
HORSEPOWER!
The RED DRAGON RD 6005 Roof Dryer defrosts, dries and
get you back on the job with minimum effort. Its rugged
design and user friendly features make it the perfect
choice for professional roofing contractors. Use
to dry surfaces after ponding water has been
removed or to remove morning dew, frost
or light debris.
Steel Hoisting Point
For Easy Lifting
Ergonomic Cushioned
Handle Grip
5 HP HONDA ENGINE
“HURRICANE MINUTEMAN”
BLOWERS
Rugged Steel Handle
250,000 BTU Burner
Easy Maneuverability with
Pneumatic Rear Wheels
The Roof Dryers work by combining high heat (up to 350° F) and a 200 MPH
airstream to facilitate quick drying and reduce costly downtime. No electrical
cords or danger of electrical shock. Rely on Red Dragon Roof Dryers when
mother nature tries to delay your work day.
Blower Specification RD 6005:
5 HP Honda GC Overhead Cam Premium 4-cycle engine with recoil start.
Powerful 200 MPH airstream, up to 1600 cubic feet per minute.
Red Dragon Roof Dryers combine high heat and
a powerful blower to dry roofs quickly.
UNIT ALSO INCLUDES:
Description
Qty Part #
1
VT 3-12 S 250,000 BTU Vapor Torch Head
1
HP-25
U.L. Listed 25' LP Gas Hose
U.L. Listed POL Fitting
P-3200
1
1
V-880 P
Squeeze Valve
1
R-700 C
18 P.S.I. Regulator
10
Heating System Specifications:
VT 3-12 S burner, up to 250,000 BTU/hr,
mixes with air to provide the desired
drying effect up to 350° F.
Order SKU #
RD 6005 (Honda)
Wt Each
125.0 lbs
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
Case Qty
1
THERMOMETERS
CD-100 Cylinder Dolly
The CD-100 Cylinder Dolly makes the perfect companion for
any Red Dragon torch kit and is ideally suited for LP Gas
cylinders up to 40 pounds (10 gallons). The single handle allows
the operator to use a torch and move the dolly simultaneously.
When the torch is not in operation, it can be stored on the
convenient torch bracket.
The rugged CD-100 is welded tubular steel, with two seveninch wheels and a solid 5/8” axle assuring years of dependable
use. Maximum load capacity is 100 pounds (cylinder not
included).
Order SKU #
CD-100
Wt Each
13.9 lbs
Std Qty
1
CD-505 Cylinder Dolly
The RED DRAGON CD-505 Cylinder Dolly is specifically
designed for transporting 100 pound cylinders. The ergonomic
design features handles that are set wide and angled outward,
making it easy to push, pull, or turn.
The CD-100 is the perfect companion
for any Red Dragon Torch Kit.
All RED DRAGON
Cylinder Dollies Are
The CD-505 is constructed of heavy gauge square tubing. It
features removable, two-ply pneumatic tires mounted on steel
wheels with heavy duty roller bearings on a 1” steel axle.
Order SKU #
CD-505
Wt Each
37.2 lbs
Std Qty
1
RED DRAGON GT-1000 & GT-2000 NON-CONTACT INFRARED THERMOMETERS
QUICKLY, SAFELY & ACCURATELY CHECK FOR HOT SPOTS ON ANY ROOF.
PRECISE NON-CONTACT MEASUREMENTS.
DATA HOLD & AUTO POWER OFF.
F°/C° SWITCHABLE BUTTON.
8:1 DISTANCE TO SPOT RATIO.
BUILT IN LASER POINTER.
BACKLIT LCD DISPLAY.
The GT-1000 and GT-2000 are perfect safety
tools for all roofing crews. Quickly check the
temperature of the roof where material has
been applied. A great safety step at the end
of the day. Both units are very accurate and
simple to use. Just point, pull the trigger, and
read the temperature on the display!
The GT-2000 features a larger temperature
range plus the option of using a plug in KType thermocouple touch probe to take
temperatures by physically touching the
object or surface. Good for taking immersion
temperatures of liquids.
GT-1000
GT-2000
Order SKU #
GT-1000
GT-2000
Wt Each
0.8 lbs
1.0 lbs
Case Qty
1
1
GT-1000 Features:
Temperature Range: -4°F to 518°F (-20°C to 270°C)
Accuracy: Approximately 2% of reading or ±4°F / ±2°C
Distance (D) to Spot Size (S) Ratio = 8:1
Fixed Emissivity: ∑ = 0.95
Complete with 9V battery.
GT-2000 Features:
Temperature Range: 0°F to 1832°F (-18°C to 1000°C)
Accuracy: Approximately 2% of reading or ±4°F / ±2°C
Distance (D) to Spot Size (S) Ratio = 8:1
Adjustable Emissivity: 0.3 to 0.99
K-Type Temperature Range: -40°F to 2192°F
(-40°C to 1200°C)
K-Type Temperature Accuracy:
±0.5% of reading ±3°F (2°C)
GT-2000 Comes complete with:
9V battery
K-Type Thermocouple Temperature Probe
Wrist Strap
Carrying Case
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
SPUD BARS & ROOFING TOOLS
SBD-70
SBD-35
RED DRAGON SBL & SBD SPUD BARS
RED DRAGON Spud Bars are heavy duty and built for durability. Each spud bar is
robot welded to ensure the finest quality. Replaceable blades are made from
Tempered Blue Spring Steel (Rockwell C-44 Hardness)
SBL-70
Available with 31/2” or 7” replaceable blades. Handles are four feet in length with
your choice of ball or D-shaped handle for maximum leverage.
SBL-35
BL-35
BL-70
Description
31/2” Blade/Ball Handle
7” Blade/Ball Handle
31/2” Blade/D-Handle
7” Blade/D-Handle
31/2” Replacement Blade
7” Replacement Blade
Order SKU #
SBL-35
SBL-70
SBD-35
SBD-70
BL-35
BL-70
Wt Each
6.5 lbs
8.2 lbs
7.0 lbs
8.5 lbs
12 lbs/case
23.5 lbs/case
Std Qty
9
6
9
6
50
50
RED DRAGON CC 501 CORE CUTTER
The RED DRAGON CC 501 Core Cutter is perfect for roofers, architects and
engineers on the go. The CC 501 is fast and easy to use. Simply turn the core cutter
into the roof, pull and you have your core sample. At 21/8” x 103/4”, the CC 501 is
small enough to fit your toolbox and is easy to assemble. The CC 501 extracts a 2”
diameter x 7” sample.
All RED DRAGON
Roofing Tools Are
e
Lik
s
e
r
Sto
s.
Thi
..
rks
Wo
is.
Th
e
Lik
Order SKU #
CC 501
12
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
Wt Each
5.0 lbs
Std Qty
1
RED DRAGON HH 6030 HOOKER
The RED DRAGON “Hooker” allows the operator to torch modified
bitumen without walking on the membrane. It features a padded hook
which wraps around the hips, reducing strain on the back and shoulders.
The hook length is also adjustable to give any person the proper working
distance from the roll. it may also be used to control the roll when
applying modified to pitched roofs.
Order SKU #
HH 6030
Wt Each
9.0 lbs
Std Qty
1
The HH 6030 HOOKER
makes torch down easier.
RED DRAGON HR-836 ROLL HOOK
RED DRAGON ROOFING TROWELS
This lightweight hook allows the roofer to hand torch rolls
without walking on the membrane. Simply push or pull the roll as
necessary. Perfect for use with Red Dragon Roofing Torch Kits.
Overall hook length is 36 inches.
These round nosed trowels feature polished, tempered steel
blades and a durable hardwood handle. Available with 5” and 7”
blades. Perfect for use with Red Dragon Detail Torches.
Order SKU #
HR-836
Wt Each
9.0 lbs
Std Qty
1
Order SKU #
TW-5 (5” Blade)
TW-7 (7” Blade)
Wt Each
0.3 lbs
0.5 lbs
Std Qty
12
12
L 2001 SPARK LIGHTER
The convenient and safe way to light LP Gas torches. The L
2001 Spark Lighter produces up to 1,500 ignitions per flint and
comes with a free 5 pack of replacement flints.
Wt Each
Order SKU #
L 2001
0.2 lbs
L 2012 (pack of 5 flints) 0.03 lbs
Std Qty
10
24
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
13
REPLACEMENT PARTS & ACCESSORIES
RT 21/2-20 ROOFING TORCH
The RT 21/2-20 is the premier torch used in the roofing industry and is the main component in most of
our complete roofing torch kits. At 400,000 BTU, it performs stand-up work with ease and is noted for
durability and efficiency on the job. See VT 21/2-0 in the next column for burner specifications. Also
available in a Light Weight model - RT 21/2-20 LW.
Order SKU #
RT 21/2-20
RT 21/2-20 LW
Wt Each
2.6 lbs
2.3 lbs
RT 11/2-10 DETAIL ROOFING TORCH
VT 21/2-0 VAPOR TORCH
The RT 11/2-10 is the perfect detail torch for work
around flashings, walls and other obstacles.
Overall torch length is 15.” See VT11/2-0 in the
next column for burner specifications.
Wt Each
1.25 lbs
This is the standard replacement torch head for RT 21/2-20
torches and all Red Dragon SPA Modified Bitumen Applicators.
Max Capacity
400,000 BTU
Normal Operating Pressure
25 PSIG
Operating Pressure Range
5-50 PSIG
Fuel Consumption @ 30 PSIG
9.03 lbs/hr
Approximate Flame Temperature
2050°F
TORCH COMPONENTS:
Qty Part #
Description
1
VT 11/2-0
50,000 BTU 11/2” Diameter Torch Head
1
ET-4
4” Torch Extension
1
V-880 P
Squeeze Valve w/Adjustable Pilot
1
H-1
Rubber Grip Handle
1
TB-4
Torch Stand
Order SKU #
RT 11/2-10
Std Qty
6
6
TORCH COMPONENTS:
Description
Qty Part #
VT 21/2-0
400,000 BTU 21/2” Diameter Torch Head
1
1
ET-20
18” Torch Extension
1
V-880 P
Squeeze Valve w/Adjustable Pilot
1
H-1
Rubber Grip Handle
TB-4
Torch Stand
1
Order SKU #
VT 21/2-0
VT 21/2-0 LW
Max Fuel Consumption
Fuel Inlet
Bell Diameter
Bell Length
Wt Each
0.9 lbs
0.6 lbs
18.5 lbs/hr
1/4” NPT
2.5 inches
5.5 inches
Std Qty
6
6
VT 2-0 VAPOR TORCH
Std Qty
6
This vapor torch will reduce the maximum BTU rating on Red
Dragon roofing torches and SPA Modified Bitumen Applicators
and increase BTU on the RT 11/2-10.
VT 3-0 VAPOR TORCH
When an increased BTU output is desired, use this replacement
torch on Red Dragon Roofing Torches and Red Dragon SPA
Modified Bitumen Applicators.
100,000 BTU
Max Capacity
Normal Operating Pressure
20 PSIG
Operating Pressure Range
5-40 PSIG
4.5 lbs/hr
Fuel Consumption @ 30 PSIG
Approximate Flame Temperature
2050°F
Order SKU #
VT 2-0
500,000 BTU
Max Capacity
Normal Operating Pressure
30 PSIG
Operating Pressure Range
5-90 PSIG
Fuel Consumption @ 30 PSIG 10.13 lbs/hr
2050°F
Approximate Flame Temperature
Order SKU #
VT 3-0
14
Max Fuel Consumption
Fuel Inlet
Bell Diameter
Bell Length
Wt Each
1.2 lbs
23.2 lbs/hr
1/4” NPT
3 inches
6 inches
Max Fuel Consumption
Fuel Inlet
Bell Diameter
Bell Length
Wt Each
0.75 lbs
RED DRAGON Parts And
Accessories Are
Std Qty
6
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
Std Qty
6
9.3 lbs/hr
1/4” NPT
2 inches
5.5 inches
VT 11/2-0 VAPOR TORCH
This head is the standard replacement for the RT 11/2-10 torch.
H-1 TORCH HANDLE
A replacement handle for all Red Dragon Roofing Torches.
Connects to the squeeze valve.
Max Capacity
50,000 BTU
10 PSIG
Normal Operating Pressure
5-25 PSIG
Operating Pressure Range
Fuel Consumption @ 30 PSIG
2.25 lbs/hr
2050°F
Approximate Flame Temperature
Order SKU #
VT 11/2-0
Max Fuel Consumption
Fuel Inlet
Bell Diameter
Bell Length
Wt Each
0.5 lbs
3.1 lbs/hr
1/4” NPT
1.5 inches
4.5 inches
Std Qty
6
Order SKU #
H-1
Wt Each
0.25 lbs
Std Qty
10
ET-2B TWIN BURNER ADAPTOR
TB-4 TORCH STAND
The ET-2B adaptor allows you to add a second burner to any Red
Dragon Roofing Torch. Simply remove the burner from the torch,
install the adaptor, then install the original burner and one
additional burner at each elbow.
The TB-4 attaches to the extension tube of all Red Dragon
Roofing Torches, supporting the torch while directing the flame
upward when not in use. Bolt, nut and lockwasher included.
Order SKU #
ET-2B
Wt Each
0.4 lbs
Std Qty
6
Order SKU #
TB-4
Wt Each
0.2 lbs
Std Qty
6
ET-20 & ET-4 TORCH EXTENSIONS
REPLACEMENT PIEZO IGNITORS
The ET-20 is 18” overall and is the standard tube connecting the
valve to the torch head on all RT 21/2-20 torches. Connects with
1/4” MPT on each end. Comes complete with a TB-4 Torch Stand.
Replacement ignitors for Red Dragon Head Start Torch Kits HSB25 C and HSH-25 C. Comes with either a mounting bracket for
replacement on a HSB-25 or a 14” lead wire for replacement on
a HSH-25.
The ET-4 is a 4” tube and is standard on all RT 11/2-10 torches.
Connects with 1/4” MPT on each end. Comes complete with a
TB-4 Torch Stand.
Order SKU #
ET-20
ET-4
Wt Each
0.75 lbs
0.3 lbs
Std Qty
6
6
Wt Each
Order SKU #
HSB-21 (for HSB-25 C)
0.2 lbs
Model 21 H (for HSH-25 C) 0.2 lbs
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
Std Qty
6
6
15
REPLACEMENT PARTS & ACCESSORIES
V-880 PH-1 – Squeeze Valve with Adjustable Pilot & Torch Handle Kit
The Red Dragon V-880 PH-1 allows you to add a squeeze
valve and handle to any Red Dragon Vapor Torch Kit.
Perfect for those who use a Red Dragon Torch Kit for
roofing and instances where full flame is not continuously
required. This kit will quickly pay for itself in propane
savings if this is how you will primarily use the torch kit.
The all-brass squeeze valve has an adjustable pilot
feature. The adjustable pilot is a needle valve assembly
similar to the Red Dragon V-334.This is a high pressure
valve tested to 350 lbs working pressure.
Order SKU #
V-880 PH1
Wt Each
0.6 lbs
Std Qty
10
QUICK CONNECTOR SETS
V-880 P SQUEEZE VALVE
WITH ADJUSTABLE PILOT
U.L. Listed
HK-8
This all brass squeeze valve features an adjustable pilot and is
used on all Red Dragon Roofing Torches and Red Dragon
Modified Bitumen Applicators. It is tested to 350 pounds of
working pressure. 14/” inlet – 1/4” outlet.
HK-7
HN-5
Order SKU #
V-880 P
Wt Each
0.6 lbs
Std Qty
10
VALVE REPAIR KITS AND LEVER
ASSEMBLY FOR V-880 P
These 3 kits will allow you to repair either the pilot valve, the
main valve or the lever assembly on any V-880 P Squeeze Valve.
TJP-123 PILOT VALVE REPAIR KIT
TC-42-7 MAIN VALVE REPAIR KIT
HN-6
This brass set allows connection and disconnection of the LPGas line to the torch without the use of tools. The unique design
of the HK-7 set makes coupling under pressure possible with
minimal loss of fuel. Both pieces are 1/4” pipe thread (HN-5
female & HN-6 male). For use up to 250 PSI.
Description
Order SKU #
HK-8
complete set (2)HN-6 male (1)HN-5 female
HK-7
complete set (1)HN-6 male (1)HN-5 female
HN-5
female adaptor
male adaptor
HN-6
Wt Each
0.53 lbs
0.44 lbs
0.25 lbs
0.07 lbs
Std Qty
10
10
10
10
P-W 795 HAND TIGHTEN
EXCESS FLOW P.O.L.
TSTE 131-2 LEVER ASSEMBLY
Order SKU #
TJP-123 Pilot Valve Repair Kit
TC-42-7 Main Valve Repair Kit
TSTE 131-2 Lever Assembly
16
Wt Each
0.1 lbs
0.1 lbs
0.1 lbs
Std Qty
1
1
1
No wrenches needed with this
soft nose P.O.L. It is all brass
and can be hand-tighten for
easy connection or
disconnection from any LP-gas
cylinder. The standard replacement fitting for most Red Dragon
Roofing Torch Kits. Outlet is 1/4” MPT.
Order SKU #
P-W 795
Wt Each
0.3 lbs
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
Std Qty
10
P-3200 W SOFT NOSE EXCESS FLOW P.O.L.
This P.O.L. connection with integral excess flow check valve
offers an ideal safety device for use on Red Dragon Roofing
Torches, tar and asphalt burners and similar heating applications
where portable LPG cylinders are used. The P.O.L. inlet end
attaches directly to the outlet
of the vapor cylinder valve
while the outlet end is 1/4”
MPT. Replacement P.O.L. for
the RT Basic torch kit.
Order SKU #
P-3200 W
Wt Each
0.25 lbs
The P-1685 adapts most LP cylinders to regulators and other
fittings. The P.O.L. nut is the left hand fitting that threads into
nearly all vapor butane/propane cylinders and the opposite end is
standard 1/4” MPT. (No excess
flow feature). Replacement
P.O.L. for Red Dragon Modified
Bitumen Applicators.
Wt Each
0.2 lbs
Std Qty
10
REPLACEMENT O RINGS FOR P.O.L.
Replacement O ring seals for P-1685, P-3200 W and P-W 795
P.O.L. fittings shown above.
Order SKU #
100-303-080
Case Wt
0.2 lbs
Case Qty
100
The M 672-3 is the standard fitting
used to connect equipment to a
liquid withdrawal cylinder. Hand
tighten – no wrench necessary.
Use with liquid torches only.
Wt Each
1.1 lbs
Order SKU #
V-334
Wt Each
0.25 lbs
Std Qty
10
V-3055 FLAME ADJUSTING VALVE
A less expensive needle valve for use
with LP-gas, air or water and other fluids.
It incorporates an aluminum thumb
wheel for easy open or close. Inlet
(female) and outlet (male) are 1/4”
standard pipe thread. This replaces the
old V-3055 P needle valve with “T”
handle.
Order SKU #
V-3055
Wt Each
0.2 lbs
Std Qty
10
9/16” LEFT HAND ADAPTER
Order SKU #
Description
Wt Each Case Qty
F-825
1/4” MPT x 9/16” Left Hand
.1 lbs
10
F-835
3/8” MPT x 9/16” Left Hand
.1 lbs
10
F-855
9/16” Left Hand x 9/16” Left Hand
.1 lbs
10
M 672-3 HAND TIGHTEN M.O.P.
Order SKU #
M 672-3
The V-334 is a heavy duty, all brass
needle valve tested to 350 P.S.I. It
incorporates a thumb wheel for easy
open or close. Inlet (female) and outlet
(male) are 1/4” standard pipe thread.
Std Qty
10
P-1685 STANDARD P.O.L. CONNECTION
Order SKU #
P-1685
V-334 FLAME ADJUSTING VALVE
Std Qty
10
1/4” FPT x 1/4” FPT HEX COUPLING
Order SKU #
F-322
Description
1/4” FPT x 1/4” FPT
Wt Each
.1 lbs
Case Qty
10
M 7273 WRENCH TIGHTEN M.O.P.
Same as M 672-3 but must be
tightened with a wrench. Use
with liquid torches only.
Order SKU #
M 7273
Wt Each
0.5 lbs
Std Qty
10
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
17
REPLACEMENT PARTS & ACCESSORIES
G-23 PRESSURE GAUGE
567 RC & 567 RD REGULATORS
1/4” – Liquid or Vapor
567 RC
A medium capacity regulator with
precise regulating characteristics,
designed for cylinder systems in liquid
or vapor service. Both the inlet and
outlet of this regulator are 1/4” female
pipe thread. The 567 RC is suitable for
tar pot heaters, weed burners and other
applications using either liquid or vapor
cylinders. Delivery pressures are
adjustable from 0 to 60 PSI. Plugged
gauge port.
U.L. Listed
A rugged steel cased gauge showing
pressures from 0-100 PSI. The 1/4” male
pipe stem allows it to be mounted on the
567 RC, 567 RD and R-499 regulators. Dial
diameter is two inches.
Order SKU #
G-23
Wt Each
0.2 lbs
567 RD
The same characteristics and
specifications as the 567 RC except the
delivery pressures are adjustable from
0-100 PSI.
Order SKU #
Description
Wt Each
567 RC
Regulator for 0-60 PSI Delivery
1.2 lbs
567 RD
Regulator for 0-100 PSI Delivery 1.2 lbs
Case Qty
6
6
HP SERIES LP-GAS HOSE ASSEMBLIES
HP series hose is U.L. Listed
for use with either vapor or
liquid LP-gas and is available
in 10’, 25’ and 50’ lengths.
Each hose is coupled with
1/4” male pipe thread fittings
on both ends*. Maximum
working pressure of this hose
is 350 PSI with a burst test of
1750 PSI. Hose I.D. is 1/4”. A
1/4” female brass coupling is
included with each HP-25 and
HP-50.
U.L. Listed
Order SKU #
Description
10’ Hose w/1/4” MPT on both ends
HP-10
HP-25 25’ Hose w/1/4” MPT on both ends
HP-50 50’ Hose w/1/4” MPT on both ends
Wt Each
1.5 lbs
4.0 lbs
6.1 lbs
Case Qty
10
6
4
RED DRAGON Parts And
Accessories Are
18
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
Std Qty
10
Contact Flame Engineering, Inc. for technical questions or to find the proper
replacement part for your RED DRAGON Equipment. We have the best customer
service available and we stand behind our products 100%.
800-255-2469
Distributed by: BEST MATERIALS LLC
Ph: 1-800-474-7570, 1-602-272-8128 Fax: 1-602-272-8014
Email: sales@bestmaterials.com www.bestmaterials.com
19
SAFETY DATA & ORDER INFORMATION
Check List For Safe LP-Gas Use
1. DO NOT use torches on or near combustible materials.
2. Inspect equipment daily.
3. Secure cylinders in a level, upright position. DO NOT invert or lay cylinders
on their sides.
4. Use only vapor equipment on cylinders equipped with vapor withdrawal valves.
Use only liquid equipment on cylinders designed for liquid withdrawal.
DO NOT invert vapor cylinders to dispense liquid.
WARNING:
Use extreme caution at all
times. You are using an
intense open flame.
Disregard of safe practices
can result in severe fire
damage, serious personal
injury or death.
5. DO NOT apply flame to cylinders to increase pressure.
6. DO NOT operate torches or any equipment if the odor of LP Gas (butane/propane) is evident.
Immediately shut off all valves and, using soapy water, check all equipment for leaks.
7. LP Gas (butane/propane) is heavier than air which causes it to accumulate in low areas.
Check low areas for accumulation and ventilate. Be certain all work areas are well ventilated.
8. Keep torches, open flame, and sources of ignition away from cylinders, regulators, and hose.
9. Cylinder valves must be protected. DO NOT hoist cylinder by the valve.
10. Gloves should be used at all times. Long sleeves, long pants, and boots are recommended.
11. Never leave a lighted torch unattended.
12. For more detailed information, consult your local LP dealer, Flame Engineering, NPGA,
NRCA, or NFPA Pamphlet 58. This information is provided as a general guide for safe LP-Gas
use and in no way constitutes a complete safety program.
CAUTION:
Propane is heavier than air which causes it to accumulate in low areas. Be certain all
areas are well ventilated.
Propane has a distinct odor. If you smell it, immediately discontinue work, extinguish
all flames, find the leak and correct it.
Daily Equipment Check List
PROPANE DATA
Properties of Propane:
Chemical Formula
BTU per Gallon (Vaporized)
BTU per Pound
Weight per Gallon of Liquid
Vaporization Temperature
Specific Gravity - Vapor (Air=1)
Specific Gravity - Liquid (Water=1)
Vaporization Rate (Liquid to Vapor)
C3H8
91,690
21,591
4.23
-44°F
1.53
0.51
272:1
Combustion Data
Limits of Flammability, % of Gas in Air 2.3% to 9.5%
23.5 Cu Ft
Air required to burn 1 Cu Ft Vapor
Oxygen required to burn 1 Cu Ft Vapor
4.9 Cu Ft
920-1020°F
Ignition Temperature
Optimum Flame Temperature
3500°F
Vapor Pressure at 0° F
28 PSI
122 PSI
Vapor Pressure at 70°F
Vapor Pressure at 100°F
190 PSI
1. Be sure you have a fire extinguisher (type ABC)
on the job, easily accessible to each worker.
2. Check LP cylinders for dents, damage to collar,
damage to valve or corroded foot ring. Never
hoist a cylinder by the valve. Secure cylinders in
an upright position. Know whether you are
using LIQUID or VAPOR WITHDRAWAL.
3. Visually inspect all parts for damage and wear.
4. Using soapy water, check all connections and fittings for leaks. DO NOT use a match or open flame.
5. Ignite torch. Check operation of valve and other
adjustable parts.
NOTE: When extinguishing a torch, shut off cylinder valve
and allow gas to burn out of lines.
Available Training Resources:
A video presentation, “On The Roof Safety With Propane Torches” is available from Flame Engineering, Inc.
free of charge. Call 1-800-255-2469 to receive your FREE copy.
Additional CERTA (Certified Torch Applicator) training is available through the Midwest Roofing Contractors
Association. Please contact MRCA for further information at:
Midwest Roofing Contractors Association
4840 Bob Billings Parkway • Lawrence, Kansas 66049 • Phone: 785/843-4888 • Fax: 785/843-7555 • Email: mrca@mrca.org
20
Download PDF

advertising
