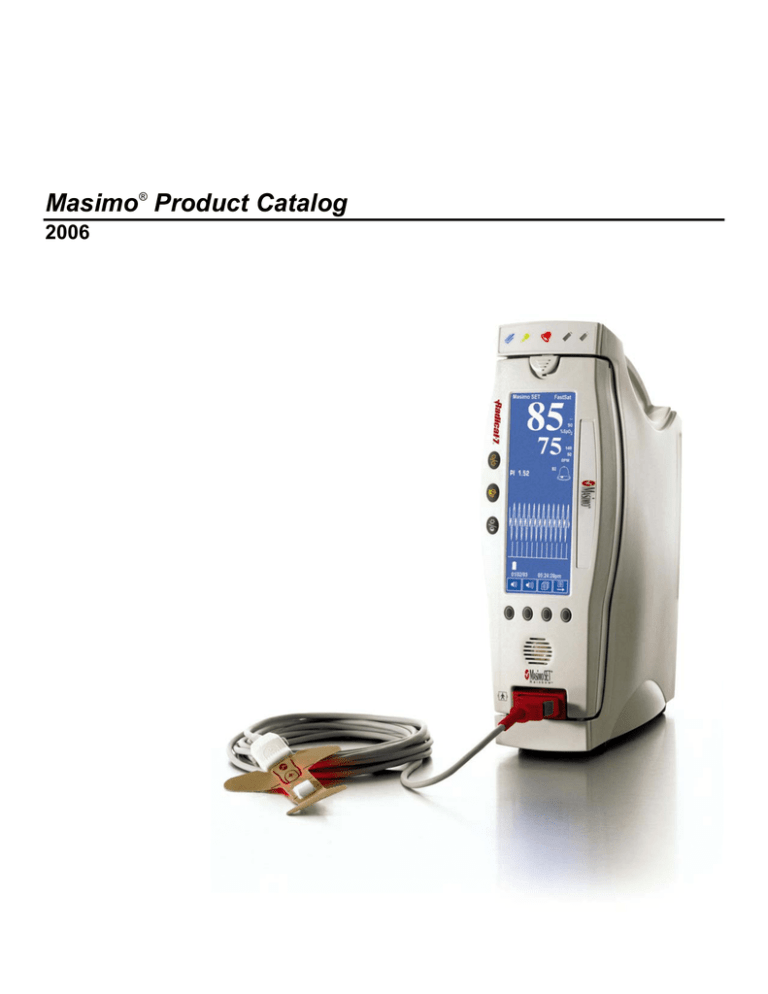

Masimo

®

Product Catalog

2006

Masimo Corporation

40 Parker

Irvine, CA 92618

Tel: (949) 297-7000

Fax: (949) 297-7001 www.masimo.com

© 2006 by Masimo Corporation.

This catalog contains Masimo proprietary material and is provided for information purposes only. No part of this catalog may be reproduced or retransmitted without Masimo’s prior written consent. Product availability is subject to change without notice.

Masimo, Cleanshield, DCI, LNCS, LNOP, Rad, Blue, Radical, , SatShare, SET, Signal Extraction Technology and Signal

I.Q. are registered trademarks of Masimo Corporation.

Rad-5, Rad-8, Rad-9, RadNet, PRONTO, TrendCom and PPO+ are trademarks of Masimo Corporation.

Radical-7, Rad-57, Rainbow, SpCO, SpMet and Pulse CO-Oximeter are trademarks of Masimo Laboratories.

Masimo

®

Product Catalog

Monitoring Devices

Masimo SET

®

Pulse Oximetry Devices

Masimo PN Description UM Product Image Notes

9030

Radical

®

Handheld, Blue Screen

Comes with either an LNOP or LNCS Patient

Cable and a choice in the language of Ops

Manual

EA

9021

1311

9022

Radical Docking Station, RDS-1

Comes with a choice in Power cord and

communication capabilities

Radical Docking Station, RDS-1B

With Extended Battery

Comes with Power cord and communication capabilities

Radical Docking Station, RDS-2

Comes with choice in Power cord

EA

EA

EA

9023

9024

9019

Radical Docking Station, RDS-3

Comes with choice in Power cord and limited communication capabilities

EA

Radical Docking Station, RDS-4

Comes with choice in Power cord and limited communication capabilities

EA

Rad-8™, Horizontal

Comes with either an LNOP or LNCS Patient

Cable, a choice in the language of Ops Manual and a choice in Power cord.

EA

9020

Rad-8™, Vertical

Comes with either an LNOP or LNCS Patient

Cable, a choice in the language of Ops Manual and a choice in Power cord.

EA

Product images are typical and for reference only Page 3 of 29

Masimo

®

Product Catalog

Masimo SET

®

Pulse Oximetry Devices

Masimo PN Description

9028

9025

1957

1892

9026

1958

1891

UM Product Image Notes

Rad-9 Pulse Oximeter

Comes with a choice in Ops Manual, Power cord and either an LNOP or LNCS Patient

Cable

EA

Rad-5™ Pulse Oximeter

Comes with an LNOP DCSC reusable sensor and a choice in the language of Ops Manual

EA

Rad-5 Pulse Oximeter with DC-IP

Pediatric Sensor

Comes with PC-04 patient cable, LNOP DC-IP reusable sensor and Ops Manual

EA

Rad-5 Pulse Oximeter with Sensor

Sample Pack

Comes with PC-04 patient cable, LNOP adhesive sensor sample pack and Ops Manual

EA

Shown in optional protective boot and with

DCSC Sensor

Rad-5v Pulse Oximeter

Comes with an LNOP DCSC reusable sensor and a choice in the language of Ops Manual

EA

Rad-5v Pulse Oximeter with DC-IP

Pediatric Sensor

Comes with PC-04 patient cable and DC-IP reusable sensor

EA

Rad-5v Pulse Oximeter with Sensor

Sample Pack

Comes with PC-04 patient cable, LNOP adhesive sensor sample pack and Ops Manual

EA

Shown in optional protective boot and with

DCSC Sensor

Product images are typical and for reference only Page 4 of 29

Masimo

®

Product Catalog

Masimo Rainbow SET™ Devices

Masimo PN Description UM

Product Image

Notes

9031

Radical-7™ Handheld

Comes with either an LNOP or LNCS Red patient cable and a choice in the language of

Ops Manual

Note: The Radical-7 Handheld is compatible with all RDS Docking Stations.

EA

2050

Rad-57™ Pulse CO-Oximeter

Comes with Ops Manual and Rainbow DCI-dc3

reusable sensor

EA

Shown in optional protective boot and with Rainbow Sensor

2200

Rad-57cm Pulse CO-Oximeter

Comes with Ops Manual and Rainbow DCI-dc3 reusable sensor

EA

Product images are typical and for reference only

Shown in optional protective boot and with Rainbow Sensor

Page 5 of 29

Philips

®

Compatible Devices

Masimo PN Description UM

1846

Masimo SET IntelliVue

®

Module

Comes with Ops Manual and MP12 Patient Cable

EA

1881

Masimo SET VueLink

®

Module

Comes with Ops Manual and VueLink cable

EA

1841

VueLink Cable

For use with Masimo SET VueLink Module, 3 ft.

EA

Philips, IntelliVue and VueLink are registered trademarks of Philips Corporation.

Masimo

®

Product Catalog

Product Notes

Product images are typical and for reference only Page 6 of 29

Masimo

®

Product Catalog

RadNet™ System

Masimo PN Description

13498

13658

13664

13659

2146

2147

RadNet™ Wireless System, 12

Patient

Comes with CPU, Ops Manual, 2 Access Points, 2

Uninterruptible Power Supplies, 1 Ethernet Switch,

1 Flat Panel Color Display, Modem Kit and a

Printer Kit

Note: Additional supplies may be needed

RadNet Hardwired System, 12

Patient

Comes with CPU, Ops Manual, 15 port Terminal

Server, 2 Uninterruptible Power Supplies, 1 Flat

Panel Color Display, Modem Kit and a Printer Kit

Note: Additional supplies may be needed

RadNet Wireless System, 28

Patient

Comes with CPU, Ops Manual, 4 Access Points, 2

Uninterruptible Power Supplies, 1 Ethernet Switch,

2 Flat Panel Color Displays, Modem Kit and a

Printer Kit

Note: Additional supplies may be needed

RadNet Hardwired System, 28

Patient

Comes with CPU, Ops Manual, 31 port Terminal

Server, 2 Uninterruptible Power Supplies, 2 Flat

Panel Color Displays, Modem Kit and a Printer Kit

Note: Additional supplies may be needed

RadNet Compatible Radical

Docking Station, RDS-1

Comes with Power cord and communication capabilities

Note: SatShare is not supported on RadNet

Compatible Radical Docking Stations

RadNet Compatible Radical

Docking Station, RDS-3

Comes with Power cord and limited communication capabilities

Note: SatShare is not supported on RadNet

Compatible Radical Docking Stations

UM

Product Image

System

System

System

System

EA

EA

Notes

2113

RadNet Interface Module, Wireless

Enables communication from a Radical Docking

Station to the RadNet Central Monitor

EA

1979

RadNet Interface Module,

Hardwired

Enables communication from a Radical Docking

Station to the RadNet Central Monitor

EA

Shown with Radical Handheld and Radical

Docking Station. Not included.

13499

PPO+™ Pulse Oximeter

Comes with Ops Manual, Patient Cable and 2 rechargeable batteries

EA

13501

PPO+ Battery Charger, 8-bay

EA

Product images are typical and for reference only Page 7 of 29

Masimo

®

Product Catalog

Sensors and Cables

Rainbow Sensors

Masimo PN

Description

2051

Rainbow™ DCI-dc3

Adult Reusable SpO

2

, SpCO and SpMet Sensor, 3 ft.

1/box, Latex free, Non-sterile

Weight > 30kg

UM

EA

2052

Rainbow DCI-dc12

Adult Reusable SpO

Weight > 30kg

2

, SpCO and SpMet Sensor, 12 ft.

1/box, Latex free, Non-sterile

Red Sensors

Masimo PN

Description

2053

Red DCI-dc3

Adult Reusable SpO

2

Sensor, 3 ft.

1/box, Latex free, Non-sterile

Weight > 30kg

UM

EA

2054

Red DCI-dc12

Adult Reusable SpO

2

Sensor, 12 ft.

1/box, Latex free, Non-sterile

Weight > 30kg

Product Image Notes

Product Image Notes

Product images are typical and for reference only Page 8 of 29

LNCS

®

Sensors

Masimo PN

Description

1859

LNCS

®

Adtx

Adult Adhesive Sensors, 18 in.

Single Patient Use

20/box, Latex free, non-sterile

Weight > 30kg

1860

LNCS Pdtx

Pediatric Adhesive Sensors, 18 in.

Single Patient Use

20/box, Latex free, non-sterile

Weight 10 – 50 kg

1861

LNCS Inf-L

Infant Adhesive Sensors, 3 ft.

Single Patient Use

20/box, Latex free, non-sterile

Weight 3 – 20 kg

1862

LNCS Neo-L

Neonatal Adhesive Sensors, 3 ft.

Single Patient Use

20/box, Latex free, non-sterile

Weight < 3 or > 40 kg

UM

Masimo

®

Product Catalog

Product Image Notes

Box

Box

Box

Box

Product images are typical and for reference only Page 9 of 29

LNCS

®

Sensors

Masimo PN

Description

1901

LNCS NeoPt-L

Neonatal Adhesive Sensors, 3 ft.

Single Patient Use

20/box, Latex free, non-sterile

Weight < 1 kg

1863

LNCS DC-I

Adult Reusable Sensor, 3 ft.

1/box, Latex free, non-sterile

Weight > 30 kg

1864

LNCS DC-IP

Pediatric Reusable Sensor, 3 ft.

1/box, Latex free, non-sterile

Weight 10 – 50 kg

1895

LNCS TC-I

Adult Reusable Sensor, 3 ft.

1/box, Latex free, non-sterile

Weight > 30 kg

1896

LNCS TF-I

Adult Reusable Sensor, 3 ft.

1/box, Latex free, non-sterile

Weight > 30 kg

Product images are typical and for reference only

EA

UM

Masimo

®

Product Catalog

Product Image Notes

Box

EA

EA

EA

Page 10 of 29

Masimo

®

Product Catalog

LNCS

®

Red Cables

(for use with Masimo Rainbow SET Devices)

Masimo PN Description UM Product Image Notes

2055

Red LNC-04

LNCS 20-pin SpO

2

Patient Cable, 4 ft.

2056

Red LNC-10

LNCS 20-pin SpO

2

Patient Cable, 10 ft.

2057

2017

Red LNC-14

LNCS 20-pin SpO

2

Patient Cable, 14 ft.

LNCS

®

Patient Cables

Masimo PN Description

LNC-4

LNCS Patient Cable, 4 ft.

1814

LNC-10

LNCS Patient Cable, 10 ft.

2013

LNC-14

LNCS Patient Cable, 14 ft.

EA

UM

EA

Product Image Notes

2021

LNC-4-Ext

LNCS Extension Cable, 4 ft.

EA

1902

LNC-10-IVM

LNCS to IntelliVue Patient Cable, 10ft.

EA

Product images are typical and for reference only Page 11 of 29

LNCS

®

Patient Cables

Masimo PN Description UM

Masimo

®

Product Catalog

Product Image Notes

LNC-10-GE

LNCS to GE Patient Cable, 10ft.

Please contact your local Masimo Sales

Representative for ordering information

LNCS

®

Adapter Cables

Masimo PN Description

EA

UM Product Image

1816

LNCS to PC Series

LNCS Series to LNOP PC Series Adapter Cable,

18 in.

EA

Notes

Product images are typical and for reference only Page 12 of 29

LNOP

®

Sensors

Masimo PN Description

1001

LNOP

®

Adt

Adult Adhesive Sensors

Single Patient Use

20/box, Latex free, non-sterile

Weight > 30kg

1829

LNOP Adtx

Adult Adhesive Sensors

Single Patient Use

20/box, Latex free, non-sterile

Weight > 30kg

Box

1025

1830

1002

1003

1798

LNOP Pdt

Pediatric Adhesive Sensors

Single Patient Use

20/box, Latex free, non-sterile

Weight 10kg – 50kg

LNOP Pdtx

Pediatric Adhesive Sensors

Single Patient Use

20/box, Latex free, non-sterile

Weight 10kg – 50kg

LNOP Neo

Neonatal Adhesive Sensors

Single Patient Use

20/box, Latex free, non-sterile

Weight < 10kg

Use 1054 replacement tape

LNOP

®

NeoPt

Neonatal Sensitive Skin Adhesive Sensors

Single Patient Use

20/box, Latex free, non-sterile

Weight < 1kg

Use 1053 replacement Posey

LNOP Neo-L

Neonatal Adhesive Sensors

Single Patient Use,

20/box, Latex free, non-sterile

Weight < 3 or > 40kg

Use 1799 replacement tape

Box

Box

Box

Box

Box

UM

Box

Masimo

®

Product Catalog

Product Image Notes

Product images are typical and for reference only Page 13 of 29

LNOP

®

Sensors

Masimo PN Description

1800

LNOP Inf-L

Neonatal Adhesive Sensors

Single Patient Use,

20/box, Latex free, non-sterile

Weight 3 – 20 kg

Use 1801 replacement tape

1651

LNOP NeoPt-L

Neonatal Sensitive Skin Adhesive Sensors Single

Patient Use

20/box, Latex free, non-sterile

Weight < 1kg

Use 1926 replacement tape

1611

LNOP Neo Bridge

Neonatal Adhesive Sensors

Single Patient Use

20/box, Latex free, non-sterile

Weight < 10kg

Use 1054 replacement tape

UM

Box

Box

Box

1612

2203

2204

1970

LNOP NeoPt Bridge

Neonatal Adhesive Sensors

Single Patient Use

20/box, Latex free, non-sterile

Weight < 1kg

Use 1053 replacement Posey

LNOP Newborn Neonatal

Neonatal Adhesive Sensors

Single Patient Use

20/box, Latex free, Non-sterile

Weight < 3 kg

Use 1926 replacement tape

LNOP Newborn Infant

Infant Adhesive Sensors

Single Patient Use,

20/box, Latex free, non-sterile

Weight 3 – 20 kg

Use 1801 replacement tape

LNOP Blue

®

Neonatal / Infant / Pediatric Adhesive Sensors

Single Patient Use

10/box, Latex free, Non-sterile

Weight 2.5 – 30 kg

Box

Box

Box

Box

1269

LNOP

®

DC-I

Adult Reusable Sensor, 3 ft.

Latex free, Non-sterile

Weight > 30kg

EA

Masimo

®

Product Catalog

Product Image Notes

Product images are typical and for reference only Page 14 of 29

LNOP

®

Sensors

Masimo PN Description

1396

1969

LNOP DCSC

Adult Reusable Sensor, 3 ft.

Latex free, Non-sterile

Weight > 30kg

LNOP DCI-DC12

Adult Reusable Sensor, 12 ft.

Latex free, Non-sterile

Weight > 30kg

1276

LNOP DC-IP

Pediatric Reusable Sensor, 3 ft.

Latex free, Non-sterile

Weight 10 – 50 kg

1794

LNOP TC-I

Adult Reusable Sensor, 3 ft.

Latex free, Non-sterile

Weight > 30kg

EA

1793

LNOP TF-I

Adult Reusable Sensor, 3 ft.

Latex free, Non-sterile

Weight > 30kg

1560

LNOP DC-195

Adult Reusable Sensor

Latex free, Non-sterile

Weight > 30kg

1544

LNOP

®

YI

Multisite Reusable Sensor, 3 ft.

Latex free, Non-sterile

Multiple Foam and Adhesive Wraps

Weight > 1kg

Product images are typical and for reference only

EA

EA

EA

UM

EA

EA

Masimo

®

Product Catalog

Product Image Notes

EA

Page 15 of 29

Masimo

®

Product Catalog

LNOP

®

Red Cables

Masimo PN Description UM Product Image Notes

2058

Red PC-04

LNOP 20-pin SpO

2

Patient Cable, 4 ft.

2059

Red PC-08

LNOP 20-pin SpO

2

Patient Cable, 8 ft.

EA

2060

Red PC-12

LNOP 20-pin SpO

2

Patient Cable, 12 ft.

LNOP

®

Patient Cables

Masimo PN Description

1173

PC04

LNOP Patient Cable, 4 ft.

1005

PC08

LNOP Patient Cable, 8 ft.

1006

PC12

LNOP Patient Cable, 12 ft.

UM

EA

Product Image Notes

1619

PC04-Ext

LNOP Extension Cable, 4 ft.

EA

1847

MP12

LNOP Masimo SET IntelliVue Patient Cable, 12 ft.

EA

Product images are typical and for reference only Page 16 of 29

LNOP

®

Patient Cables

Masimo PN Description

PC-12-GE

LNOP to GE Patient Cable, 12ft.

Please contact your local Masimo Sales

Representative for ordering information

UM

EA

Masimo

®

Product Catalog

Product Image Notes

1520

PXC16

LNOP Mountable Patient Cable Extension, 16 ft.

1555

1557

PXC30

LNOP Mountable Patient Cable Extension, 30 ft.

PXC50

LNOP Mountable Patient Cable Extension, 50 ft.

LNOP

®

Adapter Cables

Masimo PN Description

1645

MAC-1

LNOP Adapter Cable, 18 in.

EA

UM

EA

1927

MAC-1

LNOP Adapter Cable, 12 ft.

Product Image Notes

1848

AC-1 Masimo Sensor to Philips

®

MMS Adapter Cable

LNOP to 8-Pin Philips Compatible, 12 ft.

EA

1849

AC-1 Masimo Sensor to Philips

®

CMS

Adapter Cable

LNOP to 12-Pin Phillips Compatible, 12 ft.

EA

Product images are typical and for reference only Page 17 of 29

LNOP

®

Adapter Cables

Masimo PN Description UM

1937

MAC-1 Adult Reusable Sensor Kit

Comes with 1 MAC-1 Cable #1645 and 1 LNOP

DCI

Pack

1805

MAC-1 Adult Reusable Sensor Kit

Comes with 1 MAC-1 Cable #1645 and 1 LNOP

DC-195

Pack

Masimo

®

Product Catalog

Product Image Notes

1806

MAC-1 Adult Adhesive Sensor Kit

Comes with a MAC-1 Cable #1645 and 2 each of the LNOP Adt and Pdt sensors

EA

1807

MAC-1 Neonatal Adhesive Sensor Kit

Comes with a MAC-1 Cable #1645 and 2 each of the LNOP Neo-L and Inf-L sensors

EA

Product images are typical and for reference only Page 18 of 29

Masimo

®

Product Catalog

Accessories

Sensor Accessories

Masimo PN Description

1053

1054

1799

1801

Replacement Wraps For Use with

LNOP

®

NeoPt Sensors

For use with LNOP NeoPt and NeoPt Bridge

Sensors

12/pack

Washable, Latex free

Replacement Tapes For LNOP Neo

Sensors

For use with LNOP Neo and Neo Bridge Sensors

100/pack

Latex free

Replacement Tapes For LNOP Neo-L

Series Sensors

For use with LNOP Neo-L

100/pack

Latex free

Replacement Tapes For LNOP Inf-L and LNOP Newborn Infant Sensors

For use with LNOP Inf-L and LNOP Newborn

Infant

100/pack

Latex free

1926

Replacement wraps for LNOP NeoPt-

L and LNOP Newborn Neonatal

Sensors

For use with LNOP NeoPt-L and LNOP Newborn

Neonatal

10/pack

Latex free

UM

Pack

Pack

Pack

Pack

Pack

1596

CleanShield

®

Multisite Wrap

For use with LNOP YI

Adult/Pediatric/Neonatal

100/box

Latex free

Box

1597

1598

1602

1600

Standard Multisite Wrap

For use with LNOP YI

Adult/Pediatric/Neonatal

100/box

Latex free

Standard Petite Wrap

For use with LNOP YI

Adult slender digit/Ped/Neonatal adhesive

100/box

Latex free

Foam Wraps for LNOP YI Sensors

For use with LNOP YI

12/pack

Washable, Latex free

Accessory Adhesive Squares

For use with LNOP YI

144/pack

Product images are typical and for reference only

Box

Box

Pack

Pack

Product Image Notes

Page 19 of 29

Sensor Accessories

Masimo PN Description

1601

Accessory Clothing Clips

For securing reusable sensor cables to patient clothing

5/pack

UM

Pack

2215

Masimo Headband

For use with LNOP

®

/LNCS

®

12/box

TF-I

Box

1903

Transflectance Sensor Adhesive Pad

For use with LNOP/LNCS TF-I

20/pack

Sensor Sample Packs

Masimo PN Description

Pack

UM

1897

LNCS

Sensor

®

Adtx/Pdtx Sample Pack

Comes with 3 LNCS Adtx and 1 LNCS Pdtx

Pack

Masimo

®

Product Catalog

Product Image Notes

Product Image Notes

1898

LNCS Neo-L/Pdtx/Inf-L Sample Pack

Comes with 2 LNCS Neo-L, 1 LNCS Pdtx and 1

LNCS Inf-L sensor

Pack

Product images are typical and for reference only Page 20 of 29

Sensor Sample Packs

Masimo PN Description UM

Masimo

®

Product Catalog

Product Image Notes

1899

LNCS

®

Sensor Sample Pack

Comes with 1 LNCS Adtx, 1 LNCS Pdtx, 1 LNCS

Inf-L and 1 LNCS Neo-L

Pack

1228

LNOP

®

Adt/Pdt Sample Pack

Comes with 3 LNOP Adt and 1 LNOP Pdt

Adhesive Sensor

Pack

1229

LNOP Neo Sample Pack

Comes with 3 LNOP Neo and 1 LNOP NeoPt

Adhesive Sensor

Pack

1283

LNOP Adt/Pdt/Neo Sample Pack

Comes with 2 LNOP Adt, 1 LNOP Pdt and 1 LNOP

Neo Adhesive Sensor

Pack

Product images are typical and for reference only Page 21 of 29

Sensor Sample Packs

Masimo PN Description UM

1116

LNOP

®

Pack

Adt/Pdt/Neo/NeoPt Sample

Comes with 4 LNOP Adt, 2 LNOP Pdt, 2 LNOP

Neo and 2 LNOP NeoPt Adhesive Sensors

Pack

1282

LNOP Sensors Application Training

Packet

Comes with 1 LNOP Adt, 1 LNOP Pdt, 1 LNOP

Neo and 1 LNOP NeoPt, 2 cotton swabs, 2 alcohol swabs and 1 neonatal foot with application card

Pack

Bedside Device Accessories

Masimo PN Description UM

Masimo

®

Product Catalog

Product Image Notes

Product Image Notes

1315

Radical

®

Series Replacement Battery

For use with Radical and Radical-7 Handhelds

EA

1317

Radical Series Pole Clamp

For use with Radical and Radical-7 Handhelds

EA

1395

Radical Series Handheld Lock

To secure Radical and Radical-7 Handhelds in

Radical Docking Stations

EA

Product images are typical and for reference only Page 22 of 29

Bedside Device Accessories

Masimo PN Description

30534

Radical

®

Series Handheld Lock Key

UM

EA

Masimo

®

Product Catalog

Product Image Notes

1584

Radical Series Power Cord Lock

To secure a power cord to Radical Docking Stations

5/pack

Pack

1904

Rad-9

®

Power Cord Lock

To secure a power cord to the Rad-9

5/pack

(Shown installed on a Rad-9.

Rad-9 not included)

Pack

30475

Radical Series Handheld Case

(Shown with Blue Screen Handheld Radical.

Blue Radical not included)

EA

1593

Masimo Tester

For Oximeter SpO

2

and PR Testing

EA

1795

Masimo Tester

For Oximeter & Patient Cable SpO

2

and PR Testing

EA

Product images are typical and for reference only Page 23 of 29

Bedside Device Accessories

Masimo PN Description UM

2227

Rad-8 Mounting Bracket

EA

Masimo

®

Product Catalog

Product Image Notes

2228

Rad-8 Power Cord Lock

EA

Handheld Device Accessories

Masimo PN Description UM Product Image Notes

2207

Water Resistant Protective Carrying

Case for Rad-57

®

, Black

EA

Shown with batteries, Rainbow

®

Sensor and Rad-57. Not included.

2208

Water Resistant Protective Carrying

Case for Rad-57, Red

EA

Shown with batteries, Rainbow Sensor and Rad-57. Not included.

Product images are typical and for reference only Page 24 of 29

Handheld Device Accessories

Masimo PN Description UM

Masimo

®

Product Catalog

Product Image Notes

13158

Handheld Carrying Case

(Shown with Rad-5™.

Rad-5 not included)

EA

1909

PRONTO™,

Handheld Device Serial Data

Cable

Used for connecting Rad-5/5v and Rad-8™ to

Personal Computer to enable download of trending data

EA

1908

1842

TrendCom™,

Trend Download Software

Used with appropriate PRONTO cable to initiate download and de-compression of Rad-5/5v and

Rad-57 trending data to a Personal Computer. Used with serial cable to initiate download and decompression of Rad-8 trending data.

EA

Handheld Boot, Gray

EA

2137

Rad-5™/5v Handheld Boot, Gray

1980

Handheld Boot, Yellow

EA

EA

2138

Rad-5/5v Handheld Boot, Yellow

1981

Handheld Boot, Red

2139

Rad-5/5v Handheld Boot, Red

1982

Handheld Boot, Orange

EA

EA

EA

EA

2140

Rad-5/5v Handheld Boot, Orange

Product images are typical and for reference only

EA

Page 25 of 29

Masimo

®

Product Catalog

Handheld Device Accessories

Masimo PN Description

2097

Handheld Boot, Royal Blue

UM Product Image Notes

EA

2141

Rad-5/5v Handheld Boot, Royal Blue

EA

2098

Handheld Boot, Light Blue

For use with Rad-5, Rad-5v and all Rad-57 handhelds

EA

2099

Handheld Boot, Pink

For use with Rad-5, Rad-5v and all Rad-57 handhelds

EA

Product images are typical and for reference only Page 26 of 29

Masimo

®

Product Catalog

SatShare Cables

SatShare

®

Cables

Masimo

PN

Description

1595

AT01

1324 DO01

1326 DO02

1528 DO03

Validated Monitor Interfaces

[Plug-In Parameter Modules]*

Airshields

Athena Monitor with Nellcor SpO

2

Datex-Ohmeda

AS/3 Patient Monitor [M-NSAT]

System 5 Compact Monitor [M-NSAT]

Datex-Ohmeda

AS/3 Patient Monitor

[M-NESTPR-00-00 / M-NESTR-00-00]

CardioCap/5 Monitor

Light Monitor

System 5 Compact Monitor

[M-NESTPR-00-00 / M-NESTR-00-00]

Datex-Ohmeda

AS/3 Patient Monitor [M-EST]

1533 DO04

2023 DO05

2223 DO06

1325 DS01

1539

DS02

Datex-Ohmeda

AS/3 Patient Monitor [M-ESTP]

System 5 Compact Monitor

[M-EST / M-ESTP]

Datex-Ohmeda

System 5 Compact Monitor

[M-NESTPR-00-01]

Datex-Ohmeda

System 5 Compact Monitor [M-PRESTN..01]

Corometrics

Maternal / Fetal Monitor Model 118

Maternal / Fetal Monitor Model 120

Critikon

Dinamap MPS Select Monitor

Datascope

Expert Monitor with Nellcor SpO

2

[HS-500]

Accutor Monitor with Nellcor SpO

2

Passport Monitor with Nellcor SpO

2

North American Draeger

Evita 2 Dura, Evita 4 Anesthesia Machine

Julian Anesthesia Machine

Narcomed 4 Anesthesia Machine

Vitalert 1000, 3100 Monitor

Edentec / Nellcor Puritan Bennett

Edentrace II Plus (Model 3711)

Medical Data Electronics

Escort Prism Monitor [20001]

Escort / Escort II Monitor

Welch Allyn Protocol

Propaq CS Monitor

Propaq Encore Monitor

Propaq Series 100 Monitor

Witt Biomedical

Frontend Patient Monitor

Datascope

Passport Monitor with Datascope SpO

Accutor Monitor with Datascope SpO

2

2

UM

EA

EA

EA

EA

EA

EA

EA

EA

EA

Host Connector Notes

* Module compatibility information is subject to change without notice. For more current information, please refer to the SatShare

®

Validation Chart located at http://www.masimo.com/pdf/pulseOximeter/LAB2694P.pdf

Product images are typical and for reference only Page 27 of 29

SatShare

®

Cables

Masimo

PN

Description

1365 DS03

1357 HP03

1321 MQ01

1789 MS01

1367 NK01

1368

NK02

1366 OH01

1646

OH02

1840 PM01

Validated Monitor Interfaces

[Plug-In Parameter Modules]*

Datascope

Expert

Fukuda Denshi

Dynascope DS-5300W

Philips / Agilent / HP

Viridia CMS Model [M1020A]

M1165, M1166, M1167, M1175, M1176,

M1177 Monitors [M1020A]

M1092, M1094, M1095, M1097 Display

Modules, using the M1046 Computer

Module [M1020A]

Omnicare / Viridia Model 24/26 Series

Monitor System M1204

Model 78352 Monitor [M1020A]

Series 50XM Fetal Monitor

GE / Marquette

Solar 7000 / 8000 Series Monitor,

Tramscope 12 / 12C Monitor, Series

7000 / 7000RA / 7005 / 7010 / 7010RA

/ 7200 Monitor, Smart-Pac Transport

Display Monitor [Tram 250SL / Tram

450SL / Tram 650SL / Tram 850A&SL /

SpO2 Solar Parameter Module]

Eagle 3000 Series Monitor

Eagle 4000 Series Monitor

Dash Series Monitor

North American Draeger

Narkomed 6100 Anesthesia Systems with

Integrated Patient Monitoring

GE/Marquette

Solar 8000 [Tram 451M / Tram 851M /

Masimo SET single parameter module]

Nihon Kohden

Model BMS-8301A/MV-831RA and Model

BMS-8502A [AL-800PA]

Nihon Kohden

BSM-2301A and BSM-5105K

Airshields

Athena Monitor with Ohmeda SpO

2

Ohmeda

RGM Monitor (Respiratory Gas Machine)

GE / Marquette

Solar 7000 / 8000 Series Monitor,

Tramscope 12 / 12C Monitor, Series

7000 / 7000RA / 7005 / 7010 / 7010RA /

7200 Monitor, Smart-Pac Transport

Display Monitor [Tram 100A / Tram

200A&SL / Tram 400A / Tram 500A / Tram

600A&SL / Tram 800A&SL]

Hellige

SMU 611 Monitor

(Not available for sale in the United States)

Philips Medical

M3/M4 [MMS Module]

Intellivue Monitor [MMS Module]

UM

EA

EA

EA

EA

EA

EA

EA

EA

EA

Masimo

®

Product Catalog

Host Connector Notes

* Module compatibility information is subject to change without notice. For more current information, please refer to the SatShare

®

Validation Chart located at http://www.masimo.com/pdf/pulseOximeter/LAB2694P.pdf

Product images are typical and for reference only Page 28 of 29

SatShare

®

Cables

Masimo

PN

Description

1323 SL01

1362

SL02

1322 SM01

Validated Monitor Interfaces

[Plug-In Parameter Modules]*

SpaceLabs Medical

PC Express Monitor (90308), PC Scout

Monitor (90309), PC Bedside / Central

Monitor (90303, 90311, 90312), PC2

Bedside / Central Monitor (90305,

90315, 90316) [90465 / 90466 / 90467 /

90489]

600 Series Monitor

SpaceLabs Medical

Ultraview 1030 / 1050 Portable Bedside

Monitor (90367, 90369) [90496]

Ultraview 1500 / 1600 / 1700 Bedside

Monitor (90363, 90364, 90387) [90496]

Ultraview UCW Bedside Monitor (90385)

[90496]

Siemens Medical Systems

Sirecust 1281 Monitor

SC 6002XL, SC7000, SC9000XL

UM

EA

EA

EA

Masimo

®

Product Catalog

Host Connector Notes

1605

SatShare

Extension

Cable

EA

* Module compatibility information is subject to change without notice. For more current information, please refer to the SatShare

®

Validation Chart located at http://www.masimo.com/pdf/pulseOximeter/LAB2694P.pdf

Product images are typical and for reference only Page 29 of 29

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
