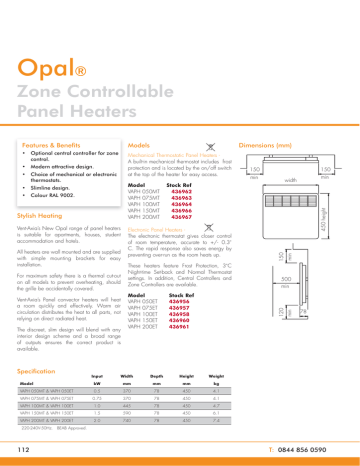

Opal Zone Controllable Panel Heaters ®
Opal®
Zone Controllable
Panel Heaters
Features & Benefits
Models
• Optional central controller for zone
control.
Mechanical Thermostatic Panel Heaters A built-in mechanical thermostat includes frost
protection and is located by the on/off switch
at the top of the heater for easy access.
Stylish Heating
Vent-Axia’s New Opal range of panel heaters
is suitable for apartments, houses, student
accommodation and hotels.
All heaters are wall mounted and are supplied
with simple mounting brackets for easy
installation.
For maximum safety there is a thermal cut-out
on all models to prevent overheating, should
the grille be accidentally covered.
Vent-Axia’s Panel convector heaters will heat
a room quickly and effectively. Warm air
circulation distributes the heat to all parts, not
relying on direct radiated heat.
The discreet, slim design will blend with any
interior design scheme and a broad range
of outputs ensures the correct product is
available.
Specification
These heaters feature Frost Protection, 3˚C
Night-time Set-back and Normal Thermostat
settings. In addition, Central Controllers and
Zone Controllers are available.
Stock Ref
436956
436957
436958
436960
436961
Input
Width
Depth
Height
Model
kW
mm
mm
mm
kg
VAPH 050MT & VAPH 050ET
0.5
370
78
450
4.1
VAPH 075MT & VAPH 075ET
0.75
370
78
450
4.1
VAPH 100MT & VAPH 100ET
1.0
445
78
450
4.7
VAPH 150MT & VAPH 150ET
1.5
590
78
450
6.1
VAPH 200MT & VAPH 200ET
2.0
740
78
450
7.4
220-240V-50Hz.
112
width
"A" WIDTH
Stock Ref
436962
436963
436964
436966
436967
Electronic Panel Heaters The electronic thermostat gives closer control
of room temperature, accurate to +/- 0.3˚
C. The rapid response also saves energy by
preventing over-run as the room heats up.
Model
VAPH 050ET
VAPH 075ET
VAPH 100ET
VAPH 150ET
VAPH 200ET
150
150
min.
min
450 450
height
Height
• Colour RAL 9002.
min.
min
min.
min
Model
VAPH 050MT
VAPH 075MT
VAPH 100MT
VAPH 150MT
VAPH 200MT
• Slimline design.
150
150
150
150
• Choice of mechanical or electronic
thermostats.
500
500
min.
min
120
120
min.
min
• Modern attractive design.
Dimensions (mm)
78
78
Weight
BEAB Approved.
T: 0844 856 0590
Heating
Pilot Wire (ET range only)
Zone 1
VA PCW
Zone 2
Pilot wire installations are ideal for newbuild applications where the control wire
can be installed with the first fix wiring. No
additional receivers are required, making
this a cost effective central control option.
VA PCI
Zone 1
VA MC Controller
Zone 1
Pilot wire installations require a control
wire from the programmer linking each
heater. Up to 15 heaters per zone can be
connected to one controller.
Zone 2
Discreet Programmer Location
VA MC Controller
Zone 2
VA PCI and VA MC Programmer slots neatly
behind the heater for convenience and ease
of use.
VA MI Receiver
additional heater to be controlled. Up to
fifteen heaters can be linked to one VA MC
controller.
Control (ET Models only)
VA PCW Central controller with pilot wire controlling
up to two zones. Configurable to give
Time of Day, Comfort/Setback/Off/Frost
protection modes. Manual over-ride and
Holiday modes
Stock Ref
436968
VA PCI Controller with pilot wire controlling
individual zones. Configurable to give
Time of Day, Comfort/Setback/Off/Frost
protection modes. Manual over-ride and
Holiday modes. Up to 15 slave heaters
can be linked to the Master Controller.
Stock Ref
436970
VA MI Panel heater interface required for use with
VAMC.
Stock Ref
436971
VA MI Receiver
Tamper Proof Controls
Selection switch and temperature can be
fixed in one position to prevent adjustment.
The temperature control may alternatively
be restricted to a max/min range.
Mains Borne Signalling
(ET range only)
VA MC Mains Borne Signalling Controller for
controlling individual zones. Configurable
to give Time of Day, Comfort/Setback/
Off/Frost protection modes. Manual override and Holiday modes.
Stock Ref
436969
Central Control
Central controllers are available in two
formats, Pilot Wire and Mains Borne
Signalling. Pilot Wire is ideal for newbuild installations where a signal cable
is installed with the power cable at first
fix stage.
W: www.vent-axia.com
Mains Borne Signalling (MBS)
MBS is ideal for refurbishment projects
where cabling is already installed. The
VA MC controller is heater mounted
and requires a receiver, VA MI on each
113
